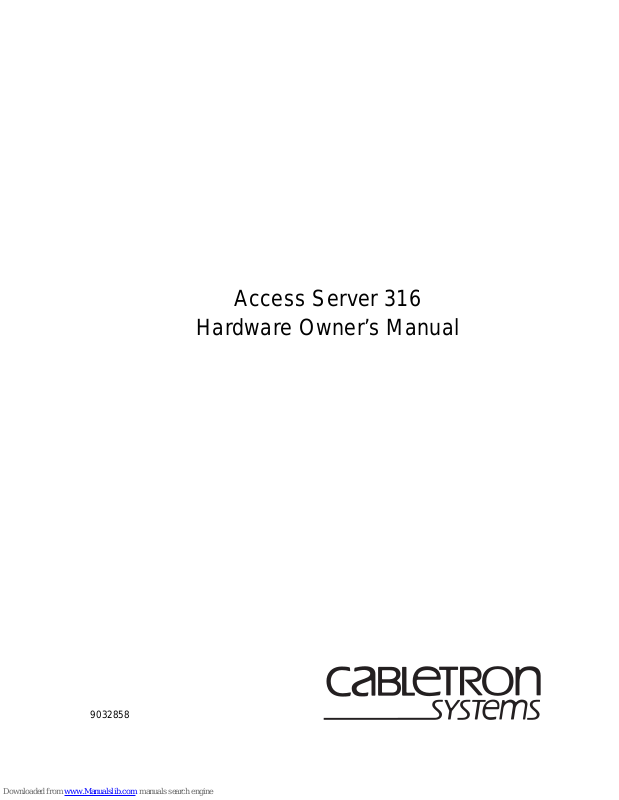

Cabletron Systems Access Server 316 Hardware Owner's Manual

Access Server 316

Hardware Owner’s Manual

9032858

Notice

Notice

Cabletron Systems reserves the right to make changes in specifications and other information
contained in this document without prior notice. The reader should in all cases consult Cabletron
Systems to determine whether any such changes have been made.

The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT,

SPECIAL, OR CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED
TO LOST PROFITS) ARISING OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION
CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF, KNOWN, OR
SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.

© July 1999 by:
Cabletron Systems, Inc.

35 Industrial Way
Rochester, NH 03867

All Rights Reserved
Printed in the United States of America

Order Number: 9032858

Cabletron Systems
DEC, DEChub, DIGITAL
Ethernet

All other trademarks or registered trademarks are the property of their respective holders.

is a trademark of Xerox Corporation.

is a registered trademark of Cabletron Systems, Inc.

, and the

DIGITAL logo

are trademarks of Compaq Computers, Inc.

i

Notice

FCC Notice

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

NOTE:

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial envir onment.
This equipment uses, generates, and can radiate radio frequency energy and if not installed in
accordance with the operator’s manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause interference in which case the user
will be required to correct the interference at his own expense.

WARNING:

party responsible for compliance could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class A digital

Changes or modifications made to this device which are not expressly approved by the

VCCI Notice

This is a Class A product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.

Industry Canada Notice

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital
apparatus set out in the Radio Interference Regulations of the Canadian Department of
Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.

ii

Notice

Declaration of Conformity

Addendum

Application of Council Directive(s):

Manufacturer’s Name:

Manufacturer’s Address:

European Representative Name:

European Representative Address:

Conformance to Directive(s)/Product Standards:

Equipment Type/Environment:

We the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with
this notice conforms to the above directives.

89/336/EEC
73/23/EEC
Cabletron Systems, Inc.
35 Industrial Way
PO Box 5005
Rochester, NH 03867
Mr. J. Solari
Cabletron Systems Limited
Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England
EC Directive 89/336/EEC
EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950
Networking Equipment, for use in a
Commercial or Light
Industrial Environment.

Mr. Ronald Fotino Mr. J. Solari

____________________________________________________ ______________________________________________________

Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.

____________________________________________________ ______________________________________________________

Title Title
Rochester, NH, USA Newbury, Berkshire, England

____________________________________________________ ______________________________________________________

Location Location

iii

Notice

iv

Preface

Contents

Using This Guide ...........................................................................................................vii

Intended Audience.........................................................................................................vii

Structure of This Guide.................................................................................................vii

Document Conventions ...............................................................................................viii

Related Documentation................................................................................................viii

Getting Help ....................................................................................................................ix

Chapter 1 Hardware Overview

Model 316....................................................................................................................... 1-2

Controls, Indicators, and Connectors.........................................................................1-2

Understanding the Software Loading........................................................................ 1-5

Loading from Flash RAM.....................................................................................1-5

Loading from the Network...................................................................................1-5

Chapter 2 Checking the Site

Physical Requirements................................................................................................. 2-2

Environmental Requirements .....................................................................................2-3

Electrical Requirements................................................................................................2-4

Chapter 3 Cabling the Site

Preinstallation Checks.................................................................................................. 3-1

Installing the Ethernet Cables and Devices............................................................... 3-2

Installing Serial Cables and Devices on the Access Server 316.............................. 3-2

Cabling Requirements..................................................................................................3-4

Standard Ethernet Connection............................................................................. 3-5

10BaseT Ethernet Connection ..............................................................................3-5

ThinWire Ethernet Connection............................................................................3-5

Installing the Access Server 316 in a Rack................................................................. 3-6

Installing the Access Server 316 on a Desktop.......................................................... 3-9

v

Contents

Chapter 4 Connector and Cable Pin Descriptions

Connector Pin Descriptions.........................................................................................4-1

Standard Ethernet..................................................................................................4-2

10BaseT Ethernet....................................................................................................4-3

Access Server 316 Serial Line Ports .....................................................................4-4

Cable Connections.........................................................................................................4-5

Cabling and Adapters Used with Access Server 316 ...............................................4-6

Chapter 5 Replacing and Adding Memory

Swapping or Replacing an Access Server 316 Unit..................................................5-1

Replacing a Faulty Single-In-Line Memory Module................................................5-2

Additional Memory Supported ................................................................................5-10

Installing Extra Memory ............................................................................................5-11

Chapter 6 Replacing and Adding Flash RAM

Replacing or Adding Flash RAM................................................................................6-2

Chapter 7 What to Do If You Have Problems

Diagnosing Problems....................................................................................................7-2

Seven-Segment Display Off and System OK LED Off.............................................7-3

System OK LED Off / Seven-Segment Display Flashing “C”, “d”, or “n” ..........7-3

System OK LED Off / Seven-Segment Display Flashing........................................7-4

System OK LED Flashing.............................................................................................7-4

Error Messages.......................................................................................................7-4

Seven-Segment Display Shows a “3”.........................................................................7-6

Downline Load Starts, Then Fails........................................................................7-6

Downline Load Does Not Start............................................................................7-7

Seven-Segment Display Codes....................................................................................7-7

Network Activity LED..................................................................................................7-8

vi

1

This manual describes how to use the Access Server 316. It also provides pr oblem
solving, connector and adapter, and pin assignment information.

Using This Guide

Read through this guide completely to understand the interface module features,
capabilities, and Local Management functions. A general working knowledge of
Ethernet and IEEE 802.3-type data communications networks and their physical
layer components is helpful when using these devices.

Preface

Intended Audience

This manual is intended for use by the hardware installer. The installer is
responsible for ensuring that the hardware is installed and tested. This manual
shows how to install when the site is verified and the cables and devices are in
place. It also shows how to verify the site, install cables and devices, and
troubleshoot problems. The person installing the software can then verify the
system installation.

Structure of This Guide

This guide is organized as follows:

Chapter Title Description

Hardware Overview

2

Checking the Site

Outlines the contents of this manual, describes the
features of the Access Server 316, pr ovides instructions
on obtaining additional help and concludes with a list
of related manuals.

Lists the physical, environmental, and electrical

requirements.
3
4

Cabling the Site
Connector and Cable Pin

Descriptions

Provides instructions on how to cable your site.

Shows the connector and pin assignments.

vii

5

Preface

Chapter Title Description

Replacing and Adding
Memory

6

7

Replacing and Adding
Flash RAM

What to Do If You Have
Problems

Document Conventions

Throughout this guide, the following symbols are used to call attention to
important information.

Note symbol. Calls the reader’s attention to any item of information that may be

NOTE

CAUTION

of special importance.

Caution symbol. Contains information essential to avoid damage to the

equipment.

!

Shows how to install extra memory and replace faulty
memory.

Shows how to update with flash RAM.

Describes what to do if you encounter a problem.

Related Documentation

The following documents may help the user to set up and manage the Network
Access Server 316:

Title Part Number

Network Access Server 316 Hardware Owner’s Manual
Network Access Software Management Guide
Network Access Software Commands Reference Manual
Network Access Software Problem Solving Guide
Network Access Software Installation Guide

viii

9032858
9032859
9032860
9032861
9032862

Title Part Number

Preface

Cabletron RADIUS Server Installation Guide
Cabletron RADIUS Server Management Guide

The manuals referenced above can be viewed or printed from the CD-ROM
included with the Access Server 316 or can be obtained on the World Wide Web in
Adobe Acrobat Portable Document Format (PDF).

Getting Help

For additional support related to this device or document, contact Cabletron
Systems using one of the following methods:

World Wide Web http://www.cab letron.com/
Phone [phone]
Internet mail [e-mail]
FTP ftp://ftp.cabletron.com/

Login
Password

To send comments or suggestions concerning this document, contact the Cabletron
Systems Technical Writing Department via the following
email address: [e-mail]

Make sure to include the document Part Number in the email message.

9032863
9032864

anonymous
your email address

Before calling Cabletron Systems, have the following information ready:

• Your Cabletron Systems service contract number

• A description of the failure

• A description of any action(s) already taken to resolve the problem (e.g.,
changing mode switches, rebooting the unit, etc.)

• The serial and revision numbers of all involved Cabletron Systems products in
the network

• A description of your network environment (layout, cable type, etc.)

• Network load and frame size at the time of trouble (if known)

• The device history (i.e., have you returned the device before, is this a recurring
problem, etc.)

• Any previous Return Material Authorization (RMA) numbers

ix

Preface

x

Hardware Overview

Chapter 1

The Access Server 316
modems) to local area networks (LANs). The Access Server 316 is Ethernet/IEEE

802.3-based and supports standard Ethernet/IEEE 802.3 and l0BaseT Ethernet/

IEEE 802.3 directly, and ThinWire Ethernet/IEEE 802.3 through an adapter. The
Access Server 316 can be installed on a desktop or in a 19-inch rack. The Access
Server 316 supports Flash RAM capability and other nonvolatile forms of
memory. The Access Server 316 is shipped with Flash RAM installed. Should the
Flash RAM ever fail, it can be ordered separately and replaced on the Access
Server 316.

The Access Server 316 can download the software image from the network or
from the Flash RAM option. The Flash RAM option allows for a boot/powerup
without having to download the image through the network. The Access Server
316 will support up to 8 Mbytes of memory with the use of two single-in-line
modules (SIMs). These SIMs can be installed as memory updates by the customer.

This chapter includes the following topics:

• Model 316

• Controls, Indicators and Connectors

• Understanding the Software Loading

connects devices (such as printers, terminals, PCs, and

1-1

Hardware Overview

Model 316

The Access Server 316 supports TIA/EIA-423-B signal levels on 16 MJ8
connectors. Use the Access Server 316 to connect devices such as terminals,
printers, modems, bar-code readers, or personal computers in terminal
emulation mode. You can connect the Access Server 316 directly or, where
required, using special adapters (see

Adapter H8585-AB and H8585-AC are not for connection to public networks in

NOTES

Sweden, Germany, or Japan.

Chapter 3) .

Controls, Indicators, and Connectors

All of the Access Server 316 controls, indicators, and connectors ar e located on the
rear, as shown in Figure 1-1, with the exception of the System OK LED, which is
duplicated on the front of the Access Server 316 (Figure 1-2).

1-2

Figure 1-1. Access Server 316 Rear View

Figure 1-2. Access Server 316 Front View

Table 1-1 describes the Access Server 316 controls.

Hardware Overview

Table 1-1. Access Server 316 Controls

Control Description

System reset switch On power up, press this switch until E appears on the

Seven-segment display. This reloads the factory set
parameters. During Flash load (three horizontal segments of
the Seven-segment LED), pressing and holding the system
reset switch will abort the Flash RAM load and force a
network boot. See Chapter 7 for more information.

Ethernet select switch This switch selects either standard or 10BaseT Ethernet.

Table 1-2 describes the indicators.

Table 1-2. Access Server 316 Indicators

Indicator Display

System OK LED Lights (green) when the Access Server 316 has passed

self-test. Blinks when a nonfatal error occurs on self-test.
When off, indicates that the Access Server 316 has failed
self-test.

Network Activity
LED

Refer to Table 1-3.

Seven-Segment
Display

Provides error and status information.

1-3

Hardware Overview

Table 1-3 describes the LEDs.

Table 1-3. Network Activity LED

Ethernet
Selected

Connection Status LED Display

10BaseT Open/incorrectly terminated OFF

Correctly terminated/no network activity ON
Correctly terminated/network activity Flashing (rate independent of

network activity).

Standard Open on network activity OFF

Correctly connected/no network activity OFF
Correctly connected/network activity Flashing or ON, depending

on network activity.

Table 1-4 describes the connectors. For additional information on the connectors,
refer to Chapter 4.

Table 1-4. Access Server 316 Connectors

Connector Description

Serial port connectors These 16 female MJ8 connectors connect asynchronous serial

devices to the Access Server 316.

1-4

Standard Ethernet
connector

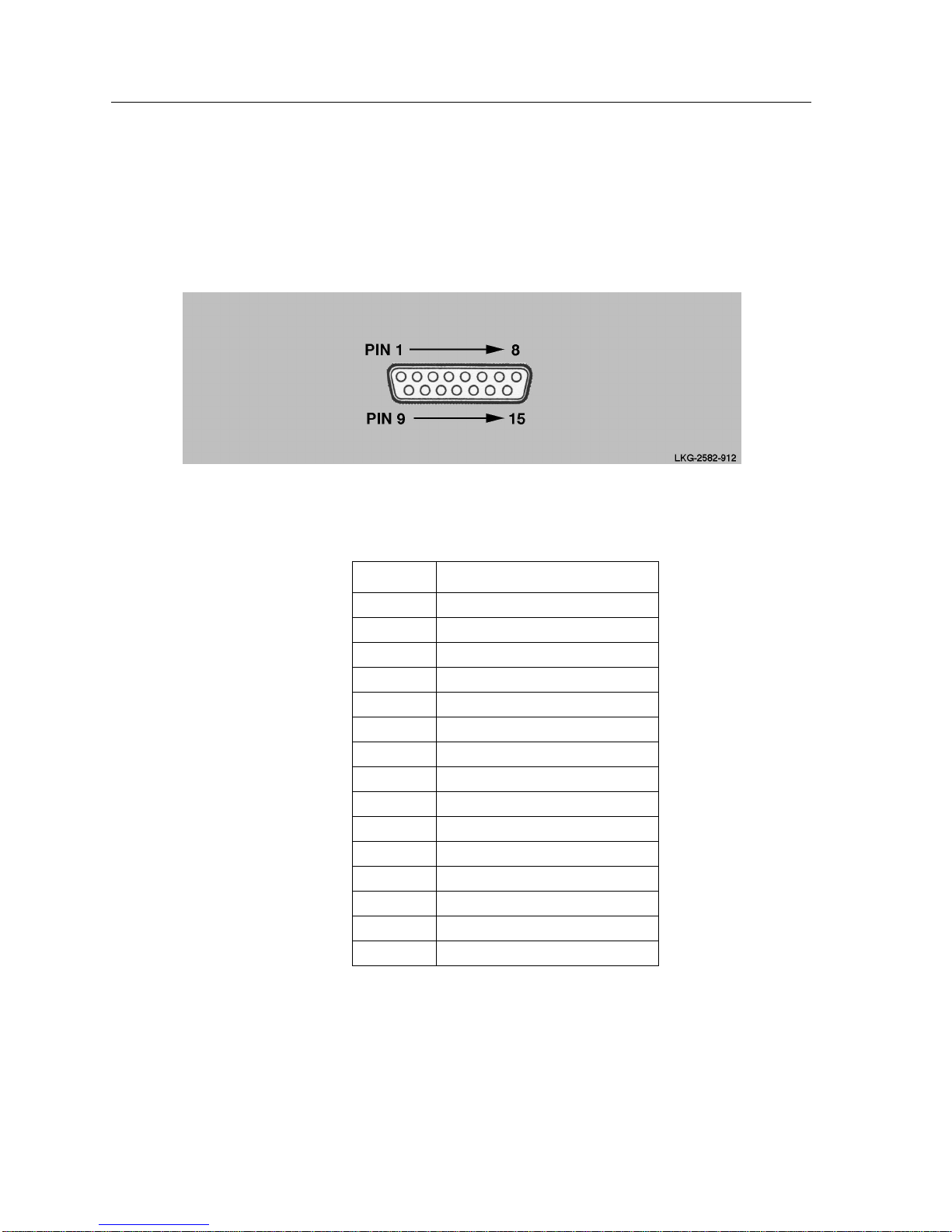

This single 15-pin female D-connector connects to a standard
Ethernet/IEEE 802.3 local area network using a transceiver
cable.

10BaseT Ethernet
connector

This single female MJ8 connector connects to a 10BaseT
Ethernet/IEEE 802.3 local area network.

Power cord receptacle The Access Server 316 power cord plugs into this receptacle.

Understanding the Software Loading

This section describes the two methods for loading software.

Loading from Flash RAM

Once the Access Server 316 completes self-tests, it checks for Flash RAM. If there
is a valid Flash RAM, the Access Server 316 begins the boot sequence to load the
software from Flash RAM. The Seven-segment display will display three
horizontal segments during this Flash RAM loading phase.

If the Access Server 316 does not have Flash RAM, or if the name of the image in
Flash RAM does not match the image name the Access Server 316 is attempting to
load, it proceeds to a network load.

Hardware Overview

If a device is connected to the console port, the Access Server 316 can display
status messages while the boot sequence is running. Status messages indicate the
Ethernet address of the Access Server 316, the name of the load image it is looking
for, and the current stage of the boot process.

Loading from the Network

If you do not want to load the software from Flash RAM, you can press the
system reset switch during load from Flash RAM (three horizontal segments
displayed on the Seven-segment display). When the system reset switch is
pressed, the Flash RAM load will be aborted and the software is downline loaded
from a load host.

When the Access Server 316 notices that the system reset switch depr essed during
a load from Flash RAM, it will rapidly blink the LED to acknowledge the pressed
system reset switch (this may take several seconds). Once the LED begins rapidly
blinking, you may release the system reset switch and the firmware will go on to a
network boot sequence. For more information on display codes for Flash RAM
(See section titled

Seven-Segment Display Codes

on page 7-7).

1-5

Hardware Overview

1-6

Checking the Site

The Access Server 316 can operate in an office environment and in a standard
equipment rack located in a computer room or satellite equipment room.
Regardless of where you install the Access Server 316, verify that all of the
requirements in this section are met before beginning the installation.

Chapter 2

This chapter includes the following sections:

• Physical Requirements

• Environmental Requirements

• Electrical Requirements

2-1

Checking the Site

Physical Requirements

Allow for 15 cm (6 in) of airspace around the Access Server 316 air vents.
Table 2-1 shows the size and weight of the Access Server 316.

Table 2-1. Physical Specifications of the Access Server 316

Dimension Measurement

Height 44 mm (1.73 in)
Width 442 mm (17.4 in)
Depth 282 mm (11.1 in)
Weight 2.5 kg (5.51 lbs)

Table 2-2 shows the acoustic parameters.

Table 2-2. Acoustical Parameters

Parameter Measurement

1

LWAd
Lpam (bystander) 27 dBA

1. Preliminary declared values per ISO 9296 and
ISO 7779. Current values are available from
respresentatives.

4.1 bels (LWA = 3.8 bels)

2-2

Environmental Requirements

Environmental requirements for temperature and humidity must be within the
ranges shown in Table 2-3.

Table 2-3. Environmental Specifications of the Access Server 316

Parameter Minimum Maximum

Checking the Site

Temperature

Operating 5
Nonoperating - 40
Maximum rate of

1

o

C (41

o

C (- 40

o

F) 50

o

F) 66

20

o

C (122

o

C (151

o

C (36

o

F)

o

F)

o

F)

temperature change per hour

Altitude

Operating 2438 m (8000 ft)
Nonoperating 4876 m (16000 ft)

Relative Humidity

Operating (noncondensing) 10% 95%
Nonoperating (noncondensing) 10% 95%

1. For high altitude sites, decrease the operating temperature
specification by 1.8

o

C for each 1000 m (1

o

F for each 1000 ft) above sea

level.

2-3

Checking the Site

Electrical Requirements

The power at the electrical outlet must match the requirements shown in
Table 2-4.

The instructions assume that an appropriate AC power source is within 1.8 m
(6.0 ft) of Access Server 316.

Table 2-4. Electrical Requirements

Parameter Access Server 316

Line voltage
Frequency 50/60 Hz
Line current 1.0 A rms/.5 A rms
Power 68W

1. The Access Server 316 automatically selects the
voltage range.

1

100–120 V rms/220–240 V rms

Table 2-5 shows the electrical output from the standard Ethernet/IEEE 802.3
connector.

Table 2-5. Standard Ethernet/IEEE 802.3 Connector Output

Parameter Access Server 316

Voltage + 12 V DC
Current 0.5 A Max

2-4

Cabling the Site

This chapter shows you how to install the cables and associated devices used by
the Access Server 316.

This chapter includes the following sections:

• Preinstallation Checks

• Installing the Ethernet Cables and Devices

• Installing Serial Cables and Devices on the Access Server 316

• Cabling Requirements

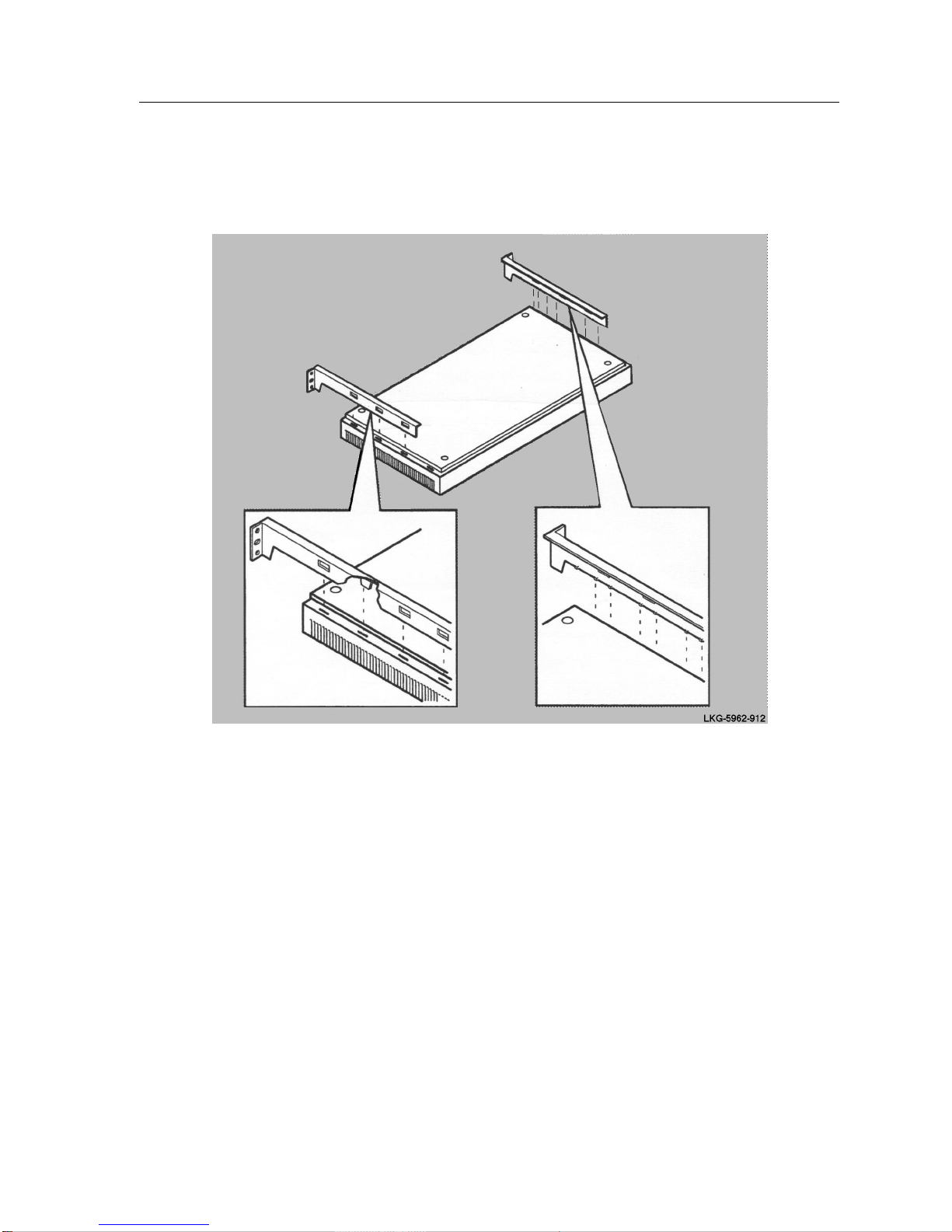

• Installing the Access Server 316 in a Rack

• Installing the Access Server 316 on a Desktop

Chapter 3

Preinstallation Checks

Before beginning the Access Server 316 installation, use the following checklist to
make sure that the site preparation is complete:

• Arrangements have been made to connect the Access Server 316 Ethernet port
to an Ethernet interface device (if required).

• The Ethernet interface device is installed and the required cabling is in place,
tested, and tagged.

• The rack-mount kit is installed (if required), as described in later in this chapter .

• Cables of appropriate length are available for connecting the Access Server 316
to the Ethernet interface device.

• The devices (terminals, modems, personal computers, hosts) are ready to be
connected.

3-1

Cabling the Site

• Cables of appropriate length and type are available for connection of serial
devices.

• One terminal (asynchronous TIA/EIA-423 or EIA/TIA-232-D compatible) is
available for hardware testing and system verification.

Installing the Ethernet Cables and Devices

You can connect the Access Server 316 to:

• Standard Ethernet/IEEE 802.3 network

• lOBaseT Ethernet/IEEE 802.3 network

• ThinWire Ethernet/IEEE 802.3 network using an external media access unit
(MAU)

Installing Serial Cables and Devices on the Access
Server 316

The Access Server 316 can be configured by the softwar e to support one of the two
sets of signals. One set consists of:

• Clear to send (CTS)—This is the default setting.

• Request to send (RTS)—This is the default setting.

• Data set ready (DSR)—This is the default setting.

• Data terminal ready (DTR)—This is the default setting.

The second set consists of:

• Ring indicator (RI)

• Data signal rate selector (DSRS)

• Data carrier detect (DCD)

• Data terminal ready (DTR)

Before installing cables to the Access Server 316, you must find out which modem
signals are supported from the person managing the Access Server 316. This
information is necessary to determine which cables to use. For more information
on the signals, refer to the

Use the cables listed and described in the following table to connect to the 8-pin
modular jacks on the serial communication lines of the Access Server 316.

Network Access Software Management

guide.

3-2

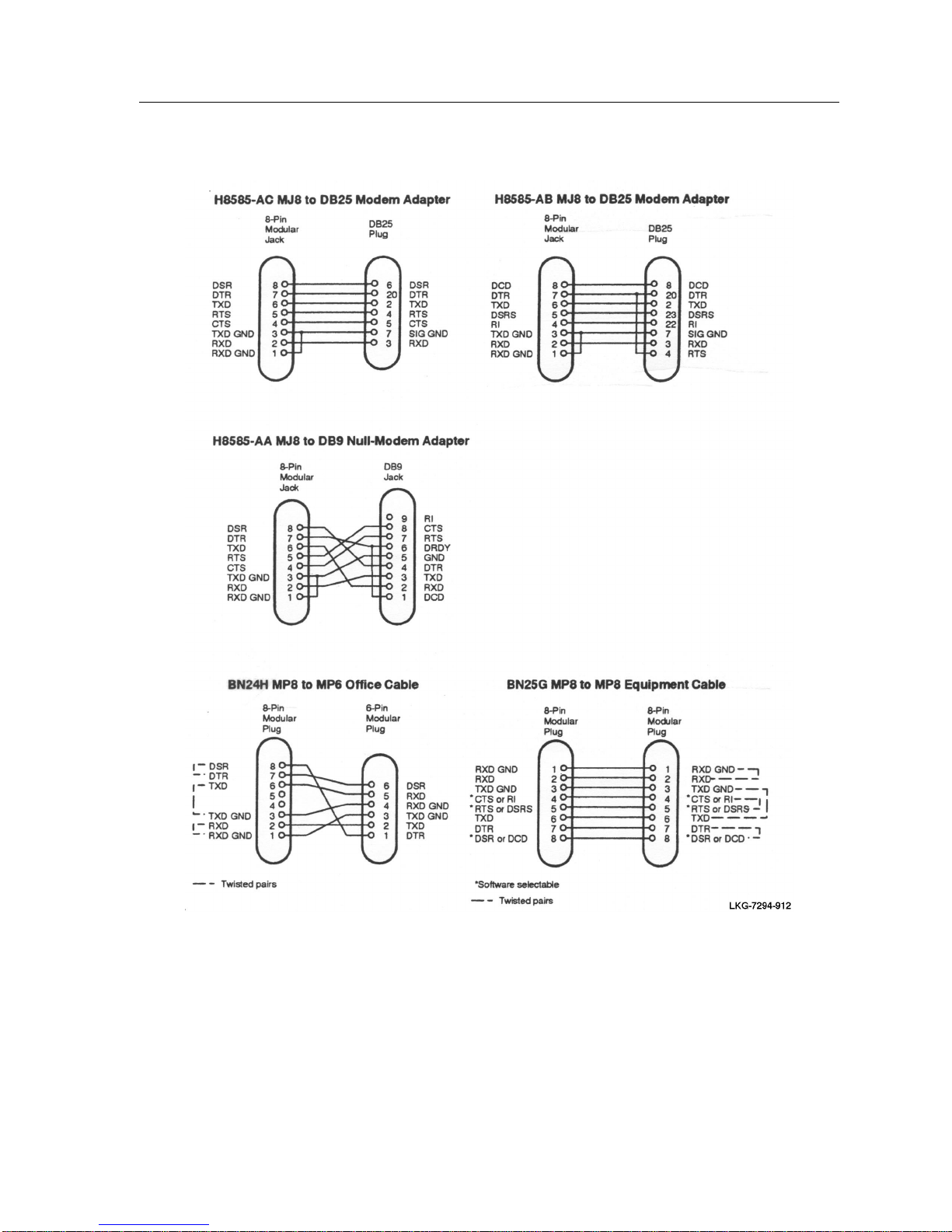

Table 3-1. Cables and Adapters for the Access Server 316

Cable and Adapters Description

Cabling the Site

BN25G MP8 to
MP8 Equipment Cable

BN24H MP8 to
MMP6 (modified
modular plug) Office Cable

H8575-A (EIA 423-B to
EIA-232-D) Adapter

Use this 8-wire pin-to-pin cable to connect to
H8585-xx series adapters.

Use this cable to connect to the 6-pin modified
modular jack (MMJ) of H8575-xx series
adapters or to a DEC-style printer or terminal.

Use this adapter and the BN24H cable to
connect to 25-pin D-sub male connectors (for
example: printers).

H8575-B Adapter Use this adapter and the BN24H cable to

connect to 9-pin D-sub male connectors.

H8575-D (E1A423-B to
EIA-232-D) Adapter

H8585-AA MJ8 to
DB9 (female) Null-Modem
Adapter

Use this adapter and the BN24H cable to
connect to 25-pin D-sub female connectors.

Use this adapter with the BN25G cable to
convert the Access Server 316 connector to DB9
(female) connector for cabling to PC
asynchronous ports.

H8585-AB MJ8 to
DB25 (male) Modem Adapter

Can be used with the BN25G cable to connect
low speed modems to the Access Server 316.
Refer to Chapter 4 for further information.

H8585-AC MJ8 to
DB25 (male) Modem Adapter

Can be used with the BN25G cable to connect
high speed modems to Access Server 316. Refer
to Chapter 4 for further information.

Adapters H8585-AB and H8585-AC are not for connection to public networks in

NOTE

Sweden, Germany, or Japan.

3-3

Cabling the Site

Cabling Requirements

Table 3-2 shows the maximum communication distances for different types of
cable used between the Access Server 316 and the Ethernet device. Table 3-3
shows the maximum cable lengths for a number of data rates using Access Server
316 supported line protocols.

The cabling requirements of the Access Server 316 are shown in the following
sections.

Table 3-2. Maximum Communications Distances—Ethernet

From To

Access
Server 316

Access
Server 316

Access
Server 316

Transceiver 50 m (164 ft) BNE3x-xx standard transceiver cable

Transceiver 12.5 m (41 ft) BNE4x-xx office transceiver cable

Repeater 100 m (328 ft) BN24Q cable (cross-over type)

Table 3-3. Maximum Cable Lengths—Access Server 316 to Devices

Line Protocol Data Rate (b/s) Cable Length

EIA/TIA-432-A/V.10 4.8 K

Maximum
Distance

9.6 K

19.2 K

38.4 K

57.6 K

115.2 K

Cable
Type

BN25G (straight-through type)

500 m (1500 ft)
280 m (900 ft)
150 m (500 ft)
85 m (280 ft)
30 m (100 ft)
12 m (40 ft)

EIA/TIA 423 9.6 K

EIA/TIA-232-E/V.28 9.6 K

3-4

19.2 K

38.4 K

57.6 K

115.2 K

19.2 K

38.4 K

57.6 K

115.2 K

900 m (3000 ft)
300 m (1000 ft)
150 m (500 ft)
60 m (200 ft)
30 m (100 ft)

60 m (200 ft)
30 m (100 ft)
15 m (50 ft)
6 m (20 ft)
3 m (10 ft)

Do not use structured building wiring or bundled type breakout cables at baud

!

CAUTION

rates above 38.4 K. Separate point to point cables are recommended at baud rates
above 38.4 K.

Standard Ethernet Connection

The transceiver cable must not exceed the maximum distances listed in Table 3-2.

10BaseT Ethernet Connection

The 10BaseT Ethernet installation must conform to the following configuration
rules:

• The twisted-pair cable must not exceed the maximum distance listed in

Table 3-2.

Cabling the Site

• No other signal should be used in the same cable sheath. For example, voice

and data signals cannot be run within the same sheath.

• Unshielded twisted-pair cable must remain at least 30.48 cm (12 in) from any

type of high-voltage power device or electrical noise source.

ThinWire Ethernet Connection

The ThinWire cable segment must conform to the following configuration rules:

• The maximum cable segment length must not exceed 185 m (606 ft).

• There must be a 50-ohm terminator at each end of the cable segment.

• There must be only one ground per cable segment.

• There must be at least 0.5 m (19 in) between T-connectors.

• The maximum number of stations, between terminators, must not exceed 30

stations.

• ThinWire cable segments must not be configured in a loop.

• ThinWire cable segments must not have any branch segments.

3-5

Cabling the Site

Installing the Access Server 316 in a Rack

You can rack mount the Access Server 316 in any one of four ways (Table 3-4)
depending on how you install the brackets.

Table 3-4. Installing the Access Server 316 Brackets

Access Server 316 Installation Bracket Installation

1. Flush with rear facing outward Flush with rear

2. Recessed 2.54 cm (1 in)
with rear facing outward

3. Flush with front facing outward Flush with front

4. Recessed 2.54 cm (1 in)
with front facing outward

Forward 2.54 cm (1 in) from rear

Forward 2.54 cm (1 in) from rear

3-6

Cabling the Site

Figure 3-1 shows how to install the brackets in order to recess the Access
Server 316.

Figure 3-1. Access Server 316 Bracket Installation

3-7

Cabling the Site

Figure 3-2 shows how to remove the brackets from the Access Server 316.

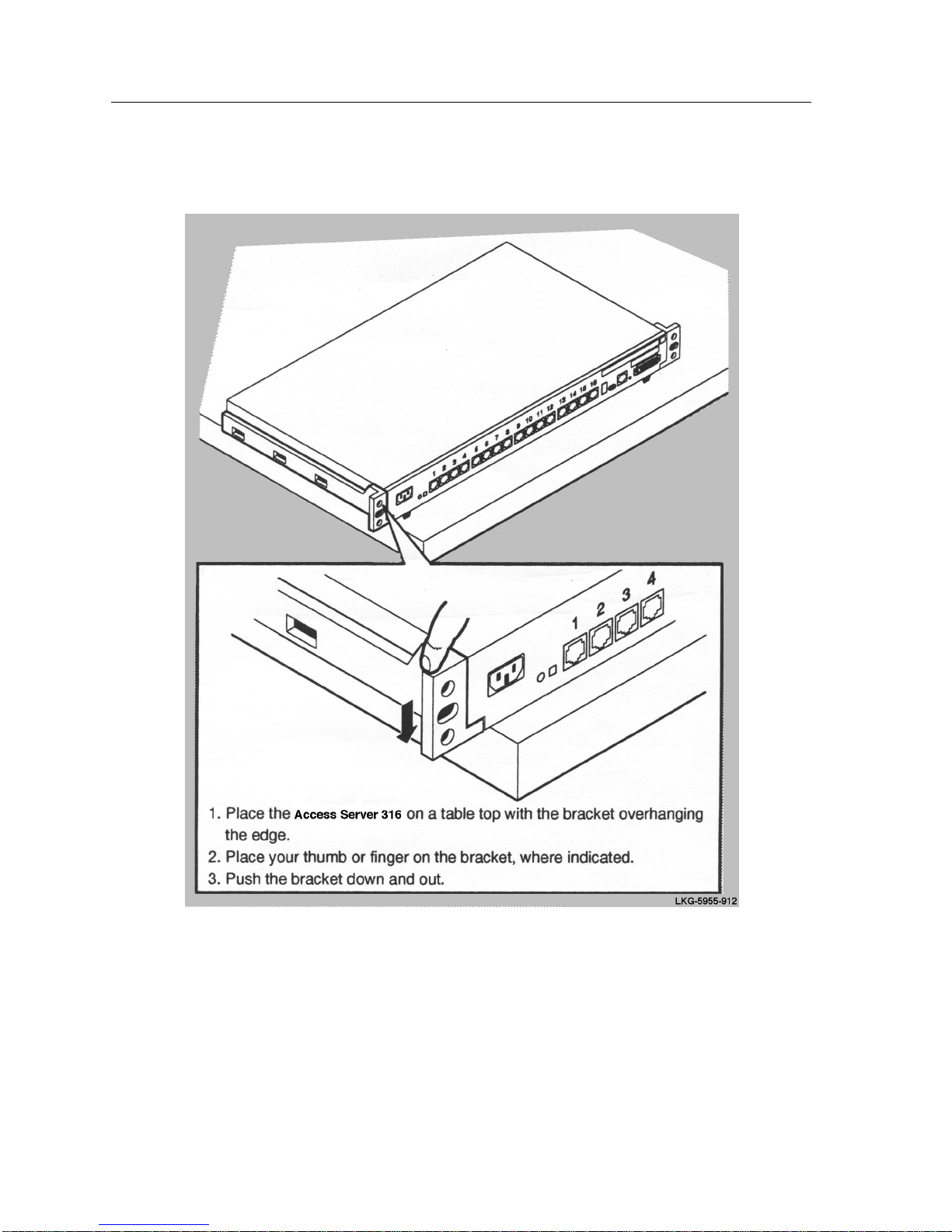

Figure 3-2. Access Server 316 Bracket Removal

3-8

Cabling the Site

Installing the Access Server 316 on a Desktop

To install the Access Server 316 on a desktop:

Step Action

1 Turn the Access Server 316 upside down.
2 Remove the backing from the feet.
3 Stick the feet to the Access Server 316.

3-9

Cabling the Site

3-10

Connector and Cable Pin
Descriptions

This chapter describes the pins of the Access Server 316 hardware connectors and
the cables used to interface to the Access Server 316 hardwar e. W iring diagrams of
the individual cables are included to help you in troubleshooting and cable
building.

This chapter includes the following sections:

• Connector Pin Descriptions

• Cable Connections

• Cabling and Adapters Used with Access Server 316

Chapter 4

Connector Pin Descriptions

This section describes the pins for the following Access Server 316 connectors:

• Standard Ethernet/IEEE 802.3 transceiver interface

• 10BaseT Ethernet/IEEE 802.3 transceiver interface

• Access Server 316 serial port connectors

4-1

Connector and Cable Pin Descriptions

Standard Ethernet

Figure 4-1 shows how the pins are numbered on a standard Ethernet transceiver
interface connector and Table 4-1 lists the signals for the standard Ethernet
connector pins.

Figure 4-1. Pin Numbers and Signals for Standard Ethernet Connector

Table 4-1. Signal Names for Standard Ethernet Connector Pins

Pin No. Signal Name

1 Shield
2 Collision Presence +
3 Transmit +
4 Reserved
5 Receive +
6 + 12 Volt Power Return
7 Reserved
8 Reserved

9 Collision Presence ­10 Transmit ­11 Reserved
12 Receive ­13 +12 Volt Power
14 Reserved
15 Reserved

4-2

10BaseT Ethernet

The 10BaseT Ethernet connector is an 8-pin modular jack (MJ8). Figure 4-2 shows
how the pins are numbered on a 10BaseT Ethernet connector and Table 4-2 lists
the signals for the 10BaseT Ethernet connector.

Figure 4-2. Pin Numbers and Signals for 10BaseT Ethernet Connector

Connector and Cable Pin Descriptions

Table 4-2. Signal Names for 10BaseT Ethernet Connector Pins

Pin No. Signal Name

1 Transmit +
2 Transmit ­3 Receive +
4 Reserved
5 Reserved
6 Receive ­7 Reserved
8 Reserved

4-3

Connector and Cable Pin Descriptions

Access Server 316 Serial Line Ports

The Access Server 316 uses an MJ8 connector on the serial ports. Figure 4-3 shows
how the pins are numbered on the MJ8 connector and Table 4-3 lists the signals on
the pins. You can set pins 4, 5, and 8 to either CTS, RTS, DSR or RI, DSRS, DCD.

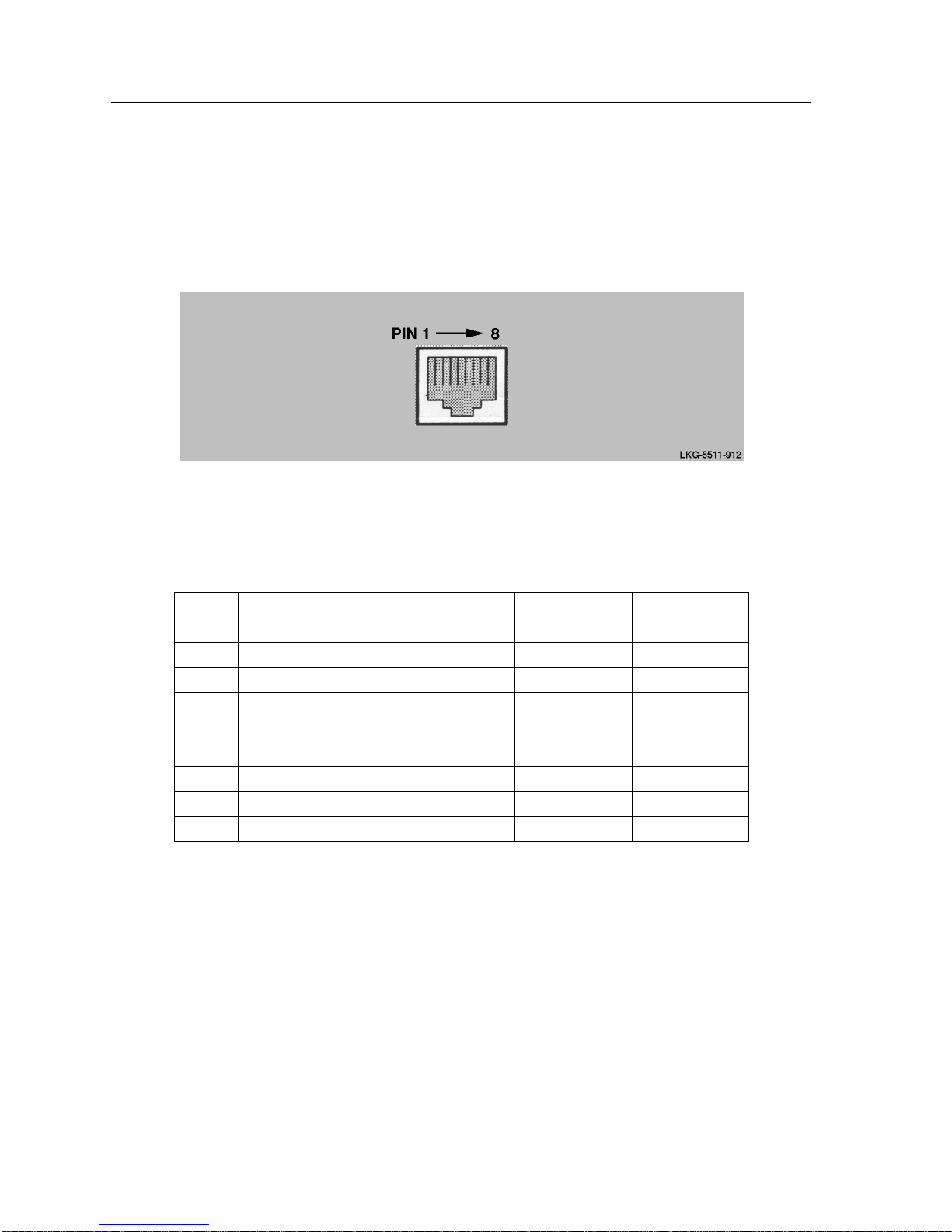

Figure 4-3. Pin Numbers and Signals for the MJ8 Connector

Table 4-3. Signal Names and Default Values for MJ8 Connector Pins

Pin No. Signal Name

Software

Default

1

Alternative

1 RXD GND
2 RXD
3 TXD GND
4 CTS or RI (selected by software) CTS RI
5 RTS or DSRS (selected by software) RTS DSRS
6 TXD
7 DTR
8 DSR or DCD (selected by software) DSR DCD

1. To change default values, refer to the Cabletron Network Access Software
Management Guide.

Software

1

4-4

Cable Connections

Table 4-4 describes the cable connections that are compatible with the Access
Server 316 Ethernet and serial line connectors. Wiring diagrams of individual
cables are provided for use in troubleshooting and cable building.

Cable Type Description

10BaseT Ethernet Cable The 10BaseT Ethernet cable uses an 8-pin modular

Connector and Cable Pin Descriptions

Table 4-4. Cable Connections

plug on each end.

NOTE

BN25G MP8 to
MP8 Equipment Cable

H8585-AA MJ8 to
DB9 Null-Modem Adapter

BN24H MP8 to
MP6 Office Cable

H8585-AB MJ8 to
DB25 Modem Adapter

H8585-AC MJ8 to
DB25 Modem Adapter

The BN25G is a four twisted-pair cable with
standard 8-pin modular plugs.

The H8585-AA MJ8 to DB9 null-modem adapter is
used to convert the serial port to a DB9 female
connector for asynchronous connection to a PC port.

The BN24H is a three twisted-pair cable with a
standard 8-pin modular plug on one end and a 6-pin
modular plug on the other.

The H8585-AB MJ8 to DB25 low speed modem
adapter is used to convert a serial port to the DB25
configuration. Used for older styles of modems.

The H8585-AC MJ8 to DB25 high speed modem
adapter is used to convert a serial port to the DB25
configuration.

Adapters H8585-AB and H8585-AC are not for connection to public networks in
Sweden, Germany, or Japan.

4-5

Connector and Cable Pin Descriptions

Cabling and Adapters Used with Access Server 316

The following figures illustrate the cabling and adapters used that can be used
with the Access Server 316.

Figure 4-4. Crossover Cable Connection

4-6

Connector and Cable Pin Descriptions

Figure 4-5. Crossover and Straight-Through Cable Connections

4-7

Connector and Cable Pin Descriptions

4-8

Chapter 5

Replacing and Adding Memory

This chapter describes and illustrates the procedures for handling single-in-line
memory modules (SIMs) and Flash RAM when swapping out an Access Server
316 unit, and it shows how to replace a faulty SIM and add memory.

This chapter includes the following sections:

• Swapping or Replacing an Access Server 316 Unit

• Replacing a Faulty Single-In-Line Memory Module

• Additional Memory Supported

• Installing Extra Memory

Swapping or Replacing an Access Server 316 Unit

Whenever an Access Server 316 unit is replaced, the Single In-Line Memory
Modules (SIMs) and FLASH CARD must be REMOVED from the old unit and re­installed in the replacement. The removable Flash Card is used for installation of
the Network Access Software and is not required for the operation of the unit.

Before an Access Server 316 is swapped, assure that at least one memory SIM is
installed. Please refer to the following chapters for the correct procedure for
removing and installing SIMs and Flash Cards.

SIMs are sensitive to static and are packed in anti-static packaging. Electrostatic

!

CAUTION

Discharge (ESD) can cause failure of electronic components and can reduce the
long term reliability of the Access Server 316. Cabletron recommends that you use
an anti-static kit or ESD wrist strap when handling SIMs.

5-1

Replacing and Adding Memory

Replacing a Faulty Single-In-Line Memory Module

To replace a SIM:

1. Disconnect all cables from the Access Server 316.

2. Remove the Access Server 316 brackets (if fitted) (Figure 5-1).

5-2

Figure 5-1. Replace Unit

3. Remove the Access Server 316 cover (Figure 5-2).

Replacing and Adding Memory

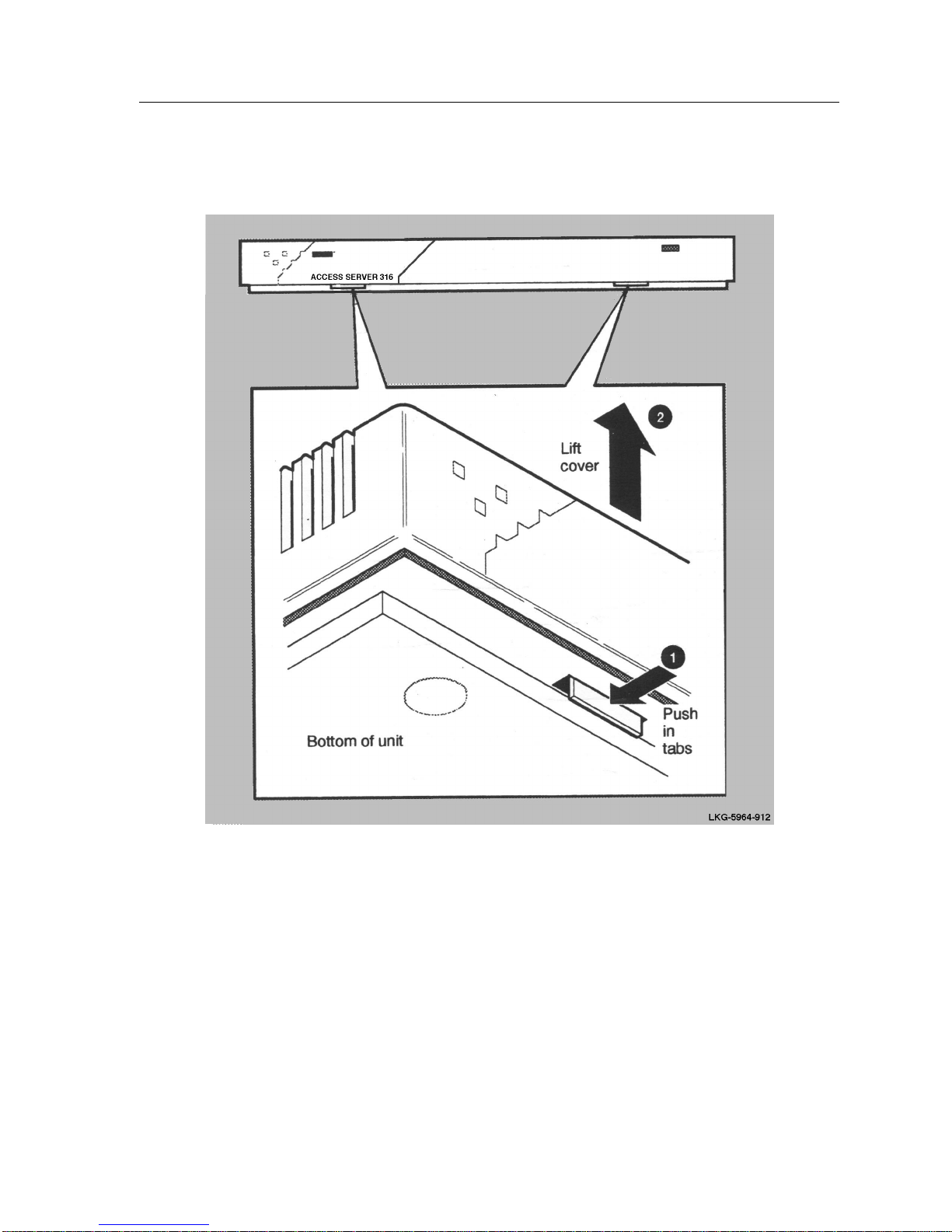

Figure 5-2. Cover Removal

5-3

Replacing and Adding Memory

4. Fit the anti-static kit (Figure 5-3).

5-4

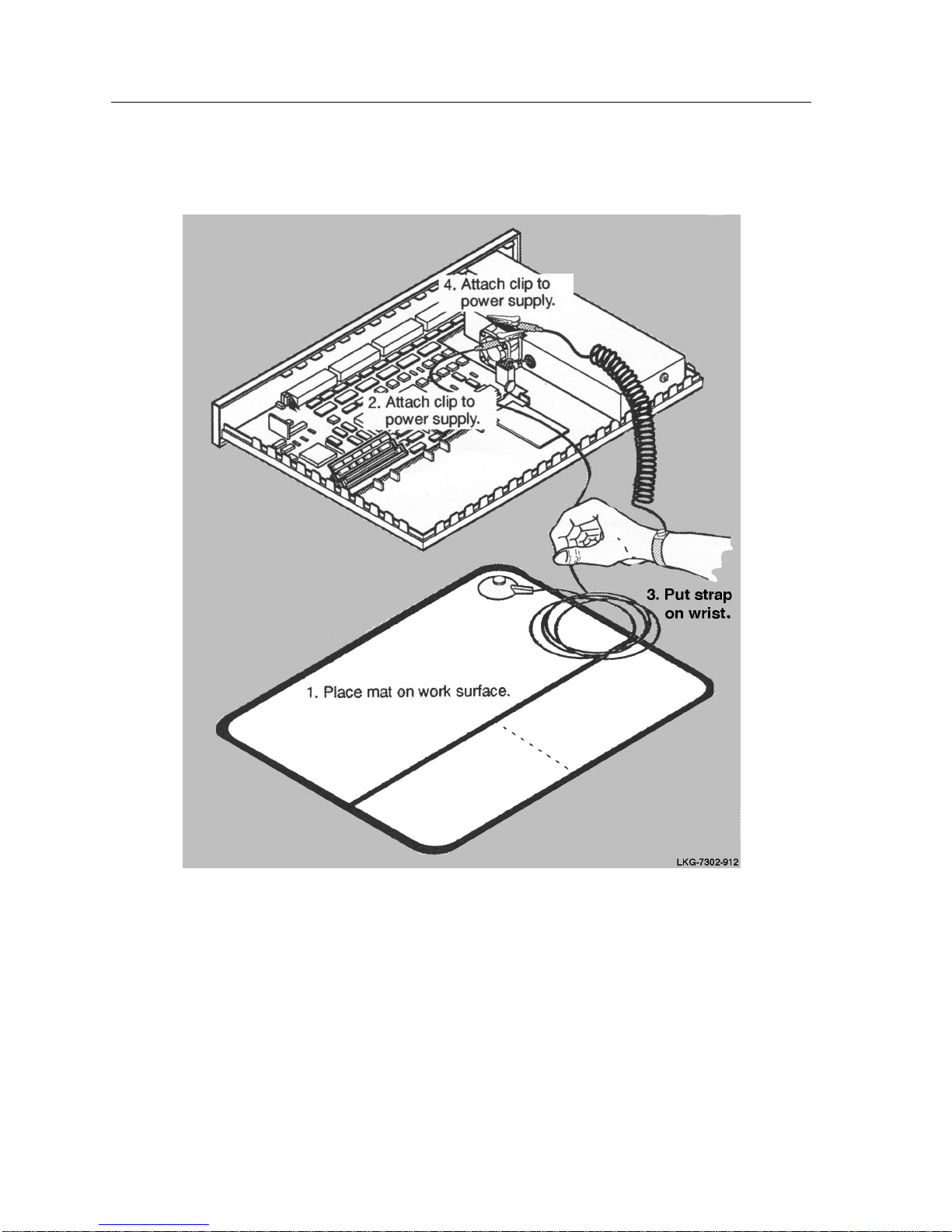

Figure 5-3. Anti-Static Wrist Guard

5. Locate the SIM connectors (Figure 5-4).

Replacing and Adding Memory

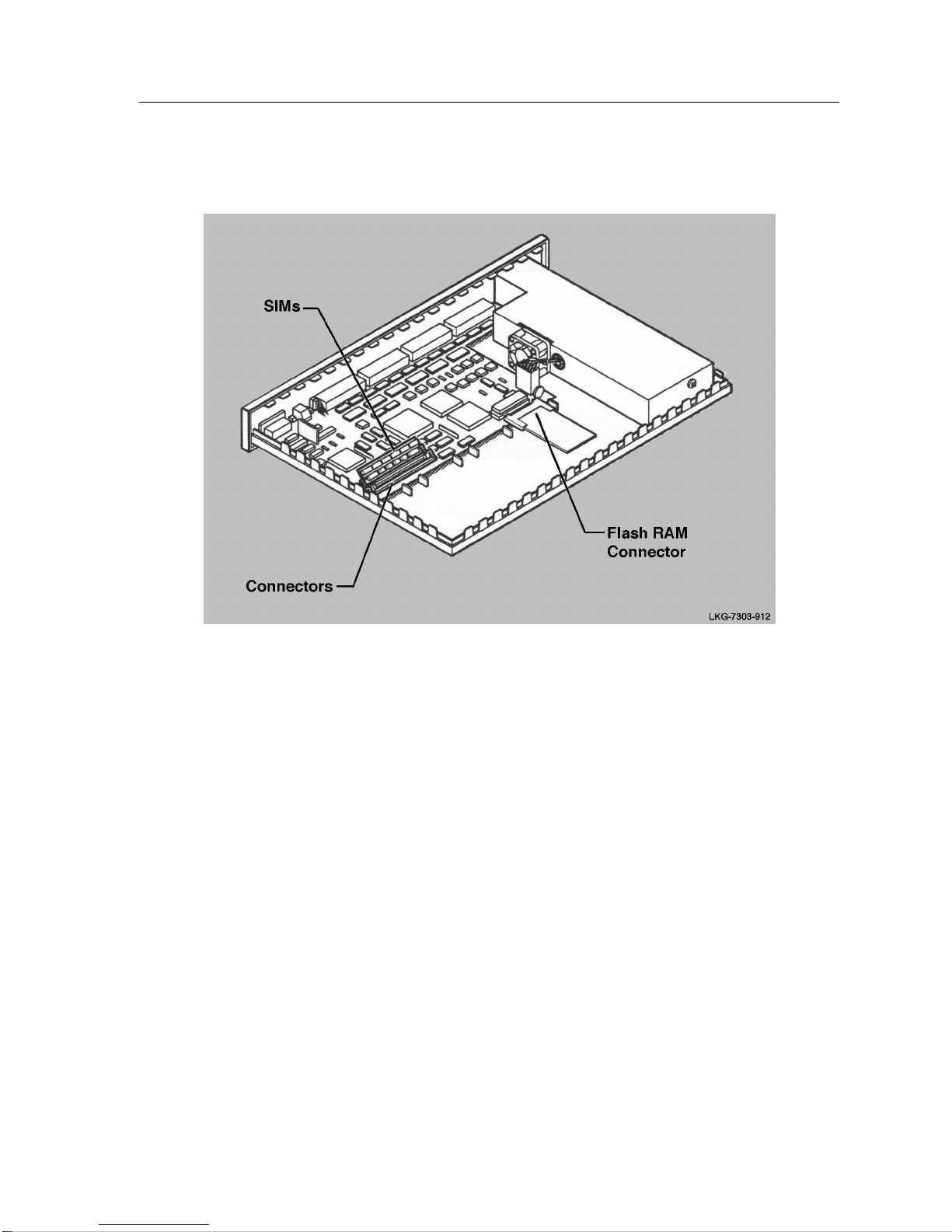

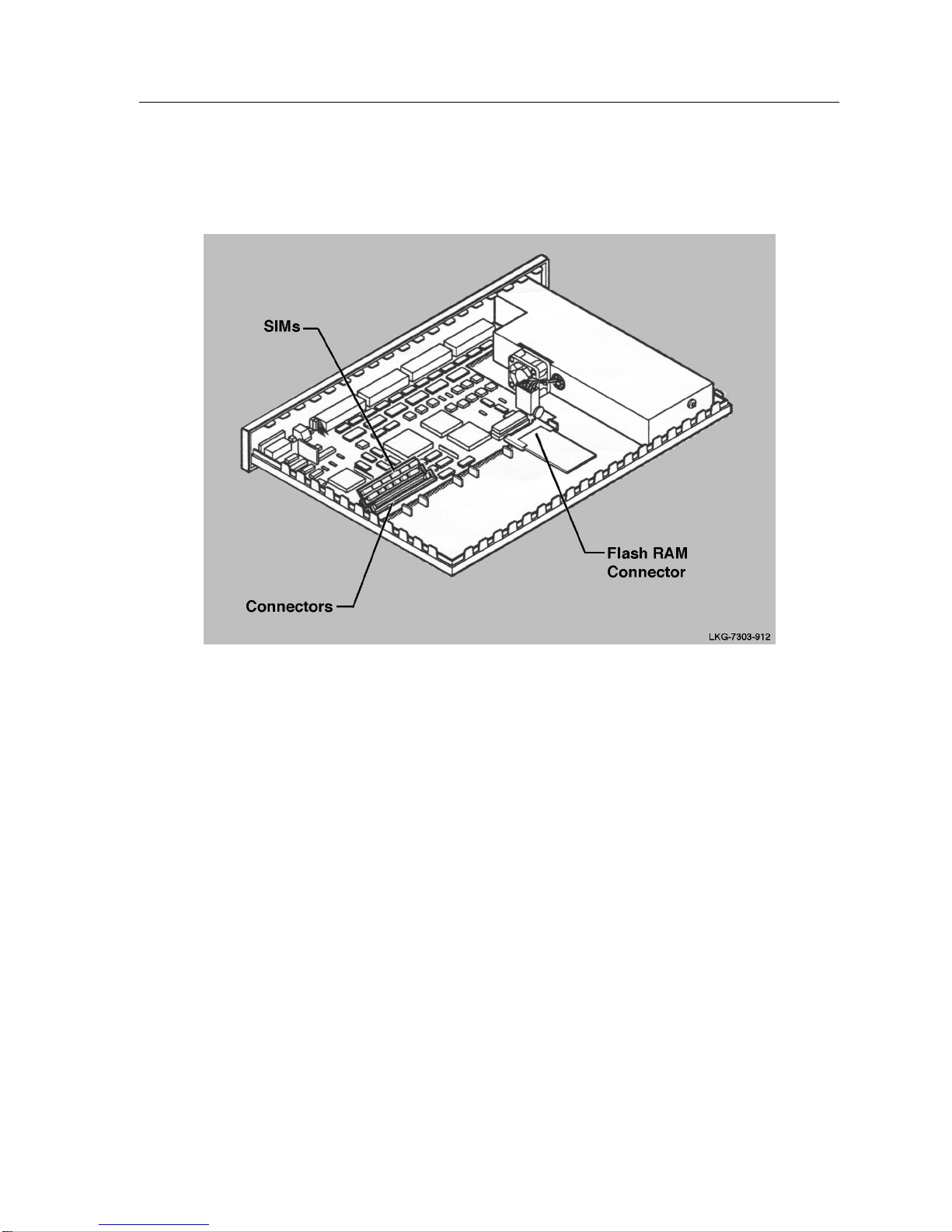

Figure 5-4. SIM Location

5-5

Replacing and Adding Memory

6. Remove the faulty SIM (Figure 5-5).

5-6

Figure 5-5. SIM Removal

Replacing and Adding Memory

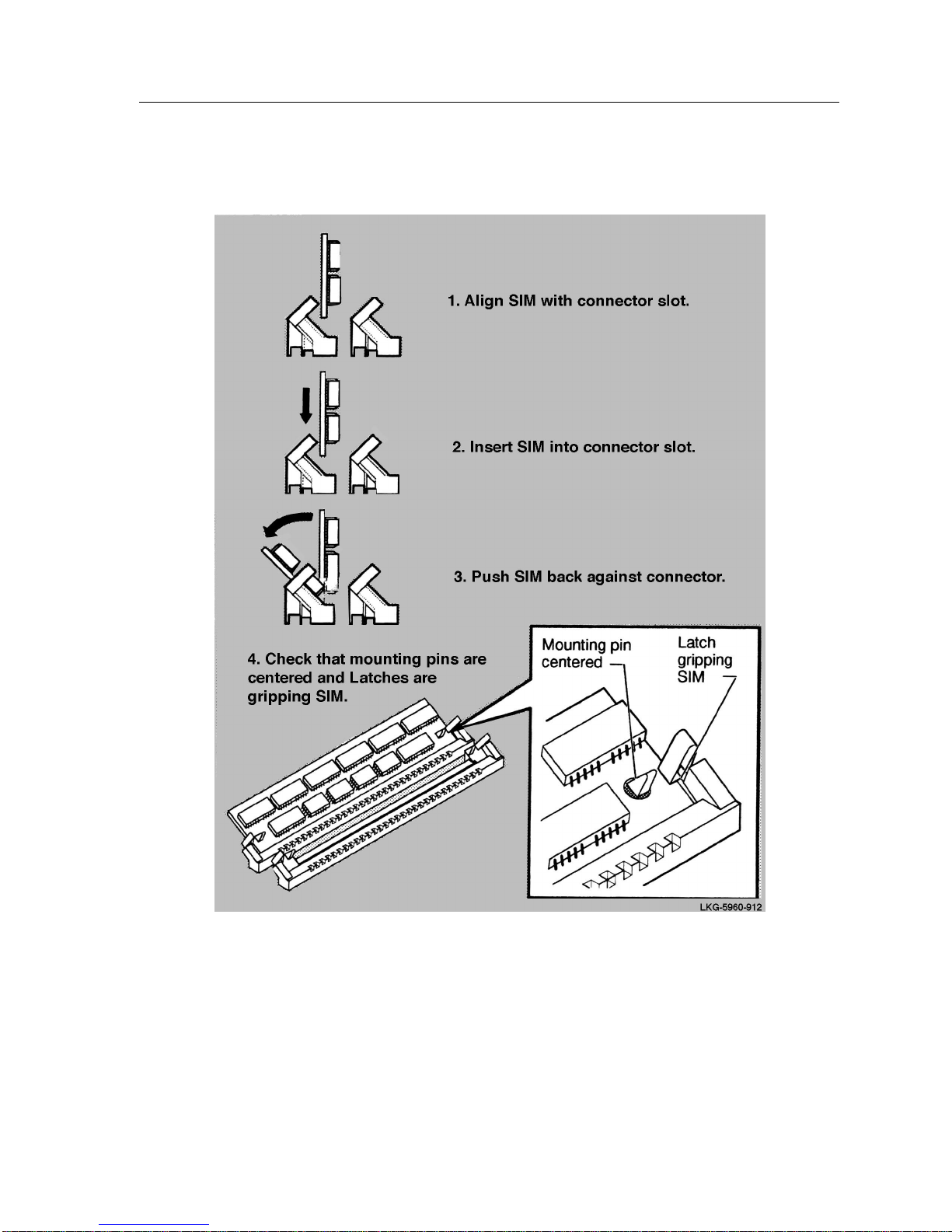

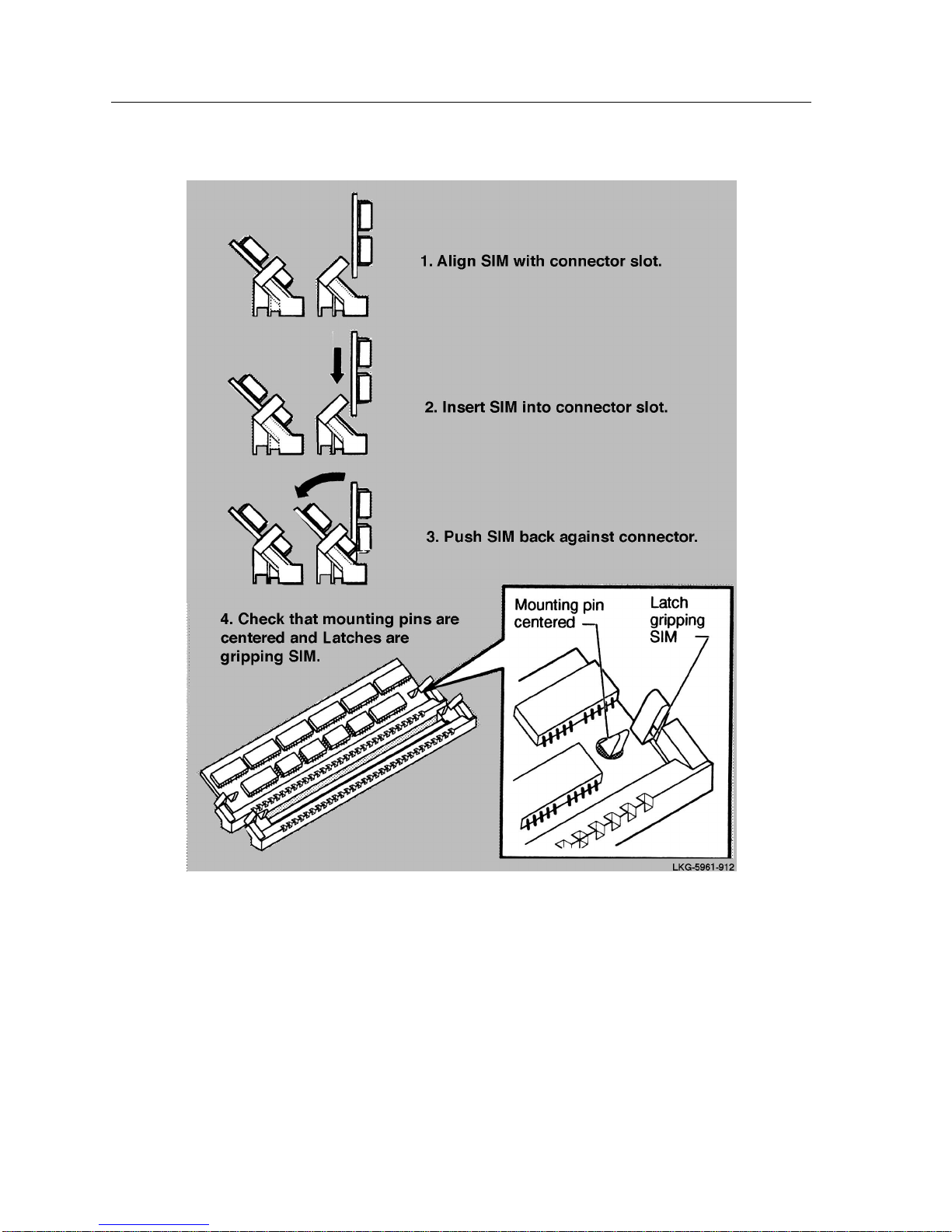

7. Insert the replacement SIM into the connector (Figures 5-6 & 5-7).

Figure 5-6. SIM Replacement

5-7

Replacing and Adding Memory

5-8

Figure 5-7. Adding an Additional SIM

8. Remove the anti-static kit.

9. Replace the cover (Figure 5-8).

Replacing and Adding Memory

10. Connect a terminal to the Access Server 316 (See section titled System OK LED

Flashing on page 7-4.).

11. Reconnect the cables and test the Access Server 316.

When you plug in the power cable, the Access Server 316 runs self-tests. After
the tests are completed, the Access Server 316 requests a load from Flash
RAM. If Flash RAM is installed, three horizontal segments will be displayed.
To abort Flash RAM load and to load from the network, press and hold the
system reset switch until the display flashes. The Seven-segment display will
alternate between 3 and 4 until the software is loaded from the network.
Allow 3 minutes for the Access Server 316 to complete the procedure.

Figure 5-8. Cover Replacement

5-9

Replacing and Adding Memory

Alternatively, connect a terminal to the console port of the Access Server 316,
using 9600 baud, 8 bits, and no parity. Wait for the status messages to appear
on the terminal indicating a Flash RAM load is in progress. Enter Ctrl-B twice
on the keyboard. In response to the “>>>” prompt, enter the following
command:

>>>b eth:wweng2
If you are using a special load image file, use that file name in place of

wweng2.

If the SIM memory is faulty, the Access Server 316 flashed "C" if the faulty SIM

NOTE

is in connector 1 and "d" if the faulty SIM is in connector 2. If you install the
wrong type SIM, the Access Server 316 flashes "n". Remove or replace the SIM to
repair the Access Server 316.

12. Check status message 960 to verify memory size:
Local -960- Available memory 4 Mbytes

Additional Memory Supported

You can increase the memory of your Access Server 316 by adding extra single-in­line memory modules (SIMs). The Access Server 316 contains 4 Mbytes of SIM
memory. However, future releases of Access Server 316 software may contain
additional functions that require more SIM memory. You can install the additional
SIM memory on site. Adding an additional 4-Mbyte SIM will increase the
memory to the maximum of 8 Mbytes.

The Access Server 316 supports 4-Mbyte SIMs (1M x 36).
There are two SIM connectors on the Access Server 316 printed cir cuit board. One

of the connectors contains the factory installed 4-Mbyte SIM (Figure 5-4).
The Access Server 316 supports only SIMs with the following access times:

• 80 nano seconds

• 70 nano seconds

The Access Server 316 supports only SIMs in the following configurations:

• 4 Mbytes (one 4-Mbyte SIM in any connector)

• 8 Mbytes (one 4-Mbyte SIM per connector)

5-10

The Access Server 316 supports only 36-bit-wide SIMs. If you are not using

NOTE

Cabletron Systems SIMs, check the specification of your SIM to verify that it is
36-bit-wide. SIMs that are not 36-bit-wide will not work but may not be detected
by the Access Server 316 diagnostics.

Installing Extra Memory

To install a SIM:

Step Action

1 Disconnect all cables from the Access Server 316.
2 Remove the Access Server 316 brackets, if fitted (Figure 5-1).
3 Remove the Access Server 316 cover (Figure 5-2).
4 Fit the anti-static kit (Figure 5-3).
5 Locate the SIM connectors (Figure 5-4).
6 Remove the SIM from its wrappings and keep the memory label.
7 Insert the extra SIM in the connector (Figure 5-7).
8 Remove the anti-static kit.
9 Replace the cover (Figure 5-8).
10 Connect a terminal to the Access Server 316 (see the section titled System OK

LED Flashing, in Chapter 7).
11 Reconnect the cables and test the Access Server 316.
12 When you plug in the power cable, the Access Server 316 runs a self-test. After

the tests are completed, the Access Server 316 r equests a load from Flash RAM.

If Flash RAM is installed, three horizontal segments will be displayed. To

abort Flash RAM load and to load from the network, press and hold the

system reset switch until the display flashes. The Seven-segment display will

alternate between 3 and 4 until the software is loaded from the network. Allow

3 minutes for the Access Server 316 to complete the procedure.
13 Compare the Seven-segment display and the System OK LED status with the

information in Table 7-1.
14 Check status message 960 to verify memory size:

Local -960- Available memory 4 Mbytes

Replacing and Adding Memory

If the SIM memory is faulty, the Access Server 316 flashes “C” if the faulty SIM

NOTE

is in connector 1 and “d” if the faulty SIM is in connector 2. If you install the
wrong type SIM, the Access Server 316 flashes “n”. Remove or replace the SIM to
repair the Access Server 316.

5-11

Replacing and Adding Memory

5-12

Chapter 6

Replacing and Adding Flash RAM

This chapter shows how to replace or update an Access Server 316 Flash RAM
Card.

Electrostatic Discharge (ESD) can cause failure of electr onic components and can

NOTE

reduce the long term reliability of the Access Server 316. Cabletron Systems
recommends you use an anti-static kit or ESD wrist strap when installing a Flash
RAM Card.

This chapter includes the following section:

• Replacing or Adding Flash RAM

6-1

Replacing and Adding Flash RAM

Replacing or Adding Flash RAM

To replace or install the Flash RAM Card:

1. Disconnect all cables from the Access Server 316.

2. Remove the Access Server 316 brackets, if fitted (Figure 6-1).

6-2

Figure 6-1. Removing the Brackets

Replacing and Adding Flash RAM

3. Remove the Access Server 316 cover (Figure 6-2).

Figure 6-2. Removing the Cover

6-3

Replacing and Adding Flash RAM

4. Fit the anti-static kit (Figure 6-3).

6-4

Figure 6-3. Fitting the Anti-Static Kit

Replacing and Adding Flash RAM

5. Locate the Flash RAM connector or remove the faulty Flash RAM Card
(Figure 6-4).

Figure 6-4. Locating the Flash RAM Connector/Removing Faulty Flash RAM Card

6-5

Replacing and Adding Flash RAM

6. Insert the replacement or Flash RAM Card update in the connector (Figure
6-5).

NOTE

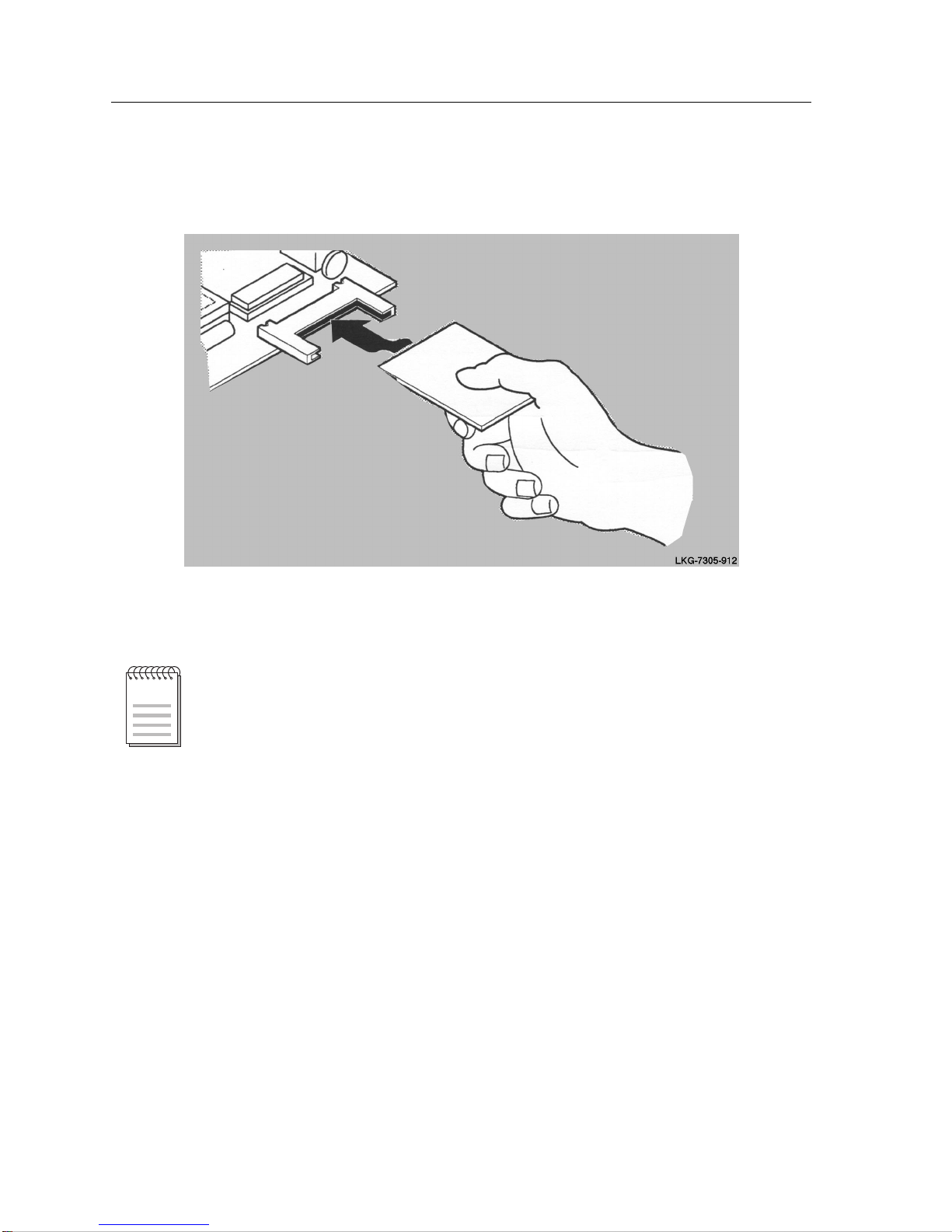

Figure 6-5. Inserting the Replacement or Flash RAM Card Update

The Flash RAM socket is keyed. Ensure that you follow the instructions located
on the Flash RAM card when installing.

6-6

7. Remove the anti-static kit.

8. Replace the cover (Figure 6-6).

Replacing and Adding Flash RAM

9. Connect a terminal to the Access Server 316 (See section titled System OK LED

Flashing on page 7-4).

Figure 6-6. Replacing the Cover

6-7

Replacing and Adding Flash RAM

10. Reconnect the cables and test the Access Server 316.

When you plug in the power cable, the Access Server 316 runs a self-test. After
the tests are completed, the Access Server 316 requests a load from Flash
RAM. If Flash RAM is installed, three horizontal segments will be displayed.

To abort Flash RAM load and to load from the network, press and hold the
system reset switch until the display flashes. The Seven-segment display will
alternate between 3 and 4 until the software is loaded from the network.
Allow 3 minutes for the Access Server 316 to complete the procedure.

11. Compare the Seven-segment display and the System OK LED status with
Table 6-1.

Table 6-1. LED Status

Device Definition State Indication

System OK

LED

Seven-segment

display

1. A fatal error means that the network access server cannot function. A

Diagnostic On Self-test passed -

Off Fatal error

Flashing Nonfatal error

Status/

Diagnostic

nonfatal error means that the network access server can function with
reduced capability (for example, one serial port not working).

Off No power or

display broken

“C”, “d”, “n” SIM failure Page 7-3

Flashing Fatal error Page 7-4

“3” Load request

Rotating
segment

pattern

Access Server

316 software

executing

backoff

Corrective

Action

1

1

Page 7-3
Page 7-4

Page 7-4
Page 7-3

Page 7-6

-

12. Check the status of the Flash RAM card using the SHOW CONFIGURATION
command.

6-8

Example

Local> SHOW MEMORY CONFIGURATION
Dynamic RAM: 4M bytes
Non-Volatile RAM: 32K bytes
Flash RAM:
Installed: Yes
Total size: 4M bytes
Boot block: Valid
Load image:
Name: WWENG2
Size: 967756 bytes
Version: V2.3

Replacing and Adding Flash RAM

NOTE

If Flash RAM is installed, but its boot block is invalid, then the total memory size
will be displayed as zero.

Your Flash RAM can also be updated with the INITIALIZE command. This
command copies the load image to Flash RAM. For more information about the
SHOW MEMORY CONFIGURATION or the INITIALIZE command, refer to the
Network Access Software Management guide or Network Access Software Commands
guide.

6-9

Replacing and Adding Flash RAM

6-10

Chapter 7

What to Do If You Have Problems

This chapter helps you identify and correct problems you may encounter during
and after the installation of the Access Server 316 hardware. The troubleshooting
procedures are for diagnosing and correcting hardware-related problems only.

Notify the network manager if the troubleshooting procedures indicate the
problem is software related or if the procedures do not correct the problem.
Additional software troubleshooting information is provided in the Network
Access Software Problem Solving guide.

Use the following to diagnose and troubleshoot the Access Server 316 problems:

• Seven-segment display

• System OK LED

• Console port messages
A full list of seven-segment display codes are shown at the end of this chapter.

Refer to the Network Access Software Management guide for the procedure to
configure a terminal to receive console port messages.

This chapter includes the following sections:

• Diagnosing Problems

• Seven-Segment Display Off and OK LED Off

• System OK LED Off / Seven-Segment Display Flashing “C”, “d”, or “n”

• System OK LED Off / Seven-Segment Display Flashing

• System OK LED Flashing

• Seven-Segment Display Shows a “3”

• Seven-Segment Display Codes

• Network Activity LED

7-1

What to Do If You Have Problems

Diagnosing Problems

Compare the state of the Seven-Segment Display and the System OK LED with
those shown in Table 7-1 and go to the section indicated for information on
corrective action.

On power up, the seven-segment display will show an “8”. Allow about 3

NOTE

minutes to elapse before determining the state of the display.

Table 7-1. Display/Indications

Device Definition State Indication

System OK

LED

Seven-Segment

Display

1. A fatal error means that the network access server cannot function. A
nonfatal error means that the network access server can function with
reduced capability (for example, one serial port not working).

Diagnostic On Self-test passed -

Off Fatal error

Flashing Nonfatal error

Status/

Diagnostic

Off No power or

display broken

“C”, “d”, “n” SIM failure Page 7-3

Flashing Fatal error Page 7-3

“3” Load request

Rotating
segment

pattern

Access Server

316 software

executing

backoff

Corrective

Action

1

1

Page 7-3
Page 7-4

Page 7-4
Page 7-3

Page 7-4
Page 7-6

-

7-2

What to Do If You Have Problems

Seven-Segment Display Off and System OK LED Off

Problem(s) Correction(s)

Power is not reaching the
Access Server 316
hardware.

The Access Server 316
hardware is defective.

1. Secure the power cable at the Access Server 316 and at the wall
outlet and check the fuse in the power cable plug (if applicable).

2. Check the wall outlet using another appliance or light, or plug the
Access Server 316 power cord into another outlet. If power is not
available at the wall outlet, check the wall outlet’s circuit breaker.

3. Check the power cord by substituting another one. If the first
power cord is defective, replace it.

Notify the network manager that the Access Server 316 must be
returned to Cabletron Systems for repair or replacement. Refer to the
Network Access Software Problem Solving guide for information about
returning the unit to Cabletron Systems.

System OK LED Off / Seven-Segment Display
Flashing “C”, “d”, or “n”

Problem: The Access Server 316 single-in-line memory (SIM) is faulty.
Correction: If the seven-segment display is flashing “C”, replace the SIM in

connector 1. If the seven-segment display is flashing “d”, replace the SIM in
connector 2. If no SIM or the wrong type of SIM is installed, the seven-segment
display flashes “n”. Refer to Chapter 5 for the procedure to replace a faulty SIM.

If the SIM is found to be faulty, return it to Cabletron Systems.

NOTE

7-3

What to Do If You Have Problems

System OK LED Off / Seven-Segment Display
Flashing

Problem: A hardware error occurred that makes the Access Server 316
nonoperational.

Correction: There is no corrective procedure for this problem except for SIM
failure (refer to note). Notify the network manager that the Access Server 316
must be returned to Cabletron Systems for repair or replacement Refer to the
Network Access Software Problem Solving guide for information about returning the
unit to Cabletron Systems.

System OK LED Flashing

If the System OK LED is flashing after power up, it indicates that the Access
Server 316 has a nonfatal problem detected during self-test. The error message on
the console terminal shows the primary problem.

To isolate and diagnose the problem, do the following:

1. Connect a console terminal to the console port (default port is port 1) of the
Access Server 316, then power up the terminal. Refer to the Network Access
Software Management guide for procedure to set up the console port.

2. Configure the terminal to operate with a speed of 9600 bits per second and a
character size of 8 bits (no parity). (Refer to the specific terminal user's guide if
you need help setting up the terminal parameters.)

3. Unplug the Access Server 316 power cord at the wall outlet, then reinsert it.

4. Read the error message that appears on the terminal display.

Error Messages

This section lists and describes the error messages that occur in conjunction with
System OK LED flashing. The section also describes the recommended corrective
action.

Message: Local—922—Port hardware error on port n
Problem: The specified port has failed self-test.
Correction: There is no corrective procedure for this condition. Notify the

network manager that the Access Server 316 must be returned to Cabletron
Systems for repair or replacement. Refer to the Network Access Software Problem
Solving guide for information about returning the unit to Cabletron.

7-4

What to Do If You Have Problems

Message: Local—941—Transceiver loopback error
Problem: The Ethernet port has failed self-test.
Correction: Determine which of the following corrections applies to your

situation.

• Standard Ethernet/ThinWire — Replace the cables or MAU. Test again by

pulling out the power cord and re-inserting. If this corrects the problem, the
fault is external to the Access Server 316. If this fails to correct the problem,
notify the network manager to return the Access Server 316 to Cabletron
Systems for repair or replacement. Refer to the Network Access Software Problem
Solving guide for information about returning the unit to Cabletron Systems.

If the Access Server 316 passes self-test, the problem is in the cables or
equipment connected to the Access Server 316.

• 10BaseT Ethernet — Replace the cables and device that is connected to the

Access Server 316. If this corrects the problem, the fault is external to the Access
Server 316. If this fails to correct the problem, notify the network manager to
return the Access Server 316 to Cabletron Systems for repair or replacement.
Refer to the Network Access Software Problem Solving guide for information
about returning the unit to Cabletron Systems.

If the Access Server 316 passes self-test, the problem is in the cables or
equipment connected to the Access Server 316.

Message: Local—952—Enter ^P to repeat self-test
Problem: An error was detected on the Ethernet port.
Correction: The Access Server 316 displays this message with message 941. Refer

to message 941 for the correction.

Message: Local—967—Parameter checksum error detected in NVRAM
Problem: Self-test has detected a checksum error in nonvolatile random-access

memory (NVRAM) parameters.
Correction: Reset the Access Server 316 to the factory settings by pulling out the

power cord and reinserting it while pressing the system reset switch until E
shows on the seven-segment display. If this fails to correct the problem, notify the
network manager that the Access Server 316 must be returned to Cabletron
Systems for repair or for replacement. Refer to the Network Access Software Problem
Solving guide for information about returning the unit to Cabletron Systems.

7-5

What to Do If You Have Problems

Seven-Segment Display Shows a “3”

If the seven-segment display has a “3” after power up, the Access Server 316 has a
downline loading problem.

To isolate and diagnose the problem, do the following:

1. Connect a terminal to the console port of the Access Server 316, then power up
the terminal.

2. Configure the terminal to operate with a speed of 9600 bits per second and a
character size of 8 bits (no parity). (Refer to the specific terminal user's guide if
you need help setting up the terminal parameters.)

3. Initialize the Access Server 316 by pressing Ctrl/P on your console terminal.

4. Read the message that appears on the terminal display.

The conditions under which a “3” may appear in the seven-segment display, and
the messages associated with each condition, are described in the following
sections.

Downline Load Starts, Then Fails

Messages: The following messages may appear on the console terminal at various
time intervals:

Local—912—[MOP] Load failure, timeout
Local—953—[IP] Attempting to locate load host, [ETHERNET]
Local—953—[MOP] Attempting to locate load host, [ISO8802]
Local—953—[MOP] Attempting to locate load host, [ETHERNET]
Local—955—[MOP] Host xx-xx-xx-xx-xx-xx LOCATED [ETHERNET]
Local—956—[MOP] Requesting load from host xx-xx-xx-xx-xx-xx
Problem: The host system failed to complete the downline load to the Access

Server 316.
Correction: Copy the error message exactly as it appears on the console terminal

display and notify the network manager. For more information, refer to the
Network Access Software Problem Solving guide.

7-6

Downline Load Does Not Start

Messages: The following sequence of messages appears on the console terminal
at various time intervals:

Local—951—Network access server will retry operation in n seconds
Local—953—[IP] Attempting to locate load host, [ETHERNET]
Local—953—[MOP] Attempting to locate load host, [ISO8802]
Local—953—[MOP] Attempting to locate load host, [ETHERNET]
Problem: Load hosts are not responding to the Access Server 316 downline load

request within the allotted timeout period.
Correction: Copy the error message exactly as it appears on the console terminal

display and notify the network manager. For more information, refer to the
Network Access Software Problem Solving guide.

What to Do If You Have Problems

Seven-Segment Display Codes

The following list shows the codes (in approximate font type) and describes the
codes that will be displayed during the server internal self-test when the Access
Server 316 goes through a power up and initialization.

Off — No power or display is broken

B — Initial power on
F — Initialization
E — Access Server 316 internal test
d — SIM 1 test

C — SIM 2 test

b — Access Server 316 internal test
A — Access Server 316 internal test
9 — Access Server 316 internal test
7 — Access Server 316 internal test
5 — NI external test

= — Firmware loading from Flash RAM, or software re-programming Flash

RAM

7-7

What to Do If You Have Problems

4 — Requesting load
3 — Load request backoff
2 — Loading

I — Requesting dump
O — Dumping

H — Hardware revision number incompatible with firmware revision number
N — No SIMs or wrong type SIMs installed

Rotating — Access Server 316 is operating correctly

Network Activity LED

The following table shows the connection status for each type of LED display.

Table 7-2. Network Activity LED

Ethernet
Selected

10BaseT Open/incorrectly terminated

Correctly terminated / no network activity

Correctly terminated / network activity

Standard
Ethernet

Open

Correctly connected / no network activity

Correctly connected / network activity

Connection Status LED Display

OFF

ON

FLASHING (Rate
independent of network
activity)

OFF

OFF

Flashing or ON,
depending on network
activity

7-8
