Introduction

The 9F241-12 MicroLAN  Module is a Dual Attached Concentrator module for
the SmartSwitch 9000 (see Figure 1-1). The 9F241-12 provides twelve multimode
fiber Master ports allowing the connection of Single or Dual Attached Stations.
The 9F241-12 is ANSI FDDI-compliant with SMT (version 7.3), MAC, PHY, and
PMD. This module attaches directly to the SmartSwitch 9000 FNB backplane,
delivering up to 400 Mbps of bandwidth. The 9F241-12 module uses the Intel i960
microprocessor for all SMT and local/remote SNMP management functions.

Chapter 1

Features

Processor

The 9F241-12 is equipped with an advanced Intel i960 microprocessor. This
microprocessor provides a platform for all management functions within a
scalable RISC-based architecture.

Management

Management features include the following:

• Module insert/bypass control

• MAC placement

• MAC level and network level statistics

• An FDDI station list

• Individual Master port assignments

• FDDI Bandwidth Utilization Statistics

Connectivity

The front panel Master port connections are via standard multimode fiber
SC-type connectors. Multiple modules can be combined to provide connections
for up to 168 FDDI stations. All FDDI stations connected to the Master ports are
directly attached to the FNB backplane. These ports are not bridged or routed to
the FNB backplane.

1-1

Introduction

NOTE

Management Information Base (MIB) Support

The 9F241-12 provides MIB support, including the following:

• IETF FDDI MIB

• IETF MIB II

• a host of Cabletron Enterprise MIBs.

For a complete list of supported MIBs, refer to the release notes provided in the
concentrator modules package.

LANVIEW LEDs

The 9F241-12 uses LANVIEW, the Cabletron Systems built-in visual diagnostic
and status monitoring system. With LANVIEW LEDs, you can quickly identify
the device, port, and physical layer status at a glance.

Hot Swapping

The 9F241-12 can be installed or removed from the chassis while the SmartSwitch
9000 is powered up, without affecting the operation of the rest of the network.

1-2

Introduction

FDDI

9F241-12

CPU

SMB

FNB

1

4

5

8

9

12

M
1

M
2

M
3

M
4

M
5

M
6

M
7

M
8

M
9

M

10

M
11

M
12

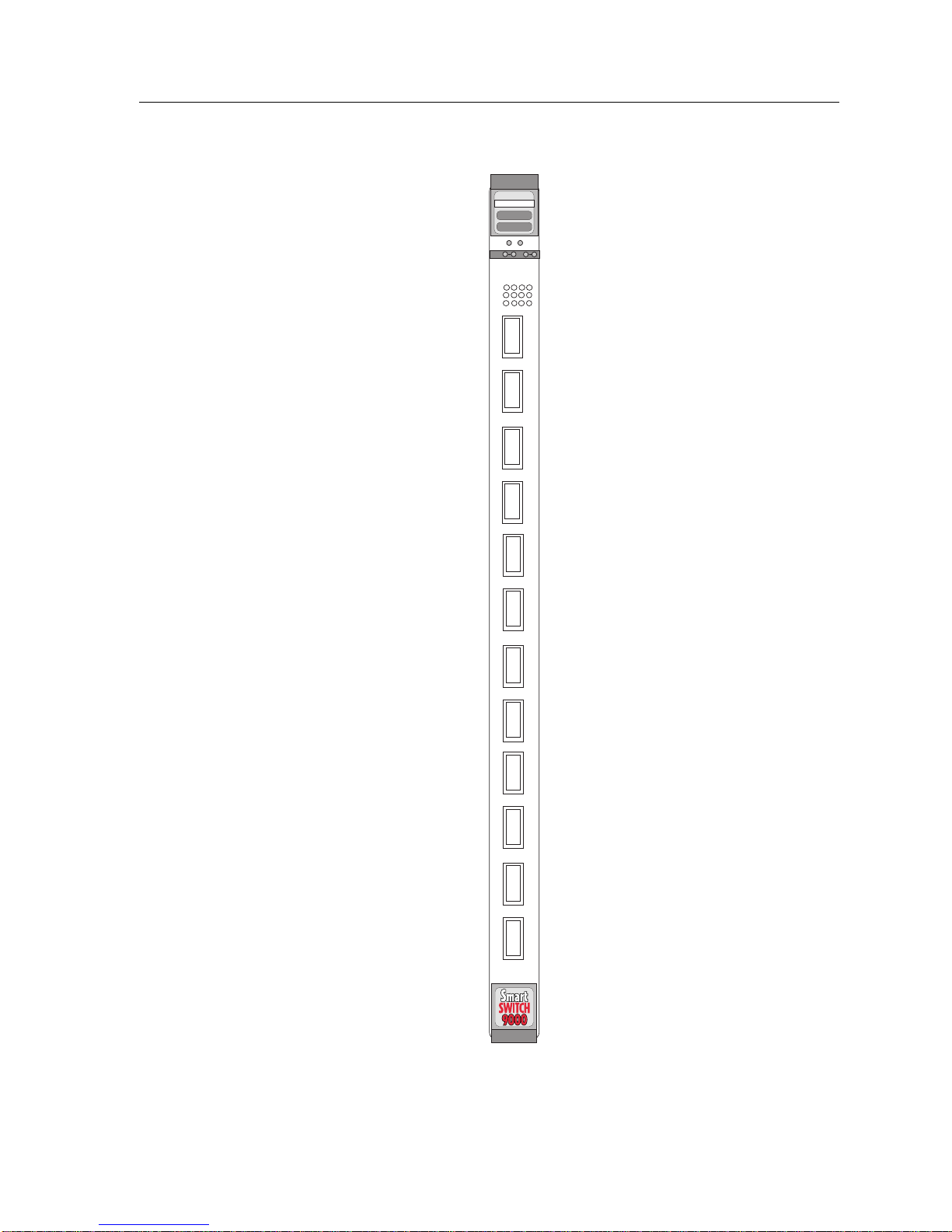

Figure 1-1. The 9F241-12 module

1-3

Introduction

Related Manuals

The manuals listed below should be used to supplement the procedures and
technical data contained in this manual.

SmartSwitch 9000 Installation Guide
SmartSwitch 9000 Operations Guide
SmartSwitch 9000 9C300-1 Environmental Module User’s Guide
SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide
SmartSwitch 9000 Module Local Management User’s Guide
Local Management Appendix for the 9F241-12 Module

Getting Help

For additional support related to this device or document, contact the Cabletron Systems Global Call
Center:

Phone [phone]
Internet mail [e-mail]
FTP ctron.com (134.141.197.25)

Login
Password

BBS [phone]

Modem setting 8N1: 8 data bits, No parity, 1 stop bit

For additional information about Cabletron Systems or its products, visit the
World Wide Web site: http://www.cabletron.com/
For technical support, select Service and Support .

To send comments or suggestions concerning this document, contact the
Cabletron Systems Technical Writing Department via the following
email address: [e-mail]

Make sure to include the document Part Number in the email message.

anonymous
your email address

Before calling the Cabletron Systems Global Call Center, have the following information ready:

• Your Cabletron Systems service contract number

• A description of the failure

• A description of any action(s) already taken to resolve the problem (e.g., changing mode switches,
rebooting the unit, etc.)

• The serial and revision numbers of all involved Cabletron Systems products in the network

• A description of your network environment (layout, cable type, etc.)

• Network load and frame size at the time of trouble (if known)

• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)

• Any previous Return Material Authorization (RMA) numbers

1-4

Chapter 2

Installing the MicroLAN Module

This section describes how to unpack, configure and install the module into the
SmartSwitch 9000 chassis.

Unpacking the Module

1. Carefully remove the module from the shipping box. (Save the box and
packing materials in the event the module must be reshipped.)

2. Remove the module from the plastic bag. Observe all precautions to prevent
damage from Electrostatic Discharge (ESD).

3. Carefully examine the module, checking for damage. If any damage exists,
DO NOT install the module. Contact Cabletron Systems Technical Support
immediately.

User-Accessible Components

Figure 2-1 shows the various components that are accessible to the user. These
consist of an eight-position dip switch (explained in the next section), replaceable
PROMs and sockets for RAM. These will be used for future upgrades.
Instructions for installing the components will be supplied with the upgrade kit.

2-1

Installing the MicroLAN Module

SMB-1
PROM

i960
Processor

DIP Switch

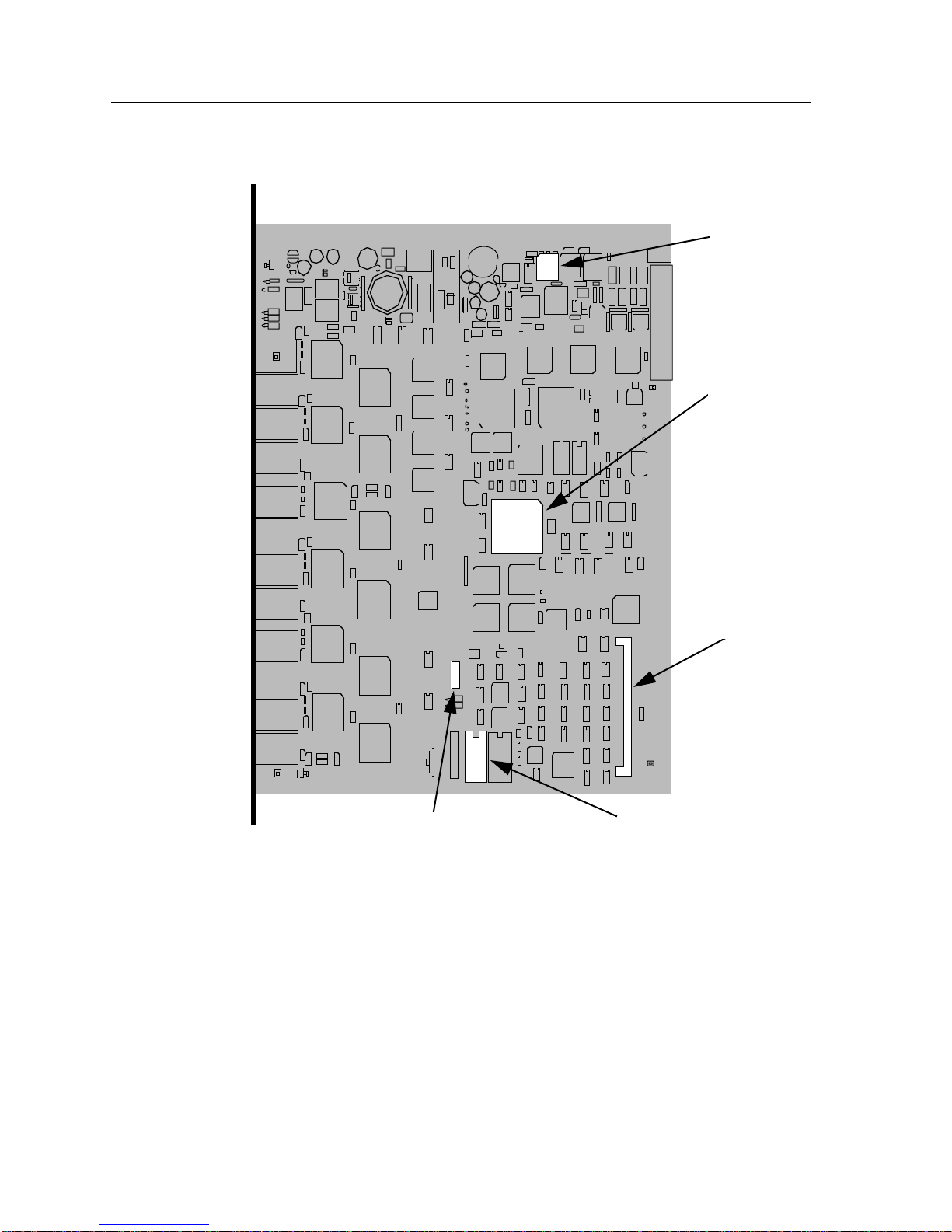

Figure 2-1. User-Accessible Components

Boot PROM

Flash SIMM
Socket

2-2

Setting the Module Card DIP Switch

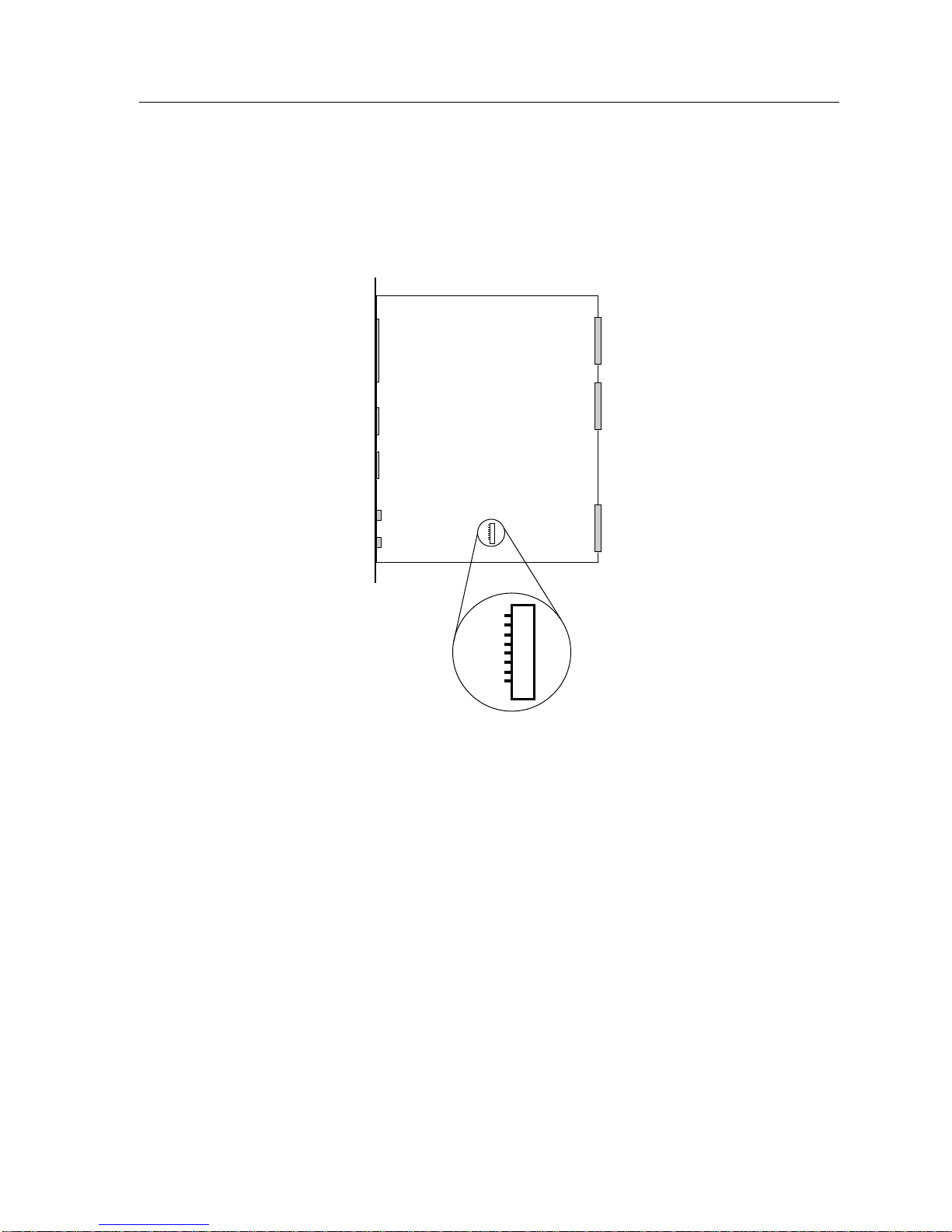

An eight-position DIP switch is located on the module card, as shown in
Figure 2-1 and Figure 2-2. The functions of the switches are listed in Table 2-1.

Installing the MicroLAN Module

1
2
3
4
5
6
7
8

Figure 2-2. Location of Module DIP Switch

2-3

Installing the MicroLAN Module

1

See the Cautions at the end of this table.

Switch Function Description

8

7

Clear

Password

Clear

NVRAM

Table 2-1. Function of DIP Switch

When toggled, this switch clears user-entered
passwords stored in NVRAM, and restores the

1

default passwords. Once reset you can use the
defaults or enter new passwords.

The module uses NVRAM to store user-entered
parameters such as IP addresses, device name,
etc. To reset these parameters to the factory
defaults, toggle this switch. Once reset, you can

2

use the defaults or enter new parameters, which
are stored in NVRAM when the module is
powered down, and remain there until the switch
is toggled again.

!

CAUTION

Toggling this switch after pulling the board out of

6

5 Reserved

4 Reserved

3 Reserved

2 Reserved

1 Reserved

Force BootP

Download

the SmartSwitch 9000 clears download
information from NVRAM and forces image files
to be downloaded from the station configured to
act as that module’s BootP server.

For Factory Use Only

For Factory Use Only

For Factory Use Only

For Factory Use Only

For Factory Use Only

Caution: Do not toggle Switch 8 unless you intend to reset the user-configured

passwords to their factory default settings.

2

Caution: Do not toggle Switch 7 unless you intend to reset the user parameters

to the factory default settings.

2-4

Installing the MicroLAN Module

Installing the Module into the SmartSwitch 9000
Chassis

SmartSwitch 9000 MicroLAN Modules can be installed in any of the 14 slots that
are available. To install, follow the steps below:

1. Switch off the power supplies and remove all power from the SmartSwitch
9000 chassis.

2. Remove the blank panels, covering the slots that the module is being mounted
in. All other slots must be covered, if modules are not being installed, to
ensure proper airflow and cooling.

3. Attach one end of the ESD wrist strap packaged with the SmartSwitch 9000
chassis to your wrist. Plug the other end into the ESD Wrist Strap Grounding
receptacle in the lower right corner of the SmartSwitch 9000 Chassis shown in
Figure 2-3.

4. Slide the module into a slot and lock down both the top and bottom plastic
tabs, as shown in Figure 2-3. Take care that the module slides in straight and
engages the backplane connectors properly.

2-5

Installing the MicroLAN Module

Plastic Tab

Metal Back-Panel

Module

Module Guides

Warning:
Ensure that the circuit card is between the

card guides.
Lock down the top and bottom plastic tabs

at the same time, applying even pressure.

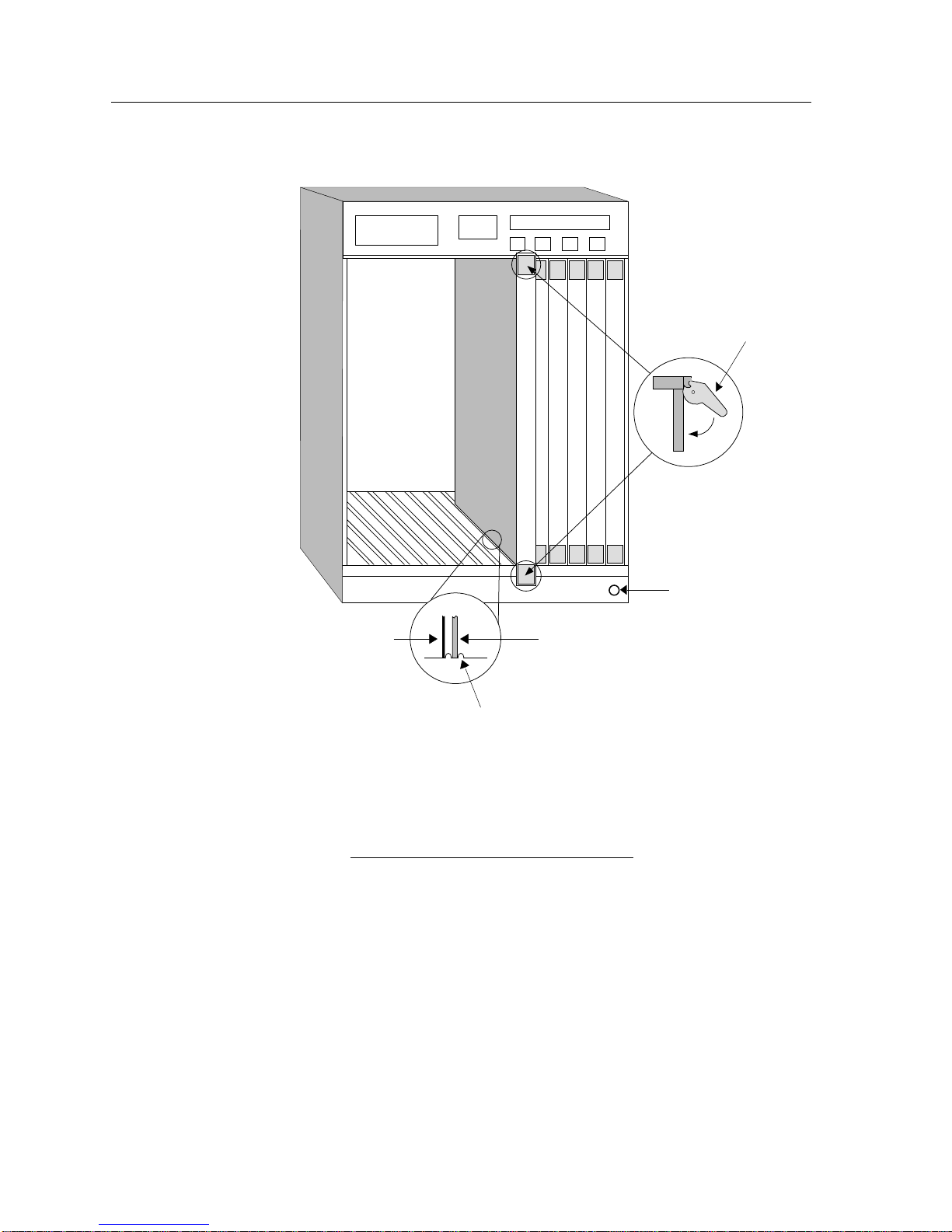

Figure 2-3. Installing the SmartSwitch 9000 Module

Jack for ESD
Wrist Strap

2-6

The Reset Switch

The Reset switch is located on the front panel, under the top plastic tab, as shown
in Figure 2-4. It serves two functions:

• Pressing the Reset switch twice within three seconds causes the processor
(i960) to reset.

• Pressing and holding the switch on for three or more seconds causes the
module to shutdown. Pressing and holding it again for three seconds restarts
the module.

SNMP management may be used to disable this switch to enhance module
security.

Installing the MicroLAN Module

SMB

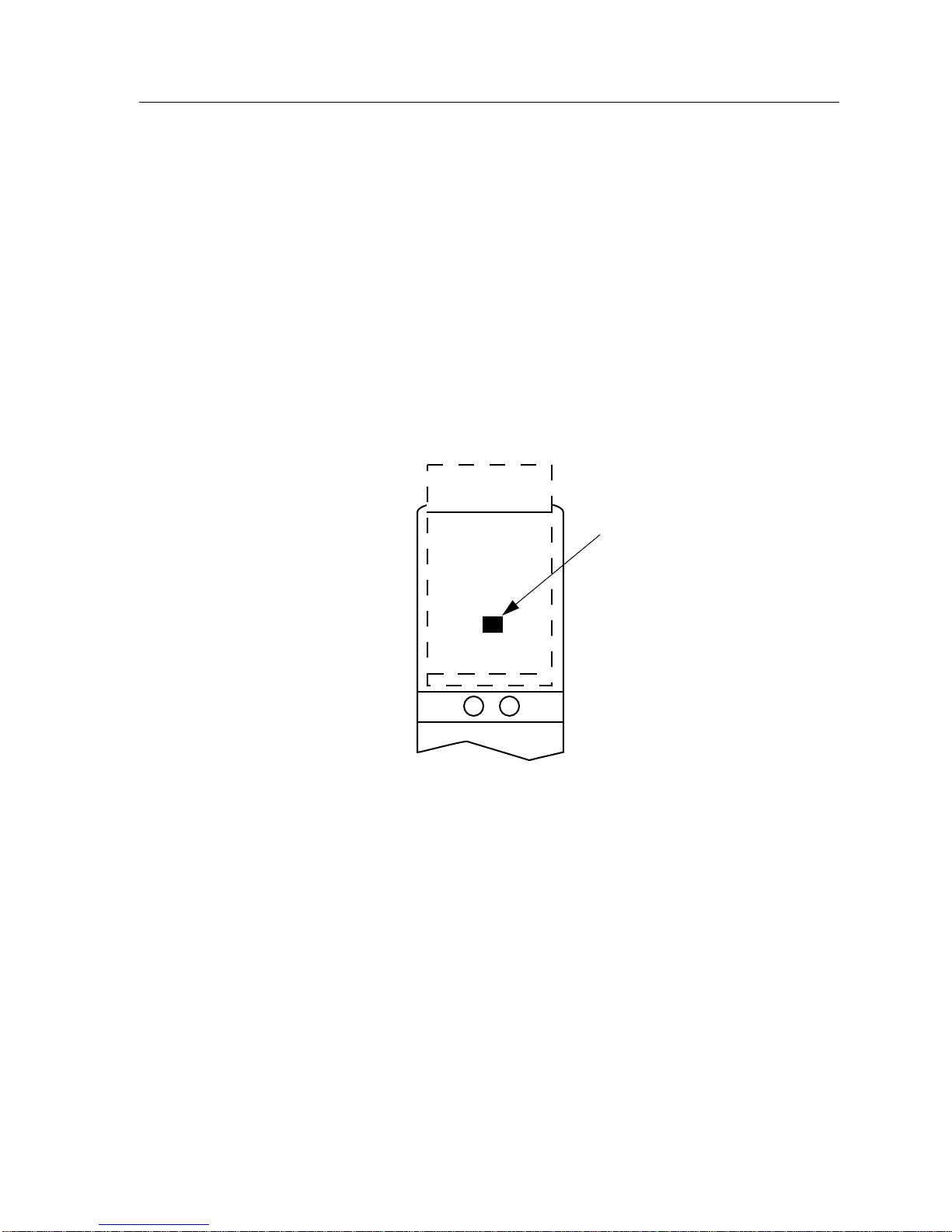

Figure 2-4. The Reset Switch

CPU

Reset Switch

2-7

Installing the MicroLAN Module

2-8

Operation

The 9F241-12 module, as shown in Figure 3-1, provides concentrator ports that
connect directly to the FNB bus. Each port can connect to either ring (FNB-1 or
FNB-2). This is software configurable via local or remote management.

Chapter 3

Fiber

port

.
.

.
.
.

.
.

Fiber

port

DC/DC

Converter

System

Diagnostic

Controller

i960 PLUS Core

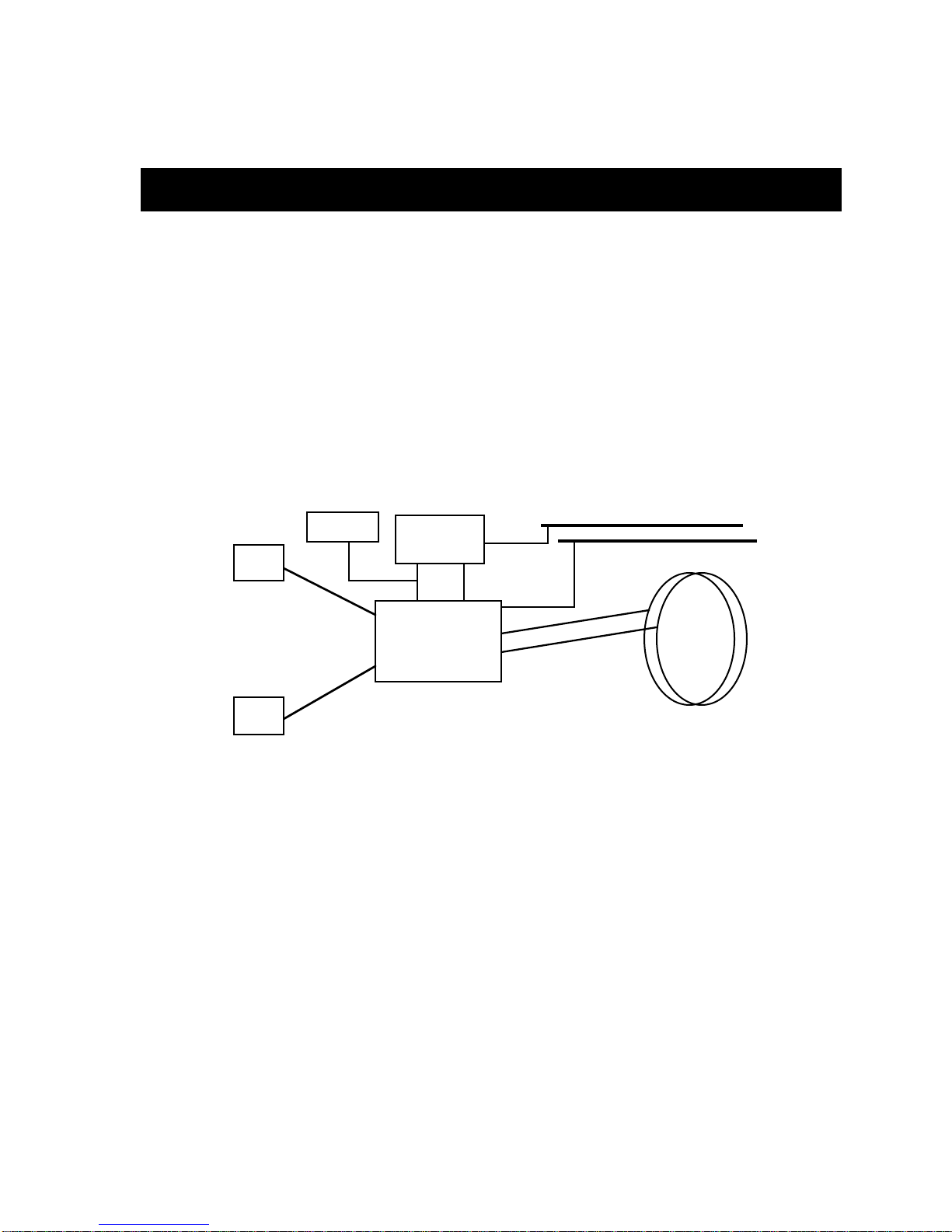

Figure 3-1. Block Diagram

Flexible Network Bus (FNB)

The FNB consists of two dual FDDI networks, FNB-1 and FNB-2, providing up to
400 Mbps of data bandwidth. These FDDI networks are 100% ANSI
FDDI-compliant, supporting SMT (version 7.3), MAC, PHY, and PMD standards.
This allows the FNB to traverse multiple SmartSwitch 9000 hubs, or connect to
any ANSI FDDI-compliant device.

SMB-1

SMB-10

FNB-1 and

FNB-2

3-1

Operation

System Management Buses

There are two management channels within the SmartSwitch 9000 system: the
SMB-1 and the SMB-10. These buses provide out-of-band management and inter­module management communication.

SMB-1 Bus

The SMB-1 is a 1 Mbps management bus located within the SmartSwitch 9000.
This bus is utilized by all diagnostic controllers in the system including
connectivity modules, power supply modules and the environmental module.
The SMB-1 transports inter-chassis information between system components,
such as power and environmental information, as well as diagnostic messages.
Periodic loop-back tests are performed by all modules that share this bus to
ensure the validity of SMB-1. In the event a failure is detected on SMB-1, the SMB­10 may be used as an alternate communication channel.

SMB-10 Bus

The SMB-10 is a 10 Mbps management bus located within the SmartSwitch 9000
that is also used for inter-chassis communication of modules, as well as serving as
an out-of-band management channel into the SmartSwitch 9000. The SMB-10 is
externalized from the chassis via an optional Ethernet Port Interface Module
(EPIM) located on the front of the Environmental Module. Through an EPIM
connection, full SNMP management of the SmartSwitch 9000 is available out-of­band from user data. Modules that share the SMB-10 bus periodically send out
loop-back packets to ensure the validity of SMB-10. In the event a fault is detected
on the SMB-10, the SMB-1 can be used as an alternate communication channel by
the modules.

System Diagnostic Controller

This diagnostic controller is composed of a Z-80 microprocessor and its
supporting logic. The diagnostic controller is designed to control the power-up
sequencing of modules, monitor the concentrator modules input and output
power parameters, keep watch over the main host processor, as well as monitor
the temperature and control the SMB LANVIEW diagnostic LED. Although the
diagnostic controller and the main host processor can operate independently of
each other if needed, they exchange information about each others’ status and
overall module condition. The information gathered by the diagnostic controller
is available to the network manager via local/remote management and the LCD
located on the Environmental Module. The concentrator modules have been
designed so that in the event of a diagnostic controller fault, the concentrator
modules will continue to function.

3-2

DC/DC Converter

The DC/DC converter converts the 48 VDC on the system power bus to the
necessary operating voltages for its host network services module. The diagnostic
controller monitors and controls the operation of the DC/DC converter.

FNB Interface

SmartSwitch 9000 modules are designed with one of two attachment policies. One
allows dual attachment of a module to either FNB-1 or FNB-2; the second allows
dual attachment to both FNB-1 and FNB-2. The 9F241-12 module has a dual
attachment to the FNB backplane, connecting to both FNB-1 and FNB-2. The
module can insert into the FNB or bypass it. These flexible configuration options
make the SmartSwitch 9000 ideal for networks designed to Bridge/Route
multiple lower speed LANs to FDDI and/or networks designed using an FDDI
collapsed backbone.

Operation

i960 Core

The i960 core provides the SNMP protocol stacks, as well as support for industry­standard MIBs. Additionally, Cabletron enterprise-extension MIBs are supported
for each media type. Advanced management services, such as the Distributed
LAN Monitor, telnet and network address to MAC address mapping, are also
provided by the i960 core.

3-3

Operation

3-4

LANVIEW LEDs

The front panel LANVIEW LEDs indicate the status of the module and may be
used as an aid in troubleshooting. Shown in Figure 4-1 is the LANVIEW LEDs of
the concentrator modules.

Chapter 4

FNB Receive

FNB Transmit

FDDI

9F241-12

SMB

FNB

1

5

9

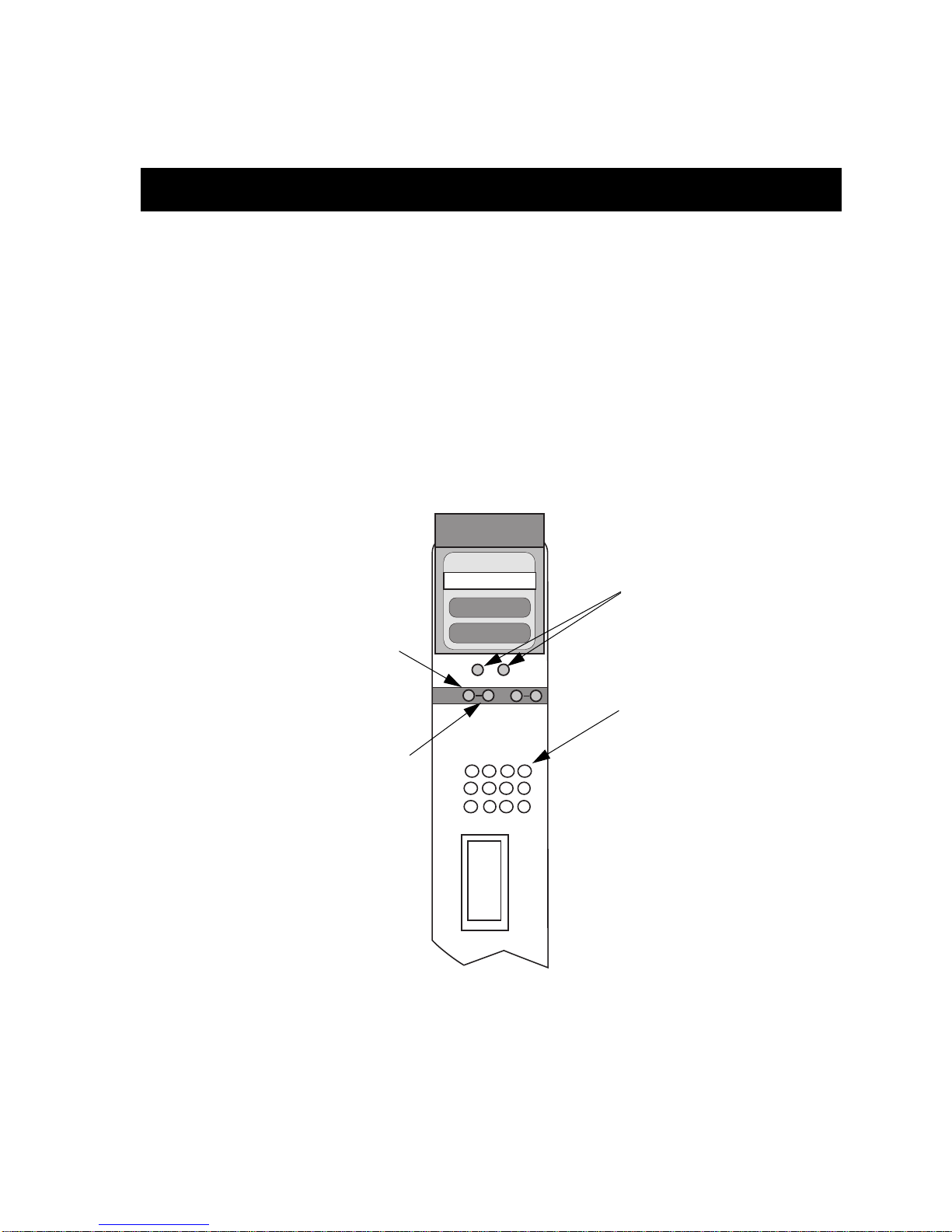

Figure 4-1. The LANVIEW LEDs

CPU

4

8

12

M

1

System Status
and CPU

FDDI Port

4-1

LANVIEW LEDs

The functions of the System Management Bus (SMB) and the CPU LEDs are listed
in Table 4-1.

Table 4-1. SMB and CPU LEDs

LED Color State Description

Green Functional Fully operational.

Yellow Crippled Not fully operational (i.e., one bad port).

Yellow/Green Booting Blinks yellow and green while booting.

Red Reset Normal power-up reset.

Red (Flashing) Failed Fatal error has occurred.

Off Power off Module powered off.

The functions of the FNB Receive LEDs are listed in Table 4-2.

Table 4-2. FNB Receive LED

LED Color State

Yellow (Flashing) Activity

Off No activity

The functions of the FNB Transmit LEDs are listed in Table 4-2.

Table 4-3. FNB Transmit LED

LED Color State

Green (Flashing) Activity

Off No activity

4-2

LANVIEW LEDs

There is one FDDI Port LED for each Master port. The functions of the FDDI Port
LEDs are listed in Table 4-4.

Table 4-4. FDDI Status LEDs

LED Color State

Green Link, Activity, Port enabled

Yellow Link, No Activity, Port enabled

Red No link, Port disabled

Red (Flashing) Link, Port disabled

Off No link, No activity, Port enabled

4-3

LANVIEW LEDs

4-4

Specifications

Safety

Chapter 5

!

CAUTION

Service

It is the responsibility of the person who sells the system to which the module will
be a part to ensure that the total system meets allowed limits of conducted and
radiated emissions.

This equipment meets the following safety requirements:

• UL 1950

• CSA C22.2 No. 950

• EN 60950

• IEC 950

• EMI Requirements of FCC Part 15 Class A

• EN 55022 Class A

• VCCI Class I

• EMC the following requirements:
EN 50082-1

IEC 801-2 ESD
IEC 801-3 Radiated susceptibility
IEC 801-4 EFT

MTBF (MHBK-217E): >200,000 hrs.
MTTR: <0.5 hr.

5-1

Specifications

Physical

Dimensions:

35.0 D x 44.0 H x 3.0 W centimeters
(13.8 D x 17.4 H x 1.2 W inches)

Weight:

Unit: 1360.7 gr. (3 lb)
Shipping: 1814.4 gr. (4 lb)

Link Distance

Up to two kilometers on multimode fiber-optic cable as specified by
ANSI MMF-PMD, using SC connectors specified by ANSI LCF-PMD.

5-2
