Introduction
The 9E106-06 is a multi-port Ethernet Switch Module for the SmartSwitch 9000
that provides high speed IEEE 802.1D compliant bridging and SecureFast™
Switching (SFS).
Chapter 1
®
Each 9E106-06 is equipped with two advanced Intel i960
One processor provides the module’s SNMP protocol stack for both IETF and
Enterprise MIB extensions. Additional higher-level management services such as
RMON and Distributed LAN Monitor (DLM) are also provided. The other
processor acts as the primary switching device, continually directing network
traffic to the appropriate destination interface.
The 9E106-06 module provides six user configurable front panel Ethernet Port
Interfaces Module (EPIM) connections and one backplane connection to the
SmartSwitch 9000 Flexible Network Bus (FNB). The FNB is a dual FDDI
backplane channel that allows for reliable, high-capacity communications
between all FNB modules. Users on all six Ethernet segments can access the hub’s
Flexible Network Bus (FNB) and communicate with users on any other FNB
based Ethernet, Token Ring, FDDI, ATM or WAN module. Since each FNB
module translates its native user’s data packets to FDDI frames, all modules can
communicate without the use of any external or additional bridge or router
components.
Each EPIM Port is a single network segment that can operate in one of two ways:
as a host to a single user or as a host to multiple users through another multiport
switch, bridge, or repeater device. Ethernet networks are connected to the
9E106-06 using standard Cabletron EPIMs.
RISC microprocessors.
The 9E106-06 also features front panel LANVIEW™ Diagnostic LEDs to offer
at-a-glance status information about each front panel port, as well as the
operation of the overall module.
1-1
Introduction
Features
Processors
The 9E106-06 is equipped with dual advanced Intel i960
®
RISC microprocessors.
One processor provides a platform for all management applications, such as
Spanning Tree, RMON, IETF and Enterprise MIB support. This network
management information is available through a variety of methods. All SNMP
based information is accessible either via an in-band (front panel port), side-band
(SMB-10), or out-of-band via the Environmental Module’s (EM) COM ports. For
more information on the EM’s COM ports or SMB-10 refer to the SmartSwitch
9000 Local Management User’s Guide. The other processor acts as the primary
switching device. This switching device can operate in two modes, as a traditional
bridge, or as a SecureFast Switch (SFS).
System Management
The 9E106-06 provides interfaces to the two System Management Buses (SMB-1
and SMB-10) for intermodule management. The SMB-1 Bus is only accessible to
modules. The SMB-10 Bus is accessible through the EPIM on the front of the
Environmental Module.
Management
The 9E106-06 provides local and remote management functions. Local
management is provided through the RS-232 COM ports on the SmartSwitch 9000
Environmental Module using a standard VT-220 terminal or equivalent, Serial
Line Interface Protocol (SLIP), or Point-to-Point Protocol (PPP).
1-2
Remote management is possible through Cabletron’s SPECTRUM or any SNMP
compliant management tool. Included as management features are the IETF
Standard Management Information Base (MIBs) RMON (RFC 1271), IETF MIB ll
(RFC 1213), IETF Bridge MIB (RFC 1493), FDDI 1512 with SMT 7.3 and a host of
other Cabletron enterprise MIBs. In addition, the front panel provides LEDs to
indicate LINK status per port, as well as transmit and receive activity.
Connectivity
The 9E106-06 module has six user configurable front panel Ethernet Port Interface
Module (EPIM) connections and one Flexible Network Bus (FNB) backplane
connection. Ethernet networks connect to the 9E106-06 module using standard
Cabletron EPIMs. EPIMs presently available include:
• EPIM-C For Thin-net Coaxial
• EPIM-T For 10Base-T Twisted Pair
• EPIM-F1/EPIM-F2 For Multimode Fiber Optic
• EPIM-F3 For Single Mode Fiber Optic
• EPIM-A For AUI Cable segment
• EPIM-X For AUI Cable segment
Introduction
The FNB backplane connection is a fixed connection to FNB-1 or FNB-2. This
connection allows the 9E106-06 to communicate with other SmartSwitch 9000
modules supporting various LAN technologies including: Token Ring, FDDI,
Ethernet, WAN and ATM.
Bridging/SecureFast™ Switching
9E106-06 operates in two modes, as a traditional bridge, or as a SecureFast Switch.
In the traditional bridge mode, the 9E106-06 makes filtering/forwarding
decisions based on frame destination address. In the SecureFast Switch mode,
filtering/forwarding decisions are made based on both frame destination and
source addresses.
Management Information Base (MIB) Support
The 9E106-06 provides MIB support including:
• RMON (RFC 1271)
• IETF MIB II (RFC 1213)
• IETF Bridge MIB (RFC 1493)
• FDDI 1512 with SMT 7.3 and a host of other Cabletron Enterprise MIBs.
NOTE
For a complete list of supported MIBs, refer to the release notes provided in the
9E106-06 package.
LANVIEW LEDs
The 9E106-06 uses LANVIEW – the Cabletron Systems built-in visual diagnostic
and status monitoring system. With LANVIEW LEDs, you can quickly identify
the device, port, and physical layer status at a glance.
Hot Swapping
The 9E106-06 can be installed or removed from the chassis while the
SmartSwitch 9000 is powered up without affecting the operation of the remaining
modules in the chassis.
1-3
Introduction
ETHERNET
9E106-06
SMB CPU
FNB
1-4
Figure 1-1. The 9E106-06
Related Manuals
The manuals listed below should be used to supplement the procedures and
technical data contained in this manual.
SmartSwitch 9000 Installation Guide
SmartSwitch 9000 Operations Guide
SmartSwitch 9000 9C300-1 Environmental Module User’s Guide
SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide
SmartSwitch 9000 Local Management User’s Guide
INB Terminator Modules Installation Guide
Getting Help
If you need additional support related to this device, or if you have any questions,
comments, or suggestions concerning this manual, contact the Cabletron Systems
Global Call Center:
Introduction
Phone (603) 332-9400
Internet mail support@ctron.com
FTP ctron.com (134.141.197.25)
Login
Password
BBS (603) 335-3358
Modem setting 8N1: 8 data bits, No parity, 1 stop bit
For additional information about Cabletron Systems or our products,
visit our World Wide Web site:
For technical support, select
Before calling the Cabletron Systems Global Call Center, have the following
information ready:
• Your Cabletron Systems service contract number
• A description of the failure
• A description of any action(s) already taken to resolve the problem (e.g.,
changing mode switches, rebooting the unit, etc.)
• The serial and revision numbers of all involved Cabletron Systems products in
the network
• A description of your network environment (layout, cable type, etc.)
• Network load and frame size at the time of trouble (if known)
• The device history (i.e., have you returned the device before, is this a recurring
problem, etc.)
• Any previous Return Material Authorization (RMA) numbers
anonymous
your email address
http://www.cabletron.com/
Service and Support .
1-5
Introduction
1-6
Chapter 2
Installing the 9E106-06 Module
The 9E106-06 Module may be installed in any of the 14 slots available in the
SmartSwitch 9000 chassis. To install the 9E106-06 Module, follow the steps below:
1. Remove the blank panel covering the slot that the module is being mounted
in. All other slots must be covered, if modules are not being installed, to
ensure proper airflow and cooling.
2. Carefully remove the module from the shipping box. (Save the box and
packing materials in the event the module must be reshipped.)
3. Attach one end of the ESD wrist strap packaged with the SmartSwitch 9000
chassis to your wrist. Plug the other end into the jack for the ESD Wrist Strap
in the lower right corner of the SmartSwitch 9000 chassis shown in Figure 2-1.
4. Remove the module from the plastic bag. Observe all precautions to prevent
damage from Electrostatic Discharge (ESD).
5. Carefully examine the module, checking for damage. If any damage exists,
DO NOT install the module. Contact Cabletron Systems Technical Support
immediately.
6. Before installing the 9E106-06 Module into the chassis, ensure that the bottom
and top plastic tabs are unlocked. Slide the module into an available slot and
ensure that the module is between the module guides, as shown in Figure 2-1.
Check both the upper and lower tracks. Take care that the module slides in
straight and engages the backplane connectors properly. Lock down the top
and bottom plastic tabs at the same time, applying even pr
essure.
2-1
Installing the 9E106-06 Module
Plastic Tab
WARNING
Jack for ESD
Wrist Strap
Metal Back-Panel
Module
Module Guides
Figure 2-1. Installing the 9E106-06 Module
Ensure that the module is between the module guides. Lock down the top and
bottom plastic tabs at the same time, applying even pr
essure.
2-2
Installing EPIMs
This section contains procedures on how to add/replace an Ethernet Port
Interface Module (EPIM). After installing the EPIM, refer to Appendix A to verify
proper EPIM operation.
Installing the 9E106-06 Module
!
CAUTION
Observe all static precautions while handling EPIMs.
EPIM Revisions
Revision numbers are located on the EPIM’s Printed Circuit Board directly
following the Part Number as shown in Figure 2-2. Table 2-1 lists the required
board revision for each EPIM.
EPIM Board Revision
CABLETRON SYSTEMS INC. PN 9000474 - 04
EPIM-T

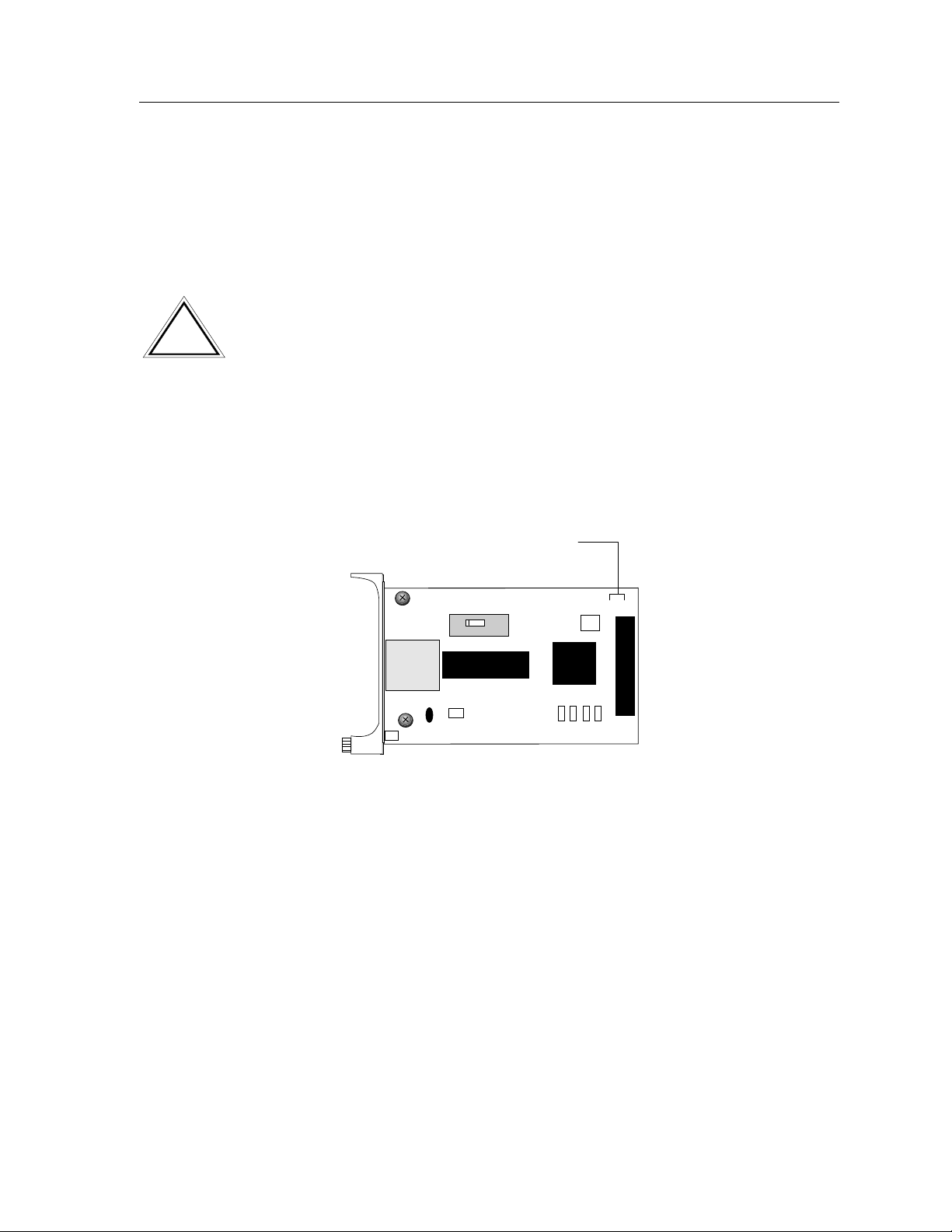

Figure 2-2. Location of Revision Number
2-3
Installing the 9E106-06 Module
Table 2-1. EPIM Board Revisions
EPIM EPIM BOARD REVISION
EPIM-T 04 or greater
EPIM-F2 05 or greater
EPIM-F1 05 or greater
EPIM-F3 02 or greater
EPIM-C 05 or greater
EPIM-A Not Applicable
EPIM-X 02 or greater
Installing the EPIM
To install an EPIM:
When removing an EPIM, make sure to pull the module straight out so as not to
NOTE
damage the connector.
1. Remove the coverplate or the EPIM (whichever applies).
2. Slide your new EPIM into place, making sure the connectors on the rear of the
module and inside the HUB attach properly. Refer to Figure 2-3.
3. Install the mounting screw.
2-4
EPIM
E
N
E
T
2
E
N
E
T
1
Installing the 9E106-06 Module
Mounting
Screw
The Reset Switch
The Reset Switch is located on the front panel, under the top plastic tab, as shown
in Figure 2-4. It serves two functions:
• Pressing the Reset Switch twice within three seconds resets the module.
• Pressing and holding the switch on for three or more seconds causes the
module to shutdown. Pressing and holding the switch again for three seconds
restarts the module.
SNMP management may be used to disable this switch to enhance module
security.

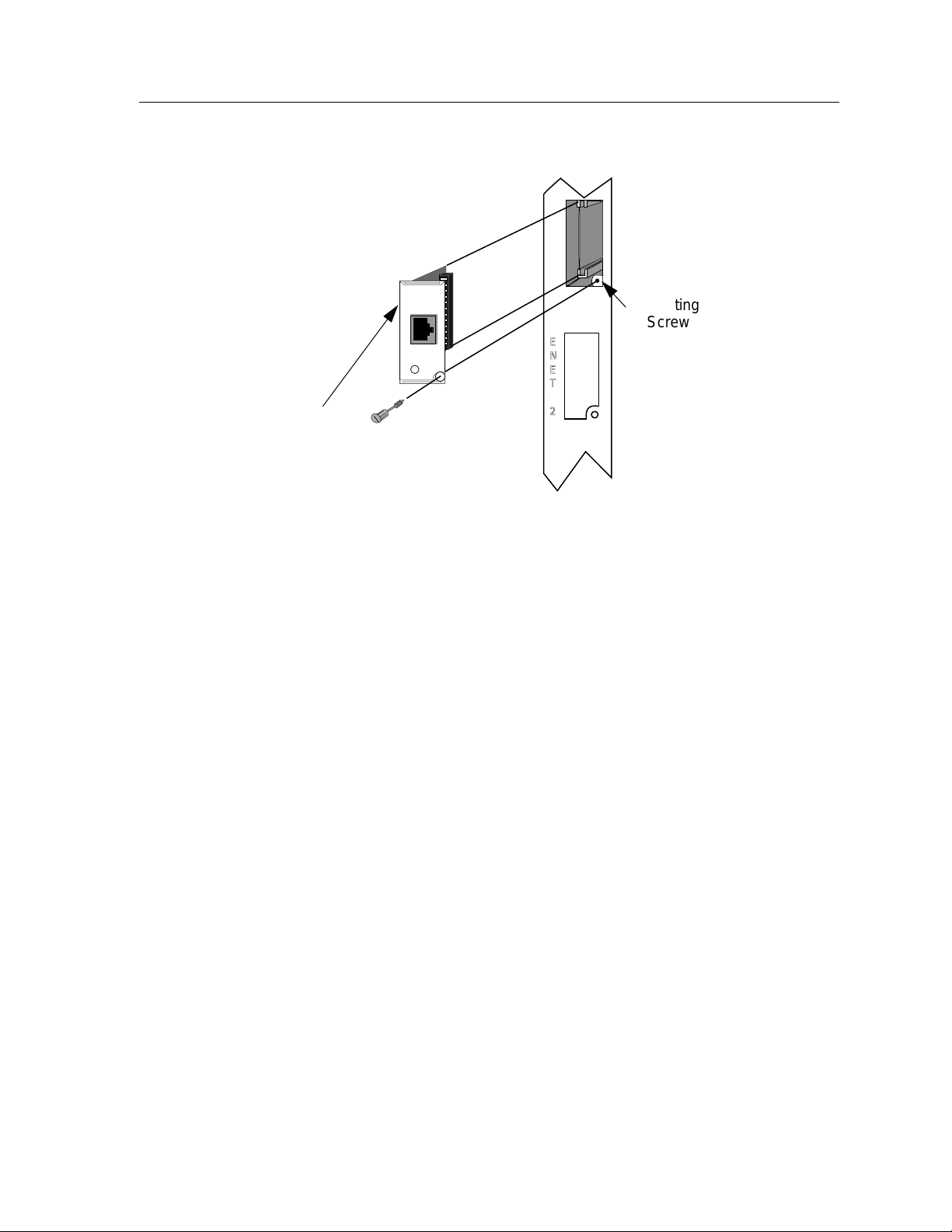

Figure 2-3. Installing an EPIM
2-5
Installing the 9E106-06 Module
SMB
CPU
Reset Switch

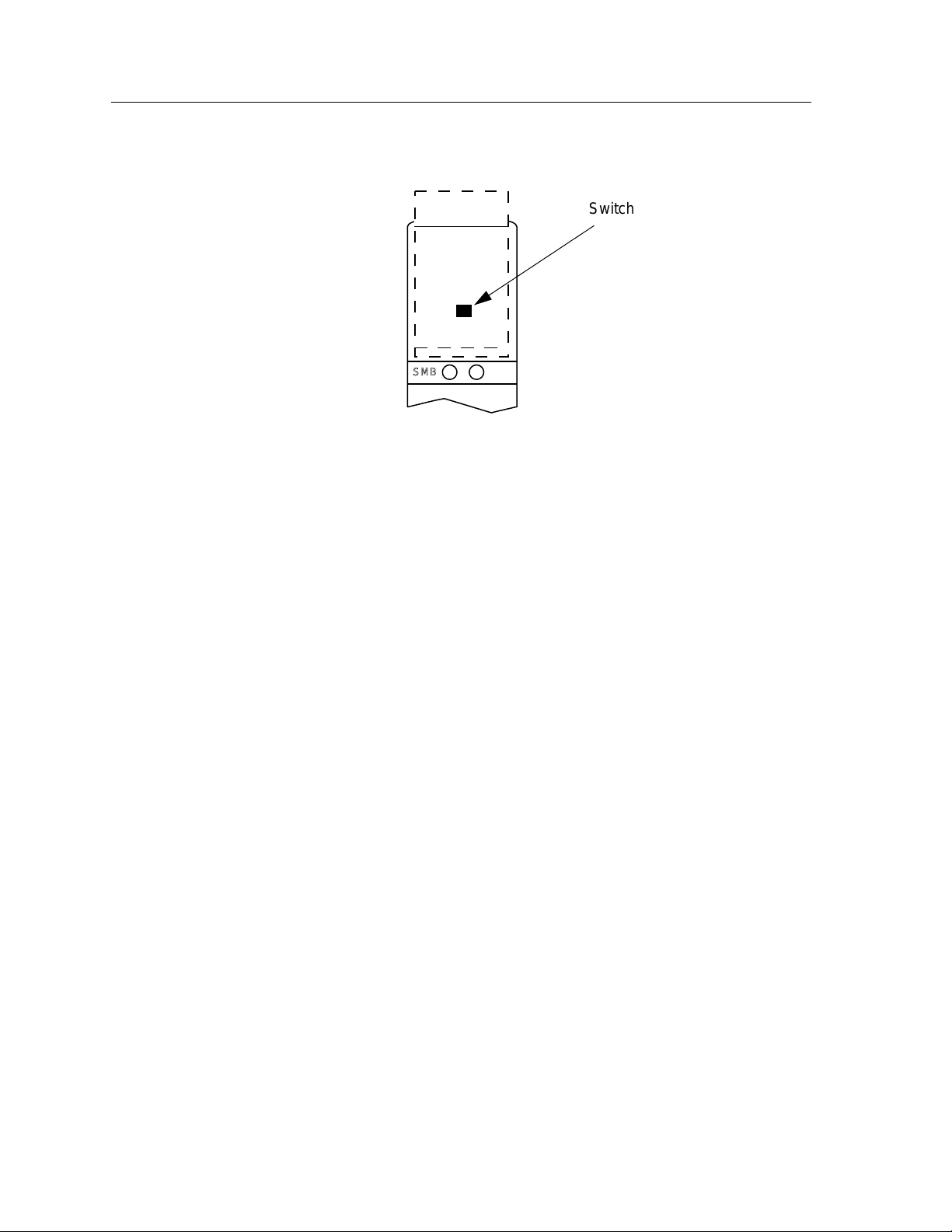

Figure 2-4. The Reset Switch
User-Accessible Components
Figure 2-5 shows the various components that are accessible to the user. These
consist of an eight-switch DIP switch (explained in the next section), replaceable
PROMs and sockets for RAM. These will be used for future upgrades.
Instructions for installing the components will be supplied with the upgrade kit.
2-6
Installing the 9E106-06 Module
SMB-1
PROM
Dip
Switch
Boot
PROM
Figure 2-5. User-Accessible Components
Setting the Module Card DIP Switch
Local
DRAM
Socket
Packet
DRAM
Socket
Flash
SIMM
Socket
An eight-switch DIP switch is located on the module card, as shown in Figure 2-5
and Figure 2-5. The functions of the switches are listed in Table 2-2.
2-7
Installing the 9E106-06 Module
i 960
SMB-1
PROM
Boot
PROM
1
2
3
4
5
6
7
8
Figure 2-6. Location of Module DIP Switch
2-8
See the Cautions at the end of this table.
Table 2-2. Function of DIP Switch
Switch Function Description
This module stores user entered passwords in NVRAM
(Nonvolatile Random Access Memory). To clear these
8
7
Clear
Password
Clear
NVRAM
passwords, toggle this switch and then reset the module’s
processor. Once the module resets, factory default passwords
-1
are placed in NVRAM. You can use these default passwords
or, if desired, enter new passwords. To enter new passwords,
refer to the Module Local Management User’s Guide.
This module stores user entered parameters such as IP
addresses, subnet masks, default gateway, default interface,
SNMP traps, bridge configurations and module specific
configurations in NVRAM. To clear these parameters toggle
this switch and then reset the module’s processor. Once the
-2
module resets, factory default parameters are placed in
NVRAM. You can use the default parameters or, if desired,
enter new parameters. To enter new parameters, refer to the
Module Local Management User’s Guide.
Installing the 9E106-06 Module
!
CAUTION
This module uses BOOTP (Boot Strap Protocol) to download
Force
6
5 Reserved
4 Reserved
3 Reserved
2 Reserved
1 Reserved
BOOTP
Download
new versions of the image file into Flash Memory. This
procedure forces image files to be downloaded from the PC
or Workstation, configured to act as the BOOTP server,
connected to the EPIM port in the Environmental Module.
For Factory Use Only
For Factory Use Only
For Factory Use Only
For Factory Use Only
For Factory Use Only
Caution: Do not toggle Switch 8 unless you intend to reset the user configured
passwords to the factory default settings.
Caution: Do not toggle Switch 7 unless you intend to reset the user parameters
to the factory default settings.
2-9
Installing the 9E106-06 Module
2-10
Operation
The 9E106-06 module is a seven port device, six front panel ports, each
representing a separate Ethernet collision domain, and one backplane connection
to FNB-1 or FNB-2.
Chapter 3
As shown in Figure 3-1, packets received through one of the six front panel
Ethernet ports and destined for another SmartSwitch 9000 module are translated
by the i960
Switch Processor into a FDDI frame format and then sent to FNB-1 or
FNB-2.
SMB-1
System
Six
Front
Panel
Ports
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Ethernet
Diagnostic
Controller
i960 Switch
Processor
i960 Core
Processor
SMB-10
DC/DC
Convertor
FNB-1
or
FNB-2
Figure 3-1. Packet Flow
3-1
Operation
System Management Buses
There are two management channels within the SmartSwitch 9000 system: the
SMB-1 and the SMB-10. These buses provide out-of-band management and intermodule management communication.
SMB-1 Bus
The SMB-1 is a 1Mbs management bus located within the SmartSwitch 9000. This
bus is utilized by all diagnostic controllers in the system, including connectivity
modules, power supply modules and the environmental module. The SMB-1
transports inter-chassis information between system components, such as power
and environmental information, as well as diagnostic messages. Periodic
loop-back tests are performed by all modules that share this bus to ensure the
validity of SMB-1. In the event a failure is detected on SMB-1, the SMB-10 may be
used as an alternate communication channel.
SMB-10 Bus
The SMB-10 is a 10Mbs management bus located within the SmartSwitch 9000
that is also used for inter-chassis communication of modules, as well as serving as
an out-of-band management channel into the SmartSwitch 9000. The SMB-10 is
externalized from the chassis via an optional Ethernet Port Interface Module
(EPIM) located on the front of the Environmental Module. Through an EPIM
connection, full SNMP management of the SmartSwitch 9000 is available out-ofband from user data. Modules which share the SMB-10 bus periodically send out
loop-back packets to ensure the validity of SMB-10. In the event a fault is detected
on the SMB-10, the SMB-1 can be used as an alternate communication channel by
the modules.
System Diagnostic Controller
This diagnostic controller is composed of a Z-80 microprocessor and the
supporting logic. The diagnostic controller is designed to control the power-up
sequencing of modules, monitor the 9E106-06 input and output power
parameters, keep watch over the main Host Processor, as well as monitor the
temperature and control the SMB LANVIEW diagnostic LED. Although the
diagnostic controller and the main Host Processor can operate independently of
each other if needed, they exchange information about each others status and
overall module condition. The information gathered by the diagnostic controller
is available to the network manager via local/remote management and the LCD
located on the Environmental Module. The 9E106-06 has been designed so that in
the event of a diagnostic controller fault, the 9E106-06 continues to function.
3-2
DC/DC Converter
The DC/DC converter converts the 48 VDC on the system power bus to the
necessary operating voltages for its host network services module. The diagnostic
controller monitors and controls the operation of the DC/DC converter.
FNB Interface
SmartSwitch 9000 modules are designed with one of two attachment policies. One
allows dual attachment of a module to either FNB-1 or FNB-2; the second allows
dual attachment to both FNB-1 and FNB-2. The 9E106-06 has one dual attachment
to the FNB backplane, connecting to either FNB-1 or FNB-2. The module can
insert into either the FNB-1 or FNB-2, or bypass both. These flexible configuration
options make the SmartSwitch 9000 ideal for networks designed to Bridge/Route
multiple lower speed LANs to FDDI and/or networks designed using a FDDI
collapsed backbone.
Operation
i960 Switch
The i960 Switch Processor is the first of the dual i960 RISC microprocessors built
into the 9E106-06 Module. This processor provides the packet forwarding logic
and can be configured to run as a layer two bridge, or as a SecureFast switch.
i960 Host
The i960 Host Processor is the second of the dual i960 RISC microprocessors built
into the 9E106-06 Module. This processor provides the SNMP protocol stacks to
support industry standard MIBs. Additionally, Cabletron enterprise extension
MIBs are supported for each media type. Advanced management services, such
as the Distributed LAN Monitor, telnet and network address to MAC address
mapping, are provided by this i960 processor.
3-3
Operation
3-4
LANVIEW LEDs
The front panel LANVIEW LEDs indicate the status of the module and may be
used as an aid in troubleshooting. The 9E106-06 LANVIEW LEDs are shown in
Figure 4-1.
Chapter 4
Diagnostic
Controller Status
FNB Receive
Ethernet
Transmit
ETHERNET
9E106-06
SMB CPU
FNB
System Status
FNB Transmit
Ethernet
Receive
Figure 4-1. The LANVIEW LEDs
4-1
LANVIEW LEDs
The functions of the System Management Bus (SMB) and CPU LEDs are listed in
Table 4-1.
Table 4-1. SMB and CPU LEDs
LED Color State Description
Green Functional Fully operational.
Yellow Testing Normal, internal diagnostic testing being
done.
Yellow (Flashing) Crippled Not fully operational (i.e., one bad port).
Yellow/Green Booting Blinks yellow and green while booting.
Red Reset Normal power-up reset.
Red (Flashing) Failed Fatal error has occurred.
Off Power off Module powered off.
The functions of the FNB Receive LED are listed in Table 4-1.
Table 4-2. FNB Receive LEDs
LED Color State
Yellow (Flashing) Activity (Flashing rate indicates rate of activity.)
Off No activity
The functions of the FNB Transmit LED are listed in Table 4-3.
Table 4-3. FNB Transmit LEDs
LED Color State
Green (Flashing) Activity (Flashing rate indicates rate of activity.)
Off No activity
4-2
The functions of the Ethernet Receive LEDs are listed in Table 4-1.
Table 4-4. Ethernet Receive LEDs
LED Color State
Green Link, No activity
Yellow (Flashing) Link, Activity (Flashing rate indicates rate of activity.)
Red Port disabled no link
Red (Flashing) Port disabled with link
Off No link, No activity
The functions of the Ethernet Transmit LEDs are listed in Table 4-5.
Table 4-5. Ethernet Transmit LEDs
LANVIEW LEDs
LED Color State
Green (Flashing) Activity (Flashing rate indicates rate of activity)
Yellow (Flashing) Port in standby state
Red Port disabled
Red (Flashing) Collision
Off No activity
4-3
LANVIEW LEDs
4-4
Specifications
Technical Specifications
CPU:
Dual Intel i960 RISC based microprocessors
Memory:
8 Meg. Local DRAM (expandable to 12 Meg.)
Chapter 5
2 Meg. Flash Memory (expandable to 14 Meg.)
4 Meg. Shared DRAM (expandable to 12 Meg.)
Network Interfaces:
Cabletron EPIMs
Safety
It is the responsibility of the person who sells the system to which the module will
!
CAUTION
be a part to ensure that the total system meets allowed limits of conducted and
radiated emissions.
5-1
Specifications
This equipment meets:
The safety requirements of:
• UL 1950
• CSA C22.2 No. 950
• EN 60950
• IEC 950
The EMI Requirements of:
• FCC Part 15 Class A
• EN 55022 Class A
• VCCI Class I
The immunity requirements of:
• EN 50082-1
• IEC 801-2 ESD
• IEC 801-3 Radiated susceptibility
• IEC 801-4 EFT
Service
MTBF (MHBK-217E) >200,000 hrs.
MTTR <0.5 hr.
Physical
Dimensions:
Weight:
Unit: 1.36 kg. (3lb)
Shipping: 1.81 kg. (4lb)
35.0 D x 44.0 H x 3.0 W centimeters
(13.8D x 17.4H x 1.2 W inches)
5-2
EPIMs
The 9E106-06 Ethernet Switching Module provides one port per channel for
Cabletron Systems EPIMs. EPIMs allow connecting to the 9E106-06 using
different media types. Cabletron Systems offers a variety of EPIMs whose
specifications are explained in the following sections.
NOTE
Verify that the EPIM is the proper revision before installing it. See Installing the
EPIM on page 2-4 for details.
EPIM-T
Appendix A

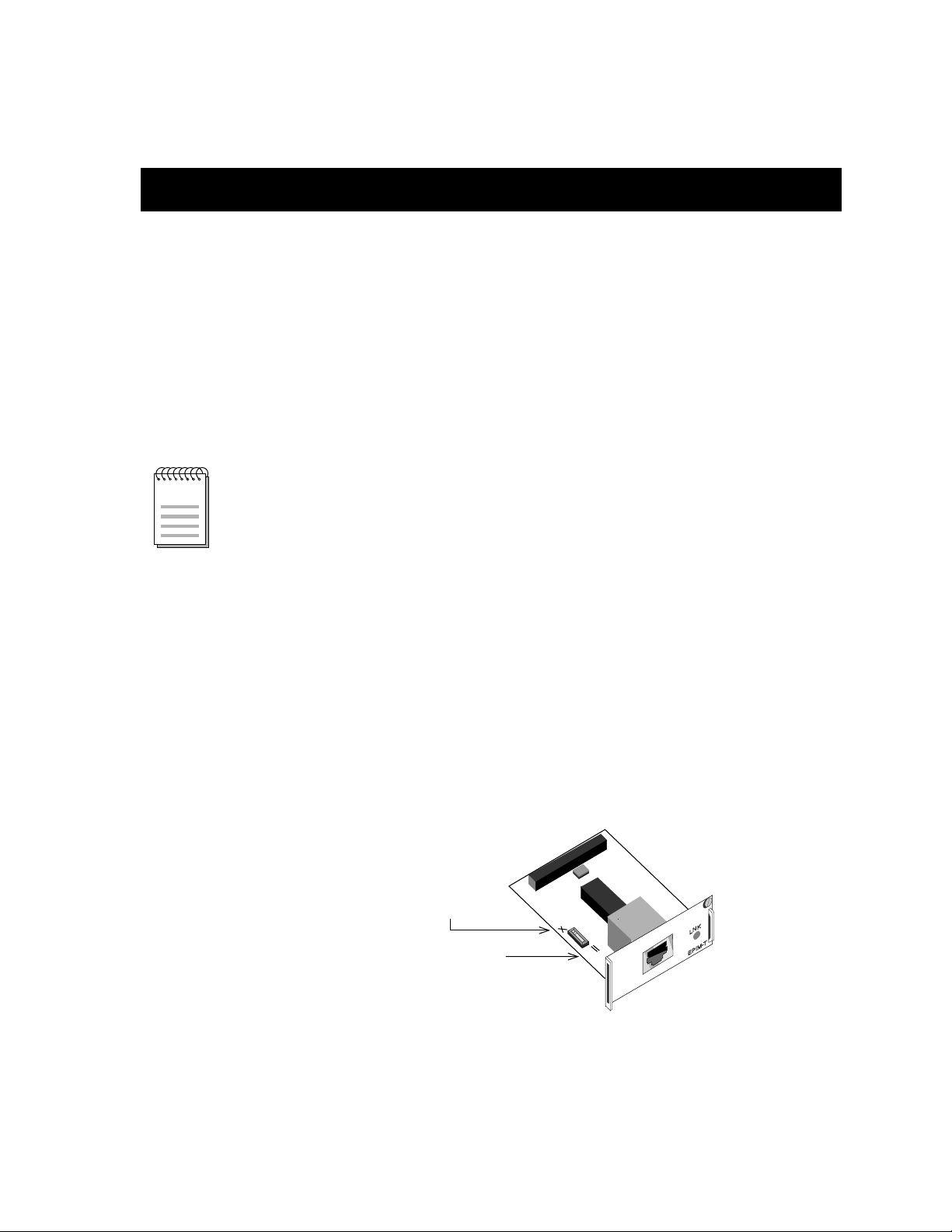

The EPIM-T is an RJ-45 connector supporting UTP cabling. It has an internal
Cabletron Systems TPT-T™ 10BASE-T Twisted Pair Transceiver.
The slide switch on the EPIM-T determines the crossover status of the cable pairs.
If the switch is on the X side, the pairs are internally crossed over. If the switch is
on the = side, the pairs are not internally crossed over. Figure A-1 shows the
pinouts for the EPIM-T in both crossover positions.
The link distance is up to 100 meters on unshielded twisted pair cable as specified
by ANSI TP-PMD.
Position X
(crossed over)
1. RX+
2. RX-
3. TX+
4. NC
5. NC
6. TX-
7. NC
8. NC
Position =
(not crossed over)
1. TX+
2. TX-
3. RX+
4. NC
Figure A-1. EPIM-T Pinouts
5. NC
6. RX-
7. NC
8. NC
A-1
EPIMs
EPIM-F1 and EPIM-F2

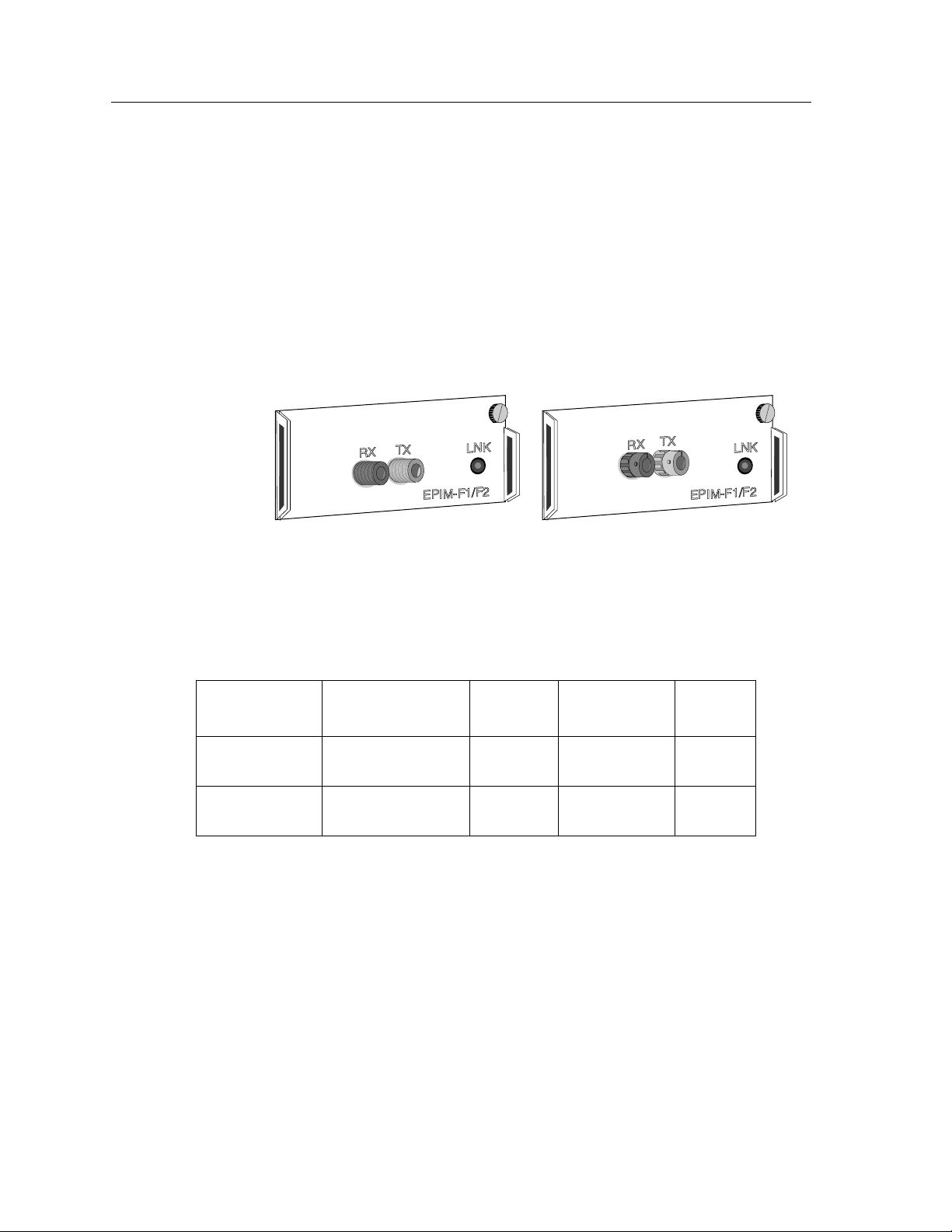

The EPIM-F1 and EPIM-F2 support Multimode Fiber Optic cabling. Each EPIM
has an internal Cabletron Systems FOT-F™ Fiber Optic Transceiver. The EPIM-F1
is equipped with SMA Connectors and the EPIM-F2 is equipped with ST
Connectors. Figure A-2 shows both EPIMs. Specifications for the EPIMs are listed
in Table A-1.
The link distance is up to 2 kilometers on the multimode fiber-optic cable as
specified by ANSI MMF-PMD.
Figure A-2. EPIM-F1 and EPIM-F2
Table A-1. EPIM Specifications
Parameter Typical Value
Receive
Sensitivity
Peak Input
Power
-30.5 dBm -28.0 dBm — —
-7.6 dBm -8.2 dBm — —
Worst
Case
Transmitter power parameters are listed Table A-2.
Worst Case
Budget
Typical
Budget
A-2
Table A-2. Transmitter Power Parameters
EPIM-F3
50/125 µm fiber -13.0 dBm -15.0 dBm 13.0 dB 17.5 dB
62.5/125 µm fiber -10.0 dBm -12.0 dBm 16.0 dB 20.5 dB
100/140 µm fiber -7.0 dBm -9.0 dBm 19.0 dB 23.5 dB
The transmitter power levels and receive sensitivity levels listed are Peak Power
NOTE
Levels after optical overshoot. A Peak Power Meter must be used to correctly
compare the values given above to those measured on any particular port. If
Power Levels are being measured with an Average Power Meter, then 3 dBm must
be added to the measurement to correctly compare those measured values to the
values listed (i.e., -30.5 dBm peak = -33.5 dBm average).
EPIM-F3

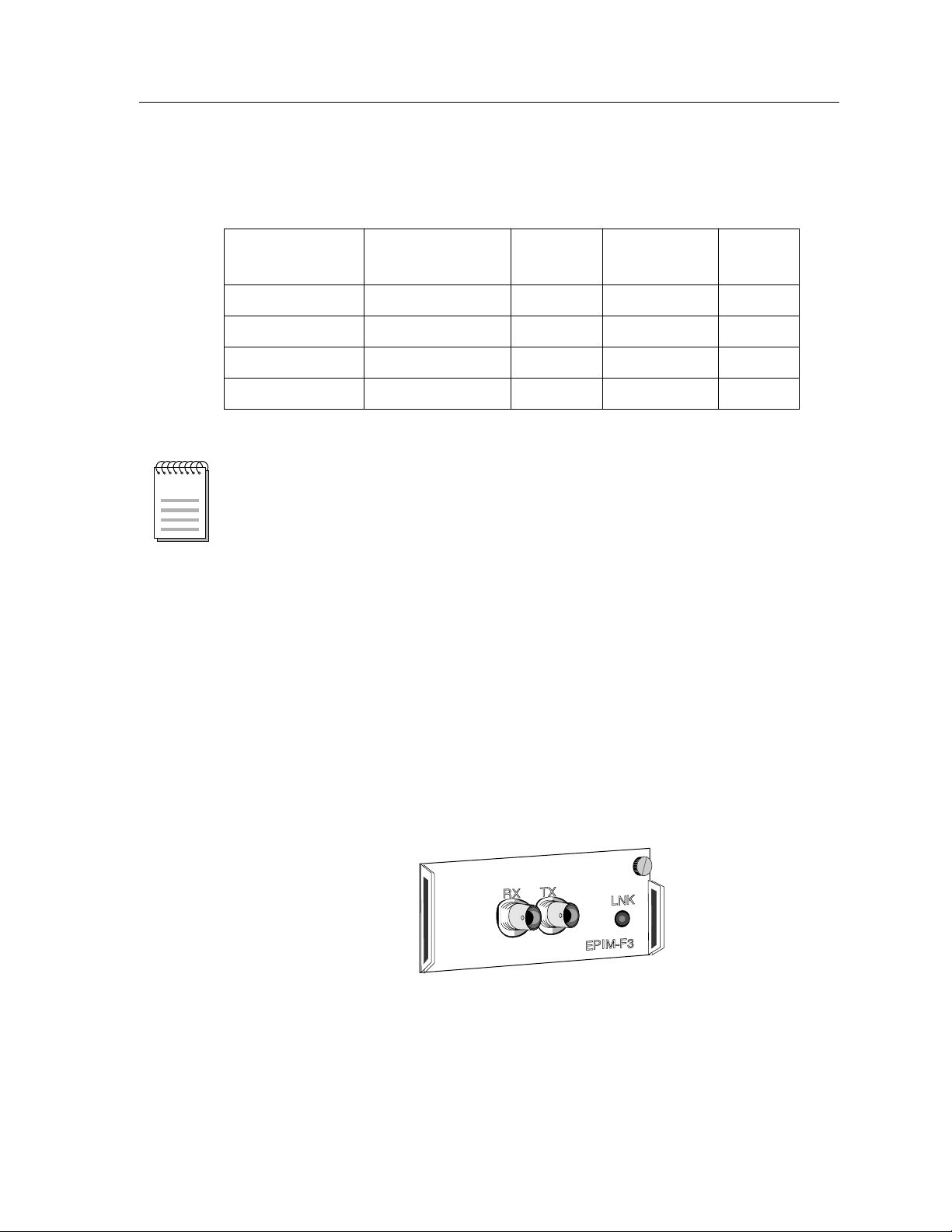

The EPIM-F3 supports Single Mode Fiber Optic cabling. It has an internal
Cabletron Systems FOT-F™ Fiber Optic Transceiver and is equipped with ST
Connectors. Figure A-3 shows the EPIM-F3. Specifications for the EPIM-F3 are
listed in Table A-3.
Parameter Typical Value
Error Rate Better than 10
-10
Worst
Case
Worst Case
Budget
Typical
Budget
The link distance is up to 40 kilometers (max) and 25 kilometers (typical) on
single mode fiber-optic cable as specified by ANSI SMF-PMD.
Figure A-3. EPIM-F3
A-3
EPIMs
NOTE
Transmitter Power decreases as temperatures rise and increases as temperatures
fall. Use the Output Power Coefficient to calculate increased or decreased power
output for your operating environment. For example, the typical power output at
°
C is -16.4 dBm. For a 4°C temperature increase, multiply the typical
25
coefficient (-0.15 dBm) by four and add the result to typical output power (4 x -
0.15 dBm + -16.4 = -17.0).
Table A-3. EPIM-F3 Specifications
Parameter Typical Minimum Maximum
Transmitter Peak Wave Length 1300 nm 1270 nm 1330 nm
Spectral Width 60 nm - 100 nm
Rise Time 3.0 nsec 2.7 nsec 5.0 nsec
Fall Time 2.5 nsec 2.2 nsec 5.0 nsec
The transmitter power levels given above are Peak Power Levels after optical
NOTE
overshoot. You must use a Peak Power Meter to correctly compare the values
given above to those measured on any particular port. If you are measuring power
levels with an Average Power Meter, add 3 dBm to the average power
measurement to correctly compare the average power values measured to the
values listed above (i.e., -33.5 dBm average + 3 dB = -30.5 dBm peak).
EPIM-C
The EPIM-C supports thin-net coaxial cabling and is equipped with an internal
Cabletron Systems TMS-3™ Transceiver. You can use the TERM switch on the
front of the EPIM-C to set the internal 50-ohm terminator. This eliminates the
need to connect the port to a tee-connector and terminator. Figure A-4 shows the
setting for the terminator switch.
Duty Cycle 50.1% 49.6% 50.7%
Bit Error Rate Better than 10
-10
A-4
The link distance is up to 185 meters on the thin-net coaxial cables.
Connector T ype
This connector type is a BNC receptacle, with gold center contact, for use with
BNC type tee-connectors and RG-58 thin-net cable.
EPIM-A and EPIM-X (AUI Port)
Internal Termination Switch
= On (internally terminated)
= Off (need external termination)
Figure A-4. EPIM-C
Grounding
For safety reasons, only one end of a thin-net segment should be connected to
earth ground. Connection to earth ground at more than one point on the segment
may cause dangerous ground currents.
The BNC port of the Coaxial Interface Modules is not connected to earth ground.
EPIM-A and EPIM-X (AUI Port)
The EPIM-A is a DB-15 female connector used to attach segments to an external
transceiver. The EPIM-X is equipped with dual internal transceivers. It has a DB15
male connector used to attach segments to an AUI cable. Figure A-5 shows both
modules.
The AUI Cable must not exceed 50 meters in length. If 28 AWG thin office drop
AUI cable is used, then the maximum cable length is limited to 15.24 meters.
A-5
EPIMs
Figure A-5. The EPIM-A and EPIM-X
Table A-4 lists the DB-15 pinouts.
Table A-4. DB-15 Pinouts
Pin Number Represents Pin Number Represents
1 Logic Ref. 10 Transmit -
2 Collision + 11 Logic Ref.
3 Transmit 12 Receive -
4 Logic Ref. 13 Power (+12Vdc)
5 Receive 14 Logic Ref.
6 Power Return 15 No Connection
7 No Connection Connector Shell Positive Ground
9 Collision -
A-6
Loading...
