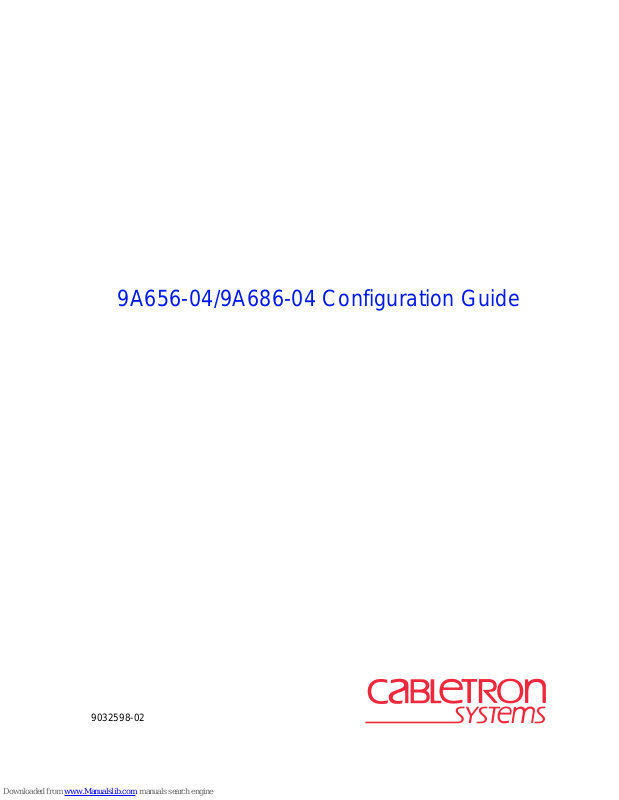

9A656-04/9A686-04 Configuration Guide

9032598-02



Only qualified personnel should perform installation procedures.

NOTICE

Enterasys Systems reserves the right to make changes in specifications and other information contained in this document without prior
notice. The reader should in all cases consult Enterasys Systems to determine whether any such changes have been made.

The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR

CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING OUT OF OR
RELATED TO THIS MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN
ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.

1999 by Enterasys Systems, Inc., P.O. Box 5005, Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America

Part Number: 9032598-02 February 1999

ecure

Enterasys Systems , SPECTRUM , and LANVIEW are registered trademarks and S

Enterasys Systems, Inc.
All other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies.

ast

f

,and SmartSwitch are trademarks of

FCC NOTICE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment uses, generates, and can radiate radio frequency energy and if not installed in accordance with the
operator’s manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause interference in which case the user will be required to correct the interference at his own expense.

WARNING: Changes or modifications made to this device which are not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

9A656-04/9A686-04 Configuration Guide i

Notice

INDUSTRY CANADA NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la class A
prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

VCCI NOTICE

This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology Equipment
(VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be
required to take corrective actions.

CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT

IMPORTANT: Before utilizing this product, carefully read this License Agreement.

This document is an agreement between you, the end user, and Enterasys Systems, Inc. (“Enterasys”) that sets forth your rights and
obligations with respect to the Enterasys software program (the “Program”) contained in this package. The Program may be contained in
firmware, chips or other media. BY UTILIZING THE ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE
TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE LIMITATION OF WARRANTY AND DISCLAIMER
OF LIABILITY. IF YOU DO NO T AGREE TO THE TERMS OF THIS AGREEMENT, PR OMPTLY RETURN THE UNUSED PRODUCT
TO THE PLACE OF PURCHASE FOR A FULL REFUND.

ii 9A656-04/9A686-04 Configuration Guide

Notice

CABLETRON SOFTWARE PROGRAM LICENSE

1. LICENSE

of this License Agreement.
You may not copy, reproduce or transmit any part of the Program except as permitted by the Copyright Act of the United States or as

authorized in writing by Enterasys.

2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the Program.

3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws and in the state and federal courts of

New Hampshire. You accept the personal jurisdiction and venue of the New Hampshire courts.

. You have the right to use only the one (1) copy of the Program provided in this package subject to the terms and conditions

EXCLUSION OF WARRANTY AND DISCLAIMER OF LIABILITY

1. EXCLUSION OF

expressed or implied, concerning the Program (including its documentation and media).
CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TO YOU BY CABLETRON IN WRITING,

EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED T O IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE ACCOMPANYING WRITTEN
MA TERIALS, AND ANY A CCOMP ANYING HARDWARE.

WARRANTY. Except as may be specifically provided by Enterasys in writing, Enterasys makes no warranty,

2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL CABLETRON OR ITS SUPPLIERS BE LIABLE

FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS,
PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL, CONSEQUENTIAL,
OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE THIS CABLETRON
PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, OR ON THE DURATION OR LIMITATION OF IMPLIED WARRANTIES, IN SOME INSTANCES THE ABOVE
LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

The enclosed product (a) was developed solely at priv ate expense; (b) contains “restricted computer softw are” submitted with restricted rights
in accordance with Section 52227-19 (a) through (d) of the Commercial Computer Software - Restricted Rights Clause and its successors,
and (c) in all respects is proprietary data belonging to Enterasys and/or its suppliers.

For Department of Defense units, the product is licensed with “Restricted Rights” as defined in the DoD Supplement to the Federal
Acquisition Regulations, Section 52.227-7013 (c) (1) (ii) and its successors, and use, duplication, disclosure by the Government is subject to
restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in T echnical Data and Computer Software clause at 252.227-7013. Enterasys
Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.

9A656-04/9A686-04 Configuration Guide iii

Notice

SAFETY INFORMATION

CLASS 1 LASER TRANSCEIVERS

THE FE-100F3 FAST ETHERNET INTERFACE MODULE, FPIM-05 AND FPIM-07 FDDI PORT

INTERFACE MODULES, APIM-29 AND APIM-29LR ATM PORT INTERFACE MODULES,

ANIM-29/3 , ANIM-29/3LR AND ANIM-39/2 ATM NETWORK INTERFACE MODULES USE CLASS 1

LASER TRANSCEIVERS. READ THE FOLLOWING SAFETY INFORMATION BEFORE

INSTALLING OR OPERATING THESE MODULES.

The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits. This control loop eliminates the need for
maintenance checks or adjustments. The output is factory set, and does not allow any user adjustment. Class 1 Laser transcei vers comply with
the following safety standards:

• 21 CFR 1040.10 and 1040.11 U.S. Department of Health and Human Services (FDA).

• IEC Publication 825 (International Electrotechnical Commission).

• CENELEC EN 60825 (European Committee for Electrotechnical Standardization).
When operating within their performance limitations, laser transceiver output meets the Class 1 accessible emission limit of all three

standards. Class 1 levels of laser radiation are not considered hazardous.

SAFETY INFORMATION

CLASS 1 LASER TRANSCEIVERS

LASER RADIATION AND CONNECTORS

When the connector is in place, all laser radiation remains within the fiber. The maximum amount of radiant power exiting the fiber (under
normal conditions) is -12.6 dBm or 55 x 10

Removing the optical connector from the transceiver allows laser radiation to emit directly from the optical port. The maximum radiance
from the optical port (under worst case conditions) is

0.8 W cm

Do not use optical instruments to view the laser output. The use of optical instruments to view laser output increases eye hazard.
When viewing the output optical port, power must be removed from the network adapter.

-2

or 8 x 10

3

W m

2

sr-1.

-6

watts.

iv 9A656-04/9A686-04 Configuration Guide

DECLARATION OF CONFORMITY

Application of Council Directive(s): 89/336/EEC

73/23/EEC

Manufacturer’s Name: Enterasys Systems, Inc.

Manufacturer’s Address: 35 Industrial Way

PO Box 5005
Rochester, NH 03867

European Representative Name: Mr. J. Solari

European Representative Address: Enterasys Systems Limited

Nexus House, Newbury Business Park
London Road, Newbury
Berkshire RG13 2PZ, England

Conformance to Directive(s)/Product Standards: EC Directive 89/336/EEC

EC Directive 73/23/EEC
EN 55022
EN 50082-1
EN 60950

Notice

Equipment T ype/Environment: Networking Equipment, for use in a Commercial or

Light Industrial Environment.

W e the undersigned, hereby declare, under our sole responsibility, that the equipment packaged with this notice conforms
to the above directives.

Manufacturer Legal Representative in Europe
Mr. Ronald Fotino Mr. J. Solari

___________________________________ ___________________________________

Full Name Full Name
Principal Compliance Engineer Managing Director - E.M.E.A.

___________________________________ ___________________________________

Title Title
Rochester, NH, USA Newbury, Berkshire, England

___________________________________ ___________________________________

Location Location

9A656-04/9A686-04 Configuration Guide v

Notice

vi 9A656-04/9A686-04 Configuration Guide

CONTENTS

CHAPTER 1 INTRODUCTION

1.1 Using This Guide.......................................................................................... 1-1

1.2 Document Conventions................................................................................ 1-2

1.3 Overview....................................................................................................... 1-3

1.3.1 Distributed Management Framework.............................................. 1-4

1.3.2 ATM Forum Specifications.............................................................. 1-4

1.3.3 ATM Traffic Types...........................................................................1-4

1.3.4 MIB Support .................................................................................... 1-5

1.3.5 Distributed Clocking ........................................................................ 1-5

1.3.6 ATM Adaptation Layer (AAL) Support............................................. 1-6

1.3.7 Management LAN Emulation Client................................................ 1-6

1.4 Interface (Port) Numbering........................................................................... 1-6

1.5 Default Settings Upon First Initialization....................................................... 1-7

1.5.1 9A686-04 Initialization Steps........................................................... 1-7

1.5.2 Additional Default Settings.............................................................. 1-9

1.6 Configurable Options.................................................................................. 1-10

1.6.1 Configurable Options at the System (Chassis) Level.................... 1-10

1.7 Local Management Screen Elements......................................................... 1-12

1.7.1 Local Management Keyboard Conventions .................................. 1-14

1.8 Getting Help................................................................................................ 1-15

1.9 Related Manuals......................................................................................... 1-16

CHAPTER 2 SYSTEM CONFIGURATION

2.1 Selecting Local Management Menu Screen Items....................................... 2-2

2.2 Exiting Local Management Screens............................................................. 2-2

2.3 Accessing the Main Menu Screen................................................................ 2-3

2.4 The Main Menu Screen................................................................................2-4

2.5 The Chassis Menu Screen...........................................................................2-5

2.6 Chassis Configuration Screen...................................................................... 2-6

2.6.1 Setting the IP Address ....................................................................2-8

2.6.2 Setting the Chassis Date................................................................. 2-9

2.6.3 Setting the Chassis Time ................................................................ 2-9

2.6.4 Entering a New Screen Update Time............................................ 2-10

2.7 SNMP Community Names Screen.............................................................2-11

2.7.1 Establishing Community Names ................................................... 2-12

9A656-04/9A686-04 Configuration Guide vii

Contents

2.8 SNMP Traps Screen...................................................................................2-13

2.8.1 Configuring the Trap Table............................................................2-14

2.9 The Chassis Power Screen.........................................................................2-15

2.10 The Module Selection Screen.....................................................................2-17

2.10.1 Selecting a Module........................................................................2-17

2.11 The Module Menu Screen for the 9A686-04...............................................2-18

2.12 The Module Configuration Menu Screen ....................................................2-19

2.13 The General Configuration Screen .............................................................2-20

2.13.1 Entering a New Screen Refresh Time...........................................2-21

2.13.2 Setting the Screen Lockout Time ..................................................2-22

2.13.3 Setting the TFTP Gateway IP Address..........................................2-22

2.13.4 Setting the Default Gateway..........................................................2-23

2.13.5 Setting the Default Interface..........................................................2-23

2.14 The Module Specific Configuration Screen.................................................2-24

2.15 System Configuration Menu Screen ...........................................................2-26

2.16 The PNNI Configuration Screen..................................................................2-27

2.16.1 PNNI Configuration Screen Fields.................................................2-28

2.16.2 Setting the PNNI Mode..................................................................2-31

2.16.3 Setting the NSAP Prefix ................................................................2-31

2.16.4 Setting the PNNI Level..................................................................2-31

2.17 The ILMI Configuration Menu Screen .........................................................2-32

2.17.1 ILMI Configuration Menu Screen Fields........................................2-33

2.17.2 Setting the MIN SVCC VCI Field...................................................2-33

2.17.3 Setting the MAX SVCC VPI Field..................................................2-34

2.17.4 Setting the MAX SVPC VPI Field..................................................2-34

2.18 The ATM Diagnostics Screen .....................................................................2-35

2.18.1 Enabling/Disabling ATM Diagnostics.............................................2-35

2.19 Module Configuration Menu Screen............................................................2-36

2.19.1 Module Configuration Menu Screen Fields ...................................2-36

2.20 Port Status Screen......................................................................................2-38

2.20.1 Port Status Screen Fields..............................................................2-38

2.21 Port Errors Screen ......................................................................................2-42

2.21.1 Port Errors Screen Fields..............................................................2-42

2.22 EPD/PPD Configuration Menu Screen........................................................2-44

2.22.1 EPD/PPD Configuration Menu Screen Fields ...............................2-44

2.22.2 Configuring EPD/PPD ...................................................................2-45

2.23 SPVC Connection Management Menu Screen...........................................2-46

2.23.1 SPVC Connection Management Menu Screen Fields...................2-46

2.24 SPVC Source Creation Screen...................................................................2-47

2.24.1 SPVC Source Creation Screen Fields...........................................2-47

2.24.2 Creating the Source End of an SPVP............................................2-49

2.24.3 Creating the Source End of a SPVC .............................................2-51

viii 9A656-04/9A686-04 Configuration Guide

Contents

2.25 SPVC Destination Creation Screen............................................................ 2-53

2.25.1 SPVC Destination Creation Screen Fields.................................... 2-53

2.25.2 Creating the Destination End of an SPVP..................................... 2-55

2.25.3 Creating the Destination End of a SPVC ...................................... 2-56

2.26 LAN Emulation Menu Screen .....................................................................2-57

2.26.1 LAN Emulation Client Menu Screen Fields................................... 2-58

2.27 LAN Emulation Client Properties Screen.................................................... 2-59

2.27.1 LAN Emulation Client Properties Screen Fields............................ 2-59

2.28 LAN Emulation Client Administration Screen .............................................2-63

2.28.1 LAN Emulation Client Administration Screen Fields.....................2-63

2.28.2 Configuring the LEC Automatically ............................................... 2-65

2.28.3 Configuring the LEC Manually ...................................................... 2-66

2.29 Network Tools............................................................................................. 2-67

2.29.1 Built-in Commands........................................................................ 2-68

2.29.2 Special Commands....................................................................... 2-74

2.30 The Environmental Module Screen ............................................................2-75

2.30.1 Setting the Fan Speeds................................................................. 2-77

2.30.2 Enabling/Disabling COM1 and COM2........................................... 2-77

2.30.3 Changing the COM2 Application................................................... 2-78

2.30.4 Downloading a New Image into Flash Memory............................. 2-78

2.31 Creating a PVC........................................................................................... 2-79

2.31.1 Getting the Traffic Descriptor........................................................2-79

2.31.2 Adjusting ILMI Parameters for PVC Creation................................ 2-79

2.31.3 Setting the Instance of the First Interface ..................................... 2-81

2.31.4 Setting the Traffic Descriptor for the Receive Side

of the Interfaces ............................................................................ 2-82

2.31.5 Setting the Traffic Descriptor for the Transmit

Side of the Interfaces.................................................................... 2-83

2.31.6 Setting the VCL Status to Active................................................... 2-84

2.31.7 Getting the Cross-Connect Identifier (CCID)................................. 2-85

2.31.8 Activating the PVC........................................................................2-86

CHAPTER 3 ILMI 4.0 AND THE SMARTSWITCH 9500 SYSTEM

3.1 ILMI Autoconfiguration Examples................................................................. 3-1

3.2 Port Status Screen........................................................................................3-5

3.3 ILMI Configuration Screen............................................................................ 3-7

9A656-04/9A686-04 Configuration Guide ix

Contents

CHAPTER 4 SIGNALLING AND ROUTING

4.1 Persistence...................................................................................................4-1

4.2 Signalling Overview.......................................................................................4-2

4.2.1 Stack Types.....................................................................................4-2

4.2.2 Configuration ...................................................................................4-2

4.2.3 Setting Types...................................................................................4-3

4.2.4 Setting Sides ...................................................................................4-5

4.3 Routing Overview..........................................................................................4-7

4.3.1 PNNI Overview................................................................................4-7

4.3.2 Peer Groups ....................................................................................4-8

4.3.3 Crankback .......................................................................................4-9

4.3.4 GCAC ............................................................................................4-10

4.3.5 Addressing.....................................................................................4-10

4.4 IISP Overview.............................................................................................4-10

4.4.1 Supported UNI Signalling Versions ...............................................4-10

4.4.2 UNI Sides ......................................................................................4-10

4.5 Configuring IISP..........................................................................................4-11

4.5.1 Signalling Configuration.................................................................4-12

4.5.1.1 Step 1: Set the IISP Signalling Version and Type.........4-12

4.5.1.2 Step 2: Set the IISP Side...............................................4-14

4.6 Creating and Configuring a Reachable Address (Static Route)..................4-16

4.6.1 Step 1: Create a Row in the pnniRouteAddrTable ........................4-17

4.6.2 Step 2: Associate the Reachable Address with Its

Advertising Node ID.......................................................................4-19

4.6.3 Step 3: Associate the Reachable Address with a Port ID..............4-21

4.6.4 Step 4: Associate the Reachable Address with an Interface.........4-23

APPENDIX A ACRONYMS

APPENDIX B DEFAULT SETTINGS

B.1 SmartSwitch 9500 System Settings................................................................ B-1

B.1.1 IP Addresses........................................................................................ B-1

B.1.2 SNMP Community Names.................................................................... B-1

B.1.3 SNMP Traps......................................................................................... B-1

B.1.4 Signalling.............................................................................................. B-1

B.1.5 ILMI Settings......................................................................................... B-2

B.1.6 Management LAN Emulation Client ..................................................... B-2

B.1.7 PNNI Settings....................................................................................... B-2

B.1.8 Clocking................................................................................................ B-2

B.1.9 Maximum Number of Connections....................................................... B-2

x 9A656-04/9A686-04 Configuration Guide

Contents

APPENDIX C SUPPORTED MIBS

C.1 MIB, SMI, MIB Files and Internet MIB Hierarchy.............................................C-1

C.2 SmartSwitch 9500 MIB Hierarchy...................................................................C-3

9A656-04/9A686-04 Configuration Guide xi

Contents

xii 9A656-04/9A686-04 Configuration Guide

INTRODUCTION

CHAPTER 1

NOTE

This is a draft manual for the 9A686-04 only. Additional information regarding PNNI
local management screens will be added to the next revision.

Welcome to the Enterasys Systems 9A656-04/9A686-04 Configuration Guide. This guide
describes the management features of the 9A656-04/9A686-04 and how to configure the
modules and SmartSwitch 9500 chassis via Local Management screens and MIBs, and
includes information concerning network requirements and troubleshooting.

NOTE

In this document, the Cabletron Systems SmartSwitch 9000 chassis is referred to
as the “SmartSwitch 9500 chassis” which indicates a SmartSwitch 9000 chassis
with a CTM backplane and one or more 9A656-04/9A686-04 modules installed.

Unless noted differently, this guide applies to both the 9A656-04 and 9A686-04 ATM
SmartSwitch modules, which are referred to as the “9A686-04”.

1.1 USING THIS GUIDE

NOTE

This guide is for Cabletron Systems service personnel and QUALIFIED customer
maintenance personnel who are familiar with installing networking systems, and
have a working knowledge of ATM networks, and for system managers and others
who perform network management tasks.

Read through this guide completely to understand the features, capabilities, Local
Management Functions, and MIB support of the 9A686-04 and the SmartSwitch 9500 chassis.
The following list provides an overview of each section in this manual:

Chapter 1, Introduction , provides a brief overview of the management features of the

9A686-04, describes the interface numbering scheme used by the 9A686-04, provides an
overview of the configurable options of the modules and the entire system (SmartSwitch

9500), provides instructions on getting help and concludes with a list of related manuals.

9A656-04/9A686-04 Configuration Guide Page 1-1

Chapter 1: Introduction

Chapter 2, Basic System Configuration , provides instructions on setting the In-Band,

Out-Of-Band, and SMB-10 IP Addresses, setting SNMP Community Names and SNMP
Traps, viewing chassis power supply information, creating PVCs and SPVCs, configuring
PNNI for the SmartSwitch 9500, setting ILMI parameters, configuring the management LEC,
and configuring the Environmental Module of the SmartSwitch 9500 chassis.

Chapter 3, ILMI 4.0 and the SmartSwitch 9500 System , provides information on how the

SmartSwitch 9500 uses ILMI 4.0 to auto-configure signalling stacks and sides depending on
the requirements of the network, with no user input required.

Chapter 4, Signalling and Routing , provides information and instructions on how to use

MIBs to force individual interfaces to use specific Signalling stacks and sides, how to
configure an IISP interface via MIB tools, and provides a brief overview of PNNI 1.0 support
of the SmartSwitch 9500.

Appendix A, Acronyms , provides a list of acronyms commonly used in this document.
Appendix B, Default Settings , provides information on the default settings the SmartSwitch

9500 system has upon first initialization, and cross references to sections of this manual where
these settings may be changed.

Appendix C, Supported MIBs , provides tables that detail all of the MIB branches and branch

leaves supported by the SmartSwitch 9500 system.

1.2 DOCUMENT CONVENTIONS

The following conventions are used throughout this document:

NOTE

CAUTION

TIP

Note symbol. Calls the reader’s attention to any item of information that may be of

special importance.

Caution symbol. Contains information essential to avoid damage to the equipment.

!

Tip symbol. Conveys helpful hints concerning procedures or actions.

Page 1-2 9A656-04/9A686-04 Configuration Guide

Overview

1.3 OVERVIEW

The following two subsections provide brief overviews of the 9A656-04 and the 9A686-04
respectively:

9A656-04

The 9A656-04 is a 4.5 Gbps, single slot module for the SmartSwitch 9500 chassis. Up to four
ATM Network Interface Modules (ANIMs) of any type can be installed in the 9A656-04 to
provide front panel connectivity to the network. Enterasys Systems ANIMs can support up to
622 Mbps of bandwidth per port. The 9A656-04 switches data between the ANIMs and the
Cell Transfer Matrix (CTM) backplane in the SmartSwitch 9500 chassis. This allows for
high-speed switching of data between modules installed in the same chassis that connect to
the CTM backplane. The CTM provides a dedicated 1.6 Gbps link between each 9A656-04
module.

9A686-04

The 9A686-04 is a 5.4 Gbps, single slot module for the SmartSwitch 9500 chassis. Up to four
ATM Network Interface Modules (ANIMs) of any type can be installed in the 9A686-04 to
provide front panel connectivity to the network. Enterasys Systems ANIMs can support up to
622 Mbps of bandwidth per port. The 9A686-04 switches data between the ANIMs and the
Cell Transfer Matrix (CTM) backplane in the SmartSwitch 9500 chassis. This allows for
high-speed switching of data between modules installed in the same chassis that connect to
the CTM backplane. The CTM provides a dedicated 1.6 Gbps link between each 9A686-04
module.

9A656-04/9A686-04 Configuration Guide Page 1-3

•

•

•

•

•

•

•

•

•

Chapter 1: Introduction

1.3.1 Distributed Management Framework

Through its distributed management framework, the 9A686-04 allows all the modules in the
chassis to appear as a single entity, managed through a single IP address. The individual
modules are transparent to the network manager and management applications. A fully loaded
SmartSwitch 9500 chassis appears as a single switch, with one IP address.

“

NOTE

Throughout this manual, it is important to understand that the 9A656-04/9A686-04
are part of an overall “system” which is the SmartSwitch 9500. With one or more
9A656-04/9A686-04s installed, the chassis becomes a single switch, with all boards
installed being a part of that single switch, not a separate component.

When this manual refers to the “system” it is referring to a SmartSwitch 9500
chassis with one or more 9A656-04/9A686-04 modules installed.

1.3.2 ATM Forum Specifications

The 9A686-04 is fully compliant with the following ATM Forum specifications:

Intergrated Local management Interface (ILMI) 4.0 for autoconfiguration.
UNI v3.0 /3.1 and v4.0 for signalling.
ATM Forum P-NNI 1.0 and IISP 3.0/3.1/4.0 routing specifications for establishing

connections between ATM switches.
LANE 1.0 for the management LAN Emulation Client.
TM 4.0

1.3.3 A TM Traffic T ypes

The 9A686-04 supports the following standard ATM traffic classes:

Constant Bit Rate (CBR): ATM traf fic class that is guaranteed a fixed amount of bandwidth
while the Virtual Circuit (VC) is active.

V ariable Bit Rate (VBR): ATM traffic class that v aries the amount of bandwidth used on the
VC while the VC is active, while maintaining a minimum CBR component.

Available Bit Rate (ABR): A TM traffic class that allows VCs to use the greatest amount of
bandwidth available on the link at any point in time.

Unspecified Bit Rate (UBR): ATM traffic class that does not contain any bandwidth
guarantees.

Page 1-4 9A656-04/9A686-04 Configuration Guide

•

•

Overview

1.3.4 MIB Support

The 9A686-04 provides support for a variety of Industry Standard and Enterasys Systems
specific MIBs. Details on these MIBs are provided in later chapters of this Guide. The MIBs
supported are as follows:

MIB2 (RFC 1573)
AToM MIB (RFC 1695)
AToM II MIB
ILMI MIB
PNNI MIB
Enterasys MIBs

SFCS MIB

•

•

•

•

•

•

•

•

•

•

ctNetwork MIB
ctPIC MIB
ctFlash MIB
nwRouter MIB
ctron Mib2 MIB Ext.

1.3.5 Distributed Clocking

The 9A686-04 supports three clocking modes:

Clock Recovery Mode

This clocking mode is required when the 9A686-04 is CONNECTED to the public ATM
network. In this mode, the 9A686-04 derives its transmit clock from the incoming line clock.

Master Clock Distribution

This clocking mode is required when the 9A686-04 is PART of the public ATM network. In
this mode, one 9A686-04 installed in the SmartSwitch 9500 chassis is configured as the
master clock for all other modules attached to the CTM backplane. The 9A686-04 that is the
master clock then distributes all clocking information to all the other modules.

Local Clock Mode

This clocking mode may be used by the 9A686-04 if the master clock signal is lost, or in the
absence of any external clock source. In this mode each 9A686-04 installed in the chassis acts
as its own clock source.

9A656-04/9A686-04 Configuration Guide Page 1-5

Chapter 1: Introduction

1.3.6 ATM Adaptation Layer (AAL) Support

The 9A686-04 support all ATM Adaptation Layers, (AAL 1, AAL 3/4 and AAL 5).

1.3.7 Management LAN Emulation Client

The SmartSwitch 9500 system creates a default management LEC upon first initialization.
The LEC automatically joins the default ELAN. Although all modules in the chassis are
capable of becoming the LEC, only one LEC is active in the system at one time. This is
accomplished through a LEC election algorithm.

1.4 INTERFACE (PORT) NUMBERING

The 9A686-04 use a geographic interface numbering scheme that allows for easy identiÞca­tion of each front panel and backplane interface of each 9A686-04 installed in the Smart­Switch 9500 chassis. Interface numbers are generated as follows:

Slot ##, ANIM ##, Interface ##

Table 1-1 provides an example of how the interface numbering scheme works. In this

example, there is a SmartSwitch 9500 chassis with five 9A686-04 modules installed. These
modules are installed in slots 1, 3, 7, 11 and 14. Each of these modules are equipped with 4
ANIM 21/3s. This provides each 9A686-04 with 12 front panel interfaces. Refer to Table 1-1
for a breakdown of the interface numbering scheme.

Table 1-1 Interface (Port) Numbering Example

ANIM # Interface # Slot 1 Slot 3 Slot 7 Slot 11 Slot 14

1 1 10101 30101 70101 110101 140101
1 2 10102 30102 70102 110102 140102
1 3 10103 30103 70103 110103 140103
2 1 10201 30201 70201 110201 140201
2 2 10202 30202 70202 110202 140202
2 3 10203 30203 70203 110203 140203
3 1 10301 30301 70301 110301 140301
3 2 10302 30302 70302 110302 140302
3 3 10303 30303 70303 110303 140303
4 1 10401 30401 70401 110401 140401
4 2 10402 30402 70402 110402 140402
4 3 10403 30403 70403 110403 140403

Page 1-6 9A656-04/9A686-04 Configuration Guide

Default Settings Upon First Initialization

CTM interfaces may be recognized by the following CTM ANIM #:

• If the ANIM number of the interface numbering scheme is 08 through 15.

For example, if the interface number is 11402. This means that the 9A686-04 is installed
in slot 1. The CTM ANIM is number 14, and it is port 2 of that CTM ANIM that has the
connection.

NOTE

The CTM ANIMs have two ports.

1.5 DEFAULT SETTINGS UPON FIRST INITIALIZATION

The 9A686-04, upon first initialization, performs a series of pre-configured setup procedures.
These procedures set up a default configuration of the switch that allows the device to begin
functioning in the network immediately. No setup is required by the user except the
assignment of an IP address for management purposes. This provides the 9A686-04 with
plug-and-play capabilities.

1.5.1 9A686-04 Initialization Steps

The 9A686-04 performs the following procedures when they are first inserted into a powered
up SmartSwitch 9500 chassis.

1. The 9A686-04 assigns itself an ATM address. Figure 1-1 provides an example of a default

ATM address.

End System

13 Byte NSAP Prefix

Identifier (ESI)

47-000000-000000-0000-1D123456-00001D123456-00

Default 9 Byte NSAP Prefix
Based on the Default PNNI
Level of 72

9A656-04/9A686-04 Configuration Guide Page 1-7

Least Significant 4 Bytes of
Base Mac Address/ESI

Figure 1-1 Default ATM Address Breakdown

Selector Byte

Chapter 1: Introduction

The 9A686-04 will always assign itself the default NSAP prefix shown in Figure 1-1. The
section of the address following the NSAP prefix will be the last 4 bytes of the base MAC
address of the module. The End System Identifier (ESI) will always be the base MAC
address of the module. The 9A686-04 will assign itself a default PNNI level of 72. This
ensures that multiple 9A686-04s installed in the same chassis will automatically belong to
the same peer group (via the default NSAP prefix and level) and will not produce multiple
Nodes with the same Node ID (via the unique base MAC address).

2. The 9A686-04 activates ILMI 4.0, which allows auto configuration. This makes the

9A686-04 capable of using any version of ILMI (3.0, 3.1, or 4.0) that a User, other ATM
switch, or ATM Access device may be using when communicating with the system. Each
interface will become a UNI, IISP or PNNI connection automatically.

3. The 9A686-04 runs the LEC election algorithm. If this module is elected it creates a LAN

Emulation Client (LEC) that is used for management purposes. This LEC then goes
through the following substeps:

a. The 9A686-04 attempts to detect LANE services. It will continue to perform this task

every ten seconds until it receives a response.

b. The 9A686-04 attempts to establish a connection with the well-known LAN Emulation

Configuration Server (LECS).

c. Once a connection is established with the LECS, the 9A686-04 joins the default ELAN.

If management functions are performed via a different ELAN, Local Management
allows the user to specify the ELAN to which the LEC will belong.

4. If there are multiple 9A686-04s in the chassis, an election process occurs where one of the

modules is elected to handle all management requests to the SmartSwitch 9500 chassis.

5. The 9A686-04 begins switching traffic. Connections and their bandwidth requirements are

accepted on a first come, first served basis.

Page 1-8 9A656-04/9A686-04 Configuration Guide

Default Settings Upon First Initialization

1.5.2 Additional Default Settings

The 9A686-04 also has the following additional default settings upon first initialization.

• A maximum of 128 k connections are allowed.

• Bandwidth is given to any requested connection on a first come, first served basis (i.e., no

Quality of Service (QoS) is given precedence to any particular request).

• ILMI sets the minimum and maximum VCI and VPI values for SVCs, and PVCs or SVPCs,

to the settings shown in Table 1-2. With this default setting, the SmartSwitch 9500 is an
SVC only switch. Chapter 3 provides information on how to reserve VPI/VCI ranges for
PVCs. Table 1-3 provides the total available ranges for all VCI and VPIs.

Table 1-2 Default Minimum and Maximum VCI and VPI Values for SVCs and VPCs

Minimum VCI for SVCs 33
Maximum VPI for SVCs 4095
Maximum VPI for VPCs 4095

Table 1-3 Minimum and Maximum VCI and VPI Ranges

Type Minimum V alue Maximum Value

VCI for SVCs 33 16k
Maximum VPI for SVCs 0 4095
Maximum VPI for VPCs 0 4095

• The 9A686-04 is set to be in Clock Recovery Mode, which means that all clocking will be

recovered from the received signals.

9A656-04/9A686-04 Configuration Guide Page 1-9

Chapter 1: Introduction

1.6 CONFIGURABLE OPTIONS

The 9A686-04 functions as a plug-and-play device, with minimal setup required by the user,
however, the module also provides a high degree of customization. The following sections
provide brief descriptions of the functions that may be customized depending on the
requirements of the network administrator, and the ATM network.

1.6.1 Configurable Options at the System (Chassis) Level

As described earlier, the SmartSwitch 9500 chassis with at least one 9A686-04 installed,
allows the chassis to be assigned IP addresses for management purposes. With the
SmartSwitch 9500 chassis operating in this way, many new configurable parameters for the
chassis become available. These options are described as follows:

System IP Address

The system IP address allows the chassis to be managed out-of-band via a connection to the
COM2 port of the Environmental Module, via the EPIM installed in the Environmental
Module (SMB-10), and in-band through the LEC created upon module initialization.

SNMP T raps

The SmartSwitch 9500 chassis is SNMP compliant and is capable of being configured to send
messages to multiple Network Management Stations to alert users of status changes.

SNMP Community Names

Community names act as passwords to Local/Remote Management and provide security
access to the SmartSwitch 9500 chassis. Access to the chassis and module management
screens is controlled by enacting any of three different levels of security authorization
(read-only, read-write, and super-user).

Chassis Date and Time

This feature supports assigning values that the SmartSwitch 9500 chassis recognizes as the
current date and time. When the chassis date and time are modified and saved, all 9A686-04
modules installed in the chassis are set to these values.

Chassis Power Supply Information (Read-only Screen)

Local Management provides access to the Chassis Power screen. This screen contains current
information on the status of all power supplies installed in the SmartSwitch 9500 chassis.

Page 1-10 9A656-04/9A686-04 Configuration Guide

Configurable Options

Environmental Module Configuration

Local Management provides access to the Environmental Module screen. This screen allows
the user to view current operating conditions of the Environmental Module (EM), configure
the COM ports of the EM, and download a new firmware image for the EM to FLASH
memory.

ILMI Configuration

The ILMI Configuration screen allows the user to set the minimum value for Virtual Channel
identifiers (VCIs) for front panel and backplane Switched Virtual Connections (SVCs), the
maximum value for Virtual Path Identifiers (VPIs) for SVCs, and the maximum value for
Virtual Path Identifiers (VPIs) for Switched Virtual Path Connections (SVPCs) for the entire
system (SmartSwitch 9500 chassis).

PNNI Configuration

The PNNI Configuration screen allows the user to set the NSAP prefix and PNNI level of the
SmartSwitch 9500 chassis. When these settings are saved, each 9A686-04 installed in the
chassis share the same NSAP prefix, and the same PNNI level.

ATM Diagnostics

The SmartSwitch 9500 chassis can be set to run ATM diagnostics when power is c ycled or the
modules are reset. All major hardware subsystems of the system are tested during the power
up diagnostics.

9A656-04/9A686-04 Configuration Guide Page 1-11

Chapter 1: Introduction

1.7 LOCAL MANAGEMENT SCREEN ELEMENTS

This section describes the conventions that are used when describing the Local Management
screens used to configure the SmartSwitch 9500 chassis and the 9A686-04 in later chapters of
this guide.

There are five types of screens used in Local Management: password, menu, configuration,
status, and warning screens. Each type of screen can consist of one to five basic elements, or
fields. Figure 1-2 shows an example of the fields in a screen. A description of each field
follows the figure.

NOTE

The following definitions apply to most Cabletron Systems Local Management
screens. Exceptions to these definitions may occur in the Local Management
screens of some Cabletron Systems devices.

Figure 1-2 Example of a Local Management Screen

The following list explains each of the Local Management fields:

Event Message Field

This field briefly displays messages that indicate if a Local Management procedure was
executed correctly or incorrectly, that changes were saved or not saved to Non-Volatile
Random Access Memory (NVRAM), or that a user did not have access privileges to an
application.

Page 1-12 9A656-04/9A686-04 Configuration Guide

Local Management Screen Elements

NOTE

Only the password, configuration and status screens have event message fields.

Table 1-4 describes the most common event messages. Event messages related to specific

Local Management applications are described with those applications throughout this manual.

Table 1-4 Event Messages

Message What it Means

SAVED OK One or more fields were

modified, and saved to NVRAM.

NOT SAVED--PRESS SAVE TO
KEEP CHANGES

NOTHING TO SAVE The SAVE command was

Attempting to exit the LM screen
after one or more fields were
modified, but not saved to
NVRAM.

executed, b ut nothing w as sa v ed
to NVRAM.

Display Fields

Display fields cannot be edited. These fields may display information that never changes, or
information that may change as a result of Local Management operations, user selections and
configurations, or network monitoring information. In the screens shown in this guide, the
characters in the display fields are in plain type (not bold). In the field description, the field is
identified as being “read-only”.

Input Fields

Input Fields require the entry of keyboard characters. IP addresses, subnet mask, default
gateway and device time are examples of input fields. In the screens shown in this guide, the
characters in the input fields are in bold type. In the field description, the field is identified as
being “modifiable”.

Selection/Toggle Fields

Selection/Toggle fields provide a series of possible values. Only applicable values appear in a
selection field. In the screens shown in this guide, the selection displays within brackets and in
bold type. In the field description, the field is identified as being either “selectable” when there
are more than two possible values, or “toggle” when there are only two possible values.

Command Fields

Command fields are located at the bottom of Local Management screens. Command fields are
used to exit Local Management screens, save Local Management entries, or navigate to
another display of the same screen. In the screens shown in this guide, the characters in this
field are all upper case and in bold type. In the field description, the field is identified as being
a “command” field.

9A656-04/9A686-04 Configuration Guide Page 1-13

Chapter 1: Introduction

1.7.1 Local Management Keyboard Conventions

All key names appear in this manual as capital letters. For example, the Enter key appears as
ENTER and the Backspace key appears as BACKSPACE. Table 1-5 explains the keyboard
conventions used in this manual as well as the key functions.

Table 1-5 Keyboard Conventions

Key Function

ENTER Key and RETURN Key These are selection keys that perform the same Local

Management function. For example, “Press ENTER”
means that you can press either ENTER or RETURN,
unless this manual specifically instructs you otherwise.

SPACE Bar and BACKSPACE Key These keys cycle through selections in some Local

Management fields. Use the SPACE bar to cycle
forward through selections and use BACKSPACE to
cycle backward through selections.

Arrow Keys These are navigation keys. Use the UP-ARROW,

DOWN-ARROW, LEFT-ARROW, and RIGHT-ARROW
keys to move the screen cursor. For example, “Use the
arrow keys” means to press whichever arrow key
moves the cursor to the desired field on the Local
Management screen.

Page 1-14 9A656-04/9A686-04 Configuration Guide

Getting Help

1.8 GETTING HELP

For additional support related to this device or document, contact Enterasys Systems using
one of the following methods:

World Wide Web http://www.cabletron.com/
Phone [phone]
Internet mail [e-mail]
FTP ftp://ftp.cabletron.com/

Login
Password

To send comments or suggestions concerning this document, contact
the Cabletron Systems Technical Writing Department via the following
email address: [e-mail]

Make sure to include the document Part Number in the email message.

Before calling Enterasys Systems, have the following information ready:

anonymous
your email address

• Your Enterasys Systems service contract number

• A description of the failure

• A description of any action(s) already taken to resolve the problem (e.g., changing mode

switches, rebooting the unit, etc.)

• The serial and revision numbers of all inv olved Enterasys Systems products in the netw ork

• A description of your network environment (layout, cable type, etc.)

• Network load and frame size at the time of trouble (if known)

• The device history (i.e., have you returned the device before, is this a recurring problem,

etc.)

• Any previous Return Material Authorization (RMA) numbers

9A656-04/9A686-04 Configuration Guide Page 1-15

Chapter 1: Introduction

1.9 RELATED MANUALS

Use the following manuals to supplement the procedures and other technical data provided in
this manual.

Enterasys Systems 9A656-04 Hardware and Installation Guide
Enterasys Systems 9A686-04 Hardware and Installation Guide

Enterasys Systems SmartSwitch 9000 Operations Guide
Enterasys Systems SmartSwitch 9000 9C300-1 Environmental Module User’s Guide
Enterasys Systems SmartSwitch 9000 Local Management User’s Guide
Enterasys Systems SmartSwitch 9000-6 Module Local Management User’s Guide

The manuals referenced above can be obtained on the World Wide Web in Adobe Acrobat
Portable Document Format (PDF) at the following site:

http://www.enterasys.com/

NOTE

For additional information on ATM technology, visit the ATM Forum’s web site at
www.atmforum.com

All documentation for Cabletron Systems SecureFast VLAN Manager software can
be found on the VLAN Manager CD-ROM.

Page 1-16 9A656-04/9A686-04 Configuration Guide
