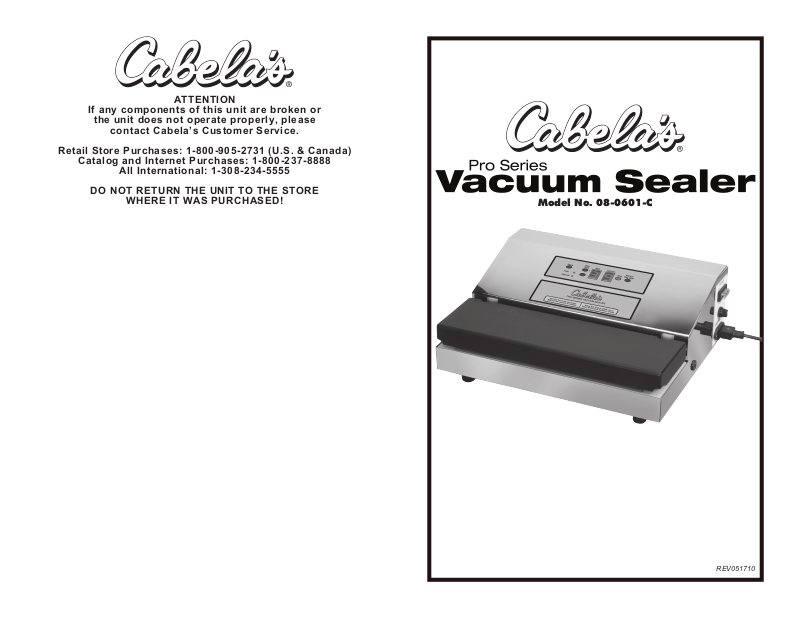

Cabela's 08-0601-C User Manual 2

ATTENTION

If any components of this unit are broken or

the unit does not operate properly, please

contact Cabela’s Customer Service.

Retail Store Purchases: 1-800-905-2731 (U.S. & Canada)

Catalog and Internet Purchases: 1-800-237-8888

All International: 1-308-234-5555

DO NOT RETURN THE UNIT TO THE STORE

WHERE IT WAS PURCHASED!

Model No. 08-0601-C

REV051710

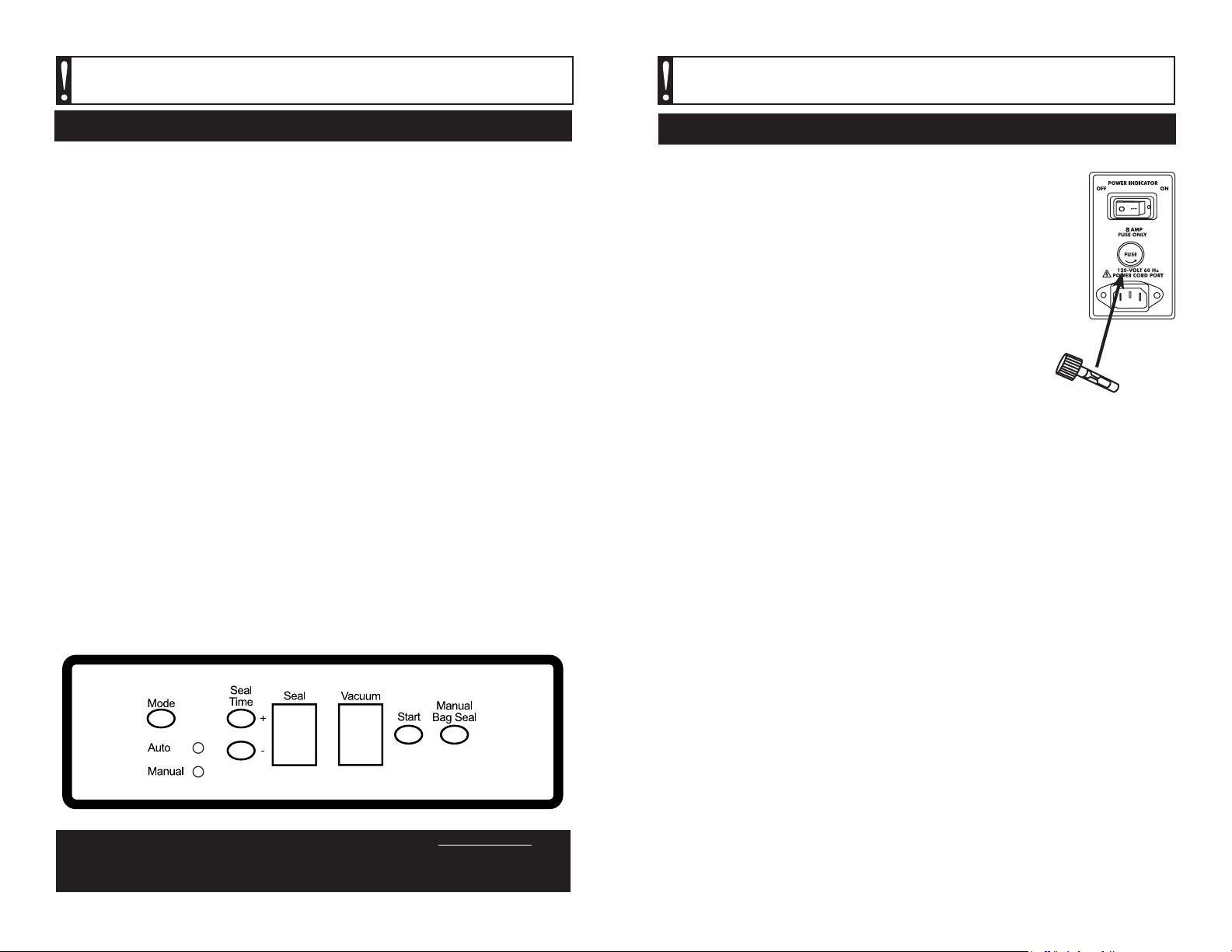

Control

Panel

WARNING! Before cleaning, assembling or disassembling the

Vacuum Sealer, make sure the Vacuum Sealer is OFF and the PLUG IS REMOVED FROM THE OUTLET/POWER SOURCE!

NOTES

_____________________________________________________________________

Lower Housing

Upper Housing

Vacuum Lid

Vacuum Port

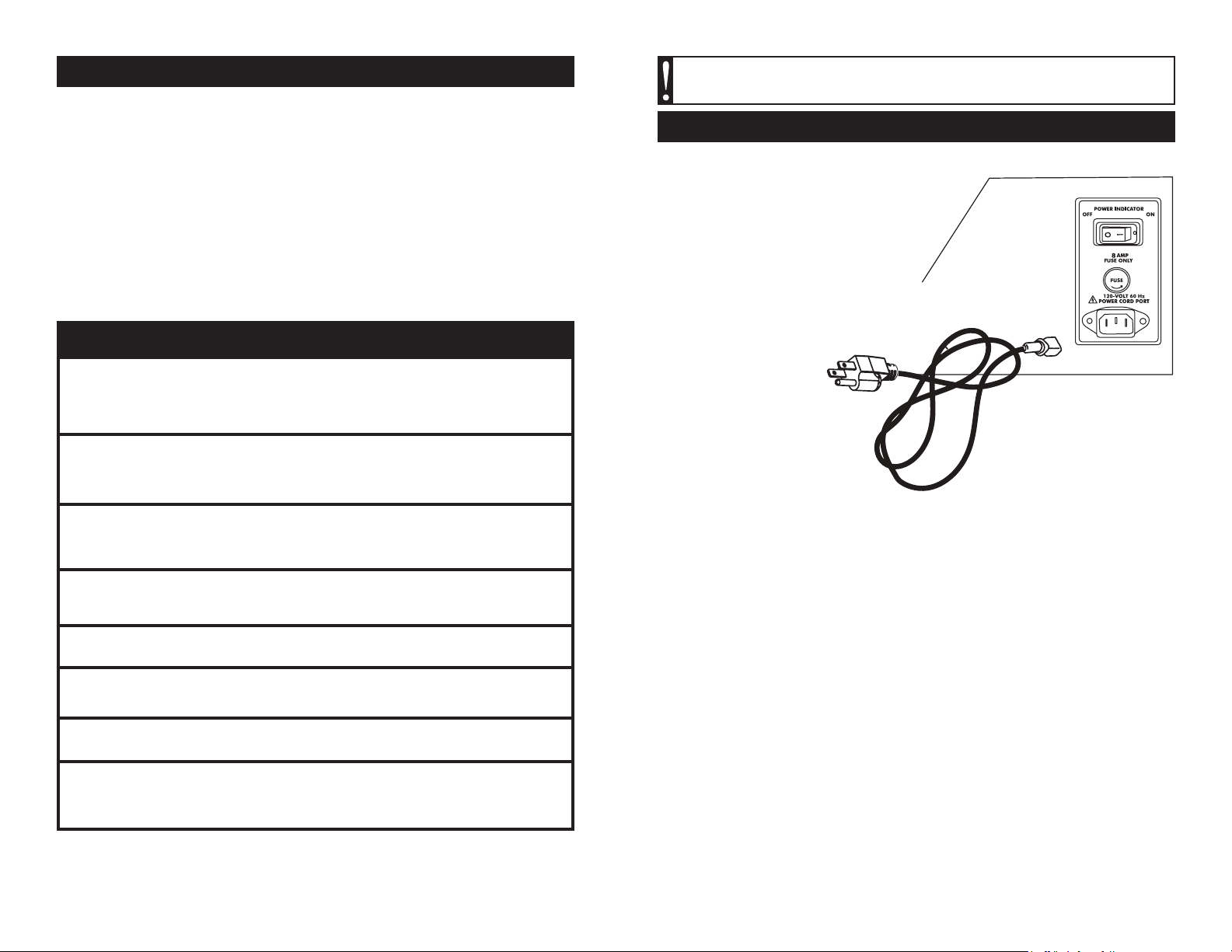

Power

Panel

_____________________________________________________________________

Vacuum

-2- -23-

Chamber

NOTE: The Vacuum Sealer is ONLY intended to be used with VACUUM BAGS. For best results, only use the recommended vacuum bags. DO NOT USE HOUSEHOLD BAGS! Any other uses of the Vacuum Sealer, other than the uses described in this booklet, could potentially damage the appliance and void the warranty!

Q: The bag seal pulls apart.

1. If the seal has not fully welded the bag closed, trim off the bad seal with scissors and adjust the Seal Time Up (+) in one second increments and try the test process again.

2. The Vacuum Sealer is only intended to be used with vacuum sealing bags. For best results, Cabela’s Vacuum Bags should be used. DO NOT USE HOUSEHOLD BAGS with the Vacuum Sealer.

3. The seal of the bag may be incomplete. If the seal has a crease in it, or if a liquid or powder has been trapped between the layers of the bag, the layers may not have been welded together properly. Cut the seal off and wipe the inside of the bag clean. Then, try to vacuum seal the package again. When sealing a moist or powdery food, insert a paper towel into the bag above the food before vacuum packaging. The paper towel will prevent the food from interfering with the seal. See the “Vacuum Packaging Guidelines” in this booklet for helpful tips.

4. If none of the above steps remedy the situation, contact Customer Service.

WARNING! Before cleaning, assembling or disassembling the

Vacuum Sealer, make sure the Vacuum Sealer is OFF and the PLUG IS REMOVED FROM THE OUTLET/POWER SOURCE!

 

DIAGRAM PART PART NUMBER DESCRIPTION NUMBER

1 Seal Bar Heating Element 08-0627

2 Seal Bar Insulator 08-0625

3 Power Cord 08-0602

4 Fuse Holder 08-0604

5 8-Amp Fuse 08-0605

6 Vacuum Pump 08-0639

7 Transformer 08-0641

8 Fan 08-0643

9 Circuit Board 08-0638

10 Teon Tape (Black) See Maintenance Kit

11 Oval Chamber Seal (2) See Maintenance Kit

12 Vacuum Sealer Maintenance Kit 08-0701-C Teon Tape (Black) Chamber Seals (2)

COMPONENT LIST

-22-

Before beginning the assembly, check the package contents for all of the parts.

If you are missing any parts, or if any parts are damaged,

Cabela’s Customer Service- Retail Store Purchases 1-800-905-2731 (U.S. & Canada) /

Catalog & Internet Purchases: 1-800-237-8888 / All International: 1-308-234-5555

-3-

WARNING! Before cleaning, assembling or disassembling the

Vacuum Sealer, make sure the Vacuum Sealer is OFF and the PLUG IS REMOVED FROM THE OUTLET/POWER SOURCE!

IMPORTANT SAFETY RULES

READ AND FULLY UNDERSTAND ALL INSTRUCTIONS AND WARNINGS PRIOR TO USING THIS UNIT. YOUR SAFETY IS MOST IMPORTANT! FAILURE TO COMPLY WITH PROCEDURES AND SAFEGUARDS MAY RESULT

WARNING!

1. ALWAYS DISCONNECT Vacuum Sealer from power source before servicing, changing accessories or cleaning the unit.

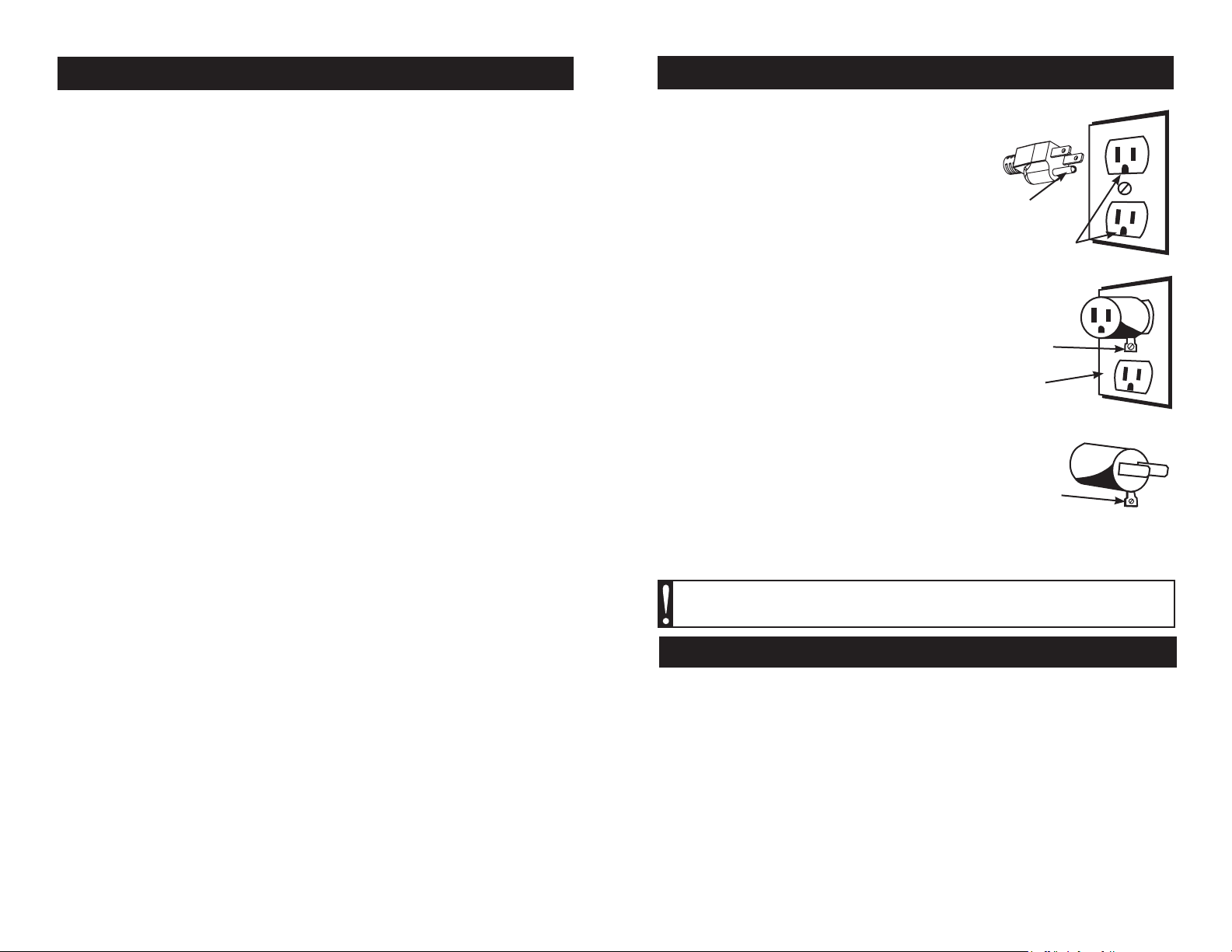

2. Plug the Vacuum Sealer into a standard 120 Volt, 60 Hz wall outlet. Avoid using extension cords.

3. DO NOT USE the Vacuum Sealer if the Power Cord, Plug or any other parts are damaged. If the Power Cord or the Vacuum

Sealer is damaged, call Customer Service. DO NOT ATTEMPT TO REPLACE THE CORD.

Be sure to not allow the Power Cord to drape into your work area. Check that all parts are operating properly, and perform the intended functions. Check for any other conditions that may affect the operation.

4. NEVER use any accessories or parts from other manufacturers. Doing so will VOID YOUR WARRANTY and may cause re, electrical shock or injury.

5. Reduce risk of unintentional starting. Make sure the Power Switch is in the “OFF” position before attaching to the power source.

6. KEEP FINGERS CLEAR of the Heat Sealing Bar and Teon Tape AT ALL TIMES,

these areas become HOT. Doing so may cause serious injury.

7. DO NOT take this appliance apart; doing so will VOID YOUR WARRANTY and may result in personal injury.

8 TO PROTECT AGAINST RISK OF ELECTRICAL SHOCK: DO NOT SUBMERGE

IN SERIOUS INJURY OR PROPERTY DAMAGE.

REMEMBER: YOUR PERSONAL SAFETY IS YOUR RESPONSIBILITY!

THE VACUUM SEALER INTO WATER OR LIQUID. BE SURE THE VACUUM SEALER IS DISCONNECTED FROM THE POWER SOURCE BEFORE CLEANING. Follow the “Cleaning Instructions” in this booklet. NEVER rinse appliance Vacuum Sealer under tap.

9. NEVER LEAVE THE VACUUM SEALER

UNATTENDED. Be safe, DISCONNECT the Vacuum Sealer from power source before

leaving the work area. Close supervision is necessary when any appliance is used near children. This appliance is NOT to be used by children.

10. DO NOT let the Power Cord hang over edge of work surface.

11. Be sure the Vacuum Sealer is on a stable work surface. Be sure all the Vacuum Sealer Feet are stable.

12. DO NOT use the Vacuum Sealer outdoors.

13. DO NOT use the Vacuum Sealer while under the inuence of drugs, medications or alcohol.

14. The Vacuum Sealer is ONLY intended

to be used with VACUUM BAGS. For best results, only use the recommended vacuum bags. DO NOT USE HOUSEHOLD

BAGS! Any other uses of the Vacuum Sealer, other than the uses described in

this booklet, could potentially damage the appliance and void the warranty!

Q: The Vacuum Pump starts, but no air is being remove from the vacuum bag.

1. For the best results, always use Cabela’s brand vacuum bags.

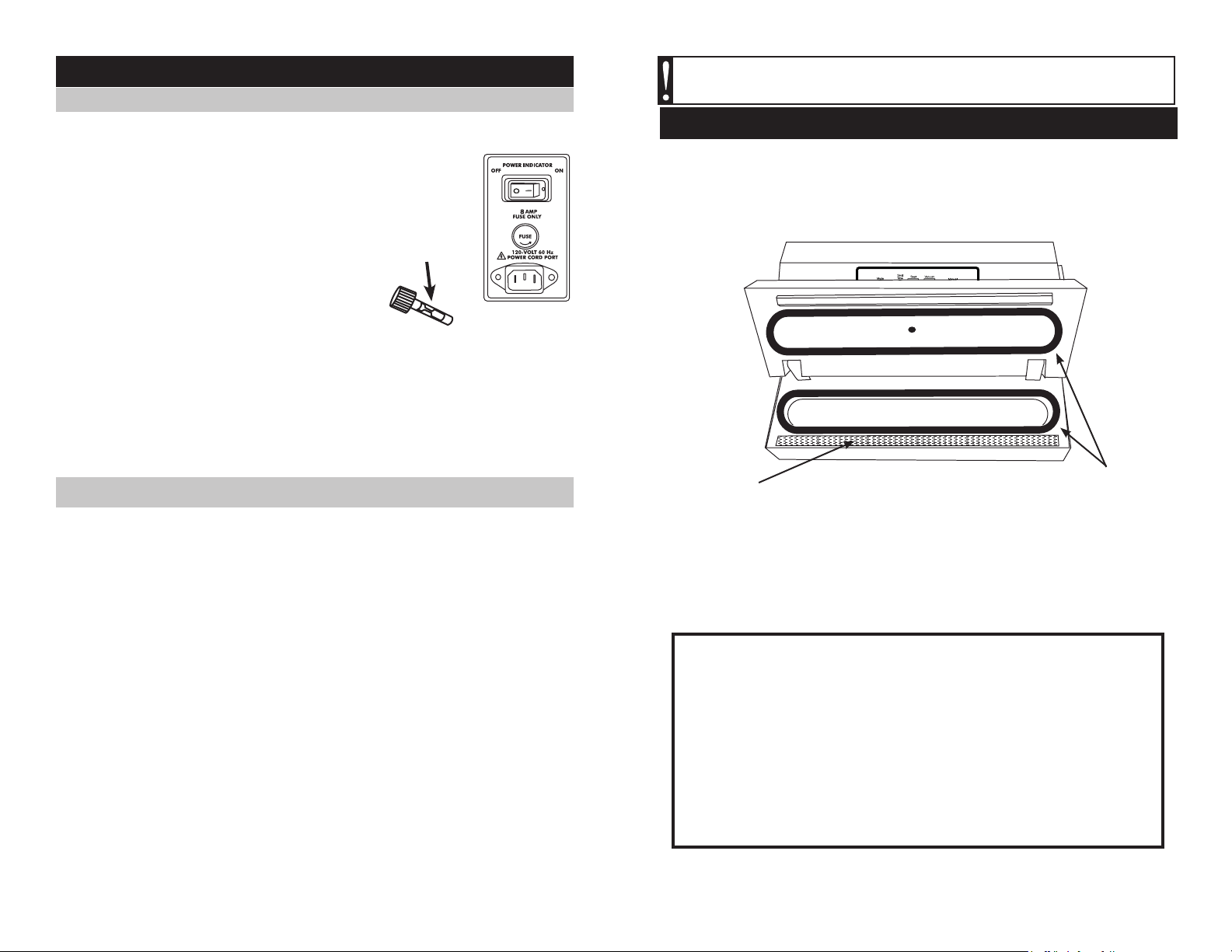

Vacuum Port

Figure G

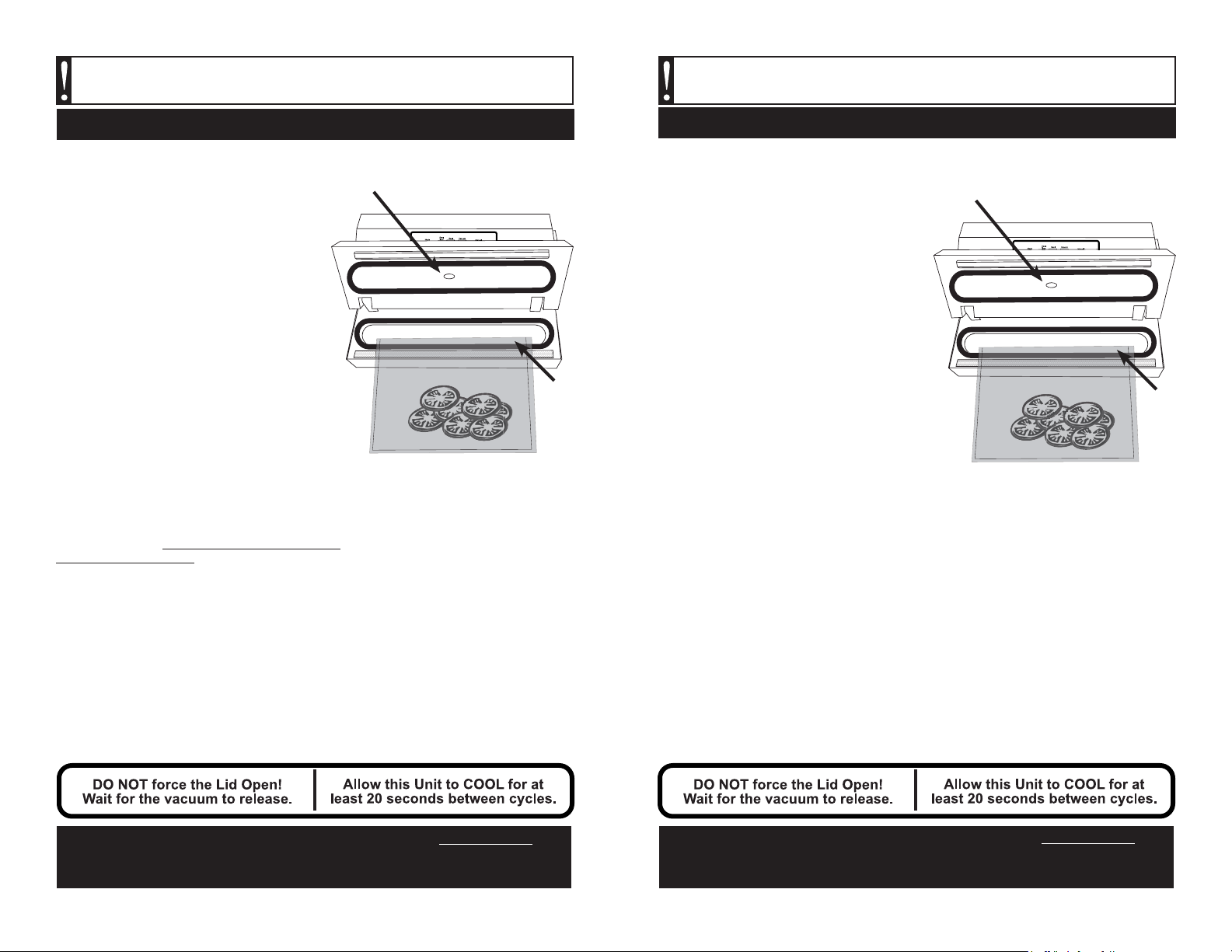

2. Be sure that the bag is inserted properly. The open end of the bag should be centered within the oval Vacuum Chamber Seals. Be sure not to cover the Vacuum Port opening (Figure G).

3. The bag may have a leak. If there is a leak in the bag, air will be pulled into the bag from the outside. Check for tears or punctures. If you are using a bag that was made from a roll of material, double check that the seal on the end of the bag is welded closed.

Leave 2”

Seal

Space

4. Slight pressure on the Vacuum Lid may be necessary to create a seal at the beginning of the vacuum process.

5. If none of the above steps remedy the situation, contact Customer Service.

Q: The Sealing Bar melts through the bag.

1. The Vacuum Sealer is only intended to be used with vacuum sealing bags. For best results, Cabela’s Vacuum Bags should be used. DO NOT USE HOUSEHOLD BAGS with the Vacuum Sealer.

2. Check the condition of the Teflon Tape strips. Replace if needed.

3. Open the Vacuum Lid and allow the sealing bar to cool for 5-10 minutes. Always leave the Vacuum Lid open between bags, and allow at least 20 seconds between cycles.

4. The Sealing Bar time may need to be lowered. Adjust the Seal Time Down (-) in one second increments and try the test process again. Refer to the “Initial Testing of the Bag Seal” instructions in this booklet for more information.

SAVE THESE INSTRUCTIONS!

booklet, could potentially damage the appliance and void the warranty!

Refer to them often and use them to instruct others.

-4- -21-

5. If none of the above steps remedy the situation, contact Customer Service.
