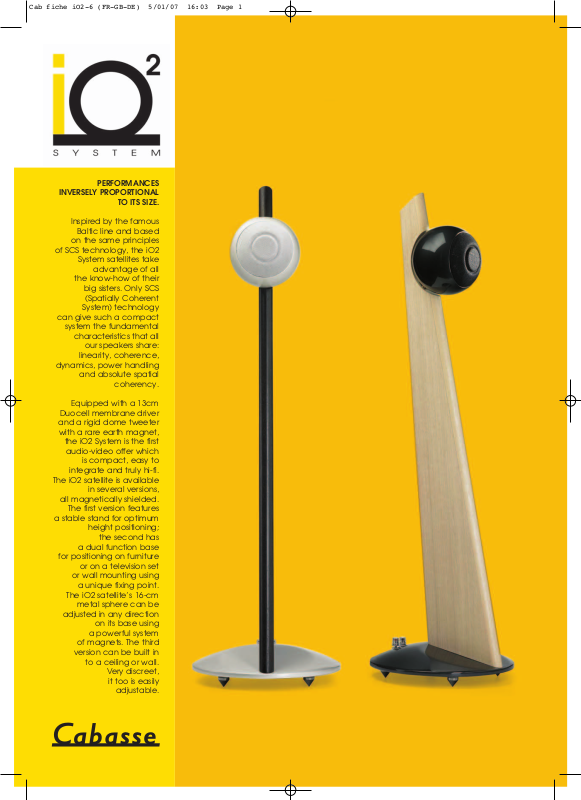

PERFORMANCES

INVERSELY PROPORTIONAL

TO ITS SIZE.

Inspired by the famous

Baltic line and based

on the same principles

of SCS technology, the iO2

System satellites take

advantage of all

the know-how of their

big sisters. Only SCS

(Spatially Coherent

System) technology

can give such a compact

system the fundamental

characteristics that all

our speakers share:

linearity, coherence,

dynamics, power handling

and absolute spatial

coherency.

Equipped with a 13cm

Duocell membrane driver
and a rigid dome tweeter
with a rare earth magnet,

the iO2 System is the first

audio-video offer which

is compact, easy to

integrate and truly hi-fi.

The iO2 satellite is available

in several versions,

all magnetically shielded.

The first version features

a stable stand for optimum

height positioning;

the second has

a dual function base

for positioning on furniture

or on a television set

or wall mounting using

a unique fixing point.

The iO2 satellite’s 16-cm

metal sphere can be

adjusted in any direction

on its base using

a powerful system

of magnets. The third

version can be built in

to a ceiling or wall.

Very discreet,

it too is easily

adjustable.

on stand on wall in Ceiling SANTORIN 25

or on base subwoofer

Tweeter: fitted with a Kaladex

1.1’ dome membrane

mounted on an AIRE cushion

for extended banwidth

and increased

power handling -

rare earth magnet.

5' midrange-woofer: extremely

light and stiff Duocell

diaphragm combined

with a very powerful magnet

for amazing efficiency.

Utilisation floor standing bookshelf/ in ceiling floor standing

on wall

Drivers 1 x 1.1' tweeter 1 x 1.1' tweeter 1 x 1.1' tweeter 1 x 25 cm (10”)

DOM25 DOM25 DOM25 25S20

1 x 13 cm coaxial 1 x 13 cm coaxial 1 x 13 cm coaxial
13F15-2 13F15-2 13F15-2

Efficiency 1 W/1 m 93 dB 93 dB 93 dB active

Filter 2700 Hz 2700 Hz 2700 Hz 0°-180°

Phase ---0°-180°

Frequency bandwidth 150-22000 Hz 150-22000 Hz 150-22000 Hz 34-150 Hz

Nominal impedance 8 ohms 8 ohms 8 ohms active

Minimum impedance 3.8 ohms 3.8 ohms 3.8 ohms active

Power handling 80 W 80 W 80 W 250 W

Peak power handling 580 W 580 W 580 W 750 W

Magnetic shielding yes yes - -

Dimensions H x W x D 112 x 33 x 33 cm ø 16 cm ø 26 cm 42 x 36 x 38 cm

41.5 x 12 x 12 in ø 6.5 in ø 10.2 in 16.5 x 14.2 x 14.6 in

Weight 15 kg / 33 lb 1.8 kg / 4 lb 1.9 kg / 4.2 lb 19 kg / 42 lb

Finish Pearl Pearl White White

Black pearl Black pearl Shiny Black

White
Matt grey
Matt charcoal

Able to deliver in stereo

musical peaks over 122 dB

SPL, iO2 can reproduce

any type of music and sound

at realistic levels with a fidelity

in timbres and soundstage

which has convinced numbers

of audio & video professionals

for stereo of multi-channel

monitoring.
