Page 1
BZB-DA-14
1×4 HDMI 18Gbps Splitter
Page 2
2
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction ......................................................................................................... 3
2. Features ................................................................................................................ 3
3. Package Contents ............................................................................................ 3
4. Specifications ..................................................................................................... 4
5. Operation Controls and Functions................................................................ 5
6. Application Example ........................................................................................ 6
7. Mission Statement…………..……….……….……….……….……………...7
8. Warranty Information……….……….……….……….……….……………..7
Page 3
3
1. Introduction
The BZB-DA-14 1x4 Splitter is an advanced solution for splitting a single
HDMI signal to 4 HDMI displays. It provides high performance audio and
video output through HDMI cables up to 4K2K@60Hz 4:4:4 and is capable
of receiving and transmitting up to 18Gbps of bandwidth with no data loss.
（Supporting the latest features you can be assured of reliable and high
quality HDMI distribution.）
2. Features
☆ HDMI 2.0b, HDCP 2.2 compliant
☆ Supports video format up to 4K2K@60Hz with 8 bit RGB/YCBCR
4:4:4/YCBCR 4:2:2
☆ Support 3D frame sequential video format up to 1080p@60;
☆ Supports 3D frame sequential video format up to 4K2K@30Hz
☆ Supports high resolution VESA mode video format up to QSXGA@60Hz
☆ Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
☆ Supports smart EDID control
☆ Compact design for an easy and flexible installation
3. Package Contents
① 1× 1×4 HDMI 18Gbps Splitter
② 1× 5V/1A DC Power Adapter
③ 1× User Manual
Page 4
4
4. Specifications
Technical
Video Bandwidth
600MHz/18Gbps
Input Ports
1×HDMI Type A[19-pin female]
Output Ports
4×HDMI Type A[19-pin female]
Video Resolutions
480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
ESD Protection
Human body model — ±8kV (air-gap discharge) & ±4kV (contact
discharge)
Power Supply
5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions
63mm (W) × 163mm (D) × 16mm (H)
Weight
260g
Chassis Material
Metal
Silkscreen Color
Black
Operation
Temperature
32 - 104°F / 0 - 40°C
Storage temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
Power Consumption
2W
Page 5
5

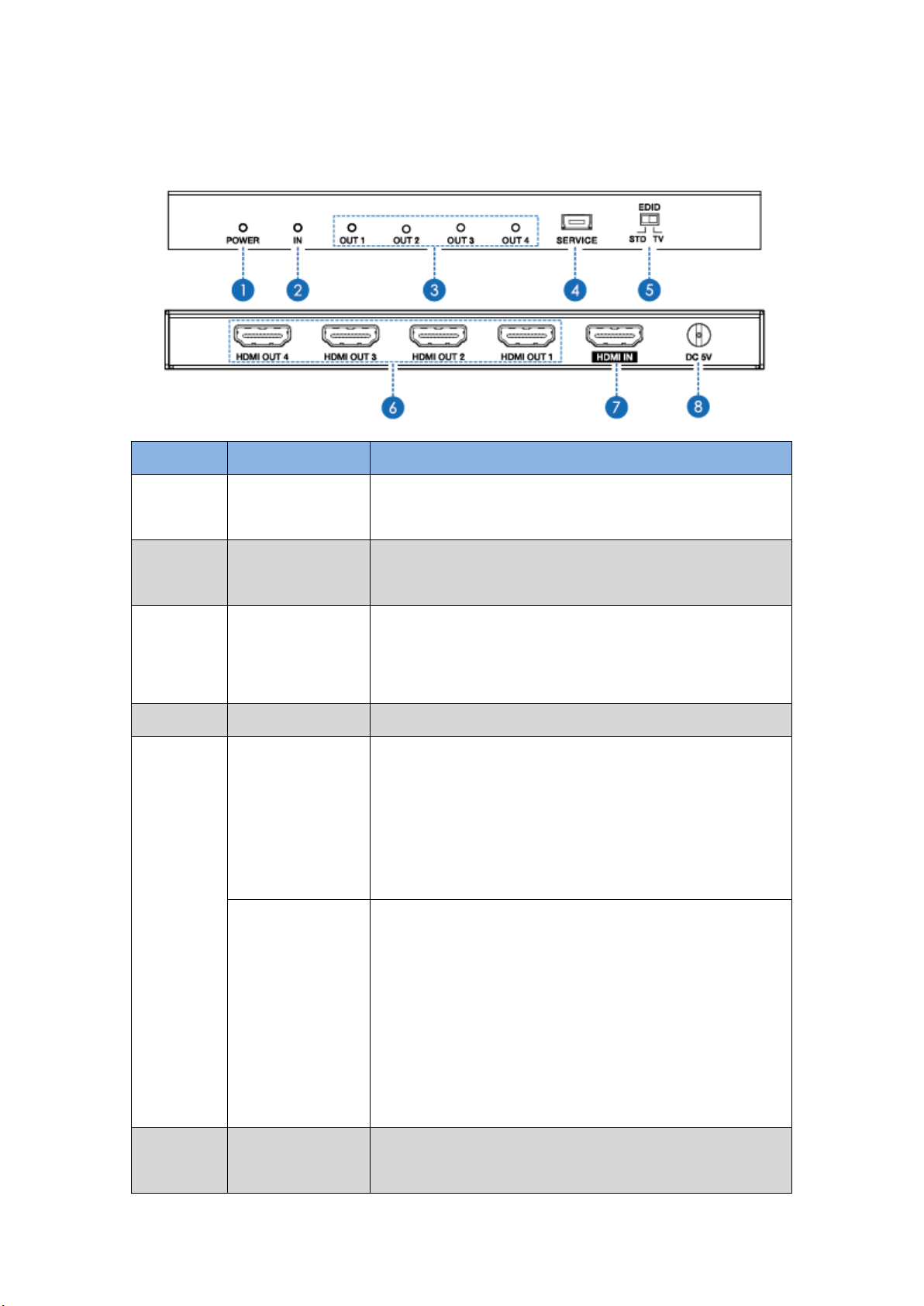

5. Operation Controls and Functions
Number
Name
Function description
1
POWER LED
This blue LED illuminate when the device is
connected with power supply.
2
IN LED
This blue LED illuminate when the Source
connected to the device.
3
OUT LED
These blue LEDs will light up to indicate which
HDMI outputs are connected to an active TV/
display/monitor.
4
SERVICE
Firmware update use only.
5
EDID STD
When in 'STD' mode, the unit will use its own
built-in EDID settings. In this mode, the video
output will be set to 1080p@60Hz and the
audio output at LPCM 2CH Stereo. Use this
mode if there are display problems in TV Mode.
EDID TV
When in 'TV' mode, the unit will read the
EDID settings of the display device connected
to HDMI OUT 1. If it detects a 4K2K capable
EDID setting it will transmit the signal in that
format to all outputs. If no 4K2K capable EDID
is detected then the unit will output the best
resolution that all displays can support.
6
HDMI OUT
1~4
Connect each of the HDMI outputs to an HDMI
display for simultaneous HDMI distribution, or
Page 6
6
cascade the output to another transmitter to
extend the operating distance.
7
HDMI IN
Connect the input port to the HDMI splitter
output of your source device such as a DVD
player or set-top box with an HDMI cable.
8
DC 5V
Plug the 5V DC power supply into the unit and
connected the adaptor to an AC outlet.

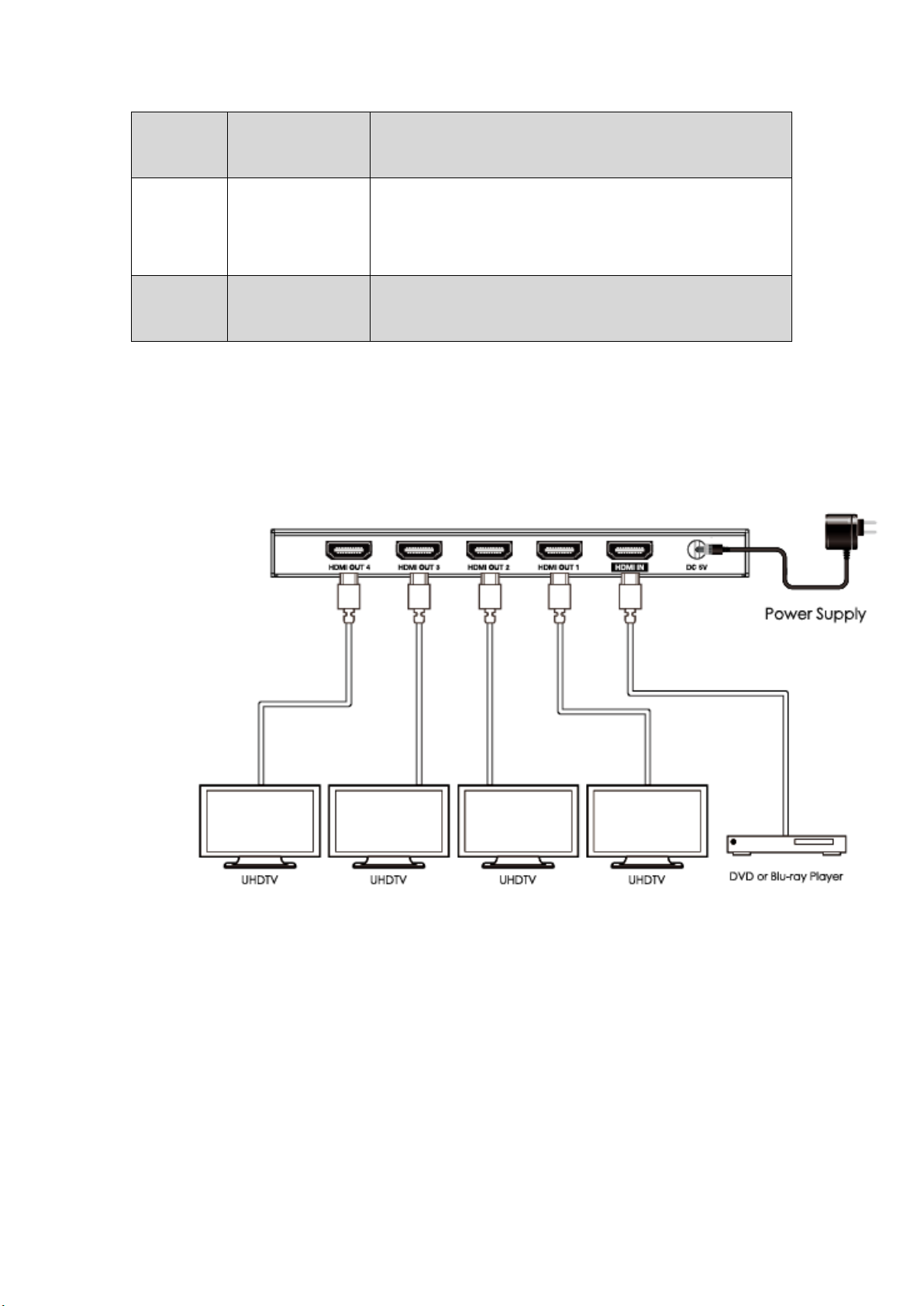

6. Application Example
Page 7
7
7. Mission Statement
BZB Gear manifests from the competitive nature of the audiovisual industry to
innovate while keeping the customer in mind. AV solutions can cost a pretty
penny, and new technology only adds to it. We believe everyone deserves to
see, hear, and feel the advancements made in today’s AV world without
having to break the bank. BZB Gear is the solution for small to medium-sized
applications requiring the latest professional products in AV.
We live in a DIY era where resources are abundant on the internet. With that in
mind, our team offers system design consultation and expert tech support
seven days a week for the products in our BZB Gear catalog. You’ll notice
comparably lower prices with BZB Gear solutions, but the quality of the
products is on par with the top brands in the industry. The unparalleled support
from our team is our way of showing we care for every one of our customers.
Whether you’re an integrator, home theater enthusiast, or a do-it-yourselfer,
BZB Gear offers the solutions to allow you to focus on your project and not
your budget.
8. Warranty Information
BZB Gear | Second Year Assurance
BZB Gear wants to assure you peace of mind. We're so confident in the quality
of our products that along with the manufacturer's one-year limited warranty,
we are offering free second-year warranty coverage upon registration*!
Taking advantage of this program is simple, just follow the steps below:
1. Register your product within 90 days of purchase by visiting
BZBGear.com/warranty.
Page 8
8
2. Complete the registration form. Provide all necessary proof of purchase
details, including serial number and a copy of your sales receipt.
For questions, please call 1.888.660.2962 or email [email protected].
For complete warranty information, please visit BZBGear.com/warranty or
scan the QR code below.
*Terms and conditions apply. Registration is required.
