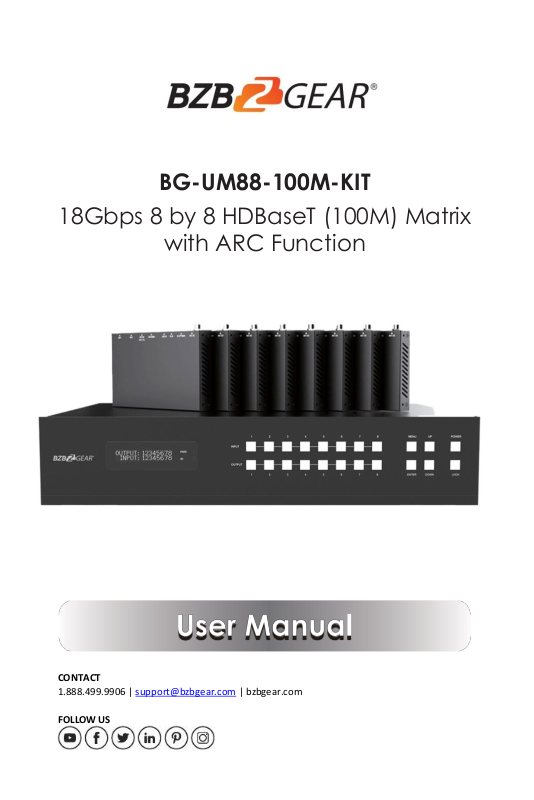

BG-UM88-100M-KIT

18Gbps 8 by 8 HDBaseT (100M) Matrix

with ARC Function

CONTACT

1.888.499.9906 | [email protected] | bzbgear.com

Page 2

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Table of Contents

1. Introduction. ....................................................................................................................

2. Features. ...........................................................................................................................

3. Package Contents. .........................................................................................................

4. Specifications. .................................................................................................................

5. Operation Controls and Functions. ...............................................................................

5.1. Matrix Panel. ...........................................................................................................

5.2. HDBaseT Receiver Panel. ......................................................................................

6. IR Remote .........................................................................................................................

7. IR Control System. ...........................................................................................................

8. IR Cable Pin Assignment. ...............................................................................................

9. EDID Management. .........................................................................................................

10. Matrix Audio and RS-232 Introduction. .......................................................................

11. Web GUI User Guide. ....................................................................................................

12. RS-232 Control Command. ..........................................................................................

13. Application Example. ...................................................................................................

14. Tech Support. .................................................................................................

Back cover

15. Warranty. ........................................................................................................

Back cover

16. Mission Statement. ........................................................................................

Back cover

Page 3

- 1 / 29 -

1. Introduction

The BG-UM88-100M-KIT is an 18Gbps 8 by 8 HDBaseT(100M) matrix switch that can connect 8 HDMI sources to 16 displays. Each HDMI output can be mirrored to allow a simultaneous output using a CAT cable. Resolution is up to 4K@60Hz 4:4:4. The HDBaseT output’s transmission distance is up to 328ft / 100m over a single CAT 5e/6/7 cable.

The device supports IR matrix and Audio matrix functionality. The ARC function allows the HDMI or HDBaseT display device’s audio signal to be returned to or extracted from the coaxial and analog audio outputs using the Web GUI or ASCII code control. The IR and RS-232 signal transmission is bi-directional. For example, the IR signal will transmit from port 1 of the matrix to the HDBaseT receiver connected to output port 1. The BG-UM88-100M-KIT can be controlled via the front panel buttons, IR remote, RS232, LAN, and Web GUI

2. Features

☆ HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant ☆ 8 HDMI inputs, 8 HDMI outputs and 8 HDBaseT mirrored outputs ☆ R esolution up to 4K@60Hz 4:4:4 ☆ HDMI ports transmit 18Gbps lossless uncompressed video bandwidth ☆ 18Gbps lossless compressed HDBaseT signal transmission ☆ 4K->1080P Down Scaler ☆ Dolby Vision, HDR10+, HLG are supported ☆ HDBaseT output can extend video transmission distance up to 328ft / 100 meters via a

single CAT 5e/6/7 cable.

☆ HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD

Master Audio)

☆ ARC function on local HDMI and HDBaseT output ports ☆ IR matrix and Audio matrix are supported ☆ Smart EDID management ☆ 24V POC on all HDBaseT ports

☆ Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI

Page 4

- 2 / 29 -

3. Package Contents

① 1x 8 by 8 HDMI and HDBaseT Matrix Switch ② 8x HDBaseT Receiver ③ 1x Matrix IR Remote ④ 1x 100~240V AC 50/60Hz Power cable ⑤ 1x RS-232 serial cable (1.5 meters, male to female head) ⑥ 16x 3-pin Phoenix Connector ⑦ 9x IR Blaster cable (1.5 meters) ⑧ 10x 20~60KHz IR Receiver cable (1.5 meters) ⑨ 18x Mounting Ear (Matrix and Receiver) ⑩ 1x User Manual

4. Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@50/60Hz (4:4:4)

Color Space

RGB, YCbCr 4:4:4/4:2:2/4:2:0

Color Depth

12-bit (4K), 16-bit (1080P)

HDMI Audio Formats (Pass-through)

PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Coax Audio Formats

PCM 2.0, Dolby Digital / Plus, DTS,

L/R Audio Formats

PCM2.0

HDR formats

4:4:4,4:2:2,4:2:0(10,12bit deep color) HDR10,HDR10+,Dolby Vision, HLG

Infrared

20KHz ~ 60KHz

ESD Protection

Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)

Connection

Matrix

Input Ports

8×INPUT [HDMI Type A, 19-pin female] 10×IR INPUT [3.5mm Stereo Mini-jack] 2×Stereo Audio [3.5mm Stereo Mini-jack B] 1×SPDIF(OPTICAL) 1×SPDIF(COAX)

Page 5

- 3 / 29 -

Output Ports

8×HDMI OUTPUT [HDMI Type A, 19-pin female] 8×HDBaseT port [RJ45] 9×IR OUTPUT [3.5mm Stereo Mini-jack] 8×RS-232 [3-pin Phoenix connector] 8×SPDIF(COAX) 8×Stereo Audio[3.5mm Stereo Mini-jack] 1×LAN [RJ45]

Control Ports

1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9]

HDBaseT Receiver

Input Ports

1×HDBaseT IN [ RJ45] 1×IR IN [3.5mm Stereo Mini-jack]

Output Ports

1×HDMI OUT [HDMI Type A, 19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack]

Control Ports

1×SERVICE [Micro USB, Update port] 1×RS-232 [Phoenix jack] 2×LAN [RJ45]

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

TX: 440mm (W)×362mm (D)×88mm (H) RX: 163mm (W)×90.3mm (D)×18mm (H)

Weight

TX: 6.9 kg, RX: 392g

Power Supply

AC 100 - 240V 50/60Hz

Power Consumption

128W (Max)

Operating Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

Resolution / Distance

4K60 - Feet / Meters

CAT 5e/6/7

328ft / 100M

Resolution / Cable length

4K60 - Feet / Meters

4K30 - Feet / Meters

1080P60 -

Feet / Meters

HDMI IN / OUT

16ft / 5M

32ft / 10M

50ft / 15M

The use of “Premium High Speed HDMI” cable is highly recommended.

Page 6

- 4 / 29 -

5. Operation Controls and Functions

5.1 Matrix Panel

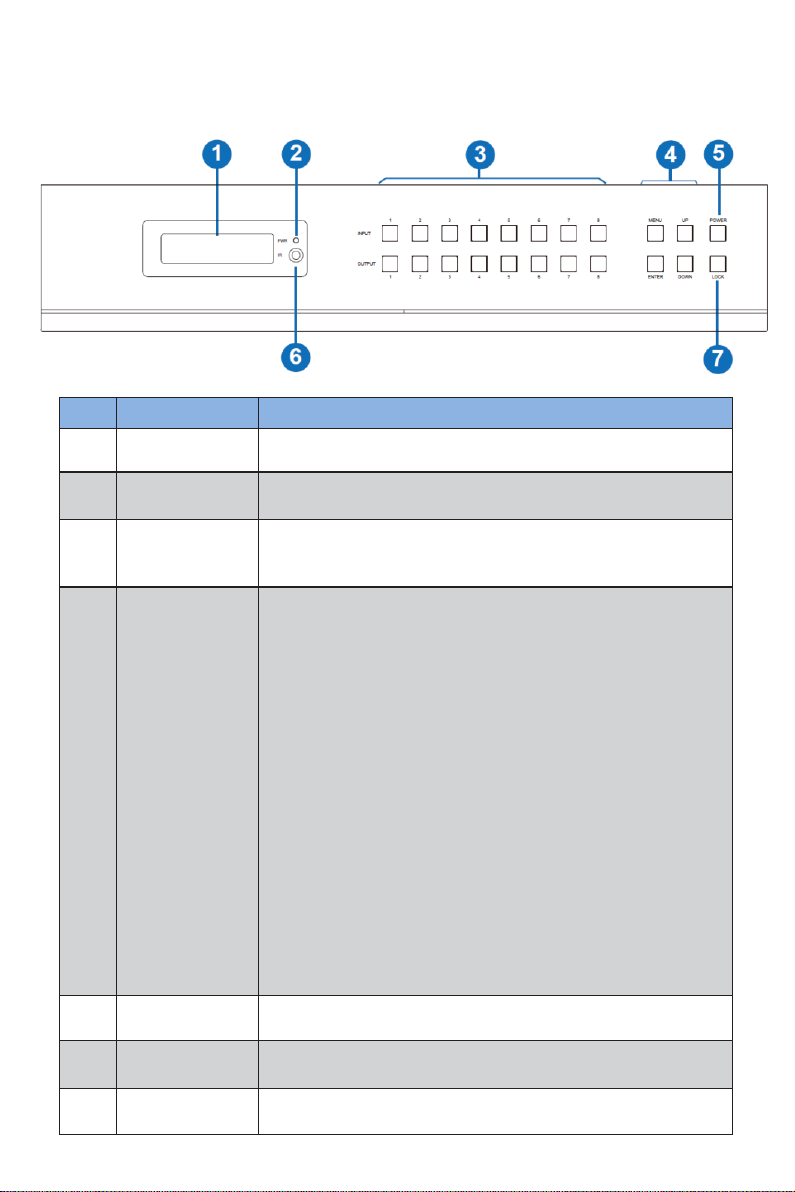

Front Panel

NO.

Name

Function Description

OLED screen

Display matrix switching status, input / output port, EDID, Baud rate, IP Address.

Power LED

The LED will illuminate in green when the product is connected to power supply, and red when the product is on standby.

Input / Output buttons

You need to press an output button (1~8) firstly and then press an input button (1~8) to select the corresponding input source for the output port.

MENU / ENTER / UP /DOWN

① EDID Check: On the initial OLED display screen, press “MEN U” button to enter the Matrix switching state interface,

then press “UP/DOWN” button to check the current EDID information of each HDMI input port.

② EDID setting: On the initial OLED display screen, press

“MEN U” button to enter the EDID setting interface, press “UP/DOWN” button to select the required EDID, and press the “ENTER” button. A prompt “copy to input :” will appear.

Then press “UP/DOWN” button to select the input port you need to set, and press “ENTER” button again to confirm. ③ Baud rate setting: On the initial OLED display screen,

press “MENU” button to enter the Baud rate interface, and press “UP/DOWN” button to select the required Baud rate, finally press the “ENTER” button to confirm the setting.

④ IP Address Check: On the initial OLED display screen, press “MENU” button to enter the IP interface, then press

“UP/DOWN” button to check the current IP address. Pressing the “MENU” button again will return to the initial

OLED display status.

POWER button

Press and hold the POWER button for 3 seconds to enter standby mode, then short press it to wake up the device.

IR Window

IR receiver window, it only receives the IR remote signal from this product.

LOCK button

Short press the LOCK button to lock front panel buttons (Except the power button); Press it again to unlock.

Page 7

- 5 / 29 -

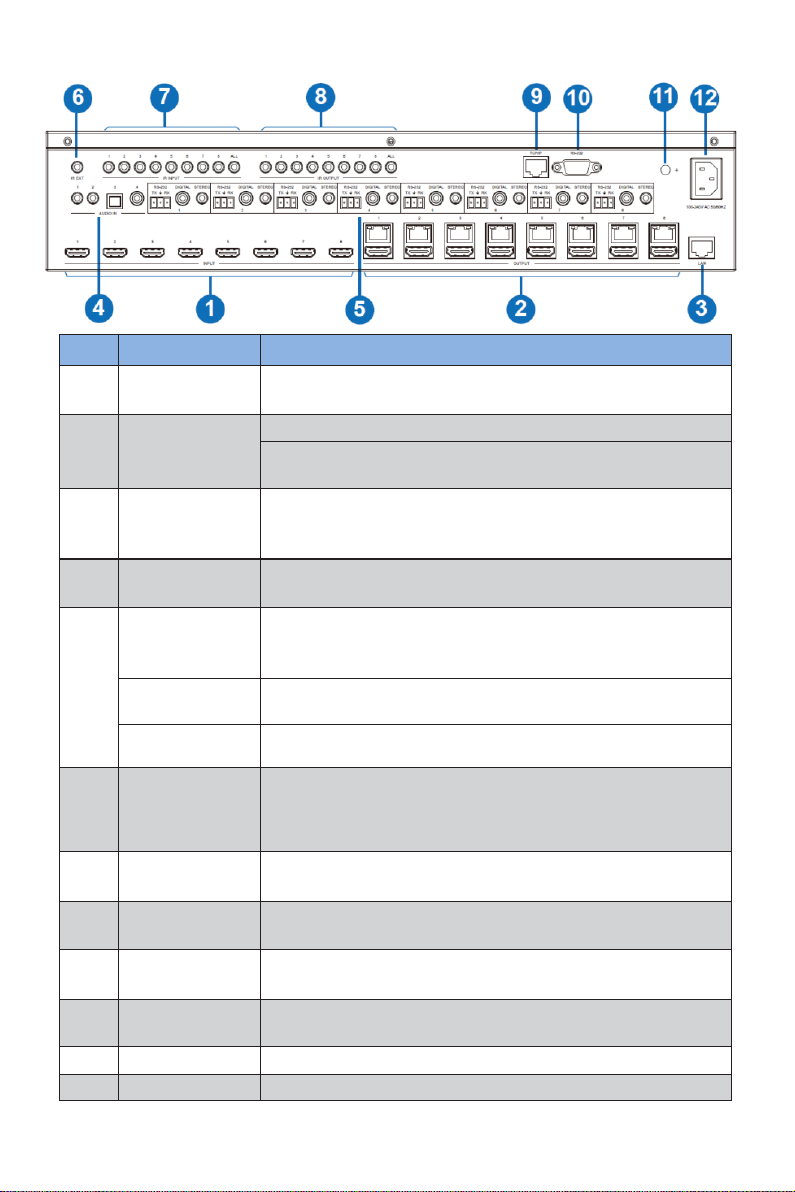

Rear Panel

No.

Name

Function Description

INPUT ports (1-8)

HDMI input ports, connect to HDMI source device such as DVD or PS4 with an HDMI cable.

OUTPUT ports (1-8)

HDBaseT ports, connect to HDBaseT Receiver via CAT cable.

HDMI output ports, connect to HDMI display device such as TV or monitor with an HDMI cable.

LAN

This port is connected to a router and the LAN port of the HDBaseT Receiver can connect Internet device such as PC or laptop.

AUDIO IN ports

L/R, optical and coaxial audio input ports, connect to external audio source device such as PC or DVD.

RS-232 port (1-8)

Connect to a PC or control system by 3-pin phoenix connector serial cable to transmit command between the Matrix and HDBaseT Receiver.

DIGITAL port (1-8)

Coaxial audio output port, connect to audio output device such as audio amplifier via a coaxial cable.

STEREO port (1-8)

Stereo audio output port, connect to an amplifier or speaker via a 3.5mm audio cable.

IR EXT

If the IR receiver window of the unit is blocked or the unit is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR remote signal.

IR INPUT ports

Connect to IR receiver cable, the IR receive signal will emit to “IR OUT” port of the corresponding HDBaseT Receiver.

IR OUTPUT ports

Connect to IR blaster cable, the IR emit signal is from “IR IN” port of the corresponding HDBaseT Receiver.

TCP/IP port

This port is the link port for TCP/IP control and connect to an active Ethernet link by an RJ45 cable.

RS-232 port

Connect to a PC or control system by D-Sub 9-pin cable to control the Matrix.

GND

Grounding terminal.

POWER input

Connect to 100~240V AC 50/60Hz power cable.

Page 8

- 6 / 29 -

OUTPUT port

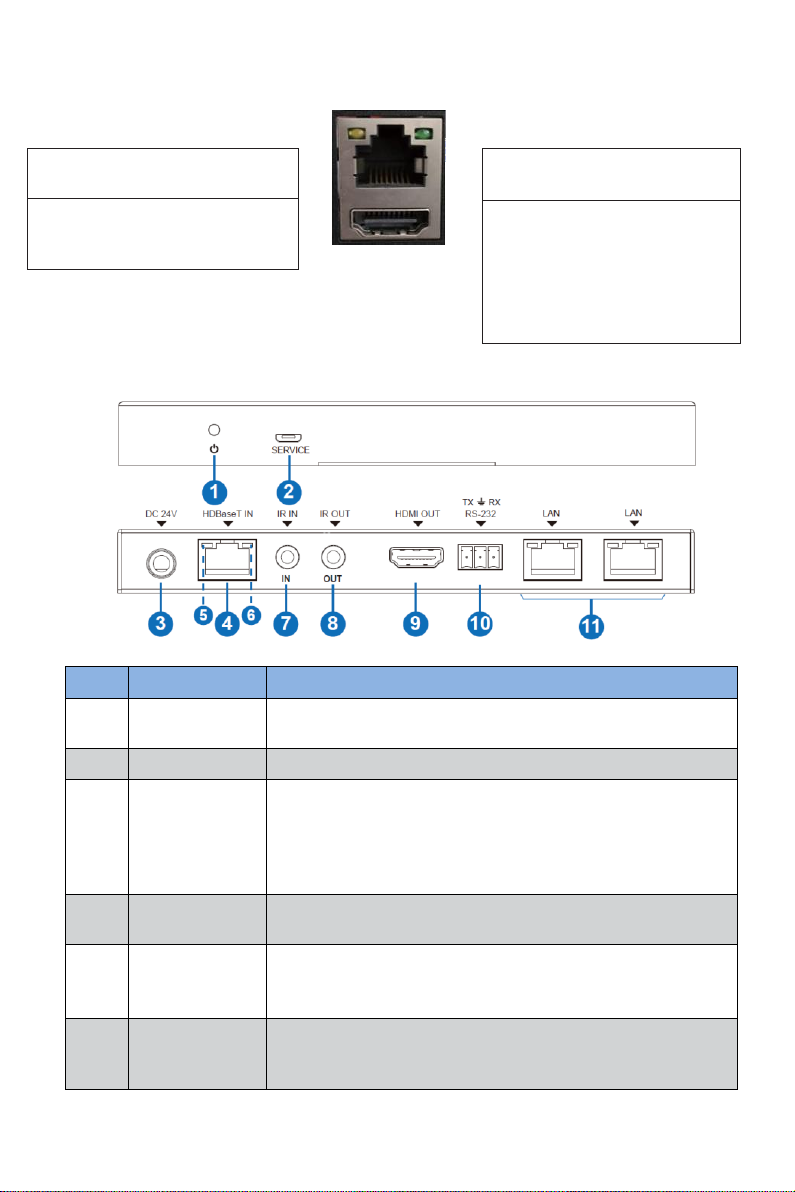

5.2 HDBaseT Receiver Panel

No.

Name

Function Description

POWER LED

Power LED indicator, LED will illuminate when the device is connected with power supply.

SERVICER port

Firmware update port

DC 24V

P. lug the DC 24V/1A power cord into this port and connect the adapter to AC wall outlet. Note: The Matrix supports POC function, so the Receiver doesn’t need to connect power supply when HDBaseT IN port is connected to HDBaseT port of the Matrix.

HDBaseT IN port

Connect to HDBaseT output port of the Matrix with CAT cable.

Connection Signal Indicator Lamp (Green)

▪ Illuminating: Matrix and Receiver are in good connection status. ▪ Flashing: Matrix and Receiver are in poor connection status. ▪ Dark: Matrix and Receiver are not connected.

Data Signal Indicator Lamp (Orange)

▪ Illuminating: HDMI signal with HDCP. ▪ Flashing: HDMI signal without HDCP. ▪ Dark: No HDMI signal.

▪ Illuminating: Matrix and HDBaseT

Receiver are in good connection status. ▪ Flashing: Matrix and HDBaseT Receiver are in poor connection status. ▪ Dark: Matrix and HDBaseT Receiver are not connected.

Connection Signal Indicator Lamp

▪ Illuminating: HDMI signal with HDCP. ▪ Flashing: HDMI signal without HDCP. ▪ Dark: No HDMI signal.

Data Signal Indicator Lamp

↑

Page 9

- 7 / 29 -

No.

Name

Function Description

IR IN

Connect to IR receiver cable, the IR signal will emit to corresponding IR OUT port of the Matrix.

IR OUT

Connect to IR blaster cable, the IR signal will be received from the corresponding IR IN port of the Matrix.

HDMI OUT port

HDMI output port, connect to HDMI display device such as TV or monitor with HDMI cable.

RS-232 port

Connect to a PC or control system by 3-pin phoenix connector cable to transmit command between the Matrix and HDBaseT Receiver.

LAN ports

Connect Ethernet cables to these ports to provide a wired Ethernet connection to local devices.

6. IR Remote

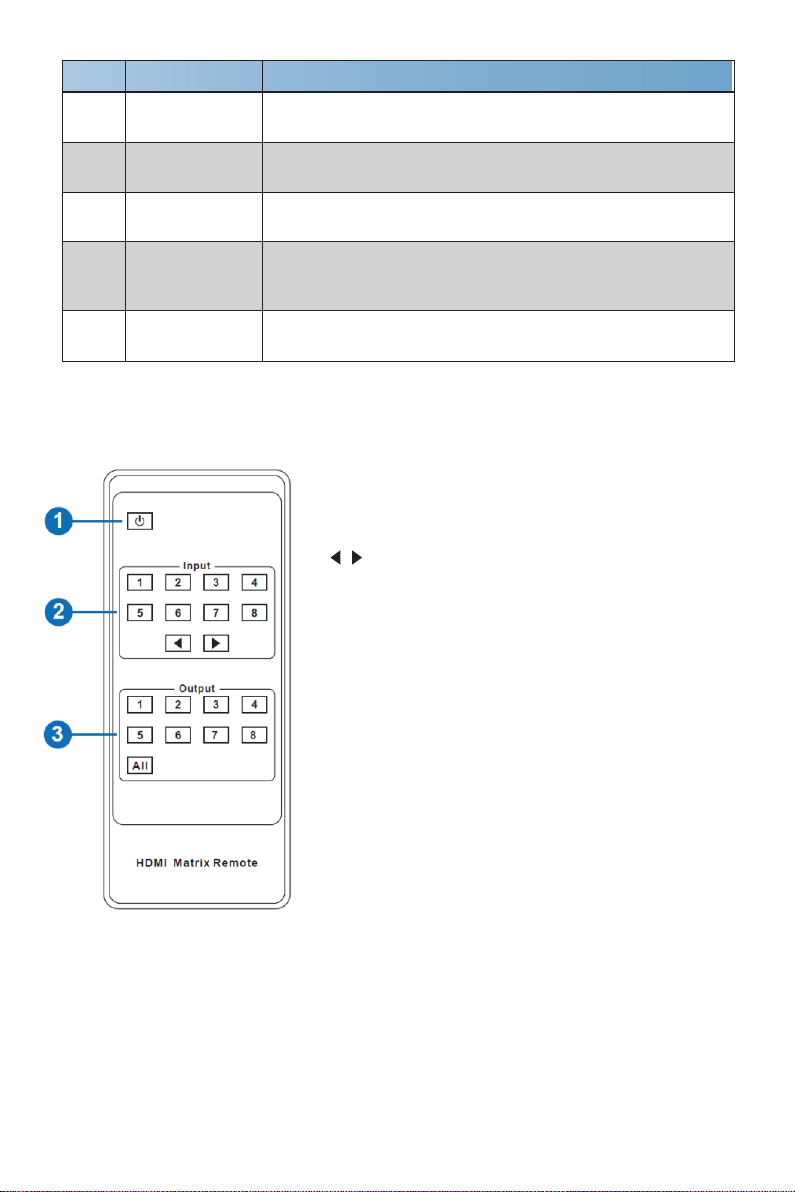

① Power on or Standby: Power on the Matrix or set it to

standby mode.

② Input 1/2/3/4/5/6/7/8: Select input source button.

: Select the last or next input source button.

③ Output 1/2/3/4/5/6/7/8 button: Select output source

button. All: Select all output source simultaneously. For example, when you press the “All” button and then press input “1” button, at this time the input “1” source will output to all display devices.

Operation instruction: You need to press the output button firstly and then press input button to select the corresponding input source. For example, Press Output-X (X means output button from 1 to 8 , including “All” button) Then press Input-Y (Y means input button from 1 to 8 )

The Matrix can be selected input and output source by using the IR remote. There are two ways to receive the IR remote signal.

The first way: The IR window accepts the IR remote signal. When using the IR remote, the furthest distance is 7 meters and the angle is ± 45°. The diagram is shown as below:

Page 10

- 8 / 29 -

Alternate method: If the IR receiver window of the Matrix is blocked or the Matrix is installed in a closed area out of infrared line of sight, the IR receiver cable can be inserted to the “IR EXT” port to receive the IR remote signal. The furthest distance of using the IR remote is 7 meters and the IR remote is directly faced to the IR receiver head. The diagram is shown as below.

Page 11

- 9 / 29 -

7. IR Control System

The device is not only a matrix switch but also an extender. It supports bi-directional IR control. When the matrix is connected to an HDBaseT Receiver through CAT 5e/6/7 cable, users can control remote display devices (HDBaseT) or input source devices (Matrix) through IR signal transmission. Note that the IR signal transmission method is different from Matrix (local) to HDBaseT Receiver (remote) than from HDBaseT Receiver (remote) to Matrix (local).

At the Matrix end (Local end): the IR signal is one-to-one transmission. This means the IR INPUT 1 port signal of the Matrix will emit to the IR output port of the HDBaseT Receiver 1 and the IR INPUT 2 port signal of the Matrix will emit to IR output port of the HDBaseT Receiver 2 etc. The IR signal doesn’t follow the video switch. The IR INPUT ALL port signal of the Matrix will emit to all IR output ports of HDBaseT receivers simultaneously. Please see the following connection diagram.

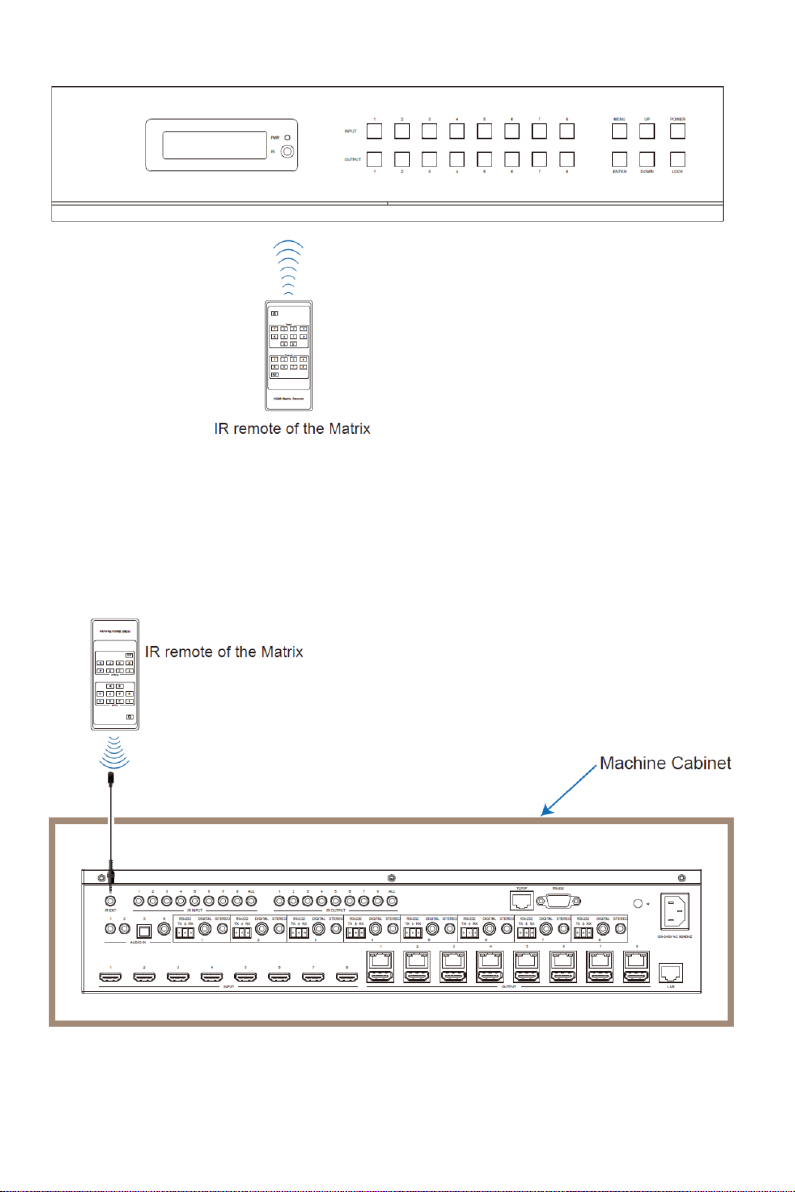

Figure 1: IR connection diagram (Matrix end)

Page 12

- 10 / 29 -

At HDBaseT receiver (Remote end): The IR signal follows video switch. For example, the HDMI output signal on the HDBaseT Receiver 1 is from the HDMI INPUT 3 port, so IR input signal of the HDBaseT Receiver 1 will emit to IR OUTPUT 3 port of the Matrix. The HDMI output signal on the HDBaseT Receiver 3 is from the HDMI INPUT 6 port. Then, IR input signal of the HDBaseT Receiver 3 will emit to IR OUTPUT 6 port of the Matrix etc. Any of HDBaseT Receiver’s IR IN signal can output from IR OUTPUT ALL port of the Matrix and the IR signal output of the Matrix depends on your IR remote of source device. Please see the following connection diagram.

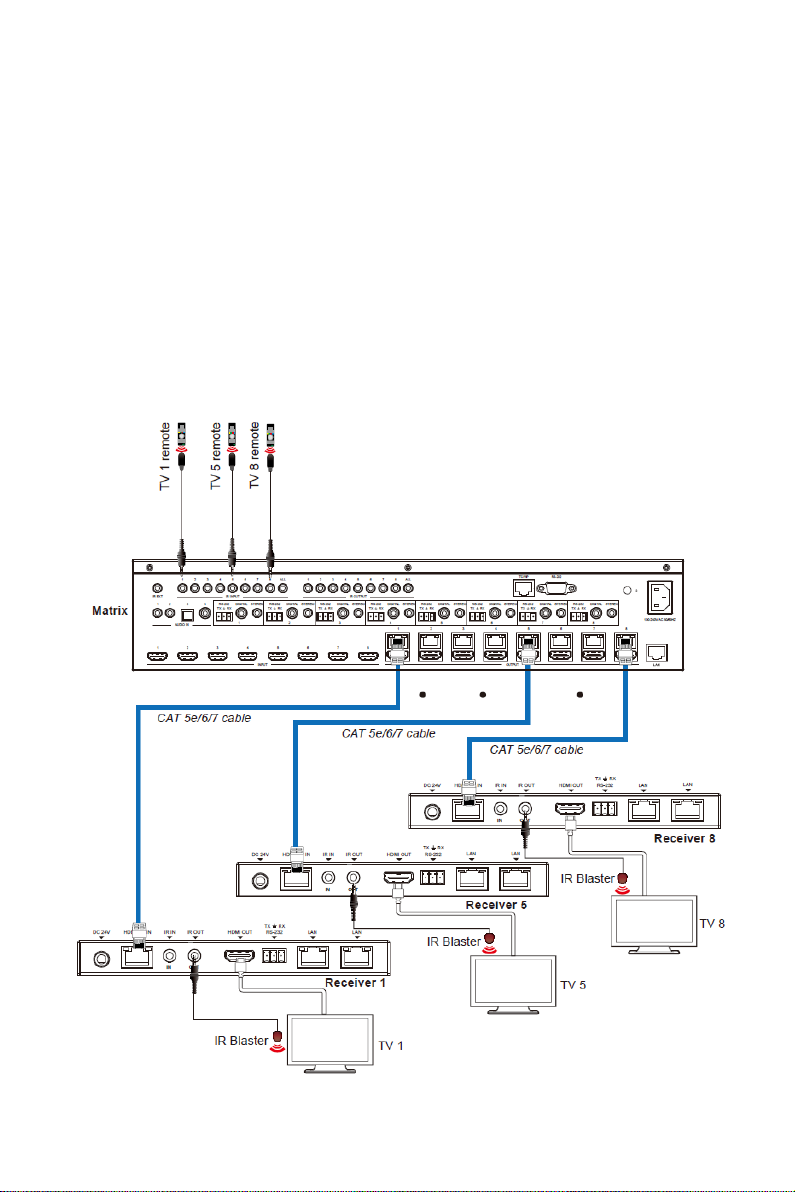

Figure 2: IR connection diagram (HDBaseT Receiver end)

Page 13

- 11 / 29 -

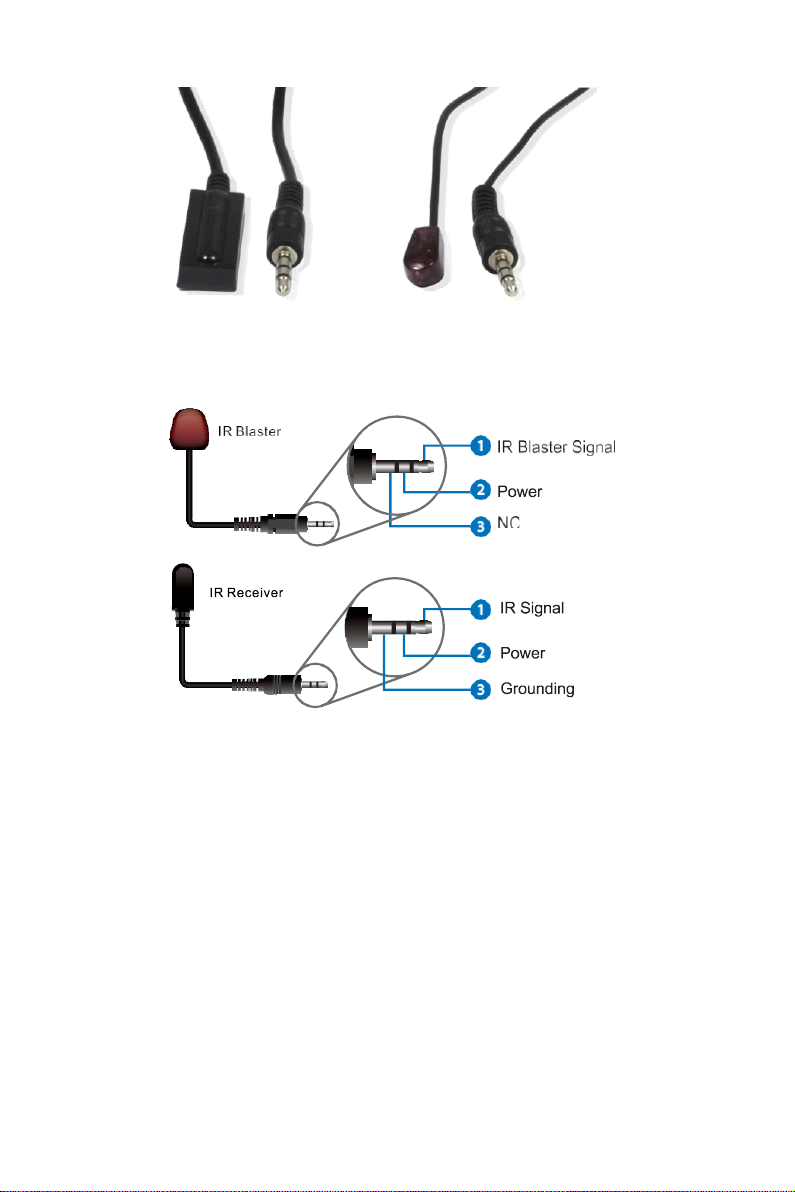

8. IR Cable Pin Assignment

IR RECEIVER IR BLASTER

9. EDID Management

This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 16 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through front panel buttons, ASCII control or Web GUI.

On-panel button operation: On the initial OLED display screen, press “MENU” button to enter

the EDID setting interface, press “UP/DOWN” button to select the required ED ID, and press

the “ENTER” button. A prompt “copy to input :” will appear. Then press “UP/DOWN” button to select the input port you need to set, and press “ENTER” button again to confirm this operation.

RS-232 control operation: Connect the Matrix to PC with a serial cable, then open a Serial Command tool on PC to send ASCII command “s edid in x from z!” to set EDID. For details, please refer to “EDID Setting” in the ASCII command list of “12. RS-232 Control Command”.

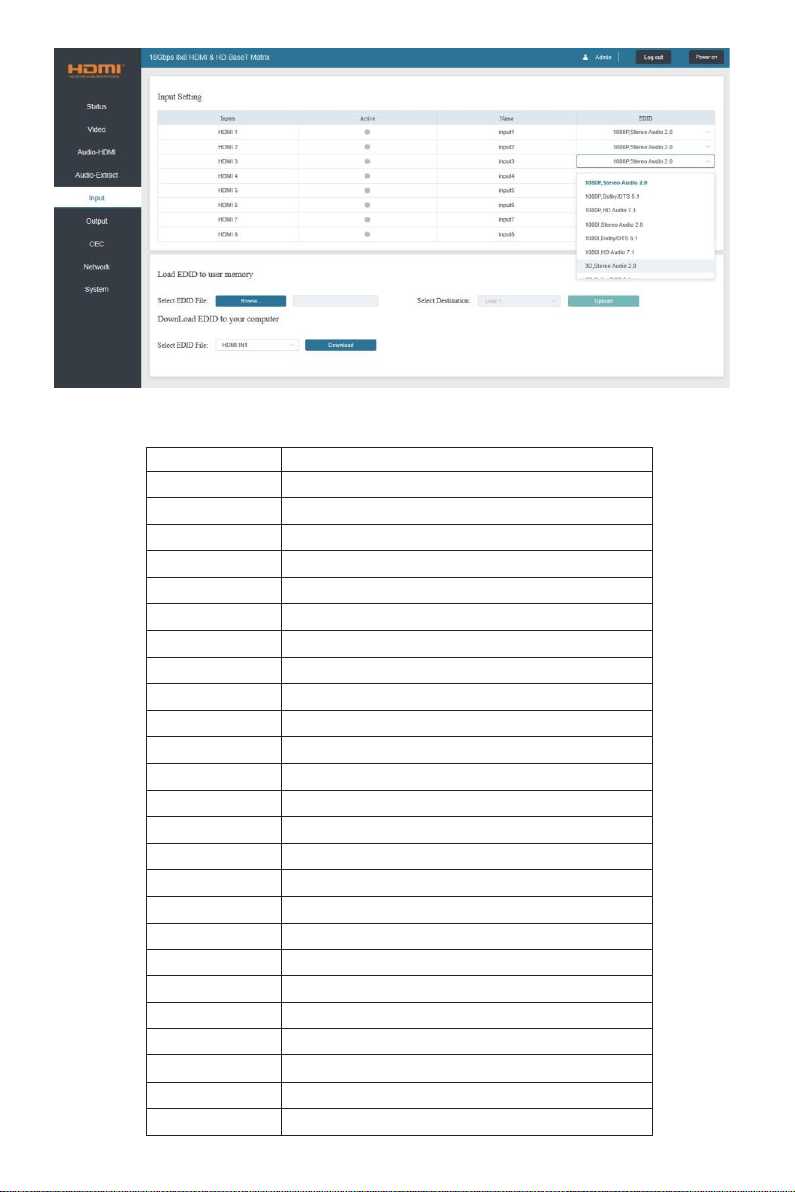

Web GUI Operation: Please check the EDID management in the “Input page” of “11. Web GUI User Guide”.

Page 14

- 12 / 29 -

The defined EDID setting list of the product is shown as below:

EDID Mode

EDID Description

1080p, Stereo Audio 2.0

1080p, Dolby/DTS 5.1

1080p, HD Audio 7.1

1080i, Stereo Audio 2.0

1080i, Dolby/DTS 5.1

1080i, HD Audio 7.1

3D, Stereo Audio 2.0

3D, Dolby/DTS 5.1

3D, HD Audio 7.1

4K2K30_444, Stereo Audio 2.0

4K2K30_444, Dolby/DTS 5.1

4K2K30_444, HD Audio 7.1

4K2K60_420, Stereo Audio 2.0

4K2K60_420, Dolby/DTS 5.1

4K2K60_420, HD Audio 7.1

4K2K60_444, Stereo Audio 2.0

4K2K60_444, Dolby/DTS 5.1

4K2K60_444, HD Audio 7.1

4K2K60, Stereo 2.0 HDR

4K2K60, Dolby/DTS 5.1 HDR

4K2K60, HD Audio 7.1HDR

User1

User2

24~31

Copy from HDMI output 1~8

32~39

Copy from HDBaseT output 1~8

Page 15

- 13 / 29 -

10. Matrix Audio and RS-232 Introduction

The audio Matrix supports 28 channel audio inputs and 16 channel audio outputs. Audio inputs include 8 channel HDMI input audio, 8 channel HDMI output ARC audio, 8 channel HDBaseT output ARC audio, 2 channel analog audio input, 1 channel optical audio input, and 1 channel coaxial audio input; audio outputs include 8 channel coaxial/analog audio output (When the audio format is PCM, coaxial audio and analog audio are the same; when it is multi-channel audio, only the coaxial audio output is active), and 8 channel HDMI audio embedded output. You can switch audio and set audio parameters through RS-232 command and Web GUI, please refer to Web and RS-232 instructions for details.

The RS-232 channel is also one-to-one transmission. For example, the RS-232 port of the OUTPUT 1 at Matrix end follows the RS-232 port at HDBaseT Receiver 1, The RS-232 port of the OUTPUT 3 at Matrix end follows the RS-232 port at HDBaseT Receiver 3 etc. Please see the following connection diagram.

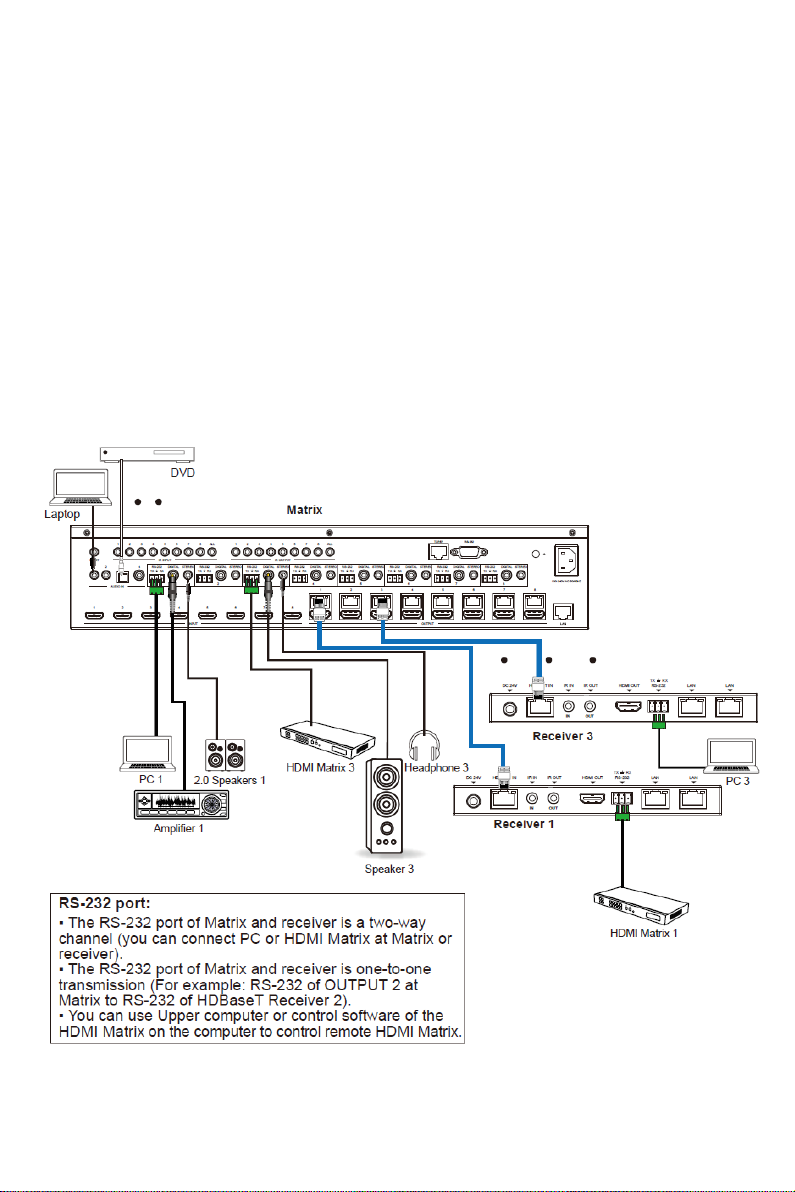

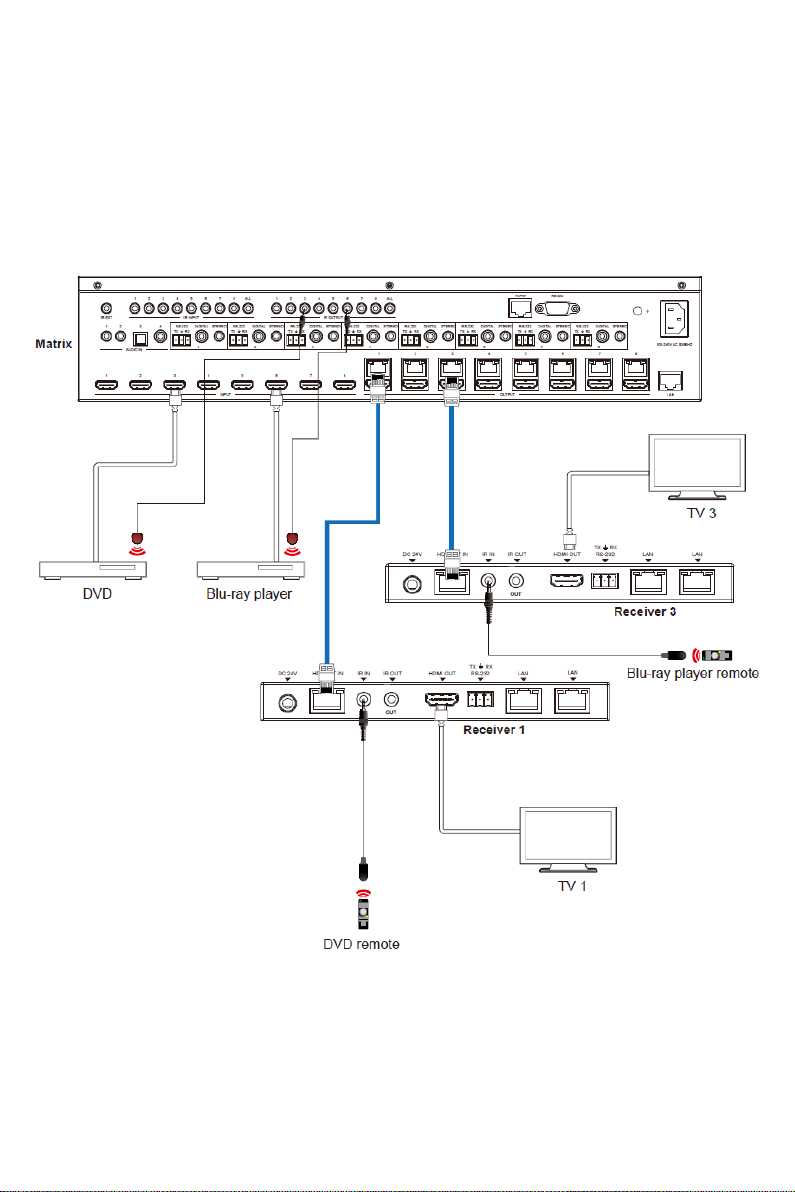

Figure 3: Audio and RS-232 connection diagram

Page 16

- 14 / 29 -

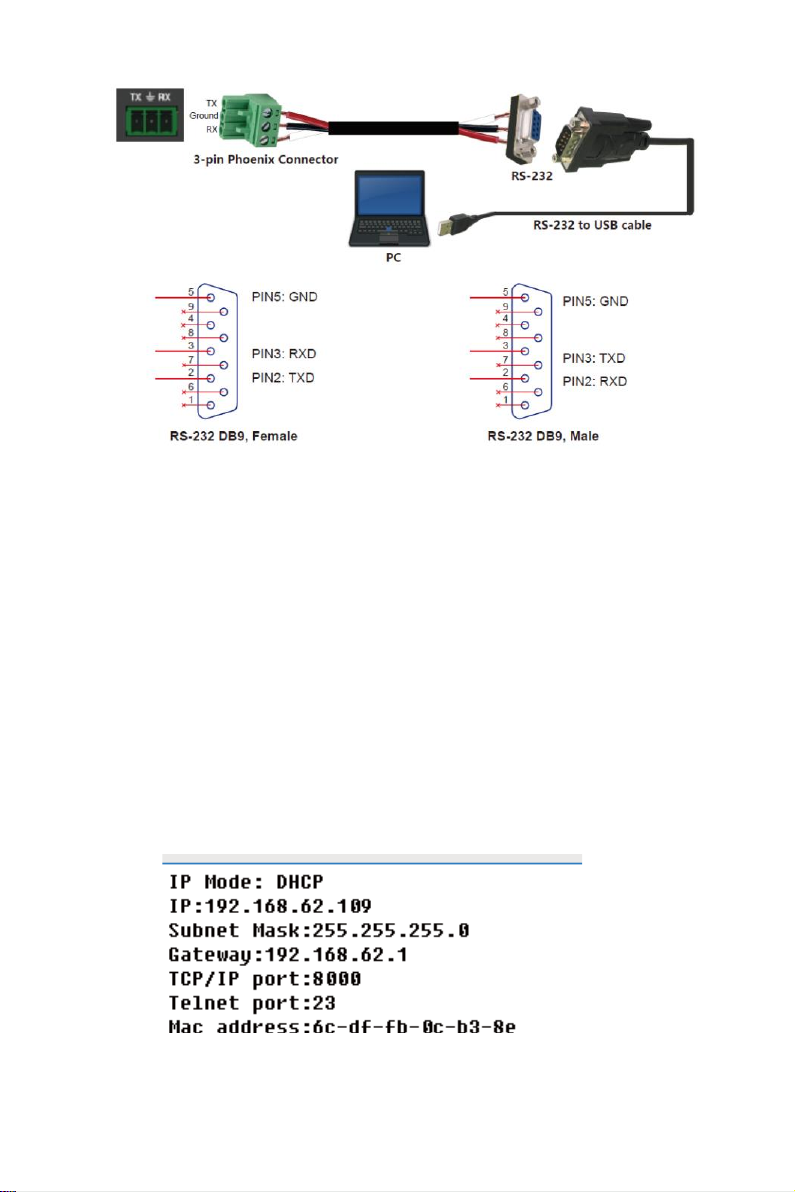

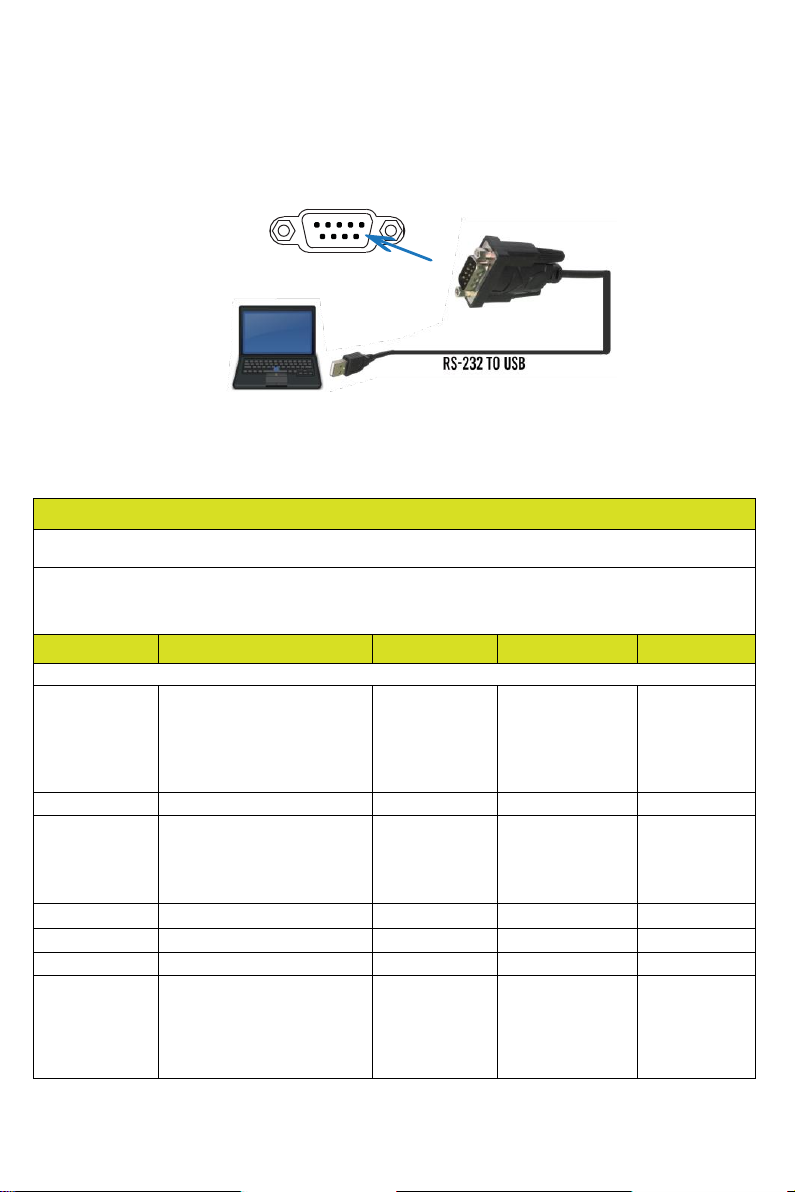

Figure 4: 3-pin phoenix connector to USB

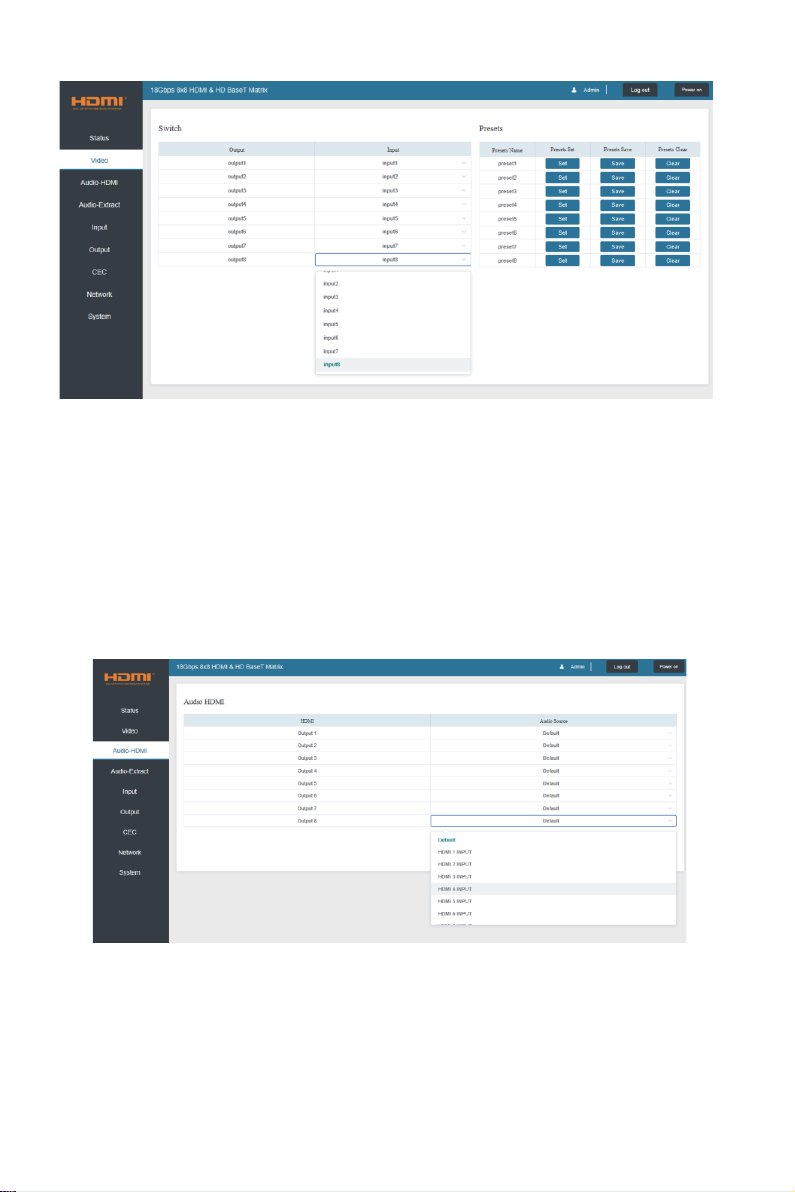

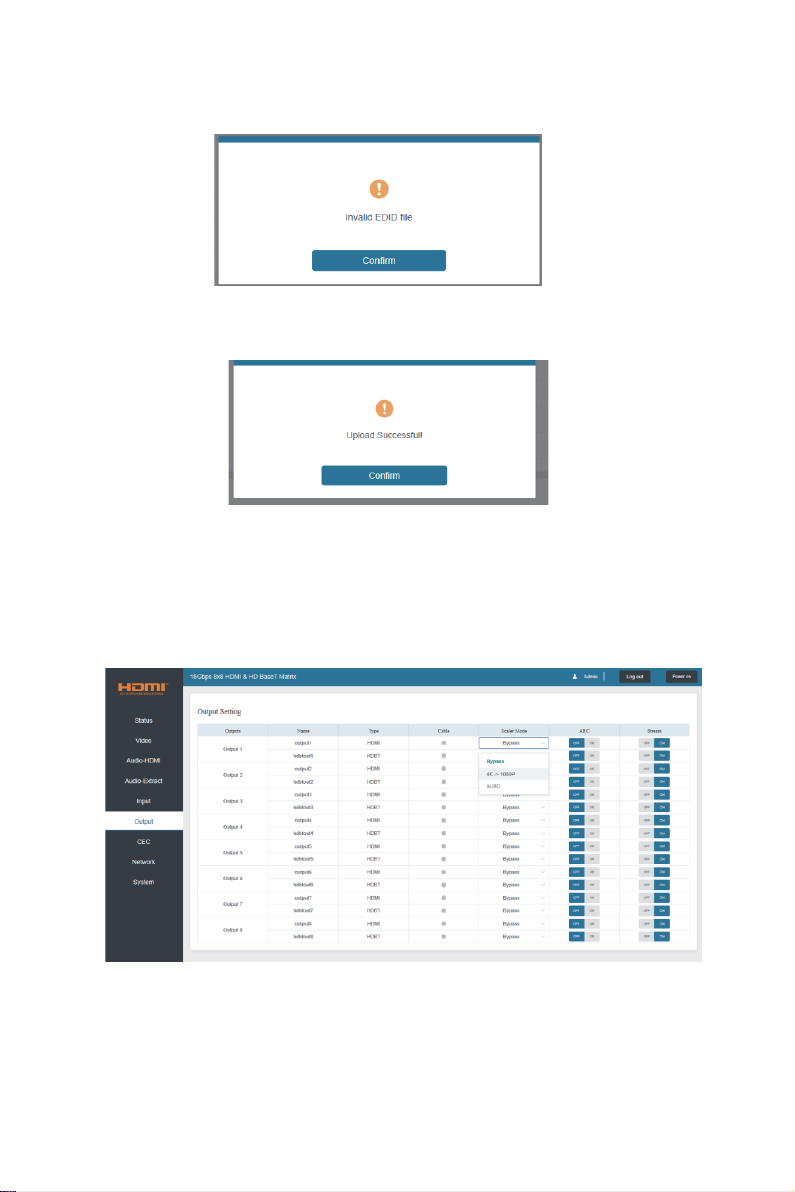

11. Web GUI User Guide

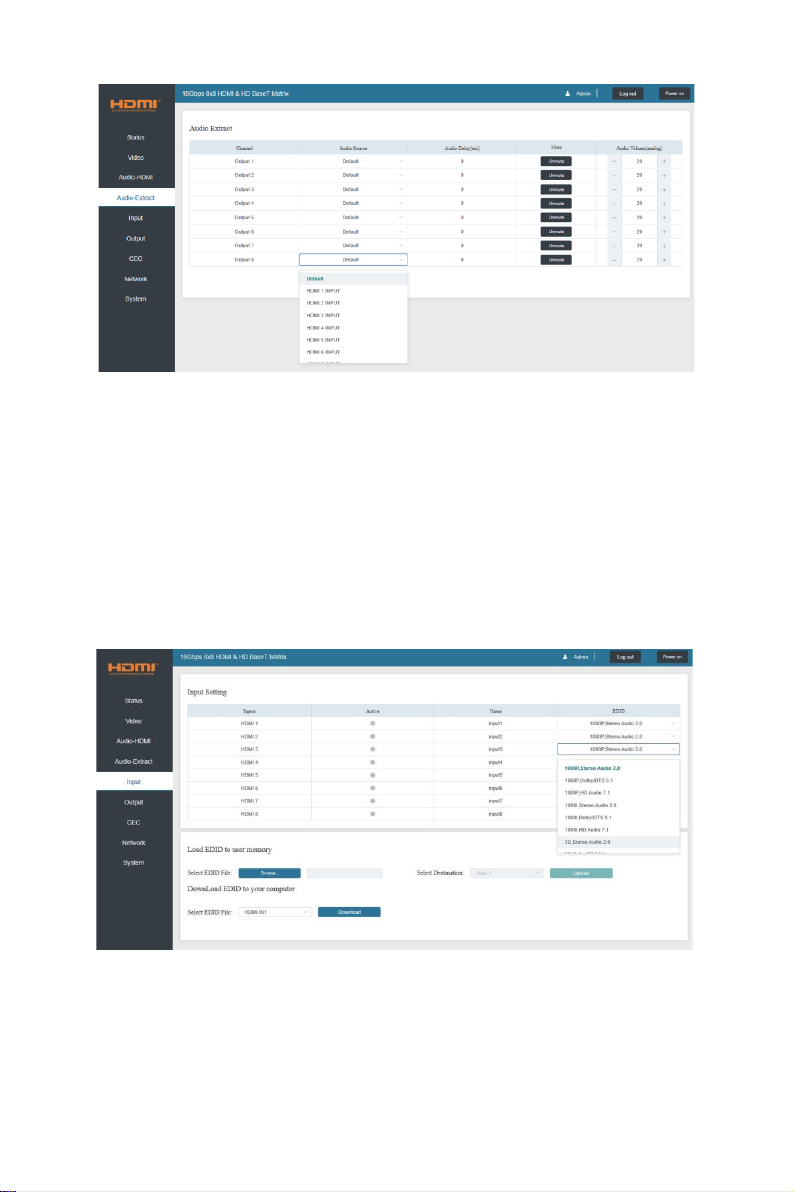

The Matrix can be controlled by Web GUI. The operation method is shown as below: Step 1: Obtain the current IP Address. The default IP address is 192.168.1.100. You can obtain the current Matrix IP address in two ways:

Method 1: View the current IP address via panel buttons. On the initial OLED display, press “MENU” button to enter the IP interface, then press “UP/DOWN” button to check the current IP address.

Method 2: You can get the IP address via RS-232 control. Send the ASCII command “ r ipconfig!” through a Serial Command tool, then you’ll get the feedback information as shown

below:

IP: 192.168.62.109 in the above figure is the IP Address of the Matrix (the IP address is variable, depending on what the specific machine returns).

For the details of RS-232 control, please refer to “12. RS-232 Control Command”.

Page 17

- 15 / 29 -

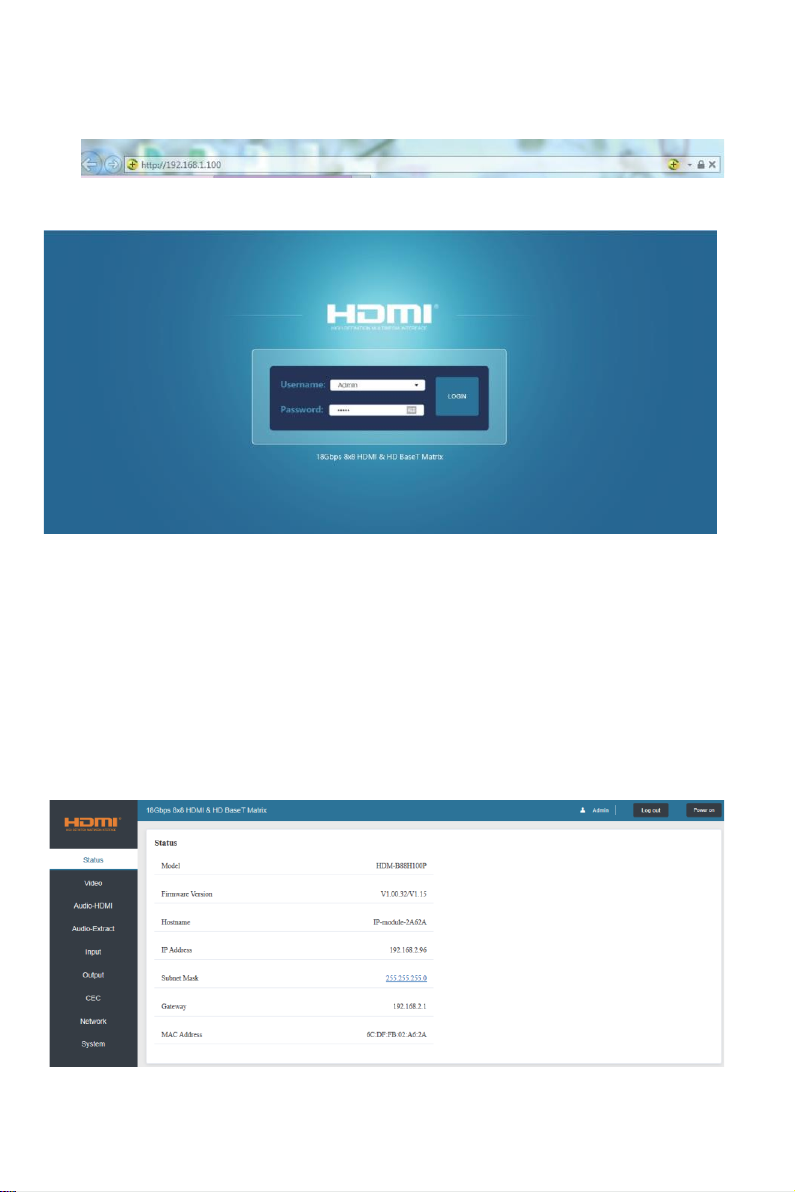

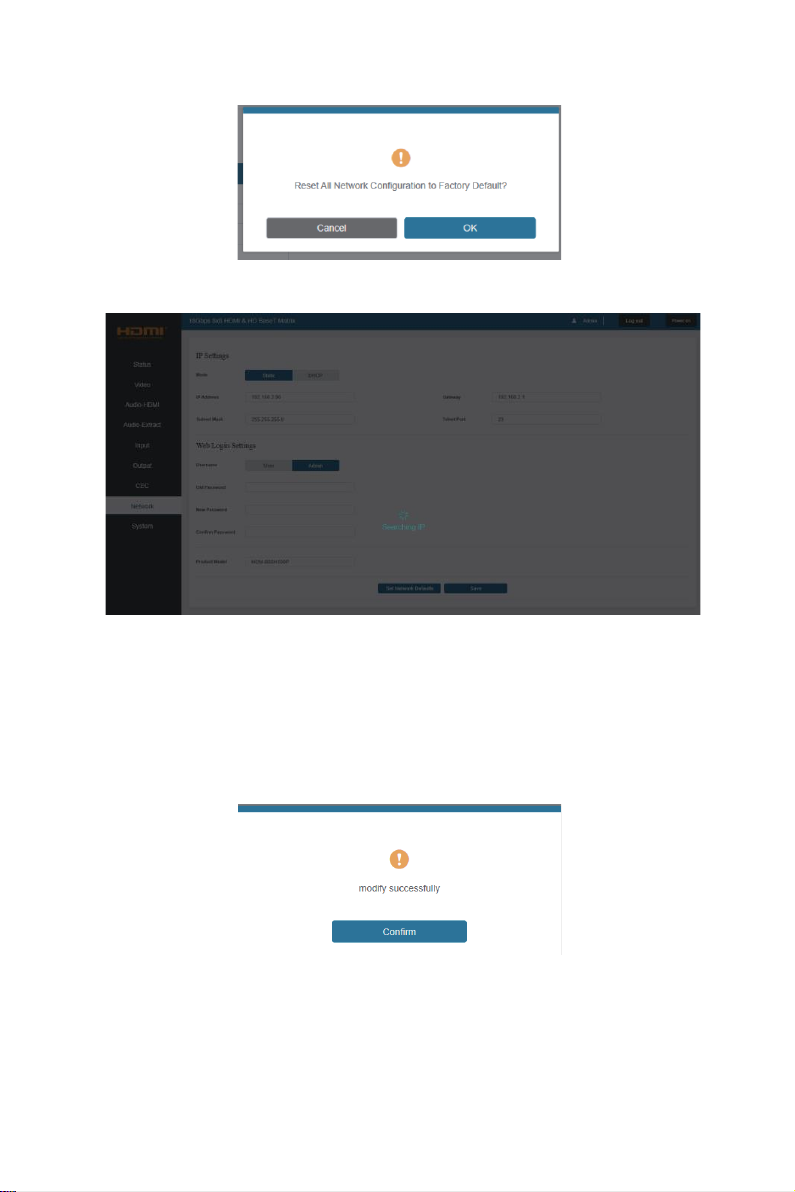

Step 2: Connect the TCP/IP port of the Matrix to a PC with an ethernet cable and set the IP address of the PC to be in the same network segment with the Matrix. Step 3: Input the current IP address of Matrix into your browser on the PC to enter Web GUI page.

After entering the Web GUI page, there will be a Login page, as shown below:

Select the Username from the list and enter the password. The default passwords are:

Username

User

Admin

Password

user

admin

After entering the password, click the “LOGIN” button and the following Status page will appear.

■ Status Page

The Status page provides basic information about the installed firmware version and the

network settings of the device.

Page 18

- 16 / 29 -

■ Video Page

You can perform the following operations on the Video page:

① Output: The current device’s OUTPUT port. Users can select signal source. ② Input: Click the drop-down menu to select signal source for the corresponding

OUTPUT port.

③ Presets Name: Name the current scene with maximum length of 12 characters. ④ Presets: Restore the settings of the last saved audio-video matrix configuration. ⑤ Presets Save: Save audio-video matrix switching configuration.

⑥ Presets Clear: Clear the saved audio-video matrix switching configuration.

■ Audio-HDMI Page

You can do the following operations on the Audio-HDMI page:

① HDMI: Audio channel of the current Output. ② Audio Source: The input source of the current audio channel. Switch the input

source by clicking the corresponding drop-down box to select the desired input source.

Page 19

- 17 / 29 -

■ Audio-Extract Page

Users can perform the following operations on the Audio-Extract page:

① Channel: Audio output channel for coaxial audio or analog audio. ② Audio Source: The input source of the current audio channel. You can switch the input

source by clicking the corresponding drop-down box to select the desired input source. ③ Audio Delay: Set the output delay. You can modify it by entering the corresponding value (range: 0 ~ 300) in the input box.

④ Mute: You can mute or unmute the audio output channel by clicking the blue button. ⑤ Audio Volume (Analog): You can set the volume value (range: 0~30) for the analog

output channel by clicking “-”/“+”or entering the value in the input box.

■ Input Page

Users can perform the following operations on the Input page:

① Inputs: Input channel of the device. ② Active: Indicates whether the channel is connected to a signal source.

③ Name: The input channel’s name. Modify it by entering the corresponding name

(max length: 12 characters) in the input box. ④ EDID: Set the current channel’s EDID. The specific operation is as follows:

Page 20

- 18 / 29 -

Set EDID for the User

Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will be a prompt, as shown in the following figure:

Make sure to select the correct file, then you can check the name of the selected file. Select “User 1” or “User 2”, then click “Upload”. After successful setting, it will prompt as follows:

Download the EDID File for the Corresponding Input Channel

Click the drop-down box of “Select EDID File” to select the corresponding input channel. Then click “Download” to download the corresponding EDID file.

■ Output Page

Users can perform the following operations on the Output page:

① Outputs: Output channel of the device. ② Name: The current output channel’s name. Modify it by entering the corresponding

name (max length: 12 characters) in the input box.

③ Type: The current output channel’s type (HDMI or HDBT). ④ Cable: Indicates the connection status of output ports. When the output port is connected to

the display it shows green, otherwise, it shows gray.

Page 21

- 19 / 29 -

⑤ Scaler Mode: Set the current output resolution mode. ⑥ ARC: Turn on/off the ARC function.

⑦ Stream: Turn on/off the output stream.

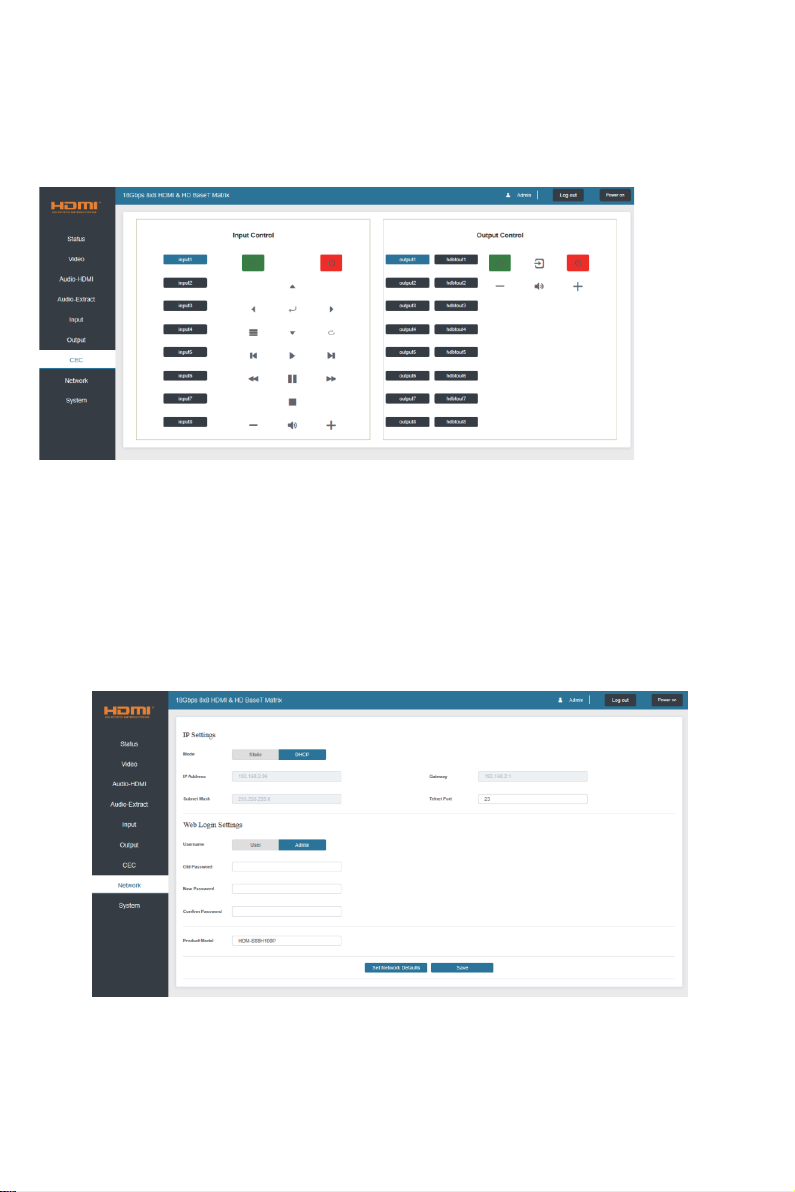

■ CEC Page

Users can perform CEC management on this page: ① Input Control: Control the operation of each input source by pressing the icons on the page. ② Output Control: Control the operation of each display, such as power on/off,

volume +/-, active source switching.

■ Network Page

Page 22

- 20 / 29 -

Set the Default Network

Click “Set Network Defaults” button, there will be a prompt, as shown in the following figure:

Click “OK” to search the IP Address again, as shown in the following figure:

After searching is completed, it will switch to the login page, the default network setting is completed.

Modify User Password

Click the “User” button, enter the correct Old Password, New Password, and Confirm Password, then click “Save”. After successful modification, there will be a prompt, as

shown in the following figure:

Note: Input rules for changing passwords: (1) The password can’t be empty. (2) New Password can’t be the same as Old Password. (3) New Password and Confirm Password must be the same.

Page 23

- 21 / 29 -

Modify Network Setting

Modify the Mode/IP Address/Gateway/Subnet Mask/Telnet Port as required, click “Save” to save the settings, then it will come into effect. After modification, if the Mode is “Static”, it will switch to the corresponding IP Address; if the Mode is “DHCP”, it will automatically search and switch to the IP Address assigned by the router.

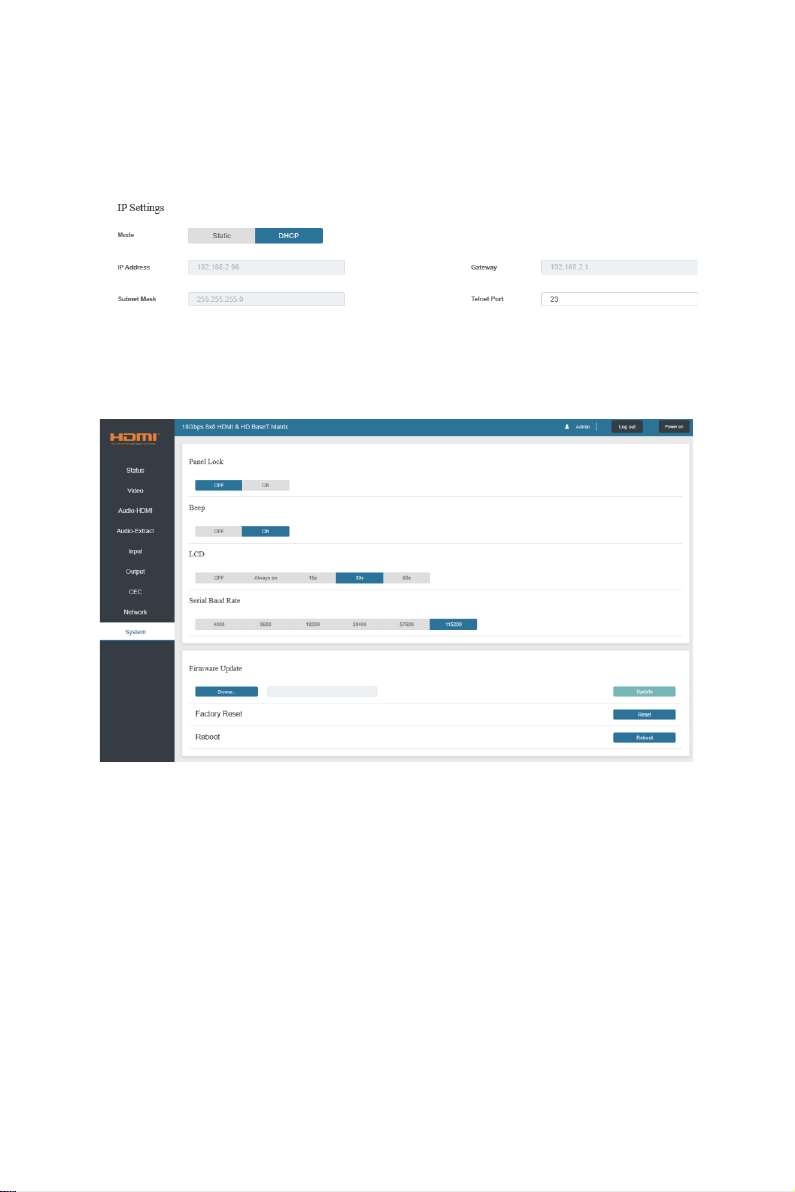

■ System Page

① Panel Lock: Click “Panel Lock” to lock/unlock panel buttons. “On” indicates that panel buttons are unavailable; “Off” indicates panel buttons are available.

② Beep: Click “Beep” to turn on/off the beep. ③ LCD: You can turn on/off the LCD, and set the turn-on time (15s/30s/60s).

④ Serial Baud Rate: Click the value to set the Serial Baud Rate. ⑤ Firmware Update: Click “Browse” to select the update file, then click “Update” to complete

firmware update.

⑥ Factory Reset: You can reset the machine to factory defaults by clicking “Reset”. ⑦ Reboot: You can reboot the machine by clicking “Reboot”.

Note: After reset/reboot, it will switch to the login page.

Page 24

- 22 / 29 -

12. RS-232 Control Command

The product also supports RS-232 control. You need a serial cable with RS-232 male head and DB9 transfer USB male head. The RS-232 head of the serial cable is connected to the RS-232 control port with DB 9 at the rear of the Matrix, and the USB head of the serial cable is connected to a PC. The connection method is as follows:

RS232

Then, open a Serial Command tool on PC to send ASCII command to control the Matrix.

The ASCII command list about the product is shown as below.

ASCII Command

Serial port protocol. Baud rate: 115200, Data bits: 8bit, Stop bits:1, Check bit: 0

x - Parameter 1 y - Parameter 2 ! - Delimiter

ASCII Command

Function Description

Example

Feedback

Default Setting

Power

s power z!

Power on/off the device,z=0~1 (z=0 power off, z=1 power on)

s power 1!

Power on System Initializing...

Initialization Finished! power off POWER 0

power on

r power!

Get current power state

r power!

power on/power off

s reboot!

Reboot the device

s reboot!

Reboot... System Initializing...

Initialization Finished! FW version 1.00.01

System Setup

help!

List all commands

help!

r type!

Get device model

r type!

HDM-B88H100P

r status!

Get device current status

r status!

Get the unit all status: power, beep, lock, in/ out connection, video/ audio crosspoint, edid, scaler,hdcp, network status

Page 25

- 23 / 29 -

ASCII Command

Function Description

Example

Feedback

Default Setting

r fw version!

Get Firmware version

r fw version!

MCU BOOT: V1.00.02 MCU APP: V1.00.01 WEB GUI: V1.01

r link in x!

Get the connection status of the x input port，x=0~8(0=all)

r link in 1!

hdmi input 1: connect

r link out y!

Get the connection status of the y output port，y=0~8(0=all)

r link out 1!

hdmi output 1: connect hdbt output 1: connect

s reset!

Reset to factory defaults

s reset!

Reset to factory defaults System Initializing... Initialization Finished! FW version 1.00.01

s beep z!

Enable/Disable buzzer function, z=0~1(z=0 beep off, z=1 beep on)

s beep 1!

beep on beep off

beep on

r beep!

Get buzzer state

r beep!

beep on / beep off

s lock z!

Lock/Unlock front panel button, z=0~1 (z=0 lock off,z=1 lock on)

s lock 1!

panel button lock on panel button lock off

panel button lock off

r lock!

Get panel button lock state

r lock!

panel button lock on/off

s lcd on time z!

Set LCD screen remain on time, z=0~4 (0:off, 1:always on, 2:15s, 3:30s, 4:60s)

s lcd on time 1!

lcd on always

lcd on 30 seconds

r lcd mode!

Get the backlight status of lcd screen

r lcd mode!

lcd on always

s save preset z!

Save switch state between all output port and the input port to preset z, z=1~8

s save preset 1!

save to preset 1

s recall preset z!

Call saved preset z scenarios, z=1~8

s recall preset 1!

recall from preset 1

s clear preset z!

Clear stored preset z scenarios, z=1~8

s clear preset 1!

clear preset 1

r preset z!

Get preset z information, z=1~8

r preset 1!

video/audio crosspoint

s ptp! s ptp!

ptp

Output Setting

s in x av out y!

Set input x to output y， x=1~8，y=0~8(0=all)

s in 1 av out 2!

input 1 -> output 2

input 1 -> output 1 input 2 -> output 2 input 3 -> output 3 input 4 -> output 4 input 5 -> output 5 input 6 -> output 6 input 7 -> output 7 input 8 -> output 8

r av out y!

Get output y signal status y=0~8(0=all)

r av out 0!

input 1 -> output 1 input 2 -> output 2

……

input 7 -> output 7 input 8 -> output 8

s hdmi y stream z!

Set hdmi output y stream on/off, y=0~8(0=all) z=0~1(0:disable,1:enable)

s hdmi 1 stream 1! s hdmi 0 stream 1!

Enable hdmi output 1 stream Disable hdmi output 1 stream

Enable hdmi all outputs stream Disable hdmi all outputs stream

Enable hdmi all outputs stream

r hdmi y stream!

Get hdmi output y stream status, y=0~8(0=all)

r hdmi 1 stream!

Enable hdmi output 1 stream Disable hdmi output 1 stream

Page 26

- 24 / 29 -

ASCII Command

Function Description

Example

Feedback

Default Setting

s hdbt y stream z!

Set hdbt output y stream on/off, y=0~8(0=all) z=0~1(0:disable,1:enable)

s hdbt 1 stream 1! s hdbt 0 stream 1!

Enable hdbt output 1 stream Disable hdbt output 1 stream

Enable hdbt all outputs stream Disable hdbt all outputs

stream

Enable hdbt all outputs stream

r hdbt y stream!

Get hdbt output y stream status, y=0~8(0=all)

r hdbt 1 stream!

Enable hdbt output 1 stream Disable hdbt output 1 stream

s hdmi y scaler z!

Set hdmi output y port output scaler mode，y=0~8(0=all), z=1~3(1=bypass,2=4k->1080p, 3=Auto)

s hdmi 1 scaler 1! s hdmi 0 scaler 1!

hdmi output 1 set to bypass mode

hdmi all outputs set to bypass mode

hdmi all outputs set to bypass

r hdmi y scaler!

Get hdmi output y port output mode y=0~8(0=all)

r hdmi 1 scaler!

hdmi output 1 set to bypass mode

s hdbt y scaler z!

Set hdbt output x port output scaler mode，y=0~8(0=all), z=1~3(1=bypass,2=4k->1080p, 3=Auto)

s hdbt 1 scaler 2! s hdbt 0 scaler 2!

hdbt output 1 set to 4k->1080p mode

hdbt all outputs set to 4k->1080p mode

hdbt all outputs set to bypass

r hdbt y scaler !

Get hdbt output y port output scaler mode y=0~8 (0=all)

r hdbt 1 scaler !

hdbt output 1 set to 4k->1080p mode

EDID Setting

Set input x EDID from default

IIN1: 1080p, Stereo Audio 2.0 IN2: 1080p, Stereo Audio 2.0 IN3: 1080p, Stereo Audio 2.0 IN4: 1080p, Stereo Audio 2.0 IN5: 1080p, Stereo Audio 2.0 IN6: 1080p, Stereo Audio 2.0 IN7: 1080p, Stereo Audio 2.0 IN8: 1080p, Stereo Audio 2.0

EDID z,

x=0~8(0=all),z=1~39

1=1080p,Stereo Audio 2.0

2=1080p,Dolby/DTS 5.1

3=1080p,HD Audio 7.1

4=1080i,Stereo Audio 2.0

5=1080i,Dolby/DTS 5.1

6=1080i,HD Audio 7.1

7=3D,Stereo Audio 2.0

8=3D,Dolby/DTS 5.1

9=3D,HD Audio 7.1

s edid in x from z!

10=4K2K30_444,Stereo Audio 2.0 11=4K2K30_444,Dolby/DTS 5.1 12=4K2K30_444,HD Audio 7.1

s edid in 1 from 1!

IN 1 EDID:1080p, Stereo Audio 2.0

13=4K2K60_420,Stereo Audio 2.0

14=4K2K60_420,Dolby/DTS 5.1

15=4K2K60_420,HD Audio 7.1

16=4K2K60_444,Stereo Audio 2.0

17=4K2K60_444,Dolby/DTS 5.1

18=4K2K60_444,HD Audio 7.1

19=4K2K60_444,Stereo Audio 2.0

HDR

20=4K2K60_444,Dolby/DTS 5.1

HDR

21=4K2K60_444,HD Audio 7.1

HDR

22=User1

23=User2

24~31=copy from hdmi output 1~8

32~39=copy from hdbt output 1~8

Page 27

- 25 / 29 -

ASCII Command

Function Description

Example

Feedback

Default Setting

r edid in x!

Get EDID status of the input x， x=0~8(0=all input)

r edid in 0!

IN1 EDID: 4K2K60_ 444,Stereo Audio 2.0 IN2 EDID: 4K2K60_ 444,Stereo Audio 2.0 IN3 EDID: 4K2K60_ 444,Stereo Audio 2.0 IN4 EDID: 4K2K60_ 444,Stereo Audio 2.0 IN5 EDID: 4K2K60_ 444,Stereo Audio 2.0 IN6 EDID: 4K2K60_ 444,Stereo Audio 2.0 IN7 EDID: 4K2K60_ 444,Stereo Audio 2.0 IN8 EDID: 4K2K60_ 444,Stereo Audio 2.0

r edid data hdmi y!

Get the EDID data of the hdmi output y port，y=1~8

r edid data hdmi 1!

EDID: 00 FF FF FF FF FF FF 00 ………

r edid data hdbt y!

Get the EDID data of the hdbt output y port，y=1~8

r edid data hdbt 1!

EDID: 00 FF FF FF FF FF FF 00 ………

r internal edid!

Get all built-in EDID information for unit support

r internal edid!

1,1080p,Stereo Audio 2.0 2,1080p,Dolby/DTS 5.1 3,1080p,HD Audio 7.1 4,1080i,Stereo Audio 2.0 ……. 20,4K2K60,Dolby/ DTS 5.1 HDR 21,4K2K60,HD Audio 7.1 HDR

Audio Setting

s hdmi y arc z!

Turn on/off ARC of HDMI output y, y=0~8(0=all) z=0~1(z=0,off,z=1 on)

s hdmi 1 arc 1! s hdmi 0 arc 1!

hdmi output 1 arc on hdmi output 1 arc off

hdmi all outputs arc on hdmi all outputs arc off

hdmi all outputs arc off

r hdmi y arc!

Get the ARC state of HDMI output y，y=0~8(0=all)

r hdmi 1 arc!

hdmi output 1 arc on

s hdbt y arc z!

Turn on/off ARC of HDBT output y, y=0~8(0=all) z=0~1(z=0,off,z=1 on)

s hdbt 1 arc 1! s hdbt 0 arc 1!

hdbt output 1 arc on hdbt output 1 arc off

hdbt all outputs arc on hdbt all outputs arc off

hdbt all outputs arc off

r hdbt y arc!

Get the ARC state of HDMI output y，y=0~8(0=all)

r hdbt 1 arc!

hdbt output 1 arc on

s out y audio from z!

Set HDMI/HDBT output audio y=0~8(0=all),z=0~28 z=0, Default z=1~8 from HDMI input 1~8 z=9~16 from HDMI out 1~8 ARC z=17~24 from HDBT out 1~8 ARC z=25~28 from embed audio 1~4 Attention: when z=0,HDMI/HDBT audio can't set audio delay.

s out 1 audio from 1! s out 0 audio from 1!

HDMI/HDBT output 1 audio: from HDMI input 1

HDMI/HDBT all outputs audio: from HDMI input 1

HDMI/HDBT all outputs from default

r out y audio!

Get HDMI/HDBT output audio status y=0~8(0=all)

r out 1 audio!

HDMI/HDBT output 1 from HDMI input 1

Page 28

- 26 / 29 -

ASCII Command

Function Description

Example

Feedback

Default Setting

s coax_analog out y audio from z!

Set coaxial output audio y=0~8 (0=all),z=1~28 z=1~8 from HDMI input 1~8 z=9~16 from HDMI out 1~8 ARC z=17~24 from HDBT out 1~8 ARC z=25~28 from embed audio 1~4

s coax_analog out 1 audio from 1!

s coax_analog out 0 audio from 1!

Coaxial_Analog output 1 audio: from HDMI input 1

Coaxial_Analog all outputs audio: from HDMI input 1

s coax_analog out y audio delay z!

Set coax_analog output audio delay y=0~8(0=all), z=0~300ms

s coax_analog out 1 audio delay 100!

s coax_analog out 0 audio delay 100!

Coaxial_Analog output 1 audio delay 100ms

Coaxial_Analog all outputs audio delay 100ms

s coax_analog out y audio vol z!

Set analog output audio volume y=0~8(0=all), z=0~30,+,-;

s analog out 1 audio vol 30! s analog out 1 audio vol +!

s analog out 0 audio vol 30! s analog out 0 audio vol +!

Analog output 1 audio volume 30

Analog all outputs audio volume 30

all Analog output audio volume 20

s coax_analog out y audio mute z!

Mute on/off coax_analog output audio y=0~8(0=all), z=0~1(z=0 off,z=1 on)

s coax_analog out 1 audio mute 1!

Mute coax_analog output 1 audio

Mute off all coax_ analog out audio

r coax_analog out y audio!

Get coax_analog output audio status y=0~8(0=all)

r coax_analog out 1 audio!

Coaxial_Analog output 1 audio from HDMI input 1 Coaxial_Analog output 1 audio delay 0ms Analog output 1 audio volume 20 Mute off coax_analog output 1 audio

CEC Setting

s cec in x on!

set input x power on by CEC, x=0~8(0=all input)

s cec in 1 on!

input 1 power on

s cec in x off!

set input x power off by CEC, x=0~8(0=all input)

s cec in 1 off!

input 1 power off

s cec in x menu!

set input x open menu by CEC, x=0~8(0=all input)

s cec in 1 menu!

input 1 open menu

s cec in x back!

set input x back operation by CEC, x=0~8(0=all input)

s cec in 1 back!

input 1 back operation

s cec in x up!

set input x menu up operation by CEC, x=0~8(0=all input)

s cec in 1 up!

input 1 menu up operation

s cec in x down!

set input x menu down operation by CEC, x=0~8(0=all input)

s cec in 1 down!

input 1 menu down operation

s cec in x left!

set input x menu left operation by CEC, x=0~8(0=all input)

s cec in 1 left!

input 1 menu left operation

s cec in x right!

set input x menu right operation by CEC, x=0~8(0=all input)

s cec in 1 right!

input 1 menu right operation

s cec in x enter!

set input x menu enter by CEC, x=0~8(0=all input)

s cec in 1 enter!

iInput 1 menu enter operation

s cec in x play!

set input x play by CEC, x=0~8(0=all input)

s cec in 1 play!

input 1 play operation

s cec in x pause!

set input x pause by CEC, x=0~8(0=all input)

s cec in 1 pause!

iInput 1 pause operation

Page 29

- 27 / 29 -

ASCII Command

Function Description

Example

Feedback

Default Setting

s cec in x stop!

set input x stop by CEC, x=0~8(0=all input)

s cec in 1 stop!

input 1 stop operation

s cec in x rew!

set input x rewind by CEC, x=0~8(0=all input)

s cec in 1 rew!

input 1 rewind operation

s cec in x mute!

set input x volume mute by CEC, x=0~8(0=all input)

s cec in 1 mute!

input 1 volume mute

s cec in x vol-!

set input x volume down by CEC, x=0~8(0=all input)

s cec in 1 vol-!

input 1 volume down

s cec in x vol+!

set input x volume up by CEC, x=0~8(0=all input)

s cec in 1 vol+!

input 1 volume up

s cec in x ff!

set input x fast forward by CEC, x=0~8(0=all input)

s cec in 1 ff!

input 1 fast forward operation

s cec in x previous!

set input x previous by CEC, x=0~8(0=all input)

s cec in 1 previous!

input 1 previous operation

s cec in x next!

set input x next by CEC, x=0~8(0=all input)

s cec in 1 next!

input 1 next operation

s cec hdmi out y on!

set hdmi output y power on by CEC, y=0~8(0=all hdmi output)

s cec hdmi out 1 on!

hdmi output 1 power on

s cec hdbt out y on!

set hdbt output y power on by CEC, y=0~8(0=all hdbt output)

s cec hdbt out 1 on!

hdbt output 1 power on

s cec hdmi out y off!

set hdmi output y power off by CEC, y=0~8(0=all hdmi output)

s cec hdmi out 1 off!

hdmi output 1 power off

s cec hdbt out y off!

set hdbt output y power off by CEC, y=0~8(0=all hdbt output)

s cec hdbt out 1 off!

hdbt output 1 power off

s cec hdmi out y mute!

set hdmi output y volume mute by CEC, y=0~8(0=all hdmi output)

s cec hdmi out 1 mute!

hdmi output 1 volume mute

s cec hdbt out y mute!

set hdbt output y volume mute by CEC, y=0~8(0=all hdbt output)

s cec hdbt out 1 mute!

hdbt output 1 volume mute

s cec hdmi out y vol-!

set hdmi output y volume down by CEC, y=0~8(0=all hdmi output)

s cec hdmi out 1 vol-!

hdmi output 1 volume down

s cec hdbt out y vol-!

set hdbt output y volume down by CEC, y=0~8(0=all hdbt output)

s cec hdbt out 1 vol-!

hdbt output 1 volume down

s cec hdmi out y vol+!

set hdmi output y volume up by CEC, y=0~8(0=all hdmi output)

s cec hdmi out 1 vol+!

hdmi output 1 volume up

s cec hdbt out y vol+!

set hdbt output y volume up by CEC, y=0~8(0=all hdbt output)

s cec hdbt out 1 vol+!

hdbt output 1 volume up

s cec hdmi out y active!

set hdmi output y active source by CEC, y=0~8(0=all hdmi output)

s cec hdmi out 1 active!

hdmi output 1 active source

s cec hdbt out y active!

set hdbt output y active source by CEC, y=0~8(0=all hdbt output)

s cec hdbt out 1 active!

hdbt output 1 active source

Network Setting

r ipconfig!

Get the Current IP Configuration

r ipconfig!

IP Mode: DHCP IP:192.168.62.106 Subnet Mask:

255.255.255.0 Gateway:192.168.62.1 TCP/IP port:8000 Telnet port:23 Mac address: 6C:DF:FB:0C:B3:8E

r mac addr!

Get network MAC address

r mac addr!

Mac address: 6C:DF:FB:0C:B3:8E

Page 30

- 28 / 29 -

ASCII Command

Function Description

Example

Feedback

Default Setting

s ip mode z!

Set network IP mode to static IP or DHCP, z=0~1 (z=0 Static, z=1 DHCP )

s ip mode 0!

Set IP mode:Static (Please use "s net reboot!" command or repower device to apply new config!)

DHCP ON

r ip mode!

Get network IP mode

r ip mode!

IP Mode: DHCP

s ip addr xxx.xxx.xxx.xxx!

Set network IP address

s ip addr

192.168.1.100!

Set IP address:

192.168.1.100 (Please use "s net reboot!" command or repower device to apply new config!) DHCP on, Device can't config static address, set DHCP off first.

r ip addr!

Get network IP address

r ip addr!

IP:192.168.62.106

s subnet xxx.xxx.xxx.xxx!

Set network subnet mask

s subnet

255.255.255.0!

Set subnet Mask address:255.255.255.0 (Please use "s net reboot!" command or repower device to apply new config!) DHCP on, Device can't config subnet mask, set DHCP off first.

r subnet!

Get network subnet mask

r subnet!

Subnet Mask:

255.255.255.0

s gateway xxx.xxx.xxx.xxx!

Set network gateway

s gateway

192.168.1.1!

Set gateway:

192.168.1.1 Please use "s net reboot!" command or repower device to apply new config! DHCP on, Device can't config gateway, set DHCP off first.

r gateway!

Get network gateway

r gateway!

Gateway:192.168.1.1

s tcp/ip port x!

Set network TCP/IP port (x=1~65535)

s tcp/ip port 8000!

Set TCP/IP port:8000

Set tcp/ip port:8000

r tcp/ip port!

Get network TCP/IP port

r tcp/ip port!

TCP/IP port:8000

s telnet port x!

Set network telnet port (x=1~65535)

s telnet port 23!

Set Telnet port:23

Set telnet port:23

r telnet port!

Get network telnet port

r telnet port!

Telnet port:23

s net reboot!

Reboot network modules

s net reboot!

Search for IP,Please wait ...! IP Mode: DHCP IP:192.168.62.111 Subnet Mask:

255.255.255.0 Gateway:192.168.62.1 TCP/IP port:8000 Telnet port:23 Mac address: 6C:DF:FB:0C:B3:8E

s uart x mode y!

Set the mode of x local and hdbt uart , x=0-8 ,y=0-1, 0:bypass mode, 1:user control mode

s uart 1 mode 1!

Local And Far Uart1 Control Mode

s uart x datalen y!

Set the data length of x local and hdbt uart , x=0-16, y=1-2, 1:8bit 2:7bit

s uart 1 datalen 1!

LocalUart1 DataLen is 8bit

Page 31

- 29 / 29 -

ASCII Command

Function Description

Example

Feedback

Default Setting

s uart x baudrate y!

Set the baudrate of x local and hdbt uart , x=0-16, y=1-8, 1: 115200(Default) 2: 57600 3: 56000 4:38400 5:19200 6:14400 7:9600 8:4800

s uart 1 baudrate 1!

LocalUart%d Baudrate is 115200

s uart x parity y!

Set the Parity of x local and hdbt uart, x=0-16, y=1-3, 1:none 2:odd 3:even

s uart x parity 1!

LocalUart1 Parity is None

s uart x type z senddata y end!

Send data y from x local and hdbt uart, z=0 ascii, z=1 hex ,x=0-16

s uart 1 type 0 senddata abcdefg end!

LocalUart1 data: abcdefg

r uart status x!

Get the Status of x local and hdbt uart , x=0-16

r uart status 1!

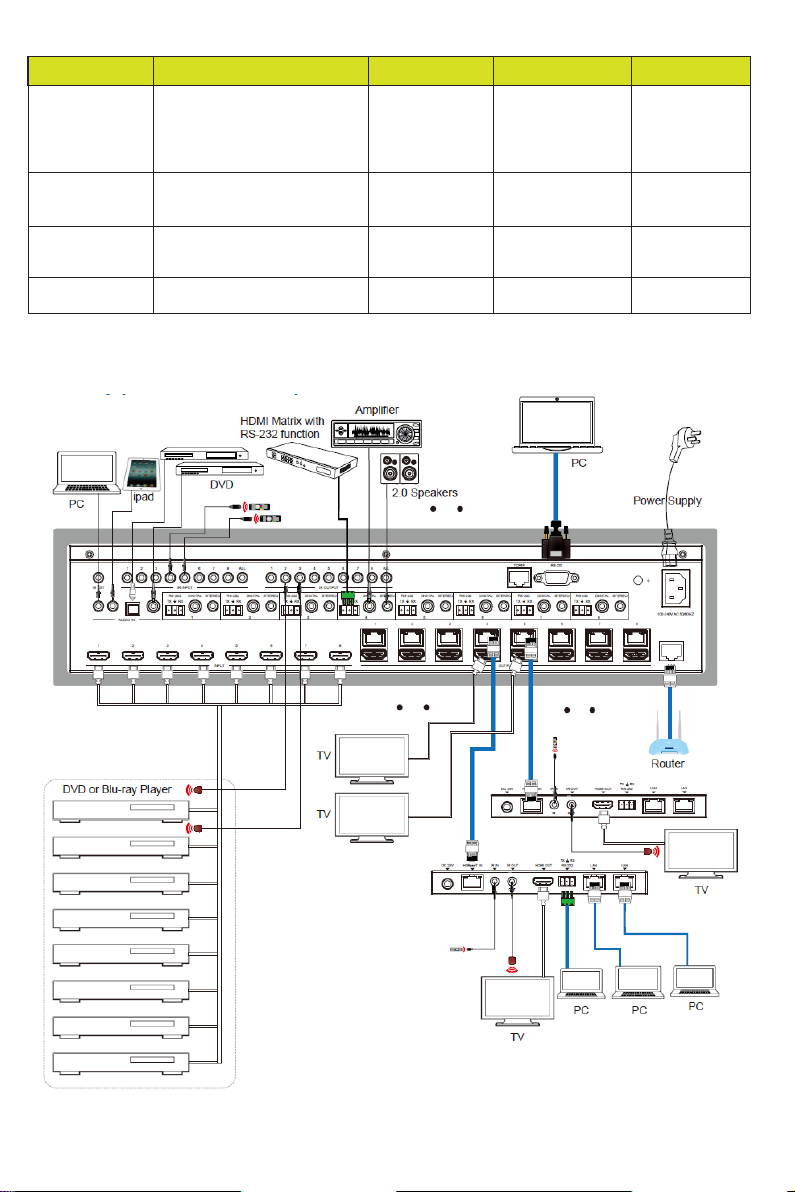

13. Application Example

Page 32

14. Tech Support

Before contacting tech support, we may have answered your question already! Visit our BZBGEAR support page at bzbgear.com/support for valuable information on our products.

Here you will find our Knowledge Base (bzbgear.com/knowledge-base) consisting of tutorials, quick start guides, and step-by-step troubleshooting instructions. Also visit our YouTube channel BZB TV at youtube.com/c/BZBTVchannel for help setting up, connecting, and other how-to videos regarding our products.

If you still need answers, please call 1.888.499.9906, email [email protected], or chat at bzbgear.com.

15. Warranty

BZBGEAR Pro AV products and Cameras come with a three-year warranty. An extended two-year warranty is available for our Cameras upon registration for a total of five years.

For an extended two-year warranty on our Cameras, follow these steps:

1. Register your Camera within 90 days of purchase by visiting bzbgear.com/warranty.

2. Complete the registration form. Provide all necessary proof of purchase details, including serial number and a copy of your sales receipt.

For complete warranty information, please visit bzbgear.com/warranty or scan the QR code below.

16. Mission Statement

BZBGEAR manifests from the competitive nature of the audiovisual and live streaming industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the

advancements made in today’s AV world without having to break the bank. BZBGEAR is your

answer for applications requiring the latest pro AV and live streaming solutions.

You’ll notice comparably lower prices with BZBGEAR while the performance and quality are on

par with the top brands in the industry. Our team offers system design consultation and expert tech support seven days a week for all BZBGEAR products. Our unparalleled support is our way

of showing we care for every one of our customers. Whether you’re an integrator, home theater

enthusiast, or a do-it-yourselfer, BZBGEAR offers solutions allowing you to focus on your project and not your budget.
