USER MANUAL

BG-PSC7X2

4K 7x2 HDMI Multi-format Presentation Scaler Switcher

Page 2

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment.

Page 3

Table of Content

Introduction ................................................................................................................... 4

Features ......................................................................................................................... 4

Panel Descriptions ......................................................................................................... 5

Front Panel ............................................................................................................. 5

Rear Panel .............................................................................................................. 7

Remote Control Description .......................................................................................... 8

Application Diagram ...................................................................................................... 9

Specifications ................................................................................................................. 9

RS-232 Pin Assignment ................................................................................................ 10

RS232 and Telnet Commands ...................................................................................... 11

Package Contents ......................................................................................................... 12

Maintenance ................................................................................................................ 13

Warranty Policy ............................................................................................................ 13

Limitations of Warranty ............................................................................................... 13

Exclusive Remedies ...................................................................................................... 14

RMA Policy ................................................................................................................... 14

Standard Replacement......................................................................................... 14

Once you have obtained an RMA number .......................................................... 15

Please note:.......................................................................................................... 15

Warranty Information (Second Year Assurance) ................................................. 16

Mission Statement..................................................................................................... 17

Page 4

Introduction

The BG-PSC7X2 is a HDMI, VGA, Component and Composite presentation switcher. Embedded splitter and dual switcher modes, it can work as 7:1x2 multiple splitter and 4x1 &7x1 dual switcher. This presentation switcher also features a switchable digital bypass output allowing any HDMI input to be directly bypassed via that HDMI output to cater for the 4K source. With advanced audio embedding and de-embedding, it can provide flexible audio signal integration. Each source can be switched to the HDMI output using the front-panel push buttons, IR remote control or RS-232 interface

Features

• 4K@30Hz 4:4:4, full 3D

• Switch & Scale 7 sources to 2 display

• 1x VGA,4x HDMI, 1xYPbPr, 1x AV for input, and 2x HDMI for output

• Splitter and Dual Switcher modes selectable

• Bypass and scaled formatted output selectable

• Audio embedding and de-embedding

• Scaling from 640x480 to 1920x1080@60Hz

• Front-panel LCD display for status feedback

• Multiple switching mode, push-in button, IR remote control, RS-232 control, and TCP/IP

control

• Easy installation with rack-mounting ears

• HDCP 1.4 compliant

Page 5

Panel Descriptions

Front Panel

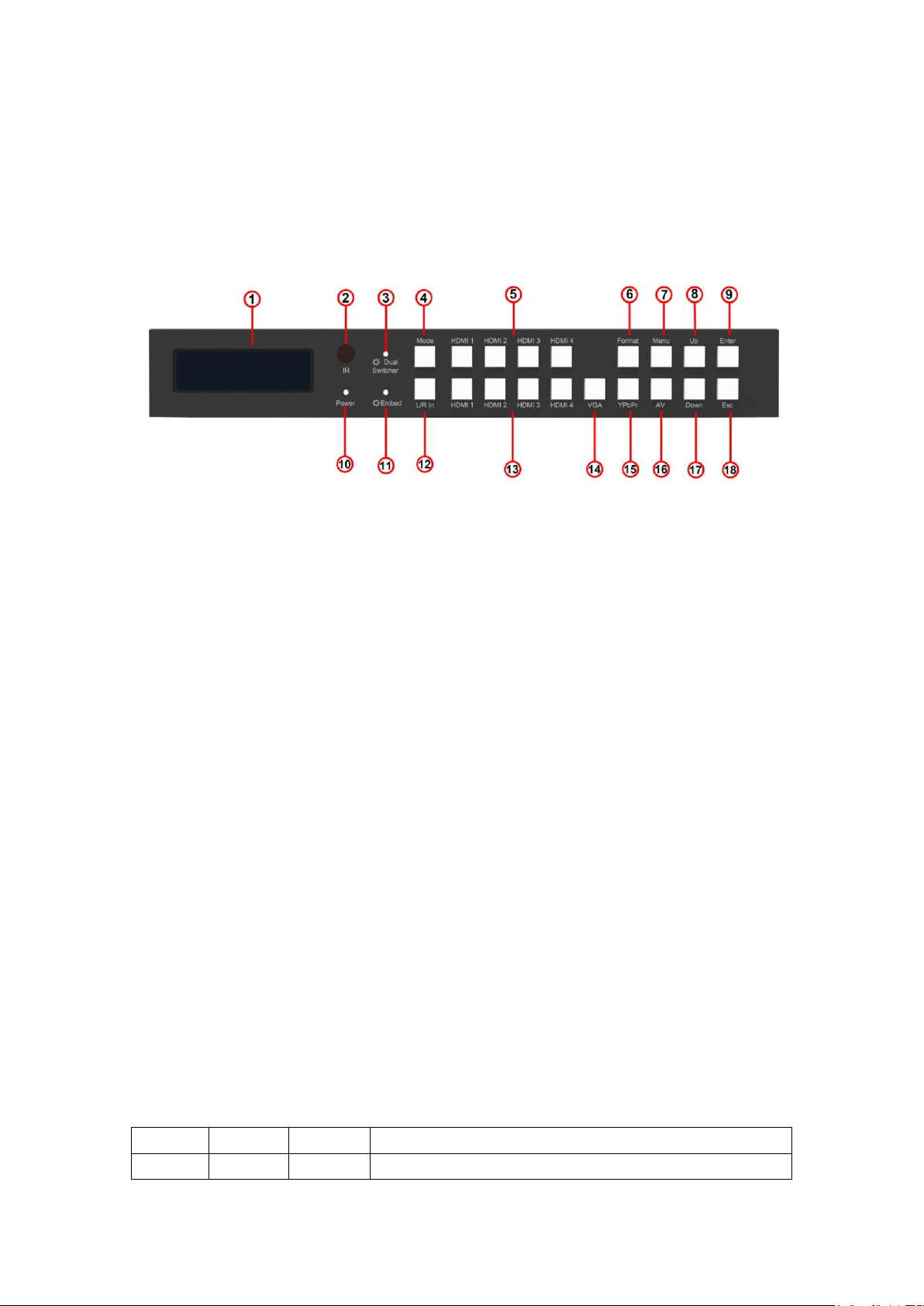

① LCD display---Show the status of input-output selection, EDID info and so on. ② IR receiver window----Receive the IR from the remote control of BG-PSC7X2. ③ Dual switcher LED indicator---When the LED is lit, dual switcher mode is on. Output HDMI

1 is selected by HDMI1/HDMI2/HDMI3/HDMI4 which works as 4K 4x1 switcher in by-pass mode; Output HDMI2 is selected by HDMI1/HDMI2/HDMI3/HDMI4/VGA/YPbPr/AV, it will always be scaled & formatted output regardless of by-pass ON/OFF, works as scaling 7x1 switcher,

④ Mode button---Press to set Dual Switcher mode ON/OFF ⑤ HDMI input 1 to 4 selection buttons ---Press to select the output 1 from 1 to 4 working as

4k 4x1 switcher.

⑥ Format set button---Press to set the resolution for the output. ⑦ Menu button---Press to enter EDID set , volume setting or F/W information. Three EDID

segments will display on the LCD panel formatted as: INPUT VIDEO AUDIO, for example: IN1 1080P 2.0CH, means to set 1080P 2.0CH EDID to INPUT1. The blinking segment is the one can be changed currently, press “Menu” button will change the segment. Segment content items as below:

INPUT

VIDEO

AUDIO

Note

IN1

1080I

2.0CH.

Page 6

IN2

1080P

5.1CH

IN3

7.1CH

IN4

4K2K

NONE

IN5

D1024

D1024=DVI 1024 x 768

IN6

D1080

D1080=DVI 1920 x 1080

IN7

D1200

D1200=DVI 1920 x 1200

IN8

OUT1

OUT1=Copy OUTPUT1 EDID to INPUTx

ALL

OUT2

ALL=Set EDID to ALL INPUTs OUT2=Copy OUTPUT2 EDID to INPUTx

OUT3

OUT3=Copy OUTPUT3 EDID to INPUTx

OUT4

OUT4=Copy OUTPUT4 EDID to INPUTx

OUT5

OUT5=Copy OUTPUT5 EDID to INPUTx

OUT6

OUT6=Copy OUTPUT6 EDID to INPUTx

OUT7

OUT7=Copy OUTPUT7 EDID to INPUTx

OUT8

OUT8=Copy OUTPUT8 EDID to INPUTx

Note: Volume can be changed by UP and Down button. During F/W mode，press Enter button

will show the current F/W information.

⑧ Up selection button--- Press to change segment’s value. ⑨ Enter button--- Press to confirm the settings. ⑩ Power LED indicator---Indicate the status of power.

⑪ Embed LED indicator ---When the LED is lit, embed mode is on. When embed in on, the

L/R in will be embedded in to the HDMI outputs (The two outputs will be embedded with the L/R in audio and the volume is adjustable when in splitter mode; Only output 2 will be embedded with the L/R in audio and the volume is adjustable when in dual switcher mode)

⑫ L/R in selection button---Press to embed L/R audio to the HDMI output. ⑬ HDMI input selection button 1 to 4---Press to select the input from 1 to 4. ⑭ VGA input selection button---Press to select VGA input. ⑮ YPbPr input selection button---Press to select YPbPr input. ⑯ AV input selection button---Press to select AV input. ⑰ Down selection button---Press to change segment’s value. ⑱ ESC---Press to quit EDID set mode.

Page 7

Rear Panel

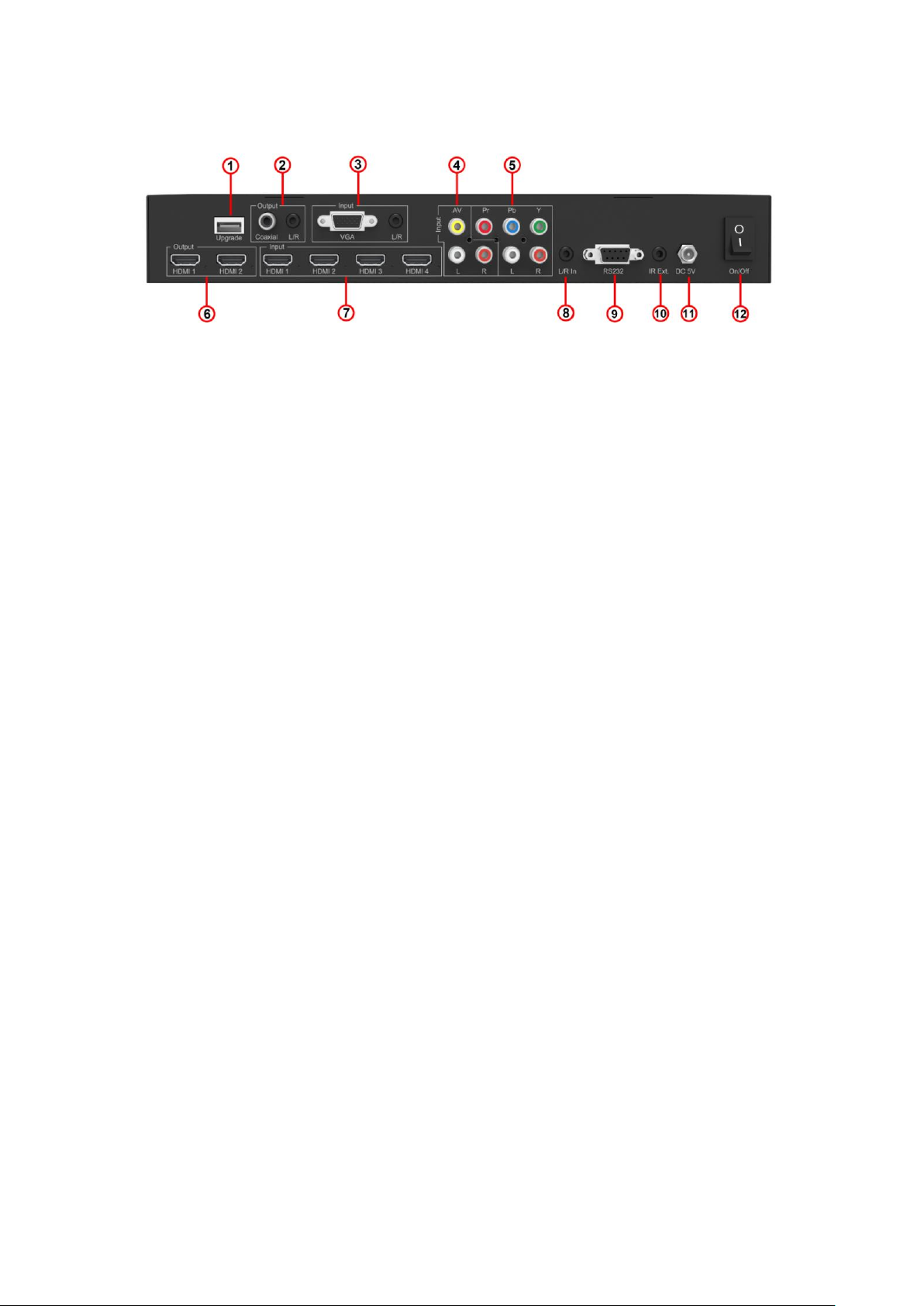

① USB Upgrade port --- Used to upgrade the Scaler built-in BG-PSC7X2 ② Audio output --- It has coaxial and L/R outputs, the audio outputs will always follow HDMI

output 2.

③ VGA input--- VGA input with L/R audio input. ④ AV input--- AV input with L/R audio input. ⑤ YPbPr input--- YPbPr input with L/R audio input. ⑥ HDMI outputs--- 2x HDMI output, ⑦ HDMI input 1 to 4 ---Connect to HDMI sources ⑧ L/R In--- Connect to addition audio input to embed to HDMI output ⑨ RS232 port--- DB9 connector ⑩ IR Ext. --- Connect to IR receiver cable.

⑪ DC 5V---Connect to 5V/2A power supply. ⑫ Power switch ---Power on/off the unit.

Page 8

Remote Control Description

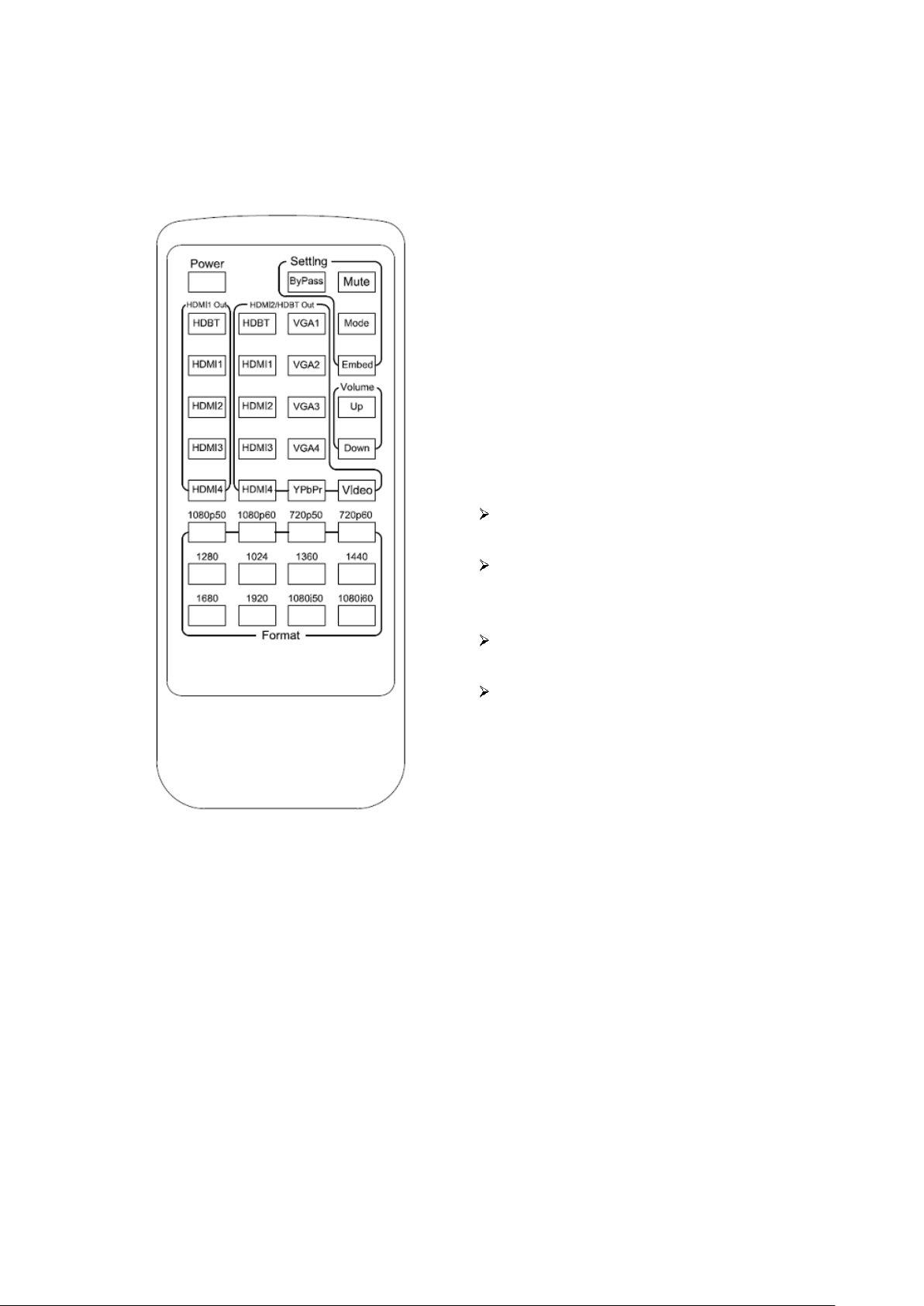

HDMI1 Out: Source selection for HDMI output 1 when in Matrix Switcher mode. HDMI2/HDBT Out: Source selection for HDMI output 2 when in Matrix Switcher mode or when in Splitter mode Format: Video output resolution selection. The BG-PSC7X2 includes built-in video scaler. Press the required resolution button on remote control to change the HDMI output video resolution.

Setting:

Bypass: Audio on HDMI outputs is from

HDMI input selected.

Mute: Mutes the audio on all outputs

(HDMI, Coaxial digital and Analogue audio)

Mode: Switches between Matrix

Switcher mode and Splitter mode

Embed: Audio on HDMI outputs is from

L/R Analogue audio input (3.5mm Jack) Volume: Adjust the audio Volume on all outputs (HDMI, Coaxial digital and Analogue audio)

Page 9

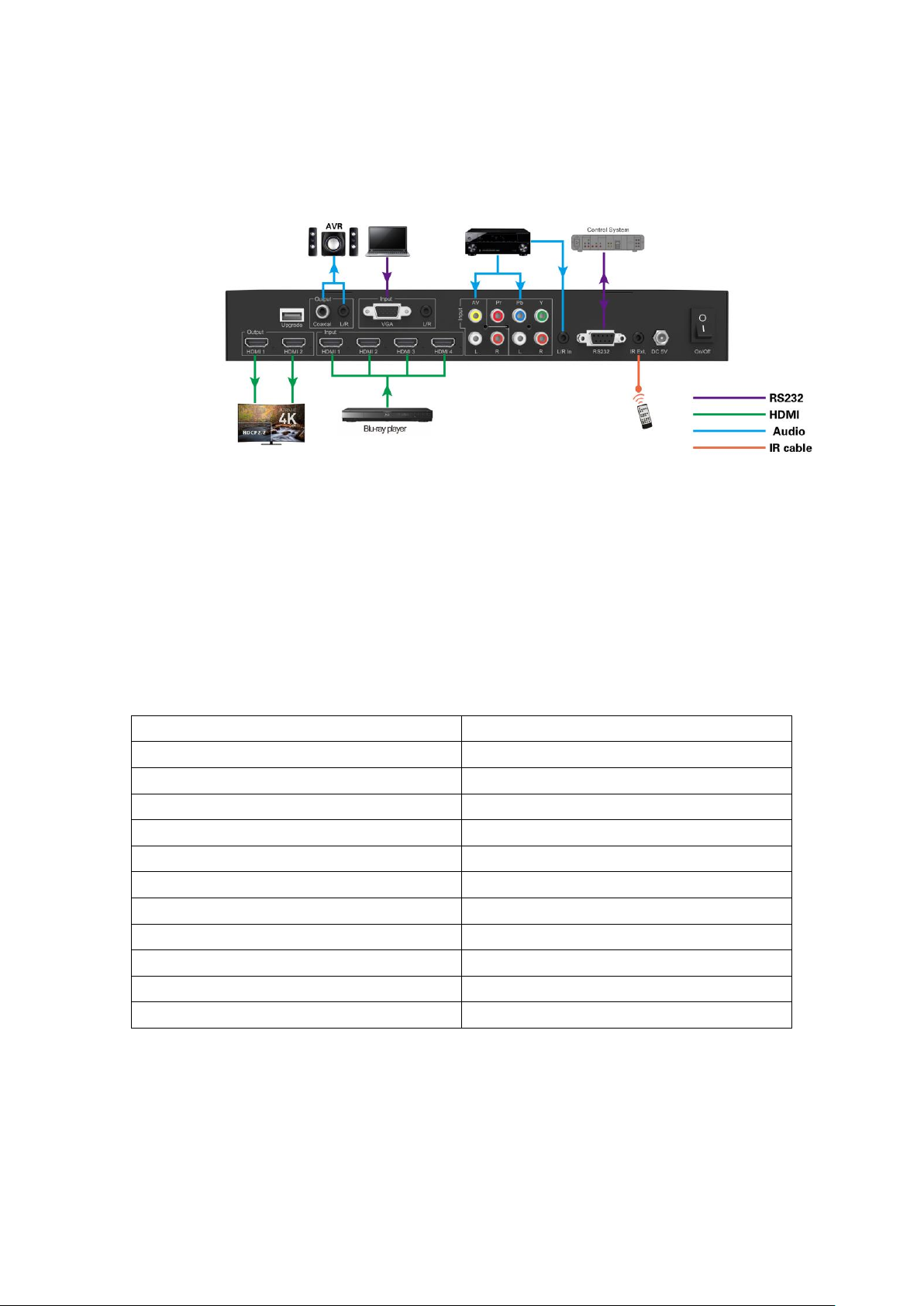

Application Diagram

Specifications

Bandwidth：

10.2Gbps

Video Input Connectors:

4x HDMI Type A, 1x VGA, 1xYPbPr,1x AV

Video Output Connectors:

2x HDMI Type A

Audio Input Connectors:

2x 3.5mm stereo jack, 4x RCA (2 x L/R)

Audio Output Connectors:

1x 3.5mm stereo jack,1x RCA (SPDIF)

RS-232 serial port:

1x DB 9 connector

IR Input ports:

1x 3.5mm stereo jack

Dimensions (W x H x D):

323mm x 135mm x 44mm , without feet

Shipping Weight:

1.2Kg

Operating Temperature:

32°F to 104°F (0°C to 40°C)

Storage Temperature :

-4°F to 140°F (-20°C to 60°C)

Power Supply:

DC 5V/2A

Page 10

RS-232 Pin Assignment

BG-PSC7X2

Remote Control Console

Assignment

GND

Baud Rate: 57600 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None

Page 11

RS232 and Telnet Commands

No.

Command

Action

1 ? Print Help Information

HELP

Print Help Information

STATUS

Print System Status And Port Status

PON

Power On, System Run On Normal State

POFF

Power Off, System Run On Power Save State

IR ON/OFF

Set System IR Control On Or Off

KEY ON/OFF

Set System KEY Control On Or Off

DBG ON/OFF

Set Debug Mode On Or Off

BEEP ON/OFF

Set Onboard Beep On Or Off

RESET

Reset System To Default Setting (Should Type "Yes" To Confirm, "No" To Discard)

OUT xx FR yy

Set OUTPUT:xx From INPUT:yy xx=00: Select All OUTPUT Port xx=[01...02]: Select One OUTPUT Port yy=[01...04]: HDMI Input 01 ~ 04 yy=AV: AV Input( Output 02 Only ) yy=COMP: Component Input( Output 02 Only ) yy=VGA: VGA Input( Output 02 Only )

OUT SP/MX

Set OUTPUT To Splitter or Matrix Mode

OUT RES rr

Set Scaler Output Resolution rr=01: 1080P@50Hz rr=02: 1080P@60Hz rr=03: 720P@60Hz rr=04: 720P@50Hz rr=05: 1280x1024@60Hz rr=06: 1024x768@60Hz rr=07: 1360x768@60Hz rr=08: 1440x900@60Hz rr=09: 1680x1050@60Hz

EDID xx CP yy

Set Input:xx EDID Copy From Output:yy yy=[00]: yy=[01...08]

EDID xx DF zz

Set Input:xx EDID To Default EDID:zz xx=00: Select All INPUT Port xx=[01...04]: Select One INPUT Port yy=[01...02]: Select One OUTPUT Port zz=00: HDMI 1080p@60Hz, Audio 2CH PCM

Page 12

zz=01: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY zz=02: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD zz=03: HDMI 1080i@60Hz, Audio 2CH PCM zz=04: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY zz=05: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD zz=06: HDMI 1080p@60Hz/3D, Audio 2CH PCM zz=07: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY zz=08: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD zz=09: HDMI 4K2K, Audio 2CH PCM zz=10: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY zz=11: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD zz=12: DVI 1280x1024@60Hz, Audio None zz=13: DVI 1920x1080@60Hz, Audio None zz=14: DVI 1920x1200@60Hz, Audio None

AUD SCA ORG

Scaler Audio Input Follow Port Selection

AUD SCA ANA

Scaler Audio Input From Analog L/R Signal

AUD xx

Set Scaler Audio Volume xx=[00...30]: Volume Value

Package Contents

1x BG-PSC7X2 1x 5V/2A power supply 1x Remote control 1x IR Receiver. 1x mounting kit.

Page 13

Maintenance

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.

Warranty Policy

BZBGEAR products are warranted against defects in material and workmanship for one year from the date of shipment. During the warranty period, BZBGEAR will, at its option, repair or replace products that prove to be defective. Repairs are warranted for the remainder of the original warranty.

For equipment under warranty, the owner is responsible for freight to BZBGEAR and all related customs, taxes, tariffs, insurance, etc. BZBGEAR is responsible for the freight charges only for return of the equipment from the factory to the owner. BZBGEAR will return the equipment by the same method (i.e., Air, Express, Surface) as the equipment was sent to BZBGEAR.

All equipment returned for warranty repair must have a valid RMA number issued prior to return and be marked clearly on the return packaging. BZBGEAR strongly recommends all equipment be returned in its original packaging.

BZBGEAR’s obligations under this warranty are limited to repair or replacement of failed parts,

and the return shipment to the buyer of the repaired or replaced parts.

Limitations of Warranty

The warranty does not apply to any part of a product that has been installed, altered, repaired, or misused in any way that, in the opinion of BZBGEAR, would affect the reliability or detracts from the performance of any part of the product, or is damaged as the result of use in a way or with equipment that had not been previously approved by BZBGEAR.

The warranty does not apply to any product or parts thereof where the serial number or the serial number of any of its parts has been altered, defaced, or removed.

The warranty does not cover damage or loss incurred in transportation of the product.

Page 14

The warranty does not cover replacement or repair necessitated by loss or damage from any cause beyond the control of BZBGEAR, such as lightning or other natural and weather-related events or wartime environments.

The warranty does not cover any labor involved in the removal and or reinstallation of warranted equipment or parts on site, or any labor required to diagnose the necessity for repair or replacement. The warranty excludes any responsibility by BZBGEAR for incidental or consequential damages arising from the use of the equipment or products, or for any inability to use them either separate from or in combination with any other equipment or products.

A fixed charge established for each product will be imposed for all equipment returned for warranty repair where BZBGEAR cannot identify the cause of the reported failure.

Exclusive Remedies

BZBGEAR’s warranty, as stated is in lieu of all other warranties, expressed, implied, or statutory, including those of merchantability and fitness for a particular purpose. The buyer

shall pass on to any purchaser, lessee, or other user of BZBGEAR’s products, the

aforementioned warranty, and shall indemnify and hold harmless BZBGEAR from any claims or liability of such purchaser, lessee, or user based upon allegations that the buyer, its agents, or employees have made additional warranties or representations as to product preference or use.

The remedies provided herein are the buyer’s sole and exclusive remedies. BZBGEAR shall not be liable for any direct, indirect, special, incidental, or consequential damages, whether based on contract, tort, or any other legal theory.

RMA Policy

When returning product to BZBGEAR for any reason, the customer should fill out the official RMA form to obtain an RMA number. Without the permission or approval, BZBGEAR will not be responsible for any return. This can be initiated by emailing or calling your related sales. All requests are processed within 48 hours.

Standard Replacement

For customers that agree to return defective product to BZBGEAR first, a Standard Replacement option is available.

Page 15

An RMA number must first be issued by sales. This RMA number will need to be referenced on the outside of the return shipment.

Upon receipt of the defective product, BZBGEAR will, at its discretion, either repair or replace the product and ship it out in the most expeditious manner possible. Subject to availability, the replacement product will be shipped on the business day following receipt of the defective product.

In the event the product returned to BZBGEAR has been discontinued (i.e. the product is no longer being manufactured by BZBGEAR but is still under warranty), BZBGEAR will, at its discretion, either repair or replace with recertified product.

Once you have obtained an RMA number

After obtaining an RMA number from BZBGEAR, you must send the product - freight prepaid to BZBGEAR Technology Co., Ltd. The BZBGEAR RMA number must be prominently displayed on the outside of your package. If you send your product to BZBGEAR without the RMA number prominently displayed on the outside of the package, it will be returned to you unopened.

Please use a shipping company that can demonstrate proof of delivery. BZBGEAR does not accept responsibility for any lost shipments unless proof of delivery to BZBGEAR is provided.

Please note:

Product shipped to BZBGEAR must be properly packaged to prevent loss or damage in transit.

Shipping your RMA to BZBGEAR using regular mailing envelopes is not acceptable, as they do not protect the product from damage during shipping.

BZBGEAR will not repair or replace a module that is shipped in such a way that the product is not properly protected.

BZBGEAR will not accept any product that has been damaged as a result of accident, abuse, misuse, natural or personal disaster, or any unauthorized disassemble, repair or modification.

Page 16

Warranty Information (Second Year Assurance)

BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon registration*!

Taking advantage of this program is simple, just follow the steps below:

1. Register your product within 90 days of purchase by visiting BZBGEAR.com/warranty.

2. Complete the registration form. Provide all necessary proof of purchase details, including serial number and a copy of your sales receipt.

For questions, please call 1.888.660.2962 or email [email protected].

For complete warranty information, please visit BZBGEAR.com/warranty or scan the QR code below.

*Terms and conditions apply. Registration is required.

Page 17

Mission Statement

BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank. BZBGEAR is the solution for small to medium-sized applications requiring the latest professional products in AV.

We live in a DIY era where resources are abundant on the internet. With that in mind, our team offers system design consultation and expert tech support seven days a week for the products in our BZBGEAR catalog. You’ll notice comparably lower prices with BZBGEAR solutions, but the quality of the products is on par with the top brands in the industry. The unparalleled support from our team is our way of showing we care for every one of our customers. Whether you’re an integrator, home theater enthusiast, or a do-it-yourselfer, BZBGEAR offers the solutions to allow you to focus on your project and not your budget.
