BG-AUD-TCS

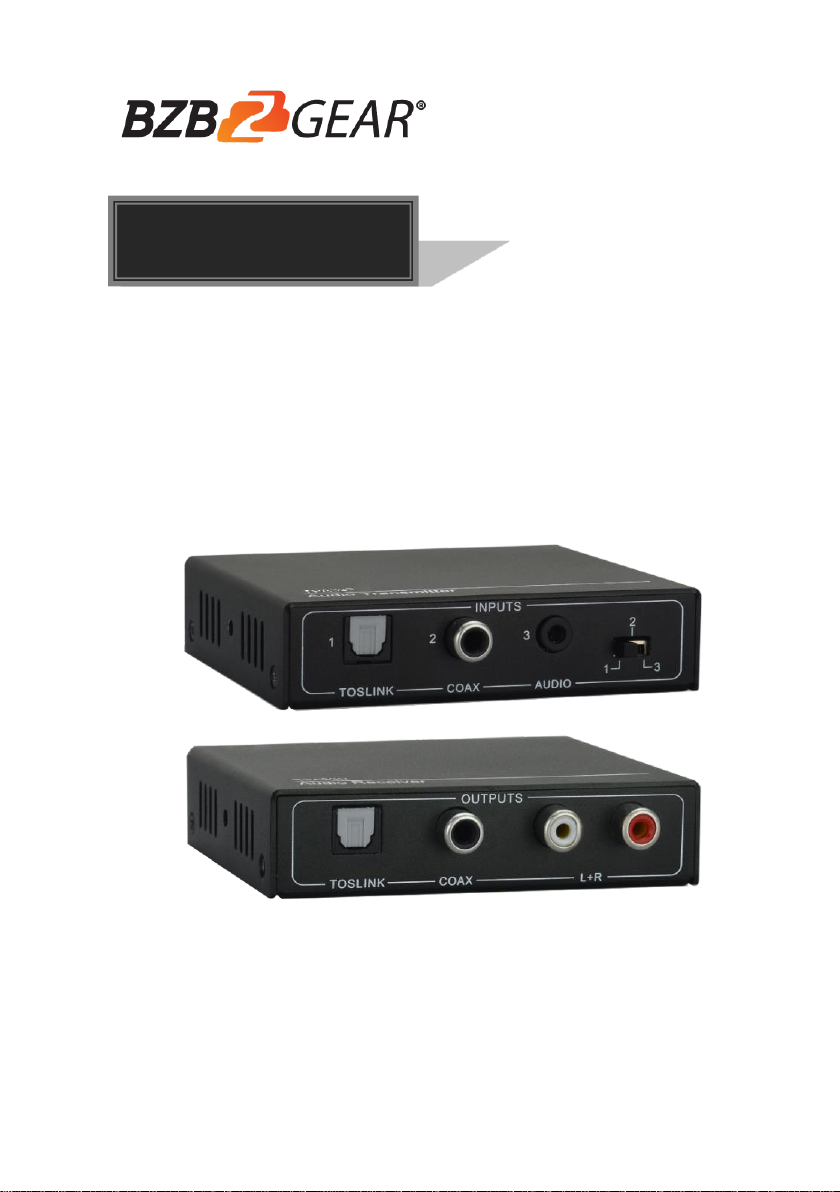

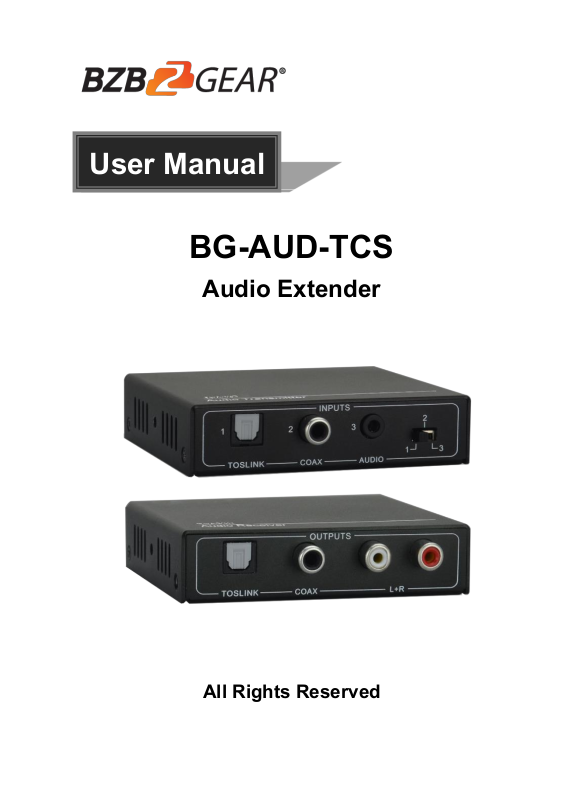

Audio Extender
All Rights Reserved
User Manual
Page 2
1
Statement
Read this user manual carefully before using the product. Pictures shown in this
manual is for reference only, different model and specifications are subject to real
product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till September, 2016. In the constant
effort to improve our product, we reserve the right to make functions or parameters
changes without notice or obligation. Please refer to the dealers for the latest details.
Safety Precaution
To insure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module to avoid electrical shock or
burn.
Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
Do not expose the unit to rain, moisture or install this product near water.
Install the device in a place with fine ventilation.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Refer all servicing to qualified service personnel.
After-Sales Service
We provide limited warranty for the product within one year counting from the first day
you buy this product (The purchase invoice shall prevail).
For more details, please contact your distributor.
Page 3
2
Introduction
This product is an audio extender including Transmitter and Receiver. It is designed to
extend the Stereo audio signal up to 170m, and the TOSLINK, COAX audio signal up to
290m via CATx cable.
Features
Three audio inputs can be switched: TOSLINK/COAX/Stereo.
Three audio synchronous outputs: TOSLINK, COAX & RCA (L+R).
The Transmitter is powered by the Receiver 12VDC by PoC technology.
The transmission distance of Stereo audio signal can up to 170m over a single
CATx cable, and the TOSLINK, COAX audio signal up to 290m.
Package List
1 x Transmitter
1 x Receiver
1 x Power Adaptor(12VDC,1A)
4 x Mounting Ears & 8 x Screws
8 x Plastic Cushions
1 x User Manual
Note: If you find any defective or missing parts, please contact your local dealer.
Panel Description
Transmitter

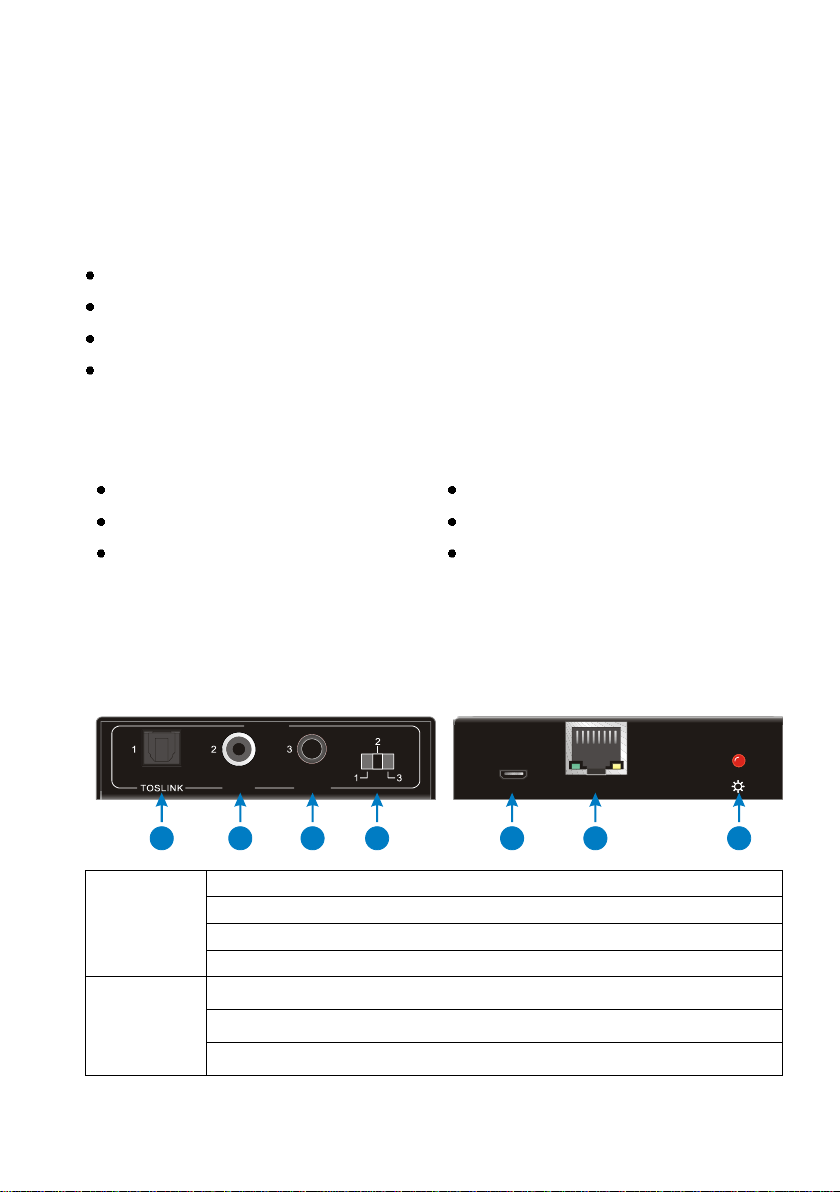

Front Panel
A. TOSLINK digital audio input port, connects to audio source.
B. COAX digital audio input port, connects to audio source.
C. Stereo audio input port, connects to audio source.
D. DIP switcher for selecting audio input source.
Rear Panel
1. Micro USB port for updating firmware.
2. RJ45 ports, connects to the “TP IN” port of Receiver.
3. Red power indicator.
TP OUTFIRMWARE
1
2
3
INPUTS
AUDIOCOAX
A
B
C
D
Page 4
3
Receiver

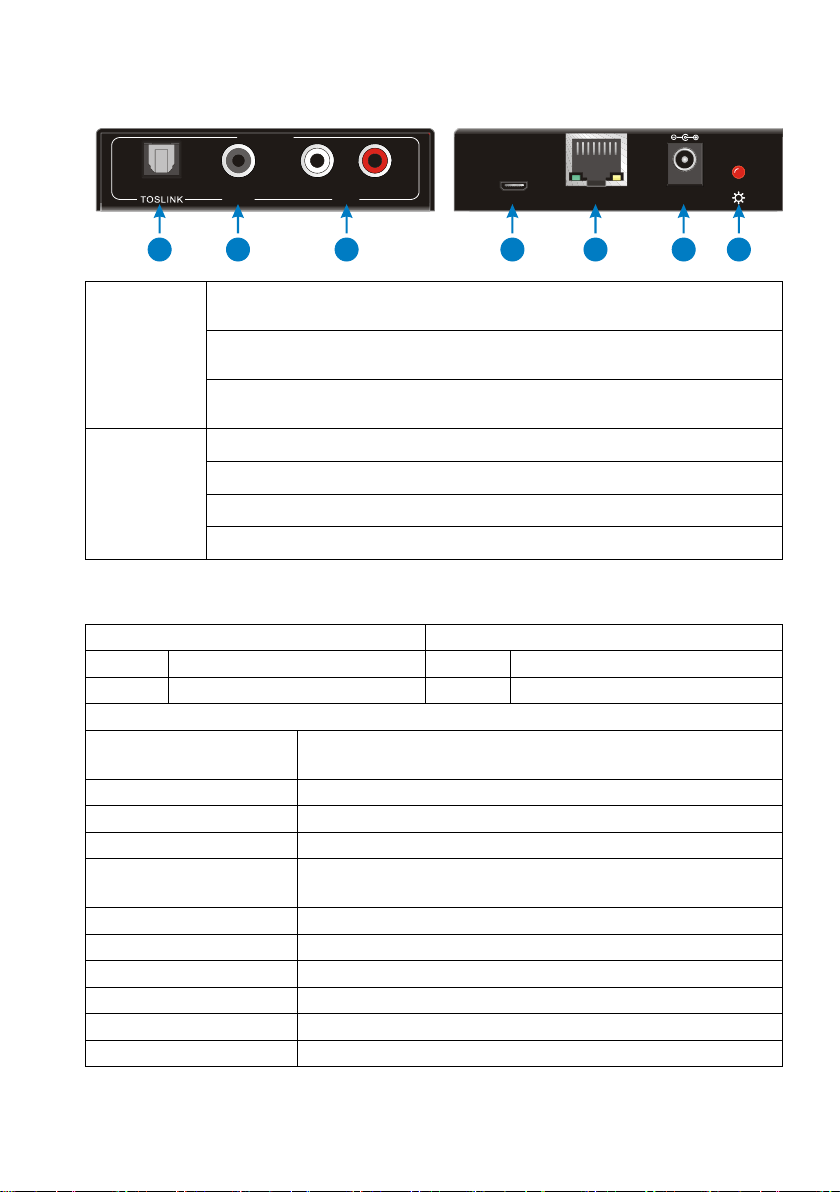

Front Panel
A. TOSLINK digital audio output port, connects to audio output
device for playing.
B. COAX digital audio output port, connects to audio output device
for playing.
C. RCA (L+R) audio output port, connects to audio output device
for playing.
Rear Panel
1. Micro USB port for updating firmware.
2. RJ45 ports, connects to the “TP OUT” port of Transmitter.
3. Power port, connects to 12VDC power adaptor.
4. Red power indicator.
Specification
Transmitter
Receiver
Input
TOSLINK, COAX or AUDIO
Input
1 TP IN
Output
1 TP OUT
Output
TOSLINK, COAX & RCA (L+R)
General
Audio Format
TOSLINK & COAX: PCM/Dolby/DTS;
AUDIO: Stereo
Sound Channel
TOSLINK & COAX: 2.0-7.1
Frequency Response
20 Hz to 20 kHz, ±3 dB
Sample Rate
TOSLINK & COAX: 48k/96k/192k 16bit/18bit/24bit
Transmission
Distance
Stereo: Up to 170m (CAT5e/6/7)
TOSLINK/COAX: Up to 290m (CAT5e/6/7)
Power Supply
Input: 100VAC~240VAC, 50/60Hz; Output: 12VDC, 1A
Power Consumption
2.5W (Max)
Work Temperature
-10 ~ +55℃
Humidity
10% ~ 90%
Net Weight
Transmitter: 110g; Receiver: 119g
Dimension(W*H*D)
88mm x 80mm x 21.5mm
TP INFIRMWARE DC 12V
1
2
4
3
COAX
OUTPUTS
L+R
A
B
C
Page 5
4
Second Year Assurance
BZBGEAR wants to assure you peace of mind. We're so confident in the quality of our
products that along with the manufacturer's one-year limited warranty, we are offering
free second-year warranty coverage upon registration*!
Taking advantage of this program is simple, just follow the steps below:
1. Register your product within 90 days of purchase by visiting
BZBGEAR.com/warranty.
2. Complete the registration form. Provide all necessary proof of purchase details,
including serial number and a copy of your sales receipt.
For questions, please call 1.888.660.2962 or email [email protected].
For complete warranty information, please visit BZBGEAR.com/warranty or scan the
QR code below.
*Terms and conditions apply. Registration is required.
Page 6
5
Mission Statement
This product is an audio extender including Transmitter and Receiver. It is designed to
BZBGEAR manifests from the competitive nature of the audiovisual industry to
innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and
new technology only adds to it. We believe everyone deserves to see, hear, and feel
the advancements made in today’s AV world without having to break the bank.
BZBGEAR is the solution for small to medium-sized applications requiring the latest
professional products in AV.
We live in a DIY era where resources are abundant on the internet. With that in mind,
our team offers system design consultation and expert tech support seven days a week
for the products in our BZBGEAR catalog. You’ll notice comparably lower prices with
BZBGEAR solutions, but the quality of the products is on par with the top brands in the
industry. The unparalleled support from our team is our way of showing we care for
every one of our customers. Whether you’re an integrator, home theater enthusiast, or
a do-it-yourselfer, BZBGEAR offers the solutions to allow you to focus on your project
and not your budget.
