GENERAL FEATURES
NÜO AIR (ref. no.: 42272 and 42328)
- Maximum security proximity reader for contactless
MIFARE Plus® and NFC cards.
- Reader status indicated via acoustic-light display.
- Communications with authentication and data encryption
using AES and 3DES
- IP67 protection and IK08 impact ratings.
- Assembled in an embedded case using a screw-less
hidden fastener with an automatic interlock.
- Optional stainless steel casing for surface mounting.
TECHNICAL SPECIFICATIONS
NÜO AIR:
INPUT VOLTAGE 24 VDC
STAND BY POWER 1.7 W - 60 mA
MAXIMUM POWER 2.8 W - 100 mA
READING DISTANCE 4 - 8 cm
COMMUNICATIONS BYBUS RS-485 Full-Duplex
INDICATORS
OPERATING TEMPERATURE -25ºC to 60ºC
READER DIMENSIONS Height 115 mm, width 115 mm, depth 62 mm
Features
Lights automatically regulated according to environment.
Dierent colours and sounds according to status.
- Red/White: Terminal oine.
- Degraded Red/Pink: Terminal in card enrolment mode.
- Flashing blue: Terminal in rmware update mode.
- Blue: Terminal on standby.
- Green: Access granted.
- Red: Access denied.
- White: Card writing operation.
3
NÜO AIR Manual
Naranja
N/B
Verde
-
A
B
+
BY B US
V/B
Orange
O/W
Green
-
A
B
+
BY B US
G/W
Information Features
Wiring
TYPE OF WIRING AND WIRING DISTANCE:
The NÜO AIR reader incorporates a male overhead connector.

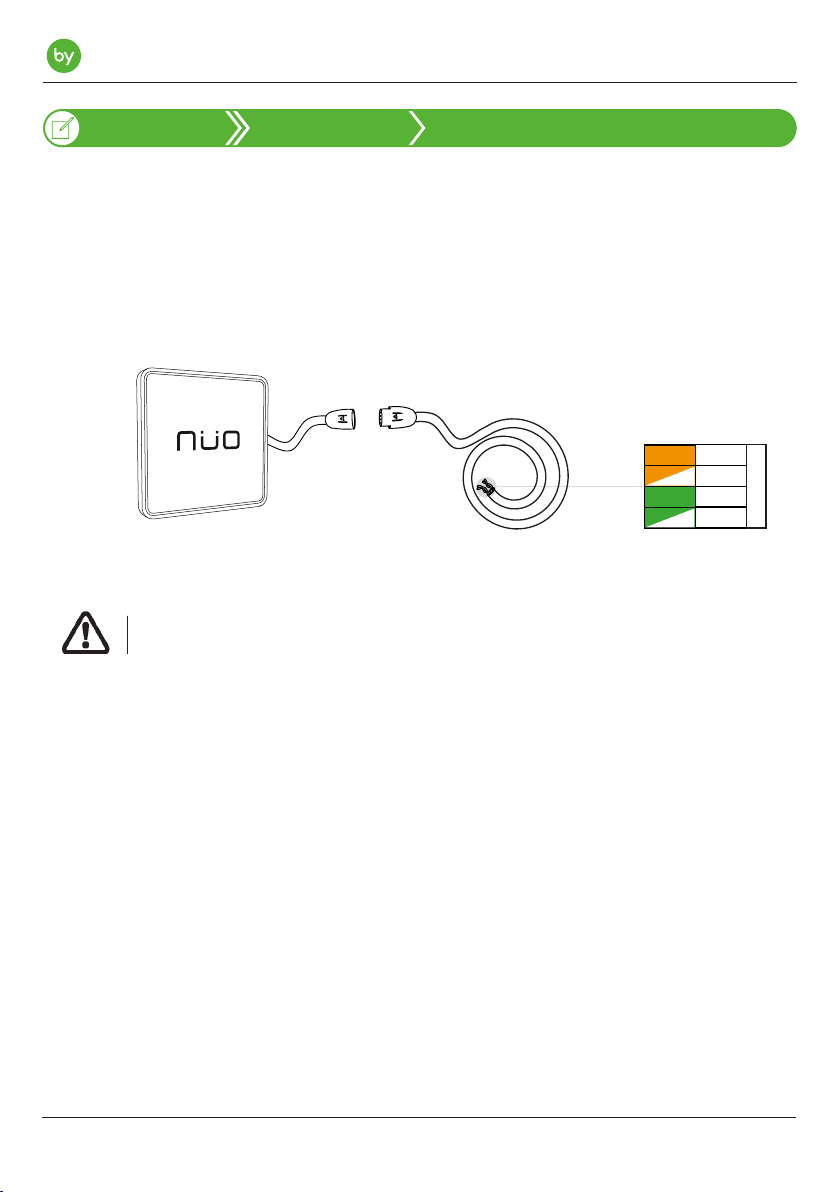

NÜO AIR is supplied with a 3.5 metre piped cable with 4 wires (2 twisted pairs) and a female connector at
one end to correctly connect it.
The other end of the piped cable is connected to a single door controller or to the corresponding Wili
following the simple colour coding.
NÜO AIR
3.5 metres of cable
The wiring distance from the reader and the single door controller or Wili should not exceed
15 metres in length under any circumstances.
WIRING SPECIFICATIONS:
The built-in piped cable used to connect the reader has the following technical characteristics:
- Gauge: 0.22 mm
- Arrangement: 2 twisted pairs
- Resistance: <2 Ohms
- Capacitance, core to earth: <160 pF/m
- Capacitance, core to core: <100 pF/m
DISTANCE BETWEEN READERS:
A minimum distance of 12 cm must be maintained for installations using doors with 2 input/output
readers or if there are 2 readers that are very close together.
4
NÜO AIR Manual
Installation
The NÜO AIR reader can be ush mounted in various environments.
The various installation methods are described below:

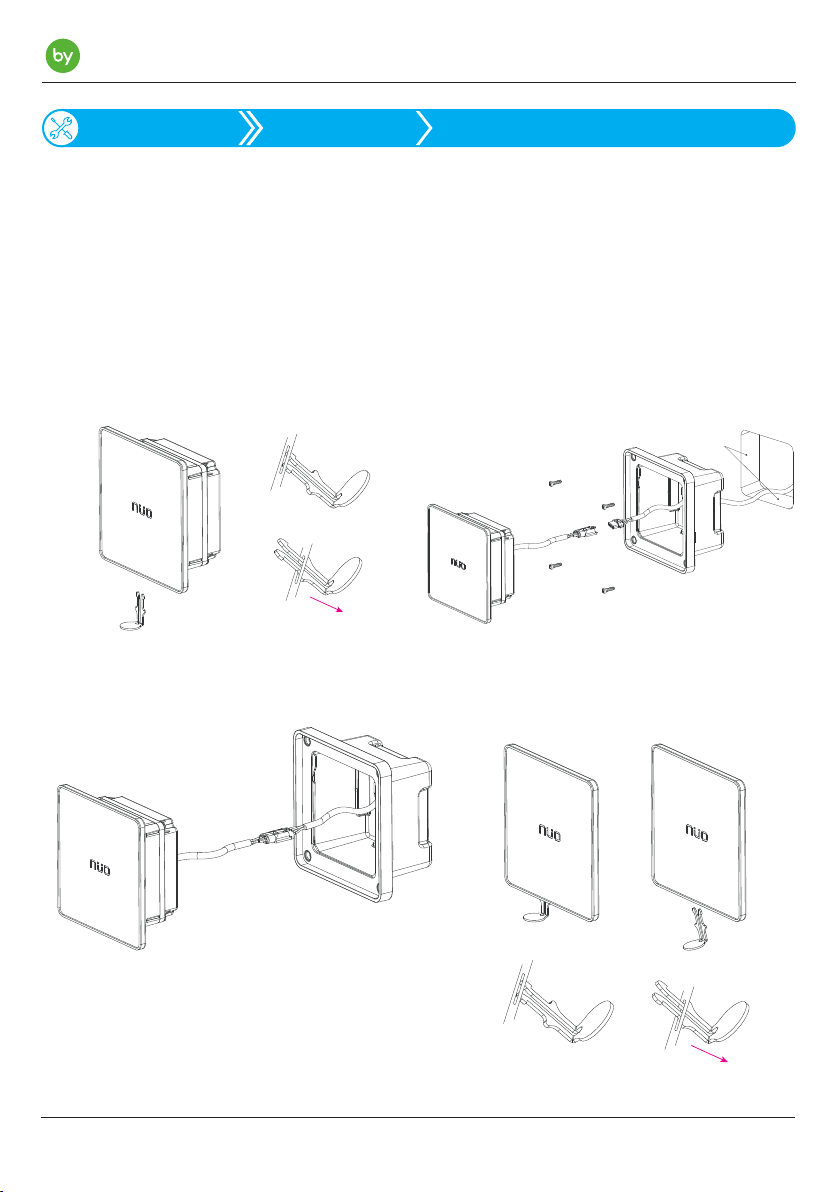

FLUSH MOUNTING
1) Remove the reader from the ush mount
support using the detachable clip.
Insert it and pull down.
3) Insert the ush mount support and connect
the assembly.
NÜO AIR
2) Using a level, make a hole in the wall
measuring 92 x 92 mm and 51 mm deep.
Pass the connecting cable through and grout
the hole.
4) Insert the reader module into the ush
mount support using the detachable clip.
Insert it and pull down.
Plaster
5) Set the reader module in place and take out
the disassembling lever.
5
NÜO AIR Manual
Installation Equipment part
Installation NÜO AIR
To mount the reader on a plasterboard wall, the support should be screwed using CL82Z-3.1
x 16 countersunk screws (NOT INCLUDED).
SURFACE MOUNTING
The NÜO AIR reader can be surface mounted by using the surface support kit.
Instructions for assembly are as follows:
1) Mark the position of the 4 screws used to fasten the surface support to the wall.
2) Drill and place the wall plugs for the screws. Screws should have a diameter of 3.5 mm and a
minimum length of 25 mm (included).
3) Fasten the surface support to the wall.
4) Remove the reader from the surface support (see instructions for ush mounting).
5) Insert the ush mount support into the surface support.
6) Fasten the ush mount support to the surface support using the screws provided.
Once the reader module has been fastened to the wall, use the suction cup provided and
the detachable clip to remove it.
6
NÜO AIR Manual
Orange
Orange/White
Green
RS-485-A
RS-485-B
+
24VDC
BYBUS
Green/White
0V / GND
COLOUR
SIGNAL
Installation NÜO AIR
NÜO AIR readers can be directly connected to two types of devices depending on the architecture of
the installation:
- Connection to a Wili.
- Connection to a single door controller.
The connection to be made for both types of devices is exactly the same. The colour code must be followed. For more detailed information, consult the equipment manuals referenced earlier.
RS-485 A
GND (0V)
+24 VDC
RS-485 B
Wire mesh
READER WIRING:
Install and connect the reader before powering the system.
NÜO readers use the 24 VDC input voltage corresponding to the controller equipment to which
they are connected, the power sources of which are rigorously prepared for such purpose.
These signals must be perfectly isolated in order to prevent damaging the equipment or
installation.
7

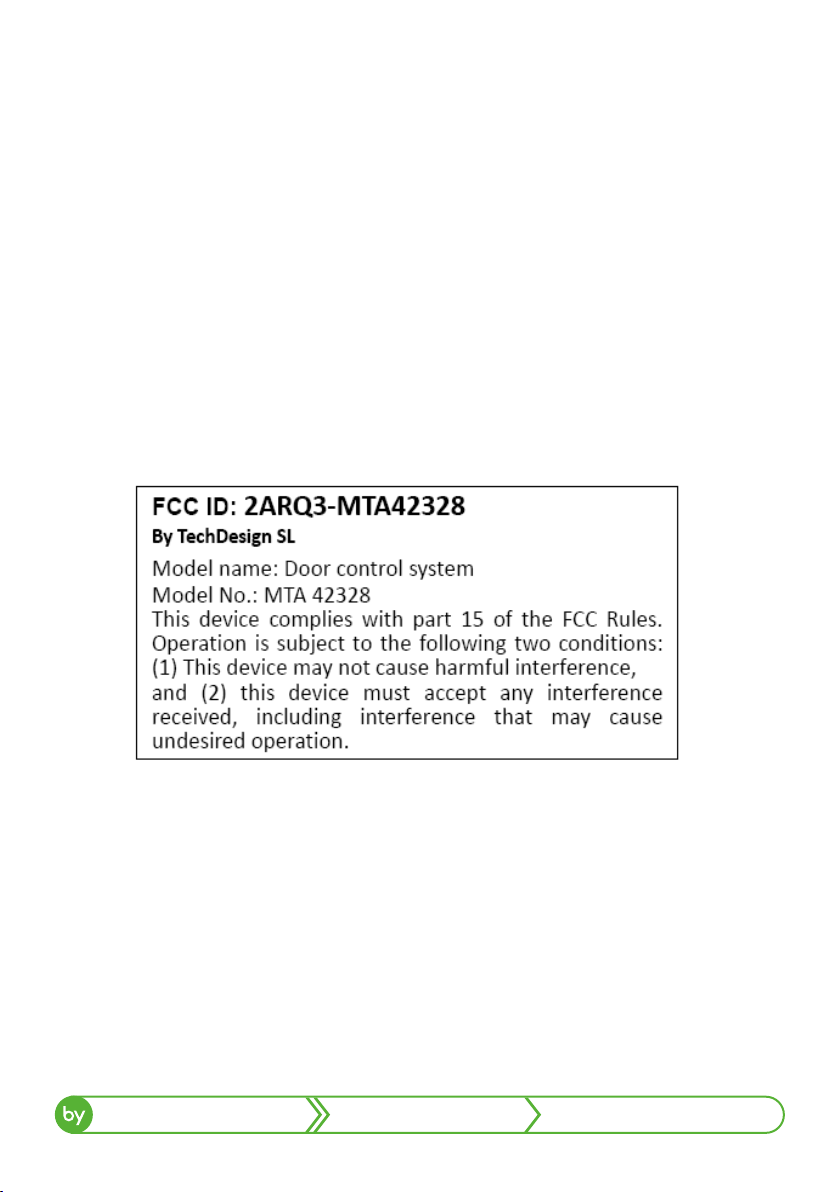

Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipmentÿ
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
June 2018Version: 01MT:18354
