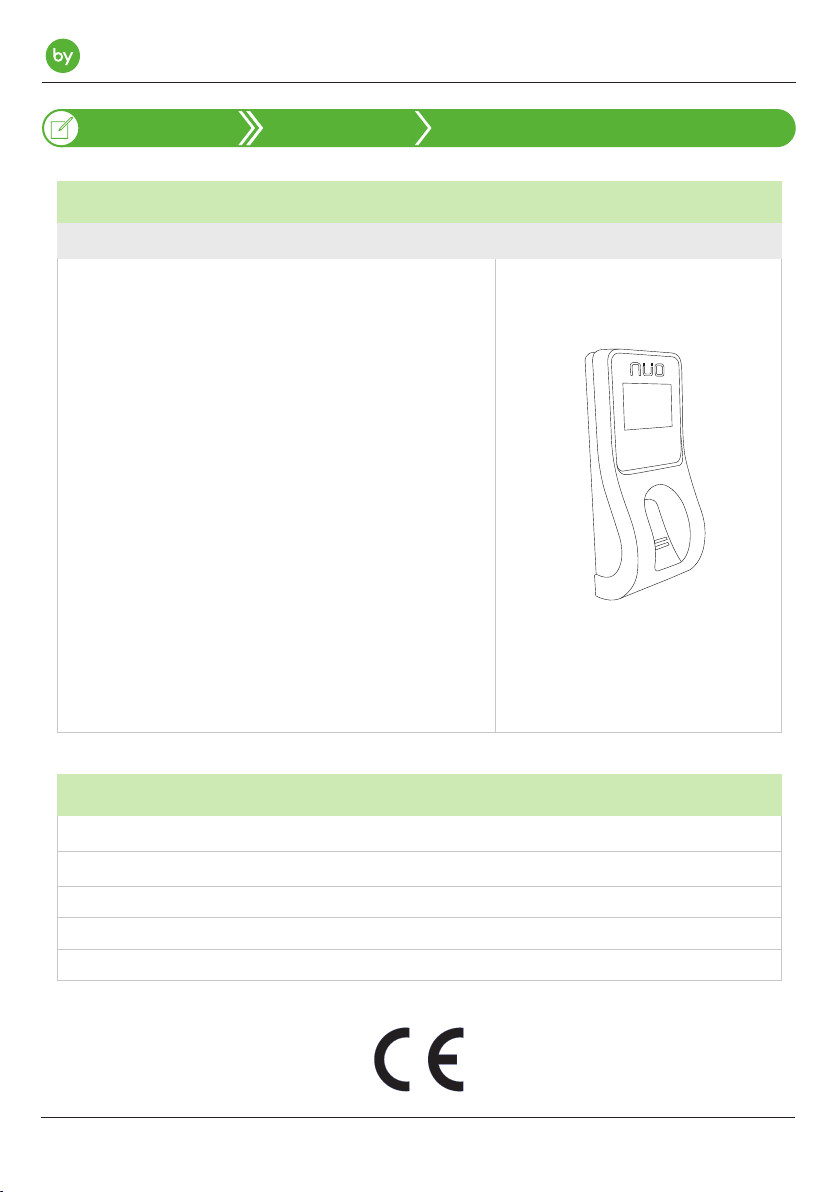

- Identies ngerprint in less than 0.5 seconds when operating
at 1:1, less than 1s at 1:20, and less than 1.5s at 1:100.
- Capacity for up to 100 ngerprints.
- Integrated door controller with digital output supplied for
24VDC / 250mA maximum locks.
- Wear-resistant surface nish with antibacterial treatment.
- Input for magnetic signal or door status sensor.
- Surface mounted for indoor use.
REGULATIONS
ISO/IEC 14443 A and B.
AES128 NIST FIPS PUB 197 MIFARE Plus EAL4+ Common Criteria certication.
NFC MIFARE emulation compliant.
EN 60950-1 2001 and A1: 2004.
EN 300 330-2 v1.3.1.
3
NÜO SWIP Manual
Introduction
TECHNICAL SPECIFICATIONS
NÜO SWIP:
INPUT VOLTAGE24VDC (11 - 28 VDC)
MAXIMUM POWER2 W without lock - 8 W lock activated
READING DISTANCE3 - 5 cm
FINGERPRINT SENSOR TYPECapacitive sensor
SENSOR RESOLUTION508 dpi
MAX. NO. FINGERPRINTS100 Fingerprints
COMMUNICATIONS
INPUTS1 Door sensor input
OUTPUTS1 lock control output with 24 VDC power supply (250 mA maximum)
ILLUMINATION
AUDIO
MATERIALS
INSTALLATIONSurface mounted
OPERATING TEMPERATURE-10 °C to 50 °C
DIMENSIONS130 x 50 x 36 mm (height x width x depth)
NÜO SWIPTechnical Specications
BYBUS RS-485
By Protocol: BYBUS high security communications.
Automatically regulated according to environmental lighting
conditions.
Colours according to status:
- Red/White: Terminal oine.
- Degraded Red/Pink: Terminal in card enrolment mode.
- Flashing blue: Terminal in rmware update mode.
- Blue: Normal security level.
- Purple: High security level.
- Light pink: Very high security level.
- Flashing yellow: Connected but not congured.
- Green: Access granted or Unrestricted.
- Red: Access denied or Door blocked.
- White: Card or ngerprint identication operation.
- Flashing white: Fingerprint enrolment.
- Green/Yellow: Door in emergency mode.
Dierentiated sound indicators for granted and denied access with
two volume levels.
Manufactured in high-quality, wear-resistant polycarbonate with
antibacterial treatment.
4
NÜO SWIP Manual
Introduction
NÜO SWIP

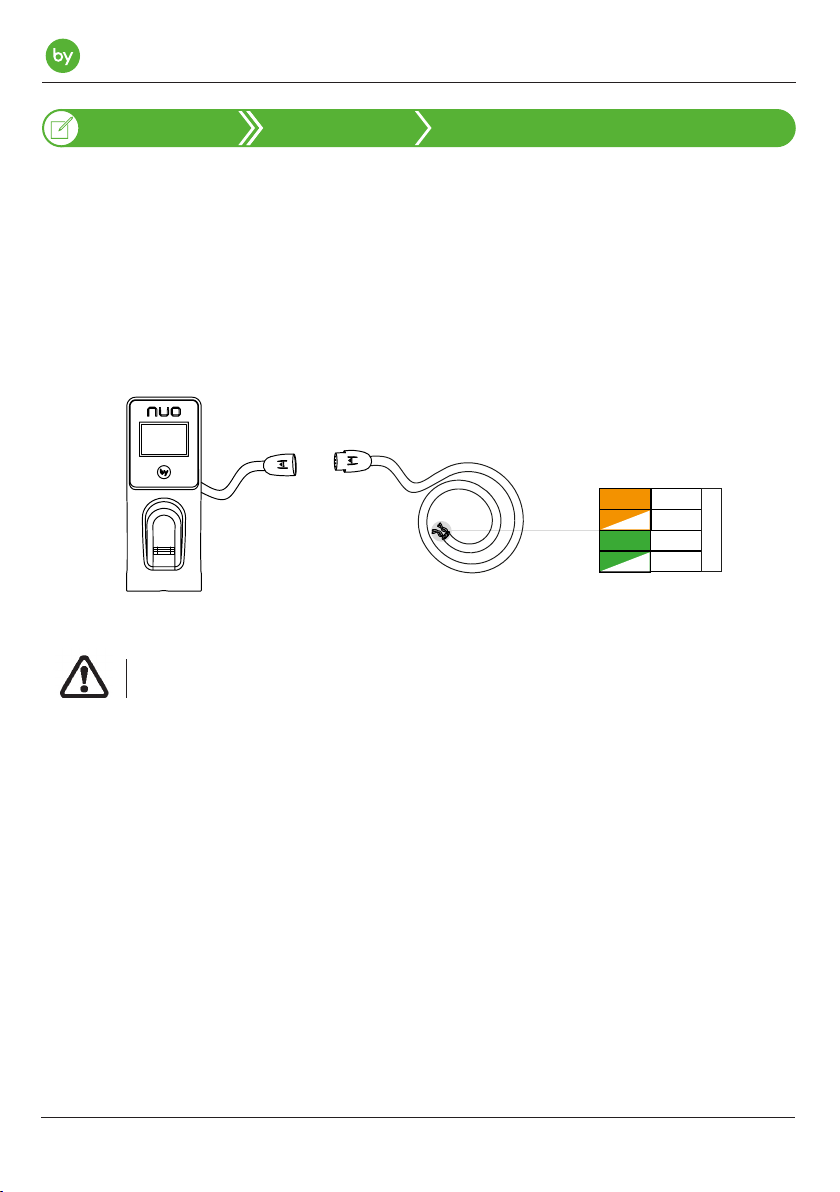

TYPE OF WIRING AND WIRING DISTANCE:
The NÜO SWIP incorporates a male overhead connector.
NÜO SWIP is supplied with a 3.5 metre piped cable with 4 wires (2 twisted pairs) and a female connector
at one end to correctly connect it.
The other end of the piped cable is connected to a single door controller or to the corresponding Wili
following the simple colour coding.
N/B
V/B
+
-
A
BY B US
B
Naranja
Verde
3.5 metres of cable
NÜO SWIP
The wiring distance from the reader and the single door controller or Wili should not exceed 25 metres in length under any circumstances.
WIRING SPECIFICATIONS:
The built-in piped cable used to connect the reader has the following technical characteristics:
- Gauge: 0.22 mm
- Arrangement: 2 twisted pairs
- Resistance: <2 Ohms
- Capacitance, core to earth: < 160pF/m
- Capacitance, core to core: < 100pF/m
DISTANCE BETWEEN READERS:
A minimum distance of 12 cm must be maintained if installations are made with doors with 2 input/
output readers or with 2 readers that are very close together.
5
NÜO SWIP Manual
X
X
X
X
Installation

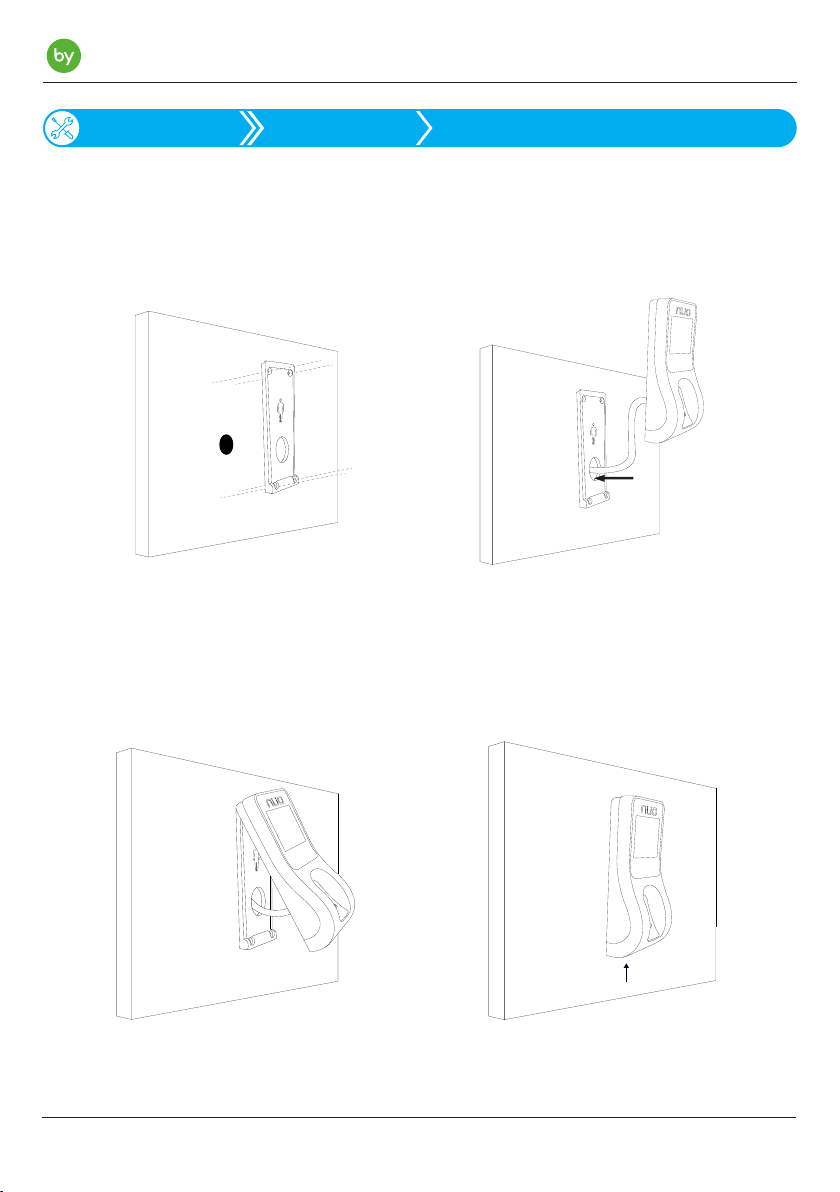

Wall mounting
- TERMINAL MOUNTING:
1) Anchor the base piece to the wall using
the screws and wall plugs provided. Make an
opening for the cable.
The head of the gure in the drawing should be
pointing upwards.
3) Place the reader by inclining it at an angle of
about 45 °C for the tabs on the base to hook
together.
2) Pass the reader connection cable through
the hole in the base piece.
Recommended height for installation: 1.2 - 1.5 m.
4) Screw the lower part using an allen key to
secure it.
6
NÜO SWIP Manual

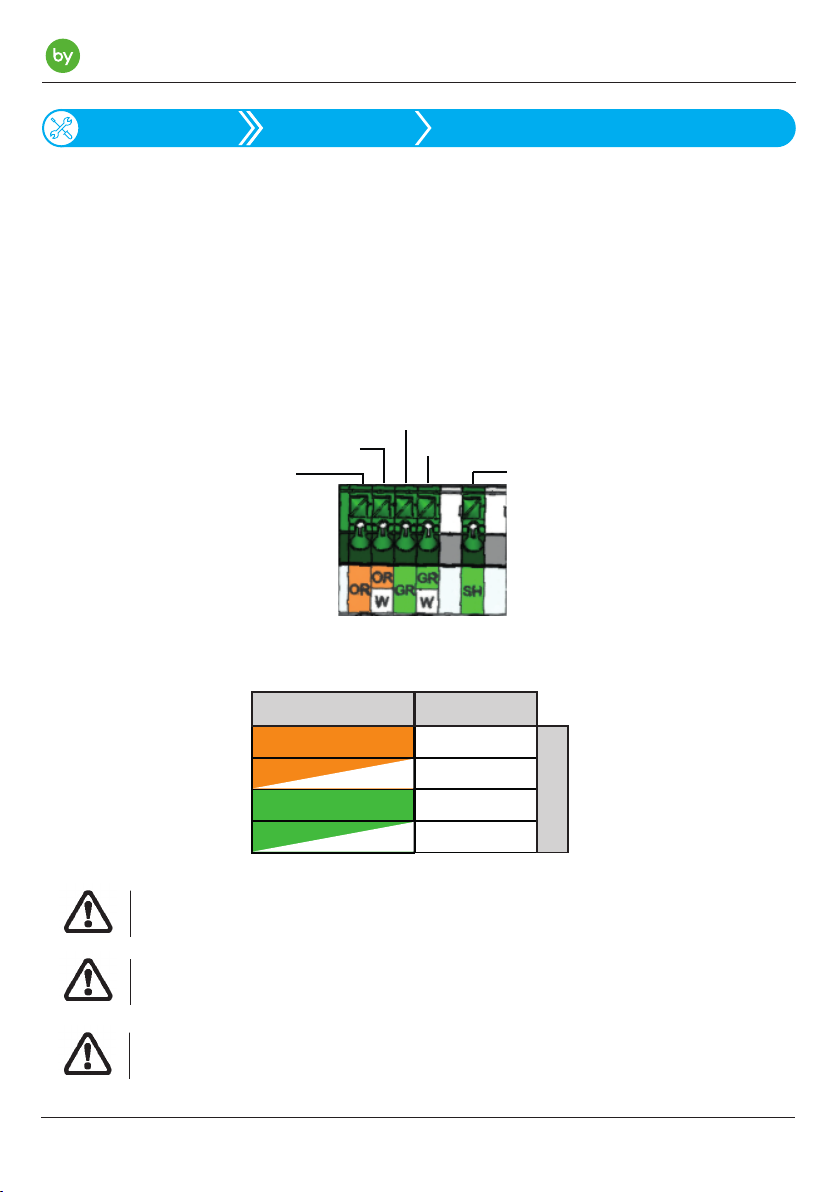

Orange
Orange/White
Green
RS-485-A
RS-485-B
+
24VDC
BY B U S
Green/White
0V / GND
COLOUR
SIGNAL
Installation
NÜO SWIP readers can be directly connected to two types of devices depending on the architecture
of the installation:
- Connection to a Wili.
- Connection to a single door controller.
The connection to be made for both types of devices is exactly the same. The colour code must be
followed. For more detailed information, consult the equipment manuals referenced earlier.
connections
RS-485 A
GND (0V)
+24 VDC
READER WIRING:
RS-485 B
Wire mesh
Install and connect the reader before powering the system.
NÜO readers use the 24 VDC input voltage corresponding to the controller equipment to
which they are connected, the power sources of which are rigorously prepared for such
purpose.
These signals must be perfectly isolated in order to prevent damaging the equipment or
installation.
7

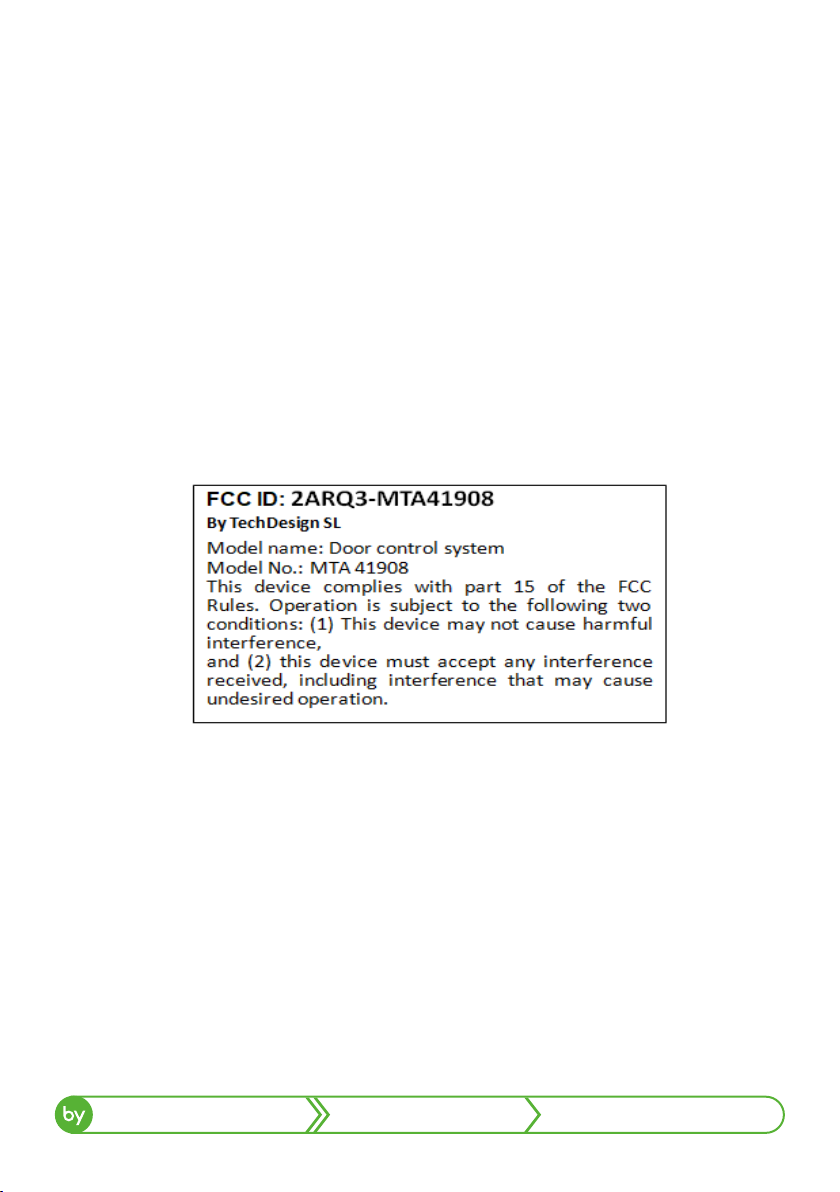

Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipmentÿ
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
June 2018Version: 05MT:16442
