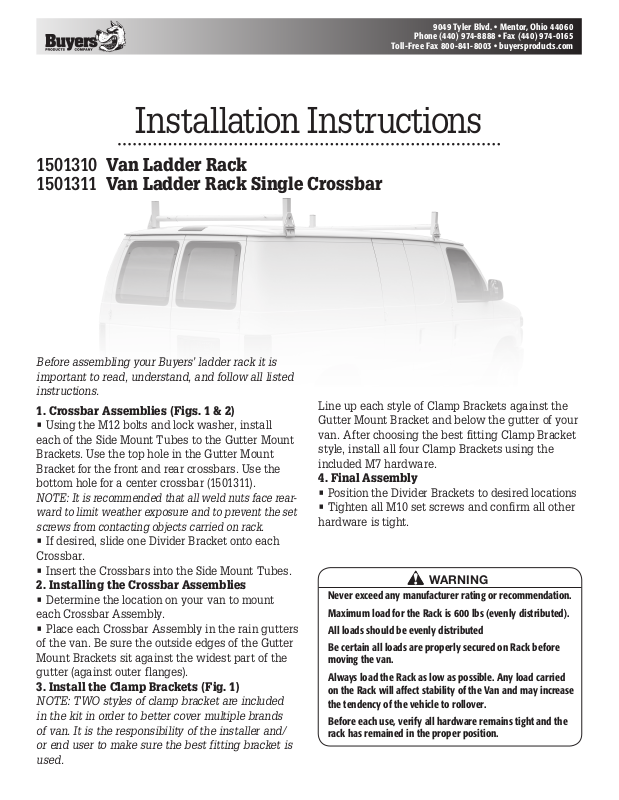

Installation Instructions

1501310 Van Ladder Rack
1501311 Van Ladder Rack Single Crossbar

9049 Tyler Blvd. • Mentor, Ohio 44060

Phone [phone] • Fax [phone]

Toll-Free Fax [phone] • buyersproducts.com

Before assembling your Buyers’ ladder rack it is
important to read, understand, and follow all listed
instructions.

1. Crossbar Assemblies (Figs. 1 & 2)

• Using the M12 bolts and lock washer, install
each of the Side Mount Tubes to the Gutter Mount
Brackets. Use the top hole in the Gutter Mount
Bracket for the front and rear crossbars. Use the
bottom hole for a center crossbar (1501311).

NOTE: It is recommended that all weld nuts face rear­ward to limit weather exposure and to prevent the set
screws from contacting objects carried on rack.

• If desired, slide one Divider Bracket onto each
Crossbar.

• Insert the Crossbars into the Side Mount Tubes.

2. Installing the Crossbar Assemblies

• Determine the location on your van to mount
each Crossbar Assembly.

• Place each Crossbar Assembly in the rain gutters
of the van. Be sure the outside edges of the Gutter
Mount Brackets sit against the widest part of the
gutter (against outer flanges).

3. Install the Clamp Brackets (Fig. 1)

NOTE: TWO styles of clamp bracket are included
in the kit in order to better cover multiple brands
of van. It is the responsibility of the installer and/
or end user to make sure the best fitting bracket is
used.

Line up each style of Clamp Brackets against the
Gutter Mount Bracket and below the gutter of your
van. After choosing the best fitting Clamp Bracket
style, install all four Clamp Brackets using the
included M7 hardware.

4. Final Assembly

• Position the Divider Brackets to desired locations

• Tighten all M10 set screws and confirm all other
hardware is tight.

WARNING

Never exceed any manufacturer rating or recommendation.

Maximum load for the Rack is 600 lbs (evenly distributed).

All loads should be evenly distributed

Be certain all loads are properly secured on Rack before
moving the van.

Always load the Rack as low as possible. Any load carried
on the Rack will affect stability of the Van and may increase
the tendency of the vehicle to rollover.

Before each use, verify all hardware remains tight and the
rack has remained in the proper position.

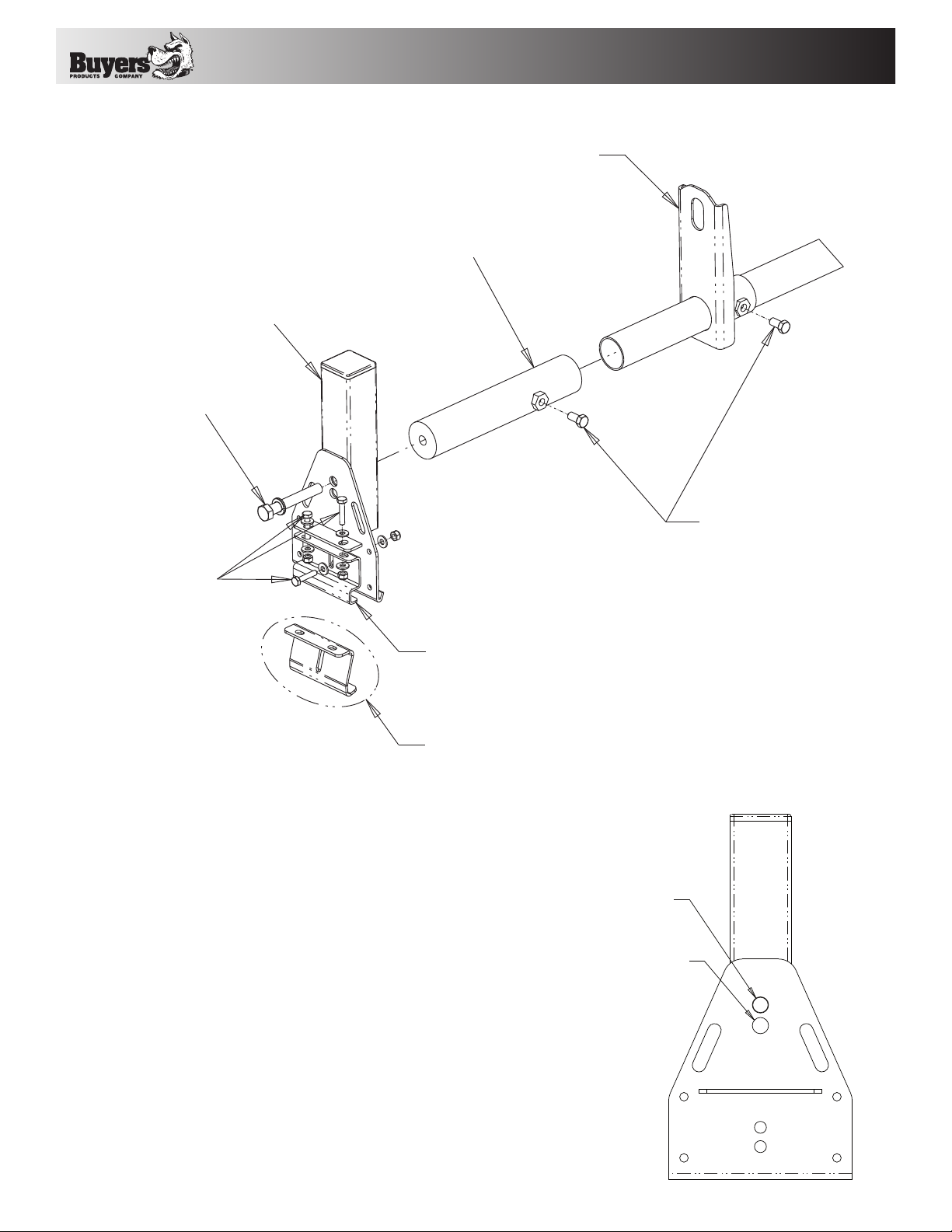

Fig. 1

GUTTER MOUNT BRACKET

M12 CAPSCREW

WITH LOCK WASHER

M7 CAPSCREWS
WITH FLAT WASHERS
AND LOCKNUTS

DIVIDER BRACKET

SIDE MOUNT TUBE

M10 CAPSCREW

CLAMP BRACKET (3022873)

ALTERNATE CLAMP BRACKET (3023087)

Fig. 2

USE TOP HOLE FOR 1501310
FRONT AND REAR CROSSBARS

USE BOTTOM HOLE WHEN 1501311
IS USED AS A CENTER CROSSBAR

1501310 Bill of Materials

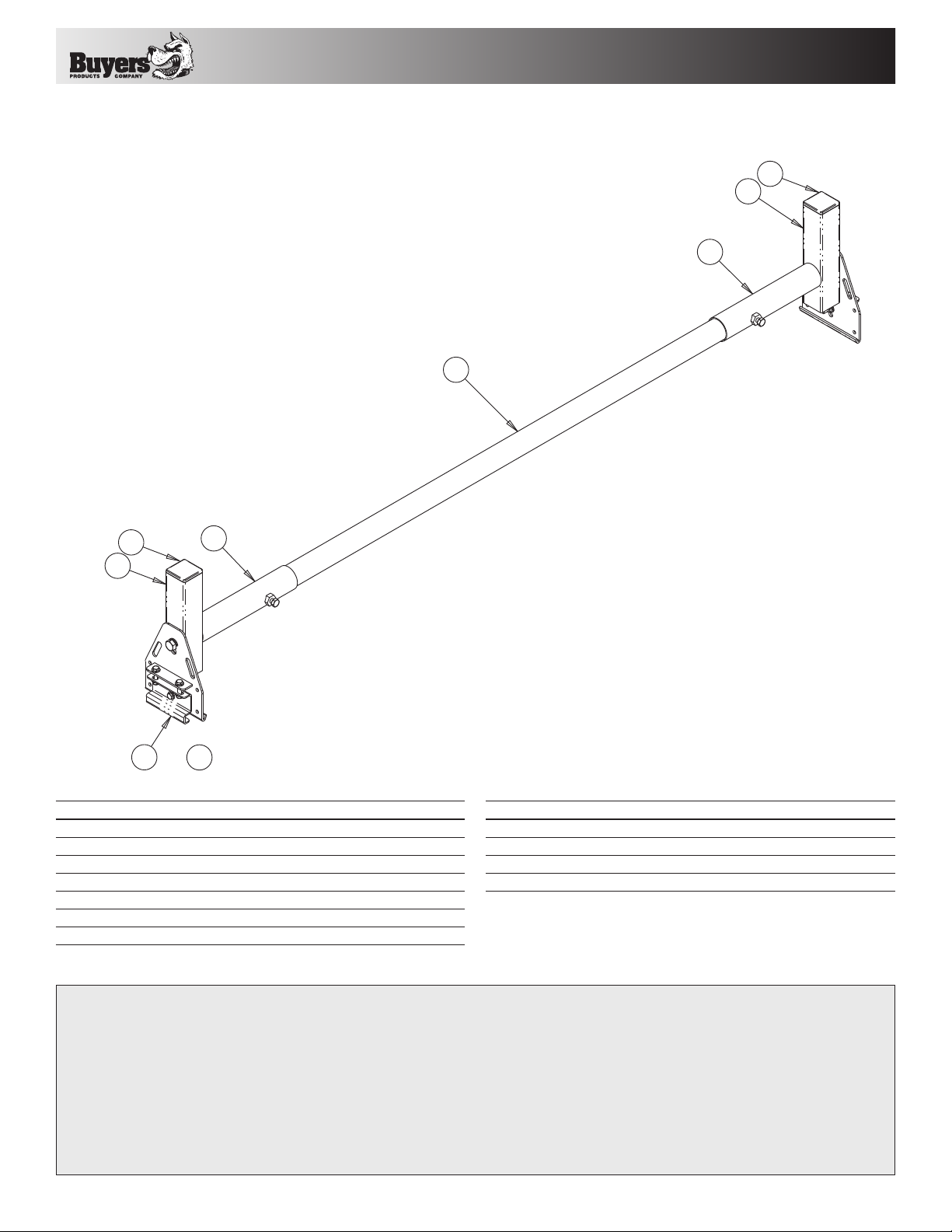

Bill of Materials

ITEM PART NO. QT Y. DESCRIPTION

1 3023084 4 GUTTER MOUNT BRACKET
2 3023086 4 SIDE MOUNT TUBE
3 3022898 2 CROSSBAR
4 3022873 4 CLAMP BRACKET
5 3023087 4 CLAMP BRACKET, ALTERNATE
6 3022865 3 DIVIDER BRACKET
7 3022897 4 PLUG, TUBE
– 3022870 1 HARDWARE KIT, VAN RACK 1501310

Hardware Kit

QT Y. DESCRIPTION

4 M12 X 80 HEX HEAD CAPSCREW

6 M10 X 12 HEX HEAD CAPSCREW
12 M7 X 30 HEX HEAD, (2) FLAT WASHERS AND A LOCK NUT
12 M7 X 45 HEX HEAD, (2) FLAT WASHERS AND A LOCK NUT

1501311 Bill of Materials

9049 Tyler Blvd. • Mentor, Ohio 44060

Phone [phone] • Fax [phone]

Toll-Free Fax [phone] • buyersproducts.com

6

1

2

3

6

2

1

4

OR

5

Bill of Materials

ITEM PART NO. QT Y. DESCRIPTION

1 3023084 2 GUTTER MOUNT BRACKET
2 3023086 2 SIDE MOUNT TUBE
3 3022898 1 CROSSBAR
4 3022873 2 CLAMP BRACKET
5 3023087 2 CLAMP BRACKET, ALTERNATE
6 3022897 2 PLUG, TUBE
– 3023090 1 HARDWARE KIT, 1501311

Hardware Kit

QT Y. DESCRIPTION

2 M12 X 80 HEX HEAD CAPSCREW
2 M10 X 12 HEX HEAD CAPSCREW
6 M7 X 30 HEX HEAD, (2) FLAT WASHERS AND A LOCK NUT
6 M7 X 45 HEX HEAD, (2) FLAT WASHERS AND A LOCK NUT

WAR RANTY

Buyers Products Co. warrants all truck/trailer hardware manufactured or distributed by it, to be free from defects in material and
workmanship for a period of one year from date of shipment. Parts must be properly installed and used under normal conditions.
Any product which has been altered, including modification, misuse, accident or lack of maintenance will not be considered under
warranty. Normal wear is excluded. The sole responsibility of Buyers Products Co. under this warranty is limited to repairing or
replacing any part or parts which are returned, prepaid, and are found to be defective by Buyers Products Co. Authorization from
Buyers Products Co. must be obtained before returning any part. No charges for transportation or labor performed on Buyers’ prod­ucts will be allowed under this warranty.

3022868 Rev. B
