Contents
Introducing data access11Chapter 1
About Connection Server...........................................................................12
Components of a connection.....................................................................12
About data access configuration files........................................................14
What's in the documentation set?......................................................161
Where is the documentation?.............................................................162
Send us your feedback.......................................................................162
Customer support, consulting and training..............................................162
How can we support you?..................................................................163
Looking for the best deployment solution for your company?............163
Looking for training options?..............................................................164
Get More Help165Appendix A
Index169
10Data Access Guide
Introducing data access
1
Introducing data access
1
About Connection Server
About Connection Server
Connection Server is the Business Objects data access software that
manages the connection between the application and the datasource.
Connection Server allows Business Objects applications such as Designer
and Web Intelligence to connect to and run queries against a datasource.
Connection Server does not have a user interface. You create and administer
connections from the user interface of Business Objects applications such
as Designer, or by editing Connection Server configuration files.
•Creating connections: You create connections using the Business Objects
application Connection Wizard.
•Optimizing data access: You can optimize the way that data is passed
through Connection Server by modifying data access configuration files.
These files are in XML format, and are installed with Connection Server.
You can set parameter values to apply to a specific data access driver,
or to all installed data access drivers.
Components of a connection
A Business Objects data access connection consists of the following
components:
•Connection Server is the software that manages the connection between
the Business Objects application and the data source. For example,
Connection Server handles requests for data from the Business Objects
application.
•A data access driver is the database-specific software component that
manages the connection between Connection Server and the database
middleware.
•Configuration files define parameters to configure the connection between:
•the Business Objects application and Connection Server
•the Business Objects application and the data access driver
•Connection Server and the data access driver
12Data Access Guide
About the system architecture
The diagram below details where Connection Server and data access drivers
fit into a Business Objects configuration.
Introducing data access
Components of a connection
1
About data access drivers
Data access drivers provide the connection between Connection Server and
a data source. A database requires a data access driver in order that it can
be accessed by a Business Objects application.
Business Objects applications include data access drivers that you can use
to configure connections to your databases. The data access drivers that
are included can depend on your licence.
Data Access Guide13
Introducing data access
1
About data access configuration files
Before you can create a connection to a database for which you do not have
a driver, you need to obtain the required drivers. The following options are
available for obtaining a driver:
•Contact your Business Objects representative to determine if there is a
driver available, and if you are licenced to use it.
•Use the Driver Development Kit (DDK) to develop a driver to use. Contact
your Business Objects representative for details.
When you create a new connection, you select the appropriate data access
driver for the target datasource. For example, if you access an Oracle 10g
database, you must install the appropriate middleware (Oracle 10g Client),
then the Business Objects Oracle data access driver.
For an up-to-date list of supported data access drivers, check the SAP Service
MarketPlace at http://service.sap.com/bosap-support, or contact your
BusinessObjects representative.
About data access configuration files
Data access configuration files are installed when you install Business Objects
products. The configuration files can be divided into two levels:
•Global level: The cs.cfg configuration file applies to all connections.
•Driver level: There is a *.sbo configuration file for each specific driver.
In addition to the configuration files that control a connection, each data
access driver has an associated .prm configuration file. These files are used
by Business Objects applications such as Designer. The .prm files control
the way in which a Business Objects application generates SQL depending
on the database software capabilities.
Note:
connectionserver-install-dir variable in this guide
In this guide, the variable connectionserver-install-dir is the install
root path for the data access files used by Business Objects applications.
Under Windows, the default connectionserver-install-dir =
:C:\Program Files\Business Objects\BusinessObjects Enterprise
12.0\win32_x86\dataAccess
14Data Access Guide
About data access configuration files
About the cs.cfg global configuration file
The cs.cfg global configuration file used by all data access drivers is installed
in the following location:
•connectionserver-install-dir\connectionServer
The cs.cfg file contains parameters that apply to all installed data access
drivers.
Related Topics
•About global parameters on page 50
About the *.sbo driver configuration files
The configuration files used by data access drivers are installed in the
following path:
where RDBMS is the name of the database technology that uses the
configuration file.
The files listed below have parameters that apply to installed data access
drivers.
Data Access Guide15
Introducing data access
1
About data access configuration files
Driver specific
file
<driver>.sbo
<driver>.prm
Yes
Yes
There is a .sbo
file for each supported network
protocol, or
database middleware used to connect to a
database. Defines the specific
connectivity configuration for
each database.
Defines parameters that affect the
way that a Business Objects application generates SQL.
ExampleDescriptionCan be edited?
oracle.sbo
oracle.prm
<driver><lan
guage>.cod
16Data Access Guide
No
Stores information related to
connection definitions. Defines the
fields that appear
when you create
a new connection.
Note:
Do not modify
these files.
oracleen.cod
About data access configuration files
Related Topics
•SBO parameter categories on page 70
•PRM file configuration reference on page 114
•About SQL generation parameters on page 106
Introducing data access
1
Data Access Guide17
Introducing data access
About data access configuration files
1
18Data Access Guide
Creating a connection
2
Creating a connection
2
Connection requirements
Connection requirements
This section covers the requirements for creating a connection.
Note:
You can use the cscheck tool to check your infrastructure and determine if
it is suitable for use with Business Objects applications. See the
documentation for more details.
•Ensure that your platform conforms to the platforms supported for
Business Objects connections.
•Ensure that the database middleware is installed correctly, and that you
can access your database through either your computer or a server.
You can use the cscheck tool to check your configuration. See the
cscheck tool documentation for details.
•Ensure that you have all the information necessary to access your
database, for example the database login name and password.
•Install the Business Objects product that you will use, including the
appropriate data access driver.
•Check that all of the Business Objects services have started successfully.
•Refer to the Readme notice that comes with your Business Objects
product to check for any configuration changes that your environment
and software might require.
•Refer to the current Data Access release notice to check for any
configuration changes that could affect your environment.
Related Topics
•Checking connection configuration on page 20
Checking connection configuration
The Connection Server software includes a command line utility that you
can use to check your datasource connection infrastructure. You can use
the cscheck tool to check your client middleware and the installed Business
Objects data access drivers at any time.
20Data Access Guide
Creating a connection
Checking connection configuration
Note:
The results of all checks apply to your local machine, from which you run
the tool.
The cscheck tool is installed in the following directory: connectionserver-
install-dir/connectionServer/tools
You run the cscheck tool from a command console (DOS or shell). The
output is displayed on the screen. You can specify that the output is generated
as XML format, or you can suppress output, to use the tool in a script.
The cscheck tool can perform the following functions on your local machine:
•return details of all the connectivities, that is network layers and databases,
that the installation can support
•return details of the data access drivers installed on your local machine
•return details of the connectivities installed on your local machine
•check for a valid middleware installation for a supplied network layer and
database client
•check for a valid data access driver installation for a supplied network
layer and database client
2
•check if a connection can be esbablished to a given database
Related Topics
•Check tool—function overview on page 22
Displaying help on the cscheck tool
The cscheck tool provides functionality to:
•display general help on the cscheck utility
•display help on each available cscheck function
The help can be displayed in any language selected when you installed your
Business Objects applications.
To display general help on cscheck, use the following syntax:
Figure 2-1: Command help syntax
Data Access Guide21
Creating a connection
2
Checking connection configuration
cscheck--help|h --language|l { language }
To display help on a function, use the following syntax, where functionName
is the name of the function for which you want help, and language is the
language in which to display the help:
Figure 2-2: Function help syntax
cscheck--help|h { functionName }--language|l{ language }
Example:
To display help in English on the cscheck tool, use the following command:
cscheck --help
To display help in French on the connectivity function, use the following
command:
cscheck --language fr --help connectivity
To run the cscheck tool
You can run the cscheck tool at any time after you have installed your
Business Objects application software.
1. Open a command console.
2. Change directory to the path where the tool is installed.
3. Enter cscheck with the correct parameters to find the information that
you want.
4. Review the returned information.
Related Topics
•Check tool—function overview on page 22
Check tool—function overview
From a command console, you use the cscheck command with the
appropriate function and its arguments to return the results that you want.
22Data Access Guide
Creating a connection
Checking connection configuration
cscheck commands have the following structure. Some of the parameters
are optional.
Figure 2-3: cscheck syntax
cscheck --language|l { output language }--xml|x--mute|m function
namefunction options
The first part of the command controls the output format:
•<output language> or l followed by the language specified in ISO-639
standard. This is optional. The default language is English.
•--xml or x specifies that the output is in XML format. This is optional. The
default output is text displayed on the screen.
•--mute specifies that the output is not generated. You would use this
switch if you were using the tool in a script that checked the returned
status. This is optional. The default is that output is generated.
The remaining part of the command consists of the function and its option
arguments.
<function name> can take the following values. Each function has a short
version that you can use in place of the full function name:
•list, or lt
2
•driverssearch, or ds
•find, or fd
•middleware, or mw
•accessdriver, or ad
•connectivity, or ct
•ping, or pg
Related Topics
•Check tool—accessdriver on page 27
•Check tool—connectivity on page 28
•Check tool—drivers search on page 24
•Check tool—find on page 25
•Check tool—list on page 24
•Check tool—middleware on page 26
Data Access Guide23
Creating a connection
2
Checking connection configuration
•Check tool—ping on page 29
Check tool—list
This function returns a list of the supported network layers and database
engines. For example you could use it to determine the correct values to use
with other check tool functions.
Note:
This function returns the full list of supported data access drivers and
middleware, including those that are not necessarily installed on your
machine.
Figure 2-4: list syntax
cscheck |list||lt|
Example:
The following command lists all network layers and database engines
supported by the Business Objects installation on the current machine.
cscheck list
Related Topics
•Check tool—function overview on page 22
•Displaying help on the cscheck tool on page 21
Check tool—drivers search
This function returns a list of the installed data access drivers.
Figure 2-5: driverssearch syntax
cscheck |driverssearch||ds|
Example:
The following command lists all data access drivers installed on the machine.
cscheck driverssearch
24Data Access Guide
Related Topics
•Check tool—function overview on page 22
•Displaying help on the cscheck tool on page 21
Check tool—find
This function lists the available connectivity types, that is middleware and
database clients, that are available from the local machine. This includes:
•connectivity types available on the local machine
•connectivity types available using the CORBA communication layer
•connectivity types available using the HTTP communication layer
•Java connectivity types available on the local machine
Figure 2-6: find syntax
cscheck |find||fd| -m { Connection Server access mode }
Table 2-1: Function input parameters
Creating a connection
Checking connection configuration
2
Connection Server access mode
(-m)
The mode in which the client application accesses Connection Server:
•local: lists connectivity types
available on the local machine.
•corba: lists connectivity types
available using CORBA.
•http:lists connectivity types avail-
able using HTTP.
•java: lists Java connectivity types
available on the local machine.
•extended: lists local, java, and
corba connectivity types.
Data Access Guide25
Creating a connection
2
Checking connection configuration
Example: Finding local connectivities
The following command returns a list of the data access drivers on the local
machine that can be loaded by Connection Server.
cscheck find –m local
Example: Finding CORBA server connectivities
The following command returns a list of the data access drivers available
from a CORBA server.
cscheck find –m corba
Related Topics
•Check tool—function overview on page 22
•Displaying help on the cscheck tool on page 21
Check tool—middleware
For a supplied network layer and database client, this function checks for a
valid installation of the client middleware. To check both the middleware and
data access driver for a supplied network layer and database client, you can
use the connectivity function.
For a supplied network layer and database client, this function checks for a
valid data access driver installation. To check both the middleware and data
access driver for a supplied network layer and database client, you can use
the connectivity function.
For the supplied network layer and database client, this function checks that
both the installed middleware and the data access driver are valid.
You can check each individually using the middleware and the accessdriver
functions. You can use the ping function to check if you can connect to a
specific database.
The network layer that the database
middleware uses, as returned by the
find function.
The database to check, as returned
by the find function.
Example:
The following command checks the installed Oracle client middleware, and
the Oracle 9 data access driver. The command writes the output to a text
file: c:\result.txt .
cscheck -l en connectivity -c "Oracle Client" -d "Oracle
9">c:\result.txt
Related Topics
•Check tool—function overview on page 22
•Displaying help on the cscheck tool on page 21
•Check tool—find on page 25
•Check tool—accessdriver on page 27
•Check tool—middleware on page 26
•Check tool—ping on page 29
Check tool—ping
Creating a connection
Checking connection configuration
2
This function attempts to access a given database using the supplied details.
Figure 2-10: ping syntax
cscheck ping|pg|-m{ Connection Server access mode }-c{ network layer
}-d{ database client }-u{ user name }-p{ password }-s{ datasource }-t{
database }-r{ host name }-j{ PID }
Data Access Guide29
Creating a connection
2
Checking connection configuration
Table 2-5: Function input parameters
Connection Server access mode
(-m)
network layer (-c)
The mode in which the client application accesses Connection Server:
•local: Connection Server is run-
ning on the local machine.
•corba: Connection Server is run-
ning on a CORBA server.
•http:Connection Server is running
on a HTTP server.
•java: Connection Server uses a
Java data access driver on the
local machine.
The database middleware for the
connection to check, as returned by
the find function.
database client (-d)
user name (-u)
password (-p)
datasource (-s)
database (-t)
30Data Access Guide
The database type, as returned by
the find function.
A valid user name for the database.
The password for the user name.
The server on which the database is
running.
The database server.
Creating a connection
Checking connection configuration
2
host name (-r)
PID (-i)
Example: Pinging an Oracle database
The following command checks access for:
•Connection Server access mode: local, that is, the database runs on
the local machine.
•Network layer: Oracle Client
•Database: Oracle 8.1
•Datasource: Harlaxton
•User name: efashion
•Password: X2345
For CORBA mode, the computer
hosting Connection Server.
For CORBA mode, the process
number of the Connection Server to
ping through.
"syadmin" -p "password" -s "Sybase Adaptive Server 15" -t
"SY1" -r "sybasehost" -i 456
Related Topics
•Check tool—function overview on page 22
•Check tool—find on page 25
About JDBC connections
A set of data access drivers are installed when you install your Business
Objects application software. You can use these data access drivers to create
connections to databases.
Business Objects software also includes configuration files for using JDBC
drivers to access your databases. To use these drivers, you:
•Obtain the java driver software from your database supplier.
•Modify the supplied configuration files.
For an up-to-date list of supported JDBC drivers, check the SAP Service
MarketPlace at http://service.sap.com/bosap-support, or contact your
BusinessObjects representative.
To create a JDBC connection
In order to create a JDBC connection:
•Obtain the necessary JDBC driver software for the database, and copy
the files to your system. These files are available from the database
vendor. The driver software consists typically of one or more jar files.
Note the installation path details for these files.
32Data Access Guide
Creating a connection
To create a JDBC connection
•Ensure that you have the database access details to hand, for example
the login and password details.
To create a JDBC connection, use the following procedure:
1. Check if there are any additional DLLs that the driver requires, and ensure
that they are accessible by the system. For example, the SQLServer 2005
JDBC driver uses addditional DLLs. The directory for these must be
included in the PATH environment variable.
2. Navigate to the directory that contains the jdbc.sbo file. For example,
on a Windows system, the configuration files are located in the following
paths, where connectionserver-install-dir is the directory
where the Connection Server software is installed: connectionserver-
install-dir \connectionServer\jdbc
3. Use an XML editor to open the jdbc.sbo file for editing.
4. Add the required .jar file details to the ClassPath area. Include the fully
qualified path names when specifying these files, for example:
These files need to be installed on the machine running the Business
Objects application.
2
Refer to the information on the JDBC sbo example file structure for details.
5. Locate the Driver Capabilities parameter, and check that it is set to either
Procedure or Queries.
If it is not, the JDBC driver is unavailable from the New Connection
wizard.
6. Save and close the .sbo file.
7. Run the Connection Wizard. The JDBC driver that you have configured
appears in the list of available connections. Select the JDBC driver and
use the Wizard and configure the connection .
When you complete this task, the connection is available for use.
Related Topics
•JDBC SBO example file structure on page 34
•Connection requirements on page 20
Data Access Guide33
Creating a connection
2
About JavaBean connections
JDBC SBO example file structure
This lists an example of the section of the JDBC SBO file that you need to
modify. This SBO file is for Microsoft SQLServer 2000 and Microsoft
SQLServer 2005.
Developers can create JavaBeans that provide access to datasources. You
can create connections using these JavaBeans. In order to create a
JavaBeans connection, the developers who create the JavaBean will supply:
•the required .jar files
•any other files that the JavaBean requires
•any specific configuration details that the JavaBeans driver requires
Within a JavaBeans driver, data-retrieval procedures are configured as stored
procedures. When configuring a JavaBeans connection, on the New
Connection wizard 's Database Middleware Selection screen, you must
select the Filter Stored Procedures Network Layers check-box. If you do
not, the New Connection wizard does not display the JavaBeans drivers that
are available.
34Data Access Guide
To create a JavaBean connection
To create a JavaBean connection
To create a JavaBeans connection, use the following procedure:
1. Use an XML editor to open the javabeans.sbo file for editing. For exam
ple, on a Windows system, the configuration files are located in the follow
ing paths, where connectionserver-install-dir is the directory
where the Connection Server software is installed: connectionserver-
install-dir\connectionServer\javabean
2. Add the required .jar file details to the ClassPath area. Include the fully
qualified path names when specifying these files.
Note:
These files need to be installed on the machine running the Business
Objects application.
Refer to the information on the JavaBean.sbo example file structure for
details.
3. Save and close the .sbo file.
4. Perform any other configuration tasks specified by the JavaBeans
developer.
5. Run the Connection Wizard. The JavaBeans datasource that you have
configured should appear in the list of available connections. Select the
JavaBeans datasource and use the Wizard to configure the connection.
Creating a connection
2
When you complete this task, the connection is available for use with a
Business Objects application.
Related Topics
•JavaBean SBO example file structure on page 35
•PrimaryKey Available on page 98
JavaBean SBO example file structure
This section contains an example of a JavaBeans SBO file.
Creating a connection to
Data Federator Query
Server
3
Creating a connection to Data Federator Query Server
3
About Data Federator Query Server connections
About Data Federator Query Server
connections
You can create connections to tables deployed on Data Federator Query
Server, in order to use these tables with a Business Objects application.
Note:
For information on connecting to Data Federator, see the Data Federator
User Guide, and refer to the “Connecting to Data Federator Query Server
using JDBC/ODBC drivers” chapter.
This chapter describes additional settings you must do on Data Federator
Query Server and configuration details you must use on Connection Server
to create connections.
The method that you use to configure the connection depends on whether
you use JDBC or ODBC for the connection. With ODBC connections, the
configuration depends on the Business Objects application that you use.
The process differs if you are creating a connection to use with Web
Intelligence Rich Client.
The method that you use to create the connection depends on the Business
Objects application that you use. Typically you use the application's New
Connection wizard to create the connection. See your application's user
documentation for more information.
This chapter also indicates the configuration that must be made to the New
Connection wizard of the Designer and Web Intelligence applications, to be
able to create connections.
The minimum Data Federator ODBC version that you can use with the
configuration details that follow is:
•Data Federator XI Release 2 SP1 MHF1
If required, contact your Business Objects sales representative for more
information on the release, and how to obtain it.
Note:
Business Objects recommends you use a JDBC connectivity to connect
Business Objects applications to Data Federator Query Server. The Data
38Data Access Guide
Creating a connection to Data Federator Query Server
Configuring the New Connection wizard for a Data Federator JDBC or ODBC connection
Federator ODBC middleware can only be used on Microsoft Windows and
because of the use of an ODBC-JDBC bridge, has impacts on performance.
Related Topics
•Configuring the New Connection wizard for a Data Federator JDBC or
ODBC connection on page 39
•Configuring Data Federator JDBC connections on page 40
•Configuring Data Federator ODBC connections on page 41
•Configuring Web Intelligence Rich Client connection definitions using
Data Federator ODBC middleware on page 44
Configuring the New Connection wizard
for a Data Federator JDBC or ODBC
connection
In order to create a connection to Data Federator Query Server, you need
the following information. See your Data Federator administrator to obtain
these details:
•the server name and port on which the Data Federator server is running
3
•the name of the catalog on Data Federator Query Server.
In the New Connection wizard, you enter this as the name of the database
to which you are connecting.
•the authentication details for the installation of Data Federator Query
Server that serves the catalog to which you are connecting
In the New Connection wizard, from the Database Middleware Selection
screen, you use either the Business Objects, Data Federator Server,
JDBC Drivers or ODBC Drivers middleware to create the connection.
Refer to your Business Objects application documentation for information
on how to use the New Connection wizard once you have made the
configuration changes.
Note:
To configure a JDBc or ODBC connection to Data Federator Query Server,
there are some additional configurations that you must make. If you are using
Data Access Guide39
Creating a connection to Data Federator Query Server
3
Configuring Data Federator JDBC connections
Web Intelligence Rich Client, the configuration changes required are different
to those used by other Business Objects applications.
Related Topics
•Configuring Data Federator ODBC connections on page 41
•Configuring the Data Federator ODBC middleware on page 42
•Configuring Connection Server for a Data Federator ODBC connection
on page 43
•Configuring Web Intelligence Rich Client connection definitions using
Data Federator ODBC middleware on page 44
Configuring Data Federator JDBC
connections
This section contains Connection Server configuration changes for JDBC
connections to all Business Objects applications.
The configuration details in this section refer to the following path:
•data-federator-drivers-install-dir/JdbcDriver: the root
installation directory for the Data Federator JDBC middleware. Your Data
Federator administrator chose this directory when running the Data
Federator installer.
•bo-install-dir: the root installation directory for your Business Objects
applications.
Note:
Edit the files in an XML editor to make sure your files are well-formed. After
you make the configuration changes shown below, re-start your system for
the changes to take effect.
Configuring Connection Server for a Data Federator
JDBC connection
Note:
This topic applies to all Business Objects applications that use Connection
Server.
40Data Access Guide
Creating a connection to Data Federator Query Server
Configuring Data Federator ODBC connections
To configure Connection Server, you need to change the configuration file:
This section contains Data Federator Query Server additional settings and
Connection Server configuration changes for ODBC connections to all
Business Objects applications except Web Intelligence Rich Client.
The configuration details in this section refer to the following paths:
•data-federator-drivers-install-dir/OaJdbcBridge: the root
installation directory for the Data Federator ODBC middleware. Your Data
Federator administrator chose this directory when running the Data
Federator drivers installer.
•data-federator-drivers-install-dir/JdbcDriver: the root
installation directory for the Data Federator JDBC middleware. Your Data
Federator administrator chose this directory when running the Data
Federator installer.
•bo-install-dir: the root installation directory for your Business Objects
applications.
Data Access Guide41
Creating a connection to Data Federator Query Server
3
Configuring Data Federator ODBC connections
Note:
Edit the files in an XML editor to make sure your files are well-formed. After
you make the configuration changes shown below, re-start your system for
the changes to take effect.
Related Topics
•Configuring the Data Federator ODBC middleware on page 42
•Configuring Connection Server for a Data Federator ODBC connection
on page 43
•Configuring Web Intelligence Rich Client connection definitions using
Data Federator ODBC middleware on page 44
Configuring the Data Federator ODBC middleware
Note:
This topic applies to all Business Objects applications that use Connection
Server except Web Intelligence Rich Client. See the section that covers Web
Intelligence Rich Client for more information.
To configure the Data Federator ODBC middleware, you need to modify the
openrda.ini file. This file is installed in the following directory:
•Configuring Data Federator ODBC connections on page 41
•Configuring Connection Server for a Data Federator ODBC connection
on page 43
Configuring Connection Server for a Data Federator
ODBC connection
Note:
This topic applies to all Business Objects applications that use Connection
Server except Web Intelligence Rich Client. See the section that covers Web
Intelligence Rich Client for more information.
3
To configure Connection Server, you need to change the configuration file:
bo-install-dir\BusinessObjects Enterprise
12.0\win32_x86\dataAccess\connectionServer\cs.cfg
To configure the cs.cfg file, set parameters under the JavaVM tag, as follows:
•Configuring Data Federator ODBC connections on page 41
•Configuring the Data Federator ODBC middleware on page 42
Data Access Guide43
Creating a connection to Data Federator Query Server
3
Configuring Web Intelligence Rich Client connection definitions using Data Federator ODBC middleware
Configuring Web Intelligence Rich Client
connection definitions using Data
Federator ODBC middleware
When creating Web Intelligence Rich Client connections that use Data
Federator ODBC middleware, you need to make the configuration changes
described in this section. Without the correct configuration amendments, the
connection generates errors. This type of connection is supported in a
Windows environment only.
Note:
The details below relate to Web Intelligence Rich Client only. For information
on creating connections that use Data Federator ODBC middleware for other
Business Objects applications, refer to the section on configuring Data
Federator ODBC connections.
To create connections that use Data Federator ODBC middleware for use
with Web Intelligence, you need to modify the configurations for:
•The Data Federator ODBC middleware
•Connection Server
•The Windows RichClient registry key
The configuration details in this section refer to the following paths:
•data-federator-drivers-install-dir/OaJdbcBridge: the root
installation directory for the Data Federator ODBC middleware. Your Data
Federator administrator chose this directory when running the Data
Federator drivers installer.
•data-federator-drivers-install-dir/JdbcDriver: the root
installation directory for the Data Federator JDBC middleware. Your Data
Federator administrator chose this directory when running the Data
Federator installer.
•bo-install-dir: the root installation directory for your Business Objects
applications.
Note:
Edit the files in an XML editor to make sure your files are well-formed.
44Data Access Guide
Creating a connection to Data Federator Query Server
Configuring Web Intelligence Rich Client connection definitions using Data Federator ODBC middleware
Related Topics
•Configuring the Data Federator ODBC middleware for a Web Intelligence
Rich Client connection on page 45
•Configuring Connection Server for a Web Intelligence Rich Client
connection to Data Federator on page 46
•Setting the Web Intelligence Rich Client registry key on page 46
•Configuring Data Federator ODBC connections on page 41
Configuring the Data Federator ODBC middleware
for a Web Intelligence Rich Client connection
To configure the Data Federator ODBC middleware, you need to modify the
openrda.ini file. This file is installed in the following directory:
Creating a connection to Data Federator Query Server
Configuring Web Intelligence Rich Client connection definitions using Data Federator ODBC middleware
Related Topics
•Configuring Web Intelligence Rich Client connection definitions using
Data Federator ODBC middleware on page 44
•Configuring the Data Federator ODBC middleware for a Web Intelligence
Rich Client connection on page 45
•Configuring Connection Server for a Web Intelligence Rich Client
connection to Data Federator on page 46
3
Data Access Guide47
Creating a connection to Data Federator Query Server
Configuring Web Intelligence Rich Client connection definitions using Data Federator ODBC middleware
3
48Data Access Guide
Configuring data access
global parameters
4
Configuring data access global parameters
4
About global parameters
About global parameters
You can configure the global parameter values that apply to all connections.
You can do this to improve performance, or to resolve issues with the
connection that arise.
Data access global parameters are maintained in the cs.cfg file. This is an
XML file that contains Connection Server configuration parameters, and
default configuration parameters that apply to all data access drivers.
To override these global settings, you can configure settings in each driver's
.sbo file.
Related Topics
•Configuring driver parameters on page 64
About the cs.cfg configuration file
On a Windows system, the cs.cfg file is stored in the following location:
•connectionserver-install-dir\connectionServer
In the cs.cfg file, you can configure parameters in the following sections
only:
•Settings
This section defines Connection Server global configuration parameters,
including client access types such as CORBA.
These parameters can be overridden by corresponding settings in the
data access driver configuration file: <driver>.sbo, where <driver> is the
name of the data access driver to which the .sbo file relates.
•DriverDefaults
These parameters apply to all data access drivers.
•Distribution
You configure the settings in this section if you use CORBA.
•Traces
50Data Access Guide
Configuring data access global parameters
To view and edit the cs.cfg file
You can set trace parameters that allow the recording of connection
activity through Connection Server in log files. Refer to the release notes
for information on generating traces.
The remaining section, Locales, defines the operating system charset for
each available language. The parameters in this section must not be modified.
To view and edit the cs.cfg file
You can view and edit parameters in cs.cfg as follows:
1. Browse to the directory that stores the cs.cfg file. For example, on a
Windows system:
connectionserver-install-dir\connectionServer\cs.cfg where
connectionserver-install-dir is the path where your Connection
Server software is installed.
2. Open cs.cfg in an XML editor.
3. Expand sections as required.
4. Set parameters by either adding new parameters and values, or modifying
existing parameter values.
5. Check that the document is valid against the DTD, then save and close
the file.
4
Configuring the driver default parameters
The <DriverDefaults> section of the cs.cfg file contains the default values
that apply to all data access drivers. These default values are overridden for
a specific driver by corresponding values set in the <driver>.sbo file.
Refer to the SBO file parameter reference for information on the parameters
that you can set.
Related Topics
•Data access configuration files on page 64
•Configuring driver parameters on page 64
•SBO parameter categories on page 70
Data Access Guide51
Configuring data access global parameters
4
Configuring the global settings parameters
Configuring the global settings
parameters
The <Settings> section of cs.cfg defines settings that apply to all drivers,
and cannot be customized for individual data access drivers. Some settings
can be defined either for library version or server version of Connection
Server:
•Library: In this mode, Connection Server is included in the client process.
•CORBA: In this mode, Connection Server is a CORBA server and is
accessed remotely. In this mode, Connection Server serves two different
kinds of clients: HPPT and CORBA clients.
If your environment uses CORBA, you must configure some parameters
in the <Server> section of cs.cfg.
The <Settings> parameters are listed alphabetically. To view or edit
parameters, open cs.cfg in an XML editor, and go to the Settings section,
then Parameters section. In the file, each parameter is defined in the following
tag:
<Parameter Name="parameter">value</Parameter>
where parameter is the name of the parameter, and value is the value to
which the parameter is set.
Each parameter is shown with the following information:
•example of how the parameter appears in the XML file—when the
parameter is available in library and server mode, an example of each is
shown
•description of the parameter
•possible values that can be set for the parameter (where applicable)
•default value for the parameter
Charset List Extension
<Parameter Name="CharSet List Extension">crs</Parameter>
Determines action taken when a driver fails to load.
The parameter lets you choose whether you want a
usable connection possibly without all drivers operating, or a fatal error and no functionality when a driver
fails to load.
Yes: Connection Server generates a fatal error when
a driver fails to load.
No: Connection Server generates a non-fatal error
when a driver fails to load.
YesDefault
Related Topics
•Load Drivers On Startup on page 54
Load Drivers On Startup
Load Drivers On startup applies to both Library and Server modes.
Library
<Settings>
<Parameter Name="Load Drivers On Startup">No</Parameter>
...
<Library/>
Server
<Server>
<Parameter Name="Load Drivers On Startup">Yes</Parameter>
54Data Access Guide
...
</Server>
These are described below.
Values
Default
Max Pool Time
Configuring data access global parameters
Configuring the global settings parameters
Determines how driver libraries are loaded.Description
•
Yes: All installed drivers are loaded during the initialization phase.
•
No: Drivers are loaded on demand.
Library mode: No
Server mode: Yes
4
Max Pool Time is available for Library mode and Server mode.
Library
<Settings>
<Parameter Name="Max Pool Time">-1</Parameter>
<Library/>
Server
<Server>
<Parameter Name="Max Pool Time">60</Parameter>
. . .
</Server>
Data Access Guide55
Configuring data access global parameters
4
Configuring the global settings parameters
Description
Default
Determines the maximum length of time that an unused connection can remain idle in the connection
pool. A connection pool is a mechanism used by data
access drivers to re-use database connections, to
make the best use of system resources.
You can set Max Pool Time for two types of Connection Server deployments:
Library: Value applies to nodes that have Connection
Server installed with desktop or other server products.
Server: Value applies to Connection Server stand
alone server installations. For information on deploying
Connection Server on a dedicated node see the De-ployment guide.
In cs.cfg, parameters in the <Settings> section control the access method.
In the <Settings> section:
Data Access Guide57
Configuring data access global parameters
4
Configuring the driver filter
•Parameters in the <Library> section control Library mode. Most Business
Objects products use Connection Server in Library mode.
•Parameters in the <Server> section control CORBA access.
Parameters defined in <Library> or <Server> take precedence over any
parameter definitions set in other parts of the <Settings> section. For
example, with CORBA, parameters defined in the <Server> section can
override parameters set in other areas for applications that use <Library>
access.
The settings that apply to Library mode are:
•Load Drivers On Startup
•Max Pool Time
The settings that apply to CORBA access are:
•Load Drivers On Startup
•Max Pool Time
•Transient Object Timeout
You cannot modify the value of the Transient Object Timeout
parameter in the cs.cfg file. However, you can modify it from the
BusinessObjects Central Management Console. See the BusinessObjectsEnterprise Administrator's Guide.
Optionally, you can also configure settings in the <ActiveDataSources>
section.
Related Topics
•Configuring the driver filter on page 58
•Load Drivers On Startup on page 54
•Max Pool Time on page 55
Configuring the driver filter
You configure the <ActiveDataSources> section to address complex
deployment scenarios involving multiple Connection Servers in server mode.
Specify the active datasources to help client applications determine the
drivers that each Connection Server of the architecture loads and uses. For
58Data Access Guide
Configuring data access global parameters
Configuring the driver filter
more information about complex deployment scenarios, see the
BusinessObjects Enterprise Deployment and Configuration Guide.
In cs.cfg, the <ActiveDataSources> section helps you specify the network
layers and associated datasources you want Connection Server to use and
expose. This section works as a filter for drivers. Beneath the <ActiveData
Sources> section, the <NetworkLayer> elements list the drivers available
for connection. For each driver, the <DataBase> elements list the names of
the databases Connection Server is able to connect.
You specify the active datasources for the access method you have defined.
That is, either the Library, the CORBA server access mode, or both.
If you do not provide any <ActiveDataSources> section or if you leave it
empty, then no filtering is processed. Connection Server loads all the available
drivers.
Note:
You can find the list of available network layers in the driver.cfg file, which
is located in the connectionserver-install-dir\connectionServer\
directory. Database names are regular expressions that use GNU regexp
syntax. Use the .* pattern to match any character. For more information
about regular expressions, refer to the PERL website at
•Configuring the CORBA access protocols on page 62
Setting one connectivity per machine
In complex deployment scenarios, you may want to set up one connectivity
per type of machine, for example you want to connect BusinessObjects
Enterprise applications to an MS SQL Server database installed on Microsoft
Windows and to an Oracle database installed on a UNIX machine.
To avoid connection failures, you need to do one of the following:

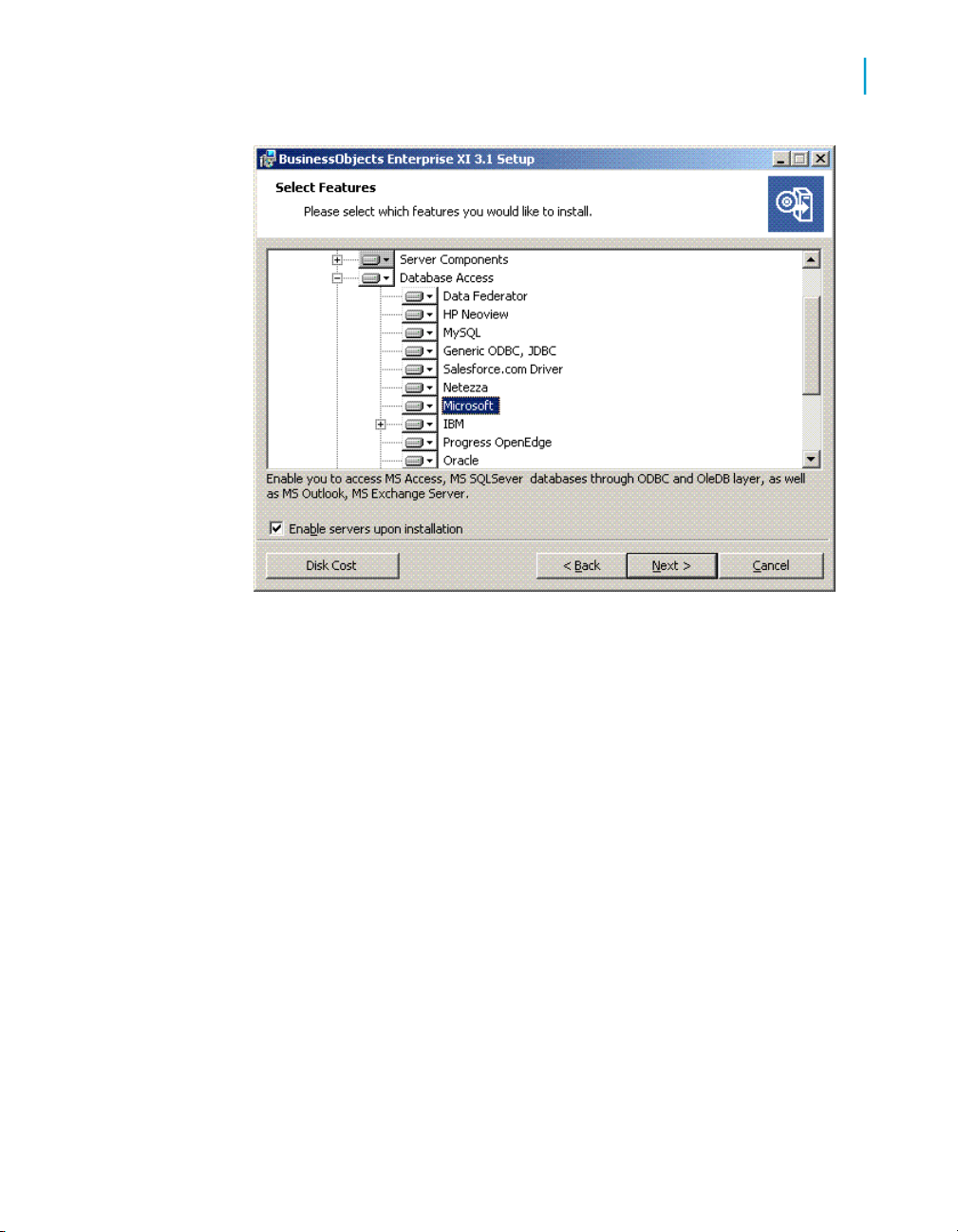

•when installing the BusinessObjects Enterprise suite, specify the
connectivities you want to deploy for each type of database you require,
as described on the image below.
60Data Access Guide
Configuring data access global parameters
Configuring the driver filter
4
•when configuring Connection Server in the cs.cfg file, set the <Active
DataSources> section for the library mode (<Library> section) as you
do for the server mode (<Server> section).
Because BusinessObjects Enterprise applications first try to establish
connections through drivers installed locally, you should configure the
driver filter for both modes in the same way. For example:
You set the following parameters in the <Distribution> section of cs.cfg
when using Connection Server with CORBA.
The <Protocols> section contains the default values that Connection Server
uses to process requests coming from CORBA clients or HTTP clients. For
CORBA access, configure the section as follows:
To configure data access for a particular data access driver, you can edit
the driver's XML parameter files to adjust the parameter settings.
Note:
For each Business Objects application that uses Connection Server, the
associated Readme file contains information on command line utilities that
you can use to check your RDBMS and data access driver configuration.
These utilities can create log files that trace Web Intelligence server activity.
Refer to the readme for the release for instructions on the use of these utilities.
Related Topics
•About global parameters on page 50
Data access configuration files
The following configuration files control data access driver configurations for
each defined connection:
•The cs.cfg file defines global parameters that apply to all connections.
•There is a separate configuration file for each data access driver. These
files are named <driver>.sbo, where <driver> is the database
network layer to which the configuration file applies.
The parameters set in the Settings section of cs.cfg are overridden by
corresponding settings in the data access driver configuration files:
<driver>.sbo
The configuration files are located in the following paths, where connectionserver-install-dir is the directory where the Connection Server
software is installed.
•The cs.cfg file is in the following directory:
connectionserver-install-dir\connectionServer\
•Each .sbo file is in a sub-directory of this directory, where the
sub-directory is named after the database network layer, for example for
Oracle databases:
•Configuring the driver default parameters on page 51
Installed SBO files
The following <driver>.sbo files are installed by default.
For an up-to-date list of supported drivers, check the Business Objects
Support Site at www.businessobjects.com, or contact your BusinessObjects
representative.
Configuring data access driver parameters
Configuring driver parameters
SBO fileData access driver
5
Essbase
IBM DB2
Informix
JDBC provides JDBC drivers for
databases. Check the Business Objects support website, or the jd
bc.sbo file for details of the
databases supported for JDBC connections.
essbase.sbo
db2.sbo
iseries.sbo
informix.sbo
jdbc.sbo
Data Access Guide65
Configuring data access driver parameters
5
Configuring driver parameters
SBO fileData access driver
Microsoft SQL Server
Microsoft Analysis Services
MySQL
Note:
MySQL 5 database is available on all
platforms, with Unicode support. Make
sure you use the MySQL Connector/ODBC 5.1.4 or higher to connect to
this database. If you use an older version of the driver on Unix, you will encounter errors at runtime.
ODBC
Oracle
Red Brick
odbc.sbo
oledb_olap.sbo
odbc.sbo
odbc.sbo
oracle.sbo
odbc.sbo
SAP
Sybase
Teradata
66Data Access Guide
sap.sbo
sybase.sbo
teradata.sbo
To view and edit an SBO file
You can open an SBO file for viewing or editing as follows:
Note:
Before opening an SBO file, make a backup copy of the file. Some
configuration parameters must not be edited. If you change or delete them
it could affect the operation of your Business Objects applications.
1. Browse to the directory that stores the SBO file for your target data access
driver. SBO files are stored in the following location, where <driver> is
the name of the database software that the connection uses:
4. Locate the appropriate tag for the value to change, and change the value.
Parameters appear in the format: <Parameter Name="parameter">val
ue</Parameter> where parameter is the name of the parameter, and
value is the value attributed to the parameter.
Configuring data access driver parameters
Configuring driver parameters
5
5. Check that the file is valid against the DTD, save and close the file.
Data Access Guide67
Configuring data access driver parameters
Configuring driver parameters
5
68Data Access Guide
SBO parameter reference
6
SBO parameter reference
6
SBO parameter categories
SBO parameter categories
The configuration parameters in this guide are listed in the following
categories. Each category represents a database that has a separate sbo
file.
•Defaults
•Informix
•JavaBean
•JDBC
•ODBC
•ODBC3
•OLE DB
•Sybase ASE/CTLIB
Each parameter is shown with the following information:
•example of how the parameter appears in the XML file
•description of the parameter
•possible values that can be set for the parameter
•default value for the parameter
SBO file structure
There is a <driver>.sbo file for each supported database network layer.
Each <driver>.sbo file is divided into the following sections:
70Data Access Guide
Defaults
SBO parameter reference
SBO file structure
DescriptionFile section
This section contains the default configuration
parameters that apply to all database middleware
that uses the data access driver. These parameters override any corresponding values set in the
database middleware.
This section contains a sub-section for each
database middleware that is supported by the data
access driver. The Active parameter specifies if
middleware support is activated or not.
Values are YES or NO.
Each middleware section can contain the following
parameters:
•
Name: Names of the middleware supported by
the data access driver. The middleware name
values set here appear in the Database Middleware page of the new connection wizard.
6
Databases
•
Aliases: Names of older middleware versions
no longer officially supported by the data access driver, but that are still in use. You can
add an alias parameter for an older middleware
version so that existing connections use the
current data access driver instead. You can set
configuration parameters specific to the old
middleware as parameters of the new alias.
You can create new connections using the
alias.
•
Parameters: Configuration parameters with
values that apply specifically to a middleware.
Values set for parameters listed here override
the values set for the same parameters in the
Defaults section.
Data Access Guide71
SBO parameter reference
6
Default SBO parameters
Default SBO parameters
The default SBO parameters are defined in cs.cfg, or under the Defaults
section of the SBO file.
The capabilities of the driver, that is whether it can
access stored procedures and queries available in
the database software. This parameter is set typically
using the New Connection wizard. You can include
both values in the parameter.
Description
Note:
This parameter must be set to Procedures for a JavaBeans driver. The functionality of a JavaBeans driver
is defined as stored procedures as far as Business
Objects applications are concerned.
Data Access Guide77
SBO parameter reference
6
Default SBO parameters
Values
Escape Character
<Parameter Name="Escape Character">-</Parameter>
Procedures: the driver can access the data retrieval
procedures that are defined in the database software.
Query: the driver can access the data retrieval queries
that are defined in the database software.
ProceduresDefault
Extensions
Description
Default
<Parameter Name="Extensions"></Parameter>
Description
Specifies the character to use to escape strings of
special characters, for example patterns.
The character to use as the escape character.Values
If not specified, Connection Server retrieves the value
from the middleware.
Specifies the family of the database engine that is
displayed in the Database Middleware Selection page
of the New Connection wizard. The set of middleware
that corresponds to your license is displayed on this
page in a tree view.
Note:
Do not change this value.
The value to use to compute the size of returned
content expressed as field characters when the content is returned as bytes. This is used for DB2 only.
<Parameter Name="Force Execute">Never</Parameter>
Data Access Guide79
SBO parameter reference
6
Default SBO parameters
Description
Specifies whether or not the SQL query is executed
before retrieving results. Supported by the following:
•ODBC
•OLE
•DB
•JDBC
Never: The SQL query is never executed before retrieving results.
Not specified: value retrieved from the database middleware.
Specifies whether or not to use the encryption password mechanism specified in the middleware for the
password entered in the Connection details dialog
box. This parameter is used only with Sybase. It is
included in the Defaults section for future compatibility.
True: Specifies that the encryption password mechanism of the middleware is used.
False: Specifies that the encryption password mechanism of the middleware is not used.
TrueDefault
Procedure Name Max Size
<Parameter Name="Procedure Name Max Size">1024</Parameter>
84Data Access Guide
SBO parameter reference
Default SBO parameters
6
Description
Values
Specifies the maximum length in characters of a
database procedure name.
An integer that specifies the maximum database procedure name length in characters.
The value set in the database middleware.Default
Procedure Parameter Name Max Size
<Parameter Name="Procedure Parameter Name Max Size">1024</Pa
rameter>
Description
Values
Specifies the maximum length in characters of a
database procedure parameter name.
An integer that specifies the maximum database procedure parameter name length in characters.
Specifies the name, with no extension, of the Strategy
file (.stg). This file contains the external strategies
that Designer uses for automatic universe creation.
Strategy files are stored in the same directory as the
.sbo file.
db2 for DB2 data access drivers.
informix for Informxix.
oracle for Oracle.
sybase for Sybase.
teradata for Teradata.
Table Name Max Size
<Parameter Name="Table Name Max Size">1024</Parameter>
SBO parameter reference
Default SBO parameters
See values above.Default
6
Description
Values
Specifies the maximum length in characters of a
database table name.
An integer that specifies the maximum database table
name length in characters.
Specifies the transaction mode that the database uses.
AutoCommit: statements are committed automatically
on completion of a request.
Transactional: on competion, an explicit call either
completes or rolls back the statement.
If not specified, the value is retrieved from the
database middleware.
Type
<Parameter Name="Type">Relational</Parameter>
92Data Access Guide
Version
SBO parameter reference
Informix SBO parameters
Specifies the Business Objects data source type.
Description
<Parameter Name="Version">Relational</Parameter>
Description
Note:
This parameter must not be modified.
Specifies the database version.
Note:
This parameter must not be modified.
6
XML Max Size
<Parameter Name="XML Max Size">2048</Parameter>
Specifies the maximum size allowed for XML data.Description
The maximum allowed XML size, in bytes.Values
This varies depending on the database.Default
Informix SBO parameters
These parameters apply to the Informix SBO file. They are used to define
the connection to an Informix database.
Data Access Guide93
SBO parameter reference
6
Informix SBO parameters
These parameters are defined in the \\<INSTALDIR>\win32_x86\dataAc
cess\connectionServer\informix\informix.sbo file.
Note:
In addition to the SBO parameters, for Informix, in a Unix environment, you
must modify the ODBC.INI file.
Related Topics
•V5toV6DriverName on page 95
•To modify the Informix ODBC.INI file on page 94
To modify the Informix ODBC.INI file
In order to use the data access layer with an Informix database in a UNIX
environment, you need to modify the unicode configuration. This configuration
information can be in either of the following locations:
•The .odbc.ini file located in your home directory.
•The file specified by the ODBCINI environment variable.
1. Locate the ODBC.INI file or the file specified by the ODBCINI environment
variable, and open it in a text editor.
2. In the file, locate the [ODBC] section.
3. Add the following line to the [ODBC] section:
UNICODE=UTF-8
4. Close the file and save it.
Example: ODBC section with the configuration added
This code is an example of the ODBC section with the correct information
added:
Specifies the conversion rule from Informix Connect
to Informix ODBC. The value of this parameter determines which Informix Driver is used to define the
ODBC Data Source Name (DSN) without the connection string..
6
Unicode
Values
Default
<Parameter Name="Unicode">CharSet</Parameter>
Description
The exact name of the Informix driver installed on the
machine.
The value set in the cs.cfg file.
Specifies if the access driver can benefit from the
Unicode configuration of the client middleware. This
parameter appears as a driver default in the cs.cfg
file. Its value applies to all data access drivers. It is
not listed by default in the SBO file. If you want to
over-ride the default value you add it to the Defaults
section of the SBO file for the target data access
driver.
Data Access Guide95
SBO parameter reference
6
JavaBean SBO parameters
Values
UTF8: 8-bit UCS/Unicode Transformation Format
coding.
CharSet: Character Set coding.
UCS2: 2-byte Universal Character Set coding
Default
The value set in the cs.cfg file.
JavaBean SBO parameters
These parameters apply to the JavaBean SBO file. They are used to define
a JavaBean connection.
These parameters are defined in the \\<INSTALDIR>\win32_x86\dataAc
