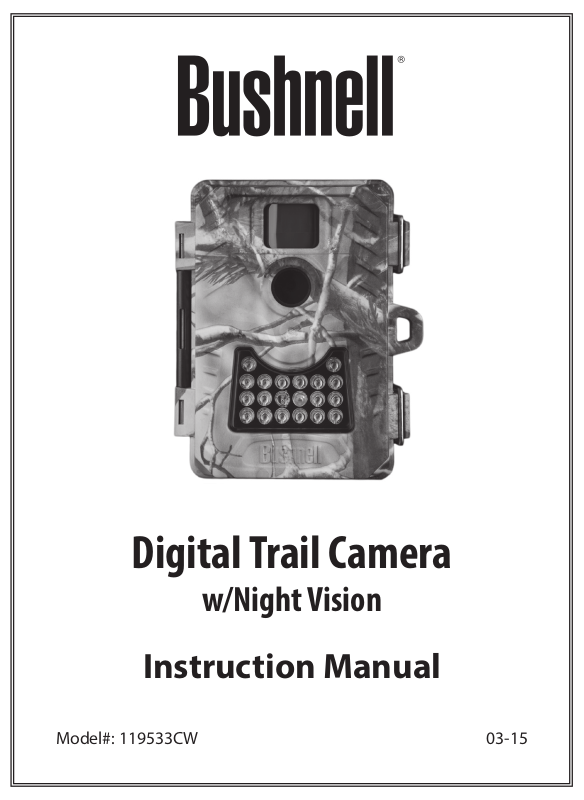

Bushnell 119533CW Instruction Manual

Digital Trail Camera

w/Night Vision

Instruction Manual

Model#: 119533CW

03-15

Page Index

Introduction 5
Parts & Controls Guide 6-7
Battery and SD Card Installation 8
About the Setup Menu 9
Using the Setup Menu 9
SETUP MENU REFERENCE TABLE 10-12
Camera Operation 13
Mount the Camera 13
Power on the Camera 13
Test the Coverage Area 14
Secure the Camera 14
Viewing the Photos and Videos 15

Glossary 16
Technical Specications 17
Troubleshooting/FAQ 18-21

IMPORTANT NOTE

Congratulations on your purchase of one of the best Trail Cameras on the
market! Bushnell is very proud of this camera and we are sure you will be
pleased with it as well. We appreciate your business and want to earn your
trust. Please refer to the notes below and the instructions in this manual
to ensure that you are completely satised with this product.

If your Bushnell Trail Cam does not seem to be functioning properly
or if you are having photo/video quality issues, please check the
Troubleshooting/FAQ section on pages 18-21.
Problems are often due to something simple that was overlooked, or
require only changing one setting to solve.

If your problem continues after trying the solutions in the
Troubleshooting/FAQ section, please call Bushnell Customer Service
at [phone]. In Canada, call [phone].

Bushnell recommends using 4 Energizer® Lithium AA batteries in this

Trail Cam to obtain maximum battery life.

Do Not Mix Old and New Batteries

Do not mix battery types-use ALL lithium or ALL alkaline.

Rechargeable batteries are not recommended.

Bushnell recommends using SanDisk® SD and SDHC Cards

(up to 32GB capacity) in this Trail Cam.

4

INTRODUCTION

Congratulations on your purchase of the Bushnell 119533CW Digital Trail
Camera. This camera is designed to record human or animal activity in the
outdoors with its still image and movie modes and weatherproof, rugged
construction. Your Trail Cam features a compact, portable size and an
extra long battery life.

Main Features:

• 3.0 MP Low Light Sensor (up to 8MP images via interpolation)

• Compact Size (120mm*94mm*46mm)

• Long Battery Life (Up to 6 months)

• Trigger Time= 0.8 second

• Automatic IR Filter

• LCD Display

• 18 Night Vision LEDs

• Adjustable Photo Delay: 5~ 59 second ,1~ 10mins (default 10S)

• Multiple Shot Mode (3 images per trigger)

• 640*480 at 30 FPS Videos

• Supports up to 32 GB SD Card

• Date, Time & Moon Phase Imprint

• Auto Exposure

• Auto White Balance

• Power Supply: 4 AA batteries (lithium or alkaline)

• Mounting Socket (1/4”-20) for Standard Tripods

• Weatherproof

• Overwrite (Duty) option (user selectable) allows new photos/videos
to begin replacing oldest les when SD card is at max. storage
capacity, so recording will continue without interruption.

5

Camera

Lens

Parts and Controls Guide

PIR Motion
Sensor

Padlock
Hole

Infrared
LED Array

Tripod
Socket

Front of Camera

Light

Sensor

PIR
Indicator

(Setup
Mode
Only

IR LED Array Detail

6

Parts and Controls Guide

USB Port

SD Card

Slot

Battery

Compartment

LCD
Display

Power
Switch

Control Panel

(Front Unlatched & Opened)

Control Panel Detail

7

BATTERY and SD CARD INSTALLATION

The Bushnell 119533CW Digital Trail Camera is designed to operate using
4 AA batteries. We recommend using Lithium (for longest life) or Alkaline
Energizer® batteries.

NOTE: Always set the power switch to the OFF position when installing or
removing batteries.

Please make sure the batteries are inserted correctly, as indicated inside
the battery compartment. Incorrect voltage or polarity (+/-) will damage
the camera.

Do not mix old and new batteries.
Do not mix battery types-use ALL lithium or ALL alkaline.
Rechargeable batteries are not recommended.

Memory

Your 119533CW Digital Trail Camera has a memory card slot, to accept SD
cards up to 32GB max. capacity (sold separately).

Inserting an SD card

• Make sure the power switch is in the OFF position whenever adding
or removing memory.

• Insert an SD card into the card slot completely and oriented correctly
as shown by the icon above the slot (label up, contacts facing down
and notched corner on the right).

• To remove the SD memory card, depress the SD card and pull out
the card gently.

Using a new, blank SD card is recommended. If the SD card has been used
in another device, please make sure to format using the Format option
in the Trail Camera’s Setup menu before you set the camera to capture
photos/videos. New cards are ready to use straight from the package.

8
