Product Brief

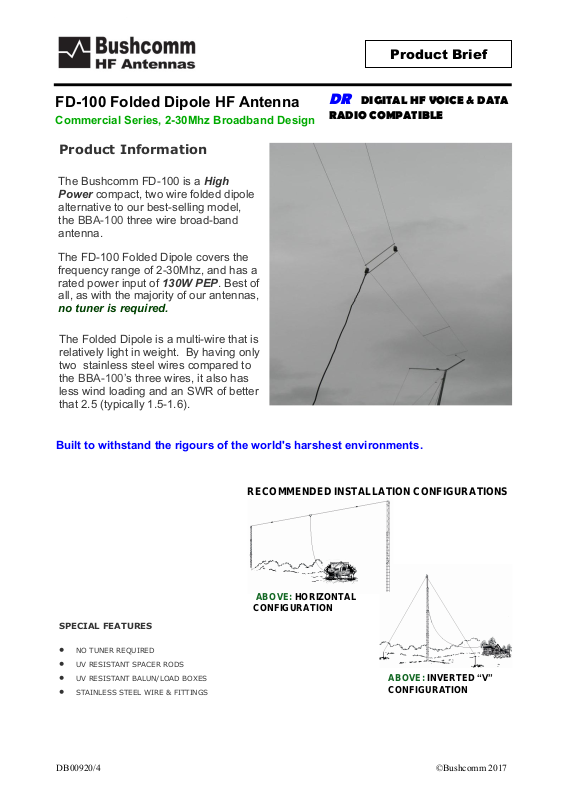

FD-100 Folded Dipole HF Antenna
Commercial Series, 2-30Mhz Broadband Design
Product Information
The Bushcomm FD-100 is a High
Power compact, two wire folded dipole
alternative to our best-selling model,
the BBA-100 three wire broad-band
antenna.
The FD-100 Folded Dipole covers the
frequency range of 2-30Mhz, and has a
rated power input of 130W PEP. Best of
all, as with the majority of our antennas,
no tuner is required.
The Folded Dipole is a multi-wire that is
relatively light in weight. By having only
two stainless steel wires compared to
the BBA-100’s three wires, it also has
less wind loading and an SWR of better
that 2.5 (typically 1.5-1.6).
DR
DIGITAL HF VOICE & DATA
RADIO COMPATIBLE
Built to withstand the rigours of the world's harshest environments.

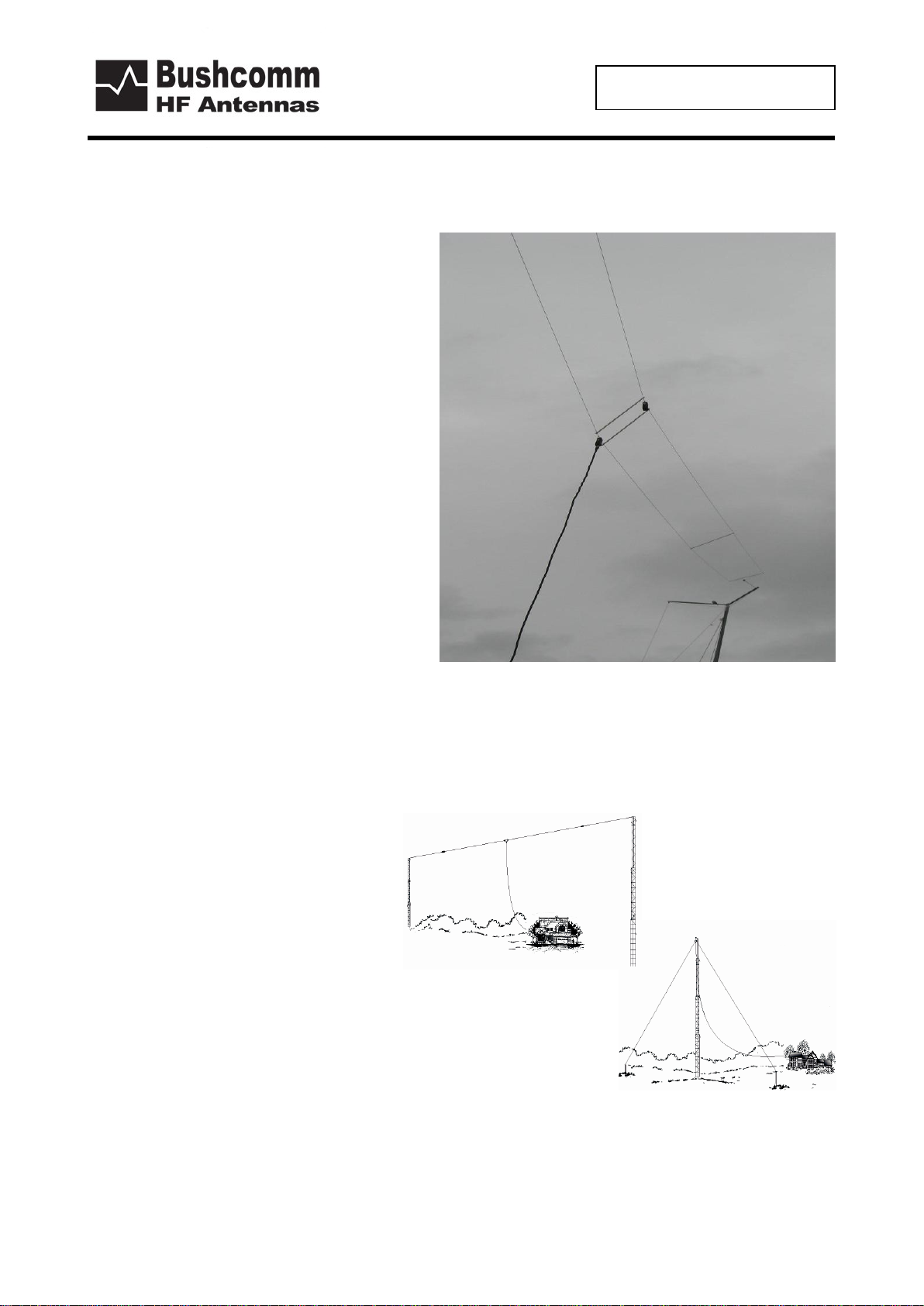

RECOMMENDED INSTALLATION CONFIGURATIONS
ABOVE: HORIZONTAL
CONFIGURATION
SPECIAL FEATURES
NO TUNER REQUIRED
UV RESISTANT SPACER RODS
UV RESISTANT BALUN/LOAD BOXES
STAINLESS STEEL WIRE & FITTINGS
ABOVE: INVERTED “V”
CONFIGURATION
DB00920/4
©Bushcomm 2017
Page 2
Specifications:
ELECTRICAL
Frequency Range: 2-30MHz
Input Impedance:
Power Input:
Input Connector:
MECHANICAL
Shipping Weight: 3kg
Antenna Length: 27m
Mast Spacing: 29m Horizontal configuration
18m inverted "v" configuration (with a 10m tower)
50 Ohms
130W PEP (voice) / 60W Continous Data Modes
UHF-type socket
Contact:
Bushcomm Antennas
21 River Road, Bayswater, WA, 6053
Australia
EMAIL: [email protected]
WEBSITE: www.bushcomm.com
PHONE: + 61 8 6144 3204
FAX: +61 8 9378 4429
DB00920/4
FOR FURTHER INFORMATION
VISIT OUR WEBSITE
www.bushcomm.com
