Page 1

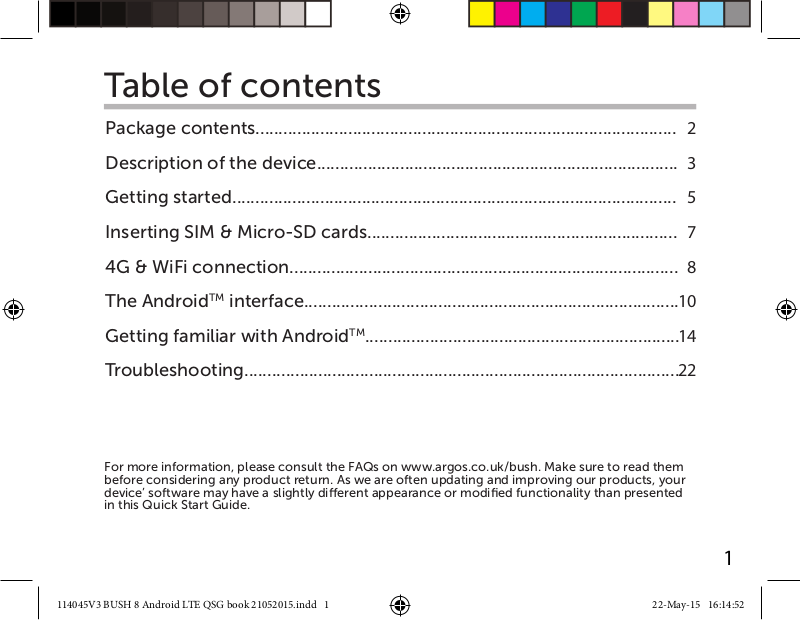

Table of contents
Package contents...........................................................................................
Description of the device..............................................................................
Getting started................................................................................................
Inserting SIM & Micro-SD cards...................................................................
4G & WiFi connection....................................................................................
The AndroidTM interface.................................................................................
Getting familiar with AndroidTM....................................................................
Troubleshooting..............................................................................................
For more information, please consult the FAQs on www.argos.co.uk/bush. Make sure to read them
before considering any product return. As we are often updating and improving our products, your
device’ software may have a slightly dierent appearance or modified functionality than presented
in this Quick Start Guide.
2
3
5
7
8
10
14
22
1
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 1 22-May-15 16:14:52
Page 2
Warranty
Warranty
Warranty
Warranty
Package Contents
IM
Description of the device
2 3 4
8
10
9
BUSH 8’’ LTE Tablet
USB cable
Instruction
manual
Warranty, Legal and
Safety Information
Charger
1
ON/OFF button
1
Webcam
2
3
Receiver
4
Brightness sensor
5
6 7
Volume buttons
5
Microphone
6
Micro-USB port
7
Camera
8
Flash light
9
Headphone jack
10
Loudspeaker
11
11
2
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 2-3 22-May-15 16:14:54
3
Page 3
Getting Started
Click!
1
1
Assembly: twist the plug clockwise until click.
Disassembly: press button and turn counter-clockwise.
NO!
!
OK!
1
Charger assembly
4
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 4-5 22-May-15 16:14:54
Before you switch on for the first time, ensure that:
1. Your tablet is fully charged
2. You have a good WiFi connection (ideally your usual WiFi zone)
3. You have your WiFi name and password to hand.
Charging
1. Connect the supplied power cable to the
device and to a wall outlet.
2. The Bush device will start charging.
3. You can use the device whilst on charge .
Turning the device on
Press the ON/OFF button for 2-3 seconds.
4. Use only the supplied charger.
When your device is completely discharged, you
need to charge it for at least 10 minutes before
the charging battery icon can be displayed.
5
Page 4
R
SIM2 SIM1TIF
SIM2 SIM1TIF
Inserting SIM & Micro-SD cards
Startup Wizard
The first time you start up your device, the startup wizard will help you set up
your device:
- Language
- Date & time
- WiFi connection
- Location service options
- Third-party applications
We strongly recommend that you open a Google account (you need this to
download new apps) and we recommend that you answer yes to backing up
your tablet to the Google account. This will save your files and settings in
case you need to restore your tablet to factory defaults at any point (details
page 17 and 21).
Make sure to turn o your device before inserting the SIM & memory cards.
Both SIM slots are compatible with the 3G/4G network. You can use any slot to
insert your 3G/4G SIM cards. If SIM1 is used as 3G/4G, SIM2 must then be 2G
only and vice versa.
Opening
Use the notch to remove the back cover.
Do not bend or twist the back cover excessively. Doing so may damage the
cover.
Inserting a SIM card
Insert your SIM card with the gold contacts facing down into the 4G/3G slots.
Slots 1 and 2 will accept 2G or 3G SIMs from the same or dierent networks.
Inserting a Memory card
Insert your memory card (with gold contacts facing down) into the TIF slot.
Closing
Replace the back cover clicking it back into position.
(1)
(2)
6
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 6-7 22-May-15 16:14:55
7
Page 5
4G & WiFi connection
4G connection
To be able to access Internet, the mobile data icon
must be activated.
Activating the mobile data
1. Touch and hold the time & battery icons to reveal
the status bar.
2. Pull the white line down to display the status
dashboard.
3. Touch the mobile data icon to activate it.
When the mobile data is activated, it turns blue.
If your device does not connect to your 4G provider’s
network: Contact your 4G provider to obtain
the connection parameters. On your device, tap
Settings. Select Wireless & networks > More... >
Mobile networks. In Network operators, select your
operator. In Access Point Names, select the correct
access point name and enter the exact connection
parameters.
TIP:
If you encounter connection problem’s, contact your 4G network connection provider.
WiFi connection
WARNING: Make sure that you are in a WiFi zone.
1. Touch and hold the time & battery icons to reveal the
status bar.
2. Pull the white line down to display the status
dashboard.
3. Touch the “Settings” icon to open the settings menu.
4. In the “Wireless&networks”section, if the WiFi is o,
slide the WiFi switch to the “ON” position. Once the WiFi
is on, the device will scan for WiFi networks in range.
5. Touch “WiFi” to display available networks.
6. Touch the name of network you want to connect to.
Private networks are shown with a lock icon and will
require you to enter your password.
TIPS:
- When entering a WiFi password, we recommend that you
select “Show password” so you can see the characters you
are typing. To get the correct WiFi password (or settings) for
the network, contact your WiFi network provider.
- To keep your WiFi connection ON when the device is on
sleep, select the Menu icon
during sleep > Always.
in the “WiFi” page. Then, select Advanced > Keep WiFi on
8
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 8-9 22-May-15 16:14:56
9
Page 6
3
5
2
1
7
4
6
The AndroidTM Interface
AndroidTM apps shortcuts
1
> Opens an application.
Back button
2
> Goes back through the previous actions in an application (in reverse
order) or out of any open application (app) if opening was the last action.
Home button
3
> Takes you to the home screen (where you can pin shortcuts to your
favourite apps).
Recent apps button
4
> Takes you to a screen that shows thumbnail images of the apps you
have open, you can then touch one to reopen it.
All Apps button
5
> Shows all the applications installed on your device.
TM
Google
6
> Touch ‘Google’ for text search or touch the microphone icon for voice
search.
7
The status bar
> Displays notifications (emails, apps updates...). Swipe down to display
quick settings.
Search widget: shortcut for web search
10
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 10-11 22-May-15 16:14:57
11
Page 7
1
2
4 6
7 9
3
5
8
10 1211
13
The AndroidTM Interface
The Quick settings
1
(1)
New multi-user support for tablets
lets different users have their own
separate, customizable spaces on a
single device. Add users in Settings
> Device.
(2)
You can share movies, YouTube
videos, and anything that’s on your
screen on an HDTV. You need to connect a wireless display adapter to any HDMI-enabled TV
to mirror what’s on your screen quickly and easily.
12
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 12-13 22-May-15 16:14:57
Current user
2
Percentage of battery remaining
3
To access all your settings.
4
To turn on/o your WiFi connection.
5
To turn on/o your Bluetooth connection.
6
To activate/deactivate your GPS location
system.
7
To activate/deactivate all wireless connections,
especially when flying.
8
To activate/deactivate the data connection.
9
To see how much data have been used.
10
To set an audio profile.
11
To adjust the screen brightness.
12
To activate/deactivate automatic screen
orientation as you turn your device.
13
To enable wireless display
(1)
(2)
The Recent Apps
Opens a list of thumbnail images of apps you’ve worked with recently:
Touch: to open an app.
Hold down: to display options
Swipe up/down or right/left
(depending on the orientation
of the tablet): to close an app.
13
Page 8
Getting familiar with Android
TM
The extended home screen:
Navigate between dierent home screen panels by
swiping left and right.
Creating application folders:
Drop one app icon over another on a home screen and
the two icons will be combined.
Widgets:
Moving a home screen item:
Touch and hold your finger onto it until the positioning
gridlines appear, then slide it to the desired location, and
release your finger.
Removing a home screen item:
Touch and hold it, slide your nger towards the top of the screen
and drop it over the Remove icon.
Hold your finger on a home screen at an empty
location, then choose from the list: Widgets.
Changing your wallpaper:
Hold your finger on a home screen at an empty
location, then choose from the list: Wallpaper.
Locking the touchscreen:
Uninstalling an item:
From the All apps screens, touch and hold it, slide your
finger towards the top of the screen and drop it over
Uninstall bin.
In Settings, scroll down and touch security. Touch
Screen lock. Touch the type of lock you would like
to use. After you set a lock, a lock screen is displayed
whenever your screen wakes up, requesting the
pattern, PIN or other specified key.
14
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 14-15 22-May-15 16:14:58
15
Page 9
Getting familiar with Android
TM
Downloading new apps:
To download new apps for your tablet touch the Google Play Store icon.
There you will find over 1 million apps including many which are free. Even if
you only use free apps you will still need to create a Google account but you
don’t need to enter your credit card details to do this.
Transfering files to your tablet:
From a computer, use the USB lead provided in the package box.
From a USB device with a standard male USB connection, you will need to
purchase a female USB to micro USB lead in order to connect it (e.g. USB card
reader, USB connection from a camera etc.).
Via e-mail, simply add attachments to e-mail messages and send to your
Google e-mail address. Then open Gmail, open the message and save the file
from e-mail to your tablet memory.
16
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 16-17 22-May-15 16:14:58
Syncing your photos on your tablet and smartphone:
On your tablet:
1. Make sure that you are connected to a WiFi network.
2. Go to ‘Settings’. Under Accounts/Google, touch your Google email
address and verify ‘Google Photos’ are checked to sync.
- If your Google account has not been set up yet, choose ‘Add account’ and
proceed to set up an existing or create a new one.
- At the last set up step, choose ‘Keep this tablet backed up with my Google
account’ and all your data will be backed up.
3. After setting up your account, open ‘Photos’ app.
- Sign into your Google account.
- In the app Settings, turn on ‘Auto Back up’.
On your phone, repeat process.
Your photos will be automatically uploaded to your Google+ private album
online.
17
Page 10
Getting familiar with Android
TM
Improving security on your Bush MyTablet
Online
In order to avoid online threats we recommend that you install antivirus and
security software on your device and keep these and your browser and other
software up to date to take advantage of security fixes.
Physical theft
If you store valuable information on your tablet including passwords and
logins for personal accounts etc. you may want to enhance the security of
your tablet in case it is stolen or lost.
Setting a PIN or password
You can set a pin code (4-8 digit numerical code) or you can set a password
which is 4 to 17 digits. We recommend you set a password, the longer and
more complex it is the harder it is to break. For the best passwords use a
mixture of upper and lower case letters, numbers and special characters such
as %, # and *.
• In ‘Settings’, select ‘Security’, then ‘screen lock’, then select PIN or
Password.
18
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 18-19 22-May-15 16:14:58
Encrypting your memory
In order to prevent more technically capable persons gaining access to your
data, in the event that your tablet is lost or stolen you can encrypt your tablet’s
memory, so that even if the password is breached the data will be unreadable.
Please note encryption will have a modest eect on performance but for most
tasks this will not be noticeable. For memory intensive tasks such as playing
back video files stored in the tablet’s memory it may cause some buering.
In order to encrypt your tablet you must first set a PIN or password as shown
above.
Before you encrypt, you must charge your tablet to at least 80% battery
capacity, then with your tablet still on charge go to;
• ‘Settings’, select ‘Security’, then ‘Encrypt tablet’. The tablet will then ask you
for your password. Type this, then press ‘Encrypt tablet’. The encryption can
take up to 90 minutes. Do not interrupt the process. Failure to follow this
routine exactly may result in your tablet becoming unusable.
19
Page 11
Getting familiar with Android
TM
• Please note that your tablet cannot be decrypted by the same process. To
decrypt you must return the tablet to factory settings which will erase all of
your files and downloaded apps (securely).
• To reset to factory defaults go to ‘Settings’, select ‘Backup and Reset’ then
‘Factory data reset’.
Erasing your personal data
If you sell your tablet on, or discard it you should erase the data in memory,
before you do so, using a file eraser program that actively writes to every
record in the memory. This securely erases your data so that it cannot be
recovered. Please note that simply returning your tablet to factory settings
is not a reliable way of erasing your personal data (unless you have first
encrypted your data).
• To download a le eraser go to Google Play store, select a le eraser
program such as Remo File Eraser – download and install.
• Open the app and follow instructions to securely erase your data.
20
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 20-21 22-May-15 16:14:58
Further Advice
For further advice on how to stay safe there are government lead initiatives
such as Get Safe Online https://www.getsafeonline.org/ which give good
advice about a how to avoid a range of security threats. Don’t let security
issues spoil your enjoyment of your tablet.
Backing up your data (photos, app data, contacts...) with your Google account
1. Make sure that you are connected to a WiFi network.
2. Make sure the files you want to back-up are added to your Google Drive.
3. Go to ‘Settings’. Under Accounts/Google, touch your Google email
address and tick all the data you want to back up, including ‘Drive’. You
can access the data from anywhere you have access to your Google
account.
21
Page 12
Troubleshooting
If your device is frozen:
Press the ON/OFF button for at least 10 seconds or use the hardware reset.
To use the Hardware reset, press the “pinhole reset” button by using a sharp
object such as a toothpick.
This pinhole reset button is located under the back cover, next to the memory
card slot (with the “R” inverted).
SIM2 SIM1TIF
R
If your device doesn’t turn on:
Charge your device then switch on normally.
If this does not work, press the ON/OFF button for at least 10 seconds or use
the hardware reset. To use the Hardware reset, press the “pinhole reset” button
by using a sharp object such as a toothpick.
If you want to extend the life of your battery:
Decrease the screen brightness and turn o the wireless connections if not in
use.
If your device is functioning too slowly:
Close all apps which are not currently being used.
If your WiFi reception is poor:
Make sure you are not far from the WiFi hotspot.
Update the firmware of the device.
Reset and redefine your connection parameters.
Contact your WiFi connection provider.
If you want to restore your product (erase all your settings? forgotten
password?) :
1. Go to ‘Settings’, under ‘Personal’, go to ‘Backup & reset’
2. Choose ‘Factory data reset’, then ‘Reset tablet’: this will erase all your files,
settings and applications, so make sure you have backed-up your data in your
Google account or a hard drive.
3. When you restart your tablet it will open the Startup wizard again, follow
the onscreen instructions (see page 6). The wizard will not download the free
apps that were downloaded the first time you did this but most of these are
available for free from Google Play Store.
4. Access your Google account to retrieve your backed-up data in Google.
My tablet cannot connect to a network or “No service” is displayed
Try connecting in another location. Verify the network coverage with your
operator.
Unable to make outgoing calls
Make sure your phone is connected to a network, and the network is not
overloaded or unavailable.
22
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 22-23 22-May-15 16:14:58
23
Page 13
National restrictions
Unable to receive incoming calls
Make sure your phone is switched on and connected to a network (check for
overloaded or unavailable network).
SIM card PIN locked
Contact your network operator to obtain the PUK code (Personal Unblocking
Key).
The User guide can also be viewed as a pdf file on the device, to open locate
the pdf file in the ‘files’ folder on the device and touch to open.
NOTE: you may need to install a pdf viewer in order to open this file.
Bush Tablets Helpline
For detailed advice on this or any other issue concerning
your Bush tablet you can consult with the technical
support helpline – 0207 744 0346 or go to argos.co.uk/
bush
24
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 24-25 22-May-15 16:14:59
This device is intended for home and oce use in all EU countries (and other countries following the EU
directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and public
France Outdoor use limited
Italy None If used outside of own premises, general authorization is
Luxembourg None General authorization required for network and service
Norway Implemented This subsection does not apply for the geographical aera
Russian Federation None Only for indoor applications
Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.
Argos declares that this device is in compliance
with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
A copy of the declaration of conformity
can be obtained from:
Argos Ltd.
489-499 Avebury Boulevard
Milton Keynes, MK9 2NW, UK
to 10 mW e.i.r.p.
within the band 2454-
2483.5 MHz
service
Military Radiolocation use. Refarming of the 2.4 GHz band
has been ongoing in recent years to allow current relaxed
regulation. Full implementation planned 2012
required.
supply (not for spectrum)
within a radius of 20 km from the centre of Ny-Alesund
25
Page 14
SAR
Due to the used enclosure material, the device shall only be connected to a
USB interface of version 2.0 or higher. The connection to so called power USB
is prohibited.
The adapter shall be installed near the equipment and shall be easily
accessible.
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
The SAR limit of Europe is 2.0 W/kg. Device has also been tested against
this SAR limit. The highest SAR value reported under this standard during
product certification for use at the ear is 1.03 W/Kg and when properly
worn on the body is 0.767 W/Kg. This device was tested for typical bodyworn operations with the back of the handset kept 1.5 cm from the body. To
maintain compliance with RF exposure requirements, use accessories that
maintain a 1.5 cm separation distance between the user’s body and the back
of the handset. The use of belt clips, holsters and similar accessories should
not contain metallic components in its assembly. The use of accessories
that do not satisfy these requirements may not comply with RF exposure
requirements, and should be avoided.
The SAR rate of the Bush 8” LTE tablet is 1.803 W/kg.
26
114045V3 BUSH 8 Android LTE QSG book 21052015.indd 26 22-May-15 16:14:59
Loading...
