Bush DVB-T2 PVR, B500DTR User Manual
248/9502
IMPORTANT - Please read these instructions fully before installing or operating
These instructions contain important information which will help you get the best from
your television and ensure safe and correct installation and operation.
For any help concerning set up and use of your TV please call the
Customer Helpline : 0345 604 0105
Lines open: 9am - 8pm Monday to Saturday and 10am - 4pm Sunday
For any help concerning set up and use for your TV please call the Customer Helpline: 0345 604 0105
- 1 -
Contents
Safety Precautions ................................................. 3
Power Cord ......................................................... 3
Overview of the Remote Control ............................ 5
Connections on the Set Top Box ............................ 6
Inserting Batteries in the Remote Control............... 7
Connecting the Set Top Box to a TV Set ................ 7
Antenna Connection ............................................... 8
Important - Hard Disk Information ........................ 10
First Time Installation.............................................11
Changing Channels ...............................................11
Adjusting the Volume .............................................11
Volume Up / Down .............................................11
Mute ...................................................................11
On-Screen Information ......................................... 12

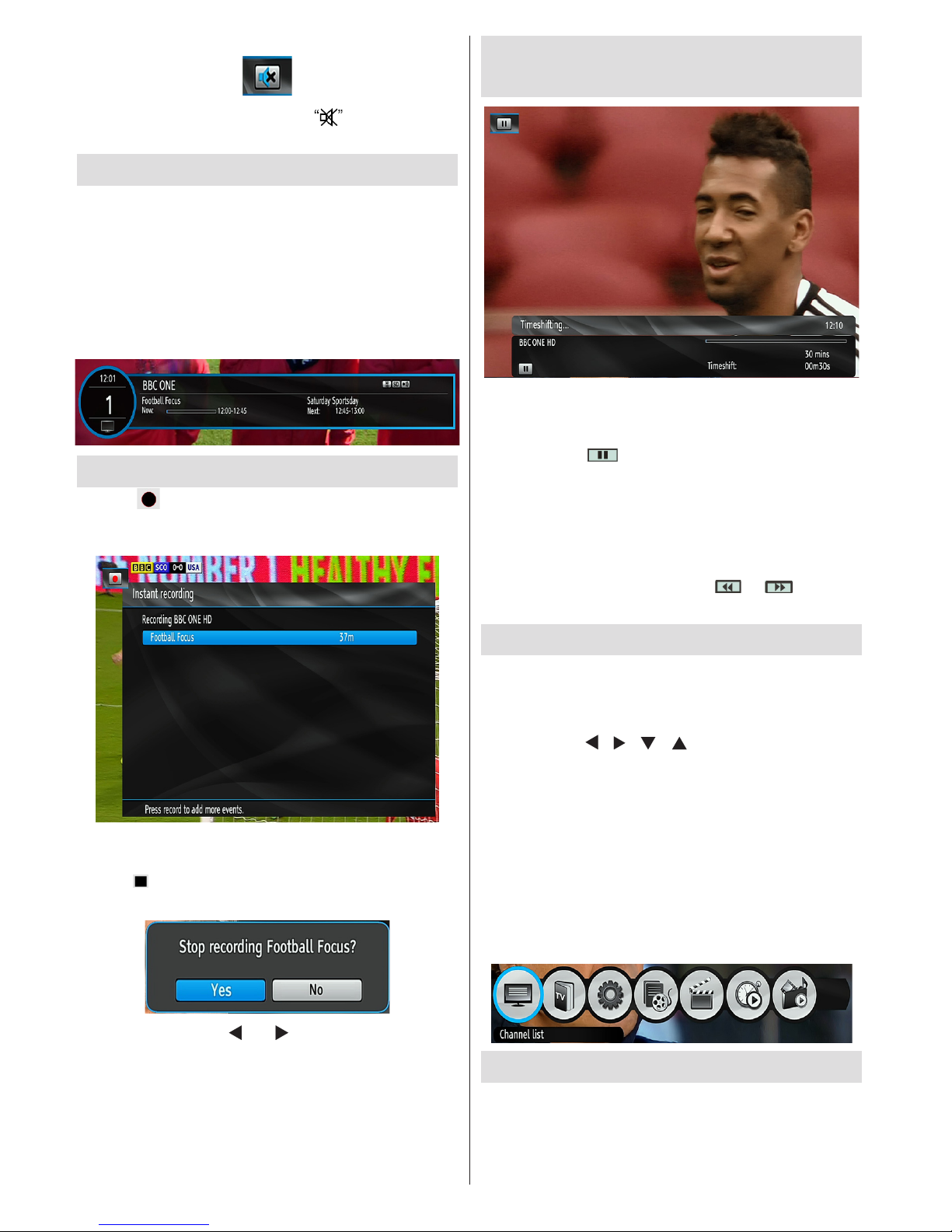

Instant Recording ................................................. 12
Time Shifting (Pause Live Recording) .................. 12
Menu System........................................................ 12
Viewing the Main Menu .................................... 12

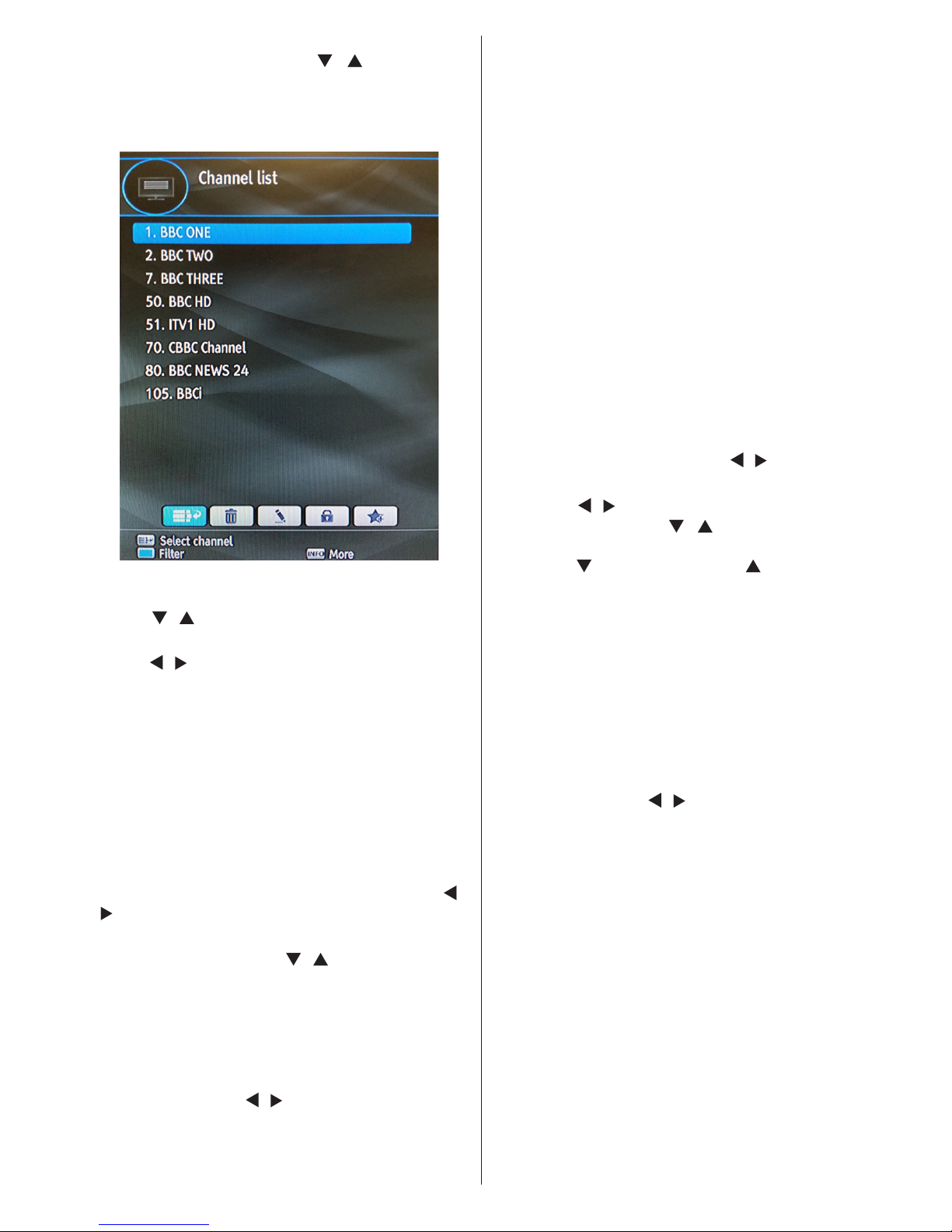

Operating the Channel List ............................... 13
Selecting a Specic Channel ............................ 13
Deleting Channels ........................................... 13
Deleting Multiple Channels: .............................. 13
Adding Locks to Channels ............................... 13
Locking Multiple Channels: ............................... 13

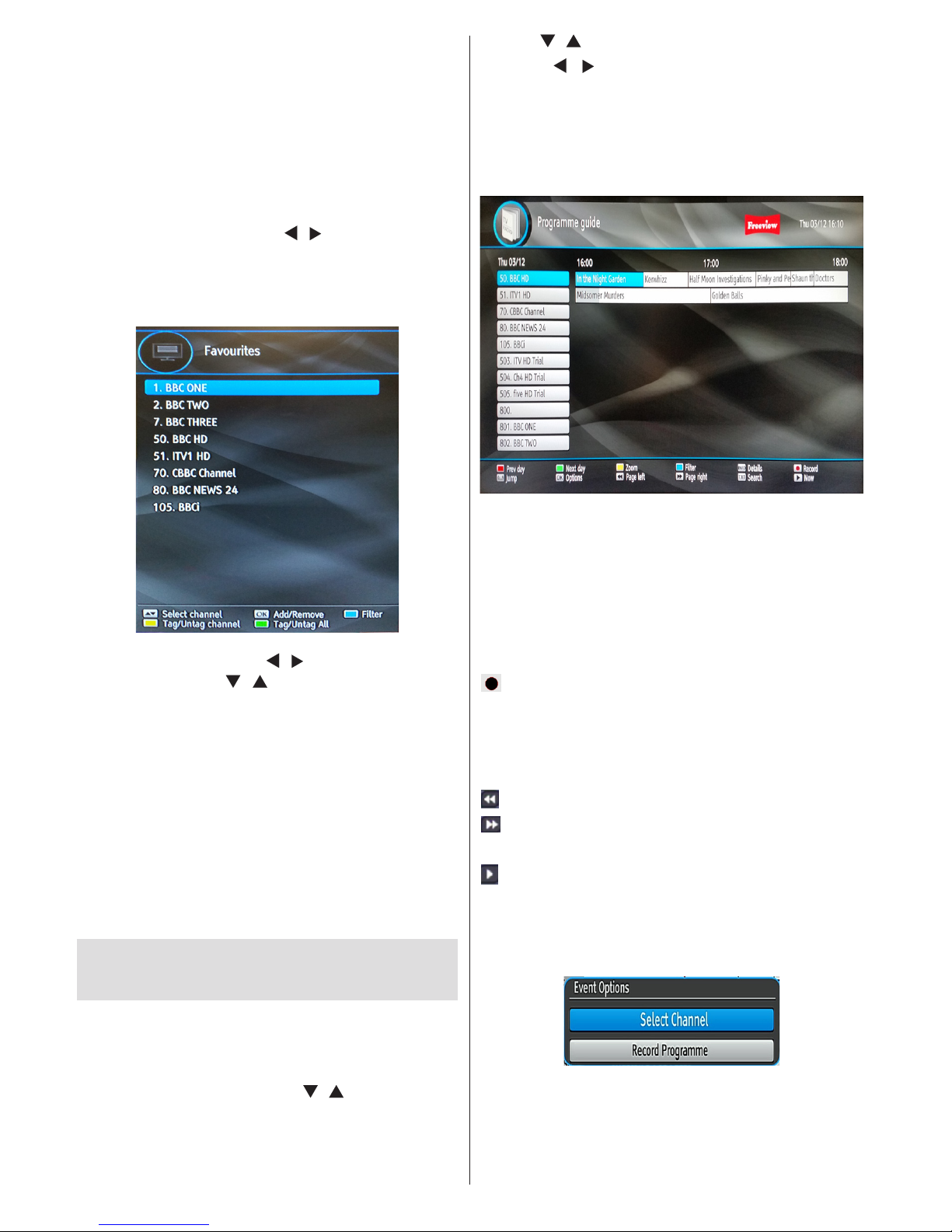

Setting Favourites ............................................ 14
Event Options ................................................... 14

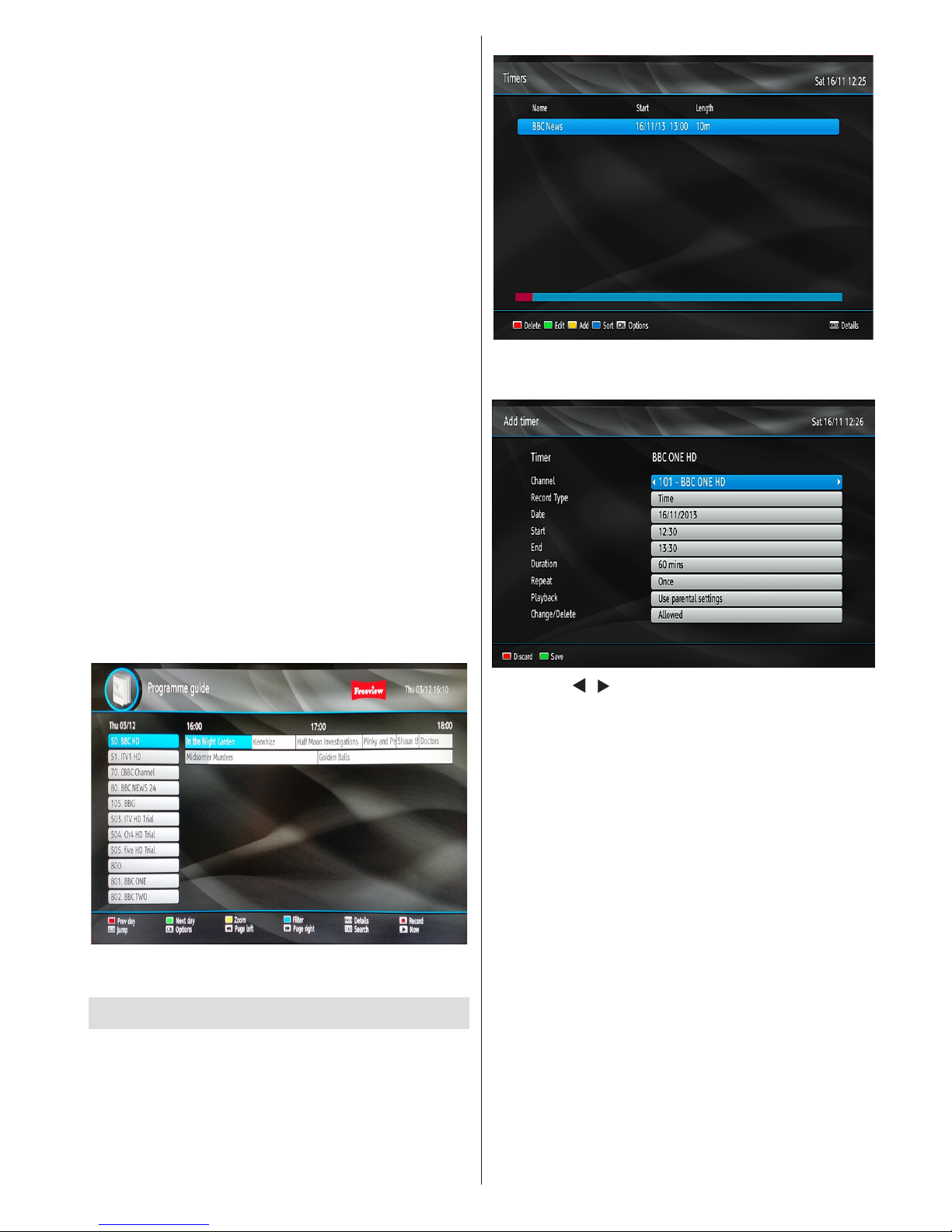

Conguring Timers ............................................... 15

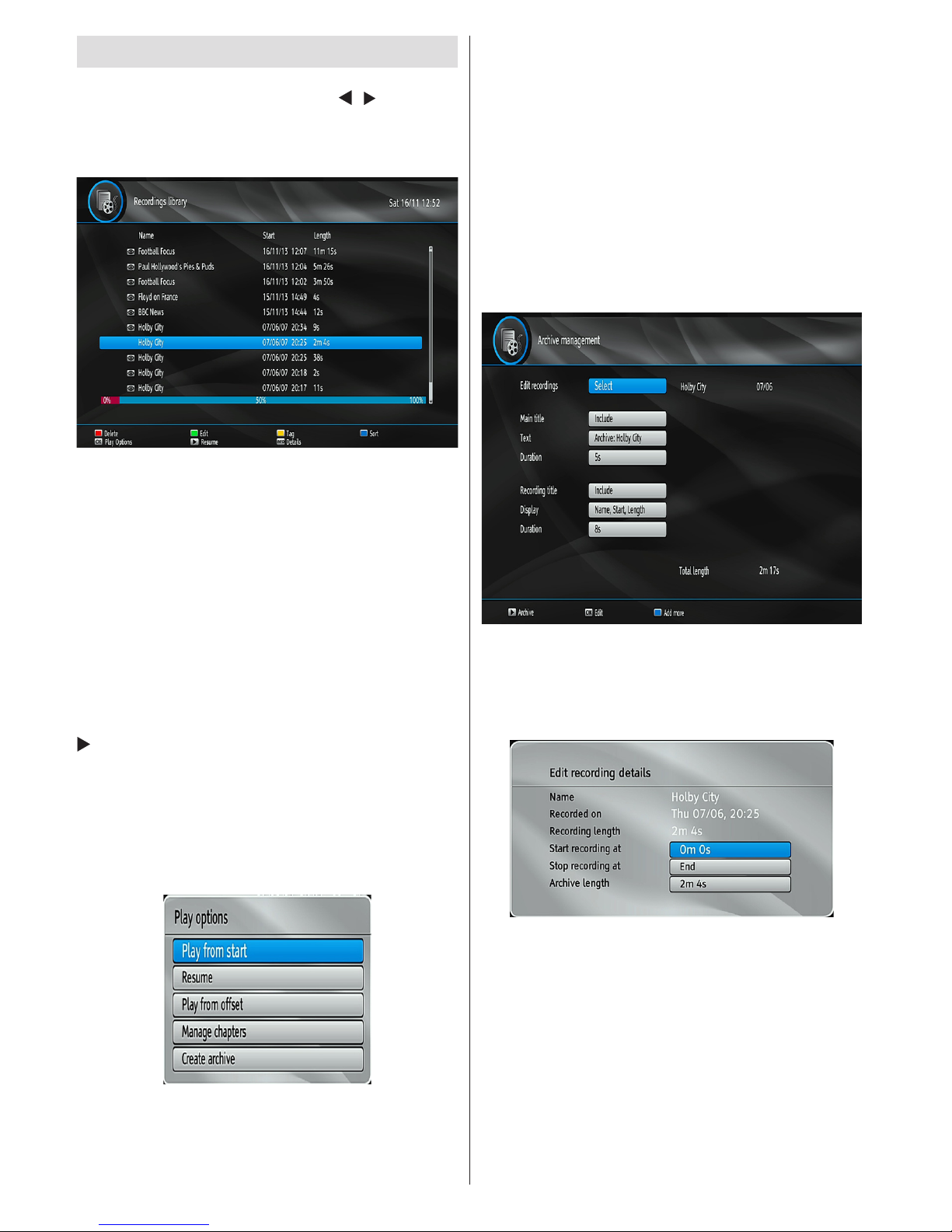

Recordings Library ............................................... 16
Play Options ..................................................... 16

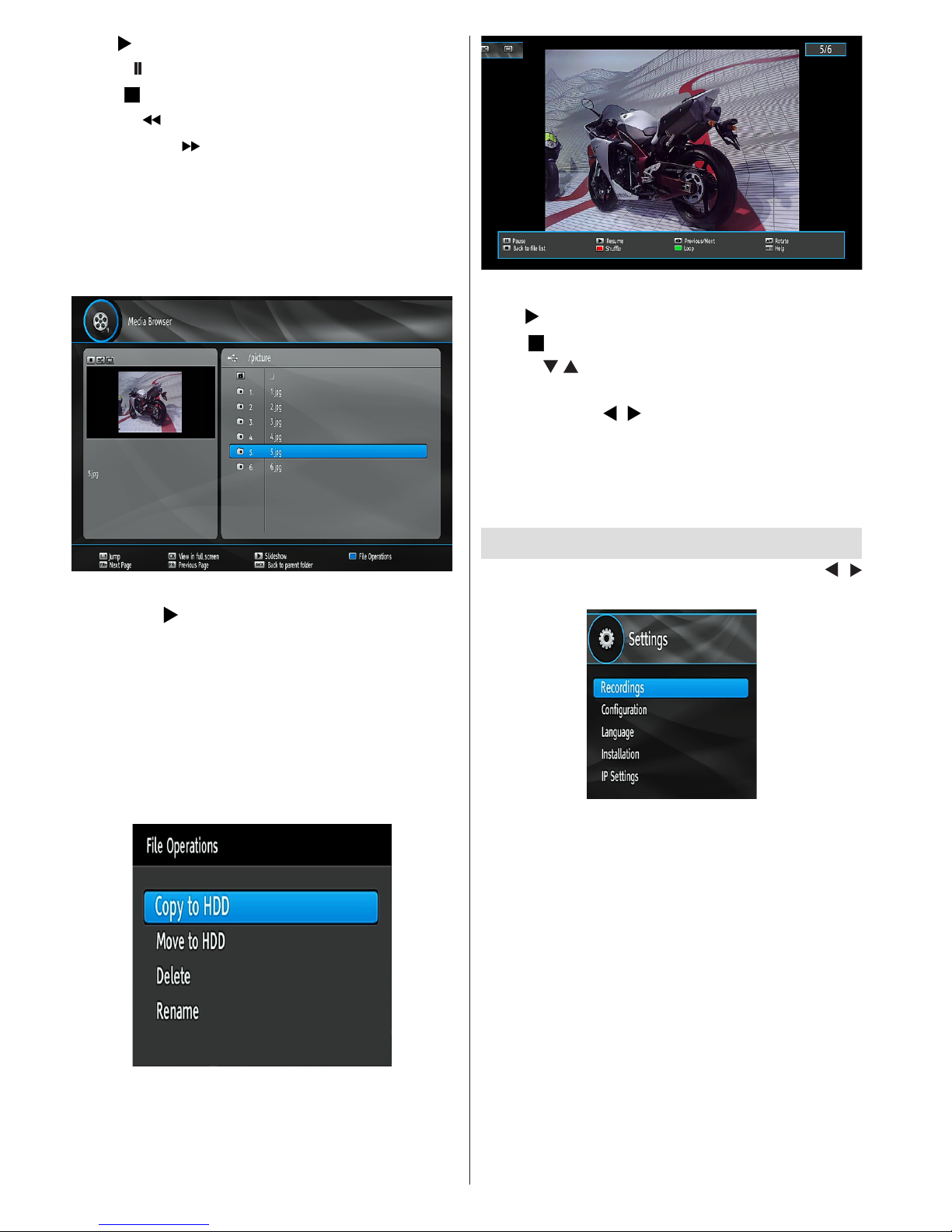

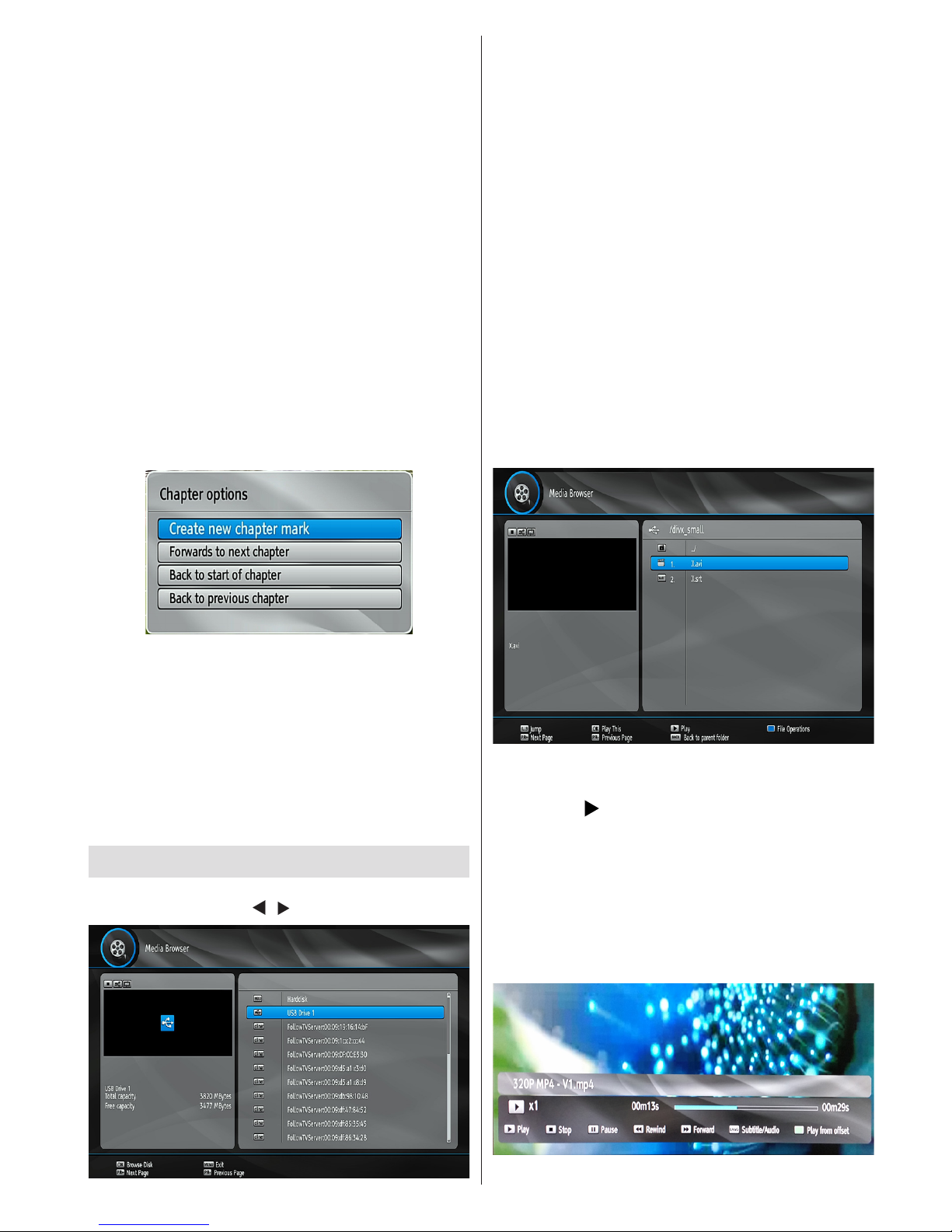

Media Browser...................................................... 17
Viewing USB Disk Contents ............................. 17
Playing Video Files ........................................... 17
INSTALLATION ................................................. 21

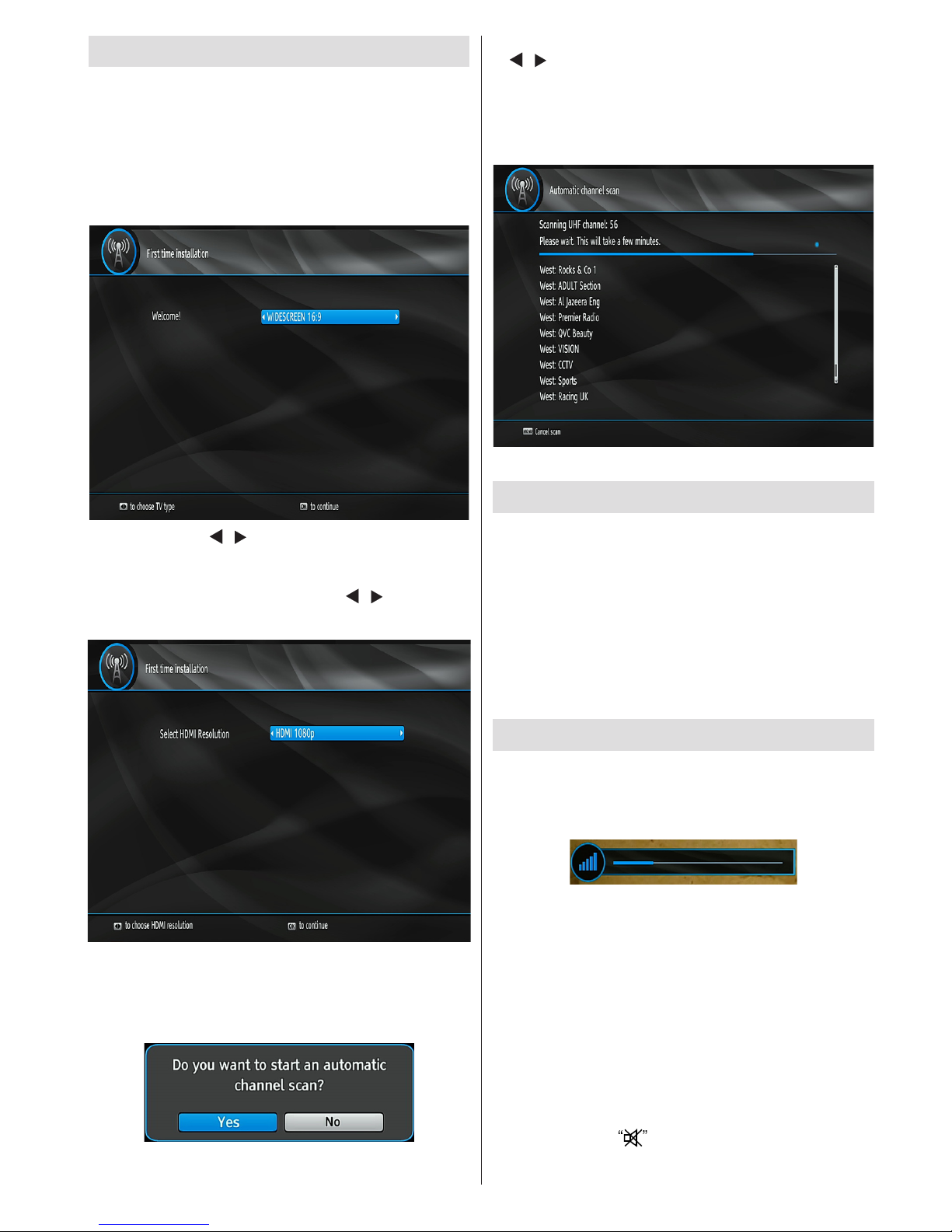

First Time Installation ........................................ 22
IP Settings ........................................................ 22

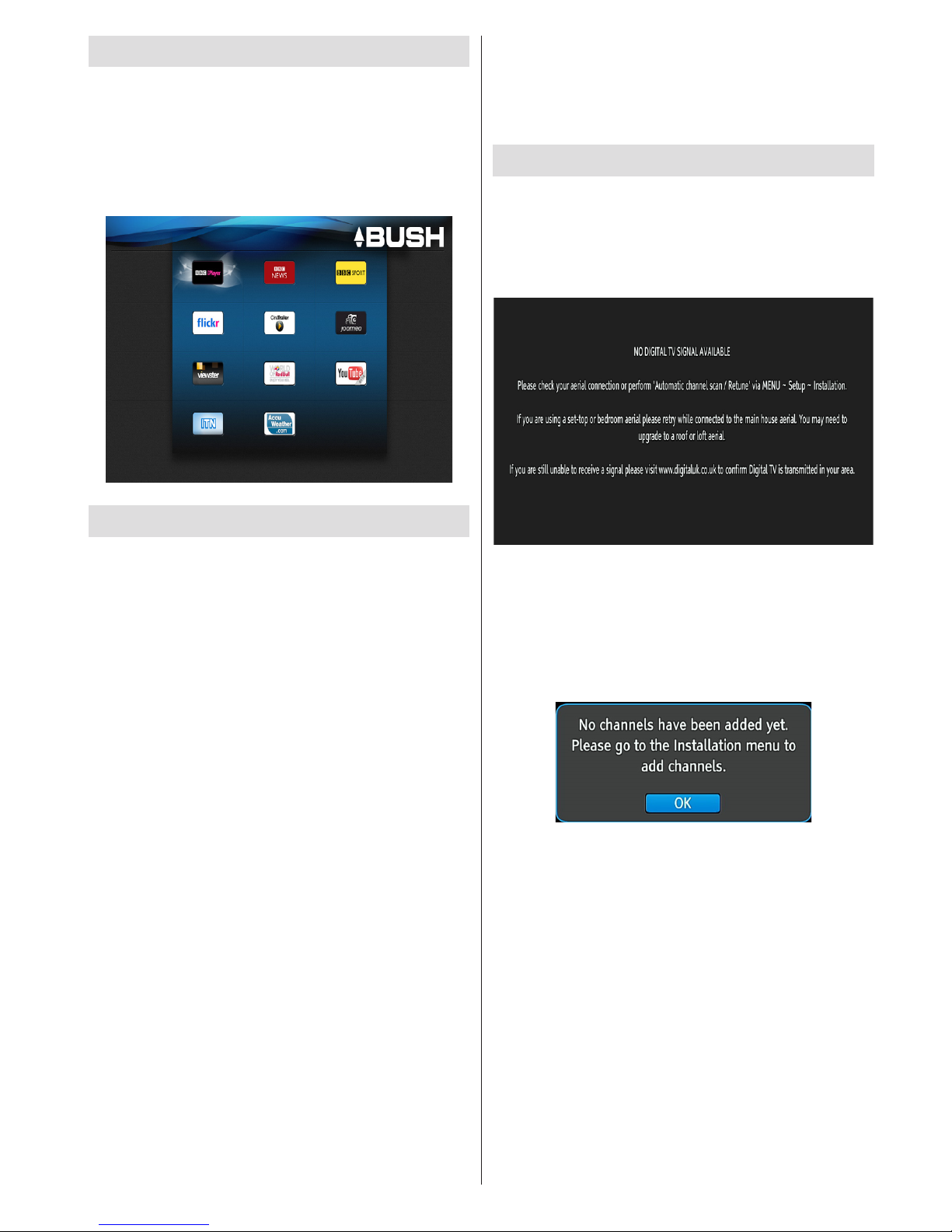

Internet Portal ...................................................... 22
Digital Teletext (** for UK only) ............................. 23
OSD Warning Messages ........................................ 23
No Signal .......................................................... 23
No Channels Have Been Added Yet ................. 23
GENERAL CHARACTERISTICS ......................... 25
Proles.................................................................. 25
- 2 -
Features
• 200 channels
• Programme recording
• 8-Days EPG.
• TV scart (with RGB and CVBS support).
• Favourite list.
• Parental lock options.
• Manual and automatic search options.
• On-Screen-Display.
• Automatic day light saving time updating.
• Decoding & Video Out: PAL.
• Multi-format audio decoder.
• Multi language audio support (up to 10).
• Audio mute and volume control.
• Record programmes using 8 day EPG
• DVB-T2 Compliant
• UHFIV and UHFV; 470-862 MHz, 8MHz bandwith
• Supports 16-QAM, 64-QAM, 256QAM(DVB-T2)
modulations
• VIDEO & OSD :
• Video: MPEG2, PAL, 4:3/16:9
• Time shift – pause live TV.
• Freeview+HD compatible
Introduction
• Thank you for choosing this product. This manual
will guide you through the proper operation of your
set top box.
• Before operating the set top box, please read this
manual thoroughly. Please keep this manual in a safe
place for future reference. Read the corresponding
instructions of this handbook prior to the rst use
of the device, even if you are familiar with using
electronic devices.
• Please keep this instruction book for future reference.
Accessories
Please make sure that the following items are
included with your device.
Remote Control
Batteries
2 X AAA
1 x Quick Start
Guides
Instruction Book
HDMI cable
ADAP
RF Loop Cable
TOR
- 3 -
Safety Precautions
Power Source Power
• Always use the provided AC adaptor.
• Operate only from the power source specied on
the AC adaptor.
• The power adaptor may become hot during normal
operation. This is not a malfunction.
• Please make sure that the adaptor is not covered
while in operation. Leave a space of 15 cm (minimum)
around the AC adaptor.
• The rating information and safety caution of the AC
adaptor are provided on the adaptor.
WARNING: When the set is not in use for a long time,
disconnect from the power.
Power Cord
• Do not place the unit, a piece of furniture, etc., on
the power cord, or pinch the cord. Handle the power
cord by the plug. Do not pull out the plug by tugging
the cord and never touch the power cord when your
hands are wet as this could cause a short circuit or
electric shock. Never make a knot in the cord or tie it
with other cords. The power cords should be routed
in such a way that they are not likely to be stepped
on. A damaged power cord can cause re or give you
an electrical shock. Check the power cord once in a
while. When you nd it damaged, ask closest service
agent for help.
• Please do not place the set in a place subject to
direct sun light, excessive dust or mechanical shock
or in a location near heat sources.
• The device should be placed on a solid and safe
base.
• Do not place the apparatus on a soft surface such
as a rug that might block the ventilation holes on
the bottom.
• The selected location should not have a high
humidity. Condensation, that may arise in a kitchen
for example, may cause a malfunction or damage
the device.
• Heating or other thermal radiation under the set
also may cause malfunction or damage the device.
• The hot air, which arises during operation, should be
ventilated with sufcient air circulation. Please do not
put the device into closed areas and do not cover it.
• Please avoid contact of the device with water or
humidity. Do not put into operation near bath,
swimming pools.
• Take care to provide good air circulation. Place the
device in a location with adequate ventilation to
prevent heat build-up in the device.
• Should any solid object or liquid fall into the cabinet,
unplug the device and have it checked by qualied
personnel before operating it any further.
• The device should not be exposed to dripping or
splashing and no objects lled with liquids, such as
vases, shall be placed on the device.
CAUTION
• Batteries shall not be exposed to excessive heat
such as sunshine, re or the like.
Connection to a Television Distribution System
(Cable TV etc.) from Tuner
Device connected to the protective earthing
of the building installation through the mains
connection or through other apparatus with a
connection to protective earthing-and to a
television distribution system using coaxial cable,
may in some circumstances create a re hazard.
Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency
range (galvanic isolator, see EN 60728-11)
SOME DOS AND DON’TS ON THE SAFE USE
OF EQUIPMENT
- 4 -
This equipment has been designed and
manufactured to meet international safety
standards but, like any electrical equipment,
care must be taken if you are to obtain the
best results and to ensure its safety.
DO read the operating instructions before you attempt
to use the equipment.
DO ensure that all electrical connections (including
the mains plug, extension leads and inter-connections
between the pieces of equipment) are properly
made and in accordance with the manufacturer’s
instructions. Switch off and withdraw the mains plug
before making or changing connections.
DO consult your dealer if you are ever in doubt
about the installation, operation or safety of your
equipment.
DO be careful with glass panels or doors on
equipment.
DO route the mains lead so that it is not likely to be
walked on, crushed, chafed, or subjected to excessive
wear and tear or heat.
DON’T remove any xed cover as this may expose
dangerous voltages.
DON’T obstruct the ventilation openings of the
equipment with items such as newspapers, tablecloths,
curtains, etc. Overheating will cause damage and
shorten the life of the equipment.
DON’T allow electrical equipment to be exposed to
dripping or splashing, or objects lled with liquids, such
as vases, to be placed on the equipment.
DON’T place hot objects or naked ame sources
such as lighted candles or nightlights on, or close to
equipment. High temperatures can melt plastic and
lead to res.
DON’T use makeshift stands and NEVER x legs
with wood screws - to ensure
complete safety always fit the manufacturer’s
approved stand or legs with the xings
provided according to the instructions.
DON’T use equipment such as personal stereos or
radios so that you are distracted from
the requirements of trafc safety. It is illegal to watch
television whilst driving.
DON’T listen to headphones at high volume, as such
use can permanently damage your
hearing.
DON’T leave equipment switched on when it is
unattended unless it is specically stated
that it is designed for unattended operation or has a
stand-by mode.
switch on the equipment and make sure that your
family know how to do this. Special arrangements
may need to be made for inrm or handicapped
people.DON’T continue to operate the equipment if
you are in any doubt about it working normally, or if
it is damaged in any way - switch off, withdraw the
mains plug and consultyour dealer.
ABOVE ALL
--- NEVER let anyone especially children
push anything into holes, slots or any other
opening in the case - this could result in a
fatal electrical shock;
--- NEVER guess or take chances with
electrical equipment of any kind
--- It is better to be safe than sorry!
- 5 -
Overview of the Remote Control
- 6 -
Connections on the Set Top Box
1. USB INPUT: To connect external USB storage devices.
2. OPTICAL AUDIO OUT: You can use this connector to output the digital audio to an external device.
See your audio system instruction book for further information.
3. ANTENNA IN: Aerial input
4. ANTENNA OUT: To watch channels on the TV
5. HDMI IN: HDMI connection
6. LAN: Ethernet Input

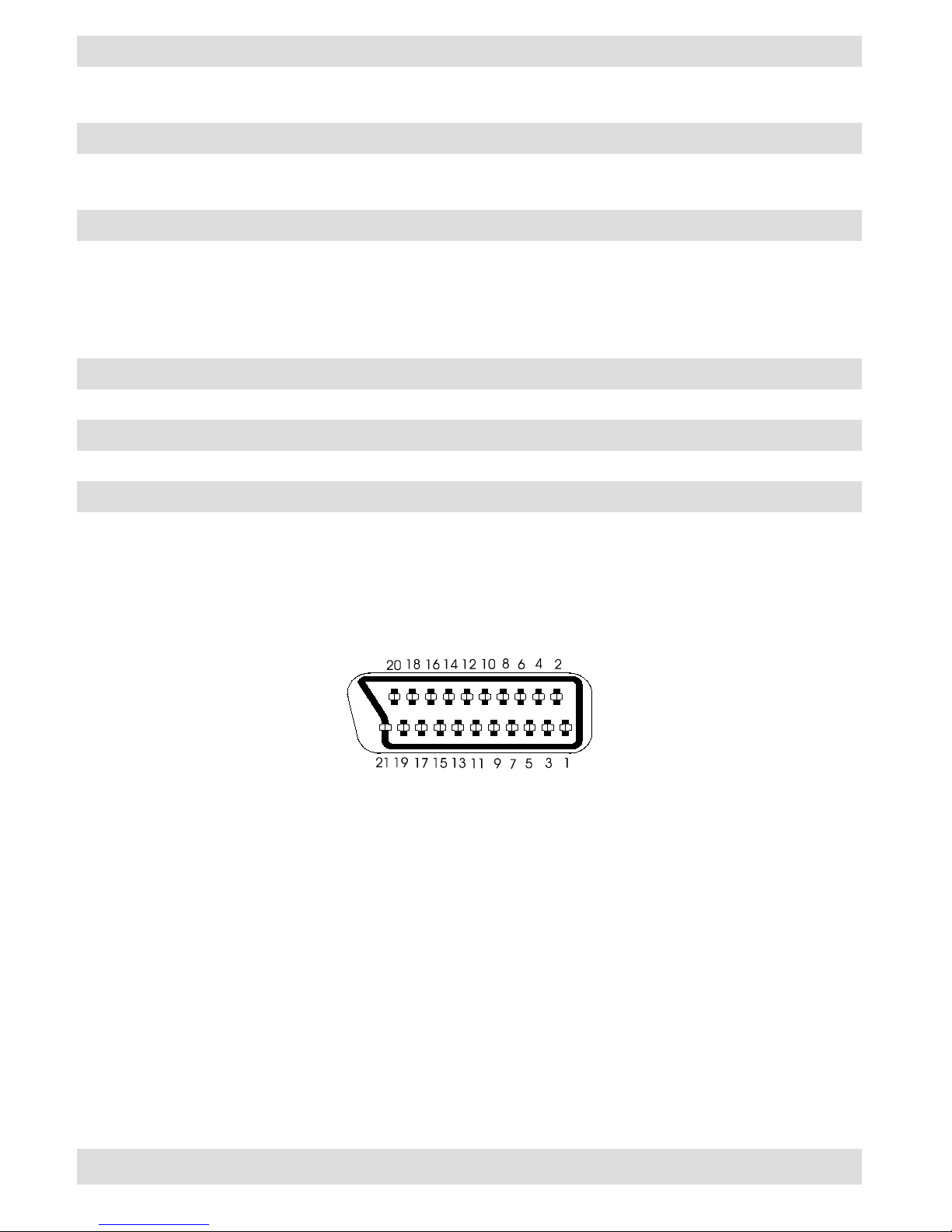

7. SCART OUT: If your TV has a scart connector, you can connect the box to your TV using a scart cable
8. POWER CABLE: DC IN (12V)
Make sure that you connect all cables and connections before you plug the unit into the mains supply. After you
connect the unit to the mains supply, the LED light located on the front panel will be red (Standby mode).
12 V DC
2A
LENS
smoke gray baski rengi: 1u
REVÝZYON NO / REVISION NO
REVÝZYON TARÝHÝ / REVISION DATE
REVÝZYON BÝLGÝSÝ / REVISION INFO
SERÝGRAFÝ BÝLGÝLERÝ / SERIGRAPHY INFO
B500DTR
40054425 LENS DVB535 W/USB WO/SC
FRONT VIEW
BACK VIEW
- 7 -
Inserting Batteries in the Remote Control
• Remove the battery cover located on the back of the remote
control by gently pulling backwards from the indicated part.
• Insert two AAA/R3 (2 X 1.5Volt) or equivalent type batteries
inside. Place the batteries in the correct direction observing the
polarity symbols (+/-) and replace the battery cover.
• While using the remote control, you should direct it towards
the front panel of the receiver. Remote range is approximately
7m/23ft.
• If your receiver no longer responds to the remote control. it is
probable that the batteries are exhausted. If so you can still use
the local buttons of the receiver. You can replace batteries after they are exhausted.
Note : Remove the batteries from the remote control when it is not to be used for a long period.
Otherwise it can be damaged due to batteries leaking.
Connecting the Set Top Box to a TV Set
You can connect the set top box to your TV by using the scart socket or HDMI input. Use a scart or HDMI
cable to connect the set top box to your TV.
The set top box gives RGB or CVBS output from scart or high denition quality from HDMI output.
- 8 -
Power Connection
MPORTANT: The set-top box is designed to operate on 12 V DC. For this, an adaptor is used which
gives 12 V voltage. Connect this adaptor to a system that supplies 220-240V AC,50Hz.
• After unpacking, allow the set-top box to reach the ambient room temperature before you connect the set
to the mains.
Antenna Connection
This illustration shows how to connect an antenna.
• Use ANTENNA IN to connect to an antenna system.
Loading...
