Bush DFTA16HD User Manual
High Definition
Digital Set Top Box
Ϊ͸Ã÷´°
DFTA16HD
INSTRUCTION MANUAL
The Gold Technical Support Line: 1902 215 259
(Charges will apply at $2.95 per minute)
Important Safety Instructions
Please note there are no user serviceable parts in this unit.
Do not remove the cover or back for any reason. Refer all servicing to qualified Bush Service agent.
Do not expose the unit to rain or moisture, to prevent fire or electric shock hazards.
Do not expose the unit to any liquid or water (dripping or splashing) and no objects filled with water, such
as vases, should be placed on the unit.
Keep the product away from direct sunlight and any heat sources such as radiators or stoves.
Do not block any of the ventilation openings. The openings on the unit are provided for ventilation. The
openings should never be blocked by placing your product on a cushion, sofa or other similar surface.
Do not place the product on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in
possible damage or injury.
Only use the AC adapter included with product. Using any other adapter will void your warranty.
Unplug the power from the outlet when the unit is not in use.
Only use attachments/accessories specified provided by the manufacturer.
The symbol indicates that dangerous voltages constituting a risk of electric shock are present within
this unit.
The symbol indicates that there are important operating and maintenance instructions in the literature
accompanying this unit.
This symbol indicates that this product incorporates double insulation between hazardous mains
voltage and user accessible parts.when servicing use only identical replacement parts .
This marking indicates that this product should not be disposed with other household wastes. To
prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of material resources. Contact your retailer where the
product was purchased.
1
Introduction
Thank you for buying this Bush product, which is designed to give you many
years of trouble-free service.
You may already be familiar with using a similar unit, but please take time to
read these instructions. They are designed to familiarise you with the unit s
m any features and to ensure you get the very best from your purchase.
Safety is important
Your safety and the safety of others is important. Please therefore, ensure you
read the Safety Instructions before you operate this unit.
Warranty
In the unlikely event that your product fails to work normally, please call the
below Bush warranty number for support.
Australia
Bush Warranty: 1800 509 394
New Zealand
Bush Warranty: 0800 450 259
2
About the Set Top Box
This Set Top Box Receiver allows you to access Digital TV
Channels and Radio Broadcasts on your TV set. Its digital reception
covers VHF & UHF band. Digital TV eliminates noise and interference
and offers high quality video and audio.
An easy to use on-screen installation guide is provided. In addition,
a fully featured Remote Control is included that offers you access
to every feature with a simple press of a button.
Main Features
Receives All High Definition Digital Free to Air Channels
HDMI Output
Upscaling to 1080i
Easy Menu System
Automatic/Manual Channel Search
Parental Lock Control
EPG (Manufacturers Electronic Program Guide)
Teletext
RF In/Loop Through
Component / Video / Digital Audio via Coaxial Output
Full Function Remote Control
Package Contents
Before installation, please check the items of the package.
The package should contain the following items:
~ Set Top Box x1 pc
~ Remote Control x1 pc
~ AAA Battery for the Remote Control x1 pair
~ Instruction Manual x1 pc
~ Composite RCA Cable x1 pc
3
Table of Contents
Front and Rear Panel .......................................................................................... 5
Remote Control.... ........................................................................................... ..6

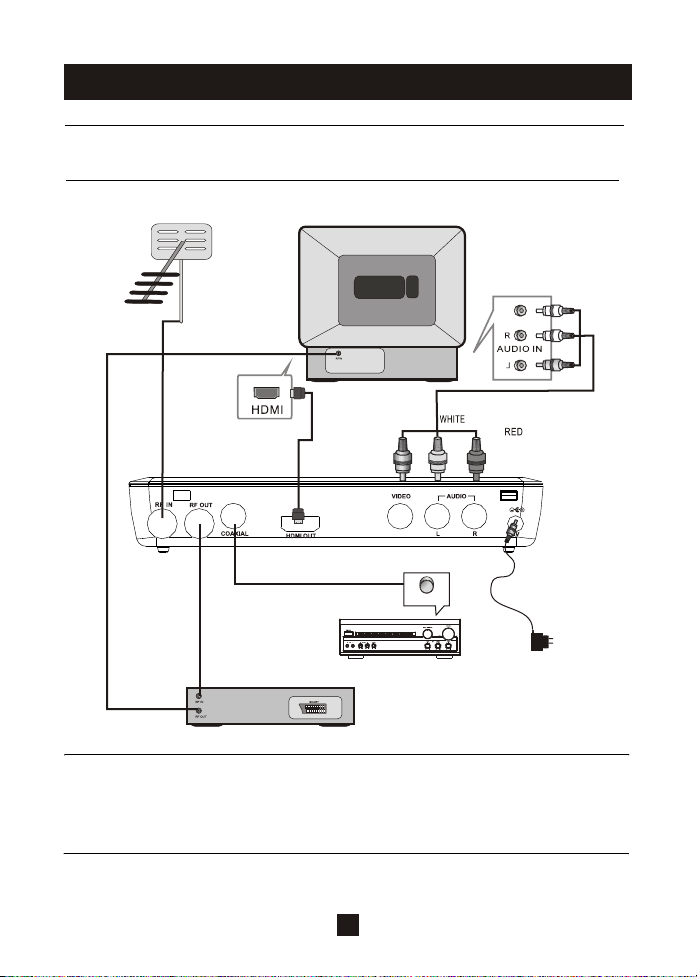

Connections......................................................................................................8
First Time Installation......................................................................................... 9
Troubleshooting................................................................................................16
Technical Specifications....................................................................................17
Warranty.........................................................................................................18
4
Front and Rear Panel
1. Front panel
Ϊ͸Ã÷´°
1
2
3
1. STANDBY INDICATOR: Displays when the unit is in Power mode and Standby mode. The
indicator will show as green when the unit is on and red when in standby.
2. REMOTE CONTROL SENSOR: Receives the signal from your remote control.
3. USB Input: The USB Input allows the unit to receive software upgrades via USB.
2. Rear panel
1 2
4 5 76
3
1. RF IN: This socket allows you to connect your external aerial.
2. RF LOOP THROUGH: This socket allows you to connect to your RF signal via your TV or
other video device.
3. COAXIAL: This socket allows you to connect the Set Top Box to on your surround sound
system.
4. HDMI OUT: This socket allows you to use your HDMI cable for a premium high definition
connection.
5.VIDEO: This socket allows you to connect your Set Top Box via Composite Video Signal.
6.AUDIO L/R: This socket allows you to connect your Set Top Box to receive the Audio L/R
signal.
7. POWER INPUT: This socket is where you connect your main power to the unit.
5
