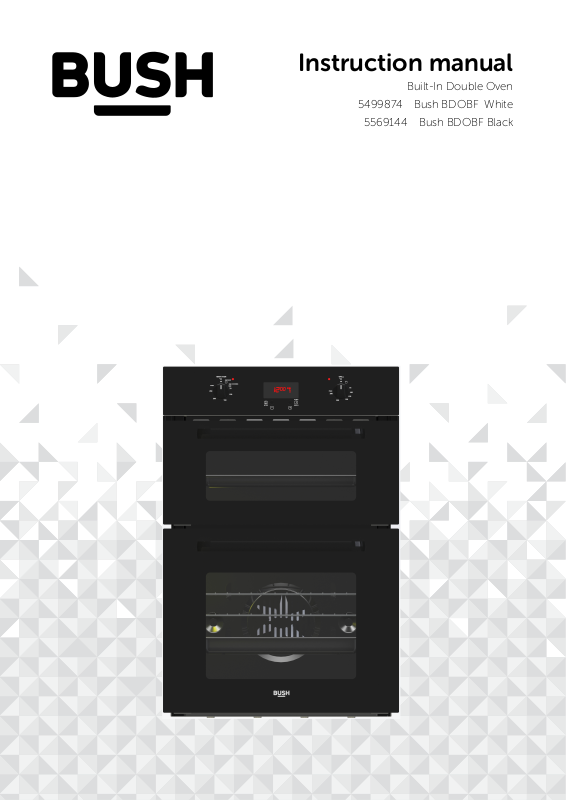

Instruction manual

Built-In Double Oven

5499874 Bush BDOBF White

5569144 Bush BDOBF Black

You’ll soon be enjoying your new Built-In Double Oven

It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started.

Help and Guidance

We’re here to help you get the most from your Built-In Double Oven. Should you require any guidance, a simple solution can often be found online at:

www.argos-support.co.uk

If you still require further assistance, call one of our experts on 01759 487838.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Contents

Safety information

Getting to know your Built-In

Double Oven

Ready? Let’s begin

Accessories

Installing your Built-In Double

Oven

Installation requirements

Unpacking

Connections (electrical)

Using your Built-In Double

Oven

Product support

Troubleshooting

Help and assistance

Declaration of conformance to product standards

Disposal

Guarantee

First use of Built-In Double Oven

Standard and advanced functions/use

Care and Maintenance

Cleaning

Maintenance actions

Technical specifications

or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838

1Safety information

Safety information

Important - Please read these instructions fully before

installing or operating

INSTALLATION WARNINGS

IMPORTANT: This product MUST be installed

by a qualied installer in accordance with local

regulations.

IMPORTANT: This appliance has been designed for non-professional, domestic use only.

IMPORTANT: Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use the appliance and contact Argos Product Support on 01759 487838.

IMPORTANT: The oven is supplied setup

according to the conditions shown on the rating label which is stuck to the rear of the appliance.

IMPORTANT: Keep the electrical cable (not

supplied) of your oven away from the hot areas;

do not let it touch the appliance. Keep the cable

away from sharp edges and heated surfaces.

IMPORTANT: In the event that the cable connecting your oven becomes damaged, it must be replaced by a suitably qualied person.

This cable must not be replaced by an unauthorised person.

IMPORTANT: When using the grill the oven door must be kept closed to prevent damage to the oven knobs and to prevent the burn hazard that

very hot knobs would present.

DURING USAGE

IMPORTANT: Children and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge should not be allowed to use the oven unless supervised and warned of the

hazards involved

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching hot parts.

WARNING: NEVER try to extinguish a cooking re with water. Instead switch o󰀨 the appliance and cover ame e.g. with a lid or a re blanket.

CAUTION: Do not allow children in the kitchen when cooking or while oven parts may still be hot. Many parts of the oven will become hot and present a

considerable hazard to children.

CAUTION: When the oven is hot never touch the oven

glass by hand or with tools.

CAUTION: Before starting to use your appliance,

ensure curtains, paper or ammable items are kept away from your appliance. Do not keep ammable materials inside of or around

your oven.

CAUTION: Take care when closing the oven door that

there is nothing obstructing it from closing as this may break the glass door.

IMPORTANT: When using the grill the oven door must be kept closed.

IMPORTANT: Children and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge should not be allowed to use the oven unless supervised and warned of

the hazards involved

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Safety information

Important - Please read these instructions fully before

installing or operating

IMPORTANT: Make sure the oven is turned o󰀨 when

not in use

IMPORTANT: If you do not intend to use your oven for

a long period of time turn o󰀨 the electric supply to the

oven

GENERAL SAFETY WARNINGS

IMPORTANT: This appliance has been designed for non-professional, domestic use only. Do not use this oven for commercial use or any other application e.g. room heating

WARNING: Danger of re: do not store ammable

items on or near the cooking surfaces or inside the oven.

IMPORTANT: Do not try to lift or move this oven by pulling on the door handle

WARNING: Ensure that the appliance is switched o󰀨

before replacing the lamp to avoid the possibility of electric shock.

IMPORTANT: Your appliance is produced in

accordance with all applicable local and

international standards and regulations.

IMPORTANT: When the door of the oven is open, do not hang or lean anything on it. You may damage the door or door hinges.

IMPORTANT: Do not hang towels, dishcloths or

clothes from the oven handle.

CLEANING AND MAINTENANCE

IMPORTANT: Always turn the appliance o󰀨

before operations such as cleaning or

maintenance. You can do this by switching the oven o󰀨 using oven isolation switch.

TO MAINTAIN THE EFFICIENCY AND SAFETY

OF YOUR APPLIANCE,

WE RECOMMEND YOU ALWAYS USE

OUR AUTHORIZED SERVICE AGENTS AND

ORIGINAL SPARE PARTS.

FOR ASSISTANCE CALL

ARGOS PRODUCT SUPPORT

01759 487838.

IMPORTANT: Maintenance and repair work must only

be performed by authorized service technicians.

Installation and repair work that is carried out by unauthorised technicians is dangerous and could invalidate your guarantee

or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838

Safety information

Getting to know your

Built-In Double Oven

Getting to know your Built-In Double Oven

You’ll be up and running in no time

Ready? Let’s begin...

Please read these instructions carefully. They contain important information which will help you get the best from your Built-In Double Oven and ensure safe and correct installation and operation.

If you require any further assistance, our technical experts are happy to help. For full details, refer to the product support section at the end of these instructions.

Getting to know your Built-In Double Oven

You’ll be up and running in no time

Oven Parts

9-Digital Timer

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Getting to know your Built-In Double Oven

Installing your

Built-In Double Oven

Installing your Built-In Double Oven

Bringing it all together

Installation requirements

THIS OVEN MUST BE INSTALLED BY A SUITABLY

QUALIFIED INSTALLER

This modern oven was manufactured with parts and materials of the highest quality and was designed to meet your cooking needs. You should read this manual so that you are able to use the oven correctly and to avoid any potential problems with using the oven. The following information outlines the required rules for correct installation and service of your oven. This is particularly important for the technician who will install the appliance.

Positioning

The furniture close to the oven must be manufactured resistant to temperatures up to 100°C

Unpacking

Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use the appliance and contact Argos Product Support on 01759 487838.

Packaging materials should be collected together and disposed of immediately as they may be harmful to children.

First Use

IMPORTANT: When using your oven for the ﬁrst time your oven may give o an unusual odour from the heating elements and insulation materials. This is normal for new ovens. To eliminate this odour run the oven at 250 degrees for 40-60 mins with the

oven empty.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Installing your Built-In Double Oven

Bringing it all together

Connections

Electrical

• IMPORTANT: Electrical connections must be carried out by a suitably qualified person and in accordance with all relevant local building and installation regulations.

1. See the rating label at the rear of the product for the appliance’s load rating.

2. The oven must be connected to a dedicated circuit suitably rated for the load of the appliance (see rating label at rear of appliance) it must be connected via a suitably rated cable to a double pole isolator oven switch also suitably rated for the appliance.

3. The electrical cable should not touch the hot parts of the appliance.

The electrical cable (not supplied) should not be routed through any area that may be aected by heat from the oven, especially the area directly

behind the oven.

The Connection diagram can be found on

the rear of the appliance

In the event of a power failure please reset the timer. This oven will not operate until the timer is

properly set

This appliance must be installed by a suitably

qualiﬁed installer

! Failure to do this

will invalidate your warranty

or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838.

Installing your Built-In Double Oven

Using your Built-In Double Oven 4

Using your Built-In Double Oven

Getting the most from your appliance

Main oven

Turn the Main Oven knob clockwise and align the marker on the control knob with the required temperature (°C)

The indicator light on the control panel will go out and the thermostat will turn the element o when the selected temperature has been reached inside the oven. These will come back on once the thermostat falls below the set value.

Fan only defrost

The fan can be used without heat to defrost food (DEFROST)

IMPORTANT! Before using this method of defrosting refer to the food packaging defrosting information

Top oven

Top oven functions

Grill

Grill and

op element

Using the top oven and grill

Select the required function then turn the temperture control knob clockwise and align the marker on the knob with the required temperature.

Always turn the control knob to o (l) when cooking has ﬁnished.

Please note: The appliance incorporates a safety thermostat which cuts the electric supply to the oven if the temperature becomes excessive.

When using your oven for the ﬁrst time your cooker may give o an unusual odour from the heating elements. This is normal for new cookers. To eliminate this odour run the oven at 250 degrees for 40-60 mins with the oven empty.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Using your Built-In Double Oven

The indicator light on the control panel will go out when the selected temperature has been reached inside the oven. When the temperature begins to decrease the oven will come back on and the indicator will come back on

Always turn the control knob to o when cooking has ﬁnished.

Please note: The appliance incorporates a

safety thermostat which cuts the electric

supply to the oven if the temperature

becomes excessive.

Using your Built-In Double Oven

Getting the most from your appliance

Main oven functions

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Using your Built-In Double Oven

Getting the most from your appliance

Using the Timer

TIME OF DAY ADJUSTMENT Press the + and – buttons together. The point between the hours and minutes will start to

ash. Using the + and – buttons, you can adjust the current time of day. Long presses of those buttons will enable fast adjustments.

Pressing the + and – buttons together a long time ,until the hour and point between the hours

and minutes start to ash, will enable you to adjust just the hours portion of the display.

MINUTE MINDER ADJUSTMENT Press the + button. The screen will return to displaying the ‘0.00’ and the bell symbol will start

to ash. You can adjust the minute minder using the + or – buttons. After 6 seconds following the adjustment, the bell symbol will be stabilized. The Minute

minder will start to countdown. The minute minder time increments are in 10 seconds up to 99 minutes 50 seconds,

thereafter the display will show 1 hour and 40 minutes and the adjustment will be in 1 minute

steps.

Note: In order to cancel a minute minder program, set the minute minder time down to 0.00

CANCELLING THE BUZZER SOUND When countdown of the minute minder is completed, the screen will return to displaying the

current time of day. The bell symbol will start to ash, a buzzer alarm is heard and will sound,

if not stopped, for 7 minutes. Press any button to cancel the sound.

BUZZER TONE ADJUSTMENT

You may adjust the buzzer tone of the timer in the following way:

1) Pressing the (-) button, you can hear the currently set tone.

2) Releasing (-) and then pressing again, you can hear the next available ( total 3) tone.

3) The last sound heard will be your adjusted one.

Note: Factory setting is the maximum level ( highest frequency ) A long interrupt of power

may result in reloading this setting.

or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838

Using your Built-In Double Oven

Care and maintenance

Looking after your appliance

Cleaning

WARNING! Isolate the power supply to the oven and

make sure that the oven is cool.

Do not clean using caustic creams, abrasive cleaning powders, thick wire wool or hard tools. Enamelled parts of the oven can be damaged if excess cleaning liquids are not immediately removed.

After cleaning the interior parts of the oven with a soapy cloth, rinse it and then dry thoroughly with a soft cloth. Clean the glass surfaces with special glass cleaning agents. Never use ﬂammable agents like acid, thinner or petrol when cleaning your oven. Do not clean your oven with a steam cleaner. Do not wash any part of your oven in a

dishwasher.

Oven door seal: Please check the oven door seal at regular intervals. If the seal requires cleaning, clean it without using abrasive materials If the door seal is damaged contact your authorised service agent on 01759 487838 Do not use the oven until the door seal has been repaired or replaced

Enamelled Parts: In order to keep them as new, it is necessary to clean them frequently with mild warm soapy water and then dry with a cloth. Do not wash them while hot and never use abrasive powders or abrasive cleaning materials. Do not leave anything spilled onto enamelled parts for long periods of time.

Stainless Steel:

Changing the oven lamp:

1. Turn o and unplug your oven

2. Unscrew the glass lamp cover by turning it anti-clockwise

3. Unscrew the bulb by turning it anti-clockwise

4. Screw in a replacement bulb

5. Replace the glass bulb cover

Bulb Type: 25E screwed

Stainless steel parts must be cleaned frequently with mildly warm soapy water and a soft sponge and then dried with a soft cloth. Do not use abrasive powders or abrasive cleaning materials. Do not leave anything spilled onto stainless steel parts for long periods of time.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Care and maintenance

MJ/cycle

kWh/cycle

(1)

MJ/cycle

kWh/cycle

(1)

MJ/cycle

kWh/cycle

(1)

Looking after your appliance

Technical speciﬁcation

Model Bush BDOBF White

Bush BDOBF Black

Power supply 220-240V~50 Hz Maximum power 5400W

Size (H x W x D) 885 x 556 x 540 Net Weight 45,78 kg Main Oven volume 68 lt Top Oven volume 31 lt Energy rating A

We apologise for any inconvenience caused by minor inconstancies within these instructions that may occur due to product improvements and development

All images and drawing are for illustration purposes only.

Product Fiche compliant to commission delegated regulation (EU) No 65/2014

Product Information compliant to commission regulation (EU) No 66/2014

Symbol Value Unit

Brand BUSH

Model Built-in oven

BDOBF BLACK

Type of oven

Mass of the appliance M 45,78 kg Number of cavities 2 Heat source per cavity (electricity or gas) Electricity Volume per cavity - Main cavity V 68 lt Volume per cavity - Secondary cavity V 31 lt Energy Efficiency Class - Main cavity A Energy Efficiency Class - Secondary cavity A

Energy consumption (electricity) required to heat a standardised load in a cavity of an electric heated oven during a cycle in conventional mode per cavity (electric final energy) - Main cavity 0,86 kWh/cycle

Energy consumption required to heat a standardised load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric final energy) - Main cavity 0,8 kWh/cycle

Energy consumption required to heat a standardised load in a cavity of an electric heated oven during a cycle in fan-forced mode per cavity (electric final energy) - Secondary cavity - -

Energy consumption required to heat a standardised load in a gas-fired cavity of an oven during a cycle in conventional mode per cavity (gas final energy) - Main cavity - Energy consumption required to heat a standardised load in a gas-fired cavity of an oven during a cycle in fan-forced mode per cavity (gas final energy) - Main cavity - Energy consumption required to heat a standardised load in a gas-fired cavity of an oven during a cycle in conventional mode per cavity (gas final energy) - Secondary cavity - Energy consumption required to heat a standardised load in a gas-fired cavity of an oven during a cycle in fan-forced mode per cavity (gas final energy) - Secondary cavity - -

Energy Efficiency Index per cavity-conventional mode - Main cavity 103,1

EC EC

EC EC EC

EEI

BDOBF WHITE

BDOMFF

electric cavit y

gas cavity

cavity

Energy Efficiency Index per cavity-fan forced mode - Main cavity 95,5

Energy Efficiency Index per cavity-conventional mode - Secondary cavity 106,6

Energy Efficiency Index per cavity-fan forced mode - Secondary cavity -

;1kWh/cycle = 3,6 MJ/cycle

or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838

EEI

Care and maintenance

cavity

MJ/cycle

cavity

kWh/cycle

(1)

Product support

Help is always at hand

Troubleshooting

1. If no electrical functions appear to work, check the oven isolation switch has not been turned o󰀨 also check the fuse in the switch

and the circuit breaker in your consumer unit

2. After replacing the fuse or resetting the circuit breaker turn on your oven and check the functions

If oven does not power up

Check that your supply has not tripped

If oven does not heat

Ensure timer is set and an oven function is selected

Temperature incorrect

Please check that the correct temperature has been set

3. DO NOT attempt to repair this oven yourself. Call Argos Product Support or

consult a qualied person

Please check that any fuses have not blown

If oven lamp does not light

Check that your oven is turned on Change the bulb (see page 24)

If oven does not cook evenly

Adjust shelf positions check temperature settings Ensure that you preheat the oven before use

If there is still a problem

Call Argos product support on 01759 487838

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Product support

Help is always at hand

Help and assistance

If you require any technical guidance or find that your Dual Fuel 60cm Oven is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at

www.argos-support.co.uk

If you still require further assistance, call one of our experts on 01759 487838*. To help give us give you a fast and efficient service please have the following information ready:

Model Ref.

Serial number

Date of purchase

Local call rates applies*

You can find these on the rating plate - a small information panel (usually a sticker or metal plate) on the rear of your appliance

This will be shown on your receipt

Lines open 8am-7pm Monday to Saturday and 10am-4pm Sunday.

*Calls to Argos enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tari. Mobile and other providers costs may vary, see www.bt.com/pricing for details.

For Security and training purposes, telephone calls to and from customer service centres maybe recorded and monitored. Calls from Republic of Ireland will attract international call charges.

or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838

Product support

Help is always at hand

Declaration of conformance to product standards

This appliance conforms to all relevant standards applicable to domestic appliances sold in the UK

Disposal

This appliance/tting is marked

according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of

correctly, you will help prevent potential

negative consequences for the environment

and human health, which could otherwise be caused by inappropriate waste handling of

this product.

The symbol on the product, or on the documents accompanying the product, the crossed out wheelie bin symbol, indicates

that this appliance/tting may not be treated as household waste. Instead it shall be

handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance

with local environmental regulations for waste

disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local authority,

your household waste disposal service or the retailer where you purchased the product.

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

Product support

Call us now and activate your 12 month guarantee

Thank you for choosing Bush. Your new product is guaranteed against faults and breakdowns for 12 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates.

www.bushregistration.co.uk

FREEPHONE*

0800 597 8548

Lines are open 8am - 8pm, 365 days a year. *Calls may be recorded and monitored.

Your Bush Guarantee

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will be repaired free of charge (or if applicable the product will be replaced or the purchase price refunded) where possible during this period by the dealer from who your purchased the unit.

The guarantee is subject to the following provisions:

• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs or consumable items.

• The product must be correctly installed and operated in accordance with the instructions contained in the manual.

• It must be used solely for domestic purposes. The guarantee will be rendered invalid if the product is

Important Data Protection Information

If you provide us with information about another person, you confirm that they have appointed you to act for them, to consent to the processing of their personal data including sensitive personal data and that you have informed them of our identity and the purposes (as set out in the Important Data Privacy notice displayed overleaf) for which their personal data will be processed.

You are entitled to ask for a copy of the information we hold about you (for which we may charge a small fee) and to have any inaccuracies in your information corrected.

Guarantor: Argos Limited - 489 - 499 Avebury Blvd. - Milton Keynes - MK9 2NW

re-sold or has been damaged by inexpert repair.

• Specifications are subject to change without notice.

• Bush disclaim any liability for loss or damage arising

from the breakdown of the product.

• This guarantee is in addition to and does not diminish your statutory or legal rights.

For quality control and training purposes, we may monitor or record your communications with us.

If your personal details change, if you change your mind about any of your marketing preferences or if you have any queries about how we use your information, please let us know by contacting our Data Protection Officer, Domestic & General, Leicester House 17 Leicester Street, Bedworth, Warwickshire CV12 8JP.

Contact:

www.argos-support.co.uk

Helpline: 01759 487838

Bush BDOBF Instruction manual

Specifications and Main Features

Frequently Asked Questions

User Manual
