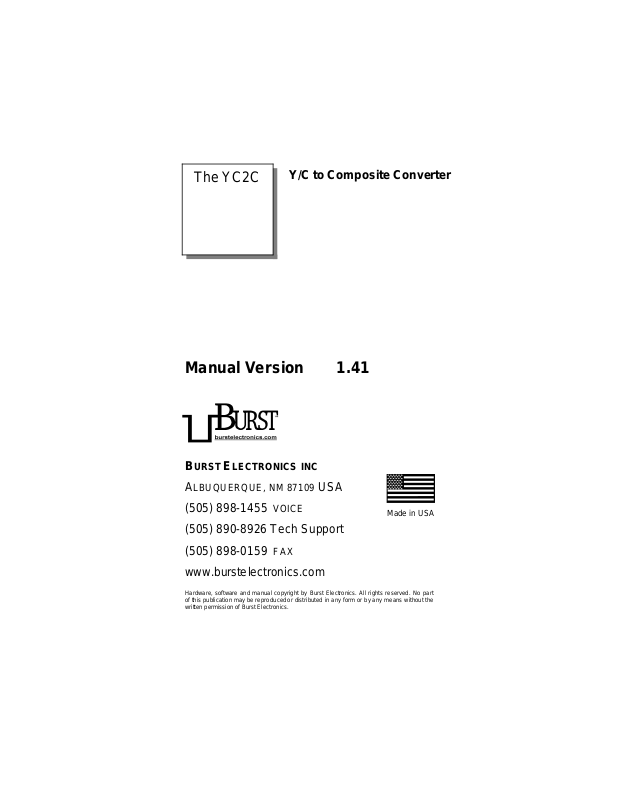

Page 1
The YC2C
Y/C to Composite Converter
Manual Version 1.41
BURST ELECTRONICS INC
ALBUQUERQUE, NM 87109 USA
(505) 898-1455 VOICE
Made in USA
(505) 890-8926 Tech Support
(505) 898-0159 FAX
www.burstelectronics.com
Hardware, software and manual copyright by Burst Electronics. All rights reserved. No part
of this publication may be reproduced or distributed in any form or by any means without the
written permission of Burst Electronics.
Page 2
Y/C to Composite Converter
Introduction
Congratulations on your purchase of the Burst
Electronics Model YC2C Y/C to Composite
Converter. The YC2C converter accepts a Y/C
video signal and converts it to a standard NTSC (or
PAL) composite video signal. Th e Y/C signal is also
referred to as S-Video, S-VHS, or Hi8. All of these
formats are identical. They each contain separate
signals for the luminance and synchronization
information (Y) and the chrominance or color
information ©. These two separate signals are
combined into one video signal, the composite video
signal.
Operation
Connect the Y/C signal into one of the input
connectors. The connector is a standard 4-pin
miniDIN. The composite video signal will appear on
the BNC output. This is a standard 75 Ohm output.
Internal Jumpers
The Y/C input is terminated into 75 Ohms. If you
want to use the Y/C Loop Out and not terminate,
then remove jumpers W1 and W2. These are
accessed by removing the four cover screws.
YC2C Converter 2
Page 3
Specifications
Video Input
Y/C type. Compatible with S-Video, S-VHS, and Hi-8
Connector: 2 4-pin miniD IN
Video Output
Composite 1Vpp @ 75 Ohms
Bandwidth: 10Mhz +/- 1 dB
Connector: BNC
General
Dimensions: 4.4” x 2.4” x 1.25”
Power: 12Vdc @ 75mAdc, polarity insensitive
Wall Module Power Supply Included
YC2C Converter 3
Page 4
Notes
YC2C Converter 4
