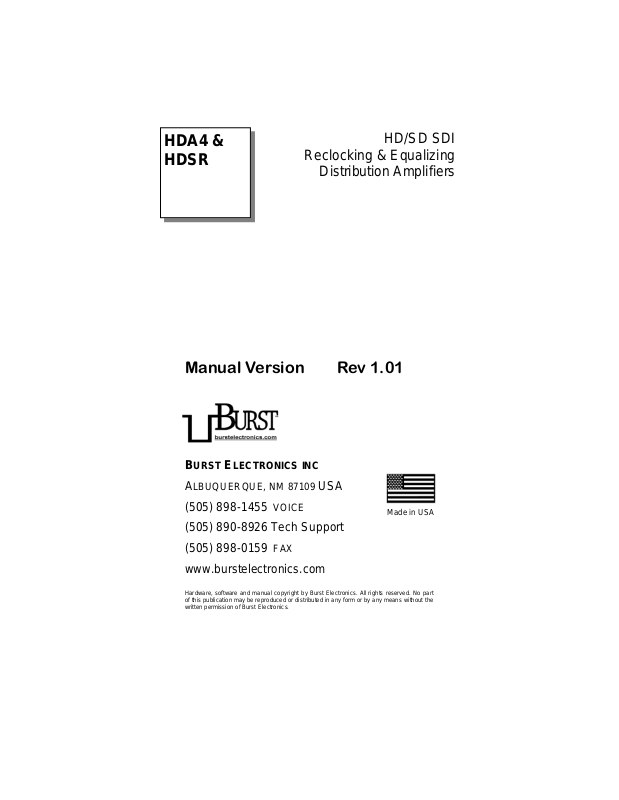

Page 1
HDA4 &
HDSR
Reclocking & Equalizing
Distribution Amplifiers
Manual Version Rev 1.01
HD/SD SDI
BURST ELECTRONICS INC
ALBUQUERQUE, NM 87109 USA
(505) 898-1455 VOICE
Made in USA
(505) 890-8926 Tech Support
(505) 898-0159 FAX
www.burstelectronics.com
Hardware, software and manual copyright by Burst Electronics. All rights reserved. No part
of this publication may be reproduced or distributed in any form or by any means without the
written permission of Burst Electronics.
Page 2
Congratulations on your purchase of the Burst
Electronics model HDA4 or HDSR digital video
distribution amplifier. We hope that this manual will
cover any questions you may
have concerning the
operation of this product.
The HDA4 accepts an SD/
SDI or HD/SDI signal and
distributes the signal to four
outputs. The HDSR is a two
output version designed to
be placed inline with long
cable runs. The unit is
operated from an included
5Vdc power supply.
Introduction
Product Description
The HDA4 and HDSR are HD/SD SDI reclocking
distribution amplifiers capable of driving SDI video
down 300 feet of quality video cable (RG6/U). The
input is equalized. The outputs can be selected to
bypass or reclock the incoming video signal.
Hardware

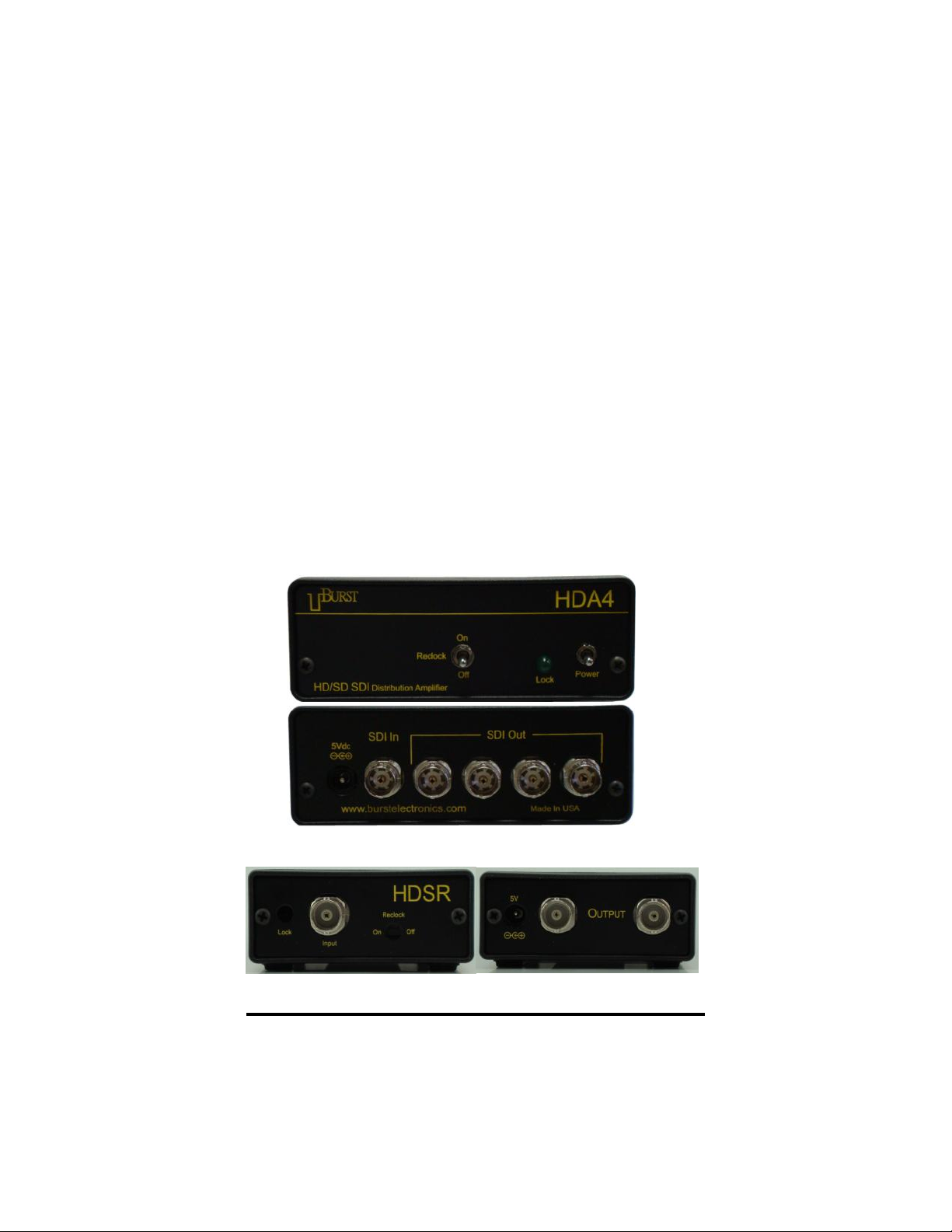

This section of the manual will explain the functions of
the front panel switches and indicators.
Reclock On/Off - When ON, the unit will reclock
the outputs. When OFF, reclocking is bypassed.
HDA4 & HDSR HD/SD SDI Distribution Amplifiers 2
Page 3
Lock – The LED is Green indicating the input video
signal is present. The LED is off when indicating that
incoming digital video is not present.
Power—ON/OFF power switch. Up position turns
power ON, Down position turns power off.
5Vdc – Power connector (see Specifications for
power requirement).
SDI Input – This is the input BNC for SDI video.
SDI Outputs – Four BNCs video output
connections (HDA4) or two BNC video output
connections (HDSR).
HDA4 & HDSR HD/SD SDI Distribution Amplifiers 3
Page 4
Specifications
Supports: SMPTE 292M/259M (NTSC 480i;
PAL 576i; 720p59.94; 1080i50/59.94; 1080p30)
Level: 800mv p-p
Impedance: 75 ohm terminating
Equalization: Automatic up to 100m @ 1.5GHz
using Belden 1694
Output Jitter: 0.2UI (expected)
Inputs Number: 1
Connectors: BNC
Level: 20-800mV p-p
Freq. Range: 143Mbps to 1.5Gbps
Impedance: Hi-Z
Outputs
HDA4: 4 (BNC)
HDSR: 2 (BNC)
Level: 800mV p-p, Unity Gain
Processing: Re-clocked outputs
Freq. Range: 143Mbps to 1.5Gbps
Impedance: 75 ohm
Front Panel Control Functions:
• Switch 1: Power ON/OFF
• Switch 2: Bypass/Reclocked
Indicators:
• Number: 1
• Signal present: LOCK (LED)
Size: 4.2 W x 1.5 H x 5.5 D inches.
Power: 5VDC (included): 120 VAC 60 Hz, 5 Vdc
0.5 A, UL Listed
Environmental:
• Operation temperature: 0C to +40C
• Storage temperature: -40C to +85C
• Relative Humidity: 5% to 95% (non-
condensing)
Warranty: 2-Year Parts and Labor
HDA4 & HDSR HD/SD SDI Distribution Amplifiers 4
