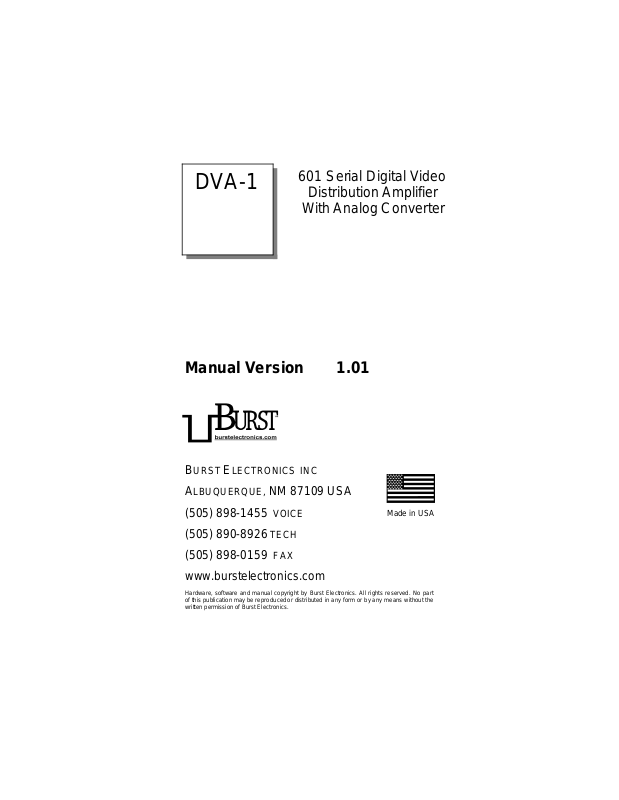

Page 1
DVA-1
601 Serial Digital Video
Distribution Amplifier
With Analog Converter
Manual Version 1.01
BURST ELECTRONICS INC
ALBUQUERQUE, NM 87109 USA
(505) 898-1455 VOICE
Made in USA
(505) 890-8926 TECH
(505) 898-0159 FAX
www.burstelectronics.com
Hardware, software and manual copyright by Burst Electronics. All rights reserved. No part
of this publication may be reproduced or distributed in any form or by any means without the
written permission of Burst Electronics.
Page 2
DVA-1 601 Serial
Digital Video DA
Congratulations on your purchase of
the Burst Electronics Model DVA-1
601 Serial Digital Vide o Distribution
Amplifier.
Introduction
The DVA-1 provides re-clocked
distribution of serial digital (SDI)
signals, NTSC/PAL monitoring of
incoming signals and various
processing of the digital signal.
Features
• 1 input 2 output re-clocked
distribution of SMPTE 259M 601
serial digital (SDI) signal
• Monitoring port converts incoming
SDI to NTSC or PAL for viewing
on NTSC or PAL equipment
DVA-1 601 Serial Digital Re -clocking Distribution Amplifier 2
Page 3
Re-clocking DA
In its basic configuration, the DVA-1
provides 2 re-clocked serial digital
outputs from a single serial digital
input. The DVA-1 will phase lock to
the incoming signal and extract the
clock signal. It then uses a phase
detector to compare the phase of the
PLL clock with that of the incoming
data. The error output of the phase
detector is used to retime the data
signal so that it is correct with
respect to the output clock signal.
NTSC/PAL Monitor Port
The DVA-1 also converts the serial
digital signal into NTSC, or PAL,
standard composite signal. This
signal is available as an output for
viewing on an analog NTSC, or PAL,
monitor.
DVA-1 601 Serial Digital Re -clocking Distribution Amplifier 3
Page 4
Specifications
Power: 5Vdc @ 260mA (center positive)
Size: 5.6W x 1.5H x 7.3D inches
Video: 601 In - 601 Serial Digital
601 Out - 2x 601 Serial Digital
Composite Out - 1Vp-p NTSC/PAL
Accessories: Wall Module Power Supply
120Vac - 5Vdc (center
positive)
DVA-1 601 Serial Digital Re -clocking Distribution Amplifier 4
