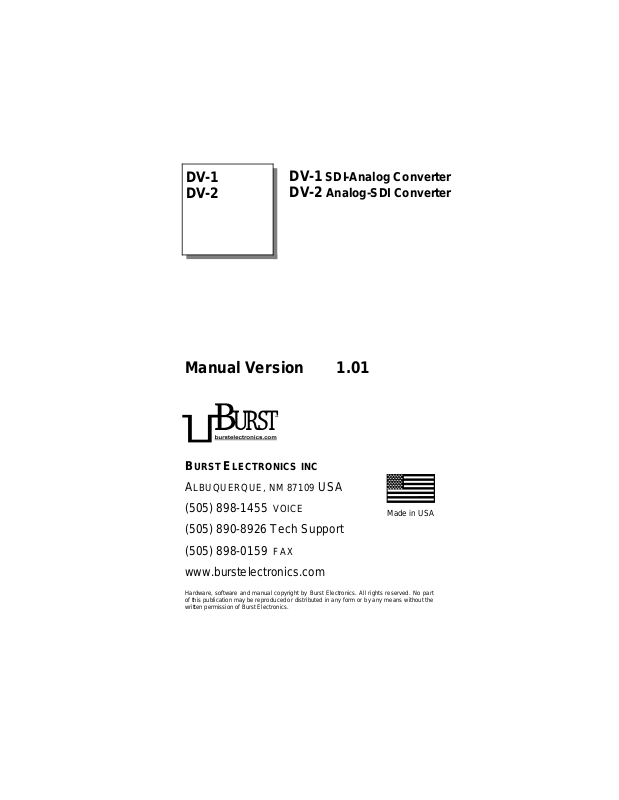

Burst Electronics DV-1 User Manual

DV-1
DV-2

DV-1 SDI-Analog Converter
DV-2 Analog-SDI Converter

Manual Version 1.01

BURST ELECTRONICS INC

ALBUQUERQUE, NM 87109 USA
[phone] VOICE

Made in USA

[phone] Tech Support
[phone] FAX
www.burstelectronics.com

Hardware, software and manual copyright by Burst Electronics. All rights reserved. No part
of this publication may be reproduced or distributed in any form or by any means without the
written permission of Burst Electronics.

DV-1 Serial Digital to Analog Converter
DV-2 Analog to Serial Digital Converter

Congratulations on your purchase from Burst
Electronics Inc. This manual will cover the operation of the
DV-1 Serial Digital to Analog Converter and the DV -2 Analog
to Serial Digital Converter.

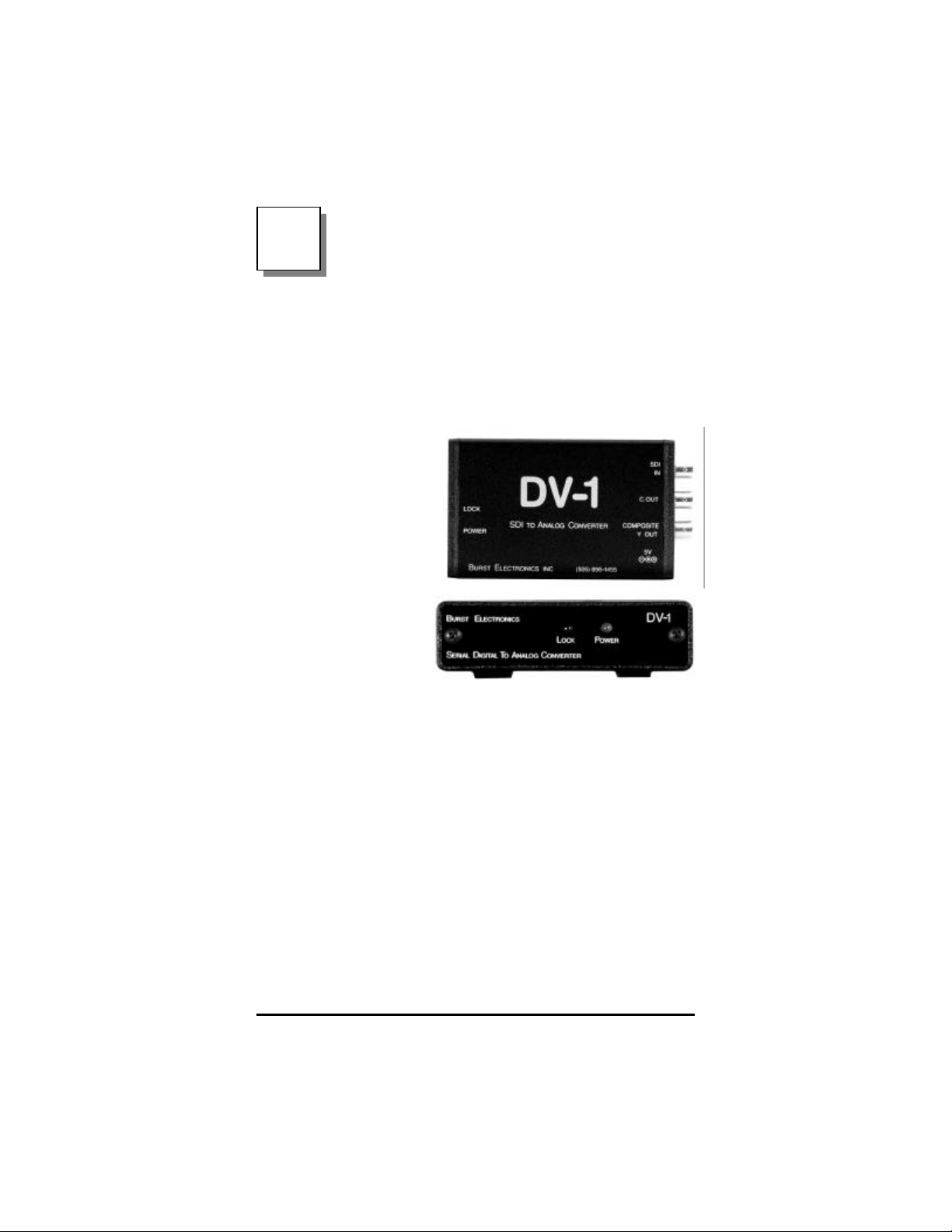

DV-1

The Model DV-1 converts Serial Digital into Analog Video.
Features include
jumper selectable for
either Composite or S­Video Output, as well
as NTSC, PAL-B
(Europe), or PAL-M
(Brazil). The DV -1
provides 4:2:2 270
Mbit SMPTE 259M,
and 10-bit decoding.
The DV-1 can also be
used as a Full Field
Colorbar Generator.

DIP Switch Settings;
Video Standard Settings

#1 Down, #2 Down = NTSC
#1 Up, #2 Down = PAL-B (Europe)
#1 Down, #2 Up = PAL-M (Brazil)

Composite, S-Video, Colorbar Generator Settings
#3 Down = Pedestal On (NTSC Only)
#3 Up = Pedestal Off
#4 Down = Composite
#4 Up = S-Video
#5 Down = SDI - Analog (Normal Mode)
#5 Up = Full Field Colorbars (Serial Digital
input required)

DV-1 SDI - Analog Converter & DV -2 Analog—SDI Converter 2

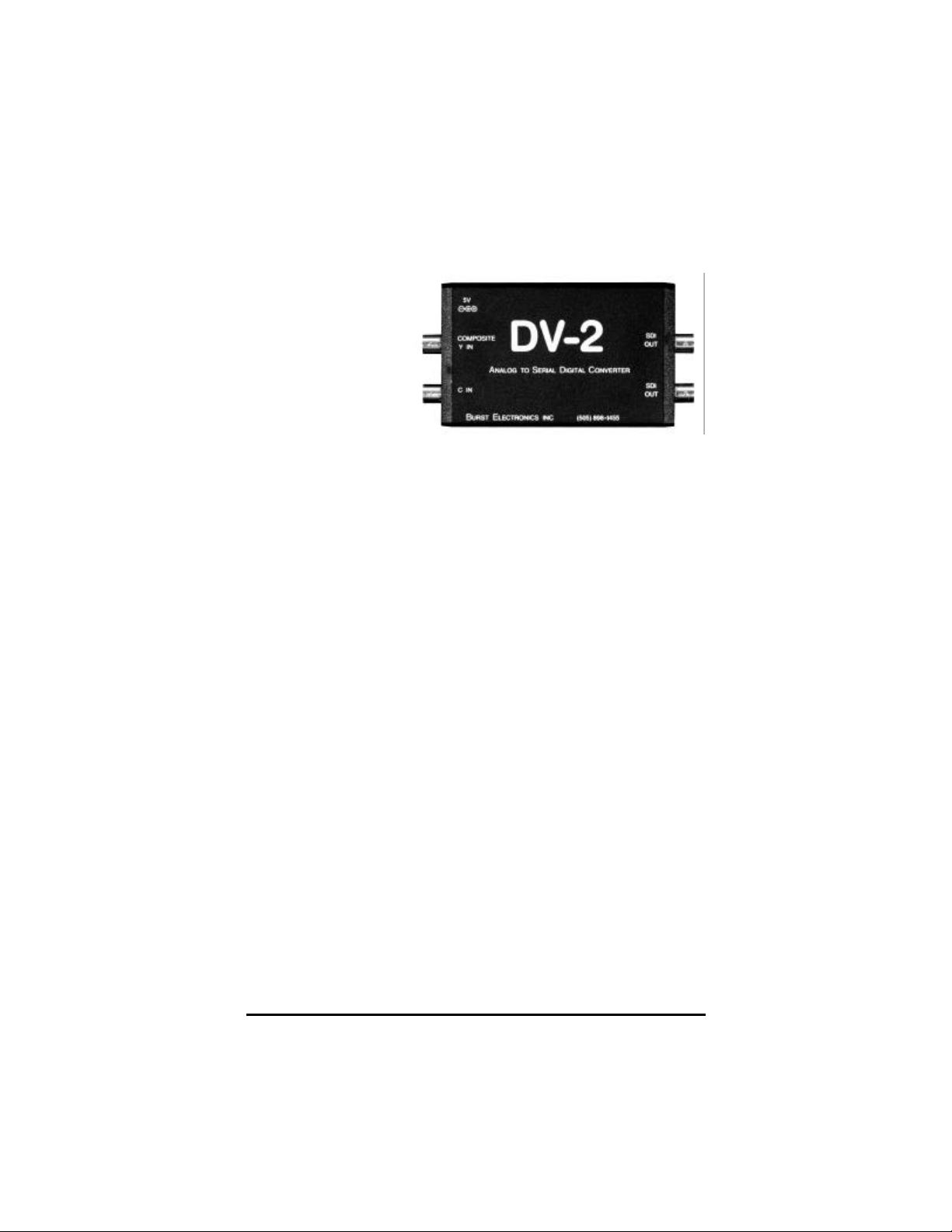

DV-2
The Model DV-2 converts Analog Video into Serial Digital

Video. Features
include jumper
selectable for
Composite or S­Video input, 7.5 IRE
on/off, and Comb
Filter on/off. The
DV-2 will accept
PAL, SECAM, and
NTSC. The SDI
outputs are 4:2:2 270 Mbit SMPTE 259M 270Mhz., 8-bit
encoding.

DIP Switch Settings:
#1 Down = Composite

#1 Up = S-Video
#2 = Not Used
#3 Down = 7.5 IRE Setup On
#3 Up = 7.5 IRE Setup Off
#4 Down = Comb Filter Off
#4 Up = Comb Filter On

Notes Regarding Switches:
DV-2 Switch #3 should be set Off if the analog video coming in

already has 7.5 IRE setup. If this switch is turned on, then the
DV-2 will add another 7.5 IRE to your setup.

DV-1 SDI - Analog Converter & DV -2 Analog—SDI Converter 3

Specifications

DV-1
Input: SDI. NTSC or PAL 4:2:2

270Mbit SMPTE 259M
Outputs: Selectable for Analog
Composite or S-Video

Output: Adjustable –6dB to +3dB
Power: 5V 400mA Max (2 Watts)

DV-2
Input: Selectable for Analog

Composite or S-Video
Outputs: SDI. 4:2:2 270Mbit
SMPTE 259M

Power: 5V 400mA Max (2 Watts)
Video Connectors: BNC
Power: 100 - 240 VAC 50/60Hz

+5Vdc (center positive)
1A Max 5 Watts Max

Dimensions: 2.8W x 0.8H x 4.5D
Warranty: One Year Parts and Labor
