Page 1

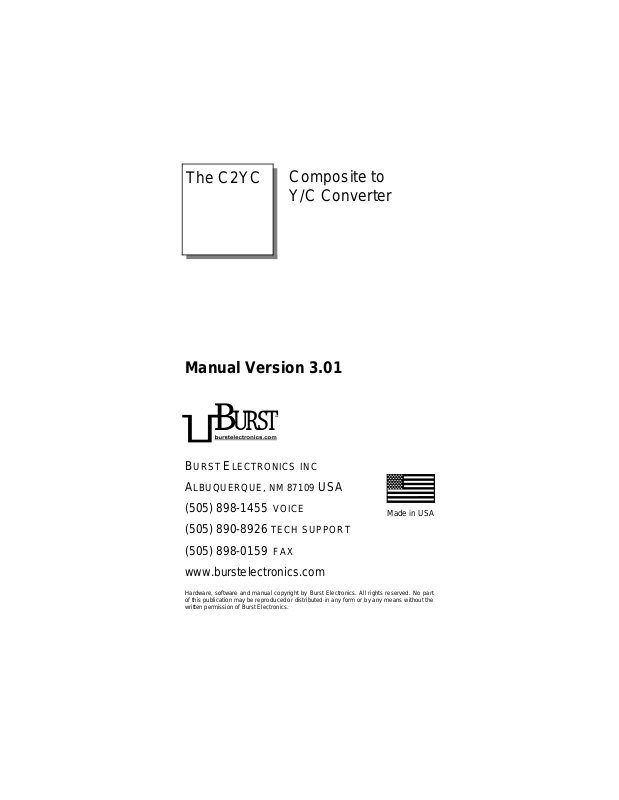

The C2YC
Composite to
Y/C Converter
Manual Version 3.01
BURST ELECTRONICS INC
ALBUQUERQUE, NM 87109 USA
(505) 898-1455 VOICE
Made in USA
(505) 890-8926 TECH SUPPORT
(505) 898-0159 FAX
www.burstelectronics.com
Hardware, software and manual copyright by Burst Electronics. All rights reserved. No part
of this publication may be reproduced or distributed in any form or by any means without the
written permission of Burst Electronics.
Page 2
Composite to
Y/C Converter
Introduction
Congratulations on your purchase of the C2YC
converter from Burst Electronics. Th e C2YC
converter accepts Composite video and splits the
signal into the Luminance “Y” and the Chroma
“C” components.
Operation
Input Composite video to the “Video Input” BNC
connector on the rear panel. The separated “Y”
and “C” video signals are obtained from the “Y/C
Output” connector on the rear panel. The “Y” and
“C” output is 75 Ohms.
Adjusting Y/C Amplitude
The “Y” and “C” component amplitudes can be
individually adjusted using the “Y” and “C” Gain
pots located on the front panel. It is
recommended to use a Waveform Monitor and
Vectorscope, measuring the output levels, during
this procedure. The levels are factor y preset to
unity gain.
Composite to Y/C Converter 2
Page 3
Video Loop-Out
If a 75 Ohm load is connected to the “Loop
Output”, then jumper W2 must be removed from
inside the case of the C2YC, or the resulting
video signal will be double terminated.
Specifications
Input/Output: 1 Volt Standard Video
Input Connector: Composite Video, BNC
Input Impedance: HiZ or 75 Ohms 1%
Bandwidth: 10MHz @ 0.5 dB
Output Impedance: 75 Ohms 1%
Output Connector: 4 pin MiniDIN
Output Protection: Open or Short, infinite
duration
S/N: 60 dB
Size: 4.1W x 1.5H x 5.5D inches
DC Powered: 11-14 Vdc
Wall Module: 120VAC 60Hz, 12Vdc
(included) 500mA, UL Listed
Warranty: One Year Parts and Labor
Composite to Y/C Converter 3
