Burdick ELI 280 User Manual

REF 9515-181-51-ENG Rev G

ELI 280

RESTING ELECTROCARDIOGRAPH

USER MANUAL

Manufactured by Mortara Instrument, Inc., Milwaukee, Wisconsin U.S.A.

CAUTION: Federal law restricts this device to sale by or on the order of a physician.

Copyright © 2018

by Mortara Instrument, Inc.

7865 N. 86th Street

Milwaukee, Wisconsin 53224

For patent information, please visit www.welchallyn.com/patents

This document contains confidential information that belongs to Mortara Instrument, Inc. No part of this document
may be transmitted, reproduced, used, or disclosed outside of the receiving organization without the express written
consent of Mortara Instrument, Inc. Mortara is a registered trademark of Mortara Instrument, Inc. AM12, ELI, E­Scribe, VERITAS, and WAM are trademarks of Mortara Instrument, Inc. DICOM is the registered trademark of the
National Electrical Manufacturers Association for its standards publications relating to digital communications of
medical information. V2.3.0. 2018-06

1

TABLE OF CONTENTS

TECHNICAL SUPPORT AND SERVICE ............................................................................................................................. 4

HEADQUARTERS.................................................................................................................................................................. 4

EUROPEAN UNION REPRESENTATIVE ....................................................................................................................................... 4

SERVICE/TECHNICAL SUPPORT GROUP .................................................................................................................................... 4

SALES SUPPORT/ ................................................................................................................................................................. 4

WARRANTY INFORMATION ......................................................................................................................................... 6

YOUR MORTARA WARRANTY ................................................................................................................................................ 6

USER SAFETY INFORMATION ....................................................................................................................................... 8

WARNING(S) ............................................................................................................................................................ 8

CAUTION(S)............................................................................................................................................................ 11

NOTE(S) .......................................................................................................................................................................... 11

WIRELESS DATA TRANSMISSION .......................................................................................................................................... 13

WLAN OPTION ................................................................................................................................................................ 13

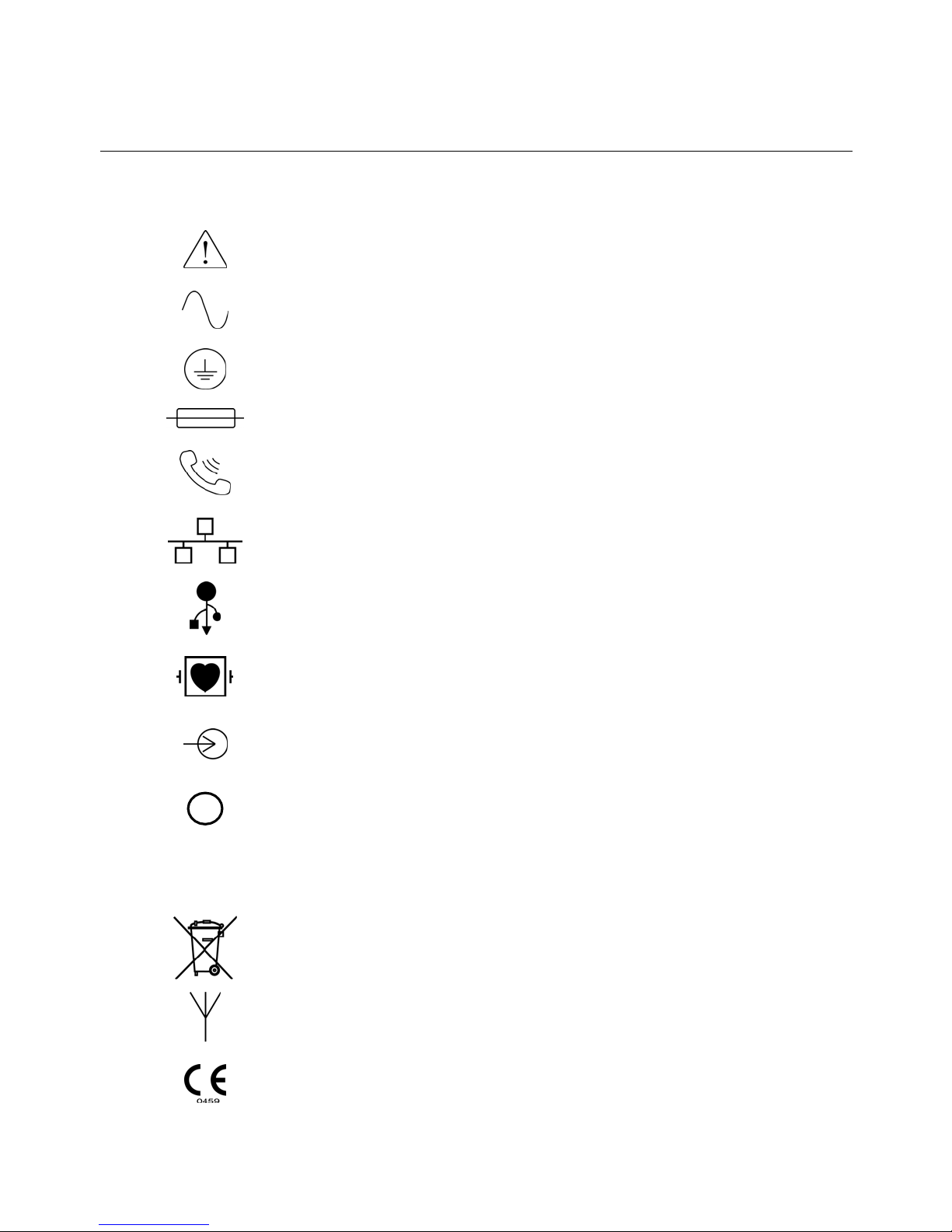

SYMBOL DELINEATION ....................................................................................................................................................... 14

PRECAUTIONS .................................................................................................................................................................. 16

INSPECTION ..................................................................................................................................................................... 16

CLEANING AND DISINFECTING .............................................................................................................................................. 16

GUIDANCE AND MANUFACTURER’S DECLARATION: ELECTROMAGNETIC EMISSIONS ....................................................................... 18

GUIDANCE AND MANUFACTURER’S DECLARATION: ELECTROMAGNETIC IMMUNITY ........................................................................ 18

GUIDANCE AND MANUFACTURER’S DECLARATION: ELECTROMAGNETIC IMMUNITY ........................................................................ 19

RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE EQUIPMENT . 20

INTRODUCTION ......................................................................................................................................................... 21

MANUAL PURPOSE ............................................................................................................................................................ 21

AUDIENCE ....................................................................................................................................................................... 21

INDICATIONS FOR USE ........................................................................................................................................................ 21

SYSTEM DESCRIPTION ........................................................................................................................................................ 22

SYSTEM ILLUSTRATION ....................................................................................................................................................... 23

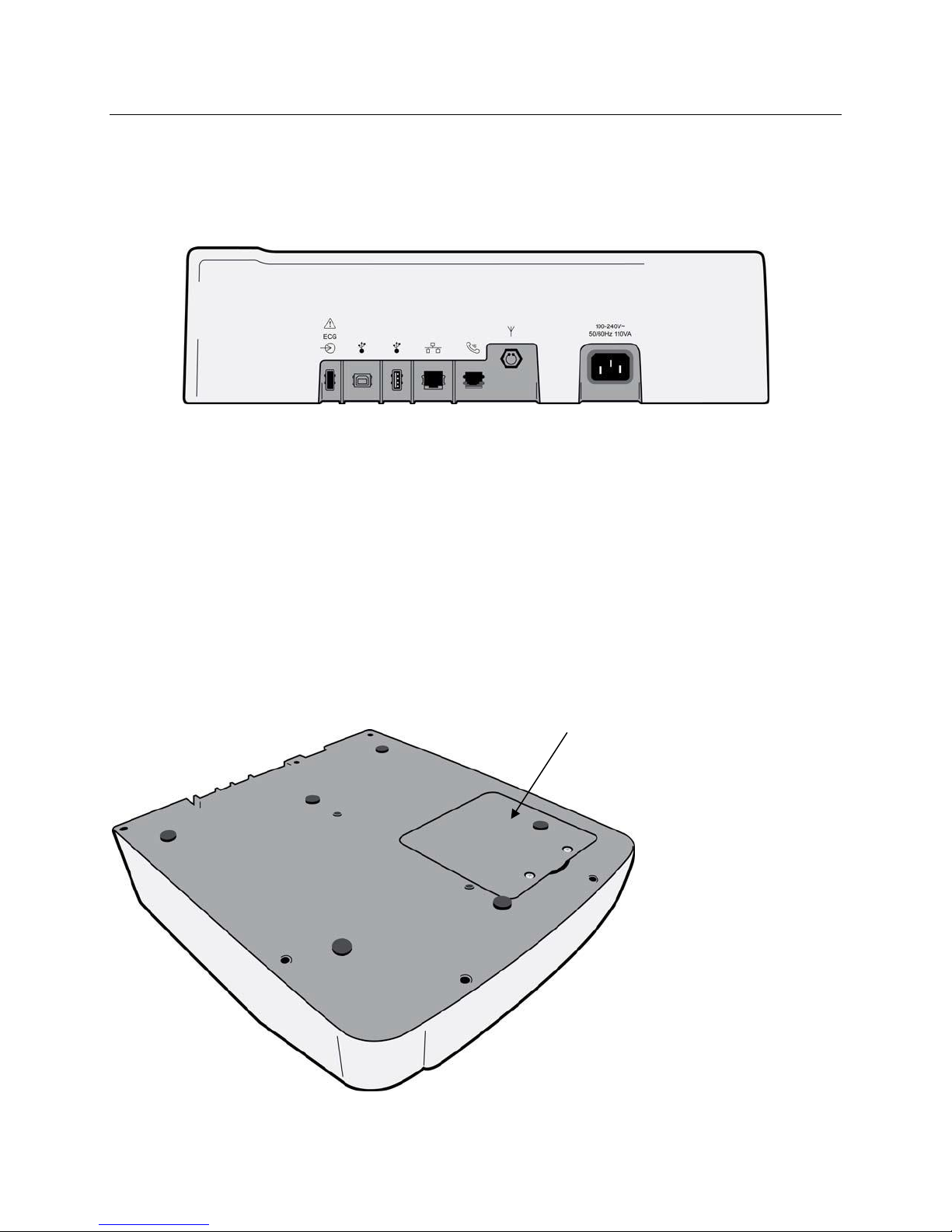

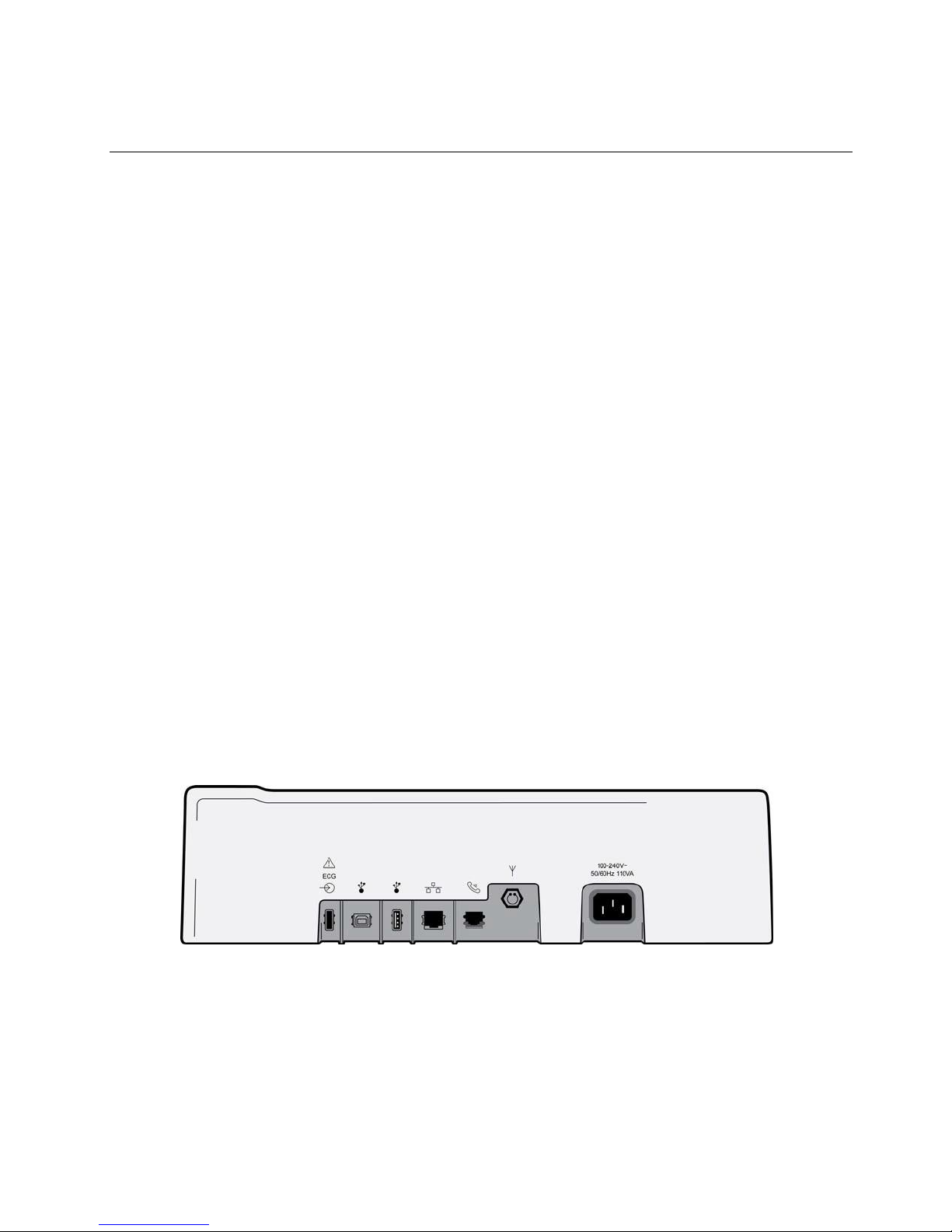

REAR VIEW ...................................................................................................................................................................... 24

BASE VIEW ...................................................................................................................................................................... 24

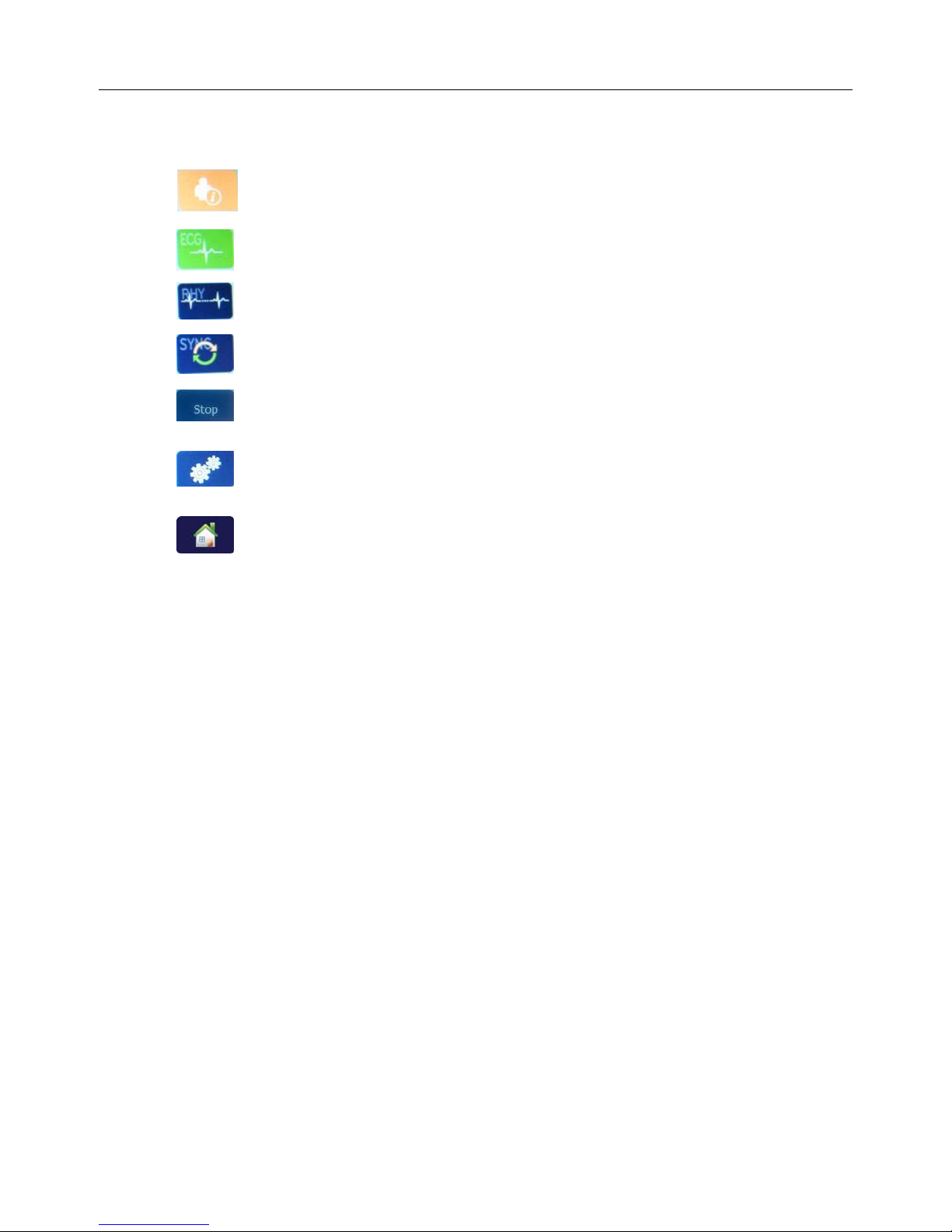

DISPLAY OVERVIEW ........................................................................................................................................................... 25

DISPLAY PARAMETERS ........................................................................................................................................................ 25

SPECIFICATIONS ................................................................................................................................................................ 28

ACCESSORIES .................................................................................................................................................................... 29

EQUIPMENT PREPARATION ....................................................................................................................................... 31

INITIAL STARTUP ............................................................................................................................................................... 31

CALIBRATING THE TOUCHSCREEN DISPLAY.............................................................................................................................. 31

CONNECTING THE ACQUISITION MODULE .............................................................................................................................. 31

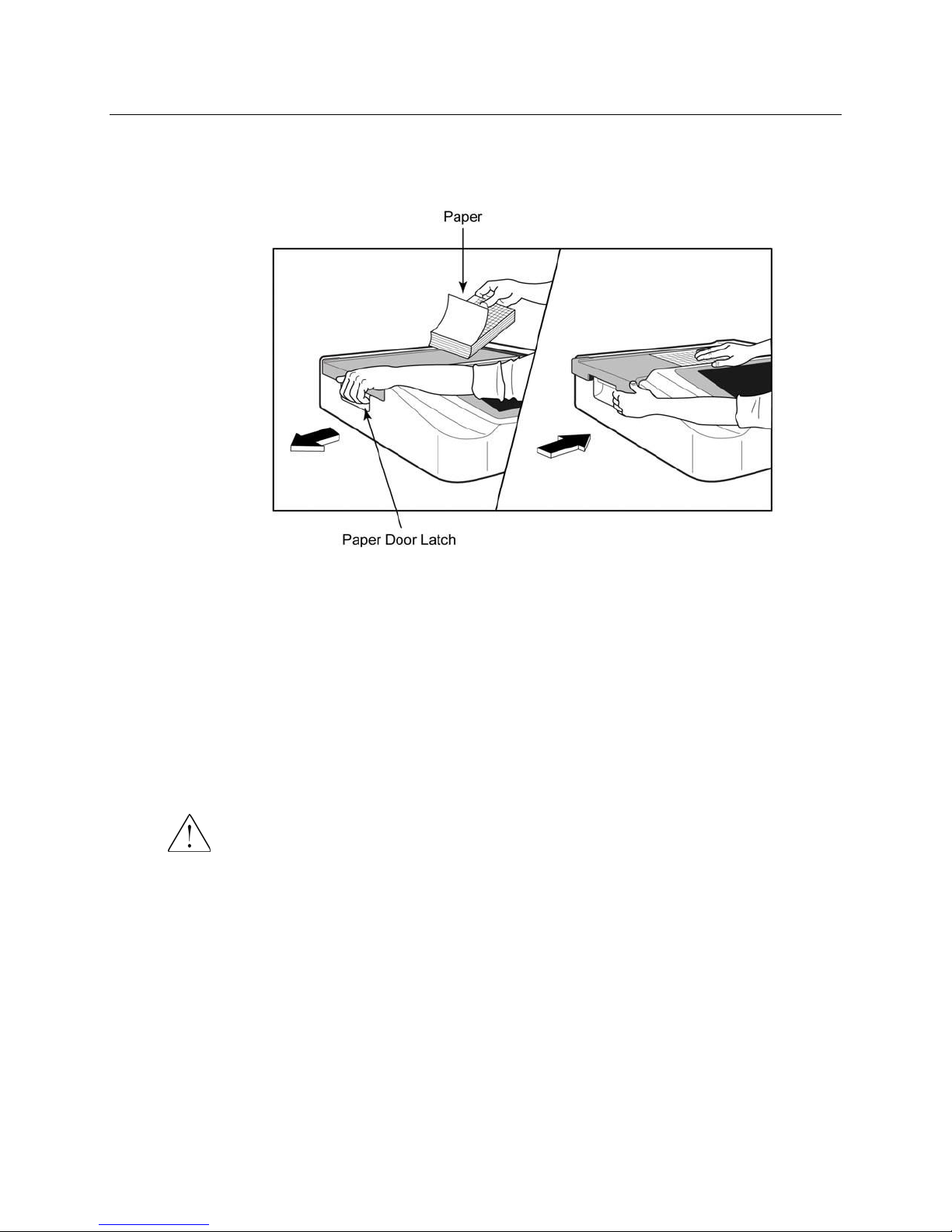

LOADING PAPER ............................................................................................................................................................... 32

POWERING THE ELI 280 .................................................................................................................................................... 35

LOW BATTERY FAILSAFE CONDITIONS .................................................................................................................................... 36

POWER STATUS ................................................................................................................................................................ 36

SETTING DATE AND TIME .................................................................................................................................................... 37

TIME SYNCHRONIZATION .................................................................................................................................................... 37

INSTALLING THE WLAN ANTENNA ....................................................................................................................................... 38

USING THE WAM OR AM12 ACQUISITION MODULE .............................................................................................................. 38

RECORD AN ECG ........................................................................................................................................................ 39

PATIENT PREPARATION ...................................................................................................................................................... 39

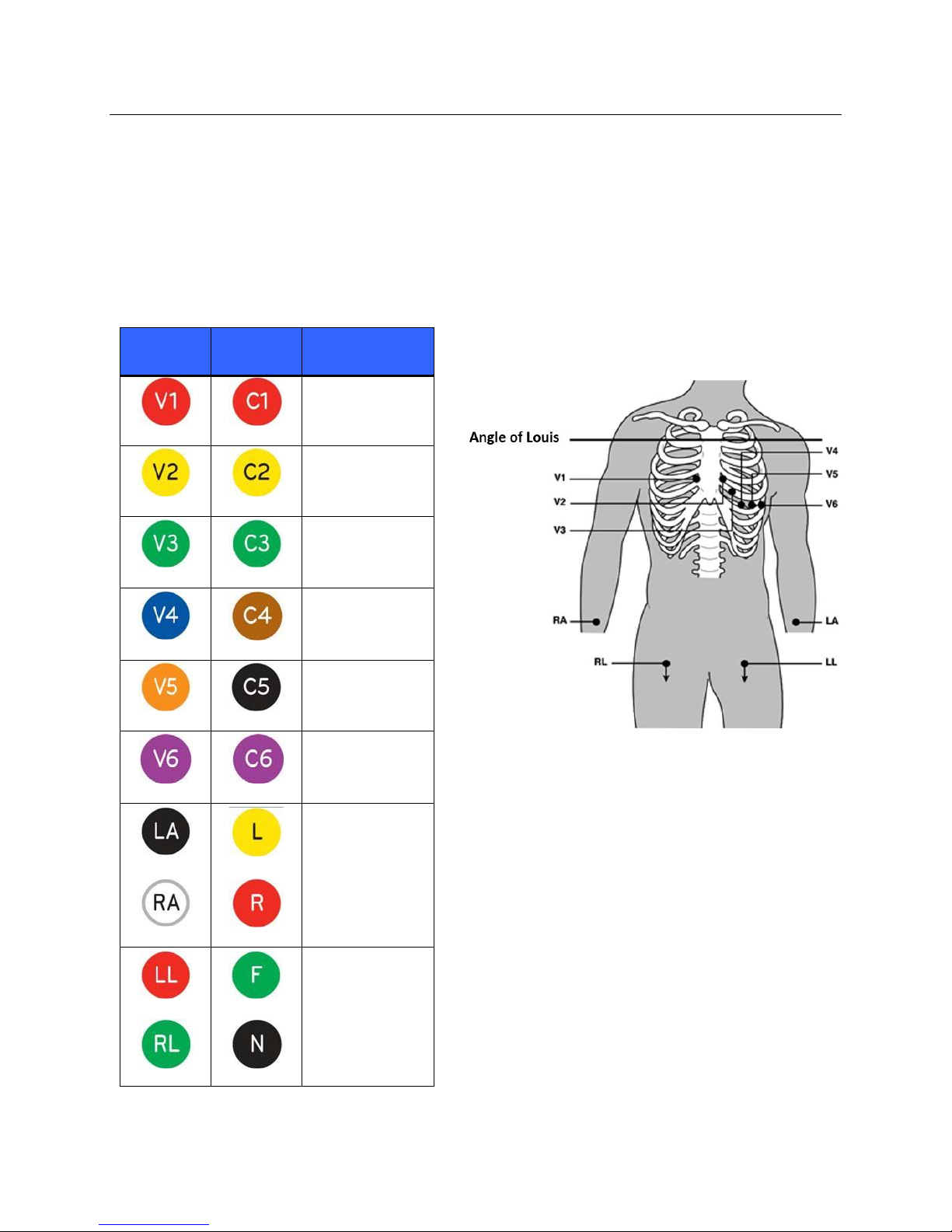

PATIENT HOOKUP ............................................................................................................................................................. 39

2

PATIENT DEMOGRAPHIC ENTRY ........................................................................................................................................... 41

ECG ACQUISITION AND PRINTING WITH WAM OR AM12 ....................................................................................................... 44

ECG ACQUISITION ............................................................................................................................................................ 44

BEST 10 SECONDS OF ECG ................................................................................................................................................. 47

CONFIGURING THE ECG REPORT .......................................................................................................................................... 47

ACQUIRED ECG STORAGE ................................................................................................................................................... 48

ACQUIRING RHYTHM STRIPS ............................................................................................................................................... 48

CONNECTIVITY AND ECG TRANSMISSION .................................................................................................................. 49

ECG TRANSMISSION .......................................................................................................................................................... 49

INTERNAL MODEM CONNECTION ......................................................................................................................................... 50

LOCAL AREA NETWORK (LAN) CONNECTION AND SETUP .......................................................................................................... 54

WIRELESS LOCAL AREA NETWORK (WLAN) CONNECTION AND SETUP ........................................................................................ 55

TRANSMISSION MEDIA AUTO-SYNC ...................................................................................................................................... 56

USB CONNECTIVITY .......................................................................................................................................................... 57

ECG DIRECTORY ......................................................................................................................................................... 59

ECG DIRECTORY ............................................................................................................................................................... 59

SEARCHING ECG RECORDS ................................................................................................................................................. 59

REVIEWING ECG RECORDS ................................................................................................................................................. 60

DELETING ECG RECORDS ................................................................................................................................................... 61

ERASING ECGS FROM THE DIRECTORY .................................................................................................................................. 61

PRINTING THE ECG DIRECTORY ........................................................................................................................................... 61

ECG ORDERS ................................................................................................................................................................... 61

SEARCHING ECG ORDERS ................................................................................................................................................... 62

WORKLIST MANAGEMENT .................................................................................................................................................. 62

SYNC COMMAND .............................................................................................................................................................. 62

MWL QUERY .................................................................................................................................................................. 63

CUSTOM ID DOWNLOAD .................................................................................................................................................... 63

PATIENT DEMOGRAPHIC QUERY (PDQ) ................................................................................................................................ 64

SYSTEM SETTINGS ...................................................................................................................................................... 65

MENU COMMANDS AND UTILITIES ....................................................................................................................................... 65

DEVICE PASSWORDS .......................................................................................................................................................... 67

CONFIGURATION SETTINGS: ABOUT .................................................................................................................................. 68

CONFIGURATION SETTINGS: MODEM ................................................................................................................................ 69

CONFIGURATION SETTINGS: SYSTEM .................................................................................................................................... 70

CONFIGURATION SETTINGS: ECG ........................................................................................................................................ 73

CONFIGURATION SETTINGS: LAN ........................................................................................................................................ 77

CONFIGURATION SETTINGS: WLAN .................................................................................................................................... 78

CONFIGURATION SETTINGS: DATE/TIME .............................................................................................................................. 80

CONFIGURATION SETTINGS: CUSTOM ID ............................................................................................................................... 80

CONFIGURATION SETTINGS: NETWORK ................................................................................................................................ 80

CONFIGURATION SETTINGS: WAM ..................................................................................................................................... 80

CONFIGURATION SETTINGS: SERVICE ................................................................................................................................... 80

MAINTENANCE AND TROUBLESHOOTING ................................................................................................................. 81

SYSTEM TROUBLESHOOTING CHART ...................................................................................................................................... 81

TOUCHSCREEN TROUBLESHOOTING CHART ............................................................................................................................ 83

POWER OFF THE DEVICE .................................................................................................................................................... 84

TEST OPERATION .............................................................................................................................................................. 84

RECOMMENDATIONS TO BIOMEDICAL STAFF .......................................................................................................................... 84

BATTERY MAINTENANCE .................................................................................................................................................... 84

CLEANING THE THERMAL PRINTER ........................................................................................................................................ 85

CLEANING THE TOUCHSCREEN ............................................................................................................................................. 85

3

4

TECHNICAL SUPPORT AND SERVICE

Headquarters

Mortara Instrument, Inc.

7865 North 86th Street
Milwaukee, WI 53224
U.S.A.

Tel:

414.354.1600

Tel:

800.231.7437

Fax:

414.354.4760

Internet:

http://www.burdick.com

European Union
Representative

Via Cimarosa, 103/105
40033 Casalecchio di Reno (Bologna)
Italia
Tel: [phone]
Fax: [phone]
E-mail:

clienti.mortarait @ welchallyn.com

Service/Technical
Support Group

Mortara Instrument, Inc.

7865 North 86th Street
Milwaukee, WI 53224
U.S.A.
Tel: [phone]
Service: 888.MORTARA

(888.667.8272)
Fax: [phone]
E-mail: [e-mail]

24-hour Technical Support
Same-day Shipment of Replacement Parts
Biomedical Training Classes
Extended Warranties/Service Contracts

Sales Support/
Supplies & Accessories

Mortara Instrument, Inc.

7865 North 86th Street
Milwaukee, WI 53224
U.S.A.
Tel: [phone]
Fax: [phone]

Hospital Customers: [e-mail]
Physician Practice: [e-mail]
U.S. Distribution: [e-mail]

Mortara Instrument Germany

Hofgartenstraße 16
72379 Hechingen
Deutschland
Tel.: [phone]
Fax: [phone]
E-Mail: info @ welchallyn.com

Mortara Instrument Netherlands

“Amerika” Gebouw– 7e verdieping
Hoogoorddreef 15
1101 BA Amsterdam
Nederland
Tel.: [phone]
E-mail: infonl @ welchallyn.com

Mortara Instrument Australia

Head Office
Suite 4.01, 2-4 Lyonpark Road
Macquarie Park, Sydney
NSW 2113 Australia
Tel: [phone]
Fax: [phone]

Mortara Instrument UK

Clinitron House, Excelsior Road
Ashby de la Zouch
Leicester LE65 1JG
Tel: [phone]
Fax: [phone]

5

NOTICES

Manufacturer’s Responsibility

Mortara Instrument, Inc. is responsible for the effects on safety and performance only if:

• Assembly operations, extensions, readjustments, modifications, or repairs are carried out only by persons

authorized by Mortara Instrument, Inc.

• The device is used in accordance with the instructions for use.

Responsibility of the Customer

The user of this device is responsible for ensuring the implementation of a satisfactory maintenance schedule.
Failure to do so may cause undue failure and possible health hazards.

Equipment Identification

Mortara Instrument, Inc. equipment is identified by a serial and reference number on the bottom of the device. Care
should be taken so that these numbers are not defaced.

Copyright and Trademark Notices

This document contains information that is protected by copyright. All rights are reserved. No part of this
document may be photocopied, reproduced, or translated to another language without prior written consent of
Mortara Instrument, Inc.

Other Important Information

The information in this document is subject to change without notice.

Mortara Instrument, Inc. makes no warranty of any kind with regard to this material including, but not limited to,
implied warranties of merchantability and fitness for a particular purpose. Mortara Instrument, Inc. assumes no
responsibility for any errors or omissions that may appear in this document. Mortara Instrument, Inc. makes no
commitment to update or to keep current the information contained in this document.

6

WARRANTY INFORMATION

Your Mortara Warranty

MORTARA INSTRUMENT, INC. (hereafter referred to as “Mortara”) warrants that components within Burdick
branded products (hereafter referred to as “Product/s”) will be free from defects in workmanship and materials for the
number of years specified on documentation accompanying the product, or previously agreed to by the purchaser and
Mortara, or if not otherwise noted, for a period of twenty-four (24) months from the date of shipment.

Consumable, disposable or single use products such as, but not limited to, PAPER or ELECTRODES are warranted
to be free from defects in workmanship and materials for a period of 90 days from the date of shipment or the date of
first use, whichever is sooner.

Reusable product such as, but not limited to, BATTERIES, BLOOD PRESSURE CUFFS, BLOOD PRESSURE
HOSES, TRANSDUCER CABLES, Y-CABLES, PATIENT CABLES, LEAD WIRES, MAGNETIC STORAGE
MEDIUMS, CARRY CASES or MOUNTS, are warranted to be free from defects in workmanship and materials for a
period of 90 days. This warranty does not apply to damage to the Product/s caused by any or all of the following
circumstances or conditions:

a) Freight damage;
b) Parts and/or accessories of the Product/s not obtained from or approved by Mortara;
c) Misapplication, misuse, abuse, and/or failure to follow the Product/s instruction sheets and/or information

guides;

d) Accident; a disaster affecting the Product/s;
e) Alterations and/or modifications to the Product/s not authorized by Mortara;
f) Other events outside of Mortara’s reasonable control or not arising under normal operating conditions.

THE REMEDY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT WITHOUT
CHARGE FOR LABOR OR MATERIALS, OR ANY PRODUCT/S FOUND UPON EXAMINATION BY
MORTARA TO HAVE BEEN DEFECTIVE. This remedy shall be conditioned upon receipt of notice by Mortara of

any alleged defects promptly after discovery thereof within the warranty period. Mortara’s obligations under the

foregoing warranty will further be conditioned upon the assumption by the purchaser of the Product/s (i) of all carrier

charges with respect to any Product/s returned to Mortara’s principal place or any other place as specifically designated

by Mortara or an authorized distributor or representative of Mortara, and (ii) all risk of loss in transit. It is expressly
agreed that the liability of Mortara is limited and that Mortara does not function as an insurer. A purchaser of a Product/s,
by its acceptance and purchase thereof, acknowledges and agrees that Mortara is not liable for loss, harm, or damage
due directly or indirectly to an occurrence or consequence therefrom relating to the Product/s. If Mortara should be
found liable to anyone under any theory (except the expressed warranty set forth herein) for loss, harm, or damage, the
liability of Mortara shall be limited to the lesser of the actual loss, harm, or damage, or the original purchase price of
the Product/s when sold.

WARRANTY INFORMATION

7

EXCEPT AS SET FORTH HEREIN WITH RESPECT TO REIMBURSEMENT OF LABOR CHARGES, A

PURCHASER’S SOLE EXCLUSIVE REMEDY AGAINST MORTARA FOR CLAIMS RELATING TO THE

PRODUCT/S FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE SHALL BE
THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCT/S TO THE EXTENT THAT THE DEFECT IS
NOTICED AND MORTARA IS NOTIFIED WITHIN THE WARRANTY PE RI OD . IN NO EVENT,
INCLUDING THE CLAIM FOR NEGLIGENCE, SHALL MORTARA BE LIABLE FOR INCIDENTAL,
SPECIAL, OR CONSEQUENTIAL DAMAGES, OR FOR ANY OTHER LOSS, DAMAGE, OR EXPENSE OF
ANY KIND, INCLUDING LOSS OF PROFITS, WHETHER UNDER TORT, NEGLIGENCE OR STRICT
LIABILITY THEORIES OF LAW, OR OTHERWISE. THIS WARRANTY IS EXPRESSLY IN LIEU OF ANY
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO THE IMPLIED
WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR
PURPOSE.

8

USER SAFETY INFORMATION

Warning: Means there is the possibility of personal injury to you or others.

Caution: Means there is the possibility of damage to the device.
Note: Provides information to further assist in the use of the device.

Warning(s)

 This manual gives important information about the use and safety of this device. Deviating from operating

procedures, misuse or misapplication of the device, or ignoring specifications and recommendations could
result in increased risk of harm to users, patients and bystanders, or damage to the device.

 Device captures and presents data reflecting a patient’s physiological condition that when reviewed by a trained

physician or clinician can be useful in determining a diagnosis; however, the data should not be used as a sole
means for determining a patient’s diagnosis.

 Users are expected to be licensed clinical professionals knowledgeable about medical procedures and patient

care, and adequately trained in the use of this device. Before attempting to use this device for clinical
applications, the operator must read and understand the contents of the user manual and other accompanying
documents. Inadequate knowledge or training could result in increased risk of harm to users, patients and
bystanders, or damage to the device. Contact Mortara service for additional training options.

 To ensure that electrical safety is maintained during operation from AC (~) power, the device must be plugged

into a hospital-grade outlet.

 Only use parts and accessories supplied with the device and/or are available through Burdick/Mortara/Quinton.
 Patient acquisition devices intended for use with the device include series resistance (9 Kohm minimum) in

each lead for defibrillation protection. Patient acquisition devices should be checked for cracks or breakage
prior to use.

 Conductive parts of the Patient acquisition device, electrodes, and associated connections of type CF applied

parts, including the neutral conductor of the Patient acquisition device and electrodes, should not come into
contact with other conductive parts including earth ground.

 ECG electrodes could cause skin irritation; patients should be examined for signs of irritation or inflammation.
 To avoid the possibility of serious injury or death during patient defibrillation, do not come into contact with

device or Patient acquisition devices. Additionally, proper placement of defibrillator paddles in relation to the
electrodes is required to minimize harm to the patient.

 This device does not automatically switch between direct or wireless Patient acquisition devices. Clinician

must choose Patient acquisition device before ECG acquisition. If your device is equipped with a receiver for a
wireless Patient acquisition device, always make sure that you are receiving data from the expected module.

USER SAFETY INFORMATION

9

 This device was designed to use the electrodes specified in this manual. Proper clinical procedure must be

employed to prep the electrode sites and to monitor the patient for excessive skin irritation, inflammation, or
other adverse reactions. Electrodes are intended for short-term use and should be removed from the patient
promptly following testing.

 To avoid potential for spread of disease or infection, single-use disposable components (e.g., electrodes) must

not be reused. To maintain safety and effectiveness, electrodes must not be used beyond their expiration date.

 A possible explosion hazard exists. Do not use the device in the presence of a flammable anesthetic mixture.
 Where the integrity of external protective earth conductor arrangement is in doubt, the device shall be operated

from its internal electrical power source.

 To improve immunity to potential interfering electromagnetic signals, shielded cabling is recommended when

connecting the device to a network.

 Medical devices have been designed to have a higher degree of protection against electric shock than, for

instance, information technology equipment because patients often are connected to multiple devices and also
may be more prone to the adverse effect of electric currents than healthy persons. All equipment that is
connected to the patient, can be touched by the patient, or can be touched by another person while that person
touches the patient at the same time, should have the same level of protection against electric shock as medical
equipment. The ELI 280 is a medical device that has been designed to be connected to other devices for the
purpose of receiving and transmitting data. Certain measures must be taken to prevent the risk of excessive
electric current flow through the operator or patient when connected:

 All electrical equipment that is not medical electrical equipment must be placed outside of the “patient

environment,” defined by applicable safety standards to be at least 1.5 meters (5 feet) from the patient.

Alternatively, non-medical equipment may be provided with additional protection such as an additional
protective earth connection.

 All medical electrical equipment that has a physical connection to the ELI 280 or the patient, or is in the

patient environment must comply with applicable safety standards for medical electrical devices.

 All electrical equipment that is not medical electrical equipment and has a physical connection to the

ELI 280 must comply with applicable safety standards, such as IEC 60950 for information technology
equipment. This includes information network equipment connected through the LAN connector.

 Conductive (metal) parts that can be touched by the operator in normal use and that are connected to non-

medical equipment should not be brought into the patient environment. Examples are connectors for

shielded Ethernet or USB cables.

 If multiple devices are connected to each other or to the patient, device chassis and patient leakage

currents may be increased, and should be measured for compliance with applicable standards for medical
electrical systems.

 Avoid the use of portable multiple socket outlets. If used and not compliant with medical electrical

device standards, an additional protective earth connection is required.

 To prevent electric shock due to unequal ground potentials that may exist between points of a distributed

network system or fault conditions in external network connected equipment, network cable shielding
(where used) must be connected to protective earth ground appropriate to the area where the device is used.

USER SAFETY INFORMATION

10

 The device has not been designed for use with high-frequency (HF) surgical equipment and does not provide a

protective means against hazards to the patient.

 When the 40 Hz filter is used, the frequency response requirement for diagnostic ECG equipment cannot be

met. The 40 Hz filter significantly reduces high-frequency components of the ECG and pacemaker spike
amplitudes, and is recommended only if high-frequency noise cannot be reduced by proper procedures.

 The quality of the signal produced by the device may be adversely affected by the use of other medical

equipment, including but not limited to defibrillators and ultrasound machines.

 For proper operation and the safety of users or patients and bystanders, equipment and accessories must be

connected only as described in this manual. Do not connect a telephone line cable to the LAN connector.

 Some Burdick electrocardiographs can be equipped with a GPRS (cellular modem) or wireless LAN (WLAN)

module for transmitting ECG records. Device labeling and the presence of an antenna port will indicate if your
device is equipped with such a module. If so equipped, the following notices apply:

 The WLAN identification can be found on a label on the bottom of the device.

 Quatech, Inc. Model WLNG-AN-MR551: 2400 MHz

(model subject to change without notice)

 Use of the WLAN module may interfere with other equipment operating in the vicinity. Check with local

authorities or spectrum management officials in your facility to determine if restrictions apply to the use of this
feature in your area.

●

Do not transmit via the WLAN module with a missing or damaged antenna. Replace a damaged antenna
immediately.

 Use only the antenna supplied for use with this device. Unauthorized antennas, modifications, or attachments

could damage the WLAN module and may contravene local RF emission regulations or invalidate type
approval.

 To ensure compliance with current regulations limiting both maximum RF output power and human exposure

to radio frequency radiation, a separation distance of at least 20 cm must be maintained between the device's
antenna and the head and body of the user and any nearby persons at all times. To help prevent degradation of
RF signal and to avoid excess RF energy absorption, do not touch the antenna during data transmission.

 The WLAN module complies with applicable RF safety standards including standards and recommendations

for the protection of public exposure to RF electromagnetic energy that have been established by governmental
bodies and other qualified organizations, such as the following:

 Federal Communications Commission (FCC)
 Directives of the European Community
 Directorate General V in Matters of Radio Frequency Electromagnetic Energy

USER SAFETY INFORMATION

11

Caution(s)

 To prevent possible damage to the touchscreen, do not use sharp objects to touch the screen icons, only use

fingertips.

 Do not attempt to clean the device or patient acquisition device by submersing into a liquid, autoclaving, or

steam cleaning as this may damage equipment or reduce its usable life. Wipe the exterior surfaces with a warm
water and mild detergent solution and then dry with a clean cloth. Use of unspecified cleaning/disinfecting
agents, failure to follow recommended procedures, or contact with unspecified materials could result in
increased risk of harm to users, patients and bystanders, or damage to the device.

 No user-serviceable parts inside. Screw removal by qualified service personnel only. Damaged or suspected

inoperative equipment must be immediately removed from use and must be checked/repaired by qualified
service personnel prior to continued use.

 The rechargeable internal battery is a sealed lead-acid type and it is totally maintenance free. If the battery

appears to become defective, refer to Mortara Instrument Service Department.

 Do not pull or stretch patient acquisition device as this could result in mechanical and/or electrical failures.

Patient cables should be stored after forming them into a loose loop.

 Calibration of the display is required before initial operation of the unit. No special equipment is needed for the

proper operation or maintenance of the device.

 When necessary, dispose of the device, its components and accessories (e.g., batteries, cables, electrodes),

and/or packing materials in accordance with local regulations.

 Proper functioning backup items such as a spare patient cable, front-end device, display monitor, and other

equipment are recommended on hand to prevent delayed treatment due to an inoperable device.

Note(s)

 Patient movement may generate excessive noise that may affect the quality of the ECG traces and the proper

analysis performed by the device.

 Proper patient preparation is important to proper application of ECG electrodes and operation of the device.
 The algorithm detecting electrode misplacements is based on normal physiology and ECG lead order, and tries

to identify the most likely switch; however, it is advisable to check the other electrode positions in the same
group (limb or chest).

 There is no known safety hazard if other equipment, such as pacemakers or other stimulators, is used

simultaneously with the device; however, disturbance to the signal may occur.

 The display of a thick baseline while using the WAM wireless acquisition module (square waves on rhythm

printout) could be due to the WAM being turned off or having no battery, or the WAM being out of range or
experiencing a calibration error. Review the LED indicator on the WAM to ensure the unit is turned on and has
proper battery level. Ensure the WAM is paired correctly and is within recommended proximity of the
electrocardiograph, and/or power cycle the WAM to re-calibrate. Review the WAM user manual for details.

USER SAFETY INFORMATION

12

 The display of a thick baseline while using the AM12 acquisition module (square waves on rhythm printout)

could be due to an improper auto-calibration. Reconnect the AM12 or power cycle the electrocardiograph.

 A square wave on the display and rhythm printout could be due to the WAM, the AM12, or lead wires not

being connected to the patient.

 As defined by IEC 60601-1 and IEC 60601-2-25, the device is classified as follows:

 Class I equipment or internally powered.
 Type CF defibrillation-proof applied parts.
 Ordinary equipment.
 Equipment not suitable for use in the presence of a flammable anesthetic mixture.
 Continuous operation.

NOTE: From a safety perspective, per IEC 60601-1 and derivative standards/norms, this device is

declared to be “Class I” and uses a three-prong inlet to ensure an earth connection is made along with
mains. The ground terminal on the mains inlet is the only protective earth point in the device. Exposed
metal accessible during normal operation is double insulated from mains. Internal connections to earth
ground are functional earth.

●

This device is intended to be used in a hospital or doctor’s office setting, and should be used and stored
according to the environmental conditions specified below:

Operating temperature: +10° to +40°C (+50° to +104°F)
Operating humidity: 10% to 95% RH, non-condensing

Storage temperature: -40° to +70°C (-40° to +158°F)
Storage humidity: 10% to 95% RH, non-condensing

Atmospheric pressure: 500 hPa to 1060 hPa

 The device will automatically turn off (blank screen) if the batteries have been severely discharged and the AC

mains is disconnected from the device.

 After operating the device using battery power, always reconnect the power cord. This ensures that the

batteries will be automatically recharged for the next time you use the device. A light next to the on/off switch
will illuminate indicating that the device is charging.

 WAM must be paired to electrocardiograph before operation.
 The device must be configured at the factory for use with the WAM.
 The device is UL classified:

WITH RESPECT TO ELECTRIC SHOCK,
FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH
UL2601-1, IEC60601-1, CAN/CSA CC22.2 No. 601.1,
AND IEC60601-2-25

USER SAFETY INFORMATION

13

Wireless Data Transmission

 Some Burdick electrocardiographs can be equipped with an optional wireless data transmission module

(WLAN or GSM). Both these technologies use radios to transmit data to a Burdick receiving application. Due

to the nature of radio transmissions, it’s possible that, due to the characteristics of the environment where the

device is located, some other RF sources may interfere with the transmission generated by the device. Mortara
Instrument has tested the coexistence of the device with other devices that can interfere such as devices using
WLAN, Bluetooth radio, and/or cell phones. Although the current technology allows a very successful rate of

transmission, it’s possible that in some rare occurrences, the system may not perform at its best resulting in a

“failed transmission”. When this occurs, patient data will not be erased from the device nor stored in the

receiving application, ensuring that partial or corrupted data are not made available to the receiving station. If
the failure mode persists the user should move to a position where the RF signals may propagate better and
allow successful transmissions.

WLAN Option

 Wireless options transmit in the 2.4 GHz or 5 GHz range. Other nearby wireless devices in the same frequency

range may cause interference. If possible, move or turn off other devices to minimize potential interference.

 The Wireless LAN module used is compliant with the IEEE 802.11 a, b, g and n standards.
 Access Points used should respect IEEE 802.11 standards as well as local Radio Frequency regulations. The

device will scan the available channels and connect to the Access Point on the channel where the SSID that is
configured on the device is available.

 The following table shows the radio channels allocated in different geographic areas in the world. For bands

802.11b and g, only channels 1, 6, 11 and 14 (Japan only) are non-overlapping; for band 802-11a, channels
shown represent non-overlapping channel numbers.

Band

Typical
Power

Region

Frequency
Range (GHz)

No. of
channels

Channel numbers

802.11b

15 dBm /
32 mW

USA/Canada

2.401 - 2.473

11

1 – 11

Europe

2.401 - 2.483

13

1 – 13

Japan

2.401 - 2.495

14

1 – 14

802.11g

13 dBm /
18 mW

USA/Canada

2.401 - 2.473

11

1 – 11

Europe

2.401 - 2.483

13

1 – 13

Japan

2.401 - 2.483

13

1 – 13

802.11a

17 dBm /
50 mW

USA/Canada

5.15 - 5.35,

5.725 - 5.825

13

36,40,44,48,52,56,60,64,149,153,157,
161,165

Europe

5.15 - 5.35,

5.47 - 5.725

19

36,40,44,48,52,56,60,64,100,104,108,
112,116,120,124,128,132,136,140

Japan

4.91 – 4.99,

5.15 - 5.35,

5.47 - 5.725

23

36,40,44,48,52,56,60,64,100,104,108,
112,116,120,124,128,132,136,140,184
188,192,196

China

5.725 - 5.825

5

149,153,157,161,165

 In order to achieve the best transmission rate, it is necessary that the facility where the device is operated can

provide good area coverage. Please consult the IT personnel of the facility to verify the proper WLAN
availability in the area where the device will be used.

 RF wave propagation may be blocked or reduced by the environment where the device is used. Most common

areas where this may occur are: shielded rooms, elevators, underground rooms. In all such situations it is
recommended to move the device to a proper location where the WLAN frequencies are available.

14

EQUIPMENT SYMBOLS AND MARKINGS

Symbol Delineation

Attention, consult accompanying documents

Alternating current

Protective earth symbol (appears on inside of unit)

Fuse symbol (appears on inside of unit)

Telephone line (modem)

Network (LAN)

Universal Serial Bus (USB)

Defibrillator-proof type CF applied part

Input

ON/OFF (power)



Shift key (to enter upper case text on keyboard)

Do not dispose as unsorted municipal waste. Per European Union
Directive 2002/96, requires separate handling for waste disposal according
to national requirements

Antenna

Indicates compliance to applicable European Union directives

EQUIPMENT SYMBOLS AND MARKINGS

15

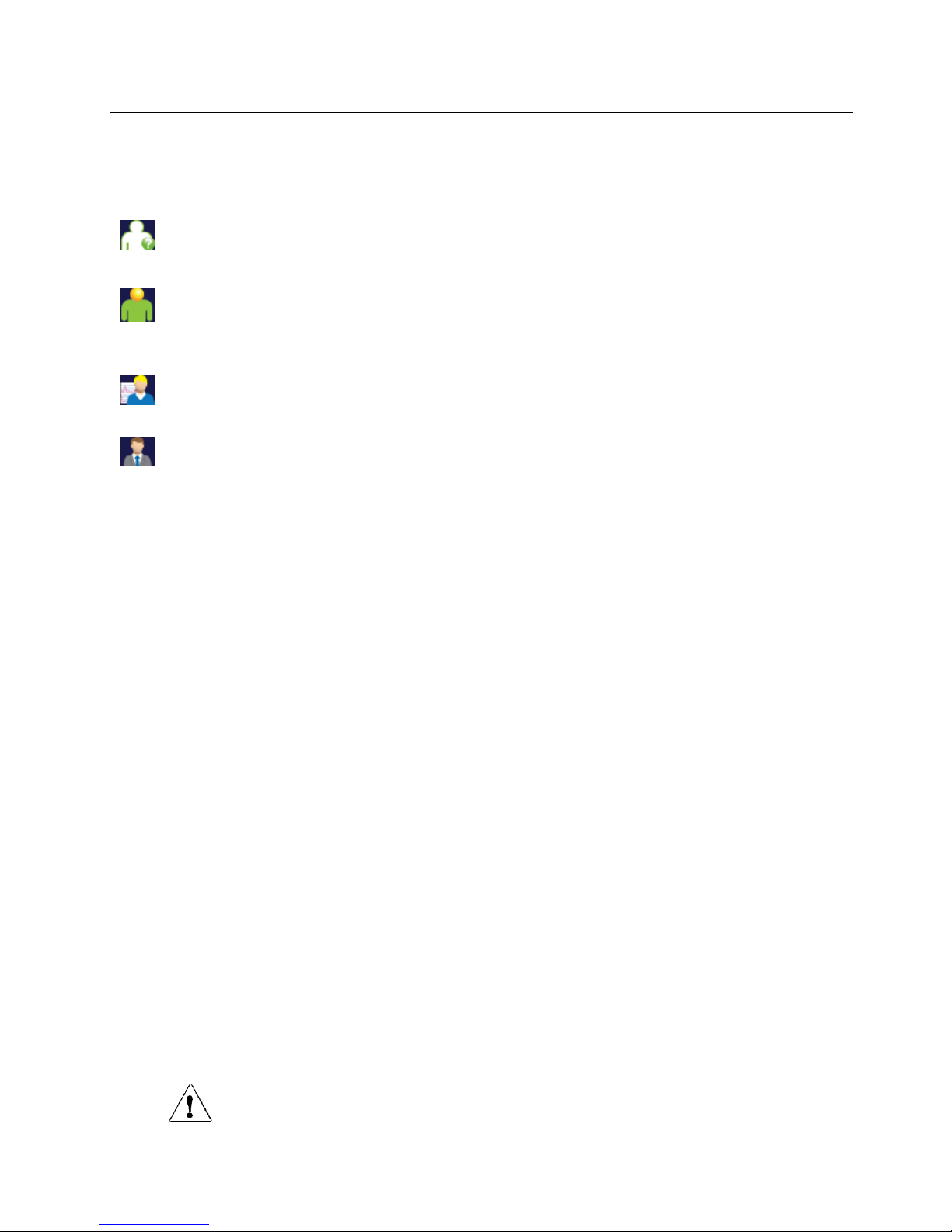

Patient Information

Initiate Acquisition Of ECG

Initiate Printing Of Continuous Rhythm Strip

Initiate Transmission Of Records

Stop Rhythm Print Out

Configuration (Settings) Menu

Home (returns user to the real-time acquisition screen)

16

GENERAL CARE

Precautions

 Turn off the device before inspecting or cleaning.
 Do not immerse the device in water.
 Do not use organic solvents, ammonia-based solutions, or abrasive cleaning agents which may damage

equipment surfaces.

Inspection

Inspect your equipment daily prior to operation. If you notice anything that requires repair, contact an authorized
service person to make the repairs.

 Verify that all cords and connectors are securely seated.
 Check the case and chassis for any visible damage.
 Inspect cords and connectors for any visible damage.
 Inspect keys and controls for proper function and appearance.

Cleaning and Disinfecting

1. Disconnect the power source. Remove cables and lead wires from device before cleaning.

2. For general cleaning of cables and lead wires, use a soft, lint-free cloth lightly moistened with a mild soap

and water solution. Wipe and air dry.

3. For disinfecting the exterior surfaces of the device, patient acquisition module, cables and lead wires, wipe

exterior using:

Clorox Healthcare

®

Bleach Germicidal Wipes (use according to instructions on product label), or

a soft, lint-free cloth with a solution of Sodium Hypochlorite (10% household bleach and water solution)
minimum 1:500 dilution (minimum 100 ppm free chlorine) and maximum 1:10 dilution as recommended
by the APIC Guidelines for Selection and Use of Disinfectants.

WARNING:

Prevent liquid from penetrating the device and do not attempt to clean/disinfect the device or patient
cables by submerging into a liquid, autoclaving, or steam cleaning.

Do not expose cables to strong ultra-violet radiation.

Do not sterilize the device or lead wires with Ethylene Oxide (EtO) gas.

Do not immerse cable ends or lead wires; immersion can cause metal corrosion. Use caution with excess
liquid as contact with metal parts may cause corrosion.

Do not use excessive drying techniques such as forced heat.

Improper cleaning products and processes can damage the device, produce brittle lead wires and cables,
corrode the metal, and void the warranty. Use care and proper procedure whenever cleaning or
maintaining the device.

17

ELECTROMAGNETIC COMPATIBILITY (EMC)

Electromagnetic compatibility with surrounding devices should be assessed when using the device.

An electronic device can either generate or receive electromagnetic interference. Testing for electromagnetic
compatibility (EMC) has been performed on the device according to the international standard for EMC for medical
devices (IEC 60601-1-2). This IEC standard has been adopted in Europe as the European Norm (EN 60601-1-2).

The device should not be used adjacent to, or stacked on top of other equipment. If the device must be used
adjacent to or stacked on top of other equipment, verify that the device operates in an acceptable manner in the
configuration in which it will be used.

Fixed, portable, and mobile radio frequency communications equipment can affect the performance of medical
equipment. See appropriate EMC table for recommended separation distances between the radio equipment and the
device.

The use of accessories, transducers, and cables other than those specified by Mortara Instrument may result in
increased emissions or decreased immunity of the equipment.

ELECTROMAGNETIC COMPATIBILITY (EMC)

18

Guidance and Manufacturer’s Declaration: Electromagnetic Emissions

The equipment is intended for use in the electromagnetic environment specified in the table below. The customer or
the user of the equipment should ensure that it is used in such an environment.

Emissions Test

Compliance

Electromagnetic Environment: Guidance

RF Emissions CISPR 11

Group 1

The equipment uses RF energy only for its internal function.
Therefore, its RF emissions are very low and not likely to cause
any interference in nearby electronic equipment.

RF Emissions CISPR 11

Class A

The equipment is suitable for use in all establishments other
than domestic and those directly connected to the public low­voltage power supply network that supplies buildings used for
domestic purposes.

Harmonic Emissions
IEC 61000-3-2

Complies

Voltage Fluctuations/
Flicker Emissions
IEC 61000-3-3

Complies

Guidance and Manufacturer’s Declaration: Electromagnetic Immunity

The equipment is intended for use in the electromagnetic environment specified in the table below. The customer or
the user of the equipment should ensure that it is used in such an environment.

Emissions Test

Compliance

Compliance Level

Electromagnetic Environment: Guidance

Electrostatic
discharge (ESD)
IEC 61000-4-2

+/- 6 kV contact
+/- 8 kV air

+/- 6 kV contact
+/- 8 kV air

Floors should be wood, concrete, or ceramic
tile. If floors are covered with synthetic
material, the relative humidity should be at
least 30%.

Electrical fast
transient/burst
IEC 61000-4-4

+/- 2 kV for
power supply lines
+/- 1 kV for
input/output lines

+/- 2 kV for
power supply lines
+/- 1 kV for
input/output lines

Mains power quality should be that of a typical
commercial or hospital environment.

Surge
IEC 61000-4-5

+/- 1 kV differential
mode
+/- 2 kV common
mode

+/- 1 kV differential
mode
+/- 2 kV common
mode

Mains power quality should be that of a typical
commercial or hospital environment.

Voltage dips,
short
interruptions, and
voltage
variations on
power supply
input lines
IEC 61000-4-11

<5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles

<5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 cycles

Mains power quality should be that of a typical
commercial or hospital environment.

Power frequency
(50/60 Hz)
magnetic field

3 A/m

3 A/m

Power frequency magnetic fields should be at
levels characteristic of a typical location in a
typical commercial or hospital environment.

NOTE: UT is the AC Mains voltage prior to application of the test level.

19

ELECTROMAGNETIC COMPATIBILITY (EMC)

Guidance and Manufacturer’s Declaration: Electromagnetic Immunity

The equipment is intended for use in the electromagnetic environment specified in the table below. The customer or
the user of the equipment should ensure that it is used in such an environment.

Emissions Test

IEC 60601 Test
Level

Compliance
Level

Electromagnetic Environment: Guidance

Conducted RF
IEC 61000-4-6

3 Vrms
150 kHz to
80 MHz

3 Vrms
150 kHz to
80 MHz

Portable and mobile RF communications equipment
should be used no closer to any part of the equipment,
including cables, than the recommended separation
distance calculated from the equation applicable to the
frequency of the transmitter.

Recommended separation distance

d 



3.5



P



3Vrms 







d 



3.5



P

80 MHz to 800 MHz









3V / m 

d 



7



P

800 MHz to 2.5 GHz









3V / m 

Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in meters (m).

Field strengths from fixed RF transmitters, as
determined by an electromagnetic site surveya, should
be less than the compliance level in each frequency
rangeb.

Interference may occur in the vicinity of equipment
marked with the following symbol:

Radiated RF
IEC 61000-4-3

3 V/m
80 MHz to

2.5 GHz

3 V/m
80 MHz to

2.5 GHz

a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios,

amateur radios, AM and FM radio broadcast, and TV broadcast cannot be predicted theoretically with accuracy. To assess
the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the
measured field strength in the location in which the equipment is used exceeds the applicable RF compliance level above, the
equipment should be observed to verify normal operation. If abnormal performance is observed, additional measures may be
necessary, such as reorienting or relocating the equipment.

b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [3] V/m.

ELECTROMAGNETIC COMPATIBILITY (EMC)

20

Recommended Separation Distances Between Portable and Mobile RF
Communications Equipment and the Equipment

The equipment is intended for use in the electromagnetic environment in which radiated RF disturbances are
controlled. The customer or the user of the equipment can help to prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the
equipment as recommended in the table below, according to the maximum output power of the communications
equipment.

Rated Maximum Output Power
of Transmitter W

Separation Distance According to Frequency of Transmitter (m)

150 KHz to 800 MHz

800 MHz to 2.5 GHz

d  1.2 P

d  2.3 P

0.01

0.1 m

0.2 m

0.1

0.4 m

0.7 m

1 1.2 m

2.3 m

10

4.0 m

7.0 m

100

12.0 m

23.0 m

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in
meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the
maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

NOTE 1: At 800 MHz, the separation distance for the higher frequency range applies.

NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by the

absorption and reflection from structures, objects, and people.

21

INTRODUCTION

Manual Purpose

This manual is intended to provide the user with information about:

 Using and understanding the ELI™ 280 electrocardiograph, the touchscreen display, and the function

control icons.

 Preparing the ELI 280 for use.
 Acquiring, printing, and storing an ECG.
 Connectivity and transmitting ECGs.
 Maintaining the ECG directory.
 System settings.
 Maintenance and troubleshooting.

NOTE: This manual may contain screen shots. Any screen shots are provided for reference only. Consult
the actual screen in the host language for specific wording.

Audience

This manual is written for clinical professionals with a working knowledge of medical procedures and terminology
as required for monitoring cardiac patients.

Indications for Use

 Device is indicated for use to acquire, analyze, display, and print electrocardiograms.
 Device is indicated for use to provide interpretation of the data for consideration by a physician.
 Device is indicated for use in a clinical setting, by a physician or by trained personnel who are acting on the

orders of a licensed physician. It is not intended as a sole means of diagnosis.

 The interpretations of ECG offered by the device are only significant when used in conjunction with a

physician over-read as well as consideration of all other relevant patient data.

 Device is indicated for use on adult and pediatric populations.
 The device is not intended to be used as a vital signs physiological monitor.

INTRODUCTION

22

System Description

The device is a 12-lead diagnostic electrocardiograph capable of acquiring, viewing, transmitting, printing, and
storing 12-lead ECG data. The device is optionally equipped with Mortara Instrument’s VERITAS™ resting ECG
interpretation algorithm with age and gender specific criteria. If this option is enabled the VERITAS algorithm can
provide an over-reading physician with a silent second opinion through diagnostic statements output on the ECG
report. For additional information on the VERITAS algorithm, please refer to the Physician’s Guide to VERITAS
with Adult and Pediatric Resting ECG Interpretation.

The device can also be configured with expanded memory, bidirectional connectivity, and DICOM® protocol
support, and operates on battery or line power.

Supported print formats for the ELI 280 include: standard or Cabrera 3+1, 3+3, 6, 6+6, or 12 channel in automatic
mode; 3, 6, or 12 channel rhythm strip printing.

During rhythm strip printing the user can toggle between the various channels (default leads, limb and chest leads,
etc.). To begin or resume a suspended rhythm strip print, press from the touchscreen display. To suspend or

end a rhythm strip print, press from the touchscreen display

.

The device includes:

 WAM™ or AM12™ acquisition module with lead wire set
 Hospital-grade power cord
 Antenna (with WLAN option)
 1 pack paper (standard or A4)
 Physician’s Guide to VERITAS with Adult and Pediatric Resting ECG Interpretation
 User manual CD
 Accessory starter kit

INTRODUCTION

23

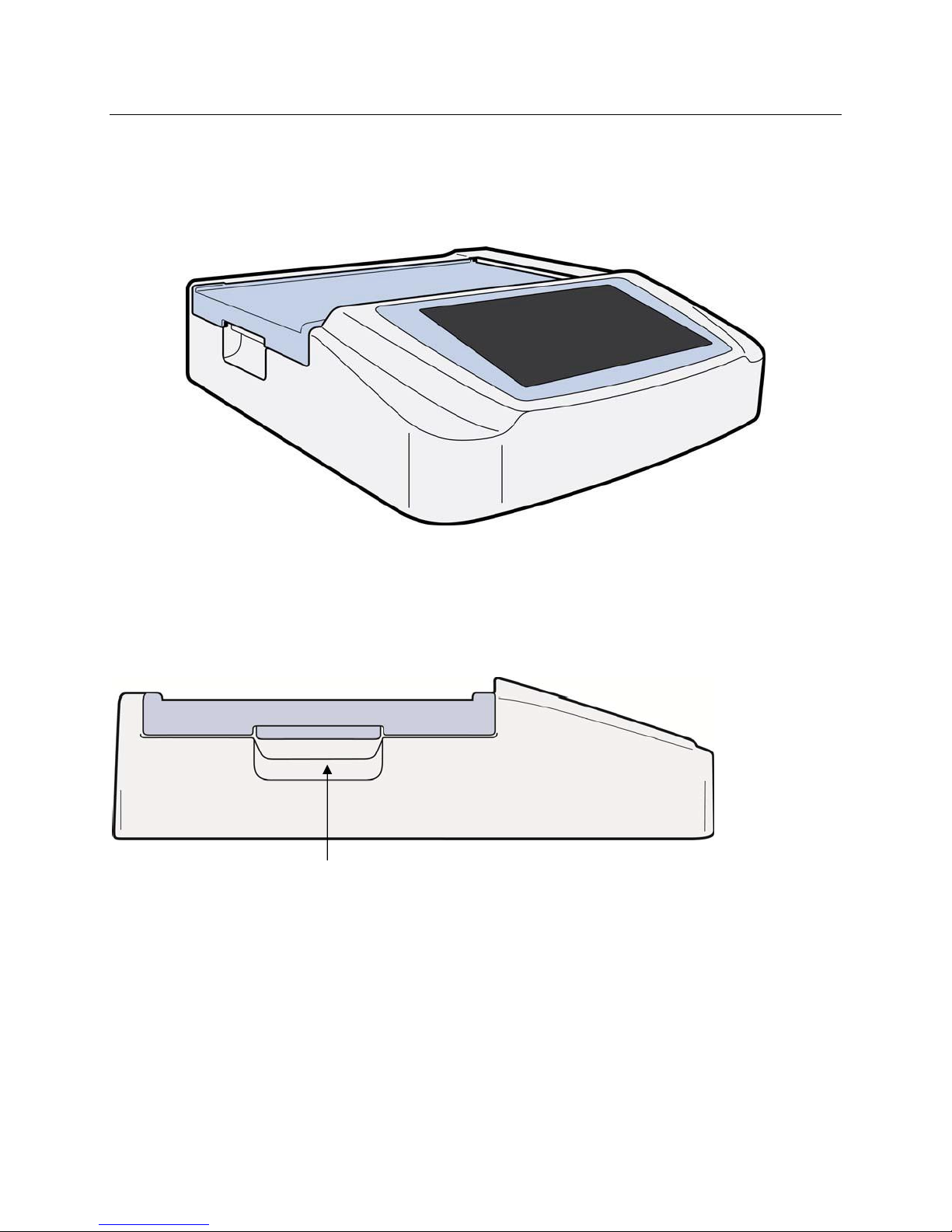

System Illustration

Figure 1-1

Side View

Figure 1-2

Writer Handle

INTRODUCTION

24

Rear View

Figure 1-3

1 2 3 4 5 6 7

1 AM12 ECG connector port
2 USB device port
3 USB connector port
4 RJ45 LAN connector port
5 Modem port
6 WLAN antenna connector
7 100 – 240V power

Base View

Figure 1-4

Battery Compartment

INTRODUCTION

25

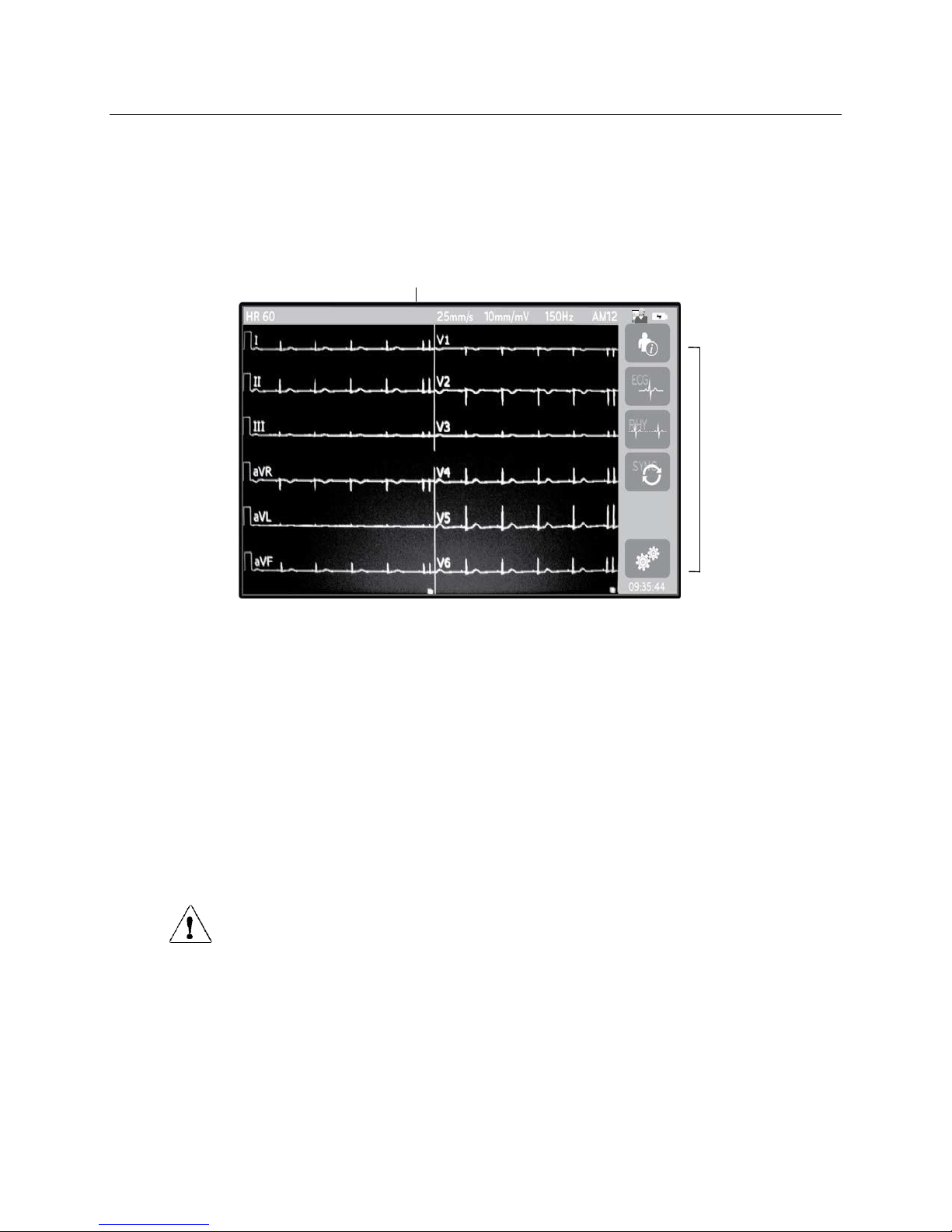

Display Overview

The ELI 280 features a 10.1” diagonal LCD color display to preview the ECG waveform and other parameters as

explained below. During ECG acquisition, notification messages will also appear on the display.

Figure 1-5

Patient Heart Rate

12-

lead Real-time

ECG View

User Role
Battery Status

Function Control
Icons

Clock

Display Parameters

Patient Heart Rate (HR):

When a patient is connected to the device, the HR displays in real time in the upper left corner.

NOTE: If a lead fail occurs, an indicator flashes in the center of the display and the HR number displays
dashes until the lead failure is corrected.

Patient Demographics:

The patients first and last name will be presented in the upper left corner of the display.

Display Speed/ECG Gain/ECG Filter:

The current settings for sweep speed, ECG gain, and ECG filter display along the top center.

WAM/AM12:

The acquisition module currently in use will be presented in the upper right corner of the display.

WARNING: If your device is equipped with a receiver for a Wireless Acquisition Module, always

make sure that you are receiving data from the expected module.

Patient Name

Speed, Gain and Filter

AM12 /WAM

INTRODUCTION

26

User Role:

An icon indicating the role of the authenticated user.

Anonymous Guest – the user has not been authenticated. The unknown guest may only acquire new ECGs

by manual entry of patient demographics. Their User Name will not be prepopulated into the Technician

field of new ECGs.
Known Guest – the user has been authenticated on the network with their User Name and Password, but

the user has not been granted Technician or Administrator permissions. The user may only acquire new
ECGs by manual entry of patient demographics. Their User Name will be prepopulated into the Technician
field of new ECGs.

Technician – the user has been authenticated on the network with their User Name and Password, and the

user has been granted Technician permissions. In addition to Guest permissions, this user may also view

orders and stored ECGs.
Administrator – the user has been authenticated on the network with their User Name and Password, and

the user has been granted Administrator permissions. In addition to Technician permissions, this user may

also change the ELI 280’s settings.

Battery Indicator:

An icon indicating battery charge status displays in the upper right corner.

Clock:

The digital clock located in the lower right corner displays hour, minutes and seconds. The time appearing on the
ECG printout is the time the ECG was acquired.

Function Control Icons

Use the touchscreen Function Control icons to complete patient and/or ECG functions, as well as access the
Configuration menu.

Patient Information, Orders, or Modality Work List (MWL)

Press this icon to manually enter patient demographics or use either a work list directory or common
directory to find and download patient information.

ECG Acquisition

Press this icon to display the ECG in one of several formats: 12x1, 4x2, 6x2, and any three selected
leads (i.e. II-V1-V5). The on-screen ECG report displays patient name, date and time, Last or
Best 10 and the filter setting. Additional interpretive information is available by pressing the arrow
soft keys to the right of the display. Additional utilities from this screen include printing or sending
the ECG report, returning to the real-time display, advancing to the next patient, deleting the test
results, and returning to the previous screen.

Rhythm Printing

Press this icon to start or resume a rhythm print.

INTRODUCTION

27

Transmit and/or Download Order List; Time Sync

Press this icon to synchronize communication between the ELI 280 and a cardiology management
system. Once synchronized, the Sync icon can be used to receive orders, transmit reports,
synchronize time/date, or any combination thereof. The ELI 280 will synchronize only with certain
versions of ELI Link and/or an E-Scribe™ data management system.

NOTE: This device supports automatic time synchronization with a remote server. Inaccurate
time/date settings can result in ECGs marked with inaccurate time stamps. Confirm the accuracy of
the synchronized time prior to acquiring ECGs.

Configuration menu (Settings)

Pressing this icon allows the administrator to configure the system’s display and ECG acquisition

format along with other global settings. These configuration settings become the default setting at
power up and for each ECG test unless customized for an individual patient.

NOTE: If a format change has been made during a specific test the ELI 280 will return to its default
setting for the next patient.

Stop

Press this icon to stop or suspend a rhythm print, or stop a function.

Home

Press this icon to return to the real-time acquisition display.

INTRODUCTION

28

Specifications

Feature

Specifications

Instrument Type

Multi-lead electrocardiograph

Input Channels

Simultaneous acquisition of all 12 leads

Standard Leads Acquired

I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6

Waveform Display

Backlit, 10.1” high-resolution color LCD

Input Impedance
Input Dynamic Range
Electrode Offset Tolerance
Common Mode Rejection
Pacemaker Pulse Display

Meets or exceeds the requirements of ANSI/AAMI/ IEC
60601-2-25

Patient Leakage Current
Chassis Leakage Current

Meets or exceeds the requirements of ANSI/AAMI ES1

Digital Sampling Rate

40,000 s/sec/channel used for pacemaker spike detection;
1000 s/sec/channel used for recording and analysis

Optional Functions

Mortara VERITAS resting ECG interpretation algorithm with age and
gender specific criteria; connectivity with bidirectional communication

Paper

Perforated Z-fold thermal paper, Smart, A4 or 8.5 x 11” wide, 250
sheets

Thermal Printer

Computer-controlled dot array; 1 dot/ms horizontal, 8 dots/mm vertical

Thermal Printer Speeds

5, 10, 25, or 50 mm/s

Gain Settings

5, 10, or 20 mm/mV

Report Print Formats

Standard or Cabrera: 3+1, 3+3, 6, 6+6, or 12 channel

Rhythm Print Formats

3, 6, 8 or 12 channel with configurable lead groups

Frequency Response

0.05 to 300 Hz

Filters

High-performance baseline filter; AC interference filter 50/60 Hz; low-pass
filters 40 Hz, 150 Hz, or 300 Hz

A/D Conversion

20 bits (1.17 microvolt LSB)

Device Classification

Class I, Type CF defibrillation-proof applied parts

ECG Storage

Internal storage up to 40 ECGs; optional expanded up to 200 ECGs

Weight

12.5 lbs. (5.68 kg) including battery (without paper)

Dimensions

17.5 x 15.5 x 4.5” (44.45 x 39.37 x 11.43 cm)

Power Requirements

Universal AC power supply (100-240 VAC at 50/60 Hz) 110 VA; internal
rechargeable battery

INTRODUCTION

29

Accessories

Replacement Lead sets and Accessories

Part Number

Description

9293-046-07

COMBINER WAM/AM12

9293-046-60

LEAD SET WAM 10 WIRE BANANA AHA GRAY

9293-046-61

LEAD SET WAM 10 WIRE BANANA IEC GRAY

9293-046-62

RPLCE LD SET WAM/AM12 LIMBS BANA AHA GRY

9293-046-63

RPLCE LD SET WAM/AM12 LIMBS BANA IEC GRY

9293-046-64

RPLCE LD SET WAM/AM12 V1-V3 BANA AHA GRY

9293-046-65

RPLCE LD SET WAM/AM12 C1-C3 BANA IEC GRY

9293-046-66

RPLCE LD SET WAM/AM12 V4-V6 BANA AHA GRY

9293-046-67

RPLCE LD SET WAM/AM12 C4-C6 BANA IEC GRY

9293-047-60

LEAD SET WAM 10 WIRE CLIPS AHA GRAY

9293-047-61

LEAD SET WAM 10 WIRE CLIPS IEC GRAY

9293-047-62

RPLCE LD SET WAM/AM12 LIMBS CLIP AHA GRY

9293-047-63

RPLCE LD SET WAM/AM12 LIMBS CLIP IEC GRY

9293-047-64

RPLCE LD SET WAM/AM12 V1-V3 CLIP AHA GRY

9293-047-65

RPLCE LD SET WAM/AM12 C1-C3 CLIP IEC GRY

9293-047-66

RPLCE LD SET WAM/AM12 V4-V6 CLIP AHA GRY

9293-047-67

RPLCE LD SET WAM/AM12 C4-C6 CLIP IEC GRY

Paper

Part Number

Description

9100-026-50

PAPER ELI 280 US CASE/12/250 ZFOLD

9100-026-53

ARCHIVAL PAPER ELI 2XX 8.5X11 W/HDR CASE

9100-026-51

PAPER ELI 280 A4 CASE/12/250 ZFOLD

9100-026-54

ARCHIVAL PAPER ELI 2XX A4 W/HDR CASE

9100-026-52

PAPER ELI 280 Smart Format CASE/12/250 ZFOLD (Spacer not included)

8342-007-02

PAPER TRAY SPACER: required for A4 and Smart paper use.

9100-026-55

ARCHIVAL PAPER ELI 2XX SMART W/HDR CASE

Electrodes

Part Number

Description

9300-032-50

ECG MONITORING ELECTRODES CASE 300

9300-033-51

ELECTRODE RESTING TAB BOX/500

9300-033-52

ELECTRODE RESTING TAB CASE/5000

INTRODUCTION

30

Acquisition Modules

Part Number

Description

9293-048-54

WIRED PATIENT CABLE (AM12)

30012-019-54

WIRELESS ACQUISITION MODULE (WAM)

9293-065-50

WIRED PATIENT CABLE (AM12M) for use with Quickels Decapuss III and greater

Power Cords

Part Number

Description

3181-008

POWER CORD US/CAN HOSPITAL 5-15P+320-C13

3181-012-01

POWER CORD AUSTRALIA AS3112+IEC320-C13

3181-015-01

POWER CORD UK BS1363+IEC320-C13

3181-002

POWER CORD INTN’L CEE7/7+IEC320-C13

3181-017-01

POWER CORD CHINESE

Manuals

Part Number

Description

9515-001-50-CD

PHYSICIAN'S GUIDE ADULT & PEDIATRIC UM

9515-166-50-CD

ELI LINK USER MANUALS

9515-181-51-CD

BURDICK ELI 280 USER MANUALS

9516-181-51-ENG

BURDICK ELI 280 SERVICE MANUAL

Contact your dealer or go to www.burdick.com for more information.

31

EQUIPMENT PREPARATION

Initial Startup

When powering ON the ELI 280 the system requires the user to set certain configurations prior to obtaining an
ECG:

1. Date and time (including daylight savings time selection).

2. Language.

3. AC filter frequency.

4. Height/weight units of measure.

5. WAM pairing (if used). (Refer to the WAM user manual for detailed pairing instructions to the device.)

See System Settings, to set language, AC filter frequency, and height/weight units of measure.

Calibrating the Touchscreen Display

The touchscreen display requires calibration upon initial use and at regularly scheduled preventive maintenance
intervals as prescribed in the service manual. Once initiated, the ELI 280 automatically begins the calibration
sequence (detailed below). Through on-screen prompts, the user will touch strategically placed crosshairs to
calibrate the display’s touch point accuracy.

1. Initiate the calibration sequence by touching the + symbol in the upper left corner of the display.

2. Touch the + symbol in the upper right corner of the display.

3. Touch the + in the lower right corner of the display.

4. Touch the + in the lower left hand corner of the display.

Connecting the Acquisition Module

Connect the AM12 to the ECG connector at the rear of the device. When using the optional WAM for ECG
acquisition, this connection is not required.

Figure 2-1

NOTE: The device must be configured at the factory for use with the WAM. Select from the WAM
Pairing to determine the device’s setting. “WAM Option Not Available” will display if the device is not

configured to work with the WAM.

NOTE: WAM must be paired to electrocardiograph before operation. Please see the WAM user manual
for instructions.

NOTE: To use the AM12 in a WAM-configured device, turn the AM12 on, select WAM in the
Configuration Screen, and press “AM12 On.”

EQUIPMENT PREPARATION

32

Loading Paper

Figure 2-2

1. Remove packaging and cardboard backing from the paper stack.

2. Facing the front of the device, use the release latch on the left side and slide the paper tray cover to the left.

3. Place the stack of thermal paper into the paper tray such that the grid side of the paper is up when it is pulled

over the paper tray cover. The paper cue mark (a small black rectangle) should be in the lower left corner.

4. Manually advance one page of paper beyond the closure point. Make sure the paper lays on the black roller

evenly within the channel of the paper door. If paper is not manually advanced evenly, risk of jamming or
queue faults increases.

5. Slide paper tray cover to the right until the cover latches in a locked position. You will hear a sharp click when

the cover is properly latched.

WARNING: Risk of injury to fingers in paper door or platen drive mechanisms.

NOTE: For proper performance of thermal printer, be certain to use Buridck/Mortara/Quinton

recommended thermal paper.

EQUIPMENT PREPARATION

33

Smart and A4 Paper Users

To use Smart or A4 paper, please insert the paper tray spacer:

Figure 2-3

1. Slide paper tray spacer towards rear wall of paper tray. Align the bottom four plastic arms with the four

openings in the base of the paper tray. Similarly, align the top 3 plastic arms with the three openings on the rear
wall of the paper tray.

EQUIPMENT PREPARATION

34

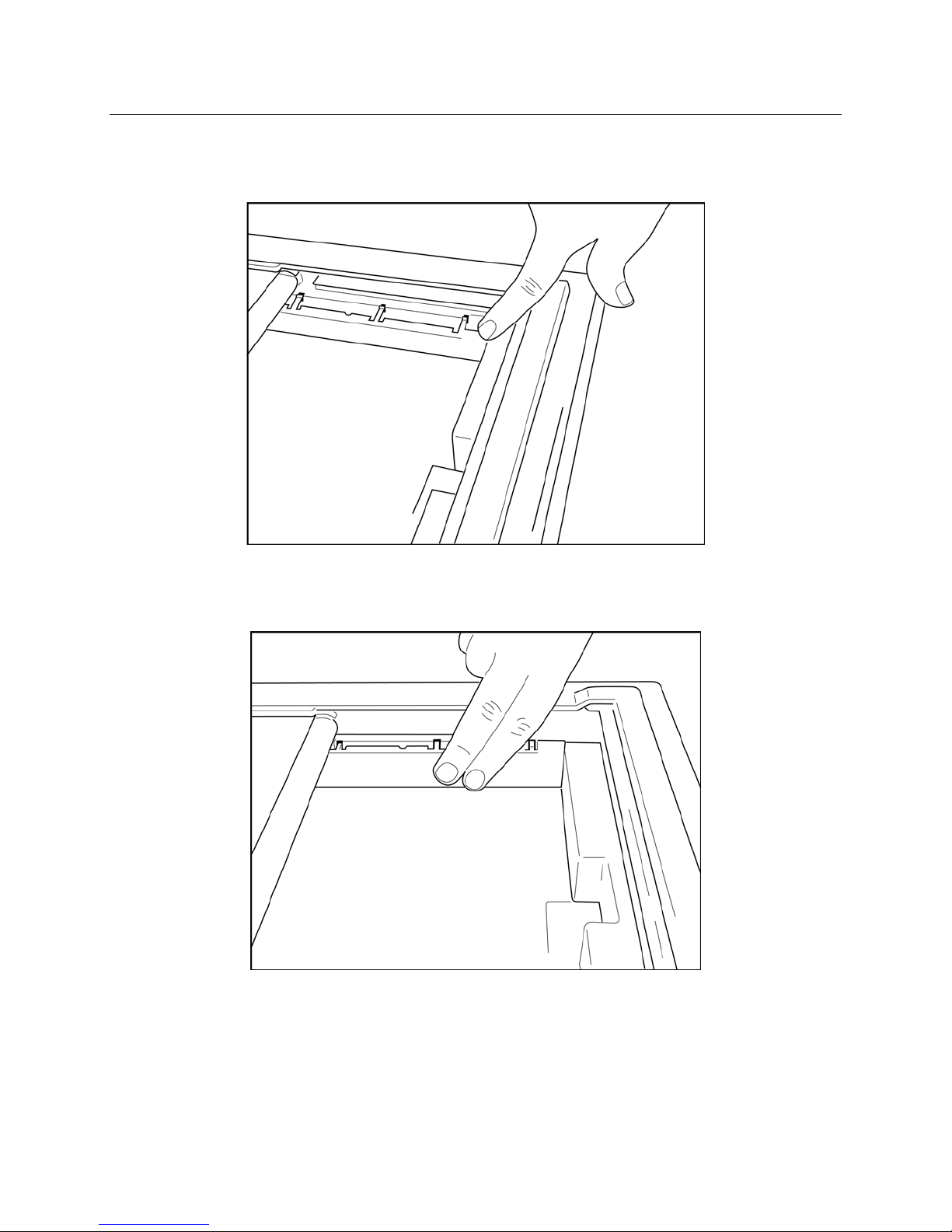

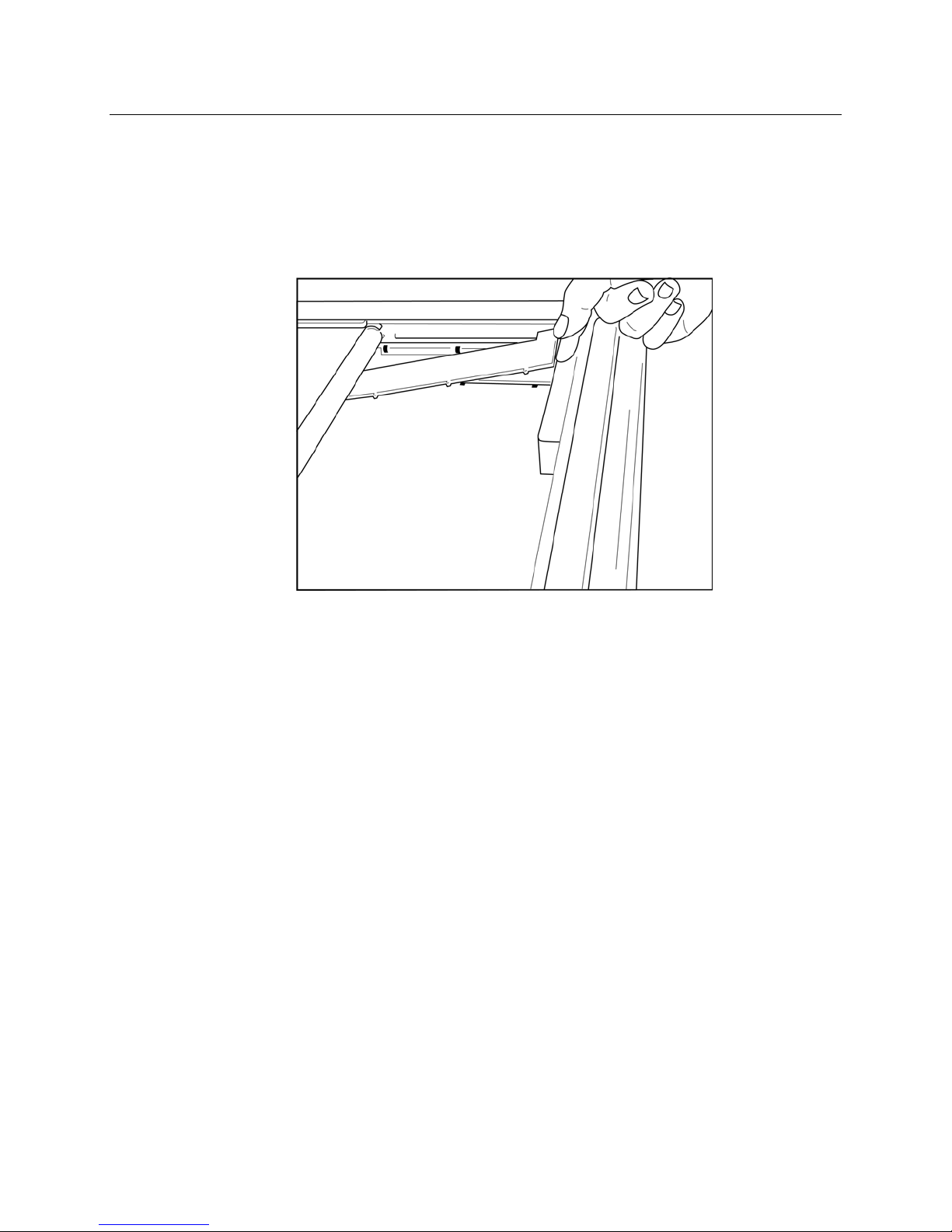

Figure 2-4

2. The paper tray spacer should be parallel with the rear wall of the paper tray.

Figure 2-5

3. Gently press paper tray spacer in place.

4. Gently press on the top three plastic arms to remove the paper tray spacer.

EQUIPMENT PREPARATION

35

Powering the ELI 280

The ELI 280 is an AC powered and/or battery-operated device that can simultaneously charge the internal battery
while connected to AC power. It is recommended that it be plugged in to AC power when not in use. The device can
be operated on AC line voltage in the absence of a battery or in the event of an otherwise fully depleted battery.
When line voltage is removed the device immediately switches to battery power.

Operating on AC Power

 Plug the power cord into an AC wall outlet and into the AC connector on the rear panel of the ELI 280.

(Reference Figure 1-3.)

 When the ELI 280 is plugged into AC power, the green AC power LED indicator illuminates below the

ON/OFF button.

 Press the ON/OFF button when on battery power or touch the screen when on AC power to illuminate

the real-time display.

 A battery icon with an electrical bolt through the battery (seen in the upper right corner of the touchscreen

display) confirms that the device recognizes AC power and automatically controls battery charging.

NOTE: In the event of complete power loss due to battery removal or a hard reboot (depressing the
On/Off button for greater than 7 seconds) the ELI 280 will require a touchscreen recalibration and
time/date reset.

Operating on Battery Power

When operating on battery power, the battery icon changes to indicate its status:

 WHITE with a lightning bolt indicates the unit is charging on AC power.
 GREEN indicates battery is between 100% and 35% charge.
 YELLOW indicates battery is between 35% and 20% charge.
 RED indicates battery has less than 20% charge remaining. Immediately plug the ELI 280 into AC

power if the battery indicator turns RED.

NOTE: Automatic power down occurs approximately 10 seconds after the battery icon starts FLASHING
RED. Allow a minimum of 4 hours to recharge a battery to 85% of its charge level. Allow a minimum of
5 hours to recharge a battery to 90% of its charge level. The battery voltage may be viewed in the lower
right of the display by selecting the Configuration icon, then selecting About.

NOTE: A power down is accomplished by depressing followed by the Off button. To reboot the
unit from a complete power down, use the On/Off button.

CAUTION: If the battery voltage falls below 10.5 the device will automatically power down. After

recharging long enough for the battery voltage to rise above 10.5V the device may again be operated on
battery power. It may require up to 30 hours on AC line voltage to recharge the battery from its lowest
level. Routinely discharging a battery to the lowest level will severely shorten the life of the battery.

EQUIPMENT PREPARATION

36

Low Battery Failsafe Conditions

If the battery depletes to its lowest allowable level, the device will automatically power down to prevent permanent
damage to the internal lead-acid battery. Plugging in the AC cord just prior to shutdown and while the message
“Battery Low – Charge Unit” is displayed (10 seconds), will prevent the automatic shutdown.

If the battery depletes to its lowest allowable voltage while in ECG acquisition mode, the device will display the
message “Battery Low – Charge Unit”, and will continue normal operation until the user exits the ECG acquisition
mode. At that time the system will automatically power down allowing the user to complete an ECG already in
progress.

Power Status

The ELI 280 has three distinct power states: Power On, Stand-by, and Off.

Power On

Power is automatically turned on when the device is connected to AC power. While powered on the ELI 280
performs all of its functions including display, acquisition, printing and transmission of ECGs.

Stand-By

Stand-by occurs automatically after the system is left idle for longer than 5 minutes without user interaction. The
user can also force the unit into Stand-by by pressing the ON/OFF button briefly. To leave the Stand-by mode press
either the ON/OFF button or touch the display. All entered patient information is maintained in Stand-by mode and
if a patient is connected, the ECG can be acquired. Effectively, only the display is turned off in Stand-by mode.

Power Off

The ELI 280 automatically turns off after 15 minutes in Stand-by mode when on battery power and no patient is
connected. The ELI 280 also turns off when battery voltage becomes too low. The operator can force the ELI 280 to

Power Off state using the Off button in the screen. The ELI 280 will never automatically turn off when on
AC power.

Reboot

Depressing the ON/OFF button for longer than 7 seconds causes the ELI 280 to execute a hard reboot, preceded by
the display flashing three (3) times. This will reset the internal clock to the default time and date. A hard reboot
causes the system to prompt the user to recalibrate the touch function (by touching the red crosses one at a time),
and re-enter the date and time at the next power On. The user can bypass setting the date and time by selecting
DONE for immediate ECG acquisition, but this ECG will have the default acquired date. The user must then set the
correct date and time manually using the Configuration icon, or, if connected to an ECG management system, by

pressing to sync the date and time. The ELI 280 will also reboot after the battery has been disconnected.

NOTE: It is normally NOT NECESSARY to reboot the ELI 280. Only reboot the ELI 280 if the touch
screen needs calibration or if you have an unrecoverable problem.

EQUIPMENT PREPARATION

37

Setting Date and Time

1. Select from the real-time display.

2. Select Date/Time.

a. Touch Year. Use the touchscreen keyboard to type in the correct year, then press Done.
b. Set the correct Month, Day, Hour and Minute by pressing each appropriate field and using the

touchscreen dropdown menu to choose the correct setting. Use the double arrows at the bottom of the
menu to view more choices. Select Done to save the new setting. To exit the menu without making a
new selection, use Cancel or touch anywhere outside the menu.

c. Touch Time Zone. Use the dropdown menu to select and touch the appropriate time zone. Use the

double arrows to view the next set of time zones. To exit the menu without making a new selection,
use Cancel or touch anywhere outside the menu.

d. Touch Daylight Savings. Select Yes if Daylight Saving Time affects your time zone or No if it

does not. To exit the menu without making a new selection, use Cancel or touch anywhere outside
the menu.

e. To set the precise date and time for when Daylight Savings starts and ends, proceed as follows:

a. Touch either set of double arrows ( or ) at the bottom of the Set Time/Date screen.
b. Set the Daylight Saving START Month, Week, Day, Hour and Minute.
c. Set the Daylight Saving END Month, Week, Day, Hour and Minute.
d. Select Done to save and exit, or Cancel to exit without saving.

3. Select Done again to return to the real-time display.

Time Synchronization

The SYNC feature allows time synchronization to occur only when the ELI 280 is interfaced to a product which
supports ELI Link or E-Scribe.

1. Select from the real-time display.

2. Select Advanced.

3. Select System.

4. Select  to advance to the next page.

5. Select Sync Mode.

6. Select Transmit+Orders+Date/Time from the dropdown menu.

7. Select Done to save and exit, or Cancel to exit without saving. Select Done again to return to the real-

time display.

NOTE: Select at any time it appears to return to the real-time display.

NOTE: This device supports automatic time synchronization with a remote server. Inaccurate time/date

settings can result in ECGs marked with inaccurate time stamps. Confirm the accuracy of the synchronized
time prior to acquiring ECGs.

EQUIPMENT PREPARATION

38

Installing the WLAN Antenna

The ELI 280 with optional WLAN module ships with the antenna in the accessory box. To install the antenna,
perform the following:

1. Locate and remove the antenna from the accessory box.

2. Locate the antenna connector on the back of the ELI 280.

3. Mount the antenna on the connector by rotating the antenna clockwise. The antenna must be finger tight to its

connector.

4. Locate the built-in hinge and fold the antenna (it will now be at a 90° angle); continue to rotate the antenna

clockwise until it is placed vertically. This will guarantee the best signal for the WLAN module.

NOTE: To configure for WLAN use, see Connectivity and ECG Transmission.

Using the WAM or AM12 Acquisition Module

ECG acquisition and rhythm strip printing can also be performed at the WAM or the AM12 acquisition modules.
To use the WAM, refer to the WAM user manual. To use the AM12, refer to the AM12 short-form instruction card.

The ELI 280 must be configured at the factory for use with the WAM. If the ELI 280 is configured for use with the
WAM, the two devices must be paired to function properly. Please see the WAM user manual for pairing
instructions.

NOTE: WAM must be paired to electrocardiograph before operation. Refer to the WAM operators manual
for assistance in pairing the WAM.

NOTE: If no patient connection is detected after 15 minutes, the WAM will turn off.

39

RECORD AN ECG

Patient Preparation

Before attaching the electrodes, assure the patient fully understands the procedure and what to expect.

 Privacy is very important in assuring the patient is relaxed.
 Reassure the patient that the procedure is painless and that the electrodes on their skin are all that they

will feel.

 Make sure the patient is lying down and is comfortable. If the table is narrow, tuck the patient’s hands

under his/her buttocks to ensure their muscles are relaxed.

 Once all the electrodes are attached, ask the patient to lie still and to not talk. Explaining the process to the

patient may help relax them further and assist in acquiring a good ECG.

Preparing Patient Skin

Thorough skin preparation is very important. There is natural resistance on the skin surface from various sources
such as hair, oil, and dry, dead skin. Skin preparation is intended to minimize these effects and maximize the quality
of the ECG signal.

To prepare the skin:

 Shave hair from electrode sites if necessary.
 Wash area with warm, soapy water.
 Dry skin vigorously with a pad such as 2 x 2 or 4 x 4 gauze to remove dead skin cells and oil, and to

increase capillary blood flow.

NOTE: With elderly or frail patients take care to not abrade the skin causing discomfort or bruising.
Clinical discretion should always be used in patient preparation.

Patient Hookup

Correct electrode placement is important for acquiring a successful ECG.

A good minimum-impedance pathway will provide superior noise-free waveforms. High quality silver-silver
chloride (Ag/AgCl) electrodes similar to those provided by Mortara are recommended to be used.

TIP: Electrodes should be stored in an air-tight container. Electrodes will dry out if not stored properly
which will cause loss of adhesion and conductivity.

To Attach the Electrodes

1. Expose the arms and legs of the patient to attach the limb leads.

2. Place the electrodes on flat, fleshy parts of the arms and legs.

3. If a limb site is not available, place the electrodes on a perfused area of the stump.

4. Attach the electrodes to the skin. A good test for firm electrode contact is to slightly tug on the electrode to

check adhesion. If the electrode moves freely, it needs to be changed. If the electrode does not move
easily, a good connection has been obtained.

RECORD AN ECG

40

For accurate V-lead placement and monitoring, it is important to locate the 4

th

intercostal space. The 4

th

intercostal

space is determined by first locating the 1

st

intercostal space. Because patients vary with respect to body shape, it is

difficult to palpate the 1

st

intercostal space with accuracy. Thus, locate the 2

nd

intercostal space by first palpating the

little bony prominence called the Angle of Louis, where the body of the sternum joins the manubrium. This rise
in the sternum identifies where the second rib is attached, and the space just below it is the 2

nd

intercostal space.

Palpate and count down the chest until you locate the 4

th

intercostal space.

Patient Hookup Summary Table

AAMI Lead

IEC
Lead

Electrode
Position

Red Red

On the 4

th

intercostal space
at the right sternal
border.

Yellow

Yellow

On the 4

th

intercostal space
at the left sternal
border.

Green

Green

Midway between
V2/C2 and V4/C4
electrodes.

Blue

Brown

On the 5

th

intercostal space
at the left
midclavicular line.

Orange

Black

Midway between
V4/C4 and V6/C6
electrodes.

Violet

Violet

On the left
midaxillary line,
horizontal with
V4/C4 electrode.

Black

White

Yellow

Red

On the deltoid,
forearm, or wrist.

Red

Green

Green

Black

On the thigh or
ankle.

RECORD AN ECG

41

Patient Demographic Entry

Patient demographic information can be entered before acquisition. The entered patient demographics fields will
remain populated until the ECG signal is acquired. If you attempt to acquire an ECG before patient hookup, the ELI
280 will prompt you to complete patient hookup before proceeding.

To access the patient demographic data entry form, select from the real-time display. Select at any
time it appears to return to the real-time display.

Patient Demographics Formats

The patient demographic labels available are determined by the ID format selected from the configuration settings.
In addition to short, standard, and long patient ID formats, the ELI 280 also supports a custom ID format. The
custom ID format designed in ELI Link or E-Scribe can be downloaded to the ELI 280. Additional information
about the custom ID can be found in ECG Directory or in the ELI Link and E-Scribe user manuals.

Manually Entering Patient Demographics

Patient demographics can be completed manually. Manually entered patient demographics are saved after
completing the entries and pressing Done.

Use the following steps to manually enter the patient demographics:

1. Select from the real-time display.

2. Touch any of the demographic fields to display a touchscreen keyboard.

3. Once a demographic field is selected, the color of its data box will change.

4. Use the touchscreen keyboard to complete the demographic field. Once completed, touch the next

demographic field or press the tab icon. Repeat this process until all the demographic fields have been
completed.

NOTE: Do not press Done until the data entry for all fields is complete. Pressing Done prior to
completion will return the user to the main screen. Select the Patient Demographic icon to re-enter the
Patient Demographic screen and complete the data entry.

5. The Month, Day, and Gender fields will also display a dropdown list when touched for easy selection.

6. When finished, select Done to save and return to the real-time display. Skipped fields will appear as a

blank field on the header of the ECG printout.

NOTE: If no age is entered before acquiring an ECG, the interpretation will default to a 40-year old male.

The statement “INTERPRETATION BASED ON A DEFAULT AGE OF 40 YEARS” will be added to the

interpretation text.
NOTE: If an age of zero (0) is used, the interpretation will default to a 6-month old infant. The statement

“INTERPRETATION BASED ON A DEFAULT AGE OF 6 MONTHS” will be added to the interpretation

text.

NOTE: A yellow background is used where Mandatory Fields are required (i.e., patient last name, ID, and/or
technician ID)

RECORD AN ECG

42

Patient Demographics from Stored ECGs

Patient demographics can be completed automatically by using an existing ECG in the directory. Use the following
steps to automatically enter the patient demographics from an existing ECG record:

1. Select from the real-time display.

2. Select Directory.

3. Use the double arrows ( or ) at the bottom of the screen to scroll through the ECG records. To select

the desired patient, touch the ECG record.

4. To search by patient name, touch Search Directory at the top of the display.

5. Use the touchscreen keyboard to enter the first few letters of the name or ID and move to the general

location of the desired patient record, or continue typing the patient name to obtain a closer proximity.

6. Select the patient’s name from the presented list.

7. Once the desired patient is selected, select New ECG to return to the patient ID screen with all

demographic fields populated.

8. Press Done to return to the real time display.

NOTE: The ELI 280 must have ECG input to retain patient demographics.

TIP: Automatically populating demographic fields via the directory is only possible when the ID formats

are the same between records.

TIP: Entry of a lower case letter as the first letter in the last or first name will automatically be
capitalized.

Patient Demographics from Orders

The ELI 280 can download orders from ELI Link and E-Scribe and use the orders to populate demographic fields.
ECGs performed with orders contain links to those orders, and healthcare IT systems can automatically associate
(i.e. reconcile) the ECGs with the orders. To use orders, follow these steps:

1. Select from the real-time display.

2. Select MWL.

3. Touch the Query Code box and select a pre-configured query, or enter a short search string to perform a

patient-specific search.

4. Touch to retrieve the orders.

5. Use the double arrows ( or ) at the bottom of the screen to scroll through the orders. Touch the

column headers to sort the orders, or touch the Search Worklist box to enter a search string.

6. Touch the desired order to load the demographics.

7. Fill in any remaining fields.

8. Touch Done to return to the real time display.

NOTE: If ELI Link is configured for DICOM, the DICOM option must be installed on the ELI 280, and its
Communication Protocol must be set for DICOM32 or DICOM32ext.

RECORD AN ECG

43

NOTE: Before downloading orders, the ELI 280 must have downloaded the Custom ID from ELI Link or
E-Scribe.

NOTE: Changing key patient identifying fields like the name, ID, sex, birthdate, etc. after selecting an
order will cause the ECG to be disassociated with that order and treated as an unordered test.

NOTE: The user must have Technician or Administrator permissions. If the user is currently a Guest, they
must log in as a Technician or Administrator or enter the ELI 280’s Technician password.

NOTE: When an ECG is linked to an order, the order’s scheduled time will be displayed at the bottom of

the patient demographics screen. If the time is not displayed, the ECG is not linked to an order.

Patient Demographics from Barcodes

The ELI 280’s optional barcode scanner supports popular symbologies such as Code 39, Code 128, Aztec, Data

Matrix, and PDF 417, just to name a few. If the facility’s patient ID bracelets encode several demographic fields,

like the patient’s ID, account number, name, sex, and birthdate, it may be possible to program the barcode scanner to

parse the individual values into the ELI 280’s patient demographics data entry form. Refer to the barcode scanner

user manual for instructions on setup and use.

When the barcode scanner is programmed to parse several demographic values from a barcode, the user may scan
the barcode from the main screen. When a barcode is scanned from the main screen and the ELI 280 detects
multiple lines of text, it automatically jumps to the patient demographics form and copies the values into the form.
From there, the user can fill in the remaining fields and touch Done to go back to the main screen.

Order Lookup with Barcodes

Patient ID bracelets often include barcodes that encode a single patient identifier. It could be the patient’s

permanent medical record number, admission ID, account number, or something similar. Scanning the barcode
symbol can be a convenient way to find the patient’s order. Assuming the ELI 280’s worklist has been recently

synchronized with the host, the user can scan the patient’s barcode from the main screen. When the ELI 280 detects

a single line of text in the barcode, it automatically jumps to the MWL page and copies the scanned value into the
Search Worklist box. If the patient’s order is in the list, it will be automatically selected. If the patient’s order is

not found, the worklist may need to be resynchronized with the host. In that case, consider touching the Sync
button to refresh the worklist and search for the order again.

Once the order is found and selected, touch Done to go to the demographics screen and fill in any remaining fields
before touching Done to go back to the main screen.

RECORD AN ECG

44

ECG Display Setup – Individual ECG

The Display Setup screen allows the user to set the following display configurations for an individual patient:
display format, display speed, display (ECG) gain, and display (ECG) filter. Access these configuration choices by
pressing anywhere on the touchscreen’s real-time ECG waveform. The display setup returns to the configured setup
after each ECG collection.

Display Format:

The real-time 12-lead ECG view can be set to any of the following formats by pressing the desired choice on the
touchscreen display: 12x1; 4x2; 6x2; and any three pre-selected leads (i.e. II-V1-V5).

Display Speed:

The real-time display sweep speed and rhythm printout speed can be set to any of the following speeds by pressing
the desired choice on the touchscreen display: 5 mm/s, 10 mm/s, 25 mm/s, or 50mm/s.

Display Gain:

The real-time ECG gain can be set to any of the following amplifications by pressing the desired choice on the
touchscreen display: 5 mm/mV, 10 mm/mV, or 20 mm/mV. The Gain setting is printed at the bottom right corner of
the ECG printout. The Display Gain setting will also be used on the printed ECG, unless changed in the Acquired
screen.

Display Filter:

The ECG filter can be set to any of the following frequency limits by pressing the desired choice on the touchscreen
display: 40 Hz, 150 Hz, or 300 Hz for ECG printouts. The Filter setting is printed at the bottom right corner of the
ECG printout. The Display Filter setting will also be used on the printed ECG, unless changed in the Acquired
screen.

WARNING: When the 40 Hz filter is used, the frequency response requirement for diagnostic

ECG equipment cannot be met. The 40 Hz filter significantly reduces high-frequency components of the
ECG and pacemaker spike amplitudes, and is recommended only if high-frequency noise cannot be reduced
by proper procedures.

NOTE: Changes to the ECG display setup for an individual ECG only take affect when a patient is
connected to the device.

ECG Acquisition and Printing with WAM or AM12

Control buttons located on the WAM and AM12 are available to initiate ECG acquisition and rhythm strip printing.
Refer to the WAM user manual or the AM12 short-form instruction card.

ECG Acquisition

ECG data is collected immediately and continuously once the patient is connected to the acquisition module.
For best results, before pressing or , instruct the patient to relax in the preferred supine position to

ensure that the ECG is free from motion artifact (noise).

If workflow permits patient demographic entry prior to acquisition, enter the patient identification information as
explained in Patient Demographic Entry.

RECORD AN ECG

45

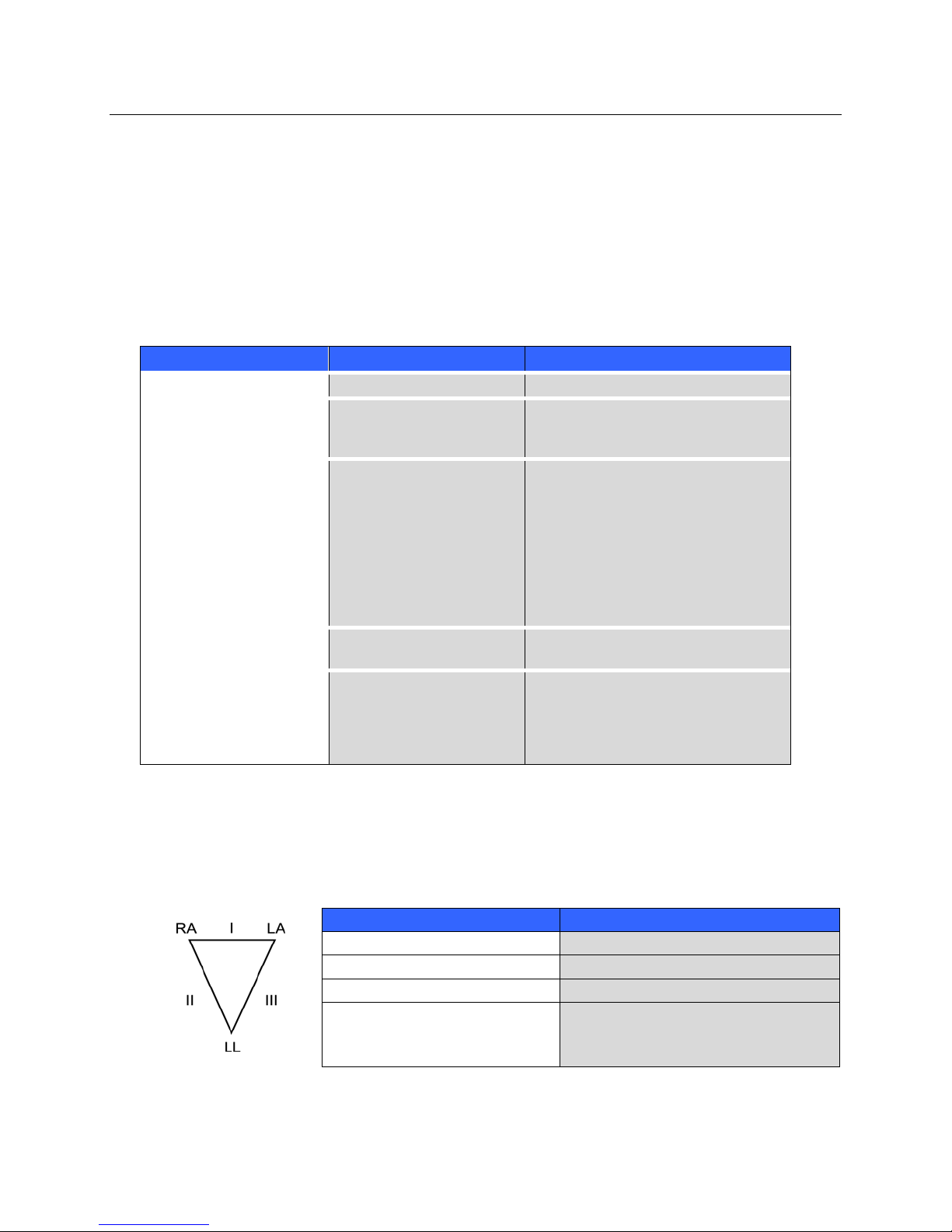

ECG Screen Notification Messages

The VERITAS interpretive algorithm detects Leads Off and Lead Fault conditions. It also detects electrode
misplacements based on normal physiology and ECG lead order and tries to identify the most likely switch. If the
algorithm detects an electrode lead misplacement, it’s recommended that the user confirm the other electrode
positions in the same group (limb or chest).

When the condition that triggered the notification message is addressed the VERITAS collects
10 seconds of new data before analyzing the ECG.

Message

Description

Corrective Action

Leads Off

Patient is not connected

Connect patient to ECG Leads.

Lead Fault

Faulty lead(s)

Re-prep and replace electrode(s) if
necessary to obtain satisfactory
waveform(s).

“Limb leads reversed?”
“LA or LL reversed?”
“RA or RL reversed?”
“RA or LA reversed?”
“V1 or V2 reversed?”
“V2 or V3 reversed?”
“V3 or V4 reversed?”
“V4 or V5 reversed?”

“V5 or V6 reversed?”

Electrode Wrong Position

Connect the lead(s) correctly to the
patient or connect the lead(s) to the
proper location.

WAM Low Battery

Low battery detected in the
WAM

Replace the batteries in the WAM.

Searching for WAM

WAM not detected. WAM
may be out of range,
powered OFF, depleted
battery, or requires
additional pairing.

Check WAM proximity to the ELI 280;
check WAM AA battery is new and
that the WAM is powered ON.

NOTE: In the event of a lead fault or lead misplaced message the clinician may force ECG
acquisition by depressing the ECG button again.

ECG Electrode Placement Troubleshooting

Please refer to the following troubleshooting guide based on Einthoven’s Triangle:

Artifact

Check Electrode

Lead II and III artifact

Poor LL electrode or left leg tremor

Lead I and II artifact

Poor RA electrode or right arm tremor

Lead I and III artifact

Poor LA electrode or left arm tremor

V Leads

Re-prep site & replace electrode

RECORD AN ECG

46

Press . The real-time ECG view is then replaced with the acquired ECG view. The default real-time ECG
view is not available in the acquired ECG view for navigation purposes.

NOTE: When Mandatory Fields are configured, and not populated at time of acquisition, and the “Done”
button is selected, the user will be presented with a message requiring an acknowledgment prior to
proceeding or exiting to home screen.

NOTE: New Function Icons are available in the acquired ECG view.
NOTE: Functions are not available during acquisition.

Acquiring a STAT ECG

To acquire an emergency (STAT) or unidentified ECG for a new patient prior to entering patient demographics,
follow the instructions below:

1. Select from the real-time display.

2. Select a second time. The ECG will be acquired.

3. The messages “Collecting 10 seconds of data,” followed by “Captured,” “Analyzed, and “Formatted”

appear in the top left corner of the display.

4. Once completed, the acquired ECG displays on a red grid background.

5. To return to the real-time display without entering patient demographics, select Done. The ECG can be

found in the directory by acquisition date.

NOTE: If a STAT ECG is acquired when Mandatory Fields are configured, the ECG will be stored but not
able to transmit because of the missing fields. Demographics must be added to the missing mandatory
field(s) prior to transmission.

Adding Patient Demographics after a STAT ECG

Use the following steps to add patient demographics immediately after acquiring a STAT ECG:

1. From the acquired ECG screen, select .

2. If the STAT ECG is for an existing patient, select No. Enter the patient demographics as described earlier

in this section. When patient data is complete, select Done to return to the acquired ECG view. Select
Done again to save and return to the real-time display.

3. If the STAT ECG is not for an existing patient, select Yes. Manually complete the demographic fields or

select the existing demographics from the patient directory as described earlier in this section. Select
Done to save and return to the real-time display.

4. From the acquired ECG view, select Print or Send. To return to the real-time display select Done.

Select Erase to delete the STAT ECG and return to the real-time display.

RECORD AN ECG

47

Best 10 Seconds of ECG

The ELI 280 incorporates a 5-minute memory buffer for collection of ECG data. When Best10 is enabled, the
device will automatically select the best 10 seconds of ECG data from within the 5-minute buffer. The best 10
second determination is based upon measurement of high and low-frequency noise found in the 10-second ECG
segments.

When Last10 is selected the device will automatically present the last ten seconds of ECG from the data stored in
the memory buffer.

Selecting Best 10 or Last 10

1. Select from the real-time display to acquire an ECG.

2. From acquired ECG view, touch anywhere on the red grid ECG to open the configuration screen.

3. Select Best10 or Last10.

4. Select OK to save the selection, and reformat, print, and display the ECG. Select Cancel to exit

without saving.

NOTE: If a single limb lead or two precordial lead fail condition occurs, the Best 10 feature is disabled
until the limb lead fail or precordial lead fail condition is resolved. Once the condition is rectified the Best
10 feature automatically becomes available.

Configuring the ECG Report

The ELI 280 can automatically print up to nine copies of the ECG report following acquisition. Print format, trace
speed, ECG gain, ECG filter setting and pacer channel can be set as a default in the Configuration menu, or
configured per ECG by touching the red grid screen display. This will allow for selection of plot format, gain, speed,
and filter setting change for the selected patient.

To change print format of an acquired ECG

1. From acquired ECG view, touch anywhere on the red grid ECG to open the configuration screen.

2. Select the desired choices for Print Format, Print Speed, Print Gain, Print Filter and Pacer Channel.

3. Select OK to save the selection, and reformat and display the ECG. Select Cancel to exit without saving.

4. Select Print, Send, Erase, or Done.

To automatically print (or not print)

1. Select from the real-time display.

2. Select Advanced followed by ECG.

3. Use the double arrow () to locate the # Copies: setting.

4. Touch the number of copies field and select the desired number of copies from the dropdown menu. Select

0 to ensure the printer does not automatically print the ECG following acquisition.

5. Select Done to save and return to the Configuration menu, or select Cancel to return without saving.

RECORD AN ECG

48

Acquired ECG Storage

Print, send, erase, save, or view the interpretation for an acquired ECG by following the steps below:

1. Select from the real-time display to acquire an ECG.

2. From acquired ECG view, press the double arrow () to advance through the report interpretation. Press

the double arrow () to return to acquired ECG view.

3. Press Print to initiate a printout.

4. Press Send to transmit the report to an ECG management system.

5. Press Erase to delete the record from the directory.

6. Press Done to save the record to the directory and return to real-time display. The message “Saving” will

confirm storage.

Acquiring Rhythm Strips

You can print a rhythm strip of the real-time ECG viewed on the display. Rhythm strips from the real-time ECG
display can be acquired with the patient connected to the ELI 280 and after patient identification information is

entered. A rhythm strip may also be printed without entering the patient ID by .

NOTE: Printed rhythm acquisitions are not stored in the ELI 280.

The rhythm strip’s display format, trace speed, ECG gain and ECG filter setting can be configured to a variety of

settings by performing the following steps:

1. From the real-time display, touch anywhere within the ECG display to view the setting choices.

2. Select the desired choices for Display Format, Display Speed, Display Gain and Display Filter.

3. Press OK to save the settings, and reformat and display the ECG. Select Cancel to return without saving.

To stop a rhythm print, press and the writer will automatically stop, allowing the user to start acquiring
additional data with new time stamp and demographics if required.

NOTE: Rhythm printing is only enabled when patient is connected. Likewise, rhythm printing will
automatically stop if a patient is disconnected.

NOTE: While printing, if the cue mark is not detected for 5 consecutive pages, printing will stop.

When Rhythm Format selection is configured to either 3- or 6-Channel, press to switch between lead groups
that are printed and viewed during rhythm printing. Selection of the Lead button during rhythm printing stops and starts
the printing and display of the lead sets in the following order:

For 6 channel Format:

a) Configured set
b) I – aVF
c) V1 - V6

For 3 channel Format:

a) Configured set
b) I – III
c) aVR – aVF
d) V1 - V3
e) V4 - V6

49

CONNECTIVITY AND ECG TRANSMISSION

ECG Transmission

The ELI 280 can transmit acquired ECG records to an E-Scribe system, ELI Link or to a third-party electronic
medical record (EMR) system. The interface to these systems can be via direct connection, factory installed
internal modem (optional), LAN or WLAN connection, using UNIPRO 32, or DICOM 32 protocols.

Before transmitting ECGs, certain configuration options must be set in system settings depending upon the
transmission media used and the electronic storage media being transmitted to.

NOTE: Telephone transmission is available with internal modem only.

NOTE: In order to properly connect to telephone lines, the ELI 280 internal modem needs to be set on the

proper country code. This is an internal setting and should not be confused with International calling
codes.

NOTE: Select at any time it appears to return to the real-time display.

In order to transmit ECGs the WLAN signal must be strong enough to transmit. WLAN performance may vary due
to changes in RF (radio frequency) properties at your site or to environmental conditions. Signal strength can be
measured using a utility available in the ELI 280 menu.

Testing RF signal strength

1. Select from the real-time display.

2. Select Advanced.

3. Select Network.

4. Signal strength displays as zero to five bars with zero being no RF signal strength and five bars being full

RF signal strength.

5. If an adequate signal is not being obtained, move to a location where more bars display before attempting

to transmit.

NOTE: Intermittent connectivity in certain areas of your facility often indicates the need to re-initiate the
transmission process. Consult the IT department at your facility or your Mortara Field Service Engineer
regarding modification of your WLAN to improve system performance.

NOTE: Ensure the system has been configured to the area network before attempting a RF signal strength
test.

Transmitting Records to the Cardiology Management System

To transmit a record to the cardiology management system, press Send from the acquired ECG view.

To transmit all un-transmitted records, press from the real-time display.

CONNECTIVITY AND ECG TRANSMISSION

50

Internal Modem Connection

NOTE: Modem functionality can be confirmed by the presence of an RJ 11 connector on the rear of the
unit located just below the Icon.

To set up the ELI 280 for modem transmission:

1. Select from the real-time display.

2. Select Advanced.

3. Select Modem.

4. Connect an active telephone line cable to the telephone jack, located on the back of the ELI 280.

5. Confirm the telephone number in the configuration settings.

Internal Modem Initialization

The modem initialization string code is configured for the country where the system was shipped. If the system is
relocated to a different country the modem initialization string code will need to be reprogrammed. Contact your
local Mortara Instrument Support Center for assistance reprogramming this code.

CONNECTIVITY AND ECG TRANSMISSION

51

External Modem Country Code List

Country

Code

Country

Code

Afghanistan

34

Canary Islands

34

Albania

34

Cape Verde

34

Algeria

34

Cayman Islands

34

American Samoa

34

Central African Republic

34

Andorra

34

Chad

34

Angola

34

Chile

34

Anguilla

34

China

34

Antigua and Barbuda

34

Colombia

34

Argentina

34

Congo

34

Armenia

34

Congo, The Democratic Republic of the

34

Aruba

34

Cook Islands

34

Australia

1 Costa Rica

34

Austria

34

Côte D'Ivoire

34

Azerbaijan

34

Croatia

34

Bahamas

34

Cyprus

34

Bahrain

34

Czech Republic

25

Bangladesh

34

Denmark

34

Barbados

34

Djibouti

34

Belarus

34

Dominica

34

Belgium

34

Dominican Republic

34

Belize

34

East Timor

34

Benin

34

Ecuador

34

Bermuda

34

Egypt

34

Bhutan

34

El Salvador

34

Bolivia

34

Equatorial Guinea

34

Bosnia and Herzegovina

34

Estonia

34

Botswana

34

Ethiopia

34

Brazil

34

Faero Islands

34

Brunei Darussalam

34

Fiji

34

Bulgaria

34

Finland

34

Burkina Faso

34

France

34

Burundi

34

French Guiana

34

CONNECTIVITY AND ECG TRANSMISSION

52

Country

Code

Country

Code

Cambodia

34

French Polynesia

34

Cameroon

34

Gabon

34

Canada

34

Gambia

34

Georgia

34

Korea, Republic of (South Korea)

30

Germany

34

Kyrgyzstan

34

Ghana

34

Lao People's Democratic Republic

34

Gibraltar

34

Latvia

34

Greece

34

Lebanon

34

Greenland

34

Liberia

34

Grenada

34

Libya

34

Guadeloupe

34

Liechtenstein

34

Guam

34

Lithuania

34

Guatemala

34

Luxembourg

34

Guernsey, C.I.

34

Macau

34

Guinea

34

Macedonia, The Former Yugoslav Republic

34

Guinea-Bissau

34

Madagascar

34

Guyana

34

Malawi

34

Haiti

34

Malaysia

30

Holy See (Vatican City State)

34

Maldives

34

Honduras

34

Mali

34

Hong Kong

30

Malta

34

Hungary

30

Martinique

34

Iceland

34

Mauritania

34

India

30

Mauritius

34

Indonesia

30

Mayotte

34

Iran

34

Mexico

34

Iraq

34

Moldova, Republic of

34

Ireland

34

Monaco

34

Isle of Man

34

Mongolia

34

Israel

30

Montserrat

34

Italy

34

Morocco

34

Jamaica

34

Mozambique

34

Japan

10

Namibia

34

Jersey C.I.

34

Nauru

34

Jordan

34

Nepal

34

Kazakhstan

34

Netherlands

34

Kenya

34

Netherlands Antilles

34

Kiribati

34

New Caledonia

34

Kuwait

34

New Zealand

9

CONNECTIVITY AND ECG TRANSMISSION

53

Country

Code

Country

Code

Niger

34

Nicaragua

34

Nigeria

34

Swaziland

34

Norway

34

Sweden

34

Oman

34

Switzerland

34

Pakistan

34

Syrian Arab Republic

34

Palestine Territory, Occupied

34

Taiwan

34

Panama

34

Tajikistan

34

Papua New Guinea

34

Tanzania, United Republic of

34

Paraguay

34

Thailand

34

Peru

34

Thaiti

34

Philippines

30

Togo

34

Poland

30

Tonga

34

Portugal

34

Trinidad and Tobago

34

Puerto Rico

34

Tunisia

34

Qatar

34

Turkey

34

Reunion

34

Turkmenistan

34

Romania

34

Turks and Caicos Islands

34

Russian Federation

34

Uganda

34

Rwanda

34

Ukraine

34

Saint Kitts and Nevis

34

United Arab Emirates

34

Saint Lucia

34

United Kingdom

34

Saint Vincent and the Grenadines

34

Uruguay

34

Samoa

34

USA

34

Saudi Arabia

34

Uzbekistan

34

Senegal

34

Vanuatu

34

Seychelles

34

Venezuela

34

Sierra Leone

34

Viet Nam

30

Singapore

30

Virgin Islands, British

34

Slovakia

34

Virgin Islands, U.S.

34

Slovenia

30

Yemen

34

Solomon Islands

34

Yugoslavia

34

South Africa

35

Zambia

34

Spain

34

Zimbabwe

34

Sri Lanka

34

Sudan

34

Surinam

34

CONNECTIVITY AND ECG TRANSMISSION

54

Local Area Network (LAN) Connection and Setup

NOTE: LAN functionality can be confirmed by the presence of the LAN icon in the Settings menu.

The ELI 280 must be configured for LAN transmission by the facility Information Technology (IT) professional:

1. Connect the ethernet cable from the facility’s local area network to the LAN connection at the rear of the

ELI 280.

CAUTION: Possible damage to the electrocardiograph may occur if a telephone cable is

connected to the LAN connector.

2. Select from the real-time display.

3. Select Advanced.

4. Select LAN.

5. Addresses are always entered as 4 sets of 3 digits therefore an address of 192.168.0.7 must be entered on

the ELI 280 as 192.168.000.007.

a. LAN/WLAN settings may be password protected when printing the configuration. If the

password is entered, users will be able to view these settings on the screen; however, all printouts
will print “****” instead of the actual values.

6. Select Done.

Ethernet Transmission Status Indicator LEDs

The operator can monitor LAN interface connection and data transmission by observing the LEDs (Light Emitting
Diodes) located at the system’s external connector. The LEDs can be viewed from the outside (rear) of the ELI 280.

LED LOCATION

STATUS

INDICATES

Left LED

Dark

ELI 280 is in the Off state.

Left LED

Illuminated

Network link is detected, ELI 280 is On or in Stand-by.

Right LED

Flashing

When transmit or receive network traffic is detected.

NOTE: The ELI 280 LAN will support 10 and 100 MBPS networks.

CONNECTIVITY AND ECG TRANSMISSION

55

Wireless Local Area Network (WLAN) Connection and Setup

NOTE: WLAN functionality can be confirmed by the presence of the WLAN icon in the Settings menu.

The facility Information Technology (IT) professional must:

 Configure the wireless access point(s).
 Configure the E-Scribe workstation.
 Provide the ELI 280 WLAN configuration values.

To set up the ELI 280 for WLAN transmission:

1. Select from the real-time display.

2. Select Advanced.

3. Select WLAN.

4. Configure the ELI 280 for Dynamic Host Communication Protocol (DHCP) or static IP. Wireless security

encryption options include:

 WEP
 WEP 128
 WEP 64
 WPA-PSK
 WPA–LEAP
 WPA-PSK64
 WPA-PSK128
 WPA-LEAP64
 WPA-LEAP128
 WPA2-PSK
 WPA2-PEAP
 WPA2-EAP-TLS
 WPA2-EAP-TLS(p12/pfx)

NOTE: Environmental conditions may affect the reliability of WLAN transmissions. Set or change the
WLAN Connect setting from the Settings menu.

If DHCP is set to NO, your wireless access point will have a static network setting and the following parameters
must be configured in the device:

 IP Address
 Default Gateway
 Sub Net Mask

If DHCP is set to YES, your wireless access point will have an automatic network setting and IP address. The
default gateway and sub net mask do not need to be configured.

CONNECTIVITY AND ECG TRANSMISSION

56

In either DHCP setting, the following wireless network parameters must be provided by the IT professional:

 Host IP
 Port Number
 SSID
 Channel Number
 Password or passphrase

NOTE: Addresses are always entered as 4 sets of 3 digits; therefore, an address of 192.168.0.7 must be
entered on the ELI 280 as 192.168.000.007.

If WEP wireless security is disabled on your access point, then set security (WEP) to None.

If WEP wireless security is enabled on your access point, the following wireless network parameters must be
configured in the device by the IT professional:

 Security: WEP
 WEP Key
 WEP Key ID

NOTE: The range for the WEP key is 0-3. If the range on your access point is 1-4, then 0 at the ELI 280
maps to 1 on the access point; 1 maps to 2 on the access point, etc.

If your wireless security environment is WPA or WPA2 (Wi-Fi Protected Access) then enter the following:

 Security: WPA-PSK or WPA2-PSK
 Passphrase:

NOTE: The passphrase length is limited to 64 digital Hex Value characters or 63 ASCII characters.

If your wireless security environment is LEAP then enter the following:

 Security: WPA-LEAP or WPA2-PEAP
 LEAP or PEAP User Name
 LEAP or PEAP Password

NOTE: LEAP user name and password are limited to 63 characters.

NOTE: Allow the ELI 280 several seconds to complete saving the WLAN configuration.

Transmission Media Auto-Sync

The ELI 280 automatically identifies the default transmission media. Connectivity options which have been
optionally purchased and installed will be available for default selection. The electrocardiograph will automatically
detect the communication device and automatically connect to it.

CONNECTIVITY AND ECG TRANSMISSION

57

USB Connectivity

Transmission using the USB host port to a USB memory stick

USB memory communication media permits storage of patient records to an external USB memory stick. The files
will be saved in UNIPRO32 format for transfer to the E-Scribe or a compatible electronic information management
system.

NOTE: Device is compatible with FAT32 formatted USB memory sticks.

NOTE: The USB memory stick must not contain any automatic features (e.g., Sandisk U3). Uninstall any

features from the memory stick before connecting it to the device.

NOTE: All communication options (MODEM, LAN, WLAN) including time sync and orders download are
disabled when a USB memory stick is inserted in the device.

NOTE: Upon successful transmission the device display will state “Transmission status transmit
complete. Press any key to continue.” The total number of patient records transmitted to the USB

memory stick will also appear.
NOTE: Patient records transmitted to a USB memory stick are marked as transmitted by the device.

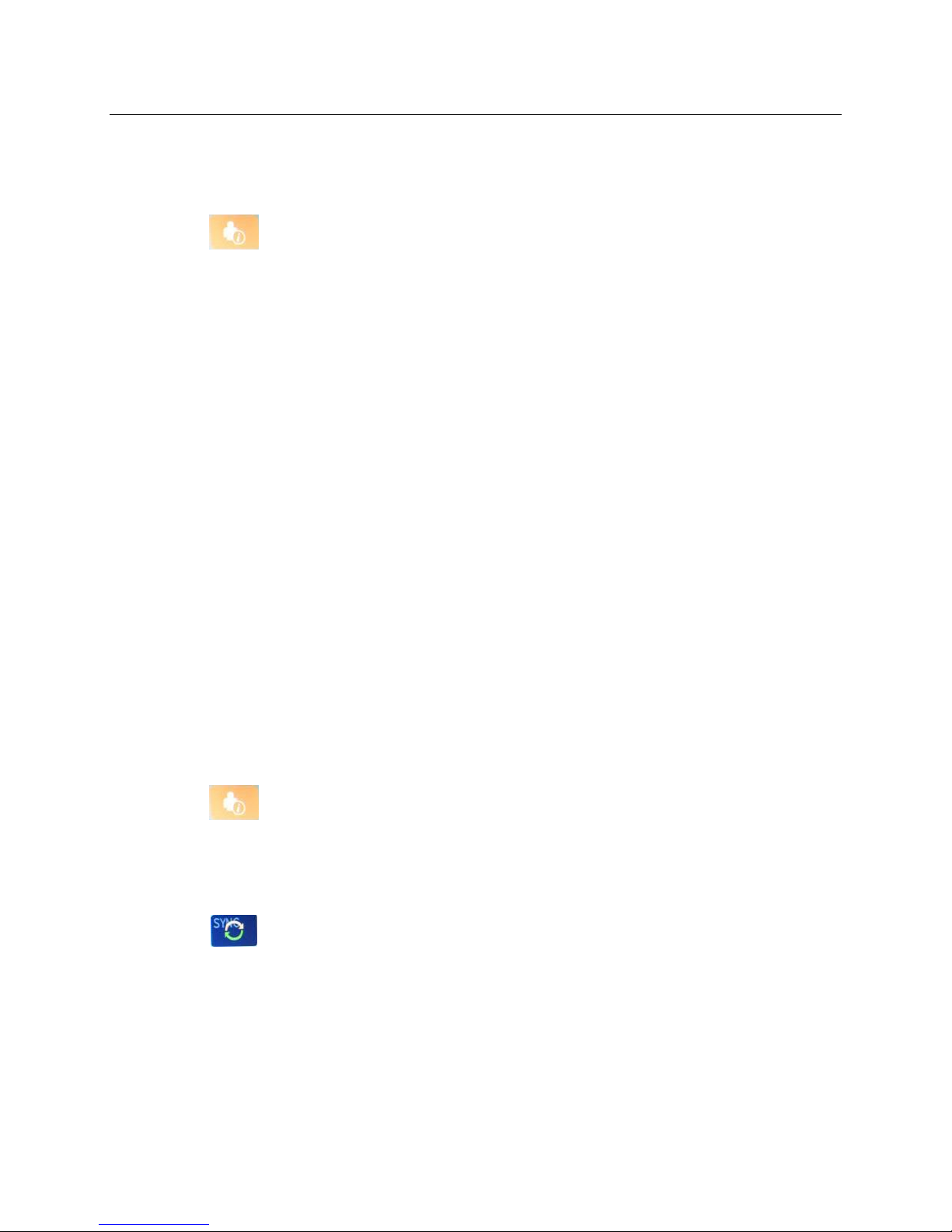

Transferring Individual Patient Records to the USB Memory Stick

 Place the USB memory stick into the USB host port on the back of the device.
 Select from real-time ECG view.

 Select Directory.
 Select the patient record to be stored to the USB memory stick.
 Select Transmit.

Transferring Batch Patient Records to the USB Memory Stick

 Place the USB memory stick into the USB host port on the back of the device.
 Select SYNC.
 Select Done when transmission is complete.

CONNECTIVITY AND ECG TRANSMISSION

58

Transmission using the optional USBD (device) port to a PC

The USBD port permits transmission of stored patient records to a PC using a direct USB cable. The patient records
will be transmitted to an ELI Link application (requires V3.10 or later) and then exported and saved in various
formats (see the ELI Link user manual).

Connecting the ELI 280 to a PC

When connecting the device to a PC for the first time, the proper USB driver will need to be installed prior to use.

 Use a USBD cable to connect the device to a PC.
 When properly connected, the PC will automatically detect the device and automatically install the drivers.
 You will be required to power the ELI 280 on by pressing the On/Off button for a period of three seconds.

Transmitting Patient Records to ELI Link

 Create both an Input folder and Output folder on the PC.
 Configure ELI Link to the individual Input and Output folders.
 Connect the ELI 280 to the PC.
 “USB Device ready” will appear on the device display; a “Removable Disk” message will display on the

PC.

 Using the PC mouse, select Records from the removable disk window displayed on the explorer window.
 Select the patient record(s) to be copied.
 Place the copied record(s) into the Input folder on the PC.
 After a period of 5 seconds, select the copied record(s) to view on the PC or print via PDF from the Output

folder.

NOTE: Requires ELI Link V3.10 or later. See ELI Link user manual for further detail on settings.

NOTE: User must create an Input and Output folder for records to be stored or retrieved for use in

ELI Link.

NOTE: Patient records transmitted to ELI Link are not marked as transmitted by the device.

WARNING: Do not change or modify any information existing in any of the ELI 280 folders that

are visible on the PC in the removable disk file.

CAUTION: To assure consistent operation and avoid confusion, connect only one ELI 280 using

the USB device port to a PC at a time.

 Unplug the USBD cable and power the ELI 280 On.

59

ECG DIRECTORY

ECG Directory

The standard ECG directory saves up to 40 individual ECG records. The optional expanded memory permits up to
200 ECGs to be stored.

To access the ECG directory, select from the real-time display, followed by Directory.
Sort the directory by Name or ID by touching the header of choice.
Use the double arrows ( or ) at the bottom of the screen to move page by page through the list of acquired

ECGs. The number of pages, as well as the current page, displays to the left of the double arrows.
When a patient from the directory is selected, a second window (sub directory) will display all of the ECG records

stored in the directory for that patient, along with the date and time of each acquisition. Records that have been
printed, transmitted, or deleted will be indicated by a √ in the appropriate column.

NOTE: Records are automatically deleted through a first in-first out process when the maximum number
of records has been reached.

NOTE: A password may be required before entry into the ECG directory. Obtain the password from the
department Administrator.

NOTE: Select at any time it appears to return to the real-time display.

Searching ECG Records

To search the directory by patient name:

1. Select from the real-time display, followed by Directory.

2. Select the Name column header.

3. Select Search Worklist and a touchscreen keyboard will appear.

4. Use the touchscreen keyboard to enter the first few letters of the last name and move to the general location

of the desired patient record, or continue typing the patient name to obtain a closer proximity. Use Cancel
to return to the directory without using the search feature.

5. Select the patient’s name from the presented list. Use Back to return to the directory.

6. To search by ID, DOB or Last ECG, select the desired column header before selecting Search Worklist.

To exit the directory, select Done. Select Done again to return to the real-time display.

NOTE: Use the double arrows ( or ) at the bottom of the screen to move page by page through the list
of acquired ECGs. The number of pages, as well as the current page, displays to the left of the double
arrows.

ECG DIRECTORY

60

Reviewing ECG Records

To review an existing patient ECG record:

1. Select from the real-time display, followed by Directory.

2. Navigate to the desired patient record, and select.

3. Select the desired acquired ECG from the sub directory.

4. Once selected the acquired ECG will display.

5. To change the format of the acquired ECG touch the display and select the desired settings for Print
Format, Print Speed, Print Gain, Print Filter and Pacer channel.

6. Select OK to save and return to ECG display, or Cancel to exit without saving.

7. To view the interpretation, select . Select  again to return to the displayed ECG.

8. Select Print to print the acquired ECG; use Stop to stop printing. To transmit the acquired ECG use
Send; to delete use Erase.

9. Select ID to enter or edit demographic information (if required) after ECG acquisition.

10. Select Back to return to the sub directory. Select Back again to return to the ECG directory.

To acquire an additional ECG using the existing demographics:

1. Navigate to the sub directory for the desired patient.

2. Select New ECG followed by Done.

3. To acquire the new ECG, select . Once completed, the acquired ECG displays on a red grid
background.

4. Change the format by touching the display and selecting the desired settings for print format, print speed,
print gain, print filter, pacer channel and Best 10/Last 10. Select OK or Cancel to save or discard the
changes. With the tracings displayed you can select print, send, or erase the new ECG record.

5. Use Done to save the new record and return to the sub directory.

61

ECG DIRECTORY

Deleting ECG Records

Management of the ECG record is performed within the sub directory of stored ECGs. The desired record must be
selected in order to view, print, edit or add demographics, or erase the record.

An ECG may be stored in the directory but have a “deleted status” (indicated by “√” in the column under deleted but

in the same row as the name). The directory saves records marked for deletion in the event that the record needs to
be reviewed or printed at a later time.

NOTE: Records are automatically marked for deletion based on the delete rule
configuration.

Stored ECGs will remain in the directory until the memory becomes full. Only those records that have been marked
for deletion will be removed when necessary to store a newly acquired ECG.

Erasing ECGs from the Directory

1. Select from the real-time display, followed by Directory.

2. Navigate to the desired patient record and select. All acquired ECGs for that patient will display.

3. Select ERASE ALL to erase all of the ECGs in the selected patient record, or

4. Select the desired ECG from the patient record followed by ERASE.

Printing the ECG Directory

1. Selecting Print from the bottom of the ECG directory display will generate a printout of the entire ECG
directory (up to 200 records; 40 records per page). Use Stop to stop printing.

2. Select Done to return to the Patient Demographics page; select Done again to return to the real-time
display.

ECG Orders

The ECG Orders (MWL) directory saves up to 256 ECG pending orders. Orders are displayed with name, ID,
patient location, patient room number, and date/time of order.

The Orders menu allows the user to download or print orders, as well as load a query for a certain location in the
facility. Sort, navigate and/or search ECG Orders in the same manner as the ECG Directory.

NOTE: Each time orders are downloaded the ELI 280 will automatically refresh the orders list. Orders
that have been executed, canceled or deleted will be automatically eliminated.

ECG DIRECTORY

62

Searching ECG Orders

To search the directory by patient name:

1. Select from the real-time display, followed by MWL.

2. Select the Name column header.

3. Select Search Worklist and a touchscreen keyboard will appear.

4. Use the touchscreen keyboard to enter the first few letters of the last name and move to the general location
of the desired patient record, or continue typing the patient name to obtain a closer proximity. Use Cancel
to return to the directory without using the search feature.

5. Select the patient’s name from the presented list. Use Cancel to return to the Search function. Use OK to
return to the real-time display and acquire an ECG for the selected patient, or use Edit to edit the patient
demographics for the selected patient. When editing is complete, use Done to return to the real-time
display and acquire an ECG for the selected patient.

6. To search by ID, Location, Room, or Date/Time the order is scheduled to be performed, select the desired
column header before selecting Search Worklist.

7. To exit the directory, select Done. Select Done again to return to the real-time display.

NOTE: Use the double arrows ( or ) at the bottom of the screen to move page by page through the list
of orders. The number of pages, as well as the current page, displays to the left of the double arrows.

NOTE: The ELI 280 will maintain the last selected queried location used in the search process to help
expedite work flow.

NOTE: When reviewed, the selected order will display the scheduled date and time of the order at the right
of the demographics.

Worklist Management

The ELI 280 can download and process ECG order lists from the E-Scribe or another compatible information
management system which identifies the ECG(s) (or ECG orders) needed for particular patients. Implementation of
an order-based workflow can significantly reduce demographic data-entry errors at the electrocardiograph. Orders
are deleted from the list when the ordered ECG is acquired, and the MWL listing is refreshed.

Sync Command

Use to transmit an acquired ECG to a cardiology management system, transmit and request a download of
the MWL, or transmit, request a download of the MWL and synchronize the date and time.

NOTE: This device supports automatic time synchronization with a remote server. Inaccurate time/date
settings can result in ECGs marked with inaccurate time stamps. Confirm the accuracy of the synchronized
time prior to acquiring ECGs.

63

ECG DIRECTORY

MWL Query

MWL query codes may uniquely identify a location or department. Query codes may be assigned to a staff member
or an electrocardiograph. Use the Query Code drop-down menu from the ECG Orders directory to select orders
specific to that query code or location.

Once a query code is selected it will serve as the default query code for that particular ELI 280, or until a different
selection is made. Select None to erase the last query code used.

Custom ID Download

Custom ID formats are uniquely defined by your facility’s needs. This customized ECG header information is

designed in ELI Link or an E-Scribe system and downloaded to the ELI 280.

To download and set a Custom ID format:

1. Select from the real-time display.

2. Select Custom ID.

NOTE: Alternatively, select Advanced from the Configuration menu followed by selecting Custom ID.
(A password is required to enter Advanced settings.)

3. “Attempting Network Connection” will display followed by “Connected,” and finally “Custom ID
downloaded.”

4. Select Done to return to the Configuration menu; select Done again to return to the real-time display.

5. The Custom ID is retained for all future ECGs until a different ID format is downloaded, or Short or Long
format is selected from the Settings menu located under System. The set Custom ID format will not be lost
due to power loss or failure, or when switching to a different ID format.

6. Set the ID format configuration to short, long, or custom depending on the facility’s patient demographic -
entry needs.

TIP: Upon Custom ID download, the ID format will assume the demographic layout as designed in
ELI Link or E-Scribe.

NOTE: The site number must be configured in the electrocardiograph and recognized as an established,
valid site number in ELI Link or E-Scribe before downloading the Custom ID.

TIP: Communication configuration parameters must be set before downloading the Custom ID from
ELI Link or E-Scribe.

64

ECG DIRECTORY

Patient Demographic Query (PDQ)

The ELI 280 can query the EMR for patient demographic information via HL7 A19 using the input of up to three demographic
criteria (ID, First Name, Last Name, or any combination of the three fields) for those institutions performing unordered ECG
tests, or do not have an interface to an electronic ordering system.

The ELI 280 performs a query based on the information input into the search fields. The more specific the information
input into the fields, the narrower the search. It is best practice to input as specific information as possible to return the
most specific result.

The PDQ feature may be enabled and used in combination with DICOM, or in an order-based environment.

Performing a PDQ:

1. Select

from the real-time ECG display, and then select the PDQ button.

2. Enter the ID, first name, last name, or any combination, then select SYNC.

3. When a single patient match is found, the ID screen is populated with the demographics of the result,
otherwise all patients matching the search criteria are listed.

4. Select the appropriate patient from the list if more than one option is available.

5. Select Done to proceed to the real-time ECG display for ECG acquisition.

Performing a PDQ with a barcode scanner:

1. While on the real-time ECG display, scan the patient barcode. The ELI 280 will automatically search for an
open order downloaded to the device, then it will search the list of ECGs stored on the device for a patient that
matches the field scanned, and if no patient is found, a patient demographic query using the entry scanned is
prompted.

2. When a single patient match is found, the ID screen is populated with the demographics of the result,
otherwise all patients matching the search criteria are listed.

3. Select the appropriate patient from the list if more than one option is available.

4. Select Done to proceed to the real-time ECG display for ECG acquisition.

Search Tools

The following are tools to assist in searching for the appropriate patient following a patient demographic query:

 Sort the results by Name, ID, Location, Room, or DOB by a tap on the column header. A second tap will

sort the list in reverse order.

 Use the double arrows (<< or >>) at the right center of the screen to move page by page through the list of

patients. The current/total number of pages is displayed between the double arrows.

NOTE: The PDQ feature on the ELI 280 may be used when enabled and the interface configured. See the ELI Link
manual for information regarding setup and configuration of the interface.
NOTE: When no match for a patient is found after a PDQ, the unit will remain in the Transmission Status screen
until the user selects Done.

65

SYSTEM SETTINGS

Menu Commands and Utilities

To access system settings, select from the real-time display. Select Advanced for extended settings.
Extended settings are password protected; the factory password is “admin”.

NOTE: Select at any time it appears to return to the real-time display.

UTILITY

DESCRIPTION

CHOICES

MENU

About

Presents the utility settings of the
ELI 280.

 Serial Number
 Software version
 Interpretation
 Communication
 Memory Capacity
 Multi Protocol
 DICOM
 USB Device
 Stress
 PDQ
 LAN
 WLAN
 Modem
 LAN Mac
 WLAN Mac
 Bar Code Scanner
 Battery Voltage
 Security

Advanced

Gives access to the extended
configuration menus

Custom ID

Downloads a Custom ID from a
compatible information management
system.

 ELI Link
 E-Scribe system
 Compatible information

management system

Date/Time

Sets the date and time in the
appropriate time zone.

 Time zone
 Daylight savings

WAM/AM12

Presents the option to activate and the
utility necessary to use the WAM.

 Synchronize (pair) the WAM with

the ELI 280

 Change acquisition module to

AM12.

TEST WLAN

Tests the strength of the radio
frequency (RF) signal of the ELI 280 to
the wireless network.

System

Presents the following system setting
utilities.

 Language
 Volume
 ID Format
 Units for Height
 Units for Weight
 Communication Protocol
 Caps Lock
 Transmitted Edit Disable
 Barcode date Format
 Cart Number

ADVANCED

66

SYSTEM SETTINGS

UTILITY

DESCRIPTION

CHOICES

MENU

 Site Number
 Site Name
 Second Site
 Second Site Number
 Third Site Number
 Third Site Name
 Output Date Format
 Mandatory Fields (ID, Last

Name, Tech ID)

 Sync Mode
 File Encryption Key
 Delete Timeout
 Communication Encryption Key
 User Authentication
 Auto Log Off (minutes)

ECG

Default settings for ECG-related
parameters.



Various parameters

ADVANCED

LAN

Set the parameters needed for the
Local Access Network.

 Various parameters

ADVANCED

WLAN

Set the parameters needed for the
Wireless Local Access Network.

 Various parameters

ADVANCED

Modem

Set the parameters required for the
modem.

 Various parameters

ADVANCED

Password

Administrator enters and changes
passwords to limit access to the
configuration menus, ECG directory,
and/or orders/work list.

 ECG Technician password
 Administrator password

ADVANCED

Service

Allows qualified personnel access to
Service utilities.

 Calibration Cue
 Auto Test
 Firmware
 Config File
 Options File
 Owner Name
 Dump Logs
 Dump Records
 Erase Records
 First Time Boot
 Writer Test
 Test Config.
 Clear flags
 Fill Directory
 IIR On

ADVANCED

Print

Prints the configuration of the ELI 280.

Done

Exits the utility and saves the setting.

Returns to the previous menu screen

Home

Exits the menu.

Returns to the real-time display

67

SYSTEM SETTINGS

Device Passwords

The device’s Administrator password controls several functions and should be created and secured with care. Log

the Administrator password in a location where it can be accessed during an emergency as well as in a backup
location in case the primary location is compromised. The ELI 280 is preset with the case-sensitive Administrator
password “admin.” To change the Administrator password, see Setting Passwords.

The Administrator password enables:

a. Access to the Configuration menu which controls all other passwords.
b. Creation of a new password that can be required to access the Set Password function.
c. Creation of a technician-level password that can be required to access the ECG or MWL directories.

Setting Device Passwords

To set or change the ELI 280’s Administrator and Technician passwords:

1. Select from the real-time display.

2. Select Advanced followed by Passwords. (A password is required to enter Advanced settings.)

3. Touch the appropriate password field and use the touchscreen keyboard to enter the new password. Retype
the new password in the appropriate Confirm field.

4. Select Done to save and return to the Configuration menu, or Cancel to return without saving.

NOTE: Factory preset password is “admin”.

NOTE: Passwords are case sensitive.

NOTE: Technician password allows for entry into the ECG or MWL directories only if selected.

68

SYSTEM SETTINGS

Configuration Settings: About

Serial Number

This indicator allows the user to see the serial number of the electrocardiograph.

Software Version

This indicator allows the user to see the software version of the electrocardiograph.

Interp

This selection allows the user to see whether automatic ECG interpretation is available on the device.

Memory Capacity

This indicator allows the user to see the storage capacity that the electrocardiograph currently possesses. The
standard capacity is 40 records. The expanded capacity (optional) is 200 records.

Multi-Protocol

This utility is most frequently used in pharmaceutical research facilities. It allows the user to simultaneously run up
to three protocols.

DICOM

This indicator allows the user to see if DICOM bidirectional communication is available.

USB Device

This indicator allows the user to see if the ability to transmit data using a USB device if available.

Stress

This indicator allows the user to see if the device supports Stress testing.

LAN

This indicator allows the user to see if Ethernet Local Area Networking is available on the device.

WLAN

This indicator allows the user to see if Wireless Local Area Networking is available on the device.

Modem

This indicator allows the user to see if a Modem is available on the device.

LAN MAC

This indicator allows the user to see the Local Area Network MAC address.

69

SYSTEM SETTINGS

WLAN MAC

This indicator allows the user to see the Wireless Local Area Network MAC address.

Bar Code Scanner

This indicator allows the user to see if a bar code scanner can be used with the device.

Battery Voltage

This indicator allows the user to see the ELI 280’s current battery voltage.

Security

This indicator allows the user to see if the Security features are enabled:

 Network User Authentication
 User Roles
 Encryption of Stored Data

Patient Demographic Query

This indicator allows users to query an EMR for patient demographic information.

Configuration Settings: Modem

Telephone Number

This control allows the user to set the telephone number for internal modem transmission to another unit or to an
E-Scribe system. The utility can accommodate up to 45 alphanumeric characters.

NOTE: Some systems may require the system to dial a 9 to get an outside line. Some systems may require
the system to wait for an additional dial tone. In this case use the letter W. See below example.

EXAMPLE: 9W14145554321

To insert a pause use a comma (,).
To change tone dialing to pulse dialing, use the letter P.

EXAMPLE: P14145554321

(If necessary, use both the letter W and the letter P in the same phone number.)

SYSTEM SETTINGS

70

Configuration Settings: System

Follow these steps to change the ELI 280 system settings:

1. Select from the real-time display. (Enter password if required.)

2. Select Advanced, followed by System. (A password is required to enter Advanced settings.)

3. Make the appropriate configuration changes.

4. Select Done to save and return to the Configuration menu, or select Cancel to return without saving

Language

There are several languages available on the electrocardiograph.

CAUTION: Function labels are immediately translated upon selecting a new language and exiting

the configuration screen.

Volume

This control sets the loudness when a key on the touchscreen keyboard is pressed. Available settings are Off, Low
and High.

ID Format

This control allows the user to define the format for the patient demographic information field prompts. There are
three available formats: short, long and custom. A Custom ID format can be downloaded from ELI Link or an
E-S cribe system.

The short format contains the patient’s last name, patient’s first name, ID number, birthdate, age and sex. The device

automatically calculates the patient’s age when the birthdate is entered.

The long format contains the patient's first name, patient’s last name, ID number, age, height, weight, sex, race,

medications, location, room, and comment fields.

Unites for Height

This selection allows the user to set the units of measure to inches (in) or centimeters (cm).

Units for Weight

This selection allows the user to set the units of measure to either pounds (lb) or kilograms (kg).

SYSTEM SETTINGS

71

Communication Protocol

This control allows the IT professional to set the communication protocol to UNIPRO32, DICOM32, or
DICOM32ext.

NOTE: This setting must be entered under the direction of the IT professional at the facility where the
device is installed.

Caps Lock

All character entry is translated to uppercase.

Transmitted Edit Disable

When set to Yes, the ELI 280 will not allow an ECG’s demographics to be changed after it has been transmitted.

Barcode Date Format

Distinguishing between months and days in formatted date strings is not always possible. When a barcode scanner
is used to read dates, this setting specifies if dates are in MM/DD (month/day) or DD.MM (day.month) format.

Cart Number

This control allows the user to assign an ELI 280 with a cart number from 0 to 65535 in order to identify which
device acquired or transmitted a particular ECG.

Site Number

This control allows the user to specify the location of the ELI 280 using a site number. Site numbers designate the
department, nursing unit, hospital, clinic, or institution for ECG records stored in an E-Scribe or approved third­party cardiology management system and must be defined for transmitting and retrieving ECGs from that system.
Up to four digits (0–4095) are supported to assign a site number. Up to three sites can be defined when multi
protocol is enabled.

Site Name

This control allows the user to name the department, nursing unit, clinic, hospital or office where the ELI 280 is
located. The site name prints at the bottom, left edge of the ECG printout. Use up to 30 alphanumeric characters for
the name. Up to three sites can be defined when multi protocol is enabled.

Output Date Format

This control allows the user to define the date of birth format output to an E-Scribe in a custom ID.

Mandatory Fields

These controls specify if the patient’s ID, patient’s last name, and/or the technician’s ID must be valued before an

ECG can be acquired or transmitted.

Sync Mode

This control allows the user to set the transmission option when synchronizing with the electronic medical record
system. Synchronization can be set to None, Transmit, Transmit+Orders, or Transmit+Orders+Date/Time.

NOTE: This device supports automatic time synchronization with a remote server. Inaccurate
time/date settings can result in ECGs marked with inaccurate time stamps. Confirm the accuracy
of the synchronized time prior to acquiring ECGs

SYSTEM SETTINGS

72

File Encryption Key

If the Security Option is enabled then all stored files with patient and configuration information are encrypted with
the 256-bit Advanced Encryption Standard (AES). The File Encryption Key is used to encrypt the patient and
configuration information. If the File Encryption key is modified then all encrypted files are re-encrypted using the
new key. The Encryption Key cannot be blank. The Key can be up to 16 alphanumeric characters. Once the Security
Option is enabled and the stored files are encrypted there is no way to return the stored files to an un-encrypted
state.

If the device is booted and the configuration file is missing, a new configuration file will be generated with the
default configuration settings with the exception of the administrator and technician passwords. The
administrator and technician passwords will be set to random strings unknown to the user. The File Encryption
Key can be used as the administrator password to reset these passwords.

Delete Timeout

ECGs marked for deletion are still maintained in the device’s non-volatile memory until the memory is needed to
store new ECGs. The oldest ECGs are deleted to make room for the newest ECGs. If the local records retention
policy requires ECGs to be removed from memory sooner, this setting can be used to specify the number of days to
keep the ECGs prior to automatic deletion. Set to 0 days to delete the ECGs once they meet the criteria to be
marked for deletion.

The value can be set from any numeric value from 0 days to 9999 days.

Communications Encryption Key

If the Security Option is purchase then the device encrypts its communication with ELI Link to keep sensitive
information private. The transmitted data is encrypted with the 256-bit Advanced Encryption Standard (AES).
Leaving the key blank results in the device using the default encryption key built into ELI Link. If the local security
policy requires use of alternate keys, configure the same key in the device and ELI Link. The key can be up to 16
alphanumeric characters.

User Authentication

This setting specifies how the ELI 280 should authenticate individual users.

Off

This turns off user authentication. The ELI 280’s Technician and Administrator passwords
may be used to protect access to orders, stored ECGs, and the configuration settings.

This allows the user to enter a User Name so the device will prepopulate the Technician field

Local

when performing new ECGs, but no authentication of the user is performed against

network credentials from another system. The user must enter the ELI 280’s Technician or

Administrator password to obtain the respective permissions.

Network

This mode authenticates users over the network using Active Directory or LDAP and
determines their permissions according to security group membership as configured in ELI

Link.

NOTE: The LDAP or Active Directory domain for the user accounts and the security groups that are
considered ELI technicians and administrators are configured in ELI Link and are not configured or

stored on the ELI 280.

73

SYSTEM SETTINGS

User roles are configured in ELI Link by configuring the security whose members are considered guests,
technicians or administrators.

Anonymous Guest – the user has not been authenticated. The unknown guest may only acquire new

ECGs by manual entry of patient demographics. Their User Name will not be prepopulated into the

Technician field of new ECGs.
Known Guest – the user has been authenticated on the network with their User Name and Password,

but the user has not been granted Technician or Administrator permissions. The user has all
capabilities except access to advanced configuration items, directory, MWL and real time sync. The
user may only acquire new ECGs by manual entry of patient demographics. The Known Guest User
Name will be prepopulated into the Technician field of new ECGs.

Technician – the user has been authenticated on the network with their User Name and Password, and

the user has been granted Technician permissions. In addition to Guest permissions, this user may also

view orders and stored ECGs.
Administrator – the user has been authenticated on the network with their User Name and Password,

and the user has been granted Administrator permissions. In addition to Technician permissions, this

user may also change the ELI 280’s settings.

Auto Log Off

When user authentication is used, this setting specifies the number of minutes the ELI 280 may remain idle before it
automatically logs the user off. The device is idle when there is no patient connected and the screen is off. The user
may manually put the device into an idle state by lightly pressing the power button.

An authenticated user may also log off manually at any time by selecting the Settings button from the main screen
and selecting Log Off.

Note: The device is not considered idle and will not automatically log off the user when a patient is connected.

Configuration Settings: ECG

AC Filter

This selection allows the user to remove 60 Hz or 50 Hz interference on the ECG trace. The setting selected depends
on the line frequency in the host country. Always use the 60 Hz setting in the U.S. If AC interference is frequently
present on the ECG signal, make sure the proper AC filter frequency has been selected.

Filter

This selection allows the user to select the appropriate filtering for the desired trace results. The band-pass filter that
is selected attenuates higher frequency noise and affects the fidelity of the electrocardiograph as viewed on the
display and on the printed hard copy. The filter setting is printed at the bottom right corner of the ECG printout, and
may also be viewed on the upper right-hand corner of the real-time display. Settings include:

1. The 40 Hz print-filter (0.05 to 40 Hz) setting reduces the noise from frequencies above 40 Hz.

2. The 150 Hz print-filter (0.05 to 150 Hz) setting reduces the noise from frequencies above 150 Hz (default).

3. The 300 Hz print-filter (0.05 to 300 Hz) setting reduces the noise from frequencies above 300 Hz. This
setting provides the least filtering and highest fidelity ECG signal to the printed and displayed ECG; this
setting is recommended for pediatric ECG’s.

WARNING: When the 40 Hz filter is used, the frequency response requirement for diagnostic

ECG equipment cannot be met. The 40 Hz filter significantly reduces high-frequency components of the
ECG and pacemaker spike amplitudes, and is recommended only if high-frequency noise cannot be reduced
by proper procedures.

74

SYSTEM SETTINGS

NOTE: The plot-frequency filter does not filter the digitized signal acquired for interpretation of the ECG.

NOTE: The Filter setting can also be changed for a single ECG by touching anywhere on the ECG

waveform in the real-time or acquired view.

Interp

This selection allows the clinician to turn the ECG interpretation statements On/Off for presentation on the display
and/or plotted report.

NOTE: The ECG interpretations offered by the device are intended to be most relevant when used in
conjunction with a physician over-read and with consideration of all other relevant patient data.

Reasons

This selection allows the clinician to include additional information about the ECG interpretation on the printout.
Reasons statements are specific details that indicate why a particular interpretive statement was chosen. Reasons
statements print in brackets [ ] within the interpretive text. Reasons are only available if the interpretation statements
option is enabled. Turning the reasons statement function ON or OFF does not affect the measurements criteria or
the interpretive statement selected by the analysis program.

For Example:

Anteroseptal Infarct [40+ ms Q WAVE IN V1-V4]

“Anteroseptal Infarct” is the interpretive statement.
“40+ ms Q WAVE IN V1-V4” is the reason statement explaining the interpretive statement.

Append

This selection allows the user to add a status message or statement phrase to the ECG to be printed under the
interpretive text printout. The choices are “UNCONFIRMED REPORT” or “Reviewed by.”

Delete Rule

The Delete Rule allows the user to define how and when ECGs are automatically marked for deletion in the ECG
directory. ECGs can be marked manually or marked for deletion per the Delete Rule. ECG records are only fully
deleted from the directory when the directory becomes full. When the memory is full, ECGs that are marked for
deletion will be automatically deleted based on their acquisition date and time (first-in/first-out) to make room for
new ECG records. More than one ECG record may be removed from the directory to make room for the new
incoming record.

The Delete Rule selections are:

1. Post Plot = ECG is automatically marked for deletion after printing

2. Post Transmit = ECG is automatically marked for deletion after transmission

3. Post Plot/Transmit = ECG is automatically marked for deletion after transmission and printing

NOTE: A record may be permanently deleted by selecting the record, followed by selecting Erase from the
left side of the display. A window will be presented as “Erase ECG?” If you select Yes the record will be
permanently erased. If you select No the record will be maintained in the file.

75

SYSTEM SETTINGS

Average RR/QTcB/QTcF

Enabling this option will allow the following to appear on the report:

 an averaged RR value.
 a Bazett’s corrected QT value along with the default linear QTc value.
 a Fridericia corrected QT value along with the default linear QTc value.

ECG Capture

Defines whether or not the ELI 280 will automatically display the Best 10 seconds of data acquired or the last 10
seconds of data acquired.

NOTE: The ECG Capture Mode can also be changed for a single ECG by touching anywhere on the ECG
waveform in the acquired view.

Pace Spike Channel

This control allows the user to decide and set as a default, whether a pacemaker spike notification marker will
display at the base of the ECG printout. A pacemaker spike notification marker coincides with each pacemaker
event.

NOTE: The Pacemaker Spike Channel setting can also be toggled on or off for a single ECG by touching
anywhere on the ECG waveform in the acquired view.

ECG Display Speed

This control allows the user to set the default display speed to 5 mm/s, 10 mm/s, 25 mm/s or 50 mm/s for ECG
viewing.

NOTE: The Display Speed can also be changed for a single ECG by touching anywhere on the ECG
waveform in the real time view.

ECG Print Speed

This control allows the user to set the default paper speed to 25 mm/s or 50 mm/s for ECG printouts.

NOTE: The Print Speed can also be changed for a single ECG by touching anywhere on the ECG
waveform in the acquired view.

Number of Copies

This utility allows the user to select the number of printed copies that automatically print when an ECG is taken. A
zero (0) setting prints no copies. Selecting one (1) prints the original copy, two (2) prints the original plus one copy,
and so on up to 9 copies.

Copies with Interpretation

This utility allows the user to select the number of printed copies containing interpretation when an ECG is taken. A
zero (0) setting prints the first ECG with interpretation and all consecutive copies up to nine (9) printed without
interpretation. Settings from one (1) to nine (9) contain an ECG interpretation on that number of selected printed
copies. All copies display patient demographics and measurements.

76

SYSTEM SETTINGS

Cabrera

Defines whether or not the ELI 280 will automatically display the ECG in the Cabrera format. The Cabrera format
displays the limb leads in the order aVL, I, -aVR, II, aVF, III, instead of the standard I, II, III, aVR, aVL, aVF,
allowing a different presentation of waveform progression in the vertical plane.

Plot Format

This control allows the user to set the default for one of the available print formats in either standard or Cabrera
presentation. Regardless of the print format selected, 10 seconds of 12 leads are always stored.

ECG print options are:

Format Option in

12-lead mode

ECG Data

3+1

2.5 seconds of 12 leads in a 3-channel format, plus 10-second rhythm strip of one
user-selectable lead in a 1-channel format.

6

5 seconds of 12 leads in a 6-channel format.

3+3

2.5 seconds of 12 leads in a 3-channel format, plus 10-second rhythm strip of
user-selectable leads in a 3-channel format.

12

10 seconds of 12 leads in a 12-channel format placing one lead over the other.

6+6

10 seconds of 12 leads in a 6-channel format.

NOTE: The Print Format can also be changed for a single ECG by touching anywhere on the ECG
waveform in the acquired view.

3 + 1 Rhythm Lead/3 + 3 Rhythm Leads

These settings allow the user to select the three lead configurations for the 10-second Rhythm Leads for the 3+1
channel and 3+3 channel ECG printout.

NOTE: Rhythm acquisition is not stored in memory, only printed.

NOTE: See Record an ECG to acquire a rhythm printout.

Rhythm Print Speed

This control allows the user to set the print speed to 5 mm/s, 10 mm/s, 25 mm/s, or 50 mm/sec.

77

SYSTEM SETTINGS

Rhythm Formats

This control allows the user to set the default values for rhythm printing. Set the default rhythm format to 3, 6, 8 or
12-channel printing.

NOTE: The Rhythm Print Speed and Format can also be changed for a single ECG by touching anywhere on
the ECG waveform in the real time view.

NOTE: if Rhythm Format selection is either 3- or 6-Channel selection of the Lead button during rhythm
printing stops and starts the printing and display of the lead sets in the following order:
For 6 channel Format:

d) Configured set
e) I – aVF
f) V1 - V6

For 3 channel Format:

f) Configured set
g) I – III
h) aVR – aVF
i) V1 - V3
j) V4 - V6

Configuration Settings: LAN

All parameters related to network connection must be entered under the direction of a qualified IT professional of
the facility where the device is installed.

DHCP

This utility allows the IT professional to define whether the Dynamic Host Communication Protocol (DHCP) will be
used to obtain an IP address.

If DHCP is YES, the network will automatically and dynamically assign an IP address.

If DHCP is NO, the IT professional must enter the IP address, def gateway, and sub net mask.

IP Address

This utility allows the IT professional to enter the fixed IP address for network transmission (if DHCP is not
selected).

Def Gateway

This utility allows the IT professional to enter the address of the default gateway (if DHCP is not selected).

Sub Net Mask

This utility allows the IT professional to enter the sub net address (if DHCP is not selected).

Sync IP

This utility allows the IT professional to enter the IP address of the host server.

NOTE: Addresses are always entered as 4 sets of 3 digits; therefore, an address of 192.168.0.7 must be
entered as 192.168.000.007.

Port Number

78

SYSTEM SETTINGS

This utility allows the IT professional to enter the port number used by the host server.

Configuration Settings: WLAN

DHCP

This utility allows the IT professional to define whether the Dynamic Host Communication Protocol (DHCP) will be
used to obtain an IP address.

If DHCP is YES, the network will automatically and dynamically assign an IP address.

If DHCP is NO, the IT professional must enter the IP address, def gateway, and sub net mask.

IP Address

This utility allows the IT professional to enter the fixed IP address for network transmission (if DHCP is not
selected).

Def Gateway

This utility allows the IT professional to enter the address of the default gateway (if DHCP is not selected).

Sub Net Mask

This utility allows the IT professional to enter the sub net address (if DHCP is not selected).

SSID

Service Set Identifier (SSID) is the name of the wireless network. All ELI 280 electrocardiographs that will transmit
to the same network must have the same SSID name. Touch the field to display the touchscreen keyboard.

PSK Passphrase

The passphrase may be from eight to 63 ASCII characters or 64 hexadecimal digits (256 bits). Touch the field to
display the touchscreen keyboard.

Sync IP

This utility allows the IT professional to enter the IP address of the host server.

NOTE: Addresses are always entered as 4 sets of 3 digits; therefore, an address of 192.168.0.7 must be
entered as 192.168.000.007.

Port Number

This utility allows the IT professional to enter the port number used by the host server.

Security (WEP)

Wired Equivalent Privacy (WEP) is an encrypted security protocol (part of the 802.11 standard). Access points can
have multiple WEP keys stored. Each one of them is identified by a number (e.g., 0, 1, 2, 3).

SYSTEM SETTINGS

79

WEP Key

This utility allows the IT professional to enter the WEP key number; valid range is 1-4.

WEP Key ID

This utility allows the IT professional to enter the 128-bit WEP Key ID value (26 digits in 13 sets of two digits).

WPA-PSK

WPA (Wi-Fi Protected Access) PSK (Pre-Shared Key) security allows for implementation of the “personal mode”
of WPA. This mode of encryption employs Temporal Key Integrity Protocol (TKIP) which dynamically changes
keys as the system is used.

WPA-LEAP

Cisco® LEAP (Light Extensible Authorization Protocol) enables use of the device with wireless networks
employing the LEAP encryption protocol.

LEAP User Name

The LEAP user name can be up to 32 characters in length.

LEAP Password

The LEAP password can contain up to 32 characters.

WPA2-PEAP

Select this mode if the WLAN uses Protected Extensible Authentication Protocol.

PEAP UserName

The PEAP username can contain up to 63 characters.

PEAP Password

The PEAP password and contain be up to 63 characters.

WPA2-EAP-TLS

Select this mode when the WLAN uses EAP-TLS and client-side X.509 certificates to authenticate devices. Insert a
USB flash memory stick into the back of the ELI 280 that contains the X.509 certificate. Touch the Certificates
button to enter the Select Certificates screen. Select the appropriate certificates for the Root Certificate File, Private
Key File, and Client Certificate File fields. Touch the Load Certificates button to download the certificates.

RADIUS UserName

The username can contain up to 64 characters.

PEM Pass Phrase

The password can contain up to 64 characters.

SYSTEM SETTINGS

80

Configuration Settings: Date/Time

Selecting YEAR presents a touchscreen keyboard for entry of the correct year in a four character format i.e., 2012.

Selecting MONTH presents a drop-down window for entry of the correct month.

Selecting DAY presents a drop-down window for entry of the correct day. Using the arrows at the bottom of the list
will advance you to the next level of selections.

Selecting HOUR presents a drop-down window for entry of the correct hour. Using the arrows at the bottom of the
list will advance you to the next level of selections.

Selecting MINUTE presents a drop-down window for entry of the correct minute. Using the arrows at the bottom of
the list will advance you to the next level of selections.

Selecting TIME ZONE presents a drop-down window for entry of the correct time zone. Using the arrows at the
bottom of the list will advance you to the next level of selections.

Selecting DAYLIGHT SAVINGS TIME presents a drop-down window for entry of a Yes/No selection for
automatic daylight savings time to be communicated from ELI Link or an E-Scribe.

Configuration Settings: Custom ID

Selecting CUSTOM ID sets communication with ELI Link or an E-Scribe and downloads the Custom ID to the
ELI 280.

NOTE: Custom ID must be configured in ELI Link or an E-Scribe.

Configuration Settings: Network

Selecting NETWORK establishes communication with the wireless network and displays up to five bars of signal
strength. Presentation of the MAC Address, Firmware module, Radio Firmware, and IP address connected to will
also be presented.

Configuration Settings: WAM

Selecting WAM allows the clinician to switch between WAM or AM12 patient interface cables. For pairing of the
WAM with the ELI 280, please refer to the WAM user manual.

Configuration Settings: Service

Please refer to the Service manual for definitions and assistance with the Service functions.

81

MAINTENANCE AND TROUBLESHOOTING

System Troubleshooting Chart

LCD Message

Problem

Correction

BATTERY LOW – CHARGE UNIT

Unable to acquire ECG or
unable to print.

Charge the battery with AC power.
LEAD FAULT, NO ECG CAPTURE

Lead fail.

Correct faulty lead.

NO ANSWER

Unable to transmit ECG.

Check for correct phone number.
Ensure modem is online.

Device is not responding

Press and hold the On/Off button for
10 seconds. Re-entry of date and time
will be required after this function.

ECG Troubleshooting Chart

Affected Leads

Problem

Correction

LEADS OFF OR ONE OR MORE OF

Lead fail.

Indication of

THE FOLLOWING: RA, LA, LL, V1,

RL/RA/LA/LL/V1/V2/V3/V4/V5/V6.

V2, V3, V4, V5, V6

Check limb leads.

Correct faulty lead(s).

Lead I and Lead II

Poor RA electrode or right
arm tremor

Check patient prep; re-prep if
necessary with new electrode.

Lead II and Lead III

Poor LL electrode or left leg
tremor

Check patient prep; re-prep if
necessary with new electrode.

Lead I and Lead III

Poor LA electrode, or left
arm tremor

Check patient prep; re-prep if
necessary with new electrode.

All

High Freq. Noise.

Adjust low pass filter setting; check
proximity to power cables; check AC
filter setting (50 Hz or 60 Hz).

Transmission Troubleshooting Chart

LCD Message

Problem

Correction

TRANSMIT FAILED

Unable to transmit ECG.

Check phone line. Ensure site number
is valid. Try again.

ERROR-DICOM Not Enabled

A DICOM communication was
attempted, but the unit is not
configured for DICOM.

Configure the system to DICOM and
reboot.

UNABLE TO SAVE ECG

No available memory.
ECG data too noisy to store.

Press stop to continue. Transmit or
mark records for deletion in the
directory. Correct noise and try
acquisition/storage again.

DHCP FAILURE

The WLAN module failed to get
an address from DHCP.

Contact Mortara Technical Service.
DPAC FAILURE

WLAN failed to initialize.

Contact Mortara Technical Service.

CAN’T CONNECT TO ACCESS

POINT

A link to the access point could
not be established.

Ensure the IP address is correct. If
problem persists, contact Mortara
Technical Service.

MAINTENANCE AND TROUBLESHOOTING

82

Transmission Troubleshooting Chart (continued)

LCD Message

Problem

Correction

CAN’T CONNECT TO REMOTE

LINK

A link to the access point was
established, but the link to the
destination failed.

Ensure the IP address is correct. If
problem persists, contact Mortara
Technical Service.

TIME SYNC FAULT

Possible incorrect version of
ELI Link

Install latest version.
UNABLE TO SAVE ORDER

Order storage failed.

Attempt to retransmit orders.

UNABLE TO SAVE WORK ITEM

DICOM order storage failed.

Directory full; mark records for deletion
or delete records.

INCORRECT RESPONSE

Connection established, then
failed.

Connection started but failed; attempt
to reconnect.

NO CUSTOM ID

Received orders failed.

Previous Custom ID not compatible
with current Custom ID, or no Custom
ID.

PAPER QUEUE FAULT

Unable to print.
Paper queue mark not
detected as expected.

Add paper; manually advance page
evenly past closure point of writer and
close writer cover and press STOP.

CONNECTION FAILED

Unable to transmit or receive
ECGs.

Check for correct baud rate, phone
number, and cable connections or site
number.

None

File not successfully
transmitted via LAN.

Check share permissions on host
device.

None

Unable to connect with LAN
with crossover cable.

Implement hub vs. crossover cable.

Disabled

Pressing SYNC key

Enable SYNC MODE and/or set SYNC
MEDIA in configuration

MAINTENANCE AND TROUBLESHOOTING

83

Touchscreen Troubleshooting Chart

LCD Message

Problem

Correction

Screen is dark

The AC power cord is not
connected to a grounded
electrical outlet or is damaged.

Ensure that AC power cord is not
damaged and is firmly connected to AC
power connector on rear of
electrocardiograph. Ensure that
electrocardiograph is plugged into
grounded electrical outlet. If AC power
is being used and the AC power switch
is set to the On position, but the AC
power on indicator light does not
illuminate and the display is still dark,
contact Mortara Technical Support .

Electrocardiograph is in
Standby Mode

Press the On/Standby button to return to
active use.

Touchscreen is unresponsive and
taps appear on the touchscreen in a
different position than the actual
contact point.

Touchscreen needs to be
calibrated

Repeat the touchscreen calibration
procedure.

Disconnect the AC power cable from
the wall outlet and depress the On/Off
button for >7 seconds. Plug AC power
cord into wall outlet and follow the
instructions on the display. If problem
persists, contact Mortara Technical
Support.

MAINTENANCE AND TROUBLESHOOTING

84

Power Off the Device

To completely shutdown the device, disconnect the AC power cord then press the ON/OFF button. Such a
shutdown should always be performed prior to authorized repair of the device.

Test Operation

After cleaning and inspecting the device, proper operation of the unit may be confirmed by using an ECG simulator
to acquire and print a standard 12-lead ECG of known amplitude. Printing should be dark and even across the page.
There should be no evidence of print head dot failure (e.g., breaks in printing forming horizontal streaks). Paper
motion should be smooth and consistent during printing. Waveforms should appear normal with proper amplitude
and, without distortion or excessive noise. Paper should stop with perforations near the tear bar (indicating proper
cue sensor operation).

Recommendations to Biomedical Staff

Following any service to the device or when non-compliant operation is suspected, Mortara Instrument, Inc.
recommends the following procedures:

 Confirm proper operation.
 Perform testing to ensure continued electrical safety of the device

(use IEC 60601-1, ANSI/AAMI ES 60601-1, or IEC 62353 methods and limits).

 patient leakage current
 chassis leakage current
 earth leakage current
 dielectric strength or insulation resistance (mains and patient circuits, mains and signal input/output

part (e.g., USB), mains and protective earth)

Battery Maintenance

The device houses an internal, sealed lead-acid battery. When installed, the battery has a shelf life of approximately
six months without recharging. If the battery has been stored for a long period in a discharged state, it may not be
able to regain its capacity even if it is recharged.

For information about replacing the battery, please refer to the device’s service manual.

Mortara Instrument, Inc. and Burdick recommend that the device be plugged into AC power whenever possible to

maximize battery life and for the user to develop a habit of recharging the battery before the unit indicates a “low

battery” condition. (That is, reduced depth of discharge.) Battery life varies by how the battery is maintained and

how much it is used. For improved battery life, keep the electrocardiograph plugged in when not in use.

The sealed lead-acid battery will provide optimum life when the unit is fully charged after each use. When the
battery charge is depleted to its lowest level (10.6V), the device will automatically power down. To recharge a
battery from its lowest level to 85%, 4 hours of recharging may be necessary. To reach 90%, 7 hours of recharging
may be necessary. It may take longer to reach 100%. The device can be used with AC power while simultaneously
charging.

MAINTENANCE AND TROUBLESHOOTING

85

Cleaning the Thermal Printer

To clean the printer

1. Disconnect the power source.

2. Clean the exterior surface of the unit with a damp cloth using a solution of mild detergent diluted in
water.

3. After washing, thoroughly dry off the unit with a clean, soft cloth or paper towel.

To clean the print head

NOTE: Do not let soap or water come into contact with the writer, plugs, jacks, or vents.

1. Open writer door.

2. Lightly rub print head with an alcohol pad.

3. Wipe with a clean cloth to remove alcohol residue.

4. Allow print head to air dry.

5. Clean the platen by using adhesive tape. Apply the tape and pull it off. Rotate roller and repeat until entire
roller is clean.

6. Clean cue sensor photo detector.

Cleaning the Touchscreen

To clean the touchscreen

1. Disconnect the patient

2. Clean the exterior surface of the unit with a damp cloth using a solution of mild detergent diluted in
water.

3. After wiping, thoroughly dry off the unit with a clean, nonabrasive soft cloth or paper towel.
