Page 1
LCA-2
LCA-2A
LCA-2 PC
LCC-2
POWER
READY
PORTION
RINSE
L
REFIL
STOP!
ATER
HOT W
! AVERTISSEMENT LIQUIDES CHAUDS
! WARNING HOT LIQUIDS

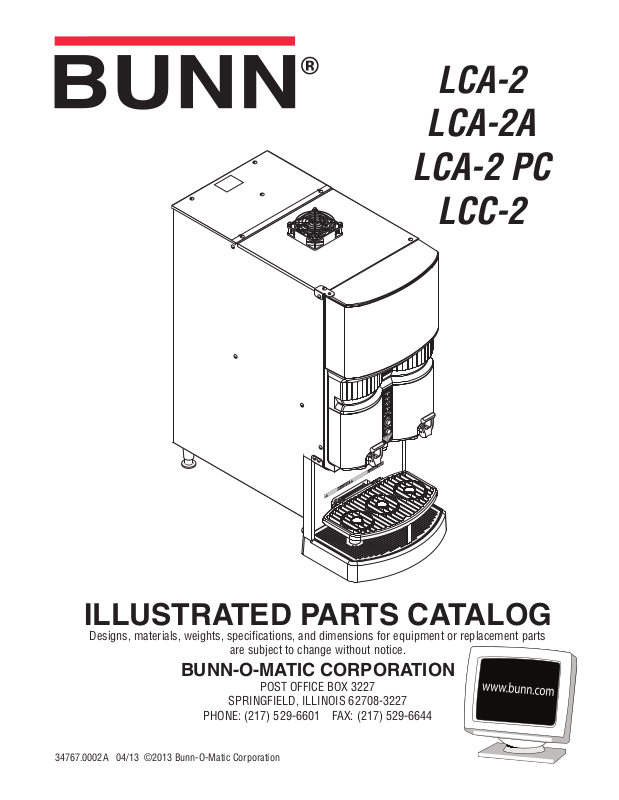

ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
34767.0002A 04/13 ©2013 Bunn-O-Matic Corporation
Page 2
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) Airpots, thermal carafes, decanters, GPR servers, iced tea/coffee dispensers, MCP/MCA pod brewers thermal servers
and Thermofresh servers (mechanical and digital)- 1 year parts and 1 year labor.
2) All other equipment - 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards - parts and labor for 3 years.
b) Compressors on refrigeration equipment - 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis - parts
and labor for 4 years or 40,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be
commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the
applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured
by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation,
improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor water quality,
damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal use including but
not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the Buyer 1) giving BUNN
prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office
Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an
authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under
warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make
modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such
individuals, whether oral or written, do not constitute warranties and should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the
applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair
is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for
the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS
EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION
AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of
use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities
or services, or any other special, incidental or consequential damages.
392, A Partner You Can Count On, Air Infusion, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with
the stylized red line, BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design,
Cool Froth, DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet
Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, Phase Brew, PowerLogic, Quality Beverage Equipment
Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com,
Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality
in Beverage Equipment Worldwide, ThermoFresh, Titan, trifecta, Velocity Brew, Air Brew, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Daypart, Digital
Brewer Control, Element, Nothing Brews Like a BUNN, Pouring Profits, Signature Series, Tea At Its Best, The Horizontal
Red Line, Ultra are either trademarks or registered trademarks of Bunn-O-Matic Corporation. The commercial trifecta®
brewer housing configuration is a trademark of Bunn-O-Matic Corporation.
2
34767.2 021513
Page 3
TABLE OF CONTENTS
TITLE PAGE NO.
Housing & Panels .........................................................................................................................................4
Door Assembly (Early Models) .....................................................................................................................8
Door Assembly (Late Models) .....................................................................................................................12
Cabinet & Chiller (Early Models) .................................................................................................................14
Vented Cabinet (Late Models) .....................................................................................................................18
Tank Assembly ............................................................................................................................................20
Dispense Valves & Lines .............................................................................................................................24
Pump Assembly ..........................................................................................................................................28
Electrical Controls .......................................................................................................................................30
Numerical Index ..........................................................................................................................................34
3
34767.2 040813
Page 4
! WARNING HOT LIQUIDS
! AVERTISSEMENT LIQUIDES CHAUDS
FUNC
T
ION
M
ODE
RINSE - NORMAL - PRIME
RUN - OFF - NIGHT
31
30
HOUSING & PANELS
LCC-2
LCA-2
29
28
12
9
8
7
33
3
2
32
1
31
27
26
24
31
25
23
21
22
17
18
4
19
5
6
8 9 10 11 13 14 15 16
4
20
P2585
34767.2 040813
Page 5
HOUSING & PANELS
ITEM PART NO. QTY. DESCRIPTION
1 35825.0001* 1 Housing Assy BLK Single Piece (Not serviced. Order Decals separately)
42276.0000* 1 Housing Assy BLK Multi Piece (Not serviced. Order Decals separately)
01311.0003 29 Screw, Truss Head, Sltd. Blk #8-32 x .25" (Used to join panels & base)
2 00656.0001 1 Decal, Comply to Plumbing Code
3 00986.0002 1 Decal, Warning - Electrical
4 26528.0000 4 Leg 4.0" adj.
01526.0001 4 Washer, Flat
5 03996.0000 4 Pad, Anti-Skid
6 34335.0002* 1 Hinge, Lower Door
01315.0005 2 Screw, Truss Head, Sltd. Blk #8-32 x .38"
7 34385.0001 1 Hinge, Upper Door .25" Pin length (Early model doors w/Bushing)
34385.0003 1 Hinge, Upper Door .375" Pin length (Late model doors w/o Bushing)
01315.0005 1 Screw, Truss Head, Sltd. Blk #8-32 x .38"
8 11707.0040* 1 Hose, Silicone .25" ID x 35.0" (Order item 35)
9 12422.0000 2 Clamp .47/.54" ID
10 32656.0000 1 Elbow .25" x .38" Barb
11 02536.0000 1 Grommet
12 34169.0002 1 Brace
02331.0001 2 Screw, Truss Head, Sltd. Blk #10-32 x .38" (to Housing)
01315.0000 4 Screw, Truss Head, Sltd. SST #8-32 x .38" (to Cabinet)
13 34152.0003 1 Bracket
01315.0005 3 Screw, Truss Head, Sltd. Blk #8-32 x .38"
01382.0000 2 Screw, Truss Head, Sltd. Blk #6-32 x .38"
14 35188.0000 1 Bracket
01315.0005 4 Screw, Truss Head, Sltd. Blk #8-32 x .38"
15 34783.0000 1 Decal, Dispense Platform
16 34366.0000 1 Bracket (Early Models)
17 39999.1000 1 Splash Panel w/Decal (Includes item 18)
01315.0005 2 Screw, Truss Head, Sltd. Blk #8-32 x .38"
18 11646.0002 1 Decal, Warning - Hot Liquids
19 34379.0002 1 Cover, Drip Tray (See item 34)
20 38433.0000 1 Drip Tray (See item 34)
21 34821.1000 1 Cup Tray
22 47624.0000 1 Decal, Cup Tray Warning
23 34472.1000 1 Lock, Door (Includes Keys)
28095.0000 1 Key Set
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
5
34767.2 040813
Page 6
! WARNING HOT LIQUIDS
! AVERTISSEMENT LIQUIDES CHAUDS
FUNC
T
ION
M
ODE
RINSE - NORMAL - PRIME
RUN - OFF - NIGHT
31
30
HOUSING & PANELS
(Continued)
LCC-2
LCA-2
29
28
12
9
8
7
33
3
2
32
1
31
27
26
24
31
25
23
21
22
17
18
4
19
5
6
8 9 10 11 13 14 15 16
6
20
P2585
34767.2 040813
Page 7
HOUSING & PANELS
ITEM PART NO. QTY. DESCRIPTION
24 34186.1005 1 Panel w/Decals, Lower Access (Includes items 25, 26 & 31)
01311.0005 4 Screw, Truss Head, Sltd. Blk #8-32 x .38"
25 34960.0000 1 Decal, Terminal Block Wiring
34960.0001* 1 Decal, Terminal Block Wiring (Models w/Master ON/OFF Switch)
26 34641.0000 1 Schematic, Electrical (LCC-2, LCA-2)
34641.0001 1 Schematic, Electrical (LCC-2A, LCA-2A)
34641.0003 1 Schematic, Electrical (LCC-2, LCA-2)(Models w/Master ON/OFF Switch)
34641.0005 1 Schematic, Electrical (LCA-2)(Models with Vented Cabinet)
27 34190.0000 1 Brace
01311.0003 2 Screw, Truss Head, Sltd. Blk #8-32 x .25"
28 34194.1001 1 Panel w/Decal, Upper Access (Includes item 31)
01311.0005 4 Screw, Truss Head, Sltd. Blk #8-32 x .38"
29 34281.0001 1 Cover, Top/Front (Models LCC-2 only)
34165.0003 1 Cover, Top/Front (Models LCA-2 only)
47335.0001 1 Cover, Top/Front (Models with Vented Cabinet)
02331.0001 2 Screw, Truss Head, Sltd. Blk #10-32 x .38"
01315.0005 2 Screw, Truss Head, Sltd. Blk #8-32 x .38"
30 34189.1001 1 Cover w/Decal, Top/Rear (Includes item 31)
01315.0005 2 Screw, Truss Head, Sltd. Blk #8-32 x .38"
31 37881.0000 3 Decal, No Serviceable Parts
32 28181.0003 1 Decal, Optional Field Wiring
33 38820.0000 1 Plate, Cover (Not used on models w/Master ON/OFF Switch)
01308.0003 2 Screw, Truss Head, Locking BLK #6-32 x .25"
34 34893.0001 - Drip Tray Kit (Includes items 19 & 20)
35 11707.1000 - Hose, Silicone .25" ID x 12.0" (Use as required)
11707.1001 - Hose, Silicone .25" ID x 36.0" (Use as required)
11707.1002 - Hose, Silicone .25" ID x 120.0" (Use as required)
Models without Vented Cabinet
Not Illustrated
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
7
34767.2 040813
Page 8
DOOR ASSEMBLY (Early Models)
1 2 3 4 5 6 29 27 28
LCC-2
LCA-2
21
22
7
8
9
10
11
12
18 33 32
23
24
ER
OW
P
Y
READ
N
TIO
OR
P
SE
RIN
L
REFIL
!
STOP
HOT WATER
13
14 15 16 17 19 20
Models LCA-2 and LCC-2 only
31 30 26 25 26
8
P2586
P2586
34767.2 040813
Page 9
DOOR ASSEMBLY (Early Models)
ITEM PART NO. QTY. DESCRIPTION
- 34284.1011 1 Door Assembly, Standard Controls (Includes items 6,7,10,13 & 14 - 26)
34284.1012 1 Door Assembly, Portion Control (Includes items 6,7,10,13,14,18, 21 - 26 & 30 - 33)
1 34531.1000 1 Plate w/Decal (Includes item 2)
01322.0001 6 Screw, Round Head Sltd. #8-32 x 1.25"
2 34809.0001 1 Decal, Maintenance
3 34667.0000 1 Keeper, Door Latch
01382.0000 2 Screw, Truss Head Sltd. #6-32 x .38"
4 34150.0000 1 Seal, Product Cabinet
5 34473.0000 1 Insulation, Door
6 - - - - - - - - 1 Frame, Door (Not Serviced)
7 34334.0000 1 Bracket
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
8 34362.0000 1 Bushing, Lower Hinge
9 - - - - - - - - 1 Lower Door Hinge (See HOUSINGS & PANELS)
10 29504.0004 1 Shoulder Screw #8-32
11 34527.0000 1 Panel
38044.0000 2 Screw, Pan Head #6 48-2
12 26444.0000 1 Bushing, Strain Relief
13 38735.1000 1 Circuit Board, LED
38044.0000 2 Screw, Pan Head #6 48-2
14 33039.0001 2 Switch, Membrane
15 34340.1000 1 Button Kit (Includes two buttons)
16 34341.1000 2 Stem, Handle
17 34742.0000 2 Spring
18 34387.0000 1 Cover, Switch
19 01219.0000 2 Pin, Faucet Handle
20 33434.1000 1 Handle, Black
33434.1002 1 Handle, Orange
21 34362.0001 1 Bushing, Upper Hinge (Early models only)
22 34283.0001 1 Door Front
38044.0000 13 Screw, Pan Head #6 48-2
Includes item 19
Models LCA-2 & LCC-2
with Standard Controls
Models LCA-2 & LCC-2
with Standard Controls
23 34708.0000 1 Decal, Upper Door Wrap
24 34712.0000 1 Decal, Flavor Gard
25 34711.0000 1 Decal, LED Display
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
9
34767.2 040813
Page 10
DOOR ASSEMBLY (Early Models)
(Continued)
1 2 3 4 5 6 29 27 28
LCC-2
LCA-2
21
22
7
8
9
10
11
12
18 33 32
23
24
ER
OW
P
Y
READ
N
TIO
OR
P
SE
RIN
L
REFIL
!
STOP
HOT WATER
13
14 15 16 17 19 20
Models LCA-2 and LCC-2 only
31 30 26 25 26
10
P2586
34767.2 040813
Page 11
DOOR ASSEMBLY (Early Models)
ITEM PART NO. QTY. DESCRIPTION
26 34709.0000 1 Decal, Left Faux Server
34710.0000 1 Decal, Right Faux Server
27 35087.0000 1 Bracket, Switch
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
28 36012.0000 1 Bracket, Latch
29 34340.0000* 1 Button
30 36554.0000 2 Membrane Switch
31 36673.0000 2 Bezel
32 36785.0000 2 Washer, Wavy
33 36786.0000 2 Snap Ring
Models LCA-2, PC
with Portion Controls
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
11
34767.2 040813
Page 12
DOOR ASSEMBLY (Late Models)
3 1 2 4 5 6 25
LCC-2
LCA-2
20
7
8
9
10
11
12
17 29 28
21
22
POWER
READY
PORTION
RINSE
L
REFIL
STOP!
HOT WATER
13 14 15 16 18 19
Models LCA-2 and LCC-2 only
27 26 24 23 24
12
P4106.50
34767.2 040813
Page 13
DOOR ASSEMBLY (Late Models)
ITEM PART NO. QTY. DESCRIPTION
- 41925.1011 1 Door Assembly, Standard Controls (Includes items 6,7,10 & 12 - 24)
41925.1012 1 Door Assembly, Portion Control (Includes items 6,7,10,12,14,17, 20 - 29)
1 40095.1000 1 Plate w/Decal (Includes item 2)
01322.0001 6 Screw, Round Head Sltd. #8-32 x 1.25"
2 34809.0001 1 Decal, Maintenance
3 34667.0001 1 Keeper, Door Latch
01382.0000 2 Screw, Truss Head Sltd. #6-32 x .38"
4 41512.0000 1 Seal, Product Cabinet
5 40092.0000 1 Insulation, Door
6 40087.0000* 1 Frame, Door (Not Serviced)
7 40091.0000 1 Bracket
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
8 34362.0000 1 Bushing, Lower Hinge
9 - - - - - - - - 1 Lower Door Hinge (See HOUSINGS & PANELS)
10 29504.0004 1 Shoulder Screw #8-32
11 40094.0000 1 Panel
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
12 38735.1000 1 Circuit Board, LED
38044.0000 2 Screw, Pan Head #6 48-2
13 33039.0001 2 Switch, Membrane
14 34340.1000 1 Button Kit (Includes two buttons)
15 34341.1000 2 Stem, Handle
16 34742.0000 2 Spring
17 34387.0000 1 Cover, Switch
18 01219.0000 2 Pin, Faucet Handle
19 33434.1000 1 Handle, Black
33434.1002 1 Handle, Orange
20 34283.0001 1 Door Front (Not serviced separately)
38044.0000 13 Screw, Pan Head #6 48-2
21 34708.0000 1 Decal, Upper Door Wrap
22 34712.0000 1 Decal, Flavor Gard
23 34711.0000 1 Decal, LED Display
24 34709.0000 1 Decal, Left Faux Server
34710.0000 1 Decal, Right Faux Server
Includes item 19
Models LCA-2 & LCC-2
with Standard Controls
Models LCA-2 & LCC-2
with Standard Controls
25 34340.0000* 1 Button
26 36554.0000 2 Membrane Switch
27 36673.0000 2 Bezel
28 36785.0000 2 Washer, Wavy
29 36786.0000 2 Snap Ring
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
13
Models LCA-2, PC
with Portion Controls
34767.2 040813
Page 14
CABINET & CHILLER (EARLY MODELS)
LCC-2
LCA-2
26
25
24
4
3
6
8
2
17
22
23
21
7
2
1
5
10
9
11
16
20
19
18
17
15
14
13
12
14
P2587
34767.2 040813
Page 15
CABINET & CHILLER (EARLY MODELS)
ITEM PART NO. QTY. DESCRIPTION
- 34683.1001 - Cabinet Assy (Model LCA-2)(Includes items 1, 9, 10 & Brace 34169.0002)
1 34185.0002* 1 Cabinet (Models LCC-2 only)
34185.1001 1 Cabinet (Models LCA-2 only)
2 34339.0000 2 Insulation, Cabinet Side
3 34338.0000 1 Insulation, Cabinet Back
4 34771.0000 1 Insulation, Cabinet Top
5 34337.0000 1 Insulation, Cabinet Bottom
6 33358.0000 1 Fan Assy, Lower
01317.0000 4 Screw, Truss Head Sltd. #8-32 x .50"
00908.0000 4 Nut #8-32
7 34010.0000 1 Fan Guard
8 34770.0000* 2 Cover, Vent
01308.0002 4 Screw, Truss Head Sltd. Locking #6-32 x .25"
9 34666.0001 1 Catch, Door Latch (10 lb. pull)
02336.0000 2 Screw, Truss Head #4-40 x .38"
01509.0001 2 Lockwasher, Int.-tooth #4
10 34533.0000 1 Plate, Latch
11 34702.0000 2 Grommet
12 - - - - - - - - 1 Cover, Top/Front (See HOUSING & PANELS)
13 35261.0000 2 Insulation, Chiller
14 34278.0000* 1 Insulation, Chiller Top
15 34273.0000 1 Bracket
01311.0003 4 Screw, Truss Head Sltd. Blk #8-32 x .25"
16 02536.0000 2 Grommet
17 33669.0000 1 Clip, Cord
18 34803.1000 1 Sensor Assy
19 34265.1001 1 Thermoelectrics Assy
01326.0000 4 Screw, Truss Head Sltd. #10-32 x .25"
20 29327.0000 1 Probe, Temperature
21 34271.0000 1 Bracket
01311.0003 4 Screw, Truss Head Sltd. Blk #8-32 x .25"
22 34958.0001* 1 Panel, Merchandiser
23 34743.0000 1 Decal, Merchandiser Panel
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
15
34767.2 040813
Page 16
CABINET & CHILLER (EARLY MODELS)
LCC-2
LCA-2
(Continued)
26
25
24
4
3
6
8
2
17
22
23
21
7
2
1
5
10
9
11
16
20
19
18
17
15
14
13
12
16
P2587
34767.2 040813
Page 17
CABINET & CHILLER (EARLY MODELS)
ITEM PART NO. QTY. DESCRIPTION
24 33297.0002 1 Fan Assy, Upper
01384.0000 4 Screw, Truss Head Sltd. #8-32 x 1.5"
25 34276.0001* 1 Housing
01311.0003 4 Screw, Truss Head Sltd. Blk #8-32 x .25"
26 34275.0001* 1 Cover
02323.0002 4 Screw, Truss Head Sltd. Blk #6-32 x .25"
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
17
34767.2 040813
Page 18
VENTED CABINET
LCC-2
LCA-2
2
3
4
1
5
6
7
18
P4334.50
34767.2 040813
Page 19
VENTED CABINET
ITEM PART NO. QTY. DESCRIPTION
1 - - - - - - - - 1 Cover (See HOUSINGS & PANELS)
2 34010.0000 1 Guard, Cabinet Fan
01322.0000 4 Screw Round Head 8-32 x 1.5"
3 01533.0007 4 Spacer
4 33358.0001 1 Fan Assembly
5 34683.0004 1 Cabinet, Vented
01315.0005 4 Screw, Truss Head BLK 8-32 x .38"
6 34667.0001 1 Keeper, Cabinet Latch
01303.0000 2 Screw, Pan Head 4-40 x .50"
7 34702.0000 2 Grommet
8 47439.0000 1 Wiring Harness, Cabinet Fan (Not Illustrated)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
19
34767.2 040813
Page 20
TANK ASSEMBLY
LCC-2
LCA-2
10 9
8
11
12
13
14
15
2
7
6
5
4
3
17
16
18
33
34
35
36
20
21
37
19
Early Models
27
Early Models
25
26
26 31 32 29
1
22
29
38
39
38
40
23
24
25
30
29
27
28
P2588
20
34767.2 040813
Page 21
TANK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 34158.1002 1 Tank
2 - - - - - - - - 1 Insulation, Tank Wrap (Early Models. Not Available)
3 12377.0000 1 Gasket, Tank Lid
4 34160.0000 1 Lid, Tank
00906.0000 10 Nut #6-32
5 07073.0001 1 Grommet, Thermostat (Models with thermostat)
12570.0002 1 Grommet (Models without thermostat)
6 02536.0000 1 Grommet, Level Probe
7 20936.1000 1 Probe, Liquid Level
01501.0000 1 Washer
20203.0100 1 Lockwasher, Int.-tooth #8
00908.0000 1 Nut #8-32
8 05515.0000 1 Gasket, Overflow Tube
9 26622.0002* 1 Tube, Overflow
00908.0000 3 Nut #8-32
10 23717.0003 1 Limit Thermostat, Double
00971.0000 2 Nut, Keps #10-32
11 41179.1000 1 Probe, Temperature
12 12570.0000 1 Grommet, Temperature Probe
13 34895.0000 1 Bracket
01315.0005 2 Screw, Truss Head Sltd. Blk #8-32 x .38"
14 33926.1001 1 Tank Heater, 5500W 240V (Includes item 15)
12322.1000 1 Tank Heater, 4000W 240V (Includes item 15)
38818.1000 3 Tank Heater, 3000W 240V (Includes item 15)
00908.0000 4 Nut #8-32
15 12398.0002 1 Gasket, Tank Heater
16 03803.0002 1 Switch, Overflow (Includes items 17 & 18)
17 03807.0000 1 Retaining Ring
18 03633.0000 1 Gasket, Silicone
19 22728.0002 1 Overflow Cup
00970.0000 2 Nut, Keps #8-32
20 00946.0000 1 Nut, Brass .125"-27
Early Models
21 20976.0067* 1 Tube, Silicone .375" ID x 21.0" (Order item 41)
22 34684.0000 1 Elbow .375" Barb x .375" NPT
23 33418.0001 1 Valve, Water Inlet
01326.0000 2 Screw, Truss Head Sltd. #10-32 x .25"
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
21
34767.2 040813
Page 22
TANK ASSEMBLY
(Continued)
LCC-2
LCA-2
10 9
8
11
12
13
14
15
2
7
6
5
4
3
17
16
18
33
34
35
36
20
21
37
19
Early Models
27
Early Models
25
26
26 31 32 29
1
22
29
38
39
38
40
23
24
25
30
29
27
28
P2588
22
34767.2 040813
Page 23
TANK ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
24 34768.0000 1 Elbow .38" NPT x .63" flare
25 20976.0005* 1 Tube, Silicone .375" ID x 7.5" (Order item 41)(Early models)
20976.0055* 1 Tube, Silicone .375" ID x 9.0" (Order item 41)(Late models)
26 12422.0005 1 Clamp .62/.71" ID (2 used on early models)
27 20976.0068* 1 Tube, Silicone .375" ID x 19.0" (Order item 41)
28 11630.0001 1 Clip, Shut-off
29 12422.0001 5 Clamp .59/.66" ID (3 less used on early models)
30 34392.0000 1 Plug, Hose
31 20976.0072* 1 Tube, Silicone .375" ID x 1.5" (Order item 41)
32 38948.0001 1 Fitting, Tee .375" Barb
33 41259.0002 1 Overflow Cup, Aluminum
01522.0000 2 Washer
00910.0000 2 Nut, Hex #10-32
Late models only
34 02536.0000 1 Grommet
35 34612.0000 1 Tube
36 41266.0000 1 Film, Insulating
37 36329.0002 1 Tie, Cable
38 35851.0000 2 Fitting .375FPT x .500MPT
39 40831.0000 1 Check Valve
40 36476.0000 1 Fitting, Close Nipple .375NPT
41 20976.1000 - Tube, Silicone .375" ID x 12.0" (Use as required)
20976.1001 - Tube, Silicone .375" ID x 30.0" (Use as required)
Late models only
Late models only
Not Illustrated
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
23
34767.2 040813
Page 24
DISPENSE VALVES & LINES
LCC-2
LCA-2
21 27 19
1
Early Models
28
2
3
2
3
5
6
25
22
24
23
16
14
Connector Kits
18
17
16
14
14
16
13
8
9
10
24
7
4
12
11
14
16
15
P2589
34767.2 040813
Page 25
DISPENSE VALVES & LINES
ITEM PART NO. QTY. DESCRIPTION
1 29576.0000 3 Bracket
00970.0000 3 Nut, Keps #8-32
2 34202.0000 3 Valve, Dispense (Includes item 3)(Refer to item 41)
3 24733.0011 3 O-ring
4 34962.1000 2 Warmer Tube Assy (Includes Warmer Tape w/Leads)
5 20976.0046* 1 Tube, Silicone .375" ID x 5.0" (Order item 36)
6 34644.0000 1 Connector, Barb .375"
7 28526.0002* 1 Tube, Silicone .313" ID x 16.0" (Order item 37)
8 34807.0000 2 Flow Restrictor (Optional for 1.8 oz/sec. flow rate)
9 34689.0000* 4 Pin
10 34346.1000 2 Mixing Chamber Assy (Includes items 8, 9, 11 & 12)
01315.0000 4 Screw, Truss Head Sltd. #8-32 x .38"
11 34198.0000* 2 Lid
12 34384.0000* 2 Snap Cap
13 34727.1000 2 Hose Assy .187" ID (Incl. items 14 - 16)
34727.1001 2 Hose Assy .187" ID x 14.0" Feed End (Incl. items 14 - 16)
34728.1000 2 Hose Assy .125" ID (Incl. items 14 - 16)
14 34729.0000* 4 Hose .187" ID x 9.0"
34729.0001* 2 Hose .187" ID x 14.0"
34728.0000* 4 Hose .125" ID x 9.0"
15 34714.0000 2 Elbow (.187" ID Hose Assy)
34715.0000 2 Elbow (.125" ID Hose Assy)
16 12422.0003 4 Clamp .40/.45" ID (.187" ID Hose Assy)
12422.0007 4 Clamp .31/.34" ID (.125" ID Hose Assy)
17 34726.0001* 2 Tube, Norprene .125" I.D. x 6.0" (Order item 39)
18 05920.0000 2 Clip
19 35057.0000 2 Connector .187"
35057.0001 2 Connector .25"
20 35055.0000 2 Adapter Kit (Includes items 21 - 25)
21 33160.0000 2 Connector
Order item 13
Also order item 37
22 11707.0029* 2 Hose, Silicone .25" I.D. x 1.75" (Order item 40)
23 35053.0000 2 Coupling, Reducing
24 12422.0000 2 Clamp .47/.54" I.D.
25 12422.0006 2 Clamp .53/.59" I.D.
26 35056.0000 2 Adapter Kit (Includes items 22,23,24 & 27)
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
25
34767.2 040813
Page 26
DISPENSE VALVES & LINES
LCC-2
LCA-2
(Continued)
21 27 19
1
Early Models
28
2
3
2
3
5
6
25
22
24
23
16
14
Connector Kits
18
17
16
14
14
16
13
8
9
10
26
7
4
12
11
14
16
15
P2589
34767.2 040813
Page 27
DISPENSE VALVES & LINES
ITEM PART NO. QTY. DESCRIPTION
27 35054.0000 2 Connector
28 37970.0000 3 Grommet, Valve Mounting (Late models only)
Items 29 through 41 are Not Illustrated
29 34400.0200 - Adapter Kit (Incl. items 13,16, 19 & 38)(Uses .125" I.D. Hose & Clamps)
30 34400.0201 - Adapter Kit (Incl. items 13,16, 19 & 38)(Uses .188" I.D. Hose & Clamps)
31 34400.0202 - Adapter Kit (Incl. items 13,16, 21 & 38)(Uses .125" I.D. Hose & Clamps)
32 34400.0203 - Adapter Kit (Incl. items 13,16, 21 & 38)(Uses .188" I.D. Hose & Clamps)
33 34400.0204 - Adapter Kit (Incl.items 13,16, 27 & 38)(Uses .125" I.D. Hose & Clamps)
34 34400.0205 - Adapter Kit (Incl. items 13,16, 27 & 38)(Uses .188" I.D. Hose & Clamps)
35 34400.0208 - Adapter Kit, 14.0" Feed End (Incl. items 13,16, 19 & 38)(Uses .188" I.D. Hose &
Clamps)
36 33159.1000 - Tube, Silicone .375" ID x 12.0" (Use as required)
33159.1001 - Tube, Silicone .375" ID x 36.0" (Use as required)
37 28526.1000 - Tube, Silicone .313" ID x 12.0" (Use as required)
28526.1001 - Tube, Silicone .313" ID x 36.0" (Use as required)
28526.1002 - Tube, Silicone .313" ID x 60.0" (Use as required)
38 M2531.0001 - Lube Compound .30 oz.
39 34726.1000 - Tube, Norprene .125" I.D. x 10.0" (Use as required)
40 11707.1000 - Tube, Silicone .25" ID x 12.0" (Use as required)
11707.1001 - Tube, Silicone .25" ID x 36.0" (Use as required)
11707.1002 - Tube, Silicone .25" ID x 120.0" (Use as required)
41 34202.0050 - Repair Kit, Dispense Valve (Includes items for 1 Valve)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
27
34767.2 040813
Page 28
PUMP ASSEMBLY
LCC-2
LCA-2
5 18 19
2
21
20
10 11 14
1
4
3
6
7
8
9 22 12 13 15 16 17
28
P2590
34767.2 040813
Page 29
PUMP ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 34596.0000* 1 Bracket, Left
01311.0003 2 Screw, Truss Head Sltd. Blk #8-32 x .25"
2 34594.0000* 1 Bracket, Right
01311.0003 2 Screw, Truss Head Sltd. Blk #8-32 x .25"
3 34536.0001 2 Motor
4 32654.0000 2 Magnet Hub
01512.0000 2 Lockwasher, Ext.-tooth #10
01331.0004 2 Screw, Round Head Sltd. Locking #10-32 x .50"
5 33608.1000 2 RPM Sensor
02336.0000 4 Screw, Truss Head Sltd. #4-40 x .38"
6 32957.0000 8 Bushing, Rubber
7 34748.0000 1 Insulation
8 34193.0000 1 Bracket, Pump Mounting
01317.0000 4 Screw, Truss Head Sltd. #8-32 x .50"
9 34166.0002 2 Block
02328.0003 8 Screw, Pan Head Sltd. #6-32 x .312"
10 33825.0000 2 Bearing
11 32928.0000 2 Insert, Threaded #10-32
12 32927.0000 8 Shoulder Bolt #10-32
13 32706.1000 2 Rotor
14 32652.0000 2 Ring, Retaining
15 34998.0000 2 E-ring
16 34167.0000 2 Cover
17 34997.0000 2 Thumb Screw #10-32 x .625"
18 34765.0000 2 Nut, Flanged #10-32
19 32609.0000 2 Standoff
20 01311.0001 2 Screw, Truss Head Sltd. Locking #8-32 x .25"
21 40030.1000 2 Compression Band Assy.
22 36149.0000 2 Fastener, Snap in
23 00617.0000 1 Cable Tie (Not Illustrated)
24 34682.1000 - Pump Assy (Includes items 4-23)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
29
34767.2 040813
Page 30
ELECTRICAL CONTROLS
LCC-2
LCA-2
7-8
6
4
2
1
29
27
3
31
30
9
5
10
11
14
15
13
12
16
26
27
28
CE Models
24 23 17 18
25 21-22
30
19
20
s
las
.
d c
ps
te
lis
am
ith
10
w
e
c
la
rated at
ep
R
use
f
G
P2591
34767.2 040813
Page 31
ELECTRICAL CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 01590.0000 1 Cable Connector
2 01309.0000 1 Screw, Grounding #10-32 x .50"
3 34345.0001 1 Bracket
01311.0000 1 Screw, Truss Head Sltd. #8-32 x .25"
4 33363.0002 1 Power Supply
32283.0000 2 Screw, M4 x 6mm
5 34164.0000 1 Bracket
01311.0003 2 Screw, Truss Head Sltd. Blk #8-32 x .25"
01311.0000 1 Screw, Truss Head Sltd. SST #8-32 x .25"
6 20541.0001 1 Heat Sink
01347.0000 2 Screw, Truss Head Serr. #6-32 x .38"
7 12565.0011 1 Triac, 40A
01520.0000 1 Lockwasher, Split #6
02328.0003 1 Screw, Pan Head Sltd. #6-32 x .312"
8 M2522.1000 - Heat Sink Compound
9 07038.0000 1 Terminal Block, 3-Pole
01106.0003 1 Terminal Block, 2-Pole (230V CE models)
01317.0000 2 Screw, Truss Head Sltd. #8-32 x .50"
10 07045.0004 1 Thermostat (Includes items 11, 12 & 13)(Early Models)
02301.0001 2 Screw, Pan Head Phillips #6-32 x .312"
11 07073.0001 1 Grommet, Thermostat (Early Models)
12 00720.0000 1 Knob (Early Models)
13 28224.0001 1 Bracket (Early Models)
01311.0003 2 Screw, Truss Head Sltd. Blk #8-32 x .25"
14 34390.0000 2 Cap, Rocker Switch
15 27437.0001 2 Switch, Selector
16 34386.0000 1 Switch, Door Open
17 34197.1003 1 Circuit Board, Control
38123.0000 8 Screw, Truss Head #6-32 x 1.00"
18 29081.0003 8 Spacer
19 38492.0000 1 Bracket
34380.0000 1 Bracket (230V CE models only)
01311.0000 2 Screw, Truss Head Sltd. #8-32 x .25"
20 34205.1000 1 Membrane Switch
21 21741.0000 2 Fuse Holder (230V CE models only)
02328.0003 4 Screw, Pan Head Sltd. #6-32 x .312"
22 22012.0000 2 Fuse, 10A (230V CE models only)
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
31
34767.2 040813
Page 32
ELECTRICAL CONTROLS
(Continued)
LCC-2
LCA-2
7-8
6
4
2
1
29
27
3
31
30
9
5
10
11
14
15
13
12
16
26
27
28
CE Models
24 23 17 18
25 21-22
32
19
20
s
las
.
d c
ps
te
lis
am
ith
10
w
e
c
la
rated at
ep
R
use
f
G
P2591
34767.2 040813
Page 33
ELECTRICAL CONTROLS
ITEM PART NO. QTY. DESCRIPTION
23 34393.0000 1 Cable, Ribbon
02327.0002 2 Screw, Pan Head Sltd. Locking #4-40 x .312"
24 34386.0000 1 Switch, Dispense Volume Memory
25 27443.0001 1 Decal, Fuse Rating (230V CE models only)
26 27705.0000 1 Terminal Lug (230V CE models)
01375.0000 1 Screw, Pan Head Brass #10-32 x .50"
01512.0000 1 Lockwasher, Ext.-tooth #10
27 00824.0002 1 Decal, Ground 120V
00824.0001 1 Decal, Ground 230V CE Models
28 32833.0000 1 Strain Relief, Cord (230V CE models)
01531.0000 1 Washer, Reducing
29 36329.0002 1 Cable Tie, Power Cord Retainer
30 00637.0007 1 Shield. Terminal Block
31 38894.0001 1 Switch, Master ON/OFF (Late Models)
01308.0003 2 Screw, truss Head, Locking BLK #6-32 x .25"
01327.0000 4 Screw, Pan Head #10-32 x .38"
01512.0000 4 Lockwasher #10
Terminals
The following items are not illustrated
32 20630.0005 1 Power Cord (LCC-2 & LCA-2 Models only)
23799.0001 1 Power Cord (LCC-2C & LCA-2C Models only)
33 34534.0000 1 Harness, Main Wiring (Early models)
36798.0000 1 Harness, Main Wiring (Late models)
34534.0001 1 Harness, Main Wiring (230V CE Models))(Early models)
36798.0001 1 Harness, Main Wiring (230V CE Models))(Late models)
34 34535.0000 1 Harness, Switches/Power (Early models)
38570.0001 1 Harness, Switches/Power (Late models)
35 34519.0000 1 Harness, Portion Control Wiring (Early models)
36 34523.0000 1 Harness, Motors Wiring
37 38920.0000 1 Harness, T-block to Tank Heater & Limit
38 34526.0000 1 Harness, Probe Wiring (Early models)
39 34578.0000 1 Harness, Upper Fan Wiring
40 34961.0000 1 Harness, Tube Warmer Wiring (Early models)
41 21014.0196 1 Lead, Thermostat Blk 30.0" (Early models)
42 35081.0000 1 Wire, Double Limit Jumper (230V CE Models)
43 36049.0002 1 Jumper (Models with Portion Control)
44 37518.0001 1 Harness, Door Wiring (Late models)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
33
34767.2 040813
Page 34
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00617.0000........................ 29
00637.0007........................ 33
00656.0001.......................... 5
00720.0000........................ 31
00824.0001........................ 33
00824.0002........................ 33
00906.0000........................ 21
00908.0000................... 15,21
00910.0000........................ 23
00946.0000........................ 21
00970.0000................... 21,25
00971.0000........................ 21
00986.0002.......................... 5
01106.0003........................ 31
01219.0000..................... 9,13
01303.0000........................ 19
01308.0002........................ 15
01308.0003..................... 7,33
01309.0000........................ 31
01311.0000........... 9,11,13,31
01311.0001........................ 29
01311.0003... 5,7,15,17,29,31
01311.0005.......................... 7
01315.0000.......................... 5
01315.0000........................ 25
01315.0005............. 5,7,19,21
01317.0000.............. 15,29,31
01322.0000........................ 19
01322.0001..................... 9,13
01326.0000........................ 15
01326.0000........................ 21
01327.0000........................ 33
01331.0004........................ 29
01347.0000........................ 31
01375.0000........................ 33
01382.0000.................. 5,9,13
01384.0000........................ 17
01501.0000........................ 21
01509.0001........................ 15
01512.0000................... 29,33
01520.0000........................ 31
01522.0000........................ 23
01526.0001.......................... 5
01531.0000........................ 33
01533.0007........................ 19
01590.0000........................ 31
02301.0001........................ 31
02323.0002........................ 17
02327.0002........................ 33
02328.0003................... 29,31
02331.0001....................... 5,7
02336.0000................... 15,29
02536.0000........... 5,15,21,23
03633.0000........................ 21
03803.0002........................ 21
03807.0000........................ 21
03996.0000.......................... 5
05515.0000........................ 21
05920.0000........................ 25
07038.0000........................ 31
07045.0004........................ 31
07073.0001................... 21,31
11630.0001........................ 23
11646.0002.......................... 5
11707.0029........................ 25
11707.0040.......................... 5
11707.1000..................... 7,27
11707.1001..................... 7,27
11707.1002..................... 7,27
12322.1000........................ 21
12377.0000........................ 21
12398.0002........................ 21
12422.0000..................... 5,25
12422.0001........................ 23
12422.0003........................ 25
12422.0005........................ 23
12422.0006........................ 25
12422.0007........................ 25
12565.0011........................ 31
12570.0000........................ 21
12570.0002........................ 21
20203.0100........................ 21
20541.0001........................ 31
20630.0005........................ 33
20936.1000........................ 21
20976.0005........................ 23
20976.0046........................ 25
20976.0055........................ 23
20976.0067........................ 21
20976.0068........................ 23
20976.0072........................ 23
20976.1000........................ 23
20976.1001........................ 23
21014.0196........................ 33
21741.0000........................ 31
22012.0000........................ 31
22728.0002........................ 21
23717.0003........................ 21
23799.0001........................ 33
24733.0011........................ 25
26444.0000.......................... 9
26528.0000.......................... 5
26622.0002........................ 21
27437.0001........................ 31
27443.0001........................ 33
27705.0000........................ 33
28095.0000.......................... 5
28181.0003.......................... 7
28224.0001........................ 31
28526.0002........................ 25
28526.1000........................ 27
28526.1001........................ 27
28526.1002........................ 27
29081.0003........................ 31
29327.0000........................ 15
29504.0004..................... 9,13
29576.0000........................ 25
32283.0000........................ 31
32609.0000........................ 29
32652.0000........................ 29
32654.0000........................ 29
32656.0000.......................... 5
32706.1000........................ 29
32833.0000........................ 33
32927.0000........................ 29
32928.0000........................ 29
32957.0000........................ 29
33039.0001..................... 9,13
33159.1000........................ 27
33159.1001........................ 27
33160.0000........................ 25
33297.0002........................ 17
33358.0000........................ 15
33358.0001........................ 19
33363.0002........................ 31
33418.0001........................ 21
33434.1000.......................... 9
33434.1000........................ 13
33434.1002.......................... 9
33434.1002........................ 13
33608.1000........................ 29
33669.0000........................ 15
33825.0000........................ 29
33926.1001........................ 21
34010.0000........................ 15
34010.0000........................ 19
34150.0000.......................... 9
34152.0003.......................... 5
34158.1002........................ 21
34160.0000........................ 21
34164.0000........................ 31
34165.0003.......................... 7
34166.0002........................ 29
34167.0000........................ 29
34169.0002.......................... 5
34185.0002........................ 15
34185.1001........................ 15
34186.1005.......................... 7
34189.1001.......................... 7
34190.0000.......................... 7
34193.0000........................ 29
34194.1001.......................... 7
34197.1003........................ 31
34198.0000........................ 25
34202.0000........................ 25
34202.0050........................ 27
34205.1000........................ 31
34265.1001........................ 15
34271.0000........................ 15
34273.0000........................ 15
34275.0001........................ 17
34276.0001........................ 17
34278.0000........................ 15
34281.0001.......................... 7
34283.0001..................... 9,13
34284.1011.......................... 9
34284.1012.......................... 9
34334.0000.......................... 9
34335.0002.......................... 5
34337.0000........................ 15
34338.0000........................ 15
34339.0000........................ 15
34340.0000................... 11,13
34340.1000..................... 9,13
34341.1000..................... 9,13
34345.0001........................ 31
34346.1000........................ 25
34362.0000..................... 9,13
34362.0001.......................... 9
34366.0000.......................... 5
34379.0002.......................... 5
34380.0000........................ 31
34384.0000........................ 25
34385.0001.......................... 5
34385.0003.......................... 5
34386.0000................... 31,33
34387.0000..................... 9,13
34390.0000........................ 31
34392.0000........................ 23
34393.0000........................ 33
34400.0200........................ 27
34400.0201........................ 27
34400.0202........................ 27
34400.0203........................ 27
34400.0204........................ 27
34400.0205........................ 27
34400.0208........................ 27
34472.1000.......................... 5
34473.0000.......................... 9
34519.0000........................ 33
34523.0000........................ 33
34526.0000........................ 33
34527.0000.......................... 9
34531.1000.......................... 9
34533.0000........................ 15
34534.0000........................ 33
34
34767.2 040813
Page 35
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
34534.0001........................ 33
34535.0000........................ 33
34536.0001........................ 29
34578.0000........................ 33
34594.0000........................ 29
34596.0000........................ 29
34612.0000........................ 23
34641.0000.......................... 7
34641.0001.......................... 7
34641.0003.......................... 7
34641.0005.......................... 7
34644.0000........................ 25
34666.0001........................ 15
34667.0000.......................... 9
34667.0001................... 13,19
34682.1000........................ 29
34683.0004........................ 19
34683.1001........................ 15
34684.0000........................ 21
34689.0000........................ 25
34702.0000................... 15,19
34708.0000.......................... 9
34708.0000........................ 13
34709.0000................... 11,13
34710.0000................... 11,13
34711.0000..................... 9,13
34712.0000..................... 9,13
34714.0000........................ 25
34715.0000........................ 25
34726.0001........................ 25
34726.1000........................ 27
34727.1000........................ 25
34727.1001........................ 25
34728.0000........................ 25
34728.1000........................ 25
34729.0000........................ 25
34729.0001........................ 25
34742.0000..................... 9,13
34743.0000........................ 15
34748.0000........................ 29
34765.0000........................ 29
34768.0000........................ 23
34770.0000........................ 15
34771.0000........................ 15
34783.0000.......................... 5
34803.1000........................ 15
34807.0000........................ 25
34809.0001..................... 9,13
34821.1000.......................... 5
34893.0001.......................... 7
34895.0000........................ 21
34958.0001........................ 15
34960.0000.......................... 7
34960.0001.......................... 7
34961.0000........................ 33
34962.1000........................ 25
34997.0000........................ 29
34998.0000........................ 29
35053.0000........................ 25
35054.0000........................ 27
35055.0000........................ 25
35056.0000........................ 25
35057.0000........................ 25
35057.0001........................ 25
35081.0000........................ 33
35087.0000........................ 11
35188.0000.......................... 5
35261.0000........................ 15
35825.0001.......................... 5
35851.0000........................ 23
36012.0000........................ 11
36049.0002........................ 33
36149.0000........................ 29
36329.0002................... 23,33
36476.0000........................ 23
36554.0000................... 11,13
36673.0000................... 11,13
36785.0000................... 11,13
36786.0000................... 11,13
36798.0000........................ 33
36798.0001........................ 33
37518.0001........................ 33
37881.0000.......................... 7
37970.0000........................ 27
38044.0000..................... 9,13
38123.0000........................ 31
38433.0000.......................... 5
38492.0000........................ 31
38570.0001........................ 33
38735.1000..................... 9,13
38818.1000........................ 21
38820.0000.......................... 7
38894.0001........................ 33
38920.0000........................ 33
38948.0001........................ 23
39999.1000.......................... 5
40030.1000........................ 29
40087.0000........................ 13
40091.0000........................ 13
40092.0000........................ 13
40094.0000........................ 13
40095.1000........................ 13
40831.0000........................ 23
41179.1000........................ 21
41259.0002........................ 23
41266.0000........................ 23
41512.0000........................ 13
41925.1011........................ 13
41925.1012........................ 13
42276.0000.......................... 5
47335.0001.......................... 7
47439.0000........................ 19
47624.0000.......................... 5
M2531.0001 ...................... 27
M2522.1000 ...................... 31
35
34767.2 040813
Loading...
