BUNN
VPS
OPERATING & SERVICE MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
10053.0000L 01/05 ©1996 Bunn-O-Matic Corporation www.bunnomatic.com
INTRODUCTION
This equipment will brew a half-gallon batch of coffee into an awaiting dispenser. It is only for indoor use on
a sturdy counter or shelf.
WARRANTY
Bunn-O-Matic Corp. (“Bunn”) warrants the equipment manufactured by it to be commercially free from defects in material and workmanship existing at the time of manufacture and appearing within one year from the date of installation. In addition:
1.) Bunn warrants electronic circuit and/or control boards to be commercially free from defects in material and
workmanship for three years from the date of installation.
2.) Bunn warrants the compressor on refrigeration equipment to be commercially free from defects in material
and workmanship for two years from the date of installation.
3.) Bunn warrants that the grinding burrs on coffee grinding equipment will grind coffee to meet original factory
screen sieve analysis for three years from date of installation or for 30,000 pounds of coffee, whichever comes first.
This warranty does not apply to any equipment, component or part that was not manufactured by Bunn or that, in Bunn’s judgement, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage or casualty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of Bunn are
not authorized to make modifications to this warranty or to make additional warranties that are binding on Bunn. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.
The Buyer shall give Bunn prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois, 62708-3227. If requested by Bunn, the Buyer shall ship the defective equipment prepaid to an authorized Bunn service location. If Bunn determines, in its sole discretion, that the equipment does not conform to the warranty, Bunn shall repair the equipment with no charge for parts during the warranty period and no charge for labor by a Bunn Authorized Service Representative during the warranty period. If Bunn determines that repair is not feasible, Bunn shall, at its sole option, replace the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AS SPECIFIED HEREIN, TO REPAIR OR, AT BUNN’S SOLE OPTION, REPLACEMENT OR REFUND.
In no event shall Bunn be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
Page 2
10053 073001
USER NOTICES
POUR IN WATER ONLY
Carefully read and follow all notices in this manual and on the equipment. All labels on the equipment should
be kept in good condition. Replace any unreadable or damaged labels.
#00658.0000
#00831.0000
To reduce the risk of electric shock, do not remove or open cover. No user-serviceable parts inside. Authorized service personnel only. Disconnect power before servicing.
#37881.0000
#00833.0000
#12364.0000
Page 3
10053 011405
ELECTRICAL REQUIREMENTS
CAUTION - The brewer must be disconnected from the power source until specified in
The brewer has an attached cordset and requires 2-wire grounded service rated 120 volts ac, 15 amp, single phase, 60 Hz.
“A" models require 2-wire, grounded service rated 220 - 240 volts ac, 20 amp, single phase, 50 Hz. Proceed as follows:
Electrical Hook-Up (Model "A" Only) CAUTION – Improper electrical installation will damage electronic components.
1. An electrician must provide electrical service as specified.
2. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.
3. Plug the power cord into the power connector located in the base on the rear of the brewer.
Initial Set-Up.
INITIAL SET-UP
CAUTION - The brewer must be disconnected from the power source throughout the initial set-up, except
when specified in the instructions.
1. Insert an empty funnel into the funnel rails.
2. Place an empty dispenser under the funnel.
3. Pour three pitchers of tap water into the screened area on top of the brewer. Allow approximately two minutes
between pitchers for water to flow into the tank. While the third pitcher of water is entering the tank, the tank will fill to capacity and the excess will flow from the sprayhead, out of the funnel, and into the dispenser.
4. When the flow of water from the funnel stops, connect the brewer to the power source and wait approximately
twenty minutes for the water in the tank to heat to the proper temperature. Some water will drip from the funnel during this time; this is due to expansion and should not occur thereafter.
5. Empty the dispenser and replace it under the funnel.
6. Pour one pitcher of tap water into the screened area on top of the brewer.
7. When water has stopped flowing from the funnel let the water in the tank reheat to the proper temperature.
8. Empty the dispenser. The brewer is now ready for use in accordance with the coffee brewing instructions
below.
NOTE: The control thermostat will need to be adjusted downward to compensate for high altitudes. Refer to
Steaming and spitting around the funnel on page 5 for instructions.
COFFEE BREWING
1. Insert a BUNN® filter into the funnel.
2. Pour the fresh coffee into the filter and level the bed of grounds by gently shaking.
3. Slide the funnel into the funnel rails.
4. Place an empty dispenser beneath the funnel.
5. Pour one pitcher of tap water into the screened area on top of the brewer.
6. When brewing is completed, simply discard the grounds and filter.
CLEANING
1. The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all
surfaces on Bunn-O-Matic equipment.
2. Check and clean the sprayhead. The sprayhead holes must always remain open.
3. With the sprayhead removed, insert the deliming spring (provided) all the way into the sprayhead tube. When
inserted properly, no more than two inches of spring should be visible. Saw back and forth five or six times.
NOTE – In hard water areas, this may need to be done daily. It will help prevent liming problems in the brewer and takes less than a minute.
Page 4
10053 111104
TROUBLESHOOTING
A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic Technical Service Department.
Inspection, testing, and repair of electrical equipment should be performed only by qualified service personnel.
This brewer is heated at all times. Keep away from combustibles.
WARNING – • Exercise extreme caution when servicing electrical equipment.
• Unplug the brewer when servicing, except when electrical tests are specified.
• Follow recommended service procedures
• Replace all protective shields or safety notices
PROBLEM
Water is not hot
Spitting or excessive steaming
PROBABLE CAUSE
1. Limit Thermostat or Thermal Cut-Off CAUTION - Do not eliminate or bypass limit thermostat/thermal cut-off. Use only BOM replace­ment part. Limit Thermostat - #29329.0001 Thermal Cut-off - #04776.0000
2. Control Thermostat
3. Tank Heater
1. Lime Build-up CAUTION - Tank and tank components should be delimed regularly depending on local water conditions. Excessive mineral build-up on stainless steel surfaces can initiate corro­sive reactions resulting in serious leaks.
REMEDY
Refer to
Service
- Limit Thermo­stat or Thermal Cut-Off for testing procedures. See page 10 or 13
Refer to
Service
- Control Ther­mostat for testing procedures. See page 9
Refer to
Service
- Tank Heater for testing procedures. See page 12
Inspect the tank assembly for excessive lime deposits. Delime as required.
2. Control Thermostat
Page 5
Refer to
Service
- Control Ther­mostat for testing procedures. See page 9
10053 011405
TROUBLESHOOTING (cont.)
PROBLEM
Dripping from sprayhead
Beverage overflows dispenser
Weak beverage
PROBABLE CAUSE
1. Lime Build-up CAUTION - Tank and tank components should be delimed regularly depending on local water conditions. Excessive mineral build-up on stainless steel surfaces can initiate corro­sive reactions resulting in serious leaks.
1. Dispenser
1. Filter Type
2. Coffee Grind
3. Sprayhead
4. Funnel Loading
5. Water Temperature
REMEDY
Inspect the tank assembly for excessive lime deposits. Delime as required.
The dispenser must be com­pletely empty before starting a brew cycle.
BUNN® paper filters must be used for proper extraction.
A fine or drip grind must be used for proper extraction.
A six-hole stainless steel spray­head must be used for proper extraction.
The BUNN® paper filter must be centered in the funnel and the bed of grounds leveled by gentle shak­ing.
Place an empty funnel on an empty dispenser beneath the sprayhead. Pour-in a pitcher of tap water and check the water temperature im­mediately below the sprayhead with a thermometer. The reading should not be less than 195°F. Adjust the control thermostat to increase the water temperature. Replace if necessary.
Page 6
10053 011597
TROUBLESHOOTING (cont.)
PROBLEM
Dry coffee grounds remain in the funnel
Brewer is making unusal noises
Cool beverage serving tempera­ture
PROBABLE CAUSE
1. Funnel Loading
1. Tank Heater
1. ON/OFF Warmer Switch
2. Warmer Element(s)
REMEDY
The BUNN® paper filter must be centered in the funnel and the bed of grounds leveled by gently shak­ing.
Remove and clean lime off the tank heater. See page 12
Refer to
Service
- ON/OFF Warmer Switch for testing procedures. See page 11
Refer to
Service
- Warmer Element(s) for testing proce­dures. See page 14
Page 7
10053 011597
Page 8
SERVICE (cont.)
CONTROL THERMOSTAT
FIG. 3 CONTROL THERMOSTAT
P2414
"ON" (fully counterclockwise for thermostat with tee handle control or fully clockwise for thermo­stats with control knob). Plug-in the brewer to the power source. The indication must be: a) 120 volts ac for two wire 120 volt models.
b) 220 volts ac for two wire 220 volt models. Voltage must not be present across these terminals when the thermostat is turned "OFF" (fully counter­clockwise).
8. Disconnect the brewer from the power source.
If voltage is present as described, reinstall the capillary tube into the tank to the line 4.5" above the bulb, the control thermostat is operating properly. If voltage is not present as described, replace the thermostat.
Removal and Replacement:
1. Remove wires from control thermostat leads or
terminals.
Location:
The control thermostat is located inside the hood
on the left end of the mounting bracket.
Test Procedures:
1. Disconnect the brewer from the power source.
2. Locate the black wire on the control thermostat.
3. Check the voltage across the black wire on the control thermostat and the white wire on the tank heater or the red wire on the tank heater with a voltmeter. Plug-in the brewer to the power source. The indication must be: a) 120 volts ac for two wire 120 volt models. b) 220 volts ac for two wire 220 volt models.
4. Disconnect the brewer from the power source.
If voltage is present as described, proceed to #5. If voltage is not present as described, refer to the wiring diagrams and check the brewer wiring harness.
5. Locate the blue/black wire on the control thermo­stat.
6. Gently remove the capillary bulb and grommet from the tank.
7. Check the voltage across the blue/black wire of the control thermostat and the white wire on the tank heater or red wire on the tank heater with a voltmeter when the control thermostat is turned
BLU to BLU/BLK Lead from Limit Thermostat
BLK to BLK Lead from Terminal Block
EARLY MODELS
BLK to Terminal Block
BLU/BLK to Limit Thermostat or Thermal Cut-Off
P1252
FIG.4 CONTROL THERMOSTAT TERMINALS
Page 9
10053 073001
SERVICE (cont.)
CONTROL THERMOSTAT (cont.)
2. Remove the thermostat capillary bulb by firmly pulling-up on the capillary at the tank lid. This will disengage the grommet from the tank lid.
3. Remove the two #8-32 screws securing the con­trol thermostat to the mounting bracket inside the hood.
4. Slide the grommet to the line 4.5" above the bulb on the new capillary tube.
5. Insert the capillary bulb through the hole in the tank lid and press the grommet firmly and evenly so that the groove in the grommet fits into the tank lid.
6. Carefully bend the capillary tube so that the tube and bulb inside the tank are in the vertical posi­tion.
NOTE - The capillary tube must be clear of any electri-
cal termination and not kinked.
Test Procedures:
1. Disconnect the brewer from the power source.
2. Disconnect the blue/black and black wires from the limit thermostat.
3. Check for continuity across the limit thermostat terminals with an ohmmeter.
If continuity is present as described, the limit thermo-
stat is operating properly.
If continuity is not present as described, replace the
limit thermostat.
Removal and Replacement:
1. Remove all wires from limit thermostat termi­nals.
2. Carefully slide the limit thermostat out from under the retaining clip and remove limit thermo­stat.
3. Carefully slide the new limit thermostat into the retaining clip.
4. Refer to Fig. 6 when reconnecting the wires.
7. Using two #8-32 screws secure the control ther­mostat to the mounting bracket inside the hood.
8. Refer to Fig. 4 when reconnecting the wires.
9. Adjust the control thermostat as required

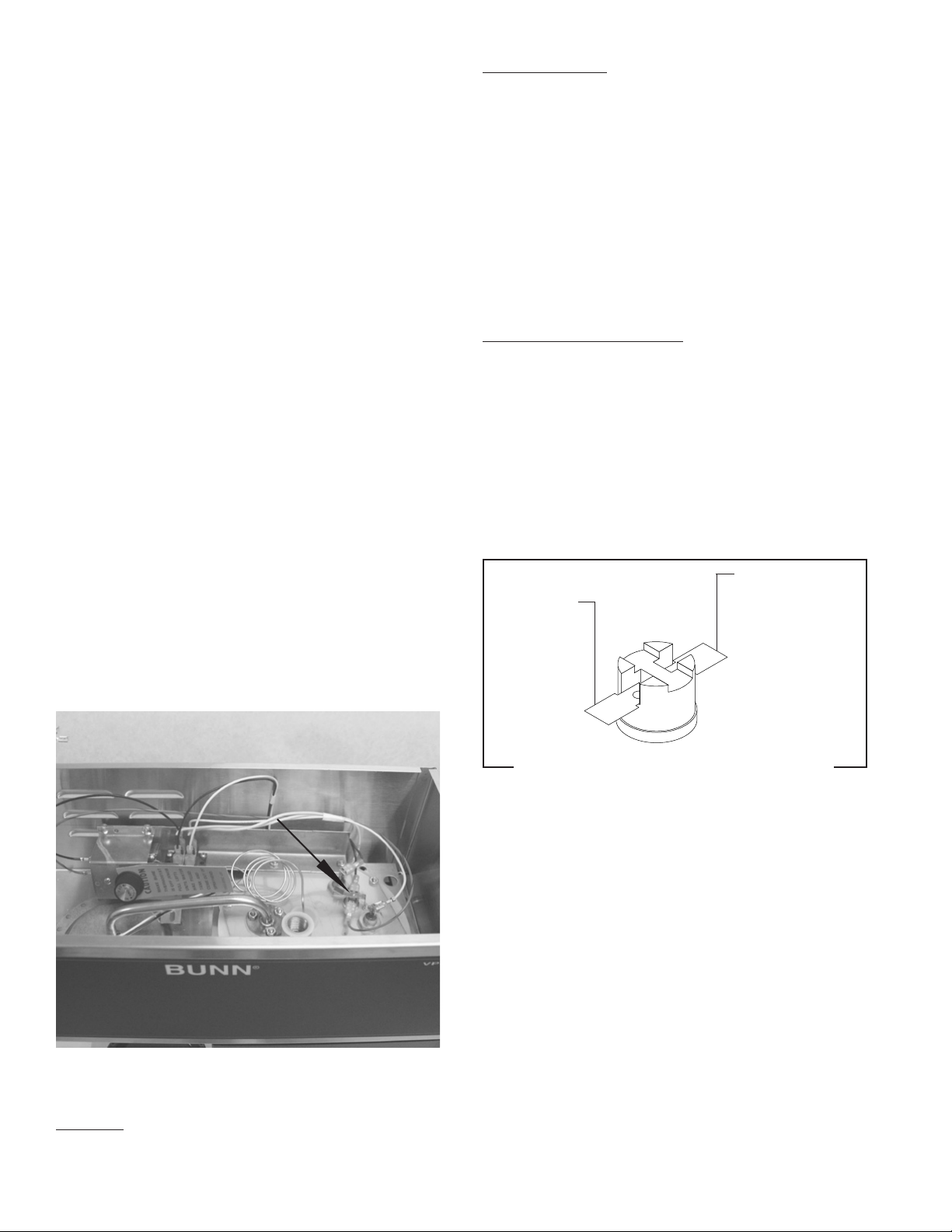

LIMIT THERMOSTAT - VPR, VPS
BLU/BLK to Control
BLK to Tank Heater
Thermostat
FIG. 6 LIMIT THERMOSTAT TERMINALS
P1800
FIG. 5 LIMIT THERMOSTAT
Location:
The limit thermostat is located inside the hood on
the right side of the tank lid.
P2414
Page 10
10053 073001
SERVICE (cont.)
ON/OFF WARMER SWITCH
k is r
o
e h
t
ve
e
o
c
m
u
rv
e
e
r
ed
t
r
-s
r
o
o
ed
n
T
se
o
riz
u
d
o
n
o
h t
N
on
u
c
A
s i
D
b) 220 volts ac for two wire 220 volt models.
4. Disconnect the brewer from the power source.
If voltage is present as described, proceed to #5. If voltage is not present as described, refer to the
Y
IN WATER ONL
IN WATER ONLY
POUR
, k c
o h
.
.
.
e
ric s
r
y
t
l
.
e
id
c
n
g
v
s
o
le
n
o
n
i
c
e
c
f
n
nel
vi
o
rts i
r
e
n
a
p
se
p
so
o
r
r
le
e
re
b
p
fo
a e c
ice
i
r be
v
e
er
w
s
o p t
ec
POUR
Wiring Diagrams
ness.
and check the brewer wiring har-
5. Remove both wires from the switch and check for continuity across the terminals with the switch in the "ON" position. Continuity must not be present when the switch is in the "OFF" position.
If continuity is present as described, reconnect the wires to the terminals. If continuity is not present as described, replace the switch.
VPS
P3447
VPR
P2412
FIG. 7 ON/OFF WARMER SWITCHES
Location:
The ON/OFF warmer switches are located on the
front of the hood.
Test Procedure:
1. Disconnect the brewer from the power source.
2. Viewing the switch from the back locate the black wire from the switch terminal.
3. With the switch in the "ON" position check the voltage across the black wire of the switch and the white wire on the lamp or red wire on the lamp with a voltmeter. Plug-in the brewer to the power source. The indication must be: a) 120 volts ac for two wire 120 volt models.
Page 11
Removal and Replacement:
1. Remove the wires from the switch terminals.
2. Compress the clips inside the hood and gently push the switch through the opening.
3. Push the new switch into the opening and spread the clips to hold switch in the hood.
4. Refer to Fig. 8 when reconnecting the wires
WHI/RED to Brew Station Warmer VIO to Upper Warmer
#1
BRN/BLK to Lower Right Warmer
BLK to Cordset
#2
#3
WHI to Cordset
P1131
VPS Models & VPR Models with Lighted switches
BLK to Cordset
WHI/RED to Brew Station Warmer & Lamp VIO to Upper Warmer & Lamp BRN/BLK to Lower Right Warmer & Lamp
VPS Models & VPR Models without Lighted switches
BLK to Cordset
WHI/RED to Brew Station Warmer & Lamp VIO to Upper Warmer & Lamp BRN/BLK to Lower Right Warmer & Lamp
VPRA & VPSA Models
P1253
FIG. 8 ON/OFF WARMER SWITCH TERMINALS
10053 011405
SERVICE (cont.)

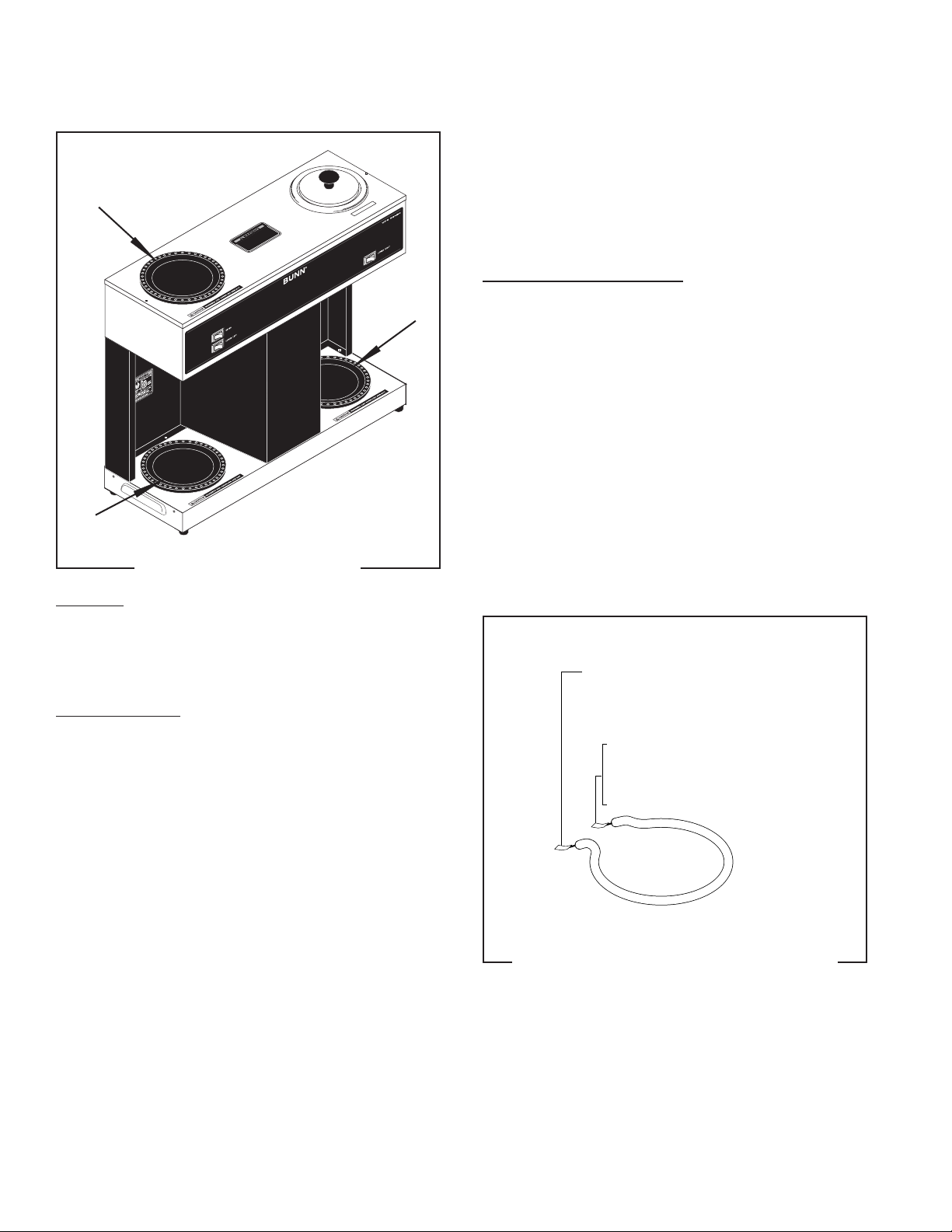

TANK HEATER
P2414
FIG. 9 TANK HEATER
Location:
The tank heater is located inside the tank
and secured to the tank lid.
Test Procedures:
1. Disconnect the brewer from the power supply.
2. Check the voltage across the black and white wires on 120 volt models or the black and red wires for 220 volt models with a voltmeter. Plug­in the brewer to the power source. The indication must be: a) 120 volts ac for two wire 120 volt models. b) 220 volts ac for two wire 220 volt models.
3. Disconnect the brewer from the power source.
If voltage is present as described, proceed to #4 If voltage is not present as described, refer to the
Wiring Diagrams
and check wiring harness.
4. Disconnect the black wire and the white wire or red wire from the tank heater terminals.
5. Check for continuity across the tank heater ter­minals.
If continuity is present as described, reconnect the wires, the tank heater is operating properly. If continuity is not present as described, replace the tank heater.
NOTE- If the tank heater remains unable to heat, remove and inspect heater for cracks in the sheath.
Removal and Replacement:
1. Remove the tank inlet fitting securing the fill basin to the tank lid, remove fill basin and tank inlet gasket. Set all three parts aside for reassem­bly.
2. Disconnect the black wire on the terminal block from the tank heater and disconnect the blue/ black wire from the limit thermostat or thermal cut-off to the control thermostat.
3. Disconnect the black wire and the white or red wire from the tank heater terminals.
4. Remove sprayhead and the hex nut securing the sprayhead tube to the hood. Set aside for reas­sembly.
5. Remove the eight #8-32 nuts securing the tank lid to the tank.
6. Remove the tank lid with limit thermostat or thermal cut-off, sprayhead tube and tank heater.
7 Remove the two hex nuts securing the tank
heater to the tank lid. Remove tank heater with gaskets and discard.
8. Install new tank heater with gaskets on the tank lid and secure with two hex nuts.
9. Install tank lid with limit thermostat or thermal cut-off, sprayhead tube and tank heater using eight #8-32 hex nuts.
10. Secure sprayhead tube to hood using a hex nut.
11. Install sprayhead.
12. Reconnect the wires to the limit thermostat or thermal cut-off, tank heater and control thermo­stat. See limit thermostat, thermal cut-off and control thermostat sections in this manual when reconnecting wires.
13. Install fill basin, secure with tank inlet fitting and gasket.
14. Refer to Fig. 10 when reconnecting the tank heater wires.
Page 12
10053 073001
SERVICE (cont.)
TANK HEATER (Cont.)
BLK to Limit Thermostat (120V Models) Thermal Cut-off to Blu/BLK Lead From Control Thermostat (220V Two Wire Models)
WHI to WHI Lead on Power Cord (120V Models) Thermal Cut-off to Red from Power Connector (220V Two Wire Models)
Location:
The thermal cut-outs are located inside the hood
connected to the tank heater terminals.
Test Procedures:
1. Disconnect the brewer from the power source.
2. Disconnect the thermal cut-off from the tank heater and the red wire from the power connec­tor.
3. Check for continuity across the thermal cut-off terminals with an ohmmeter.
If continuity is present as described, the thermal cut­off is operating properly. If continuity is not present as described, replace the thermal cut-off.
4. Disconnect the thermal cut-off from the tank heater and blue/black from the control thermo­stat.
5. Check for continuity across the thermal cut-off terminals with an ohmmeter.
FIG. 10 TANK HEATER TERMINALS
THERMAL CUT-OFF - VPRA, VPSA
H
N
I
N U B
F F O
P1254
If continuity is present as decribed, the thermal cut-off is operating properly. If continuity is not present as described, replace the thermal cut-off.
Removal and Replacement:
1. Disconnect the thermal cut-off from the tank heater and the red wire from the power connec­tor or the blue/black wire from the control ther­mostat.
2. Install new thermal cut-off.
3. Refer to Fig. 12 when reconnecting wires.
FIG. 11 THERMAL CUT-OFF
P3448
Page 13
FIG. 12 THERMAL CUT-OFF TERMINALS
P1269
10053 011405
SERVICE (cont.)
WARMER ELEMENTS
FIG. 13 WARMER ELEMENT
5. Remove both wires from the warmer element and check the continuity across the two terminals on the warmer element.
If continuity is present as described, reconnect the wires on the warmer element.
TER ONLY
TER ONLY
A
POUR IN WA
,
ock h s
.
.
e
ric
r.
y
t
e
id
c
g.
s
e
onl
l
n
n
e
cov
ci
el
i
f
n
n
v
o
rts i
r
e
a
k
e
p
s
s
o
i
rson
r
e
r
e
r
o
e
p
o
h
f
e
t
e
v
c
ceable p
o
i
be
i
ce
r
v
m
r
du
erv
re
we
s
se
t
o
-
re
r
t p
To
zed
c
i
o no
r
use
e
d
n
ho
n
t
No
o
u
c
A
s
Di
POUR IN W
If continuity is not present as described, replace the warmer element.
Removal and Replacement:
1. Remove the three #4-40 screws securing the warmer assembly to the brewer.
2. Lift the warmer assembly from the brewer.
3. Disconnect the two wires from the warmer ele­ment terminals.
4. Remove the two #8-32 nuts securing the warmer element to the warmer plate.
5. Securely install new warmer element.
6. Reconnect the two wires to warmer element termi­nals.
7. Securely install warmer assembly on the brewer.
P3447
8. Refer to Fig. 14 when reconnecting the wires.
Location:
The warmer elements are located under the
warmer plates.
Test Procedures:
1. Disconnect the brewer from the power source.
2. Use the white to the power cord or red wire to the power connector and the white/red, violet or brown/black wire on the "ON/OFF" switch.
3. Check voltage across the white or red and white/ red, violet or brown/black with a voltmeter with the "ON/OFF" switch in the "ON" position. Plug-in the brewer to the power source. The indication must be: a) 120 volts ac for two wire 120 volt models. b) 220 volts ac for two wire 220 volt models.
4. Disconnect the brewer from the power source.
If voltage is present as described, proceed to #5. If voltage is not present as described, refer to wiring diagrams and check brewer wiring harness.
WHI /RED, VIO or BRN/BLK to ON/OFF Switch
WHI to WHI Lead on Power Cord (120V Brewers) RED to Power Connector (220V Brewers)
P1255
FIG. 14 WARMER ELEMENT TERMINALS
Page 14
10053 011405
L1
SCHEMATIC WIRING DIAGRAM VPR
(Models without Lighted switches)
GREEN
N
SW. & THERMOSTAT
BLK
WHI
ON/OFF
SWITCH
BLK
ON/OFF
SWITCH
BLK
120 VOLTS A C
2 WIRE
SINGLE PHASE
60 HZ
LIMIT
BLU/BLK
WHI/RED
WHI/RED
VIO
VIO
10050.0000D 1/97 © 1988 BUNN-O-MATIC CORPORATION
THERMOSTAT
"KEEP WARM" HEATER IND
IND
BLK
50W
LOWER WARMER
UPPER WARMER
1320W
TANK HEATER
100W
100W
WHI
WHI
WHI
WHI
WHI
WHI
SCHEMATIC WIRING DIAGRAM VPR
L1
SW. & THERMOSTAT
BLK
WHI
ON/OFF
SWITCH
BLK
ON/OFF
SWITCH
BLK
120 VOLTS A C
2 WIRE
SINGLE PHASE
60 HZ
(Models with Lighted switches)
GREEN
LIMIT
THERMOSTAT
BLU/BLK
"KEEP WARM" HEATER
WHI/RED
VIO
33769.0000A 02/01 © 2001 BUNN-O-MATIC CORPORATION
BLK
TANK HEATER
LOWER WARMER
UPPER WARMER
N
WHI
WHI
WHI
WHI
WHI
WHI
Page 15
10053 073001
L1
SCHEMATIC WIRING DIAGRAM VPS
(Models without Lighted switches)
GREEN
N
SW. & THERMOSTAT
BLK
WHI
ON/OFF SWITCH
ON/OFF SWITCH
ON/OFF SWITCH
120 VOLTS A C
2 WIRE
SINGLE PHASE
60 HZ
LIMIT
THERMOSTAT
BLU/BLK
"KEEP WARM" HEATER IND
WHI/RED
WHI/RED
IND
VIO
VIO
IND
BRN/BLK
BRN/BLK
10049.0000C 1/97 © 1988 BUNN-O-MATIC CORPORATION
BLK WHI
50W
LOWER LEFT WARMER
UPPER WARMER
LOWER RIGHT WARMER
1320W
TANK HEATER
100W
100W
100W
WHI
WHI
WHIBLK
WHI
WHIBLK
WHI
WHIBLK
L1
BLK
WHI
ON/OFF
SWITCH
ON/OFF
SWITCH
BLK
ON/OFF
SWITCH
BLK
120 VOLTS A C
2 WIRE
SINGLE PHASE
SCHEMATIC WIRING DIAGRAM VPS
SW. & THERMOSTAT
60 HZ
(Models with Lighted switches)
LIMIT
THERMOSTAT
BLU/BLK
"KEEP WARM" HEATER
WHI/RED
VIO
BRN/BLK
10049.0001A 08/04 © 2004 BUNN-O-MATIC CORPORATION
BLK WHI
LOWER LEFT WARMER
UPPER WARMER
LOWER RIGHT WARMER
GREEN
TANK HEATER
N
WHI
WHI
WHIBLK
WHI
WHI
WHI
WHI
Page 16
10053 011405
SCHEMATIC WIRING DIAGRAM
L1
VPSA
IND
BLK
L2
GRN/YEL
RED
SW. & THERMOSTAT
BLK
WHI
ON/OFF
SWITCH
BLK
ON/OFF
SWITCH
BLK
ON/OFF
SWITCH
BLK
220 VOLTS A C
2 WIRE
SINGLE PHASE
BLU/BLK
WHI/RED
WHI/RED
VIO
VIO
BRN/BLK
BRN/BLK
THERMAL
CUT-OFF
"KEEP WARM" HEATER
IND
IND
IND
1850W
TANK HEATER
50W
100W
LOWER LEFT WARMER
100W
UPPER WARMER
100W
LOWER RIGHT WARMER
THERMAL
CUT-OFF
RED
WHI
RED
RED
RED
RED
RED
RED
L1
SCHEMATIC WIRING DIAGRAM
BLK
SW. & THERMOSTAT
BLK
WHI
ON/OFF
SWITCH
BLK
ON/OFF
SWITCH
BLK
220 VOLTS A C
2 WIRE
SINGLE PHASE
IND
L2
VPRA
THERMAL
CUT-OFF
BLU/BLK
"KEEP WARM" HEATER
WHI/RED
WHI/RED
VIO
VIO
IND
IND
GRN/YEL
1850W
TANK HEATER
50W
100W
LOWER WARMER
100W
UPPER WARMER
THERMAL
CUT-OFF
RED
RED
WHI
RED
RED
RED
RED
Page 17
10053 011405
Loading...
