Page 1
VP17
Series
Supercedes Illustrated Parts Catalogs:
10861.0000 & 10861.0001
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
10861.0002E 03/13 ©2008 Bunn-O-Matic Corporation
Page 2
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) Airpots, thermal carafes, decanters, GPR servers, iced tea/coffee dispensers, MCP/MCA pod brewers thermal servers
and Thermofresh servers (mechanical and digital)- 1 year parts and 1 year labor.
2) All other equipment - 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards - parts and labor for 3 years.
b) Compressors on refrigeration equipment - 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis - parts
and labor for 4 years or 40,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be
commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the
applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured
by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation,
improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor water quality,
damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal use including but
not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the Buyer 1) giving BUNN
prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office
Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an
authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under
warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make
modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such
individuals, whether oral or written, do not constitute warranties and should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the
applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair
is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for
the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS
EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION
AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of
use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities
or services, or any other special, incidental or consequential damages.
392, A Partner You Can Count On, Air Infusion, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with
the stylized red line, BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design,
Cool Froth, DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet
Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, Phase Brew, PowerLogic, Quality Beverage Equipment
Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com,
Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality
in Beverage Equipment Worldwide, ThermoFresh, Titan, trifecta, Velocity Brew, Air Brew, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Daypart, Digital
Brewer Control, Element, Nothing Brews Like a BUNN, Pouring Profits, Signature Series, Tea At Its Best, The Horizontal
Red Line, Ultra are either trademarks or registered trademarks of Bunn-O-Matic Corporation. The commercial trifecta®
brewer housing configuration is a trademark of Bunn-O-Matic Corporation.
2
10861.2 021513
Page 3
TABLE OF CONTENTS
Trunk and Panels........................................................................................................................................ 4
Hood and Top Covers ................................................................................................................................. 6
Fill Basin .................................................................................................................................................... 8
Tank and Components.............................................................................................................................. 10
Electrical and Operating Controls ....................................................................................................... 12, 14
Warmer Assemblies ................................................................................................................................. 16
Funnels, Pitcher and Filter Basket ............................................................................................................ 18
Numerical Index ....................................................................................................................................... 20
3
10861.2 013008
Page 4
BUNN
®
TRUNKS AND BASES
VP17
22
17
11
20
2
3
4
1
8
2
21
5
9
3
5
19
3
7
19
6
7
1
6
17
9
18
9
8
10
11
10
10
20
12
12
13
15
14
16
OPTIONAL LEGS
P3965.40
4
10861.2 010709
Page 5
TRUNKS AND BASES
ITEM PART NO. QTY. DESCRIPTION
1 34061.1005 1 Trunk W/Decals BLK (Includes item 3)
34061.1006 1 Trunk W/Decals SST (Includes item 3)
34061.1014 1 Trunk W/Decals SST (Includes item 3) (Models ON/OFF Rocker Switch)
41402.1000 1 Trunk W/Decals SST (Includes item 3) (Models w/2 Toggle Switches)
2 00669.0003 2-3 Plug, Hole - .437˝ Hole Dia.
3 00831.0000 1 Decal, Warning-Electrical
4 02822.0000 1 Decal, Auxiliary Outlet (Brewers w/Rear Receptacle)
5 23319.1005 1 Panel W/Decals, BLK (Includes items 6,7 & 21)
25144.0011 1 Panel W/Decals, SST (Includes items 6,7 & 21)
25144.0002 1 Panel W/Decals, SST (Includes item 6 & 21) (“B” Models only)
01382.0000 4 Screw, Truss Head - SST #6-32 x .375˝
01382.0002 4 Screw, Truss Head - BLK #6-32 x .375˝
00988.0000 4 Fastener, U-Type #6-32
6 00658.0000 1 Decal, Caution - Decanter/Funnel
7 10862.0003 1 Schematic, Electrical - 120V
8 25351.0000 1 Housing W/Decals, Base 1 Warmer (Includes items 9 & 10)
25351.0001 1 Housing W/Decals, Base 1 Warmer (Includes items 9 & 10) (CE)
02308.0000 9 Screw, Pan Head - Serrated #8-32 x .375˝
25657.0000 1 Housing SST W/Decals, Base 3 Warmers (Includes items 9 & 10)
25657.0001 1 Housing SST W/Decals, Base 3 Warmers (Includes items 9 & 10) (CE)
25657.0002 1 Housing BLK W/Decals, Base 3 Warmers (Includes items 9 & 10)
02308.0000 16 Screw, Pan Head - Serrated #8-32 x .375˝
9 12364.0000 1 Decal, Caution - Warmers And Surfaces Are Hot
10 22306.0000 1 Decal, Red Decorative Stripe
11 24805.0000 1 Plate, Base 1 Warmer
02332.0002 6 Screw, Hex-Crimptite #6 x .375˝
24805.0000 1 Plate, Base 3 Warmers
02332.0002 12 Screw, Hex-Crimptite #6 x .375˝
12 25137.0000 4 Foot, Black w/.250˝-20 THD
13 00511.1000 4 Set of 4 Legs, 4˝ Adjustable Satin Nickel (Includes pads)
14 03996.0000 4 Pad, Anti-Skid, Rubber (1.25˝ Dia)
15 03359.0001 4 Set of 4 Legs, 4˝ Adjustable BLK Plastic (Includes pads)
16 03993.0000 4 Pad, Anti-Skid, Rubber (.70˝ Dia)
17 01593.0000 1 Bushing, Snap 1.5˝ Dia
18 01592.0000 1 Bushing, Snap 1" Dia (One less used on 1 & 2 Warmer Brewers)
19 37881.0000 1 Decal, No Serviceable Parts
20 27366.0000 1 Kit, 1 GPR Stabilizer (Includes feet, decal & brackets)
21 25658.0000 1 Housing SST W/Decal, Side Warmer (Includes item 9)
25658.0002 1 Housing BLK W/Decal, Side Warmer (Includes item 9)
22 41405.0000 1 Decal, Main ON/OFF Switch
5
10861.2 010709
Page 6
BUNN
®
HOOD AND TOP COVERS
VP17
8
1
9
3 12
4
4
1
11
2
8
9
3
4
5
1
10
2
P3966.45
6
10861.2 013008
Page 7
HOOD AND TOP COVERS
ITEM PART NO. QTY. DESCRIPTION
1 38503.1000 1 Cover SST, Top (Includes items 2 & 12)(Brewers W/Out Top Warmer)
38504.1000 1 Cover BLK, Top (Includes items 2 & 12)(Brewers W/Out Top Warmer)
38496.1000 1 Cover, Top (Includes items 3,8 & 12)(Brewers with Top Warmer)
38496.1002 1 Cover, Top (Includes items 3,8 & 11)(Brewers with Two Top Warmers)
01303.0000 1 Screw SST, Pan Head #4-40 x .50"
00916.0000 1 Fastener, J-Type #4-40
2 00833.0000 1 Decal, Pour In Water Only
3 02763.0000 1 Decal, Caution - Warmers And Surfaces Are Hot - Pour In Water Only
4 38498.1000 1 Flip Lid Assy.
5 12981.0001 1 Lid/Chain Kit (Early Models)
6 00833.0000 1 Decal, Pour In Water Only (Early Models)
7 02999.0000 1 Plug, Hole 1.19" Dia. (Early Models)
8 01592.0001 1 Bushing, Snap 1.188" Dia
9 28382.0000 1 Clamp, Routing
00908.0000 1 Nut, Hex #8-32
10 13350.0006 1 Housing SST, Hood
13350.0016 1 Housing BLK, Hood
13350.0015 1 Housing, Hood (“B” Models w/front heater switch only)
02308.0000 6 Screw, Pan Head Serrated #8-32 x .375"
11 37881.0002 1 Decal, No Serviceable Parts
12 37881.0000 1 Decal, No Serviceable Parts
7
10861.2 013008
Page 8
BUNN
04270.0002
®
1
2

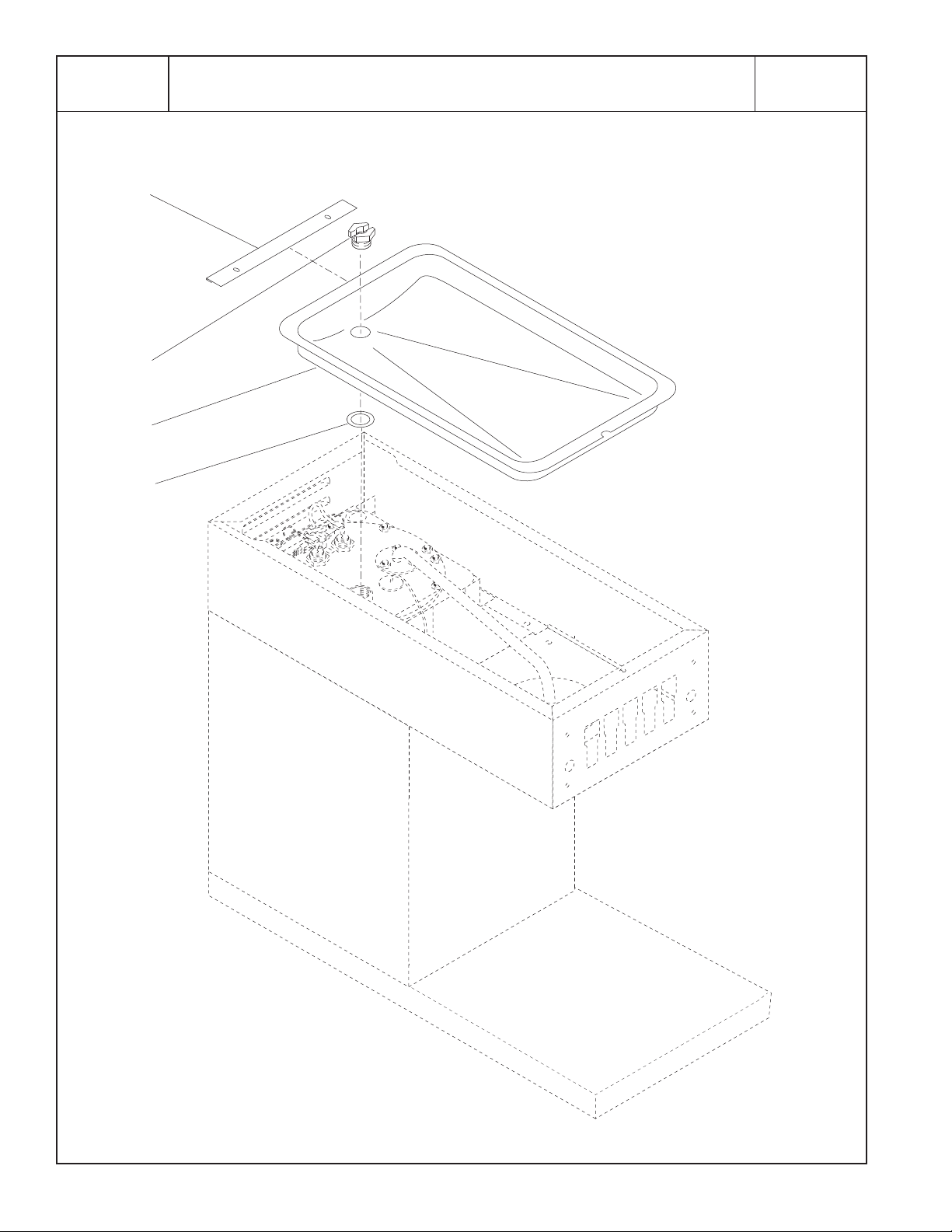

FILL BASIN
VP17
3
4
P677
8
10861.2 013008
Page 9
FILL BASIN
ITEM PART NO. QTY. DESCRIPTION
1 11424.0000 1 Plate, Splash Guard
2 01212.0001 1 Fitting, Tank Inlet
3 04270.0000 1 Fill Basin
4 01201.0000 1 Gasket, Tank Inlet
9
10861.2 031109
Page 10
BUNN
4
®
TANK AND COMPONENTS
17
5
18
Models With Tank Drain
5
7 6
19
4
2
20
21
22
Main
Harness
"A" Models
10 11
10
VP17
Thermostat Lead
Ready
Light
Harness
Thermostat
Leads
12
13
15
2
1
3
8
9
16
14
9
10
P3967.90
10861.2 013008
Page 11
TANK AND COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
- 25319.1000 1 Tank Assy, 1320W 120V (Includes items 1 thru 14)
25319.1001 1 Tank Assy, 1800W 120V (Includes items 1 thru 14)
25319.1007 1 Tank Assy, 1850W 220V (Includes items 1 thru 14 & 22)
25319.1008 1 Tank Assy, 3500W 240V (Includes items 1 thru 14 & 22)
25319.1016 1 Tank Assy, 1600W 100V (Includes items 1 thru 14)
01315.0000 2 Screw, Truss Head #8-32 x .3/8"
00912.0000 2 Fastener, J-Type #8-32
1 04119.0000 1 Tank W/Blanket Warmer, 120V
04133.0000 1 Tank W/Blanket Warmer, 220V
2 04118.0000 1 Tank
3 04260.0000 1 Blanket Warmer, 50W 120V
01927.0000 1 Blanket Warmer, 50W 220V
4 04221.0000 1 Gasket, Tank Lid
5 25158.0002 1 Tank Lid
25158.0005 1 Tank Lid (Models with Tank Drain)
00908.0000 8 Nut, Hex #8-32
6 00942.0000 2 Nut, Hex .50"-20
7 29329.1000 1 Thermostat, Limit (230F 17 AMP)
8 00943.0000 2 Gasket, Tank Heater
9 04236.1000 1 Tank Heater, 1320W 120V
20939.1000* 1 Tank Heater, 1600W 100V (Obsolete) Order 04636.1000
01925.1000 1 Tank Heater, 1850W 220V
04637.1000 1 Tank Heater, 3500W 240V
04636.1000 1 Tank Heater, 1800W 120V
10 23769.0000 1 Lead, Electrical BLK (Thermostat to Heater)
Includes items 2 & 3
Includes item 8
11 23768.0000 1 Lead, Electrical BLU (Thermostat to Limit)
12 11431.0002 1 Sprayhead Tube Kit (Includes 3 mounting nuts below & items 13 & 14)
00908.0000 3 Nut, Hex #8-32
13 05515.0000 1 Gasket, Sprayhead Tube
14 05518.0000 1 Hub, Syphon
15 01075.0000 1 Nut, Hex .438" - 20
16 01082.0000 1 Sprayhead, 6-Hole
01082.0007 1 Sprayhead, 1-Hole (Brewers with Pouch-Pack Funnel)
17 02536.0000 1 Grommet
18 28298.0001 1 Tube, Drain
19 28526.1001 1 Tube, Silicone .313" x .562" x 36.0"
20 11630.0001 1 Clamp, Shut Off
21 32098.0000 1 Plug
22 40796.0000 1 TCO Kit
11
10861.2 012910
Page 12
BUNN
10
9
11
8
12
®

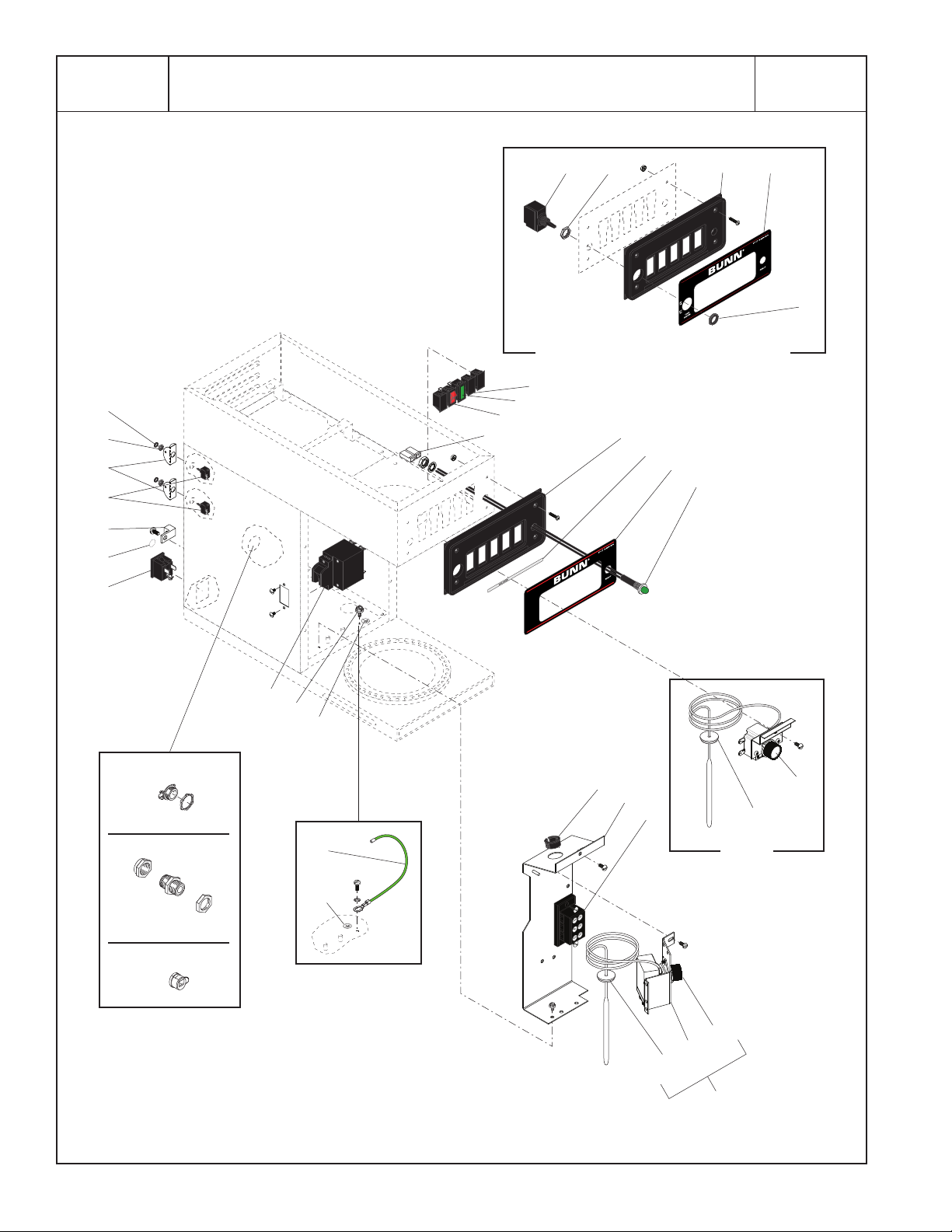

ELECTRICAL AND OPERATING CONTROLS
8 9 3 5
“B” MODELS w/FRONT HEATER SWITCH
1
6
2
7
3
VP17
10
4
5
6
13
14
15
16
17
20
18
19
21
19
22
23
24
26
28
29
12
26
27
28
25
P3968.50
10861.2 052512
Page 13
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 12921.0000 2-4 Switch Blank, BLK
2 12920.0000 1-3 Switch ON/OFF 120V
12920.0002 1-3 Switch, ON/OFF 240V
3 13352.0008 1 Control Panel
02301.0000 4 Screw, Phillip Pan Head #6-32 x .625"
00973.0000 4 Nut , Keps #6-32
4 22295.0000 1 Label, Switch ON/OFF (One warmer brewer)
22295.0001 1 Label, Switch ON/OFF (Two warmer brewer)
22295.0002 1 Label, Switch ON/OFF (Three lower warmer brewer left or right)
22295.0012 1 Label, Switch ON/OFF (One Lower Warmer & Two Upper Warmers)
22295.0015 1 Label, Switch ON/OFF (One warmer brewers)
22295.0016 1 Label, Switch ON/OFF (Two warmer brewers)
22295.0017 1 Label, Switch ON/OFF (Three lower warmer brewers, left or right)
22295.0018 1 Label, Switch ON/OFF (One lower, and two upper warmer brewers)
5 25105.0000 1 Decal, Control Panel (W/Ready Light)
25105.0003 1 Decal, Control Panel (W/Ready Light) (“B” Models Only W/Front Heater Switch)
25105.0004 1 Decal, Control Panel (No Light, No Switch)
Models
“A”
only
6 47575.1000 1 Light Assembly, 120V (Includes Terminal Housings)
47575.1001 1 Light Assembly, 250V (Includes Terminal Housings)
12985.0000 1 Wiring Harness, Ready Light
27691.0001 1 Ready Light, Green 240V (“A” Models only) Used in place of switch blank
27730.0000 1 Wiring Harness, Ready Light (“A” Models only)
7 04243.0000 2 Terminal Housing, Receptacle
8 40763.0001 1 Switch, Heater (SPST ) (Includes Hex Nut) Front or Rear Mount
28004.0000 1 Switch, Heater (DPST) (Includes Hex Nut) (Rear Mount “A” Models only)
28355.0000 1 Harness Assy, (For use with 28004.0000 Heater Switch)
9 23696.0000 1 Nut, Hex
10 23697.0000 1 Facenut, Plastic
11 25102.0000 1 Bracket, Switch Indicator/Guard
25102.0001 1 Bracket, Switch Indicator/Guard (CE)
12 27705.0000 1 Terminal Lug (Includes setscrew)
01327.0000 1 Screw, Pan Head #10-32 x .38"
13 00824.0001 1 Decal, Equipotentiality (CE Only)
14 03628.0000 1 Receptacle, Grounded (Not Used on Brewers with Three Warmers)
13307.1001 1 Wiring Harness, Rear Receptacle
15 01685.0000 1 Connector, Cord .50” MPT (“B” Models)
16 05746.1000 1 Bushing, Strain Relief (“A” Models)
17 01686.0000 1 Bushing, Strain Relief
18 02337.0001 1 Screw, Hex Head #10 x .375” (Cord Ground)
19 00824.0002 1 Decal, Ground
(Continued)
13
10861.2 021113
Page 14
BUNN
10
9
11
8
12
®
ELECTRICAL AND OPERATING CONTROLS
(Continued)
8 9 3 5
“B” MODELS w/FRONT HEATER SWITCH
1
6
2
7
3
VP17
10
4
5
6
13
14
15
16
17
20
18
19
21
19
22
23
24
26
28
29
14
26
27
28
25
P3968.50
10861.2 010709
Page 15
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
20 38894.0001 1 Switch, Master ON/OFF (Models w/ Master ON/OFF Switch)
01308.0003 2 Screw, truss Head, Locking BLK #6-32 x .25"
01308.0000 2 Screw, truss Head, Locking SST #6-32 x .25"
01327.0000 4 Screw, Pan Head #10-32 x .38"
01512.0000 4 Lockwasher #10
38920.0000 1 Wiring Harness, Switch-Terminal Block
21 21016.0131 1 Lead, Electrical Grn/Yel 7" LG ( Ground to white pole in terminal block)
01375.0000 1 Screw, Pan Head - Brass #10-32 X .50"
01512.0000 1 Lockwasher, External Tooth #10
22 00606.0000 1 Bushing, Snap .875" Dia
23 12698.0005 1 Bracket Assembly, Component Mounting (Not Used on Newer 120V Models)
01347.0000 1 Screw, Truss Head #6-32 x .375" (Early models)
02308.0000 1 Screw, Pan Head #8-32 x .375" (Late models)
02332.0001 1 Screw, Hex-Crimptite #6 x .250"
24 01106.0000 1 Terminal Block, 2 Pole-White/Black (“B” Models only)
01317.0000 2 Screw, Truss Head #8-32 x .50"
07038.0000 1 Terminal Block, 3 Pole (“A” Models only)
01315.0000 2 Screw, Truss Head #8-32 x .38"
01501.0000 2 Washer, Flat .164" I.D.
25 04314.0001 1 Thermostat Kit (Replaces Thermostats with Terminals)
28319.0000 1 Thermostat Kit (Replaces Thermostats with Electrical Leads)
02308.0000 1 Screw, Pan Head #8-32 x .375"
20762.0000 2 Screw, Binding Head #8-32 x .25" (Thermostats with Terminals)
26 00720.0000 1 Knob
27 20771.0001 1 Bracket Assembly
02301.0001 2 Screw, Phillip Pan Head #6-32 x .312"
28 07073.1000 1 Grommet, Thermostat
29 28385.1001 1 Thermostat Kit (For Newer 120V models)
02308.0000 1 Screw, Pan Head #8-32 x .38"
20762.0000 2 Screw, Binding Head #8-32 x .25"
25347.0003 1 Harness Assy.
The Following Items Are Not Illustrated
30 01637.0000 1 Power Cord 60.0" lg 120V
40699.0004 1 Power Cord 72.0" lg 120V
01638.0000 1 Power Cord (“B” Models)
27728.0005 1 Power Cord (VP17A-2)
28111.0003 1 Power Cord (VP17A-1)
28111.0008 1 Power Cord (VP17A-2)(230V Models for United Kingdom)
33529.0002 1 Power Cord (VP17A-2)(230V Models for Europe)
31 25769.0000 1 Wiring Harness, Main w/Rear Receptacle120V (VP17-3)
25769.0001 1 Wiring Harness, Main 100V (“B” Models)
25769.0002 1 Wiring Harness, Main 120V (VP17-1)
25769.0003 1 Wiring Harness, Main 120V (VP17-2)
25769.0004 1 Wiring Harness, Main 120V (VP17-3)(Early Models)
25769.0006 1 Wiring Harness, Main 120V (VP17-3)(Includes Side Warmer Wiring)
32 12919.0000 - Cap, Terminal Cover - BLK (Use as required)
15
10861.2 022808
Page 16
BUNN
®
WARMER ASSEMBLIES
UPPER & SIDE HOUSING WARMERS
VP17
A
3
1
4
5
6
BASE WARMERS
7
‘A” &”B” MODELS ONLY
120V & 120/240V MODELS ONLY
B
7
3
2
4
5
6
‘A” &”B” MODELS ONLY 120V & 120/240V MODELS ONLY
16
P3701.70
10861.2 013008
Page 17
WARMER ASSEMBLIES
ITEM PART NO. QTY. DESCRIPTION
A 03652.0000 1 Warmer Assembly 120V, Top & Side Warmers (Includes items 1, & 3 - 6)
11440.0009 1 Warmer Assembly 220V, Top & Side Warmers (Includes items 1, 3, 5, & 6)
11440.0011 1 Warmer Assembly 200V, Top & Side Warmers (Includes items 1, 3, 5, & 6)
01303.0000 3 Screw, Pan Head - SST #4-40 x .5"
00916.0000 3 Fastener, J-Type #4-40
1 01227.0000 1 Warmer Element 120V Top & Side Warmers
01951.0000 1 Warmer Element 220V Top & Side Warmers (“A” Models)
01951.0001 1 Warmer Element 200V Top & Side Warmers (“B” Models)
B 11440.0005 1 Warmer Assembly 120V, Base Warmers (Includes items 2-7) (Single CW)
11440.0008 1 Warmer Assembly 220V, Base Warmers (Includes items 2, 3, 5, & 6)
11440.0010 1 Warmer Assembly 200V, Base Warmers (Includes items 2, 3, 5, & 6)
01303.0000 3 Screw, Pan Head - SST #4-40 x .5"
00916.0000 3 Fastener, J-Type #4-40
2 11442.0000 1 Warmer Element 120V Base Warmers (Single CW)
11438.0000 1 Warmer Element 220V Base Warmers (“A” Models)
11438.0001 1 Warmer Element 200V Base Warmers (“B” Models)
3 03656.0000 1 Warmer Dish, Blk 45 Hole
4 13042.0001 1 Spacer, (120V Models Only)
5 05212.0000 1 Plate, Element Retaining
6 00970.0000 2 Nut, Keps #8-32
7 04828.0001* 2 Tube, Silicone .25" Dia x 1.875" LG. (Order Item 8)
The Following Items Are Not Illustrated
8 04828.1001 - Tube, Silicone .25" Dia. x 24” LG (Use as required)
9 24785.0002 1 Galley Kit, “C” Series, 3 Warmers
All warmers listed above are rated @ 100 watts
* Indicates the part number listed is for reference only.
17
10861.2 013008
Page 18
BUNN
®
FUNNELS, PITCHER AND FILTER BASKET
5
VP17
2
3
6
4
7
10
1
6
1
9
7
18
8
P681.75
10861.2 013008
Page 19
FUNNELS, PITCHER AND FILTER BASKET
ITEM PART NO. QTY. DESCRIPTION
1 20583.0003 1 Funnel W/Decals, Plastic (Black 7.125" Dia) (Includes items 6, 7 & 10)
20583.0006 1 Funnel W/Decals, Plastic (Orange 7.125" Dia) (Includes items 6, 7 & 10)
20216.0000 1 Funnel, SST W/Black Handle (7.125" Dia)(Includes items 2 thru 4)
20216.0001 1 Funnel, SST W/Orange Handle (7.125" Dia)(Includes items 2 thru 4)
04274.0012 1 Funnel W/Decal, Pouch-Pack Black (Large)(7.125") (Includes item 8)
2 33088.0000 1 Filter Basket (7.125" Dia)
3 28553.0000 1 Funnel W/Decals, SST (7.125" Dia) (Includes items 6 & 7)
4 20244.1000 1 Handle Kit, Black (Includes Screw)
20244.1001 1 Handle Kit, Orange (Includes Screw)
01331.0002 1 Screw, Round Head #10-32 x 1.50"
5 01031.0000 1 Funnel Tip Kit
6 03408.0002 1 Decal, Warning-Remove Funnel
7 03409.0002 1 Decal, Warning-Hot Liquid
8 28694.0000 1 Decal, Warning-Hot Liquid/Remove Funnel
9 04238.0000 1 Pitcher, Water - 64 OZ
10 32964.0000 1 Splash Guard
19
10861.2 013008
Page 20
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00511.1000.......................... 5
00606.0000........................ 15
00658.0000.......................... 5
00669.0003.......................... 5
00720.0000........................ 15
00824.0001........................ 13
00824.0002........................ 13
00831.0000.......................... 5
00833.0000.......................... 7
00908.0000..................... 7,11
00912.0000........................ 11
00916.0000..................... 7,17
00942.0000........................ 11
00943.0000........................ 11
00970.0000........................ 17
00973.0000........................ 13
00988.0000.......................... 5
01031.0000........................ 19
01082.0000........................ 11
01082.0007........................ 11
01106.0000........................ 15
01201.0000.......................... 9
01212.0001.......................... 9
01227.0000........................ 17
01303.0000..................... 7,17
01308.0000........................ 15
01308.0003........................ 15
01315.0000................... 11,15
01317.0000........................ 15
01327.0000........................ 13
01327.0000........................ 15
01331.0002........................ 19
01347.0000........................ 15
01375.0000........................ 15
01382.0000.......................... 5
01382.0002.......................... 5
01501.0000........................ 15
01512.0000........................ 15
01592.0000.......................... 5
01592.0001.......................... 7
01593.0000.......................... 5
01637.0000........................ 15
01638.0000........................ 15
01685.0000........................ 13
01686.0000........................ 13
01925.1000........................ 11
01927.0000........................ 11
01951.0000........................ 17
01951.0001........................ 17
02301.0000........................ 13
02301.0001........................ 15
02308.0000.................. 5,7,15
02332.0001........................ 15
02332.0002.......................... 5
02337.0001........................ 13
02536.0000........................ 11
02763.0000.......................... 7
02822.0000.......................... 5
02999.0000.......................... 7
03359.0001.......................... 5
03408.0002........................ 19
03409.0002........................ 19
03628.0000........................ 13
03652.0000........................ 17
03656.0000........................ 17
03993.0000.......................... 5
03996.0000.......................... 5
04118.0000........................ 11
04119.0000........................ 11
04133.0000........................ 11
04221.0000........................ 11
04236.1000........................ 11
04238.0000........................ 19
04243.0000........................ 13
04260.0000........................ 11
04270.0000.......................... 9
04274.0012........................ 19
04314.0001........................ 15
04636.1000........................ 11
04637.1000........................ 11
04828.0001........................ 17
04828.1001........................ 17
05212.0000........................ 17
05515.0000........................ 11
05518.0000........................ 11
01075.0000........................ 11
05746.1000........................ 13
07038.0000........................ 15
07073.1000........................ 15
10862.0003.......................... 5
11424.0000.......................... 9
11431.0002........................ 11
11438.0000........................ 17
11438.0001........................ 17
11440.0005........................ 17
11440.0008........................ 17
11440.0009........................ 17
11440.0010........................ 17
11440.0011........................ 17
11442.0000........................ 17
11630.0001........................ 11
12364.0000.......................... 5
12698.0005........................ 15
12919.0000........................ 15
12920.0000........................ 13
12920.0002........................ 13
12921.0000........................ 13
12981.0001.......................... 7
12985.0000........................ 13
13042.0001........................ 17
13307.1001........................ 13
13350.0006.......................... 7
13350.0015.......................... 7
13350.0016.......................... 7
13352.0008........................ 13
20216.0000........................ 19
20216.0001........................ 19
20244.1000........................ 19
20244.1001........................ 19
20583.0003........................ 19
20583.0006........................ 19
20762.0000........................ 15
20771.0001........................ 15
20939.1000........................ 11
21016.0131........................ 15
22295.0000........................ 13
22295.0001........................ 13
22295.0002........................ 13
22295.0012........................ 13
22295.0015........................ 13
22295.0016........................ 13
22295.0017........................ 13
22295.0018........................ 13
22306.0000.......................... 5
23319.1005.......................... 5
23696.0000........................ 13
23697.0000........................ 13
23768.0000........................ 11
23769.0000........................ 11
24785.0002........................ 17
24805.0000.......................... 5
24805.0000.......................... 5
25102.0000........................ 13
25102.0001........................ 13
25105.0000........................ 13
25105.0003........................ 13
25105.0004........................ 13
25137.0000.......................... 5
25144.0002.......................... 5
25144.0011.......................... 5
25158.0002........................ 11
25158.0005........................ 11
25319.1000........................ 11
25319.1001........................ 11
25319.1007........................ 11
25319.1008........................ 11
25319.1016........................ 11
25347.0003........................ 15
25351.0000.......................... 5
25351.0001.......................... 5
25657.0000.......................... 5
25657.0001.......................... 5
25657.0002.......................... 5
25658.0000.......................... 5
25658.0002.......................... 5
25769.0000........................ 15
25769.0001........................ 15
25769.0002........................ 15
20
25769.0003........................ 15
25769.0004........................ 15
25769.0006........................ 15
27366.0000.......................... 5
27691.0001........................ 13
27705.0000........................ 13
27728.0005........................ 15
27730.0000........................ 13
28004.0000........................ 13
28111.0003........................ 15
28111.0008........................ 15
28298.0001........................ 11
28319.0000........................ 15
28355.0000........................ 13
28382.0000.......................... 7
28385.1001........................ 15
28526.1001........................ 11
28553.0000........................ 19
28694.0000........................ 19
29329.1000........................ 11
32098.0000........................ 11
32964.0000........................ 19
33088.0000........................ 19
33529.0002........................ 15
34061.1005.......................... 5
34061.1006.......................... 5
34061.1014.......................... 5
37881.0000....................... 5,7
37881.0002.......................... 7
38496.1000.......................... 7
38496.1002.......................... 7
38498.1000.......................... 7
38503.1000.......................... 7
38504.1000.......................... 7
38894.0001........................ 15
38920.0000........................ 15
40699.0004........................ 15
40763.0001........................ 13
40796.0000........................ 11
41402.1000.......................... 5
41405.0000.......................... 5
47575.1000........................ 13
47575.1001........................ 13
10861.2 021113
Loading...
