USER NOTICES
Carefully read and follow all notices on the equipment and in this manual. They were written for your protec-
tion. All notices are to be kept in good condition. Replace any unreadable or damaged labels.
00986.0002
00656.0000
11646.0002
4
INTRODUCTION
NOTE: Information in this publication applies to dispensers with software version LC-1.41 and up.
The Liquid Coffee Ambient Dispenser delivers two types of coffee plus hot water. The dispenser can be set up for continuous draw (by the cup) for self-serve applications, or portion-control to fill carafes and decanters for wait staff.
ELECTRICAL REQUIREMENTS
WARNING - If the power cord is ever damaged, it must be replaced by the manufacturer or its service agent with
a special cord available from the manufacturer or its service agent in order to avoid a hazard.
The LCA-2 LP dispenser is supplied with a 120-volt / 15 Amp cord set and require a 2-wire, grounded, individual branch circuit rated for 120 volts AC, 15 amp, single phase, 60Hz. The mating connector must be a NEMA 5­15R.
PLUMBING REQUIREMENTS
The dispenser may be connected to a cold or hot water system (140°F Max.) with operating pressure between 20 and 90 psi (138 and 620 kPa) from a 3/8” or larger supply line. A shut-off valve should be installed in the line before the dispenser. Install a regulator in the line when pressure is greater than 90 psi (620 kPa) to reduce it to 50 psi (345 kPa). The water inlet fitting is 1/4” flare. Dispensers set up to deliver to 47.3 ml/sec (1.6 Oz./sec.) and require a water supply source that can deliver a minimum of 1.7 gpm (6.4 lpm) at the inlet fitting. NOTE: Bunn-O-Matic recommends 1/4” tubing from the 3/8” water supply line. At least 18 inches of FDA approved flexible beverage tubing, such as reinforced braided polyethylene or silicone, before the dispenser will facilitate movement to clean the counter top. It can be purchased direct from Bunn-O-Matic (part number 00326.0000). Bunn-O-Matic does not recommend the use of a saddle valve to install the dispenser. The size and shape of the hole made in the supply line by this type of device may restrict water flow.
This equipment must be installed to comply with the Basic Plumbing Code of the Building Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanita­tion Manual of the Food and Drug Administration (FDA). For models installed outside the
U.S.A., you must comply with the applicable Plumbing/Sanitation Code for your area.
BUNN recommends the use of our Easy Clear® Water Quality Systems to assure perfect taste.
Filter Kit - Easy Clear EQHP10L Bunn-O-Matic part no. 39000.0001
5
38791 100406
INITIAL SET-UP
NOTE: The LCA-2 LP weighs approximately 70 lbs. (32 kg). If necessary, use more than one person when lifting
or moving the dispenser.
1. Cut the plastic bands and remove the top box.
2. Locate and remove the parts box from top of packaging and set aside.
3. Remove foam packing.
4. Set dispenser on the counter where it is to be used. CAUTION: DO NOT LIFT ON THE DOOR.
5. Open the parts box remove the drip tray, brackets and splash guard.
6
OPERATING CONTROLS AND INTERFACE
1. Dispense Switches: Push to dispense product.
2. Stop Switch: Momentary switch stops all dispense functions.
3. Hot Water Switch: Push and Hold switch to dispense hot water from the center dispense tip.
4. Carafe Switch: Momentarily pushed to select the Carafe dispense Volume.
5. Power LED: Red - illuminates when AC power is applied to dispenser.
6. Ready LED: Green - illuminates when the water is at the preset ready temperature.
7. Carafe LED: Yellow - illuminates when the portion dispense option has been selected, (5 second delay).
8. Rinse LED: Yellow - illuminates when the optional preset rinse alarm time has elapsed.
9. Left Refill LED: Yellow - illuminates when the Left Concentrate Can needs replaced.
10. Right Refill LED: Yellow - illuminates when the Right Concentrate Can needs replaced.
11. Function Selector Switch: Allows the user to select different dispensing functions. (Located behind the splash
guard panel)
a. Rinse: Dispenses hot water only- Flushes the mix chamber and dispense tip.
b. Prime: Dispenses concentrates only – Primes the concentrate pump.
c. Normal: Normal dispense mode - Dispenses mixed product (concentrate and water).
12. Mode Selector Switch: Allows the user to select different operating modes.
a. Run: Normal operating position.
b. Night: Anti-pilfering mode that disables dispensing, but keeps heater and chiller operational. WARNING - The NIGHT Mode does not remove AC power from the dispenser. Disconnect power source before servicing the dispenser.
c. Program: Enables programming and set up of the dispenser.
13. Programming Switches: Used in conjunction with the LED display to program and calibrate the dispenser to
customer specific requirements. a. MENU: used to scroll to the next menu screen. b. (+): used to increase the displayed value. c. (-): used to decrease the displayed value.
14. LED Display: Displays programming menus and fault messages.
(Continued Next Page)
7
38791 031606
7 8 5 6 9 10
2 4
14
13
1 3
11
12
8

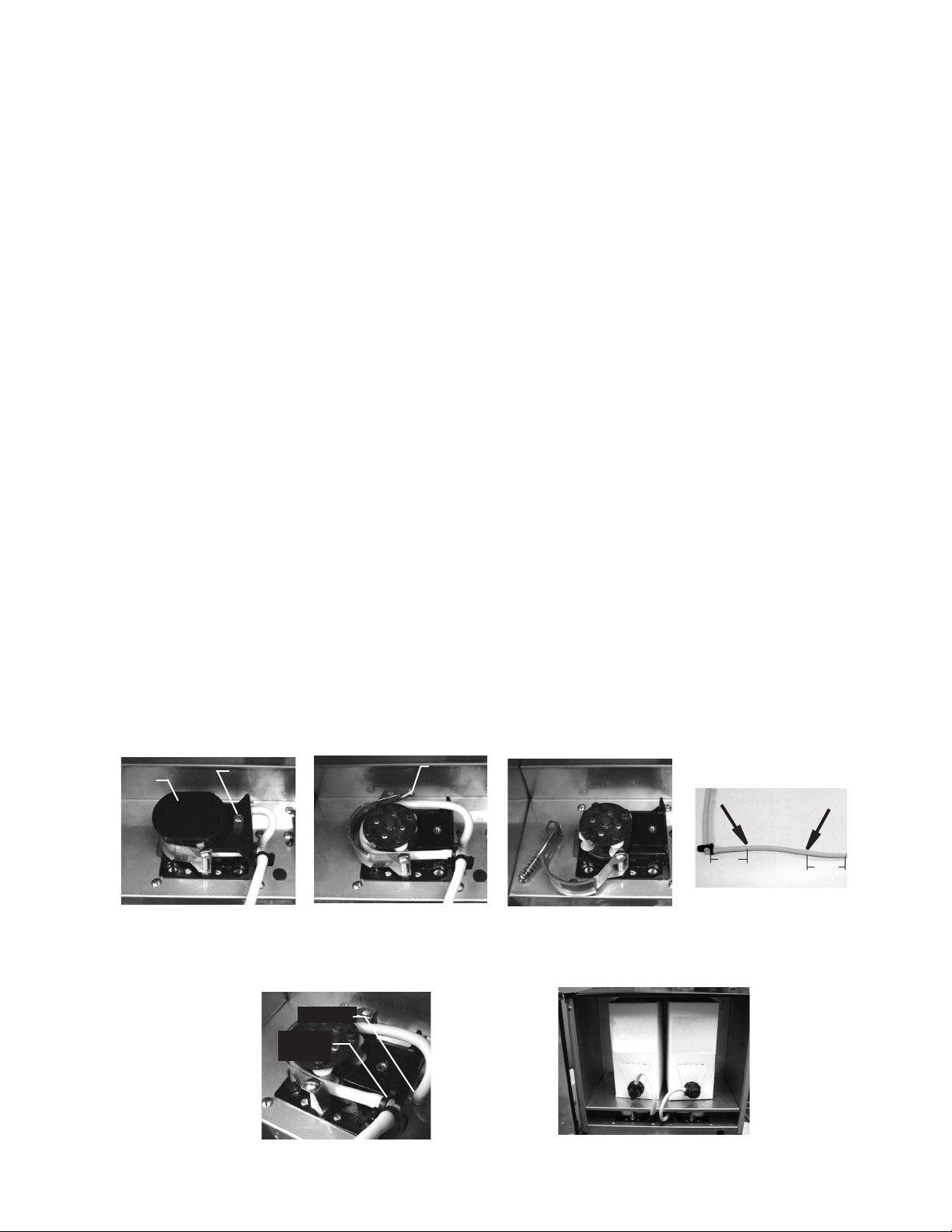

INSTALLING PUMP TUBING
INSTALLING THE PUMP TUBING
Refer to the Tube Replacement Instruction inside the Cabinet door.
1. Loosen the thumbscrew securing the tubing retainer plate to the pump body and set the retainer plate
aside.
2. Depress the tension screw and remove it from the notch in the pump body, releasing the spring tension on
the pump band.
3. Apply lubricant (BUNN-O-MATIC part no. M2531.0001) to the middle section of the new pump tubing.
side of the pump body.
5. Depress the tension screw and insert it in the notch in the pump body, reapplying spring tension on the pump
band.
6. Install the free end of the tube over the inlet port of the mix chamber on that side of the cabinet.
7. Replace the tubing retainer plate and tighten the thumbscrew.
8. Open the product container and insert the stainless steel drawtube into the container.
9. Repeat steps 1 through 8 for the other pump. Note: Replacement Tube Kits can be purchased from BUNN-O-MATIC. Order part no. 37942.1000
10. Prime the pumps. Refer to Priming the Concentrate Lines section.
Retaining Plate
Remove Retaining Plate
Thumbscrew
Tension Screw
Lubricate between arrows
Release Spring Tension
Inlet Port
Elbow & Clamps
Install New Tubing Completed Installation
Remove Tubing
2.0”
Lubricate New Tube
2.0”
9
INITIAL FILL & HEAT
1. Select Normal on the Function Selector Switch and Run on the Mode Selector Switch.
2. Confirm the water supply is on.
3. Connect the dispenser to the power source. The Red POWER LED will illuminate and water will begin flowing into the tank. The dispenser will automatically stop filling when the tank is full. The dispenser will not begin heating the water until after the tank is filled.
4. The Green READY LED will illuminate when the tank temperature reaches the preset ready temperature.
3 4
10
1
38791 031606
Rinse Alarm Feature
Periodic rinsing of the mix chambers and dispense tips is essential for proper maintenance and optimum performance of the dispenser. The automated Rinse Alarm feature has two levels of operation, Disabled and Warning.
Alarm Level Selected Alarm Mode
Disabled None Warning Rinse LED will come on 4 hrs prior to the selected time interval and remain on
until the Rinse procedure has been performed. The dispenser will continue to serve product.
NOTE: The time interval between Rinses is adjustable from 0 to 24 hrs.
The dispenser is shipped with the automated Rinse Alarm disabled, (No Alarm). It is up to the user to determine the Rinse time interval and the level of warning required, based on their application and maintenance procedures. To enable the automated Rinse Alarm feature, refer to RINSE ALARM in Programming the Dispenser.
Rinse Procedure:
1. Open the cabinet door and select Rinse on the Function Selector switch – close the door.
2. Place a 2 Liter (1/2 Gal) container under the Left dispense tip.
3. Activate the Left dispenser until water flow stops automatically, approximately 20 sec.
4. Repeat Steps 2 & 3 for the Right dispense tip.
NOTE: The Rinse LED will turn OFF, when the Rinse procedure has been satisfied for both sides.
5. Open the cabinet door and select Normal on the Function Selector switch – close the door.
11
5 1
38791 031606
PROGRAMMING THE DISPENSER
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
Open the dispenser door to access the digital programming module with LED display. Two basic modes are available to the operator: Display Mode and Program Mode. To enter the Display Mode, Set the RUN/NIGHT/PROGRAM Switch to the RUN position. To enter the Program Mode, Set the RUN/NIGHT/PROGRAM Switch to the PROGRAM position.
Display Mode: Used to view the current set-up values. Use the MENU switch to scroll to the next display. NOTE: The display blanks out after two minutes of inactivity. Press any button to activate the display.
LCD DISPLAY DISPLAY MODE DESCRIPTION
Home View DisplaysTank Temperature.
1 8 0
Tank Temperature Displays target Tank Temperature (F°)
0 1 1 8 0
0 2 3 8
0 3 3 8
0 4 0.0
Regular Dispense Ratio Displays Left Dispense Ratio (XXX:1)
Decaf Dispense Ratio Displays Right Dispense Ratio (XXX:1)
Cup Dispense Volume Displays Cup Dispense Volume (XX.X
Oz.). Set to 0.0 for “Push and Hold” Dispense Mode.
0 5 0.0
Carafe Dispense Volume Displays Carafe Dispense Volume
(XX.X Oz.)
12
38791 031606
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
PROGRAMMING THE DISPENSER (Cont.)
MENU (-) (+)
Display Mode (Continued)
LCD DISPLAY DISPLAY MODE DESCRIPTION
Regular Dispense Total Displays Total Regular Coffee Dispensed
0 6 0.0.0
Decaf Dispense Total Displays Total Decaf Coffee Dispensed
0 7 0.0.0
Empty Product Threshold Displays Empty Product Threshold
0 8 6 0 0
(XX.X Gal)
(XX.X Gal)
(Default = 600)
0 9 O F F
L C x x
Rinse Alarm (Hrs) Displays The Hours Between Required
Rinses. (Default = 0 > OFF, Alarm Disabled)
Displays Software Version # ­Exits To Home View After 3 Seconds.
13
38791 040306
PROGRAMMING THE DISPENSER (Cont.)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
Program Mode: Used to change or enter new set-up values.
To enter the Program Mode, Set the RUN/NIGHT/PROGRAM Switch to the PROGRAM position, the unit will display “__PPP” to indicate it is in the Program Mode. Use the MENU switch to scroll to the next display. Use the Increase (+) and Decrease (-) switch to adjust the values.
LCD DISPLAY PROGRAM MODE DESCRIPTION
Tank Temperature Default = 180°F
P 1 1 8 0
Left (Regular) Dispense Ratio Set Regular Coffee Ratio
P 2 3 8
Range = 120° - 200°F Ready Temp = Tank Temp minus 10°F
Default = 38:1 Range = 25 Max / 100 Min
P 3 3 8
P 4 0.0
P 5 0.0
P 6 0.0
Right (Decaf) Dispense Ratio Set Decaf Coffee Ratio
Default = 38:1 Range = 25 Max / 100 Min
Cup Dispense Volume Set Cup Dispense Volume
Default = 0.0, Push & Hold Range = 0.0 / 16.0 Oz.
Carafe Dispense Volume Set Carafe Dispense Volume
Default = 0.0, Disabled Range = 0.0 / 64.0 Oz.
Left (Regular) Dispense Total Reset Total to Zero (00.0 Gal)
14
38791 040306
MENU (-) (+)
PROGRAMMING THE DISPENSER (Cont.)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
Program Mode (Continued)
LCD DISPLAY PROGRAM MODE DESCRIPTION
Right (Decaf) Dispense Total Reset Total to Zero (00.0 Gal)
P 7 0.0
Empty Product Threshold Set Conductance Threshold
P 8 6 0 0
Rinse Alarm Timer Default = OFF > Rinse Alarm Disabled
P 9 O F F
Default = 600 Range = 100 Min / 900 Max To check Conductance of Hot Water, view the display while rinsing. Set value to 100 above reading.
Range = 1 - 24 hrs Reminder Only. No Lock Out. To clear alarm, set to RINSE Mode. Press Left switch, then Right switch for 15 seconds each.
L C 0 x x
Displays Software Version # ­Exits To Home View After 3 Seconds.
15
38791 040306
PRIMING THE CONCENTRATE LINES
1. Open the dispenser door.
2. Select Prime on the Function Selector Switch and Run on the Mode Selector Switch.
3. Close the dispenser door.
4. Place a container under the dispense tip.
5. Activate the appropriate dispenser until concentrate flows from the dispense nozzle. Priming may take 5 to 10 seconds.
6. Open the dispenser door, select Normal on the Function Selector Switch.
Note: Concentrate may continue to drip out of dispense tip. The user may wish to Rinse (refer to Rinsing) the dispenser to clean out the remaining concentrate.
2 6
2
DRAINING THE HOT WATER TANK
CAUTION: The dispenser must be disconnected from the power source throughout these steps.
1. Disconnect the dispenser from the power source.
2. Shut off and disconnect the incoming water supply.
3. Remove the right side access panel.
4. Pull out drain tube to empty into a sink or a container with a minimum of 200 ounce capacity.
5. Make sure drain clamp is closed, then remove drain plug.
6. Direct tube into sink or container and open drain clamp. Continue draining tank until ALL of the water is out. Be careful when draining the water as it may be very hot.
7. Close drain clamp, insert drain plug, place drain tube back into machine, and replace the right side access panel.
Note: The dispenser must be refilled using the Initial Fill & Heat steps before reconnecting the power source.
16
38791 031606
OPERATING THE DISPENSER
Set the Function Selector Switch to “Normal” and the Mode Selector Switch to “Run.”
1A. Push and Hold Dispense Mode (Cup at a time). See Programming Functions to set this amount.
a. Place cup on the tray beneath the dispensing tip. b. Push and hold the corresponding dispense switch until the container is full. c. Remove cup or container.
1B. Portion Dispense Mode. (Cup dispense volume preset to a desired amount) Refer to Programming Functions
to set this amount. a. Place cup on the tray beneath the dispensing tip. b. Momentarily press the desired dispense switch. The dispenser will automatically dispense the beverage
at the preset amount. Allow the mix chamber to drain at the end of the cycle.
c. Remove cup.
2. Carafe Dispense Mode. Refer to Programming Functions to set this volume.
a. Place the appropriate size container beneath the dispensing tip. b. Momentarily press the Portion Switch. The Portion LED will illuminate for 5 seconds after the Portion
Switch is pressed.
c. Momentarily press the desired dispense switch. If the user waits longer than 5 seconds to push the switch,
the dispenser will default back to the cup dispense mode. The carafe dispense mode can be disabled at any time during the dispense by either momentarily pushing the Dispense Switch again or pressing the Stop button.
d. Wait for the container to fill and the dispenser to quit dispensing, then remove the container.
3. Hot Water Dispense
a. Place a container under the dispense tip. b. Push and hold the Hot Water switch until water reaches the desired level, then release. c. Remove the container.
17
38791 031606
CLEANING & PREVENTATIVE MAINTENANCE
General Cleaning and Sanitizing Procedures Note: The BUNN® LCA-2 LP dispenser incorporates a “user selectable” rinse reminder feature, which lights the
Rinse LED on the front panel when it is time to rinse. See Programming Functions to activate this feature.
Daily: RINSING
1. Open the dispenser door and set the Function Switch to Rinse and the Mode Selector Switch to RUN.
2. Close the dispenser door and place a 1/2 gal (2 liter) container under the dispense nozzle area.
3. Activate both dispense switches until the water is clear or has no concentrate coloring in it, (10 to 20 sec.).
4. Open the dispenser door, set the Function Switch back to Normal.
Note: To clear the “Rinse” warning, activate both dispense switches (one at a time) until the flow stops automatically (approximately 20 sec. for each tip). The “Rinse” LED will turn off when the Rinse time has been satisfied.
Daily: PARTS WASHING
1. Remove and wash the drip tray and drip tray cover in a mild detergent solution. Rinse thoroughly.
2. Wipe the splash panel, dispense nozzles, door, and cabinet with a clean damp cloth.
Weekly: SANITIZING
1. Open dispenser door and select Prime on the Function Selector Switch and Run on the Mode Selector Switch.
2. Remove bag connector from the product box and disassemble or prop open the internal valve to allow free flow of product through the connector.
Note: Cutting the mating fittings from an empty bag makes an excellent “free flowing” connector for this
purpose.
3. Place bag connector into a one gallon (3.8 liter) container of warm soapy tap water 140F (60C).
4. Place an empty container under dispense tip and activate corresponding Dispense Switch until clean soapy water is dispensed from the dispense tip.
5. Repeat steps 3 and 4 with warm tap water 140F (60C) to rinse the soapy water from the pump tubing. Con­tinue activating Dispense Switch until water is clear, and no soapy water is being dispensed.
6. Prepare 2.5 gallons (9.5L) of sanitizing solution by dissolving 1 packet of Kay 5 sanitizer into 2.5 gallons (9.5L) of 120F (48.9C) water to ensure 100 ppm of available chlorine.
7. Repeat steps 3 and 4 with the sanitizing solution. Once sanitizing solution is being dispensed, release handle and allow solution to sit for 5 minutes.
8. Repeat step 5 with warm tap water to flush sanitizing solution out of the pump tubing.
9. Remove mating connector from the bag connector.
10. Reattach bag connector to product box.
11. Select Normal on Function Selector Switch and Run on Mode Selector Switch.
12. Actuate Dispense Switch until concentrate/water mixture appears. Continue to dispense at least 12 oz. (355 ml) of concentrate/water mixture and discard.
13. Repeat steps 1 through 12 for other dispense head.
18
38791 031606
REPLACING THE PUMP TUBING
The pumps and tubing used in the dispenser are designed to give maximum performance and long life. However, the tubes are a wear item and must be replaced periodically. How long the tubes last is dependent on usage and properties of the concentrate. Excessive wear will reduce the output of the pumps resulting in a weak mixed beverage. Bunn-O-Matic recommends replacing the Pump Tubing a minimum of once every 6 months or sooner if warranted.
Refer to the Tube Replacement Instruction inside the Cabinet door.
Note: To avoid concentrate spills, rinse the pump tubing with warm tap water prior to removing the tubes, (Refer to steps 1 - 4 of the Weekly Sanitizing instructions).
1. Loosen the thumbscrew (Fig 1) securing the tubing retainer plate to the pump body and set the retainer plate
aside.
2. Depress the tension screw and remove it from the notch in the pump body, releasing the spring tension on
the pump band (Fig 2).
3. Gently pull the pump tube from around the pump rotor (Fig 3).
4. Inspect the pump bands, rollers and housing for contamination or signs of wear. Clean or replace worn parts
if necessary.
5. Apply lubricant (BUNN-O-MATIC part no. M2531.0001) to the middle section of the new pump tubing (Fig
4).
side of the pump body (Fig 5).
7. Depress the tension screw and insert it in the notch in the pump body, reapplying spring tension on the pump
band.
8. Install the free end of the tube over the inlet port of the mix chamber on that side of the cabinet (Fig. 5).
9. Replace the tubing retainer plate and tighten the thumbscrew.
9. Open the product container and insert the stainless steel drawtube into the container (Fig 6).
10. Repeat steps 1 through 9 for the other pump. Note: Replacement Tube Kits can be purchased from BUNN-O-MATIC. Order part no. 37942.1000
Fig 1
Retaining Plate
Remove Retaining Plate
Thumbscrew
Fig 2 Fig 3 Fig 4
Tension Screw
Lubricate between arrows
Release Spring Tension
Fig 5
Inlet Port
Elbow & Clamps
Install New Tubing Completed Installation
19
Remove Tubing
Fig 6
2.0”
Lubricate New Tube
2.0”
38791 031606
CALIBRATING THE DISPENSER
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
NOTE: The LCA-2 LP is calibrated at the factory and does not normally need to be re-calibrated. To enter the Calibration Mode, Set the RUN/NIGHT/PROGRAM Switch to the PROGRAM position and then hold the “MENU” switch down for 10 seconds.
LCD DISPLAY CALIBRATION MODE DESCRIPTION
Left (Regular) Pump Cal. Set PRIME-NORMAL-RINSE switch
C 1 r u n
Left (Regular) Pump Cal. Enter mL collected from the 20 sec.
C 1 2 2
to PRIME position. Press and hold Regular Dispense Switch until pump stops (20 sec.) Refer to Field Calibration
of the Concentrate Pumps.
test above. Default = 22 Range = 18 - 26mL
C 2 r u n
C 2 2 2
C 3 r u n
C 3 1. 0 8
Right (Decaf) Pump Cal. Set PRIME-NORMAL-RINSE switch to
PRIME position. Press and hold Decaf Dispense Switch until pump stops (20 sec.) Refer to Field Calibration of the
Concentrate Pumps.
Right (Decaf) Pump Cal. Enter mL collected from the 20 sec.
test above. Default = 22 Range = 18 - 26mL
Left (Regular) Water Rate Set PRIME-NORMAL-RINSE switch to
RINSE position. Press and hold Regular Dispense Switch until flow stops (20 sec.) Refer to Field Calibration of the
Concentrate Pumps.
Left (Regular) Water Rate Enter Liters collected from the 20 sec.
test above. Default = 1.08 Range = 0.95 - 1.20 Liters
20
38791 031606
CALIBRATING THE DISPENSER (Cont.)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
LCD DISPLAY CALIBRATION MODE DESCRIPTION
Right (Decaf) Water Rate Set PRIME-NORMAL-RINSE switch to
C 4 r u n
Right (Decaf) Water Rate Enter Liters collected from the 20 sec.
C 4 1. 0 8
Pump “OFF” Delay Delays the Pump turn off after a
C 6 2 0 0
RINSE position. Press and hold Decaf Dispense Switch until flow stops (20 sec.) Refer to Field Calibration of the
Concentrate Pumps.
test above. Default = 1.08 Range = 0.95 - 1.20 Liters
dispense. Default = 200 Range = 1 - 999 mSec.
C 7 E n g
C 8 - - -
C 9 - - -
L C x x
English or Metric Mode Eng for English
S.I. for Metric
Error Code History Displays last known Error Code
Depress the Decrease (-) to view the last 3 Errors. Hold the Decrease (-) & Increase (+) switches for 10 sec. to Erase.
Reset Factory Defaults Resets all set up values to the Factory
Default setting. Hold both Increase (+) and Decrease (-) switch for 10 seconds.
Displays Software Version # ­Exits To Home View After 3 Seconds.
21
38791 040306
TROUBLESHOOTING GUIDE
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
Error Codes
When an error has occurred, all Door LED’s will be flashing. Open the Door to access the LED Display and record the Error Code. Refer to the list of Error Codes below to identify the problem. A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic Technical Service Department.
LED DISPLAY ERROR DESCRIPTION/TROUBLESHOOTING
Left (Regular) Pump Failed Left Motor or RPM Sensor Failure.
E C 0 0 1
Right (Decaf) Pump Failed Right Motor or RPM Sensor Failure.
E C 0 0 2
Check motor and RPM sensor wires for shorts or open connections.
Check motor and RPM sensor wires for shorts or open connections.
E C 0 0 3
E C 0 0 4
Heating Time Too Long Tank Heater ON Continuous For More
Than 1 Hour. Check heater wires for open connections.
Fill Time Too Long Fill Valve ON Continuous For More Than
15 Minutes. Water turned OFF. Refill Valve disconnected. Faulty Valve.
22
38791 031606
TROUBLESHOOTING GUIDE (Cont.)
MENU (-) (+)
MENU (-) (+)
MENU (-) (+)
Error Codes (Continued)
LED DISPLAY ERROR DESCRIPTION/TROUBLESHOOTING
Tank Temp Sensor Failed Sensor Reading Out Of Range (High
E C 0 0 7
Switch Board Failure Unable To Communicate With The
E C 0 1 0
or Low). Faulty Sensor wiring.
Switch Board In The Door. Faulty wiring between the Door and the Main Control Board.
E C 0 1 1
Power Supply Voltage Out of Range
Too High (>26 Vdc) or Too Low (<23 Vdc) Display alternates between EC-011 and the actual power supply voltage, (XX Vdc). Check line voltage. Check 115/230 Vac switch on the power supply.
23
38791 040306
Field Calibration of the Concentrate Pumps & Dispenser Flow Rates
The factory set default values for the Pump & Dispenser Flow Rates are very accurate and typically do not need to be field calibrated. However, if the mix ratio accuracy is ever in question, this procedure can be used to recalibrate the unit in the field. Equipment Required:
50 to 100 ml graduated cylinder, with 1 ml graduations. 1500 to 2000 ml graduated container.
NOTE: You can calibrate either the Concentrate Pump or the Dispenser Flow Rate independently. Simply scroll through the menu screen to the desired section and perform only those steps. (refer to Calibrating the Dispenser)
Calibrating the Concentrate Pumps.
Regular Coffee - Concentrate Pump Calibration
1. Open the door of the dispenser and select PROGRAM on the Mode Selector Switch.
2. Depress and Hold the MENU switch for approximately 10 sec. The unit will display “C1 run”
when it has entered the Calibration Mode.
3. Select PRIME on the Function Selector Switch.
4. Place a container under the left Dispense Tip and depress the Regular dispense switch until a
steady stream of concentrate comes out the tip (5 to 10 seconds).
5. Stop priming and allow the tip to stop dripping. Discard the concentrate collected.
6. Place a 50 ml graduated cylinder under the Left Dispense Tip.
7. Press & Hold the Regular dispense switch. The dispenser will display a 20 second count down
timer and then shut the pump OFF automatically. Release the dispense switch.
8. Keep the graduated cylinder under dispense tip until all the concentrate has dripped out.
9. Measure the volume of concentrate collected in the graduated cylinder.
The acceptable range for the volume of concentrate collected is 18 - 26 ml
10. If the amount collected is not within the acceptable range, empty the graduated cylinder and
repeat STEPS 6 – 9.
11. If the amount collected is still not within range, replace the pump tubing with a new Tube Kit,
(refer to the Tube Replacement Instructions).
12. When satisfied with the volume of concentrate collected, press the MENU switch. The current
Calibration volume “C1 XX” will be displayed.
13. Use the (-) / (+) keys to adjust number displayed to the amount measured in STEP 9.
Decaffeinated Coffee - Concentrate Pump Calibration Depress the MENU switch to display the Decaffeinated Concentrate Pump calibration menu “C2 run”. Repeat STEPS 3 – 13 above for the right side “Decaf” pump.
Calibrating the Dispenser Flow Rates.
Regular Coffee - Dispenser Flow Rate Calibration
1. Select RINSE on the Function Selector Switch.
2. Press the MENU switch to display the Regular Coffee Flow Rate calibration menu “C3 run”
3. Place a container under Left Dispense Tip and depress the Regular dispense switch until a
steady stream of water comes out the tip (5 to 10 seconds).
(Continued Next Page)
24
38791 031606
Field Calibration of the Concentrate Pumps & Dispenser Flow Rates
(Continued)
4. Stop dispensing and allow the tip to stop dripping. Discard the water collected
5. Place a 1500 to 2000 ml graduated container under Left Dispense Tip.
6. Press & Hold the Regular dispense switch. The dispenser will display a 20 second count down timer and then stop dispensing automatically. Release the dispense switch.
7. Keep the graduated container under dispense tip until all the water stops dripping.
8. Measure the volume of water collected in the graduated container.
The acceptable range for the volume of water collected is .95 - 1.20 liters
9. If the amount of water collected is not within the acceptable range, empty the graduated con­tainer and repeat STEPS 5 – 8.
10. If the amount collected is still not within range, inspect the dispense valves, tubing and mix chamber for lime, kinks or other obstructions.
11. When satisfied with the volume of water collected, press the MENU switch. The current Water Calibration volume “C3 XX” will be displayed.
12. Use the (-) / (+) keys to adjust number displayed to the amount measured in STEP 8.
Decaffeinated Coffee - Dispenser Flow Rate Calibration Depress the MENU switch to display the Decaffeinated Coffee Flow Rate calibration menu “C4 run”. Repeat STEPS 3 – 12 above for the right side “Decaf” pump.
Field Calibrating the Empty Product Warning
The dispenser will automatically turn on the Regular or Decaf “REFILL LED”, see Operating Controls and Interface, when the corresponding container is Empty. The Refill message is triggered when the
conductance sensor reading drops below the minimum setting. The factory set minimum is 600 and should be correct for most locations. However, in some areas the hardness of the local water supply may effect this reading. If the Refill message doesn’t come on when the container is empty or the mes­sage comes on too early and there is still concentrate left in the container, use the following procedure to find the correct Empty Product Threshold.
Calibrating The Empty Product Threshold
1. Open the dispenser door to access the digital programming module with LED display and set the Function Switch to the “Rinse” position. Leave the door open to view the LED display.
2. Place a large container under the dispenser tip, then activate and hold the Regular Coffee dispense switch.
3. Hold the dispense switch long enough to rinse all the concentrate out of the mix chamber and for the Conductance reading to stabilize and stop dropping.
4. Record the nominal Conductance value displayed. (NOTE: It is typical for this value to fluctuate (+/-
25) points about the nominal value.) This is the conductance reading of the water in your area.
5. Repeat steps 2, 3 & 4 for the Decaf Coffee dispenser.
6. Add 100 points to the larger of the Regular or Decaf conductance value. This is the new Empty Product threshold value for your dispenser.
7. Enter this new value into the Empty Product Alarm threshold position “P8 XXX”, see Program- ming the Dispenser.
25
38791 040306
BLU/BLK-16
RED-22
WHT/BLK-22
WHT/BLU-22
WHT/BLU-22
WHT/BLK-22
TAN-22
M
SWITCH & LED BOARD
RED/BLK-18
RIGHT PUMP RPM SENSOR
M
LEFT PUMP RPM SENSOR
WHT/RED-18
BRN/WHT-18
BRN/BLK-18
GRN
RED
BLK
1
RED
GRN
BLK
1
WHT/RED-18
RED-22
WHT/BLK-22
RED/BLK-18
BRN/WHT-18
BRN/BLK-18
TAN-22
WHT/BLK-22
WHT/BLU-22
WHT/BLU-22
J7-4
J7-1
J7-4
J7-1
J6-16
J6-5
J6-10
J6-1
LIMIT THERM.
WHT/BLK-18
INLET VALVE
HOT WATER
SOL
SOL
SOL
RIGHT VALVE
LEFT VALVE
SOL
BLK-16
L1
BRN/BLK-18
WHT/BLK-18
BLK-18
WHT-18
J4-10
MAIN CONTROL BOARD
YEL-18
ORN-18
RED-18
J4-1
J4-5
N.O.
COM
BLK-16
RINSE
WHT/VIO-22
J8-5
WHT/GRAY-22
WHT/BLK-22
GRAY-22
BRN-20
RED-20
J8-10
J8-14
J8-1
BLK-22
VIO-22
BRN-20
RED-20
PROGRAM
NIGHT
RUN
NORMAL
PRIME
LEFT
CONDUCTANCE
RIGHT
CONDUCTANCE
ORN-22
PINK-22
J10-1
J10-4
GRN-22
WHT/ORN-22
GRAY-18
GRAY-18
J2-5
J2-8
J2-1
WHT-18
RED-18
BLK-18
RED-18
1
WHT
BLK
t°
N/L2
BLK-18
WHT-18
GRAY-18
GRAY-18
RED-18
RED-18
-V
L1
-V
GND
+V
+V
WHT-16
TANK HEATER
GRN
N
SCHEMATIC WIRING DIAGRAM LCA-2 LP
120 VOLTS AC - 2 WIRE
SINGLE PHASE, 60 HZ
LEFT PUMP
RIGHT PUMP
TANK
POWER SUPPLY 24 VDC, 180 WATTS
26
38791 031606
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
