INTRODUCTION
The Liquid Coffee Ambient Iced Coffee Dispenser (LCA-2 IC) delivers two types of coffee. The dispenser
can be set up for continuous draw (by the cup) for self-serve applications, or portion-control to fill carafes and
decanters for wait staff.
CONTENTS
Warranty......................................................................................................................................2
Introduction .................................................................................................................................3
User Notices ................................................................................................................................4
Electrical Requirements ...............................................................................................................5
Plumbing Requirements ..............................................................................................................5
Initial Set-up ................................................................................................................................6
Electrical Hook-up .......................................................................................................................6
Plumbing Hook-up ......................................................................................................................6
Setting Dispenser Flow Rate ........................................................................................................6
Selecting the Correct Pump Tubing .............................................................................................7
Operating Controls & Interface ....................................................................................................8
Initial Power-Up ...........................................................................................................................9
Rinse Alarm Feature ..................................................................................................................10
BIB Empty Lockout Feature .......................................................................................................10
Programming the Dispenser .....................................................................................................11
Loading the Concentrate ...........................................................................................................16
Priming the Concentrate Lines ..................................................................................................16
Operating the Pull & Hold Dispenser .........................................................................................17
Cleaning & Preventive Maintenance ..........................................................................................18
Replacing the Pump Tubing.......................................................................................................19
Troubleshooting ........................................................................................................................20
Field Calibration of the Concentrate Pumps ...............................................................................24
Dispenser Flow Rate Calibration ................................................................................................25
Field Calibrating the Empty BIB Warning ...................................................................................25
Schematic Wiring Diagrams ......................................................................................................26
3
38059 092706
USER NOTICES
Carefully read and follow all notices on the equipment and in this manual. They were written for your protec-
tion. All notices are to be kept in good condition. Replace any unreadable or damaged labels.
00656.0000
00986.0002
4
ELECTRICAL REQUIREMENTS
CAUTION: The dispenser must remain disconnected from the power source until specified in Electrical Hook-
Up.
The LCA-2 IC dispenser is supplied with a 120-volt / 15 Amp cord set and requires a 2-wire, grounded,
individual branch circuit rated for 120 volts AC, 15 amp, single phase, 60Hz. The mating connector must be
a NEMA 5-15R.
PLUMBING REQUIREMENTS
The dispenser may be connected to a cold water system with operating pressure between 20 and 90 psi (138 and
620 kPa) from a 1/2” or larger supply line. A shut-off valve should be installed in the line before the dispenser.
Install a regulator in the line when pressure is greater than 90 psi (620 kPa) to reduce it to 50 psi (345 kPa). The
water inlet fitting is 3/8” flare. Dispensers set up to deliver to 1.8 Oz./sec. (53.2 ml/sec) per dispense tip, require
a water supply source that can deliver a minimum of 1.7 gpm (6.4 lpm) at the inlet fitting.
NOTE: Bunn-O-Matic recommends 3/8” tubing from the 1/2” water supply line. At least 18 inches of FDA approved
flexible beverage tubing, such as reinforced braided polyethylene or silicone, before the dispenser will facilitate
movement to clean the counter top. It can be purchased direct from Bunn-O-Matic (part number 00326.0000).
Bunn-O-Matic does not recommend the use of a saddle valve to install the dispenser. The size and shape of the
hole made in the supply line by this type of device may restrict water flow.
This equipment must be installed to comply with the Basic Plumbing Code of the Building
Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation Manual of the Food and Drug Administration (FDA). For models installed outside the
U.S.A., you must comply with the applicable Plumbing/Sanitation Code for your area.
5
38059 050605
INITIAL SET-UP
NOTE: The LCA-2 IC weighs approximately 70 lbs. (31.8 kg). If necessary, use more than one person when
lifting or moving the dispenser.
1. Locate and remove the information packets and tube kits from top of packaging and set aside.
2. Remove foam packing and cut around the bottom of box.
3. Remove the box and the rest of the foam packing.
4. Open the dispenser door and remove the drip tray and the lower splash guard panel.
5. Set dispenser on the counter where it is to be used. CAUTION: DO NOT LIFT ON THE DOOR.
6. Confirm the dispenser is level on the counter.
ELECTRICAL HOOK-UP
CAUTION: Improper electrical installation will damage electronic components.
1. An electrician must provide electrical service as specified in conformance with all local, state and federal
electrical codes.
2. Using a voltmeter, check the voltage and color-coding of each conductor at the electrical source.
3. Connect the dispenser to the power source.
4. If plumbing is to be hooked up later, be sure the dispenser is disconnected from the power source. If plumbing
has been hooked up, the dispenser is ready for Initial Power-Up.
PLUMBING HOOK-UP
1. Flush the water line to remove any debris or foreign material.
2. Securely attach the water line to the 3/8” flare fitting, on bottom right side of the dispenser.
3. Turn on the water supply and check for leaks.
DISPENSER FLOW RATE
The dispenser comes from the factory with flow rate set at 1.8 oz./sec (53.2 ml/sec).
6
38059 050605
SELECTING THE CORRECT PUMP TUBING
There are two pump tube sizes available for use with this dispenser. Look up the recommended tube size for the
mix ratio of your concentrate, refer to the Tube Selection Chart.
TUBE SELECTION CHART
Dispense Concentrate Ratios
Rate 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100
1.8 Oz/sec. 3/16” I.D. TUBING 1/8” I.D. TUBING
(53 ml/sec.)
Example:
For a Dispenser Flow Rate of 1.8 Oz./sec (53 mL/sec) and a Mix Ratio of 60:1 – use 1/8” I.D. Tubing.
Tube kits can be purchased from BUNN-O-MATIC.
Part # 34727.1000 for 3/16” I.D. Tubing or #34728.1000 for 1/8” I.D. Tubing.

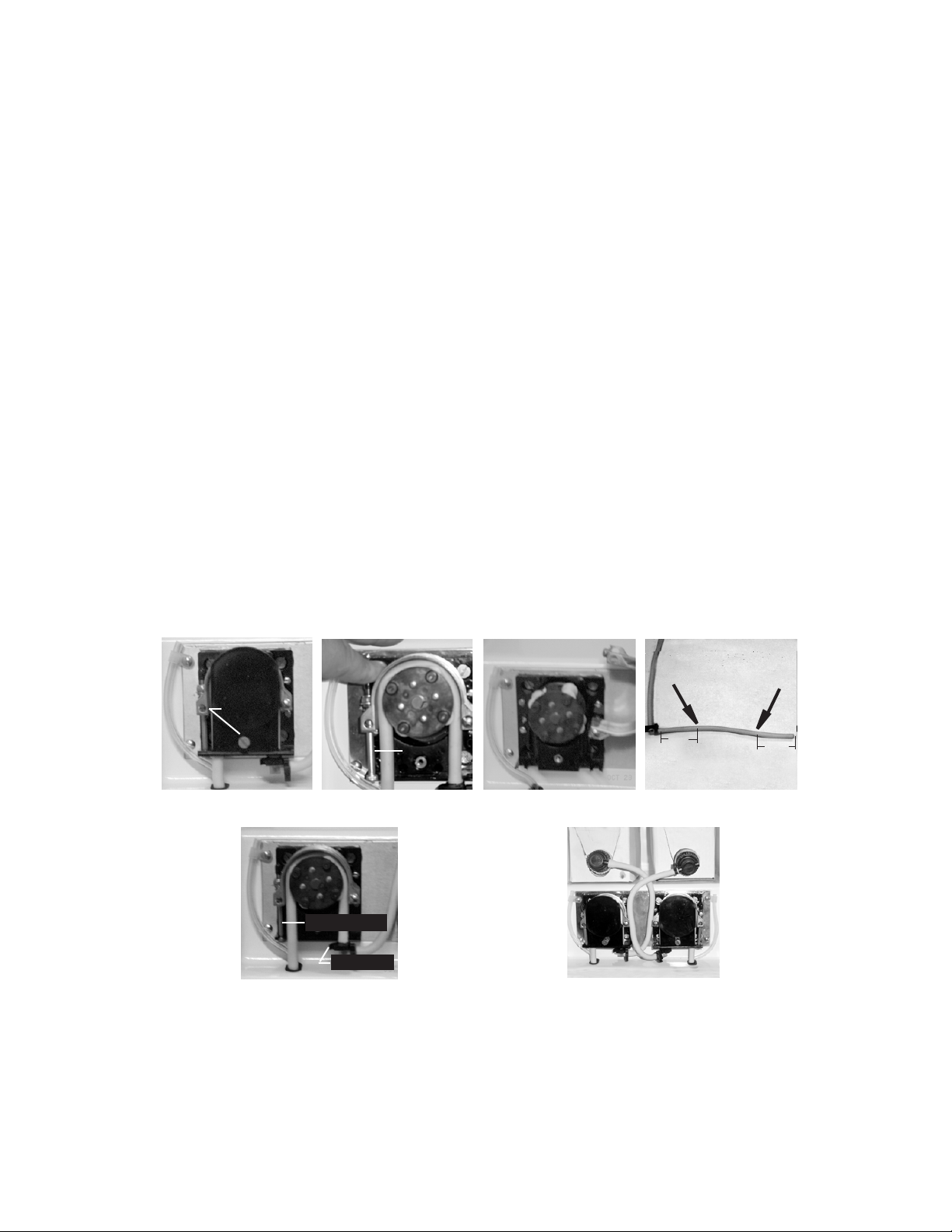

INSTALLING THE PUMP TUBING (Refer to the Tubing Installation Instructions in side the cabinet door for
details.)
1. Loosen the thumbscrew securing the tubing retainer plate to the pump housing. Set it and the retainer plate
aside.
2. Depress the tension screw and remove it from the notch in the pump body, releasing the spring tension on
the pump band.
3. Apply lubricant (BUNN-O-MATIC part number M2548.1000) to the new pump tubing.
4. Insert the tubing onto the mix chamber port and wrap the tubing around the pump rotor, making sure that
the elbow and clamps end up on the bottom side of the pump body.
5. Close the compression band reinsert the tension screw into the notch in the pump housing.
6. Replace the tubing retainer plate and tighten the thumbscrew.
7. Reconnect bag connector to the product box.
8. Repeat steps 1 through 7 for the other pump.
9. Prime the pumps. Refer to Priming the Concentrate Lines section.
Thumbscrew
Tension
Screw
Remove Retaining Plate Release Spring Tension Remove Tubing
Tension Screw
Tube Clamp
Install New Tubing Completed Installation
7
2.0”
Lubricate between arrows
Lubricate New Tube
2.0”
38059 050605

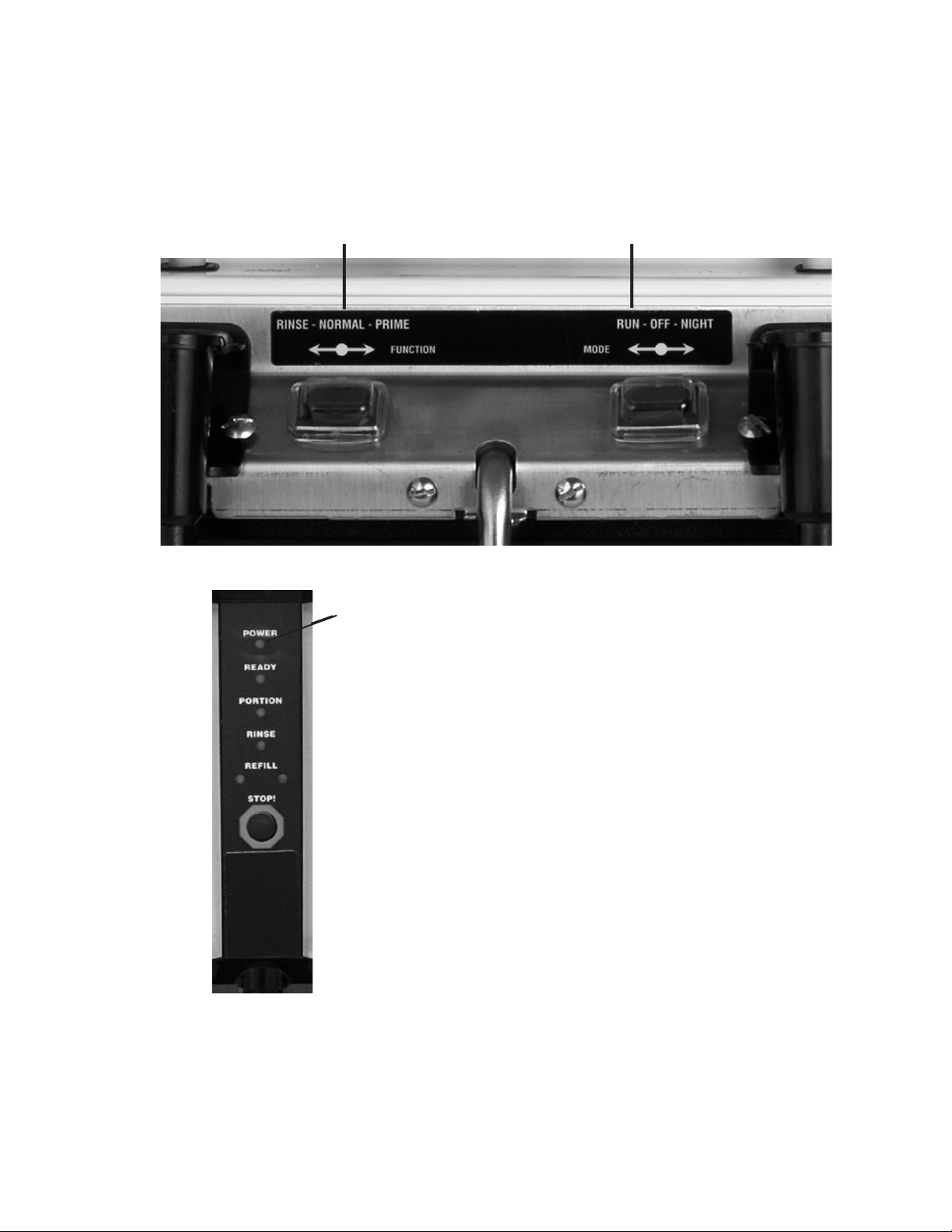

OPERATING CONTROLS AND INTERFACE
BUNN ICED COFFEE
AMBIENT UNIT
1. Dispense Switches: Pull and Hold to dispense product.
2. Stop Switch: Momentary switch stops all dispense functions.
3. Alternate Portion Control Switch: Momentarily pushed to select the Alternate Portion Control Volume.
4. Function Selector Switch: Allows the user to set the dispenser into different dispensing modes.
a. Rinse: Dispenses water only- Flushes the mix chamber and dispense tip.
b. Prime: Dispenses concentrates only – Primes the concentrate pump.
c. Normal: Normal dispense mode - Dispenses mixed product (concentrate and water).
5. Mode Selector Switch: Allows the user to set the dispenser into different operating modes.
a. Run: Normal operating position.
b. Off: Turns off all functions.
WARNING - The OFF Mode does not remove AC power from the dispenser. Disconnect power source before
servicing the dispenser
c. Night: Anti-pilfering mode that disables dispensing.
6. Door Interlock Switch: Unit will not dispense product if the door is open.
7. Power LED: Red - illuminates when AC power is applied to dispenser.
8. Portion LED: Yellow - illuminates when the portion dispense option has been selected, (5 second delay).
9. Rinse LED: Yellow - illuminates when the optional preset rinse alarm time has elapsed.
10. Left Refill LED: Yellow - illuminates when the Left Concentrate BIB needs replaced.
11. Right Refill LED: Yellow - illuminates when the Right Concentrate BIB needs replaced.
12. Programming Keypad: Used in conjunction with the LCD display to program and calibrate the dispenser to
customer specific requirements. (Located behind the splash guard panel)
13. LCD Display: Displays programming menus and fault messages. (Located behind the splash guard panel)
4 5
7
6
8
1
9
10
3
13
11
12
2
8
38059 082405
INITIAL POWER-UP
1. Select Normal on the Function Selector Switch and Run on the Mode Selector Switch.
2. Confirm the water supply is on.
3. Connect the dispenser to the power source. The Red POWER LED will illuminate and the machine will be
ready for Programming as described in Programming Functions & Basic Operations.
1 1
3
9
38059 050605
Rinse Alarm Feature
Periodic rinsing of the mix chambers and dispense tips is essential for proper maintenance and optimum
performance of the dispenser. The automated Rinse Alarm feature has three levels of operation, Disabled, Warning
Only and Warning with Brew Lockout, see chart for details.
Alarm Level Selected Alarm Mode
Disabled None
Warning Only Rinse LED will come on 4 hrs prior to the selected time interval
and remain on until the Rinse procedure has been performed. The dispenser will
continue to serve product.
Warning w/ Brew Lockout Rinse LED will come on 4 hrs prior to the selected time interval and remain on
until the Rinse procedure has been performed. The dispenser will Lockout and
not continue to serve product once the selected time interval has elapsed.
NOTE: The time interval between Rinses is adjustable from 8 to 24 hrs.
The dispenser is shipped with the automated Rinse Alarm disabled, (No Alarm). It is up to the user to determine the
Rinse time interval and the level of warning required, based on their application and maintenance procedures.
To enable the automated Rinse Alarm feature, refer to RINSE ALARM ? in Programming the Dispenser.
Rinse Procedure:
1. Open the cabinet door and select Rinse on the Function Selector switch – close the door.
2. Place a 2 Liter (1/2 Gal) container under the Left dispense tip.
3. Activate the Left dispenser until water flow stops automatically, approximately 20 sec.
4. Repeat Steps 2 & 3 for the Right dispense tip.
The Rinse LED will turn OFF, when the Rinse procedure has been satisfied for both sides.
5. Open the cabinet door and select Normal on the Function Selector switch – close the door.
1 5
BIB Empty Lockout Feature
The dispenser can be set to not dispense product when the concentrate BIB is empty. To enable this feature, first
calibrate the Empty BIB Threshold (refer to Field Calibrating the Empty BIB Warning). Then enable the BIB Empty
Lockout feature (refer to the BIB Empty Lockout menu in Programming the Dispenser). The dispenser will now
Lockout dispensing and flash the Right or Left “REFILL LED” corresponding to the empty BIB. Once the BIB has
been replaced, PRIME the concentrate line (refer to Priming the Concentrate Lines) and then dispense mixed
product until the “REFILL LED” goes out. NOTE: If the dispenser fails to clear the BIB Empty Lockout, repeat the
Priming operation a second time to insure the concentrate is flowing properly.
10
38059 050605
PROGRAMMING THE DISPENSER
Remove the lower splash guard assembly to access the digital programming module with LCD display.
Press the Down Arrow key to enter the programming menu.
Use the Up and Down Arrow keys to scroll through the menu screens.
Select Exit to leave the programming function and return to normal operations.
NOTE 1: Flashing menu items indicate which selection is active.
NOTE 2: Values shown below are the factory default values for English units.
NOTE 3: Values in [X - X] are the Min. and Max. for that function.
MENU SCREEN ACTION DESCRIPTION
L DISPENSE RATIO
(-) 35:1 (+)
SET LF TUBE SIZE
1/8 EXIT 3/16
R DISPENSE RATIO
(-) 35:1 (+)
SET RT TUBE SIZE
1/8 EXIT 3/16
LF DISP VOLUME
(-) 4.0oz (+)
RT DISP VOLUME
(-) 4.0oz (+)
Use the (+) or (-) buttons to
adjust the Mix Ratio
Select tube size. Size selected
will flash ON/OFF.
Use the (+) or (-) buttons to
adjust the Mix Ratio
Select tube size. Size selected
will flash ON/OFF
Use the (+) or (-) buttons
to adjust the Left portion
volume
Use the (+) or (-) buttons
to adjust the Right portion
volume
Enter the desired Mix Ratio for the concentrate
used in the Left dispenser. [20:1 - 100:1]
Select Pump Tube Size to be used in the Left
metering pump, (see Tube Selection Chart)
Enter the desired Mix Ratio for the concentrate
used in the Right dispenser. [20:1 - 100:1]
Select Pump Tube Size to be used in the Right
metering pump, (see Tube Selection Chart)
Set the volume to be dispensed during a Left
Portion controlled dispense to: [0 - 640 Oz.] or
[0 - 18.93L]
Set the volume to be dispensed during a Right
Portion controlled dispense to: [0 - 640 Oz.] or
[0 - 18.93L]
11
38059 061305
MENU SCREEN ACTION DESCRIPTION
LF PRODUCT DISP
.0GAL RESET?
Select (RESET) to clear total
Selecting Reset will clear the Current accumulated
volume of mixed product dispensed through the
Left dispenser. Gal (Liters)
LF PRODUCT DISP
.0GAL
NONE
Displays the Total accumulated volume of mixed
product dispensed through the Left dispenser.
Not Re-settable. Gal (Liters)
RT PRODUCT DISP
.0GAL RESET?
Select (RESET) to clear total
Selecting Reset will clear the Current accumulated
volume of mixed product dispensed through the
Right dispenser. Gal (Liters)
RT PRODUCT DISP
.0GAL
NONE
Displays the Total accumulated volume of mixed
product dispensed through the Right dispenser.
Not Re-Settable. Gal (Liters)
The following functions can be Password Protected. If you wish to prevent others from accessing these
functions, enter a 4 digit code of your choice. Record your password code [_ _ _ _], as you will need it
to access these functions in the future.
ENTER PASSWORD
(-) 0 (+)
SET PASSWORD ?
(-) 0 (+)
SELECT UNITS
Use the (+) or (-) buttons to
enter password.
Use the (+) or (-) buttons to
change the password.
Select the preferred units
ENG EXIT METRIC
CHILLED UNIT ?
Select (NO)
NO EXIT YES
RINSE ALARM ?
Select (YES) or (NO)
NO EXIT YES
If NO - go to BIB EMPTY LOCKOUT menu.
Enter the access Code to view the remaining
functions. Factory Default = 0.
Enter your own Code to prevent access to the
remaining functions. [0 to 9999]
Used to select the preferred units of measurement.
(Oz., Gal, deg F) or (mL, L, deg C)
Default to NO. This option is not applicable for
Iced Coffee models.
Selecting Yes will enable the Rinse Alarm function,
(see Rinse Alarm)
12
38059 061305
MENU SCREEN ACTION DESCRIPTION
RINSE TIME ?
(-) 12 Hrs (+)
RINSE LOCKOUT ?
NO EXIT YES
BIB EMPTY LOCKOUT
NO EXIT YES
Use the (+) or (-) buttons to
adjust Rinse Alarm delay
Select (YES) to enable
Select (YES) to enable
Enter the desired time between required Rinse
Cycles in hours, [8 - 24 hrs.]
Select YES to Lockout dispensing until the Rinse
Alarm has been cleared. Default is NO
Select YES to Lockout dispensing until the
Concentrate BIB has been replaced. Default is
NO
DLY REPEAT DISP
(-) 0 SEC (+)
Use the (+) or (-) buttons to
adjust the Delay Time
Enter the desired time delay before allowing the
next dispense to take place, [0 - 10 sec.]
The following functions are for diagnostic and troubleshooting purposes and typically do not have to be
adjusted. Contact your local service agent for assistance before making changes to these functions.
CAL LEFT SIDE ?
EXIT YES
Select (YES) to enable
Selecting Yes will enable the Left Dispenser
Calibration routine, (see Field Calibration before
attempting to calibrate the dispenser).
If NO - go to CAL RIGHT SIDE menu.
CAL LEFT PUMP ?
PULL DISPENSE
CAL LF PUMP VOL
(-) 43mL (+)
CAL LF WTR FLOW ?
PULL DISPENSER
Place a 50 mL (#34843.1000)
graduated cylinder under the
Left dispense tip, then activate
the Left Dispenser
Use the (+) or (-) buttons to
enter volume collected
Place a 64 Oz. (2000 mL)
container under the Left
dispense tip, then activate the
Left Dispenser
The Left Pump will dispense concentrate for 20
seconds, then shut off automatically. Collect and
measure the concentrate dispensed.
Enter the volume of concentrate measured from
the Left Pump in mL, (not Oz.) regardless of
Preferred Units selected.
The Left Dispenser will dispense hot water for 20
seconds, then shut off automatically. Collect and
measure the water dispensed.
13
38059 050605
MENU SCREEN ACTION DESCRIPTION
CAL LF WTR VOL
(-) 36.0OZ (+)
CAL LEFT SIDE ?
EXIT YES
CAL RIGHT SIDE ?
EXIT YES
CAL RIGHT PUMP ?
PULL DISPENSER
CAL RT PUMP VOL
(-) 43mL (+)
CAL RT WTR FLOW
PULL DISPENSER
Use the (+) or (-) buttons to
enter volume collected
NONE
Select (YES) to en able
Calibration routine.
Place a 50 mL (#34843.1000)
graduated cylinder under
the Right dispense tip, then
activate the Right Dispenser
Use the (+) or (-) buttons to
enter volume collected
Place a 64 Oz. (2000 mL)
container under the Right
dispense tip, then activate the
Right Dispenser
Enter the volume of the water measured from the
Left dispenser in Oz. (mL).
Scroll down to bypass this screen.
Selecting Yes will enable the Right Dispenser
Calibration routine, (see Pump Calibration) prior
to calibrating the dispenser.
The Right Pump will dispense concentrate for
20 seconds, then shut off automatically. Collect
and measure the concentrate dispensed.
Enter the volume of concentrate measured from
the Right Pump in mL(not Oz.) regardless of
Preferred Units selected.
The Right Dispenser will dispense hot water for
20 seconds, then shut off automatically. Collect
and measure the water dispensed.
CAL RT WTR VOL
(-) 36.0OZ (+)
CAL RIGHT SIDE ?
EXIT YES
Use the (+) or (-) buttons to
enter volume collected
NONE
Enter the volume of the water measured from the
Right dispenser in Oz. (mL)
Scroll down to bypass this screen.
14
38059 050605
MENU SCREEN ACTION DESCRIPTION
BIB EMPTY -> 250
(-) EXIT (+)
WTR START DELAY
(-) .15SEC (+)
WTR STOP DELAY
(-) .15SEC (+)
TEST LED’S ?
NO EXIT YES
TEST SWITCHES ?
UseSwitchToTest
ENTER ASSET #
(-) 000000 (+)
SERIAL #
LCR 0000000
Use the (+) or (-) buttons to
adjust empty BIB threshold
Use the (+) or (-) buttons to
adjust delay time
Use the (+) or (-) buttons to
adjust delay time
Select (YES) or (NO)
NONE
Use the (+) or (-) buttons to
adjust the ASSET NUMBER
NONE
Used to set the Conductance Threshold for the
Empty BIB warning. Default is 250
Dispense Valve ON Delay. Eliminates weak mix
at the beginning of a dispense.
Dispense Valve OFF Delay. Flushes the mix
chamber at the end of a dispense.
LED diagnostics. Selecting YES will light all Front
Door LED’s.
Switch Diagnostic: Activate switches separately to
test. Display will indicate which Switch has been
activated. NOTE: Door Interlock switch must be
held closed.
Allows the user the option of entering an Asset
Number. Default is 000000
Displays the manufacture’s Serial Number (should
be identical to the Serial Number on the machine
Data Plate)
FACTORY DEFAULTS
NO YES
Select (YES) or (NO)
CAUTION: Selecting YES will RESET all
Programming Functions to the Factory Default
settings.
15
38059 061305
LOADING THE CONCENTRATE
1. Thoroughly mix concentrate by vigorously shaking the product Bag-In-Box (BIB).
2. Pull the BIB connector through the hole provided in the box and place it on the drip tray with the connector
facing up. (See Fig. 1)
3. Open the dispenser door and locate the appropriate left or right BIB Adapter fitting.
4. Pull the Adapter fitting down and connect it to the BIB. (See Fig. 2)
5. Place the BIB upright in the machine, rotating it into position with the connector facing forward.
6. Rotate the BIB Adapter to avoid sharp bends in the tubing and allow it to be routed between the two
pumps.
Refer to the Tube Installation Decal on the door for proper routing. (See Fig. 3)
7. Close the cabinet door.
Fig. 1
Fig. 2 Fig. 3
PRIMING THE CONCENTRATE LINES
1. Open the dispenser door.
2. Load concentrate per instructions in the section titled Loading the Concentrate.
3. Select Prime on the Function Selector Switch and Run on the Mode Selector Switch.
4. Close the dispenser door.
5. Place a container under the appropriate dispense tip.
6. Activate the appropriate dispenser until concentrate flows from the dispense nozzle. Priming may take 5 to
10 seconds.
7. Open the dispenser door, select Normal on the Function Selector Switch, and then close door.
Note: Concentrate may continue to drip out of dispense tip. The user may wish to run a Rinse Cycle (refer to
Rinsing) after Priming the dispenser to clean out the remaining concentrate.
7 3 3
16
38059 050605
OPERATING THE PULL & HOLD DISPENSER
Set the Function Selector Switch to Normal and the Mode Selector Switch to Run.
1. Pull and Hold Dispense Mode (Cup at a time)
a. Place cup on the cup tray beneath the desired dispensing tip. For a large container, flip the cup tray up
and place the container on top of the drip tray.
b. Pull and Hold the corresponding dispense handle until the cup or other container is full.
c. Remove cup or container.
2. Portion Dispense Mode (Preset volume dispensing) Refer to Programming Functions on how to set this
volume.
a. Place the appropriate size container beneath the desired dispensing tip. For large containers, flip the cup
tray up and place the container on top of the drip tray.
b. Momentarily press the Portion Switch. The Portion LED will illuminate for 5 seconds after the Portion
Switch is pressed.
c. Momentarily pull the corresponding dispense handle, then release. If the user waits longer than 5 seconds
to pull the handle, the dispenser will default back to the Pull & Hold Mode. Portion Dispense Mode can
be disabled at any time during the portion dispense by either momentarily pulling the Dispense Handle
again or pressing the Stop button.
d. Wait for container to fill and the dispenser to quit dispensing, then remove container.
Filling Cambros or other large containers:
The dispenser is designed primarily for cups or other small containers that will fit under the dispense tips.
However, it may be used to fill larger containers (up to 2 Gal) by use of an extension hose on the dispense tip.
Care must be taken to insure that the mixed product flows freely from the dispense tip into the container.
1. Use a 5/8” I.D. or larger, NSF (National Sanitation Foundation) approved hose.
2. Use as short a hose as possible with no loops, bends or kinks in it.
3. Insure that the outlet of the hose is below the dispense tip and that the mixed product flows freely into the
container
A properly sized and positioned hose will not run full or back up into the dispense tip. Failure to follow these
directions can alter the mix ratio and/or cause flooding of the vent tube.
Refer to Programming the Dispenser to set the LF and RT Disp Volumes to the desired amount.
17
38059 050605
CLEANING & PREVENTATIVE MAINTENANCE
General Cleaning and Sanitizing Procedures
Note: The BUNN® Liquid Coffee Dispenser incorporates a “user selectable” rinse reminder feature, which lights
the Rinse LED on the front panel and disables dispensing when it is time to rinse. See Programming Functions
to activate this feature.
Daily: RINSING
1. Open the dispenser door.
2. Select Rinse on the Function Selector Switch and Run on the Mode Selector Switch.
3. Close the dispenser door.
4. Place a 1/2 gal (2 liter) container under the appropriate dispense nozzle or nozzles.
5. Activate the Dispenser of the appropriate side or sides for approximately twenty seconds or until the water
is clear or has no concentrate coloring in it.
6. Open the dispenser door, select Normal on the Function Selector Switch, and then close door.
Note: To clear the “Rinse” alarm, activate each dispenser until the flow stops automatically (approx. 20 seconds
for each tip). The “Rinse” alarm LED will turn off when the Rinse Procedure has been satisfied for both sides.
Daily: PARTS WASHING
1. Remove and wash the drip tray, drip tray cover, and cup tray in a mild detergent solution. Rinse
thoroughly.
2. Wipe splash panel, area around dispense nozzles, door, and cabinet with a clean damp cloth.
Weekly: SANITIZING
1. Open the dispenser door.
2. Select Prime on the Function Selector Switch and Run on the Mode Selector Switch.
3. Remove the bag connector from the product box and disassemble or prop open the internal valve to allow
free flow of product through the connector. NOTE: Cutting the mating fittings from an empty bag makes an
excellent “free flowing” connector for this purpose.
4. Place the bag connector into a one-gallon (3.8 liter) container of warm soapy tap water 140°F (60°C).
5. Place an empty container under dispense tip and activate the corresponding Dispenser until the clean soapy
water is dispensed from the dispense tip.
6. Repeat steps 4 and 5 with warm tap water 140°F (60°C) to rinse the soapy water from the pump tubing.
Continue dispensing until the water is clear, and no soapy water is being dispensed.
7. Prepare 2.5 gallons (9.46L) of sanitizing solution by dissolving 1 packet of Kay 5 sanitizer into 2.5 gallons
(9.46L) of 120°F (48.9°C) water to ensure 100 ppm of available chlorine.
8. Again, repeat steps 4 and 5 with the sanitizing solution. Once sanitizing solution is being dispensed, stop
dispensing and allow the solution to sit for 5 minutes.
9. Repeat step 6 to flush out the sanitizing solution from the pump tubing.
10. Remove the mating connector from the bag connector.
11. Reattach the bag connector to product box.
12. Select Normal on the Function Selector Switch and Run on the Mode Selector Switch.
13. Activate the Dispenser until concentrate/water mixture appears. Then dispense one 12 ounce (354.9 ml)
glass of concentrate/water mixture and discard.
14. Repeat steps 1 through 13 for other dispense head.
15. Wipe internal and external surfaces with a clean, damp cloth.
18
38059 050605
REPLACING THE PUMP TUBING
The pumps and tubing used in the dispenser are designed to give maximum performance and long life. However,
the tubes are a wear item and must be replaced periodically. How long the tubes last is dependent on usage and
properties of the concentrate. Excessive wear will reduce the output of the pumps resulting in a weak mixed
beverage. Bunn-O-Matic recommends replacing the Pump Tubing a minimum of once every 6 months or sooner
if warranted.
Refer to the Tube Replacement Instruction on the Cabinet door for details.
1. Rinse the pump tubing with warm tap water (Refer to steps 1 - 5 of the Weekly Sanitizing instructions) prior
to removing the tubes to avoid concentrate spills.
2. Loosen the thumbscrew securing the tubing retainer plate to the pump housing. Set it and the retainer plate
aside.
3. Depress the tension screw and remove it from the notch in the pump housing, releasing the spring tension
on the pump band.
4. Open the compression band and gently pull the pump tube from around the pump’s rotor.
5. Inspect the pump bands for signs of wear. Replace if necessary.
6. Apply lubricant (BUNN-O-MATIC part number M2548.1000) to the new pump tubing’s rotor side.
7. Insert the tube onto the mix chamber port, then wrap the new tubing around the pump rotor, making sure
that the elbow and clamps end up on the bottom side of the pump housing.
8. Depress the tension screw and insert it in the notch in the pump body, reapplying spring tension on the pump
band.
9. Replace the tubing retainer plate and tighten the thumbscrew.
10. Repeat steps 1 through 9 for the other pump.
Thumbscrew
Tension
Screw
Remove Retaining Plate Release Spring Tension Remove Tubing
Tension Screw
Tube Clamp
Install New Tubing Completed Installation
2.0”
Lubricate between arrows
Lubricate New Tube
2.0”
19
38059 050605
Troubleshooting
A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems
encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic
Technical Service Department.
• Only qualified service personnel should perform inspection, testing, and repair of electrical equipment.
• Shorting the terminals or the application of external voltages to electronic components may result in component
or circuit board failure.
• Intermittent operation of electronic circuit boards is unlikely. board failure will normally be permanent. If an
intermittent condition is encountered, the cause will likely be a switch contact or a loose wire connection at
a terminal or crimp.
• Solenoid removal requires interrupting the water supply to the valve. Damage may result if solenoids are
energized for more than ten minutes without a supply of water.
• The use of two wrenches is recommended whenever plumbing fittings are tightened or loosened. This will
help avoid twists and kinks in the tubing.
• Make certain that all plumbing connections are sealed and all electrical connections are tight and isolated.
• This dispenser is heated at all times. Keep away from combustibles.
WARNING:
• Exercise extreme caution when servicing electrical equipment.
• Disconnect the brewer from the power source when servicing, except when electrical tests are specified. The
red “Power LED” on the door indicates that the unit is connected to AC Power.
• Follow recommended service procedures.
• Replace all protective shields or safety notices.
Front Panel LED Display Messages
Power LED “OFF”
No AC Power
Rinse LED “ON”
Rinse Timer
Rinse LED “FLASHING”
Rinse Lockout Enabled
Portion LED “ON”
Portion Dispense
Enabled
Dispenser Not plugged in.
AC Circuit Breaker OFF
Rinse Cycle Required
Alternate Portion Dispenser
Volume #2 has been selected
Check Power Cord
Check the AC Power Circuit Breaker
Service Required
Rinse Dispenser, see Rinse ProcedureRinse Cycle Required
Rinse Dispenser, see Rinse ProcedureDispenser Locked Out
Activate the Dispenser within 5 sec. to
dispense the pre-selected volume.
20
38059 050605
Troubleshooting (Continued)
Left Refill LED “ON”
Left BIB Empty
Right Refill LED “ON”
Right BIB Empty
Left Refill LED
“FLASHING”
Empty BIB Lockout
Enabled
Left Refill LED
“FLASHING”
Empty BIB Lockout
Enabled
Concentrate BIB is Empty.
BIB Not properly connected
Tubing kinked or blocked
Empty BIB warning set too high
Concentrate BIB is Empty.
BIB Not properly connected
Tubing kinked or blocked
Empty BIB Warning set too high
Left Dispenser will not operate
Replace BIB, see Loading the Concentrate
Check BIB Connector Fittings
Check Tubing Installation
Check Threshold, see Field Calibrating the
Emoty BIB Warning
Replace BIB, see Loading the Concentrate
Check BIB Connector Fittings
Check Tubing Installation
Check Threshold, see Field Calibrating the
Empty BIB Warning
Replace BIB, see loading the ConcentrateLeft Dispenser will not operate
Replace BIB, see loading the Concentrate
All LED’s “FLASHING”
Fault Detected
The Dispenser has detected an
Internal Fault
Remove the lower splash guard to view the
Fault message, See Diagnostics. After the
fault has been repaired or corrected - Hold
the “Stop” button for 10 seconds to clear
the message.
21
38059 050605
Troubleshooting (Continued)
Dispenser Diagnostics-LCD Display
Screen Displayed Possible Cause Troubleshooting Procedures
LF TARGET RPM
TOO HIGH !!
TUBE TOO SMALL
CHECK DISP RATIO
RT TARGET RPM
TOO HIGH !!
TUBE TOO SMALL
CHECK DISP RATIO
LF TARGET RPM
TOO LOW !!
TUBE TOO LARGE
CHECK DISP RATIO
1. The Tube Size selected for the Left
Hand Dispenser is too small for the
application.
2. The Ratio selected for the Left Hand
Dispenser is not correct for the
application.
1. The Tube Size selected for the Right
Hand Dispenser is too small for the
application.
2. The Ratio selected for the Right
Hand Dispenser is not correct for the
application.
1. The Tube Size selected for the Left
Hand Dispenser is too large for the
application.
2. The Ratio selected for the Left Hand
Dispenser is not correct for the
application.
Refer to “Selecting the Correct Pump
Tubing” section of the manual.
Refer to recommended Dispense Ratio
on the product label.
Refer to “Selecting the Correct Pump
Tubing” section of the manual.
Refer to recommended Dispense Ratio
on the product label.
Refer to “Selecting the Correct Pump
Tubing” section of the manual.
Refer to recommended Dispense Ratio
on the product label.
RT TARGET RPM
TOO LOW !!
TUBE TOO LARGE
CHECK DISP RATIO
LEFT BIB EMPTY!
REPLACE PRODUCT
CHECK THRESHOLD
RIGHT BIB EMPTY!
REPLACE PRODUCT
1. The Tube Size selected for the Right
Hand Dispenser is too large for the
application.
2. The Ratio selected for the Right
Hand Dispenser is not correct for the
application.
1. Concentrate BIB is Empty.
2. BIB Not properly connected.
3. Tubing kinked or blocked.
4. Empty BIB Warning set too high.
1. Concentrate BIB is Empty.
2. BIB Not properly connected.
3. Tubing kinked or blocked.
Refer to “Selecting the Correct Pump
Tubing” section of the manual.
Refer to recommended Dispense Ratio
on the product label.
Replace BIB, see loading the Concentrate
Check BIB Connector Fittings
Check Tubing installation
Check Threshold, see Field Calibrating
the Empty BIB Warning
Replace BIB, see loading the Concentrate
Check BIB Connector Fittings
Check Tubing installation
CHECK THRESHOLD
4. Empty BIB Warning set too high.
22
Check Threshold, see Field Calibrating
the Empty BIB Warning
38059 050605
Troubleshooting (Continued)
Screen Displayed Possible Cause Troubleshooting Procedures
LEFT PUMP FAULT!
CHK PUMP WIRING
CHK RPM SENSOR
CHK TUBING AREA
RT PUMP FAULT!
CHK PUMP WIRING
CHK RPM SENSOR
CHK TUBING AREA
1. Motor failure
2. RPM Sensor failure
1. Motor failure
2. RPM Sensor failure
Service Required
Service Required
Service Required
Service Required
23
38059 050605
Field Calibration of the Concentrate Pumps / Dispenser Flow Rates
The factory set Default Values for the Pump & Dispenser Flow Rates are very accurate and typically do not
need to be field calibrated. However, if the mix ratio accuracy is ever in question, this procedure can be used to
recalibrate the unit in the field.
Equipment Required:
50 to 100 ml graduated cylinder, with 1 ml graduations.
64 Oz (2000 ml) graduated container.
Remove the lower splash guard assembly to access prior to starting this procedure
NOTE: You can calibrate either the Concentrate Pump or the Dispenser Flow Rate independently. Simply scroll
through the menu screen to the desired section and perform only those steps.
Calibrating the Left Side Dispenser
Concentrate Pump Calibration
1. Select PRIME on the Function Selector Switch. (refer to Priming the Concentrate Lines).
2. Place a container under the Left Dispense Tip and prime the concentrate lines until a steady stream of
concentrate comes out the tip (approximately 10 seconds).
3. Stop the Priming and allow the tip to stop dripping. Discard the concentrate collected.
4. Select NORMAL on the Function Selector Switch.
5. Locate the programming module and use the Arrow Down key to scroll through LCD screens until CAL
LEFT SIDE appears and press the YES button.
6. The CAL LEFT PUMP menu screen will be displayed. Place a 50 ml graduated cylinder under Left Dispense
Tip and activate the Left Dispenser momentarily. The dispenser will run the Left Concentrate Pump for
20 seconds and then shut OFF automatically.
7. Keep the graduated cylinder under dispense tip until all the concentrate has dripped out.
8. Measure the volume of concentrate collected in the graduated cylinder.
Acceptable ranges for the volume collected
Tubing Size Volume Collected
3/16” tubing 40 - 47 ml.
1/8” tubing 17 - 22 ml
9. If the amount collected is not within the acceptable range, empty the graduated cylinder and repeat STEPS
6 – 8.
10. If the amount collected is still not within range, replace the pump tubing with a new Tube Kit, (refer to
the Tube Replacement Instructions).
11. When satisfied with the volume of concentrate collected, press the Down Arrow Key
12. The CAL LF PUMP VOL menu screen will be displayed. Use the (-) / (+) keys to adjust number displayed
to the amount measured in STEP 8.
(Continued Next Page)
24
38059 050605
Field Calibration of the Concentrate Pumps / Dispenser Flow Rates
(Continued)
Dispenser Flow Rate Calibration
13. Press Down Arrow Key to display the CAL LF WTR FLO menu screen.
14. Place a 64 Oz (2000 ml) graduated container under Left Dispense Tip and Pull the Left Dispense Handle
momentarily. The dispenser will dispense water for 20 seconds and then shut OFF automatically.
15. Keep the graduated container under dispense tip until all the water stops dripping.
16. Measure the volume of water collected in the graduated container.
Acceptable ranges for the volume collected
_____Dispenser Flow Rate___________ ____Volume Collected____
1.8 Oz/sec (53 ml/sec) w/ flow restrictor 32 - 38 Oz, (946 - 1124 ml)
17. If the amount collected is not within the acceptable range, empty the graduated container and repeat
STEPS 14 – 16
18. If the amount collected is still not within range, inspect the dispense valves, tubing and mix chamber for
lime, kinks or other obstructions.
19. When satisfied with the volume of concentrate collected, press the Down Arrow Key.
20. The CAL LF WTR VOL screen will be displayed. Use the (-) / (+) keys to adjust number displayed to the
amount measured in STEP 16.
21. Press Down Arrow Key again to exit the CAL LEFT SIDE functions.
Calibrating the Right Side Dispenser
Repeat STEPS 1-21 above for the “CAL RIGHT SIDE” menus.
Field Calibrating the Empty BIB Warning
The dispenser will automatically turn on the Left or Right “REFILL LED”, see Operating Controls and Interface,
when the corresponding BIB is Empty. The Refill message is triggered when the FlavorGardTM sensor reading
drops below the minimum setting. The factory set minimum is 250 and should be correct for most locations.
However, in some areas the hardness of the local water supply may effect this reading. If the Refill message
doesn’t come on when the BIB is empty or the message comes on too early and there is still concentrate left in
the BIB, use the following procedure to find the correct Empty BIB threshold.
Calibrating The Empty BIB Threshold
1. Remove the lower splash guard assembly to access the digital programming module with LCD display.
2. Open the cabinet door and set the Function Switch to the “Rinse” position. Close the door.
3. Place a large container under the Left dispenser tip, then activate and hold the left dispenser.
4. Dispense long enough to rinse all the concentrate out of the mix chamber and for the Conductance reading
to stabilize and stop dropping.
5. Record the nominal Conductance value displayed. (NOTE: It is typical for this value fluctuate (+/- 25) points
about the nominal value}. This is the conductance reading of the water in your area.
6. Repeat steps 3, 4 & 5 for the Right dispenser.
7. Add 100 points to the larger of the Left or Right side Conductance value. This is the new Empty BIB threshold
value for your dispenser.
8. Enter this new value into the Empty BIB Alarm threshold, see Programming the Dispenser.
25
38059 050605
34641.0002C 09/06 © 2005 BUNN-O-MATIC CORPORATION
120 VOLTS AC 2 WIRE
SINGLE PHASE 50/60HZ
J14-1
J14-7
J18-1
J18-6
J18-9
J7-1
J7-5
J7-10
J2-1
J2 -8
J3-1
J3-6
J4-1
J4-5
J5-1
J5-3
J6-1
J6-5
J6-10
J6-15
J6-20
J1-1
J1-4
J15-1
J15-4
C
O
N
T
R
O
L
P
C
B
O
A
R
D
J8-1
J8-3
J16-1
J16-5
J16-12
DOOR
PORTION
CONTROL
ORN
BLK
BLK
BLK
WHI
WHI
BLK
GRY
GRN
RED
RED
RED
SOL
SOL
LEFT DISP
RIGHT DISP
LEFT
CONDUCTANCE
SENSOR
RIGHT
CONDUCTANCE
SENSOR
BLU
BLU
WHI/ORNWHI/ORN
WHI/YEL
ORN
ORN
BLK
BLK
BLK
BLK
RED
RED
VIO
VIO
BLU
BLU
RED
RED
RED
YELYEL
RIGHT
PUMP
LEFT
PUMP
RED
BLK
RED
BLK
L1
N (120V 2-Wire)
RED
BRN/WHI
BRN/WHI
BLK
BLK
BRN/BLK
BRN/BLK
WHI/YEL
WHI/ORN
BLKBLK
BLK
J1-1
J1-5
J1-10
J1-16
S
W
I
T
C
H
A
N
D
L
E
D
B
O
A
R
D
GRN
ORN
TAN
RED
BLK
WHI
GRN/WHI
GRN/BLK
WHI/BLK
WHI/GRY
WHI/VIO
WHI/YEL
RED/BLK
ORN/BLK
RED/WHI
BLU/WHI
BLU/BLK
BLK
WHI
WHI
RIGHT RPM
SENSOR
LEFT RPM
SENSOR
RED
BLK
BLK
RED
BLK
GRN
GRN
SELECTOR
SWITCH
SELECTOR
SWITCH
RINSE
PRIME
NITE
RUN
N(L2)
L(L1)
-V
+V
UNIVERSAL
POWER SUPPLY
1
2
3
4
5
6
7
YES (+)
EXIT
NO (-)
TOUCHPAD
GRN
GRN
GRN
SCHEMATIC WIRING DIAGRAM
LCA-2 IC
WHI/ORN
WHI/YEL BLK
BLK
TAN
WHI/YEL
WHI/VIO
WHI/GRY
GRN
ORN
RED
BLK
WHI
GRN/WHI
GRN/BLK
WHI/BLK
RED/BLK
ORN/BLK
RED/WHI
BLU/WHI
BLU/BLK
WHI/YEL
LF DISP. SW.
RT DISP. SW.
-V
+V
38059 092706
26
Loading...
