LCR-1

LCA-1

INSTALLATION & OPERATING GUIDE

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227

PHONE: (217) 529-6601 FAX: (217) 529-6644

To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and

manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.

44806.0001A 08/11 ©2011 Bunn-O-Matic Corporation

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:

1)All equipment other than as specified below: 2 years parts and 1 year labor.

2)Electronic circuit and/or control boards: parts and labor for 3 years.

3)Compressors on refrigeration equipment: 5 years parts and 1 year labor.

4)Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis: parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.

These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN are not authorized to make modifications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.

If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

392, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, BrewWISE, BrewWIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with the stylized red line, BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design, Cool Froth, DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, PowerLogic, Quality Beverage Equipment Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com, Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in Beverage Equipment Worldwide, ThermoFresh, Titan, A Partner You Can Count On, Air Brew, Air Infusion, Beverage Bar Creator, Beverage Profit Calculator, Brew better, not bitter., BUNNSource, Coffee At Its Best, Cyclonic Heating System, Digital Brewer Control, Nothing Brews Like a BUNN, Pouring Profits, Signature Series, Tea At Its Best, Phase Brew, The Horizontal Red Line, trifecta, Ultra, Velocity Brew are either trademarks or registered trademarks of Bunn-O-Matic Corporation.

2

44806.1 050511





CONTENTS

Warranty..................................................................................................................................................

2

User Notices............................................................................................................................................

4

Introduction.............................................................................................................................................

5

Electrical Requirements...........................................................................................................................

5

Plumbing Requirements..........................................................................................................................

5

Initial Set-up............................................................................................................................................

6

Locating the Dispenser............................................................................................................................

6

Electrical Hook-up...................................................................................................................................

6

Plumbing Hook-up..................................................................................................................................

6

Operating Controls & Interface................................................................................................................

7

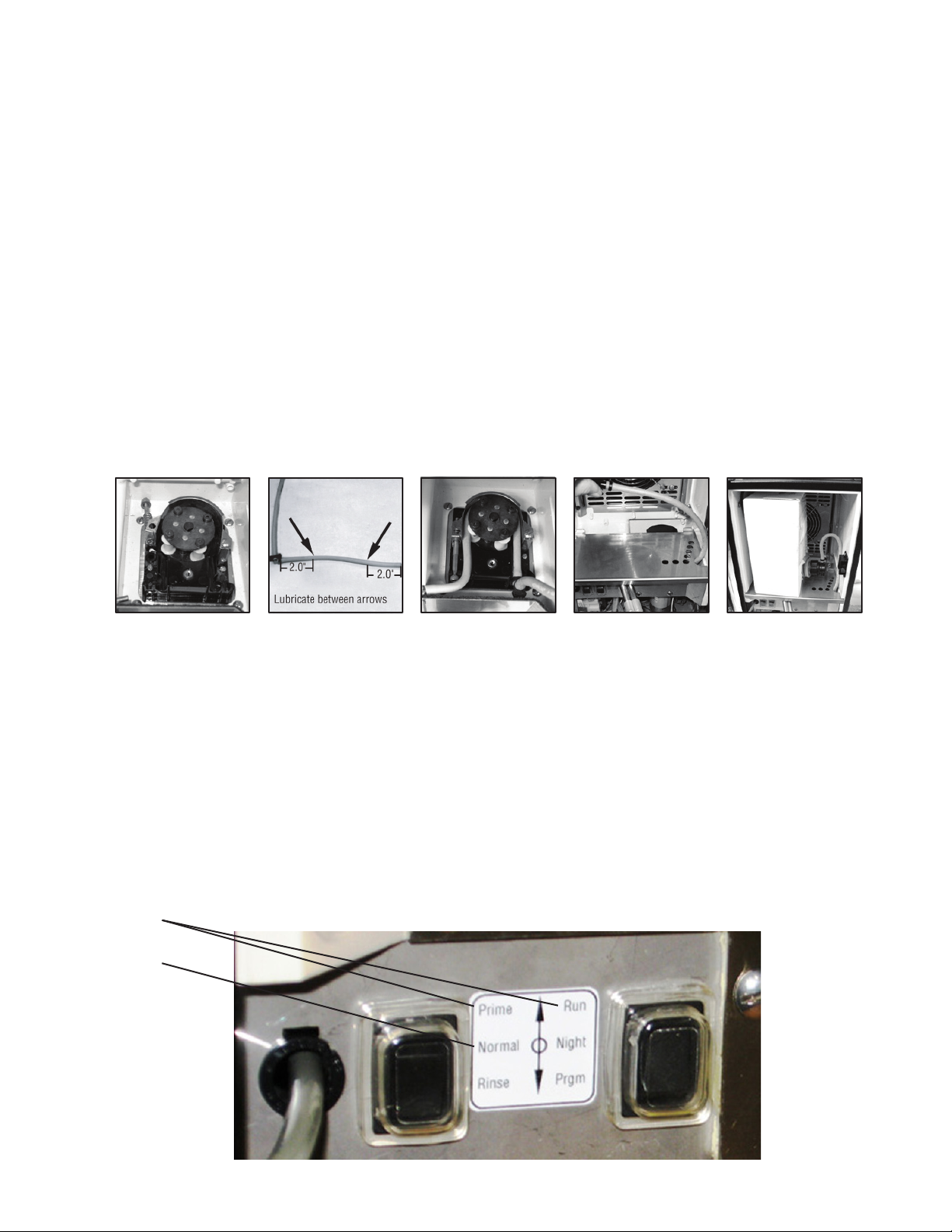

Installing Pump Tubing............................................................................................................................

9

Priming the Concentrate Lines................................................................................................................

9

Initial Fill & Heat....................................................................................................................................

10

Rinse Alarm Feature..............................................................................................................................

11

Programming the Dispenser..................................................................................................................

12

Operating the Dispenser........................................................................................................................

14

Cleaning & Preventive Maintenance.......................................................................................................

15

Replacing the Pump Tubing...................................................................................................................

16

Replacing the Air Filter..........................................................................................................................

16

Replacing the Water Filter......................................................................................................................

16

Calibrating the Dispenser.......................................................................................................................

17

Troubleshooting Guide...........................................................................................................................

19

Calibration of the Concentrate Pumps...................................................................................................

21

Dispenser Flow Rate Calibration............................................................................................................

21

Draining the Hot Water..........................................................................................................................

22

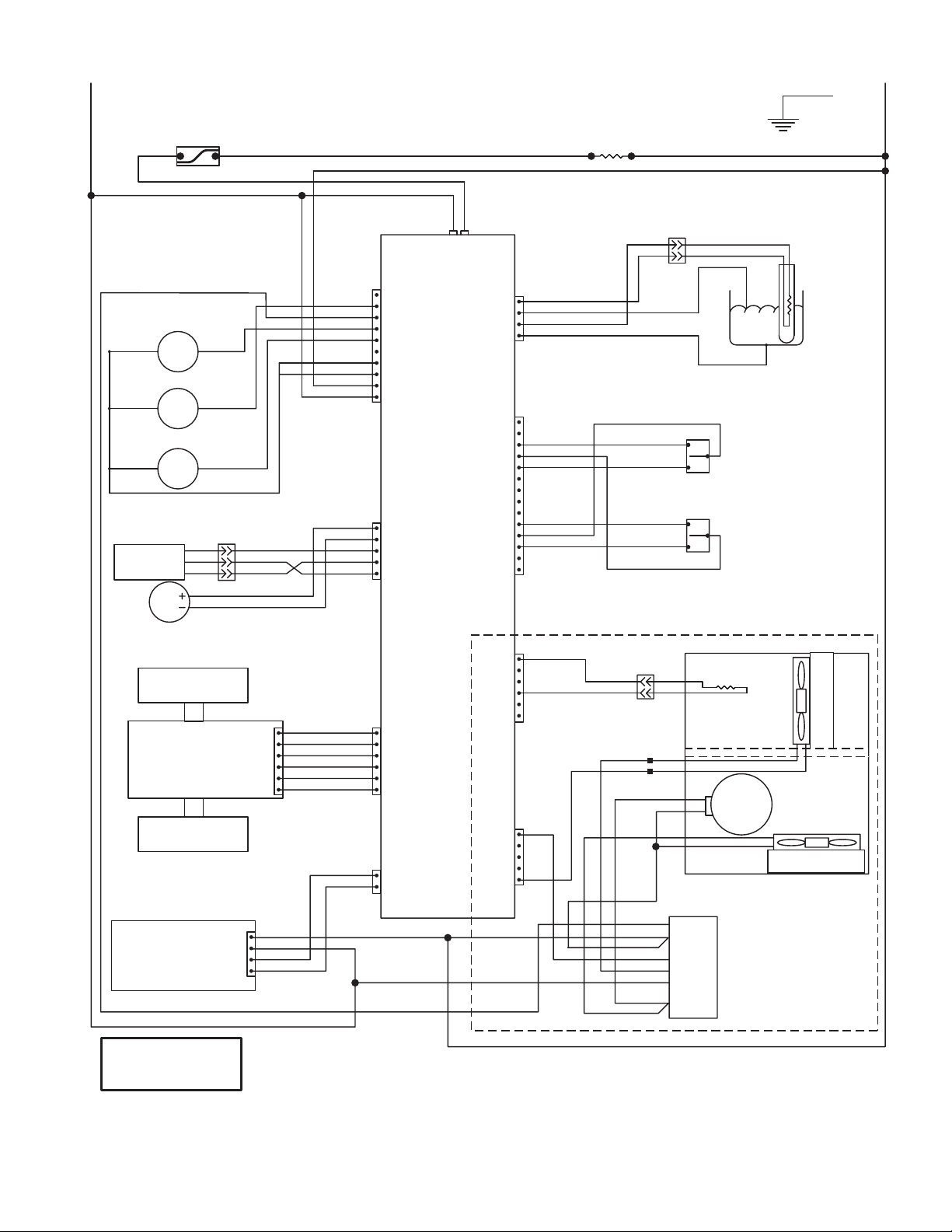

Schematic Wiring Diagrams..................................................................................................................

23

3

44806.1 081211



USER NOTICES

Carefully read and follow all notices on the equipment and in this manual. They were written for your protection. All notices are to be kept in good condition. Replace any unreadable or damaged labels.

00986.0002

37881.0000

As directed in the International Plumbing Code of the International Code Council and the Food Code Manual of the Food and Drug Administration (FDA), this equipment must be installed with adequate backflow prevention to comply with federal, state and local codes. For models installed outside the U.S.A., you must comply with the applicable Plumbing /Sanitation Code for your area.

00656.0001



Moving Parts.











Risk Of Electrical Shock.









Do not operate



Disconnect power before





unit with this



servicing unit.



panel removed.

















27442.0000

CHARGE

Type R134A, Amount 5 oz (141.7 gm)

Design Pressures:

High 269 psi (18.5 bar) (1.8 MPa)

Low 90 psi (6.2 bar) (0.62 MPa)

33461.0005

11646.0002

REMINDER!

CLEAN AIR FILTER

WEEKLY

RECORDATORIO!

LIMPIAR EL FILTRO DE

AIRE SEMANALMENTE

00824.0002

40054.0003

4

44806.1 081211



INTRODUCTION

The BUNN LCA-1 dispenser is design to hold up to 1/2 gal (2 l) of ambient - shelf stable liquid coffee concentrate. The BUNN LCR-1 also holds up to 1/2 gal (2 l) of refrigerated liquid coffee concentrate. Both dispensers are designed to operate when ambient temperatures are from 32°F (0°C) minimum to 95°F (35°C) maximum. Always follow the Concentrate Manufacturer’s Storage and Shelf Life recommendations.

ELECTRICAL REQUIREMENTS

Refer to the Data Plate on the dispenser, and local/national electrical codes to determine circuit requirements. WARNING - If the power cord is ever damaged, it must be replaced by the manufacturer or its service agent with a special cord available from the manufacturer or its service agent in order to avoid a hazard.

The LCA-1 & LCR-1 are supplied with a 120-volt / 15 Amp cord set and require a 2-wire, grounded, individual branch circuit rated for 120 volts AC, 15 amp, single phase, 60Hz. The mating connector must be a NEMA 5-15R.

The LCA-1C & LCR-1C are supplied with a 120-volt / 20 Amp cord set and require a 2-wire, grounded, individual branch circuit rated for 120 volts AC, 20 amp, single phase, 60Hz. The mating connector must be a NEMA 5-20R.

PLUMBING REQUIREMENTS

The dispenser may be connected to a cold or hot water system (140°F Max.) with operating pressure between 20 and 90 psi (138 and 620 kPa) from a 3/8” or larger supply line. A shut-off valve should be installed in the line before the dispenser. Install a regulator in the line when pressure is greater than 90 psi (620 kPa) to reduce it to 50 psi (345 kPa). The water inlet fitting is 1/4” flare. The dispensers set up to deliver to 37.0 ml/sec (1.25 Oz./sec.) and require a water supply source that can deliver a minimum of 1.0 gpm (3.8 lpm) at the inlet fitting. NOTE: Bunn-O-Matic recommends 1/4” tubing from the 3/8” water supply line. At least 18 inches of FDA approved flexible beverage tubing, such as reinforced braided polyethylene or silicone, before the dispenser will facilitate movement to clean the counter top. Bunn-O-Matic does not recommend the use of a saddle valve to install the dispenser. The size and shape of the hole made in the supply line by this type of device may restrict water flow.

This equipment must be installed to comply with the International Plumbing Code of the International Code Council and the Food Code Manual of the Food and Drug Administration (FDA). For models installed outside the U.S.A., you must comply with the applicable Plumbing/Sanitation Code for your area.

NOTE - Water pipe connections and fixtures directly connected to a potable water supply shall be sized, installed and maintained in accordance with federal, state and local codes.

BUNN recommends the use of our Easy Clear® Water Quality Systems to assure perfect taste.

Filter Kits - Easy Clear EQHP-10L w/Scale Inhibitor (Bunn-O-Matic part no. 39000.0001) or

Easy Clear EQHP-10 (Bunn-O-Matic part no. 39000.0004)

5

44806.1 081211



INITIAL SET-UP

NOTE: The LCA-1 weighs approximately 40 lbs. (18 kg) and the LCR-1 weighs approximately 55 lbs. (25 kg), when empty.

If necessary, use more than one person when lifting or moving the dispenser.

1.Cut the plastic bands and remove the top box and other packing.

2.Locate and remove the Adapter Tube Kit, Graphic Kit, Drip Tray & Literature Pkg from the packaging and set aside.

3.Set dispenser on the counter where it is to be used. CAUTION: DO NOT LIFT ON THE DOOR.

4.Install the drip tray assembly between the front legs. The magnets will hold the tray in place.

5.Install the Graphic decal in the door.

LOCATING THE DISPENSER

Additional clearance is required on both sides and behind the dispenser to allow for proper air flow and cooling. The LCA-1 requires a minimum space of 16.6” wide x 17.8” tall x 23.0” deep (to allow for the drip tray, water and electrical connections). The LCR-1 requires a minimum space of 17.1” wide x 17.8” tall x 26.0” deep (to allow for the drip tray, water and electrical connections). In addition, allow enough clearance on the left-hand side to allow the door to open freely.

NOTE: In high ambient location where the air temperature around the dispenser could exceed 95°F (35°C), additional clearance is required on both sides and behind the dispenser to allow for proper air flow and cooling. For these higher temperature locations, the total space required for the LCA-1 is 16.6” wide x 17.8” tall x 23.0” deep, and 17.1” wide x 17.8” tall x 26.0” deep for the LCR-1.

PLUMBING HOOK-UP

1.Flush the water line to remove any debris or foreign material.

2.Remove the shipping cap from the inlet fitting on the back of the dispenser and securely attach the water line to the fitting supplied.

3.Turn on the water supply and check for leaks.

ELECTRICAL HOOK-UP

CAUTION: Improper electrical installation will damage electronic components.

Refer to Data Plate on the dispenser, and local/national electrical codes to determine circuit requirements.

1.An electrician must provide electrical service as specified in conformance with all local, state and federal electrical codes.

2.Using a voltmeter, check the voltage and color-coding of each conductor at the electrical source.

3.Connect the dispenser to the power source.

4.If plumbing is to be hooked up later, be sure the dispenser is disconnected from the power source. If plumbing has been hooked up, the dispenser is ready for Initial Fill & Heat.

6

44806.1 081211

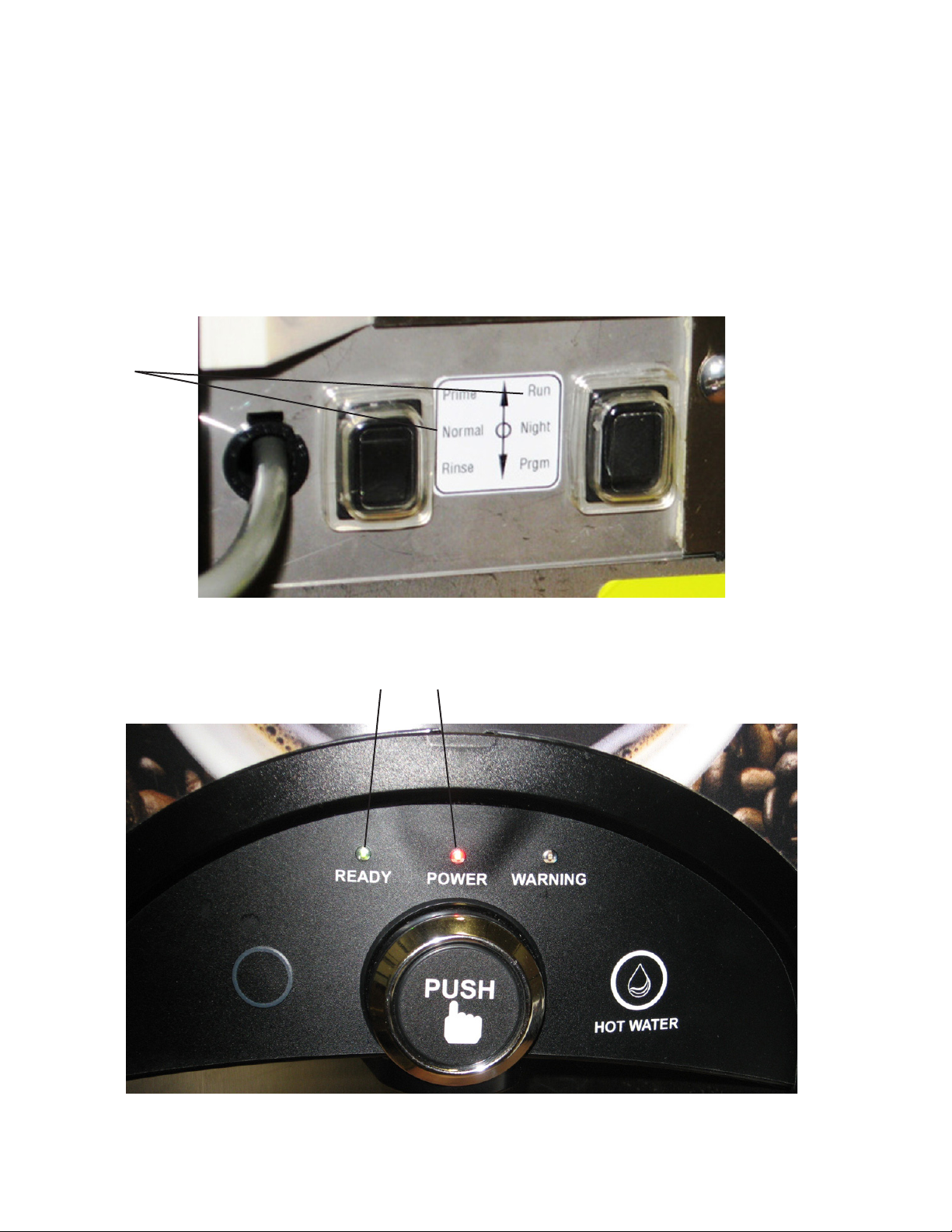

OPERATING CONTROLS AND INTERFACE

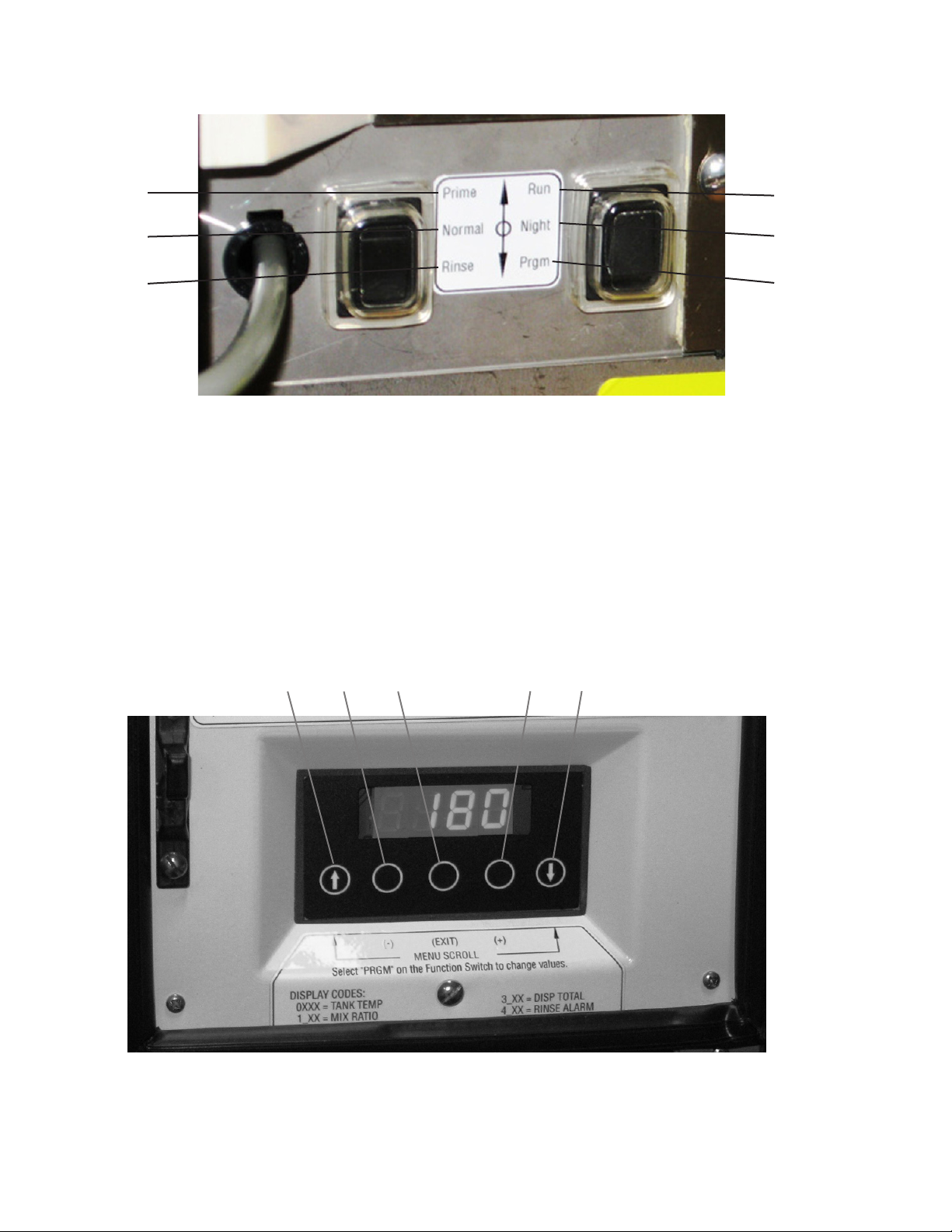

User Interface:

5 4 6

3

1

2

1.Dispense Switch: Push and Hold to dispense product.

2.Hot Water Switch: Push and Hold to dispense hot water only.

3.Portion Switch: Momentarily pushed to select a Portion dispense.

4.Power LED: Red - illuminates when AC power is applied to dispenser.

5.Ready LED: Green - illuminates when the water is with in 10 F of the desired water temperature.

6.Warning LED: Yellow - illuminates when an error condition is detected.

(Continued Next Page)
