Bunn JDF-4 UC PARTS LIST
JDF-4 UC
S/N JDF0005473 & UP
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
38518.0000A 12/05 ©2005 Bunn-O-Matic Corporation
www.bunnomatic.com
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specifi ed below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes fi rst.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Offi ce Box 3227, Springfi eld, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifi cations to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specifi ed above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
BUNN, and JDF-4 UC are either trademarks or registered trademarks of Bunn-O-Matic Corporation.
2
38518 121205
TABLE OF CONTENTS
Cabinet Frame & Covers ............................................................................................................................................................. 4
Cabinet & Components .............................................................................................................................................................. 6
Drip Tray & covers .................................................................................................................................................................... 10
Refrigeration Chassis & Panels ................................................................................................................................................ 12
Compressor & Lines ................................................................................................................................................................ 14
Fan Assembly ........................................................................................................................................................................... 16

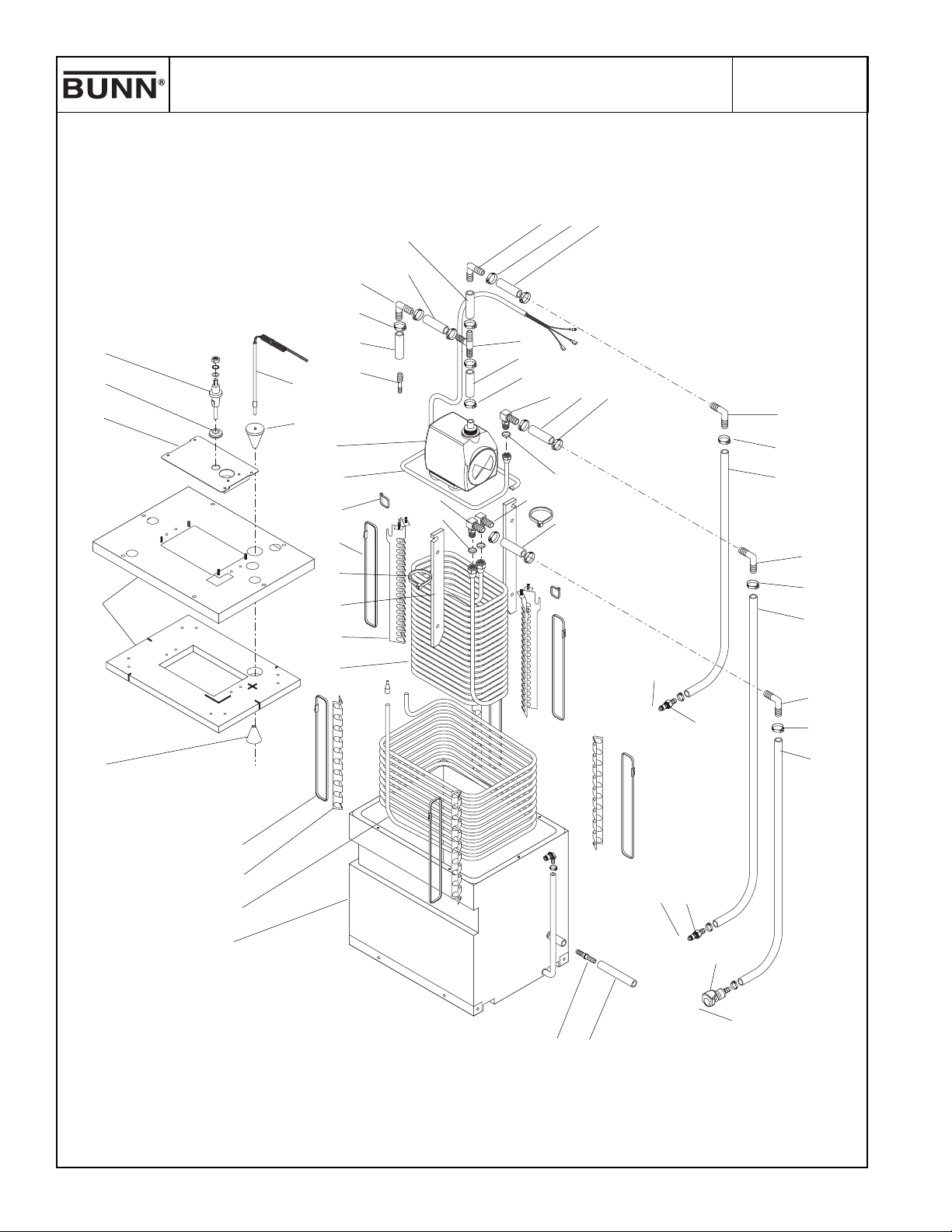

Water Tank Assy ....................................................................................................................................................................... 18

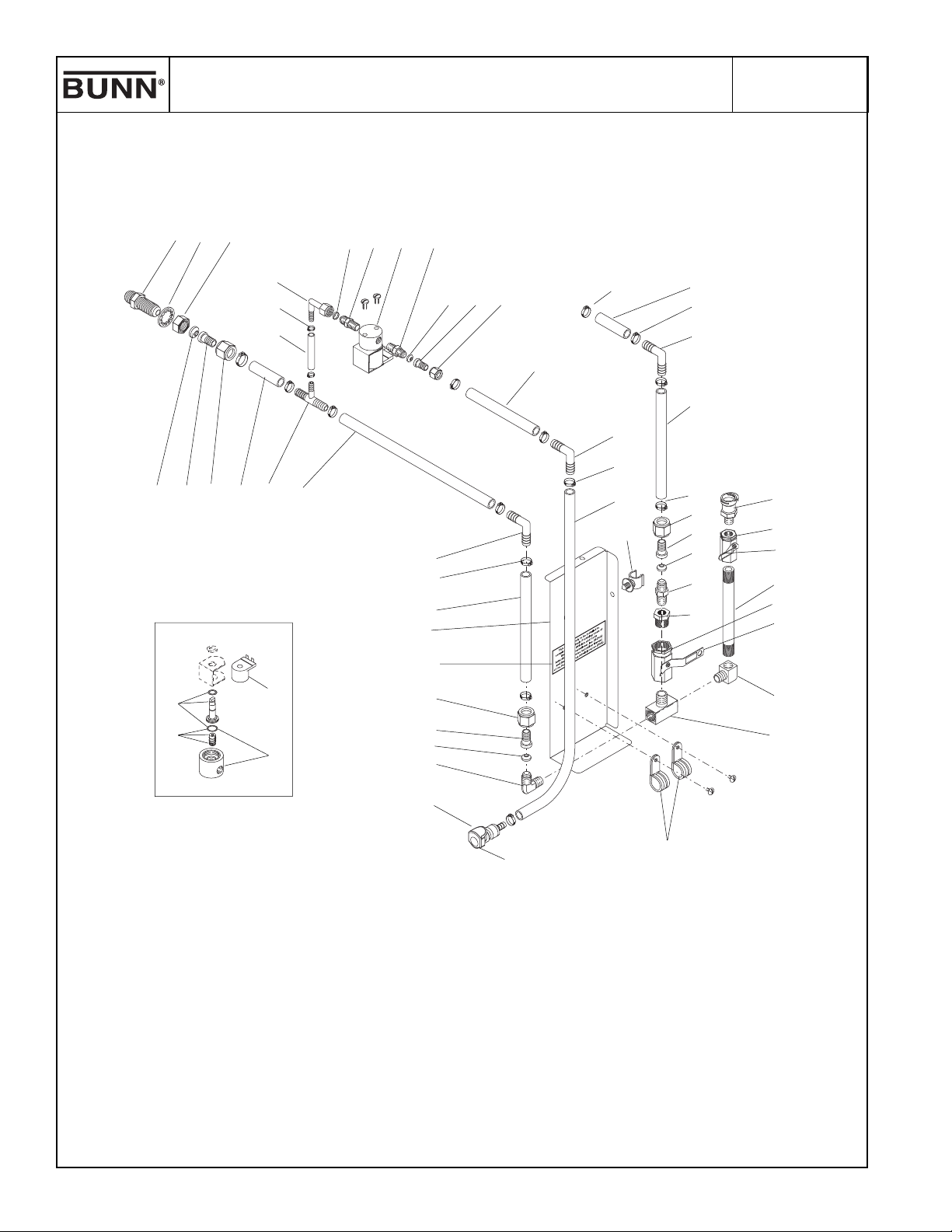

Water Valve & Lines ................................................................................................................................................................. 22
Dispense Platform Assy ...........................................................................................................................................................26
Dispense Valve Assy ................................................................................................................................................................. 30
Plain Water Manifold ................................................................................................................................................................ 32
Pump Assy ............................................................................................................................................................................... 34
Rinse Water Manifold ............................................................................................................................................................... 36
Bottle Adapter Assy .................................................................................................................................................................. 38
Door Assy ................................................................................................................................................................................. 40

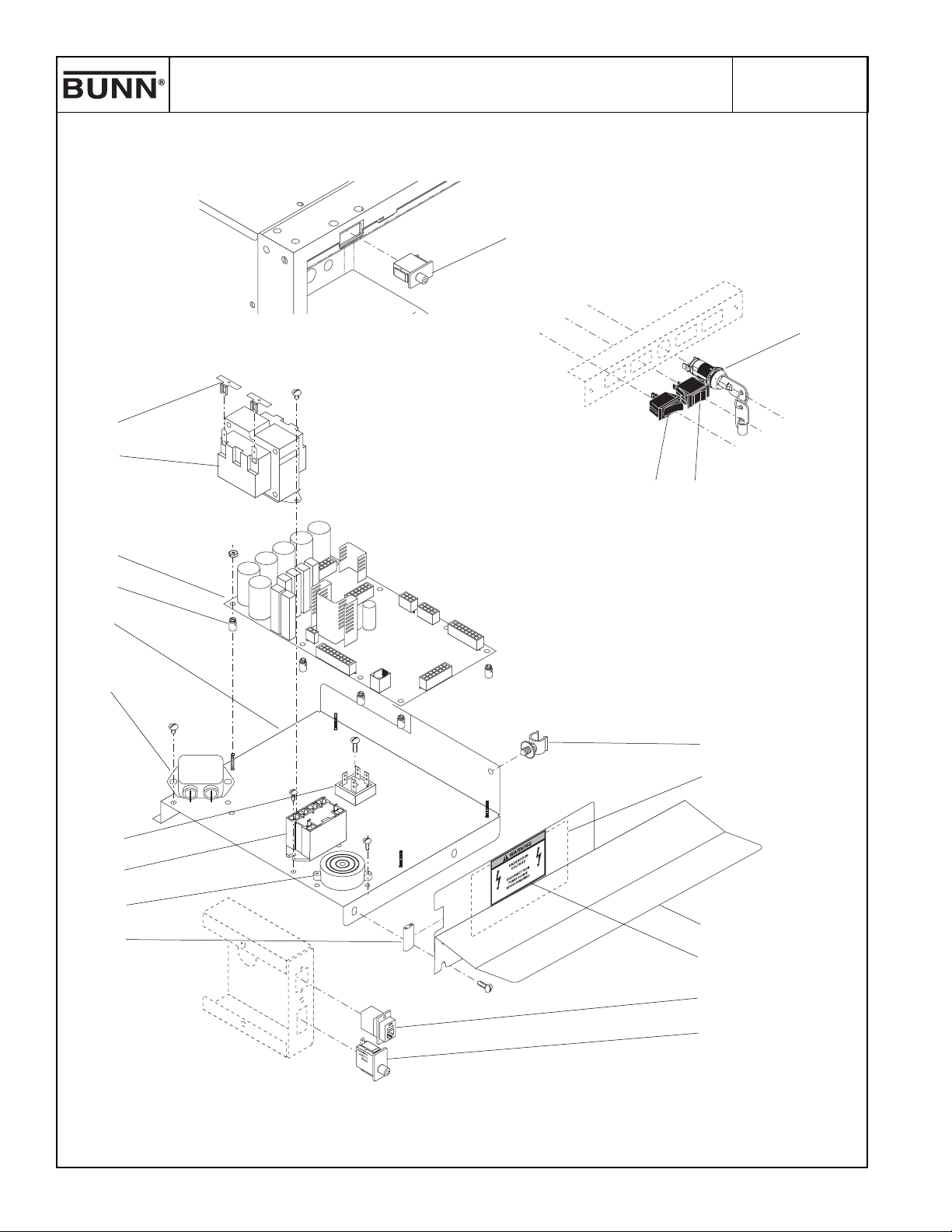

Electrical Components .............................................................................................................................................................. 42
Refi llable Container Assy .......................................................................................................................................................... 46
Numerical Index ....................................................................................................................................................................... 48
3
38518 121205
CABINET FRAME & COVERS
10
3
7
8
JDF-4 UC
5
13
12
4
6
11
15
14
5 9 1 2
16
P3544.50
4
38518 121205
CABINET FRAME & COVERS
ITEM PART NO. QTY. DESCRIPTION
1 36807.0000* 1 Base Frame
2 26528.0000 4 Leg
03996.0000 4 Pad, Non-skid
3 36826.0001* 1 Rear Cover
35420.0000 2 Screw, Hex Head #10-32 x .38"
4 00986.0002 1 Decal, Warning Electrical
5 37504.0003* 2 Side Panel
35420.0000 20 Screw, Hex Head #10-32 x .38"
6 37568.0000 1 Schematic, Electrical 120V
37568.0001 1 Schematic, Electrical 230V
7 27442.0000 1 Decal, Moving Parts Warning
8 33461.0001 1 Decal, Refrigerant Charge
9 00764.0000 2 Plug, Black
10 36822.0001* 1 Top Cover
35420.0000 6 Screw, Hex Head #10-32 x .38"
11 37255.0001* 1 Front Housing
35420.0000 6 Screw, Hex Head #10-32 x .38"
12 36821.0001* 1 Bracket
37549.0000 6 Screw, Hex Head .25-20 x .50"
13 36820.0001* 1 Bracket
37549.0000 4 Screw, Hex Head .25-20 x .50"
14 36818.0001* 1 Bracket
37549.0000 4 Screw, Hex Head .25-20 x .50"
15 36866.0001* 1 Bracket, Locator
37549.0000 2 Screw, Hex Head .25-20 x .50"
16 34666.0001 1 Catch, Door Latch
37550.0000 2 Screw, Hex Head #4-40 x .50"
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
5
38518 121205
CABINET COMPONENTS
JDF-4 UC
24 23 22
36
2
1
34
9
35
10
4
5 6 7 8
13
25
26
3
D
E
27 28 23 29
11
12
18
16
21
20
19
14
15
17
30
31
32
33
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
6
P3545.40
38518 121205
CABINET COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
1 33804.0009* 1 Cabinet Assy 120V (Includes items 1-8)
33804.0010* 1 Cabinet Assy 230V (Includes items 1-8)
24544.0000 8 Screw #8-18
2 32307.0000 1 Foam
3 33786.0001 1 Plate
02340.0001 5 Screw, Hex Head #8-32 x 38"
4 27246.0000 1 Temperature Sensor
5 32763.0000 1 Water Coil
01382.0000 4 Screw #6-32 x .38"
6 33297.0000 1 Fan Assy
24544.0000 4 Screw #8-18
7 33511.0000 1 Gasket
8 32448.1000 1 Cover (Includes item 7)
24544.0000 4 Screw #8-18
9 36810.0000* 1 Wrap
10 00669.0000 6 Plug
11 33794.0000 1 Product Shelf
12 33857.0000 1 Panel, Front Dispense
01345.0000 2 Screw #6-32 x .50"
13 32461.0000 4 Gasket, Drip
14 33459.0001 4 Decal, Dispense/Rinse
15 33459.0002 4 Decal, Flow Adj.
16 27394.0000 4 Plug
17 32455.0000 4 Knob
18 37891.0000 1 Decal, Keep Door Closed
19 32467.1000 4 Nozzle Assy (Includes items 20 & 21)
20 32848.0000 4 O-ring
21 32621.0000 4 Mixer, Spiral
22 34325.0023* 2 Tube, Silicone .38" ID x 2.0" (Order item 39)
23 21275.0003 6 Clamp .57" - .70"
24 33623.0000 2 Elbow .38" Barb
25 34325.0024* 2 Tube, Silicone .38" ID x 27.0" (Order item 39)
26 34325.0005* 2 Tube, Silicone .38" ID x 36.0" (Order item 39)
27 36906.0001 2 Elbow
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
7
38518 121205
CABINET COMPONENTS
(Continued)
JDF-4 UC
24 23 22
36
2
1
34
9
35
10
4
5 6 7 8
13
25
26
3
D
E
27 28 23 29
11
12
18
16
21
20
19
14
15
17
30
31
32
33
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
8
P3545.40
38518 121205
CABINET COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
28 34325.0003* 2 Tube, Silicone .38" ID x 3.00" (Order item 39)
29 37021.0000 2 Fitting, Quick Connect, Female .38" Barb
30 12422.0012 4 Clamp
31 37012.0001 4 Tube
32 12422.0009 4 Clamp
33 36893.0000 4 Elbow
34 35424.0000 1 Decal, Function List
35 34540.0000 1 Decal, Caution Close
36 33571.0000 1 Decal, Fault Codes
37 M2568.1000 - Grease, USDA H-1 (Use when assembling items 19, 20 & 21)
38 M2337.1000 - Insulation, Tube 72.0" (Use as required)
39 34325.1002 - Hose .38" ID x 120.0" lg (Use as required)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
9
38518 121205
DRIP TRAY & COVERS
JDF-4 UC
2 3
1
10
5
8
4
9
10
8 6 7
P3546.50
38518 121205
DRIP TRAY & COVERS
ITEM PART NO. QTY. DESCRIPTION
1 36570.0000* 1 Bracket
35420.0000 3 Screw, Hex Head #10-32 x .38"
2 36868.0001* 1 Bracket, Switch Retainer
35420.0000 2 Screw, Hex Head #10-32 x .38"
3 01592.0000 1 Bushing, Snap
4 36565.0001* 1 Bracket
35420.0000 4 Screw, Hex Head #10-32 x .38"
5 36566.0001 1 Drip Tray
6 36567.0001* 1 Cover
7 33785.1000 1 Membrane Switch
8 22349.0001 2 Thumb Screw
9 29976.0000 2 Cable Mount
10 37175.0000 1 Shield, Drip
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
11
38518 121205
REFRIGERATION CHASSIS & PANELS
9
5
JDF-4 UC
4
8
3
6
7
1
16
8
2 10 15 14 11 12 13
12
P3128.45
38518 121205
REFRIGERATION CHASSIS & PANELS
ITEM PART NO. QTY. DESCRIPTION
1 37481.0000* 1 Chassis
2 26528.0000 4 Leg
03996.0000 4 Pad, Non-skid
3 36838.0000* 1 Plate, Bulkhead
01326.0002 2 Screw, Truss Head, Locking #10-32 x .312"
4 36612.0000* 1 Positioner
5 36613.0001* 1 Panel, Rear
35420.0000 2 Screw, Hex Head #10-32 x .38"
6 33645.0000 1 Decal, Main Water Connection
7 00656.0000 1 Decal, Comply to Plumbng Code
8 36614.0001* 2 Panel, Side (Left & Right)
35420.0000 4 Screw, Hex Head #10-32 x .38"
9 36611.0001* 1 Cover, Top
35420.0000 4 Screw, Hex Head #10-32 x .38"
10 36837.0001* 1 Plate, Locator
35420.0000 2 Screw, Hex Head #10-32 x .38"
11 36843.0001* 1 Panel, Front
35420.0000 2 Screw, Hex Head #10-32 x .38"
12 33458.0000 1 Decal, Refrigeration ON/OFF
13 33460.0000 1 Decal, Sanitize Switch
14 26376.0000* 1 Tether
35420.0000 1 Screw, Hex Head #10-32 x .38"
15 32885.0000 1 Pin
16 36835.0001* 1 Guard, Hose
35420.0000 3 Screw, Hex Head #10-32 x .38"
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
13
38518 121205
COMPRESSOR & LINES
JDF-4 UC
11
12
13
14
7
15
19
18
16
17
20
3
22
4
21
10
8
6
9
5
2
1
14
P3129.50
38518 121205
COMPRESSOR & LINES
ITEM PART NO. QTY. DESCRIPTION
1 35164.0000 1 Air Filter
2 29951.0001 1 Condenser
02335.0001 4 Screw, Hex Crimptite #8 x .38"
3 36907.0001 1 Tube (Requires brazing to install)
4 37243.0000* 1 Tube (Requires brazing to install)
5 37242.0001* 1 Tube (Requires brazing to install)
6 00396.0002 1 Tee (Requires brazing to install)
7 35581.0001 2 Tube (Requires brazing to install)
8 37241.0001* 1 Tube (Requires brazing to install)
9 35175.1001* 1 Filter Dryer (Requires brazing to install)(Includes item 11)
10 35178.0000 1 Tube Adapter (Requires brazing to install)
11 34015.0001* 1 Tube (Requires brazing to install)
12 32776.0001 1 Accumulator (Requires brazing to install)
13 36908.0001 1 Tube (Requires brazing to install)
14 35386.0001 1 Tube (Requires brazing to install)
15 33522.0000* 1 Compressor Assy 120V
33522.0001* 1 Compressor Assy 230V
16 28512.0000* 4 Sleeve (Order item 23)
17 28511.0000* 4 Grommet (Order item 23)
18 21431.0003 4 Washer
19 00901.0000 4 Nut
20 33536.0000 1 Platform, Compressor
01317.0003 4 Screw, Truss Head, Locking #8-32 x .38"
21 36794.0000* 1 Bracket, Fan Mounting
01317.0003 4 Screw, Truss Head, Locking #8-32 x .38"
22 37537.0000 1 Tie, Metal Locking 5.0"
23 28567.0000 1 Mounting Kit (Includes four each of items 16 & 17)
24 M2337.1000 - Insulation, Tube .50" ID x 72.0" (Use as required)
25 M2336.1000 - Insulation, Tube .38" ID x 72.0" (Use as required)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
15
38518 121205
Loading...
