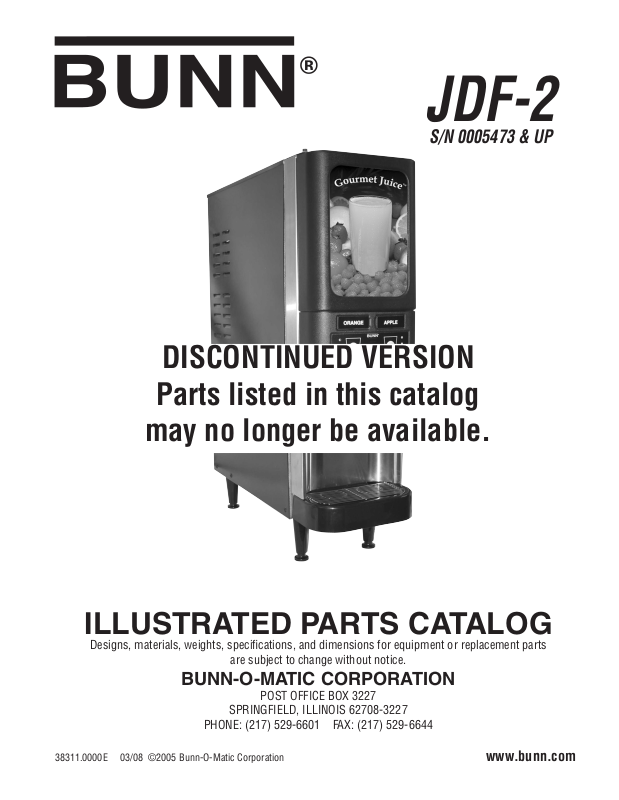

Page 1
JDF-2
S/N 0005473 & UP
DISCONTINUED VERSION
Parts listed in this catalog
may no longer be available.
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
38311.0000E 03/08 ©2005 Bunn-O-Matic Corporation www.bunn.com
Page 2
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
BrewWISE, BUNN Gourmet Ice, BUNN Pour-O-Matic, BUNN, Bunn-OMatic, Bunn-O-Matic, BUNNlink, BUNNserve, BUNN
Espress, DBC, Dr. Brew, Dual, EasyClear, EasyGard, Easy Pour, FlavorGard, Gourmet Ice, Gourmet Juice, High Intensity,
IMIX, Infusion Series, Legendary for Quality, The Mark of Quality in Beverage Equipment Worldwide, My Café, PowerLogic, Safety-Fresh, Scale-Pro, Single, Smart Funnel, Smart Hopper, Soft Heat, SplashGard, System III, ThermoFresh,
392, AXIOM, Beverage Profit Calculator, Beverage Bar Creator, BrewLOGIC, BrewMETER, BrewWIZARD, BUNNSERVE,
BUNNsource, Coffee At Its Best, Cool Froth, Digital Brewer Control, Intellisteam, Nothing Brews Like a BUNN, Pouring
Profits, Pulse Wave, Quality Beverage Equipment Worldwide, Signature Series, Silver Series, Smart Heat, SmartWAVE,
Tea At Its Best, The Horizontal Red Line, Titan, Ultra, are either trademarks or registered trademarks of Bunn-O-Matic
Corporation.
2
38311 020608
Page 3
TABLE OF CONTENTS
Main Frame & Covers ................................................................................................................................................................. 4
Upper Cabinet & Panels.............................................................................................................................................................. 6
Refrigeration Components.......................................................................................................................................................... 8
Compressor Components ......................................................................................................................................................... 10
Fan Assembly ........................................................................................................................................................................... 12
Water Tank Assy ....................................................................................................................................................................... 14
Circulation Pump & Lines ......................................................................................................................................................... 18
Product Coil & Lines ................................................................................................................................................................20
Dispense Platform Assy ...........................................................................................................................................................22
Dispense Valve Assy ................................................................................................................................................................. 24
Plain Water Manifold (Early Models) ........................................................................................................................................ 26
Plain Water Manifold (Late Models) ......................................................................................................................................... 28
Rinse Water Manifold & Solenoid (Early Models) ..................................................................................................................... 30
Rinse Water Manifold & Solenoid (Late Models) ...................................................................................................................... 34
Pump Assy ............................................................................................................................................................................... 38
Bottle Adapter Assy .................................................................................................................................................................. 40
Door Assy ................................................................................................................................................................................. 42
Electrical Components .............................................................................................................................................................. 46
Refillable Container Assy .......................................................................................................................................................... 50
Numerical Index .......................................................................................................................................................................52
3
38311 111706
Page 4
BUNN
18 17 15 14
16
13
®
MAIN FRAME & COVERS
8 7
4 5
JDF-2
6
11
10
12
24
19
23
22
9 3 1 2 20 21
4
P3509
38311 050807
Page 5
MAIN FRAME & COVERS
ITEM PART NO. QTY. DESCRIPTION
1 34409.0000 1 Base Frame Assy
2 26528.0000 4 Leg
03996.0000 4 Pad, Non-skid
3 34410.0000 1 Frame, Refridgeration
- - - - - - - - 4 Screw #10-32 x
4 39428.0000* 2 Bracket, Rear support (Late models with Water Inlet Valve)
34797.0000* 2 Bracket, Rear support (Early models prior to Water Inlet Valve)
02332.0001 8 Screw, Crimptite #6 x .25"
5 38469.0001* 1 Bracket, Upper Frame
6 36192.1000 1 Panel w/Decals, Right (Includes item 11)
02332.0001 3 Screw, Crimptite #6 x .25"
7 34786.1000 1 Panel w/Decals, Top (Includes item 8)
02332.0001 4 Screw, Crimptite #6 x .25"
8 33458.0000 1 Decal, Refridgeration ON - OFF
9 36191.1000 1 Panel w/Decals, Left (Includes items 10, 11, 12 & 24)
02332.0001 3 Screw, Crimptite #6 x .25"
10 33461.0001 1 Decal, Refridgerant Charge
11 27442.0000 2 Decal, Warning - Moving Parts
12 00986.0002 1 Decal, Warning - Electrical
13 39561.0001 1 Panel, Rear
02332.0001 4 Screw, Crimptite #6 x .25"
14 33645.0000 1 Decal, Main Water Connection
15 33646.0000 1 Decal, Rinse Water Connection (Early Models)
16 00656.0000 1 Decal, Comply To Plumbing Code
17 27354.0000 4 Bushing
18 00668.0000 3 Plug
19 35998.0001 1 Panel, Splash
01317.0003 2 Screw, Truss Head, Locking #8-32 x .38"
20 21436.0000 2 Catch, Magnetic
21 33538.0000* 1 Bracket, Right
33539.0000* 1 Bracket, Left
01311.0001 4 Screw, Truss Head, Locking #8-32 x .25"
22 38765.1000 1 Drip Tray Assy (Includes strike plate and item 23)
23 26801.0000 1 Grate, Drip Tray
24 35277.0000 1 Schematic, Electrical
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
5
38311 121207
Page 6
BUNN
®
UPPER CABINET & PANELS
1 7 6 10
JDF-2
11
12
23
2
3
4
5
9
8
13
14
15
17
16
18
22
21
20
6
19
P2702
38311 111706
Page 7
UPPER CABINET & PANELS
ITEM PART NO. QTY. DESCRIPTION
1 35478.0000* 1 Cabinet (Not serviced)
24544.0000 10 Screw, Pan Head #8-18
2 34738.0000 1 Plate, Cabinet Mounting
01311.0001 4 Screw, Truss Head #8-32 x .25" Lkg.
3 34784.0000 1 Plate, Bottom Closure
01359.0000 3 Screw, Flat Head #8-32 x .38"
4 34362.0000 1 Bushing, Lower Hinge
5 34790.0000 1 Wrap
01311.0001 4 Screw, Truss Head #8-32 x .25" Lkg.
6 34785.0000* 1 Bracket, Hinge
01327.0000 3 Screw, Pan Head #10 -32 x .38"
7 34666.0001 1 Catch, Door Latch
01382.0000 2 Screw, Truss Head #6 x .375"
8 27394.0000 2 Plug
9 00669.0002 4 Plug
10 34419.0000 1 Coil, Water
24544.0000 4 Screw, Pan Head #8-18
11 27246.0000 1 Sensor Assy, Temperature
12 33669.0000 1 Clip, Adhesive Back
13 33297.0000 1 Fan Assy.
03290.0000 1 Cable Tie
38616.0000 4 Screw, Pan Head #8-18
14 34421.0000* 1 Cover, Fan
24544.0000 4 Screw, Hex Head w/Washer #10-24
15 34422.1000 1 Shelf, Product (Includes items 16 & 17)
16 33459.0003 2 Decal, Dispense/Rinse
17 32461.0000 2 Gasket, Drip
18 32455.0000 2 Knob
19 27394.0000 2 Plug
20 35930.0000 2 Nozzle
21 32848.0000 2 O-ring
22 35108.1000 2 Mixer, Spiral
23 38519.0000 1 Decal, Dispense Ratio
24 M2568.1000 - Grease, USDA H-1 (Use when assembling items 21 & 22)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
7
38311 121207
Page 8
BUNN
®
REFRIGERATION COMPONENTS
JDF-2
4
11
8
7
B
3
A
2
5
1
9
10
12
14
13
15
16
17
6
P2703
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
8
38311 062905
Page 9
REFRIGERATION COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
1 35164.1000 1 Air Filter
2 29951.0001 1 Condenser
02335.0001 4 Screw, Crimptite #8 x .38"
3 35180.0001 1 Tube (Requires brazing to install) (Not serviced)
4 35386.0001 1 Tube (Requires brazing to install) (Not serviced)
5 00396.0002 1 Tee (Requires brazing to install) (Not serviced)
6 35385.0001 1 Tube (Requires brazing to install) (Not serviced)
7 35580.0001 1 Tube (Requires brazing to install) (Not serviced)
8 35175.1000 1 Filter Dryer Assy (Requires brazing to install)
9 35179.0001 1 Tube (Requires brazing to install) (Not serviced)
10 32776.0000 1 Accumulator
11 35581.0001 1 Tube (Requires brazing to install) (Not serviced)
12 - - - - - - - - 1 Compressor (See COMPRESSOR COMPONENTS)
34529.0000* 4 Washer
00901.0000 4 Nut .25"-20
13 - - - - - - - - 4 Grommet
Order item 18
14 - - - - - - - - 4 Sleeve
15 33536.0000 1 Platform
01317.0003 4 Screw, Truss Head, Locking #8-32 x .38"
16 - - - - - - - - 1 Fan Assy (See FAN ASSEMBLY)
27243.0000 3 Screw #8-36 x .437"
17 34418.0000* 1 Bracket
01317.0003 4 Screw, Truss Head, Locking #8-32 x .38"
18 28567.0000 1 Mounting Kit (Includes four each of items 13 & 14)
19 M2332.1000 - Insulation, Tube 25/50 - 1.6"ID x .50" wall x 6.0 Ft (Use as required)
20 M2336.1000 - Insulation, Tube 25/50 - 0.25"ID x .19" wall x 6.0 Ft (Use as required)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
9
38311 030308
Page 10
BUNN
®
COMPRESSOR COMPONENTS
4
3
2
JDF-2
5
1
P3804.35
10
38311 111706
Page 11
COMPRESSOR COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
- 38231.1000 1 Compressor 120V (Includes items 1 - 5)
33522.1001 1 Compressor 230V (Includes items 1 - 5)
1 38897.0000 1 Relay, Compressor 120V
38897.0001 1 Relay, Compressor 230V
2 38917.0000 1 Overload Protector
3 38916.0000 1 Retainer
4 38918.0000 1 Clip
5 38896.0000 1 Cover
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
11
38311 111706
Page 12
BUNN
®
4 3
FAN ASSEMBLY
JDF-2
2 1
12
P2704
38311 062905
Page 13
FAN ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 32204.1001 1 Fan Assy 120V (Includes items 1-4)
32204.1002 1 Fan Assy 230V (Includes items 1-4)
1 33603.0000 1 Motor Assy 120V
33603.0001 1 Motor Assy 230V
2 33602.0000 1 Blade, Fan
3 27258.0000 1 Silencer
4 23700.0000 1 Nut .25"-20
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
13
38311 062905
Page 14
BUNN
®
WATER TANK ASSY
16
15
JDF-2
14
13
10
9
6
5
3
2
7
8
4
11
12
B
A
17
16
10
18
19
20
35
28
27
21
23
22
24
26
25
24
1
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
14
29
30
31
32 33 34
P3510
38311 111706
Page 15
WATER TANK ASSY
ITEM PART NO. QTY. DESCRIPTION
1 35165.0000 1 Tank Assy
- - - - - - - - 4 Screw
2 35272.1001 1 Lid Assy
24544.0000 6 Screw, Pan Head #8-18
3 35526.0000* 2 Bracket
02332.0001 2 Screw, Crimptite #6 x .25"
01317.0003 2 Screw, Truss Head, Locking #8-32 x .38"
4 34403.1001 1 Panel Assy
00973.0000 4 Nut, Keps #6-32
5 33801.0000 1 Grommet
6 29327.0000 1 Probe, Temperature & Dry Plug
7 33801.0002 1 Grommet
7 02536.0000 1 Grommet
9 02645.1000 1 Probe, Liquid Level
01522.0000 1 Washer
20203.0100 1 Lockwasher, Internal-tooth #8
00908.0000 1 Nut #8-32
10 21275.0004 3 Clamp .54" - .64"
11 20976.0062* 1 Tube, Silicone .38" ID x 1.75" (Order item 35)
12 21275.0005 1 Clamp .62" - .73" 120V
21275.0009 1 Clamp .65" - .78" 230V
13 35077.0000 1 Tee .38" Sngl. Barb
14 21275.0003 4 Clamp .57" - .70"
15 34325.0003* 1 Hose, Flex .38" ID x .625" OD x 3.0" (Order item 36)
16 33623.0000 2 Elbow .38" Barb
17 34325.0006* 1 Hose, Flex .38" ID x .625" OD x 2.25" (Order item 36)
18 20976.0016* 1 Tube, Silicone .38" ID x 2.75" (Order item 35)
19 33068.0000 1 Fitting .38" Barb x .25" Barb
20 37809.1000 1 Pump Assy 120V (Includes items 11 - 19)
37265.0000 1 Pump Assy 230V
21 35132.0000* 1 Product Coil
22 34416.0000 2 Spacer
00973.0000 4 Nut, Keps #6-32
23 03290.0000 2 Cable Tie
24 32734.0001 6 Cable Tie, 28.0"
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
15
38311 050807
Page 16
BUNN
®
WATER TANK ASSY
(Continued)
16
15
JDF-2
14
13
10
9
6
5
3
2
7
8
4
11
12
B
A
17
16
10
18
19
20
35
28
27
21
23
22
24
26
25
24
1
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
16
29
30
31
32 33 34
P3510
38311 111706
Page 17
WATER TANK ASSY
ITEM PART NO. QTY. DESCRIPTION
25 33533.0000* 4 Spacer
26 33519.0000* 1 Evaporator Coil
27 36448.0000 2 Spacer
28 03290.0000 2 Cable Tie
29 33670.0004* 1 Tube, Clear .25" x 8.0" (Not serviced)
30 38605.0000 1 Tee
31 21275.0006 1 Clamp .40" - .50"
32 35174.0000 1 Fitting
33 33149.0000 1 Gasket
34 00976.0000 1 Cap
35 35106.0000 1 Manifold, Return Water
36 20976.1000 1 Tube, Silicone .38" ID x 12.0" (Cut to required length)
20976.1001 1 Tube, Silicone .38" ID x 36.0" (Cut to required length)
20976.1002 1 Tube, Silicone .38" ID x 120.0" (Cut to required length)
37 34325.1000 1 Hose, Flex .38" ID x .625" OD x 12.0" (Cut to required length)
34325.1001 1 Hose, Flex .38" ID x .625" OD x 36.0" (Cut to required length)
34325.1002 1 Hose, Flex .38" ID x .625" OD x 120.0" (Cut to required length)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
17
38311 111706
Page 18
BUNN
®
3
5
4
3
6
CIRCULATION PUMP & LINES
4 3 2 3 1
JDF-2
7
8
9
P3511
18
38311 062905
Page 19
CIRCULATION PUMP & LINES
ITEM PART NO. QTY. DESCRIPTION
1 - - - - - - - - 1 Coil, Upper Cabinet (See UPPER CABINET & PANELS)
2 34325.0004* 2 Tube, Silicone .38" ID x 1.5" (Order item 10)
3 21275.0003 8 Clamp .57" - .70"
4 37850.0000 2 Elbow .38" Barb
5 34325.0010* 1 Tube, Silicone .38" ID x 17.0" (Order item 10)
6 34325.0021* 1 Tube, Silicone .38" ID x 8.0" (Order item 10)
7 35173.0001 1 Fitting .312" Fl x .375" Barb
8 35305.0000 1 Gasket
9 - - - - - - - - 1 Manifold, Return Water (See WATER TANK ASSEMBLY)
10 34325.1000 - Tube, Silicone .38" ID x 12.0" (Cut to required length)
34325.1001 - Tube, Silicone .38" ID x 36.0" (Cut to required length)
34325.1002 - Tube, Silicone .38" ID x 120.0" (Cut to required length)
11 M2337.1000 - Tube Insulation (Cut to required length)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
19
38311 111706
Page 20
BUNN
to Plain Manifold
®
C
5
PRODUCT COIL & LINES
JDF-2
14 15-16 17 18
4
3
2
10 9 8 7 6
13
12
11
2
1
5
Early Models
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
20
P2707
38311 111706
Page 21
PRODUCT COIL & LINES
ITEM PART NO. QTY. DESCRIPTION
1 - - - - - - - - 1 Product Coil (See WATER TANK ASSEMBLY)
2 35305.0000 2 Gasket
3 35173.0001 1 Fitting .312" Fl x .375" Barb
4 21275.0003 8 Clamp .57" - .70"
5 34325.0010* 1 Hose, Flex .38" ID x 17.0" (Order item 19)(Early models prior to Water Inlet Valve)
34325.0014* 1 Hose, Flex .38" ID x 15.0" (Order item 19)(Late models with Water Inlet Valve)
6 33151.0004 1 Fitting, Elbow .38" Barb
7 33149.0000 1 Gasket
8 12757.0000 1 Nut
9 01514.0000 1 Lockwasher
10 12756.0000 1 Fitting, Bulkhead
11 35172.0001 1 Fitting, Elbow .312" Fl x .375" Barb
12 34325.0004* 1 Hose, Flex .38" ID x 1.5" (Order item 19)
13 37850.0000 1 Elbow .38" Barb
14 34325.0012* 1 Hose, Flex .38" ID x 10.5" (Order item 19)
15 35171.0000 1 Valve, Shut Off
16 34540.0000 1 Decal, Caution - Close
17 34325.0004* 1 Hose, Flex .38" ID x 1.5" (Order item 19)
18 34462.0000 1 Coupling, Quick Disconnect, Male
19 34325.1000 1 Hose, Flex .38" ID x 12.0" (Cut to required length)
34325.1001 1 Hose, Flex .38" ID x 36.0" (Cut to required length)
34325.1002 1 Hose, Flex .38" ID x 120.0" (Cut to required length)
20 M2337.1000 - Insulation, Tube 25/50 - 0.5"ID x .19" wall x 6.0 Ft (Use as required)
Early Models
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
21
38311 111706
Page 22
BUNN
TO INLET SOLENOID
TO PRODUCT COIL
6
7
2
®
DISPENSE PLATFORM ASSEMBLY
JDF-2
8
11
9
10
13 14
4
5
3
12
1
22
P3512
38311 110107
Page 23
DISPENSE PLATFORM ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 38116.1000 1 Platform Assy (Includes items 2 - 18)
2 - - - - - - - - 2 Pump Assy (See PUMP ASSY)
01338.0000 2 Screw, Truss Head #8-32 x .625"
01522.0000 4 Washer
00991.0000 4 Nut, Elastic Lock #8-32
3 32957.0001 8 Bushing, Rubber
4 21275.0006 4 Clamp .40" - .50"
5 38018.1000 2 Dispense Valve (See DISPENSE VALVE)
01308.0000 4 Screw, Truss Head #6-32 x 25"
6 37786.0001 2 Plate
01308.0000 2 Screw, Truss Head #6-32 x 25"
7 - - - - - - - - 1 Manifold, Plain Water (See PLAIN WATER MANIFOLD)
8 - - - - - - - - 1 Manifold, Rinse Water (See RINSE WATER MANIFOLD)
9 32756.1000 2 Bottle Adapter (See BOTTLE ADAPTER)
01308.0000 4 Screw, Truss Head #6-32 x 25"
10 38122.0000* 1 Plate
01311.0001 4 Screw, Truss Head #8-32 x .25" Lkg.
11 32458.0000 2 Clip, Retainer
12 38104.0000 2 Thumbscrew
13 32454.0000 2 Fitting
14 34087.0000 2 O-ring
The following items are not illustrated
15 35189.0000 1 Harness, Dispense Platform
16 35181.0001 1 Harness, Dispense Valve
17 - - - - - - - - 4 Cable Tie (Not serviced)
18 12422.0000 2 Clamp
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
23
38311 110107
Page 24
BUNN
®
5 6 7
DISPENSE VALVE ASSEMBLY
8 9 10
4
JDF-2
11 3 2 1
14
12
13
16 15
17 18 20 19
22 21 23
24
P3503
38311 062905
Page 25
DISPENSE VALVE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 38018.1000 1 Dispense Valve Assy (Includes items 1 - 24)
1 37801.0001 1 Body
2 37990.0000 1 Seal
3 37843.0000 1 Nozzle, Water
4 32252.0000 1 Valve, Solenoid (Includes items 5 - 10)
5 33554.0000 1 Solenoid Valve Coil
6 28481.0000 1 Guide Kit (Includes Guide, Washer and O-ring)
7 33585.0000 1 Solenoid Valve Base Kit (Includes O-ring and items 6 & 7)
8 01111.0002 1 Solenoid Valve Repair Kit (Includes Plunger, Spring and O-ring)
9 33580.0000 1 O-ring
10 33553.0000 1 O-ring
11 37987.0000 1 Bracket
01308.0000 2 Screw #6-32 x .25"
12 32463.0000 1 Fitting, Elbow
13 32849.0001 1 O-ring (Also use item 24)
14 37853.0000 1 Clamp
01308.0000 1 Screw #6-32 x .25"
15 32603.0000 1 Sleeve
16 32852.0000 1 O-ring (Also use item 24)
17 32602.0000 1 Piston
18 32853.0001 1 Spring, Flow Control
19 32624.0000 1 Bonnet, Adjuster
20 33725.0000 1 O-ring (Also use item 24)
21 32623.0000 1 Adjuster, Position
22 32851.0000 1 O-ring (Also use item 24)
23 37977.0000 1 Bracket, Water Adjustment
01308.0000 2 Screw #6-32 x .25"
24 M2568.1000 - Grease, USDA H-1 (Use when assembling items 13,16,20 & 22)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
25
38311 111706
Page 26
BUNN
TO PRODUCT COIL
®
PLAIN WATER MANIFOLD (Early Models)
8 6 7
JDF-2
5
3 4 1 2
3 1 2
26
P3513
38311 111706
Page 27
PLAIN WATER MANIFOLD (Early Models)
ITEM PART NO. QTY. DESCRIPTION
1 32631.0000 2 Fitting, Straight
2 32849.0001 2 O-ring
3 38129.0005* 2 Hose, Braided .25" ID x 2.25" (Order item 12)
4 21275.0006 4 Clamp .40 - .50"
5 36204.0000* 1 Manifold, Plain SST
6 34325.0017* 1 Hose, Flex .38" ID x 1.25" (Order item 13)
7 21275.0003 2 Clamp .57 - .70"
8 34463.0000 1 Coupling, Quick Disconnect, Female
12 38129.1000 1 Hose, Braided .25" ID x 12.0" (Cut to required length)
38129.1001 1 Hose, Braided .25" ID x 36.0" (Cut to required length)
38129.1002 1 Hose, Braided .25" ID x 120.0" (Cut to required length)
13 34325.1000 1 Hose, Flex .38" ID x 12.0" (Cut to required length)
34325.1001 1 Hose, Flex .38" ID x 36.0" (Cut to required length)
34325.1002 1 Hose, Flex .38" ID x 120.0" (Cut to required length)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
27
38311 111706
Page 28
BUNN
TO PRODUCT COIL
®
5
PLAIN WATER MANIFOLD (Late Models)
7 3
JDF-2
3 4 1 2
6 1 2
28
P3624
38311 111706
Page 29
PLAIN WATER MANIFOLD (Late Models)
ITEM PART NO. QTY. DESCRIPTION
1 32631.0000 2 Fitting, Straight
2 32849.0001 2 O-ring
3 38129.0012* 2 Hose, Braided .25" ID x 3.0" (Order item 8)
4 21275.0006 6 Clamp .40 - .50"
5 38605.0000 1 Tee .25" Barb
6 38129.0013* 1 Hose, Braided .25" ID x 5.25" (Order item 8)
7 34461.0000 1 Coupling, Quick Disconnect, Female
8 38129.1000 1 Hose, Braided .25" ID x 12.0" (Cut to required length)
38129.1001 1 Hose, Braided .25" ID x 36.0" (Cut to required length)
38129.1002 1 Hose, Braided .25" ID x 120.0" (Cut to required length)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
29
38311 111706
Page 30
BUNN
BUN
N
®
FLOW
BUNN
®
FLOW
®
RINSE WATER MANIFOLD & SOLENOID (Early Models)
JDF-2
22 21
8
20
30
31
32
23
23
26
27
28
21
29
21
33
24
34
8
25
15
19
9
8
18
17
16
9
10
7
3
6
5
2
3 4 3 36 35
1
2 1
11
12
14
13
30
P3514
38311 111706
Page 31
RINSE WATER MANIFOLD & SOLENOID (Early Models)
ITEM PART NO. QTY. DESCRIPTION
1 32756.1000 2 Bottle adapter (See BOTTLE ADAPTER)
2 38129.0001* 3 Hose, Braided .25" ID x .44" OD x 1.50" (Order item 37)
3 21275.0006 16 Clamp .40" - .50"
4 36203.0000* 1 Manifold. Rinse SST
5 34460.0000 1 Fitting, Quick Disconnect, Male
6 34461.0000 1 Fitting, Quick Disconnect, Female
7 32745.0021* 1 Hose .25" ID x .44" OD x 15.75" (Order item 38)
8 33151.0005 3 Fitting, Elbow .25" Barb
9 33149.0001 4 Gasket
10 01085.0002 1 Solenoid Valve 120V (Includes items 11 - 14)
28005.0000 1 Solenoid Valve 230V (Includes items 11- 13)
01327.0000 2 Screw, Pan Head #10-32 x .38" 120V
02308.0000 2 Screw, Pan Head #8-32 x .38" 230V
11 28480.0000 1 Coil, Solenoid 120V
28020.0000 1 Coil, Solenoid 230V
12 01111.0002 1 Solenoid Repair Kit (Includes Plunger, Spring and O-ring)
13 28479.0000 1 Solenoid Base Kit 120V (Includes O-ring)
28021.0000 1 Core Assy Kit 230V
14 28481.0000 1 Guide Kit
15 00402.0001 2 Connector
16 00425.0001 1 Nipple
17 00425.0002 1 Nut
18 38129.0001* 1 Hose, Braided .25" ID x .44" OD x 1.50" (Order item 37)
19 00459.0000 1 Fitting, Bulkhead
01532.0000 1 Lockwasher, Internal-toth .438"
00463.0000 1 Nut, Hex .375"-20
20 38129.0009* 1 Hose, Braided .25" ID x .44" OD x 4.25" (Order item 37)
21 33149.0000 3 Gasket
22 33151.0004 1 Fitting, Elbow .38" Barb
23 21275.0003 4 Clamp .57" - .70"
24 34325.0004* 1 Hose, Flex .38" ID x .595" OD x 1.5" (Order item 39)
25 32749.0001 1 Tee .38" Barb x .38" Barb x .25" Barb
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
31
38311 121807
Page 32
BUNN
BUN
N
®
FLOW
BUNN
®
FLOW
®
RINSE WATER MANIFOLD & SOLENOID (Early Models)
JDF-2
(Continued)
22 21
8
20
30
31
32
23
23
26
27
28
21
29
21
33
24
34
8
25
15
19
9
8
18
17
16
9
10
7
3
6
5
2
3 4 3 36 35
1
2 1
11
12
14
13
32
P3514
38311 111706
Page 33
RINSE WATER MANIFOLD & SOLENOID (Early Models)
ITEM PART NO. QTY. DESCRIPTION
26 34325.0006* 1 Hose, Flex .38" ID x .595" OD x 2.25" (Order item 39)
27 33150.0000 1 Nut
28 33686.0000 1 Nipple
29 23720.0000 1 Strainer Assy (Includes items 30 - 32)
30 - - - - - - - - 1 Housing, Strainer (Order item 29)
31 23721.0000 1 Screen
32 23723.0000 1 End Cap
33 21275.0006 2 Clamp .41 - .50"
34 35573.0000* 1 Bracket, Rinse Solenoid (Early Models)
01317.0003 2 Screw, Truss Head #8-32 x .38" Lkg
35 32463.0000 2 Fitting, Elbow
36 32849.0001 2 O-ring
37 38129.1000 - Hose, Braided .25" ID x .44" OD x 12.0" (Cut to required length)
38129.1001 - Hose, Braided .25" ID x .44" OD x 36.0" (Cut to required length)
38129.1002 - Hose, Braided .25" ID x .44" OD x 120.0" (Cut to required length)
38 32745.1002 - Hose .25" ID x .44" OD x 120.0" (Cut to required length)
39 34325.1000 - Hose, Flex .38" ID x .595" OD x 12.0" (Cut to required length)
34325.1001 - Hose, Flex .38" ID x .595" OD x 36.0" (Cut to required length)
34325.1002 - Hose, Flex .38" ID x .595" OD x 120.0" (Cut to required length)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
33
38311 121807
Page 34
BUNN
BUNN
®
FLOW
BUNN
®
FLOW
®
RINSE WATER MANIFOLD & SOLENOID (Late Models)
JDF-2
38
33
12
34
37
25
24
26
35
36
C
23
22
21
17
C
26
12
35
21
18
20
19
Prior to Models w/Water Inlet Valve
4
5
3
11 5 10
9 8 7 6
28
30
13
14
16
15
31
29
32
27
8
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
Early Models
34
2
1
5
P3792
38311 111706
Page 35
RINSE WATER MANIFOLD & SOLENOID (Late Models)
ITEM PART NO. QTY. DESCRIPTION
1 32756.1000 2 Bottle adapter (See BOTTLE ADAPTER)
2 32849.0001 2 O-ring
3 32463.0000 2 Fitting, Elbow
4 38129.0009* 1 Hose, Braided .25" ID x 4.25" (Order item 40)
5 21275.0006 8 Clamp .40" - .50"
6 38129.0004* 1 Hose, Braided .25" ID x 3.50" (Order item 40)
7 38605.0000 1 Tee .25" Barb
8 38129.0001* 1 Hose, Braided .25" ID x 1.50" (Order item 40)
9 34460.0000 1 Fitting, Quick Disconnect, Male
10 34461.0000 1 Fitting, Quick Disconnect, Female
11 32745.0021* 1 Hose .25" ID x 15.75" (Order item 39)(Early models prior to Water Inlet Valve)
38129.0014* 1 Hose .25" ID x 13.0" (Order item 40)(Late models with Water Inlet Valve)
12 01085.0002 1 Solenoid Valve 120V (Includes items 13 - 16)
28005.0000 1 Solenoid Valve 230V (Includes items 13- 15)
01327.0000 2 Screw, Pan Head #10-32 x .38" 120V
02308.0000 2 Screw, Pan Head #8-32 x .38" 230V
13 28480.0000 1 Coil, Solenoid 120V
28020.0000 1 Coil, Solenoid 230V
14 01111.0002 1 Solenoid Repair Kit (Includes Plunger, Spring and O-ring)
15 28479.0000 1 Solenoid Base Kit 120V (Includes O-ring)
28021.0000 1 Core Assy Kit 230V
16 28481.0000 1 Guide Kit
17 35573.0000* 1 Bracket, Rinse Solenoid (Early Models)
01317.0003 2 Screw, Truss Head #8-32 x .38" Lkg
18 00402.0001 1 Connector
19 33151.0005 1 Fitting, Elbow .25" Barb
20 33149.0001 1 Gasket
21 33152.0001 1 Fitting .38" Barb x .125" MPT
22 34325.0022* 1 Hose, Flex .38" ID x 2.50" (Order item 41)
23 32750.0001 1 Tee .38" Single Barb
24 34325.0021* 1 Hose, Flex .38" ID x 8.0" (Order item 41)
25 33686.0000 1 Nipple
33150.0000 1 Nut
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
35
38311 121807
Page 36
BUNN
BUNN
®
FLOW
BUNN
®
FLOW
®
RINSE WATER MANIFOLD & SOLENOID (Late Models)
JDF-2
(Continued)
38
33
12
34
37
25
24
26
35
36
C
23
22
21
17
C
26
12
35
21
18
20
19
Prior to Models w/Water Inlet Valve
4
5
3
11 5 10
9 8 7 6
28
30
13
14
16
15
31
29
32
27
8
NOTE: Letters appearing within this illustration correspond to matching connections in other illustrations.
Early Models
36
2
1
5
P3792
38311 111706
Page 37
RINSE WATER MANIFOLD & SOLENOID (Late Models)
ITEM PART NO. QTY. DESCRIPTION
26 21275.0003 5 Clamp .57" - .70"
27 36203.0000* 1 Manifold. Rinse SST (Early Models)
28 33149.0000 2 Gasket
29 23720.0000 1 Strainer Assy (Includes items 30 - 32)
30 - - - - - - - - 1 Housing, Strainer (Order item 29)
31 23721.0000 1 Screen
32 23723.0000 1 End Cap
33 01533.0005 2 Spacer
01326.0006 2 Screw, Truss Head #10-32 x .625"
34 00464.0001 1 Elbow .25" Barb x .125"MPT
35 34325.0004* 2 Hose, Flex .38" ID x 1.50" (Order item 41)
36 35077.0000 1 Tee, Nylon .38" Barb
37 36233.0000 1 Valve, Water Inlet 120V
36233.0001 1 Valve, Water Inlet 230V
32283.0000 2 Screw, Pan Head M4 x 6mm
38 37297.0000 1 Elbow
39 32745.1002 - Hose .25" ID x .44" OD x 120.0" (Cut to required length)
40 38129.1000 - Hose, Braided .25" ID x .44" OD x 12.0" (Cut to required length)
38129.1001 - Hose, Braided .25" ID x .44" OD x 36.0" (Cut to required length)
38129.1002 - Hose, Braided .25" ID x .44" OD x 120.0" (Cut to required length)
41 34325.1000 - Hose, Flex .38" ID x .595" OD x 12.0" (Cut to required length)
34325.1001 - Hose, Flex .38" ID x .595" OD x 36.0" (Cut to required length)
34325.1002 - Hose, Flex .38" ID x .595" OD x 120.0" (Cut to required length)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
37
38311 111706
Page 38
BUNN
®
4
PUMP ASSEMBLY
JDF-2
1
3
2
5
8
6
9
11
12
13
7
10
15
16
14
38
P3505
38311 111706
Page 39
PUMP ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 33803.1001 1 Pump Assy (Includes items 1 - 29)
1 32613.1002 1 Motor Assy
01322.0001 4 Screw #8-32 x 1.25"
2 32654.0000 1 Magnet Hub
01512.0000 1 Lockwasher, Internal-tooth #10
01331.0004 1 Screw, Locking #10-32 x .50"
3 33608.1000 1 Sensor, RPM
02336.0000 2 Screw #4-40 x .38"
4 07130.0000* 1 Cable Tie
5 32957.0000 4 Bushing
6 37152.0001 1 Mount Assy, Pump
7 29904.0000 1 Insert, Well Nut #8-32
8 33781.0000 1 Gasket
9 28755.0010* 1 Tube, Norprene .25" ID x 18.5" lg (Order item 17)
10 32732.0000 1 Clamp .39"/.48"
11 32656.0000 1 Fitting, Elbow .25" Barb x .38" Barb
12 21275.0003 1 Clamp .57"/.70"
13 34325.0019* 1 Hose, Flex .375" ID x 5.75" lg (Order item 18)
14 28759.0000 1 Pump Assy. (Includes items 15 & 16)
15 28794.0000 1 Rotor
16 01370.0001 4 Screw, Pan Head #8-32 x 2.45"
17 28755.1000 - Tube, Neoprene .25" ID x .45" OD x 12.0" (Use as required)
28755.1001 - Tube, Neoprene .25" ID x .45" OD x 36.0" (Use as required)
28755.1002 - Tube, Neoprene .25" ID x .45" OD x 60.0" (Use as required)
18 34325.1000 - Hose, Flex .375" ID x 12.0" (Use as required)
34325.1001 - Hose, Flex .375" ID x 36.0" (Use as required)
34325.1002 - Hose, Flex .375" ID x 120.0" (Use as required)
19 39689.0000 - Pump Tube (Includes items 9,10,11,12 & 13)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
39
38311 121207
Page 40
BUNN
®
BOTTLE ADAPTER ASSEMBLY
1 2 3 4 5 6 7 15 14 16
JDF-2
7
8 9 10 11 12 13
P2281
40
38311 111706
Page 41
BOTTLE ADAPTER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 32756.1000 1 Adapter Assy, Bottle (Includes items 1 - 16)
1 32456.0000 1 Spool
2 36301.0000 1 O-ring
3 32625.0000 1 Seal, Rotary
4 33515.0000 1 Boot, Teflon (Also order item 17)
5 - - - - - - - - 1 Opener (Order item 6)
6 32453.1000 1 Body Assy. (Includes items 5 & 7)
7 - - - - - - - - 2 Probe (Order item 6)
8 34032.1000 1 Switch, Membrane
9 32663.0000 1 Detent, Membrane Switch
10 33042.0000 1 Spring
11 32469.0000 1 Plate, Detent
12 00942.0002 1 Nut, Brass w/Tin Plate .50-20"
13 21358.0001 1 Clip, Retainer
14 32463.0000 1 Fitting, Elbow
15 32849.0001 1 O-ring
16 37786.0001 1 Plate
32860.0000 1 Screw
17 M2568.1000 - Grease, USDA H-1 (Use when installing item 4)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
41
38311 121807
Page 42
BUNN
®
12 11 10 9 8 6
DOOR ASSEMBLY
JDF-2
5 4 3
1
2
19
20
17
7
13 14 15 16
42
18
P2712
38311 062905
Page 43
DOOR ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 36080.0000 1 Door Assy. Lited, Pushbutton (Includes items 2 - 26)
- 36080.0001 1 Door Assy. Lited, Portion Control (Includes items 2 - 26)
- 36080.0002 1 Door Assy. Unlited, Pushbutton (Includes items 2, 3, 6 - 26)
- 36080.0003 1 Door Assy. Unlited, Portion Control (Includes items 2, 3, 6 - 26)
1 35166.1000 1 Door, Upper, Lited (Includes items 2 - 12, 14, 15, 19 - 23, 25 & 26)
35166.1001 1 Door, Upper, Unlited (Includes items 2, 3, 6 - 12, 14, 15, 19 - 23, 25 & 26)
01317.0005 2 Screw, Blk, Truss Head, Locking #8-32 x .375"
2 23279.0000 1 Decal, BUNN
3 34741.0000 1 Shoulder Bolt
4 32807.0001 1 Lamp Holder (Lited Doors only)
5 32806.0000 1 Lamp (Lited Doors only)
6 34791.0000 1 Panel, Light
7 33532.0000 1 Bracket, Hinge
01317.0003 4 Screw, Truss Head, Locking #8-32 x .375"
8 - - - - - - - - 1 Panel, Door Inner (Not serviced)
9 34792.0000 1 Seal, Door
10 35567.0000 1 Plate, Door Seal
01322.0001 6 Screw, Round Head, Locking #8-32 x 1.25"
11 38298.0000 1 Decal, Brixing and Cleaning
12 34667.0000 1 Keeper, Door Latch
01519.0000 2 Lockwasher
02319.0000 2 Nut, Acorn
13 35387.1000 1 Door, Lower, Pushbutton (Includes items 14 thru 18)
35387.1001 1 Door, Lower, Portion Control (Includes items 14 thru 18)
01317.0005 4 Screw, Blk, Truss Head, Locking #8-32 x .375"
14 32819.0001 2 Strip, Adhesive
15 37018.0001 2 Flavor Label Holder
16 34736.0000 1 Membrane Switch, Push Button
34737.0000 1 Membrane Switch, Portion Control
17 34470.0000 1 Lock Assy (Includes Keys and Nut)
28095.0000 1 Keys (Set of 2)
18 35608.0000 1 Shim
19 35022.0000 1 Lens, Fixed
24544.0000 2 Screw, Pan Head #8-18
20 35023.0000 1 Lens, Removable
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
43
38311 111706
Page 44
BUNN
®
12 11 10 9 8 6
DOOR ASSEMBLY
JDF-2
(Continued)
5 4 3
1
2
19
20
17
7
13 14 15 16
44
18
P2712
38311 062905
Page 45
DOOR ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
The following items are not illustrated
21 35269.0000 1 Harness, Touch Pad
22 07130.0000* 2 Cable Tie
23 35270.0000 1 Harness, Door Lamp (Lited Doors only)
24 33208.0001 1 Harness, Light Socket (Lited Doors only)
25 00970.0000 1 Nut, Harness Grounding (Lited Doors only)
26 29976.0000 1 Cable Mount
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
45
38311 111706
Page 46
BUNN
®
1 2 3 4 5
ELECTRICAL COMPONENTS
JDF-2
20
6
7
8
19
9 17
13
15
14
18 10 11 12 16
46
P2713
38311 030308
Page 47
ELECTRICAL COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
1 04786.0004 1 Switch, Compressor ON/OFF
2 34407.0000 1 Enclosure
02308.0000 2 Screw, Pan Head #8-32 x .38"
3 28327.0000 1 Ballast, Door Lamp 120V (Lited Doors only)
28327.0001 1 Ballast, Door Lamp 230V (Lited Doors only)
02308.0000 2 Screw, Pan Head #8-32 x .38"
4 22126.0000 1 Rectifier
00970.0000 1 Nut, Keps #8-32
5 00970.0000 1 Nut, Harness Grounding
6 32824.0001 1 Transformer 120V
39417.0000 1 Transformer 230V
02308.0000 2 Screw, Pan Head #8-32 x .38"
7 37711.0000 1 Relay 120V
37711.0001 1 Relay 230V
02308.0000 2 Screw, Pan Head #8-32 x .38"
8 29446.0000 1 EMI Filter (230V models only)
9 34406.0000* 1 Enclosure
02308.0000 2 Screw, Pan Head #8-32 x .38"
10 33147.0000 1 Audio Indicator
01382.0000 2 Screw, Truss Head #6-32 x .375"
00973.0000 2 Nut, Keps #6-32
11 29081.0000 8` Spacer
12 32673.1002 1 Circuit Board (Early models prior to Water Inlet Valve)
38830.1001 1 Circuit Board (Late models with Water Inlet Valve)
39650.1000 1 Circuit Board (Late models with Water Inlet Valve)(RoHS Compliant)
00973.0000 4 Nut, Keps #6-32
13 34404.1000 1 Cover (Includes item 14)
01382.0000 2 Screw, Truss Head #6-32 x .375"
14 12559.0003 1 Decal, Warning - Hazardous Voltage
15 33647.0000 1 Decal, Dip Switch
16 33460.0000 1 Decal, Sanitize Switch
17 27410.0000 1 Clip, Tube Mounting
18 01063.0000 1 Switch, Rinse/Run
19 00707.0000 1 Bushing, Strain Relief
20 40770.0000 1 Resistor 230V
(Continued)
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
47
38311 030308
Page 48
BUNN
®
1 2 3 4 5
ELECTRICAL COMPONENTS
(Continued)
JDF-2
20
6
7
8
19
9 17
13
15
14
18 10 11 12 16
48
P2713
38311 030308
Page 49
ELECTRICAL COMPONENTS
ITEM PART NO. QTY. DESCRIPTION
The following items are not illustrated
21 22749.0000 1 Pad, Cable Mounting
22 03290.0000 1 Cable Tie
23 35182.0000 1 Harness, Main 120V
35182.0001 1 Harness, Main 230V
24 20630.0010 1 Power Cord
25 35177.0000 1 Harness, Water Bath
26 33115.0000 1 Harness, Cabinet Fan
27 35191.0000 1 Harness, Compressor
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
49
38311 030308
Page 50
BUNN
®
2
1
REFILLABLE CONTAINER ASSEMBLY
JDF-2
4
3
5
P3791
50
38311 111706
Page 51
REFILLABLE CONTAINER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
- 39302.0000 1 Container Assy (Includes items 1-5)
1 39301.0000 1 Container
2 39299.0000 1 Lid
3 00598.0002 1 Ball (Early Models)
4 32877.0000 1 Spring (Early Models)
5 34261.0000 1 O-ring
* Indicates the part number listed is for reference only. See DESCRIPTION for possible service replacement.
51
38311 050807
Page 52
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
00396.0002........................... 9
00402.0001.................... 31,35
00425.0001......................... 31
00425.0002......................... 31
00459.0000......................... 31
00463.0000......................... 31
00464.0001......................... 37
00598.0002......................... 51
00656.0000........................... 5
00668.0000........................... 5
00669.0002........................... 7
00707.0000......................... 47
00901.0000........................... 9
00908.0000......................... 15
00942.0002......................... 41
00970.0000.................... 45,47
00973.0000.................... 15,47
00976.0000......................... 17
00986.0002........................... 5
00991.0000......................... 23
01063.0000......................... 47
01085.0002.................... 31,35
01111.0002............... 25,31,35
01308.0000.................... 23,25
01311.0001................... 5,7,23
01317.0003.... 5,9,15,33,35,43
01317.0005......................... 43
01322.0001.................... 39.43
01326.0006......................... 37
01327.0000................. 7,31,35
01331.0004......................... 39
01338.0000......................... 23
01359.0000........................... 7
01370.0001......................... 39
01382.0000...................... 7,47
01512.0000......................... 39
01514.0000......................... 21
01519.0000......................... 43
01522.0000.................... 15,23
01532.0000......................... 31
01533.0005......................... 37
02308.0000............... 31,35,47
02319.0000......................... 43
02332.0001...................... 5,15
02335.0001........................... 9
02336.0000......................... 39
02536.0000......................... 15
02645.1000......................... 15
03290.0000............ 7,15,17,49
03996.0000........................... 5
04786.0004......................... 47
07130.0000.................... 39,45
12422.0000......................... 23
12559.0003......................... 47
12756.0000......................... 21
12757.0000......................... 21
20203.0100......................... 15
20630.0010......................... 49
20976.0016......................... 15
20976.0062......................... 15
20976.1000......................... 17
20976.1001......................... 17
20976.1002......................... 17
21275.0003............... 15,19,21
21275.0003.......... 27,31,37,39
21275.0005......................... 15
21275.0006.......... 17,23,27,29
21275.0006............... 31,33,35
21275.0009......................... 15
21358.0001......................... 41
21436.0000........................... 5
22126.0000......................... 47
22749.0000......................... 49
23279.0000......................... 43
23700.0000......................... 11
23720.0000.................... 33,37
23721.0000.................... 33,37
23723.0000.................... 33,37
24544.0000................. 7,15,43
26528.0000........................... 5
26801.0000........................... 5
27243.0000........................... 9
27246.0000........................... 7
27258.0000......................... 13
27354.0000........................... 5
27394.0000........................... 7
27410.0000......................... 47
27442.0000........................... 5
28005.0000.................... 31,35
28020.0000.................... 31,35
28021.0000.................... 31,35
28095.0000......................... 43
28327.0000......................... 47
28327.0001......................... 47
28479.0000.................... 31,35
28480.0000.................... 31,35
28481.0000............... 25,31,35
28567.0000........................... 9
28755.0010......................... 39
28755.1000......................... 39
28755.1001......................... 39
28755.1002......................... 39
28759.0000......................... 39
28794.0000......................... 39
29081.0000......................... 47
29327.0000......................... 15
29446.0000......................... 47
29904.0000......................... 39
29951.0001........................... 9
29976.0000......................... 45
32204.1001......................... 13
32204.1002......................... 13
32252.0000......................... 25
32283.0000......................... 37
32453.1000......................... 41
32454.0000......................... 23
32455.0000........................... 7
32456.0000......................... 41
32458.0000......................... 23
32461.0000........................... 7
32463.0000.................... 25,33
32463.0000.................... 35,41
32469.0000......................... 41
32602.0000......................... 25
32603.0000......................... 25
32613.1002......................... 39
32623.0000......................... 25
32624.0000......................... 25
32625.0000......................... 41
32631.0000.................... 27,29
32654.0000......................... 39
32656.0000......................... 39
32663.0000......................... 41
32673.1002......................... 47
32732.0000......................... 39
32734.0001......................... 15
32745.0021.................... 31,35
32745.1002.................... 33,37
32749.0001......................... 31
32750.0001......................... 35
32756.1000.......... 23,31,35,41
32776.0000........................... 9
32806.0000......................... 43
32807.0001......................... 43
32819.0001......................... 43
32824.0001......................... 47
32848.0000........................... 7
32849.0001............... 25,27,29
32849.0001............... 33,35,41
32851.0000......................... 25
32852.0000......................... 25
32853.0001......................... 25
32860.0000......................... 41
32877.0000......................... 51
32957.0000......................... 39
32957.0001......................... 23
33042.0000......................... 41
33068.0000......................... 15
33115.0000......................... 49
33147.0000......................... 47
33149.0000.......... 17,21,31,37
33149.0001.................... 31,35
33150.0000.................... 33,35
33151.0004.................... 21,31
33151.0005.................... 31,35
33152.0001......................... 35
33208.0001......................... 45
33297.0000........................... 7
33458.0000........................... 5
33459.0003........................... 7
33460.0000......................... 47
33461.0001........................... 5
33515.0000......................... 41
33519.0000......................... 17
33522.1001......................... 11
33532.0000......................... 43
33533.0000......................... 17
33536.0000........................... 9
33538.0000........................... 5
33539.0000........................... 5
33553.0000......................... 25
33554.0000......................... 25
33580.0000......................... 25
33585.0000......................... 25
33602.0000......................... 13
33603.0000......................... 13
33603.0001......................... 13
33608.1000......................... 39
33623.0000......................... 15
33645.0000........................... 5
33646.0000........................... 5
33647.0000......................... 47
33669.0000........................... 7
33670.0004......................... 17
33686.0000.................... 33,35
33725.0000......................... 25
33781.0000......................... 39
33801.0000......................... 15
33801.0002......................... 15
33803.1001......................... 39
34032.1000......................... 41
34087.0000......................... 23
34261.0000......................... 51
34325.0003......................... 15
34325.0004.......... 19,21,31,37
34325.0006.................... 15,33
34325.0010.................... 19,21
34325.0012......................... 21
34325.0014......................... 21
34325.0017......................... 27
34325.0019......................... 39
34325.0021.................... 19,35
34325.0022......................... 35
34325.1000.......... 17,19,21,27
34325.1000.......... 33,35,37,39
34325.1001.......... 17,19,21,27
34325.1001.......... 33,35,37,39
34325.1002.......... 17,19,21,27
34325.1002.......... 33,35,37,39
34362.0000........................... 7
52
38311 121807
Page 53
NUMERICAL INDEX
PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.
34403.1001......................... 15
34404.1000......................... 47
34406.0000......................... 47
34407.0000......................... 47
34409.0000........................... 5
34410.0000........................... 5
34416.0000......................... 15
34418.0000........................... 9
34419.0000........................... 7
34421.0000........................... 7
34422.1000........................... 7
34460.0000.................... 31,35
34461.0000............... 29,31,35
34462.0000......................... 21
34463.0000......................... 27
34470.0000......................... 43
34529.0000........................... 9
34540.0000......................... 21
34666.0001........................... 7
34667.0000......................... 43
34736.0000......................... 43
34737.0000......................... 43
34738.0000........................... 7
34741.0000......................... 43
34784.0000........................... 7
34785.0000........................... 7
34786.1000........................... 5
34790.0000........................... 7
34791.0000......................... 43
34792.0000......................... 43
34797.0000........................... 5
35022.0000......................... 43
35023.0000......................... 43
35077.0000.................... 15,37
35106.0000......................... 15
35108.1000........................... 7
35132.0000......................... 15
35164.1000........................... 9
35165.0000......................... 15
35166.1000......................... 43
35166.1001......................... 43
35171.0000......................... 21
35172.0001......................... 21
35173.0001.................... 19,21
35174.0000......................... 17
35175.1000........................... 9
35177.0000......................... 49
35179.0001........................... 9
35180.0001........................... 9
35181.0001......................... 23
35182.0000......................... 49
35182.0001......................... 49
35189.0000......................... 23
35191.0000......................... 49
35269.0000......................... 45
35270.0000......................... 45
35272.1001......................... 15
35277.0000........................... 5
35305.0000.................... 19,21
35385.0001........................... 9
35386.0001........................... 9
35387.1000......................... 43
35387.1001......................... 43
35478.0000........................... 7
35526.0000......................... 15
35567.0000......................... 43
35573.0000.................... 33,35
35580.0001........................... 9
35581.0001........................... 9
35608.0000......................... 43
35930.0000........................... 7
35998.0001........................... 5
36080.0000......................... 43
36080.0001......................... 43
36080.0002......................... 43
36080.0003......................... 43
36191.1000........................... 5
36192.1000........................... 5
36203.0000.................... 31,37
36204.0000......................... 27
36233.0000......................... 37
36233.0001......................... 37
36301.0000......................... 41
36448.0000......................... 17
37018.0001......................... 43
37152.0001......................... 39
37265.0000......................... 15
37297.0000......................... 37
37711.0000......................... 47
37711.0001......................... 47
37786.0001.................... 23,41
37801.0001......................... 25
37809.1000......................... 15
37843.0000......................... 25
37850.0000.................... 19,21
37853.0000......................... 25
37977.0000......................... 25
37987.0000......................... 25
37990.0000......................... 25
38018.1000.................... 23,25
38104.0000......................... 23
38116.1000......................... 23
38122.0000......................... 23
38129.0001.................... 31,35
38129.0004......................... 35
38129.0005......................... 27
38129.0009.................... 31,35
38129.0012......................... 29
38129.0013......................... 29
38129.0014......................... 35
38129.1000.......... 27,29,33,37
38129.1001.......... 27,29,33,37
38129.1002.......... 27,29,33,37
38231.1000......................... 11
38298.0000......................... 43
38469.0001........................... 5
38519.0000........................... 7
38605.0000............... 17,29,35
38616.0000........................... 7
38765.1000........................... 5
38830.1001......................... 47
38896.0000......................... 11
38897.0000......................... 11
38897.0001......................... 11
38916.0000......................... 11
38917.0000......................... 11
38918.0000......................... 11
39299.0000......................... 51
39301.0000......................... 51
39302.0000......................... 51
39417.0000......................... 47
39428.0000........................... 5
39561.0001........................... 5
39650.1000......................... 47
39689.0000......................... 39
40770.0000......................... 47
M2332.1000 .........................9
M2336.1000 .........................9
M2337.1000 ..................19,21
M2568.1000 ...............7,25,41
53
38311 030308
Loading...
