Bunn ITCB-DV User Manual 2

Download

ITCB

ITCB-DV

Infusion Series

OPERATING & SERVICE MANUAL

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: (217) 529-6601 FAX: (217) 529-6644

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:

1) All equipment other than as speciﬁed below: 2 years parts and 1 year labor.

2) Electronic circuit and/or control boards: parts and labor for 3 years.

3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.

4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis: parts and labor for 3 years or 30,000 pounds of coffee, whichever comes ﬁrst.

These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone at (217) 529-6601 or by writing to Post Ofﬁce Box 3227, Springﬁeld, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN

are not authorized to make modiﬁcations to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and should not be relied upon.

If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the applicable parts and labor warranty periods speciﬁed above) to repair the defective components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost proﬁts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

BUNN, Infusion Series, BrewWISE, CDBC, DBC, ITCB, MHG, Pre-Infusion, Pulse Brew, Smart Funnel, Energy Savings, BUNNLink, Smart Reader, Freshness Timer and Sanitation Alert are either trademarks or registered trademarks of BunnO-Matic Corporation.

Page 2

36748 041504

INTRODUCTION

This equipment will brew either tea or coffee into an awaiting dispenser or reservoir. It can be easily conﬁgured for 120V 15 amp, 120/208V 20 amp or 120/240V 20 amp. The brewer may have an auxillary hot water faucet. It is only for indoor use on a sturdy counter or shelf.

The Infusion Series combines BrewWISE, CDBC and Tea Brewers into one. ITCB is able to brew both tea and coffee with recipe settings and has the following features: Pre-Infusion and Pulse Brew, quick and standard brew, and BrewWISE. It has an LCD for digital readout and programming along with the Smart Funnel options for coffee. The user is able to select regular or quick brew fof tea programming. Other features are Energy Savings mode, BUNNLink compatible, Smart Reader compatible, Freshness Timer and Sanitation Alert.

CONTENTS

Warranty .............................................................................................................2

Introduction ........................................................................................................3

User Notices .......................................................................................................4

Electrical Requirements ......................................................................................6

Plumbing Requirements .....................................................................................7

Tank Drain ...........................................................................................................7

Operating Controls ..............................................................................................8

Initial Set-Up .......................................................................................................9

Tea Brewing ........................................................................................................9

Coffee Brewing ..................................................................................................10

Cleaning ............................................................................................................11

Glossary ............................................................................................................12

Programming ....................................................................................................14

Troubleshooting ................................................................................................63

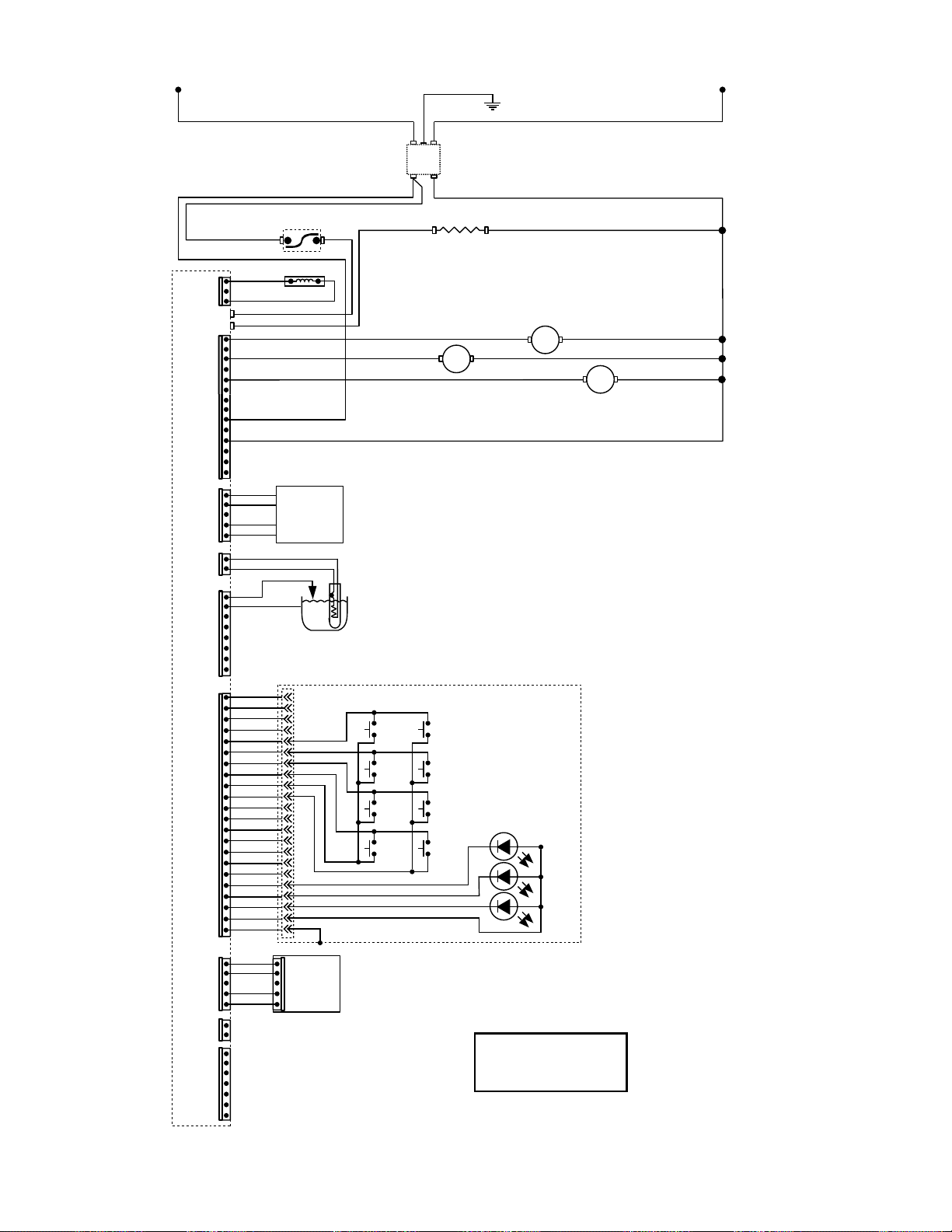

Wiring Diagrams ...............................................................................................77

ITCB-DV ................................................................................................................. Dual Voltage Machine

ITCB-C-DV ........................................................................................... Dual Voltage Machine for Canada

ITCBA ............................................................................................................................ 230 Volt Machine

ITCBB ............................................................................................................................ 200 Volt Machine

Page 3

36748 101505

USER NOTICES

Carefully read and follow all notices in this manual and on the equipment. All labels on the equipment should be kept in good condition. Replace any unreadable or damaged labels.

#00656.0000

#00986.0000

#00658.0000

37881.0000

Page 4

36748 101505

USER NOTICES (CONT.)

For 120/208V or 120/240 volt operation, replace Power Supply Cord only with Bunn-O-Matic part number 01699.0000.

/PTIONAL&IELD7IRING

6!7

0(7IRE'.$(:

"

120/208V 120/240V

120V

/PTIONAL&IELD7IRING

6!7

0(7IRE'.$(:

"

#34056.0001

#34072.0000

#03408.0000

#03409.0000

#29710.0009

Page 5

#29710.0010

36748 101505

WHITE/VIOLET

BLUE

WHITE

BACK

FRONT

120/208V 120/240V

120V

ELECTRICAL REQUIREMENTS

GREEN GREEN

WARNING - The brewer must be disconnected from the power source until speciﬁed in Initial Set-Up.

Requirements for brewers without an attached cord set are as follows:

Refer to Data Plate on the Brewer, and local/national electrical codes to determine circuit requirements.

RED

WHI

BLK

120V AC

single phase models

Note: The two electrical services above require 3 current carring conductors (Neutral, L1 and L2) and a separate conductor for earth ground

ELECTRICAL HOOK-UP

CAUTION – Improper electrical installation will damage electronic components.

1. An electrician must provide electrical service.

2. Determine the available on-site electrical service.

3. Select the desired unit voltage based on the available on-site electrical service.

4. Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.

5. Remove the back access panel to gain access to the terminal block.

6. Feed the supply leads through the strain relief at the rear of the brewer.

7. Using the above diagrams, connect the desired electrical service to the ﬁeld wiring terminal block.

8. If wiring the machine for operation on 120/208 or 120/240 volts with a Power Supply Cord, the Power Supply Cord must be UL Listed Flexible Cord Type SO, SJO, SJTO, HSJO or SJOW, No. 12 AWG, 4 Conductor, Rated 90° C. Attachment Plug Cap must be UL Listed, NEMA 14-20P or L14-20P Conﬁguration, Rated 125/250V, 20 AMPS. If wiring the brewer for operation at 200V or 230V with a Power Supply Cord, the Power Supply Cord must be of type “H07RN-F” with <HAR> marking, 1.5 mm2 conductor size, rated mimimom 90°C. Attachment male plug must be appropriate for Local/National use and must meet any Local/National Regulatory requirements/certiﬁcations if applicable. The Power Supply Cord must be at least 3 feet (.91 m) long and maximum 6 feet (1.82 m) long (measured from Strain Relief to end of the Attachment Plug Cap).

NOTE: If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a

similarly qualiﬁed person in order to avoid a hazard.

9. Connect the brewer to the power source and verify th

9. Connect the brewer to the power source and verify the voltage at the terminal block.

10. Set toggle switch on component bracket to the appropriate position and replace the access panel.

11. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source. If plumbing has been hooked up, the brewer is ready for Initial Set-Up.

120V. A.C.

RED

WHI

BLK

120V. A.C.

208 or 240V. A.C.

120V. A.C.

120/208 & 120/240V AC

single phase models

BLK

RED

200 or 230V. A.C.

200 or 230V AC

single phase models

Note: This electrical service consists of 2 current carrying conductors (L1 and L2)

and a separate conductor

for earth ground.

Page 6

DUAL VOLT

TOGGLE SWITCH

36748 101505

PLUMBING REQUIREMENTS

This brewer must be connected to a cold water system with operating pressure between 20 and 90 psi (138 and 620 kPa) from a 1⁄2" (12.7 mm) or larger supply line. A shut-off valve should be installed in the line before the brewer. Install a regulator in the line when pressure is greater than 90 psi (620 kPa) to reduce it to 50 psi (345 kPa). The water inlet ﬁtting is 1⁄4" (6.35 mm) ﬂare.

NOTE - Bunn-O-Matic recommends 1⁄4" (6.35 mm) copper tubing for installations of less than 25 feet (7.62 m) and

⁄8" (9.5 mm) for more than 25 feet (7.62 m) from the 1⁄2" (12.7) water supply line. A tight coil of copper tubing in the water line will facilitate moving the brewer to clean the counter top. Bunn-O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water ﬂow.

This equipment must be installed to comply with the Basic Plumbing Code of the Building Ofﬁcials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation Manual of the Food and Drug Administration (FDA). For models installed outside the

U.S.A., you must comply with the applicable Plumbing/Sanitation Code for your area.

PLUMBING HOOK UP

1. Flush the water line and securely attach it to the inlet ﬁtting at the bottom rear of the brewer.

2. Turn on the water supply.

TANK DRAIN

1. Remove back access cover.

2. Close the white clamp on the drain hose.

Unfasten the hose clamp at the inlet valve. Remove the hose from the valve.

4. Place the end of the drain hose in a container that has a minimum capacity of 2.0 gallons (7.5 liters).

5. Release the white clamp to drain the water from the tank.

When tank is empty, leave the white clamp open, and install the hose back on the valve. Tighten the hose

clamp at the end of the hose around the valve ﬁtting.

7. Replace the back access cover.

Page 7

36748 101505

OPERATING CONTROLS

HALF

FULL

"2%7

READY TO BREW

WATER TEMP: 205°

A. ON/OFF SWITCH Pressing the "ON/OFF" pad will alternately turn the brewer on and off. Pressing this pad during the brew cycle will interrupt the brew cycle, stopping the ﬂow of water. Pressing this pad during programming of the brewer will exit the setup and return to the main screen.

B. PROGRAMMING (left) This hidden pad can be used to scroll backwards through the function list while in programming mode.

C. BREW (A,B,C) and FUNCTION

When the ON/OFF is ON and the brewer is on the main screen (not in programming mode), momentarily

pressing and releasing this pad will begin a brew cycle. These are also used to program the brewer when in the programming mode.

D. PROGRAMMING (right) Pressing and holding this pad allows entry into the programming menus. Pressing and releasing the pad steps through each function screen while in the programming mode.

E. BATCH SELECTOR PADS Pressing the pad corresponding to the Half or Full batch selects the amount of product to be brewed. Pressing a different pad after a brew cycle has been initiated does not change the brew batch in progress. Light indicates the selected batch to brew. Also used in programming to adjust settings on both batch sizes.

F. FUNCTION SCREEN This is the display which shows the various functions of the brewer and allows the programming to be accomplished.

G. FUNNEL SENSING COIL This is used to "receive" information from the Smart Funnel handle, recipe cards, and ad cards.

Page 8

36748 041504

INITIAL SET-UP

1. Insert an empty funnel into the funnel rails.

2. Place an empty server under the funnel.

Connect the brewer to the power source. Make sure

the ON/OFF switch is ON (LED will be lit).

4. Water will ﬂow into the tank and stop when the tank

is ﬁlled to its capacity. Display will show PLEASE WAIT...TANK FILLING until tank is ﬁlled with water.

5. Wait approximately twenty minutes for the water in

the tank to heat to the proper temperature. Display will show READY TO BREW...WATER TEMP: 205° when tank is at operating temperature. Some water will drip from the funnel during this time; this is due to expansion and should not occur thereafter.

6. Place a small vessel beneath the faucet and open

the faucet handle. Release it when you hear the tank reﬁlling.

7. Water volumes and ﬂow settings have been preset

at the factory. Refer to adjustments for the Set Brew Volumes section of this manual should the volume need to be increased or decreased.

8. The brewer is now ready for use in accordance with the

instructions for Tea Brewing and Coffee Brewing.

VIEWING ASSIGNED RECIPES & ASSET NUMBER

1. Make sure the ON/OFF switch is OFF (LED will not be lit).

2. Press and hold BREW A. The display will show the name of the recipe assigned to Brew A along with SWITCH

NOT ON. This is to indicate that a brew cannot be initiated while the ON/OFF switch is OFF.

3. Repeat for BREW B and BREW C.

Make sure the ON/OFF switch is OFF. To view the asset number of the machine, press and hold the left hid

den button until the display reads: ANXXXXXX...ASSET NUMBER. Release the left hidden button.

5. After a 5 second delay, the display will read: ITCBXXXXXX. This is the serial number of the machine.

Page 9

36748 101505

TEA BREWING

1. Begin each brew cycle with a clean empty brew funnel and server. (Be sure the server lid doesn’t interfere with the ﬂow of dilution water.)

2. Insert a BUNN ﬁlter into the funnel.

Pour the packet of loose fresh tea leaves into the ﬁlter. Approximately three to ﬁve ounces is recommended

3. for three gallons of beverage.

4. Level the bed of tea leaves by gently shaking.

Slide the funnel into the funnel rails until it stops.

6. The ON/OFF must be ON. Select which batch size to brew.

7. Momentarily press and release the assigned BREW button. There may be certain situations in which the brew cycle will not begin when BREW is pressed:

a. b. BREW TEMPERATURE TOO LOW – wait until heated or cancel BREW LOCKOUT option (Page 17). c. CHECK FUNNEL d.

8. If none of the above messages are displayed, the display will read

9. Following the brew will be a countdown of drip time DRIPPING which shows the time remaining until the

10. Carefully remove the brew funnel and discard the tea leaves and ﬁlter only after visible dripping stops.

SWITCH NOT ON - ON/OFF must be ON.

– remove funnel, empty previously brewed leaves and replace with fresh tea leaves.

DISABLED - select different brew button or batch size.

NOW BREWING and show the time re-

maining in the brew cycle.

tea no longer drips from the funnel tip.

COFFEE BREWING

WITHOUT A SMART FUNNEL AND G9-2T DBC GRINDER:

1. Begin each brew cycle with a clean empty brew funnel.

Insert a BUNN ﬁlter into the funnel.

3. Pour the fresh coffee into the ﬁlter and level the bed of grounds by gently shaking.

4. Slide the funnel into the funnel rails until it stops.

Place an empty server under the funnel.

6. The ON/OFF must be ON. Select the FULL batch size.

7. Momentarily press and release the assigned BREW button. There may be certain situations in which the brew

cycle will not begin when BREW is pressed:

b. BREW TEMPERATURE TOO LOW – wait until heated or cancel BREW LOCKOUT option (Page 17). c. CHECK FUNNEL – remove funnel, empty previously brewed grounds and replace with fresh.

d. DISABLED - select different brew button or batch size. e. COFFEE FUNNEL? – appears when brew volume is greater than 86.0 oz. (2.54 L) and pulse brew is

8. If none of the above messages are displayed, the display will read NOW BREWING and show the time remain-

9. Following the brew will be a countdown of drip time DRIPPING which shows the time remaining until the

10. Carefully remove the brew funnel and discard the grounds and ﬁlter only after visible dripping stops.

SWITCH NOT ON - ON/OFF must be ON.

disabled. Check to make sure the correct funnel is in place, and then press BREW again.

ing in the brew cycle.

coffee no longer drips from the funnel tip.

WITH A SMART FUNNEL AND G9-2T DBC or MHG GRINDER:

1. Select the small batch size on the grinder.

Insert a BUNN ﬁlter into the funnel.

3. Grind the selected amount of fresh coffee into the Smart Funnel using the G9-2T DBC or MHG with Smart

Funnel operation and level the grounds by gently shaking.

4. Slide the funnel into the funnel rails. The brewer will read the coffee name and size ground through the chip

in the funnel handle.

Page 10

36748 101505

NOTE: The brewer will automatically match the brew batch size to the grinder batch size: GRINDER BREWER Small Half Batch Medium Full Batch Large *Full Batch *If BREW is pressed with a large grinder batch, the display will read: INCORRECT GRIND...BATCH SIZE WRONG, and then PRESS BREW TO BREW ANYWAY.

5. Place an empty server under the funnel. The ON/OFF must be ON.

7. Momentarily press and release the assigned BREW button. There may be certain situations in which the brew

cycle will not begin when BREW is pressed:

b. BREW TEMPERATURE TOO LOW c. CHECK FUNNEL

SWITCH NOT ON - ON/OFF must be ON.

– wait until heated or cancel BREW LOCKOUT option (Page 17).

– remove funnel, empty previously brewed grounds and replace with fresh.

INCORRECT GRIND - Indicates a large batch was ground using the grinder. Check batch size and grind

weight.

8. If none of the above messages are displayed, the display will read

NOW BREWING and show the time remain-

ing in the brew cycle.

9. Following the brew will be a countdown of drip time DRIPPING which shows the time remaining until the

coffee no longer drips from the funnel tip.

10. Carefully remove the brew funnel and discard the grounds and ﬁlter only after visible dripping stops.

CLEANING

CAUTION – CLEAN AND SANITIZE YOUR ICED TEA BREWER DAILY

1. Remove and thoroughly clean the entire brew funnel. The funnel tip and screen must be free from any tea

particles or residue. Reassemble the funnel.

2. Remove and thoroughly rinse the sprayhead. The holes must be open and clear of any mineral deposits. Wipe

the sprayhead panel clean with a damp cloth.

NOTE – Any buildup on the sprayhead may restrict water ﬂow, and impact yuor brewing. For consistently great tea and coffee, clean sprayhead weekly with sprayhead cleaning tool (#38227.0000). Upon visual inspection it may appear that light passes through all holes in the sprayhead, but a thin ﬁlm of residue can pass light and still impede water ﬂow. a. Remove sprayhead from brewer. b. Use the pointed end of sprayhead cleaning tool to remove any mineral deposits from the sprayhead

holes.

c. Insert the long end of sprayhead cleaning tool into the sprayhead ﬁtting, and rotate several times to

remove any mineral deposits from the ﬁtting.

3. The use of a damp cloth rinsed in any mild, nonabrasive, liquid detergent is recommended for cleaning all

surfaces on Bunn-O-Matic equipment. Do NOT clean this equipment with a water jet device.

CAUTION – DO NOT KEEP BREWED ICED TEA OVERNIGHT. THE SERVER MUST BE CLEANED DAILY.

See page 50 of instruction manual for calibration routine to verify sprayhead ﬂow rate matches programmed

ﬂow rate. Brewer may need to be re-calibrated due to lime build up. If brewer is cleaned and build up removed, brewer must be re-calibrated to achieve desired volumes.

Page 11

36748 101505

GLOSSARY

AD CARD: An assembly consisting of computer chips and an instruction label. Used for loading advertising

messages into the brewer. AUTO PULSE BREW SETUP: The setting of a pulse brew routine by entering in the total desired brew time. The brewer will then calculate and perform a pulse brew routine using a predetermined formula. BREW LOCKOUT: The inability to initiate a brew if the water temperature is less than the ready temperature programmed into the brewer. CHIP: A computer chip containing either recipes for speciﬁc coffee ﬂavors or advertising messages that are read by the sensing coil on the brewer. One chip is embedded in each Smart Funnel handle to carry the coffee ﬂavor name and batch size ground from the grinder to the brewer.

DILUTION: Water added to tea concentrate. DILUTION DELAY: The length of time from when the brew is initiated until the dilution water starts. DRIP TIME: The length of time from when the water spray over the grounds ends to the time when no water or

product drips from the funnel tip. ENERGY SAVINGS MODE: If enabled, the brewer will either shut down or reduce the tank holding temperature to 140°F (60°C) after the set idle time.

FACTORY DEFAULTS: The factory preset brew settings that were installed into the brewer’s memory. FIRST ON-TIME: During a pulse brew, this is the time set for the initial ﬂow of water over the grounds or tea

leaves. FRESHNESS TIMER: If enabled, the brewer will display an alert if a new tea or coffee batch has not been brewed before the set time has expired. FUNNEL SENSING COIL: A sensor at the front of the brewer that reads what name and batch size of coffee was ground into the funnel and allows for the brewer to automatically set itself to what is read from the funnel handle. Also used to read in recipe and ad card information. IDLE TIME (ENERGY SAVINGS MODE): If ENERGY SAVINGS Mode is enabled, the length of time the brewer is inactive before the machine turns off or holds at 140°F (60°C). LAST ON-TIME: During a pulse brew, this is the time set for the second on-time and each alternative on-time for the remainder of the brew. MAIN SCREEN: The term used to describe the screen that is displayed when the brewer is not in use. This screen is also displayed after exiting the programming mode. MANUAL PULSE BREW SETUP: The setting of a pulse brew routine by manually entering in the 1st on time, off time and last on time. MASTER TEMP: The temperature at which the tank will heat to and hold. If the brewer is in Master Temp mode, all initiated brews will be at this temperature. OFF-TIME: During a pulse brew or preinfusion, this is the time set for the length of time that the water is not spraying over the grounds. PREINFUSION: The process of beginning a brewing cycle with an initial spray of water onto the grounds followed by a pause in the spray. After the programmed pause, the spray continues without interruption until the end of the brewing cycle. PULSE BREW: The process that allows the brew water to start, and then stop, repeatedly over the grounds or tea leaves in order to derive the best ﬂavor from the coffee or tea. Pulse brew is also used in some instances to prevent a funnel overﬂow.

Page 12

36748 041504

GLOSSARY (Continued)

RECIPE: Set of brewing parameters stored in the brewer. The parameters are unique for each tea and coffee

name. Tea recipes include brew ounces, dilution ounces, dilution delay, pulse brew, and drip time. Coffee recipes include brew ounces, pulse brew and drip time. RECIPE CARD: An assembly consisting of a computer chip and an instruction label. Used for loading a recipe into the brewer and the companion DBC Grinder.

RECIPE TEMPS: Allows a different temperature to be set for each brew recipe. NOTE – Using this setting will override the Master Temp setting. The tank will hold at the lowest set temperature.

A short heating time may be required if all brew recipes are not set at the same temperature. SANITATION MODE: If enabled, the brewer will display a message after a set amount of time indicating the machine needs cleaning and sanitizing. TEA 1, TEA 2, TEA 3, HOT TEA, ICED COFFEE, NO-NAME COFFEE: The preset recipes stored in the brewer. Used by the brewer when there is no coffee name stored in the Smart Funnel or if a recipe card is not used. WARNING TIME (FRESHNESS TIMER): If the Freshness Timer is enabled, the length of time from when the brew was completed until a “Freshness Alert” message will display, communicating that a fresh batch of product needs to be brewed.

Page 13

36748 080904

PROGRAMMING

HALF

FULL

"2%7

Using the menu-driven display on the front of the brewer, the operator has the ability to alter or modify various brewing parameters such as brew temperatures, brew volumes, dilution volumes, pulse brew, etc. This allows for the precise brewing of various ﬂavors of tea and coffee. Programming of the brewer is achieved by entering a certain function. Then, by the use of hidden programming switches and the brew/function buttons, the operator can customize the brewing process to their speciﬁcations.

PROGRAMMING SWITCHES

To access the programming mode, and to scroll through the different function screens, hidden programming switches are used. There are ﬁve of these switches that will be used for the setup of the brewer.

READY TO BREW

WATER TEMP: 200°

c d e

a) Right Programming (hidden) button

(just to the right of the display): This is used to access the program-

ming mode, and is also used to scroll forward through the function list.

b) Left Programming (hidden) button (just to the left of the display): This is used to scroll backwards through

the function list.

c) Brew A

: This is used to select options that appear on the display during programming.

d) Brew B: This is used to select options that appear on the display during programming. e) Brew C

: This is used to select options that appear on the display during programming.

PROGRAMMING SECTION

PROGRAMMING SWITCHES -------------------------------------- 14 PROGRAMMING THE BREWER ---------------------------------- 15 FUNCTION FLOW CHART ------------------------------------------ 16 BREW LOCKOUT --------------------------------------------------- 17 SET LANGUAGE ---------------------------------------------------- 18 UNITS ---------------------------------------------------------------- 19 REVIEW RECIPES -------------------------------------------------- 20 ASSIGN RECIPE ---------------------------------------------------- 21 DISABLE BREW SWITCH ------------------------------------- 21 SET NEW RECIPE (USING A SMART ------------------------------ FUNNEL AND GRINDER) -------------------------------------- 22 SET NEW RECIPE (USING RECIPE CARD) ---------------------- 24 SET NEW RECIPE (NO SMART FUNNEL, -------------------------- GRINDER OR RECIPE CARD) --------------------------------- 25 REVIEW/MODIFY/SETUP TEA RECIPES BREW OZ ------------------------------------------------------- 26 DISABLE BATCH SIZE ----------------------------------------- 26 DILUTE OZ ------------------------------------------------------ 27 DILUTE DELAY ------------------------------------------------- 28 PULSE BREW --------------------------------------------------- 29 DRIP TIME ------------------------------------------------------ 33

REVIEW/MODIFY/SETUP COFFEE RECIPES BREW OZ ------------------------------------------------------- 34 PULSE BREW --------------------------------------------------- 35 DRIP TIME ------------------------------------------------------ 39 SET TEMP ----------------------------------------------------------- 40 READY DEGREE ---------------------------------------------------- 41 ENABLE ADS -------------------------------------------------------- 42 ENABLE SANITATION ---------------------------------------------- 44 ENABLE ENERGY SAVER ------------------------------------------ 45 ENABLE FRESHNESS TIMER ------------------------------------- 46 REFILL --------------------------------------------------------------- 47 FLOW RATES -------------------------------------------------------- 48 CALIBRATE FLOW -------------------------------------------------- 50 BREW COUNTERS -------------------------------------------------- 52 SET RECIPE TEMPS ------------------------------------------------ 53 ASSET NUMBER ---------------------------------------------------- 54 SERVICE NUMBER ------------------------------------------------- 55 SERVICE TOOLS ---------------------------------------------------- 56 FACTORY DEFAULTS ----------------------------------------------- 60 DEFAULT SETTINGS ------------------------------------------------ 61

Page 14

36748 101505

PROGRAMMING THE BREWER

BREW

MEMORY

LOCK UNLOCK

The programming of the brewer is divided into two levels. There is one function in Level 1. All other functions are accessed in Level 2. The following function screens are in order of appearance. Each screen will have instructions on how to access and the procedures to program the various functions of the brewer.

IMPORTANT PROGRAMMING NOTES

- READ CAREFULLY -

To exit the programming mode at any time, press and release the ON/OFF pad located on the front switch panel. The display will return to the MAIN SCREEN. If none of the ﬁve programming switches are pressed within one minute during the setup of the brewer, the programming of the function screen that is being set will be exited and the display will return to the MAIN

SCREEN. Always remember to place a container and funnel under the sprayhead when operating the brewer during the set-up of CALIBRATE FLOW, and testing the brew and dilution valves in SERVICE TOOLS/TEST OUTPUTS.

MAIN SCREEN

READY TO BREW

WATER TEMP: 205°

This screen will be shown when the brewer is ready for use. The screen displays the water temperature in the tank. When the water in the tank reaches the correct set temperature, the display will change from

HEATING to READY TO BREW.

PROGRAMMING LOCKOUT SWITCH ((located on the memory module board prior to S/N ICB0007479

- located on the main circuit board S/N ICB0007479

and after)) This switch can be set to prevent access to the

programming settings of the brewer. Once all the correct brew settings are programmed, the operator can set the switch to the "ON" position to prohibit anyone from changing the settings. With the switch in the "ON" position, the programming menus can still be accessed to view the current settings. However, no changes will be saved.

PROGRAMMING

LOCKOUT SWITCH

P3048

Page 15

36748 070706

BREWABREWBBREW

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

PROGRAMMING FUNCTIONS - FLOW CHART

PROGRAMMING FUNCTIONS - LEVEL I

PROGRAMMING FUNCTIONS - LEVEL 2

BREW LOCKOUT?

NO DONE YES

SET LANGUAGE?

NO YES

SET NEW RECIPE?

NO YES

ENABLE SANITATION

NO DONE YES

SPRAY OZ/M: XX.X

METRIC DONE ENG

ENABL ENERGYSAVR

UNITS

SET TEMP 205°

(-) DONE (+)

NO DONE YES

DILUTE OZ/M: XX.X

(-) DONE (+) (-) DONE (+)

REVIEW RECIPES

NO YES

READY DEGREE 5°

(-) DONE (+)

ENABLE FRESH TIMER

NO DONE YES

CALIBRATE FLOW?

NO YES

ASSIGN RECIPE

NO YES

ENABLE ADS?

NO DONE YES

XX REFILL XXX

(-) DONE (+)

BREW COUNTERS?

NO YES

SET RECIPES TEMPS

NO YES

FACTORY DEFAULTS

NO YES

ENTER ASSET #

NO YES

Page 16

ENTER SERVICE #

NO YES

SERVICE TOOLS

NO YES

36748 080904

BREWABREWBBREW

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL I

BREW LOCKOUT

This function allows the operator to prevent or allow brewing if the water temperature is less than the set READY temperature.

Procedure for setting Brew Lockout:

1. To access this function screen press and hold the right hidden button. Release when the display reads:

BREW LOCKOUT?

NO DONE YES

Press here

for YES

2. The

Press here

for NO

Press here

for DONE

YES or NO should be ﬂashing. Select YES to prevent brewing if the water temperature is below the set

READY temperature. Select NO to permit brewing at any water temperature.

3. When ﬁnished, press and release

DONE. This will exit this function screen and return to the MAIN SCREEN

on the display.

Page 17

36748 041504

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

The functions in the second level of programming allow the operator to adjust brew settings and other feature options.

To access the level 2 function screens press and hold the right hidden button. Release when the display reads:

SET LANGUAGE

This function allows the operator to select the language used for the display.

Procedure for setting Language:

1. Press and hold the right hidden button until the display reads SET LANGUAGE? and release.

2. Press

YES to proceed. The display should now read ENGLISH. Using (-) and (+), scroll through the available

languages until the desired language is shown on the display.

3. When ﬁnished, press

DONE. If the language selected is different from the current settings,the display will read CHANGE LANGUAGE? ARE YOU SURE? and then will change to CHANGE LANGUAGE? To convert the display to the new language, press YES. To retain the current language, press NO.

4. The display should now read UNITS. To exit programming and return to the MAIN SCREEN, press and release

the ON/OFF button.

SET LANGUAGE?

NO YES

ENGLISH

(-) DONE (+)

ESPANOL

(-) SELECCIONE (+)

UNITS

METRIC DONE ENG

Scrolls through all

available languages

in memory

Page 18

36748 080904

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) UNITS

This function allows the operator to select if numeric settings are displayed in English or Metric units.

Procedure for setting the Units:

1. Press and hold the right hidden button until the display reads

SET LANGUAGE? Press and release the right

hidden button until the display raeds UNITS. The METRIC or ENG should be ﬂashing.

2. Select

METRIC to have settings displayed in Metric units. Select ENG to have setting displayed in English

units.

NOTE: Changing the UNIT settings will restore ALL settings to Factory Default.

3. When done, press and release

DONE to retain your settings and advance to the next programming screen.

To exit programming and return to the Main Screen, press and release the ON/OFF button.

NOTE: This manual is written based on Factory Default settings (English Units). If the brewer is set for Metric

Units, display will be different. (ex: Brew oz will become Brew ml).

SET LANGUAGE?

NO YES

UNITS

METRIC DONE ENG

Page 19

36748 101505

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

TEA 1

MODIFY SHOW NEXT

TEA 2

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

NO-NAME COFFEE

MODIFY SHOW NEXT

PRESSING BREW B

SCROLLS THROUGH

ALL BREW SETTINGS

FOR THAT RECIPE

PRESSING BREW B

SCROLLS THROUGH

ALL BREW SETTINGS

FOR THAT RECIPE

PRESSING BREW B

SCROLLS THROUGH

ALL BREW SETTINGS

FOR THAT RECIPE

PRESSING BREW B

SCROLLS THROUGH

ALL BREW SETTINGS

FOR THAT RECIPE

PRESSING NO WILL

ADVANCE TO NEXT FUNCTION SCREEN

SCROLLS THROUGH

ALL DEFAULT RECIPES

THAT WAS THE

LAST RECIPE

REVIEW RECIPES

NO YES

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

REVIEW RECIPES (Modify recipe, set up standard recipes)

This function has three parts:

1. It allows the operator to view the brew settings for the various tea and coffee recipes stored into the brewer.

2. It allows the operator to modify (change) any of the brew settings for a particular recipe stored in the brewer.

3. It is used to set up the standard recipes for Tea, Hot Tea, Iced Coffee and No-Name Coffee.

Procedure for reviewing the recipes:

1. Press and hold the right hidden button until the display reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES. Press YES.

2. The display should now read MODIFY SHOW and NEXT.

3. Press and release SHOW. The screen will scroll through all the brew settings for that particular recipe. When ﬁnished, the display will return to the recipe name just viewed.

TEA 1, along with

4. To see the settings again, press SHOW. To advance to the next recipe, press NEXT.

5. To exit, press NEXT until the display reads THAT WAS THE LAST RECIPE.

6. After 5 seconds, the display will return to the

RE-

VIEW RECIPES screen. Press and release NO to

advance to the next function screen, or press and release the ON/OFF pad to exit the programming mode and return to the MAIN SCREEN.

ARE YOU CREATING OR CHANGING A RECIPE FOR A COFFEE NAME PREVIOUSLY USED IN THIS BREWER?

DON'T YES NO KNOW

YOU WILL MODIFY

AN EXISTING RECIPE

FOLLOW INSTRUCTIONS

ON THE RECIPE CARD

GO TO REVIEW RECIPES, PAGE

26 AND FOLLOW INSTRUCTIONS

SEE RECIPE CHART ON THIS PAGE FOR A LIST OF EXISTING RECIPES.

HAVE YOU RECIEVED A

RECIPE CARD CONTAINING

THE NEW RECIPE?

YES NO

DOES THE GRINDER HAVE

THE NAME IN ITS MEMORY?

NO DON'T KNOW YES

YOU WILL MODIFY

THE NO NAME COFFEE

BREW SETTINGS

GO TO SET NEW RECIPE,

PAGE 21 AND FOLLOW

THE INSTRUCTIONS

REFER TO NAME LIST IN GRINDER MANUAL

CONTACT BUNN-O-MATIC

FOR ASSISTANCE

Page 20

Tea 1 Iced Coffee

No Name Coffee

Tea 2 Tea 3 Hot Tea

RECIPE CHART

P2859

36748 070706

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

EXIT TO

NEXT FUNCTION

SCREEN

BREWABREWBBREW

ASSIGN RECIPE

NO YES

SELECT RECIPE

BREW SWITCH A

TEA 1

(-) DONE (+)

SELECT RECIPE

BREW SWITCH B

HOT TEA

(-) DONE (+)

SELECT RECIPE

BREW SWITCH C

NO-NAME COFFEE

(-) DONE (+)

SCROLL THROUGH

STORED RECIPES

IN BREWER MEMORY

SCROLL THROUGH

STORED RECIPES

IN BREWER MEMORY

SCROLL THROUGH

STORED RECIPES

IN BREWER MEMORY

SET NEW RECIPE

NO YES

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

ASSIGN RECIPE

This function allows the operator to assign recipes to the three brew buttons. Standard recipes (TEA 1, TEA 2, TEA 3, HOT TEA, ICED COFFEE, NO-NAME COFFEE) and any saved recipes from a Smart Funnel or Recipe Card can be assigned to a brew button. Only one recipe per brew button is allowed, for a total three recipes available to brew.

NOTE: Factory Defaults assign the TEA 1 recipe to Brew A, HOT TEA recipe to Brew B, and NO-NAME COFFEE to Brew C.

Procedure to select switch recipes:

1. Press and hold the right hidden button until the

display reads SET LANGUAGE. Press the right hid- den button until the display reads SELECT SWITCH RECIPE? Press YES.

2. The display should now read SELECT RECIPE BREW SWITCH A, and then TEA 1.

3. Using (-) and (+), scroll through the stored recipes in the brewer’s memory until the desired recipe name is reached.

4. Press and release DONE to set that recipe for brew button A.

5. The display should now read SELECT RECIPE BREW SWITCH B, and then HOT TEA.

6. Using in the brewer’s memory until the desired recipe name is reached.

7. Press and release DONE to set that recipe for brew button B.

8. The display should now read SELECT RECIPE BREW SWITCH C, and then NO-NAME COFFEE.

9. Using (-) and (+), scroll through the stored recipes in the brewer’s memory until the desired recipe name is reached.

10. Press and release DONE to set that recipe for brew button C.

11. The display should now read REVIEW RECIPES.

Procedure to disable a Brew Switch:

1. Follow the same procedure as above. When selecting the recipe for the brew switch to be disabled, use (-) and (+) to scroll until the display reads DISABLED.

(-) and (+), scroll through the stored recipes

2. Press and release DONE to disable that brew

switch on that side.

Page 21

P2858

36748 101505

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

CYCLES THROUGH

TWO SCREENS

2 SEC.

FUNNEL DETECTED

FUNNEL CONTAINS

NO NAME

FUNNEL

CONTAINS NAME

SET UP BREW VOLUMES, BYPASS PERCENTAGE,

PULSE BREW TIMES, AND DRIP OUT TIME

SEE SEPARATE DIAGRAMS

FOR SETUP INSTRUCTIONS

MUST GRIND INTO

FUNNEL FIRST

QUIT SETUP?

YES

INSERT FUNNEL

WITH NEW NAME

MASTER TEMP XXX°

NO YES

SET NEW RECIPE?

NO YES

2 BATCHES DONE?

NO YES

BEGIN SETUP OF

(COFFEE NAME)

NO YES

(COFFEE NAME)

SETUP COMPLETE

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) SET NEW RECIPE (to set a new COFFEE recipe using a Smart Funnel or RECIPE CARD)

Using a Smart Funnel and a G9-2T DBC or MHG Grinder: This function allows the operator to set BREW VOLUMES, PULSE BREW TIMES AND DRIP OUT TIMES for

each coffee name preset in the grinder’s memory.

Certain coffee names are stored in the grinder’s memory. When a particular name of coffee is ground into the Smart Funnel, that name and the batch size selected are transferred from the grinder to the programming CHIP located in the funnel handle. The funnel is then inserted into the brewer’s funnel rails. The SENSING COIL on the brewer reads the information contained in the handle. The name of the coffee ﬂavor will then appear on the display. This allows the operator to set the BREW VOLUME, PULSE BREW TIMES and DRIP OUT TIME for that particular coffee name. It also allows the operator to set other brewing parameters, such as BREW TEMPERATURE, BREW LOCKOUT, etc. Each coffee name can be set individually to provide optimum brewing quality.

Page 22

P2854-1

36748 101505

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

5 SEC.

SET PULSE BREW

NO YES

BREW OZ XX.X

(-) DONE (+)

DRIP TIME XX.X

(-) DONE (+)

(COFFEE NAME)

SETUP COMPLETE

THAT WAS THE

LAST RECIPE

MASTER TEMP XXX°

NO YES

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) Procedure for Setting the Recipe: NOTE: Before beginning setup, place a server beneath

the brew funnel.

1. Insert the funnel into the grinder and select the small batch size to grind. It is not necessary to have coffee beans in the hopper(s) in order to program the brewer. The coffee name is pre-selected and stored in the grinder’s memory for the side being ground.

2. Press the GRIND pad. When the grinder stops grinding, remove the funnel.

3. On the brewer, press and hold the right hidden but ton until the display reads SET LANGUAGE. Press and release the right hidden button until the display reads SET NEW RECIPE. Release the right hidden button.

4. Press and release

INSERT FUNNEL WITH NEW NAME, then QUIT SET- UP? These two displays will repeatedly cycle.

5. Insert the funnel into the rails on the brewer. The display should read the name of the coffee that was ground into the funnel, along with a NO and YES. If the name on the display is correct, press YES.

6. If, for some reason, the name of the coffee from the grinder did not load properly into the funnel, or if a grind has not yet been done, the display will read MUST GRIND INTO FUNNEL FIRST. It will be necessary to grind another batch following steps 1 and 2.

NOTE: If brewer memory is full, the display will read

RECIPE STORAGE AREA IS FULL and then REMOVE A FLAVOR? To remove a recipe press and release YES. Press NEXT to scroll through the stored recipes.

When the display reads the name of the recipe to be removed, press and release REMOVE. The display will read REMOVE? Press CANCEL to exit the SET NEW RECIPE function. Press OK to remove that recipe. The display will then show BEGIN SETUP OF (COFFEE NAME). Continue with step 7.

7. If the grind is acknowledged by the brewer, the display will read BEGIN SETUP OF (COFFEE NAME). Then the screen will display BREW OZ and a batch light will be blinking. (Refer to page 34 for description of BREW OZ function).

8. Using be dispensed for that batch size.

YES. The display should read

(-) and (+), set the amount of brew water to

Page 23

9. When ﬁnished, press the other batch size and repeat step #8.

10. When ﬁnished setting both batch sizes, press and release DONE. The display should read 2 BATCHES

DONE?

11. If both batch sizes are not correct press and release NO to return to the BREW OZ setup screen and repeat steps #8, 9 and 10.

12. If both batch sizes are correct, press and release YES to advance to the SET PULSE BREW function. (Refer to page 35 for description of the SET PULSE

BREW function.

13. To

SET PULSE BREW press YES and proceed with

the setup instructions for SETTING PULSE BREW, on page 35.

14. To skip setting the PULSE BREW and to use the

FACTORY DEFAULTS, press NO to proceed to the DRIP TIMES function.

P2855

36748 051304

PROGRAMMING THE BREWER (cont.)

BREW

5 SEC.

POSITION CARD UNDER

SENSOR COIL

SCROLLS THROUGH

ALL BREW SETTINGS

FOR THAT RECIPE

READY TO BREW

WATER TEMP: 205°

READY TO BREW

WATER TEMP: 205°

CARD CONTAINS

RECIPE FOR

(COFFEE NAME)

SHOW QUIT SAVE

(COFFEE NAME)

SETUP COMPLETE

(COFFEE NAME)

NOT SAVED

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

15. The display should now read DRIP TIME, along with either the word OFF or a time showing. A batch light will also be blinking.

16. Using

(-) and (+), set the amount of time from when

the brew spray ends to when the funnel is emptied of hot liquid.

17. When ﬁnished, press the other batch size and repeat step #16

18. When ﬁnished setting both batch sizes, press

DONE.

The display should read 2 BATCHES DONE?

19. Press and release

YES.The screen should show the

name of the coffee being programmed (modiﬁed) along with SETUP COMPLETE.

20. After a 5 second delay, the display will advance to the next coffee name in the brewer’s memory. If no other coffee names are present, the display will read THAT WAS THE LAST RECIPE, and advance to the MASTER TEMP screen.

SET NEW RECIPE Using a RECIPE CARD to load coffee names and brew settings

The G9-2T DBC or MHG Grinder’s memory contains certain coffee names. If the operator uses a coffee name that is not already stored in the grinder’s memory, a

RECIPE CARD can be obtained from the factory. The RECIPE CARD would include all the information needed

to set up that particular coffee name. The information from the RECIPE CARD is loaded into the grinder’s memory, then into the brewer’s memory by holding the chip area up to the equipment’s SENSING COIL. This information can include the coffee name, BREW VOLUMES, PULSE BREW TIMES and DRIP OUT TIME for that particular coffee name. These can all be loaded in seconds.

2. Position the RECIPE CARD vertically, so that the top end of the CHIP is beneath the SENSING COIL (located on the middle of the underneath side of the front display panel).

3. After a short pause the display will read

CARD CONTAINS RECIPE FOR then will change to (COFFEE NAME) SHOW QUIT SAVE. All brewing parameters

for that coffee ﬂavor are now transferred from the CARD to the brewer.

Contact Bunn-O-Matic Corporation for the availability of RECIPE CARDS. NOTE: Instructions to program the brewer and grinder are printed on the RECIPE CARD, along with the coffee name that is being programmed.

Procedure to program the coffee name:

1. Remove the funnel (if present) from the funnel rails.

Page 24

P2856

36748 101505

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

EXIT TO

NEXT FUNCTION

SCREEN

REVIEW RECIPES?

NO YES

TEA 1

MODIFY SHOW NEXT

(COFFEE NAME)

MODIFY SHOW NEXT

SCROLLS THRU

TEA 1, TEA 2, TEA 3,

HOT TEA, ICED COFFEE

and NO-NAME

COFFEE RECIPES

SET UP BREW VOLUMES, PULSE BREW

TIMES, AND DRIP OUT TIME

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

4. To show (view) this information, press and release

SHOW. The display will scroll through all of the brew settings for that recipe. This display will then return to CARD CONTAINS RECIPE FOR then will change to (COFFEE NAME) SHOW QUIT SAVE.

5. If all brew settings are correct, press

SAVE. The display will read (COFFEE NAME) SETUP COM- PLETE. All brew settings for that name are now stored in the brewer’s memory.

6. If the brewing information is not correct, or it is desired to exit the setup before the settings are loaded into the brewer’s memory, press QUIT. The display will read (COFFEE NAME) NOT SAVED. The display will then return to the MAIN SCREEN.

SET NEW RECIPE If not using a Smart Funnel and/or a G9-2T DBC or MGH Grinder and/or a Recipe Card

It is possible to operate the brewer without using a Smart Funnel and/or G9-2T DBC or MHG Grinder. If a standard funnel or if a non-DBC grinder is used the brewer will automatically select the recipe assigned to that brew button. This means that no name was read from the funnel’s handle.

For instructions on programming the NO-NAME COF- FEE settings, refer to the REVIEW RECIPES function on page 34. The same steps are followed for setting the NO-NAME COFFEE recipe as those that are used to modify a recipe. Note that when the display reads NO-NAME COFFEE, that is when MODIFY should be pressed in order to set the parameters.

P2857

NOTE: Before beginning setup, insert a funnel into the funnel rails and place a server or dispenser beneath the brew funnel.

Page 25

36748 101505

BREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

BREW OZ XX.X

(-) DONE (+)

2 BATCHES DONE?

NO YES

ADVANCE TO THE

RECIPE TO BE

MODIFIED

PRESSING NO WILL

ADVANCE TO NEXT FUNCTION SCREEN

SET BOTH

BATCH SIZES

IF NO, RETURN TO

BREW OZ

DILUTE OZ XX.X

(-) DONE (+)

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Procedure for modifying TEA recipes:

Tea recipes: BREW OZ: Range: OFF, 10.0 oz to 135.0 oz (.3-4.0 L) for both batch sizes

This function allows adjustment of the brew (tea concentrate) volumes for each batch.

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

2. Press YES to proceed. The display should now read TEA 1, along with MODIFY SHOW NEXT.

3. Press and release NEXT to advance to the desired recipe to be modiﬁed.

4. Press and release MODIFY. The display should read BREW OZ: and a batch light will be blinking. Press and release the batch size to be modiﬁed.

5. Using (-) and (+), set the amount of brew water to be dispensed over the tea leaves for that particular batch size.

6. When ﬁnished, press the other batch size and repeat step #5.

7. When ﬁnished setting both batch sizes, press and release DONE. The display should read 2 BATCHES DONE?

8. If both batch sizes are not correct, press and release NO to return to the BREW OZ: setup screen and repeat steps #5, 6, and 7.

9. If both batch sizes are correct, press YES. This will advance to the DILUTE OZ: function. To exit to the MAIN SCREEN, press and release the ON/OFF button.

Procedure to disable a batch size:

1. Follow same procedure as above. Select the batch size to be disabled.

2. Using (-) and (+), scroll until the display reads

BREW OZ OFF.

3. Press and release DONE. This will disable this batch size for that recipe.

Page 26

P2860

36748 101505

PROGRAMMING THE BREWER (cont.)

BREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

2 BATCHES DONE?

NO YES

ADVANCE TO THE

RECIPE TO BE

MODIFIED

SET BREW OZ XX.X

WHEN BOTH BATCHES ARE DONE,

PRESS YES TO ADVANCE TO

DILUTE OZ XX.X

PRESSING NO WILL

ADVANCE TO NEXT FUNCTION SCREEN

SET BOTH

BATCH SIZES

IF NO, RETURN TO

DILUTE OZ

DILUTE OZ XX.X

(-) DONE (+)

DILUTE DELY

(-) DONE (+)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Tea recipes: DILUTE OZ: Range: 0.0 oz to 580.0 oz (0-17.1 L) for both batch sizes

This function allows adjustment of the dilution volumes for each batch.

NOTE: If the brewer is already on the DILUTE OZ: screen, skip steps 1 through 6, and proceed directly to step 7.

1. Press and hold the right hidden button until the dis

2. Press YES to proceed. The display should now read

3. Press and release NEXT to advance to the desired

4. Press and release MODIFY. The display should read

5. Press and release DONE. The display should read

6. Press and release

7. Using (-) and (+), set the amount of dilution water

8. When ﬁnished, press the other batch size and repeat

9. When ﬁnished setting both batch sizes, press and

10. If both batch sizes are not correct, press and release

11. If both batch sizes are correct, press YES. This will

play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

TEA 1, along with MODIFY SHOW NEXT.

recipe to be modiﬁed.

BREW OZ:

2 BATCHES DONE?

YES. The display should now

read DILUTE OZ: and a batch light will be blinking. Press and release the batch size to be modiﬁed.

for that particular batch size to be dispensed through the nozzle into the tea dispenser.

step # 7.

release DONE. The display should read 2 BATCHES

DONE?

NO to return to the DILUTE OZ: setup screen and

repeat steps 7, 8 and 9.

advance to the DILUTE DELY function. To exit to the MAIN SCREEN, press and release the ON/OFF button.

P2861

Page 27

36748 101505

PROGRAMMING THE BREWER (cont.)

BREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

2 BATCHES DONE?

NO YES

ADVANCE TO THE

RECIPE TO BE

MODIFIED

SET BREW OZ XX.X

AND SET DILUTE OZ XX.X

WHEN BOTH BATCHES ARE DONE,

PRESS YES TO ADVANCE TO

DILUTE DELAY

PRESSING NO WILL

ADVANCE TO NEXT FUNCTION SCREEN

SET BOTH

BATCH SIZES

IF NO, RETURN TO

DILUTE DELY

(-) DONE (+)

SET PULSE BREW

NO YES

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Tea recipes: DILUTE DELAY Range: OFF to 10 minutes for both batch sizes

This function allows the operator to adjust the timing for the start of the dilution water. The OFF setting will begin dilution ﬂow immediately after the brew button is pressed (simultaneously with the brew water). If a time is set for Dilution Delay, the dilution water dispense will be delayed for that set time after the brew button is pressed and the brew started. NOTE: If the brewer is already on the DILUTE DELY screen, skip steps 1 through 8, and proceed directly to step 9.

1. Press and hold the right hidden button until the dis play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

2. Press YES to proceed. The display should now read TEA 1, along with MODIFY SHOW NEXT.

3. Press and release NEXT to advance to the desired tea recipe to be modiﬁed.

4. Press and release MODIFY. The display should read BREW OZ:

5. Press and release DONE. The display should read 2 BATCHES DONE?

6. Press and release YES. The display should now read DILUTE OZ:

7. Press and release DONE. The display should read

2 BATCHES DONE?

8. Press and release DILUTE DELY: and a batch light will be blinking. Press and release the batch size to be modiﬁed.

9. Using (-) and (+), set the time delay for the dilution

YES. The display should now read

water for that particular batch size.

10. When ﬁnished, press the other batch size and repeat step # 9.

11. When ﬁnished setting both batch sizes, press and release DONE. The display should read 2 BATCHES

DONE?

12. If both batch sizes are not correct, press and release NO to return to the DILUTE DELY setup screen and repeat steps 9, 10 and 11.

13. If both batch sizes are correct, press YES. The display should now show the Brew Oz, Dilution Oz, and Dilution Delay setting for the batch size just programmed. After a 5 second delay, the display will read SET PULSE BREW. To exit to the MAIN SCREEN, press and release the ON/OFF button.

P2862

Page 28

36748 051304

PROGRAMMING THE BREWER (cont.)

INITIAL SPRAY

ALTERNATES UNTIL

BREW CYCLE IS

COMPLETED

REMAINING ON

ON-

TIME

OFF-

TIME

OFF-TIME

OFF-

TIME

OFF-

TIME

ON-

TIME

ON-

TIME

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

TEA RECIPES: SET PULSE BREW

This function allows the operator to program the brewer to “pulse” the sprayhead ﬂow on and off during a brew cycle (start and stop the ﬂow of water out of the sprayhead). This feature allows the ability to “ﬁne-tune” the brewer for speciﬁc ﬂavor proﬁles. Pulse brewing can be set up for any and all batch sizes.

P2293

a) 1st ON TIME – This time is the duration from when the brew button is pressed to when the desired water level in the funnel is reached. (Soaking the tea leaves) b) OFF-TIME – This time is the duration from when the water in the funnel reaches the desired ON TIME to when it drains out of the funnel to a desired lower level. c) LAST ON-TIME – This time is the duration from when the water in the funnel drains down to the lower level to when it ﬁlls the funnel to a desired higher level. (Soaking the tea leaves)

Setting Pulse Brew – EASY Pulse Brew Range: Minimum: will adjust to the minimum time required to brew that batch using the set brew volumes and ﬂow rate for the sprayhead. Maximum – will adjust depending on settings. Will always be minimum time + 3 minutes. The brewer will automatically calculate what the 1ST ON TIME, OFF TIMES, and LAST ON TIME will be using the initial on time, plus a 7 pulse routine.

The other option allows the actual times to be entered for each of the settings. This is done by utilizing the MANUAL PULSE BREW screen and following the subsequent steps under that function.

Setting Pulse Brew – MANUAL Pulse Brew Range: 1ST ON TIME – off to 1 minute OFF TIME – off to 20 seconds LAST ON TIME – Pre-Infusion to 1 minute

These three times can be set two different ways. The ﬁrst is by setting the total brew time and using a calculated pulse routine. This is done by utilizing the EASY PULSE BREW screen and following the setup for that function.

Page 29

36748 070706

PROGRAMMING THE BREWER (cont.)

BREW A BREW B BREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

SELECT METHOD

EASY NEXT MANUAL

ADVANCE TO THE

RECIPE TO BE

MODIFIED

SET BREW OZ XX.X

SET DILUTE OZ XX.X

AND SET DILUTE DELAY

WHEN BOTH BATCHES ARE DONE,

PRESS YES TO ADVANCE TO

EASY PULSE BREW

PRESSING NO WILL

ADVANCE TO NEXT

FUNCTION SCREEN

WITH EASY FLASHING

PRESS NEXT TO

ADVANCE

SET PULSE BREW

NO YES

BREW TIME

(-) DONE (+)

2 BATCHES DONE?

NO YES

SET BOTH

BATCH SIZES

IF NO, RETURN TO

BREW TIME

DRIP TIME

(-) DONE (+)

1ST OFF LAST X:XX X:XX X:XX

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Setting Pulse Brew – EASY Pulse Brew NOTE: If the brewer is already on the SET PULSE BREW screen, skip steps 1 through 9, and proceed

directly to step 10.

17. If both batch sizes are correct, press YES. The display should now read DRIP TIME:. To exit to the MAIN SCREEN, press and release the ON/OFF button.

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

2. Press

read TEA 1, along with MODIFY SHOW NEXT.

3. Press and release recipe to be modiﬁed.

4. Press and release BREW OZ:

5. Press and release DONE. The display should read 2 BATCHES DONE?

6. Press and release YES. The display should now read DILUTE OZ:

7. Press and release DONE. The display should read

2 BATCHES DONE?

8. Press and release YES. The display should now read DILUTE DELY:

9. Press and release DONE. The display should now show the Brew Oz, Dilution Oz, and Dilution Delay setting for the batch size just programmed. After a 5 second delay, the display will read SET PULSE BREW.

10. Press and release YES. The display should now read SELECT METHOD.

11. Press and release EASY. With EASY ﬂashing, press and release NEXT to advance.

12. The display should now read BREW TIME: and a batch light will be blinking. Press and release the batch size to be modiﬁed.

13. Using (-) and (+), set the total brew time desired including spray times and off times.

14. When ﬁnished, press the other batch size and repeat step # 13.

15. When ﬁnished setting both batch sizes, press and release DONE. The display will show the pulse settings to accommodate the brew time entered. Press and release each batch size to display the settings for that batch. After a delay, the display should read

2 BATCHES DONE?

16. If both batch sizes are not correct, press and release NO to return to the BREW TIME setup screen and repeat steps 13, 14 and 15.

YES to proceed. The display should now

NEXT to advance to the desired

MODIFY. The display should read

Page 30

P2863

36748 070706

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Setting Pulse Brew – MANUAL Pulse Brew NOTE: If the brewer is already on the SET PULSE BREW screen, skip steps 1 through 9, and proceed

directly to step 10.

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

2. Press

YES to proceed. The display should now read

TEA 1, along with MODIFY SHOW NEXT.

3. Press and release

NEXT to advance to the desired

recipe to be modiﬁed.

4. Press and release

MODIFY. The display should read

BREW OZ:

5. Press and release DONE. The display should read

2 BATCHES DONE?

6. Press and release YES. The display should now

read DILUTE OZ:

7. Press and release DONE. The display should read

2 BATCHES DONE?

8. Press and release YES. The display should now

read DILUTE DELY:

9. Press and release DONE. The display should now

show the Brew Oz, Dilution Oz, and Dilution Delay setting for the batch size just programmed. After a 5 second delay, the display will read SET PULSE BREW.

10. Press and release YES. The display should now

read SELECT METHOD.

11. Press and release MANUAL. With MANUAL ﬂash-

ing, press and release NEXT.

12. The display should now read 1

ON TIME and a

batch light will be blinking. Press and release the batch size to be modiﬁed.

13. Using (-) and (+), adjust the 1

ON TIME.

14. When ﬁnished, press the other batch size and repeat

step # 13.

NOTE: To disable pulse brew, set 1ST ON TIME to OFF. Brewer will automatically pulse on tea recipes with a brew volume greater than 86.0 oz.

15. When ﬁnished setting both batch sizes, press and

release DONE.

16. The display should now read OFF TIME. Adjust

the OFF TIME using (-) and (+).

17. When ﬁnished, press the other batch size and repeat step # 16.

18. When ﬁnished setting both batch sizes, press and release DONE.

19. The display should now read

LAST ON TIME using (-) and (+). If PREINFUSION

LAST ON:. Adjust the

is desired, set the LAST ON TIME to PreI.

20. When ﬁnished, press the other batch size and repeat step # 19.

21. When ﬁnished setting both batch sizes, press and release DONE.

22. The display will show the three times just entered. Press and release each batch size to display the settings for that batch. If the 1ST ON TIME is set to OFF, the display will read PULSE BREW DISABLED. After a 5 second delay, the display will read 2 BATCHES DONE?

23. If both the pulse brew settings for both batch sizes are not correct, press and release NO to return to the 1ST ON TIME setup screen and repeat steps 13 through 22.

24. If both batch sizes are correct, press

YES. The display should now read DRIP TIME. To exit to the MAIN SCREEN, press and release the ON/OFF button.

Page 31

36748 070706

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

BREW A BREW B BREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

ADVANCE TO THE

RECIPE TO BE

MODIFIED

SET BREW OZ XX.X

SET DILUTE OZ XX.X

AND SET DILUTE DELAY

WHEN BOTH BATCHES ARE DONE,

PRESS YES TO ADVANCE TO

EASY PULSE BREW

PRESSING NO WILL

ADVANCE TO NEXT FUNCTION SCREEN

SET PULSE BREW

NO YES

PULSE BREW

DISABLED

1ST ON TIME X:XX

(-) DONE (+)

2 BATCHES DONE?

NO YES

SET BOTH

BATCH SIZES

LAST ON TIME X:XX

(-) DONE (+)

SET BOTH

BATCH SIZES

1ST OFF LAST

X:XX X:XX X:XX

IF THE 1ST ON TIME IS

SET TO ZERO, THE

DISPLAY WILL READ:

OFF TIME X:XX

(-) DONE (+)

SET BOTH

BATCH SIZES

IF NO, RETURN TO

1ST ON TIME

DRIP TIME X:XX

(-) DONE (+)

5 SEC.

BREWABREWBBREW

SELECT METHOD

EASY NEXT MANUAL

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Page 32

P2864

36748 070706

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

ADVANCE TO THE

RECIPE TO BE

MODIFIED

SET BREW OZ XX.X

SET DILUTE OZ XX.X

AND SET DILUTE DELAY

WHEN BOTH BATCHES ARE DONE,

PRESS YES TO ADVANCE TO

EASY PULSE BREW

PRESSING NO WILL

ADVANCE TO NEXT FUNCTION SCREEN

SET PULSE BREW

NO YES

DRIP TIME X:XX

(-) DONE (+)

2 BATCHES DONE?

NO YES

SET BOTH

BATCH SIZES

(RECIPE NAME)

SETUP COMPLETE

IF NO, RETURN TO

DRIP TIME

AFTER A 5 SECOND DELAY,

DISPLAY WILL ADVANCE

TO NEXT RECIPE IN

BREWER MEMORY

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.) TEA RECIPES:

DRIP TIME This function allows the operator to adjust the DRIP TIME (time from end of sprayhead ﬂow to when liquid

stops dripping from the funnel). When the brew cycle is complete, the display will show DRIPPING and will countdown the time until the funnel empties.

Setting DRIP TIME: Range: OFF to 5 minutes for all batch sizes.

NOTE: If the brewer is already in the DRIP TIME screen,

skip steps 1 through 10 and proceed directly to step

11.

1. Press and hold the right hidden button until the dis

2. Press YES to proceed. The display should now

3. Press and release NEXT to advance to the desired

4. Press and release

5. Press and release DONE. The display should read

6. Press and release YES. The display should now

7. Press and release DONE. The display should read

8. Press and release YES. The display should now

9. Press and release

10. Press and release NO. The display should now read

11. Using the (-) and (+), set the amount of time from

12. When ﬁnished, press the other batch size and repeat

13. When ﬁnished, press DONE. The display should

play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

read TEA 1, along with MODIFY SHOW NEXT.

recipe to be modiﬁed.

MODIFY. The display should read

BREW OZ:

2 BATCHES DONE?

read DILUTE OZ:

2 BATCHES DONE?

read DILUTE DELY:

DONE. The display should now

show the Brew Oz, Dilution Oz, and Dilution Delay setting for the batch size just programmed. After a 5 second delay, the display will read SET PULSE

BREW.

DRIP TIME and a batch light should be ﬂashing.

when the brew solenoid shuts off to when drip-out occurs for that batch size.

step 11.

read 2 BATCHES DONE?

14. If both batch sizes are not correct, press and release

NO to return to the DRIP TIME setup screen and repeat steps 11 through 13.

15. If both batch sizes are correct, press display should show the name of the recipe being programmed (modiﬁed) along with SETUP COMPLETE. After a 5 second delay, the display will advance to the next recipe name in the brewer’s memory. To exit to the MAIN SCREEN, press and release the ON/OFF button.

Page 33

YES. The

P2865

36748 051304

PROGRAMMING THE BREWER (cont.)

BREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

NO-NAME COFFEE

MODIFY SHOW NEXT

BREW OZ XX.X

(-) DONE (+)

2 BATCHES DONE?

NO YES

SET PULSE BREW

NO YES

ADVANCE TO THE

RECIPE TO BE

MODIFIED

PRESSING NO WILL

ADVANCE TO NEXT FUNCTION SCREEN

SET BOTH

BATCH SIZES

IF NO, RETURN TO

BREW OZ

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Procedure for modifying COFFEE recipes:

Coffee recipes: BREW OZ: Range: OFF 10.0 oz to 135.0 oz (0.0-4.0L) for both batch sizes

This function allows adjustment of the brew volumes for each batch.

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

2. Press

3. Press and release NEXT to advance to the desired

YES to proceed. The display should now read

TEA 1, along with MODIFY SHOW NEXT.

coffee recipe to be modiﬁed.

4. Press and release MODIFY. The display should read BREW OZ: and a batch light will be blinking. Press and release the batch size to be modiﬁed.

5. Using (-) and (+), set the amount of brew water to be dispensed over the grounds for that particular batch size.

6. When ﬁnished, press the other batch size and repeat step #5.

7. When ﬁnished setting both batch sizes, press and release DONE. The display should read 2 BATCHES DONE?

8. If both batch sizes are not correct, press and release NO to return to the BREW OZ: setup screen and repeat steps #5, 6, and 7.

9. If both batch sizes are correct, press YES. This will advance to SET PULSE BREW. To exit to the MAIN

SCREEN, press and release the ON/OFF button.

Procedure to disable a batch size:

1. Follow same procedure as above. Select the batch size to be disabled.

2. Using (-) and (+), scroll until the display reads

BREW OZ OFF.

3. Press and release DONE. This will disable this batch size for that recipe.

Page 34

P2866

36748 070706

PROGRAMMING THE BREWER (cont.)

INITIAL SPRAY

ALTERNATES UNTIL

BREW CYCLE IS

COMPLETED

REMAINING ON

ON-

TIME

OFF-

TIME

OFF-TIME

OFF-

TIME

OFF-

TIME

ON-

TIME

ON-

TIME

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

COFFEE RECIPES: SET PULSE BREW

P2293

a) 1st ON TIME – This time is the duration from when the brew button is pressed to when the desired water level in the funnel is reached. (Soaking the grounds) b) OFF-TIME – This time is the duration from when the water in the funnel reaches the desired ON TIME to when it drains out of the funnel to a desired lower level. c) LAST ON-TIME – This time is the duration from when the water in the funnel drains down to the lower level to when it ﬁlls the funnel to a desired higher level. (Soaking the grounds)

The other option allows the actual times to be entered for each of the settings. This is done by utilizing the MANUAL PULSE BREW screen and following the subsequent steps under that function.

Setting Pulse Brew – MANUAL Pulse Brew Range: 1ST ON TIME – OFF to 4 minutes OFF TIME – OFF to 4 minutes LAST ON TIME – Pre-Infusion to 4 minutes

Page 35

36748 101505

PROGRAMMING THE BREWER (cont.)

BREW A BREW B BREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

ADVANCE TO THE

RECIPE TO BE

MODIFIED

SET BREW OZ XX.X

WHEN BOTH BATCHES ARE DONE,

PRESS YES TO ADVANCE TO

SET PULSE BREW

PRESSING NO WILL

ADVANCE TO NEXT

FUNCTION SCREEN

SET PULSE BREW

NO YES

BREW TIME

(-) DONE (+)

2 BATCHES DONE?

NO YES

SET BOTH

BATCH SIZES

IF NO, RETURN TO

BREW TIME

DRIP TIME

(-) DONE (+)

1ST OFF LAST X:XX X:XX X:XX

BREWABREWBBREW

SELECT METHOD

EASY NEXT MANUAL

WITH EASY FLASHING

PRESS NEXT TO

ADVANCE

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Setting Pulse Brew – EASY Pulse Brew NOTE: If the brewer is already on the SET PULSE BREW screen, skip steps 1 through 6, and proceed

directly to step 7.

1. Press and hold the right hidden button until the dis play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

2. Press TEA 1, along with MODIFY SHOW NEXT.

3. Press and release coffee recipe to be modiﬁed.

4. Press and release

BREW OZ:

5. Press and release DONE. The display should read 2 BATCHES DONE?

6. Press and release YES. The display should now read SET PULSE BREW.

7. Press and release YES. The display should now read SELECT METHOD.

8. Press and release EASY. With EASY ﬂashing, press and release NEXT to advance.

9. The display should now read batch light will be blinking. Press and release the batch size to be modiﬁed.

10. Using (-) and (+), set the total brew time desired including spray times and off times.

11. When ﬁnished, press the other batch size and repeat step # 10.

12. When ﬁnished setting both batch sizes, press and release DONE. The display should read 2 BATCHES

DONE?

13. If both batch sizes are not correct, press and release NO to return to the BREW TIME setup screen and repeat steps 10, 11 and 12.

14. If both batch sizes are correct, press YES. The display will show the pulse settings to accommodate the brew time entered. Press and release each batch size to display the settings for that batch. After a delay, the display should now read DRIP TIME:. To exit to the MAIN SCREEN, press and release the ON/OFF button.

YES to proceed. The display should now read

NEXT to advance to the desired

MODIFY. The display should read

BREW TIME: and a

Page 36

P2867

36748 070706

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Setting Pulse Brew – MANUAL Pulse Brew NOTE: If the brewer is already on the SET PULSE BREW screen, skip steps 1 through 6, and proceed

directly to step 7.

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

2. Press

YES to proceed. The display should now read

TEA 1, along with MODIFY SHOW NEXT.

3. Press and release

NEXT to advance to the desired

coffee recipe to be modiﬁed.

4. Press and release

MODIFY. The display should read

BREW OZ:

5. Press and release DONE. The display should read

2 BATCHES DONE?

6. Press and release YES. The display should now

read SET PULSE BREW.

7. Press and release YES. The display should now

read SELECT METHOD.

8. Press and release MANUAL. With MANUAL ﬂash-

ing, press and release NEXT.

9. The display should now read

1st ON TIME and a

batch light will be blinking. Press and release the batch size to be modiﬁed.

10. Using (-) and (+), adjust the 1

ON TIME.

11. When ﬁnished, press the other batch size and repeat

step # 10.

12. When ﬁnished setting both batch sizes, press and

release DONE.

13. The display should now read OFF TIME. Adjust

the OFF TIME using (-) and (+).

14. When ﬁnished, press the other batch size and repeat

step # 13.

NOTE: To disable pulse brew, set 1ST ON TIME to OFF. For recipes with a brew volume greater than 86.0 oz. and pulse brew disabled, the following message will appear after the BREW button is pressed, COFFEE FUNNEL?...PRESS BREW "X".

15. When ﬁnished setting both batch sizes, press and

release DONE.

16. The display should now read LAST ON:. Adjust the

LAST ON TIME using (-) and (+). If PREINFUSION is desired, set the LAST ON TIME to PreI.

17. When ﬁnished, press the other batch size and repeat

step # 16.

18. When ﬁnished setting both batch sizes, press and

release DONE.

19. The display will show the three times just entered. Press and release each batch size to display the settings for that batch. If the 1ST ON TIME is set to OFF,

the display will read PULSE BREW DISABLED. After a 5 second delay, the display will read 2 BATCHES

DONE?

20. If both the pulse brew settings for both batch sizes are not correct, press and release NO to return to the 1ST ON TIME setup screen and repeat steps 10 through 19.

21. If both batch sizes are correct, press display should now read DRIP TIME. To exit to the MAIN SCREEN, press and release the ON/OFF button.

YES. The

Page 37

36748 070706

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

BREW A BREW B BREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

ADVANCE TO THE

RECIPE TO BE

MODIFIED

SET BREW OZ XX.X

WHEN BOTH BATCHES ARE DONE,

PRESS YES TO ADVANCE TO

EASY PULSE BREW

PRESSING NO WILL

ADVANCE TO NEXT

FUNCTION SCREEN

SET PULSE BREW

NO YES

PULSE BREW

DISABLED

1ST ON TIME X:XX

(-) DONE (+)

2 BATCHES DONE?

NO YES

SET BOTH

BATCH SIZES

LAST ON TIME X:XX

(-) DONE (+)

SET BOTH

BATCH SIZES

1ST OFF LAST

X:XX X:XX X:XX

IF THE 1ST ON TIME IS

SET TO ZERO, THE

DISPLAY WILL READ:

OFF TIME X:XX

(-) DONE (+)

SET BOTH

BATCH SIZES

IF NO, RETURN TO

1ST ON TIME

DRIP TIME X:XX

(-) DONE (+)

5 SEC.

BREWABREWBBREW

SELECT METHOD

EASY NEXT MANUAL

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Page 38

P2868

36748 070706

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

REVIEW RECIPES

NO YES

TEA 1

MODIFY SHOW NEXT

(RECIPE NAME)

MODIFY SHOW NEXT

ADVANCE TO THE

RECIPE TO BE

MODIFIED

SET BREW OZ XX.X

WHEN BOTH BATCHES ARE DONE,

PRESS YES TO ADVANCE TO

EASY PULSE BREW

PRESSING NO WILL

ADVANCE TO NEXT FUNCTION SCREEN

SET PULSE BREW

NO YES

DRIP TIME X:XX

(-) DONE (+)

2 BATCHES DONE?

NO YES

SET BOTH

BATCH SIZES

(RECIPE NAME)

SETUP COMPLETE

THAT WAS THE

LAST RECIPE

IF NO, RETURN TO

DRIP TIME

AFTER A 5 SECOND DELAY,

DISPLAY WILL ADVANCE

TO NEXT RECIPE IN

BREWER MEMORY.

IF NO OTHER COFFEE NAMES

ARE PRESENT, THE DISPLAY

WILL READ:

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

COFFEE RECIPES: DRIP TIME This function allows the operator to adjust the DRIP TIME (time from end of sprayhead ﬂow to when liquid

stops dripping from the funnel). When the brew cycle is complete, the display will show DRIPPING and will countdown the time until the funnel empties.

Setting DRIP TIME: Range: OFF to 5 minutes for all batch sizes.

NOTE: If the brewer is already in the DRIP TIME screen,

skip steps 1 through 7 and proceed directly to step 8.

1. Press and hold the right hidden button until the dis-

2. Press YES to proceed. The display should now read

3. Press and release NEXT to advance to the desired

4. Press and release MODIFY. The display should read

5. Press and release DONE. The display should read

6. Press and release YES. The display will read SET

7. Press and release

8. Using the (-) and (+), set the amount of time from

9. When ﬁnished, press the other batch size and repeat

10. When ﬁnished, press DONE. The display should

11. If both batch sizes are not correct, press and release

12. If both batch sizes are correct, press YES. The

play reads SET LANGUAGE. Press the right hidden button until the display reads REVIEW RECIPES.

TEA 1, along with MODIFY SHOW NEXT.

coffee recipe to be modiﬁed.

BREW OZ:

2 BATCHES DONE?

PULSE BREW.

DRIP TIME and a batch light should be ﬂashing.

when the brew solenoid shuts off to when drip-out

NO. The display should now read

occurs for that batch size.

step 8.

read 2 BATCHES DONE?

NO to return to the DRIP TIME setup screen and repeat steps 8 through 10.

display should show the name of the recipe being programmed (modiﬁed) along with SETUP COMPLETE. After a 5 second delay, the display will advance to the next recipe name in the brewer’s memory. If no other coffee names are present, the display will read THAT WAS THE LAST RECIPE. To exit to the MAIN SCREEN, press and release the ON/OFF button.

Page 39

P2869

36748 051304

PROGRAMMING THE BREWER (cont.)

BREW

MASTER TEMP: 205°

(-) DONE (+)

READY DEGREE XXX

(-) DONE (+)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

MASTER TEMP

This function allows the operator to adjust the brew water temperature in the tank. This also sets the hot water faucet dispense temperature.

Procedure for setting the Master Temp Range: 185° to 207° F (85°-97° C)

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads MASTER TEMP.

2. Using

3. When ﬁnished, press and release DONE to save

(-) and (+), adjust the brew and faucet tem-

perature.

the new setting and to advance to the next function screen, READY DEGREE. Press and release the ON/OFF pad to exit programming and return to the MAIN SCREEN.

P2870

Page 40

36748 101505

PROGRAMMING THE BREWER (cont.)

BREW

ENABLE ADS

NO YES

READY DEGREE XXX

(-) DONE (+)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

READY DEGREE

This function allows the operator to set the minimum temperature allowable to start a brew cycle. The range can be from 2° to 20° F within the set temperature. The water must be at the READY temperature or higher for the display to indicate READY TO BREW. If brew lockout is enabled, the brewing process will not start below this READY temperature.

Procedure to set ready temperature Range: 2° to 20° F (1° - 10° C)

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads READY DEGREE.

2. Using (-) and (+), adjust the ready temperature.

3. When ﬁnished, press and release DONE to save

the new setting and to advance to the next function screen, ENABLE ADS. Press and release the ON/OFF pad to exit programming and return to the MAIN SCREEN.

P2871

Page 41

36748 101505

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

ENABLE ADS

This function allows the operator to choose whether or not to display an advertising message. An ad can be saved to the brewer by either writing the ad using the programming commands, or by entering the ad into the brewer using an AD CARD. This message will be displayed when the brewer is not in use.

Procedure to Enable/Disable Ads:

1. Press and hold the right hidden button until the

display reads SET LANGUAGE. Press the right hid- den button until the display reads ENABLE ADS. The YES or NO will be ﬂashing to indicate the current selection.

2. Press and release the NO button to disable this

function (no ads will be displayed on the screen), or:

3. Press and release the YES button to enable this

function (ads will be displayed on the screen).

4. When ﬁnished, press and release DONE to save

the new setting and advance to the next function screen.

5. If

NO was selected, the display should now read

ENABLE SANITATION. To exit programming and

return to the MAIN SCREEN, press and release the ON/OFF pad.

6. If YES was selected, the display should now read NEW AD?. This screen allows the operator to select between using an ad card to read in a new ad, writing an ad, or using the ad currently stored in the brewer’s memory (if an ad was previously saved).

Procedure to WRITE an Ad: NOTE: Writing and saving a new ad will erase any

previously saved ad in the brewer’s memory.

7. From the NEW AD? screen, press and release WRITE.

8. The display should now read 2 LINES 16 CHARS

AVAILABLE, and then SCROL THRU ALPHA, NEXT

-> NEXT LETTER, and then WRITE TOP LINE?. The

ad can be up to 32 characters long, 16 per line. The ad will be written in two steps, ﬁrst the top line, then the bottom line.

9. To write the top line of a new ad, press and release YES. To skip the top line and only write a bottom

Page 42

line, press and release NO and proceed to step

13. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

10. The display will now read

A with a ﬂashing cursor

below it. Press and hold the SCROLL button to scroll through the alphabet and available characters. When the desired character is shown on the display, press and release NEXT to move to the next character in the top line.

11. Repeat step 10 until the top line is complete. Press and release

12.

DONE. The display should now

read WRITE BTM LINE?.

13. To write the bottom line of the new ad, press and

release YES.

14. To skip the bottom line, press and release

NO.

a. If neither a top nor bottom line was written, the

display should now read ENABL SANITATION.

b. If only a top line was written, the ad will be

displayed followed by SAVE? Proceed to step 18.

15. The display will now read A with a ﬂashing cursor

16. Repeat step 15 until the bottom line is complete. Press and release

17.

DONE. The display will now show

the written ad, and then SAVE?

18. To cancel saving the ad, press and release

NO. The display should now read ADVERTISEMENT NOT SAVED! and then will return to the NEW AD screen. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

19. To correct or edit the ad, press and release EDIT. The display should now read WRITE TOP LINE? Repeat steps 10 though 17.

20. To save the ad as it is shown, press and release

YES. The display should now read ADVERTISEMENT SETUP COMPLETE, and then ENABL SANITA- TION. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

36748 041504

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

ENABLE ADS

NO DONE YES

WRITE TOP LINE?

NO YES

NEW AD?

CARD NO WRITE

2 LINES 16 CHARS

AVAILABLE

SCROL THRU ALPHA NEXT->NEXTLETTER

CARD CONTAINS AD SHOW QUIT SAVE

AD SETUP

COMPLETE

PRESSING DONE WILL

DISABLE THIS FUNCTION

AND ADVANCE TO

ENABLE SANITATION

WITH NO FLASHING

PRESS DONE

WITH YES FLASHING

PRESS DONE

PRESSING NO WILL

ADVANCE TO

WRITE BTM LINE?

PRESSING SHOW

WILL DISPLAY AD

PRESSING NO WILL

RETURN TO

MAIN SCREEN

IF NEITHER LINE

WAS WRITTEN, DISPLAY

WILL ADVANCE TO ENABL SANITATION

PRESSING NO WILL READ

NOT SAVED! THEN *****

PRESSING EDIT WILL

RETURN TO

WRITE TOP LINE?

A SCROLL DONE NEXT

WRITE BTM LINE?

NO YES

(VIEW WRITTEN

ADVERTISEMENT)

SAVE?

NO EDIT YES

SETUP COMPLETE

ENABL SANITATION

NO YES

A SCROLL DONE NEXT

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

ENABLE ADS (Continued)

Procedure to READ in a New Ad: NOTE: Saving a new ad will erase any previously saved

ad in the brewer’s memory.

1. From the NEW AD? screen, press and release CARD.

2. The display will show

INSERT AD CARD. Place the

AD CARD vertically so that the top end of the "chip" is beneath the sensing coil (located on the middle of the underneath side of the front display panel).

3. After a short pause, the display will read CARD

CONTAINS AD. To view the ad, press and release SHOW. To save the ad to the brewer's memory,

press and release SAVE. To cancel, Press QUIT.

4. After the ad is saved, the display will read

AD SETUP

COMPLETE, and then will advance to to next pro-

gramming function, ENABLE SANITATION.

Page 43

P2872

36748 101505

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

WHEN TIME HAS

EXPIRED, THE

DISPLAY WILL READ:

X.X HRS UNTIL

NEXT CLEAN

X.X HRS-> CLEAN

(-) DONE (+)

ENABL SANITATION

NO DONE YES

ENABL ENERGYSAVR

NO DONE YES

PLEASE SANITIZE

PRESS FULL FOR

3 SEC TO CANCEL

SANITATION

COMPLETE

CLEAN AND SANITIZE

MACHINE, WHEN FINISHED

PRESS FULL

WITH NO FLASHING

PRESS DONE

WITH YES FLASHING

PRESS DONE

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

ENABL SANITATION

This function allows the operator to enable the sanitation function and set the time before a cleaning alert will be displayed.

Procedure for enabling sanitation: Range: 0.0 to 72.0 hrs.

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads ENABL SANITATION. The YES or NO will be ﬂashing to indicate the current selection.

2. Press and release the function (no sanitation alert will be displayed on the screen), or:

3. Press and release the YES button to enable this function (a sanitation alert will displayed on the screen).

4. When ﬁnished, press and release DONE to save the new setting and advance to the next function screen.

5. If NO was selected, the display should now read ENABLE ENERGYSAVR. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

6. If YES was selected, the display should now read X.X HRS -> CLEAN. This screen allows the operator to set the amount of time from when a brew is completed until a sanitize alert will be displayed. Use (-) and (+) to adjust the set time. When ﬁnished, press and release DONE.

NOTE: The timer will not begin until after a brew cycle has been completed.

7. The display should now read CLEAN, and then advance to the next programming function, ENABLE ENERGYSAVR.

8. Once the set time has expired, the display will read

PLEASE SANITIZE, and then PRESS FULL FOR 3 SEC TO CANCEL.

9. Clean and sanitize the machine.

When ﬁnished, press and hold the FULL batch but

10. ton to reset the Sanitation timer. The display should now read SANITATION COMPLETE and then will return to the MAIN SCREEN.

NO button to disable this

X.X HRS UNTIL NEXT

Page 44

P2873

36748 070706

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

PRESSING DONE WILL

ADVANCE TO

ENABLEFRESHTIMER

ENABL ENERGYSAVR

NO DONE YES

ENABLEFRESHTIMER

NO YES

X.X HRS-> IDLE (-) DONE (+)

AFTER IDLE TIME?

OFF DONE 140°

MACHINE OFF

AFTER X.X HRS

MACHINE AT 140°

AFTER X.X HRS

WITH NO FLASHING

PRESS DONE

WITH YES FLASHING

PRESS DONE

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

ENABLE ENERGYSAVR

This function allows the operator to enable the mode function and set the idle time. Once the set idle time has expired, the operator can choose to have the heaters either turn off, or reduce the tank holding temp to 140° F (60° C).

Procedure to enable energy savings mode: Range: 0.5 to 24.0 hrs. If enabled, default setting is 140°F tank temperature after 4.0 hrs. idle time.

1. Press and hold the right hidden button until the

2. Press and release the NO button to disable this

3. Press and release the YES button to enable this

4. When ﬁnished, press and release DONE to save

5. If NO was selected, the display should now read

6. If

7. The display should now read AFTER IDLE TIME?

8. To have the machine shut off after the set idle time,

9. To have the heaters hold at the lower 140° F

display reads SET LANGUAGE. Press the right hidden button until the display reads ENABLE ENERGYSAVR. The YES or NO will be ﬂashing to indicate the current selection.

function, or:

function (the heaters will either turn off or the tank will hold at 140° F).

the new setting and advance to the next function screen.

EnableFreshTimer. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

YES was selected, the display should now read

X.X HRS -> IDLE. This screen allows the operator

to set the amount of time the brewer is not in use before nap mode engages. Using (-) and (+), adjust the idle time. When ﬁnished, press and release

DONE.

Once the set idle time has expired, the heaters can either be shut off or held at a lower temperature of 140° F.

press and release OFF and then DONE to save the settings. The display should read MACHINE OFF AFTER X.X HRS, and then EnableFreshTimer.

temperature, press and release 140° F and then

DONE to save the settings. The display should read MACHINE AT 140° F AFTER X.X HRS, and then EnableFreshTimer.

10. Once the idle time has expired, the display will

read either ENERGY SAVER...NO TEMPERATURE or ENERGY SAVER...REDUCED TEMPERATURE, depending on the settings. This screen will alternate with PRESS ANY SWITCH TO RE-HEAT.

P2874

Page 45

36748 070706

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

PRESSING NO WILL

ADVANCE TO

REFILL

WHEN TIME HAS EXPIRED,

THE DISPLAY WILL READ:

ENABLEFRESHTIMER

NO DONE YES

FRESHNESS ALERT

BREW X

TEA

(-) DONE (+)

FRESHNESS ALERT

BREW FRESH BATCH

READY TO BREW

WATER TEMP: 205°

HOT TEA

(-) DONE (+)

ICED COFFEE

(-) DONE (+)

COFFEE

(-) DONE (+)

XXX REFILL 155

(-) DONE (+)

WITH NO FLASHING

PRESS DONE

WITH YES FLASHING

PRESS DONE

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

ENABLE FRESH TIMER

This function allows the operator to enable the Freshness Alert and set the expiration time. The expiration time is the amount of time the product is allowed to sit in the server/dispenser before a fresh batch is brewed.

Procedure for enabling/setting the Freshness Timer: Range: Iced Tea 0.5 to 10.0 hrs. Hot Tea 0.5 to 8.0 hrs. Iced Coffee 0.5 to 8.0 hrs. Coffee 0.5 to 4.0 hrs. If enabled, default setting is 8.0 hrs. for Iced Tea,

2.0 hrs for Hot Tea, 4.0 hrs for Iced Coffee, and 2.0

hrs. for Coffee.

1. Press and hold the right hidden button until the display reads SET LANGUAGE. Press the right hid- den button until the display reads ENABLEFRESH- TIMER.

2. Press and release the NO button to disable this function, or:

3. Press and release the YES button to enable this function (the unit will display a message once the set time has expired).

4. When ﬁnished, press and release DONE to save the new setting and advance to the next function screen.

5. If NO was selected, the display should now read

REFILL. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

6. If

YES was selected, the display should now read

TEA. This screen allows the operator to set the

amount of time from the end of brewing a batch of tea until a Freshness Alert message will be displayed. Using (-) and (+), adjust the freshness time for tea. When ﬁnished, press and release DONE.

7. The display should now read HOT TEA. Using (-) and (+), adjust the freshness time for hot tea. When ﬁnished, press and release DONE.

8. The display should now read ICED COFFEE. Using (-) and (+), adjust the freshness time for iced coffee. When ﬁnished, press and release DONE.

9. The display should now read COFFEE. Using (-) and (+), adjust the freshness time for coffee. When ﬁnished, press and release DONE.

10. This display should now read REFILL. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

11. Once the set time has expired, the display will read

FRESHNESS ALERT BREW X, and then FRESHNESS ALERT BREW FRESH BATCH alternating with the MAIN SCREEN.

12. Empty the server/dispenser the previous batch was brewed into and replace under the funnel.

13. Brew a new batch

The freshness timer will reset. The display should

14. now return to the MAIN SCREEN.

Page 46

P2875

36748 070706

PROGRAMMING THE BREWER (cont.)

BREW

XXX REFILL 155

(-) DONE (+)

SPRAY OZ/M: XX.X

(-) DONE (+)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

REFILL Range: 0 to 155

This function allows the operator to adjust the sensitivity of the reﬁll circuit. This is mainly a troubleshooting feature. Water in different geographical locations can have different conductivities. By adjusting the sensitivity of the reﬁll circuit, this will allow the brewer to operate under various water conditions.

Procedure to set the sensitivity threshold of the reﬁll circuit: NOTE: Make sure the water in the tank is touching the

reﬁll probe.

1. Press and hold the right hidden button until the

display reads SET LANGUAGE. Press the right hidden button until the display reads REFILL and shows a number on both sides of the word.

2. To adjust the threshold setting, press (-) to decrease or (+) to increase the setting.

P2876

NOTE: Always make sure that the number on the right is larger than the number on the left when water is in contact with the reﬁll probe in the tank.

3. When ﬁnished, press and release the new setting and advances to the next function screen SPRAY OZ/M. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

DONE. This saves

Page 47

36748 041504

PROGRAMMING THE BREWER (cont.)

BREW

DILUTE OZ/M: XX.X

(-) DONE (+)

BREW

SPRAY OZ/M: XX.X

(-) DONE (+)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

SPRAY OZ/M

This function allows the operator to view or to enter the actual ﬂow rate coming out of the sprayhead. This is NOT used to change the actual ﬂow rate, but to tell the internal controller how fast the water is ﬂowing.

Procedure to adjust the sprayhead ﬂow rate setting:

1. Press and hold the right hidden button until the

display reads SET LANGUAGE. Press the right hid- den button until the display reads SPRAY OZ/M . The number represents what the brewer thinks is the ﬂow rate out of the sprayhead.

2. If the actual ﬂow rate of the sprayhead is known but is different than the number on the display, use the (-) and (+) to enter the correct ﬂow rate.

3. When ﬁnished, press and release DONE. This saves the new setting and advances to the next function screen, DILUTE OZ/M. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

P2877

Page 48

36748 041504

PROGRAMMING THE BREWER (cont.)

BREW

CALIBRATE FLOW?

NO YES

DILUTE OZ/M: XX.X

(-) DONE (+)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

DILUTE OZ/M

This function allows the operator to view or to enter the actual ﬂow rate coming out of the dilution nozzle. This is NOT used to change the actual ﬂow rate, but to tell the internal controller how fast the water is ﬂowing.

Procedure to adjust the dilution ﬂow rate setting:

1. Press and hold the right hidden button until the

display reads SET LANGUAGE. Press the right hid- den button until the display reads DILUTE OZ/M. The number represents what the brewer thinks is the ﬂow rate out of the dilution nozzle.

2. If the actual ﬂow rate of the nozzle is known but is

different than the number on the display, use the (-) and (+) to enter the correct ﬂow rate.

3. When ﬁnished, press and release DONE. This saves

the new setting and advances to the next function screen, CALIBRATE FLOW. To exit programming and return to the MAIN SCREEN, press and release the ON/OFF pad.

P2878

Page 49

36748 041504

PROGRAMMING THE BREWER (cont.)

BREW

CALIBRATE FLOW?

NO YES

SPRAY HEAD CAL

NO YES

CALIBRATE FLOW?

NO YES

CONTAINER READY?

QUIT YES

CALIBRATE SPRAY

QUIT START

CALIBRATE SPRAY

60 SEC TO FINISH

SPRAYHD OZ XX.X

(-) DONE (+)

NEW SPRAY FLOW

XX.X OZ/M

PRESSING NO WILL

ADVANCE TO

BREW COUNTERS

PRESSING NO WILL

ADVANCE TO

BREW COUNTERS

5 SEC.

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

CALIBRATE FLOW

This function allows the operator to enter the actual ﬂow rate of the sprayhead and the dilution by dispensing both separately for one minute. The volumes are then entered into the brewer.

Procedure to calibrate the sprayhead ﬂow rate:

1. Place a container, accurately graduated and with a minimum capacity of 60 ounces (1.77 liters), beneath the funnel.

2. Press and hold the right hidden button until the display reads SET LANGUAGE. Press the right hidden button until the display reads CALIBRATE FLOW.

3. Press and release YES to advance to the SPRAY

HEAD CAL function screen. (Pressing NO in the CALIBRATE FLOW screen will advance to the next

function screen, BREW COUNTERS).

4. Press and release the YES pad. The display should read CONTAINER READY? If the container is under the funnel, press YES.

5. The display should read CALIBRATE SPRAY. Press and release START to begin the sprayhead ﬂow for calibration. The display should read CALIBRATE SPRAY...60 SEC TO FINISH. The 60-second timer on the display will count down to zero. When the counter reaches zero, the display will change to SPRAY HD OZ/M, along with a number.

6. Measure the amount of water in the container and use the (-) and (+) pads to adjust the amount of the display to match the amount in the container. Then press DONE.

7. The display should now read NEW SPRAY FLOW, along with the correct ﬂow rate of the sprayhead. After about 5 seconds, the display will return to the CALIBRATE FLOW screen.

8. To exit the CALIBRATE FLOW function and advance to the next function screen, press and release NO. To exit programming, press and release the ON/OFF button to return to the MAIN SCREEN.

Page 50

P2879

36748 101505

BREWABREWBBREW

CALIBRATE FLOW?

NO YES

SPRAY HEAD CAL

NO YES

CALIBRATE FLOW?

NO YES

CONTAINER READY?

QUIT YES

DILUTION CAL?

NO YES

CALIBRATE DILUTE

60 SEC TO FINISH

DILUTE OZ XX.X

(-) DONE (+)

NEW DILUTE FLOW

XX.X OZ/M

PRESSING NO WILL

ADVANCE TO

BREW COUNTERS

5 SEC.

CALIBRATE DILUTE

QUIT START

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

CALIBRATE FLOW (Continued)

Procedure to calibrate the dilution ﬂow rate:

1. Place a container, accurately graduated and with

a minimum capacity of 130 ounces, beneath the funnel.

NOTE: If the display is already on the DILUTION CAL screen, skip steps 2 & 3 and proceed directly to step

2. Press and hold the right hidden button until the

display reads SET LANGUAGE. Press the right hidden button until the display reads CALIBRATE FLOW.

3. Press and release YES to advance to the SPRAY

HEAD CAL function screen. Press and release NO to advance to DILUTION CAL.

4. Press and release the YES pad. The display should

read CONTAINER READY? If the container is under the funnel, press YES.

5. The display should read CALIBRATE DILUTE. Press

and release START to begin the dilution ﬂow for calibration. The display should read CALIBRATE DILUTE...60 SEC TO FINISH. The 60-second timer on the display will count down to zero. When the counter reaches zero, the display will changes to DILUTE OZ/M, along with a number.

6. Measure the amount of water in the container and

using the (-) and (+) pads, adjust the amount of the display to match the amount in the container. Then press DONE.

7. The display should now read NEW DILUTE FLOW,

along with the correct ﬂow rate of the sprayhead. After about 5 seconds, the display will return to the CALIBRATE FLOW screen, BREW COUNTERS. To exit programming, press and release the ON/OFF button to return to the MAIN SCREEN.

Page 51

P2880

36748 101505

PROGRAMMING THE BREWER (cont.)

BREW

BREW COUNTERS?

NO YES

TOTAL LIFE BREWS

XXXX NEXT

BREW A XXXX NEXT RESET

BREW B XXXX NEXT RESET

BREW C XXXX

NEXT RESET

SET RECIPE TEMPS

NO YES

PRESSING NO WILL

ADVANCE TO

RECIPE TEMPS

BREW

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

BREW COUNTERS

This function allows the operator to track the total number of brew cycles completed, as well as the number of batches brewed using each of the brew buttons. There are three resettable counters, and one life counter that is not resettable.

Procedure to view/reset the brew counters:

1. Press and hold the right hidden button until the dis play reads SET LANGUAGE. Press the right hidden button until the display reads BREW COUNTERS.

2. Pressing function, RECIPE TEMP. Press YES to view the ﬁrst brew counter (TOTAL LIFE BREWS). This number represents the total number of brew cycles this brewer has completed. This counter is non-reset-

NO will advance to the next programming

table. Press NEXT to advance to the next brew counter, BREW A.

3. This counter represents the number of brews for Brew A. To reset the counter to zero, press and release RESET. Press and release NEXT to advance to the next counter.

4. Repeat step 3 for the remaining two counters, B and BREW C.

5. When ﬁnished, press NEXT to advance to the next programming function, SET RECIPE TEMPS. To exit programming, press and release the ON/OFF button to return to the MAIN SCREEN.

BREW

Page 52

P2881

36748 041504

PROGRAMMING THE BREWER (cont.)

BREWABREWBBREW

SET RECIPE TEMPS

NO YES

WILL OVERRIDE

THE MASTER TEMP

OVERRIDE?

NO YES

TEA 1 XXX° (-) DONE (+)

TEA 2 XXX° (-) DONE (+)

COFFEE XXX°

(-) DONE (+)

TANK WILL HOLD

AT LOWEST TEMP

ENTER ASSET #

NO YES

PRESSING NO WILL

ADVANCE TO

SERVICE TOOLS

PRESSING NO

WILL RETAIN THE

MASTER TEMP

PRESSING DONE

WILL CONTINUE TO

SCROLL THRU ALL

STORED RECIPES

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

SET RECIPE TEMPS

This function allows the operator to set separate temperatures for each selected recipe.

NOTE: Setting recipe temps will override the MASTER TEMP. The tank will hold at the lowest temperature

between the three selected recipes stored in the brew buttons. For instance, let’s say Brew A’s recipe temperature is set at 205°, Brew B’s recipe temperature is set at 205°, and Brew C’s recipe temperature is set at 200°. The tank will hold at 200°. If Brew A or Brew B is pressed, the tank will heat to the 205° temperature. The brew button must be pressed again in order for a brew to start. After the completion of that brew, the tank will return to the 200° holding temperature. It may take awhile for the tank to return to the lower temperature.

the right hidden switch until the display reads SET LANGUAGE. Press and release the right hidden switch until the display reads SET RECIPE TEMPS. Press and release YES. The display will read WILL OVERRIDE THE MASTER TEMP, and then OVERRIDE? To return to using the MASTER TEMP, press and release NO.

1. Press and hold the right hidden button until the

2. To set different temperatures for different recipes,

3. The display should read WILL OVERRIDE THE

4. The display should read TEA 1. Using (-) and (+),

5. The screen should now read TEA 2. Use (-) and (+)

6. Repeat for all standard and stored recipes.

NOTE: To return to using the MASTER TEMP setting after RECIPE TEMPS have been used, press and hold

display reads SET LANGUAGE. Press the right hidden button until the display reads SET RECIPE TEMPS.

press and release YES. Pressing NO will advance to the next programming function, SERVICE

TOOLS.

MASTER TEMP, and then OVERRIDE? To retain the MASTER TEMP setting, press and release NO. To

set separate recipe temperatures, press and release YES.

adjust the temperature for TEA 1. When ﬁnished, press and release DONE.

to adjust the temperature for TEA 2. When ﬁnished, press and release DONE.

After the last temperature has been entered, press

DONE. The screen should now read TANK WILL HOLD AT LOWEST TEMP, and then advance to

the ENTER ASSET # screen. To exit programming, press and release the ON/OFF button to return to the MAIN SCREEN.

P2882

Page 53

36748 030707

PROGRAMMING THE BREWER (cont.)

BREW

ENTER SERVICE #

NO YES

ENTER ASSET #?

NO YES

AN XXXXXX

(-) DONE (+)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

ASSET NUMBER

This function allows the operator to enter in the machine's asset number. This can be useful for tracking the usage or service of an individual machine within a group.

Procedure to enter the asset number:

1. Press and hold the right hidden button until the display reads SET LANGUAGE. Press the right hidden button until the display reads:

ENTER ASSET #?

2. Press and release ANXXXXXX.

3. Using

4. When ﬁnished, press and release DONE. The display

NOTE: See page 9 for steps on how to view the Asset Number.

(-) and (+), set the asset number of the ma-

chine.

will now read SERVICE #.

YES. The display will now read

P2951

Page 54

36748 042905

PROGRAMMING THE BREWER (cont.)

BREW

ENTER SERVICE #?

NO YES

SCROL THRU #'S

NEXT->NEXTNUMBER

SERVICE TOOLS?

NO YES

000-000-0000

SCROL DONE NEXT

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

SERVICE NUMBER

This function allows the operator to enter in the telephone number to call if service is needed. The service number will be displayed anytime there is a fault message displayed. (See Troubleshooting on page 63)

Procedure to enter the service number:

1. Press and hold the right hidden button until the

display reads SET LANGUAGE. Press the right hidden button until the display reads:

ENTER SERVICE #?

2. Press and release

SCROL THRU #'S NEXT ->NEXT NUMBER, followed by 000-000-0000. Up to 16 charactors are available.

3. Press the SCROL button to scroll through the num-

bers. When the desired number is shown, press and release NEXT to move to the next digit in the phone number.

4. Repeat Step 3 until the entire number is entered.

Press and release

SERVICE TOOLS?

YES. The display will now read

DONE. The display will now read

Page 55

P3049

36748 070706

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

SERVICE TOOLS

This function allows the testing of individual components and the ability to check switches for proper function. This function also tests the funnel sensor coil’s frequency (diagnostic tool for troubleshooting purposes only).

Procedure to test components and outputs:

The following components can be individually tested: Brew Valve Dilution Valve Reﬁll Valve Tank Heater Relay Tank Heater Triac

1. Place a funnel into the rails of the brewer.

2. Place a server beneath the funnel.

3. Press and hold the right hidden button until the dis play reads SET LANGUAGE. Press the right hidden button until the display reads SERVICE TOOLS.

4. Press and release YES. The display should now read TEST OUTPUTS? Press and release YES to test individual components and outputs. Pressing

NO will advance to the next programming function, TEST SWITCHES.

5. The display should now read BREW VALVE. To test the brew valve, press ON. If the brew valve is functional, water should run from the funnel.

6. Press OFF to end the ﬂow of water.

7. Press NEXT to advance to the next component to be tested.

NOTE: To bypass testing any component, press NEXT to advance to the next component without testing the previous one.

8. The display should now read

DILUTION. To test

the dilution valve, press ON. If the dilution valve is functional, water should run from the nozzle.

9. Press

10. Press

OFF to end the ﬂow of water. NEXT to advance to the next component to

be tested, REFILL VALVE.

11. To test the

REFILL VALVE, press ON. If the reﬁll

valve is functional, the sound of the valve operating will be heard.

12. Press

13. Press

OFF to end testing of the reﬁll valve. NEXT to advance to the next component to

be tested, TANK HEATR RELAY.

14. To test the tank heater relay, connect a voltmeter across each of the tank heaters to check for voltage.

15. Press

ON. The correct voltage should be present

at the heater terminals.

16. Press OFF to end testing of the tank heater relay.

NOTE: The tank heater will automatically turn off if left on too long.

17. Press

NEXT to advance to the next component to

be tested, TANK HEATR TRIAC.

18. To test the tank heater triac, connect a voltmeter across each of the tank heaters to check for voltage.

19. Press ON. The correct voltage should be present at the heater terminals.

20. Press OFF to end testing of the tank heater triac.

21. Press NEXT to TEST OUTPUTS?. To exit program- ming, press and release the ON/OFF button to return to the MAIN SCREEN.

Page 56

36748 101505

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Page 57

P2883

36748 041504

PROGRAMMING THE BREWER (cont.)

BREW

SERVICE TOOLS?

NO YES

TEST OUTPUTS?

NO YES

TEST SWITCHES?

NO YES

TEST SWITCHES?

NO YES

TEST FREQUENCY?

NO YES

RIGHT HIDDEN

TO EXIT

NOTHING PRESSED

PRESSING NO WILL

ADVANCE TO

FACTORY DEFAULTS

PRESSING NO WILL

ADVANCE TO

TEST FREQUENCY

AFTER ALL SWITCHES ARE TESTED

PRESS RIGHT HIDDEN TO RETURN TO

TEST SWITCHES

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Procedure to test switches:

The following switches can be individually tested: Half Batch Full Batch Left Hidden Brew A Brew B Brew C On/Off

1. Press and hold the right hidden button until the dis

play reads SET LANGUAGE. Press the right hidden button until the display reads SERVICE TOOLS.

2. Press and release YES. The display should now read TEST OUTPUTS? Press and release NO to advance to TEST SWITCHES.

3. Press and release YES. The display should now read RIGHT HIDDEN TO EXIT, and then NOTHING

PRESSED.

4. From this screen, press any of the switches on the front of the brewer. While the switch is pressed, the display shows the name of that switch. If the name does not appear, or if it remains after the switch has been released, the switch is defective. Each switch can be tested in this manner.

After all switches have been tested, press and release the right hidden button to return to the TEST SWITCHES screen. To exit programming, press and release the ON/OFF button to return to the MAIN SCREEN.

Page 58

P2884

36748 041504

PROGRAMMING THE BREWER (cont.)

BREW

SERVICE TOOLS?

NO YES

TEST OUTPUTS?

NO YES

TEST SWITCHES?

NO YES

TEST FREQUENCY?

NO YES

125.0 KHZ 4 DONE

PRESSING NO WILL

ADVANCE TO

FACTORY DEFAULTS

PRESSING NO WILL

ADVANCE TO

FACTORY DEFAULTS

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

Procedure to test coil frequency:

1. Press and hold the right hidden button until the dis-

play reads SET LANGUAGE. Press the right hidden button until the display reads SERVICE TOOLS.

2. Press and release

YES. The display should now read

TEST OUTPUTS? Press and release NO to advance

to TEST SWITCHES.

3. Press and release

NO to advance to TEST FRE-

QUENCY.

4. The display should now show the frequency of the sensor coil circuit. This is for diagnostic service use when troubleshooting this circuit.

5. After the coil has been tested, press and release the ON/OFF button to return to the MAIN SCREEN.

P2885

Page 59

36748 041504

PROGRAMMING THE BREWER (cont.)

BREW

FACTORY DEFAULTS

NO YES

WILL REPLACE ALL

BREW SETTINGS

ARE YOU SURE?

NO YES

PRESSING NO WILL

RETURN TO

MAIN SCREEN

REPLACES ALL

PREVIOUS SETTINGS

PRESSING NO WILL

RETURN TO

MAIN SCREEN

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

FACTORY DEFAULTS

This function allows the operator to erase ALL of the previously entered recipes and ad messages. Factory-set default values will replace ALL previous settings.

Procedure to set factory defaults:

1. Press and hold the right hidden button until the

display reads SET LANGUAGE. Press the right hidden button until the display reads FACTORY DEFAULTS.

2. Pressing

NO will return to the MAIN SCREEN. Press YES to restore defaults. The display will read WILL REPLACE ALL BREW SETTINGS followed with ARE YOU SURE?

3. Pressing

NO in this conﬁrmation screen will revert to the MAIN SCREEN without resetting the brewing setups to the defaults. Press YES to load the defaults. After factory defaults have been restored, the display will return to the MAIN SCREEN. The factory default valves will have replaced ALL previously entered values. It will NOT reset the life brew counter. If factory defaults are restored, it will be necessary to recalibrate the ﬂow rates. Refer to pages 50-51.

P2886

Page 60

36748 101505

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

FACTORY DEFAULT VALUES

Brew Lockout - Disabled

Language - English

Units - English

SWITCH RECIPE Brew A – TEA 1 Brew B – HOT TEA Brew C – NO-NAME COFFEE

TEA 1 RECIPE:

BREW VOLUMES Half Batch – 38 OZ Full Batch – 76 OZ

DILUTION VOLUMES Half Batch – 160 OZ Full Batch – 320 OZ

DILUTION DELAY Half Batch – 0:00 Full Batch – 0:00

PULSE BREW TIMES Half Batch – Manual :30/:15/:15 Full Batch – Manual :30/:15/:15

DRIP OUT TIMES Half Batch – 0:55 Full Batch – 1:20

TEA 2 RECIPE:

BREW VOLUMES Half Batch – 38 OZ Full Batch – 76 OZ

DILUTION VOLUMES Half Batch – 160 OZ Full Batch – 320 OZ

DILUTION DELAY Half Batch – 0:00 Full Batch – 0:00

PULSE BREW TIMES Half Batch – Disabled Full Batch – Disabled

DRIP OUT TIMES Half Batch – 1:55 Full Batch – 2:40

TEA 3 RECIPE:

BREW VOLUMES Half Batch – 45 OZ Full Batch – 90 OZ

DILUTION VOLUMES Half Batch – 160 OZ Full Batch – 320 OZ

DILUTION DELAY Half Batch – 0:00 Full Batch – 0:00

PULSE BREW TIMES Half Batch – Manual :30/:15/:15 Full Batch – Manual :30/:15/:15

DRIP OUT TIMES Half Batch – 1:00 Full Batch – 1:20

Page 61

36748 051304

PROGRAMMING THE BREWER (cont.)

PROGRAMMING FUNCTIONS - LEVEL 2 (cont.)

FACTORY DEFAULT VALUES (Continued)

HOT TEA RECIPE:

BREW VOLUMES Half Batch - 64 OZ Full Batch - 64 OZ

PULSE BREW TIMES Half Batch - Manual :30/:15/:15 Full Batch - Manual :30/:15/:15

DRIP OUT TIMES Half Batch - 1:15 Full Batch - 1:15

ICED COFFEE RECIPE:

BREW VOLUMES Half Batch - 64 OZ Full Batch - 64 OZ

DILUTION VOLUMES Half Batch - 0 OZ Full Batch - 0 OZ

DILUTION DELAY Half Batch - 0:00 Full Batch - 0:00

PULSE BREW TIMES Half Batch - Disabled Full Batch - Manual :45/:10/:15

DRIP OUT TIMES Half Batch - 1:00 Full Batch - 1:30

NO-NAME COFFEE RECIPE:

BREW VOLUMES Half Batch - 64 OZ Full Batch - 64 OZ

PULSE BREW TIMES Half Batch - Manual :40/:10/:26 Full Batch - Manual :40/:10/:26

DRIP OUT TIMES Half Batch - 1:00 Full Batch - 1:00

Master Temp - 205° Ready Temp - 5°

Enable Ads - Disabled

Enable Sanitation - Disabled

Enable Energy Saver Mode - Disabled IDLE - 4 HRS, THEN 140°

Enable Freshness Timer - Disabled TEA - 8 HRS HOT TEA - 2 HRS ICED COFFEE - 4 HRS COFFEE - 2 HRS

Spray Oz/m - 26

Dilution Oz/m - 73

Recipe Temps TEA 1 - 205° TEA 2 - 205° TEA 3 - 205° HOT TEA - 205° ICED COFFEE - 200° COFFEE - 200°

Page 62

36748 030707

TROUBLESHOOTING

A troubleshooting guide is provided to suggest probable causes and remedies for the most likely problems encountered. If the problem remains after exhausting the troubleshooting steps, contact the Bunn-O-Matic Technical Service Department.

• Inspection, testing, and repair of electrical equipment should be performed only by qualiﬁed service person

nel.

• All electronic components have 120-240 volt ac and low voltage dc potential on their terminals. Shorting of

terminals or the application of external voltages may result in board failure.

• Intermittent operation of electronic circuit boards is unlikely. Board failure will normally be permanent. If

an intermittent condition is encountered, the cause will likely be a switch contact or a loose connection at a

terminal or crimp.

• Solenoid removal requires interrupting the water supply to the valve. Damage may result if solenoids are

energized for more than ten minutes without a supply of water.

• The use of two wrenches is recommended whenever plumbing ﬁttings are tightened or loosened. This will

help to avoid twists and kinks in the tubing.

• Make certain that all plumbing connections are sealed and electrical connections tight and isolated.

This brewer is heated at all times. Keep away from combustibles.

•

WARNING

– • Exercise extreme caution when servicing electrical equipment.

• Unplug the brewer when servicing, except when electrical tests are speciﬁed.

• Follow recommended service procedures.

• Replace all protective shields or safety notices.

Page 63

36748 041504

TROUBLESHOOTING (cont.)

PROBABLE CAUSE REMEDYPROBLEM

Temperature Too Low

Heating Time Too Long

Fill Time Too Long

1. Water temperature in the tank does not meet the ready temperature.

1. Tank Heater failure.

2. Control Board/Thermistor failure

1. Water shut off to brewer

2. Tank Drain clamp is shut

3. Inlet Solenoid failure

4. Control Board Failure

5. ON/OFF switch is OFF

A) Wait for the brewer to heat to the proper temperature.

B) Disable the BREW LOCKOUT function. See page 17 for procedure.

Service required

Check water supply shut-off

Check tank drain clamp

Service Required

Turn switch ON

Temp Sensor Out Of Range, Check For Bad Connections

Temp Sensor Out Of Range, Check Wire For Shorts

Equipment will not operate

1. Temperature Sensor Probe wire(s) broken or not making connection

1. Temperature Sensor Probe wire(s) shorted to housing or to each other.

1. No power or incorrect voltage

Check wire and connection of both black and white wires of temperature probe.

Check to conﬁrm that wire(s) are not pinched between two surfaces or connected to each other.

Measure the voltage at the terminal block and conﬁrm that it matches the voltage speciﬁed on the brewer data plate withing +/- 10%.

Page 64

36748 051304

TROUBLESHOOTING (cont.)

PROBLEM

Brew cycle will not start

PROBABLE CAUSE REMEDY

1. No water

Check plumbing and shut-off valves

2. No power or incorrect voltage to the brewer

3. ON/OFF switch

Check for voltage across the terminals at the terminal block.

Test the ON/OFF switch. Refer to the test switch procedures on page 58.

4. Brew switch

Test the BREW switch. Refer to the test switch procedures on page

57.

5. Brew valve

Test the brew valve. Refer to the test outputs procedures on page 56.

6. Control Board

Substitute a control board known to be in good working order.

Page 65

36748 080904

TROUBLESHOOTING (cont.)

PROBLEM

Automatic reﬁll will not operate or display shows FILL TIME TOO LONG

PROBABLE CAUSE REMEDY

1. No water

Check plumbing and shut-off valves

2. Tank drain clamp

3. Water Strainer

Check tank drain clamp

Direction of ﬂow arrow must be pointing towards direction of water ﬂow.

4. Reﬁll probe or Sensitivity setting

5. Reﬁll valve

Remove the strainer and check for obstructions. Clear or replace.

Check the sensitivity setting. Refer to the REFILL function on page

47. If the left three digit number is less than the right number, the machine “thinks” it is full and the reﬁll valve should be off. If the left number is larger than the right, then the reﬁll valve will automatically be turned on to ﬁll the tank. The right number is the threshold setting and can be adjusted to compensate for extreme water conditions: very pure, low conductance water requires a higher setting, while high mineral content, high conductance water requires a lower setting. Note that the left number changes from a high value when water is NOT touching the reﬁll probe to a low valve when water IS touching the probe. For best operation, the right number should be set to a value midway between these low and high numbers. Before changing the setting, conﬁrm that the reﬁll probe is free of scale buildup and the connection to it is

Page 66

36748 080904

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Automatic reﬁll will not operate or display shows FILL TIME TOO LONG (Continued)

5. Reﬁll valve (Continued)

6. Control Board

secure. Test the reﬁll valve. Refer to the test outputs procedures on page 56. Reﬁll valve – Disconnect the brewer from the power source and remove wires from reﬁll valve coil. Check for continuity across the terminals of the solenoid coil. If continuity is not present, replace the reﬁll valve. If continuity is present, the coil may be stuck closed. Shut water off to brewer. Press the ON/OFF switch to turn off the brewer. Open the faucet and drain water down in the tank until ﬂow stops or slows to a trickle. Attach a voltmeter to the terminals of the reﬁll solenoid. Connect the brewer to the power source. Press the ON/OFF switch to turn the brewer on. Within ﬁve seconds, voltage should be present at the solenoid terminals. If voltage is not present, refer to the wiring schematic and check the wiring harness.

7. ON/OFF Switch

Substitute a control board known to be in good working order.

Page 67

36748 051304

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Water ﬂows into tank continuously with power removed from brewer.

1. Reﬁll valve

2. Reﬁll probe or sensitivity setting

Foreign material lodged in valve, holding it in open state.

Check the sensitivity setting. Refer to the REFILL function on page

3. Control Board

Page 68

Substitute a control board known to be in good working order.

36748 041504

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Water will not heat or display shows HEATING TIME TOO LONG.

1. Limit Thermostat

2. Temperature probe

3. Toggle switch

Remove power from the brewer. Check for continuity through the limit thermostat. CAUTION: Do not eliminate or bypass limit thermostat. Use only replacement part

29329.0001.

Remove the probe from the grommet and submerge in a water bath of approximately 70°F (21°C). Connect an ohmmeter to the pins in the connector. At 60°F (16°C), the reading should be 15.3k ± 2k OHMS, at 70°F (21°C) the reading should be 11.8k ± 2k OHMS, and at 80°F (27°C) the reading should be 9.3k ± 2k OHMS. If the probe is within these parameters, reconnect to the control board.

Check that the toggle switch connections are secure and properly wired. Check the toggle switch selects the correct voltage.

Page 69

36748 111904

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Water will not heat or display shows HEATING TIME TOO LONG. (Continued)

4. Tank heaters

5. Control Board

Remove power from the brewer. Check for continuity between the white terminal of the terminal block (or red terminal on 208/240V models) and the black wire on the relay on the control board (Toggle switch must be in 120/208-240V position on 208V and 240V models). There should be a low OHM reading. If not continuity is present, check for a wiring or switch problem (consult wiring schematic), then replace the tank heater if no wiring or switch problem is found.

Remove power from the brewer. Connect a voltmeter across the tank heater. Reapply power to the brewer and refer to testing outputs on page 56. If the voltage measured when the tank heater is turned on is very low or zero, then substitute a control board know to be good working order.

Page 70

36748 080904

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Dilution cycle will not start 1. Dilution valve

2. Recipe settings

3. Strainer

Test the dilution valve. Refer to the test outputs procedures on page 56.

Check to make sure the current recipe has a dilution volume set. Coffee recipes will not have dilution.

Direction of ﬂow arrow must be pointing towards the brewer. Remove the strainer and check for obstructions. Clear or replace.

Page 71

36748 080904

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Spitting or unusual steaming from sprayhead or air vent.

1. Lime buildup

2. Temperature probe

3. Control Board

Inspect the probe and tank assembly for excessive lime deposits. Delime as required.

Dripout time too long

1. Funnel tip

Page 72

The brew funnel should be cleaned thoroughly before each brew cycle to lessen the chance of tealeaf or ground particles clogging the dripout tip.

36748 080904

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Inconsistent beverage level in server/dispenser

1. Strainer

2. Improper water pressure

3. Brew valve

4. Dilution valve

Direction of ﬂow arrow must be pointing towards the brewer. Remove the strainer and check for obstructions. Clear or replace.

Check operating water pressure to the brewer. It must be between 20 and 90 psi (138 and 620 kPa).

Test the brew valve. Refer to test outputs on page 56. Turn the valve on for 30 seconds and collect the water dispensed from the sprayhead. Repeat the test several times to conﬁrm a consistent volume of dispensed water. If not consistent, check the valve, tubing and sprayhead for lime buildup.

If dilution is being used on the inconsistent brewing recipe, test the dilution value. Refer to test outputs on page 56. Turn the valve on for 30 seconds and collect the water collected from the nozzle. Repeat the test several times to conﬁrm a consistent volume of dispensed water. If not consistent, check the valve, tubing and nozzle for lime buildup.

5. Lime buildup

6. Brew volume adjustment

Page 73

Inspect for lime buildup that could block the tank, tank ﬁttings, tubing, valves and sprayhead.

Adjust the brew volume as required to achieve the recommended volume for each brew cycle.

36748 080904

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Dripping from sprayhead.

Water overﬂows ﬁlter.

Beverage overﬂows server.

1. Brew valve

1. Type of paper ﬁlter

2. No sprayhead

1. Beverage left in server from previous brew

2. Brew volume adjustment

Repair or replace leaky valve

BUNN paper ﬁlters should be used for proper extraction

Check sprayhead

The brew cycle should be started only with an empty server under the funnel.

Adjust the brew volumes as required to achieve the recommended volume for each brew cycle.

Page 74

36748 041504

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Weak beverage. BUNN paper ﬁlters should be used

1. Type of paper ﬁlter for proper extraction

2. Coffee or tealeaves

For coffee, a sufﬁcient quantity of fresh drip or regular grind should be used for proper extraction. For tea, a sufﬁcient quantity of fresh, loose tea leaves should be used for proper extraction.

3. Sprayhead

Bunn-O-Matic sprayhead should be used to properly wet the bed of ground coffee or tealeaves in the funnel

4. Funnel Loading

The BUNN paper ﬁlter should be centered in the funnel and the bed of grounds or tealeaves leveled by gently shaking.

5. Water temperature

Empty the server, remove its cover, and place the server beneath the sprayhead. Place empty funnel over the server entrance (not in the funnel rails). Press brew. Check the water temperature immediately below the sprayhead with a thermometer. The reading should not be less than 195°F (90.5° C).

6. Incorrect recipe

Page 75

Consider adjusting brew volumes, dilution volumes, dilution delay and pulse brew routines. Contact BunnO-Matic for suggestions.

36748 041504

TROUBLESHOOTING (cont.)

PROBLEM PROBABLE CAUSE REMEDY

Brewer is making unusual noises. The mounting screws on the so-

1. Solenoids lenoids must be tight or they will vibrate during operation

2. Plumbing lines

Plumbing lines should not be resting on the countertop.

3. Water supply

The brewer must be connected to a cold water line. Water pressure to the brewer must not be higher than 90 psi (620 kPa). Install a regulator if necessary to lower the working pressure to approximately 50 psi (345 kPa).

4. Tank heaters

Remove and clean lime off tank heaters.

Page 76

36748 041504

MEMORY

BOARD

SCHEMATIC WIRING DIAGRAM ITCB-DV

BLU-14

LIMIT

THERMOSTAT

WHI

WHI/VIO

WHI

REFILL

DISPENSE

J1-1 J1-2

J17-1

J17-5

J15-1

J15-5

J17-10

J17-14

C O N

T R O

B O

A R D

COM N.O.

VIO

BLK

BLK-14

WHI/GRN

WHI/BLU

WHI

WHI/BLU

FUNNEL SENSOR

120V AC 2 WIRE 120/208V AC 3 WIRE 120/240V AC 3 WIRE

SINGLE PHASE

BLK

RED

WHI

GRN

CONTROL PANEL ASSY

J2-1

J2-5

J2-15

J2-20

J2-22

J2-10

PROG L

BREW

PROG R

BREW

STATIC SHIELD

J3-1

J3-8

J3-5

BLK

PNK

WHI

GRN

LEVEL PROBE

WHI-14

GRN

N L2

WHI/VIO-14

BLU-14

N L2

RED-14

TANK HEATER

1680W

TANK HEATER

1800W

SELECTOR

SWITCH

J13-1

DILUTION

SOL

TRANSFORMER

10VA

J16-1

J16-5

J18-1

J9-1

J9-7

1 3

FULL

HALF

ON/OFF

BREW

Page 77

36748 030707

-%-/29 "/!2$

3#(%-!4)#7)2).'$)!'2!-I4#"!I4#""

"Ú"5../-!4)##/20/2!4)/.

",5

,)-)4

4(%2-/34!4

2%$

7()6)/

2%$

2%&),,

$)30%.3%

*

*

*

*

*

*

*

*

# / . 4 2 / ,



" / ! 2 $

#/./

6)/

",+

",+

7()'2.

7()",5

2%$

7()",5

&5..%,3%.3/2

6!#7)2% 6!#7)2%

3).',%0(!3%

",+

2%$

7()

'2.

#/.42/,0!.%,!339

*





*

*

*

*

*

02/',

"2%7

02/'2

"2%7

34!4)#

3()%,$

*

*

*

",+

0.+

7()

'2.

,%6%, 02/"%

2%$

4!.+(%!4%2

7

*

$),54)/.

3/,

42!.3&/2-%2

6!

*

*

*

*

*

 

&5,,

(!,&

/./&&

"2%7

2%$

,

2%$

",+

2%$

%-)

&),4%2

'2.9%,

",+

,

Page 78

36748 111904

MEMORY

BOARD

SCHEMATIC WIRING DIAGRAM ITCB-C-DV

BLU-14

LIMIT

THERMOSTAT

WHI

WHI/VIO

WHI

REFILL

DISPENSE

J1-1

J1-2

J17-1

J17-5

J15-1

J15-5

J17-10

J17-14

C O N T R O L

P C B

O A R D

COM N.O.

VIO

BLK

BLK-14

WHI/GRN

WHI/BLU

WHI

WHI/BLU

FUNNEL SENSOR

120V AC 2 WIRE 120/208V AC 3 WIRE 120/240V AC 3 WIRE

SINGLE PHASE

BLK

RED

WHI

GRN

CONTROL PANEL ASSY

J2-1

J2-5

J2-15

J2-20

J2-22

J2-10

PROG L

BREW

PROG R

BREW

STATIC SHIELD

J3-1

J3-8

J3-5

BLK PNK

WHI

GRN

LEVEL PROBE

WHI-14

GRN

N L2

WHI/VIO-14

BLU-14

N L2

RED-14

TANK HEATER

1425W

TANK HEATER

1800W

SELECTOR

SWITCH

J13-1

DILUTION

SOL

TRANSFORMER

10VA

J16-1

J16-5

J18-1

J9-1

J9-7

1 3

FULL

HALF

ON/OFF

BREW

Page 79

36748 111904

Bunn ITCB-DV User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
