Bunn Itcb, Itcb-dv User Manual

ITCB

ITCB-DV

New Infusion Series

®

ILLUSTRATED PARTS CATALOG

Designs, materials, weights, specifications, and dimensions for equipment or replacement parts

are subject to change without notice.

BUNN-O-MATIC CORPORATION

POST OFFICE BOX 3227

SPRINGFIELD, ILLINOIS 62708-3227

PHONE: [phone] FAX: [phone]

www.bunn.com

To ensure you have the latest revision of the Operating Manual, Illustrated Parts Catalog, Programming Manual, or Service
Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain
the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.

53868.0000D 11/18 ©2017 Bunn-O-Matic Corporation

BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY

Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:

1) Airpots, thermal carafes, decanters, GPR servers, iced tea/coffee dispensers, MCR/MCP/MCA single cup brewers, ther­mal servers and ThermoFresh® servers (mechanical and digital) 1 year parts and 1 year labor.

2) All other equipment - 2 years parts and 1 year labor plus added warranties as specified below:
a) Electronic circuit and/or control boards - parts and labor for 3 years.
b) Compressors on refrigeration equipment - 5 years parts and 1 year labor.
c) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis - parts and
labor for 4 years or 40,000 pounds of coffee, whichever comes first.

These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by it will be
commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the
applicable warranty period. This warranty does not apply to any equipment, component or part that was not manufactured
by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect, alteration, improper installation or operation,
improper maintenance or repair, non periodic cleaning and descaling, equipment failures related to poor water quality,
damage or casualty. In addition, the warranty does not apply to replacement of items subject to normal use including but
not limited to user replaceable parts such as seals and gaskets. This warranty is conditioned on the Buyer 1) giving BUNN
prompt notice of
any claim to be made under this warranty by telephone at [phone] or by writing to Post Office Box
3227, Springfield, Illinois 62708-3227; 2) if requested by BUNN, shipping the defective equipment prepaid to an authorized
BUNN service location; and 3) receiving prior authorization from BUNN that the defective equipment is under warranty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR ORAL, EX­PRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.

­fications to this warranty or to make additional warranties that are binding on BUNN. Accordingly, statements by such
individuals, whether oral or written, do not constitute warranties and should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its exclusive op­tion while the equipment is under warranty, shall either 1) provide at no charge replacement parts and/or labor (during the
applicable parts and labor warranty periods specified above) to repair the defective components, provided that this repair
is done by a BUNN Authorized Service Representative; or 2) shall replace the equipment or refund the purchase price for
the equipment.

THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF THIS
EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S SOLE OPTION
AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of
use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities
or services, or any other special, incidental or consequential damages.

392, A Partner You Can Count On, Air Infusion, AutoPOD, AXIOM, BrewLOGIC, BrewMETER, Brew Better Not Bitter, Brew­WISE, BrewWIZARD, BUNN Espress, BUNN Family Gourmet, BUNN Gourmet, BUNN Pour-O-Matic, BUNN, BUNN with
the stylized red line, BUNNlink, Bunn-OMatic, Bunn-O-Matic, BUNNserve, BUNNSERVE with the stylized wrench design,
Cool Froth, DBC, Dr. Brew stylized Dr. design, Dual, Easy Pour, EasyClear, EasyGard, FlavorGard, Gourmet Ice, Gourmet
Juice, High Intensity, iMIX, Infusion Series, Intellisteam, My Café, Phase Brew, PowerLogic, Quality Beverage Equipment
Worldwide, Respect Earth, Respect Earth with the stylized leaf and coffee cherry design, Safety-Fresh, savemycoffee.com,
Scale-Pro, Silver Series, Single, Smart Funnel, Smart Hopper, SmartWAVE, Soft Heat, SplashGard, The Mark of Quality in
Beverage Equipment Worldwide, ThermoFresh, Titan, trifecta, TRIFECTA (sylized logo), Velocity Brew, Air Brew, Beverage
Bar Creator, Beverage Profit Calculator, Brew better, not bitter., Build-A-Drink, BUNNSource, Coffee At Its Best, Cyclonic
Heating System, Daypart, Digital Brewer Control, Element, Milk Texturing Fusion, Nothing Brews Like a BUNN, Picture
Prompted Cleaning, Pouring Profits, Signature Series, Sure Tamp, Tea At Its Best, The Horizontal Red Line, Ultra are either
trademarks or registered trademarks of Bunn-O-Matic Corporation. The commercial trifecta® brewer housing configura­tion is a trademark of Bunn-O-Matic Corporation.

The agents, dealers or employees of BUNN are not authorized to make modi

2

53868 031314

TABLE OF CONTENTS

HOOD, TRUNK, & BASE .......................................................................................................................... 4

TANK ASSEMBLY .................................................................................................................................... 8

DISPENSE VALVE & SPRAYHEAD ......................................................................................................... 10

TANK FILL & DRAIN ..............................................................................................................................12

TANK FILL & DRAIN WITH SWEET BREW ............................................................................................14

FAUCET ASSEMBLY .............................................................................................................................. 18

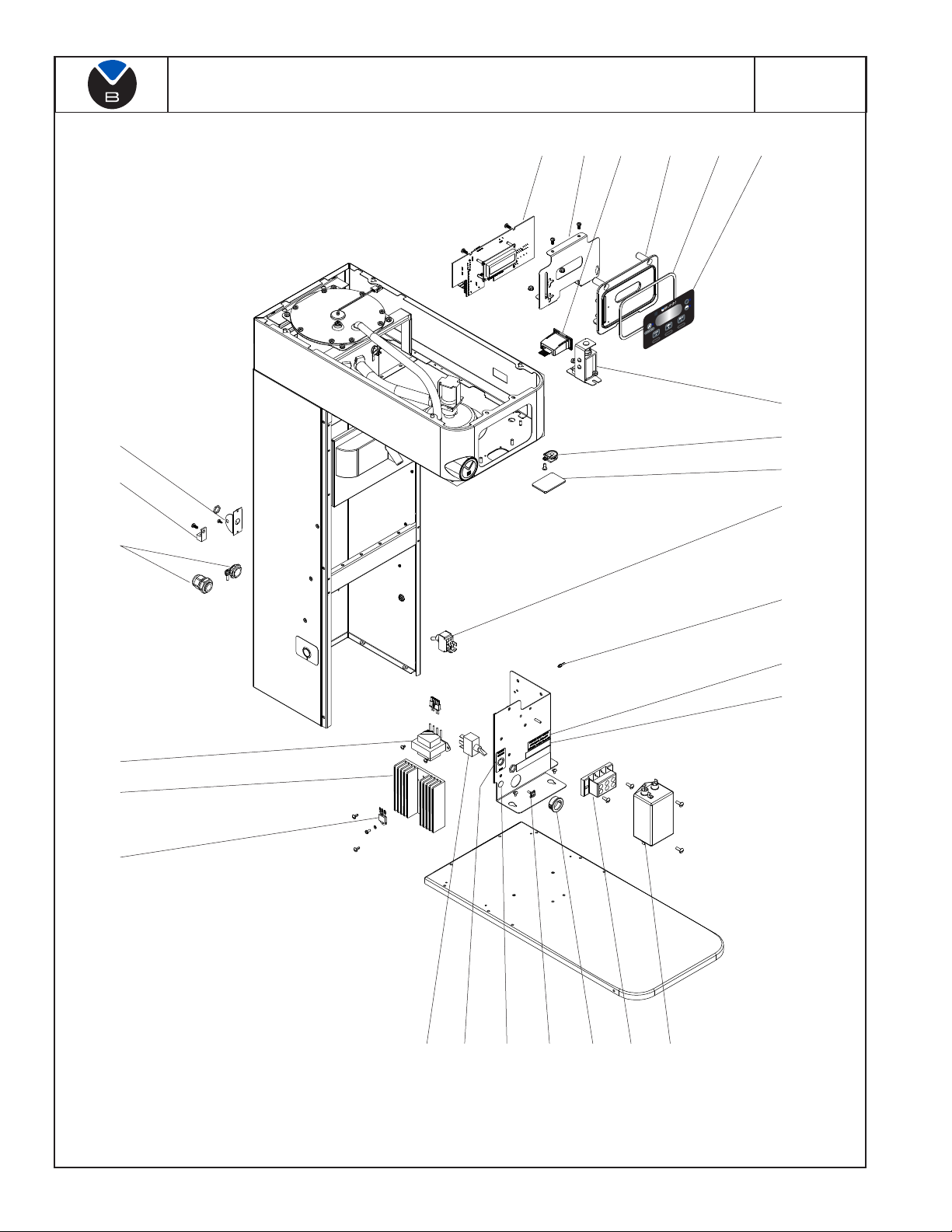

ELECTRICAL COMPONENTS ................................................................................................................. 20

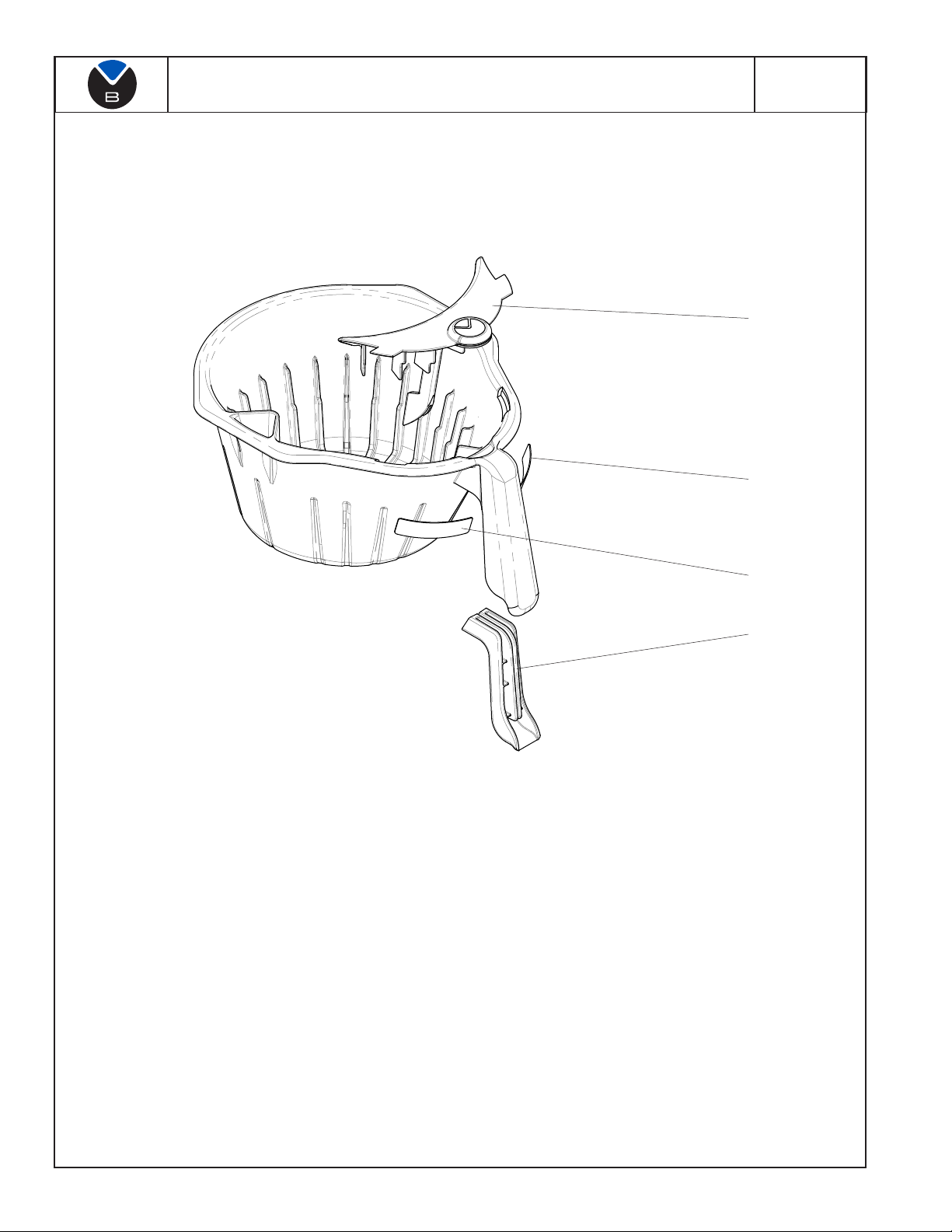

FUNNEL ...........................................................................................................................................24,26

NUMERICAL INDEX ..............................................................................................................................28

ITCB-DV ................................................................................................................. Dual Voltage Machine

ITCBA ............................................................................................................................ 230 Volt Machine

Fraction Decimal Fraction Decimal

1/16 0.063 9/16 0.563

1/8 0.125 5/8 0.625

3/16 0.188 11/16 0.688

1/4 0.250 3/4 0.750

5/16 0.313 13/16 0.813

3/8 0.375 7/8 0.875

7/16 0.438 15/16 0.938

1/2 0.500 1 1.000

3

53868 080117

6

28

HOOD, TRUNK, & BASE

WARNIN G

To reduce the risk of electric shock,

do not remove or open cover.

No user-serviceable parts inside.

Authorized service personnel only.

Disconnect power before servicing.

ITCB

Series

2

1

3

4

5

16

7

8

9

12

11

10

15

13

14

26

24

17

18

31

19

20

21

2

M

WARNING

Incorrect programming could result in accidental
dispensing of HOT LIQUID.
Trained personnel are to follow instructions
provided for software programming.
Use of additional graphic layer requires disabling
of appropriate switches.

39175.0000C 07/15 ©2006 Bunn-O-Matic Corporation

Read all instructions for additional graphic layer
prior to installing and programming.

WARNIN G

To reduce the risk of electric shock,
do not remove or open cover.
No user-serviceable parts inside.
Authorized service personnel only.
Disconnect power before servicing.

Optional Field Wiring

1PH, 3-Wire + GND, 60HZ

3

120/208-240 V, 13.0-15.0 A, 2650-3500 W

22

23

25

27

P4400.40

4

53868 080117

HOOD, TRUNK, & BASE

ITEM PART NO. QTY. DESCRIPTION

1 44736.1025 1 Cover Assy, Top (Includes items 2 & 3)

01311.0004 4 Screw, Truss Head, BLK #6-32 x .25˝ Lkg

2 25151.0011* 1 Shield, Insulator

3 37881.0000 2 Decal, No Serviceable Parts

4 52896.0000 1 Faucet Bezel

5 53619.0000 1 Plug, Faucet Hole

33651.0000 1 Washer

01317.0003 1 Screw, Truss Head #8-32 x .50˝ Lkg

6 02434.0010* 1 Gasket, U-channel, 2.0” (Order item 29)

7 45860.1015 1 Trunk Assy. (Includes items 8, 9, 10 & 13)

01315.0000 6 Screw, Truss Head #8-32 x .38”

8 00986.0000 1 Decal, Warning-Electrical

9 51453.0000 1 Decal, Risk of Fire

10 00656.0001 1 Decal, Compliance to Plumbing Code

11 00824.0001 1 Decal, Equipotentiality (230V Models)

12 00669.0002 1 Plug

13 29007.0005 2 Decal, Hot Water Side Faucet

14 00619.0002 2 Plug

15 20621.0001 6 Plug (Models without Tray)

29504.0005 6 Screw, Shoulder

00991.0000 6 Nut, Elastic Lock #8-32

16 01592.0001 1 Bushing

17 36360.1001 1 Nozzle, Dilution

02332.0005 2 Screw, Hex #6-32 x .38”

28614.0000 2 Washer

18 53870.1000 1 Cover Assy, Front (Includes items 2, 19, 21, 22)

01315.0000 6 Screw, Truss Head #8-32 x .38”

19 00658.0000 1 Decal, Warning-Decanter/Funnel

20 53869.0000 1 Schematic, ITCB-DV

53869.0001 1 Schematic, ITCBA

21 39175.0000 1 Decal, Warning Overlay Graphic

22 29710.0009 1 Decal, Optional Field Wiring (Dual Volt Models only)

23 38704.1005 1 Flip Tray w/Decal (Models with Flip Tray)

(continued)

5

53868 030518

6

28

HOOD, TRUNK, & BASE

(continued)

WARNIN G

To reduce the risk of electric shock,

do not remove or open cover.

No user-serviceable parts inside.

Authorized service personnel only.

Disconnect power before servicing.

ITCB

Series

2

1

3

4

5

16

7

8

9

12

11

10

15

13

14

26

24

17

18

31

19

20

21

2

M

WARNING

Incorrect programming could result in accidental
dispensing of HOT LIQUID.
Trained personnel are to follow instructions
provided for software programming.
Use of additional graphic layer requires disabling
of appropriate switches.

39175.0000C 07/15 ©2006 Bunn-O-Matic Corporation

Read all instructions for additional graphic layer
prior to installing and programming.

WARNIN G

To reduce the risk of electric shock,
do not remove or open cover.
No user-serviceable parts inside.
Authorized service personnel only.
Disconnect power before servicing.

Optional Field Wiring

1PH, 3-Wire + GND, 60HZ

3

120/208-240 V, 13.0-15.0 A, 2650-3500 W

22

23

25

27

P4400.40

6

53868 080117

HOOD, TRUNK, & BASE

ITEM PART NO. QTY. DESCRIPTION

24 36461.0001 1 Guide Rail, Left

00991.0000 2 Nut, Elastic Lock #8-32

25 36462.0001 1 Guide Rail, Right

00991.0000 2 Nut, Elastic Lock #8-32

26 36412.0000 1 Rail, Stop

00991.0000 2 Nut, Elastic Lock #8-32

27 25137.0001 4 Foot

24600.0000 - Foot Kit, Set of 4

28 02712.0013* 1 Edging 1.0” (Oreder item 30)

29 02434.1000 - Gasket, U-channel, 18.0” (Use as Required)

30 02712.1000 - Edging 18.0” (Use as Required)

31 42507.0000 1 Fitting, Press In (Models with Sweet Brew Option)

7

53868 080117

TANK ASSEMBLY

3

17

6

ITCB

Series

16

7

5

4

8

2

1

15

14

9

10

11

12

13

P2888

8

53868 080117

TANK ASSEMBLY

ITEM PART NO. QTY. DESCRIPTION

1 33937.0004 1 Tank (Models ITCB-DV)

33937.0003 1 Tank (Models ITCBA, 230V)

00970.0000 3 Nut, Hex #8-32

01501.0000 1 Washer

20203.0100 1 Lockwasher, Internal-tooth #8

00908.0000 1 Nut, Hex #8-32

2 29329.1000 1 Limit Thermostat

3 04221.0000 1 Gasket

4 28735.0000 1 Lid

00908.0000 8 Nut, Hex #8-32

5 38969.0003 1 Fitting, 90° Silicone

6 38114.0000 1 Grommet, Liquid Level Probe

7 33801.0003 1 Grommet, Temp. Sensor

8 29485.1004 1 Tank Heater 1800W, 120V (Includes item 9) (Models ITCB-DV)

05037.1000 1 Tank Heater 3500W, 230V (Includes item 9) (Models ITCBA, 230V)

9 00943.0000 2 Gasket

10 00942.0000 2 Nut, Hex .50"-20

11 02755.1002 1 Tank Heater 1680W, 120V (Includes item 12) (Models ITCB-DV)

12 00943.0000 2 Gasket

13 00942.0000 2 Nut, Hex .50"-20 (4 Used on DV Models)

14 29279.0000 1 Cap, Tube-Silicone

15 12422.0005 1 Clamp, Hose-Snap Type .62"-.71" ID

16 39085.1001 1 Probe Kit, Temperature and Dry Plug

17 07412.1002 1 Probe, Liquid Level (Regular Dispense)

07412.1003 1 Probe, Liquid Level (Sweet Brew Dispense)

01501.0000 1 Washer

20203.0100 1 Lockwasher, Internal-tooth #8

00908.0000 1 Nut, Hex #8-32

Models without Faucet only

9

53868 080117

10

11

DISPENSE VALVE & SPRAYHEAD

8 9 8 7

ITCB

Series

12

1

10

3

4

5

6

2

P4402.50

53868 112918

DISPENSE VALVE & SPRAYHEAD

ITEM PART NO. QTY. DESCRIPTION

1 26846.0000 1 Valve, Dispense (120V)

26846.0002 1 Valve, Dispense (240V)

2 40670.1222 1 Sprayhead, 17 Hole (Includes items 4,5 & 6)

3 01075.0000 1 Nut, Hex .438”-20

4 52112.0003 1 Back, Sprayhead

5 34868.0000 1 Seal

6 43920.0002 1 Sprayhead, 17 Hole

7 34956.0004 1 Fitting

8 12422.0009 2 Clamp, SNP-14

9 32591.0023* 1 Tube .50” ID x 7.88” (Order item 13)

10 38969.0003 1 Fitting, 90° Silicone

11 32591.0001* 1 Tube .50” ID x 12.0” (Order item 13)

12 11517.0008 1 Repair Kit, Dispense Valve (Includes Plunger, Spring and Diaphragm)

The following items are not illustrated.

13 32591.1001 1 Tube .50” ID x 12.0” (Use as required)

32591.1002 1 Tube .50” ID x 36.0” (Use as required)

11

53868 112918

2 1

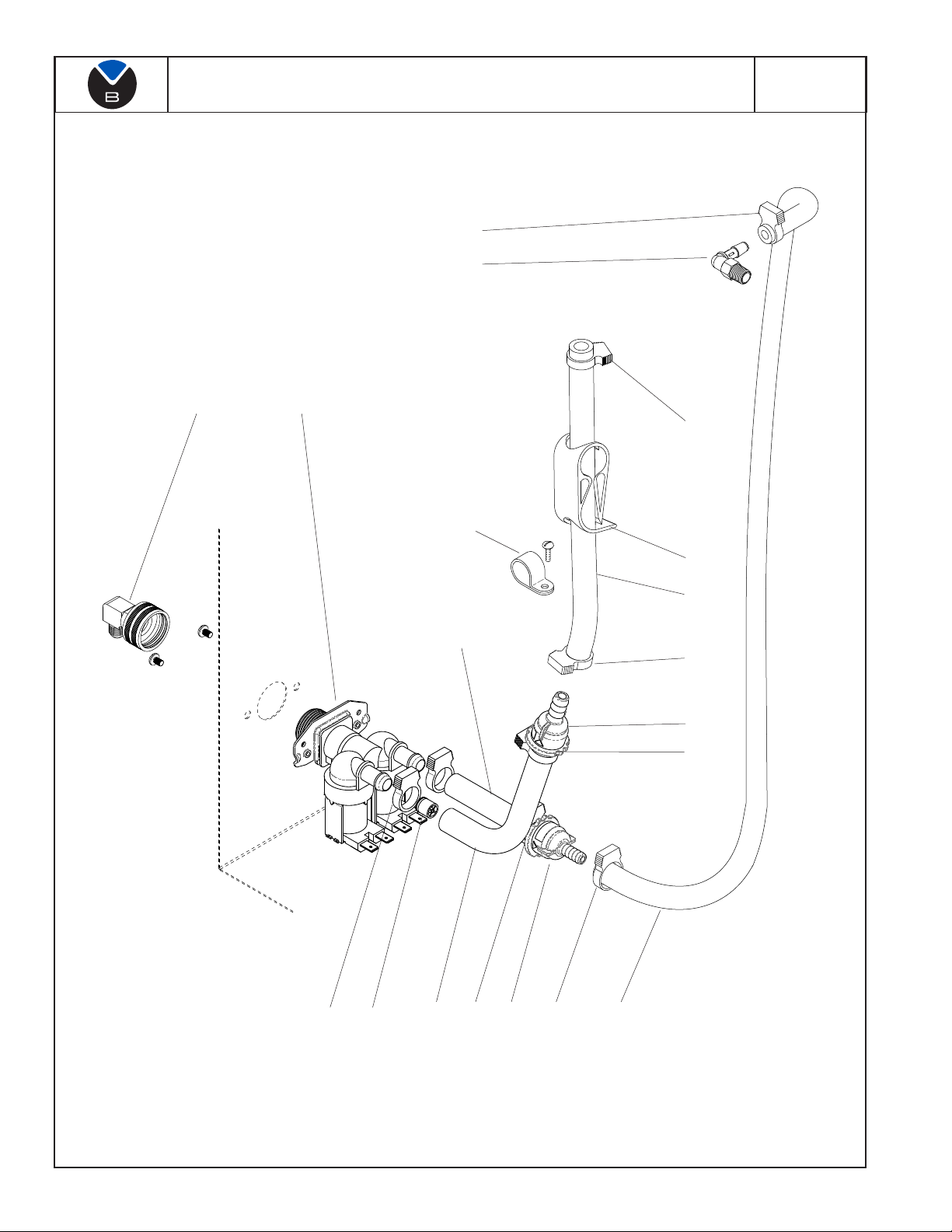

TANK FILL & DRAIN

10

12

ITCB

Series

16

17

8

15

14

13

7

4

4 3 5 4 9 10 11

12

P4403.70

53868 112918

TANK FILL & DRAIN

ITEM PART NO. QTY. DESCRIPTION

1 41761.0000 1 Valve, Water Inlet 120V

41761.0008 1 Valve, Water Inlet 230V

32283.0000 2 Screw, Pan Head M4 x 6mm

2 37297.1006 1 Elbow

3 36378.0001 1 Check Valve

4 12422.0005 4 Clamp, Hose-Snap .62/.71 ID

5 34325.0002* 1 Hose, Flex .375” ID x 6.0” (Oreder item 18)

6 21275.0003 2 Clamp

7 41595.0010 1 Flow Assy

8 34325.0003* 1 Hose, Flex .375” ID x 3.0” (Oreder item 18)

9 41595.0011 1 Flow Assy

10 12422.0000 2 Clamp

11 11707.0013* 1 Tube, Silicone .25” ID x 28.0” (Oreder item 19)

12 47355.0001 1 Elbow

13 12422.0001 1 Clamp

14 20976.0074* 1 Tube, Silicone .375” ID x 20.0” (Oreder item 20)

15 11630.0001 1 Clamp, Shut Off

16 12422.0006 1 Clamp

17 00610.0000 1 Clamp

02308.0000 1 Screw, Pan Head #8-32 x .38”

The following items are not illustrated

18 34325.1000 - Hose, Flex .375” ID x 1 Foot (Use as required)

34325.1001 - Hose, Flex .375” ID x 3 Feet (Use as required)

34325.1002 - Hose, Flex .375” ID x 10 Feet (Use as required)

19 11707.1001 - Tube, Silicone .25” ID x 3 Feet (Use as required)

11707.1002 - Tube, Silicone .25” ID x 10 Feet (Use as required)

11707.1004 - Tube, Silicone .25” ID x 250 Feet (Use as required)

20 20976.1000 - Tube, Silicone .375” ID x 1 Foot (Use as required)

20976.1001 - Tube, Silicone .375” ID x 3 Feet (Use as required)

20976.1002 - Tube, Silicone .375” ID x 10 Feet (Use as required)

13

53868 112918

10

12

16

15

14

13

TANK FILL & DRAIN WITH SWEET BREW

18 13 17 19 20 16 22

ITCB

Series

2

1

4 3 5 6 7 8 9 11 10 21 23

P4441.40

14

53868 113018

TANK FILL & DRAIN WITH SWEET BREW

ITEM PART NO. QTY. DESCRIPTION

1 41761.0000 1 Valve, Water Inlet 120V

41761.0008 1 Valve, Water Inlet 230V

32283.0000 2 Screw, Pan Head M4 x 6mm

2 37297.1006 1 Elbow

3 36378.0001 1 Check Valve

4 12422.0005 2 Clamp, Hose-Snap .62/.71 ID

5 34325.0002* 1 Hose, Flex .375” ID x 6.0” (Order item 24)

6 21275.0003 2 Clamp

7 41595.0010 1 Flow Assy

8 34325.0003* 1 Hose, Flex .375” ID x 3.0” (Order item 24)

9 41595.0011 1 Flow Assy

10 12422.0000 2 Clamp

11 11707.0013* 1 Tube, Silicone .25” ID x 28.0” (Order item 25)

12 47355.0001 1 Elbow

13 12422.0001 3 Clamp

14 20976.0074* 1 Tube, Silicone .375” ID x 20.0” (Order item 26)

15 11630.0001 1 Clamp, Shut Off

16 12422.0006 5 Clamp

17 00610.0000 1 Clamp

02308.0000 1 Screw, Pan Head #8-32 x .38”

18 45313.0000 1 Connector, Union

19 28526.0041* 1 Tube, Silcone .313” ID x 6.0” (Order item27)

20 11707.0018* 1 Tube, Silicone .25” ID x 6.0” (Order item 25)

21 28526.0021* 1 Tube, Silcone .313” ID x 4.0” (Order item27)

22 40752.0003 2 Flow Meter

02363.0000 6 Screw, Pan Head, #8-15 x .38”

23 54897.0000 1 Bracket, Flow Meter

(continued)

15

53868 113018

10

12

16

15

14

13

TANK FILL & DRAIN WITH SWEET BREW

18 13 17 19 20 16 22

ITCB

Series

2

1

4 3 5 6 7 8 9 11 10 21 23

P4441.40

16

53868 030518

TANK FILL & DRAIN WITH SWEET BREW

ITEM PART NO. QTY. DESCRIPTION

The following items are not illustrated.

24 34325.1000 - Hose, Flex .375” ID x 1 Foot (Use as required)

34325.1001 - Hose, Flex .375” ID x 3 Feet (Use as required)

34325.1002 - Hose, Flex .375” ID x 10 Feet (Use as required)

25 11707.1001 - Tube, Silicone .25” ID x 3 Feet (Use as required)

11707.1002 - Tube, Silicone .25” ID x 10 Feet (Use as required)

11707.1004 - Tube, Silicone .25” ID x 250 Feet (Use as required)

26 20976.1000 - Tube, Silicone .375” ID x 1 Foot (Use as required)

20976.1001 - Tube, Silicone .375” ID x 3 Feet (Use as required)

20976.1002 - Tube, Silicone .375” ID x 10 Feet (Use as required)

27 28526.1000 - Tube, Silicone .313” ID x 12.0” (Use as required)

28526.1001 - Tube, Silicone .313” ID x 36.0” (Use as required)

28526.1002 - Tube, Silicone .313” ID x 60.0” (Use as required)

28 44079.0002 1 Wiring Harness, Flow Meter

17

53868 030518

Top Mounted

FAUCET ASSEMBLY

ITCB

Series

1 5 6 4 7 8

2

1

3

Side Mounted

2

1

3

14

10

11

13

12

9

Faucet Assembly

18

P4404.75

53868 030518

FAUCET ASSEMBLY

ITEM PART NO. QTY. DESCRIPTION

1 12422.0009 2 Clamp

2 32591.0033* 1 Tube, Silicone .50 ID x 1.8” (Order item 15)

3 11707.0005* 1 Tube, Silicone .25 ID x 31.0” (Order item 16)

4 52707.1004 1 Bracket, Stabilizer

5 29264.0000 1 Nut

6 01544.0000 1 Washer

7 01268.0000 1 Nut

8 03260.1026 1 Faucet Assy (Includes items 9 - 14)

9 37758.0002 1 Body

10 29165.0002 1 Bonnet

11 29164.0000 1 Stem

12 00600.0000 1 Seat Cup

13 00601.0000 1 Spring

14 51315.0004 1 Handle, Red

15 32591.1001 - Tube .50” ID x 12.0” (Use as required)

32591.1002 - Tube .50” ID x 36.0” (Use as required)

32591.1003 - Tube .50” ID x 120.0” (Use as required)

16 11707.1001 - Tube, Silicone .25” ID x 3 Feet (Use as required)

11707.1002 - Tube, Silicone .25” ID x 10 Feet (Use as required)

11707.1004 - Tube, Silicone .25” ID x 250 Feet (Use as required)

The following items are not illustrated

17 51315.1004 - - Faucet Repair Kit (Includes 11-14)

19

53868 112918

ELECTRICAL COMPONENTS

1 2 6 3 4 5

ITCB

Series

7

11

12

13

14

15

16

8

9

10

22

23

24

25

26

17 18 19 20 21 27 28

20

P4405.40

53868 080117

ELECTRICAL COMPONENTS

ITEM PART NO. QTY. DESCRIPTION

1 52887.1000 1 Circuit Board 120V

53883.0000 1 Circuit Board 230V

02308.0000 2 Screw, Pan Head #8-32 x .38˝

2 51337.0002 1 Bracket

02308.0000 2 Screw, Pan Head #8-32 x .38˝

00971.0000 2 Nut, Keps #10-32

3 52864.0000 1 Bezel

4 53344.0001 1 Seal

5 52904.0000 1 Membrane Switch (Regular Dispense)

52904.0010 1 Membrane Switch (Sweet Brew Dispense)

6 48455.0001 1 USB Receptacle

7 35952.1006 1 Solenoid Assembly 120V

35952.1007 1 Solenoid Assembly 230V

00970.0000 2 Nut, Keps #8-32

8 32572.1000 1 Sensing Coil

35956.0000 1 Fastener

9 52947.0001 1 Seal

10 40763.0001 1 Switch, Toggle 120V

28004.0000 1 Switch, Toggle 230V

23696.0000 1 Facenut

11 25102.0001 1 Bracket, Switch “I/O”

28098.0000 1 Fastener, Snap

12 27705.0000 1 Terminal Lug (230V models only)

02308.0000 1 Screw, Pan Head #8-32 x .38˝

13 01685.0000 1 Cord Connector 120V

05746.0000 1 Cord Connector 230V

14 34307.1001 1 Transformer 120V

34307.1002 1 Transformer 230V

01308.0002 2 Screw SST #6-32 x .25”

15 20541.0001 1 Heatsink

01382.0007 2 Screw, 6-32 x .375”

16 12565.0046 1 Triac

02328.0003 1 Screw, 6-32 x .312”

01520.0000 1 Lock Washer
M2522.1000 - Heat Sink Compound, 5oz Tube

17 23522.1001 1 Switch, Toggle (Dual Voltage Brewers only)

18 34056.0001 1 Decal, Voltage Selection (Dual Voltage Brewers only)

19 00824.0002 1 Decal, Ground

20 37804.0000 1 Screw, Grounding #8-32 x .50”

Continued on next page

21

53868 080117

ELECTRICAL COMPONENTS

1 2 6 3 4 5

ITCB

Series

7

11

12

13

14

15

16

8

9

10

22

23

24

17 18 19 20 21 25 26

22

P4405.40

53868 080117

ELECTRICAL COMPONENTS

ITEM PART NO. QTY. DESCRIPTION

21 01592.0000 1 Snap Bushing

22 36329.0000 1 Cable Tie

23 00985.0000 1 Decal, Individual Circuit Info

24 00870.0000 1 Decal, Use Copper Wire Only

25 07038.0000 1 Terminal Block (Dual Voltage Brewers only)

01317.0000 2 Screw, Truss Head #8-32 x .50”

26 50159.0000 1 EMI Filter (230V CE models only)

02308.0000 2 Screw, Pan Head #8-32 x .38˝

The following items are not illustrated

27 20630.0005 1 Power Cord 120V

42749.0033 1 Power Cord 230V

28 38040.0016 1 Wiring Harness, Main 120V

36677.0030 1 Wiring Harness, Main 230V

29 36675.0000 1 Wiring Harness, Sensing Coil

30 40081.0002 1 Wiring Harness, Toggle Switch to Terminal Block 120V

31 37494.0005 1 Wiring Harness, Liquid Level

32 34707.0009 1 Wiring Harness, EMI Filter 230V

33 44022.0000 1 Wiring Harness, Transformer to CBA

34 22918.0002 2 Thermal Fuse 230V

23

53868 080117

FUNNEL ASSEMBLY, COFFEE

ITCB

Series

3

1

2

4

24

P4397

53868 060518

FUNNEL ASSEMBLY, COFFEE

ITEM PART NO. QTY. DESCRIPTION

- 53463.0021 1 Funnel Assy, Plastic (Includes Items 1 thru 4)

1 03408.0009 1 Decal, Caution-Remove Funnel

2 03409.0007 1 Decal, Caution-Hot Liquid

3 53374.0004 1 Splash Guard

4 53544.0000 1 Insert, Funnel Handle

25

53868 060518

FUNNEL ASSEMBLY, TEA

ITCB

Series

3

5

1

2

7

6

4

26

P4406

53868 060518

FUNNEL ASSEMBLY, TEA

ITEM PART NO. QTY. DESCRIPTION

- 53463.0022 1 Funnel Assy, Plastic (Includes Items 1 thru 7)

1 03408.0008 1 Decal, Caution-Remove Funnel

2 03409.0006 1 Decal, Caution-Hot Liquid

3 53374.0005 1 Splash Guard

4 53544.0003 1 Insert, Funnel Handle

5 03284.0001 1 Adapter, Funnel w/Screen

6 03407.0002 1 Funnel Tip, .114”

7 03536.0001 1 Decal, Quick Brew

27

53868 060518

NUMERICAL INDEX

PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO. PART NO. PAGE NO.

00600.0000......................... 19

00601.0000......................... 19

00610.0000.................... 13,15

00619.0002........................... 5

00656.0001........................... 5

00658.0000........................... 5

00669.0002........................... 5

00824.0001........................... 5

00824.0002......................... 21

00870.0000......................... 23

00908.0000........................... 9

00942.0000........................... 9

00943.0000........................... 9

00970.0000...................... 9,21

00971.0000......................... 21

00985.0000......................... 23

00986.0000........................... 5

00991.0000........................ 5,7

01075.0000......................... 11

01268.0000......................... 19

01308.0002......................... 21

01311.0004........................... 5

01315.0000........................... 5

01317.0000......................... 23

01317.0003........................... 5

01382.0007......................... 21

01501.0000........................... 9

01520.0000......................... 21

01544.0000......................... 19

01592.0000......................... 23

01592.0001........................... 5

01685.0000......................... 21

02308.0000......... 13,15 ,21,23

02328.0003......................... 21

02332.0005........................... 5

02363.0000......................... 15

02434.1000........................... 7

02712.1000........................... 7

02755.1002........................... 9

03260.1026......................... 19

03284.0001......................... 27

03407.0002......................... 27

03408.0008......................... 27

03408.0009......................... 25

03409.0006......................... 27

03409.0007......................... 25

03536.0001......................... 27

04221.0000........................... 9

05037.1000........................... 9

05746.0000......................... 21

07038.0000......................... 23

07412.1002........................... 9

07412.1003........................... 9

11517.0008......................... 11

11630.0001.................... 13,15

11707.1001............... 13,17,19

11707.1002.............. 13,17, 19

11707.1004.............. 13,17, 19

12422.0000.................... 13,15

12422.0001.................... 13,15

12422.0005................. 9,13,15

12422.0006.................... 13,15

12422.0009.................... 11,19

12565.0046......................... 21

20203.0100........................... 9

20541.0001......................... 21

20621.0001........................... 5

20630.0005......................... 23

20976.1000.................... 13,17

20976.1001.................... 13,17

20976.1002.................... 13,17

21275.0003.................... 13,15

22918.0002......................... 23

23522.1001......................... 21

23696.0000......................... 21

24600.0000........................... 7

25102.0001......................... 21

25137.0001........................... 7

26846.0000......................... 11

26846.0002......................... 11

27705.0000......................... 21

28004.0000......................... 21

28098.0000......................... 21

28526.1000......................... 17

28526.1001......................... 17

28526.1002......................... 17

28614.0000........................... 5

28735.0000........................... 9

29007.0005........................... 5

29164.0000......................... 19

29165.0002......................... 19

29264.0000......................... 19

29279.0000........................... 9

29329.1000........................... 9

29485.1004........................... 9

29504.0005........................... 5

29710.0009........................... 5

32283.0000.................... 13,15

32572.1000......................... 21

32591.1001.................... 11,19

32591.1002.................... 11,19

32591.1003......................... 19

33651.0000........................... 5

33801.0003........................... 9

33937.0003........................... 9

33937.0004........................... 9

34056.0001......................... 21

34307.1001......................... 21

34307.1002......................... 21

34325.1000.................... 13,17

34325.1001.................... 13,17

34325.1002.................... 13,17

34707.0009......................... 23

34868.0000......................... 11

34956.0004......................... 11

35952.1006......................... 21

35952.1007......................... 21

35956.0000......................... 21

36329.0000......................... 23

36360.1001........................... 5

36378.0001.................... 13,15

36412.0000........................... 7

36461.0001........................... 7

36462.0001........................... 7

36675.0000......................... 23

36677.0030......................... 23

37297.1006.................... 13,15

37494.0005......................... 23

37758.0002......................... 19

37804.0000......................... 21

37881.0000........................... 5

38040.0016......................... 23

38114.0000........................... 9

38704.1005........................... 5

38969.0003...................... 9,11

39085.1001........................... 9

39175.0000........................... 5

40081.0002......................... 23

40670.1222......................... 11

40752.0003......................... 15

40763.0001......................... 21

41595.0010.................... 13,15

41595.0011.................... 13,15

41761.0000.................... 13,15

41761.0008.................... 13,15

42507.0000........................... 7

42749.0033......................... 23

43920.0002......................... 11

44022.0000......................... 23

44079.0002......................... 17

44736.1025........................... 5

45313.0000......................... 15

45860.1015........................... 5

47355.0001.................... 13,15

48455.0001......................... 21

50159.0000......................... 23

51315.0004......................... 19

51315.1004......................... 19

51337.0002......................... 21

51453.0000........................... 5

52112.0003......................... 11

52707.1004......................... 19

52864.0000......................... 21

52887.1000......................... 21

52896.0000........................... 5

52904.0000......................... 21

52904.0010......................... 21

52947.0001......................... 21

53344.0001......................... 21

53374.0004......................... 25

53374.0005......................... 27

53463.0022......................... 27

53463.0021......................... 25

53544.0000......................... 25

53544.0003......................... 27

53619.0000........................... 5

53869.0000........................... 5

53869.0001........................... 5

53870.1000........................... 5

53883.0000......................... 21

54897.0000......................... 15

M2522.1000 ....................... 21

28

53868 112918
