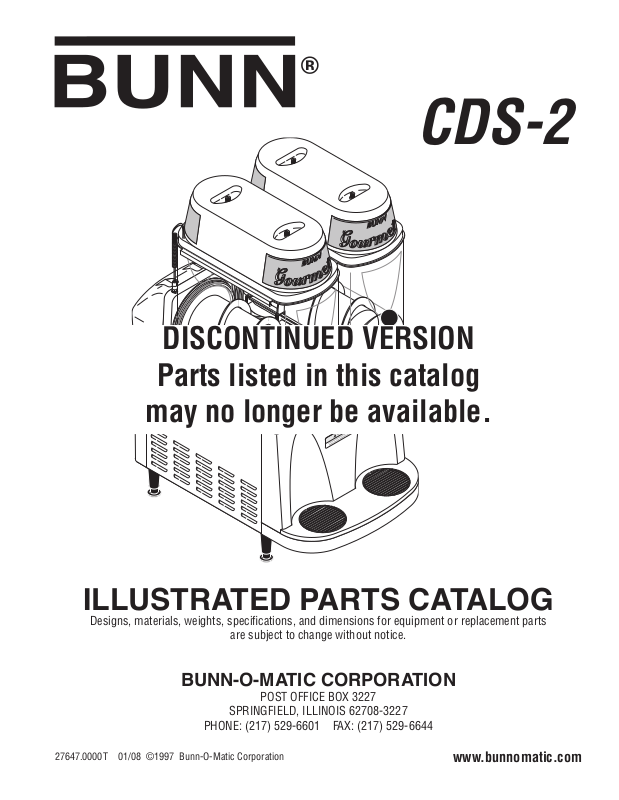

Page 1
CDS-2
DISCONTINUED VERSION
Parts listed in this catalog
may no longer be available.
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
27647.0000T 01/08 ©1997 Bunn-O-Matic Corporation
www.bunnomatic.com
Page 2
BUNN-O-MATIC COMMERCIAL PRODUCT WARRANTY
Bunn-O-Matic Corp. (“BUNN”) warrants equipment manufactured by it as follows:
1) All equipment other than as specified below: 2 years parts and 1 year labor.
2) Electronic circuit and/or control boards: parts and labor for 3 years.
3) Compressors on refrigeration equipment: 5 years parts and 1 year labor.
4) Grinding burrs on coffee grinding equipment to grind coffee to meet original factory screen sieve analysis:
parts and labor for 3 years or 30,000 pounds of coffee, whichever comes first.
These warranty periods run from the date of installation BUNN warrants that the equipment manufactured by
it will be commercially free of defects in material and workmanship existing at the time of manufacture and
appearing within the applicable warranty period. This warranty does not apply to any equipment, component or
part that was not manufactured by BUNN or that, in BUNN’s judgment, has been affected by misuse, neglect,
alteration, improper installation or operation, improper maintenance or repair, damage or casualty. This warranty is
conditioned on the Buyer 1) giving BUNN prompt notice of any claim to be made under this warranty by telephone
at (217) 529-6601 or by writing to Post Office Box 3227, Springfield, Illinois 62708-3227; 2) if requested by
BUNN, shipping the defective equipment prepaid to an authorized BUNN service location; and 3) receiving prior
authorization from BUNN that the defective equipment is under warranty.
THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTY, WRITTEN OR
ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF EITHER
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. The agents, dealers or employees of BUNN
are not authorized to make modifications to this warranty or to make additional warranties that are binding on
BUNN. Accordingly, statements by such individuals, whether oral or written, do not constitute warranties and
should not be relied upon.
If BUNN determines in its sole discretion that the equipment does not conform to the warranty, BUNN, at its
exclusive option while the equipment is under warranty, shall either 1) provide at no charge replacement parts
and/or labor (during the applicable parts and labor warranty periods specified above) to repair the defective
components, provided that this repair is done by a BUNN Authorized Service Representative; or 2) shall replace
the equipment or refund the purchase price for the equipment.
THE BUYER’S REMEDY AGAINST BUNN FOR THE BREACH OF ANY OBLIGATION ARISING OUT OF THE SALE OF
THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY OR OTHERWISE, SHALL BE LIMITED, AT BUNN’S
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND.
In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales,
loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute
equipment, facilities or services, or any other special, incidental or consequential damages.
2
27647 040502
Page 3
TABLE OF CONTENTS
Auger Drive and Cooling Drum .................................................................................................................................................. 12
Auger Drive and Cooling Drum (w/PAF) .................................................................................................................................... 16
Compressor and Mounting ........................................................................................................................................................ 22
Condenser and Fan Mounting ....................................................................................................................................................20
Electrical and Operating Controls ..............................................................................................................................................26
Electrical and Operating Controls (w/PAF) .................................................................................................................................30
Frame, Panels, Drip Trays and Legs ........................................................................................................................................... 4
Hopper and Top Cover ................................................................................................................................................................. 8
PAF Hopper and Faucet ............................................................................................................................................................. 10
Instructional Video ......................................................................................................................................................................7
Numerical Index ........................................................................................................................................................................22
Solenoid and Coolant Piping .....................................................................................................................................................24
3
27647 062201
Page 4
FRAME, PANELS, DRIP TRAYS AND LEGS
11 12
1 2
CDS - 2
6
25
24
23
22
27
Early Models
30
8
9
3
4
5
6
7
10 11
29
19
26
17 16
20
21 18 15 14 13
4
31
28
P1139.36
27647 103002
Page 5
FRAME, PANELS, DRIP TRAYS AND LEGS
ITEM PART NO. QTY. DESCRIPTION
1 27136.0002 1 Trim, Hopper/Drip Tray - WHI
27136.0003 1 Trim, Hopper/Drip Tray - BLK
02329.0000 2 Screw, Round Head - Locking #8-32 x .312”
2 27394.0000 3 Plug, Plastic - WHI
27394.0001 3 Plug, Nylon - BLK
3 28078.0000 2 Drip Tray, Hopper - WHI (Includes item 27)
28078.0001 2 Drip Tray, Hopper - BLK )Includes item 27)
01317.0003 8 Screw, Truss Head - Locking #8-32 x .375”
4 27058.0000 1 Corner, Right Rear - SST
27058.0002 1 Corner, Right Rear - BLK
02332.0001 1 Screw, Hex Head Crimptite #6 x .25” (Early models)
32580.0000 1 Screw, Hex Head #6-32 x .25” (Late models)
5 27558.0000 1 Panel W/Decals, Right Side - SST (Includes items 6, 7 & 30) (CDS-2)
27660.1001 1 Panel W/Decals, Right Side - SST (Includes items 6 & 30) (CDSA-2)
27558.0002 1 Panel W/Decals, Right Side - BLK (Includes items 6, 7 & 30) (CDS-2)
02332.0001 2 Screw, Hex Head Crimptite #6 x .25” (Early models)
32580.0000 2 Screw, Hex Head #6-32 x .25” (Late models)
6 27442.0000 2 Decal, Warning - Moving Parts
7 27556.0000 1 Schematic, Electrical 120V (CDS-2)
27556.0002 1 Schematic, Electrical 120V (CDS-2 w/PAF)
8 -------------- 2 Tube, Drain .375” I.D. x .50” O.D. x 10.88” (Order item 33)
9 27410.0000 2 Clip, Tube
10 -------------- 1 Panel, Front - SST (OBSOLETE PART)
-------------- 1 Panel, Front - BLK (OBSOLETE PART)
02332.0001 1 Screw, Hex Head Crimptite #6 x .25”
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
11 -------------- 1 Cover, Lower Drip Tray
-------------- 1 Cover, Lower Drip Tray - BLK
32068.0000 1 Cover, Lower Drip Tray (Late Models)
12 26958.0000 2 Grate, Drip Tray
26958.0001 2 Grate, Drip Tray - BLK
13 28086.0000 1 Drip Tray, Lower (Includes item 14)
28086.0001 1 Drip Tray, Lower - BLK (Includes item 14)
14 21437.1000 2 Strike Assy, Self Adhesive
15 -------------- 1 Cover, Bottom Vent (OBSOLETE PART)
02332.0001 1 Screw, Hex Head Crimptite #6 x .25”
16 21436.0000 2 Catch, Magnetic
Early Models
Early Models
17 03996.0000 4 Pad, Rubber .125” Dia (See item 32)
18 27558.0001 1 Panel W/Decals, Left Side - SST (Includes items 6, 19 & 20) (CDS-2)
27660.1002 1 Panel W/Decals, Left Side - SST (Inclusea items 6, 19 & 20) (CDSA-2)
27558.0003 1 Panel W/Decals, Left Side - BLK (Includes items 6, 19 & 20) (CDS-2)
02332.0001 2 Screw, Hex Head Crimptite #6-32 x .25” (Early models)
32580.0000 2 Screw, Hex Head #6-32 x .25” (Late models)
(Continued)
5
27647 061107
Page 6
FRAME, PANELS, DRIP TRAYS AND LEGS
(Continued)
11 12
1 2
CDS - 2
6
25
24
23
22
27
Early Models
30
8
9
3
4
5
6
7
10 11
29
19
26
17 16
20
21 18 15 14 13
6
31
28
P1139.36
27647 103002
Page 7
FRAME, PANELS, DRIP TRAYS AND LEGS
ITEM PART NO. QTY. DESCRIPTION
19 27444.0000 1 Decal, Freon Charge (CDS-2)
29373.0000 1 Decal, Freon Charge (CDSA-2)
20 27557.0000 1 Schematic, Coolant
21 27058.0001 1 Corner, Left Rear - SST
27058.0003 1 Corner, Left Rear - BLK
02332.0001 1 Screw, Hex Head Crimptite #6 x .25”
22 26528.0000 4 Leg, Black Plastic - 4” Adjustable .375” Thd (See item 32)
23 -------------- 1 Frame, Base (CDS-2) (OBSOLETE PART)
-------------- 1 Frame, Base (CDSA-2) (OBSOLETE PART)
24 00927.0000 4 Clip, Spring
25 27131.0000 2 Trim, Frame - Rear - SST
27131.0001 2 Trim, Frame - Rear - BLK
02332.0001 1 Screw, Hex Head Crimptite #6 x .25” (Early models)
32580.0000 1 Screw, Hex Head #6-32 x .25” (Late models)
26 00619.0000 1 Plug, Hole .875 Dia (Early Dispensers)
27 27664.0000 1 Decal, Lubrication
28 -------------- 1 Tube, Clear Vinyl .375” I.D. x .50” O.D. (Optional. Order item 33)
29 28098.0000 2 Fastener, Snap-in
30 00986.0002 1 Decal, Warning - Electrical
31 28270.0000 1 Decal, Caution - Instructional Video
32 13255.0003 - Leg Kit (Includes 4 Legs and 4 Pads)
33 12421.1001 - Tube, Clear Vinyl (12” Long)
12421.1002 - Tube, Clear Vinyl (60” Long)
12421.1003 - Tube, Clear Vinyl (120” Long)
34 28125.0000 - Instructional Video
Not Illustrated
7
27647 051002
Page 8
HOPPER AND TOP COVER
2
4
3
1
5
25
CDS - 2
6
7
8
9
10
19
23
DISPENSER WITH
AUTOFILL HOPPERS
11
13
14
15
16
17
18
20
21
22
24
26
12
P1140.45
8
27647 021201
Page 9
HOPPER AND TOP COVER
ITEM PART NO. QTY. DESCRIPTION
1 28082.0000 2 Cover Assy. Hopper - WHI (Includes items 2 thru 10)
28082.0007 2 Cover Assy. Hopper - BLK (Includes items 2 thru 10)
2 26714.1000 1 Cover, Hopper - WHI
26714.1001 1 Cover, Hopper - BLK
28062.0000 2 Screw, Knurled Thumb #8-32
3 27235.0000 1 Bracket, Lamp Mounting
4 27446.0000 2 Lamp, T-5 Wedge Base
5 27256.0000 2 Fastener, Push-on
6 27938.0000 1 Decal, Lamp Replacement
7 27445.1000 1 Lamp Holder/Socket Assy (Includes two of item 26)
27448.0000 2 Screw, Pan Head #2-56 x .50”
27447.0000 2 Nut, Elastic Lock #2-56
8 27135.0001 2 Decal, Hopper Cover
9 26717.0000 1 Liner Assy, Hopper Cover
10 32267.1000 1 Cord Assy, Lamp (Includes two of item 28)
11 28079.1000 2 Hopper Assy. (Includes item 19)(Hoppers W/Out Autofill holes)
28079.1001 2 Hopper Assy. (Includes item 19)(Hoppers with 1 Autofill hole)
28079.1002 2 Hopper Assy. (Includes item 19)(Hoppers with 2 Autofill holes)
12 28080.1000 2 Faucet Assy. WHI (Includes items 13 thru 16)
28080.1001 2 Faucet Assy. BLK (Includes items 13 thru 16)
13 27137.0000 1 Knob, Black
14 26972.0000 1 Ring, Faucet Handle
15 26786.0001 1 Handle, Faucet - Right - WHI
26786.0003 1 Handle, Faucet - Right - BLK
16 26786.0000 1 Handle, Faucet - Left - WHI
26786.0002 1 Handle, Faucet - Left - BLK
17 26788.0000 1 Dowel, Faucet
18 26793.0000 2 Cap, Faucet - WHI
26793.0001 2 Cap, Faucet - BLK
19 26784.0000 1 Bushing, Auger Shaft - Front
20 28107.0000 2 Spring, Faucet
21 28216.1000 2 Spool Assembly, Faucet - WHI (Includes item 24)
28216.1001 2 Spool Assembly, Faucet - BLK (Includes item 24)
22 28083.0000 - O-Ring Kit, Faucet Spool (Includes 6 O-rings. See item 27)
23 27643.0000 2 Connector Assy, Lamp Cord (Includes Nut, Washer, Leads & Plug)
01532.0001 2 Lockwasher, Internal Tooth .375”
24 28391.0000 2 Plug, Faucet Spool (Late Models)
25 28776.0000 2 Plug, .375” NPT
26 24566.0000 2 Nut, .375” NPS
27 M2550.0000 - Lubricant, Petrol-Gel 4 oz (Not Illustrated)
28 03851.0000 4 Wire Nut (Not Illustrated)
Dispensers w/Autofill Hoppers (Use as
required) 2 additional used on SL models.
9
27647 061107
Page 10
PAF HOPPER AND FAUCET
CDS-2
CDS - 2
w/PAF
1
3
4
5
6
9
7
8
10
11
12
13
2
10
P1940.70
27647 010700
Page 11
PAF HOPPER AND FAUCET
ITEM PART NO. QTY. DESCRIPTION
1 26713.1000 2 Hopper Assy. (Includes item 9)
2 28080.1000 2 Handle Assy, Faucet - White (Includes items 3 thru 6)
28080.1001 2 Handle Assy, Faucet - Black (Includes items 3 thru 6)
3 27137.0000 1 Knob, Black
4 26972.0000 1 Ring, Faucet Handle
5 26786.0001 1 Handle, Faucet - Right
6 26786.0000 1 Handle, Faucet - Left
7 26788.0000 1 Dowel, Faucet
8 26793.0000 2 Cap, Faucet - White
26793.0001 2 Cap, Faucet - Black
9 26784.0000 1 Bushing, Auger Shaft - Front
10 28107.0000 2 Spring, Faucet
11 28216.1000 2 Spool Assy, Faucet - White (Includes item 13)
28216.1001 2 Spool Assy, Faucet - Black (Includes item 13)
12 28083.0000 - O-Ring Kit, Faucet Spool (Includes 6 O-rings. See item 14)
13 28391.0000 2 Plug, Faucet Spool
14 M2550.0000 - Lubricant, Petro-Gel 4 oz (Not Illustrated)
11
27647 021705
Page 12
AUGER DRIVE AND COOLING DRUM
1 5 3
2 6 7 8 9
4
CDS - 2
10
11 12 13 14 15 9 16
30
19 17
28 29
27
26 25 24 23
32
31
12
22 20 21 18
23
EARLY MODEL DISPENSERS
P1142.35
27647 010700
Page 13
AUGER DRIVE AND COOLING DRUM
ITEM PART NO. QTY. DESCRIPTION
1 27231.0000 2 Cover, Auger Motor - WHI
27231.0001 2 Cover, Auger Motor - BLK
01317.0003 4 Screw, Truss Head - Locking #8-32 x .375”
2 27232.0000 1 Bracket, Auger Motor Mounting
01317.0003 3 Screw, Truss Head - Locking #8-32 x .375”
3 28093.1000 2 Motor Assy, Auger (Includes items 2, 6, 7 & 9) (120V)
28093.1001 2 Motor Assy, Auger (Includes items 2, 6, 7 & 9) (230V)
01326.0002 6 Screw, Pan Head #10-32 x .375”
4 28537.0000 2 Bracket, Auger Motor/Cooling Drum Mounting
01311.0001 8 Screw, Truss Head - Locking #8-32 x .25”
5 -------------- 2 Capacitor, Motor (See ELECTRICAL AND OPERATING CONTROLS)
01317.0001 2 Screw, Truss Head - Locking #8-32 x .50”
01501.0000 2 Washer, #8
6 28093.1000 1 Motor Assembly, Auger (Includes Leads and Terminals) (120V)
28093.1001 1 Motor Assembly, Auger (Includes Leads and Terminals) ( 230V)
7 34836.0000 1 Pin, Split .125” O.D. x .938”
8 -------------- 1 Pan, Motor Drip (OBSOLETE PART)
02335.0001 2 Screw, Hex Crimptite #8-32 x .375”
9 27440.0000 2 Bearing, Torsion Spring
10 28081.0000 2 Shaft Assy, Auger Drive (Includes items 9, 11 thru 16)
11 27223.0000 2 Spring, Torsion
12 27228.0000 1 Snap Ring
13 11556.0001 1 Pin, Split .125” O.D. x .437”
14 27224.0000 1 Retainer, Torsion Spring
15 34836.0001 1 Pin, Split .125” O.D. x .75”
16 32449.0000 1 Shaft, Auger
17 -------------- 2 Bushing, Auger - Front (See TOP COVER AND HOPPER)
18 -------------- 2 Auger Nose (OBSOLETE PART)
19 26780.0000 2 Seal, Auger Shaft (See items 33 & 35)
20 -------------- 1 Latch, Auger - Short (OBSOLETE PART)
21 -------------- 1 Latch, Auger - Long (OBSOLETE PART)
Early Dispensers
22 -------------- 3 Auger Section (OBSOLETE PART)
23 -------------- 2 Auger Assy. (Early model Dispensers) (Order One Piece Auger)
32106.1000 2 Auger, One piece (Late model Dispensers)
24 37593.0000 2 Seal, Cooling Drum (See item 35)
25 26781.0000 2 Bushing, Auger Shaft (See item 35)
26 26792.0000 2 Seal, Cooling Drum/Hopper (See item 33 & 35)
(Continued)
13
27647 020904
Page 14
AUGER DRIVE AND COOLING DRUM
(Continued)
1 5 3
2 6 7 8 9
4
CDS - 2
10
11 12 13 14 15 9 16
30
19 17
28 29
27
26 25 24 23
32
31
14
22 20 21 18
23
EARLY MODEL DISPENSERS
P1142.35
27647 010700
Page 15
AUGER DRIVE AND COOLING DRUM
ITEM PART NO. QTY. DESCRIPTION
27 -------------- 2 Drum Assembly, Cooling - WHI (OBSOLETE PART)
-------------- 2 Drum Assembly, Cooling - BLK (OBSOLETE PART)
01377.0000 8 Screw, Flat Head #8-32 x .75”
28 32091.0002 1 Mount Assembly, Cooling Drum - WHI
32091.0003 1 Mount Assembly, Cooling Drum - BLK
29 -------------- 1 Drum, Cooling (Not Available. Order item 27)
30 -------------- - Temperature Sensor Assy (See ELECTRICAL AND OPERATING CONTROLS)
31 28027.0000 2 Support, Cooling Drum (For Shipping and Cooling Drum Adjustment)
32 -------------- 2 Label, DO NOT LIFT HERE (For Shipping Only)
Items 33 through 36 are not illustrated:
33 M2550.0000 - Lubricant, Lubri-Film 4 oz.
34 M2548.1000 - Lubricant, Krytox .50 oz
35 28106.0000 - Kit, Preventive Maintenance (Includes items 19, 24, 25, 26, four faucet O-
rings and two faucet spool plugs)
15
27647 061107
Page 16
2
11
33
12
34
37
AUGER DRIVE AND COOLING DRUM
10 1 7 3
4 5 6 9 8
14 15 16 17 18 9 19
13
CDS-2
CDS - 2
w/PAF
31 32
30
35
29 28 27
34
21 22 20
26
25
22
24
23
16
EARLY MODEL DISPENSERS
P1941.38
27647 081500
Page 17
AUGER DRIVE AND COOLING DRUM
ITEM PART NO. QTY. DESCRIPTION
1 -------------- 2 Cover, Auger Motor - WHI (OBSOLETE PART)
-------------- 2 Cover, Auger Motor - BLK (OBSOLETE PART)
02331.0000 4 Screw, Truss Head - Locking #10-32 x .375”
2 29844.0000 2 Decal
3 28093.1000 2 Motor Assy, Auger (Includes items 4, 5, 6 & 9)
01326.0002 6 Screw, Pan Head #10-32 x .375”
4 27232.0000 1 Bracket, Auger Motor Mounting
01317.0003 3 Screw, Truss Head - Locking #8-32 x .375”
5 28093.1000 1 Motor Assembly, Auger (Includes Leads and Terminals)
6 34836.0000 1 Pin, Split .125” O.D. x .938”
7 -------------- 2 Capacitor, Motor (See ELECTRICAL AND OPERATING CONTROLS)
01317.0001 2 Screw, Truss Head - Locking #8-32 x .50”
01501.0000 2 Washer, #8
8 -------------- 2 Support, Motor (OBSOLETE PART)
9 27440.0000 2 Bearing, Torsion Spring
10 -------------- 2 Rail, Left (Early models without latch is not available, order item38)
29591.0002 2 Rail, Left (Late models)
29591.0001 2 Rail, Right
01330.0000 4 Screw, Hex-washer - Locking #10-32 x .375”
11 29724.0000 4 Roller
24457.0001 4 Screw, Shoulder
01522.0000 4 Washer
12 -------------- 2 Support, Auger Motor/Cooling Drum Mounting - SST (OBSOLETE PART)
-------------- 2 Support, Auger Motor/Cooling Drum Mounting - WHI (OBSOLETE PART)
-------------- 2 Support, Auger Motor/Cooling Drum Mounting - BLK (OBSOLETE PART)
01311.0001 8 Screw, Truss Head - Locking #8-32 x .25”
13 28081.0000 2 Shaft Assy, Auger Drive (Includes items 9, 14 thru 19)
14 27223.0000 2 Spring, Torsion
15 27228.0000 1 Snap Ring
16 11556.0001 1 Pin, Split .125” O.D. x .437”
17 27224.0000 1 Retainer, Torsion Spring
18 34836.0001 1 Pin, Split .125” O.D. x .75”
19 32449.0000 1 Shaft, Auger
20 -------------- 2 Bushing, Auger - Front (See HOPPER AND FAUCET)
21 26780.0000 2 Seal, Auger Shaft (See items 39 & 41)
22 -------------- 2 Auger Assy. (Early model Dispensers) (Order One Piece Auger)
32106.1000 2 Auger, One Piece (Late model Dispensers)
23 -------------- 1 Auger Nose (OBSOLETE PART)
(Continued)
17
27647 020904
Page 18
AUGER DRIVE AND COOLING DRUM
CDS-2
CDS - 2
w/PAF
2
11
33
12
34
37
(Continued)
10 1 7 3
4 5 6 9 8
13
14 15 16 17 18 9 19
31 32
30
35
29 28 27
34
21 22 20
26
25
22
24
23
18
EARLY MODEL DISPENSERS
P1941.38
27647 081500
Page 19
AUGER DRIVE AND COOLING DRUM
ITEM PART NO. QTY. DESCRIPTION
24 -------------- 1 Latch, Auger - Long (OBSOLETE PART)
25 -------------- 1 Latch, Auger - Short (OBSOLETE PART)
26 -------------- 3 Auger Section (OBSOLETE PART)
27 37593.0000 2 Seal, Cooling Drum (See item 41)
28 26781.0000 2 Bushing, Auger Shaft (See item 41)
29 26792.0000 2 Seal, Cooling Drum/Hopper (See items 39 & 41)
30 -------------- 2 Drum Assembly, Cooling - WHI (OBSOLETE PART)
-------------- 2 Drum Assembly, Cooling - BLK (OBSOLETE PART)
01377.0000 8 Screw, Flat Head #8-32 x .75”
31 32091.0002 1 Mount Assembly, Cooling Drum - WHI
32091.0003 1 Mount Assembly, Cooling Drum - BLK
32 -------------- 1 Drum, Cooling (Not Available. Order item 30)
33 29725.0000 4 Standoff
34 -------------- - Temperature Sensor Assy (See ELECTRICAL AND OPERATING CONTROLS)
35 28027.0000 2 Support, Cooling Drum (For Shipping and Cooling Drum Adjustment)
36 28236.0000 2 Label, DO NOT LIFT HERE (For Shipping Only
37 32632.0000 2 Latch, Retaining
01317.0000 4 Screw, Truss Head #8-32 x .50”
Items 38 through 42 are not illustrated:
38 32175.0000 - Kit, Latch/Rail (Includes items 10, 11 & 37) (Kit contains parts for one left rail only)
39 M2550.0000 - Lubricant, Lubri-Film 4 oz.
40 M2548.1000 - Lubricant, Krytox .50 oz
41 28106.0000 - Kit, Preventive Maintenance (Includes items 21, 27, 28, 29, four faucet O-
rings and two faucet spool plugs)
19
27647 031302
Page 20
10
CONDENSER AND FAN MOUNTING
1 2 3
CDS - 2
5
6
7 8 9
20
4
P1143.36
27647 010700
Page 21
CONDENSER AND FAN MOUNTING
ITEM PART NO. QTY. DESCRIPTION
1 28122.0000 1 Filter, Air
2 26791.0000 1 Condenser Assy
02308.0000 4 Screw, Pan Head Serrated #8-32 x .375”
3 -------------- 1 Shroud, Condenser (OBSOLETE PART)
02332.0001 4 Screw, Hex Head Crimptite #6 x .25”
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
4 27180.0000 1 Fan Assy, Condenser - 120V (Includes items 5 thru 9)
29084.0001 1 Fan Assy, Condenser - 230V (Includes items 5 thru 9)
02332.0002 3 Screw, Hex Head - Thread Cutting #6 x .375”
5 27257.0000 1 Speed Nut, .25”-20
6 27220.0000 1 Blade, Condenser Fan
7 27258.0000 1 Silencer, Fan
8 27221.0000 1 Motor, Condenser Fan - 120V (Includes Leads and Terminals)
27221.0001 1 Motor, Condenser Fan - 230V (Includes Leads and Terminals)
9 27219.0000 1 Shroud/Mount, Condenser Fan
27243.0000 3 Screw, Hex Head Thread Forming #8-32 x .437”
10 28049.0000 1 Cover, Rear - SST (Optional)
28049.0001 1 Cover, Rear - BLK (Optional)
21
27647 010700
Page 22
R22
R22
R404A
COMPRESSOR AND MOUNTING
CDS - 2
5
16 15 14 13
6
7
17
8
18
19
9 10 11 12
120V MODELS
1
6 20 9 15 14 13 11 12 21
7
17
8
18
230V MODELS
4
3
2
P1145.50
22
27647 010700
Page 23
COMPRESSOR AND MOUNTING
ITEM PART NO. QTY. DESCRIPTION
1 27191.1000 1 Compressor Assy 120V (Includes items 2, 3 & 6 thru 18)
27191.1001 1 Compressor Assy 230V (Includes items 2, 3, 6, 7, 8, 9, 11 thru 15, 17, 18, 20 &21)
2 -------------- 4 Grommet, Compressor Mounting
Order item 22
3 -------------- 4 Sleeve, Compressor Mounting
4 21431.0003 4 Washer, .281” I.D. x 1.0” O.D.
5 23700.0000 4 Nut, Hex Keps .25”-20
6 -------------- 1 Compressor (Not Available. Order item 1)
7 27641.0000 1 Cap, Access Valve (Procure Locally)
8 -------------- 1 Valve Assy, Access (Includes items 7 & 17)
9 27407.0000 1 Overload Protector (120V)
27407.0001 1 Overload Protector (230V)
10 27403.0000 1 Retainer, Overload Protector (120V)
11 27408.0000 1 Cover, Compressor Terminal
12 27404.0000 1 Retainer, Compressor Terminal Cover
13 27405.0000 1 Capacitor, Compressor Start (120V)
27405.0002 1 Capacitor, Compressor Start (230V)
14 -------------- 1 Bracket, Capacitor (120V)
-------------- 1 Bracket, Capacitor (230V)
01359.0000 2 Screw, Flat Head #8-32 x .375”
15 -------------- 1 Bracket, Capacitor Mounting
02335.0001 2 Screw, Hex Head Crimptite #8 x .375”
16 27406.0000 1 Relay, Compressor Start (120V)
17 27642.0000 1 Valve Core, .25”
18 27269.0000 1 Label - R22 (120V)
28651.0000 1 Label - R404A (230V)
19 -------------- 2 Eyebolt (Shipping Only)
-------------- 1 Tag, Eyebolt Shipping Notice (Not illustrated)
20 27406.0002 1 Starter, Motor (230V)
21 27405.0001 1 Capacitor, Run (230V)
02332.0002 Screw, Hex Crimptite #6 x .375”
22 -------------- 1 Kit, Compressor Mounting (OBSOLETE PART)
23 27645.0000 1 Wiring Harness, Compressor to Main Harness and Contactor (Not Illustrated)
23
27647 010700
Page 24
SOLENOID AND COOLANT PIPING
1 2 3 4 17
CDS - 2
5 6 7 8
13 12 11 10
24
9
14
16
15
SOLENOID REPAIR
PARTS
P1146.52
27647 010700
Page 25
SOLENOID AND COOLANT PIPING
ITEM PART NO. QTY. DESCRIPTION
1 -------------- 1 Condenser (See Condenser and Mounting)
2 -------------- 1 Tube, .312” O.D. Accumulator to Left Cooling Drum
3 27607.1000 1 Tube, .093” O.D. Solenoid to Left Cooling Drum (Requires brazing to install)
27607.1001 1 Tube, .093” O.D. Solenoid to Right Cooling Drum (Requires brazing to install)
4 -------------- 1 Tube, .312” O.D. Accumulator to Right Cooling Drum
5 -------------- 2 Cooling Drum ( See Auger, Auger Shaft and Cooling Drum)
6 -------------- 1 Bracket, Solenoid Mounting (OBSOLETE PART)
02332.0001 1 Screw, Hex Head Crimptite #6 x .25”
7 28092.0000 1 Solenoid Assy (120V)
28092.0001 1 Solenoid Assy (230V)
01311.0001 4 Screw, Truss Head - Locking #8-32 x .25”
8 -------------- 1 Compressor (See Compressor Mounting)
9 -------------- 1 Tube, .312 O.D. Accumulator to Compressor
10 27411.0000 1 Cup, Condensate
11 27187.0000 1 Dryer Assembly (Includes Tube to Solenoid) (Requires brazing to install)
12 -------------- 1 Tube, .250” O.D. Condenser to Dryer Assembly
13 -------------- 1 Tube, .250” O.D. Compressor to Condenser
14 27188.0000 1 Accumulator, Suction (Requires brazing to install)
15 28087.0000 1 Coil, Solenoid (120V)
28087.0001 1 Coil, Solenoid (230V)
16 28091.0000 1 Kit, Solenoid Repair
17 -------------- 2 Adapter, Reducing (OBSOLETE PART)
18 M2316.0000 - Insulation, Tube .375” I.D. x 6 ft LG (As Required)
19 00617.0000 20 Tie, BLK Nylon 3.90” LG (As Required)
20 03290.0000 3 Tie, WHI Nylon 11.5” LG
Not Illustrated
25
27647 071807
Page 26
ELECTRICAL AND OPERATING CONTROLS
1 2 3 5 32 33
CDS - 2
6
7 8 9 10
35
26 25
27
11 12
16
13
4
14
19
36
37
29
34
15
16
17
18
20
21
30
31
22
L.E.D. BOARD ASSY KIT
26
23 24 28
21
P1147.45
27647 010700
Page 27
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 27178.0000 2 Capacitor, Auger Motor 370 VAC
27178.0001 2 Capacitor, Auger Motor 500 VAC
2 27939.1000 2 Circuit Board, Torque Sensor
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
02360.0000 2 Washer, .188” I.D. x .75” O.D.
3 27644.1000 1 Transformer, 12V 80VA (Includes Leads, Terminal, Plug and Fuse)
-------------- 1 Transformer, 115/230V (OBSOLETE PART)
01315.0000 4 Screw, Truss Head - #8-32 x .375”
00970.0000 4 Nut, Keps #8-32
4 -------------- 1 Bracket, Electronic Control Mounting (OBSOLETE PART)
01317.0003 4 Screw, Truss Head - Locking #8-32 x .375”
5 27181.0000 1 Circuit Breaker, 5 amp
6 27412.1000 1 Electronic Control (Includes items 7 thru 10 & 27)
01317.0000 2 Screw, Truss Head #8-32 x .375”
7 -------------- 1 Housing, Circuit Board
8 -------------- 1 Circuit Board
-------------- 4 Screw
9 -------------- 1 Cover, Circuit Board Housing (Includes item 10)
-------------- 4 Screw
10 12559.0003 1 Decal - Warning High Voltage
11 03231.0000 1 Holder Assy, Fuse (Includes Cap and Mounting Nut)
12 27441.0000 1 Fuse, 5 amp
13 27443.0000 1 Decal, Fuse
14 25948.0000 1 Relay, 120V (CDS-2)
25948.0001 1 Relay, 230V (CDSA-2)
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
15 27437.0000 2 Switch, ON/OFF Ice
16 20317.0000 4 Switch, ON/OFF - Day/Night - Left & Right Auger
17 28090.0000 1 Decal, Control Panel
18 28088.0000 1 Panel, Control (Includes item 17)
01317.0003 4 Screw, Truss Head Locking #8-32 x .375”
19 01666.0001 1 Bushing, Strain Relief - 90° .75” Dia
Not Available.
Order item 6
20 01533.0005 5 Spacer, Nylon .375”
21 28089.1000 1 Kit, L.E.D./ Adjustment Board (Includes items 29 & 36)
27433.0000 6 Nut, Hex Keps #4-40
22 -------------- 1 Drawer W/Decal SST (OBSOLETE PART)
-------------- 1 Drawer W/Decal BLK (OBSOLETE PART)
(Continued)
27
27647 120400
Page 28
ELECTRICAL AND OPERATING CONTROLS
(Continued)
1 2 3 5 32 33
CDS - 2
6
7 8 9 10
35
26 25
27
11 12
16
13
4
14
19
36
37
29
34
15
16
17
18
20
21
30
31
22
L.E.D. BOARD ASSY KIT
28
23 24 28
21
P1147.45
27647 010700
Page 29
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
23 27438.0000 1 Decal, Drawer - Front SST
-------------- 1 Decal, Drawer - Front BLK (OBSOLETE PART)
24 11628.0001 1 Lock Assy, Drawer (Includes item 28)
25 01685.0000 1 Connector, Cord .50MPT (Includes Nut)
26 27246.0000 2 Temperature Sensor Assy (Includes Connector)
27 -------------- 1 Cover, Hole (OBSOLETE PART)
28 28095.0000 2 Key, Drawer Lock Assy. (Set of Two)
29 00669.0003 1 Plug, Hole - Black .43” Dia
30 27088.0000 1 Washer, Nylon #6
31 01521.0000 1 Washer, SST #6
32 28507.0000 1 Bracket, Timer Mounting
02332.0002 2 Screw, Hex Crimptite #6 x .375”
33 28503.0000 1 Timer, 120V
28503.0001 1 Timer, 240V
21717.0000 4 Screw, Pan Head #6-32 x .375”
00973.0000 4 Nut, Keps #6-32
34 28185.1000 1 Cover, Switch (Includes item 35)
35 29207.0000 1 Bail, Switch Cover
36 27396.0000 1 Knob, Temperature Adjustment
37 29446.0000 1 EMI Filter (CDSA-2 Only)
00971.0000 2 Nut, Keps #10 - 32
38 01637.0002 1 Cord, Power (120V)
27728.0006 1 Cord, Power (230V)
39 27659.0000 1 Wiring Harness, Main
40 21014.0123 1 Lead Electrical, Ground - 14AWG GRN 11” LG
00971.0000 2 Nut, Keps #10-32
41 00617.0000 10 Tie, BLK Nylon 3.90” LG (As Required)
42 12919.0000 4 Cap, Terminal
Not Illustrated
29
27647 042402
Page 30
ELECTRICAL AND OPERATING CONTROLS
40 1 2 35 36 37 38 39 3 30 31 25 4
5 6 7 8
10
CDS-2
CDS - 2
w/PAF
24 23
23
CDSA-2 Models
27
19
L.E.D. BOARD ASSY KIT
12
14
17
34
9
11
20 21 22 26
33
32
13
14
15
16
18
19
28
29
30
P1942.40
27647 081500
Page 31
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
1 27178.0000 2 Capacitor, Auger Motor
2 27939.1000 2 Circuit Board, Torque Sensor
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
02360.0000 2 Washer, .188” I.D. x .75” O.D.
3 -------------- 1 Bracket, Electronic Control Mounting (OBSOLETE PART)
01317.0003 4 Screw, Truss Head - Locking #8-32 x .375”
4 27412.1000 1 Electronic Control (Includes items 5 thru 8 & 27)
01317.0000 2 Screw, Truss Head #8-32 x .375”
5 -------------- 1 Housing, Circuit Board
6 -------------- 1 Circuit Board
-------------- 4 Screw
7 -------------- 1 Cover, Circuit Board Housing (Includes item 8)
-------------- 4 Screw
8 12559.0003 1 Decal - Warning High Voltage
9 03231.0000 1 Holder Assy, Fuse (Includes Cap and Mounting Nut)
10 27441.0000 1 Fuse, 5 amp
11 27443.0000 1 Decal, Fuse
12 25948.0000 1 Relay, 120V
01317.0003 2 Screw, Truss Head - Locking #8-32 x .375”
13 27437.0000 2 Switch, ON/OFF Ice
14 20317.0000 4 Switch, ON/OFF - Day/Night - Left & Right Auger
15 28090.0000 1 Decal, Control Panel
16 28088.0000 1 Panel, Control (Includes item 15)
01317.0003 4 Screw, Truss Head Locking #8-32 x .375”
17 01666.0001 1 Bushing, Strain Relief - 90° .75” Dia
Not Available.
Order item 4
18 01533.0005 5 Spacer, Nylon .375”
19 28089.1000 1 Kit, L.E.D./ Adjustment Board (Includes items 27 & 34)
27433.0000 6 Nut, Hex Keps #4-40
20 -------------- 1 Drawer W/Decal SST (OBSOLETE PART)
21 27438.0000 1 Decal, Drawer - Front SST
22 11628.0001 1 Lock Assy, Drawer (Includes item 26)
23 01685.0000 1 Connector, Cord .50MPT (Includes Nut) (CDS-2 models)
05746.0000 1 Bushing, Strain Relief (CDSA-2 models)
24 27246.0000 2 Temperature Sensor Assy (Includes Connector)
25 -------------- 1 Cover, Hole (OBSOLETE PART)
(Continued)
31
27647 100600
Page 32
ELECTRICAL AND OPERATING CONTROLS
(Continued)
40 1 2 35 36 37 38 39 3 30 31 25 4
5 6 7 8
10
CDS-2
CDS - 2
w/PAF
24 23
23
CDSA-2 Models
27
19
L.E.D. BOARD ASSY KIT
12
14
17
34
9
11
20 21 22 26
33
32
13
14
15
16
18
19
28
29
32
P1942.40
27647 081500
Page 33
ELECTRICAL AND OPERATING CONTROLS
ITEM PART NO. QTY. DESCRIPTION
26 28095.0000 2 Key, Drawer Lock Assy. (Set of Two)
27 00669.0003 1 Plug, Hole - Black .43” Dia
28 27088.0000 1 Washer, Nylon #6
29 01521.0000 1 Washer, SST #6
30 28507.0000 1 Bracket, Timer Mounting
02332.0002 2 Screw, Hex Crimptite #6 x .375”
31 28503.0000 1 Timer, 120V
21717.0000 4 Screw, Pan Head #6-32 x .375”
00973.0000 4 Nut, Keps #6-32
32 28185.1000 1 Cover, Switch (Includes item 33)
33 29207.0000 1 Bail, Switch Cover
34 27396.0000 1 Knob, Temperature Adjustment
35 29742.0000 2 Push Nut
36 29726.0000 2 Housing
37 27788.0000 2 Spring
38 27748.0000 2 Pin
00906.0000 4 Nut #6-32
39 29728.1000 2 Probe, Level (3.50”)
29728.1001 2 Probe, Level (1.86”)
40 03628.0000 2 Receptacle
41 01637.0002 1 Cord, Power (120V)
42 27659.0000 1 Wiring Harness, Main
43 21014.0123 1 Lead Electrical, Ground - 14AWG GRN 11” LG
00971.0000 2 Nut, Keps #10-32
44 00617.0000 10 Tie, BLK Nylon 3.90” LG (As Required)
45 12919.0000 4 Cap, Terminal
46 29759.0000 1 Wiring Harness, Power (CDS-2 PAF)
29759.0002 1 Wiring Harness, Power (CDSA-2 PAF)
47 29763.0000 2 Resister, Probe Detector
48 32501.0000 1 Voltage Divider (120V)
32501.0001 1 Voltage Divider (240V)
Not Illustrated
33
27647 042402
Page 34
NUMERICAL INDEX
PART NO.
00617.0000............... 25,29,33
00619.0000........................... 7
00669.0003.................... 29,33
00906.0000......................... 33
00927.0000........................... 7
00970.0000......................... 27
00971.0000.................... 29,33
00973.0000.................... 29,33
00986.0002........................... 7
01311.0001............... 13,17,25
01315.0000......................... 27
01317.0000............... 19,27,31
01317.0001.................... 13,17
01317.0003.. 5,13,17,21,27,31
01326.0002.................... 13,17
01330.0000......................... 17
01359.0000......................... 23
01377.0000.................... 15,19
01501.0000.................... 13,17
01521.0000.................... 29,33
01522.0000......................... 17
01532.0001........................... 9
01533.0005.................... 27,31
01637.0002.................... 29,33
01666.0001.................... 27,31
01685.0000.................... 29,31
02308.0000......................... 21
02329.0000........................... 5
02331.0000......................... 17
02332.0001............... 5,721,25
02332.0002.......... 21,23,29,33
02335.0001.................... 13,23
02360.0000.................... 27,31
03231.0000.................... 27,31
03290.0000......................... 25
03628.0000......................... 33
03851.0000........................... 9
03996.0000........................... 5
05746.0000......................... 31
11556.0001......................... 13
11556.0001......................... 17
11628.0001.................... 29,31
12421.1001........................... 7
12421.1002........................... 7
12421.1003........................... 7
12559.0003.................... 27,31
12919.0000.................... 29,33
13255.0003........................... 7
20317.0000.................... 27,31
21014.0123.................... 29,33
21431.0003......................... 23
21436.0000........................... 5
21437.1000........................... 5
21717.0000.................... 29,33
23700.0000......................... 23
24457.0001......................... 17
................PAGE NO.
PART NO. ................PAGE NO.
24566.0000........................... 9
25948.0000.................... 27,31
25948.0001......................... 27
26528.0000........................... 7
26713.1000......................... 11
26714.1000........................... 9
26714.1001........................... 9
26717.0000........................... 9
26780.0000.................... 13,17
26781.0000.................... 13,19
26784.0000...................... 9,11
26786.0000...................... 9,11
26786.0001...................... 9,11
26786.0002........................... 9
26786.0003........................... 9
26788.0000...................... 9,11
26791.0000......................... 21
26792.0000.................... 13,19
26793.0000...................... 9,11
26793.0001...................... 9,11
26958.0000........................... 5
26958.0001........................... 5
26972.0000...................... 9,11
27058.0000........................... 5
27058.0001........................... 7
27058.0002........................... 5
27058.0003........................... 7
27088.0000.................... 29,33
27131.0000........................... 7
27131.0001........................... 7
27135.0001........................... 9
27136.0002........................... 5
27136.0003........................... 5
27137.0000...................... 9,11
27178.0000.................... 27,31
27178.0001......................... 27
27180.0000......................... 21
27181.0000......................... 27
27187.0000......................... 25
27188.0000......................... 25
27191.1000......................... 23
27191.1001......................... 23
27219.0000......................... 21
27220.0000......................... 21
27221.0000......................... 21
27221.0001......................... 21
27223.0000.................... 13,17
27224.0000.................... 13,17
27228.0000.................... 13,17
27231.0000......................... 13
27231.0001......................... 13
27232.0000.................... 13,17
27235.0000........................... 9
27243.0000......................... 21
27246.0000.................... 29,31
27256.0000........................... 9
PART NO. ................PAGE NO.
27257.0000......................... 21
27258.0000......................... 21
27269.0000......................... 23
27394.0000........................... 5
27394.0001........................... 5
27396.0000.................... 29,33
27403.0000......................... 23
27404.0000......................... 23
27405.0000......................... 23
27405.0001......................... 23
27405.0002......................... 23
27406.0000......................... 23
27406.0002......................... 23
27407.0000......................... 23
27407.0001......................... 23
27408.0000......................... 23
27410.0000........................... 5
27411.0000......................... 25
27412.1000.................... 27,31
27433.0000.................... 27,31
27437.0000.................... 27,31
27438.0000.................... 29,31
27440.0000.................... 13,17
27441.0000.................... 27,31
27442.0000........................... 5
27443.0000.................... 27,31
27444.0000........................... 7
27445.1000........................... 9
27446.0000........................... 9
27447.0000 .......................... 9
27448.0000........................... 9
27556.0000........................... 5
27556.0002...........................
27557.0000........................... 7
27558.0000........................... 5
27558.0001........................... 5
27558.0002........................... 5
27558.0003........................... 5
27607.1000......................... 25
27607.1001......................... 25
27641.0000......................... 23
27642.0000......................... 23
27643.0000........................... 9
27644.1000......................... 27
27645.0000......................... 23
27659.0000......................... 29
27659.0000...................... 5,33
27660.1002........................... 5
27664.0000........................... 7
27728.0006......................... 29
27748.0000......................... 33
27788.0000......................... 33
27938.0000........................... 9
27939.1000.................... 27,31
28027.0000.................... 15,19
28049.0000......................... 21
34
PART NO. ................PAGE NO.
28049.0001......................... 21
28062.0000........................... 9
28078.0000........................... 5
28078.0001........................... 5
28079.1000........................... 9
28079.1001........................... 9
28079.1002........................... 9
28080.1000...................... 9,11
28080.1001...................... 9,11
28081.0000.................... 13,17
28082.0000........................... 9
28082.0007........................... 9
28083.0000...................... 9,11
28086.0000........................... 5
28086.0001........................... 5
28087.0000......................... 25
28087.0001......................... 25
28088.0000.................... 27,31
28089.1000.................... 27,31
28090.0000.................... 27,31
28091.0000......................... 25
28092.0000......................... 25
28092.0001......................... 25
28093.1000.................... 13,17
28093.1001......................... 13
28095.0000.................... 29,33
28098.0000........................... 7
28106.0000.................... 15,19
28107.0000...................... 9,11
28122.0000......................... 21
28125.0000........................... 7
28185.1000.................... 29,33
5
28216.1000...................... 9,11
28216.1001...................... 9,11
28236.0000......................... 19
28270.0000........................... 7
28391.0000...................... 9,11
28503.0000.................... 29,33
28503.0001......................... 29
28507.0000.................... 29,33
28537.0000......................... 13
28651.0000......................... 23
28776.0000........................... 9
29084.0001......................... 21
29207.0000.................... 29,33
29373.0000........................... 7
29446.0000......................... 29
29591.0001......................... 17
29591.0002......................... 17
29724.0000......................... 17
29725.0000......................... 19
29726.0000......................... 33
29728.1000......................... 33
29728.1001......................... 33
29742.0000......................... 33
29759.0000......................... 33
27647 071807
Page 35
NUMERICAL INDEX
PART NO. ................PAGE NO.
29759.0002......................... 33
29763.0000......................... 33
29844.0000......................... 17
32068.0000........................... 5
32091.0002.................... 15,19
32091.0003.................... 15,19
32106.1000.................... 13,17
32175.0000......................... 19
32267.1000........................... 9
32449.0000.................... 13,17
32501.0000......................... 33
32501.0001......................... 33
32580.0000........................ 5,7
32632.0000......................... 19
34836.0000.................... 13,17
34836.0001.................... 13,17
37593.0000.................... 13,19
M2316.0000 .......................25
M2548.1000 ..................15,19
M2550.0000 ..........9,11,15,19
PART NO.
................PAGE NO. PART NO. ................PAGE NO. PART NO. ................PAGE NO.
35
27647 061107
Loading...
