SYSTEM FEATURES

One-Piece Self-Contained Fast and easy to install, usually five to ten minutes with no experience.
Extended Range Four Button Remotely activates your alarm, car finder and instant panic from a safe distance.

Remote with Slider Protection
High Quality Siren 127db multi-tone siren deters thieves from further tampering.
Remote Programmable The alarm will sound with changes in current. (Example; a dome light or

Current Sensor ignition switch)
Remote Adjustable Electronic Not sensitive to temperature or age, extremely sensitive to shock or glass

Dual Stage Shock Sensor breakage. (Example; a light tap and the alarm will chirp three times. A harder

impact and the siren will sound.)

Full Time Instant Panic Should you feel threatened, you can remotely activate the siren with the press

Automatic Alarm Reset If the alarm is violated, it will stop and rearm itself after 30 seconds.
Remote Car Finder Helps you locate your vehicle in a crowded parking lot by chirping eight times.

Scan Deterrent Protects your car from scanning devices often used by thieves to disarm systems.
Code Learning Allows your system to learn new remotes if yours is lost or you need additional

Limited Lifetime Warranty Guarantees life-long protection.

of a button.

(Only when the system is armed.)

remotes.

TECHNICAL ASSISTANCE

Should you need help. First check our website at www.bulldogsecurity.com or call our toll-free Tech Support
Hotline Monday through Friday 9AM-8PM and Saturday 10AM-4PM EST at 800-878-8007.

You must give the following information:

•Name

•Telephone Number with Area Code (Fax # if applicable)

•Year, Make, and Model of the vehicle

•The model number of the system you are installing

•The type of assistance you are requesting
If you give the above information you will be called back as soon as possible, usually within ten minutes.

INSTALLATION INSTRUCTIONS

You will need a screwdriver or screwdrill to mount the siren.
Step 1: Locate a solid, well grounded metal surface under the hood. Any metal
fender, firewall or metal wheel well will do. For the loudest sound, the siren
should point down. CAUTION: Do not mount close to exhaust or other high temp­erature areas. Make sure the alarm, as well as the metal it is mounted to, is
solid with no moving parts nearby. The siren should not point up, as moisture
could collect in the siren horn and damage the system.

Step 2: Use three self-tapping screws (included) to secure the alarm. Screw into a
well-grounded metal surfaces. CAUTION: You must use all three screws.

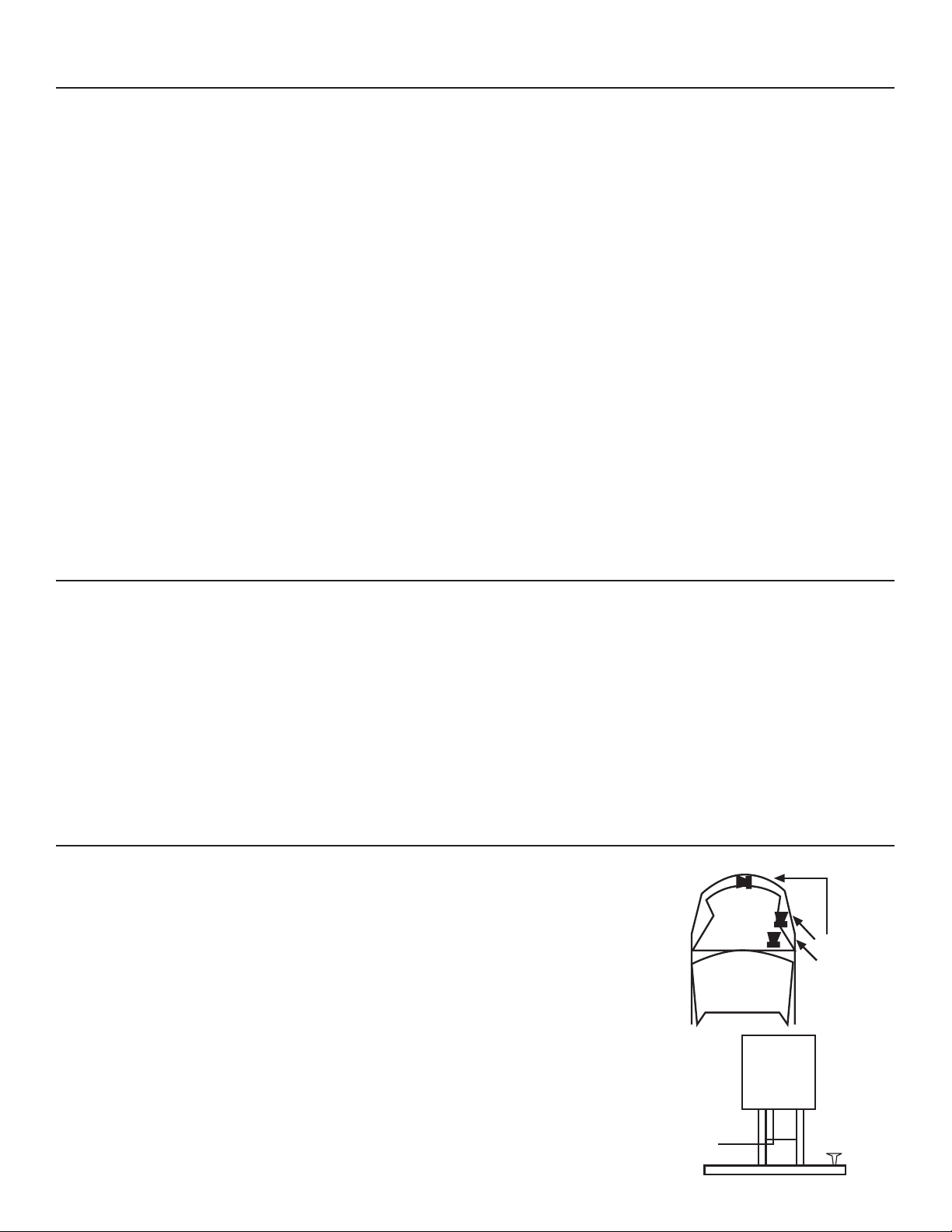

Antenna

Possible
Locations

Alarm

Self-tapping
screws

1

Step 3: Connect the RED power wire to any constant +12 volt supply. (Ex.;
the battery) If installation is correct, the alarm will chirp three times.

T o Alarm, Red

Step 4: For maximum range, keep the yellow antenna wire as straight as possible.
Note: If you have a cellular telephone, radar detector or other mobile radio

equipment; such as stereo amplifiers, they must be turned off before you leave
your vehicle. Otherwise, your alarm may detect the power drain and sound the alarm.

HOW TO USE YOUR REMOTE TRANSMITTER

Arm

Disarm

Finder
Panic

BUTTON #1
Arms your system.

BUTTON #2
Disarms your
system.

BUTTON #3
Helps you locate your vehicle in
a crowded parking lot. (Only when
system is armed.)

BUTTON #4
Provides you with personal
protection.

NOTE: Before operating your alarm, slide the
protector down (attached to the back of your
remote transmitter) snap off the back and
snap onto the front.

BULLDOG

- +
Positive

Cable

Arming
Press Button #1 (Arm) the alarm will chirp once and arm.
NOTE: Your alarm will ignore all violations, current and shock, for approximately 45 seconds after arming.

Disarming
Press Button #2 (Disarm). The system will chirp twice indicating that the system is disarmed. NOTE: If you hear
three chirps when disarming, the vehicle experienced an impact violation while armed. If you hear four chirps
when disarming, the vehicle experienced a current violation while armed. This is a good time to check your
vehicle for possible damage or an attempted break in.

Car Finder
While the system is armed, press and release Button #3 (Finder). The alarm will chirp eight times. This is used to
locate your vehicle in a crowded parking lot.

Instant Panic
Press and release Button #4 (Panic) to sound the instant panic siren. The siren will activate for 30 seconds and then
shut off. To stop the siren before the 30 seconds, press any of the four buttons. This feature functions at all times;
if the alarm is armed, disarmed, or if the engine is running or not.

Dual Stage Shock Sensor
A light impact will cause the alarm to respond with three chirps. Continued tampering will cause the alarm to respond
with full alarm violation.

Adjusting the Shock Sensor Sensitivity
To adjust the shock sensor, disarm the system, press and hold Button #3 (Finder) until the alarm chirps four times
(approximately five seconds), immediately release the button. Tap your vehicle’s hood above the alarm at the sensitivity
level you wish. The harder you hit the car the less sensitivity the alarm will be. The alarm will then chirp three
times. The shock sensor is now set at this sensitivity. Any shock that is equal to, or greater than this sensitivity,
will sound the alarm. Set the sensitivity as often as you wish; however, the sensitivity level will remain set until
the battery is disconnected or you reset it. If you do not tap the car it will automatically go to maximum sensitivity.
This setting is only acceptable if the car is parked inside a garage. NOTE: The factory setting on the shock sensor
should be acceptable for most vehicles.

To Turn Off Current Sensor
Disarm the system. Press and hold Button #4 (Panic) until the alarm chirps twice (approximately five seconds). This
indicates that current sensing is now turned off. To turn current sensing back on: disarm the system. Press and hold
Button #4 (Panic) until the alarm chirps once (approximately five seconds). This indicates that current sensing is
now turned on. NOTE: Factory setting is current sensing ON.

2

Adding A New Transmitter (Disarm alarm)
Press and hold Button #1 (Arm). The alarm will chirp once. Keep Button #1 held until the alarm chirps one more time.
Release Button #1 on the working remote and press and release Button #1 (Arm) on the new remote. The unit will chirp
once more.

Special Situations
Sometimes when you park your car in heavy rain, near a construction zone, near trucks, etc. you may wish to lower the
sensitivity of your alarm FOR THIS ARMING ONLY. To lower the sensitivity by 50%, press Button #1 to arm and then again
within two seconds after arming. To shut the shock sensor off completely, press Button #1 twice within two seconds
after arming. The next time the alarm is set it will go back to the original setting.

Transmitter Battery
The battery in your Bulldog transmitter is engineered for life. If the battery fails or the L.E.D. is not illuminating
when pressing a button, contact Bulldog Security for a replacement battery or replace the battery with a Part #A-23,
12 volt battery. To change the battery, simply insert a coin on the keychain side and twist to open the transmitter.
Replace the battery and snap the transmitter back together.
