Buick Enclave 2010 User Manual

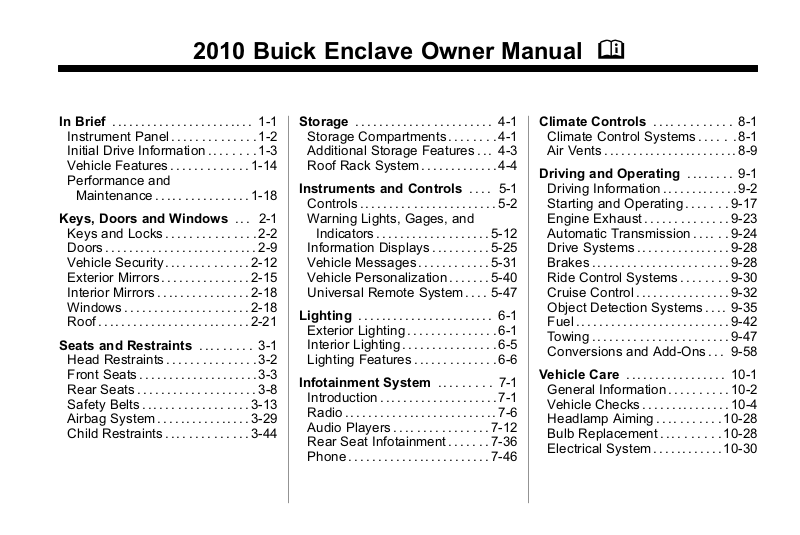

2010 Buick Enclave Owner Manual M

In Brief . . . . . . . . . ... . . . . . . . . . ... 1-1

Instrument Panel . . . . . . . . . . . . . . 1-2

Initial Drive Information . . . . . . . . 1-3

Vehicle Features.... . . . . . . . . . 1-14

Performance and

Maintenance . . . . . . . . . . . . . . ..1-18

Keys, Doors and Windows . . . 2-1

Keys and Locks . . . . . . . . . . . . . . . 2-2

Doors . . . . . . . . . . . . . .... . . . . . . . . . 2-9

Vehicle Security. . . . . . . . . . . . . .2-12

Exterior Mirrors . . . . . . . . . . . . . . . 2-15

Interior Mirrors . . . . . . . . . . . . . ...2-18

Windows . . . . . . . . . . . . . .. . . . . . .2-18

Roof . . . . . . . . . . . . . .... . . . . . . . . . 2-21

Seats and Restraints . . . . . . . . . 3-1

Head Restraints . . . . . . . . . . . . . . .3-2

Front Seats . . . . . . . . .. . . . . . . . . ..3-3

Rear Seats . . . . . . . . . . . . . . . . . . . .3-8

Safety Belts . . . . . . . . . . . . . . . . . . 3-13

Airbag System . . . . . . . . . . . . . . . . 3-29

Child Restraints . . . . . . . . . . . . . . 3-44

Storage . . . . . . . . . . . . . .. . . . . . .. . 4-1

Storage Compartments . . . . . . . . 4-1

Additional Storage Features . . . 4-3

Roof Rack System . . . . . . . . . .. . . 4-4

Instruments and Controls . . . . 5-1

Controls . . . . . . . . . . . . . . . . . . . . .. . 5-2

Warning Lights, Gages, and

Indicators . . . . . . . . . . . . . .. . . . . 5-12

Information Displays . . . . . . . . ..5-25

Vehicle Messages.... . . . . . . . . 5-31

Vehicle Personalization.... . . . 5-40

Universal Remote System . . . . 5-47

Lighting . . . . . . . . . . ... . . . . . . . . . . 6-1

Exterior Lighting . . . . . . . . . . . . . . . 6-1

Interior Lighting . . . . . . . .. . . . . . . .6-5

Lighting Features . . . . . . . . . . . . . . 6-6

Infotainment System . . . . . . . . . 7-1

Introduction . . . . . . . . . ... . . . . . . . . 7-1

Radio . . . . . . . . . . ... . . . . . . . . . . . . . 7-6

Audio Players . . . . . . . . . . . . . . . .7-12

Rear Seat Infotainment . . . . . . . 7-36

Phone . . . . . . . . . .. . . . . . . . . . ... .7-46

Climate Controls . . . . . . . . . . . . . 8-1

Climate Control Systems . . . . . .8-1

Air Vents.... . . . . . . . . . . . . . . . . . . . 8-9

Driving and Operating . . . . . . .. 9-1

Driving Information . . . . . . . . . . . . . 9-2

Starting and Operating . . . . . . .9-17

Engine Exhaust . . . . . . . . . . . . . . 9-23

Automatic Transmission . . . . . . 9-24

Drive Systems . . . . . . . . . . .... . . 9-28

Brakes . . . . . . .. . . . . .. . . . . . . . . . 9-28

Ride Control Systems . . . . . . . . 9-30

Cruise Control . . . . . . . . .. . . . . . . 9-32

Object Detection Systems . . . . 9-35

Fuel . . . . . . . . .. . . . . . . . ... . . . . . . 9-42

Towing . . . . . . .. . . . . .. . . . . . . . . . 9-47

Conversions and Add-Ons . . . 9-58

Vehicle Care .... . . . . . . . . .. . . . 10-1

General Information . . . . . . . . . . 10-2

Vehicle Checks.... . . . . . . . . . ..10-4

Headlamp Aiming . . . . . . . . . . . 10-28

Bulb Replacement . . . . . . . . . . 10-28

Electrical System . . . . . . . . . . . . 10-30

2010 Buick Enclave Owner Manual M

Wheels and Tires . . . . . . . . . . .10-37

Jump Starting . . . . . . . . . . . . . . . 10-80

Towing . . . . . . . .. . . . . . . .. . . . . . 10-84

Appearance Care . . . . . . . . . . . 10-87

Service and Maintenance . . . 11-1

General Information . . . . . . . . . . 11-1

Scheduled Maintenance . . . . . .11-2

Recommended Fluids,

Lubricants, and Parts . . . . . . . 11-7

Maintenance Records . . . . . . .11-10

Technical Data . . . . ........... 12-1

Vehicle Identification.... . . . . .12-1

Vehicle Data..... . . . . . . . . . . . . . 12-2

Customer Information . . . . . . . 13-1

Customer Information . . . . . . . . 13-1

Reporting Safety Defects . . . . 13-13

Vehicle Data Recording and

Privacy . . .. . . . . . . . . . . . . . . . .13-15

Index . . . . . . . . . . . . . . . . . . . . . i-1

Introduction iii

GENERAL MOTORS, GM, the GM Emblem, BUICK, the BUICK Emblem are registered trademarks; and the name ENCLAVE is a trademark of General Motors.

This manual describes features that may or may not be on your specific vehicle either because they are

Litho in U.S.A. Part No. 25851641 B Second Printing

options that you did not purchase or due to changes subsequent to the printing of this owner manual. Please refer to the purchase documentation relating to your specific vehicle to confirm each of the features found on your vehicle. For vehicles first sold in Canada, substitute the name “General Motors of Canada Limited” for Buick Motor Division wherever it appears in this manual.

Keep this manual in the vehicle for quick reference.

Canadian Vehicle Owners

Propriétaires Canadiens

A French language copy of this manual can be obtained from your dealer/retailer or from:

On peut obtenir un exemplaire de ce guide en français auprès du concessionnaire ou à l'adresse suivante:

Helm, Incorporated P.O. Box 07130 Detroit, MI 48207

1-800-551-4123 Numéro de poste 6438 de langue française www.helminc.com

iv Introduction

Using this Manual

To quickly locate information about the vehicle use the Index in the back of the manual. It is an alphabetical list of what is in the manual and the page number where it can be found.

Danger, Warnings, and Cautions

Warning messages found on vehicle labels and in this manual describe hazards and what to do to avoid or reduce them.

Danger indicates a hazard with a high level of risk which will result in serious injury or death.

Warning or Caution indicates a hazard that could result in injury or death.

WARNING

{

These mean there is something that could hurt you or other people.

Notice: This means there is something that could result in property or vehicle damage. This would not be covered by the vehicle's warranty.

A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this” or “Do not let this happen.”

Symbols

The vehicle has components and labels that use symbols instead of text. Symbols are shown along with the text describing the operation or information relating to a specific component, control, message, gauge, or indicator.

M : This symbol is shown when

you need to see your owner manual for additional instructions or information.

* : This symbol is shown when

you need to see a service manual for additional instructions or information.

Introduction v

Vehicle Symbol Chart

Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index.

9 : Airbag Readiness Light # : Air Conditioning ! : Antilock Brake System (ABS) g : Audio Steering Wheel Controls

or OnStar

$ : Brake System Warning Light " : Charging System

I : Cruise Control

B : Engine Coolant Temperature

O : Exterior Lamps

# : Fog Lamps

. : Fuel Gage

+ : Fuses

i : Headlamp High/Low-Beam

Changer

j : LATCH System Child

Restraints

* : Malfunction Indicator Lamp : : Oil Pressure

} : Power

/ : Remote Vehicle Start

> : Safety Belt Reminders

7 : Tire Pressure Monitor F : Traction Control/StabiliTrak M : Windshield Washer Fluid

vi Introduction

2 NOTES

In Brief 1-1

In Brief

Instrument Panel

Instrument Panel . . . . . . . . .. . . . . 1-2

Initial Drive Information

Initial Drive Information . . . . . . . . 1-3

Remote Keyless Entry (RKE)

System . . . . . . . .. . . . . . . . .. . . . . 1-4

Remote Vehicle Start . . . . . . . . . 1-4

Door Locks . . . . . . . . . . . . . . . . . . . 1-5

Liftgate . . . . . . . . . . . . . . . ....... . . 1-5

Windows . . . . . . . . .... . . . . . . . . . . 1-6

Seat Adjustment . . . . . . . . . . . . . . 1-6

Second Row Seats . . . . . . . . . . . 1-7

Third Row Seats . . . . . . . . . . . . . . 1-7

Heated Seats . . . . . . . . . . . . . . . . . 1-7

Heated and Ventilated

Seats . . . . . . . . . ... . . . . . . . . . . . . 1-8

Head Restraint Adjustment . . . . 1-8

Safety Belt . . . . . . . .. . . . . . . . . .. . 1-8

Sensing System for Passenger

Airbag . . . . . . . .. . . . . . . . .. . . . . . 1-8

Mirror Adjustment . . . . . . . . . . . .. 1-9

Steering Wheel

Adjustment . . . . . . . .. . . . . . . .. 1-10

Interior Lighting . . . . . . . . . . . . . . 1-11

Exterior Lighting . . . . . . . . . . . . . 1-11

Windshield Wiper/Washer . ... 1-12

Climate Controls . . . . . . . . . . . . . 1-13

Vehicle Features

Radio(s) . . . . . . .. . . . . . .. . . . . . . 1-14

Satellite Radio . . . . . . .. . . . . . .. 1-15

Portable Audio Devices . . . . . . 1-15

Bluetooth

Steering Wheel Controls . . . . . 1-16

Navigation System . . . . . . . . . .. 1-16

Cruise Control . . . . . .. . . . . . . . . 1-17

Storage Compartments . . . . . . 1-17

Power Outlets . . . . . . . . . . . . . . . 1-18

Sunroof . . . . . . . . .... . . . . . . . . . . 1-18

. . . . . . . . . .. . . . . . . . . 1-15

Performance and Maintenance

StabiliTrak®. . . . . . . . . ... . . . . . . 1-18

Tire Pressure Monitor . ... . . . . 1-19

Tire Sealant and

Compressor Kit . . . . . . . . . . . . . 1-19

Engine Oil Life System . . . . . . 1-19

Driving for Better Fuel

Economy .... . . . . . . . .. . . . . . . 1-20

Roadside Assistance

Program . . . . . . . . . . . . ...... . . 1-20

OnStar

. . . . . . .. . . . . . . . . . . . . . 1-21

1-2 In Brief

Instrument Panel

In Brief 1-3

A. Air Vents on page 8‑9.

B. Windshield Wiper/Washer

page 5‑5

C. Instrument Cluster

page 5‑13

D. Driver Information Center (DIC)

Buttons. See Driver Information Center (DIC) on page 5‑25.

E. Clock on page 5‑9.

F. AM-FM Radio

Navigation/Radio System (If Equipped). See Navigation System manual.

G. Exterior Lamp Controls

page 6‑1

H. Hood Release. See Hood

page 10‑5

I. Instrument Panel Illumination

Control on page 6‑5.

J. Cruise Control on page 9‑32.

K. Steering Wheel Adjustment

page 5‑2

on page 7‑6

L. Horn on page 5‑5.

M. Steering Wheel Controls

page 5‑3

N. Hazard Warning Flashers

page 6‑4

O. Dual Automatic Climate Control

System on page 8‑1.

P. Center Console Shift Lever.

See “Console Shift Lever” under Shifting Into Park on page 9‑21.

Q. Rear Window Wiper/Washer

page 5‑6

R. Power Outlets on page 5‑10.

S. Heated Front Seats

page 3‑7

T. Passenger Air Bag Status

Indicator. See Passenger Sensing System on page 3‑37.

U. Glove Box on page 4‑1.

Initial Drive Information

This section provides a brief overview about some of the important features that may or may not be on your specific vehicle.

For more detailed information, refer to each of the features which can be found later in this owner manual.

1-4 In Brief

Remote Keyless Entry (RKE) System

The RKE transmitter is used to remotely lock and unlock the doors from up to 60 m (195 feet) away from the vehicle.

Press K to unlock the driver door.

K again within five seconds

Press to unlock all remaining doors.

Press

Q to lock all doors.

Lock and unlock feedback can be personalized.

To open or close the liftgate, press and hold

begins to move.

Press vehicle.

Press two seconds to sound the panic alarm.

Press alarm.

See Remote Keyless Entry (RKE) System Operation on page 2‑3.

& until the liftgate

L and release to locate the

L and hold for more than

L again to cancel the panic

Remote Vehicle Start

Starting the Vehicle

With this feature the engine can be started from outside of the vehicle.

1. Aim the RKE transmitter at the vehicle.

2. Press

3. Immediately after completing

When the vehicle starts, the parking lamps will turn on and remain on as long as the engine is running. The doors will be locked and the climate control system may come on.

The engine will continue to run for 10 minutes. Repeat the steps for a 10-minute time extension. Remote start can be extended only once.

Q .

Step 2, press and hold the parking lamps flash.

/ until

In Brief 1-5

Canceling a Remote Start

To cancel a remote start:

Aim the RKE transmitter at the vehicle and press and hold

until the parking lamps turn off.

Turn on the hazard warning flashers.

Turn the ignition switch on and then off.

See Remote Vehicle Start

page 2‑5

Door Locks

To lock or unlock a door manually:

From the inside use the door lock knob on the window sill.

From the outside turn the key toward the front or rear of the vehicle, or press

the

Q or " button on the

Remote Keyless Entry (RKE) transmitter.

Power Door Locks

On vehicles with power door locks, the controls are located on the front doors.

" (Unlock): Press to unlock the

doors.

Q (Lock): Press to lock the doors.

See Power Door Locks

page 2‑7

Liftgate

To open the liftgate the vehicle must be in P (Park). Press the touchpad under the liftgate handle. To close the liftgate, use the pull cup or pull strap as an aid.

Power Liftgate

On vehicles with a power liftgate, the vehicle must be in P (Park) to operate it.

Press and hold the liftgate button

& on the Remote

Keyless Entry (RKE) transmitter.

Press the liftgate button on the center console.

Press the touchpad switch on the outside liftgate handle.

For more information see Liftgate

on page 2‑9

1-6 In Brief

Windows

On vehicles with power windows, the switches are on the driver door armrest. Each passenger door has a switch that controls only that window.

Press the switch to lower the window. Pull the switch up to raise it.

For more information, see Power Windows on page 2‑19.

Seat Adjustment

Power Seats

A. Power Seat Adjustment Control

B. Reclining Seatbacks

C. Lumbar Adjustment

Move the seat forward or rearward by moving the control (A) forward or rearward.

Raise or lower the seat by moving the control (A) up or down.

See Power Seat Adjustment

page 3‑3

To raise or recline the seatback, tilt the top of the control (B) forward or rearward.

See Reclining Seatbacks

page 3‑5

Press the front or rear of the control (C) to increase or decrease lumbar support.

See Lumbar Adjustment

page 3‑4

In Brief 1-7

Second Row Seats

To access the third row, pull the sliding seat lever forward so that the seat cushion folds and the entire seat slides forward.

See Rear Seats on page 3‑8.

Third Row Seats

The third row seats can be folded forward or removed.

Pull up on the release lever located on the back of the seat and push the seatback forward.

For detailed procedures see Third Row Seats on page 3‑11.

Heated Seats

Heated Front Seats

The heated seat controls are located on the center console. The engine must be running to operate them.

I : Press to turn on the heated seatback.

J : Press to turn on or off the heated seat and seatback.

For more information see Heated Front Seats on page 3‑7.

1-8 In Brief

Heated and Ventilated Seats

On vehicles with this feature, the controls are on the front doors near the handle.

H : Press to ventilate the seat. z : Press to heat the seat.

For more information see Heated and Ventilated Front Seats page 3‑8

Head Restraint Adjustment

Do not drive until the head restraints for all occupants are installed and adjusted properly.

For more information see Head Restraints on page 3‑2.

Safety Belt

Refer to the following sections for important information on how to use safety belts properly.

Safety Belts on page 3‑13.

How to Wear Safety Belts Properly on page 3‑17.

Lap-Shoulder Belt on page 3‑22.

Lower Anchors and Tethers for Children (LATCH System) page 3‑53

Sensing System for Passenger Airbag

United States

Canada

The passenger sensing system will turn off the right front passenger frontal airbag under certain

In Brief 1-9

conditions. The driver airbag, seat‐mounted side impact airbags, and roof‐rail airbags are not affected by the passenger sensing system.

The passenger airbag status indicator will be visible on the instrument panel when the vehicle is started. See Passenger Sensing

System

information.

on page 3‑37

for more

Mirror Adjustment

Exterior Mirrors

Controls for the outside power mirrors are located on the driver door armrest.

To adjust each mirror:

1. Press (A) or (B) to select the driver or passenger side mirror.

2. Press one of the four arrows located on the control pad to adjust the mirror.

3. Press either (A) or (B) again to deselect the mirror.

Folding Mirrors

To adjust each mirror:

1. Press (C) to fold the mirrors out to the driving position.

2. Press (D) to fold the mirrors in to the folded position.

If equipped, manually fold the mirrors inward to prevent damage when going through an automatic car wash. To fold, push the mirror toward the vehicle. Push the mirror outward to return it to the original position.

1-10 In Brief

Interior Mirror

The vehicle has an automatic dimming rearview mirror. Automatic dimming reduces the glare from the headlamps of the vehicle behind you. The dimming feature comes on and the indicator light illuminates each time the ignition is turned to start.

See Automatic Dimming Rearview Mirror on page 2‑18.

Steering Wheel Adjustment

The adjustment lever is located on the left side of the steering column.

1. Pull the lever down to adjust the steering wheel.

2. Move the steering wheel up or down or backward or forward into a comfortable position.

3. Pull the lever up to lock the steering wheel in place.

Power Tilt Wheel

For vehicles with the power tilt and telescope wheel, the control is on the left side of the steering column.

Push the control up or down to tilt the steering wheel up or down.

Push the control forward or rearward to move the steering wheel toward the front or rear of the vehicle.

See Steering Wheel Adjustment

page 5‑2

In Brief 1-11

Interior Lighting

Dome Lamps

The dome lamps are located in the overhead console and above the rear seat passengers.

The dome lamps automatically come on when a door is opened, unless the dome lamp override button is pressed in.

To manually turn them on, turn the instrument panel brightness control clockwise to the farthest position.

Dome Lamp Override

The dome lamp override button is next to the exterior lamps control.

E: Press the button in and the dome lamps remain off when a door is opened. Press the button again to return it to the extended position so that the dome lamps come on when a door is opened.

Reading Lamps

Press the button near each lamp to turn them on or off.

For more information, see:

Dome Lamps on page 6‑5.

Instrument Panel Illumination Control on page 6‑5.

Exterior Lighting

9 : Briefly turn to this position to

turn the automatic light control off or on again.

AUTO : Automatic operation of the headlamps at normal brightness and other exterior lamps.

1-12 In Brief

;: Manual operation of the parking lamps and other exterior lamps, except the headlamps.

2: Manual operation of the headlamps and other exterior lamps.

# (If Equipped): Push the fog lamp button in to turn on the fog lamps.

For more information, see:

Exterior Lamp Controls page 6‑1

Daytime Running Lamps (DRL)/ Automatic Headlamp System page 6‑3

Delayed Headlamps page 6‑3

Fog Lamps on page 6‑5.

Windshield Wiper/Washer

The windshield wiper/washer lever is located on the left side of the steering column.

Turn the band with the wiper symbol to control the windshield wipers.

8 : Use for a single wiping cycle. 9 : Turns the wipers off.

6 : Delays wiping cycle. Turn the

band up for more frequent wipes or down for less frequent wipes.

1 : Slow wipes.

2 : Fast wipes.

Windshield Washer

J : Press the button at the end

of the turn signal/lane change lever to spray washer fluid on the windshield.

See Windshield Wiper/Washer

page 5‑5

In Brief 1-13

Climate Controls

A. Fan Control

B. AUTO

C. Defrost

D. Air Recirculation

E. REAR (Rear Climate Control)

F. Air Delivery Mode Control

G. Driver Side Temperature Control

H. Display

I. Power (On/Off)

J. Rear Window Defogger

K. Air Conditioning

L. PASS (Passenger)

M. Passenger Side Temperature

Control

See Dual Automatic Climate Control

System

information about the rear climate control, see Rear Climate Control

System (Rear Climate Control Only) on page 8‑7 Control System (Rear Climate with Rear Seat Audio) on page 8‑8.

on page 8‑1

or Rear Climate

. For more

1-14 In Brief

Vehicle Features

Radio(s)

Radio with CD, DVD, and USB Port

O : Press to turn the system on

and off. Turn to increase or decrease the volume.

BAND: Press to choose between FM, AM, or XM™, if equipped.

f : Select radio stations. © ¨ : Seek or scan stations.

4 : Change the display between the

radio station frequency and the time, if equipped. While the ignition

is off, press

For more information about these and other radio features, see Operation on page 7‑2.

Storing a Favorite Station

A maximum of 36 stations can be stored as favorites using the six softkeys located below the radio station frequency tabs and by using the radio FAV button. Press FAV to go through up to six pages of favorites, each having six favorite stations available per page. Each page of favorites can contain any combination of AM, FM, or XM stations.

See AM-FM Radio on page 7‑6.

4 to display the time.

In Brief 1-15

Setting the Clock

To set the time and date for the radio with CD, DVD, and USB Port:

1. Turn the ignition key to ACC/ ACCESSORY or ON/RUN, then

O , to turn the radio on.

press

2. Press

3. Press the pushbutton located

4. To increase or decrease the time

For detailed instructions on setting the clock for the vehicles specific audio system, see Clock

page 5‑9

G to display HR, MIN,

MM, DD, YYYY (hour, minute, month, day, and year).

under any one of the labels to be changed.

or date, turn counter‐clockwise.

f clockwise or

Satellite Radio

Vehicles with an XM™ Satellite Radio tuner and a valid XM Satellite Radio subscription can receive XM programming.

XM Satellite Radio Service

XM is a satellite radio service that is based in the 48 contiguous United States and 10 Canadian provinces. XM Satellite Radio has a wide variety of programming and commercial-free music, coast-to-coast, and in digital-quality sound. A fee is required to receive the XM service.

For more information refer to:

www.xmradio.com or call 1-800-929-2100 (U.S.).

www.xmradio.ca or call 1-877-438-9677 (Canada).

See Satellite Radio on page 7‑8.

Portable Audio Devices

This vehicle may have an auxiliary input located on the radio faceplate and a USB port located in the center console. External devices such as

iPod

, laptop computers, MP3 players, CD changers, USB storage device, etc. can be connected to the auxiliary port using a 3.5 mm (1/8 in) input jack or the USB port depending on the audio system.

See Auxiliary Devices

page 7‑34

Bluetooth

The in-vehicle Bluetooth system allows users with a Bluetooth-enabled cell phone to make and receive hands-free calls using the vehicle’s audio system, microphone and controls.

1-16 In Brief

The Bluetooth-enabled cell phone must be paired with the in-vehicle Bluetooth system before it can be used in the vehicle. Not all phones will support all functions.

See Bluetooth on page 7‑46.

Steering Wheel Controls

w / x : Press to change favorite

radio stations, select tracks on a CD/DVD, or to navigate tracks or folders on an iPod

or USB device.

b g : Press to silence the vehicle

speakers only. Press again to turn the sound on. Press and hold longer than two seconds to interact with

OnStar

volume.

or Bluetooth systems.

e − e : Increases or decreases

c : Press to reject an incoming

call, or to end a call.

SRCE : Press to switch between the radio, CD, and for vehicles with, DVD, front auxiliary, and rear auxiliary.

¨ : Press to seek the next radio

station, the next track or chapter while sourced to the CD or DVD slot, or to select tracks and folders on an iPod

For more information, see Steering Wheel Controls on page 5‑3.

or USB device.

Navigation System

The vehicle's navigation system provides detailed maps of most major freeways and roads throughout the United States and Canada. After a destination has been set, the system provides turn-by-turn instructions for reaching the destination. In addition, the system can help locate a variety of points of interest (POI), such as banks, airports, restaurants, and more.

See the vehicle's Navigation System manual for more information.

In Brief 1-17

Cruise Control

T : On/Off.

+ RES : Press to accelerate or resume speed.

SET– : Press to set speed or decrease speed.

[ : Press to cancel cruise control.

See Cruise Control on page 9‑32.

Storage Compartments

For vehicles with a second row center console, open each area to access the storage compartment inside.

Press the buttons (B, C) on the front of the consoles to access the upper and lower storage areas.

Increase the storage area by folding the top of the console forward. Lift up on rear console handle (A) and pull forward.

See Floor Console Storage

page 4‑2

1-18 In Brief

Power Outlets

The vehicle has three 12‐volt accessory power outlets which can be used to plug in electrical equipment, such as a cellular telephone.

The power outlets are located:

On the instrument panel below the climate controls.

At the rear of the center floor console.

In the rear cargo area.

To use the outlets, remove the cover.

See Power Outlets on page 5‑10.

Sunroof

The ignition must be in ON/RUN or ACC/ACCESSORY to operate the sunroof and power sunshade. See

Retained Accessory Power (RAP) on page 9‑19

The switch to operate the front sunroof is on the headliner above the rearview mirror.

Vent: Press the front or rear of the switch to vent or close the sunroof.

Express-open/Express-close:

From the closed position, press and release the rear or front of the switch to express-open or express-close the sunroof.

For more information see Sunroof

on page 2‑21

Performance and Maintenance

StabiliTrak

The traction control system limits wheel spin and the StabiliTrak system assists with directional control of the vehicle in difficult driving conditions. Both systems turn on automatically every time the vehicle is started.

To turn off the traction control part of StabiliTrak, press and

release instrument panel below the

climate controls. and the appropriate DIC message is displayed. See Vehicle Messages on page 5‑31.

The StabiliTrak system remains on.

For more information, see StabiliTrak System on page 9‑30.

5 located on the

F illuminates

In Brief 1-19

Tire Pressure Monitor

This vehicle may have a Tire Pressure Monitor System (TPMS).

The Tire Pressure Monitor System alerts you when a significant reduction in pressure occurs in one or more of your vehicle’s tires by illuminating the low tire pressure warning light on the instrument cluster. If the warning light comes on, stop as soon as possible and inflate the tires to the recommended pressure shown on the tire loading information label located on the driver side center pillar (B pillar). See Vehicle Load Limits

page 9‑12

remain on until the tire pressure is corrected.

. The warning light will

You may notice during cooler conditions that the low tire pressure warning light will appear when the vehicle is first started and then turn off as you drive. This may be an early indicator that your tire pressures are getting low and the tires need to be inflated to the proper pressure.

Note: The Tire Pressure Monitor System can alert you about low tire pressure, but it does not replace normal monthly tire maintenance. It is the driver’s responsibility to maintain correct tire pressures.

See Tire Pressure Monitor System

on page 10‑45 Monitor Operation on page 10‑46.

and Tire Pressure

Tire Sealant and Compressor Kit

This vehicle may come with a jack and spare tire or a tire sealant and compressor kit. The kit can be used to seal small punctures in the tread area of the tire.

See Tire Sealant and Compressor

Kit

on page 10‑59

operating information.

for complete

Engine Oil Life System

The engine oil life system calculates engine oil life based on vehicle use and displays the “Change Engine Oil Soon” message when it is time to change the engine oil and filter. The oil life system should be reset to 100% only following an oil change.

1-20 In Brief

Resetting the Oil Life System

1. Turn the ignition to ON/RUN, with the engine off.

2. Press the vehicle information button until “Oil Life Remaining” displays.

3. Press and hold the set/reset button until “100%” is displayed. Three chimes sound and the “Change Engine Oil Soon” message goes off.

4. Turn the key to LOCK/OFF.

See Engine Oil Life System

page 10‑10

Driving for Better Fuel Economy

Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible.

Avoid fast starts and accelerate smoothly.

Brake gradually and avoid abrupt stops.

Avoid idling the engine for long periods of time.

When road and weather conditions are appropriate, use cruise control, if equipped.

Always follow posted speed limits or drive more slowly when conditions require.

Keep vehicle tires properly inflated.

Combine several trips into a single trip.

Replace the vehicle's tires with the same TPC Spec number molded into the tire's sidewall near the size.

Follow recommended scheduled maintenance.

Roadside Assistance Program

U.S.: 1-800-252-1112

TTY Users: 1-888-889-2438

Canada: 1-800-268-6800

As the owner of a new Buick, you are automatically enrolled in the Roadside Assistance program. This program provides technically trained advisors who are available 24 hours a day, 365 days a year, minor repair information or towing arrangements.

Roadside Assistance and OnStar

If you have a current OnStar subscription, press the OnStar button and the current GPS location will be sent to an OnStar Advisor who will assess your problem, contact Roadside Assistance, and relay exact location to get you the help you need.

In Brief 1-21

Online Owner Center

The Online Owner Center is a complimentary service that includes online service reminders, vehicle maintenance tips, online owner manual, special privileges and more.

www.gmownercenter.com/buick (U.S.) or www.gm.ca (Canada).

OnStar

OnStar®uses several innovative technologies and live advisors to provide a wide range of safety, security, navigation, diagnostics, and calling services.

Automatic Crash Response

In a crash, built in sensors can automatically alert an OnStar advisor who is immediately connected to the vehicle to see if you need help.

How OnStar Service Works

Q : This blue button connects you

to a specially trained OnStar advisor to verify your account information and to answer questions.

] : Push this red emergency

button to get priority help from specially trained OnStar emergency advisors.

X : Push this button for hands‐free,

voice‐activated calling and to give voice commands for turn‐by‐turn navigation.

Crisis Assist, Stolen Vehicle Assistance, Vehicle Diagnostics, Remote Door Unlock, Roadside Assistance, Turn‐by‐Turn Navigation and Hands‐Free Calling are available on most vehicles. Not all OnStar services are available on all vehicles. For more information see the OnStar Owner's Guide or visit www.onstar.com (U.S.) or www.onstar.ca (Canada), contact OnStar at 1-888-4-ONSTAR (1‐888‐466‐7827) or TTY

1‐877‐248‐2080, or press speak with an OnStar advisor 24 hours a day, 7 days a week.

For a full description of OnStar services and system limitations, see the OnStar Owner's Guide in the glove box.

OnStar service is subject to the OnStar terms and conditions included in the OnStar Subscriber Information.

Q to

1-22 In Brief

OnStar service cannot work unless the vehicle is in a place where OnStar has an agreement with a wireless service provider for service in that area. OnStar service also cannot work unless the vehicle is in a place where the wireless service provider OnStar has hired for that area has coverage, network capacity and reception when the service is needed, and technology that is compatible with the OnStar service. Not all services are available everywhere, particularly in remote or enclosed areas, or at all times.

The OnStar system can record and transmit vehicle information. This information is automatically sent to

an OnStar call center when pressed,

airbags or ACR system deploy. This information usually includes the vehicle's GPS location and, in the event of a crash, additional information regarding the crash that

] is pressed, or if the

Q is

the vehicle was involved in (e.g. the direction from which the vehicle was hit). When the virtual advisor feature of OnStar hands-free calling is used, the vehicle also sends OnStar the vehicle's GPS location so they can provide services where it is located.

Location information about the vehicle is only available if the GPS satellite signals are unobstructed and available.

The vehicle must have a working electrical system, including adequate battery power, for the OnStar equipment to operate. There are other problems OnStar cannot control that may prevent OnStar from providing OnStar service at any particular time or place. Some examples are damage to important parts of the vehicle in a crash, hills, tall buildings, tunnels, weather or wireless phone network congestion.

OnStar Steering Wheel Controls

This vehicle may have a Talk/Mute button that can be used to interact with OnStar hands-free calling. See Steering Wheel Controls

page 5‑3

On some vehicles, the mute button can be used to dial numbers into voice mail systems, or to dial phone extensions. See the OnStar Owner's Guide for more information.

for more information.

Your Responsibility

Increase the volume of the radio if the OnStar advisor cannot be heard.

If the light next to the OnStar buttons is red, the system may not be functioning properly.

Q and request a vehicle

Press diagnostic. If the light appears clear (no light is appearing), your OnStar subscription has expired and all services have been deactivated.

Press

Q to confirm that the OnStar

equipment is active.

Keys, Doors and Windows 2-1

Keys, Doors and Windows

Keys and Locks

Keys . . . . . . . ... . . . . . . . . ... . . . . . 2-2

Remote Keyless

Entry (RKE) System . . . . . . . . 2-2

Remote Keyless

Entry (RKE) System

Operation . . . . . . . . . . . . . ...... . 2-3

Remote Vehicle Start . . . . . . . . . 2-5

Door Locks . . . . . . . . . . . . . . . . . . . 2-7

Power Door Locks . . . . . . . . . . . . 2-7

Delayed Locking . . . . . .. . . . . . . . 2-7

Automatic Door Locks . . . . . . . . . 2-8

Lockout Protection . . . . . . . . . . . . 2-8

Safety Locks . . . . . . . .. . . . . . . . . . 2-8

Doors

Liftgate . . . . . . . . . . . . . . . ....... . . 2-9

Vehicle Security

Vehicle Security . . . . . . . . . . . ... 2-12

Anti-Theft Alarm System . . . . . 2-12

Immobilizer . . . . . . . .. . . . . .. . . . 2-13

Immobilizer Operation . . . . . . . 2-13

Exterior Mirrors

Convex Mirrors . . . . . . . . . . . . . . 2-15

Power Mirrors . . . . . . . . . . . . . . . . 2-16

Folding Mirrors . . . . . . . . . . . . . . . 2-16

Heated Mirrors . . . . . . . . . . ..... 2-17

Park Tilt Mirrors . . . . . . . . . . . . . . 2-17

Interior Mirrors

Automatic Dimming

Rearview Mirror . . . . . . . . . . . . 2-18

Windows

Windows . . . . . . . . . . . . . . . . . . . .. 2-18

Power Windows . . . . . . . . . . . . . 2-19

Sun Visors . . . . . . . . . . . .... . . . . 2-21

Roof

Sunroof . . . . . . . . .... . . . . . . . . . . 2-21

2-2 Keys, Doors and Windows

Keys and Locks

Keys

WARNING

{

Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window. Do not leave the keys in a vehicle with children.

The key is used for the ignition and all door locks.

The key has a bar-coded key tag that the dealer/retailer or qualified locksmith can use to make new keys. Store this information in a safe place, not in the vehicle.

See your dealer/retailer if a replacement key or additional key is needed.

Notice: If you ever lock your keys in the vehicle, you may have to damage the vehicle to get in. Be sure you have spare keys.

If you are locked out of the vehicle, call the Roadside Assistance Center. See Roadside Assistance

Program

on page 13‑6

Remote Keyless Entry (RKE) System

See Radio Frequency Statement page 13‑16

regarding Part 15 of the Federal Communications Commission (FCC) Rules and RSS-210/211 of Industry Canada.

Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.

If there is a decrease in the RKE operating range:

Check the distance. The transmitter may be too far from the vehicle.

Check the location. Other vehicles or objects may be blocking the signal.

for information

+ 410 hidden pages
