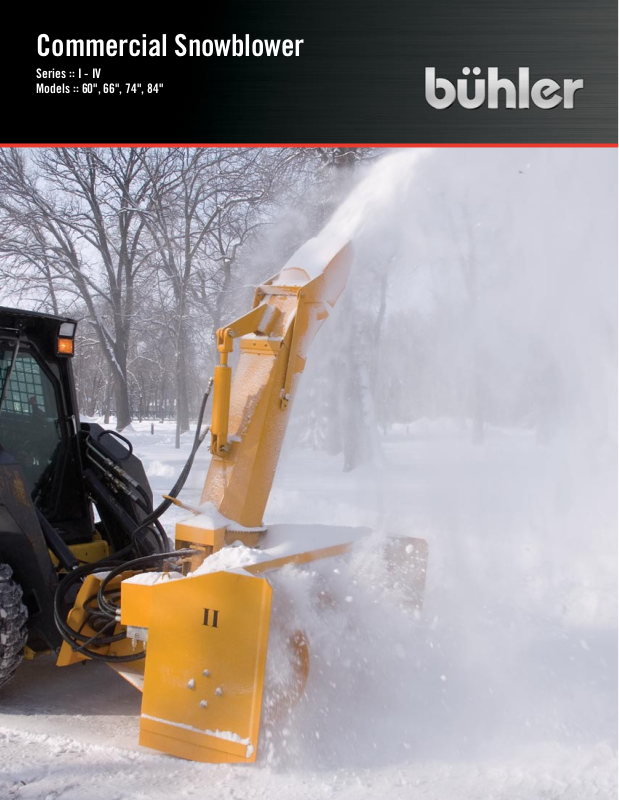

Commercial Snowblower
Series :: I - IV
Models :: 60", 66", 74", 84"
developed for skid steers
MODEL |
B6022HSB-1 |
B6622HSB-1 |
B7422HSB-1 |
B7424HSB-3 |
B8424HSB-3 |
B84SB (PTO Drive) |
|
B6022HSB-2 |
B6622HSB-2 |
B7422HSB-2 |
B7424HSB-4 |
B8424HSB-4 |
|
|
|
B6622HSB-3 |
|
|
|
|
Cutting width |
60" |
66" |
74" |
74" |
84" |
84" |
Cutting height |
28" |
30" |
30" |
30" |
30" |
30" |
Mount type |
Skid steer |
Skid steer |
Skid steer |
Skid steer |
Skid steer |
Cat. III, 3-point |
Hydraulic requirements |
13 - 22 GPM |
13 - 22 GPM |
13 - 22 GPM |
20 - 32 GPM |
20 - 32 GPM |
10 GPM |
|
2000 psi min. |
2000 psi min. |
2000 psi min. |
2000 psi min. |
2000 psi min. |
1000 psi min. |
System controls & drive |
Hydraulic load sensing |
Hydraulic load sensing |
Hydraulic load sensing |
Hydraulic load sensing |
Hydraulic load sensing |
PTO w/shear pin |
|
Block flow adjustable |
Block flow adjustable |
Block flow adjustable |
Block flow adjustable |
Block flow adjustable |
|
Fan |
4-blade |
4-blade |
4-blade |
4-blade |
4-blade |
4-blade |
Fan diameter |
21 1/2" |
21 1/2" |
21 1/2" |
23 1/2" |
23 1/2" |
23 1/2" |
Fan depth |
7 1/2" |
7 1/2" |
7 1/2" |
7 1/2" |
7 1/2" |
7 1/2" |
Replaceable fan housing |
7 gauge |
7 gauge |
7 gauge |
7 gauge |
7 gauge |
7 gauge |
Auger diameter |
15" |
15" |
15" |
15" |
20" |
20" |
Auger center diameter |
3" od x 0.250 wall |
3" od x 0.250 wall |
3" od x 0.250 wall |
3" od x 0.250 wall |
3" od x 0.250 wall |
3" od x 0.250 wall |
Auger thickness |
3/8" |
3/8" |
3/8" |
3/8" |
3/8" |
3/8" |
Drive fan |
Hydraulic w/#80 chain |
Hydraulic w/#80 chain |
Hydraulic w/#80 chain |
Hydraulic w/#80 chain |
Hydraulic w/#80 chain |
Hydraulic w/#80 chain |
Drive auger |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
#60H chain |
|
w/#60H chain |
w/#60H chain |
w/#60H chain |
w/#60H chain |
w/#60H chain |
|
Body housing |
10 gauge |
7 gauge |
7 gauge |
7 gauge |
7 gauge |
7 gauge |
Spout rotator |
Hydraulic - 230° |
Hydraulic - 230° |
Hydraulic - 230° |
Hydraulic - 230° |
Hydraulic - 230° |
Hydraulic - 230° |
Spout deflector |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Hydraulic |
Cutting edge |
1/2" x 4" beveled |
1/2" x 4" beveled |
1/2" x 4" beveled |
1/2" x 4" beveled |
1/2" x 4" beveled |
1/2" x 4" beveled |
|
Replaceable |
Replaceable |
Replaceable |
Replaceable |
Replaceable |
Replaceable |
Skid shoes |
Adjustable and |
Adjustable and |
Adjustable and |
Adjustable and |
Adjustable and |
Adjustable and |
|
replaceable |
replaceable |
replaceable |
replaceable |
replaceable |
replaceable |
Truck loading spout |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Weight |
1070 lbs |
1260 lbs |
1280 lbs |
1193 lbs |
1305 lbs |
1317 lbs |
