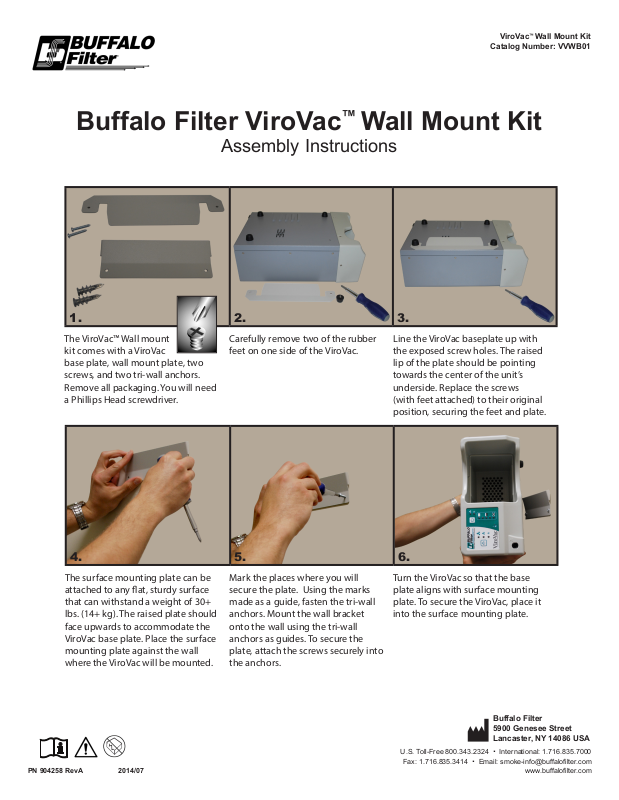

ViroVac™ Wall Mount Kit

Catalog Number: VVWB01

Buffalo Filter ViroVac™ Wall Mount Kit

Assembly Instructions

1. 2. 3.

The ViroVac™ Wall mount
kit comes with a ViroVac
base plate, wall mount plate, two
screws, and two tri-wall anchors.
Remove all packaging. You will need
a Phillips Head screwdriver.

Carefully remove two of the rubber
feet on one side of the ViroVac.

4. 5. 6.

The surface mounting plate can be
attached to any at, sturdy surface
that can withstand a weight of 30+
lbs. (14+ kg). The raised plate should
face upwards to accommodate the
ViroVac base plate. Place the surface
mounting plate against the wall
where the ViroVac will be mounted.

Mark the places where you will
secure the plate. Using the marks
made as a guide, fasten the tri-wall
anchors. Mount the wall bracket
onto the wall using the tri-wall
anchors as guides. To secure the
plate, attach the screws securely into
the anchors.

Line the ViroVac baseplate up with
the exposed screw holes. The raised
lip of the plate should be pointing
towards the center of the unit’s
underside. Replace the screws
(with feet attached) to their original
position, securing the feet and plate.

Turn the ViroVac so that the base
plate aligns with surface mounting
plate. To secure the ViroVac, place it
into the surface mounting plate.

PN 904258 RevA 2014/07
