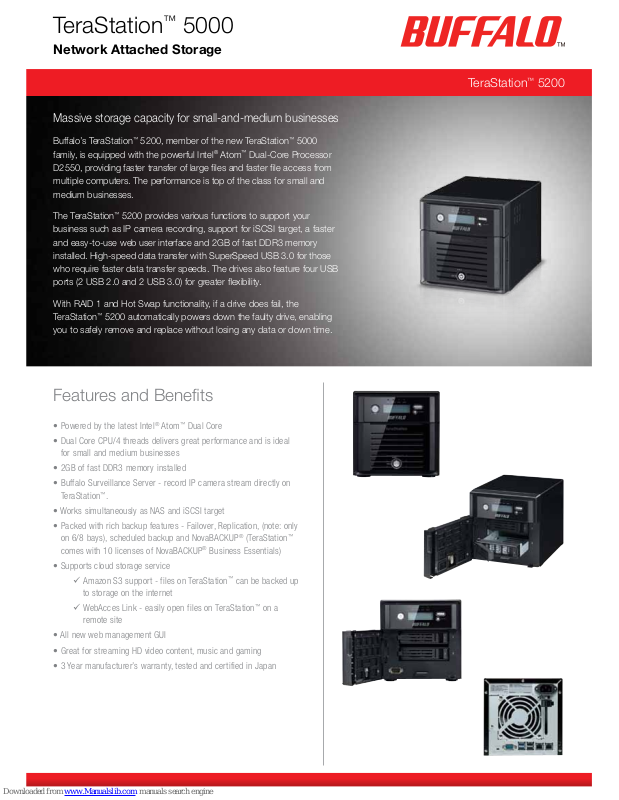

Buffalo TeraStation 5200 Specifications

Buffalo’s TeraStation™ 5200, member of the new TeraStation™ 5000
family, is equipped with the powerful Intel® Atom™ Dual-Core Processor

D2550, providing faster transfer of large files and faster file access from
multiple computers. The performance is top of the class for small and
medium businesses.

The TeraStation

™

5200 provides various functions to support your
business such as IP camera recording, support for iSCSI target, a faster
and easy-to-use web user interface and 2GB of fast DDR3 memory
installed. High-speed data transfer with SuperSpeed USB 3.0 for those
who require faster data transfer speeds. The drives also feature four USB
ports (2 USB 2.0 and 2 USB 3.0) for greater flexibility.

With RAID 1 and Hot Swap functionality, if a drive does fail, the
TeraStation

™

5200 automatically powers down the faulty drive, enabling

you to safely remove and replace without losing any data or down time.

Features and Benefits

• Powered by the latest Intel® Atom™ Dual Core

• Dual Core CPU/4 threads delivers great performance and is ideal
for small and medium businesses

• 2GB of fast DDR3 memory installed

• Buffalo Surveillance Server - record IP camera stream directly on
TeraStation

™

.

• Works simultaneously as NAS and iSCSI target

• Packed with rich backup features - Failover, Replication, (note: only
on 6/8 bays), scheduled backup and NovaBACKUP

®

(TeraStation™

comes with 10 licenses of NovaBACKUP® Business Essentials)

• Supports cloud storage service

 Amazon S3 support - files on TeraStation

™

can be backed up

to storage on the internet

 WebAcces Link - easily open files on TeraStation

™

on a

remote site

• All new web management GUI

• Great for streaming HD video content, music and gaming

• 3 Year manufacturer’s warranty, tested and certified in Japan

TeraStation™ 5200

Network Attached Storage

TeraStation™ 5000

Massive storage capacity for small-and-medium businesses

May 12 # 2033

About Buffalo

Buffalo Technology is a leading global provider of award-winning storage, networking, memory and multimedia solutions for home use and small business environments as well as for system builders and
integrators. With more than three decades of networking and computer peripheral experience, Buffalo has proven its commitment to delivering innovative solutions that have put the company at the forefront of
infrastructure technology.

© Buffalo Inc. 2012. BUFFALO logo, AirStation, Nfiniti, AOSS, TeraStation, LinkStation, DriveStation, DriveStation 2Share, MiniStation, Dualie and LinkTheater are either trademarks or registered trademarks of
Melco Holdings Inc. or Buffalo Inc. Microsoft Windows and Microsoft logo are either registered trademarks or trademarks of Microsoft corporation in United States and/or other countries. The names and logos of
other companies mentioned herein belong to their respective owners. The information within this datasheet is subject to change without notice. All rights reserved. E & OE.

www.buffalo-technology.com

Specifications

Network Attached Storage

TeraStation™ 5000

Hardware
System

CPU Intel

®

AtomTM D2550 dual core

RAM 2GB DDR3

Internal Hard Drives

HDD interface SATA 3Gb/s
Capacities 1, 2, 3, 4TB
Number of Drives 2
Total Capacities 2, 4, 6, 8TB

Interfaces

LAN

Connector Type RJ-45
Number of Ports 2
Data Transfer Rates 10/100/1000Mbps

USB

Standard Compliance USB2.0/USB 3.0
Connector Type USB Type A
Number of Ports 2 x USB 2.0 / 2 x USB3.0
Data Transfer Rates 480Mbps USB 2.0 / 5Gbps USB3.0

Serial Port

Connector Type D-SUB 9pin
Number of Ports 1

Other

Supported OS

Windows

®

7 (32-bit/64-bit), Windows Vista® (32-bit/64-bit), Windows® XP, Windows® 2000, Windows Server® 2008, Windows Server®

2003, Windows

®

2000 Server, Mac OS® X 10.4-10.7
Dimensions 231x170x216mm
Weight 8Kg
Operating Environment 5-35°C, 20-80% (non-condensing)
Power Consumption Max. 96W
Power Supply Internal AC 100-240V Universal, 50/60Hz

Software
System

Raid Support RAID 0/1/JBOD
Hot Spare Have a spare drive if a Raid fails
Hot Swap Change drives in RAID without down time
SoleraTec

™

Phoenix RSM™ Video,

Surveillance Management Software

1 free camera license, more can be added, manages storage pool and camera pool, supports cameras from 184 vendors and

manual settings for RTSP
DFS DFS Namaspace Support
User Quota Space limitation for users/groups
iSCSI Simultaneous NAS and iSCSI target functionality

Protocol Support

Networking TCP/IP
File Sharing CIFS/SMB, AFP, HTTP/HTTPS, FTP/SFTP, NFS
AD Integration LDAP
Management HTTP/HTTPS
Time Synchronisation NTP
Camera RTSP

Backup

Failover Failover solution with other Buffalo NAS
Backup Built-in backup to USB storage or other Buffalo NAS based on rsync
NovaBackup

®

Business Essentials Professional software

Remote Access

Web UI via HTTP/HTTPS
FTP Sever via FTP/SFTP
WebAccess WebAccess a convinient solution for file access, also available for Smartphones and Tablets

TeraStation™ 5200

Product Part Numbers

TS5200D0202-EU
TS5200D0402-EU
TS5200D0602-EU
TS5200D0802-EU

Amazon Simple Storage Service (S3)
