Buffalo TeraStation 5010 TS5210DN, TeraStation 5010 TS5210DF, TeraStation 5010 TS5410DN, TeraStation 5010 TS5410RN, TeraStation 5010 TS51210RH User Manual

Page 1

Network Attached Storage

TeraStation 5010

User Manual

Please make sure to read this manual before using and follow the procedures. If you have any inquiries about the product, contact the number on the warranty statement or the packing box. Do not discard this manual, the warranty statement, or the packing box.

Americas: www.buffaloamericas.com

Europe: www.buffalo-technology.com

Asia Pacific: www.buffalo-asia.com

35021131-09

2017.04

Page 2

Contents

Chapter 1 Getting Started .............................................9

Diagrams ...........................................................................................9

2-Bay, 4-Bay Desktop Model ..................................................................... 9

4-Bay Rackmount Model .........................................................................12

12-Bay Rackmount Model ....................................................................... 14

Turning the TeraStation On and Off............................................. 16

Creating an Initialization Drive .................................................... 18

Chapter 2 Configuration ............................................. 19

Setting Up Through Initial Setup Wizard .................................... 19

Opening Advanced Settings ........................................................ 23

Opening Easy Admin .................................................................... 24

Chapter 3 Sharing Files ............................................... 27

Configuring Shared Folders ......................................................... 27

Adding a Shared Folder ........................................................................... 27

Recycle Bin ................................................................................................29

Read-Only Shares .....................................................................................29

Hidden Shares .......................................................................................... 30

Configuring Users ......................................................................... 30

Adding a User ........................................................................................... 30

Importing User Information ....................................................................32

Adding a Group ............................................................................. 33

Configuring Access Restrictions for Shared Folders .................. 36

Local Users and Groups ...........................................................................36

Page 3

Active Directory .......................................................................................37

Configuring Access Restrictions for Subfolders ......................... 40

Enabling Subfolders' Access Restrictions ..............................................40

Restoring Owner and Permission Settings ............................................42

Chapter 4 Managing Storage...................................... 44

RAID Modes ................................................................................... 44

Working with RAID Arrays ............................................................ 45

Using JBOD ............................................................................................... 45

Changing RAID Mode ..............................................................................46

Shutting Down the TeraStation Automatically if Error Occurred .........47

Rebuilding the RAID Array Automatically .............................................49

Configuring a Hot Spare .......................................................................... 50

RMM (RAID Mode Manager) ....................................................................51

RAID Scanning..........................................................................................54

Adding an External Drive ............................................................. 55

Connecting an External Drive ................................................................. 55

Compatibility ...........................................................................................55

Dismounting Drives ...................................................................... 56

Dismounting with the Function Button .................................................56

Dismounting from Settings ....................................................................56

Checking Drives ............................................................................ 57

SSD Trimming ................................................................................ 58

S.M.A.R.T. ....................................................................................... 59

Displaying S.M.A.R.T. Information .........................................................59

Checking Drive Condition .......................................................................60

Formatting Drives ......................................................................... 60

Encrypting Drives .......................................................................... 62

Page 4

Erasing Data on the TeraStation Completely .............................. 62

Drive Quotas .................................................................................. 63

Quotas for Users .......................................................................................63

Quotas for Groups ...................................................................................63

Size Limits ................................................................................................. 64

Using the TeraStation as an iSCSI Device .................................... 67

Introduction .............................................................................................67

Creating an iSCSI Volume ........................................................................67

Connecting or Disconnecting Volumes .................................................. 69

Using with Multiple Computers .............................................................. 71

Configuring Access Restrictions .............................................................71

Expanding Volume Sizes .........................................................................75

Deleting Volumes .....................................................................................76

Chapter 5 Backup ........................................................ 78

Backing Up to the TeraStation ..................................................... 78

Preparing a Backup Destination ............................................................. 78

Configuring a Backup Job .......................................................................80

Backing Up to rsync-Compatible Devices ................................... 83

Preparing a Backup Destination ............................................................. 83

Configuring a Backup Job .......................................................................83

Backing Up from rsync-Compatible Devices .............................. 87

Backup Logs .................................................................................. 88

Replication ..................................................................................... 91

Preparing a Replication Destination ......................................................91

Configuring a Replication Task ...............................................................92

Synchronizing Between Source and Destination TeraStations

Periodically ............................................................................................... 95

Page 5

Failover .......................................................................................... 96

Before Configuring Failover ....................................................................97

Usage Restrictions ...................................................................................98

Configuring Failover ................................................................................ 98

Replacing to the Backup TeraStation Manually ..................................100

Reconfiguring After Failover Occurs ....................................................100

Synchronizing Between Main and Backup TeraStations Periodically 101

Backing Up Your Mac with Time Machine ................................. 103

Chapter 6 Remote Access .......................................... 108

WebAccess ................................................................................... 108

FTP ................................................................................................ 110

Cloud Storage .............................................................................. 111

Configuring Cloud Storage ...................................................................111

Uploading Files to Cloud Storage ......................................................... 113

Dropbox Sync .............................................................................. 117

Configuring a New Task .........................................................................117

Changing Dropbox Task Settings .........................................................119

Creating a Shared Link (Windows Only) ...............................................122

Chapter 7 Advanced Features .................................. 123

Antivirus Software ...................................................................... 123

Activating Virus Scanning .....................................................................123

Configuring Security Settings ..............................................................124

Licenses ..................................................................................................126

Connecting Through a Proxy Server ....................................................127

Updating Antivirus Pattern Files ..........................................................127

Configuring Folders as Virus Scanning Targets ...................................128

Page 6

Virus Scanning .......................................................................................129

Checking the Log ...................................................................................130

Online Help ............................................................................................. 131

Email Notification ....................................................................... 132

Sleep Mode .................................................................................. 133

Wake-on-LAN .............................................................................. 135

UPS (Uninterruptible Power Supply) ......................................... 136

One PSU Is Installed ............................................................................... 136

Two PSUs Are Installed ..........................................................................137

Power Supply Failure .................................................................. 139

Port Trunking ............................................................................... 140

Offline Files .................................................................................. 142

Accessing from an NFS Client ..................................................... 143

Encrypting Data Transmission ................................................... 147

Encrypting Settings Data ......................................................................147

Encrypting FTP Transfer Data ...............................................................147

SSL Keys ..................................................................................................147

SNMP ............................................................................................ 148

Saving and Applying Settings .................................................... 149

Saving Settings ......................................................................................149

Applying Settings ..................................................................................150

Transferring Another TeraStation's Settings ............................ 151

Creating a Config File (.nas_config) ......................................................151

Transferring Settings .............................................................................152

Restoring Factory Defaults ......................................................... 153

Initializing from Settings ......................................................................153

Initializing with the USB Initialization Drive .......................................153

Page 7

Resetting the Administrator Password ..................................... 154

Logs .............................................................................................. 155

Displaying TeraStation's Logs ............................................................... 155

Transferring Logs to the Syslog Server ................................................155

Creating a Link to the Logs in the Shared Folder ................................156

Updating the Firmware ............................................................... 157

Updating Manually ................................................................................157

Updating Automatically ........................................................................158

Sending Usage Feedback ........................................................... 159

Name, Date, Time, and Language .............................................. 160

Beep Alerts .................................................................................. 163

LCD and LEDs ............................................................................... 164

Proxy Server ................................................................................ 165

Jumbo Frames ............................................................................. 166

Changing the IP Address ............................................................ 169

Boot Authentication ................................................................... 171

Notes Before Use ....................................................................................172

Important Notice ...................................................................................172

Setting Up the Authentication Server on a Windows PC ....................172

Configuring Boot Authentication on the TeraStation .........................173

If the TeraStation Cannot Be Accessed .................................................174

Chapter 8 Replacing Drives ...................................... 177

Replacing Drives on the TS51210RH Series .............................. 177

LEDs ........................................................................................................177

Using JBOD or a Redundant RAID Mode and TeraStation Is On ......... 178

Using JBOD or a Redundant RAID Mode and TeraStation Is Off ........179

Using RAID 0 ........................................................................................... 179

Page 8

Using a Hot Spare ...................................................................................180

Replacing Drives on Another Unit Series Other Than the

TS51210RH Series ....................................................................... 181

LEDs ........................................................................................................181

Using JBOD or a Redundant RAID Mode and TeraStation Is On ......... 182

Using a Redundant RAID Mode and TeraStation Is Off .......................184

Using RAID 0 ........................................................................................... 184

Using a Hot Spare ...................................................................................185

Replacing a Non-Malfunctioning Drive ..................................... 185

Chapter 9 Utilities ...................................................... 187

NAS Navigator2 for Windows ..................................................... 187

Mounting as a Network Drive ...............................................................190

Changing the IP Address .......................................................................191

NAS Navigator2 for Mac ............................................................. 191

Mounting as a Network Drive ...............................................................193

Changing the IP Address .......................................................................194

NovaBACKUP ............................................................................... 194

Chapter 10 Appendix ................................................ 195

TeraStation Does Not Work Properly ......................................... 195

Power LED Keeps Blinking ....................................................................195

Booting the TeraStation in Emergency Mode ...................................... 196

Cleaning the Dustproof Filter .................................................... 196

LCD Panel ..................................................................................... 199

Modes .....................................................................................................199

Errors .......................................................................................................200

Status ......................................................................................................201

Page 9

Default Settings .......................................................................... 203

Specifications .............................................................................. 204

Chapter 11 Regulatory Compliance Information .... 206

For Customers in the United States ........................................... 206

For Customers in Europe ............................................................ 206

For Customers in Taiwan ............................................................. 209

Page 10

Chapter 1 Getting Started

Diagrams

Depending on the number or type of drives in the unit, the model name will be different. Verify the sticker on the packing box for your unit's model name.

2-Bay, 4-Bay Desktop Model

TS5210DN, TS5210DF

1 3456

2 7

12 13

22 23

15 16 17 18

Page 11

TS5410DN

13456

2 7

15 16 17

22 23

1 Power Button ( )

To power on, connect the power cable and wait for 10 seconds, then press the power button. To power off, press and hold the power button for 3 seconds. If the TeraStation beeps, pressing this button for a short period will stop the beeping.

2 Power LED

When the TeraStation is on, the LED glows green.

3 Info LED

If there is a status message, the amber info LED will light up. Check the LCD panel to see the status message.

4 Error LED

If there is an error, the red error LED will light up. Check the LCD panel to see the error message.

5 LAN1 LED

When LAN port 1 is connected, this LED glows green. It blinks when the connection is active.

6 LAN2 LED

When LAN port 2 is connected, this LED glows green. It blinks when the connection is active.

7 LAN3 LED

When LAN port 3 is connected, this LED glows blue. It blinks when the connection is active.

8 LCD Panel

This display shows the status of many TeraStation settings. It also displays errors and messages when available.

9 Display Button

Switches between the different display modes. Also, if the TeraStation is beeping, press this button to stop it.

Page 12

10 Function Button

Use this button for dismounting USB devices, rebuilding RAID arrays, configuring failover, stopping the TeraStation's beeping, and initializing settings using a USB drive.

11 Drive Lock ( )

Open the front panel with the key to replace drives or access the init button.

12 Init Button

Hold down this button with something pointed to initialize the TeraStation's admin username and password, IP settings, SSL, and service port restriction settings to their factory default values. The effects of this button can be modified in Settings.

13 Status LEDs

Normally, these LEDs blink green when drives are accessed. If a drive fails, its LED will turn red.

14 Fan

Spins to avoid overheating inside. Do not block the fan.

15 USB 3.0 Port ( )

Compatible Buffalo USB drives, USB flash drives, digital cameras, and USB UPS connections can be connected. USB hubs are not supported.

16 LAN Port 1 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 1000 Mbps.

17 LAN Port 2 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 1000 Mbps.

18 LAN Port 3 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 10 Gbps if using the included Ethernet or category 6A cable.

Note: To communicate at up to 10 Gbps, all network devices must be compatible with 10GbE.

19 Power Connector

Use the included power cable to connect to an UPS, surge protector, or outlet.

20 Anti-Theft Security Slot ( )

Use this slot to secure your TeraStation with a cable lock (not included).

21 Link LED

Glows green when the unit is connected to a network.

22 Link LED on 100 Mbps, 2.5 Gbps, and 5 Gbps

Glows amber when the unit is connected to a network at 100 Mbps or 2.5 and 5 Gbps.

23 Link LED on 1000 Mbps

Glows green when the unit is connected to a network at 1000 Mbps.

24 Link LED on 10 Gbps

Glows blue when the unit is connected to a network at 10 Gbps.

Page 13

4-Bay Rackmount Model

TS5410RN

11 19 11 20

12 20 13 18 17 121614 15

2345

22 23

6 78

9111013

1 Power Button ( )

2 Info LED

If there is a status message, the amber info LED will light up. Check the LCD panel to see the status message.

3 Error LED

If there is an error, the red error LED will light up. Check the LCD panel to see the error message.

4 LAN1 LED

When LAN port 1 is connected, this LED glows green. It blinks when the connection is active.

5 LAN2 LED

When LAN port 2 is connected, this LED glows green. It blinks when the connection is active.

6 LAN3 LED

When LAN port 3 is connected, this LED glows blue. It blinks when the connection is active.

7 LCD Panel

This display shows the status of many TeraStation settings. It also displays errors and messages when available.

8 Display Button

Switches between the different display modes. Also, if the TeraStation is beeping, press this button to stop it.

9 Function Button

Use this button for dismounting USB devices, rebuilding RAID arrays, configuring failover, stopping the TeraStation's beeping, and initializing settings using a USB drive.

Page 14

10 Init Button

11 Status LEDs

Normally, these LEDs blink green when drives are accessed. If a drive fails, its LED will turn red.

12 Fan

Spins to avoid overheating inside. Do not block the fan.

13 USB 3.0 Port ( )

Compatible Buffalo USB drives, USB flash drives, digital cameras, and USB UPS connections can be connected. USB hubs are not supported.

14 LAN Port 1 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 1000 Mbps.

15 LAN Port 2 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 1000 Mbps.

16 LAN Port 3 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 10 Gbps if using the included Ethernet or category 6A cable.

Note: To communicate at up to 10 Gbps, all network devices must be compatible with 10GbE.

17 Power Connector

Use the included power cable to connect to an UPS, surge protector, or outlet.

18 Anti-Theft Security Slot ( )

Use this slot to secure your TeraStation with a cable lock (not included).

19 Serial Number

This sticker shows the TeraStation's serial number.

20 UID Button

Press the UID button on the front or the back of the unit to cycle the blue LED on and off.

21 Link LED

Glows green when the unit is connected to a network.

22 Link LED on 100 Mbps, 2.5 Gbps, and 5 Gbps

Glows amber when the unit is connected to a network at 100 Mbps or 2.5 and 5 Gbps.

23 Link LED on 1000 Mbps

Glows green when the unit is connected to a network at 1000 Mbps.

24 Link LED on 10 Gbps

Glows blue when the unit is connected to a network at 10 Gbps.

Page 15

12-Bay Rackmount Model

TS51210RH

4 5

2 3

2120

1211 14 15 16 17 1813

1 Power Button ( )

2 Power LED ( )

When the TeraStation is on, the LED glows green.

3 Error LED ( )

If there is an error, the red error LED will light up. Check the Settings interface or NAS Navigator2 to see the error message.

4 Reset Button

5 Function Button

Use this button for rebuilding RAID arrays, configuring failover, stopping the TeraStation's beeping, and initializing settings using a USB drive.

Page 16

6 LAN LED ( )

When any LAN ports are connected, this LED glows blue. It blinks when the connection is active.

7 Info LED ( )

If there is a status message, the amber info LED will light up. Check the Settings interface or NAS Navigator2 to see the status message.

8 Drive Status LED ( )

This LED blinks blue when drives are accessed.

9 Drive Error LED ( )

Normally, this LED is extinguished. If a drive fails, its LED will turn red.

10 USB 2.0 Port ( )

Compatible Buffalo USB drives, USB flash drives, digital cameras, and USB UPS connections can be connected. USB hubs are not supported.

11 Power Connector

Use the included power cable to connect to an UPS, surge protector, or outlet.

12 Fan

Spins to avoid overheating inside. Do not block the fan.

13 Micro-USB Port

Factory use only.

14 USB 3.0 Port ( )

Compatible Buffalo USB drives, USB flash drives, digital cameras, and USB UPS connections can be connected. USB hubs are not supported.

15 LAN Port 1 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 1000 Mbps.

16 LAN Port 2 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 1000 Mbps.

17 LAN Port 3 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 10 Gbps if using the included Ethernet or category 6A cable.

Note: To communicate at up to 10 Gbps, all network devices must be compatible with 10GbE.

18 LAN Port 4 ( )

Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 10 Gbps if using the included Ethernet or category 6A cable.

Note: To communicate at up to 10 Gbps, all network devices must be compatible with 10GbE.

19 Link/Act LED

Glows and blinks green when the unit is connected to a network.

Page 17

20 Link LED on 100 Mbps, 2.5 Gbps, and 5 Gbps

Glows amber when the unit is connected to a network at 100 Mbps or 2.5 and 5 Gbps.

21 Link LED on 1000 Mbps

Glows green when the unit is connected to a network at 1000 Mbps.

22 Link LED on 10 Gbps

Glows blue when the unit is connected to a network at 10 Gbps.

Turning the TeraStation On and Off

Note: Do not disconnect or reconnect the internal drives while turning on or off the TeraStation. Press the power button on the TeraStation to turn it on. To turn off the TeraStation, press and hold the power button for 3 seconds. Don't unplug the TeraStation without turning it off first. You can also shut it down and restart it remotely from Settings.

1 Double-click the icon to start NAS Navigator2.

2 Right-click your TeraStation's icon and select Settings. For macOS, select the TeraStation's icon while holding

down the control key, then select Settings.

Page 18

3 Enter the username and password, then click OK.

Note: The default username and password are "admin" and "password".

4 Settings will open.

Page 19

5 Click at the top-right of Settings and choose Shut Down.

6 Click Yes .

7 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

When all the LEDs on the front of the TeraStation turn off, the shutdown process is complete.

Creating an Initialization Drive

We recommend creating an initialization drive as soon as possible. This USB drive can be used to initialize the TeraStation's settings to its factory default values, or recover the system if your TeraStation encounters an error that prevents the unit from booting. For detailed procedure, refer to the "Creating an Initialization Drive" subsection in chapter 7.

Page 20

Chapter 2 Configuration

Configure and manage your TeraStation using the Settings interface, accessible from a browser window. Open the interface using the procedure below or type the TeraStation's IP address in the URL field of your browser. Within Settings, the Easy Admin page gives you quick access to commonly used settings. Note: Microsoft Edge, Firefox, Google Chrome, Internet Explorer 9 or later, and Safari 9 or later are supported. If you

have difficulty viewing Settings, check the following:

• If there are a large number of registered users, groups, or shared folders, use another browser instead of Internet Explorer.

• If you have a proxy server enabled in the browser settings, disable the proxy server.

• With Internet Explorer, set security to Local intranet. On Windows Server operating systems, higher-level security

is configured by default. Set the security to a lower level temporarily.

• On a Mac, you can also use Bonjour to log in to Settings. Navigate to Bookmarks - Bonjour - TeraStation name from the menu bar of Safari. If you don't see "Bonjour" in the Bookmarks menu, click Safari - Preferences and select "Include Bonjour in the Bookmarks menu" under "Advanced".

Setting Up Through Initial Setup Wizard

When you access Settings for the first time, or after initializing the TeraStation's settings, the initial setup wizard will be displayed. To set up the TeraStation using the wizard, follow the procedure below.

1 Double-click the icon to start NAS Navigator2.

2 Right-click on your TeraStation's icon in NAS Navigator2 and select Settings. For macOS, click your TeraStation's

icon while holding down the control key, then select Settings.

Page 21

3 The password settings page will be displayed. Enter the desired new administrator password and click Next. If

you click Skip, the administrator password will not change from the default value ("password").

4 The time zone settings page will be displayed. If you need to change the time zone from that which is currently

displayed on the page, select it from the drop-down list and click Next.

Page 22

5 The proxy server settings page will be displayed. If you place the TeraStation under a proxy network, set your

proxy settings. Click Next.

6 The RAID settings page will be displayed. To change the RAID mode from the default mode, select the desired

RAID mode and click Next, then click Start on the next page. The "Confirm Operation" screen will open so enter the confirmation number and click OK. Changing the RAID mode will begin.

Page 23

If you want to keep the RAID mode as is, select "Keep current RAID mode" and click Next.

Note: The RAID settings page will not be displayed if using TS5210DN series.

7 The usage feedback settings page will be displayed. If you allow Buffalo to collect your usage and environment

information, select the "Send usage feedback" box. If you don't permit information collection, leave the box blank and click Next.

Page 24

8 The folder path to access shared folders will be displayed and the initial setup will finish.

Opening Advanced Settings

1 Double-click the icon to start NAS Navigator2.

2 Right-click on your TeraStation's icon in NAS Navigator2 and select Settings. For macOS, click your TeraStation's

icon while holding down the control key, then select Settings.

3 Enter the username and password and click OK.

Notes:

• If the time-out period is set to "10 minutes", you will be logged out of Settings after 10 minutes of inactivity.

• Click Secure Connection to log in with an encrypted connection.

Page 25

4 Settings will open.

Notes:

• Username/Password Combinations:

Username Password Settings Available admin (default) password (default) All guest blank System information (read-only)

If a user is assigned as an administrator, all settings

Your username Your password

• Click to open Easy Admin.

• Click to play a tone from the TeraStation for easy location.

are available. If assigned under another group, only system information (read-only) is available.

Opening Easy Admin

The Easy Admin page makes it easy to change common settings. Follow the procedure below to open Easy Admin.

1 Double-click the icon to start NAS Navigator2.

Page 26

2 Right-click on your TeraStation's icon and choose Settings. For macOS, click the TeraStation icon while holding

down the control key, then select Settings.

3 Click Easy Admin.

Page 27

4 The Easy Admin screen will open.

Note: If you click any buttons, you will need to enter a username and password.

Page 28

Chapter 3 Sharing Files

Configuring Shared Folders

Adding a Shared Folder

1 In Settings, click File Sharing.

2 Click to the right of "Folder Setup".

3 Click Create Folder.

Page 29

4 Configure the desired settings, then click OK.

―〜∥−￠￡￢

Notes:

• Names may contain up to 27 multibyte or alphanumeric characters, hyphens (-), and underscores (_). The first character should not be a symbol.

• When you click the Option 1 tab, you can enter the folder description. Descriptions may contain up to 75 multibyte or alphanumeric characters, hyphens (-), underscores (_), and spaces. The first character should not be a space.

• You may create up to 400 shared folders.

• If the names of shared folders accessed via AFP and FTP connections contain multibyte characters, configure the

client language in Management - Name/Time/Language to match the characters. If the setting does not match, the shared folder name will not be displayed correctly.

• The following characters are handled differently by macOS and Windows. Avoid using these characters when sharing data between macOS and Windows:

• Windows does not support some characters that macOS and the TeraStation allow. If you create a filename on a Mac with any of the following characters, it will not display correctly on a Windows computer. You may have to connect to the TeraStation via AFP in order to display or copy any of the following characters: ? [ ] / \ = + < > ; : " , | *

Page 30

• Do not use any of the following words for the name of a shared folder as these words are reserved for internal

①②③④⑤⑥⑦⑧⑨⑩⑪⑫⑬⑭⑮⑯⑰⑱⑲⑳ⅠⅡⅢⅣⅤⅥⅦⅧⅨⅩ

use by the TeraStation: authtest, global, homes, info, lost+found, lp, msdfs_root, mt-daapd, printers, ram, spool, usbdisk x (where "x" is a number, for example: usbdisk1)

• Don't use the following unsupported characters in shared folder names, workgroup names, or filenames:

ⅰⅱⅲⅳⅴⅵⅶⅷⅸⅹ㎜㎝㎞㎎㎏㏄㎡№㏍℡㊤㊥㊦㊧㊨㈱㈲㈹㍾㍽㍼㍻㍉㌔㌢㍍㌘㌧㌃㌶㍑㍗㌍㌦㌣㌫㍊㌻￤＇＂〝〟∮Σ∟⊿ 纊褜鍈銈蓜俉炻昱棈鋹曻彅丨仡仼伀伃伹佖侒侊侚侔俍偀倢俿倞偆偰偂傔僴僘兊兤冝冾凬刕劜劦勀勛匀匇匤卲厓厲叝﨎咜咊咩哿喆坙坥垬埈埇﨏塚增墲夋奓奛奝奣妤妺孖寀甯寘寬尞岦岺峵崧嵓﨑嵂嵭嶸嶹巐弡弴彧德忞恝悅悊惞惕愠惲愑愷愰憘戓抦揵摠撝擎敎昀昕昻昉昮昞昤晥晗晙晴晳暙暠暲暿曺朎朗杦枻桒柀栁桄棏﨓楨﨔榘槢樰橫橆橳橾櫢櫤毖氿汜沆汯泚洄涇浯涖涬淏淸淲淼渹湜渧渼溿澈澵濵瀅瀇瀨炅炫焏焄煜煆煇凞燁燾犱犾猤猪獷玽珉珖珣珒琇珵琦琪琩琮瑢璉璟甁畯皂皜皞皛皦益睆劯砡硎硤硺礰礼神祥禔福禛竑竧靖竫箞精絈絜綷綠緖繒罇羡羽茁荢荿菇菶葈蒴蕓蕙蕫﨟薰蘒﨡蠇裵訒訷詹誧誾諟諸諶譓譿賰賴贒赶﨣軏﨤逸遧郞都鄕鄧釚釗釞釭釮釤釥鈆鈐鈊鈺鉀鈼鉎鉙鉑鈹鉧銧鉷鉸鋧鋗鋙鋐﨧鋕鋠鋓錥錡鋻﨨錞鋿錝錂鍰鍗鎤鏆鏞鏸鐱鑅鑈閒隆﨩隝隯霳霻靃靍靏靑靕顗顥飯飼餧館馞驎髙髜魵魲鮏鮱鮻鰀鵰鵫鶴鸙黑畩秕緇臂蘊訃躱鐓饐鷯

• File and folder names may contain up to 255 single-byte characters.

• Folder and workgroup names whose names contain non-Roman characters may not be displayed correctly.

• If shared folders are accessed from a Mac, information files for the Mac may be generated automatically. Do not

delete these files. If they are deleted using Windows, this may prevent further access from a Mac.

• The TeraStation belongs to the default zone in AppleShare; the zone cannot be specified.

• When files are copied to the TeraStation or to a USB drive connected to the TeraStation, file information such as

date created, date modified, and other date information may be updated or changed.

• During a file transfer, if settings are changed, the file transfer operation may be aborted.

• File copying to the TeraStation is protected by a journaling file system. If the Ethernet cable is disconnected or a

power outage occurs while copying data, the following may occur:

- Preset data such as the TeraStation name, users, and groups may be erased.

- An incomplete file may be copied and the file can no longer be deleted. If this happens, restart the TeraStation, delete the file, and perform the copy operation again.

• If the Ethernet cable is disconnected from the LAN port during file copying, even if the cable is not in use, the copy operation will abort. Do not disconnect or reconnect the Ethernet cable to the LAN port during file copying.

Recycle Bin

To protect your data from accidental deletion, you may configure your TeraStation to use a recycle bin instead of deleting files immediately. The recycle bin will only work with SMB connections. To empty the recycle bin, click File Sharing - Folder Setup - Empty Recycle Bin in Settings.

Notes:

• You can prevent guests and other users from emptying the trash by navigating to File Sharing - SMB - Recycle Bin Permissions and select "Administrator only".

• If you use macOS, select "Keep when original file is deleted" for "Mac OS Temp Files" option. If this setting is changed, files in the recycle bin may be corrupted.

Read-Only Shares

By default, new shares are set with read and write access, but you may change the attribute to Read only at Attribute on the "Option 2" tab. Read-only shares and HFS Plus-formatted USB drives will have "(Read Only)" added to comments in Explorer.

Page 31

Note: Configure read-only file attribute in Settings. Configuring them from within Windows is not supported and may cause unexpected behavior.

Hidden Shares

If hidden shares are enabled, shared SMB folders will not be displayed in Network, and only certain users are allowed to access them. To hide a shared SMB folder, follow the procedure below.

1 In Settings, navigate to File Sharing - Folder Setup and choose a shared folder or a USB drive to configure

hidden shares.

2 Click the Option 2 tab and select the "Hidden share (SMB only)" checkbox, then click OK.

Notes:

• If protocols other than "SMB" or "Backup" under "LAN Protocol Support" on the "Basic" tab are enabled, the hidden shares option will be grayed out and cannot be selected.

• Configure hidden share attribute in Settings. Configuring them from within Windows is not supported and may cause unexpected behavior.

To access a hidden folder, open File Explorer in your computer and enter "\\TeraStation name\Shared folder name$\" for the name. For example, if the TeraStation name is "TSXXX001" and the shared folder name is "share", enter "\\ TSXXX001\share$\" to open it.

Configuring Users

Adding a User

Note: The TeraStation can register a maximum 300 of users, which includes the default users "admin" and "guest".

1 In Settings, click File Sharing.

2 Click to the right of "Users".

Page 32

3 Click Create User.

Page 33

4 Enter the desired settings, then click OK.

Notes:

• Usernames may contain up to 128 alphanumeric characters, hyphens (-), underscores (_), periods (.), and symbols !, #, &, @, $, *, ^, %. The first character should not be a symbol.

• The user ID should be a number from 1000 to 1999. Each user ID should be unique. If this field is left blank, a user ID is assigned automatically.

• Do not duplicate user IDs, group IDs, usernames, or group names. Each should be distinct and unique.

• User descriptions may contain up to 75 multibyte or alphanumeric characters, hyphens (-), underscores (_), and

spaces. The first character should not be a symbol or space.

• Passwords may contain up to 20 alphanumeric characters and the following characters: - _ @ ! # $ % & ' ( ) * + , . / ; < > = ? " [ ] ^ { } | ~. The first character should not be a symbol other than an underscore (_).

• Use the same username and password for both Windows and the TeraStation or you may not be able to access shared folders.

• Do not use a name already in use as a group; do not use any of the following words as a username as these words are reserved for internal use by the TeraStation: _lldpd, admin, apache, avahi, avahi-autoipd, backup, bin, daemon, ftp, games, gnats, guest, halt, irc, libuuid, list, lp, mail, man, messagebus, mysql, news, nobody, ntp, openldap, proftpd, proxy, pupet, root, rpc, rpcuser, snmp, sshd, statd, sync, sys, syslog, uucp, www-data

Importing User Information

You can import users in File Sharing - Users by clicking Import CSV File. Format for user data: Username (required), password (required), and user description (optional). Example 1: Importing usernames, passwords, and comments

Page 34

username1,password1,comment1 username2,password2,comment2 username3,password3,comment3

Example 2: Importing usernames and passwords username1,password1, username2,password2, username3,password3,

Guidelines:

• Use commas (,) as separators. Do not put spaces before or after commas. If you don't want user descriptions, use a comma after password at the end.

• If a line has an incorrect format, the user on that line will not be registered.

• If a username already exists, the new user information will overwrite the old information.

• Do not use commas (,) in the username, password, or user description.

Note: Imported users are added to the "hdusers" group automatically.

Adding a Group

1 In Settings, click File Sharing.

2 Click to the right of "Groups".

Page 35

3 Click Add Group.

Page 36

4 Enter the desired settings, then click OK.

Notes:

• Group names may contain up to 20 alphanumeric characters, hyphens (-), underscores (_), and periods (.). The first character should not be a symbol.

• Group descriptions may contain up to 75 multibyte or alphanumeric characters, hyphens (-), underscores (_), and spaces. The first character should not be a symbol or space.

• If the group ID field is left blank, a group ID is automatically assigned. Use numbers between 1000 and 1999 to set a group ID manually. Don't use duplicate group IDs.

• You may register up to 300 groups with the TeraStation.

• If you are logged in as a member of the general users group, you can only change your own password. If you're

logged in as an administrator, you can change any settings, including other users' passwords. If you are logged in as a member of the power users group, you can create and edit shared folders, users, and groups.

• Do not use a name in use as a user; do not use any of the following words as a group name as these words are reserved for internal use by the TeraStation: adm, admin, administrator, all, apache, bin, daemon, disk, ftp, ftpuser, guest, halt, hdusers, kmem, lp, mail, man, mysql, news, nobody, nogroup, none, operator, root, shadow, shutdown, sshd, sync, sys, tty, users, utmp, uucp, www

Page 37

Configuring Access Restrictions for Shared Folders

You may restrict access to specific shared folders, including external USB drives.

Notes:

• Access restrictions can be set separately for each shared folder, but not for folders within the shared folders.

• Configure access restrictions through Settings. Configuring access restrictions through Windows is not supported

and may cause unexpected behavior.

• You can also configure users, groups, and shared folders from Easy Admin by clicking Access Restrictions.

• Shared folders with limited access can still be used as backup destinations.

• If you change access restrictions for a user or group while they are accessing files, unexpected behavior may

result.

Local Users and Groups

1 In Settings, click File Sharing.

2 Click to the right of "Folder Setup".

3 Click the shared folder that you want to set access restrictions for.

4 Click the Access Restrictions tab.

Page 38

5 Enable "Access Restrictions for Shared Folders".

6 Select the level of access for the user or group you added.

: Read and write access allowed : Read access allowed : Access prohibited

7 Click OK.

Notes:

• The example above shows access restriction by user. To restrict access by group, click the Local Groups tab and select group permissions.

• If both read-only and read and write permissions are given to a user, the user will have read-only access. The most restrictive access always applies.

• For an access-restricted shared folder, if you change the access restrictions of all users and groups from read and write or read only to access prohibited from the user or group list page in Settings, that shared folder can only be accessed by admin users and groups.

Active Directory

If there is an Active Directory environment, the TeraStation will use account information from the Active Directory domain controller to set access restrictions for TeraStation's shared folders. There is no need to perform individual account management for the TeraStation. If multiple TeraStations are installed on the network, the account information is centrally managed in Active Directory, greatly reducing the operations required for installation and management.

Notes:

• If usernames or group names from Active Directory include multibyte characters, you will not be able to configure access restrictions for them.

• The TeraStation supports a domain environment with a maximum of 10,000 users and groups.

1 In Settings, click Network.

Page 39

2 Click to the right of "Workgroup/Domain".

3 Click Edit.

4 Select "Active Directory", then click Next.

5 Click Yes .

6 Enter the domain controller information and click Search. The domain controller on the same network will be

detected and required settings will be entered into each box automatically. Or, enter the settings manually.

7 If there is a difference of more than 5 minutes between the TeraStation's clock and the domain controller's

clock, joining the domain or authenticating domain users and groups may fail. For best results, select "Configure domain controller as an NTP server" if the domain controller can function as the NTP server.

8 Click OK.

Page 40

9 Click to the right of "Folder Setup".

10 Click a shared folder that you want to set access restrictions for.

11 Click the Access Restrictions tab.

12 Enable "Access Restrictions for Shared Folders".

13 Select the level of access for the user or group.

: Read and write access allowed : Read access allowed : Access prohibited

14 Click OK.

Notes:

• To have the TeraStation join an Active Directory domain, configure it to use a DNS server that can resolve names for the Active Directory domain.

• After building an Active Directory domain, the administrator password for joining the domain must be changed at least once, or joining the Active Directory domain will fail.

• The DNS name and NetBIOS name of Active Directory domains should be identical.

• If both read-only and read and write permissions are given, the user will have read-only access. The most

restrictive access setting will apply.

• To use the TeraStation as a member server in an Active Directory domain, the TeraStation should be logged in to the domain and accessed from a computer that is not a member of the domain with a valid domain account.

• If the TeraStation is a member server of an Active Directory domain, you cannot connect as a guest user via AFP.

Page 41

• If your TeraStation is a member server in an Active Directory domain and you change the authentication method to "Workgroup", the account on the domain controller will not be deleted automatically.

• If FTP is enabled, local and domain group access restrictions from the AD network do not work. Use user access restrictions instead.

• If you allow read and write or read-only access for most users, group access restrictions are recommended.

Configuring Access Restrictions for Subfolders

You may restrict access to subfolders in shared folders by configuring the access restrictions from your computer using Windows Explorer. Note: Depending on the environment, the function may not work properly even if it's enabled. We recommend

verifying the functionality before using.

Enabling Subfolders' Access Restrictions

1 In Settings, click File Sharing.

2 Click to the right of "Folder Setup".

3 Click the shared folder that you want to set access restrictions for.

Page 42

4 Clear all checkboxes for "LAN Protocol Support" other than "SMB (Windows/Mac)", "Backup", and "NFS".

5 Click the Option 2 tab.

6 Enable "Access Restrictions for Subfolders".

Note: If "Hide Non-Access Permitted Files and Folders" is enabled, non-access permitted sub-files and folders will not be displayed in shared folders.

7 Click OK.

Enabling subfolders' access restrictions finished. Next, configure access restrictions for each user or group for subfolders from Windows Explorer.

You may configure domain users and groups. You should have the TeraStation join your Active Directory domain before configuring the subfolders' access restrictions.

Notes:

• If enabling subfolders' access restrictions for a USB drive, the drive should be formatted by XFS or ext3.

• The UID and GID of domain accounts should be updated before using the subfolders' access restrictions if the

TeraStation joined the AD network while running firmware version 3.00 or earlier and has since updated to version 3.00. To update the UID and GID, navigate to "File Sharing" - "SMB" - "Edit" from Settings and click Update.

• To back up or replicate files to backup or replication destinations with remaining subfolders' access restriction settings, make sure that the same workgroup name, user IDs, and group IDs are configured between backup or replication sources and destinations.

Page 43

• If you enable access restrictions for subfolders and then clear the "Read & execute" checkbox under "Allow" on Windows Explorer for users or groups access permissions, these users or groups cannot be allowed to read and execute even if subfolders' access restrictions are disabled from Settings. If you deny reading and executing on the same window, this will remain after disabling access restrictions.

• If the TeraStation's settings have been initialized but you configure the same UID and GID for new users and groups, the subfolders' access restrictions may be inherited.

Restoring Owner and Permission Settings

If you changed the owner to an unexpected user or lost permissions to specific folder accidentally, restore them by the procedure below.

1 In Settings, click File Sharing.

2 Click to the right of "Folder Setup".

3 Click Advanced Settings for Subfolders.

Page 44

4 Select a folder to restore permissions from the tree.

Notes:

• Actions will be operated to the selected folder from the folder tree. "The second level folder" means the subfolder of the selected folder.

• If you select a root shared folder from the tree, the action will not be run to the trashbox folder. To run the action, select the trashbox folder instead.

5 Select actions and action range to run, then click OK.

Page 45

Chapter 4 Managing Storage

RAID Modes

TeraStations support many types of RAID. The type of RAID arrays available for use depends on how many drives are installed in your TeraStation.

Notes:

• If you change the RAID mode, all data on the array is deleted. This is true for every procedure in this chapter. Always back up any important data before performing actions that affect your RAID array.

• Drive capacity is shown in Settings in actual gigabytes. The Properties window in Windows may show GiB instead, which will be a smaller number.

• If the TeraStation is restarted or shut down while changing the RAID mode, the message displayed on the LCD panel will change from I46 or I47 to I18.

• RAID 5, 6, and 10 are only available for models with 4 or more drives.

RAID 6

RAID 6 arrays are available for TeraStations with 4 or more drives. RAID 6 combines 4 or more drives into a single array. The usable space is equal to the sum of the capacity of all drives minus the capacity of two drives. For example, if 4 drives are combined into a RAID 6 array, the usable space is the sum of the capacity of 2 drives. If 2 drives in the array are damaged, you can recover data by replacing them. If 3 or more drives are damaged, your data is lost.

RAID 5

RAID 5 arrays are available for TeraStations with 3 or more drives. RAID 5 combines 3 or more drives into a single array. The usable space is equal to the sum of the capacity of the drives minus the capacity of one drive. For example, if 4 drives are combined into a RAID 5 array, the usable space is the sum of 3 drives. If one drive in the array is damaged, you can recover data by replacing the damaged drive. If two or more drives are damaged at the same time, your data is lost.

RAID 10

RAID 10 arrays are available for TeraStations with 4 or more drives. In this mode, mirrored pairs of drives in RAID 1 arrays are combined into a RAID 0 array. The usable space is equal to the capacity of the smallest drive multiplied by the number of drives divided by 2.

RAID 1

Combines 2 or more drives into a mirrored array. The available space in the array is the capacity of a single drive. Identical data is written to each drive. If a drive is damaged, data can be recovered by replacing the damaged drive. As long as one drive in the array remains undamaged, all data in the array can be recovered.

Page 46

RAID 0

Combines 2 or more drives into a single array. The usable drive space is the total space of all drives used. This simple RAID mode offers faster performance than RAID modes that include parity. If a single drive in the array fails, then all data in the array is lost.

JBOD

This mode uses the drives inside the TeraStation as individual drives. The drive space you can use is the total capacity of all drives in the TeraStation. If any drive is damaged, then the data on that drive is lost.

Working with RAID Arrays

To change RAID settings, navigate to Storage - RAID in Settings.

Using JBOD

With JBOD, each drive in the TeraStation is addressed separately. To put drives from an array into JBOD, follow the procedure below.

1 In Settings, click Storage.

2 Click to the right of "RAID".

3 Click the array to delete.

4 Click Delete RAID Array.

5 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

6 Click OK when finished.

Once JBOD is configured, create shared folders on each drive to use them.

Page 47

Changing RAID Mode

To change the RAID mode, first put the drives in JBOD.

1 In Settings, click Storage.

2 Click to the right of "RAID".

3 Click the array to delete.

4 Click Delete RAID Array.

5 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

6 Click OK.

Page 48

7 Choose a RAID array.

8 Select a RAID mode and the drives to be used, then click Create RAID Array.

9 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

10 Click OK when finished.

Notes:

• You can also configure RAID settings from Easy Admin.

• After changing the RAID mode, create a shared folder.

Shutting Down the TeraStation Automatically if Error Occurred

This function will shut down the TeraStation automatically if an error occurs on a drive that is used in a redundant RAID array.

Page 49

For the TS51210RH series users, it is recommended to enable email notifications if enabling auto shutdown because the TS51210RH series will extinguish all LEDs when shutting down and the failed drive will not be identified. In such a case, you can confirm the failed drive number in the notification email. To configure auto shutdown, follow the procedure below.

1 In Settings, click Storage.

2 Click to the right of "RAID".

3 Click Options.

4 Click Edit.

Page 50

5 Select "Shut down" for "Error Behavior" and click OK.

Rebuilding the RAID Array Automatically

If auto RAID rebuild is enabled, RAID arrays will rebuild automatically after a failed drive is replaced. You may enable or disable auto RAID rebuild by following the procedure below. Note: This function is only for the TS51210RH series. Other models will not display this function on Settings.

1 In Settings, click Storage.

2 Click to the right of "RAID".

3 Click Options.

Page 51

4 Click Edit.

5 Select "Yes" for "Automatically Rebuild if New Drive Is Detected" and click OK.

Configuring a Hot Spare

If you have a hot spare configured and an array fails, the TeraStation immediately switches over to the hot spare. To use a hot spare, you need an extra drive that's not part of any array and a RAID 1 or RAID 5 array.

Notes:

• All data on the hot spare drive is deleted when it is configured as a hot spare and again when it changes from a spare to a drive in the array.

• A hot spare cannot be configured for TeraStation models with only two drives.

1 In Settings, click Storage.

2 Click to the right of "RAID".

Page 52

3 Choose a RAID array.

4 Click Set as a hot spare.

5 Click Yes .

6 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

7 Click OK when finished.

Note: To turn the hot spare back into a normal drive, choose Set as a normal drive.

RMM (RAID Mode Manager)

With RMM, you can create or expand a RAID array without erasing the data on the drives.

Changing from JBOD to RAID 1

You must have at least two drives available in JBOD (not in a RAID array) to build the RAID 1 array with RMM.

Page 53

1 In Settings, click Storage.

2 Click to the right of "RAID".

3 Choose a RAID array.

4 Set the RAID mode to "RAID 1".

5 Select the "Add a drive to a RAID array with RMM. Your data will be preserved." checkbox.

6 Select the drive whose data will be saved from the drop-down list.

Page 54

7 Select the drive to add to the RAID array.

8 Click Create RAID Array.

9 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

10 Click OK when finished.

Adding a Drive to an Existing RAID Array

You can add a drive to a RAID 1 or RAID 5 array. Drives in JBOD can be added to the RAID array. Note: RMM can be used to expand an array by one drive per operation. To expand by two or more drives, RMM must

be performed multiple times.

1 In Settings, click Storage.

2 Click to the right of "RAID".

3 Choose a RAID array.

Page 55

4 Select the drive to add to the RAID array.

5 Click Create RAID Array.

6 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

7 Click OK when finished.

Changing the RAID Mode While Adding a Drive

Select the drive you want to add to the RAID array and choose the mode for the array. Enter the "Confirm Operation" number and click OK.

RAID Scanning

A RAID scan checks you RAID array for bad sectors and if it finds any, it automatically repairs them. Arrays other than RAID 0 are supported. For best results, run a RAID scan regularly.

1 In Settings, click Storage.

2 Move the RAID scanning switch to the position to enable RAID scanning.

3 Click to the right of "RAID Scanning".

4 Click Edit.

Page 56

5 Select when to run the scan and click OK.

Notes:

• Select the "Immediately" checkbox to run a RAID scan immediately.

• To stop a RAID scan, click Cancel RAID Scan.

Adding an External Drive

Connecting an External Drive

Your TeraStation includes USB ports (the number of ports depends on your model), and you can connect external drives to these ports. Once connected, they appear as shared folders on the TeraStation. Formatted drives are detected automatically. Unformatted drives should be formatted in Settings. After a USB drive is recognized, Windows adds "usbdisk x" in Explorer, where "x" is the USB port where the drive is connected.

Compatibility

The following USB devices are supported by the TeraStation:

• USB storage devices

• Card readers (except for card readers that can recognize two or more memory cards)

Buffalo external USB drives are recommended. Supported file systems for external drives are below:

• FAT32

• EXT3

• XFS

• NTFS

• HFS Plus (read-only)

• exFAT

Connect only one device to each USB port of the TeraStation. Note that only the first partition of a connected USB drive is mounted. Additional partitions are not recognized.

Notes:

• Backup data from macOS may include characters that cannot be written to FAT16 or FAT32 drives such as ".DS_ Store". For best results, reformat the drive before using it as a backup target.

• If your USB 3.0 drive is not reconfigured after rebooting the TeraStation, unplug and reconnect it.

• When copying a file that is over 100 MB to a FAT32-formatted USB drive using File Explorer, an error message may

be displayed. In such a case, use an FTP or SFTP connection to copy the file.

Page 57

Dismounting Drives

If the TeraStation is powered on, dismount drives (internal and external) before unplugging them. You may dismount external drives with the function button, or any drive from Settings. If the TeraStation is off, then all drives are already dismounted and may be unplugged safely. Note: Do not dismount internal drives while a RAID array is rebuilding or RMM is being configured. If you do, data on

the drives may be lost.

Dismounting with the Function Button

Note: If using the TS51210RH series TeraStations, dismount USB drives from Settings. When you press the function button, the TeraStation will beep once. Press and hold the button until the TeraStation beeps again and the button starts blinking blue. It will take about 6 seconds. When the dismount is finished, the function button will stop blinking and return to glowing. You may now unplug any USB drives safely. After 60 seconds, the function button will go out and any drives that have not yet been unplugged will be remounted.

Dismounting from Settings

1 In Settings, click Storage.

2 Click Drives to dismount an internal drive or USB Drives to dismount an external drive.

3 Select the drive to dismount and click Dismount Drive.

Page 58

4 When the following message is displayed, it is safe to unplug the drive.

Note: To remount the drive, unplug it and then plug it back in.

Checking Drives

A drive check tests the data on a drive in the TeraStation or one that is connected via USB for integrity. Errors are fixed automatically. With large drives, a drive check may run for many hours. Shared folders cannot be accessed during a drive check. Do not turn off the TeraStation until the drive check is finished. Use the procedure below to run a drive check.

1 In Settings, click Storage.

2 Select Drives to check an internal drive or USB Drives to check an external drive.

3 Select the drive or array to test, then click Check Drive.

Page 59

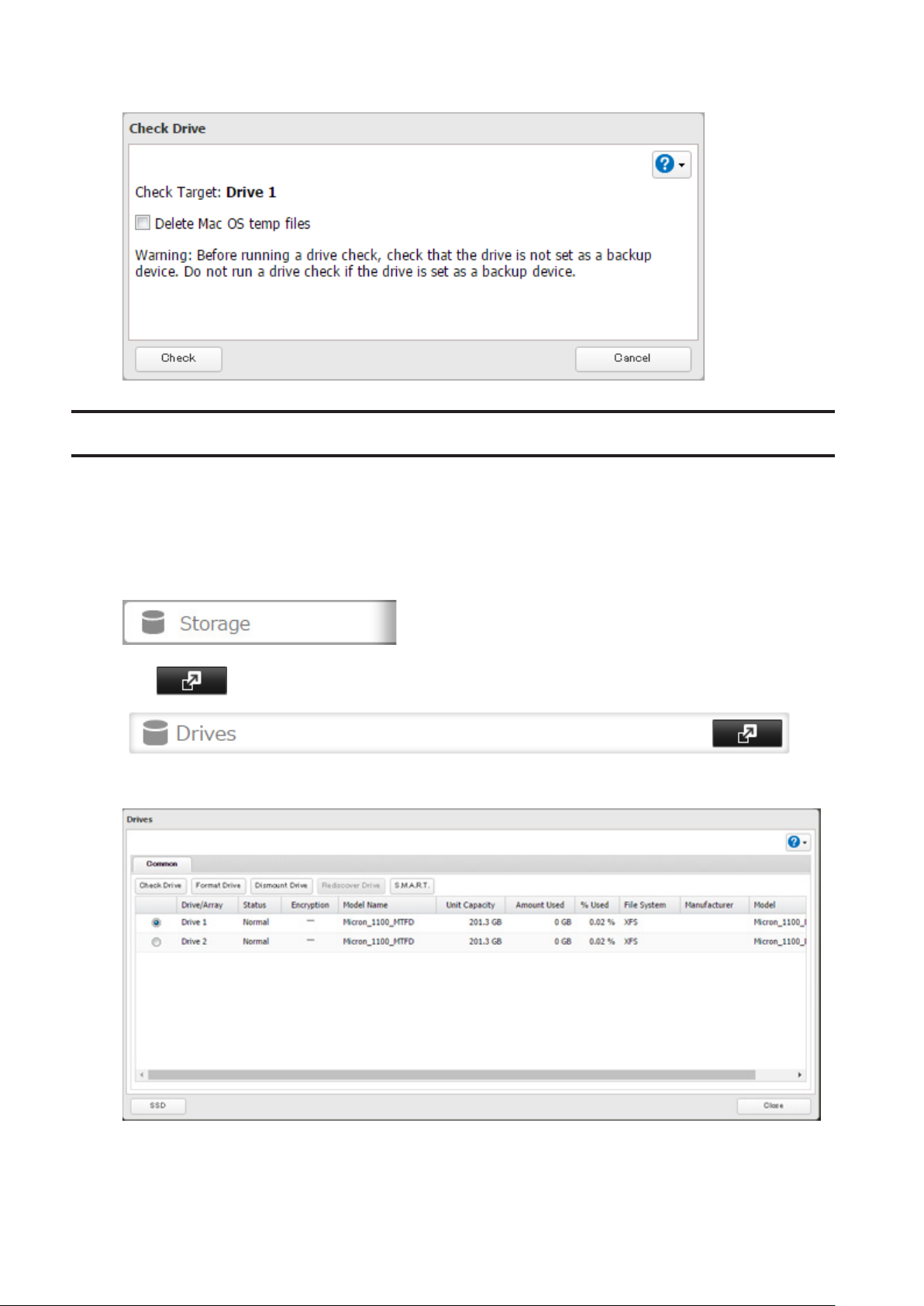

4 Click Check. You have the option of deleting information files from macOS during the check if desired.

SSD Trimming

If an SSD has been running for a long time, drive performance may decline. To prevent this, an SSD TRIM may restore drive performance. For best results, run SSD TRIMs regularly. Note: This function is only available for SSD model TeraStations such as TS5210DF and may not appear on other

models.

1 In Settings, click Storage.

2 Click to the right of "Drives".

3 Click SSD at the lower left corner of the window.

4 Click Edit.

5 Select when to run the TRIM and click OK.

Page 60

Note: Click Immediately to run an SSD TRIM immediately.

S.M.A.R.T.

S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) monitors internal drives to detect and report various indicators of reliability, in the hope of anticipating failures. When a failure is anticipated by S.M.A.R.T., the user may choose to replace the drive to avoid outages and data loss. Follow the procedure below to check S.M.A.R.T. information for the TeraStation's internal drives. Note: S.M.A.R.T. information is only available for internal drives.

Displaying S.M.A.R.T. Information

1 In Settings, click Storage.

2 Click to the right of "Drives".

3 Select a drive to check and click S.M.A.R.T.

Page 61

4 The S.M.A.R.T. information for the drive will be displayed. Different information may be displayed depending

on the brand of drives in your TeraStation. Critical attributes are displayed in bold.

Checking Drive Condition

For Hard Drives

Attributes with current value or worst value less than or equal to the threshold value may be significant. If an attribute reports a failure, or has had one in the past, it will be displayed in the status column. In such a case, replacing that drive is recommended.

For SSD

Confirm the values of the following attributes.

• Lifetime_Remaining - If the current value is less than the threshold, the drive has reached its guaranteed write capacity (TBW). Replacing the drive is recommended.

• Reallocated_Sector_Ct - If the current value is 99 or less, unrecoverable blocks are detected. If the current value is 10 or less, the drive should be replaced with a new drive immediately.

Formatting Drives

Notes:

• Under some circumstances, data deleted when a drive is formatted can be recovered. To ensure that data is "gone forever", a format might not be sufficient. See the "Erasing Data on the TeraStation Completely" section below.

• After a drive is formatted, the "% Used" and "Amount Used" in Settings will not be 0. This is because some drive space is used for the system area.

Page 62

1 In Settings, click Storage.

2 Select Drives to format an internal drive or USB Drives to format an external drive.

3 Select the drive or array to format, then click Format Drive.

4 Select a format type, then click Format.

5 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

6 Depending on the size and the formatted file system of your drive, the format may take several minutes or

several hours to complete. "Formatting" will be displayed on the LCD panel until the format is complete. Click OK when finished.

Notes:

• Do not turn off or disconnect power to the TeraStation while formatting a drive.

• For drives of 2.2 TB or larger, make sure that the "GPT partition" checkbox is selected.

Page 63

Encrypting Drives

Internal drives (and arrays) can be encrypted with 256-bit AES during formatting. Encrypted drives and arrays are then readable only from that specific TeraStation. To decrypt a drive or array, clear the "Encryption" checkbox and format it again.

Erasing Data on the TeraStation Completely

Under some circumstances, data from formatted drives can be recovered. The drive erasure process in this section does a much more thorough job of erasing data. This procedure is recommended for removing all data from a drive in a way that makes it nearly impossible to recover with current tools. The TeraStation will then be in the following state:

• All drives in JBOD

• An empty shared folder on each drive

• All settings returned to their default values

• All logs deleted

If you remove a drive and then erase all data on the TeraStation, the LCD panel will show the E22 error message and the number of the removed drive. You can still use the TeraStation. Follow the procedure below to completely and permanently erase all data from your TeraStation.

1 In Settings, click Management.

2 Click to the right of "Restore/Erase".

3 Click Erase TeraStation.

4 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

Page 64

5 All data on the TeraStation will be permanently erased.

Drive Quotas

You can set a drive quota to limit drive space for each user or group. You can also set a threshold. If the drive space exceeds the set threshold, an email notification will be sent. To configure email notifications for the drive quota, refer to the "Email Notification" section in chapter 7.

Notes:

• When using quotas, disable the recycle bin or empty the trash folder often. The limited space includes the space used for trash.

• Quotas apply per drive or per array. If a quota is set to 1 GB, each array or drive can use a maximum of 1 GB.

• Quotas cannot be set for external drives connected to the TeraStation.

• If both user and group quotas are configured for a user, the most restrictive quota will always apply.

Quotas for Users

Follow this procedure to limit the shared folder drive space available for a user.

1 In Settings, click File Sharing.

2 Click to the right of "Users".

3 Select the user whose space will be limited.

4 Enable quotas, choose the maximum space the user will be allowed to use, and click OK.

Note: If you change the primary group, restart the TeraStation to apply the quota settings.

5 Click OK.

Quotas for Groups

Follow the procedure below to limit the space for shared folders that each group can use.

Page 65

1 In Settings, click File Sharing.

2 Click to the right of "Groups".

3 Select the group whose space will be limited.

4 Enable quotas, choose the maximum space the group is allowed, and click OK.

5 Click Close.

6 Click to the right of "Users".

7 Select the user who will inherit the group quota settings.

8 Change the user's primary group to the group with the quota, then click OK.

9 Click OK.

Size Limits

If LVM is enabled, volumes can be created with maximum size limits. Note: When creating a LVM volume, all data in the area where you specified for the LVM volume will be erased.

Before changing any settings, back up any important data.

1 In Settings, click Storage.

2 Click to the right of "LVM".

Page 66

3 Select the drive or array where the volume will be located and click Enable LVM.

4 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

5 Click OK.

6 Click Edit under "NAS Volume".

Page 67

7 Click Create Volume.

8 Configure the desired settings, then click OK.

9 Click OK.

10 Click Close.

11 Click Close.

12 Navigate to File Sharing - Folder Setup.

13 Click Create Folder.

14 Configure the settings.

15 Select the volume that you created for "Drive/Array" on the "Basic" tab and click OK.

Page 68

Notes:

• Do not use any of the following words for the name of a volume as these words are reserved for internal use by the TeraStation: array x, authtest, disk x, global, homes, info, lost+found, lp, mediacartridge x, msdfs_root, mtdaapd, printers, ram, spool, usbdisk x. Any instances of "x" denote a number (for example: array1 or disk3)

• If an LVM volume could not be mounted, try restarting the TeraStation. If an issue still exists, delete and recreate the LVM volume. Deleting the LVM volume will erase data on the volume.

Using the TeraStation as an iSCSI Device

Introduction

iSCSI is a protocol for carrying SCSI commands over IP networks. Unlike traditional SAN protocols such as Fibre Channel, which requires special-purpose cabling, iSCSI can be run over long distances using existing network infrastructure. Normal Windows formatting such as NTFS is supported.

Differences Between NAS and iSCSI

With iSCSI, the TeraStation is connected to a single computer, such as a server. Other computers on the network access files on the TeraStation through the computer it's connected to. The TeraStation can be used as a local drive from Windows Server. Features of Windows Server such as Active Directory can be used normally. As a NAS, the TeraStation is a server, and computers (including other servers) on the network can access shared folders on it directly. A separate server is not required, and features such as backup are built-in.

Network Configuration

Use gigabit or faster network equipment with iSCSI. For best results, a dedicated network for iSCSI is recommended, separate from the regular network. Use static IP addresses for storage devices such as the TeraStation.

Connection Tool

The Microsoft iSCSI Software Initiator is already installed on your computer. You don't need to download and install it.

Creating an iSCSI Volume

To use the TeraStation as an iSCSI drive, create a volume first. Configure the TeraStation as described below.

Notes:

• If the volume settings are changed, all data on the volume will be erased. Before changing any settings, back up any important data.

• The TeraStation can have up to 255 volumes, but we recommend creating no more than 32. Exceeding this volume amount may cause irreparable damage to the unit.

1 In Settings, click Storage.

Page 69

2 Move the iSCSI switch to the position to enable iSCSI.

3 Click to the right of "iSCSI".

4 Click Create Volume.

5 Enter a volume name, volume description, drive or array where a volume will be created, and volume size. Click

OK when finished.

Page 70

If you enabled LVM for the target drive or array, or selected "File I/O" for the "Backstore" option, the volume size that you specify here can be changed later. To change the volume size, refer to the "Expanding Volume Sizes" section below.

6 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

7 Click OK, then Close.

Note: If you click Disable Connection for the selected volume in Storage - iSCSI in Settings, the selected iSCSI volume can no longer be accessed. If you click Enable Connection, the volume will become accessible from the iSCSI initiator software.

Connecting or Disconnecting Volumes

Note: By default, the IP address of the TeraStation is automatically assigned from a DHCP server. However, in this case, if you turn off and restart the TeraStation, the IP address may be changed and the volumes on the TeraStation may not be accessible. To avoid changing the IP address unexpectedly, using a static IP address for the TeraStation is recommended.

Connecting Volumes

To connect a volume, follow the procedure below. Note: Do not shut down the TeraStation while connecting to an iSCSI volume. It may cause unexpected data erasure.

Make sure all connections are disconnected before shutdown.

1 In Windows, navigate to Control Panel - Administrative Tools - iSCSI Initiator.

Page 71

2 Enter the IP address of the TeraStation into the "Target" field and click Quick Connect.

3 Confirm if the connection is established and click Done.

Connecting a volume is finished.

Formatting Volumes

If using the connected volume for the first time, the volume should be formatted to be used as a local drive. Follow the procedure below for formatting.

1 In Windows, navigate to Control Panel - Administrative Tools - Computer Management.

2 Click Disk Management.

When the "Initialize Disk" screen is displayed, click OK without changing any settings.

3 Right-click the drive volume that shows the status "Unallocated" and click New Simple Volume from the

displayed menu. Follow the screen to finish formatting.

Formatting a volume is finished. When the formatting process is completed, the drive will be visible as an icon in Computer or My Computer and can be used as a normal drive on the computer.

Disconnecting a Volume

1 In Windows, navigate to Control Panel - Administrative Tools - iSCSI Initiator.

The status of the connecting volume will be displayed as "Connected" under "Discovered targets".

2 Select a volume to disconnect and click Disconnect.

3 Click Yes .

4 When the volume status is displayed as "Inactive", the disconnection was carried out properly.

Page 72

Using with Multiple Computers

If the TeraStation is divided into multiple volumes (or drives), it can be used with multiple computers. However, multiple computers cannot be accessed from one volume (or one drive) at the same time.

Checking Whether iSCSI Volume Is Connected

To check whether an iSCSI volume is connected, navigate to Storage - iSCSI. Current volumes will be listed. If "Connected" is displayed under "Connection", the volume is currently connected to the client.

Configuring Access Restrictions

A CHAP name and secret can be configured for the entire iSCSI volume or each existing volume. Access restrictions can be configured so that entering a target CHAP name and secret is required for each connection. The TeraStation can perform mutual authentication (two-way authentication). Dual passwords ensure that only authorized client computers can access the volume on the TeraStation. Follow the procedure below to enable access restrictions.

Configuring Access Restrictions for the Entire TeraStation

1 In Settings, click Storage.

2 Click to the right of "iSCSI".

3 Click the Security tab.

Page 73

4 Click Edit under "Access Control (Target Discovery)".

5 Enable authentication, enter the target CHAP name and secret, and click OK.

Note: To enable mutual authentication in addition to target CHAP name and secret authentication, select the "Enable mutual authentication" checkbox and enter the initiator CHAP secret. To search or connect the volume which has mutual authentication enabled from Microsoft iSCSI Initiator, initiator CHAP secret settings should be configured.

6 Click Close.

Configuring access restrictions for the entire TeraStation is finished.

Connecting Volumes on the Access-Restricted TeraStation

If access restrictions are configured for the entire iSCSI volume, that volume will not be detected by Microsoft iSCSI Initiator. To connect that volume, the target CHAP name and secret should be authenticated.

Page 74

1 Open the Microsoft iSCSI Initiator.

2 Register the initiator CHAP secret to your computer first. If you didn't enable mutual authentication, skip this

step. Click CHAP in the "Configuration" tab. In the "Initiator CHAP secret" field, enter the configured initiator CHAP

secret and click OK.

3 In the "Discovery" tab, click Discover Portal.

4 Enter the TeraStation's IP address in the "IP address or DNS name" field.

5 Click Advanced.

6 Select the "Enable CHAP log on" checkbox and enter the target CHAP name into the "Name" field and the

target CHAP secret into the "Target secret" field. If mutual authentication is enabled, select the "Perform mutual authentication" checkbox.

7 Click OK twice.

8 In the "Targets" tab, select the volume from "Discovered targets" and click Connect - OK.

9 If the status of the selected volume is displayed as "Connected" under "Discovered targets", the connection is

established properly.

Accessing the volume on the access-restricted TeraStation is finished.

Configuring Access Restrictions for Individual Volumes

If access restrictions are configured for a volume, that volume cannot be accessed unless the target CHAP name and secret are authenticated.

1 In Settings, click Storage.

2 Click to the right of "iSCSI".

3 Click the volume to enable access restrictions.

Page 75

4 Enable authentication, enter a target CHAP name and secret, and click OK.

Note: To enable mutual authentication, select the "Enable" checkbox to the right of "Mutual Authentication" and enter the initiator CHAP secret.

5 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

6 Click OK, then Close.

Configuring access restrictions for each iSCSI volume is finished.

Connecting to Individual Volumes that Are Access-Restricted

1 Open the Microsoft iSCSI Initiator.

2 Register the initiator CHAP secret to your computer first. If you didn't enable mutual authentication, skip this

step. Click CHAP in the "Configuration" tab. In the "Initiator CHAP secret" field, enter the configured initiator CHAP

secret and click OK.

3 In the "Discovery" tab, click Discover Portal.

4 Enter the TeraStation's IP address in the "IP address or DNS name" field.

5 Click Advanced.

6 Select the "Enable CHAP log on" checkbox and enter the target CHAP name into the "Name" field and the

target CHAP secret into the "Target secret" field. If mutual authentication is enabled, select the "Perform mutual authentication" checkbox.

7 Click OK twice.

Page 76

8 In the "Targets" tab, select the volume from "Discovered targets" and click Connect.

9 Click Advanced.

10 Select the "Enable CHAP log on" checkbox and enter the target CHAP name into the "Name" field and the

target CHAP secret into the "Target secret" field. If mutual authentication is enabled, select the "Perform mutual authentication" checkbox.

11 Click OK twice.

12 If the status of the selected volume is displayed as "Connected" under "Discovered targets", the connection is

established properly.

Accessing the access-restricted volume is finished.

Expanding Volume Sizes

The volume size of the existing volumes can be expanded after they are created.

Notes:

• Expanding the volume size may erase all data in the volume depending on the formatting type. Back up the data before expanding the volume size is recommended.

• To expand the volume size, the volume should be have "File I/O" selected for the "Backstore" option, or was created in a drive or array with LVM enabled.

1 In Settings, click Storage.

2 Click to the right of "iSCSI".

3 Select the volume to expand.

Page 77

4 Enter the desired volume size to add and click OK.

5 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

6 Click OK, then Close.

Expanding the volume size is finished.

Deleting Volumes

To delete an existing volume, follow the procedure below. Note: Deleting a volume will erase all data on the volume. Back up the data before deleting the volume.

1 In Settings, click Storage.

2 Click to the right of "iSCSI".

Page 78

3 Select the volume to delete and click Delete Volume.

4 Confirm that the volume is correctly selected on the screen and click OK.

5 The "Confirm Operation" screen will open. Enter the confirmation number, then click OK.

6 Click OK.

7 Click Close.

Deleting the volume is finished.

Page 79

Chapter 5 Backup

Backing Up to the TeraStation

You can back up TeraStation folders to:

• A different folder on the TeraStation

• Another LinkStation on the network

• Another TeraStation on the network

• A USB drive connected on the TeraStation

* To back up the subfolders' access restriction settings, the USB drive should be formatted by ext3 or XFS.

You can also configure backup jobs from Easy Admin. Note: For best results, using a 10GbE port to connect a backup device is recommended.

Preparing a Backup Destination

First, configure a folder as a backup destination.

1 In Settings, click File Sharing.

2 Click to the right of "Folder Setup".

3 Choose the folder to set as a backup destination.

4 Under "LAN Protocol Support", select the "Backup" checkbox on the "Basic" tab.

Page 80

5 Click OK.

6 Enter the desired characters into the backup device access key field and click OK.

Note: If a backup device access key is configured for the shared folder, that folder will not show up as a target for the backup source or destination when configuring a backup job on another Buffalo NAS device unless it's entered. Leave this field blank if you don't want a backup device access key. Even if you create multiple folders using different backup device access keys, only one access key can be used on the TeraStation between backup and replication. Folders that are configured with a different access key cannot be used.

7 Click OK.

Notes:

• To back up data between Buffalo NAS devices on a network using jumbo frames, make sure that both devices are configured to use identical (or similar) MTU sizes. If MTU sizes are significantly different, the backup job may not be properly performed. In such a case, select the default MTU size (1500 bytes).

• You can also specify a hostname by a fully qualified domain name (FQDN).

• Windows-based TeraStations with multibyte characters in the hostname may not be detected as a backup

destination, and folders in these devices cannot be used as backup destination folders.

Backing Up to a Buffalo NAS Device on Another Network When Connected via VPN

You can back up to a Buffalo NAS device on another network as long as the two networks are connected by a VPN. Follow this procedure to enter the IP address or hostname of the destination Buffalo NAS device.

1 In Settings, click Backup.

2 Click to the right of "Backup".

3 Click Add twice.

4 Click List of Servers.

5 Click Add.

Page 81

6 Select "Add Buffalo NAS device"; enter the IP address or hostname of the destination Buffalo NAS device.

7 Click OK.

Configuring a Backup Job

1 In Settings, click Backup.

2 Click to the right of "Backup".

3 If you configured the backup device access key, click Set. If you didn't, proceed to step 5.

4 Enter the backup device access key and click OK.

Page 82

5 Click Add.

6 Select backup settings such as date and time to run.

The following types of backup jobs may be selected:

Page 83

Type Files included

All files in the source will be backed up to the destination. You can specify how many backup versions to keep from 1–400, or select "Unlimited" to keep

Normal backup

Overwrite (incremental)

Overwrite (differential)

Management backup

all backups until the drive is full. If a specific number of backup versions is specified, the backup destination folder should be on the same TeraStation that the backup job is configured from, or on an external USB drive attached to that TeraStation.

The first time the backup job runs like a normal backup. In subsequent backups, files added to the source as well as files deleted from the source are kept in the backup folder.

The first backup job runs like a normal backup. As each additional backup job runs, files are added to and deleted from the backup folder. The backup destination folder is always the same size as the backup source folder.

Each time a backup is executed, management information is stored, and only files that have changed are copied or deleted. Data is retrieved from the previous backup file for files that were not changed. This is useful for making backups with limited space or for referencing status at a particular point in time (for use for data snapshot applications). The destination folder for a management backup should be a local folder on this TeraStation or on a USB drive attached to it. The destination folder will be set to read-only. Do not use folders from drives formatted with FAT. You can specify how many backup versions to keep from 1–400, or select "Unlimited" to keep all backups until the drive is full. The backup destination folder should be on the same TeraStation that the backup job is configured from, or on an external USB drive attached to that TeraStation.

7 Click Add.

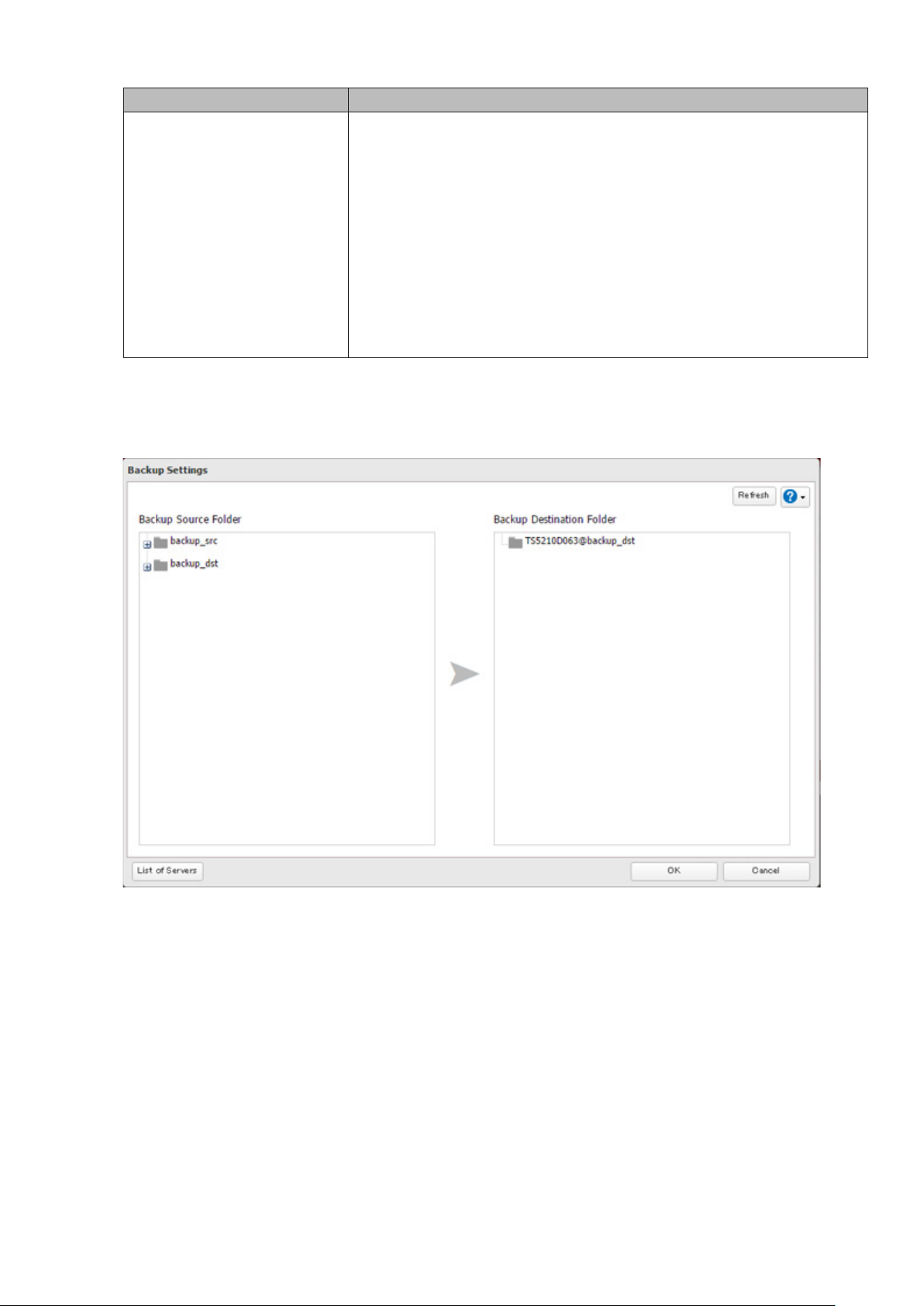

8 Select the shared folder that will be the backup source and destination, then click OK.

9 Click OK. Jobs will be added to the backup list.

Page 84

Notes:

• Up to 8 backup jobs can be configured.

• To inherit the subfolders' access restriction settings to the backup destination, the backup destination should also

support the subfolders' access restrictions. Verify it before creating a backup job.

Backing Up to rsync-Compatible Devices

You can back up TeraStation folders to other manufacturers' rsync-compatible devices.

Preparing a Backup Destination

First, configure an rsync-compatible device as a backup destination. You should enable rsync on the destination device. For more detailed information, refer to the device's manual.

Configuring a Backup Job

1 In Settings, click Backup.

2 Click to the right of "Backup".

3 Click Add.

Page 85

4 Select backup settings such as date and time to run.

The following types of backup jobs may be selected:

Type Files included

All files in the source will be backed up to the destination. You can specify how many backup versions to keep from 1–400, or select "Unlimited" to keep

Normal backup

Overwrite (incremental)

Overwrite (differential)

The first time the backup job runs like a normal backup. In subsequent backups, files added to the source as well as files deleted from the source are kept in the backup folder.

Page 86

Type Files included

Management backup

management backup should be a local folder on this TeraStation or on a USB drive attached to it. The destination folder will be set to read-only. Do not use folders from drives formatted with FAT. You can specify how many backup versions to keep from 1–400, or select "Unlimited" to keep all backups until the drive is full. The backup destination folder should be on the same TeraStation that the backup job is configured from, or on an external USB drive attached to that TeraStation.

5 Click Add.

6 Click List of Servers.

7 Click Add.

Page 87

8 Select "Add rsync-compatible device"; enter the IP address or hostname of the destination rsync-compatible

device and port number. If your rsync-compatible device requires the username and password for backup, enter these values into the fields.

9 Click OK, then Close.

10 Click Refresh and Ye s. The folder list will be updated to include the rsync-compatible device's folders.

Page 88

11 Select the shared folder that will be the backup source and destination, then click OK.

12 Click OK. Jobs will be added to the backup list.

Note: Up to 8 backup jobs can be configured.

Backing Up from rsync-Compatible Devices

To configure the TeraStation as a backup destination for other rsync-compatible devices, follow the procedure below.

1 In Settings, click File Sharing.

2 Click to the right of "rsync".

Page 89

3 Enter the admin password. If you use SSH encryption during backup, enable SSH.

4 Click OK.

Backup Logs

The following backup error codes may be recorded in the backup log. Read the description and try the respective corrective actions for each error.

Code Description Corrective Action Log Example

rsync error: errors selecting input/ output files, dirs (code

3) at main.c(634) [Receiver=3.1.0] Can't write to backup destination(target disk is broken?).

rsync error: error starting client-server protocol (code 5) at main.c(1504)

@ERROR: auth failed on module

@ERROR: permission denied

rsync error: error in socket IO (code 10) at clientserver.c(128) [sender=3.1.0pre1]

Code 3

Code 5

Code 10

The backup destination USB drive could not be found.

The backup destination shared folder could not be found.

Authentication failed.

A registered user does not have permission to run.

The Ethernet cable was disconnected from the backup source TeraStation when the backup job started.

A backup destination doesn't support the subfolders' access restrictions.

Verify that the backup destination USB drive is connected to the TeraStation properly.

Verify that the Ethernet cable is securely connected and that the hub or other devices on the network are turned on.

Try adding the rsync-compatible NAS device from the server list again.

Verify the settings of the rsynccompatible NAS device.

Reconnect the Ethernet cable.

Select another backup destination or remove the subfolders' access restrictions.

Page 90

Code Description Corrective Action Log Example

rsync error: error in file IO (code 11) at receiver.c(389) [receiver=3.1.0]

rsync error: error in rsync protocol data stream (code 12) at io.c(515)

ERROR: out of memory in flist_ expand rsync error: error allocating core memory buffers (code 22) at util.c(120) [sender=2.6.8] rsync: fork failed in do_recv: Cannot allocate memory (12) rsync error: error in IPC code (code

14) at main.c(655) [receiver=2.6.8]

rsync error: received SIGINT, SIGTERM, or SIGHUP (code 20) at rsync.c(242)

rsync error: some files could not be transferred (code 23) at main.c(702)

Code 11

Code 12

Code 14 Code 22

Code 20

Code 23

The drive capacity of the backup destination TeraStation became full.

Could not communicate between backup source and destination TeraStations.

The settings of the TeraStation were changed while the backup job was running.

Insufficient memory on the TeraStation was not enough so that the backup job did not run.

The connection was disconnected while the backup job was running.

Invalid characters were used in the filename or folder name of the backup destinations.

The backup destination files were updated while the backup job was running.

Delete unnecessary files and folders.

Verify that the Ethernet cable is securely connected and that the hub or other devices on the network are turned on.

Do not change the settings while the backup job is running. If changed, the connection is temporarily terminated and the backup job will fail.

Reduce the number of backup destination files or disable any other functions running at the same time.

Do not change the settings while the backup job is running. If changed, the connection is temporarily terminated and the backup job will fail.

Change the filename or folder name using compatible characters. Available characters are described in the "Adding a Shared Folder" section in chapter 3.

Do not overwrite the backup destination files while the backup job is running. If updated, the backup destination files will not be backed up and the backup job will fail.

Page 91

Code Description Corrective Action Log Example

Reduce the file size to 4 GB or less or

Code 23

Code 24

Code 30

B14

B101

B102

B103

B104

4 GB or more files were backed up to the FAT32-formatted USB drive.

The TeraStation backed up the data to the FAT32-formatted USB drive, then the upper- or lowercases of filename and folder name on the backup source TeraStation were changed.

The backup destination files were updated while the backup job was running.

The Ethernet cable was disconnected from the backup source or destination TeraStations while the backup job was running.

Insufficient TeraStation memory.

The backup destination TeraStation does not exist.

The backup source folders on the backup source TeraStation do not exist.

The backup destination folders on the backup destination TeraStation do not exist.

change the file system to one other than FAT32. Refer to the "Adding an External Drive" section in chapter 4 for the compatible file systems.

Do not change the upper- or lowercase of filenames and folder names on the backup source TeraStation if the backup destination USB drive is formatted to FAT32. Linux on the TeraStation is case-sensitive but FAT isn't, so the same filename and folder name that only differs in upper- or lowercase will not be identified and treated as the same file or folder. To back up properly, using XFS or ext3 is recommended.

Do not overwrite the backup destination files while the backup job is running. If updated, the backup destination files will not be backed up and the backup job will fail.

Reconnect the Ethernet cable.

Restart the TeraStation and try again. -

Verify that the backup destination TeraStation is turned on, the Ethernet cables are securely connected, and the hostname of the backup destination TeraStation is not changed.

Verify that the backup destination folders on the backup destination TeraStation exist in the shared folder list and the backup destination folders are configured for backup from Settings.

Verify that the backup source folders on the backup source TeraStation exist in the shared folder list.

Verify that the backup destination folders on the backup destination TeraStation exist in the shared folder list.

rsync error: some files could not be transferred (code 23) at main.c(702)

rsync warning: some files vanished before they could be transferred (code 24) at main.c

rsync error: timeout in data send/receive (code 30) at io.c(195) [sender=3.1.0]

Page 92

Code Description Corrective Action Log Example

Verify that the drives are recognized properly from Settings. If you

B105

B106

B107

B108

The drives were not recognized.

The file systems of the USB drive are not supported.

The device files such as "/dev/ null" etc. does not exist.

Credentials to access a shared folder on the rsync-compatible NAS device were not found.

configure the "usbdisk" folders for the backup source or destinations, confirm if these folders exist in the shared folder list.

Verify that the USB drive is formatted to the compatible file systems. If you configure the management backup in the backup job, FAT format cannot be used for the backup destination.

Restart the TeraStation and try again. -

Try adding the rsync-compatible NAS device from the server list again.

Replication

Replication copies all data from a share to a share on a different TeraStation. This is an easy way to configure a reliable system to provide data protection in the event your main TeraStation fails. To configure replication, connect an Ethernet cable to the LAN port of each TeraStation and follow the procedure below.

Notes:

• For best results, use static IP addresses and a 10GbE port for connecting both replication TeraStations (source and destination).

• Replication source data is copied to the replication destination folder with a differential overwrite. Any data that is not in the replication source will be overwritten.

Preparing a Replication Destination

First, configure a folder as a replication destination.

1 In Settings, click File Sharing.

2 Click to the right of "Folder Setup".

3 Choose the folder to set as a replication destination.

4 Under "LAN Protocol Support", select the "Backup" checkbox on the "Basic" tab.

Page 93

5 Click OK.

6 Enter the desired characters into the backup device access key field and click OK.

7 Click OK.

Configuring a Replication Task

1 In Settings, click Backup.

2 Click to the right of "Replication".

3 Click Edit.

Page 94

4 If you configured the backup device access key, click Set. If you didn't, proceed to step 5.

5 Enter the backup device access key and click OK.

6 Click Add.

Page 95

7 Select the shared folder that will be the replication source and destination, then click OK.

8 Click OK, then Yes .

Notes:

• During setup, you may choose to encrypt and/or compress replication data. Encrypted data will be transferred securely on the network. Compressed data will ease network loading and is recommended for slow or heavily loaded network connections. Either will increase the CPU load on the source TeraStation. Encrypted and compressed data will be decrypted and decompressed on the destination TeraStation.

• A maximum of 64 shared folders can be configured for replication.

• Replication can also be used to copy all data from a share to a share on an attached external drive. Format

the drive with ext3 or XFS before using it for replication. Drives with FAT32 partitions are not supported with replication.

• You can select the first and second level of shared folders and USB drives connected to the TeraStation as the replication source. Folders whose names contain more than 80 alphanumeric characters or "@" cannot be selected. As the replication destination, you can select the first level of shared folders, USB drives, and on/off-subnet NAS devices' shared folders.

• Don't use the same TeraStation for both failover and replication, or replication and Time Machine.

• Don't configure replication from one source folder to multiple destination folders.

Page 96

• If a network problem causes a replication error, unsynced data may be shown as "0" even though replication is incomplete. Click Resync to recover from the replication error. All files from the source folder will be copied to the destination folder.

• To inherit the subfolders' access restriction settings to the replication destination, the replication destination should also support the subfolders' access restrictions. Verify it before creating a replication task.

Synchronizing Between Source and Destination TeraStations Periodically

To copy files that are saved via other file sharing protocols such as AFP or FTP to the replication destination regularly, configure "Periodic Sync" from Settings. Follow the procedure below.

1 In Settings, click Backup.

2 Click to the right of "Replication".

3 Click Periodic Sync.

Page 97

4 Select "Daily" or "Weekly" from the "Schedule" drop-down list. If "Daily" is selected, configure the sync period. If

"Weekly" is selected, specify the week days and the sync period.

5 When the configuration is finished, click OK.

Failover

With failover, two TeraStations are connected to the network for redundancy. If an issue renders the main TeraStation inaccessible, operation automatically switches to the backup TeraStation.

Data on both TeraStations stays up-to-date.

BackupMain

Switches automatically if failure occurs.

Failover will activate during any of the following situations:

• The backup TeraStation cannot detect the main TeraStation within a specified time

If the backup TeraStation has not received a packet from the main TeraStation within a specified time, the backup TeraStation considers the main TeraStation to have failed. By default, it will try 5 times and wait 60 seconds. If this is triggered by accident, reconfigure failover from the main TeraStation.

• Errors

Failover will occur if any of the following errors occur: E12 (cooling failure), E14 (cannot mount RAID array), E16* (drive not found), E22* (cannot mount drive), E30* (drive failure) * When the drive is configured in JBOD.

Notes:

• Only use identical model and capacity TeraStations for failover. If the capacity of the main TeraStation is larger than that of the backup TeraStation, an I33 replication error will occur.

• All drive bays of a TeraStation should be occupied if it will be used for failover. Failover will not work if a drive is missing from any bay.

Page 98

Before Configuring Failover

Use the same LAN ports for transferring data and configure both TeraStations with static IP addresses for the purposes of failover. It is recommended to use a 10GbE port for failover. This section explains using an example with LAN ports 1 and 3.

Using the Same LAN Port for Both Failover and Connecting to the Network

Using this setup, if the main TeraStation fails, the backup TeraStation will replace it completely. The backup TeraStation will be updated over normal network traffic.

LAN port 3

(Static IP)

Main

Network

LAN port 3

(Static IP)

Backup

Using Different LAN Ports for Connecting to the Network and Failover

With this setup, the backup TeraStation and main TeraStation are connected by a second Ethernet cable connecting their LAN 3 ports. Updating is done over this dedicated network path, so updates are quicker and don't interfere with normal network traffic.

LAN port 3

LAN port 1

(Static IP)

Main

Network

LAN port 1

(Static IP)

Backup

• LAN Port 1 for Alive Check and LAN Port 3 for Failover

Select the IP address labeled "(LAN1)" for the LAN port setting of "IP Settings for File Sharing" and select "(LAN3)" for "Backup LAN Port" in Settings.

• LAN Port 3 for Both Alive Check and Failover

Select the IP address labeled "(LAN3)" for the LAN port settings both "IP Settings for File Sharing" and "Backup LAN Port" in Settings.

(Static IP)

LAN port 3

(Static IP)

Page 99

Usage Restrictions

Functional Restrictions

Failover is not available when any of the following functions are enabled: Replication, sleep mode, encrypted drive volume, LVM volume, iSCSI volume, port trunking, cloud storage*, Dropbox Sync, hot spare, access restrictions by Active Directory domain * Even if the function is disabled, the settings may remain if the settings were configured beforehand. Initialize all settings before configuring failover.

Setting Restrictions

The following functions will not be available while failover is enabled: Initializing settings, changing the RAID settings, formatting drives, iSCSI volume, changing the backup TeraStation's settings, turning the TeraStation on and off, updating the firmware

While failover is enabled, shutdown, power-on, and firmware update operations can be made available by temporarily changing the TeraStation to maintenance mode. Maintenance mode can be enabled or disabled at

Backup - Failover in the main TeraStation's Settings. Click Maintenance mode to enable maintenance mode, or click Cancel maintenance mode to disable maintenance mode.

To update the firmware while in maintenance mode, the main TeraStation can be updated from Settings, but the backup TeraStation cannot. Download the firmware updater from the Buffalo website for the backup TeraStation and try updating the firmware through it.

Non-Transferable Settings

The settings below are not copied from the main TeraStation to the backup TeraStation. Make a note of the original settings so that they can be configured manually if failover errors. WebAccess*, UPS synchronization, antivirus**, the backup job settings either if specifying shared folders on the backup TeraStation or USB drives as the backup destination, and USB drives' shared folder settings * If the backup TeraStation took over the main TeraStation's IP address after failover, the WebAccess settings will not be copied. Re-register your BuffaloNAS.com account for WebAccess. If the backup TeraStation kept its IP address, the settings will be copied from the main TeraStation. ** The settings configured on the Trend Micro NAS Security settings page will not be copied to the backup TeraStation. The settings configured on the main TeraStation's Settings page will be copied. Only if the antivirus is activated on the TeraStation.

Using with UPS

Once failover is configured, you cannot set up a UPS for the backup TeraStation. Configure your UPS before configuring failover. UPS recovery can be configured for both the main and backup TeraStations.

Configuring Failover

1 In Settings for the main TeraStation, click Backup.

Page 100

2 Click to the right of "Failover".

3 Click Configure Failover.

4 Select a TeraStation to be the backup destination device and enter its administrator username and password
