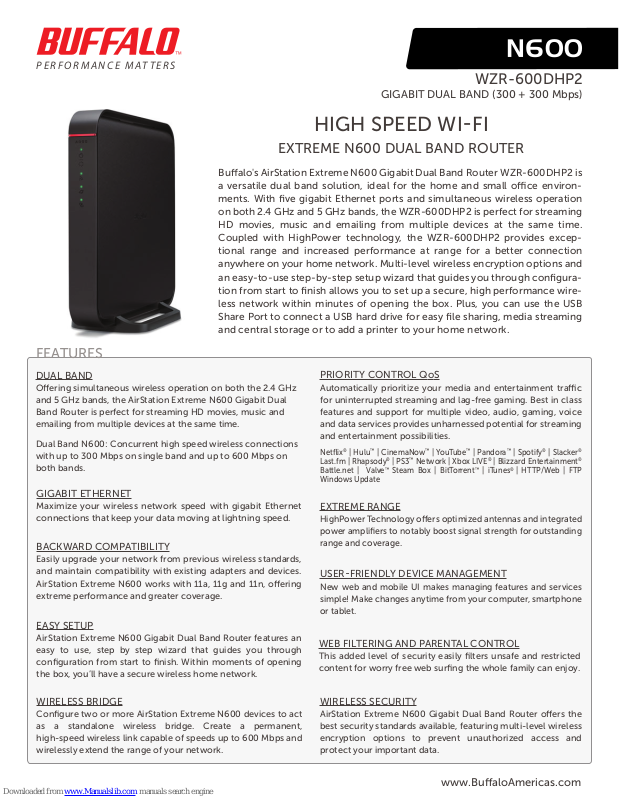

Buffalo N600, WZR-600DHP2 Specifications

P E R F O R M A N C E M AT T E R S

N600

WZR-600DHP2

GIGABIT DUAL BAND (300 + 300 Mbps)

HIGH SPEED WIFI

EXTREME N600 DUAL BAND ROUTER

Bualo's AirStation Extreme N600 Gigabit Dual Band Router WZR-600DHP2 is
a versatile dual band solution, ideal for the home and small oce environ­ments. With five gigabit Ethernet ports and simultaneous wireless operation
on both 2.4 GHz and 5 GHz bands, the WZR-600DHP2 is perfect for streaming
HD movies, music and emailing from multiple devices at the same time.
Coupled with HighPower technology, the WZR-600DHP2 provides excep­tional range and increased performance at range for a better connection
anywhere on your home network. Multi-level wireless encryption options and
an easy-to-use step-by-step setup wizard that guides you through configura­tion from start to finish allows you to set up a secure, high performance wire­less network within minutes of opening the box. Plus, you can use the USB
Share Port to connect a USB hard drive for easy file sharing, media streaming
and central storage or to add a printer to your home network.

FEATURES

DUAL BAND

Oering simultaneous wireless operation on both the 2.4 GHz
and 5 GHz bands, the AirStation Extreme N600 Gigabit Dual
Band Router is perfect for streaming HD movies, music and
emailing from multiple devices at the same time.

Dual Band N600: Concurrent high speed wireless connections
with up to 300 Mbps on single band and up to 600 Mbps on
both bands.

GIGABIT ETHERNET

Maximize your wireless network speed with gigabit Ethernet
connections that keep your data moving at lightning speed.

BACKWARD COMPATIBILITY

Easily upgrade your network from previous wireless standards,
and maintain compatibility with existing adapters and devices.
AirStation Extreme N600 works with 11a, 11g and 11n, oering
extreme performance and greater coverage.

EASY SETUP

AirStation Extreme N600 Gigabit Dual Band Router features an
easy to use, step by step wizard that guides you through
configuration from start to finish. Within moments of opening
the box, you’ll have a secure wireless home network.

PRIORITY CONTROL QoS

Automatically prioritize your media and entertainment trac
for uninterrupted streaming and lag-free gaming. Best in class
features and support for multiple video, audio, gaming, voice
and data services provides unharnessed potential for streaming
and entertainment possibilities.

Netflix® | Hulu™ | CinemaNow™ | YouTube™ | Pandora™ | Spotify® | Slacker®
Last.fm | Rhapsody
Battle.net | Valve
Windows Update

®

| PS3™ Network | Xbox LIVE® | Blizzard Entertainment®

™

Steam Box | BitTorrent™ | iTunes® | HTTP/Web | FTP

EXTREME RANGE

HighPower Technology oers optimized antennas and integrated
power amplifiers to notably boost signal strength for outstanding
range and coverage.

USERFRIENDLY DEVICE MANAGEMENT

New web and mobile UI makes managing features and services
simple! Make changes anytime from your computer, smartphone
or tablet.

WEB FILTERING AND PARENTAL CONTROL

This added level of security easily filters unsafe and restricted
content for worry free web surfing the whole family can enjoy.

WIRELESS BRIDGE

Configure two or more AirStation Extreme N600 devices to act
as a standalone wireless bridge. Create a permanent,
high-speed wireless link capable of speeds up to 600 Mbps and
wirelessly extend the range of your network.

WIRELESS SECURITY

AirStation Extreme N600 Gigabit Dual Band Router oers the
best security standards available, featuring multi-level wireless
encryption options to prevent unauthorized access and
protect your important data.

www.BualoAmericas.com

P E R F O R M A N C E M AT T E R S

sdfj sdfl lskdjfj lskdjf
asdkajd ljsad lkjasd

sdfj sdfl lskdjfj

sdfj sdfl lskdjfj

sdfj s

sdfj s

WZR-600DHP2

HighPower N600

N600

WZR-600DHP2

GIGABIT DUAL BAND (300 + 300 Mbps)

USB 2.0

USB 2.0 NETWORK SHARE PORT
Connect a USB drive for easy file

sharing and media streaming or add
a printer to your home network.

∞ Store files in one central location

®

∞ DLNA Certified

streaming

∞ Connect a network printer

for easy media

SPECIFICATIONS

WIRELESS LAN INTERFACE

Standard Compliance: IEEE802.11n, IEEE802.11a, IEEE802.11g, IEEE802.11b

Frequency Range: Concurrent dual band 2.4 GHz / 5 GHz Support

Access Mode: Infrastructure Mode

Antenna (Tx x Rx): 2 x 2

Wireless Security: WPA2-PSK (AES), WPA-PSK (AES), WPA/WPA2-mixed(AES/TKIP),

128/64-bit WEP

WIRED LAN INTERFACE

Speed and Flow Control: 10/100/1000 Mbps, Auto Sensing, Auto MDIX

Number of LAN Ports: 4 x RJ-45

Number of WAN Ports: 1 x RJ-45

WAN Port Security: VPN Pass Through, SPI, Dynamic Packet Filtering

USB Interface

Standard Compliance: USB 2.0

Connector Type: A type

Number of Ports: 1

OTHER

Dimensions (L x W x H) 7.28 x 1.1 x 7.72 in

Weight 1.15 lbs

Operating Environment 32-104°F (0-40°C), 10-85% (non-condensing)

Power Consumption Max 21W

Power Supply: External AC 100-240V input, 12V DC Output

OS Compatibility: Windows

Windows

**AOSS support requires use of Bualo Client Manager software which is only compatible with Windows® systems. Some initial setup utilities only work with Windows systems.

*600 Mbps is the maximum aggregate wireless signal rate derived from IEEE 802.11n standard specifications achievable using two streams of 150 Mbps each on two concurrent bands. Actual
data throughput and range will vary depending upon network conditions and environmental factors, including volume of network trac, building materials and construction and network
overhead. Maximum speed and range is achievable when used with same enhanced mode technology.

©2013 BUFFALO INC. All rights reserved. BUFFALO and BUFFALO logo are either trademarks or registered trademarks of MELCO HOLDINGS INC. AirStation and AirStation logo are either
trademarks or registered trademarks of BUFFALO INC. The names and logos of other companies mentioned herein belong to their respective owners.

®

8 (32/64-bit), Windows® 7 (32/64-bit), Windows Vista® (32/64-bit),

®

XP, Mac OS® X 10.4-10.8**

BOX CONTENTS

AirStation Extreme N600
Gigabit Dual Band Router

Quick Setup Guide

Setup Card

Ethernet Cable

AC Adapter

Stand

Screws for Wall Mounting

Warranty Statement

5 GHz Speeds up

to

300 Mbps!

2.4 GHz Speeds up to

300 Mbps!

Stream your favorite music and HD video,

and game online, interference free!

24/7 TECH SUPPORT | 3 YEAR WARRANTY

[phone] | USA & Canada Only

www.BualoAmericas.com
