Page 1
AirStation
WZR-450HP2D
User Manual
www.buffalotech.com
35020xxx-01
2014-09
Page 2
Contents
Chapter 1 - Setup ...............................................................2
Diagrams and Layout ...........................................................................2
Front Panel ......................................................................................................2
Back Panel .......................................................................................................3
Bottom .............................................................................................................4
Top ....................................................................................................................4
How to Set Up AirStation for the First Time .......................................5
Opening Settings .................................................................................5
Chapter 2 - Supplemental Information ............................6
Technical Specifications ......................................................................6
1
Page 3
Chapter 1 - Setup
Diagrams and Layout
Front Panel
1 Power/Diag LED
2 Wireless LED
2
Page 4
3 Internet LED
4 Router LED

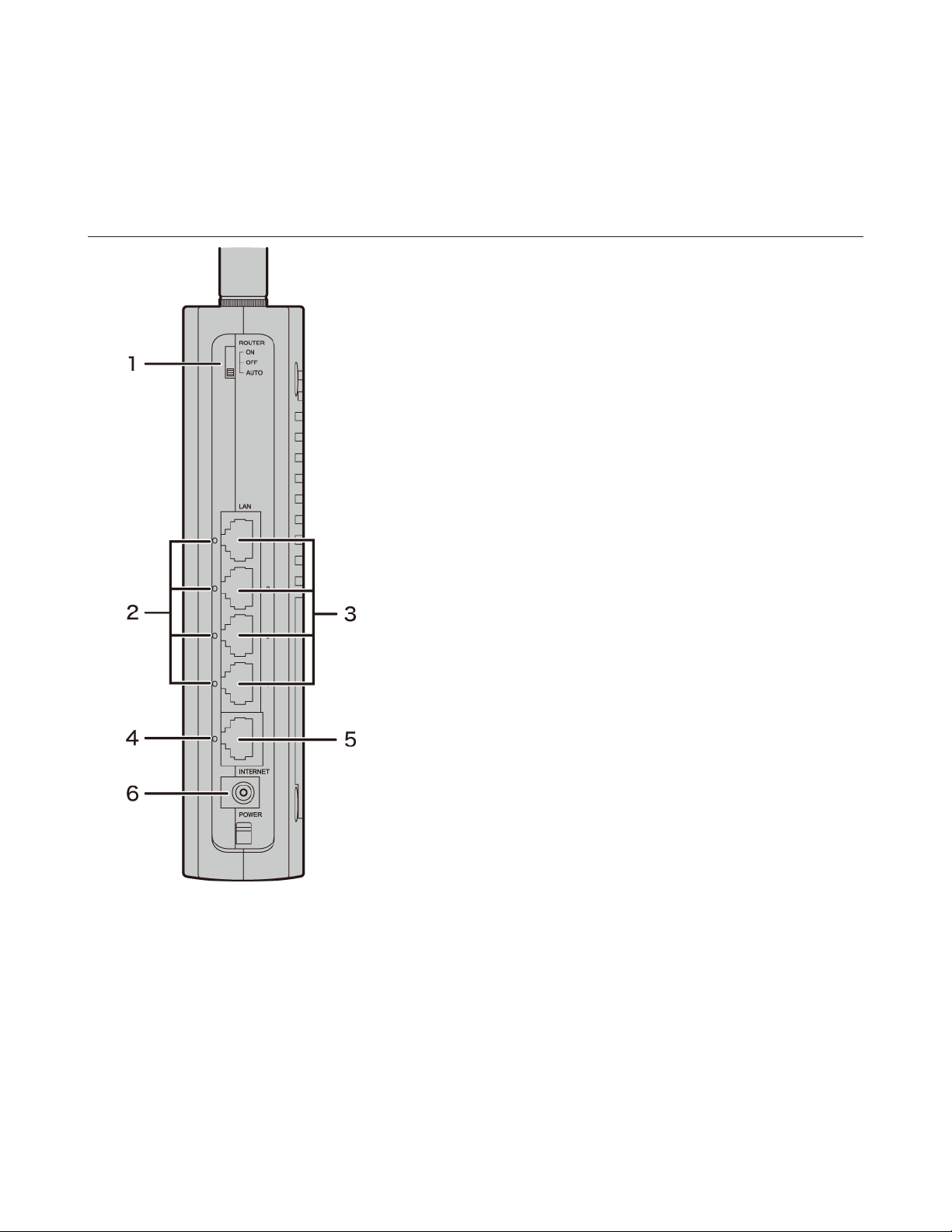

Back Panel
1 Mode Switch
2 LAN LED
3 LAN Ports
4 Internet LED
5 Internet Port
6 DC connector
3
Page 5

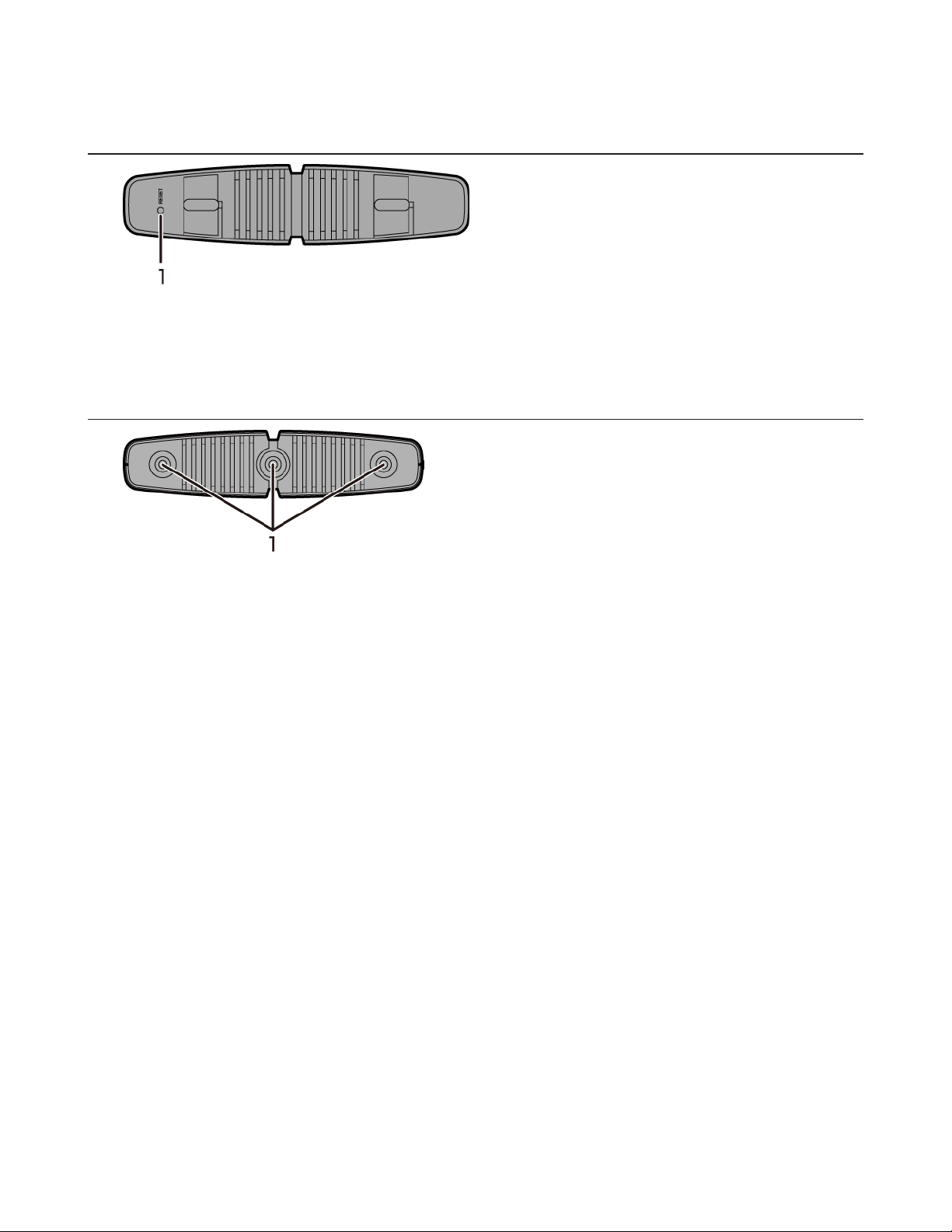

Bottom
1 Reset button
Top
1 Antenna connector
4
Page 6

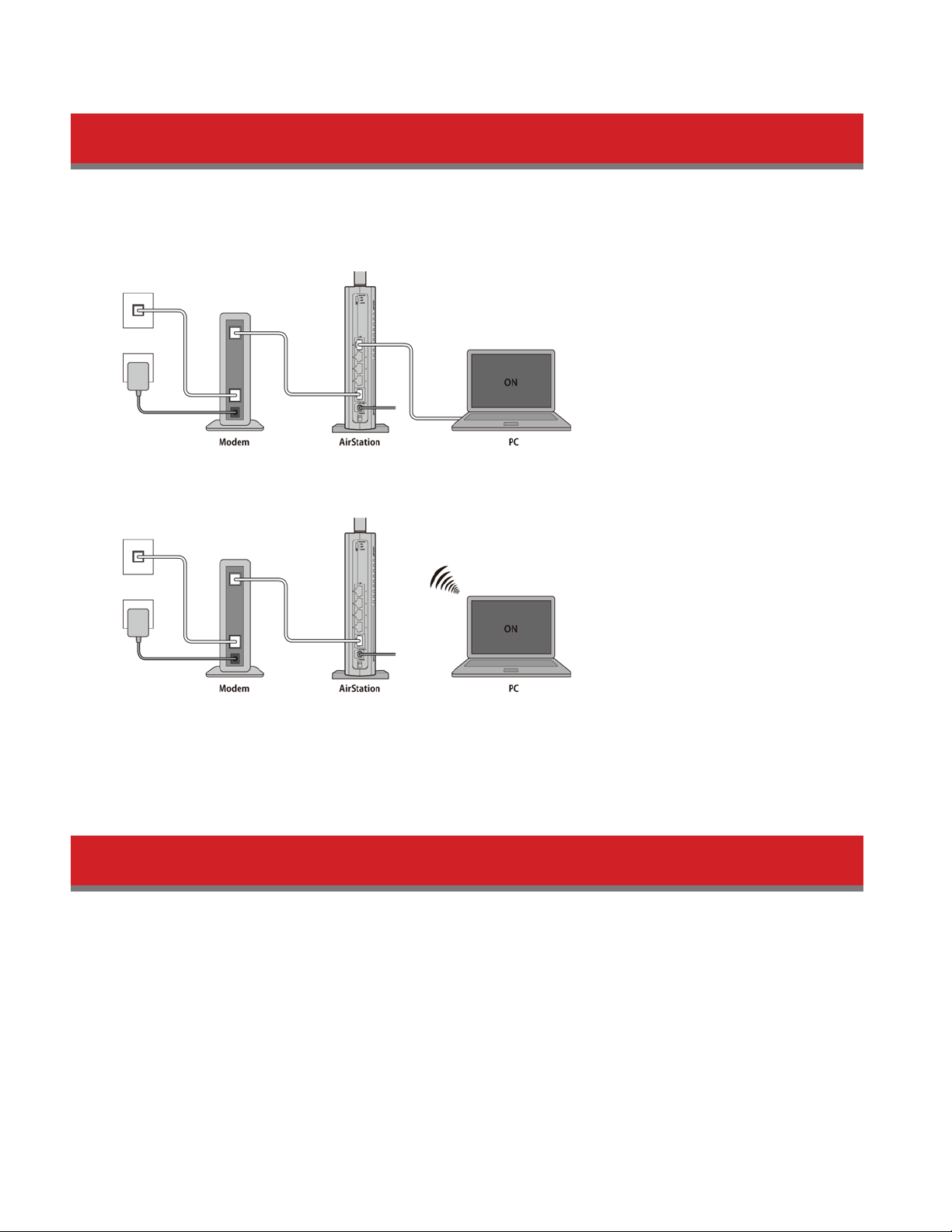

How to Set Up AirStation for the First Time
To configure your AirStation, follow the procedure below.
Wired
Wireless
Notes:
• On your device, search for available networks and find the AirStation. If a password is required, enter the
AirStation’s encryption key.
• Your AirStation’s default SSID and encryption key are on the setup card.
Opening Settings
To configure the AirStation, log in to Settings as shown below.
1 Launch a web browser.
2 Enter the AirStation’s LAN-side IP address in the address field and press the enter key. The status page will be
displayed.
3 When you click on a tab, the login window will pop up. Enter the username and password you previously set.
5
Page 7
Chapter 2 - Supplemental Information
Technical Specifications
Wireless Interface
Standard Compliance IEEE 802.11n / IEEE 802.11g / IEEE 802.11b
Transmission Method Direct sequence spread spectrum (DSSS), OFDM, MIMO
Frequency Range Available frequencies depend on the country of purchase.
IEEE 802.11n 20 MHz BW <Long GI>:
195/175.5/156/117/78/58.5/39/19.5 Mbps (3 streams)
130/117/104/78/52/39/26/13 Mbps (2 streams)
65/58.5/52/39/26/19.5/13/6.5 Mbps (1 stream)
IEEE 802.11n 20 MHz BW <Short GI>:
216.7/195/173.3/130/86.7/65/43.3/21.7 Mbps (3 streams)
144.4/130/115.6/86.7/57.8/43.3/28.9/14.4 Mbps (2 streams)
72.2/65/57.8/43.3/28.9/21.7/14.4/7.2 Mbps (1 stream)
IEEE 802.11n 40 MHz BW <Long GI>:
Transmission Rate
Access Mode Infrastructure Mode
Security AOSS, WPA/WPA2 mixed PSK, WPA2-PSK (AES), 64-bit or 128-bit WEP, MAC address filter
Wired Interface
Standard Compliance IEEE 802.3 ab (1000BASE-T) / IEEE 802.3u (100BASE-TX) / IEEE 802.3 (10BASE-T)
Transmission Rate 10 / 100 / 1000 Mbps
Transmission Encoding
Access Method CSMA/CD
Speed and Flow Control 10 / 100 / 1000 Mbps, Auto Sensing, Auto MDIX
Number of Ports
405/364.5/324/243/162/121.5/81/40.5 Mbps (3 streams)
270/243/216/162/108/81/54/27 Mbps (2 streams)
135/121.5/108/81/54/40.5/27/13.5 Mbps (1 stream)
IEEE 802.11n 40 MHz BW <Short GI>:
450/405/360/270/180/135/90/45 Mbps (3 streams)
300/270/240/180/120/90/60/30 Mbps (2 streams)
150/135/120/90/60/45/30/15 Mbps (1 stream)
IEEE 802.11a/IEEE 802.11g:
54/48/36/24/18/12/9/6 Mbps
IEEE 802.11b:
11/5.5/2/1 Mbps
1000BASE-T: 8B1Q4/PAM5
100BASE-TX: 4B5B/MLT-3
10BASE-T: Manchester Coding
LAN: 4
WAN: 1
6
Page 8
Other
External AC 100-240 V Universal, 50/60 Hz
Power Supply
Power Consumption 5.65 W (Max)
Dimensions 158 x 165 x 35 mm (6.22 x 6.50 x 1.38 in.) (Exclude antennas and stand)
Weight 420 g (14.81 oz.) (Exclude stand)
Operating Environment 0 - 40° C (32 - 104° F), 10 - 85% (non-condensing)
AC Adapter Type: WA-12M12FU/R (Depends on the region)
Manufacturer: Asian Power Devices Inc.
7
Page 9
Regulatory Compliance Information
35020642-01
The following notice is only for EU and Middle East region.
Only use the cables and accessories that are included in the package. Don't use other
accessories or cables unless specifically instructed to in the documentation.
EU Declaration of Conformity
Buffalo Inc. hereby declares that this WZR-450HP2D is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
The declaration of conformity may be consulted at
www.buffalo-technology.com/declaration-of-conformity.
Environmental Information
• The equipment that you have purchased has required the extraction and use of
natural resources for its production.
• The equipment may contain hazardous substances that could impact health and the
environment.
• In order to avoid the dissemination of those substances in our environment and to
diminish the pressure on the natural resources, we encourage you to use the
appropriate take-back systems.
• The take-back systems will reuse or recycle most of the materials of your end of life
equipment in a sound way.
• The crossed-out wheeled bin symbol invites you to use those systems.
• If you need more information on the collection, reuse and recycling
systems, please contact your local or regional waste administration.
AT
FR
IT
ES
BE
DE
LU
SE
DK
GR
NL
GB
FI
IE
PT
CY
CZ
EE
HU
LV
MT
PL
LT
SK
Note: This device is also
SI
authorized for use in the
BG
following EFTA member
RO
states: CH, IS, NO, LI
HR
TR
The following notice is only for US region.
Only use the cables and accessories that are included in the package. Don't use other
accessories or cables unless specifically instructed to in the documentation. Any
changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. This transmitter must not
be co-located or operating in conjunction with any other antenna or transmitter.
Company Information
BuffaloAmericas
11100 Metric Blvd., Suite 750, Austin, Texas 78758 USA
+1-512-349-1500
, Inc.
Page 10
The following notice is only for Canada region.
IC Statement (IC déclaration)
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’ Industrie Canada applicables aux appareils
radio exempts de licence. L’ exploitation est autorisée aux deux conditions suivantes :
(1) l’ appareil ne doit pas produire de brouillage, et (2) l’ utilisateur de l’ appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d’ en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by
IndustryCanada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that necessary for successful communication.
Conformément à la réglementation d’ Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d’ un type et d’ un gain maximal (ou inférieur) approuvé
pour l’ émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l’ intention des autres utilisateurs, il faut choisir le type d’ antenne et
son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse
pas l’ intensité nécessaire à l’ établissement d’ une communication satisfaisante.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20 cm between the radiator & your body. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites d’ exposition aux rayonnements IC établies
pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec
un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
L’ antenne utilisée pour ce transmetteur ne doit pas être co-localisés en conjonction
avec toute autre antenne ou transmetteur.
type, are strictly prohibited for use with this device.
Le présent émetteur radio (WZR-450HP2D) aété approuvé par Industrie Canada pour
fonctionner avec les types d’ antenne énumérés ci-dessous et ayant un gain admissible
maximal et l’ impédance requise pour chaque type d’ antenne. Les types d’ antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l’ exploitation de l’ émetteur.
Antenna Type Peak Gain Required Impedance
50 ohms5 dBDipole antenna
This radio transmitter (WZR-450HP2D) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain and
required antenna impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that
ACadapter
EU/MiddleEast:WA-12M12R(AsianPowerDevicesInc.)
US/Canada:WA-12M12FU(AsianPowerDevicesInc.)
