Internal ISDN PCI card for PCs
Speedway
ISDN PCI Card
Installation
Guide
Contents
1. Welcome to the Speedway! 2
2. Before you start 3
2.1 Check the Contents 3
2.2 PC System Requirements 3
2.3 About the Speedway! CD 4
3. Installation 5
3.1 Determine what version of
Windows you are using 5
3.2 Installing the Speedway
ISDN PCI Card 6
3.3 Device Driver Installation 7
3.4 Insta lling the
Speedway! Applications & the
CAPI Port Driver 13
3.5 Setting up Internet access 15
3.6 Uninstalling the Speedway PCI
Card and Applications 17
4. Typical use examples 19
4.1 Internet 19
4.2 ISDN file transfer 19
4.3 Fax 19
4.4 Answering machine 20
4.5 ISDN Telephone 20
4.6 BBS systems 20
5. Troubleshooting and Suppor t 21
5.1 No Connection to ISDN 21
5.2 Failure to Connect to an
Internet Service Provider 21
5.3 Failure to connect to your
ISP using 128Kbps 22
5.4 Other Fax Applications
Fail to Work 23
5.5Still not Working Properly 23
5.6 Still Having Problems? 23
6. Technical Information 25
6.1 CAPI Port Drivers 25
6.2 Internet Access 26
6.3 ISDN Information 27
6.4 Product Specifications 29
7. Software Licence Agreement 30
8. Index 32
1
1.Welcome to the
Speedway!
The Speedway ISDN PCI Card is an internal PC card which enables fast data
communications to and from your PC via ISDN or BT Highway service.
You will be able to browse the Internet and download files, images and
programs at speeds unavailable via modems connected to the analogue
network. You can also access other remote sites that have both access to the
ISDN and compatible terminal equipment.
Your Speedway ISDN PCI Card can combine both ISDN channels to provide a
data speed of up to 128Kbps.
Note
The actual data speed obtained is dependent upon the data speed offered by
your Internet service provider or that of the remote site you connect to.
You can install the supplied software under Windows 95, 98, ME, 2000 and NT.
WELCOME
For further information, please refer to the relevant installation sections.
Also included is a suite of applications that form an integrated
communications package. These programs enable you to make the best use of
your Speedway ISDN PCI Card:
Speedway! data allows you to transfer data at high speed to and from other
PC users who have access to the ISDN and have a
compatible terminal adapter and software.
Speedway! fax allows transmission of faxes very quickly and directly from
a word processing program.
Speedway! phone is a virtual ISDN desktop telephone, providing ISDN
voice communication via your PC’s soundcard.
Speedway! answer gives you an ISDN answering machine on your PC if you
have a sound card installed.
Speedway! term allows you to quickly load information from an ISDN
Bulletin Board Service.
Typical use examples’ on page 19 for more information on the use of
See ‘
these applications.
2
2. Before you Start...
Please take a few minutes to read this guide and acquaint yourself with both
the installation process and the features of your card. Installation is simple but
you must take care to follow the instructions carefully in order to get the best
from your Speedway ISDN PCI Card.
Note
This guide assumes that you have a basic understanding of PCs and MS
Windows. If you are new to PCs, please make sure that you read and
understand any documentation that was delivered with your machine.
If you are new to MS Windows, make sure you try the various Windows
tutorials before attempting any installations.
2.1 Check the Contents
After opening and unpacking the box, you will find the following items:
• Speedway ISDN PCI Card
• ISDN cable (6m)
•
Speedway! CD-ROM
• Installation Guide (this document)
BEFORE YOU START
2.2 PC System Requirements
Before attempting installation, please check that your PC meets the following
requirements:
• A Pentium processor with a recommended minimum 16Mb RAM
• A Microsoft Windows 95, 98, ME, 2000 or NT (Workstation i386)
operating system
• 10Mb hard disc space
• A CD-ROM drive
• A free PCI plug-in slot
If you are unsure of your PC’s specification or compatibility, please refer to
your PC manual or equipment supplier.
3
Note
If your PC is already equipped with an ISDN adapter, you must first un-install
it and its drivers before you can successfully install the Speedway ISDN PCI
Card and its software. The un-installation process of ISDN adapters may vary
depending on the manufacturer. Please follow the manufacturer’s guidelines
for removal.
2.3 About the Speedway! CD
The CD includes an introduction which provides you with information about
its contents and assists you with the installation of your card. You can read the
introduction manually by going into Window’s Explorer and then double
clicking on the Intro file in the root directory of the CD.
The CD contains the Speedway ISDN PCI card installation program for
Windows 95, 98, ME, 2000 and NT. It also contains the installation program
for the
BEFORE YOU START
Speedway! applications as well as additional software that may be useful.
Note
Some of the documents on the CD are .pdf (Por table Document Format) files.
You can read, search and print these documents by using the Adobe Acrobat
Reader. If your PC has not been loaded with Adobe Acrobat you will find an
installable copy on the CD.
Software updates are available via the Speedway website:
www.speedway.bt.com
4
3.Installation
Installation consists of five stages:
3.1 Determine what version of Windows you are using.
3.2 Physical installation of your card into to your PC and ISDN socket
connection.
3.3 Device driver installation.
3.4
Speedway! applications and CAPI port driver installation.
3.5 Internet access set-up
Important
It is important to follow the sequence of installation steps as specified. If you
fail to follow these instructions you may not be able to successfully install your
card. You will not be able to access the Internet until you have completed
stages 3.1 to 3.5 above!
It is a good idea to view the
card for the latest product information and installation advice.
Readme files on the CD before installing your
3.1 Determine what version of Windows you are using
If you are using Windows 98, ME, 2000 or Windows NT, you will be aware of
this from the Windows start-up screen.
If you are using Windows 95 it is essential that you determine what version
you are using before you physically install your PCI card.
1. Double-click the My Computer icon on the Desktop, double-click the
Control Panel icon and then double-click the System icon.
2. Under the tab General will be a description of what version of Windows is
installed.
For example:
Microsoft Windows 95 4.00.950 B
Make a note of this for use in Section 3.3.
INSTALLATION
5
3.2 Installing the Speedway ISDN PCI Card
1. Switch off your PC and unplug the power connector cable.
2. Remove the cover from your PC.
3. Select an appropriate slot (Figure 1) and with a suitable screwdriver,
carefully remove the screw from the adjacent protective plate from the rear
of the PC. Do not allow this screw to drop into the computer.
Figure 1 indicates a typical PC board showing how your card connectors
may be arranged. Note that the PCI card should be installed in one of the
smaller sockets.
INSTALLATION
4. Gently insert the card into the slot with the back plate facing the rear of the
Figure 1
PC. Press down until the card is fully located into the slot. Do not disturb
the PC’s internal wiring during installation.
5. Replace the retaining screw in order to secure the card back-plate to the
rear of the PC.
6. Replace the cover of your PC, tighten any retaining screws and reconnect
the power connector cable.
Warning
If you are in any doubt about how to access the inside of your PC, you should
contact your PC supplier for advice.
ISDN Connection
1. Take the ISDN cable supplied and insert the plug on one end of the ISDN
cable into the socket on the rear plate of the Speedway ISDN PCI Card.
6
2. Insert the other end of the ISDN cable into your ISDN or BT Highway socket.
3. Switch PC on.
The physical installation of your Speedway ISDN PCI Card is now
complete.
3.3 Device Driver Installation
Depending on which version of Windows you determined earlier:
If you have:
Windows 95 version A: Complete Section 3.3, Part A & Part G.
Windows 95 version B: Complete Section 3.3, Part B & Part G.
Windows 98: Complete Section 3.3, Part C & Part G.
Windows ME: Complete Section 3.3, Part D & Part G.
Windows 2000: Complete Section 3.3, Part E & Part G.
INSTALLATION
Windows NT: Complete Section 3.3, Part F & Part G.
A For Windows 95 Version 4.00.950 or 4.00.950a
1. Switch on your PC, if you have not already done so, and Windows will
automatically detect the card you have just installed.
2. The ‘New Hardware Found’ screen will be displayed, announcing that it has
recognised the BT Speedway PCI card as a ‘PCI Network Controller’. If this
screen is not displayed, close down Windows, switch off your PC and check
that the card is physically installed correctly.
3. Select ‘Driver from the disk provided by hardware manufacturer’, click OK.
4. Your PC will display a prompt asking you to insert the manufacturer’s
installation disk. Place the BT Speedway PCI Card CD in your PC’s CD drive.
5. Click Browse, in the ‘Drives’ section and select your CD ROM drive letter.
Double-click on Windows.95 which will be shown in the ‘Folders’ section.
7
Click OK and click OK again on the following screen.
6. After the files are copied to your PC, the ‘BT Speedway ISDN PCI Card’
screen will be shown (Figure 2).
Figure 2
7. Now follow the instructions in Par t G.
B For Windows 95 Version 4.00.950b
1. Switch on your PC, if you have not already done so, and Windows will
INSTALLATION
automatically detect the card you have just installed.
2. The ‘New Hardware Found’ screen will be displayed. If this screen is not
displayed, close down Windows, switch off your PC and check that the card
is physically installed correctly.
3. Immediately after the ‘New Hardware Found’ screen is displayed the
‘Update Device Driver’ wizard will be started and it’s initial display shown.
4. Insert the BT Speedway PCI Card CD in your PC’s CD drive.
5. Click Next and wait whilst Windows updates it’s driver database.
Warning
You must specify the correct location of the Windows 95 drivers. The installation
will fail if you attempt to use any other drivers.
6. Windows will announce that it has found BT Speedway ISDN PCI Card
Rev.A (Win98/Me)
enter a location.
8
. Click Other Locations, and you will be prompted to
7. Either type D:\WINDOWS.95 (where D should be substituted with the drive
letter that represents your CD drive) and click OK
OOrr
click Browse, double
click your CD drive letter which will be shown in the Folders section and
click on Windows.95 click OK.
8. Click OK. Windows will announce that it has found BT Speedway ISDN PCI
Card Rev. A (Win95)
. Click Finish.
Note
Sometimes Windows may have difficulty finding and loading files on the CD.
This is due to how Windows was originally installed. You must use the Browse
function in order to select the correct file path, including the correct drive
letter for the CDROM.
9. After the files are copied across, the ‘BT Speedway ISDN PCI Card’ screen
will be shown (Figure 2).
INSTALLATION
Figure 2
10.
Now follow the instructions in Par t G.
C For Windows 98
1. Switch on your PC, if you have not already done so, and Windows will
automatically detect the card you have just installed.
2. Immediately after the ‘New Hardware Found’ screen is displayed the
‘Add New Hardware’ wizard will be started and it’s initial display shown.
3. Insert the BT Speedway PCI Card CD in your PC’s CD drive.
4. Click Next and in the new window select Search for the best driver for
your device and click
Next.
9
5. In the next window, select only the tick box for CD-ROM drive, and click Next.
6. Windows will announce that it has found BT Speedway ISDN PCI Card Rev.
A (Win98/Me)
. You will be informed that ‘Windows is now ready to install
the best driver for this device’. Click Next.
7. Windows will inform you that ‘Windows has finished installing the software
that your new hardware device requires’.
Click Finish.
8. The ‘BT Speedway ISDN PCI Card’ screen will be shown (Figure 2).
INSTALLATION
9. Now follow the instructions in Par t G.
Figure 2
D For Windows ME
1. Switch on your PC, if you have not already done so, and Windows will
automatically detect the card you have just installed.
2. Immediately after the ‘New Hardware Found’ screen is displayed the
‘Add New Hardware’ wizard will be started and it’s initial display shown.
3. Insert the BT Speedway PCI Card CD in your PC’s CD drive.
4. Click Next. In the new window select the Automatic search for a better
driver option and click Next.
5. Select the Driver Description for the Location that contains the
Windows.me/fpciset.inf file and click OK. Files will now be copied to
your system.
6. Windows will inform you that BT Speedway ISDN PCI Card Rev. A (Win98/Me)
has been installed, click Finish.
7. The ‘BT Speedway ISDN PCI Card’ screen will be shown (Figure 2).
10
Figure 2
9. Now follow the instructions in Par t G.
E For Windows 2000
1. Switch on your PC, if you have not already done so, and Windows will
automatically detect the card you have just installed.
2. Windows will announce that it has ‘Found New Hardware’ Network
Controller. The ‘Found New Hardware’ wizard will be started, inser t the BT
Speedway PCI Card CD in your PC’s CD drive and click Next.
3. In the following window select the option ‘Search for a suitable driver’,
click Next.
4. In the following window tick only the ‘CD-ROM drive’ box, click Next.
5. Windows will now search for a driver for the BT Speedway ISDN PCI Card,
the driver ‘speedpci’ should be found, click Next.
6. Files will now be copied into your Windows system.
7. A window will be displayed ‘Digital Signature not found’ for BT Speedway
ISDN PCI Card Rev. A (Win2000) click Yes .
8. A window will be displayed ‘Digital Signature not found’ for NDIS WAN
CAPI Driver click Yes.
9. You will now be informed that you have successfully updated or installed
your drivers, click Finish.
INSTALLATION
You are now ready to install the Speedway! applications, proceed to
Section 3.4.
11
F For Windows NT
1. Make sure that you have administrator rights before starting installation.
2. Switch on your PC, if you have not already done so.
3. Insert The Speedway PCI Card CD into the CD drive. If the CD contents
are not automatically displayed, go into Windows.NT Explorer and then
double-click on the Windows.NT folder in the root director y of the CD.
Run the Setup program.
4. The ‘BT Speedway ISDN PCI Card’ screen will be shown (Figure 2).
INSTALLATION
5. Now follow the instructions in Par t G.
Figure 2
G When the BT Speedway ISDN PCI Card screen is displayed
(Figure 2)
1. Click on Continue.
2. The following window allows you to select the installation folder. Standard
default setting is C:\IDRIVER. Click on Continue.
3. The setup information is displayed, click Continue. The driver is then
entered in the Windows Registr y database.
You are now ready to install the Speedway! applications.
4. Click on Continue.
12
3.4 Installing the Speedway! Applications & the
CAPI Port Driver

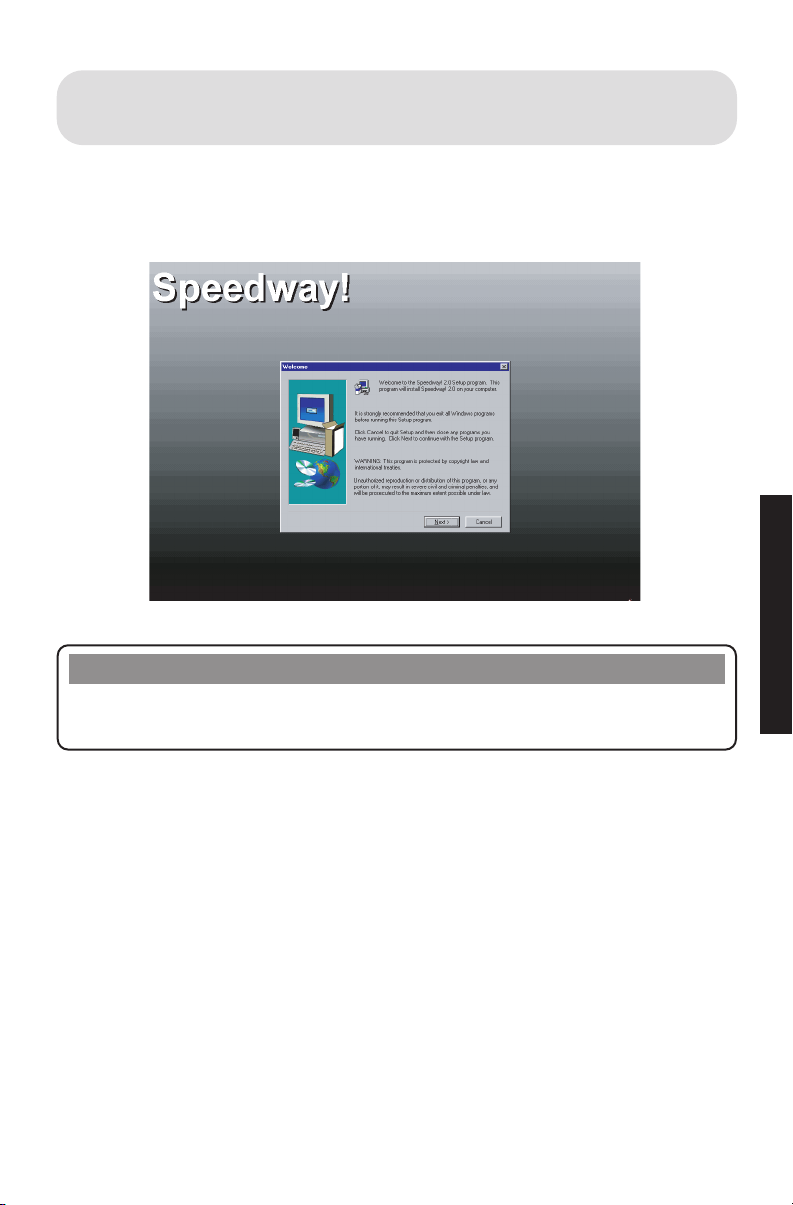

The installation program will now start and the ‘BT Speedway’ screen is
displayed. It is best to follow the on-screen instructions that are now
displayed, but you may find it easier to refer to the instructions below:
Note
You can quit the installation procedure at any time by clicking the Cancel
button.
INSTALLATION
1. Click Next. Here you can specify the director y in which the applications will
be installed with the Browse button. The default is
C:\PROGRAM\FILES\SPEEDWAY!\.
2. Click Next. In the next window displayed, choose a program folder group
for your applications. The default is Speedway! Then click Next.
Now decide whether you require a default installation or an installation with
configuration:
Option 1 (Recommended)
If you just select Installation, the applications are installed with the default
settings in the specified directory/folder. All configuration parameters for
the applications can be later modified and customised to suit your specific
13
requirements. This option is recommended unless you fully understand
the settings. See the corresponding sections in the online help for relevant
information.
Option 2 (Advanced)
If you select Installation and Configuration, you can customise the settings
e.g. entries such as the fax station code number, the name of your
computer for Speedway! Data and information relating to operation with a
PBX.
3. Select either option and click Next. System files will now be copied to
your PC.
4. Leave the Install CAPI port driver check box enabled and click Next.
5. A list of virtual modems that will be installed is displayed. The default
setting selects all options. The user can choose to un-check those that are
not required.
Note
Unless you have a thorough knowledge of modem protocols it is recommended
that the default (install all modems) is used.
6. Click OK.
7..
It is recommended that the ‘Readme’ checkbox is left enabled in order the
INSTALLATION
latest release information can be obtained.
Click on Next. This will be displayed the ‘Readme’ file in Notebook.
When you exit Notebook the final installation screen will be displayed.
The programs are now installed and the program group Speedway! is
created on your Windows Start Menu.
8
. You are advised to restart your PC at this stage. Click Finish.
Note
Please refer to the on-line help for instructions on how to use the Speedway!
applications effectively.
Installation of the Speedway! applications is now completed.
14
3.5 Setting up Internet access
Note
Please make sure that you Internet Service Provider (ISP) can provide ISDN
access. This may require that you call them before attempting to establish a
connection with your Speedway PCI Card.
Internet access at 64Kbps with Windows 95/98
1. After restarting your PC, double-click My Computer on the desktop.
2. Double-click Dial Up Networking.
3. Double-click Make New Connection.
4. Type in your choice of name for your new connection icon.
5. From the ‘Select modem list’ select the ISDN Internet (PPP over ISDN)
virtual modem.
6. Click Next.
7. Enter your Internet ser vice provider’s phone number.
8. Click Next again and Finish.
INSTALLATION
Your new
Connection icon will now be displayed in the ‘Dial-Up Networking’
window.
You are now ready to connect to your ISP at 64Kbps.
Note
If connection is made directly from your Internet browser application, it will
be necessary to re-configure your browser to use your newly created Dial-Up
connection.
Internet access at 128Kbps with Windows 95/98
The Dial Up Networking on your PC must support ‘Multi-Linking’.
1. If you are using Windows 98, move directly to step 7.
2. To ensure that you have the correct version of Dial Up Networking in
Windows 95 follow the next steps.
3. If you have already created a connection icon, as described above, Right
Click on the icon. Otherwise create a 64Kbps access connection as
described above.
15
4. Select Properties from the menu.
5. If you can see a tab labelled Multilink then your PC can connect at 128Kbps.
You are now ready to create a new dial up network connection.
6. Follow the instructions in Setting up Internet access at 64Kbps above.
7. Right mouse click over the new icon you have just created and select
Properties.
8. Click on Multilink tab
9. Click on ‘Use additional devices’. Click Add.
10 . From the list select ‘ISDN RAS (PPP over ISDN)’, click OK.
11 . Click OK.
You are now ready to connect to your ISP at up to 128Kbps.
Note
To avoid disappointment, make sure that your Internet service provider can
provide a 128Kbps connection!
Internet access at 64Kbps with Windows NT
1. After restarting your PC, double click My Computer on the desktop.
2. Double-click Dial Up Networking.
3. Click New.
INSTALLATION
4. Type in your choice of name for your new connection. Click Next.
5. Select I am calling Internet.
Click Next.
6. Enter your Internet ser vice provider’s phone number.
Click Finish.
7. Click More and select menu item Edit entry and modem properties.
8. In ‘Dial using’ box select ISDN Internet (PPP over ISDN).
9. Click OK and then click Close.
To dial your Internet Service Provider:
1. Double-click My Computer on the desktop.
2. Double-click Dial Up Networking.
3. Select ‘Phone book entry to dial’ for your Internet Service Provider. Click
Dial.
4. Enter your user name and password. Click OK.
You are now ready to connect to your ISP at 64Kbps.
16
Internet access at 128Kbps with Windows NT
These instructions assume the you have already created a connection to the
Internet over a single 64Kbps channel, as in the previous section. Follow the
instructions below to change your link to enable simultaneous connection of
both channels.
1. Open Control Panel.
2. Open Network.
3. Click on Services tab.
4. Select Remote Access Service.
5. Click on Properties.
6. Click on Add.
7. Select ISDN RAS(PPP over ISDN).
8. Click on Continue.
9. Click on Close.
10 . Restart PC as requested.
After the PC has rebooted -
1. Open Control Panel.
2. Open Dial-Up Networking.
3. Select service that you require to multilink from the Phone book entr y list.
4. Click on More and select Edit entry and modem properties.
5. In the Basic tab select Multiple lines in Dial using list.
6. Click on Configure.
7. Select both devices (check box) ISDN Internet (PPP over ISDN) and ISDN
RAS (PPP over ISDN)
8. Make sure that your ISP telephone number is the same in both devices.
9. Click on OK and then click OK again.
.
You are now ready to connect to your ISP at up to 128Kbps.
3.6 Uninstalling the Speedway PCI Card
and Applications.
Before you uninstall the Speedway! software, you must first physically remove
the PCI card from your computer. This ensures that Windows does not try to
automatically re-install the device driver software via the ‘plug and play’
system.
INSTALLATION
17
1. Turn your PC off and remove the power cable.
2. Removal of your PCI card is the reverse process of that outlined in
Section 3.2.
3. Remember to replace the rear panel blanking plate that you removed
previously.
The software uninstall process for all versions of Windows is ver y similar.
1. Open the Control Panel. This can be done from either clicking on My
Computer
on the Desktop or Clicking on Start - Settings - Control Panel
from the Windows button (normally on the bottom left corner of
the screen).
2. Double-click on Add/Remove Programs. There may be up to three entries
seen in the list; ISDN CAPI Port, Speedway PCI and Speedway! (all will be
seen if complete Speedway! installation process has been followed).
3. Click on specific entry in list to be removed and then click on
Add/Remove button.
4. Confirm uninstall by clicking Ye s.
5. You will then be requested to restar t your PC. If you want to remove other
entries in the list click on the Do not Restart option and select another
entry. When all entries are uninstalled restart your PC.
INSTALLATION
18
4.Typical Use
Examples
The Speedway ISDN PCI Card enables you to establish a wide range of
connections with various services and remote sites via ISDN. The basic
principle for successful remote connections and transfer operations is: the
remote site must have a terminal device, which is either of the same type or
compatible.
Here are some examples of how you can use your Speedway ISDN Card in
conjunction with the
Speedway! applications.
4.1 Internet
The Speedway ISDN PCI Card along with the virtual modems that you have
installed will provide fast communication to and from the Internet. You can
link your PCI Card software with your browser to provide ‘one-click’ access.
Further information about the settings and configuration can be obtained
from your Internet ser vice provider.
4.2 ISDN file transfer
Speedway! data provides a way of transferring data between two PCs at very
high speed. Just set one machine to server mode and another as a client and
you will be able to exchange files at up to 128Kbps. Speedway! data has the
capability of transferring this data with either Idtrans or Eurofile transfer
protocols. The use of data compression at both terminals will increase the
data speed considerably. The basic principle for successful remote
connections and transfer operations is: the remote site must have a terminal
device, which is either of the same type or compatible.
4.3 Fax
The user-friendly and practical Speedway! fax is the recommended PC fax
application. Our software is capable of communicating with fax devices using
TYPICAL USE EXAMPLES
19
the Group 3 fax standard (the normal analogue standard used over the
telephone network). This is achieved using fax emulation in conjunction with
the CAPI software. The user-friendly and practical Speedway! fax is the
recommended fax application. After installation of the BT ISDN CAPI Port
Driver, you can also send and receive faxes using the vir tual modem ISDN
FAX (G3) and fax applications that support CAPI 2.0. Other applications
offering CAPI 2.0 support can similarly be used.
4.4 Answering machine
The Speedway! answer ISDN answering machine allows you to automatically
answer and record incoming voice messages. It is supplied in order to use the
voice functions of your Speedway PCI Card. In addition to this, you can use
telephony software from other suppliers offering CAPI 2.0 support. Note that
it is necessary to have a compatible sound card and supporting software to
enable replay of the messages.
4.5 ISDN Telephone
The Speedway! phone ISDN telephone enables you to make voice calls via
your soundcard over your ISDN service. You will need a telephone headset
(and/or microphone and loudspeakers) and a full duplex soundcard in order
to use this facility. Please contact your soundcard supplier if you are in any
doubt about it’s compatibility.
TYPICAL USE EXAMPLES
4.6 BBS systems
Speedway! term will provide you with the facility for accessing BBS systems.
Hints & Tips
The Speedway! applications are supplied with on-line help files which you can
access via the applications themselves. This help function provides complete
instructions on how to set-up and use the applications effectively. You can also
print out topics from the help files if you find this easier.
20
5.Troubleshooting
& Support
Note
It is a good idea to view the Readme file on the CD for the latest product
information and installation advice.
5.1 No Connection to ISDN
If a problem is found in connecting to the ISDN (when using Dial-Up
connections, Speedway! fax etc.) check that the ISDN connection cable is
inserted correctly at both the Speedway PCI Card and the ISDN outlet socket.
Re-try the dial or connect command.
5.2 Failure to Connect to an Internet Service Provider
If the Speedway PCI Card fails to connect your Internet Ser vice Provider
(ISP) check the following:
TROUBLESHOOTING
• Your ISP supports ISDN connection.
• The telephone number that you are dialling is correct for connecting to
your service provider using ISDN.
• You are using the correct ‘Dial-Up networking connection’ you installed
with the PCI Card.
• Which protocols are supported by your ISP. It is possible that the ISP
recommends that the protocol used may be V.120 and asynchronous PPP.
If this is the case the Dial-Up networking connection may be configured as
follows:
1. Create a Dial-Up connection as described in Section 3.5 ‘Setting up
Internet Access’. Where the Select modem option is shown choose ISDN
Custom Config
2. Click on the Configure button. Select the tab Connection and click on
Advanced. Under Extra settings type in the characters ATS31=7; S51=0
.
21
(this should be typed exactly as shown). Click OK to confirm and click OK
again to close the window that is showing.
3. Click Next and enter the ISP telephone number. Click Next and then
Finish. The new icon for the connection will now be displayed.
4. Click with the right mouse button on the new icon and select Properties.
Click on the tab Server Types. In the drop down menu click on Type of
Dial-Up Server
, select the server recommended by your ISP (as an
example, CompuServe is likely to be CISPPP:PPP connection using
CompuServe Networks
). Click on OK.
This configuration is now available for Internet access.
Note
If you have any doubts about what protocols are used by your ISP; contact your
ISP directly for advice.
5.3 Failure to Connect to your ISP using 128Kbps
If you suspect that the Speedway PCI Card is only operating using 64Kbps
when you have configured the system to use both ISDN B channels
(e.g. Multilink PPP), please check the following:
• Your ISP supports MPPP, i.e. a simultaneous PPP connection over two
ISDN channels at 128 Kbps.
TROUBLESHOOTING
• If using Windows 95, make sure you have msdun13 installed.
• You have followed the instructions shown in Setting Up Internet Access at
128Kbps.
Hints & Tips
Because there is no direct visual feedback to the status of the connection it is
necessary to check by right-clicking your mouse on the Dial Connection icon at
the bottom right of your Windows screen. This will show Status and
Disconnect. Click on Status and the status screen will show. The number
of devices should read 2, if this is not the case the connection is not running
at 128Kbps.
22
5.4 Other Fax Applications Fail to Work
The Speedway! fax software is especially designed to work with an ISDN
connection. When it communicates with a G3 analogue fax, the software
converts the fax data into digital signals that correspond to an analogue fax
transmission over ISDN. Other applications, such as MS Exchange and
Delrina WinFax implement the data conversion. Please check with your
software vendor for suitability of your fax software.
5.5 Still not Working Properly?
Most problems are likely to be the result of incorrect installation and set up. If
you have followed the installation instructions exactly and the previous
solutions fail to correct the problem, as a last resort you should completely
un-install the Speedway! software and then install it again.
First un-install the software using the Windows
application (found in Control Panel). Then you should re-install the Speedway!
software as described in Section 3.4 ‘Installing the Speedway! Software’ and
the subsequent installation sections.
Add/Remove Programs
Note
It may be necessary to un-install completely if you are upgrading the
Speedway! software in the future.
Note
The latest drivers for the Speedway ISDN PCI Card are available for
download from the Speedway web site: www.speedway.bt.com
5.6 Still Having Problems?
If you are still having problems you can contact the Speedway! Helpline
on 0845 6040195.
Before you do this:
• If you have Internet access, please look at the FAQs on the Speedway
web site: www.speedway.bt.com.
TROUBLESHOOTING
• Make sure you have followed the installation instructions properly.
23
• Try un-installing your Speedway PCI Card and re-installing as
described earlier.
• Make a note of your problem including any on-screen messages you
may have seen.
• Make sure you have your product serial number available.
TROUBLESHOOTING
24
6.Technical
information
6.1 CAPI Drivers
These drivers enable the ISDN integration of operating system functions
under Windows Operating Systems. They also permit the use of Remote
Access Service (RAS) and allow you to connect your PC to the server of an
Internet ser vice provider by way of the TCP/IP stack and the Dial-Up
Networking application of Windows Operating Systems.
Windows Operating Systems offer two communications models with similar
functionality: ISDN CAPI Port Driver and NDIS WAN CAPI Driver. Both
drivers are implemented in VxD technology as Windows system drivers and
are addressed through the Dial-Up Networking application, but utilise
different mechanisms and interfaces/protocols in the operating system.
Basically the same transfer rates are attained in data communications with the
two drivers. Both drivers can be installed in parallel on one system.
The BT system drivers make it possible for you to utilise communications
programs (such as
application in parallel with CAPI-based ISDN software, for example for dialling
in to the Internet.
Speedway!) via the Windows Dial-Up Networking
TECHNICAL INFORMATION
The BT ISDN CAPI Port driver
The BT ISDN CAPI Port driver allows programs with a suitable interface
(VCOM/Modem) to also use the communications interfaces of Windows
for ISDN.
A full description of the functions of the BT ISDN CAPI Port Driver along
with detailed installation instructions may be found in the
in the respective Software\Capiport\Capiport.w folder for your Windows
Operating System.
CAPIPORT.HLP file
25
The BT NDIS WAN CAPI Driver
The BT NDIS WAN CAPI Driver permits the integration of the Windows
Operating Systems and the ISDN.
The BT NDIS WAN CAPI Driver permits the use of Remote Access Ser vices
(RAS) via ISDN. NDIS is the abbreviation for Network Device Interface
Specification and is a standard for interfacing network cards (hardware) to
network protocols (software). NDIS WAN is a Microsoft extension of this
standard in respect of wide area networking (WAN). The NDIS WAN CAPI
Driver for ISDN thus permits the use of the ISDN controller as a WAN card,
in which case the ISDN controller is addressed via the COMMON-ISDN-A.
A full description of the functions of the BT NDIS WAN CAPI Driver along
with detailed installation instructions may be found for Windows 95 in the file
NDIS_95.HLP in the folder Software\Ndiswan\Ndiswan.w95 on the CD.
Hints & Tips
It is a good idea to view the Readme file on the CD for the latest product
information and installation advice.
6.2 Internet Access
For successful access to the Internet or for RAS connections, your provider or
the remote site (in the case of RAS connections) should provide digital access
and use the same protocol mechanisms as you.
TECHNICAL INFORMATION
In particular, the following requirements should be met:
• The Internet ser vice provider/remote site must provide ISDN access.
• The access should support synchronous PPP (Point to Point Protocol).
Registration with your provider can take place by checking your telephone
number and/or by PAP/CHAP authentication.
Optional allocation of a static or dynamic Internet address
The deployment opportunities for the respective driver concept are described
in detail in the associated documentation (.HLP files).
The following recommendations for use with ISDN and Windows can be made
to start with on the basis of a benefit-oriented comparison:
26
For Internet ser vice providers offering PPP over ISDN (synchronous PPP
according to RFC 1618), both the ISDN CAPI Port Driver and the NDIS WAN
CAPI Driver are suitable. You should ask your Internet service provider
whether PPP over ISDN protocol is supported.
In the case of Internet ser vice providers not offering PPP over ISDN, it is
normally possible to dial in via the CAPI Port modem PPP asynchronous.
With the ISDN CAPI Port Driver, it is also possible to support special
solutions by way of register settings. You should ask your Internet service
provider. Due to the system design, the NDIS WAN CAPI Driver does not
offer this functionality.
Both drivers are suitable for access to RAS servers and Non-Internet
applications such as MS Money 97 or terminal.
6.3 ISDN Information
The Speedway ISDN PCI Card may be connected to any suitable ISDN
termination. Typically this would be either ISDN2e or BT Highway. Network
Termination Equipment (NTE) will generally have two sockets available for
connection of the cable and either socket can be used.
Your ISDN service may have a number of MSNs (Multiple Subscriber
Numbers) associated and so it will be necessary during the installation phase
of the Speedway ISDN PCI Card to enter the MSN you require to operate with
your PCI Card.
All incoming calls from the ISDN are distinguished not only by their MSN but
also by their service indicator. No such differentiation takes place for calls
coming in from the analogue network, in which case voice, data and fax calls
share the same network service. This is why it is important to specify which
call is to be accepted with MSN by an application module or by an ISDN
telephone. Please refer to the
Speedway! online help for further details.
If you wish to receive faxes as well as data with the Speedway ISDN PCI Card,
you do not need to assign different Multiple Subscriber Numbers to these
applications because
Speedway! fax is responsible for calls with the voice
indicator and Speedway! data for calls with the data indicator. Speedway! fax
and Speedway! answer both use the same ser vice indicator (voice). However,
if you use Speedway! fax at the same time as Speedway! answer, you must
allocate different Multiple Subscriber Numbers to the two modules in order
that incoming calls can be assigned without ambiguity.
TECHNICAL INFORMATION
27
If in doubt about the features and functions of your ISDN service, please
contact your ISDN service provider.
RTTE Directive
This product complies with the Radio and Telecommunications Terminal
Equipment Directive (1999/5/EC).
Please access the Speedway Website for further information about the product
conformance at http://www.speedway.bt.com/.
Note
It is a good idea to view the Readme file on the CD for the latest product
information and installation advice.
TECHNICAL INFORMATION
28
6.4 Product specifications
Hardware Characteristics Industry standard Plug and
Play PCI card
System requirements Pentium processor or greater.
16 MB RAM or greater.
10Mb spare hard drive space
Windows 95, 98, Millennium
Edition (ME), 2000 or NT O.S.
D-Channel Protocol DSS1
B-Channel Protocols X.75.
HDLC transparent.
X.25
ISO 8208 (X.25 DTE-DTE).
T.90
Fax G3
V.120
X.75/V.42
Application Interface CAPI 2.0
NDIS WAN
CAPI Port
Hayes AT
TECHNICAL INFORMATION
29
7. Software Licence
Agreement
THIS LEGAL DOCUMENT IS AN AGREEMENT BETWEEN YOU,THE END-USER, AND
BRITISH TELECOMMUNICATIONS PLC (BT). BEFORE INSTALLING THE SOFTWARE, YOU
SHOULD READ THE TERMS PRINTED BELOW. BY INSTALLING THE SOFTWARE YOU
ARE BOUND BY THE TERMS OF THIS AGREEMENT. IF YOU DO NOT AGREE TO THESE
TERMS, YOU SHOULD RETURN THE CD TOGETHER WITH ANY ITEMS THAT ARE PART
OF THE PRODUCT, SUCH AS MANUALS AND HARDWARE, TO THE PLACE FROM WHICH
YOU OBTAINED THEM, FOR A FULL REFUND.
This End-User Licence Agreement comes with a BT software product (Program(s)) and related
written materials (Documentation). The term Program(s) also includes any upgrades, modified
versions or updates of the Program(s) licensed to you by BT.
BT non-exclusively licenses this copy of the Program(s) to you as the End-User for as long as you
comply with the terms of this licence. You must read this Agreement carefully.
1 The Program(s) and all copyright in them and the copyright in the Documentation are
protected by United Kingdom copyright law and international copyright treaty provisions. This
Licence is not a sale of the Program(s) recorded on the CD or any copyright in them.
2 You may:
SOFTWARE LICENCE
• use the Program(s) on a single machine (this licence covers all users on that machine); or
• remove the Program(s) from one machine and load them onto another; and
• make copies of the Program(s) for the sole purpose of backing-up.
3 You must not:
• use the Program(s) on more than one machine at a time;
• electronically transfer the Program(s) to another machine over a network;
• rent, lease or sub-license the Program(s);
• translate, modify, adapt or create derivative works from the Program(s); or
• reverse engineer, decompile, disassemble, or attempt to do so except as expressly permitted
by and subject to all the conditions laid down by law.
4 You may physically transfer the Program(s) to another person provided the other person
accepts the terms of this Agreement. If you transfer the Program(s) you must at the same time
either:
• transfer all copies of the Program(s) and Documentation to the same person; or
• destroy any copies not transferred, including any updates and previous versions.
30
5 The Program(s), their code, is their structure and all ideas and principles underlying them
are, except where they are in the public domain, the confidential information of BT or its
licensors, and you must not disclose them or use them without permission.
6 DISCLAIMER AND LIMITED WARRANTY
EXCEPT AS EXPRESSLY SET OUT IN THIS AGREEMENT, THE PROGRAM(S) AND
DOCUMENTATION ARE SUPPLIED TO YOU WITHOUT WARRANTY OF ANY KIND. BT
AND ITS SUPPLIERS DO NOT WARRANT, GUARANTEE OR MAKE ANY
REPRESENTATIONS REGARDING THE USE, OR THE RESULTS OF USE, OF THE
PROGRAM(S) OR DOCUMENTATION. BT AND ITS SUPPLIERS MAKE NO WARRANTIES,
EXPRESS OR IMPLIED, AS TO THE SUITABILITY OR FITNESS FOR ANY PARTICULAR
PURPOSE OF THE PROGRAM(S). IN NO EVENT WILL BT OR ITS SUPPLIERS BE LIABLE
TO YOU FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES INCLUDING ANY
LOST PROFITS OR LOST SAVINGS, EVEN IF A BT REPRESENTATIVE HAS BEEN
INFORMED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY
THIRD PARTY.
7 BT warrants to its original Licensee that the CD on which the Program(s) are recorded are
free from defects in materials and workmanship under normal use and ser vice for a period of
90 days from the date of delivery as evidenced by the receipt. BT’s entire liability and your
only remedy under this warranty is, at BT’s option, either: retur n of the purchase price; or
replacement of the CD which is returned to BT postage paid with a copy of the receipt.
This limited warranty does not apply to CDs, which fail as a result of accident, misapplication
or abuse not the fault of BT. If BT replaces CDs, BT will warrant them for the rest of the
original warranty period or 30 days, whichever is the longer.
8 BT has no obligation to support or maintain the Program(s).
SOFTWARE LICENCE
9 BT does not exclude or limit its liability for death or personal injury caused by its own
negligence.
10 This licence shall be construed and governed by English law. If any part of this Agreement is
found void or unenforceable, the balance of the Agreement remains valid and enforceable
according to its terms.
11 This Agreement automatically terminates if you fail to comply with its terms. On termination
you must destroy or irrevocably delete all copies of the Program(s) including modified copies.
12 This Agreement may only be modified in writing signed by a duly authorised representative
of BT.
31
Index
Answering machine 20
BBS systems 20
CAPI Port Driver 25
BT ISDN 25
BT NDIS WAN 26
CD 4
Contents of box 3
Data speed 15-17
Device driver 7
Fax 19
File transfer 19
Helpline 23
Installing
applications 13, 14
INDEX
CAPI Port Driver 13, 14
device driver 7
Speedway ISDN PCI Card 6
Internet access
dynamic address 26
static address 26
64Kbps, Windows 95/98 15
128Kbps, Windows 95/98 15
64Kbps, Windows NT 16
128Kbps, Windows NT 17
Internet Ser vice Provider 20, 21
ISDN
connection 6, 7
file transfer 19
information 27
telephone 20
Licence agreement 30, 31
PC
compatibility 3
memory size 3
requirements 3
PCI Card 6
RAM 3
Specifications 29
Speedway! answer 20
Speedway! data 19
Speedway! fax 19
Speedway! phone 20
Speedway! term 20
System requirements 3, 4
Technical information 25
Telephone 20
Troubleshooting & Support 21-24
Un-install
applications 17, 18
PCI Card 17, 18
Warranty 30
Website 4
Windows
determine version 5
ME 10, 11
NT 12
95 V 4.00.950 7, 8
95 V 4.00.950 a 7, 8
95 V 4.00.950 b 8, 9
98 9, 10
2000 11
32
Offices worldwide
The telecommunications services described in this publication
are subject to availability and may be modified from time to time.
Services and equipment are provided subject to British
Telecommunications plc’s respective standard conditions of contract.
Nothing in this publication forms any part of any contract.
Speedway, Speedway!, BT and the piper logo are registered
trademarks of British Telecommunications plc in the UK.
Microsoft, Windows, and Windows NT are registered trademarks of
the Microsoft Corporation in the United States and other countries.
Adobe and Acrobat are trademarks of Adobe Systems, Inc.
© British Telecommunications plc 2001.
Registered Office: 81 Newgate Street, London EC1A 7AJ.
Registered in England No. 1800000.
BT Speedway ISDN PCI card Issue 3 (4/01). 2
Printed in Germany.
Designed by The Art & Design Par tnership Limited.
CE compliant to RTTE Directive (1999/5/EC).
Loading...
