FALCON 8375
User Manual
44 pgs405.99 Kb0

BT FALCON 8375 User Manual

BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375

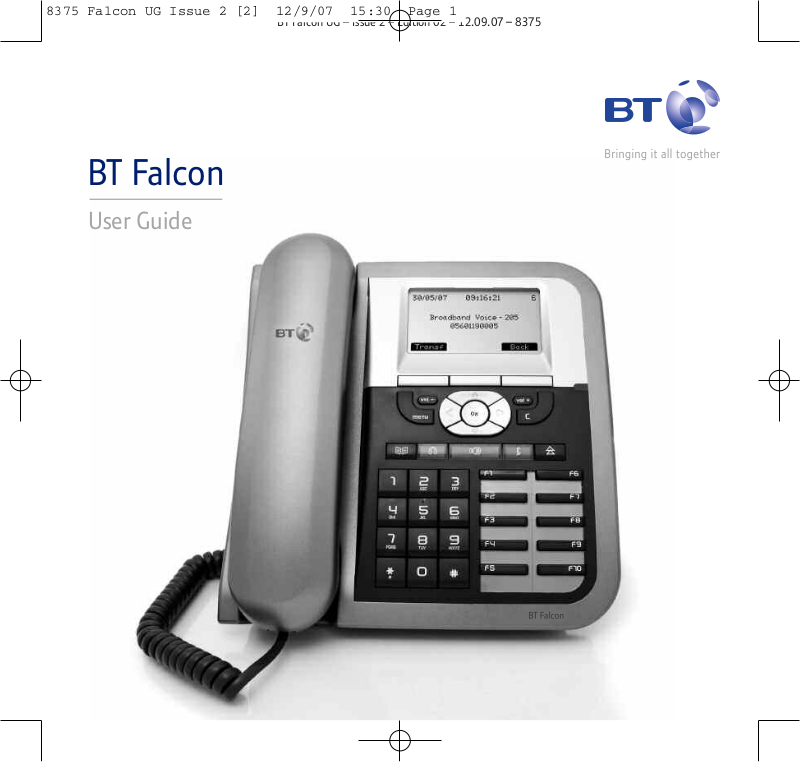

BT Falcon
User Guide
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 1
Section
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
•
6-Line LCD display
•
•
Phone services: Call Forward, Call Transfer, Call Hold, Redial Group listening, Handsfree Speed dial, Conference call Phonebook, Call logs Caller Display
•
Headset port
•
Multiple power options: power over Ethernet 802.3af and ex
ternal power supply adaptor
Welcome…
to your BT Falcon VoIP Telephone
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 2
Section
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
This User Guide provides you with all the information you need to get the most from your phone. You must first set up your phone before you can use it. This doesn’t take long as it is easy to do. Just follow the simple instructions on the next few pages.
Need help?
If you have any problems setting up or using your BT Falcon, contact the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
Emergency Calls – IMPORTANT INFORMATION PLEASE NOTE
Access to Emergency Services is provided but calls including emergency calls to 999 or 112, made via the BT Broadband Voice service may not work in the event of power or broadband connection failure. These failures may be caused by reasons outside our control. Location information, provided to the emergency services, is limited to the location details associated with your primary Business PSTN billing address, this may not be where the call was originated.
Got everything?
• BT Falcon VoIP telephone
• Handset
• Handset cord
• Ethernet cable
• Mains power adaptor
• Desk mounting plinth
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 3
In this guide
4
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
Getting started
Setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connecting the handset. . . . . . . . . . . . . . . . . 6
Connecting a headset . . . . . . . . . . . . . . . . . . 6
Connect stand . . . . . . . . . . . . . . . . . . . . . . . . 6
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting to the network . . . . . . . . . . . . . . 7
Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Getting to know you phone
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
LCD screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Soft keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Indicator definitions. . . . . . . . . . . . . . . . . . . . 14
Entering characters . . . . . . . . . . . . . . . . . . . . 15
Display in idle mode. . . . . . .. . . .. . . .. . . .. 16
Display during a call . . . . . . . . . . . . . . . . . . . . 16
Using the phone
Switch from one mode to another . . . . . . . . 17
Secrecy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Make a call . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Make a call using handsfree . . . . . . . . . . . . . 18
Making a call with the headset . . . . . . . . . . . 18
Entering details into the phone book. . . .. . 19
Making a call using the Phone Book. . . . . . . 20
Making a call to one of the last 30 numbers
you called or received . . . . . . . . . . . . . . . . . . 20
Programming F1 to F10 Function Keys . . . . 21
Making a call using Short Code dialling
(Speed dialling) . . . . . . . . . . . . . . . . . . . . . . . 21
Receiving calls . . . . . . . . . . . . . . . . . . . . . . . . 22
Reject a call . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Missed calls. . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Hold and Retrieve a call . . . . . . . . . . . . . . . . . 24
Call Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3 – Way Conference Call . .. . . .. . . .. . . .. . 26
Dropping one participant from
the Conference call . . . . . . . . . . . . . . . . . . . . 26
Option Menu . . . . . . . . . . . . . . . . . . . . . . . . . 27
Dial Subscribe. . . . . . . . . . . . . . . . . . . . . . . . . 27
Call Waiting. . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Auto Answer . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Auto Reject. . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Auto Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Do Not Disturb . . . . . . . . . . . . . . . . . . . . . . . . 30
Phone Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Calling features. . . . . . . . . . . . . . . . . . . . . . . . 32
Selfcare. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Webcare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Personal settings . . . . . . . . . . . . . . . . . . . . . . 33
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 4
Setting the volume . . . . . . . . . . . . . . . . . . . . 33
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Config menu list . . . . . . . . . . . . . . . . . . . . . . . 34
Changing the ringtone. . . . . . . . . . . . . . . . . . 35
Changing the date format . . . . . . . . . . . . . . . 35
Changing the time format . . . . . . . . . . . . . . . 35
Changing the language . . . . . . . . . . . . . . . . . 35
Changing the keybeep (key echo). . . . . . . . . 36
Turning the alarm on/off . . . . . . . . . . . . . . . . 36
Setting the alarm time. . . . . . . . . . . . . . . . . . 36
Setting the alarm periodically . .. . . .. . . .. . 37
Setting the alarm tone . . . . . . . . . . . . . . . . . . 37
Setting the contrast . . . . . . . . . . . . . . . . . . . . 37
Changing the PIN (password setting) . . . . . . 38
Setting the password to lock the phone. . . . 38
Setting new shortcuts
. . . . . . . . . . . . . . . . . . 39
Programming the memory keys F1 – F10 . . 39
Viewing the status of the BT Falcon . . . . . . . 39
General information
Safety information . . . . . . . . . . . . . . . . . . . . . 40
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Environmental . . . . . . . . . . . . . . . . . . . . . . . . 40
Product disposal instructions . . . . . . . . . . . . 40
Guarantee. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5In this guide
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 5
6
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
Getting started
Setting up
1. Connecting the handset
Connect one end of the handset cord into the handset and the other end into the bottom socket located on the left-hand side of the telephone . Place the handset in the cradle on the telephone.
2. Connecting a headset
If you use a headset, connect the plug into the top socket located on the left-hand side of the telephone . Press the button to activate the headset mode.
3. Connect stand
Attach the stand to the underneath of the telephone by inserting the short tabs into the smaller holes at the back first and then inserting the longer tabs into the larger, front holes.
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 6
7
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
4. Power
Plug the power lead into the socket labelled DC underneath the telephone. Plug the other end into the mains socket and switch on.
If your network supports power over Ethernet (PoE) your BT Falcon can be powered from a powered Ethernet switch via the Ethernet cable. In this case the mains power adapter is not required.
5. Connecting to the network
Ensure your rout
er has power and an internet connection. Connect the Ethernet cable into the socket labelled LAN underneath the telephone and plug the other end into the Ethernet port of the router or Ethernet switch as appropriate.
Getting started
Ethernet cable from
Broadband Router or Ethernet switch
Power lead
You can connect a network device to the Ethernet port, labelled PC, of your BT Falcon
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 7
8
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
6. Provisioning
When the power and Ethernet connections are made to your BT Falcon it will automatically connect to the BT Broadband Voice service. The lights on the phone will flash and the display will show...
Your BT Falcon is registering with the Broadband Voice service, which may take several minutes. When completed successfully the phone will display the idle scr
een.
You are now ready to make calls using your BT Falcon.
Getting started
22/05/07
09:15:21
Provisioning...
Please Wait...
22/05/07
09:15:21
CalLog
Broadband Voice
Telephone Number
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 8
9
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
Getting to know your phone
3 soft keys
Activate the features described
by the text message directly
above on the LCD screen.
Navigation
Use to browse the setting
options, display the last 30
called numbers in standby
mode and to navigate the soft
key options in editing mode.
Menu
Enables access to the menu.
Confirmation key
Phonebook
Enables you to access the
phonebook and view the
names and numbers the user
wants to dial.
Headset
Activat
es headset mode
during a call.
Speaker
Activates/disables handsfree
or group-listing function
and switches the
microphone on/off.
Handset
Makes and receives calls.
Volume + / –
Adjust the volume of the handset, headset, speaker phone, ringer phone.
Clear
Clear characters in editing mode or exit to standby display (long click) or return back to the previous page.
LED
See page 12.
Mut
e
Activates/deactivates mute function.
Redial
Calls the last number dialled.
Memory keys (F1 – F10)
Ar
e used as speed dial keys.
LCD screen
Displays information about the phone settings,
such as the number dialling out or calling in, date,
time, calls status, call duration, timer etc. It is a 6 -line of 20 characters LCD screen.
Dialling pad
Press the dial pad buttons to dial a number. Dial pad buttons work exactly like those on
your existing telephone. In the editing mode,
it can be used to input characters.
Buttons
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 9
10
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
LCD screen
Main display
Getting to know your phone
22/05/07
09:15:21
Transf
TransfTransf
Soft key information
Press the left or right scroll function keys to see additional soft key options
Date Time
Phone unlock
Network status not OK
SIP registration status not OK
SIP registration status OK
Network status OK
Information icons
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 10
Soft keys
Getting to know your phone
SOFT KEY BRIEF DESCRIPTION
A/a/1
Switch between upper/lower/numerical case
Active
Activate option/service
Admin
Enter to administration sub-menu
Answer
Answer an incoming call
AutoAn
Shortcut to “Auto Answer”
Back
Return to previous menu
CalLog
Shortcut to Call log
Cancel
Cancel an action or exit to previous menu without applying changes
Conf
Set-up a conference call
DelChr
Delete character in edit mode
Delete
Delete specific entry
Detail
Show detailed information
Dial
Dial an entered phone number
DNDst
Do Not Disturb
Down
Contrast adjustment
11
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 11
12
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
SOFT KEY BRIEF DESCRIPTION
Dsub
Shortcut to “Dial Subscribe”
EndCal
End active call
Edit
Edit content
Exit
Return to previous menu
Format
Change display format e.g. Date and Time
Hold
Put current call on hold
Lock
Locks the phone to stop outgoing calls
MsCall
Shortcut to missed call list
NewCal
Make a new call
OFF
Set specific service OFF
OK
Confirm setting
ON
Set specific Service ON
Option
Shortcut to phone services
PhBook
Shortcut to phone book
Reject
Call rejected and transferred to 1571 Voice Mailbox
Remove
Remove a conference participant
Save
Save the chosen setting
Getting to know your phone
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 12
SOFT KEY BRIEF DESCRIPTION
Select
Select current item on the screen
Transf
Transfer a call
UnHold
Release a held line
Up
Contrast adjustment
View
View more detailed information
Getting to know your phone 13
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 13
14
BT Falcon UG – Issue 2 – Edition 02 – 12.09.07 – 8375
If you experience any problems, please call the Helpline on 0800 169 1146 or go to www.bt.com/business/broadbandvoice
Indicator definitions
Getting to know your phone
INDICATOR COLOUR CONDITION STATUS
Default Off
Speaker Red During startup On
Speaker on On
Default Off
Headset Red During startup On
Headset on On
Default Off
Mute Red During startup On
Mute on On
Default Off During startup All on
F1–F10 Green Incoming call F1 flashes fast
During a call F1 on Call on hold F1 flashes slow
During startup On During registration to Broadband Voice Flashes fast
or registration lost
Red No connection to network Flashes slow
LED During configuration or firmware download Flashes fast
Reprogramming On
Green Incoming call Flashes slow
Missed call Flashes slow
8375 Falcon UG Issue 2 [2] 12/9/07 15:30 Page 14
Loading...
+ 30 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
