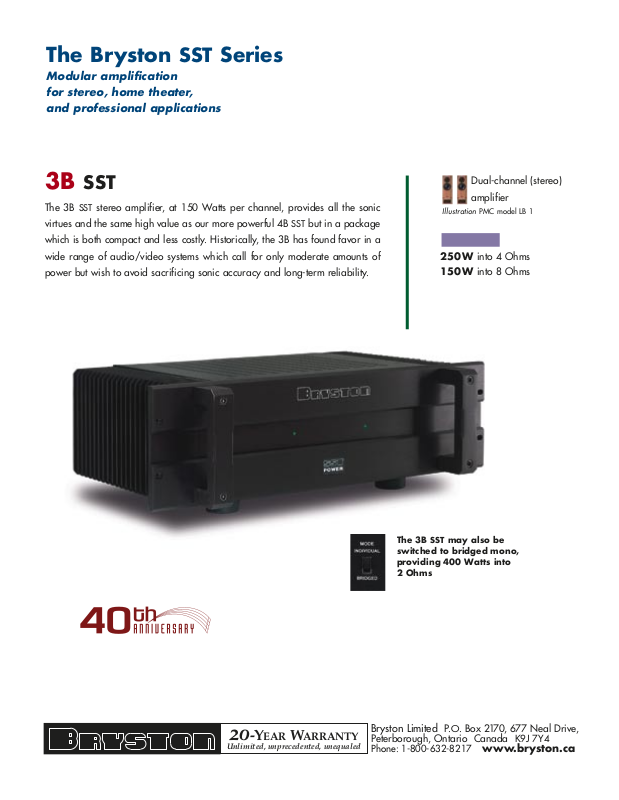

Page 1
The Bryston SST Series
Modular amplification
for stereo, home theater,
and professional applications
3B SST
The 3B SST stereo amplifier, at 150 Watts per channel, provides all the sonic
virtues and the same high value as our more powerful 4B SST but in a package
which is both compact and less costly. Historically, the 3B has found favor in a
wide range of audio/video systems which call for only moderate amounts of
power but wish to avoid sacrificing sonic accuracy and long-term reliability.
Dual-channel (stereo)
amplifier
Illustration PMC model LB 1
250 W into 4 Ohms
150 W into 8 Ohms
20-YEAR WARRANTY
Unlimited, unprecedented, unequaled
The 3B SST may also be
switched to bridged mono,
providing 400 Watts into
2 Ohms
Bryston Limited P.
Peterborough, Ontario Canada K9J 7Y4
Phone: 1-800-632-8217 www.bryston.ca
O
. Box 2170, 677 Neal Drive,
Page 2
The Bryston SST Series
3B SST
FEATURES
• Front panel membrane power switch
• Toggle power switch on rear panel
• No fuses; protected by resettable circuit breaker
• Soft-start circuit on power up
• Modular construction
• Quad-complimentary output stage
• Multiple filter capacitance per channel
• Independent power supply for each channel
• Robust pro audio construction
• Audiophile sound quality
• Selectable external power-up
• Quick-connect remote 12V power trigger input
• Delayed output on trigger
• Selectable gain settings for each channel
• Balanced and single-ended inputs
• XLR or 1/4” phone jack for balanced input
• RCA jack for single-ended inputs
• Channel status LED indicators
• Option of 17” shelf mount or 19” rack mount
• Rack mount version include handles
• Option of silver or black faceplate
• UL, CE, and CSA approved
• Available for 100V, 120V, or 240V power
• 20-Year Unlimited Warranty
Power LEDs on the front panel
indicate each channel’s functional
status — green for power-on, red
for overdrive.
“Electronic” front panel membrane
power switch (no moving parts); rear
panel toggle power switch doubles as
circuit breaker reset (no fuses).
Modular design with
independent power
supplies each with its
own transformer for
precise sound-staging.
Quick-connect 12 Volt trigger
input allow remote on/off
triggering of your amplifier(s).
SST Input flexibility: XLR or 1/4”
phone jack for balanced signals and
RCA jack for single-ended source;
input gain is selectable.
As Bryston makes a great many of the
amplifiers found in professional studios
and concert venues, we make all amplifiers
available in standard 19” rack mount
configuration with handles, as well as the
17” shelf-mount version preferred by many
consumers. Either size aluminum front panel
may be ordered in a silver or black finish.
20-YEAR WARRANTY
Unlimited, unprecedented, unequaled
Bryston Limited P.
O
. Box 2170, 677 Neal Drive,
Peterborough, Ontario Canada K9J 7Y4
Phone: 1-800-632-8217 www.bryston.ca
Page 3
The Bryston SST Series
3B SST Dual-channel (stereo) amplifier
SPECIFICATIONS
Power output 250 Watts per channel into 4 Ohms;
150 Watts per channel into 8 Ohms
Distortion < 0.007% from 20Hz to 20kHz at rated output into 4 Ohms
IM or THD+noise < 0.005% from 20Hz to 20kHz at rated output into 8 Ohms
Gain & Sensitivity 1 Volt setting 29dB; 1.3V
2 Volt setting 23dB; 2.6V
Noise (Measured with input shorted; 20Hz. to 20kHz.)
>110dB below rated output @ 29dB gain (-75dBu)
>113dB below rated output @ 23dB gain (-78dBu)
Slew rate Greater than 60 volts per microsecond
Power bandwidth From less than 1 Hz to over 100 kHz
Damping factor Over 300 at 20 Hz, ref. 8 Ohms
Input Impedance 50kOhms single-ended, 20kOhms balanced
Dimensions
Rack mount version (with handles)
Mounted rack depth
Shelf mount version (without handles)
Approx. weight
19 x 5.25 x 12.5 in.
48.3 x 13.34 x 32 cm
11 in./28 cm
17 x 5.25 x 11 in.
43.2 x 13.3 x 28 cm
40 lbs/18 kg
Power and heat specifications
Max. power consumption
90 Watts at idle
1096 Watts at rated output into
4 or 8 Ohms
Max. heat dissipation
307 BTU/hr. at idle
2057 BTU/hr. at rated output into
4 or 8 Ohms
Canada’s largest independent manufacturer of high-end audio electronics for consumers and professionals. Founded 1962.
