Instructions: Brydge 12.3 - for Microsoft Surface Pro 3 & 4
RUBBER SHIMS / HINGES
1 - IMPORTANT:
Your Brydge 12.3 hinges are set up for the Surface Pro 4
If you have the Surface Pro 3, you will need to replace the rubber shims already
installed, with the extra set of rubber shims in the box
NOTE: If you have a screen protector on your Surface Pro screen, we highly
recommend you remove it prior to attaching the Brydge 12.3 keyboard, to prevent
undue pressure and cracking of your screen when attached to the hinges.
2 - TO REPLACE: Remove the current shims, and ensure the inner-surface of the hinge
is clean and smooth
NOTE: Removing all remaining glue is not essential
3 - Remove tape backing from front and back of new shims, and insert evenly into
hinges
4 - NOTE: Ensure the shim is pressed firmly against the bottom of the hinge beofre
pressing on the front and back
INSERT / REMOVE
5 - Place your Brydge keyboard on a flat surface, insert your Surface Pro into the
hinges with the kickstand closed
6 - Lift your Surface Pro to test the hinge grip. Your Surface Pro and Brydge keyboard
should be held tightly together
7 - If your Surface Pro is loose, remove and give the hinges a gentle squeeze. Repeat
this process until your Surface Pro is held firmly
8 - To remove, put one hand firmly holding your Brydge keyboard against a flat hard
surface. Then grab your Surface Pro and pull straight up
POWER
9 - To manually power on, press and hold Fn + Delete keys. The light will turn green
for 3 seconds to indicate power
NOTE: Once paired, your Brydge will automatically wake upon opening the Surface
Pro. The Delete key will turn green for three seconds to let you know your Brydge is
awake.
10 - To manually power off, press and hold Fn + Delete keys for 3 seconds. The light
will turn red momentarily to indicate it's powered off
NOTE: To conserve battery, your Brydge will enter sleep mode after 20 minutes of
non-use. Press any key to turn back on. Your Brydge will enter sleep mode when both
devices are closed, similar to a laptop
PAIR THE KEYBOARD
11 - To pair, press and hold the Bluetooth key for three seconds.
The Delete key light will flash blue confirming your Brydge keyboard is in pairing
mode
NOTE: If pairing takes longer than one minute, the blue light will stop flashing and
you will need to press the Bluetooth button again
CHARGE
13 - To check battery life, press the battery key. The Delete key will flash three times:
Green = 75-100%
Yellow = 25-74%
Red = 10-24%
14 - When battery is 9% or lower, backlit keys will be disabled and Delete key light
will flash continuously
15 - Insert the supplied Micro USB cable
16 - Charging is confirmed by a solid red light on the Delete key. Your Brydge is fully
charged when the light turns off
NOTE Charging can take up to 3 hours
SSD 128GB STORAGE (Brydge 12.3 Pro 128 model only)
1) Connect the included USB 3.0 cable. One end to the Surface Pro (USB - Type A),
and the other end to the Brydge keyboard (Micro B).
2) Brydge 12.3 Pro 128 appears as an external drive in your file explorer
3) Use as you would any other exernal hard drive
KEYBOARD SHORTCUTS - BRYDGE 12.3
Help = F1
Start = Ctrl + Esc
Task View = Alt + Tab
Undo = Ctrl + Z
Cut = Ctrl + X
Copy = Ctrl + C
Paste = Ctrl + V
Underline = Ctrl + U
Italic = Ctrl + I
Page Up = Fn + Up Arrow
Page Down = Fn + Down Arrow
Home = Fn + Left Arrow
End = Fn + Right Arrow
Backlit Keys
Fn + ctrl
(Press 1-3 times for backlit levels. Press 4 times to turn off)
Language Switch
Win + Spacebar
(Spacebar allows you to toggle through available languages)
Touchpad Diable/Enable
FN + Alt
Hole Fn and tap Alt to disable
Hole Fn and tap Alt again to enable
Switch to Windows 8
Fn + W + 8
(LED Turns Green)
Switch to Windows 10
Fn + W + 0
(LED Turns Blue)
Scroll Direction
Fn + T
(Scroll Up: LED turns blue) (Scroll Down: LED turns green)
Function Key Swap
Fn + Caps
(F1 - F12 Swap)
TRACKPAD FUNCTIONALITY - BRYDGE 12.3
- Left click on left side of trackpad
- Right click on right side of trackpad
- Scroll Direction: to reverse the direction of the trackpad's two finger scroll, press Fn
+ T
NOTE: Any motion of click on the trackpad will wake up your Bydge from sleep mode

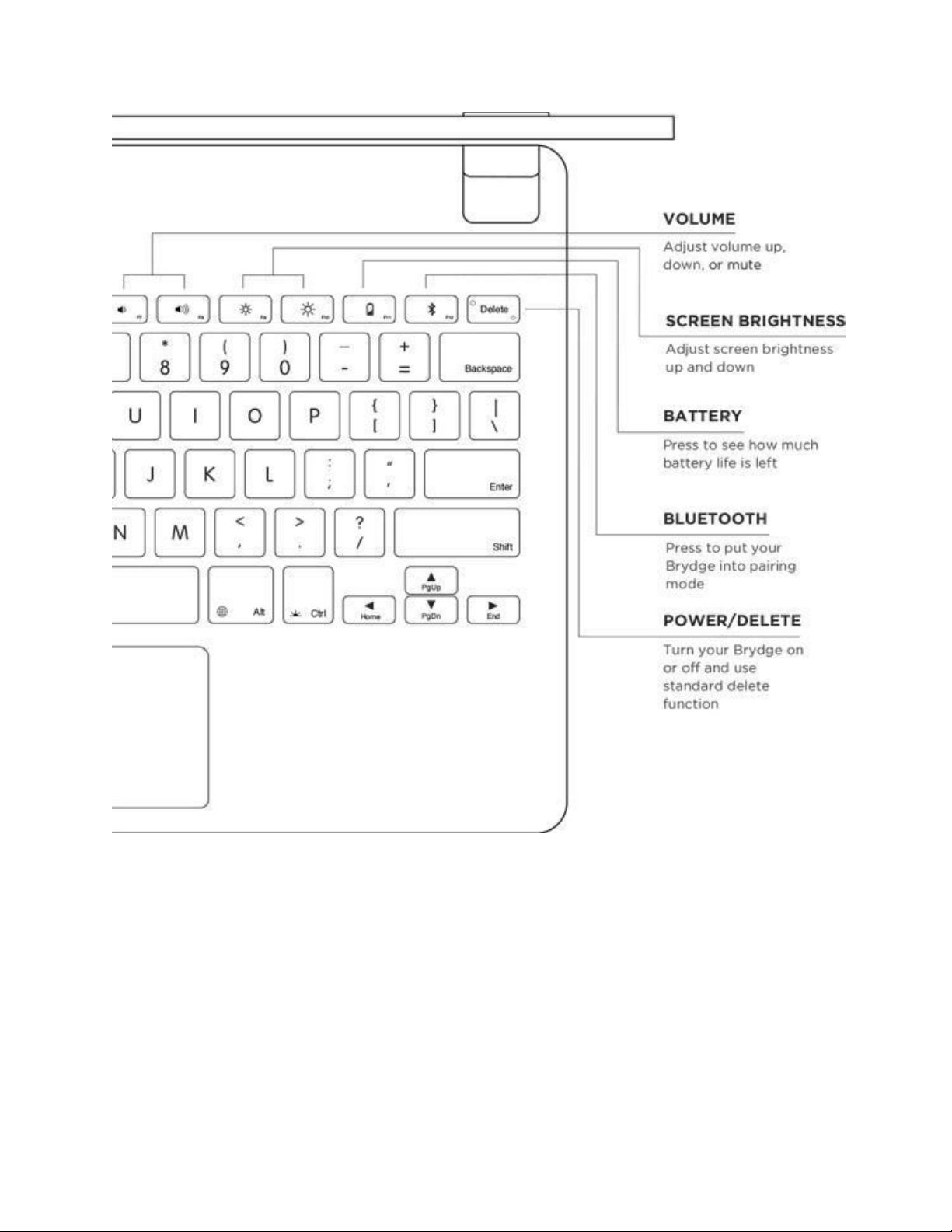

KEYBOARD LAYOUT - BRYDGE 12.3
