T6--PRH, T6--NRH
PREFERREDt SERIES
THERMIDISTAT
Installation Instructions
A07045 A07044
Programmable Control Non--- Programmable Control
NOTE: Read the entire instruction manual before starting the installation.
TABLE OF CONTENTS
PAGE
SAFETY CONSIDERATIONS 2....................................
INTRODUCTION 3..............................................
INSTALLATION CONSIDERATIONS 4..............................
INSTALLATION 8...............................................
SYSTEM START--UP AND CHECKOUT 40..........................
OPERATIONAL INFORMATION 51................................
TROUBLESHOOTING 54.........................................
WIRING DIAGRAMS 58..........................................
THERMIDISTAT CONFIGURATION RECORD 78.....................
SAFETY CONSIDERATIONS
Read and follow manufacturer instructions carefully. Follow all local electrical
codes during installation. All wiring must conform to local and national electrical
codes. Improper wiring or installation may damage Thermidistatt Control.
Recognize safety information. This is the safety--alert symbol
this symbol on the equipment and in the instruction manual, be alert to the
potential for personal injury.
Understand the signal words DANGER, WARNING,andCAUTION.These
words are used with the safety--alert symbol. DANGER identifies the most
serious hazards which will result in severe personal injury or death. WARNING
signifies a hazard which could result in personal injury or death. CAUTION is
used to identify unsafe practices which may result in minor personal injury or
product and property damage. NOTE is used to highlight suggestions which will
result in enhanced installation, reliability, or operation.
. When you see
2
INTRODUCTION
Bryant’s 7--day, 5/2--day, 1--day programmable and non--programmable
Preferred Series Thermidistat Control is a wall--mounted, low--voltage control
which combines temperature and humidity control in either a single unit or a
two--piece unit. In two--piece configuration, the relays are located near the
equipment and a two--wire connection is used between the Display Module and
the Equipment Control Module. Single--piece installation requires more wiring
and results in a higher profile. The Preferred Series Thermidistat has no need for
batteries to store user--configured settings in memory. During power loss its
internal memory saves settings for unlimited time, and the clock continues to run
for at least 24 hours. An extension of Bryant’s proven line of thermostats; it
provides separate setpoints for heating and cooling in addition to humidification
and dehumidification.
In the Preferred Series Thermidistat Control’s programmable configuration,
different heating and cooling setpoints and times are programmable for 4 periods
per day or 2 periods per day. Programming can be done for 7 days per week, 5/2
days per week, or 1 day. The programmable Thermidistat Control can also be
user configured as a non--programmable Thermidistat Control. When operating
as non--programmable, the Thermidistat Control will still have both temperature
and humidity control.
The non--programmable Thermidistat Control features Touch ’N’ Got settings
for quick and easy temperature change without complicated programming
schedules. The non--programmable Thermidistat Control will still have both
temperature and humidity control. And, its Touch ’N’ Go technology enables the
user to switch between three different user--configurable settings through
intuitive buttons located just below the display.
3
INSTALLATION CONSIDERATIONS
Power
This control is powered by 24VAC only. It requires 24VAC (Rh and/or Rc and C
terminals) of the low--voltage transformer to be connected to it for proper
operation. It will not operate without these 2 connections. Rh and Rc are
connected via PCB breakout jumper. See Fig. 1. For applications using two
24VAC transformers, one in the indoor unit and one in the outdoor unit, connect
the common from each to the C terminal. Connect R from the indoor unit to the
Rh terminal. Connect R from the outdoor unit to the Rc terminal. Then, break
jumper on the circuit board. The W and HUM signals are taken from the Rh
power and the G signal is taken from the Rc power. If Thermidistat Control has
been installed in a two--transformer application that is later changed to a
single--transformer installation, installer must install a field supplied jumper
between Rc and Rh. Depending on the installation, up to 14 wires may be
required. Installation as two--piece unit is recommended. Only 2 wires are
required for connection between Display Module and Equipment Control
Module. These two wires (V+ and Vg) do not provide ordinary 24VAC. They
carry a combination of power and communications data that is unique to these
products.
4
A07052
Fig. 1 -- PCB Breakout Jumper
Models
There are programmable and non--programmable models for all applications.
They can be configured for AC or HP, 1--or 2--speed compressor, and for Hybrid
Heatt installations, allowing it to be used in place of all Bryant thermostats.
Programmable Thermidistat Controls may be configured as non--programmable
if user desires.
Humidify Equipment and Connections
The humidify output connects directly to 24VAC operated humidifiers. No other
connection or interlock is required. Any of several installer--selectable operating
modes are available.
5
!
ELECTRICAL OPERATION HAZARD
Failure to follow this warning could result in personal injury or death.
DO NOT connect furnace HUM terminal directly to Thermidistat Control
HUM terminal. This will bypass furnace safety controls. See Low Voltage
Wiring Diagrams and notes for proper connection.
WARNING
Dehumidify Equipment and Connections
The dry contact output connects to the dehumidify input on variable--speed
furnaces and fan coils. Additional dehumidification is done by controlling the
compressor. A variety of operating modes are available. The dry contact must be
configured for dehumidification in setup Option 19. See Wiring Diagrams for
more information.
Outdoor Temperature Sensor
Outdoor air temperature sensor is included in the box with the Thermidistat
Control. Optimum performance is obtained when an outdoor temperature sensor
is used with the Thermidistat Control. Plan installation so that 2 wires can be run
from Equipment Control Module to an outdoor location, preferably on the north
side of the house or refer to Installation Instructions included with the outdoor
temperature sensor for simplified connection. Sensor can be mounted to outdoor
unit and existing control wires may be used for its connection. Details are
provided in sensor instructions.
6
Remote Indoor Temperature Sensor
A remote temperature sensor may be used with the programmable model, where
it is desirable to install the Thermidistat Control in a limited access location while
measuring the temperature in the living space. The remote room sensor may be
used as a stand alone or average with local sensor.
Two--Piece Thermidistat Configuration
The Preferred Series Thermidistat Control can be installed in one of two
configurations. The control may be installed as a single--piece Thermidistat or it
may be split into two pieces and mounted in separate locations. As a single--piece
unit, all required wiring must be brought to the Equipment Control Module for
connection to the terminal strip. In two--piece configuration, the Display Module
can be mounted in the living space while the Equipment Control Module may be
mounted near the indoor furnace or fan coil. Connection from the display to the
Equipment Control Module requires only two wires. All other control wires are
connected to the Equipment Control Module from the HVAC equipment. This
configuration results in a slimmer display and locates the Equipment Control
Module containing the switching relays away from the main living space where
relay clicking will not be heard.
7
INSTALLATION
Carton contains the following components. See Fig. 2 for T6--PRH or Fig. 3 for
T6-- NRH.
A07752
Fig. 2 -- T6--PRH Carton Contents
1. Display Module
2. Stand--off for Equipment Control Module
3. Outside Air Temperature Sensor, screws and pigtail.
4. Equipment Control Module
8
Fig. 3 -- T6--NRH Carton Contents
1. Display Module
2. Stand--off for Equipment Control Module
3. Outside Air Temperature Sensor, screws and pigtail.
4. Equipment Control Module
Thermidistat Control Location
Thermidistat Control should be mounted:
S Approximately 5 ft (1.5m) from floor.
S Close to or in a frequently used room, preferably on an inside parti-
tioning wall.
S On a section of wall without pipes or duct work.
Thermidistat Control should NOT be mounted:
S Close to a window, on an outside wall, or next to a door leading to the
outside.
9
A07753
S Exposed to direct light or heat from a lamp, sun, fireplace, or other
temperature--radiating objects which could cause a false reading.
S Close to or in direct airflow from supply registers and return--air regis-
ters.
S In areas with poor air circulation, such as behind a door or in an al-
cove.
Installer should determine whether control will be installed as single--piece or
two--piece. In single-- piece configuration, as many as 14 wires may need to run
to wall mounting location for connection to the control. In two--piece
configuration, the Display Module and Equipment Control Module are
connected by two wires.
Install Ther midistat Control
!
WARNING
ELECTRICAL OPERATION HAZARD
Failure to follow this warning could result in personal injury
or death.
Before installing Thermidistat Control, turn off all power to
equipment. There may be more than 1 power disconnect.
10
!
CAUTION
UNIT DAMAGE HAZARD
Failure to follow this caution may result in equipment damage
or improper operation.
Improper wiring or installation may damage Thermidistat
Control. Check to make sure wiring is correct before
proceeding with installation or turning on power.
1. Turn off all power to equipment.
2. If an existing Thermidistat Control is being replaced
a. Remove existing control from wall.
b. Disconnect wires from existing control, 1 at a time.
c. As each wire is disconnected, record wire color and terminal marking.
d. New or additional wire may be needed to accommodate added hu-
midity outputs.
e. Discard or recycle old control.
11
!
CAUTION
ENVIRONMENTAL HAZARD
Failure to follow this caution may result in environmental
damage.
Mercury is a hazardous waste. Federal regulations require that
Mercury be disposed of properly.
Two--Piece Installation
The following steps should be followed for the installation of the two--piece
configuration.
NOTE: The 2--wire pigtail is not intended to support the weight of the User
Interface. Do not hang the User Interface from the Equipment Control Module
screw terminals.
1. Remove mounting plate from back of Display Module by pressing the
two tabs on the bottom edge and pulling away. See Fig. 4 and 5.
12
Fig. 4 -- Press Tabs to Remove Backplate
Fig. 5 -- Take Apart
13
A07225
A07226
2. Route wires through large hole in mounting base. Level mounting base
against wall (for aesthetic value only—Display Module need not be leveled for proper operation) and mark wall through 2 mounting holes. See
Fig. 6.
A07165
Fig. 6 -- Backplate Mounting
3. Drill two 3/16--in. mounting holes in wall where marked. Thermidistat
may be mounted to a standard junction box, if desired. Hole pattern on
Thermidistat Control mounting base matches junction box mounting
holes.
4. Secure rear plastic mounting base to wall with 2 screws and anchors provided. Additional mounting holes are available for more secure mounting
if needed. Make sure all wires extend through hole in mounting base.
5. Adjust length and routing of each wire to reach proper connector block
and terminal on mounting base with 1/4-- in. extra wire.
14
6. Match and connect equipment wires to proper terminals of each connector
block, being careful not to over tighten the screws. Correct polarity must
be observed when connecting the two wires from the Equipment Control
Module to the Thermidistat Control mounting base. If wires are connected incorrectly, the Display Module will not operate. See Fig. 7, 8 and
9.
OAT /
OAT /
RRS
RRS
return
return
dry
dry
contact
contact
connect
connect
to user
to user
interface
interface
{
{
SRTN
SRTN
Control Module Wiring Guide
Control Module Wiring Guide
OAT
OAT
RRS
RRS
HUM
HUM
D1
D1
D2
D2
V+
V+
Vg
Vg
Rc
Rc
Rh
Rh
W / W1
W / W1
G
G
Y/Y2
Y/Y2
C
C
O/W2/B
O/W2/B
Y1
Y1
Y1 used for
Y1 used for
multi-speed
multi-speed
cooling
cooling
Y1 = stage 1
Y1 = stage 1
Y2 = stage 2
Y2 = stage 2
Relays
Relays
Y used for
Y used for
single stage
single stage
cooling
cooling
Fig. 7 -- Control Module Wiring Guide
S Red is V+
S Black is Vg
A07687
15
Fig. 8 -- Secure Wires to Terminal Strip
Fig. 9 -- Connect Pigtail Wires to Display Module
16
A07166
A07167
NOTE: The 2--wire pigtail is not intended to support the weight of the User
Interface. Do not hang the User Interface from the Equipment Control Module
screw terminals.
S Red of the pigtail is V+
S Black of the pigtail is Vg
7. Push any excess wire into wall and against mounting base. Seal hole in
wall to prevent air leaks. Leaks can affect operation and cause incorrect
temperature and/or humidity measurement.
8. Make sure 2--wire pigtail is attached to Display Module mounting base.
This should come attached from the factory. Attach two--wire pigtail to
the back of the Display Module via 2 pin, keyed connector.
9. Reattach Display Module body to mounting base by first setting on at top
of mounting base and then push bottom corners of Display Module to
snap into place. See Fig. 10.
A07169
Fig. 10 -- Attach Display to Backplate
17
10. Find suitable indoor mounting location for Equipment Control Module,
either near or on equipment. See Fig. 11.
IMPORTANT NOTE: Equipment Control Module should not be mounted
to duct work or below any other controls or equipment (i.e. humidistat,
humidifier, etc.).
A07217
Fig. 11 -- Equipment Control Module on Equipment
11. Route wires through rear of Equipment Control Module using either a
clearance hole or supplied standoff. See Fig. 12.
18
A07227
Fig. 12 -- Standoff
12. Match and connect equipment wires to proper terminals of each connector
block being careful not to over tighten the screws. Correct polarity must
be observed when connecting the two wires from the Equipment Control
Module to the Thermidistat Control mounting base. If wires are connected incorrectly, the Display Module will not operate. See Fig. 7, 8 and
9.
13. Snap cover over top of Equipment Control Module. See Fig. 13.
19
A07218
Fig. 13 -- Cover on Equipment Control Module
14. Turn on power to equipment. On power up, all display segments will
light for 5 sec. For the next 5 sec a 2--digit code appears on large display
which identifies Thermidistat Control configuration. Refer to Option 33.
a. AC — 1--stage air conditioner
b. HP — 1--stage heat pump
c. A2 — 2-- stage air conditioner
d. H2 — 2--stage heat pump
e. hh — Hybrid Heat system with 1--stage heat pump
f. h2 — Hybrid Heat system with 2--stage heat pump
g. H — heating only system
h. C — cooling only system
20
Single--Piece Installation
The following steps should be followed for the installation of the single--piece
configuration.
1. Remove cover from Equipment Control Module by pressing the two tabs
on the bottom edge and pulling away. Route wires through large hole in
Equipment Control Module. Level Equipment Control Module against
wall (for aesthetic value only -- Equipment Control Module need not be
leveled for proper operation) and mark wall through 2 mounting holes.
2. Drill two 3/16--in. mounting holes in wall where marked. Thermidistat
Control may be mounted to a standard junction box if desired. Hole pattern on Equipment Control Module matches junction box mounting
holes.
3. Secure rear plastic Equipment Control Module to wall with 2 screws and
anchors provided. Additional mounting holes are available for more secure mounting if needed. Make sure all wires extend through hole in
Equipment Control Module.
4. Adjust length and routing of each wire to reach proper connector block
and terminal on Equipment Control Module with 1/4--in. extra length.
See Fig. 14.
21
A07219
Fig. 14 -- Equipment Control Module
5. Match and connect equipment wires to proper terminals of each connector
block.
6. Push any excess wire into wall and against Equipment Control Module.
Seal hole in wall to prevent air leaks. Leaks can affect operation and cause
incorrect temperature and/or humidity measurement.
7. Remove 2-- wire pigtail from Thermidistat Control mounting base and attach to Equipment Control Module terminal block (terminals V+ and
Vg). Attach two-- wire pigtail to the back of the Display Module via 2 pin,
keyed connector.
8. Reattach Display Module body to Equipment Control Module by first
setting on at top and then push bottom corners to snap into place. See Fig.
15.
22
A07221
Fig. 15 -- Reattach Display Module
9. Turn on power to equipment. On power up, all display segments will
light for 5 sec. For the next 5 sec a 2--digit code appears on large display
which identifies Thermidistat Control configuration. Refer to Option 33.
a. AC — 1--stage air conditioner
b. HP — 1--stage heat pump
c. A2 — 2-- stage air conditioner
d. H2 — 2--stage heat pump
e. hh — Hybrid Heat system with 1--stage heat pump
f. h2 — Hybrid Heat system with 2--stage heat pump
g. H — heating only system
h. C — cooling only system
23
Set Thermidistat Control Configuration
Configuration options enable the installer to configure the Thermidistat Control
for a particular installation. Most are not presented to the homeowner and
therefore must be properly set by the installer. (Only those marked with an
asterisk * below are available to the homeowner.) The homeowner
configurations are described in the owner’s manual. A special procedure allows
entry into the configuration mode. While in configuration mode, up to 33
selections can be made. Description of each selection and how to use the
configuration mode follows.
CONFIGURATION OPTIONS -- SUMMARY
Option 01 — Equipment Type
Option 02 — Clean Filter Timer Adjustment
Option 03* — Fahrenheit/Centigrade Selection
Option 04 — Fan (G) on with W/W1 Selection
Option 05 — Room Air Temperature Sensing (programmable
models only)
Option 06 — Cooling Lockout Below 55_F Selection (only
available if outdoor air sensor is present)
Option 07 — Zoning
Option 08 — Auxiliary Heat Lockout Temperature Setting (only
available when heat pump is used and when
outdoor air temperature sensor is present)
Option 09 — Heat Pump Lockout Temperature
Option 10 — Reversing Valve
24
Option 11 — Adjustable Setpoint Deadband (not available on
heat only and cool only systems)
Option 12 — Smart Recovery (programmable models only)
Option 13 — Room Temperature Offset Adjustment
Option 14 — Humidity Offset Adjustment
Option 15 — Enable Auto Mode
Option 16 — Cycles Per Hour
Option 17 — Time Between Stages
Option 18* — Backlight Configuration
Option 19 — Dry Contact
Option 20 — Outdoor Air Temperature Offset Adjustment
Option 21* — Keypad Lockout
Option 22 — High Cool Latch Temperature
Option 23 — High Heat Latch Temperature
Option 24* — Programmable/Non--Programmable
(programmable models only)
Option 25* — Number of Programmable Periods per Day
(programmable models only)
Option 26 — Minimum Cooling Setpoint
Option 27 — Maximum heating Setpoint
Option 28 — UV Light Reminder
Option 29 — Humidifier Pad Reminder
Option 30* — Programmable Fan (programmable models only)
25
Option 31* — Daylight Savings Time Configuration
(programmable models only)
Option 32 — Furnace Heat Staging
Option 33 — Single or Two--Piece Installation
Option 99 — Reset to Factory Defaults
TO ENTER CONFIGURATION MODE
Press and hold FAN button for approximately 10 sec. The Display Module is
now in configuration mode. It will automatically exit this mode if no button is
pressed for 3 minutes. Pressing the DONE button will exit configuration mod e
immediately.
WHILE IN CONFIGURATION MODE
The option number is displayed in the heat setpoint location and the
configuration setting is displayed in the cool setpoint location. On the T6 -- PRH
(programmable) model, a box will surround the option number. The mode
button is used to move the box between the two displayed values. The soft keys
below the listed values may also be used to move the box between selected
values. The value inside the box is changed by using the UP/DOWN buttons. On
the T6--NRH (non--programmable) model, one of the values will be flashing.
The mode button is used to change which value is flashing or the Home and
Sleep buttons may also be used to select which value to flash. The value that is
flashing is changed by using the UP/DOWN buttons. All changes made are
saved at the time of selection and will be saved in the event of the 3 minute
time-- out or when installer exits from configuration menu.
Configuration Options —Selection
Option 01 — Equipment Type
Range: H2, A2, HP, AC, hh, h2, H, C
26
H2 — operates a two--speed heat pump with a fan coil
HP — operates a single--speed heat pump with a fan coil
A2 — operates a two--speed AC
AC — operates a single--speed AC
hh — operates a single--speed heat pump with a furnace
h2 — operates a two--speed heat pump with a furnace
H — operates a heat--only system. Furnace or fan coil only;
no outdoor unit.
C — operates a cool only--system. Outdoor AC unit with an
indoor fan coil with no strip heaters.
Default is H2.
Option 02 — Clean Filter Timer
Select hours of blower operation (heating, cooling, or fan) before CHECK
FILTER icon is displayed. With OF selected, icon will never come on, disabling
this feature. Time selection can range from 800 to 7200 hr by selecting numbers
1 through 9. (Time is 800 X number selected.) Default is 4 (3200 hr).
Recommended selections are disposable filter--800 to 2400 hr, media filter--2400
to 3200 hr, or electronic air cleaner--1600 to 2400 hr of blower operation. For
higher efficiency filters, please consult filter’s Installation Instruction for details.
Option 03 — Fahrenheit/Centigrade
Select between Fahrenheit (F) and Centigrade (C) operation. Factory default is
Fahrenheit (F).
Option 04 — Fan (G) On With W/W1
This selection determines whether fan (G) output is to be On or OFF when any
W/W1 (furnace or strip heat) output is On. Most furnaces and fan coils manage
27
their own blowers and do not require separate G signal. For these applications,
select OFF. Some auxiliary heaters require separate G signal to turn on blower. In
this case, select On.
Default is OF (off).
Option 05 — Room Air Temperature Sensing (programmable models only)
This selection determines which sensor the control will use for measuring room
air temperature. Room air temperature can be sensed in one of three ways; the
local sensor (L) located on the Display Module, the remote room air sensor (r),
or the average of local and remote sensors (Lr). Settings are L, r, Lr.
Default is L.
Option 06 — Cooling Lockout Below 55_F
This selection disables cooling when outdoor temperature is below 55_F. I t
requires an outdoor temperature sensor. Setting is not available if valid outdoor
sensor is not connected. Set to OF (off) to allow cooling below 55_F. Set to O n
to prevent cooling below 55_F.
Factory default is OF (off).
Option 07 — Zoning
This selection should be set to On when the Thermidistat Control is to be used as
part of a zoning system. It is assumed that the zoning equipment will take care of
time guard and cycle timers. The minimum On time is still controlled by the
Thermidistat Control.
Default is OF (off).
Option 08 — Auxiliary Heat Lockout Temperature
This selection is available on heat pump systems with a valid outdoor
temperature sensor connected. Available settings are: Off, 5, 10, 15, 20, 25, 30,
35, 40, 45, 50, 55.
28
OF (off) -- function is disabled. Auxiliary heat is allowed to operate whenever
sufficient demand for heat is available.
5--55_F -- Outdoor temperature above which the auxiliary heat is not allowed to
operate (unless MODE is set to Emergency Heat).
Default is OF (off).
Option 09 — Heat Pump Lockout Temperature
This selection is only available on Hybrid Heat systems. A Hybrid Heat system
is selected via the Option 1 Equipment Type configuration. Configurations
settings are: OF (off), 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55.
OF (off) — the heating cycle will always start with heat pump heating.
5--55_F — the outdoor temperature below which heat pump operation is not
allowed.
When emergency heat mode is selected only auxiliary heat will operate.
Default is OF (off).
Option 10 — Reversing Valve
This selection is only available on heat pump systems. “O” terminal can be
configured to be energized in either heating mode or in cooling mode, depending
on heat pump operation. “O” is used to describe a heat pump system that
energizes its reversing valve in cooling. “B” is used to describe a heat pump
system that energized its reversing valve in heating.
H — Reversing valve output (O/W2/B) is energized when HEAT mode is
selected.
C — Reversing valve output (O/W2/B) is energized when COOL mode is
selected.
Default is C.
29
Option 11 — Deadband Setting Between Heat & Cool
This option is not available on Heat Only and Cool Only systems. The selection
allows the installer to choose how much differential exists between the heating
and cooling setpoints. Allowable selections are 1-- 6.
Default is 2.
Option 12 — Smart Recovery
Smart Recovery OF (off) means setpoints change precisely at setback recovery
time. Thirty, 60, or 90 selects the number of minutes recovery starts before
programmed recovery time. Recovery takes place smoothly during the selected
recovery time, ending at the recovery time and temperature which is
programmed. Not available with non-- programmable Thermidistat Controls or
when Thermidistat Control is configured as non--programmable.
Default is 90.
Option 13 — Room Air T emperature Offset Adjust
The number of _F to be added to the displayed temperature to calibrate or
deliberately miscalibrate the measured room temperature ( --5 to +5_F).
Default is 0.
Option 14 — Humidity Display Offset Adjust
The percentage to be added to the displayed humidity to calibrate or deliberately
miscalibrate the measured room humidity (--9% to +9% RH).
Default is 0.
Option 15 — Enable Auto Mode
This selection is not available if the Thermidistat Control is configured as Heat
Only or Cool Only in Option 1. This allows the homeowner to select auto
changeover mode in addition to heat and cool. This allows the Thermidistat
30
Control to automatically change between heating mode and cooling mode when
sufficient demand for heating or cooling exists.
On — Auto mode is available.
OF — Auto mode is not available.
Default is On.
Option 16 — Maximum Cycles Per Hour
This selection limits the number of cycles per hour that the Thermidistat Control
allows the system to operate. Selections are 2, 4, 6.
2 — The heating and cooling outputs will be energized no more than 2 times per
hour. When an output is energized, it will not be energized again for 30 minutes.
4 — The heating and cooling outputs will be energized no more than 4 times per
hour. When an output is energized, it will not be energized again for 15 minutes.
6 — The heating and cooling outputs will be energized no more than 6 times per
hour. When an output is energized, it will not be energized again for 10 minutes.
Default is 4.
Option 17 — Time Between Equipment Stages
This selection is only available for heat pump systems. This determines the
minimum number of minutes of equipment operation on the highest compressor
stage before allowing the transition to auxiliary heat. Available selections are 10,
15, 20, and 25. The time between stages of any individual piece of equipment,
such as low speed and high speed compressor or fan coil stages, will be fixed at
10 minutes.
Default is 15.
31
Option 18 — Backlight Configuration
When OF (off), the backlight will be lit for 10 seconds after a button is pressed.
After 10 seconds of no button presses, the backlight turns off. When On, the
backlight will normally be on and dim in appearance. The backlight brightness
becomes brighter when a button is pressed. After 10 seconds of no button
presses, the backlight will return to the dimmer level until another button press
occurs. The range of brightness is 1 through 5 with 5 being full brightness.
Default is 3.
Option 19 — Dry Contact Configuration (programmable models only)
There are 3 available selections, OF, 1 and 2.
OF — The dry contact is always de--energized.
1 — The dry contact will be energized for the specified number of minutes per
hour. This selection is programmable by period. When this selection is changed
from OF to 1, the period icons are shown and the minute segments of the clock
display are shown. The triangle icon next to the WAKE period will be on and a
value between 0 and 60 will be shown in the minutes display. See Operational
Information and Wiring Diagrams for further explanation of dry contact
configuration and use. To change the period or minutes, press the soft key below
the period or minutes and then use the UP/DOWN buttons to change to the
desired value.
2 — The dry contact will operate as a DEHUM relay. This relay is reverse logic.
When the humidity level is above the dehumidify setpoint, the dry contact
D1--D2 will be opened. When the humidity level is below the dehumidify
setpoint, D1--D2 will be closed. There is a +/-- 2% hysteresis around the
dehumidify setpoint to prevent rapid on/off cycling of the DEHUM output.
When configured for dehumidification, the Rc terminal must be connected to
one of the dry contact terminals. This provides power to energize the dehumidify
32
terminal on the cooling equipment when the dry contact is closed. See Wiring
Diagrams for more information.
Default is OF (off).
Option 19 — Dry Contact Configuration (non--programmable models only)
OF — The dry contact is always de--energized.
ON — The dry contact will operate as a DEHUM relay. This relay is reverse
logic. When the humidity level is above the dehumidify setpoint, the dry contact
D1--D2 will be opened. When the humidity level is below the dehumidify
setpoint, D1--D2 will be closed. There is a +/-- 2% hysteresis around the
dehumidify setpoint to prevent rapid on/off cycling of the DEHUM output.
When configured for dehumidification, the Rc terminal must be connected to
one of the dry contact terminals. This provides power to energize the dehumidify
terminal on the cooling equipment when the dry contact is closed. See Wiring
Diagrams for more information.
Default is OF (off).
Option 20 — Outdoor Air Temperature Offset Adjustment
This selection allows the calibration, or deliberate miscalibration of the outdoor
air temperature sensor reading. The selection ranges from --5 to +5_F.
Default is 0.
Option 21 — Keypad Lockout (programmable models only)
This selection allows the installer to limit access to the keypad. Selections are OF
(off), 1, 2, 3.
OF (off) — The user has full access to the keypad.
1 — The user has access to modify setpoints, time of day.
2 — The user has access to change the setpoints only.
33
3 — The entire keypad is locked. When a button is pressed, the backlight will
turn on but none of the operating parameters will be changed.
When the keypad lock selection is turned on, the padlock icon will be displayed.
To unlock the keypad, press and hold the UP/DOWN buttons simultaneously for
five seconds. When the keypad is unlocked, the padlock icon will turn off. The
keypad will remain unlocked for two minutes after the last button press. After
two minutes with no button presses, the keypad will lock again. The keypad will
not lock in the software configuration mode or in the installer test mode.
Default is OF (off).
Option 21 — Keypad Lockout (non--programmable models only)
This selection allows the installer to limit access to the keypad. Selections are OF
(off), 1, 2.
OF (off) — The user has full access to the keypad.
1 — The user has access to change the setpoints.
2 — The entire keypad is locked. When a button is pressed, the backlight will
turn on but none of the operating parameters will be changed.
When the keypad lock selection is turned on, the padlock icon will be displayed.
To unlock the keypad, press and hold the UP/DOWN buttons simultaneously for
five seconds. When the keypad is unlocked, the padlock icon will turn off. The
keypad will remain unlocked for two minutes after the last button press. After
two minutes with no button presses, the keypad will lock again. The keypad will
not lock in the software configuration mode or in the installer test mode.
Default is OF (off).
34
Option 22 — High Cool Latch Temperature
An outdoor sensor is required for high cool latch feature.
This selection is only available when Option 1 is set to H2, A2, or h2 and when
Option 7 (zoning) is set to OF (off). Configuration settings are OF (off), 80, 85,
90, 95, 100, 105, 110, On.
OF (off) — Cooling always starts in low stage (Y1) and stages up to high stage
(Y1 and Y/Y2) when demand is sufficient and staging timer constraints have
been satisfied.
80--110_F — Outdoor temperature above which both first and second stages of
the compressor are energized to satisfy all cooling demands. When a cycle starts
under a high cool latch, it will finish the cooling cycle on high stage. If the
cooling equipment is energized to satisfy a dehumidify demand only (no cooling
demand), the latch will not be applied.
On — The Y1 and Y/Y2 outputs are simultaneously energized to satisfy all
cooling demands.
Default is OF (off).
Option 23 — High Heat Latch Temperature
This selection is only available when Option 1 is set to H2, or h2 and Option 7
(zoning) is set to OF (off). Configuration settings are OF (off), 20, 25, 30, 35, 40,
45, 50, On.
OF (off) —Heating always starts in low stage (Y1) and stages up to high stage
(Y1 and Y/Y2) when demand is sufficient and staging timer constraints have
been satisfied.
20--50_F — Outdoor temperature below which both first and second stages of
the compressor are energized to satisfy all heating demands. When a cycle starts
under a high heat latch, it will finish the heating cycle on high stage.
35
On — The Y1 and Y/Y2 outputs are simultaneously energized to satisfy all
heating demands.
Default is OF (off).
Option 24 — Programmable/Non--Programmable (programmable models
only)
This selection allows the installer to configure the Thermidistat Control as either
programmable or non-- programmable. Selections are P, nP.
Default is P.
Option 25 — Number of Programmable Periods (programmable models
only)
This selection allows the installer to configure the Thermidistat Control for two
or four periods per day. Two periods is a common commercial application and
four periods is more common for residential. This selection is not available if
Option 24 has been set to nP to configure the Thermidistat Control for
non--programmable operation.
2 — Periods DAY and SLEEP are available
4 — Periods WAKE, DAY, EVE, and SLEEP are available.
Default is 4.
Option 26 — Minimum Cooling Setpoint
This selection allows the installer to configure the minimum cooling setpoint that
the user is allowed to set. The range is based on the value of the adjustable
deadband Option 11, such that the minimum of the range is 50_Fplusthe
adjustable deadband and the maximum is 90_F.
Default is 52_F (based on the adjustable deadband default = 2).
36
Option 27 — Maximum Heating Setpoint
This selection allows the installer to configure the maximum heating setpoint.
The range is based on the adjustable deadband value Option 11, such that the
minimum of the range is 50_F and the maximum is 90_F minus the deadband.
Default is 88_F (based on the adjustable deadband default = 2).
Option 28 — UV Light Reminder
This selection allows the installer to select the number of months after which the
UV Light icon will be displayed to indicate to the homeowner that it is time to
call the dealer to have the UV Lights replaced. Selections available are OF (off),
6, 12, 18, 24, 30, 36, 42, 48.
OF (off) — The UV Light reminder is turned off and will never be displayed.
6--48 — The number of months after which the UV Light reminder will be
displayed, “CHECK UV LIGHT”.
Default is OF (off).
Option 29 — Humidifier Pad Reminder
This selects the number of months after which the Humidifier Pad Reminder
icon will be displayed. This is not based on run time.
OF (off) — The Humidifier Pad Reminder is disabled and will never be
displayed.
1--24 — The number of months after which the Humidifier Pad Reminder icon
will be displayed, “CHECK HUM PAD”.
Default is OF (off).
37
Option 30 — Programmable Fan (programmable models only)
This selection allows the homeowner to program the fan selection to “Auto” or
“On” fan operation for each of the program schedule periods. This selection is
only available on programmable Thermidistat Controls.
OF (off) — Programmable fan is disabled and the homeowner must manually
select “Auto” or “On” for fan operation.
On — Programmable fan is enabled. The homeowner can program “Auto” or
“On” fan operation along with the heat and cool setpoints for each programmed
period. When the program schedule is running, the programmed heat setpoint,
cool setpoint, and fan selection for that period will be used. If the homeowner
“overrides” the programmed fan setting by pressing the fan button, the override
selection will remain in effect until the next programmed period time.
Default is OF (off).
Option 31 — Daylight Savings Time Configuration (programmable models
only)
This selection allows the installer to set the Thermidistat Control to automatically
change by one hour on the specified day, month, and week specified.
OF (off) — Daylight Savings Time Function disabled.
1,2 On — The first time the UP/DOWN button is pressed, the value of this
selection changes from OF (off) to 1. When 1 is displayed, the days of the week
and clock digits will be turned on. The installer will set the start date (Spring) for
Daylight Savings Time by setting the day of the week by selecting the
appropriate triangle icon next to the days of the week, the month of the year will
be set in the clock hours location (range 1--12) and the week of the month will be
set in the clock minutes location. The week of the month selections will be F, 2,
3, 4, and L for First, 2nd, 3rd, 4th, and Last. So for the first Sunday in April, the
display would show SUN, 4, F. When 2 is displayed, the installer will then
38
choose the end date for daylight savings time (Fall). To activate the function, the
installer changes the “2” by pressing the up button and “On” is displayed. The
setting shall be left “On” to enable the Daylight Savings Time function.
Default is On (on).
Option 32 — Furnace Heat Staging Control (available only when the
Thermidistat Control is configured to operate AC or A2 equipment).
1 — Thermidistat Control controls W1 output only and furnace controls the turn
on and turn off of higher stages of heat.
2 — Thermidistat Control will control the W1 and O/W2/B outputs.
Default is 1.
Option 33 — Single or Two--Piece Installation
This configuration allows the Thermidistat Control to compensate for the
amount of heat generated by the Thermidistat Control electronics to allow more
accurate sensing of the temperature sensor. The amount of heat compensation
will be different between single installation and two--piece installation.
Range: 1P or 2P
1P — The installation is single piece.
2P — The installation is two separate pieces.
Default is 2P.
Option 99 — Reset to Factory Defaults
Use this capability to reset the Thermidistat to “out of the box” conditions.
BEWARE! All configuration settings, program settings, clock, and calendar
which have been manually entered will be lost!
When this option is selected, the configuration number (99), will appear on the
left and 10 will appear on the right. To perform the reset, first use the MODE key
39
to move the box from the 99 to the 10 (programmable model) or to flash the 10
(non--programmable model). Then press and hold the DOWN key. The 10 will
start counting down toward zero. If the DOWN key is kept pressed until the
count reaches zero, the reset will be performed. When the value reaches zero, the
heat setpoint shall display -- -- . The cool setpoint shall display -- and the room air
temperature shall display Fd. When the factory defaults have been restored, the
Thermidistat Control will act as if power was cycled and return to normal
operation. If the DOWN key is released early, the number will return to 10 and
the reset will not occur.
SYSTEM START--UP AND CHECKOUT
The Thermidistat Control is designed with a built--in installer test capability. It
allows easy operation of equipment without delays or setpoint adjustments to
force heating or cooling. To enable installer test mode, press and hold the fan
button for 15 seconds. After 10 seconds, the Thermidistat Control will enter
Configuration Mode. Continuing to hold the Fan button through 15 seconds will
cause the Thermidistat Control to enter Installer Test Mode. Pressing the Mode
button will change the system operating mode to test the heating and cooling
equipment. Auto Mode is not available during Installer Test Mode. If no buttons
are pressed for 15 minutes, the installer test mode will be terminated. Pressing
DONE at any time will exit installer test mode.
Heat -- The first stage of heating will be energized for three minutes, then the first
and second stages (if a second stage exists) will turn on for an additional three
minutes. During the first stage of heating, the HEAT ON icons will be displayed.
During the second stage of heating (if one exists), the “2” next to the “On” will
be displayed if the system has a two--stage compressor (A2, h2, or H2 unit
types). The “auxiliary heat on” icon will be displayed if the second stage is
electric heat (HP unit type). For Hybrid Heat installation or heat pump
40
installation, only 1 stage of auxiliary heat is available. Any staging of auxiliary
heat must be managed by the furnace or fan coil. While the heating test is active,
the humidify output can be toggled. On the programmable models, pressing the
button below the humidify icon shall toggle the state of the humidify output. On
the non--programmable models, pressing the features button shall toggle the state
of the humidify output.
Installer test for cooling is the same as described for heating above. COOL ON
will be displayed during cooling in Installer Test Mode. While the cooling test is
active, the dehumidify icon shall be displayed if the dry contact has been
configured as a DEHUM output. On the programmable models, pressing the
button below the dehumidify icon shall toggle the state of the dry contact output.
On the non--programmable models, pressing the features button shall toggle the
state of the dry contact.
In a heat pump application, when the mode is set to “em heat” the auxiliary heat
will turn on for 3 minutes. The clock display will count down from 180 to 0
during this test.
TO TEST FAN
Fan button switches FAN icon between AUTO and On. While On is displayed,
G output will be energized, turning fan on. Allow up to 10 sec after button is
pressed for fan to turn On and off. On some fan coils, fan continues to operate
for 90 sec after G signal is removed.
Final Settings
Be sure to press DONE to exit installer setup mode. If the system is to be left in
operation after installation is complete, use MODE button to select between
HEAT, COOL, or AUTO to provide desired operation of heating, cooling, or
auto.
41
On the programmable models, the default setpoints and programmed schedule
conform to the Energy Starr requirements of the U.S. Department of Energy for
both heating and cooling. These provide energy saving temperature settings.
Refer to Table 1.
Table 1 – Energy Star Default Schedule
SCHEDULE HEAT COOL
Wake 6:00 AM 68_F 78_F
Day 8:00 AM 60_F 85_F
Evening 5:00 PM 68_F 78_F
Sleep 10:00 PM 60_F 82_F
If the programmed schedule is to be used, make sure the triangle icon next to the
FOLLOW SCHEDULE icon is turned on. Pressing the Schedule button will
cycle the triangle icon through the FOLLOW SCHEDULE, HOLD and
VACA TION selections.
If fixed temperatures are desired, use SCHEDULE button to turn on arrow icon
next to HOLD. This will maintain setpoints, not allowing them to change with
programmed schedule.
The FAN button may be used to select between AUTO (fan on only with
equipment) and On (fan on continuously) fan modes. For further information on
temperature selection and programming, refer to Homeowner’s Guide.
Setting The Clock, Calendar, Daily Schedule, and Vacation
Settings (programmable models only)
To set the clock, press the SET button once. The Clock will be displayed at the
bottom center of the screen. Use the soft keys to move the box around the digits
to be set and the UP/DOWN buttons to change the setting. Concurrent presses of
42
the set button will cycle through the calendar, daily schedule, and vacation
settings.
Calendar may be changed by using the soft keys to select the Month, Day, or
Year. The UP/DOWN buttons are used to change the Month, Day , or Year setting
when the box surrounds it. Day of the week (Mon--Sun) is determined by
calendar settings and is not directly adjustable.
When changing daily schedule settings, the soft keys are used to set the days,
period times, heating setpoints, and cooling setpoints. The UP/DOWN buttons
are used to change the setting with the box around it. ALL PROGRAM
PERIODS (WAKE, DAY, EVE, SLEEP) MUST OCCUR WITHIN THE SAME
24 HOUR PERIOD.
When changing Vacation settings, the soft keys are used to choose the selection
to be adjusted and the UP/DOWN buttons are used to change the setting.
Humidify setting may only be changed when heat mode is selected and
Dehumidify setting may only be changed when cool mode is selected.
Humidity Control Features
The various humidity control features of the Thermidistat Control are explained
below. They are grouped into 2 sections, humidification and dehumidification.
Instructions on how to select each feature are given at the end of each section.
Humidification
The Thermidistat Control directly connects to a standard 24VAC humidifier to
control humidification in the home. A humidify setpoint between 10 and 46% in
2% increments relative humidity is selected by the homeowner, or all
humidification can be turned off. When humidity in home drops below setpoint,
humidifier will be turned on to raise humidity level. Humidification can only
occur while heating. See Table 2 for reference.
43
Table 2 – Humidification Selections
SELECTION FAN DISPLAY
Normal Humidify Blank 10---46
Auto Humidify AUT O 1 --- 9
Humidify Off Blank OF (Off)
HUMIDIFY SETPOINT
DISPLAY
1. Humidify
In normal humidify, humidifier will be on if there is humidity demand
and any heating equipment is on. This will include furnace, heat pump, or
auxiliary heat.
2. Auto Humidify
Thermidistat control will automatically adjust the humidity setpoint according to the outdoor temperature. As the outdoor temperature decreases, the humidity setpoint also decreases. Settings ranging from 1 to
9, 1 being the lowest and 9 the highest, will be visible to the homeowner.
See Fig. 15 for outdoor temperature/indoor humidity relationship in auto
humidify mode.
3. Humidify Off
The humidify function can be turned off completely. This does not require changing existing setpoints.
To Select Humidification (programmable)
Press the soft key below the humidify icon to bring up humidity select screen.
Humidify options are only available when in Heating mode. When system is in
AUTO mode, humidify options are available if the last system operation was a
call for heat.
44
To Select Humidification (non--programmable)
Press the features button twice. The first press displays the outdoor air
temperature and the second press displays the humidity value and humidify
target.
Pressing the mode button shall cycle through the available humidification
selections (Off, Humidify and Auto Humidify).
Additional Humidify Comments
The humidifier is actually turned on when humidity is 1% below setpoint and
turned off when it reaches 1% above setpoint. This built--in hysteresis prevents
humidify output from toggling on and off when humidity level is near setpoint.
Dehumidification
Dehumidification is done only during cooling. Depending on type of equipment
used, compressor speed, blower speed, setpoint adjustment, and equipment
cycling are modified to provide added dehumidification. A dehumidification
setpoint (separate from humidification setpoint) is available to the homeowner. It
can range from 46% to 66% relative humidity. When actual humidity is higher
than setpoint, a dehumidification demand exists. The Thermidistat Control
responds by activating the dry contact (when enabled in Option 19). It may also
control the compressor and blower, depending on equipment type and
dehumidify selection choice. The 3 available selections are described below. A
mandatory 5 minute blower off delay will be enforced if there has been a call for
dehumidification during a cooling call. The amount of extra dehumidification
available is very dependent on the type of equipment in the home. Without a
variable--speed blower, the system’s ability to adjust dehumidification is very
limited.
45
1. Normal Dehumidify Operation
When normal dehumidify is selected, the compressor will not turn on
without a cooling demand. If dehumidify demand exists while cooling,
dry contact will also be active (24VAC removed). This output commands
variable--speed blowers to reduce their airflow, which improves water removal from the cooled air.
2. Cool to Dehumidify
The cool to dehumidify selection tells the system to operate the compressor, within limits, when there is a dehumidify demand even if there is no
cooling demand. The limits are that the system may overcool up to 3_F,
but no more, while attempting to satisfy a dehumidify demand. Within
this 3_F range, there is an additional balance between overcooling and
humidity satisfaction. When overcooling must occur, the dehumidify setpoint is adjusted upward by 2% per degree of overcooling. For example,
a cooling setpoint of 76_F and a dehumidify setpoint of 60% is equivalent to a cooling setpoint of 75_F and a dehumidify setpoint of 62%. This
dehumidify setpoint change is internal to the Thermidistat Control and is
not shown on the display.
46
A06599
Fig. 16 -- Auto Humidity
3. Dehumidify Off
Dehumidification can be turned off completely. This can be done without
changing existing setpoints.
To Select Dehumidification (programmable -- between NORMAL, COOL
TO, and OFF)
Press the soft key below the dehumidify icon button to bring up dehumidify
selections. Dehumidify options are only available when in Cooling mode. When
47
system is in AUTO mode, dehumidify options are available if the last system
operation was a call for cooling.
To Select Dehumidification (non--programmable -- between NORMAL,
COOL TO, and OFF)
Press the features button three times. The first press displays the outdoor air
temperature, the second press displays the humidify options and the third press
will display the current dehumidify selections.
The mode button is used to cycle through the dehumdify selections.
Additional Dehumidify Comments
Dehumidification can be enhanced (with some ef ficiency loss) by turning blower
off immediately at the end of each cooling cycle (eliminating normal 90 sec
blower off delay). Where maximum humidity removal is desired, this should be
done. Fan coils have the capability of removing this off delay. On FK or FV Fan
Coils, set delay tap to 0/0. On standard fan coils, a jumper can be cut to disable
off delay. Refer to fan coil Installation Instructions for details. If FAN is set for
continuous operation (fan On icon displayed), G output is turned off for 5
minutes at the end of each cooling cycle as long as dehumidify demand exists.
Like humidify, dehumidify actions are initiated when humidity is 1% above
setpoint and are terminated when humidity drops to 1% below setpoint. This
prevents unnecessary toggling of dehumidify actions when humidity is near
setpoint.
Dehumidify Output and Equipment Connections
When there is a dehumidify demand, dry contact is activated, meaning that a
24VAC signal is removed from the DHUM output terminal. In o ther words,
dehumidify output logic is reversed -- output is turned On when no dehumidify
demand exists and is turned OFF when demand exists.
48
Bryant FK and FV series variable--speed fan coils, all variable--speed furnaces,
and select single and multi--stage furnaces with the dehumidify connection have
dehumidify inputs which connect directly to Thermidistat Control dry contact.
Refer to the furnace literature for dehumidification options.
The FK and FV series fan coils have a terminal marked DH which should be
connected to the Thermidistat control dry contact output. Jumper J1 on fan coil
MUST be removed. It is located behind the DH terminal. Additionally blower
delay tap on fan coil should be set to 0/0 (no On delay and no OFF delay) when
using cool to dehumidify. With this selection, the blower stops when G signal is
removed, preventing re-- evaporation of water from the coil which would occur
during the normal 90 sec blower off delay. See fan coil installation instructions
for more information. (See Wiring Diagram Reference Chart and Fig. 2 through
19 in Wiring Diagram section at the back of this piece literature.)
The furnace dehumidify input acts differently depending on which style of
variable speed, select single--stage or multi--stage furnace control you have.
Vacation (programmable models only)
A vacation selection is available specifically for times where the home will not
be occupied for an extended period. Vacation mode has an automatic hold,
meaning that setpoints are not affected by the programmed schedule. Vacation
mode is active for a specified period of time. While in vacation mode, the system
provides temperature and humidity protection for the home in the selected mode,
but not comfort. When vacation mode is active, an arrow will be displayed
beside “VACATION” in the upper left corner of the display.
49
Vacation Setpoints
A special set of temperature and humidity setpoints exist which are active in
vacation mode. They are adjustable by the homeowner, are exclusively for
vacation mode, and are remembered from one vacation selection to the next. See
Table 3 for default values.
Table 3 – Vacation Setpoints Default Values
MODE AUTO
Fan Auto
Heat Setpoint 55
Cool Setpoint 85
Humidify Setpoint 20
Dehumidify Setpoint 60
Vacation Humidification
Normal humidify is available using vacation setpoints. Auto humidification is
available, adjusting its setpoint with outdoor temperature the same as when
occupied. Vacation humidification can be turned off independently of occupied
humidification. While setting the Vacation setpoints, the V acation humidify
setpoint is accessible by pressing the soft key below the humidify icon when the
box is around the heating setpoint.
Vacation Dehumidification
Normal Dehumidify, Cool to Dehumidify, and Dehumidify OFF are all available
in vacation mode, and selection of one of these can be different from that of
occupied. Vacation dehumidification selection and setpoints are remembered the
next time vacation is used. While setting Vacation setpoints, the Vacation
dehumidify setpoint is accessible by pressing the soft key below the dehumidify
icon when the box is around the cooling setpoint.
50
OPERAT IONAL INFORMATION
Timers
Five--Minute Compressor Timeguard
This timer prevents compressor from starting unless it has been off for at least 5
minutes. It can be overridden for 1 cycle by simultaneously pressing FAN and
UP buttons.
Cycle Timer
Based on the selection of 2, 4, or 6 cycles per hour, this timer is set to 30, 15, or
10 minutes. This much time must elapse from the start of one cycle before
another cycle can start. It serves to impose the cycles per hour limits. It can be
defeated for one cycle by simultaneously pressing the FAN and UP buttons.
Ten--Minute Staging Timer
In multistage heating or cooling, this timer prevents any higher stage from
turning on until preceding stage has been on for 10 minutes. When staging
between compressor and electric heat or between compressor and furnace heat,
the time is configurable. The timer is configurable via Option 17. This timer is
overridden if temperature error is greater than 5_F (usually due to a large change
in desired temperature) and equipment stages up in 60 second intervals.
Defrost
When defrost occurs in a Hybrid Heat system, the furnace will operate during the
defrost cycle. At the end of the defrost cycle, the furnace and heat pump will be
de--energized while the fan is energized for 2 minutes allowing the heat
exchanger to cool down. At the end of the 2 minute time, the heat pump will be
re--energized if a call for heat still exists.
Detection of defrost will not work properly if the installer has configured the
O/W2/B output to function as a B output. During heat pump heating, a defrost
51
signal shall be considered valid if the compressor output is energized and the
defrost signal has been active for less than 15 consecutive minutes. Any defrost
signal present for longer than 15 minutes shall be considered invalid.
Heat pump/fan coil and hybrid heat systems shall use this input to:
S Detect that defrost is in progress and energize the auxiliary heat to
provide homeowner comfort during the defrost cycle
S Allow a defrost cycle to run to completion regardless of the system
demand
Three--Minute Minimum on Time
In normal operation, when a stage turns on, it will not turn off for a minimum of
3 minutes. If the setpoint is changed, this timer is canceled, allowing the
equipment to turn off immediately when the demand is removed.
Heat/Cool Setpoints (Desired Temperature)
A minimum difference of 1_F and maximum of 6_F is enforced between heating
and cooling desired temperatures. This is done by allowing 1 setting to “push”
the other, to maintain this difference. This difference is adjustable via
Configuration Option 11.
Equipment On Indicators
When cooling equipment is on, a COOL ON icon is displayed. While cooling
equipment operation is delayed by the time guard or cycle timer, COOL ON will
flash. The same is true for HEAT ON icon.
During second stage compressor operation a “2” will be displayed with the
HEAT ON or COOL ON icon. This is displayed when the Thermidistat Control
is configured as H2, A2, or h2.
When the W is energized in a heat pump or Hybrid Heat system, the “auxiliary
heat on” icon will be displayed.
52
Humidify and Dehumidify Indicators
When the Display Module door is closed, the humidify icon will be displayed
when humidification is active and the dehumidify icon will be displayed when
dehumidification is active.
Auto Changeover
When auto changeover mode is selected, a change from heat to cool (or vice
versa) will not occur until an opposite mode demand has existed for 20 minutes.
If setpoint is changed, 20--minute requirement is deleted.
Emergency Heat Mode
When Thermidistat Control is configured as a heat pump and emergency heat is
selected, all Y signals are locked out, and W becomes energized upon a call for
heat.
Programmable Fan (programmable models only)
The fan output can be programmed based on period of the day. When
programming for each day and period the fan can be set to On or AUTO.
Dry Contact
On the programmable models, the dry contact that can be used for control of an
auxiliary device. The dry contact may be configured to be closed for a specific
number of minutes per hour for each period of the program schedule. This can
be used to operate a ventilator, damper, system blower, or other auxiliary device.
There are two terminals, D1 and D2.
On both the programmable and non--programmable models, when configured as
a dehumidify output, it will operate cooling equipment capable of dehumidify
function. When configured for dehumidification, the Rc terminal must be
connected to one of the dry contact terminals. The other dry contact terminal is
connected to the dehumidify terminal on the furnace or fan coil. This provides
53
power to energize the dehumidify terminal on the cooling equipment when the
dry contact is closed.
If it is desired to operate a ventilator or other device, the D1 and D2 terminals
can be connected directly to the equipment. This will provide a closed contact
for the specified number of minutes per hour. See Option 19.
If timed control of the system blower is required, the dry contact can be used for
this function. The G terminal can be connected to one of the dry contact
terminals with the other terminal being connected to Rc and/or Rh for timed
control of the fan. Note that this is not the same as programmable fan Option 30.
See Wiring Diagrams for more information.
TROUBLESHOOTING
If the display module doesn’t power up after power is applied, check the Rc/Rh
and C terminals for 24VAC. If 24VAC is present, check the voltage between Vg
and V+. This voltage will be approximately 12--20VDC. If voltage is present,
check the polarity to make sure it is wired correctly. The display will not power
up if polarity is reversed.
Error Codes
“-- -- ” -- If Thermidistat Control cannot properly read room temperature, display
will indicate “----” and all outputs (except fan, if on) will turn off. In the case
where the installer has selected to average the local sensor and the remote room
sensor, the Thermidistat Control display will alternate between “----” for the
failed sensor and the temperature sensed by the working sensor every 10
54
seconds. The control will operate from the temperature sensed by the working
sensor.
E1 -- If the Display Module and the Equipment Control Module cannot
communicate via two--wire connection, an E1 will be displayed.
E2 --ThereisnoE2errormessage.
E3 -- If Thermidistat Control cannot properly read outdoor temperature, and it is
needed for proper operation, display will indicate “-- --” in the outdoor
temperature location.
E4 -- If Thermidistat Control’s internal memory fails, E4 will be displayed.
Replace Thermidistat Control.
E5 -- If Thermidistat Control cannot properly read humidity, E5 will be
displayed. Replace Thermidistat Control. If both Humidify and Dehumidify
have been set to OF, the humidity value will be shown as “-- -- ” when viewed
from the humidity menu, but no E5 will be shown in the display.
Table 4 can be used as a troubleshooting tool for determining which outputs will
be active for a particular configuration and each operating mode.
55
Table 4 – Equipment Configuration Outputs
EQUIPMENT
CONFIGURATION
OPTION #1
Single -- stage AC AC Y/Y2 -- W/W1 -- -- --
Single -- stage AC
Single -- stage HP
RVS = C
Single -- stage HP
RVS = H
Single -- stage HP
RVS = C
Single -- stage HP
RVS = H
Two--stage AC 2S Y1
Two--stage HP
RVS = C
Two--stage HP
RVS = H
Single -- stage
Hybrid Heat
RVS = C
Single -- stage
Hybrid Heat
RVS = H
HARDWARE
CONFIGURATION
HP
2S
HP
HP Y/Y2 --
2S
2S Y/Y2 --
2S
2S Y1
2S
2S Y/Y2 --
COOL
STAGE
O/W2/B
O/W2/B
O/W2/B
O/W2/B
COOL
STAGE
1
Y/Y2 -- W/W1
Y/Y2
Y/Y2
Y1
O/W2/B
Y/Y2
STAGE
2
-- Y/Y2
O/W2/B
-- Y/Y2
O/W2/B
Y/Y2
Y1
Y1
Y/Y2
Y1
Y/Y2Y1O/W2/B
-- Y/Y2 W/W1 -- W/W1
O/W2/B
HEAT
Y/Y2
Y/Y2
W/W1
Y1
Y/Y2
HEAT
STAGE
1
2
W/W1
O/W2/B
Y/Y2
W/W1
Y/Y2
W/W1
O/W2/B
Y/Y2
W/W1
Y/Y2
W/W1
O/W2/B
W/W1
O/W2/B
Y1
Y/Y2
Y1
Y/Y2
O/W2/B
W/W1 -- W/W1
HEAT
STAGE
3
-- --
-- W/W1
-- W/W1
-- W/W1
-- W/W1
-- --
Y1
Y/Y2
W/W1
Y1
Y/Y2
O/W2/B
W/W1
EM
HEAT
STAGE
1
W/W1
W/W1
56
Table 4 -- Equipment Configuration Outputs (cont)
EQUIPMENT
CONFIGURATION
OPTION #1
Two--stage
Hybrid Heat
RVS = C
Two--stage
Hybrid Heat
RVS = H
Heat Only Unit
Cool Only Unit 2S Y1
Cool Only Unit
HARDWARE
CONFIGURATION
2S
2S Y1
AC
HP
2S
AC
HP
COOL
STAGE
O/W2/B
COOL
STAGE
1
Y1
O/W2/B
-- -- W/W1 -- -- --
Y/Y2 -- -- -- -- --
HEAT
STAGE
2
Y1
Y/Y2
Y1
Y/Y2Y1O/W2/B
Y1
Y/Y2
1
Y1
-- -- -- --
HEAT
STAGE
2
Y1
Y/Y2
Y1
Y/Y2
O/W2/B
HEAT
STAGE
3
W/W1 W/W1
W/W1 W/W1
EM
HEAT
STAGE
1
57
WIRING DIAGRAMS
Display module
V+
Vg
* Indicates connection may not be required/available.
Display module wall mount Equipment Control Module
V+ V+
Vg Vg O O
V+ RVS/Heat Stage 2 O/B W 2 W3 W2
Vg Heat Stage 1 W/W 1 W2
Compressor Y/Y2 Y Y
Not Used Y1
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C COM COM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Fig. 17 -- Display to Equipment Control Module Connection
Fan Coil
Outdoor Sensor *
Remote Room
*
Heat Pump
A07164
58
Thermostat Fan Coil Heat Pump
OO
RVS/Heat Stage 2 O/B W2 W3 W2
Heat Stage 1 W/W1 W2
Compressor Low Y1 Y1 Y1
Compres sor High Y/Y2 Y/Y2 Y/Y2
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 18 -- FV/FK Fan Coil w/2-- Stage Heat Pump
* Indicates connection may not be required/available.
A06573
59
Thermostat Fan Coil Heat Pump
RVS/Heat Stage 2 O/B W2 W 3 W2
Heat Stage 1 W/W 1 W2
Compressor Low Y1
Compressor High Y/Y2 Y
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C COM COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Typical Single-Stage
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*

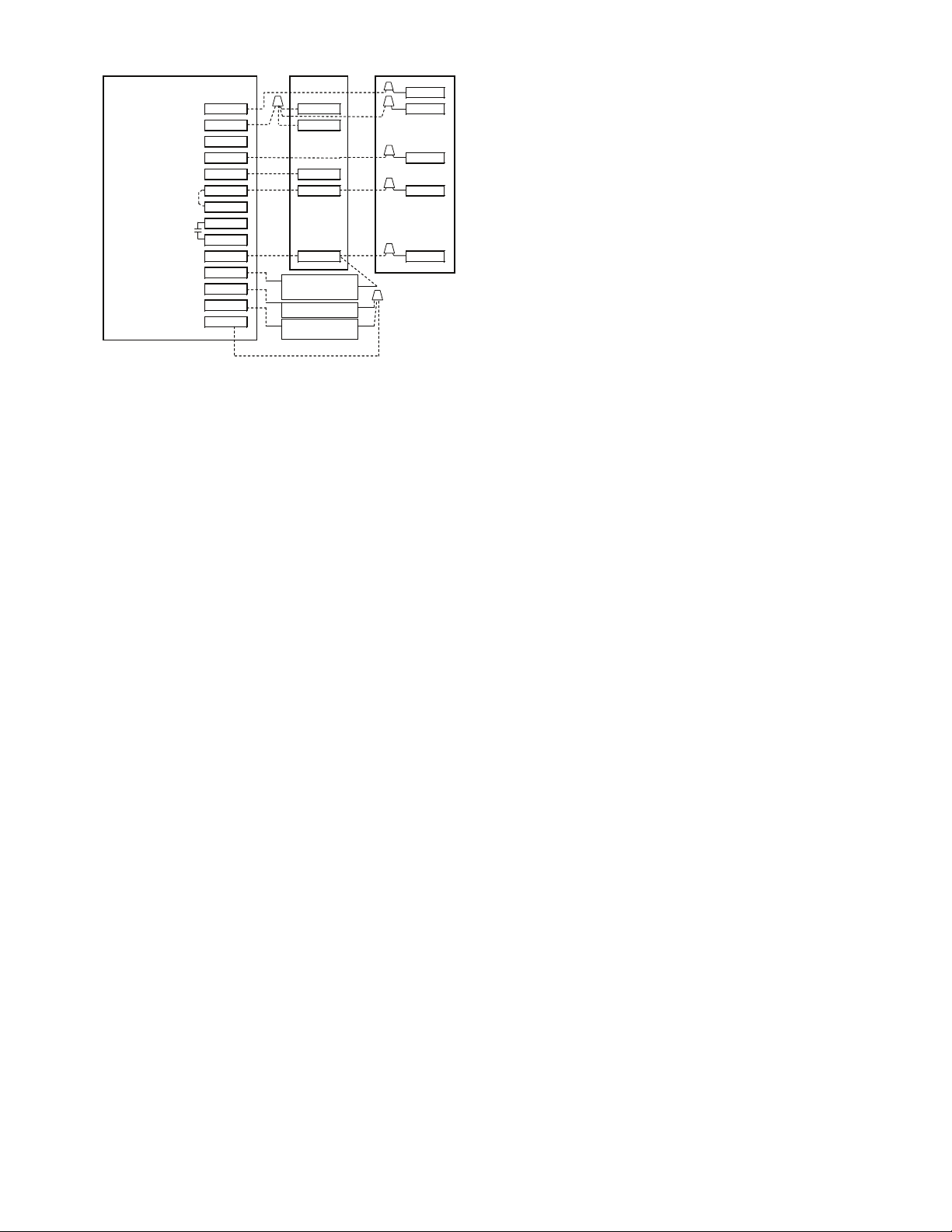

Fig. 19 -- Typical Fan Coil w/Heat Pump
* Indicates connection may not be required/available.
O
A06574
60
Thermostat
RVS/Heat Stage 2 O/B W2 W3
Heat Stage 1 W/W 1 W2
Compressor Low Y1
Compressor High Y/Y2
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 Aux. Connection
24VAC Common C COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com O AT/RRS
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 20 -- Fan Coil Shown w/Aux. Connection #1
(Heat Pump/Air Conditioner removed for clarity.)
* Indicates connection may not be required/available.
A06575
61
Thermostat Fan Coil Air Conditioner
O
RVS/Heat Stage 2 O/B W2 W 3
Heat Stage 1 W/W 1 W2
Compressor Low Y1 Y1 Y1
Compres sor High Y/Y2 Y/Y2 Y/Y2
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM CO M
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 21 -- FV/FK Fan Coil w/2--Stage Air Conditioner
* Indicates connection may not be required/available.
A06576
62
Thermostat Fan Coil Air Conditioner
RVS/Heat Stage 2 O/B W2 W 3
Heat Stage 1 W/W 1 W2
Compressor Low Y1
Compressor High Y/Y2 Y
Fan G G
24VAC Hot Heating Rh R R *
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C COM CO M
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Typical Single-Stage
O
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 22 -- Typical Fan Coil w/Air Conditioner
* Indicates connection may not be required/available.
A06577
63
Thermostat
RVS/Heat Stage 2 O/B W 2 W 3
Heat Stage 1 W/W 1 W2
Compressor Low Y1
Compressor High Y/Y2
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 Aux. Connection
24VAC Common C COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com O AT/RRS
Fan Coil
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 23 -- Fan Coil Shown w/Aux. Connection #2
(Heat Pump/Air Conditioner removed for clarity.)
* Indicates connection may not be required/available.
A06578
64
Thermostat Fan Coil Heat Pump
OO
RVS/Heat Stage 2 O/B W2 W 3 W2
Heat Stage 1 W/W 1 W2
Compressor Low Y1 Y1
Compres sor High Y/Y2 Y/Y2 Y
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM CO M
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 24 -- FV/FK Fan Coil w/1-- Stage Heat Pump
* Indicates connection may not be required/available.
A06579
65
Thermostat Fan Coil
RVS/Heat Stage 2 O/B W2 W 3
Heat Stage 1 W/W 1 W2
Compressor Low Y1
Compressor High Y/Y2
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Typical
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
Fig. 25 -- Typical Fan Coil Heating Only
* Indicates connection may not be required/available.
*
A06580
66
Thermostat
RVS/Heat Stage 2 O/B W2
Heat Stage 1 W/W1
Compressor Low Y1
Compressor High Y/Y2
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C C
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
A06581

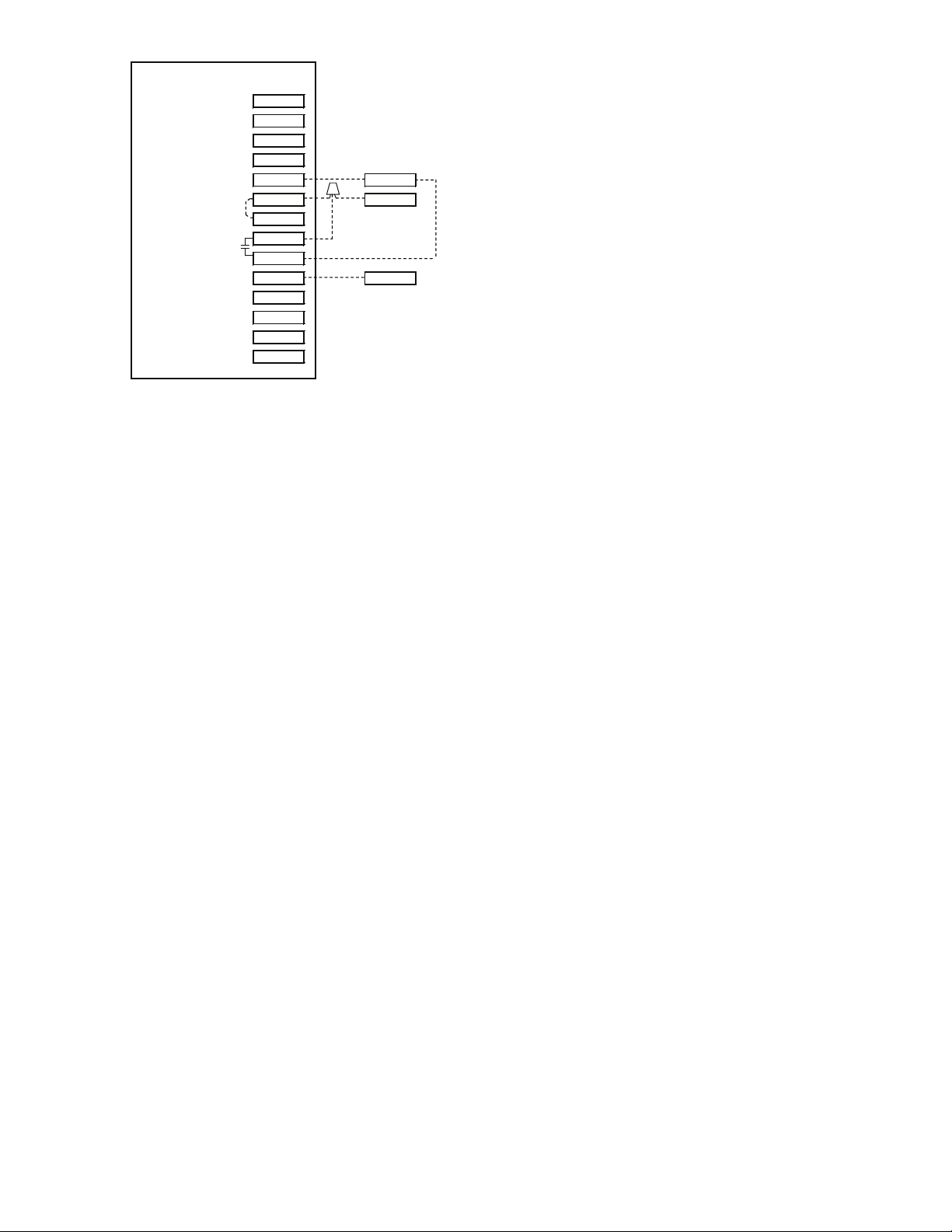

Fig. 26 -- Thermidistat Control w/Dry Contact Control for Fan Run Time
* Indicates connection may not be required/available.
67
Thermostat Fan Coil Air Conditioner
O
RVS/Heat Stage 2 O/B W2 W 3
Heat Stage 1 W/W 1 W2
Compressor Low Y1 Y1
Compres sor High Y/Y2 Y/Y2 Y
Fan G G
24VAC Hot Heating Rh R R *
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM CO M
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 27 -- FV/FK Fan Coil w/1--Stage Air Conditioner
* Indicates connection may not be required/available.
A06582
68
Thermostat Fan Coil Air Conditioner
RVS/Heat Stage 2 O/B W2
Heat Stage 1 W/W 1
Compressor Low Y1
Compressor High Y/Y2 Y
Fan G G
24VAC Hot Heating Rh R R *
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2
24VAC Common C COM CO M
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Typical Single-Stage
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 28 -- Typical Fan Coil Cooling Only
* Indicates connection may not be required/available.
A06583
69
Thermostat Furnace Heat Pum p
O
RVS/Heat Stage 2 O/B W2 W 2
Heat Stage 1 W/W 1 W/W 1 W2 *
Compressor Low Y1 Y1 Y1
Compres sor High Y/Y2 Y/Y2 Y/Y2
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM CO M
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*

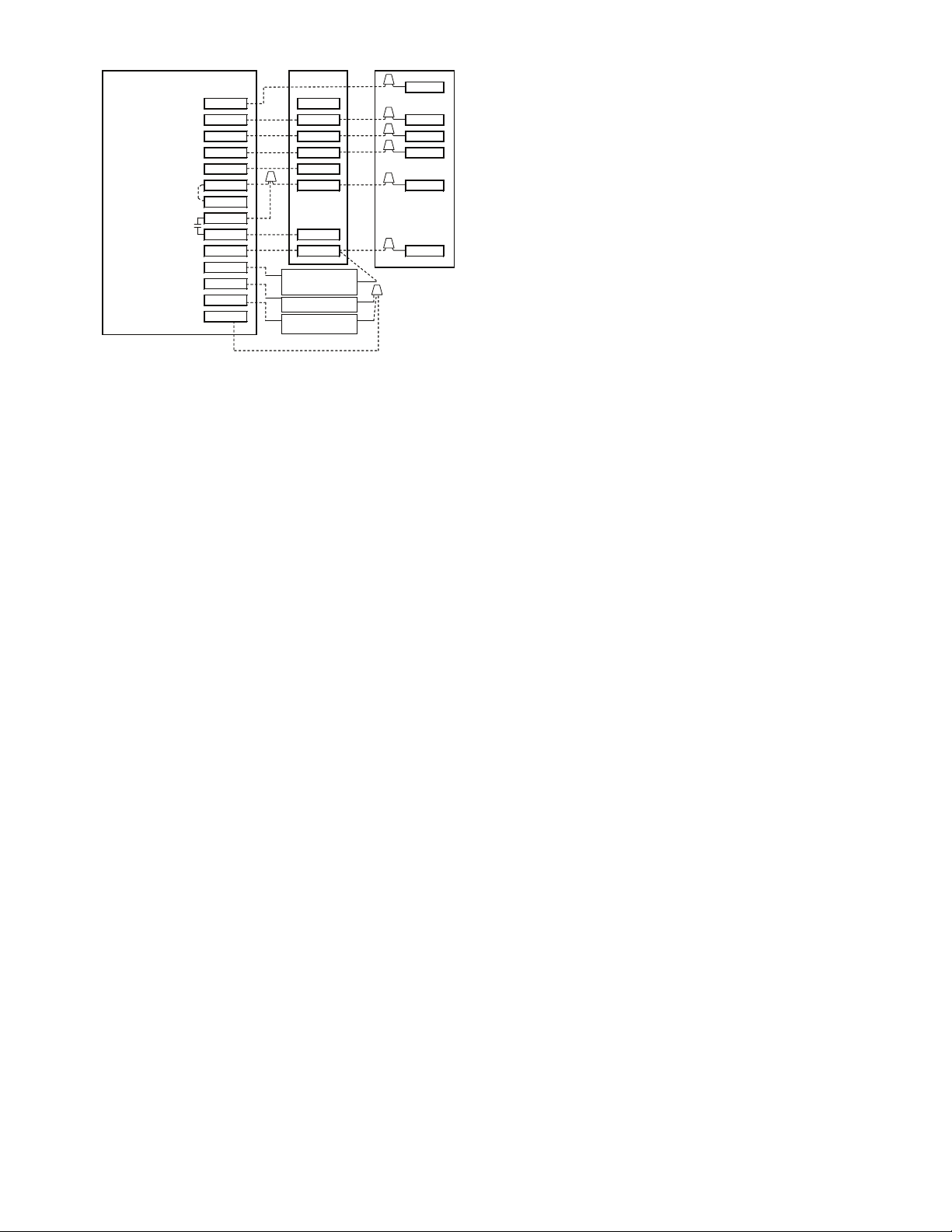

Fig. 29 -- Variable Speed/Multi--Stage Furnace w/2--Stage Heat Pump
* Indicates connection may not be required/available.
A06584
70
Thermostat Furnace Heat Pum p
RVS/Heat Stage 2 O/B W2
Heat Stage 1 W/W 1 W W2 *
Compressor Low Y1
Compressor High Y/Y2 Y Y
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Single-Stage Single-Stage
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 30 -- Single--Stage Furnace w/Heat Pump
* Indicates connection may not be required/available.
O
A006585
71
Thermostat Furnace Air Conditioner
RVS/Heat Stage 2 O/B W2 W 2
Heat Stage 1 W/W 1 W1
Compressor Low Y1 Y1 Y1
Compres sor High Y/Y2 Y/Y2 Y/Y2
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM CO M
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
A06586

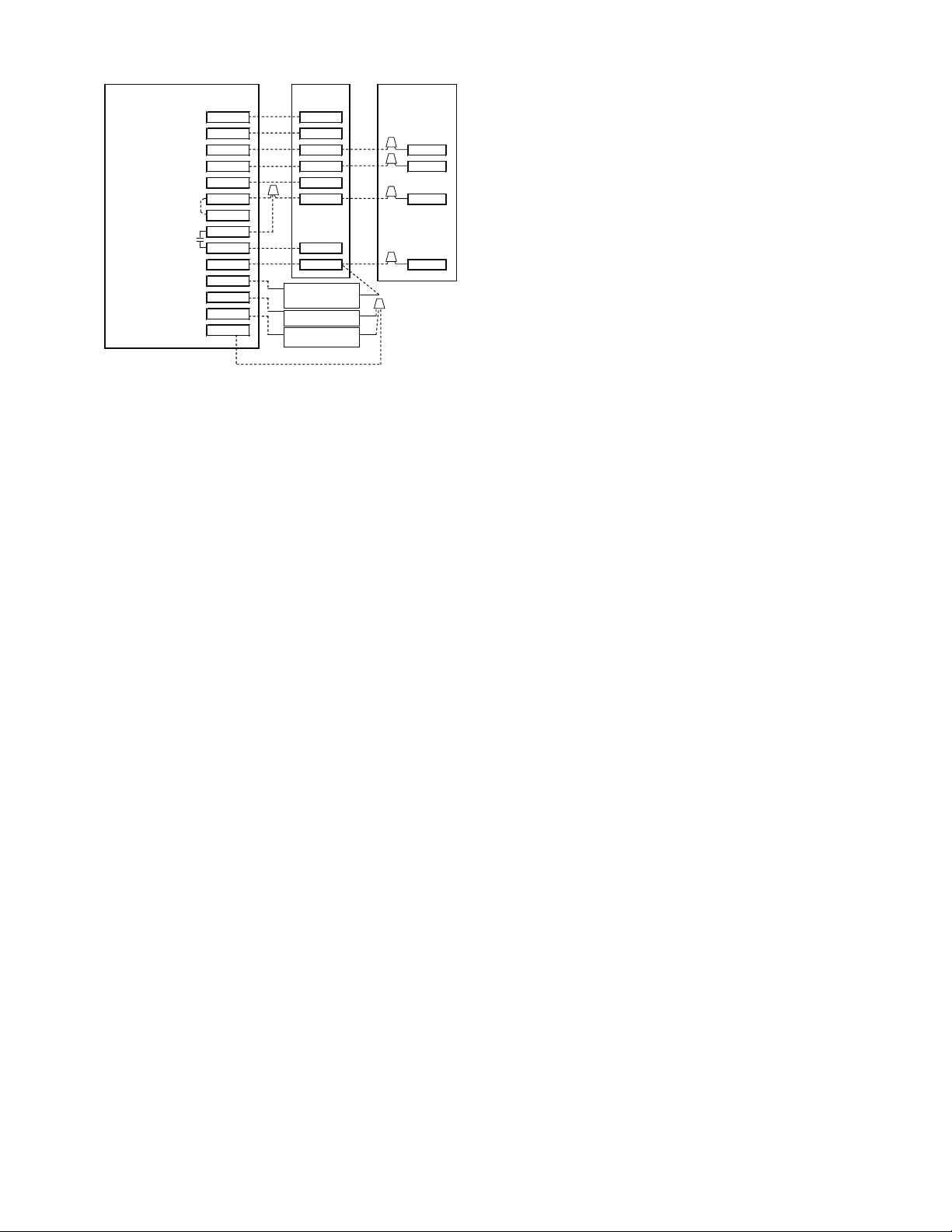

Fig. 31 -- Variable Speed/Multi--Stage Furnace w/2--Stage Air Conditioner
* Indicates connection may not be required/available.
72
Thermostat Furnace Air Conditioner
RVS/Heat Stage 2 O/B W2
Heat Stage 1 W/W 1 W
Compressor Low Y1
Compressor High Y/Y2 Y Y
Fan G G
24VAC Hot Heating Rh R R *
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM CO M
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Single-Stage Single-Stage
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 32 -- Single--Stage Furnace w/Air Conditioner
* Indicates connection may not be required/available.
A06587
73
Thermostat Furnace Heat Pum p
O
RVS/Heat Stage 2 O/B W2 W 2
Heat Stage 1 W/W 1 W1 W2 *
Compressor Low Y1 Y1
Compressor High Y/Y2 Y/Y2 Y
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
A06588
Fig. 33 -- Variable Speed/Multi--Stage Furnace w/Single--Stage Heat Pump
* Indicates connection may not be required/available.
74
Thermostat Furnace
RVS/Heat Stage 2 O/B W2
Heat Stage 1 W/W 1 W
Compressor Low Y1
Compressor High Y/Y2
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Single-Stage
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 34 -- Single--Stage Furnace Heating Only
* Indicates connection may not be required/available.
A06589
75
Thermostat Furnace Air Conditioner
RVS/Heat Stage 2 O/B W2 W2
Heat Stage 1 W/W 1 W 1
Compressor Low Y1 Y1
Compressor High Y/Y2 Y/Y2 Y
Fan G G
24VAC Hot Heating Rh R R *
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Variable Speed/Multi-Stage
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*

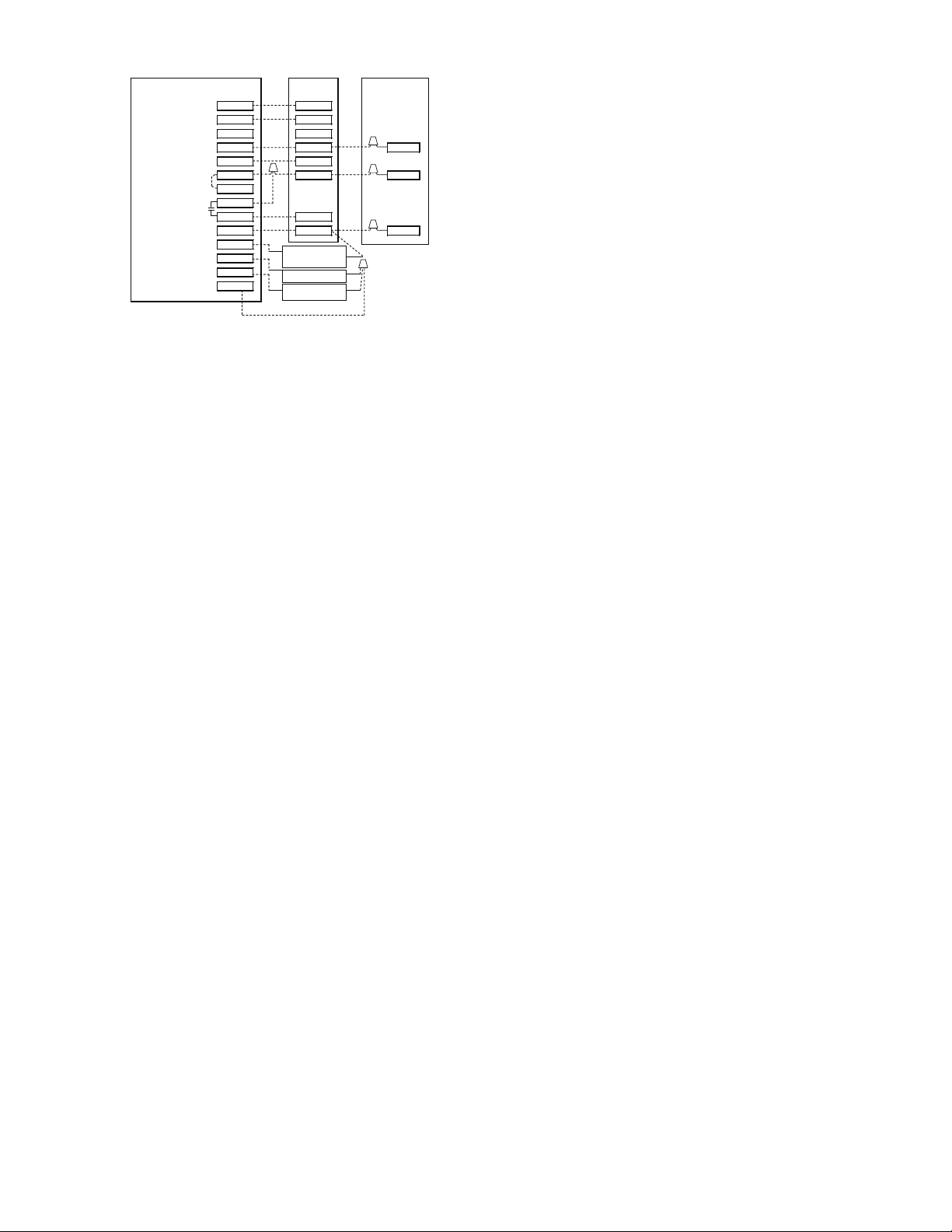

Fig. 35 -- Variable Speed/Multi--Stage Furnace w/Single--Stage
Air Conditioner
A06590
76
Thermostat Furnace Air Conditioner
RVS/Heat Stage 2 O/B W 2
Heat Stage 1 W/W 1 W
Compressor Low Y1
Compressor High Y/Y2 Y Y
Fan G G
24VAC Hot Heating Rh R
24VAC Hot Cooling Rc R *
Dry Contact 1 D1
Dry Contact 2 D2 DEHUM
24VAC Common C COM COM
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com OAT/RRS
Single-Stage Single-Stage
Humidifier Solenoid
Valve *
Outdoor Sensor *
Remote Room
*
Fig. 36 -- Single--stage Furnace with Air Conditioner and Split Power
* Indicates connection may not be required/available.
NOTE: Rc/Rh jumper is cut on the Equipment Control Module.
A07760
77
THERMIDISTAT CONFIGURATION RECORD
Installer
_________________________
A. Hardware Configuration
__________ Seal Hole In Wall
B. Mode Settings
__________ Mode (Off, Heat, Cool, Auto, Em Heat)
__________ Heating Setpoint Value
__________ Cooling Setpoint Value
__________ Fan (Auto or On)
C. Home, Away, Sleep Settings
Heat Cool
Home
Away
Sleep
D. Schedule (For P rogrammable Therm idistat Controls)
All Days
Weekdays
Weekend
____ ____
____ ____
____ ____
Perio d 1 Pe rio d 2 Pe rio d 3 Per iod 4
Time Heat Cool Time Heat Cool Time Heat Cool Time Heat Cool
____ ____ ____ ____ ____ ____ ____ ____ ____ ____ ____ ____
____ ____ ____ ____ ____ ____ ____ ____ ____ ____ ____ ____
____ ____ ____ ____ ____ ____ ____ ____ ____ ____ ____ ____
Model Number
______________________________
Date
_________________________
78
E. Configuration Options
Option 01
Option 02
Option 03*
Option 04
Option 05
Option 06
Option 07
Option 08
Option 09
Option 10
Option 11
Option 12 _____ Smar t Recovery (programmable models only)
Option 13
Option 14
Option 15
Option 16
Option 17
Option 18*
Equipment Type
_____
Clean Filter Timer Adjustment
_____
Fahrenheit/Centigrade Selection
_____
Fan (G) on with W/ W1 Selection
_____
Room Air Temperature Sensing (programmable models only)
_____
Cooling Lockout Below 55_F Selection (only available if outdoor ai r sensor i s present)
_____
Zoning
_____
Auxiliary Heat Lockout Temperature Setting (only availablewhen heat pump is used and when outdoor ai r
_____
temperature sensor is present)
Heat Pump Lockout Temperatur e
_____
Reversing Valve
_____
Adjustable Setpoint Deadband (not availabl e on Heat Only and C ool Only systems)
_____
Room Air Temperature Offset Adjustment
_____
Humidit y Offset Adjustment
_____
Enable Auto Mode
_____
Cycles Per Hour
_____
Time Between Stages
_____
Backlight Confi guration
_____
79
E. Configuration Options (cont)
Option 19
Option 20
Option 21*
Option 22
Option 23
Option 24*
Option 25*
Option 26
Option 27
Option 28
Option 29
Option 30*
Option 31*
Option 32
Option 33
Dry Contact (programmable models only)
_____
Outdoor Air Temperature Offset Adjustment
_____
Keypad Lockout
_____
High Cool Latch Temperature
_____
High Heat Latch Temperature
_____
Programmabl e/Non--Programmabl e (programmable models only)
_____
Number of Programmable Periods Per Day (pr ogrammable models only)
_____
Minimum Cooling Setpoint
_____
Maximum Heating Setpoint
_____
UV Light Reminder
_____
Humidif ier Pad Reminder
_____
Programmabl e Fan (pr ogrammable models only)
_____
Daylight Savings Time Configur ation (programmable models only)
_____
Furnace Heat Staging
_____
Single or Two-- Piece Install ation
_____
* Options with an asterisk can also be set/changed by the homeowner.
E2007 Bryant Heating & Cooling Systems 7310 W. Morris St. Indianapolis, IN 46231
Printed in U.S.A. Edi tion Date: 09/07
Manufacturer reserves the right to change, at any time, specifications
and designs without notice and without obligations.
C a t a l o g N o : I I T 6 --- P R H --- 0 2
R e p la ce s: I I T 6 --- P R H --- 01
80
Loading...
